User Manual
Document NO.
Revision NO.
0.1
Page
1 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
Product Specification
INT NODE HP
Document NO.
Revision NO.
0.1
Page
2 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
Index
1. Summary ........................................................................................................................................................ 3
2. Product Specification ..................................................................................................................................... 3
3. Antenna Characteristic ................................................................................................................................... 4
4. Block Diagram ................................................................................................................................................ 5
5. Main function ................................................................................................................................................. 5
6. System Configuration ..................................................................................................................................... 6
Document NO.
Revision NO.
0.1
Page
3 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
1. Summary
It defines the part of the circuit INT NODE V0.2 HP.
2. Product Specification
2.1 Electrical Specification
Type No.
Description
Input Voltage
DC 5~48V(Typ.15V)
Power consumption
About 45mA@15V/ Max. 0.7W
Protocol
IEEE 802.15.4 / Zigbee Pro
Frequency
2.4 GHz (ISM band: International) / 2400 … 2480 MHz, (16Channel)
RF Tx Power
Max. +20dBm (Typ. 18dBm)
RF Rx sensitivity
-96dBm
Data rate
250kbps
Dim interface
0-10 V DC
ADC Input Level
0 ~ 1.5V
Interface
UART1(Debug & Download)
Dimensions (W x L)
45x35 mm
Antenna
IFA, Gain 2dBi
2.2 Environmental Specification
Item
Specification
Operating Temp. Range
-30℃ ~ +70℃ /IEC 60068-2-1 Ab
Storage Temp. Range
-40℃ ~ +70℃ /IEC 60068-2-2 Bb
Operating Humidity
5% ~ 95% (No dew condensation) /IEC 60068-2-56
Document NO.
Revision NO.
0.1
Page
4 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential

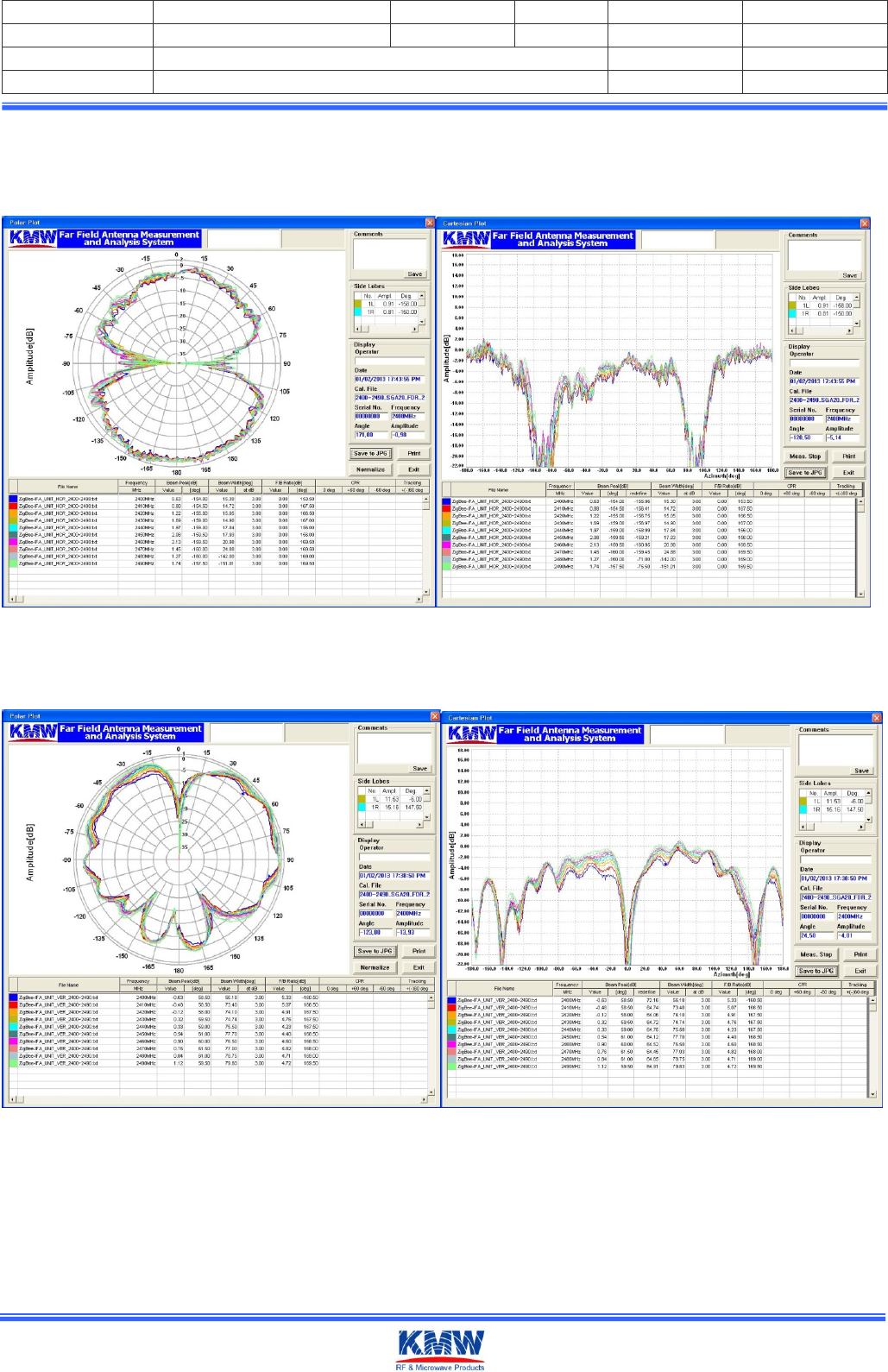

3. Antenna Characteristic
- Horizontal
- Vertical
Document NO.
Revision NO.
0.1
Page
5 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
4. Block Diagram
[INT Node HP block diagram]
5. Main function
5.1. Dimming control using PWM.
5.2. Real-time monitoring and control with Zigbee wireless communication
5.3. Gateway notified when an alarm occurs in the lamp.
5.4. Download using the debug port and remote.
Document NO.
Revision NO.
0.1
Page
6 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
6. System Diagram
6.1 LCS System Block Diagram
< LCS System Block Diagram>
6.2 Zigbee Network Configuration
Node
[Coordinator]
Node
[Router]
Node
[Router]
Node
[Router]
Node
[Router]
Node
[Router]
Node
[Router]
Gateway
[Null Zigbee
Modem]
<Zigbee Mesh Topology Diagram>
Document NO.
Revision NO.
0.1
Page
7 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
FCC compliance Information
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
Including interference that may cause undesired operation. Modifications not expressly approved by the
manufacturer could void the user’s authority To operated the equipment under FCC rules. To satisfy FCC
exterior labeling requirements, the following text must be placed on the exterior of the end product.
Contains Transmitter Module FCC ID : ORI-INT-NODE-HP
CAUTION : This device and its antenna(s) must not be co-located or operated in conjunction with any other
antenna or transmitter. End users cannot modify this transmitter device. Any unauthorized modification could
void the user’s authority to operate this device.
This module is limited to installation in fixed applications, and only installed Lighting Fixture. This module can
not be attached to other device without Lighting device.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Document NO.
Revision NO.
0.1
Page
8 / 8
Project Code
Revised Date
16.06.23
Prepared by
반 영 태
Project Name
INT NODE V0.2 HP
Checked by
김 영 준
Subject
INT NODE V0.2 HP Specification
Approved by
채 장 병
KN-연-062 (08.07.08)-0
Company Confidential
This device is intended only for OEM integrators under the following conditions:
1)The transmitter module may not be co-located with any other transmitter or antenna,
2)OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
Manual Information To the End User The OEM integrator has to be aware not to provide information to the
end user regarding how to install or remove this RF module in the user’s manual of the end product which
integrates this module. The end user manual shall include all required regulatory information/warning as
show in this manual.
