KMW INC. SPES Security Lighting Device Manual
KMW >
Manual
R
IT Converged Lighting
LED
70W
Spes 70W
Product Specications
Specications
http://www.kmwgigatera.com
These warnings and cautions are intend to prevent injury to you and others, and to prevent
any potential damage to your product.
Be sure to read and understand all of these instructions before using the product.
WARINING
CAUTION
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©3
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice

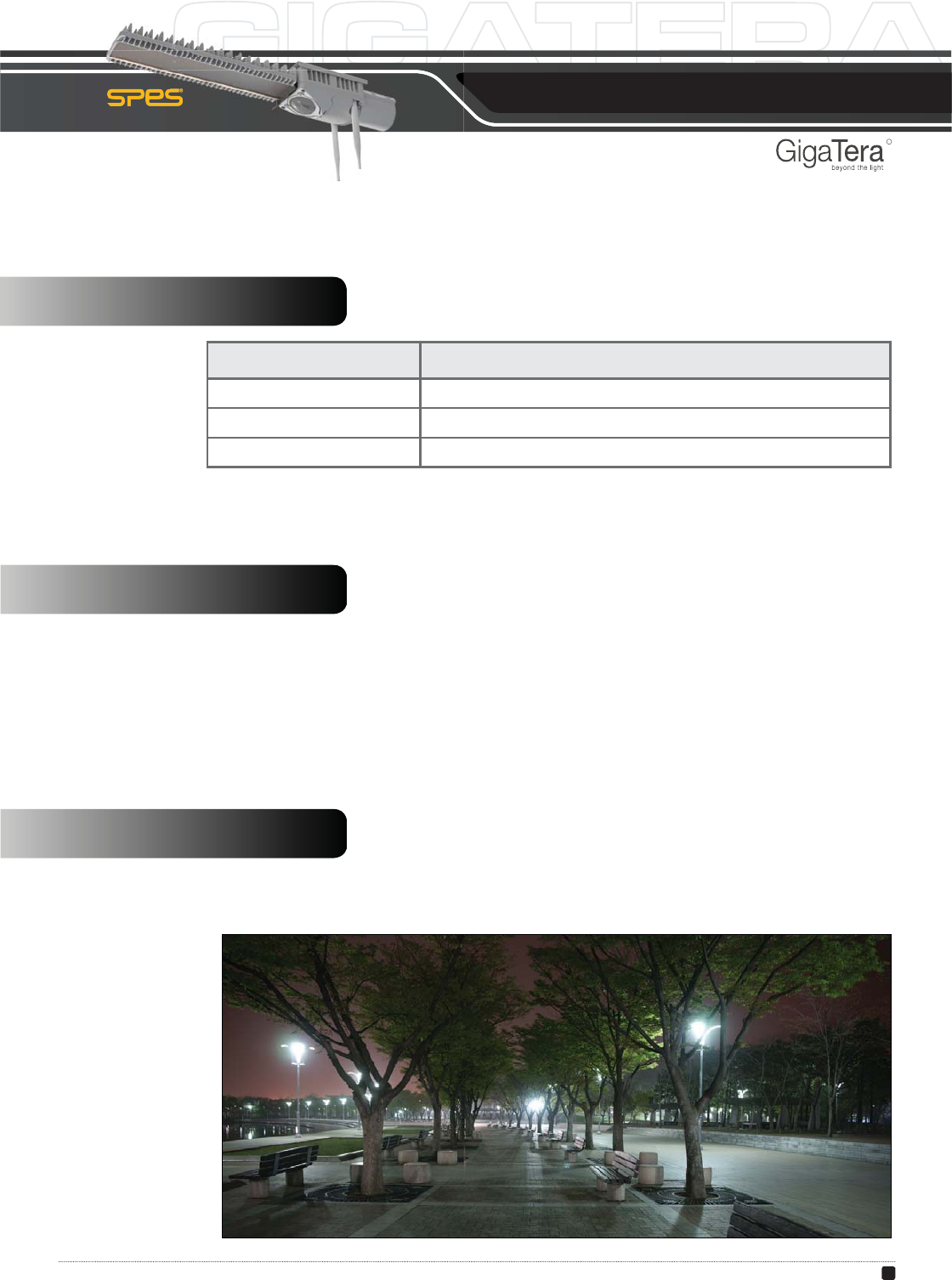

Item Specications
Product Type IT Converged LED Security Lighting
Model Name Spes-70W
Installation Type
Product Summary
Product Feature
Product Applications
When Spes is installed, the current method of security lighting and CCTV as well as features of outdoor
AP can be conducted simultaneously, maximizing cost reduction in terms of maintenance.
In addition, the light weight of 2.5Kg makes the installation process simple and easy.
Spes, a product that combines LED security lighting, IP Camera and Wi-Fi is a true IT convergence
equipment among the existing lighting equipment.
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©4
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
Electrical Specification
Item Unit Description
Power Consumption
70W
Input Voltage
Input Current
Input Frequency
Power Factor
Harmonic Distortion
Leakage Current
Insulation Resistance
Withstanding Voltage
Surge
Item Unit Description
Power Consumption
70W
Luminous Flux
Luminous Efcacy
Color Temperature
Color Rendering
LED Chip Maker
Optical Distribution
Optic Specification
Descriptions
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©5
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
Item Unit Description
Size [L x W x T]
Weight
Material Globe
Base
IP
Life Time
Operating Temperature
Storage Temperature
Surface Temperature
Item Description
Power Consumption 70W
Input Voltage Range (
VAC
)
Output Volatage (
VDC
)
Type
Certicate
Manufacturer
Item Unit Description
Lighting Index Mark - S6 - H - DI
Min. Surface Luminance
Avg. Surface Luminance
Power Supply Unit
Luminance
Mechanical Specification
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©6
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
60O
0O
60O
30O
200
300
400 30O
C90�C270 C0�C180

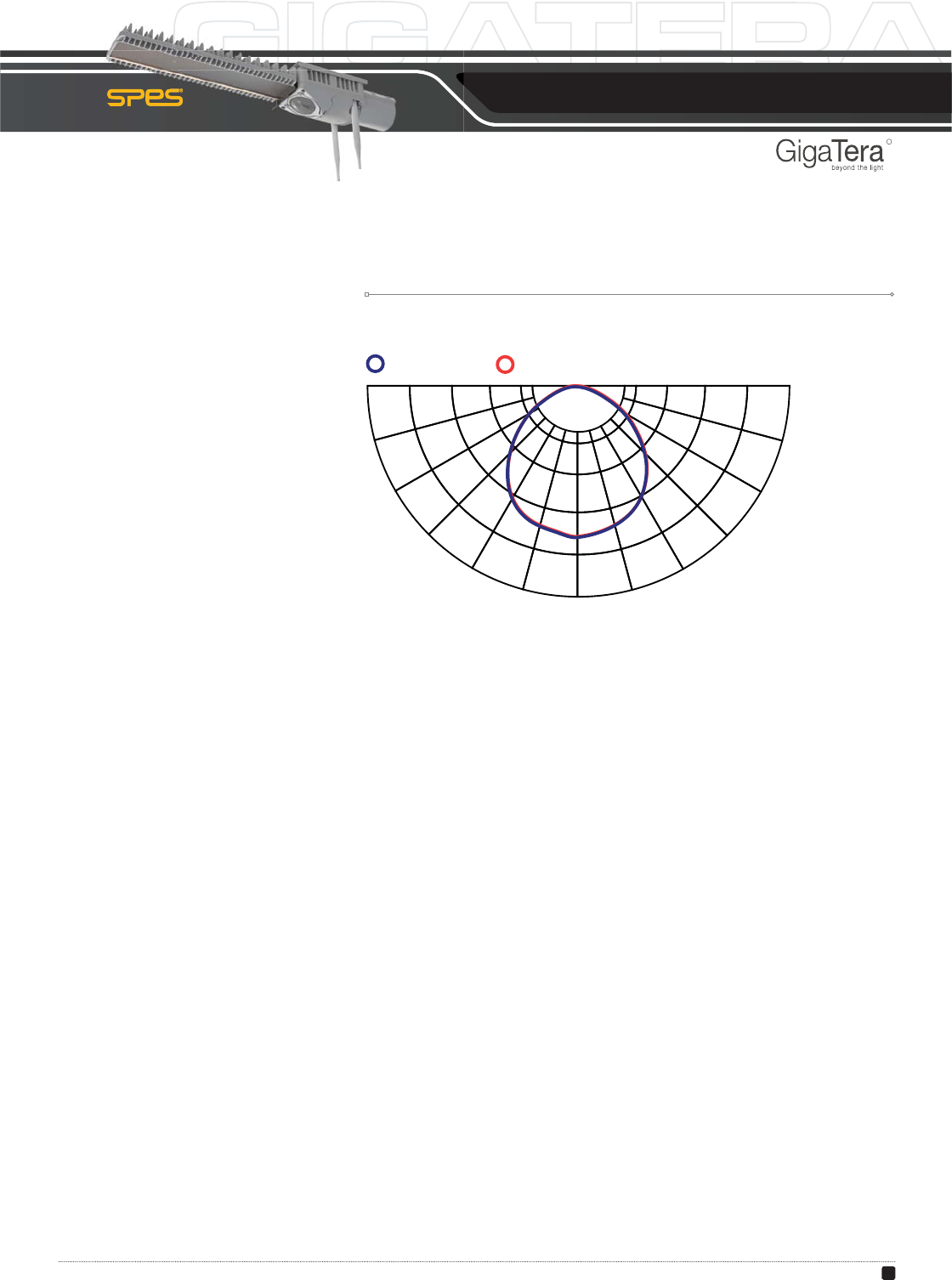

Beam Profile
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©7
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
IP Camera Specifications
Antenna Specifications
Item Unit Description
Image Sensor 1/2.8" Sony Imx-036 CMOS Sensor
Resolution 1,920 x 1,080
Lens Optical 5X Megapixel Zoom Lens
Min, illumination Color. 0.7 lux(F1.2, 30IRE)-TBD
B/W :0.08 lux(1.2, Slow Shutter ON, 30IRE)-TBD
Image Compression H.264 - Main Prole
MJPEG - Image quality: 5 Steps(Lowest, Low, Medium, High, Highest)
Input Power PoE Power supply. 802.3 af Class 2, 48V @ 100mA
Protocol
IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, NTP
Dynamic DNS, RTSP, RTP, TCP, UDP, IGMP, RTCP,
ICMP, DHCP, ARP
Web Browser Internet Explorer 7.0 or above, Firefox, Chrome,
PDA/Smart phone
Security Password Protection, HTTPS, IP Addressing Filtering
Operating Temp.
Item Unit Description
Frequency band GHz 2.4 ~2.5 GHz
Type Water Proof Dipole antenna
Gain dBi 4 dBi
VSWR Under 2.0
Connector SMA Male
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©8
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
WiFi Access Point Specifications
Item Unit Description
Frequency band
GHz
2.4 ~ 2.484 GHz
RF Output Power
dBm
18dBm (Max)
Input Power PoE Power supply. 802.3af Class 2, 48V @ 150mA
Interface LAN 1 port: Fast Ethernet 10/100Mb
Transfer Standard IEEE 802.11 b/g/n
Security
WEP Encrytion 64/12bit, WPA Personal
(WPA-PSK using TKIP or AES)
802.1x Authenticator, Hide SSID in beacons
Multiple SSID with 802.1q VLAN tagging (up to 4
SSID) in AP Mode, MAC Fiter, WLAN L2 isolation,
Wireless STA (client), connected List, Firewall
(DoS attack, URL Filter)
SNMP V1, V2c, MIB I, MIB II (RFC 1213) and Private MIB
Operation Mode Access Point / WDS / Universal Repeater
QoS WMM
LAN / WAN DHCP Server, DHCP Client / Static IP
Operating Temp.
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©9
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
Globe Cover
Antenna
LED Housing
Convergence Housing
IP Camera Cover
Sun Shade
RJ45 Connector
DC Connector
626.0
86.0
206.2
105.0
DC / +(1,2) 1:Black
2: Blue
DC / - (3,4) 3: White
4:Brown
RJ-45 Connector

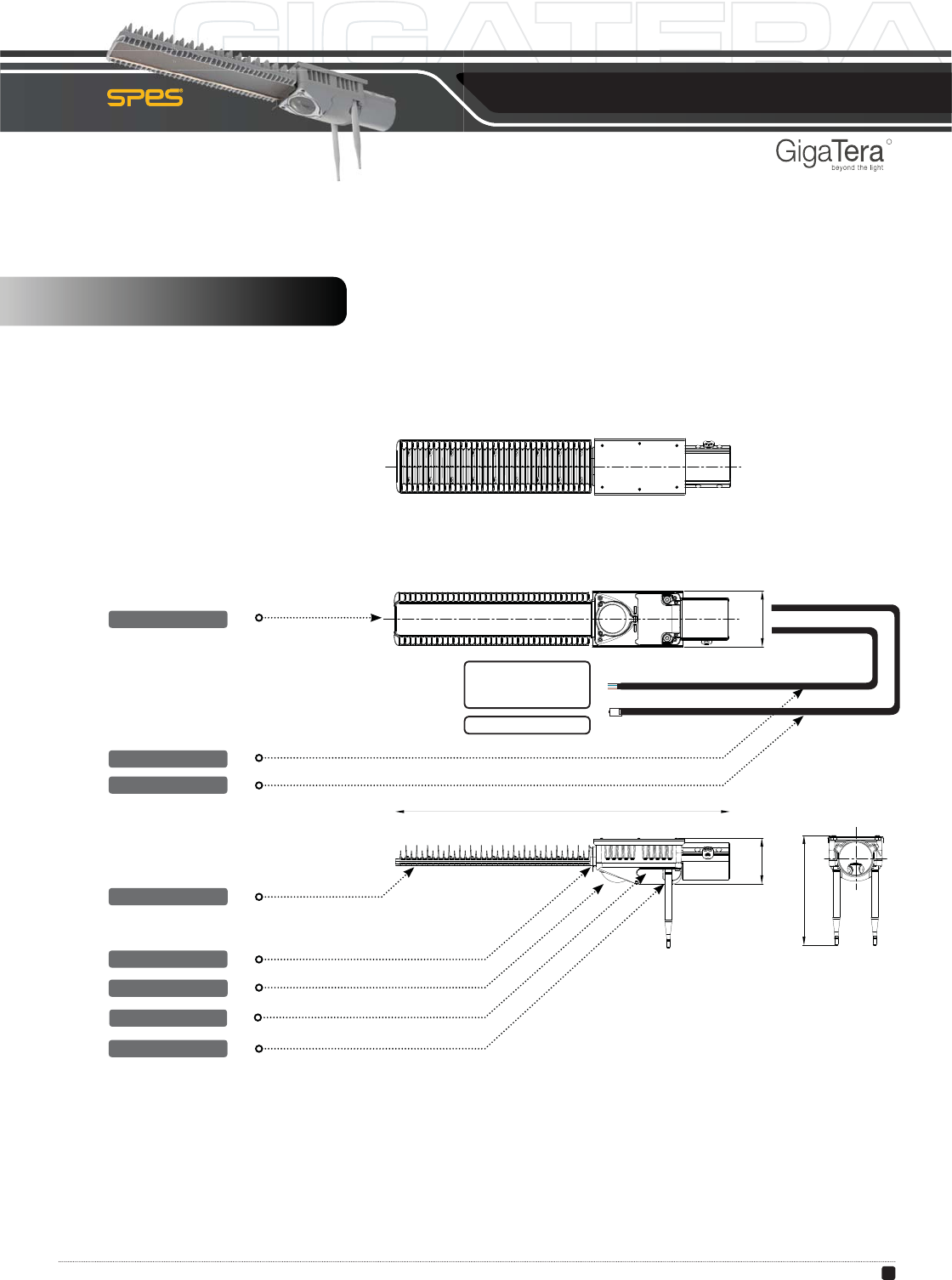

Structure & Drawing
Spes 70W Specications
Copyright 1991 ~ 2012 KMW , All Rights Reserved
TM
©10
R
Document Revision V0.32 2012.05.30
The information in this document is subject to change without notice
Details
No Item Material Finish Manufacturer Remarks
Globe Cover
PC -KMW -
DC Connector
PA(+GF) - - -
RJ45 Connector
PA(+GF) - - -
LED Housing
Aluminum Powder Coating KMW -
Sun Shade
Aluminum Powder Coating KMW -
IP Camera Cover
PC -KMW -
Convergence Housing
Aluminum Powder Coating KMW
-
Antenna
- -
- -
Item Unit Specications
Size (W x L x H)
inch
26.9"(685.0
mm)
X 61.8"(157.0
mm)
X 5.4"(137.0
mm)
Net Weight
lb
5.9 lb (2.7Kg)
Total Weight
lb
7.0 lb (3.2Kg)
Packing Spec.
FCC INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or
antenna.
