KNZ Technology GODUO GoDuo Wireless Speakers User Manual BCTC 170401623E 2ALYRHG F02B NII report
KNZ Technology LLC GoDuo Wireless Speakers BCTC 170401623E 2ALYRHG F02B NII report
user Manual
GoDuo Wireless Speakers
GoDuo-RED
User manual
Manufacturer's: Shenzhen ABC Industrial Co., Ltd.
Address: F/6, Building B14, Yintian Industrial District, Xixiang Street, Bao'an, Shenzhen,
China
Thank you for choosing our product. We hope it will give you a great deal of pleasure.
Safety instructions Read this manual carefully before putting the appliance into operation, and
keep this manual for future reference.
• Keep the device away from heat, direct sunlight and sharp edges.
• Keep the device away from naked flames.
• Do not insert any metal object into the device.
• To avoid a static charge, do not use the device in an extremely dry climate.
• Do not try to repair the unit yourself. Contact an authorized specialist.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

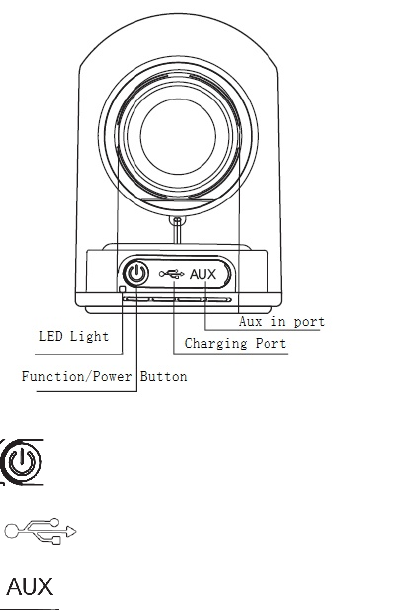

Product Overview
Button description
Function/On/Off: To turn the unit on or off. and choose function.
Charging port
Aux in function
Notes & tips:
1. You can press the phone button twice quickly to redial the number of the last call.
1. Specifications:
* Bluetooth Version: 3.0 +EDR
* USB charging voltage: DC 5V
* Built-in rechargeable Lithium battery.
* Operating distance: up to 10M
* Output: 4Ω, 3W*2
Charging the battery
This speaker is powered by an integrated rechargeable lithium battery. Charge the battery as follows.
1. Insert the charging cable connector into the DC 5V socket on the unit. Connect the cable’s USB
connector into a PC or AC/DC adaptor.
The LED indicator will turn red, showing that the battery is being charged.
Pairing the Bluetooth Speaker with mobile a phone or other device
To activate pairing mode, make sure the speaker is turned off, then press and hold the on/off button for
about 6 seconds until
the red LED and blue LED are flashing alternatively.
Now the speaker is ready for pairing.
1. Turn on your mobile phone (or other device) and activate the Bluetooth functionality.
2. Search for devices to pair with. “Bluetooth Speaker ” should appear on the list of available devices
3. Select the “Bluetooth Speaker” for pairing . If a password is requested, type “0000” . Your mobile
phone (or other device) will now connect to the “Bluetooth Speaker”
Tips:
Make sure the speaker is turned off before trying to activate pairing mode. Once the speaker has been
paired with your mobile phone (or other device), it will connect to device automatically the next time you
turn it on, assuming that your device is turned on.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Use careful with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
The product shall only be connected to a USB interface of version USB 2.0 or higher and that the
connection to a power USB is prohibited.
