KOGA TOUCH EMK eMark Pen User Manual eMark Pen

KOGA TOUCH CO., LTD eMark Pen eMark Pen

User manual

eMarkPenUserManual
Model:EMK‐P1
http://www.clixup.cn
eMarkPen 快速使用指南 Manual
1/5
1. ProductComponents
① Nib
② Shortcut
Button(SupportingWindows
10)
③ Eraser
④ ColorChange
⑤ BlackScreen
⑥ PageUp
⑦ PageDown
⑧ Playing
⑨ Laser
2. SettingOperation 
Charging
Plskindlychargeinadvanceforitisnotfullofpowerbeforeleavethe
factory.
PuteMarkPenintothechargingbase,powersupplyingthroughUSB
cable； 
②
⑨
③
⑧
⑦
⑥
⑤
④
①
eMarkPen 快速使用指南 Manual
2/5

Notcharging Charging（Front） Charging（Backside）
eMarkPenchargingfrom0to100takesabout30minsto1hour
Matching
CheckwhethereMarkPenmatchedornotwhenLCDdisplayorIWBstart,
itismatchedsuccessfullyifthenibsshine;Ifnotmatched(no light
shine),press buttonsimultaneouslyfor5seconds;Confirmthe
matchingstatusthroughindicatorlightonnibbyclickingonbutton③.
Red:AbnormalNeedtorestart
Yellow：Lookingfordevicetomatch
Blue：Matched
Restarting
ElectricQuantity0ElectricQuantity100%ChargeComplete
eMarkPen 快速使用指南 Manual
3/5
If anyabnormal phenomena appears including: unable to match, to
connect,ortowriteetc.Torestartthepenbypressingapinintothehole
attopofthepen. 
Shortcutbuttondefining（OnlyforWindows10）
User-definemethodasfollowing:
“Settings”>“Devices”>“PenandWindowsInk”,todouser-defined
settingsofthepen.
eMarkPen 快速使用指南 Manual
4/5
ColorChanging
Only certain software supported. Office2013 and above versions
needaplug-intosupportthefunctions.Plsdownloadandinstallthe
plug-infromourwebsite（http://www.clixup.cn/download/emarkpenaddin）

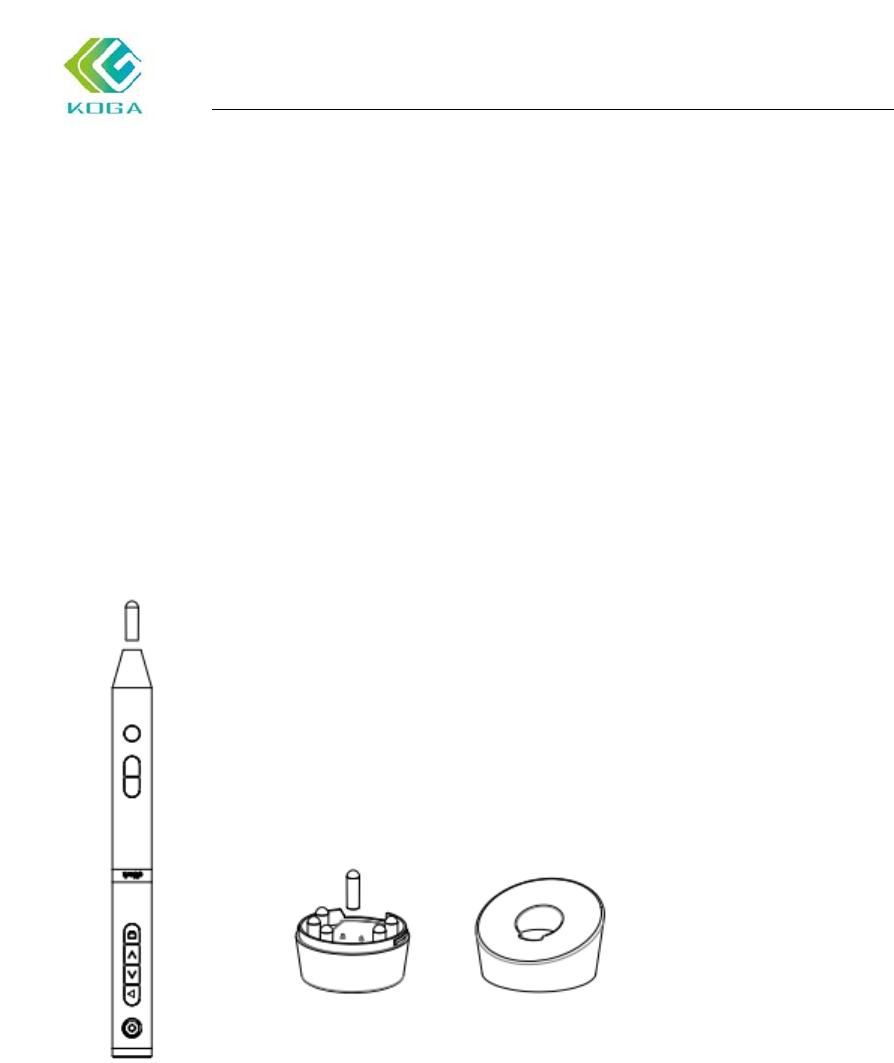

NibSwitching
Kindlyreplacewithanewnibfromthechargingbaseifitbeworn
out.
3. BatteryElectricQuantity
eMarkPenbatteryisbuilt-indesignandcouldnotbe
disassembled.
Workcontinuouslyformorethan7hoursafterfullycharged
Plskindlyputthepenintochargingbasewhennibflickerto
indicatelowpower.
4. FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
eMarkPen 快速使用指南 Manual
5/5
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
