KOKKIA I10X-X Tiny Bluetooth Transmitter for iPod/ iPhone User Manual i10x x User Guide
KOKKIA, Inc Tiny Bluetooth Transmitter for iPod/ iPhone i10x x User Guide
KOKKIA >
User Manual rev1
www.kokkia.com
CE 1588
FCC ID: XWA-i10X-X

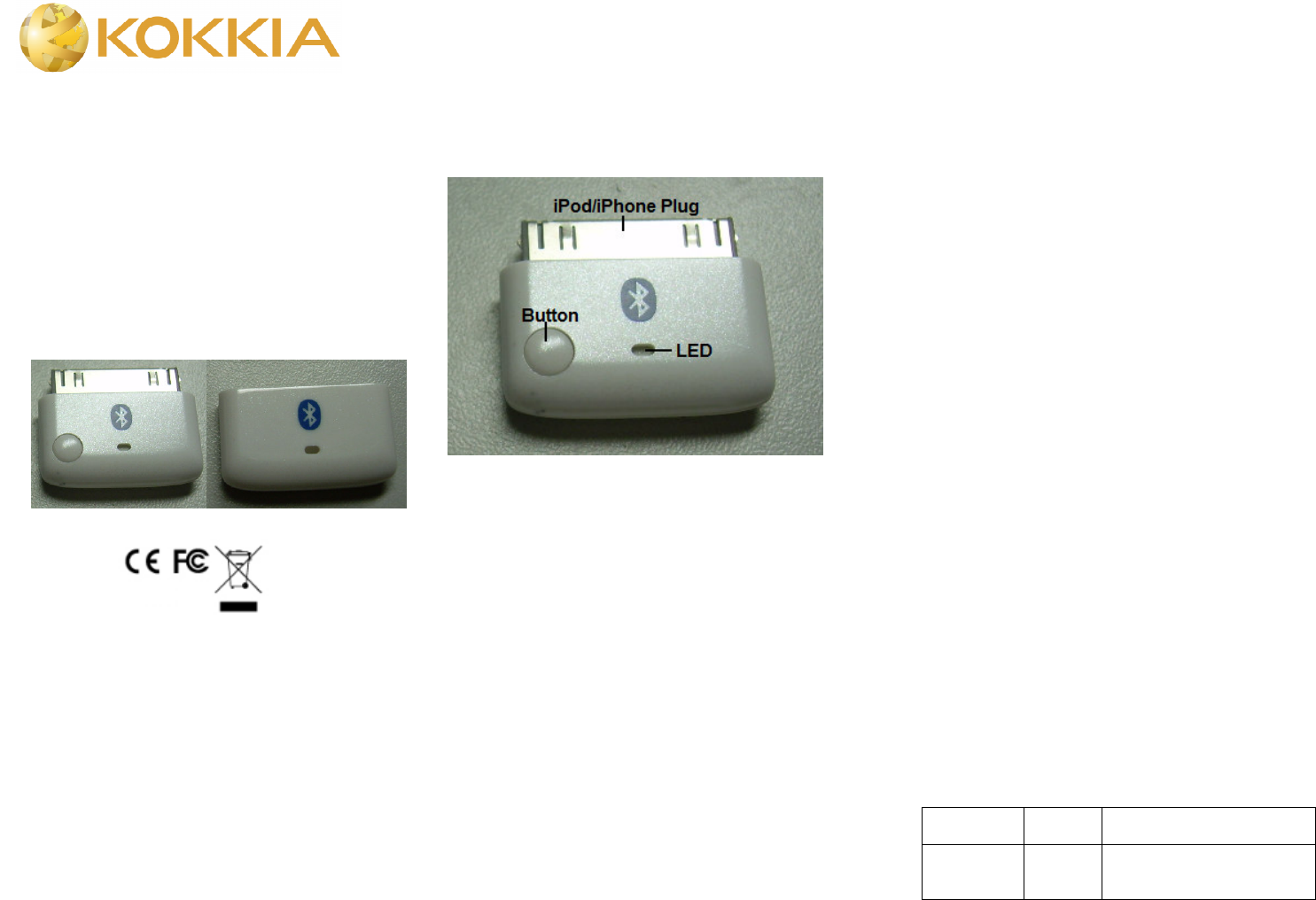

GETTING TO KNOW YOUR TX
This Bluetooth Stereo transmitter (TX) offers the latest innovation
in Bluetooth technology. It is specially designed for iPod player.
It can transfer stereo audio from Apple iPod/iPhone to Bluetooth
stereo headset/receiver wirelessly. It also supports remote
control functions. TX will finish Searching, Pairing, and
connecting by itself automatically. Users just need to start up TX
to start the operation.
PAIR TX TO YOUR BLUETOOTH STEREO HEADSET/ AUDIO
RECEIVER
Pairing is the process of linking the Tx with your Bluetooth
stereo headset/receiver. Before you using the TX with
Bluetooth stereo headset/audio receiver, you should pair both
devices. After pairing completed, you can use the TX only with
the paired Bluetooth stereo headset/ audio receiver. If you
wish to use the TX with a different Bluetooth stereo headset/
audio receiver, you need to redo the pairing process with the
new devices. In this case, the TX will no longer work with the
previous Bluetooth stereo headset/ audio receiver.
To pair the Bluetooth receiver device
1. Power on iPod/iPhone. Plug TX in the bottom socket of
iPod/iPhone, iPod/iPhone will authenticate with TX
automatically, this process will take a few seconds. After
authentication, TX will flash with fast speed and enter
into pairing mode
2. Turn on the Bluetooth stereo headset/ audio receiver
and place it within 10 meters to the TX.
3. Place the Bluetooth stereo headset/ audio receiver into
pairing mode. Refer to the Bluetooth stereo headset/
audio receiver user guide for instructions for this feature.
4. If you want to pair with another device, you should
turned off the paired device first, and follow steps 2 and
3 to put the new device into paring mode. TX will try to
pair with the new device after the previously paired
device is powered off.
Tips: Please make sure the PIN code of Bluetooth stereo
headset/ audio receiver is 0000, 1111, 1234 or 8888.
Otherwise, TX will not pair with it. For this part, please refer to
your Bluetooth Stereo headset/ audio receiver instructions.
If disconnection occurs, it maybe due to the following reason
a) The range is over 10 meters between both Bluetooth
stereo headset/ audio receiver and the TX.
b) Bluetooth stereo headset/ audio receiver disconnected
the link for some certain conditions.
c) Either device has been switched off.
Note: The TX, in normal operation, should maintain the
connection with the Bluetooth stereo headset/ audio receiver
at all times once the pairing mode and connection has been
established between the two devices.
If any unexpected behavior, and music cannot stream from
TX, user should restart the TX (by unplugging TX, then plug
in and reset iPod/iPhone in play mode).
USING TX TO TRANSFER MUSIC
1. With the Bluetooth stereo headset/ audio receiver paired
with TX, turn on the paired Bluetooth stereo headset/
audio receiver. TX will connect to your headset/ audio
receiver. The blue LED will flash every 5 secs to indicate
TX is transferring audio.
2. Place your stereo headset/ audio receiver within 10
meters to TX.
3. If connection is lost due to out of range, bring the
Bluetooth stereo headset/ audio receiver near to TX
within 10 meters. Tx will reconnect automatically.
REMOTE CONTROL YOUR iPod player
If your Bluetooth stereo headset/ audio receiver has remote
control function, you can control iPod/iPhone in play/pause,
forward and backward operation smode remotely.
1. With the Bluetooth stereo headset/ audio receiver
connected with Tx.
2. Place your stereo headset/audio receiver within 10
meters to Tx.
3. Control your iPod player by operation on the Bluetooth
stereo headsets/audio receiver. For detail operation,
please refer to the related user guide for instructions for
this feature.
Button
Action State Function
Press and
release
idle Let the Tx go to pairing mode
Bluetooth
Wireless
Tiny Transmitter for iPod
and iPhone
i10x-x
USER GUIDE
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Any changes or modifications to device will void
the user’s authority to operate the device.
