KP Electronic Systems KPBSRU100D 10 WATT UHF RF MODEM User Manual USERS MANUAL

KP Electronic Systems Ltd 10 WATT UHF RF MODEM USERS MANUAL

USERS MANUAL

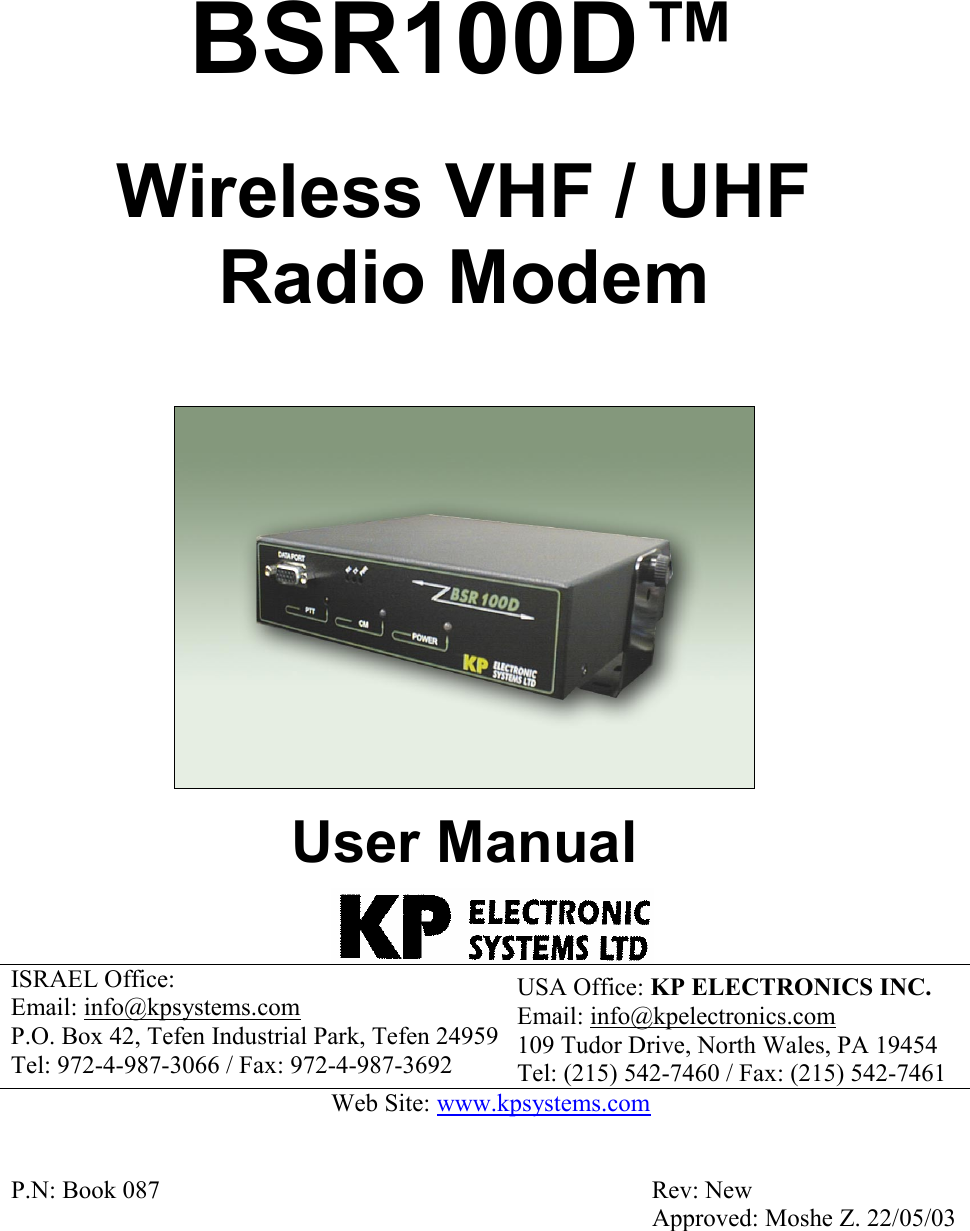

ISRAEL Office: Email: info@kpsystems.com P.O. Box 42, Tefen Industrial Park, Tefen 24959Tel: 972-4-987-3066 / Fax: 972-4-987-3692 USA Office: KP ELECTRONICS INC. Email: info@kpelectronics.com 109 Tudor Drive, North Wales, PA 19454 Tel: (215) 542-7460 / Fax: (215) 542-7461 Web Site: www.kpsystems.com P.N: Book 087 Rev: New Approved: Moshe Z. 22/05/03 BSR100D™ Wireless VHF / UHF Radio Modem User Manual

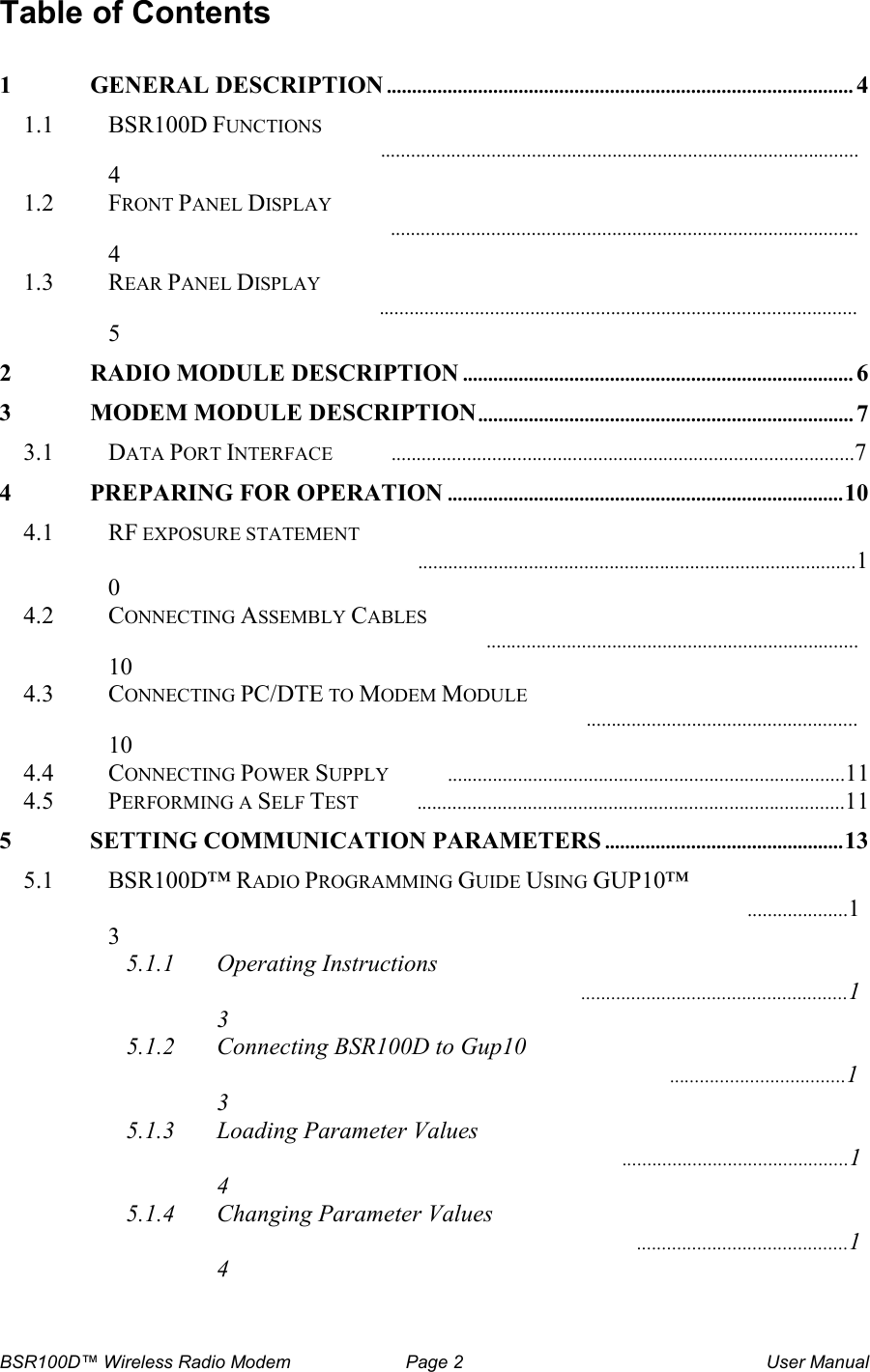

BSR100D™ Wireless Radio Modem Page 2 User Manual Table of Contents 1 GENERAL DESCRIPTION............................................................................................4 1.1 BSR100D FUNCTIONS ...............................................................................................4 1.2 FRONT PANEL DISPLAY .............................................................................................4 1.3 REAR PANEL DISPLAY ...............................................................................................5 2 RADIO MODULE DESCRIPTION.............................................................................6 3 MODEM MODULE DESCRIPTION..........................................................................7 3.1 DATA PORT INTERFACE ............................................................................................7 4 PREPARING FOR OPERATION..............................................................................10 4.1 RF EXPOSURE STATEMENT .......................................................................................10 4.2 CONNECTING ASSEMBLY CABLES ..........................................................................10 4.3 CONNECTING PC/DTE TO MODEM MODULE ......................................................10 4.4 CONNECTING POWER SUPPLY ...............................................................................11 4.5 PERFORMING A SELF TEST .....................................................................................11 5 SETTING COMMUNICATION PARAMETERS...............................................13 5.1 BSR100D™ RADIO PROGRAMMING GUIDE USING GUP10™ ....................13 5.1.1 Operating Instructions .....................................................13 5.1.2 Connecting BSR100D to Gup10 ...................................13 5.1.3 Loading Parameter Values .............................................14 5.1.4 Changing Parameter Values ..........................................14

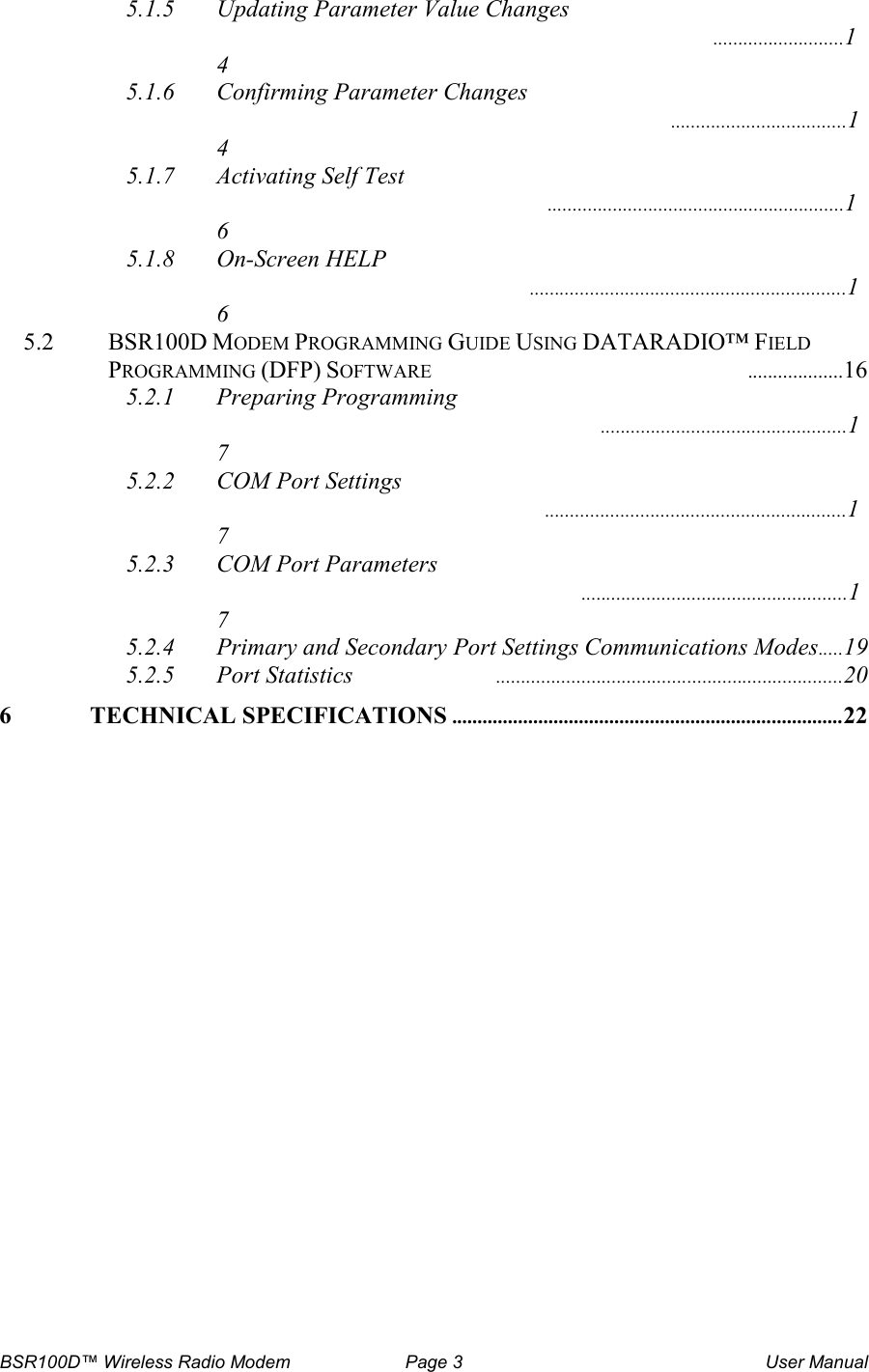

BSR100D™ Wireless Radio Modem Page 3 User Manual 5.1.5 Updating Parameter Value Changes ..........................14 5.1.6 Confirming Parameter Changes ...................................14 5.1.7 Activating Self Test ...........................................................16 5.1.8 On-Screen HELP ...............................................................16 5.2 BSR100D MODEM PROGRAMMING GUIDE USING DATARADIO™ FIELD PROGRAMMING (DFP) SOFTWARE ...................16 5.2.1 Preparing Programming .................................................17 5.2.2 COM Port Settings ............................................................17 5.2.3 COM Port Parameters .....................................................17 5.2.4 Primary and Secondary Port Settings Communications Modes.....19 5.2.5 Port Statistics .....................................................................20 6 TECHNICAL SPECIFICATIONS.............................................................................22

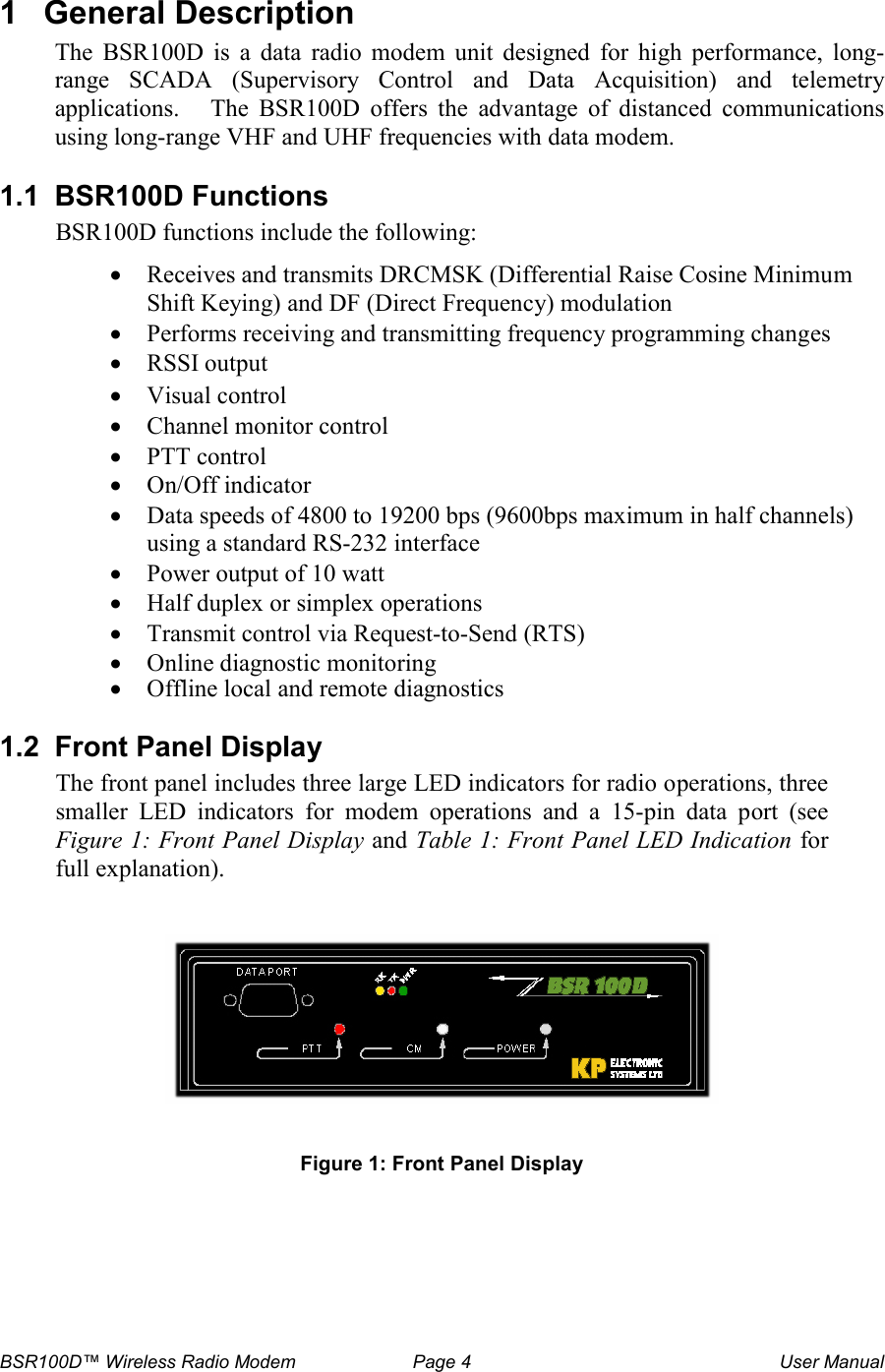

BSR100D™ Wireless Radio Modem Page 4 User Manual 1 General Description The BSR100D is a data radio modem unit designed for high performance, long-range SCADA (Supervisory Control and Data Acquisition) and telemetry applications. The BSR100D offers the advantage of distanced communications using long-range VHF and UHF frequencies with data modem. 1.1 BSR100D Functions BSR100D functions include the following: • Receives and transmits DRCMSK (Differential Raise Cosine Minimum Shift Keying) and DF (Direct Frequency) modulation • Performs receiving and transmitting frequency programming changes • RSSI output • Visual control • Channel monitor control • PTT control • On/Off indicator • Data speeds of 4800 to 19200 bps (9600bps maximum in half channels) using a standard RS-232 interface • Power output of 10 watt • Half duplex or simplex operations • Transmit control via Request-to-Send (RTS) • Online diagnostic monitoring • Offline local and remote diagnostics 1.2 Front Panel Display The front panel includes three large LED indicators for radio operations, three smaller LED indicators for modem operations and a 15-pin data port (see Figure 1: Front Panel Display and Table 1: Front Panel LED Indication for full explanation). Figure 1: Front Panel Display

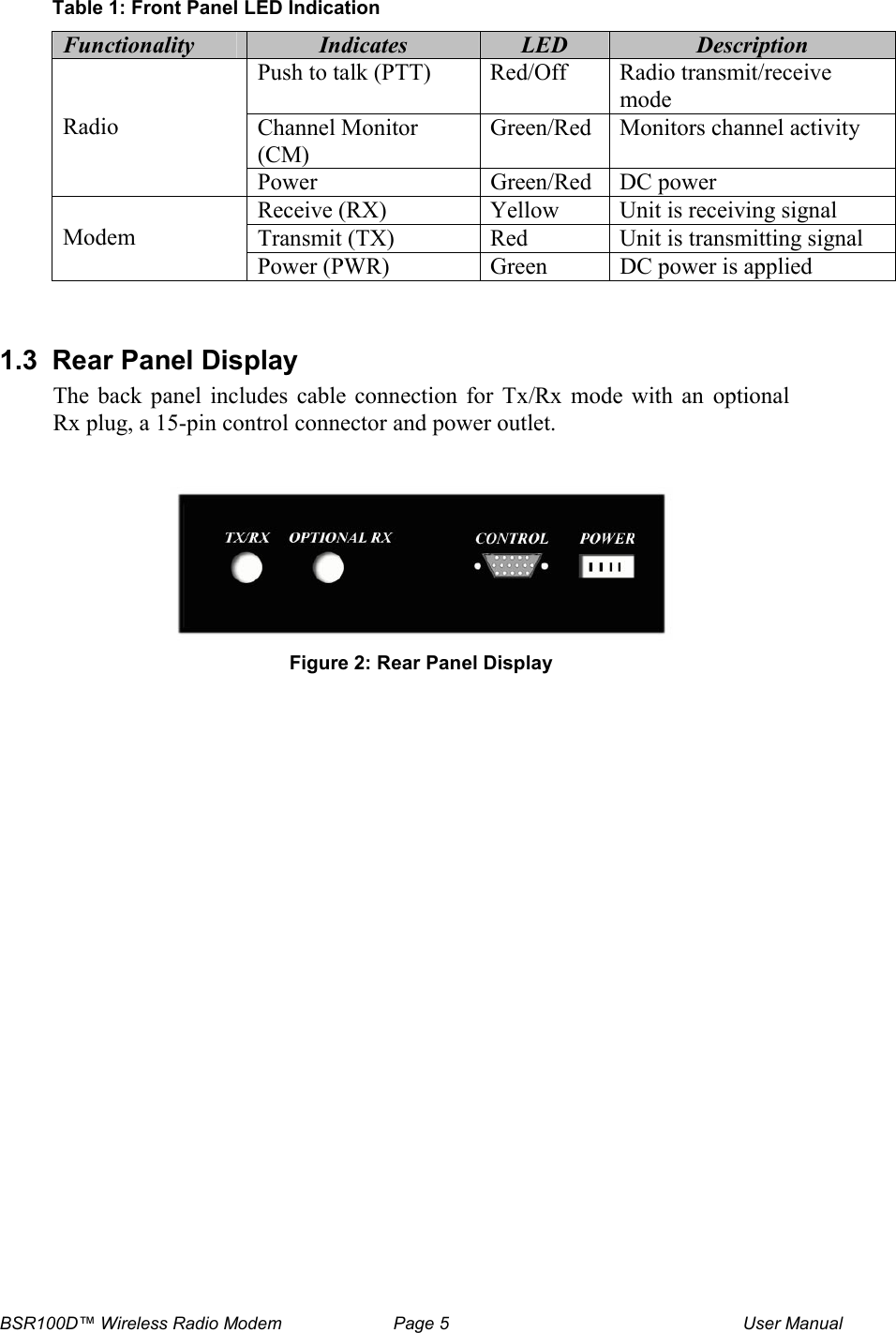

BSR100D™ Wireless Radio Modem Page 5 User Manual Table 1: Front Panel LED Indication Functionality Indicates LED Description Push to talk (PTT) Red/Off Radio transmit/receive mode Channel Monitor (CM) Green/Red Monitors channel activity Radio Power Green/Red DC power Receive (RX) Yellow Unit is receiving signal Transmit (TX) Red Unit is transmitting signal Modem Power (PWR) Green DC power is applied 1.3 Rear Panel Display The back panel includes cable connection for Tx/Rx mode with an optional Rx plug, a 15-pin control connector and power outlet. Figure 2: Rear Panel Display

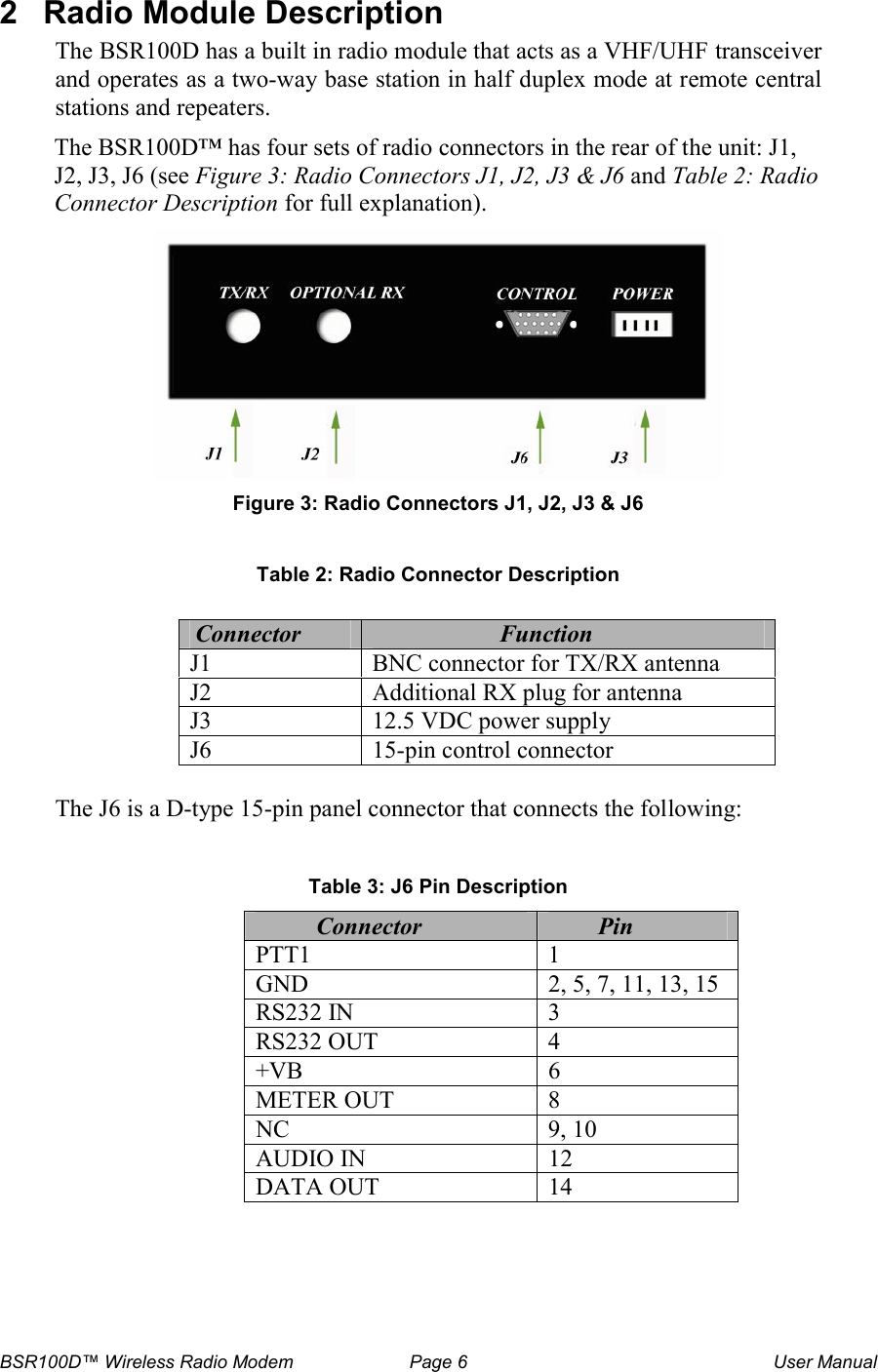

BSR100D™ Wireless Radio Modem Page 6 User Manual 2 Radio Module Description The BSR100D has a built in radio module that acts as a VHF/UHF transceiver and operates as a two-way base station in half duplex mode at remote central stations and repeaters. The BSR100D™ has four sets of radio connectors in the rear of the unit: J1, J2, J3, J6 (see Figure 3: Radio Connectors J1, J2, J3 & J6 and Table 2: Radio Connector Description for full explanation). Figure 3: Radio Connectors J1, J2, J3 & J6 Table 2: Radio Connector Description The J6 is a D-type 15-pin panel connector that connects the following: Table 3: J6 Pin Description Connector Pin PTT1 1 GND 2, 5, 7, 11, 13, 15 RS232 IN 3 RS232 OUT 4 +VB 6 METER OUT 8 NC 9, 10 AUDIO IN 12 DATA OUT 14 Connector Function J1 BNC connector for TX/RX antenna J2 Additional RX plug for antenna J3 12.5 VDC power supply J6 15-pin control connector

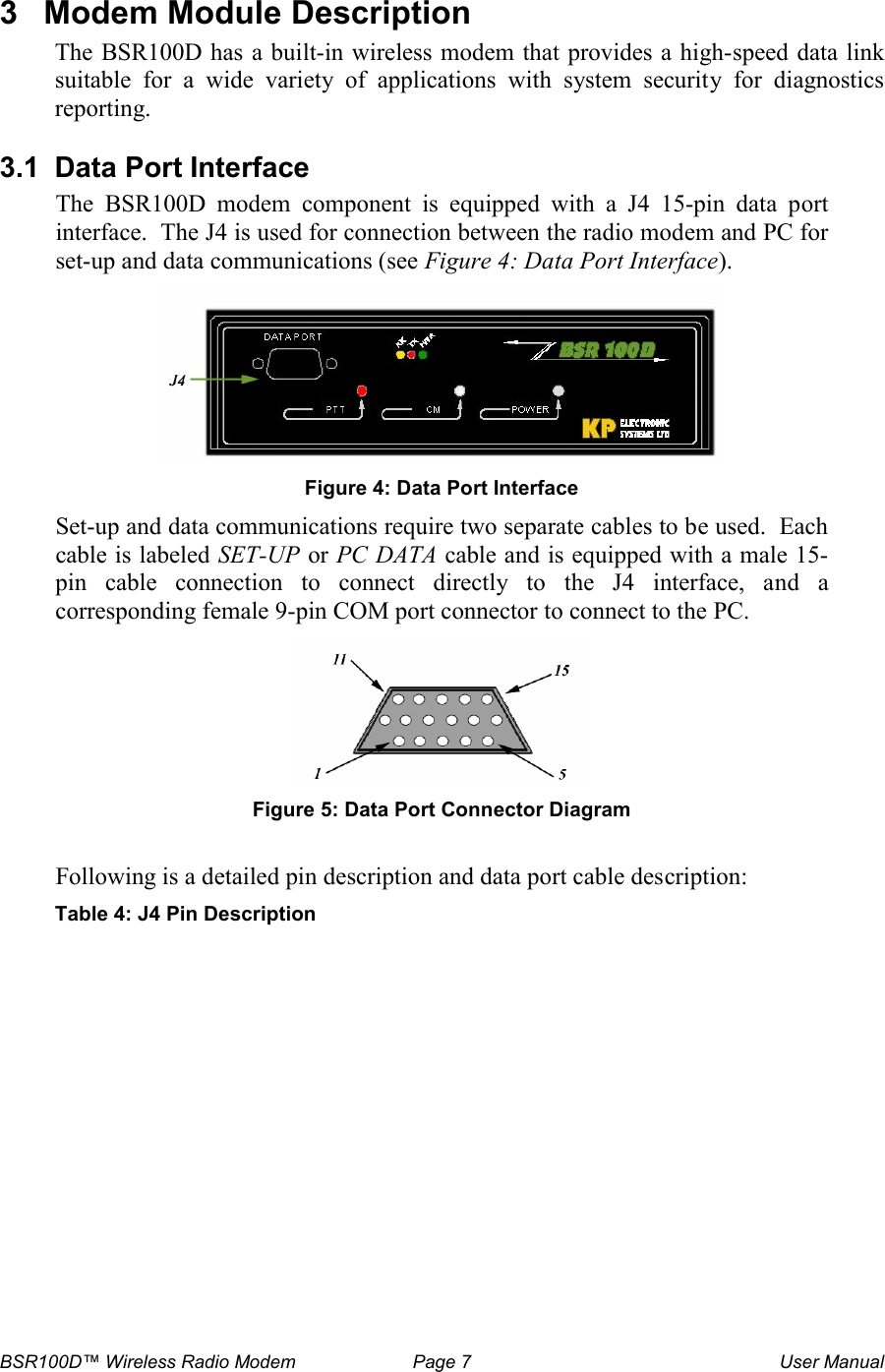

BSR100D™ Wireless Radio Modem Page 7 User Manual 3 Modem Module Description The BSR100D has a built-in wireless modem that provides a high-speed data link suitable for a wide variety of applications with system security for diagnostics reporting. 3.1 Data Port Interface The BSR100D modem component is equipped with a J4 15-pin data port interface. The J4 is used for connection between the radio modem and PC for set-up and data communications (see Figure 4: Data Port Interface). Figure 4: Data Port Interface Set-up and data communications require two separate cables to be used. Each cable is labeled SET-UP or PC DATA cable and is equipped with a male 15-pin cable connection to connect directly to the J4 interface, and a corresponding female 9-pin COM port connector to connect to the PC. Figure 5: Data Port Connector Diagram Following is a detailed pin description and data port cable description: Table 4: J4 Pin Description

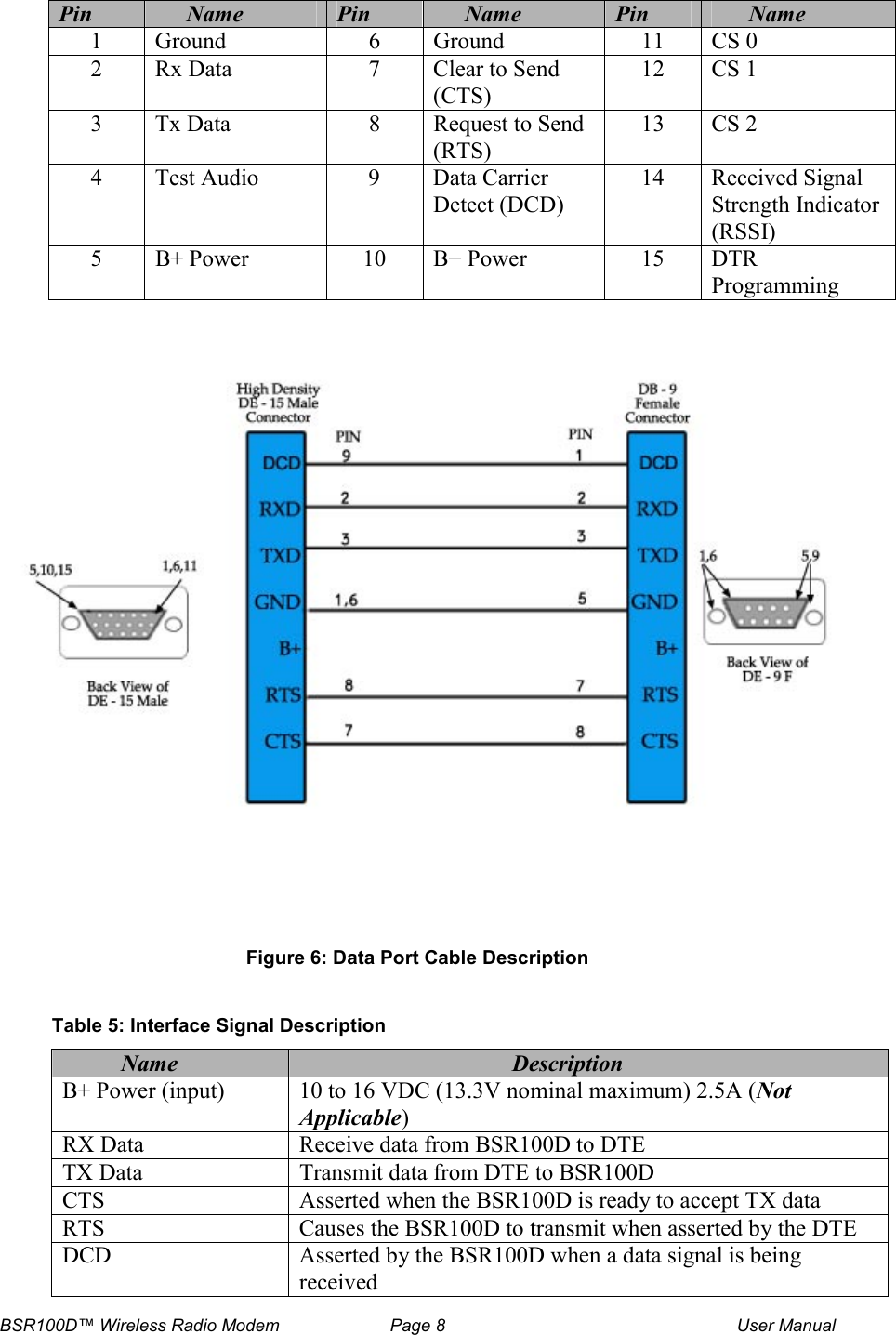

BSR100D™ Wireless Radio Modem Page 8 User Manual Figure 6: Data Port Cable Description Table 5: Interface Signal Description Name Description B+ Power (input) 10 to 16 VDC (13.3V nominal maximum) 2.5A (Not Applicable) RX Data Receive data from BSR100D to DTE TX Data Transmit data from DTE to BSR100D CTS Asserted when the BSR100D is ready to accept TX data RTS Causes the BSR100D to transmit when asserted by the DTE DCD Asserted by the BSR100D when a data signal is being received Pin Name Pin Name Pin Name 1 Ground 6 Ground 11 CS 0 2 Rx Data 7 Clear to Send (CTS) 12 CS 1 3 Tx Data 8 Request to Send (RTS) 13 CS 2 4 Test Audio 9 Data Carrier Detect (DCD) 14 Received Signal Strength Indicator (RSSI) 5 B+ Power 10 B+ Power 15 DTR Programming

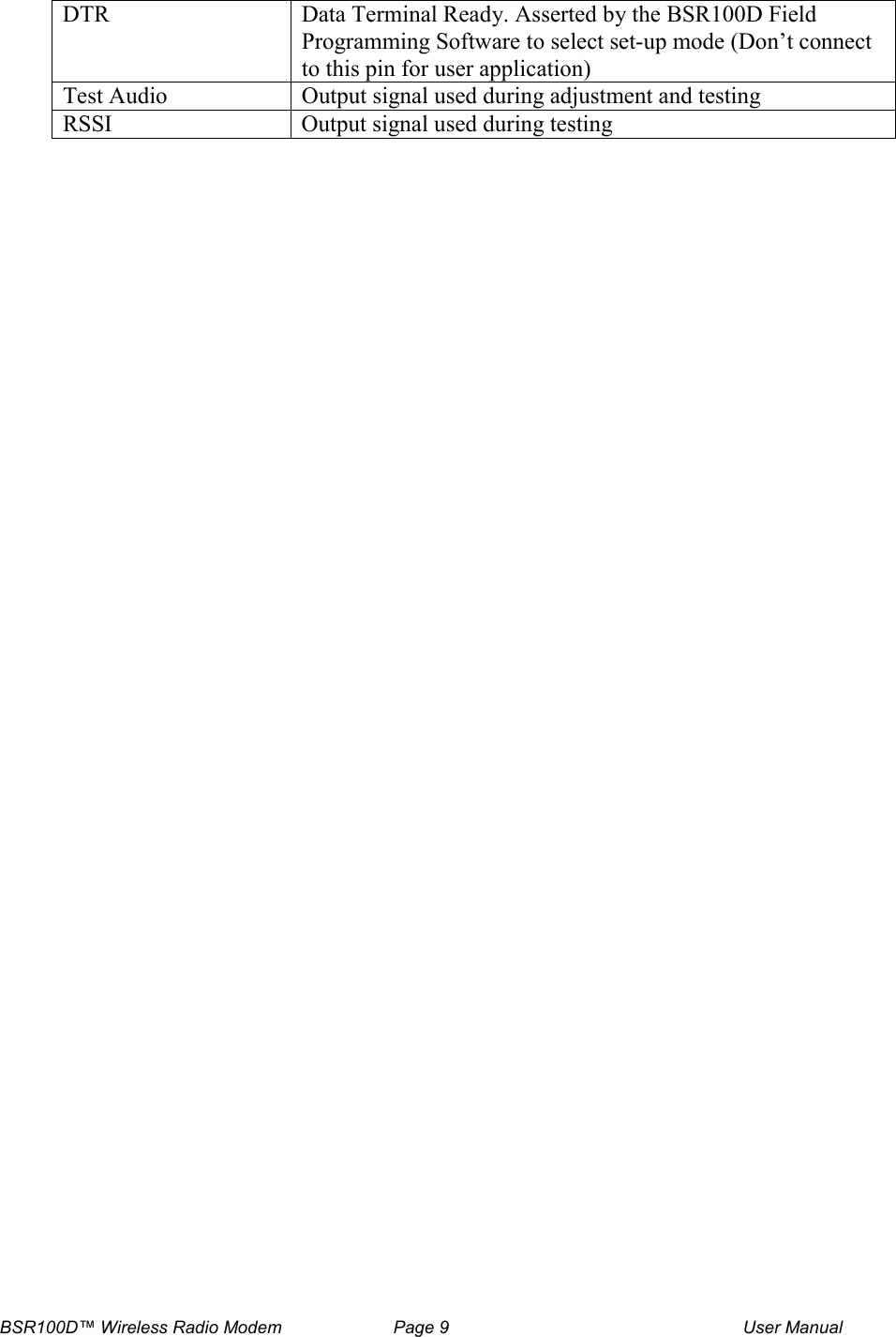

BSR100D™ Wireless Radio Modem Page 9 User Manual DTR Data Terminal Ready. Asserted by the BSR100D Field Programming Software to select set-up mode (Don’t connect to this pin for user application) Test Audio Output signal used during adjustment and testing RSSI Output signal used during testing

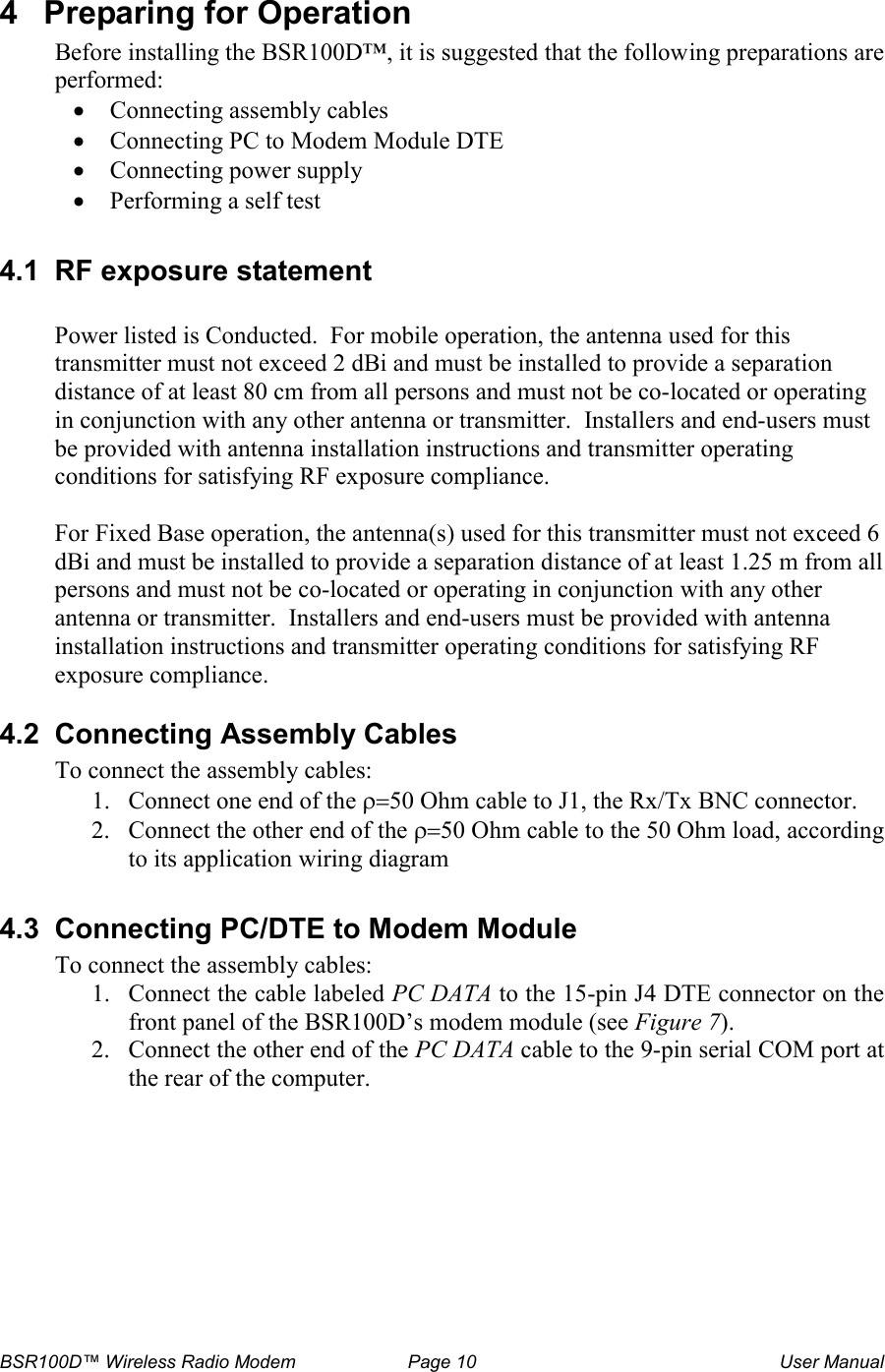

BSR100D™ Wireless Radio Modem Page 10 User Manual 4 Preparing for Operation Before installing the BSR100D™, it is suggested that the following preparations are performed: • Connecting assembly cables • Connecting PC to Modem Module DTE • Connecting power supply • Performing a self test 4.1 RF exposure statement Power listed is Conducted. For mobile operation, the antenna used for this transmitter must not exceed 2 dBi and must be installed to provide a separation distance of at least 80 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. For Fixed Base operation, the antenna(s) used for this transmitter must not exceed 6 dBi and must be installed to provide a separation distance of at least 1.25 m from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. 4.2 Connecting Assembly Cables To connect the assembly cables: 1. Connect one end of the ρ=50 Ohm cable to J1, the Rx/Tx BNC connector. 2. Connect the other end of the ρ=50 Ohm cable to the 50 Ohm load, according to its application wiring diagram 4.3 Connecting PC/DTE to Modem Module To connect the assembly cables: 1. Connect the cable labeled PC DATA to the 15-pin J4 DTE connector on the front panel of the BSR100D’s modem module (see Figure 7). 2. Connect the other end of the PC DATA cable to the 9-pin serial COM port at the rear of the computer.

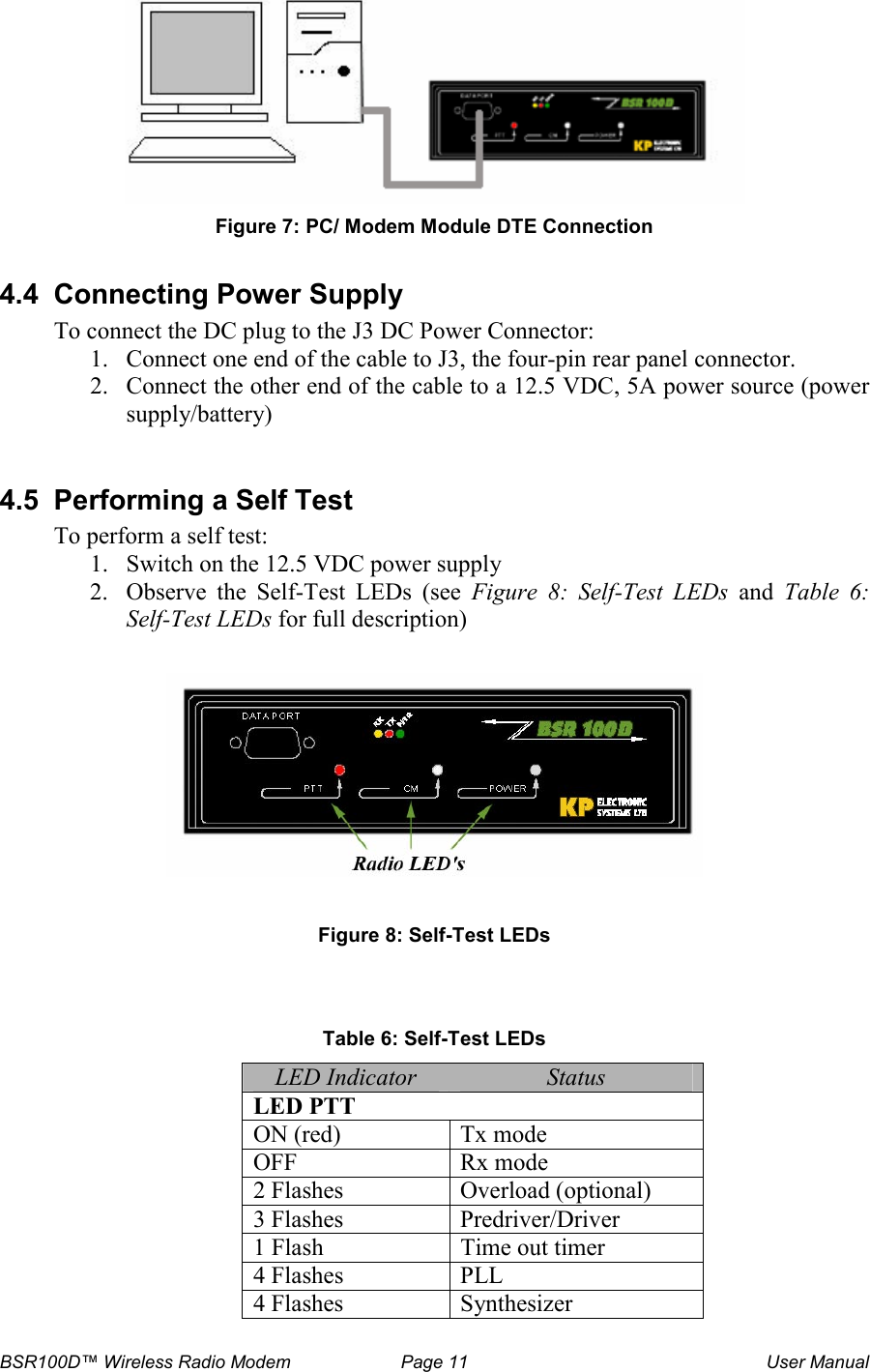

BSR100D™ Wireless Radio Modem Page 11 User Manual Figure 7: PC/ Modem Module DTE Connection 4.4 Connecting Power Supply To connect the DC plug to the J3 DC Power Connector: 1. Connect one end of the cable to J3, the four-pin rear panel connector. 2. Connect the other end of the cable to a 12.5 VDC, 5A power source (power supply/battery) 4.5 Performing a Self Test To perform a self test: 1. Switch on the 12.5 VDC power supply 2. Observe the Self-Test LEDs (see Figure 8: Self-Test LEDs and Table 6: Self-Test LEDs for full description) Figure 8: Self-Test LEDs Table 6: Self-Test LEDs LED Indicator Status LED PTT ON (red) Tx mode OFF Rx mode 2 Flashes Overload (optional) 3 Flashes Predriver/Driver 1 Flash Time out timer 4 Flashes PLL 4 Flashes Synthesizer
BSR100D™ Wireless Radio Modem Page 12 User Manual LED Indicator Status Power LED Green Normal Red Dead Battery CM LED Green Free Red Channel Monitor Flashes red/-green RF/IF Amplifiers In addition to the signals in Table 6: Self-Test LEDs, there is an error-status word in the Gup10™ Utility Program (see following Section 5 Setting Communication Parameters)

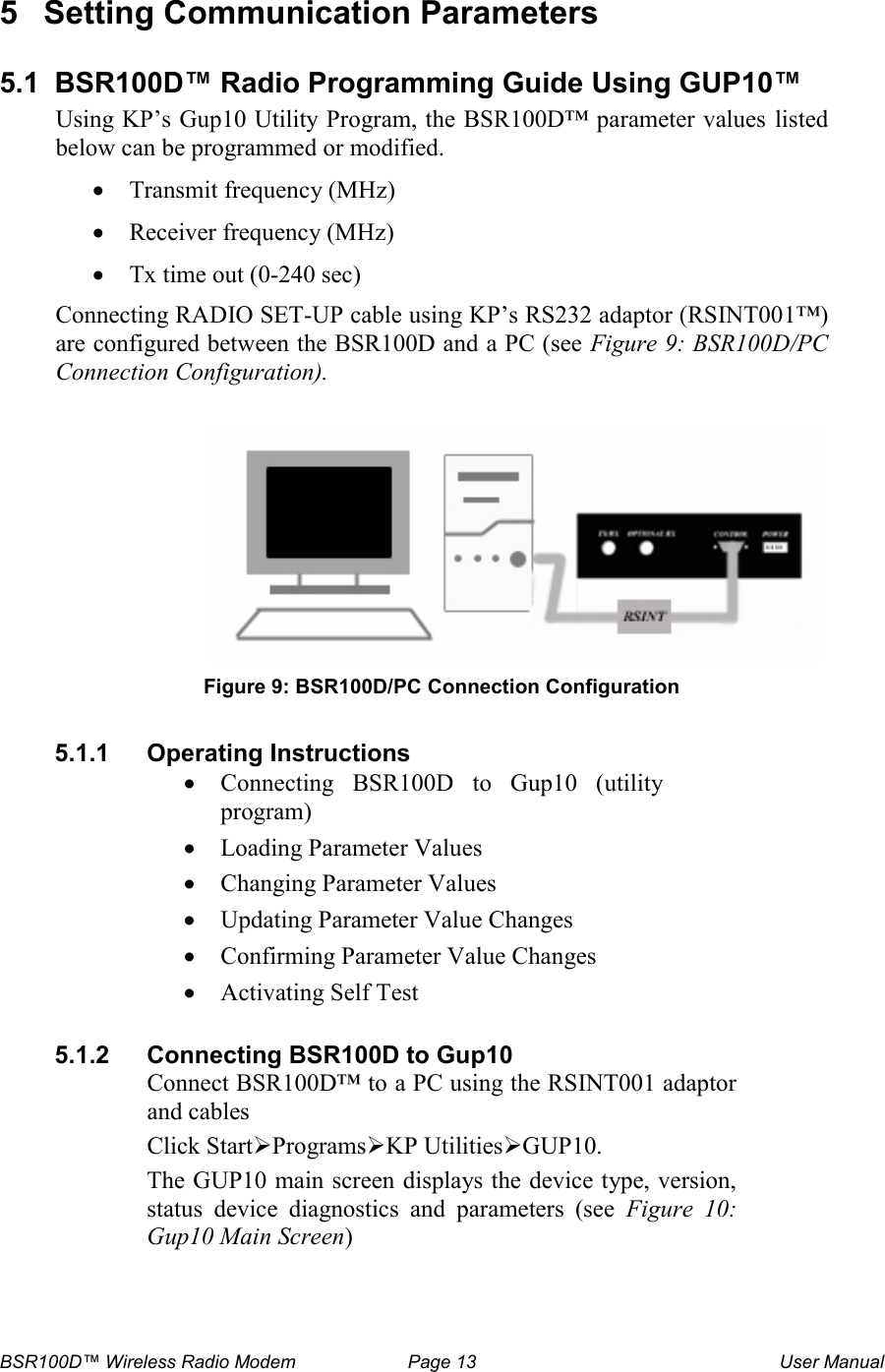

BSR100D™ Wireless Radio Modem Page 13 User Manual 5 Setting Communication Parameters 5.1 BSR100D™ Radio Programming Guide Using GUP10™ Using KP’s Gup10 Utility Program, the BSR100D™ parameter values listed below can be programmed or modified. • Transmit frequency (MHz) • Receiver frequency (MHz) • Tx time out (0-240 sec) Connecting RADIO SET-UP cable using KP’s RS232 adaptor (RSINT001™) are configured between the BSR100D and a PC (see Figure 9: BSR100D/PC Connection Configuration). Figure 9: BSR100D/PC Connection Configuration 5.1.1 Operating Instructions • Connecting BSR100D to Gup10 (utility program) • Loading Parameter Values • Changing Parameter Values • Updating Parameter Value Changes • Confirming Parameter Value Changes • Activating Self Test 5.1.2 Connecting BSR100D to Gup10 Connect BSR100D™ to a PC using the RSINT001 adaptor and cables Click Start¾Programs¾KP Utilities¾GUP10. The GUP10 main screen displays the device type, version, status device diagnostics and parameters (see Figure 10: Gup10 Main Screen)

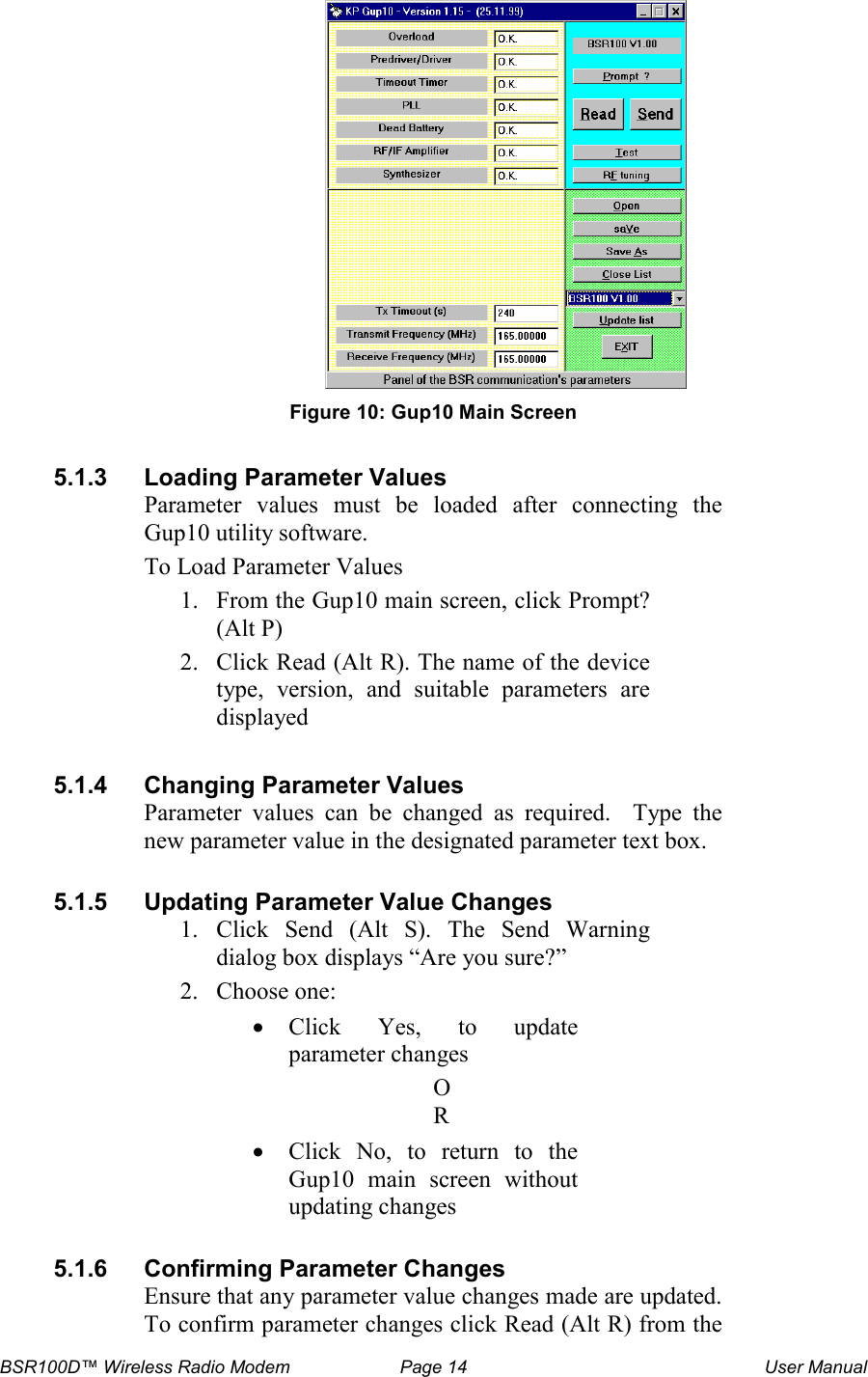

BSR100D™ Wireless Radio Modem Page 14 User Manual Figure 10: Gup10 Main Screen 5.1.3 Loading Parameter Values Parameter values must be loaded after connecting the Gup10 utility software. To Load Parameter Values 1. From the Gup10 main screen, click Prompt? (Alt P) 2. Click Read (Alt R). The name of the device type, version, and suitable parameters are displayed 5.1.4 Changing Parameter Values Parameter values can be changed as required. Type the new parameter value in the designated parameter text box. 5.1.5 Updating Parameter Value Changes 1. Click Send (Alt S). The Send Warning dialog box displays “Are you sure?” 2. Choose one: • Click Yes, to update parameter changes OR • Click No, to return to the Gup10 main screen without updating changes 5.1.6 Confirming Parameter Changes Ensure that any parameter value changes made are updated. To confirm parameter changes click Read (Alt R) from the

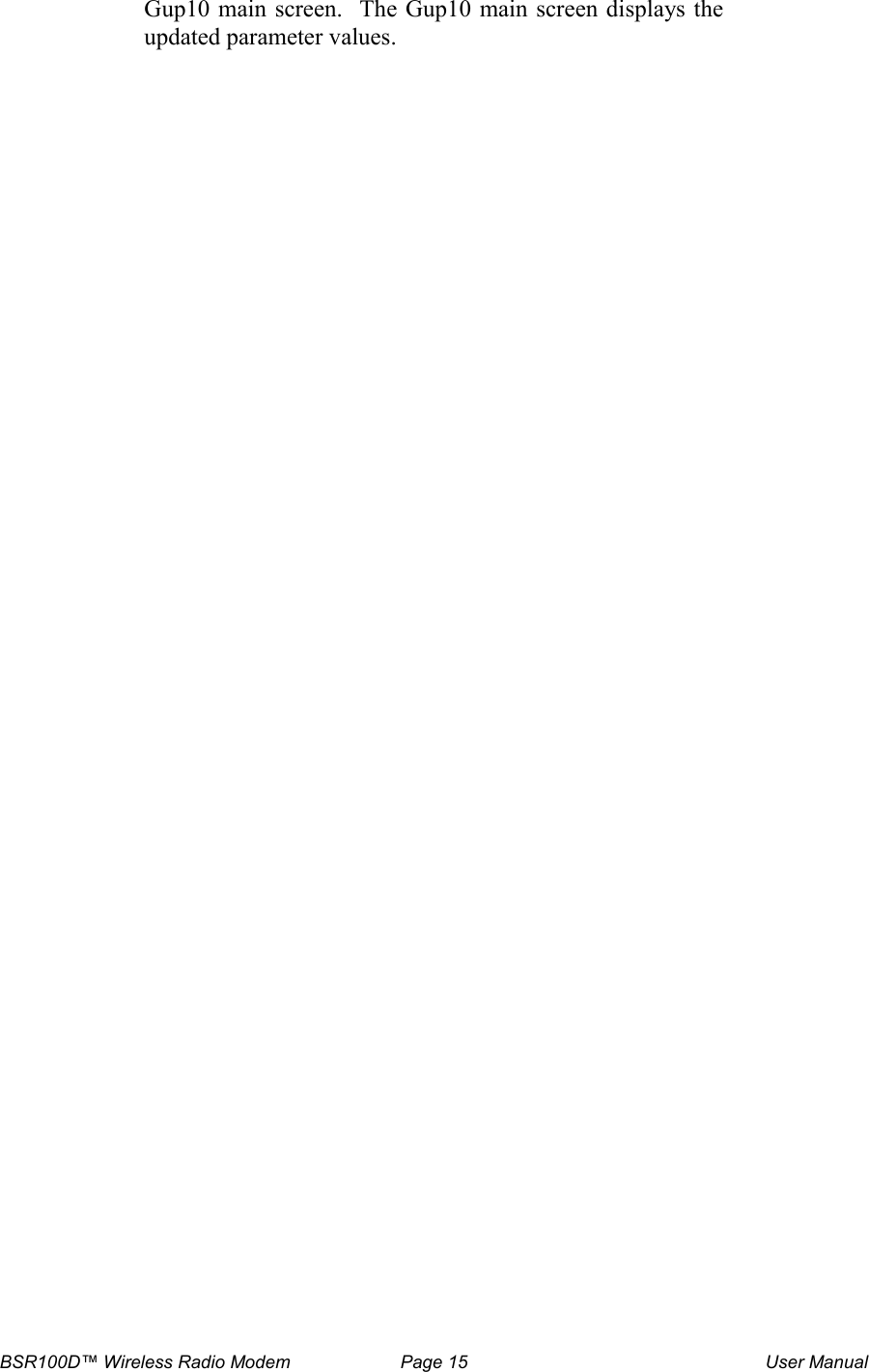

BSR100D™ Wireless Radio Modem Page 15 User Manual Gup10 main screen. The Gup10 main screen displays the updated parameter values.

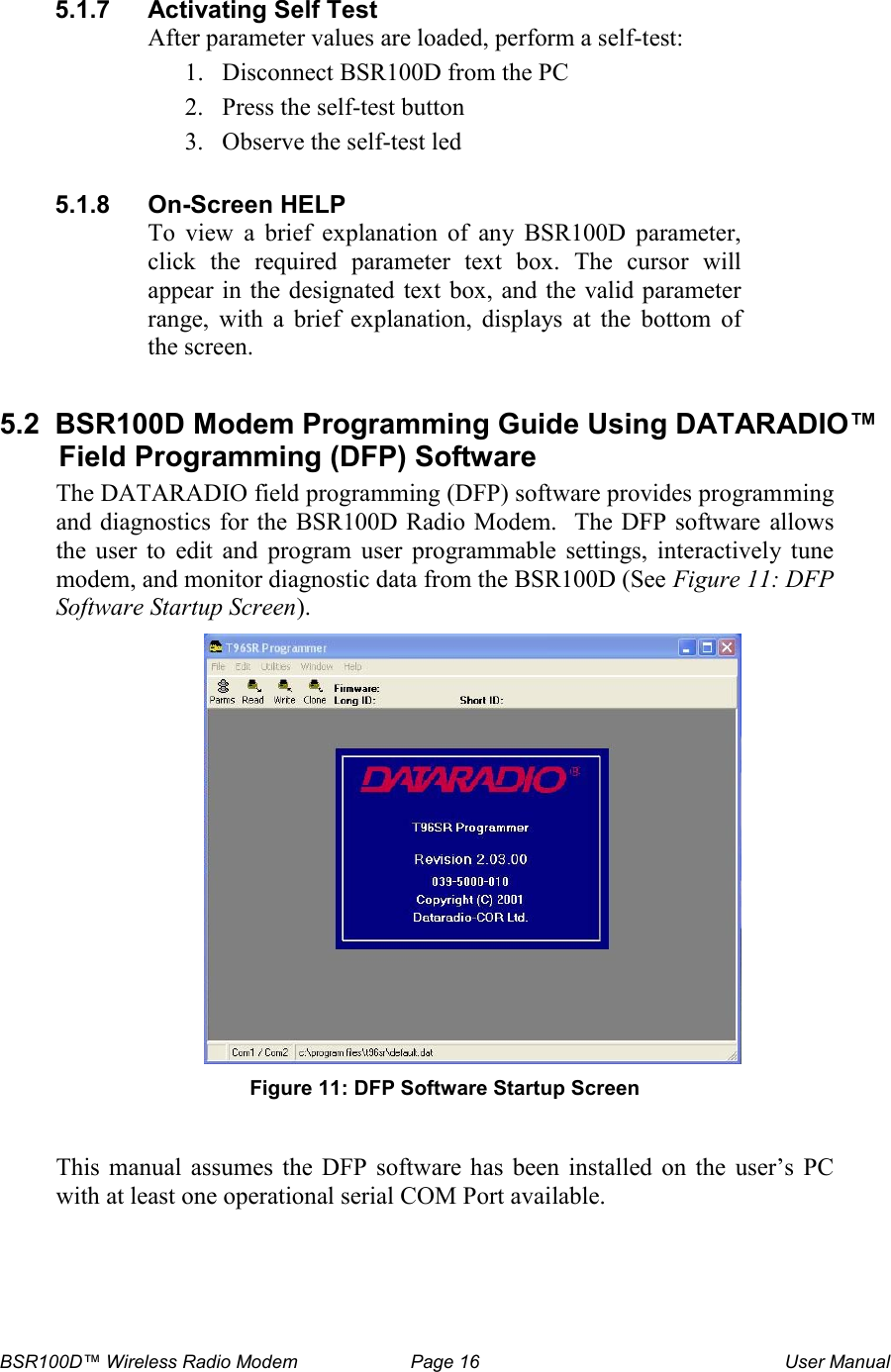

BSR100D™ Wireless Radio Modem Page 16 User Manual 5.1.7 Activating Self Test After parameter values are loaded, perform a self-test: 1. Disconnect BSR100D from the PC 2. Press the self-test button 3. Observe the self-test led 5.1.8 On-Screen HELP To view a brief explanation of any BSR100D parameter, click the required parameter text box. The cursor will appear in the designated text box, and the valid parameter range, with a brief explanation, displays at the bottom of the screen. 5.2 BSR100D Modem Programming Guide Using DATARADIO™ Field Programming (DFP) Software The DATARADIO field programming (DFP) software provides programming and diagnostics for the BSR100D Radio Modem. The DFP software allows the user to edit and program user programmable settings, interactively tune modem, and monitor diagnostic data from the BSR100D (See Figure 11: DFP Software Startup Screen). Figure 11: DFP Software Startup Screen This manual assumes the DFP software has been installed on the user’s PC with at least one operational serial COM Port available.

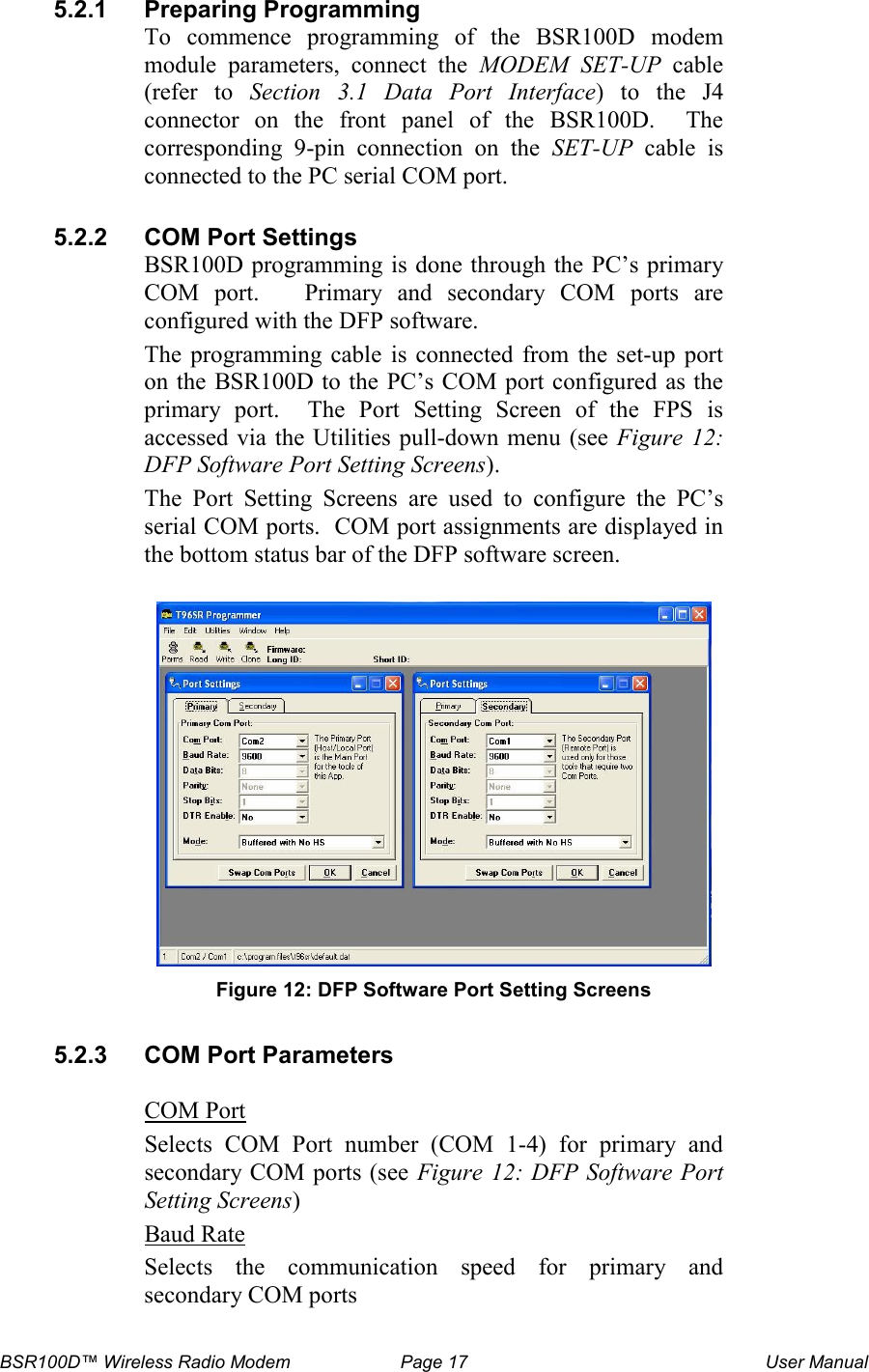

BSR100D™ Wireless Radio Modem Page 17 User Manual 5.2.1 Preparing Programming To commence programming of the BSR100D modem module parameters, connect the MODEM SET-UP cable (refer to Section 3.1 Data Port Interface) to the J4 connector on the front panel of the BSR100D. The corresponding 9-pin connection on the SET-UP cable is connected to the PC serial COM port. 5.2.2 COM Port Settings BSR100D programming is done through the PC’s primary COM port. Primary and secondary COM ports are configured with the DFP software. The programming cable is connected from the set-up port on the BSR100D to the PC’s COM port configured as the primary port. The Port Setting Screen of the FPS is accessed via the Utilities pull-down menu (see Figure 12: DFP Software Port Setting Screens). The Port Setting Screens are used to configure the PC’s serial COM ports. COM port assignments are displayed in the bottom status bar of the DFP software screen. Figure 12: DFP Software Port Setting Screens 5.2.3 COM Port Parameters COM Port Selects COM Port number (COM 1-4) for primary and secondary COM ports (see Figure 12: DFP Software Port Setting Screens) Baud Rate Selects the communication speed for primary and secondary COM ports

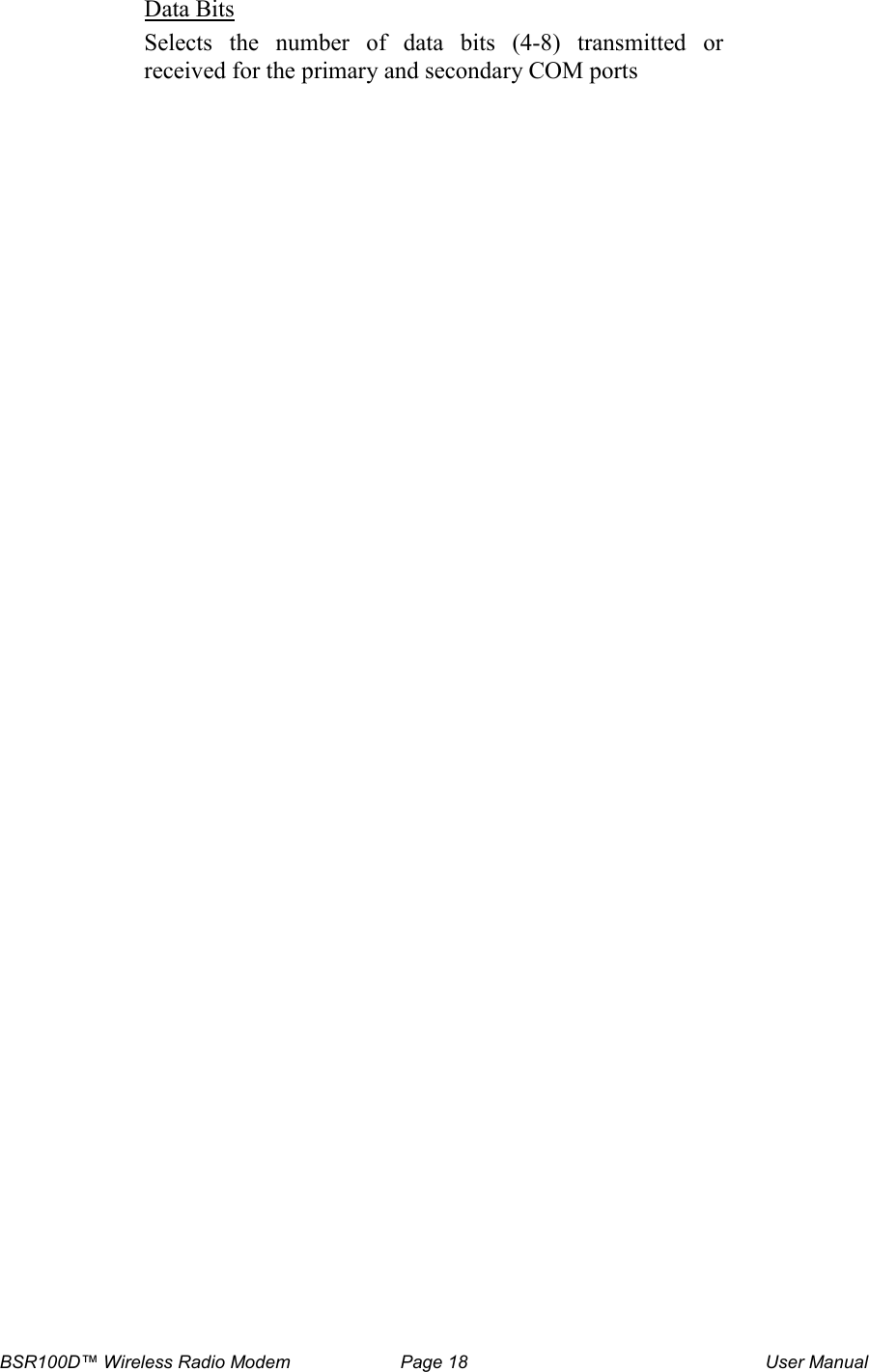

BSR100D™ Wireless Radio Modem Page 18 User Manual Data Bits Selects the number of data bits (4-8) transmitted or received for the primary and secondary COM ports

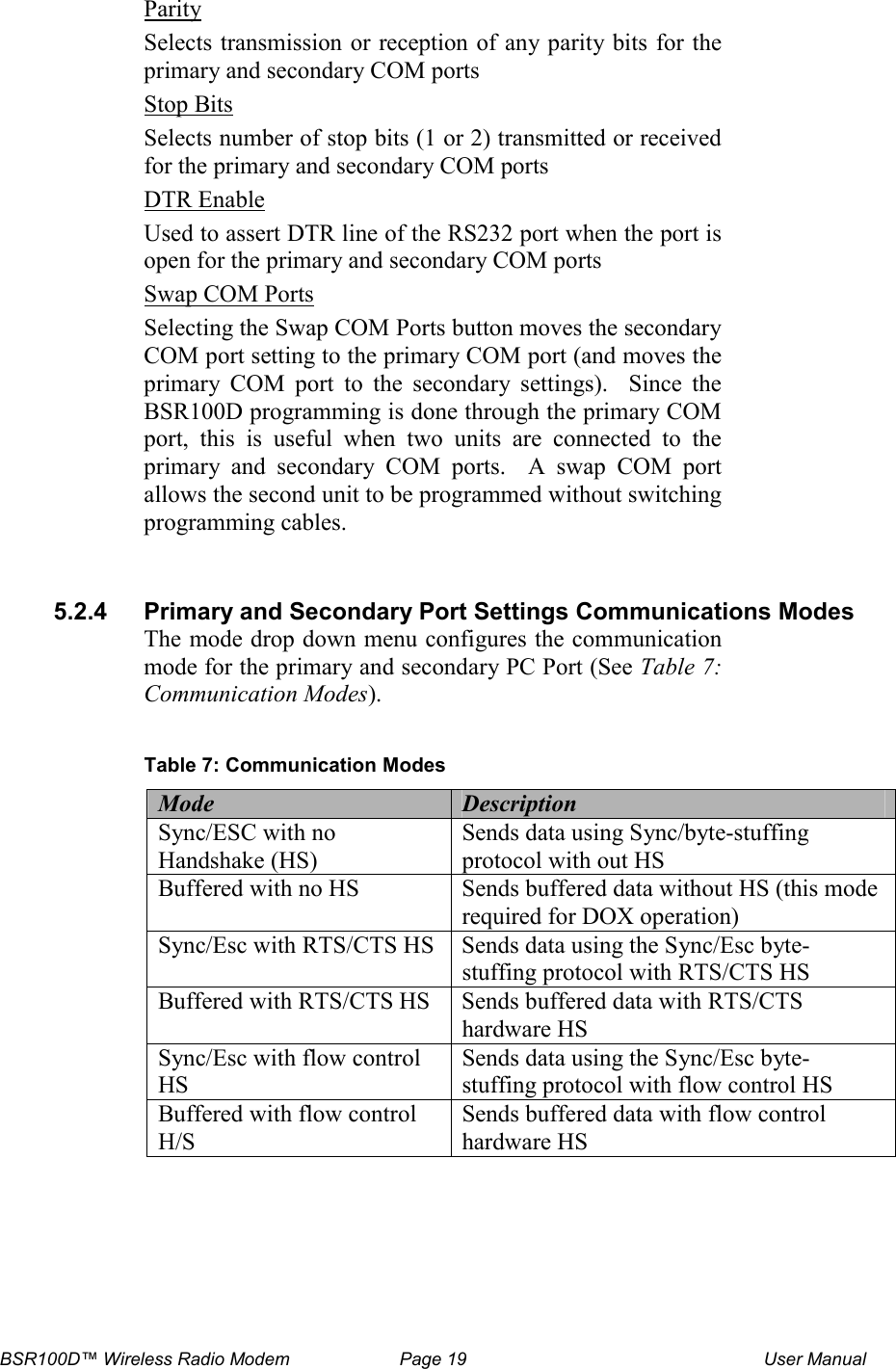

BSR100D™ Wireless Radio Modem Page 19 User Manual Parity Selects transmission or reception of any parity bits for the primary and secondary COM ports Stop Bits Selects number of stop bits (1 or 2) transmitted or received for the primary and secondary COM ports DTR Enable Used to assert DTR line of the RS232 port when the port is open for the primary and secondary COM ports Swap COM Ports Selecting the Swap COM Ports button moves the secondary COM port setting to the primary COM port (and moves the primary COM port to the secondary settings). Since the BSR100D programming is done through the primary COM port, this is useful when two units are connected to the primary and secondary COM ports. A swap COM port allows the second unit to be programmed without switching programming cables. 5.2.4 Primary and Secondary Port Settings Communications Modes The mode drop down menu configures the communication mode for the primary and secondary PC Port (See Table 7: Communication Modes). Table 7: Communication Modes Mode Description Sync/ESC with no Handshake (HS) Sends data using Sync/byte-stuffing protocol with out HS Buffered with no HS Sends buffered data without HS (this mode required for DOX operation) Sync/Esc with RTS/CTS HS Sends data using the Sync/Esc byte-stuffing protocol with RTS/CTS HS Buffered with RTS/CTS HS Sends buffered data with RTS/CTS hardware HS Sync/Esc with flow control HS Sends data using the Sync/Esc byte-stuffing protocol with flow control HS Buffered with flow control H/S Sends buffered data with flow control hardware HS

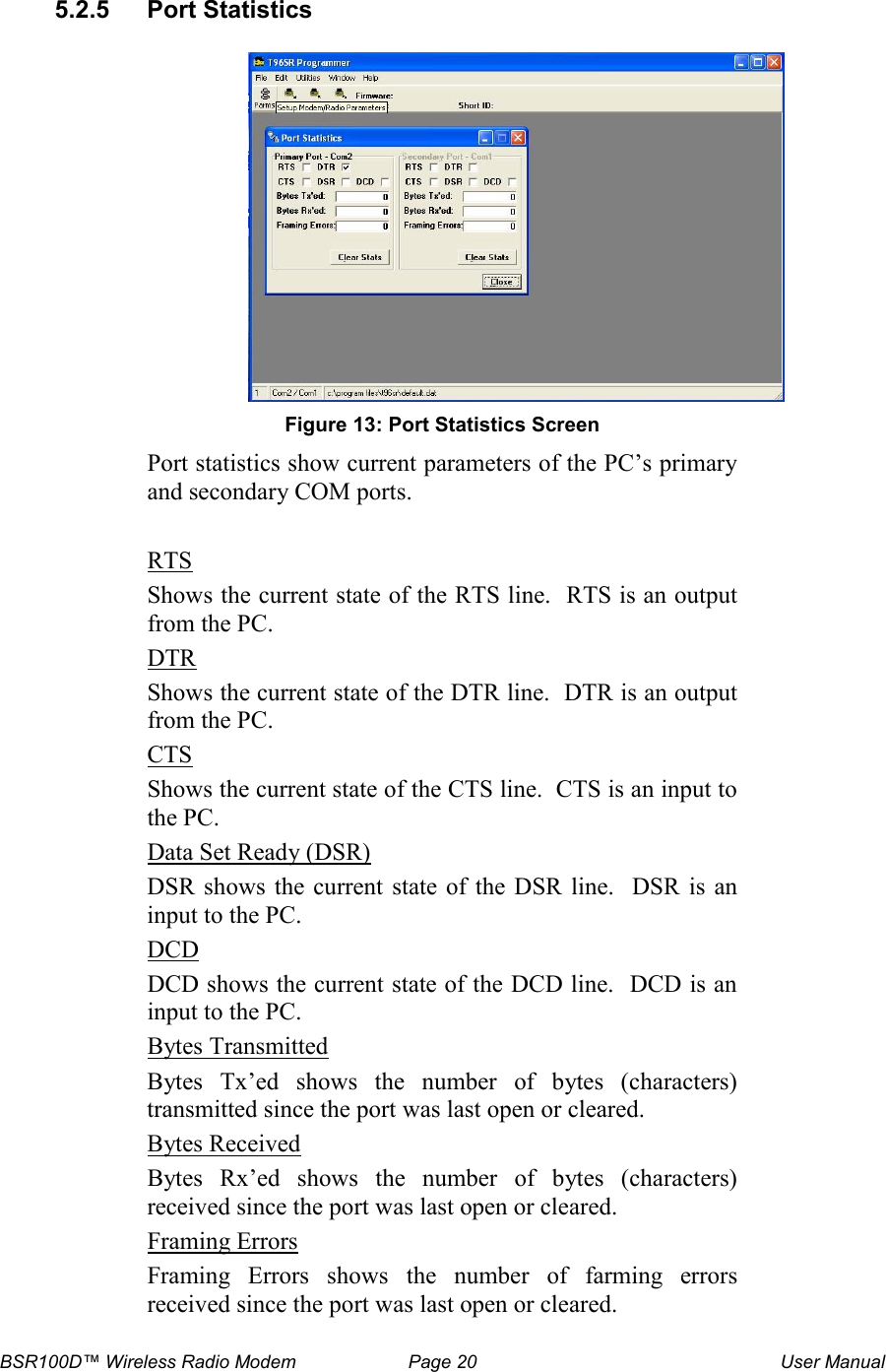

BSR100D™ Wireless Radio Modem Page 20 User Manual 5.2.5 Port Statistics Figure 13: Port Statistics Screen Port statistics show current parameters of the PC’s primary and secondary COM ports. RTS Shows the current state of the RTS line. RTS is an output from the PC. DTR Shows the current state of the DTR line. DTR is an output from the PC. CTS Shows the current state of the CTS line. CTS is an input to the PC. Data Set Ready (DSR) DSR shows the current state of the DSR line. DSR is an input to the PC. DCD DCD shows the current state of the DCD line. DCD is an input to the PC. Bytes Transmitted Bytes Tx’ed shows the number of bytes (characters) transmitted since the port was last open or cleared. Bytes Received Bytes Rx’ed shows the number of bytes (characters) received since the port was last open or cleared. Framing Errors Framing Errors shows the number of farming errors received since the port was last open or cleared.

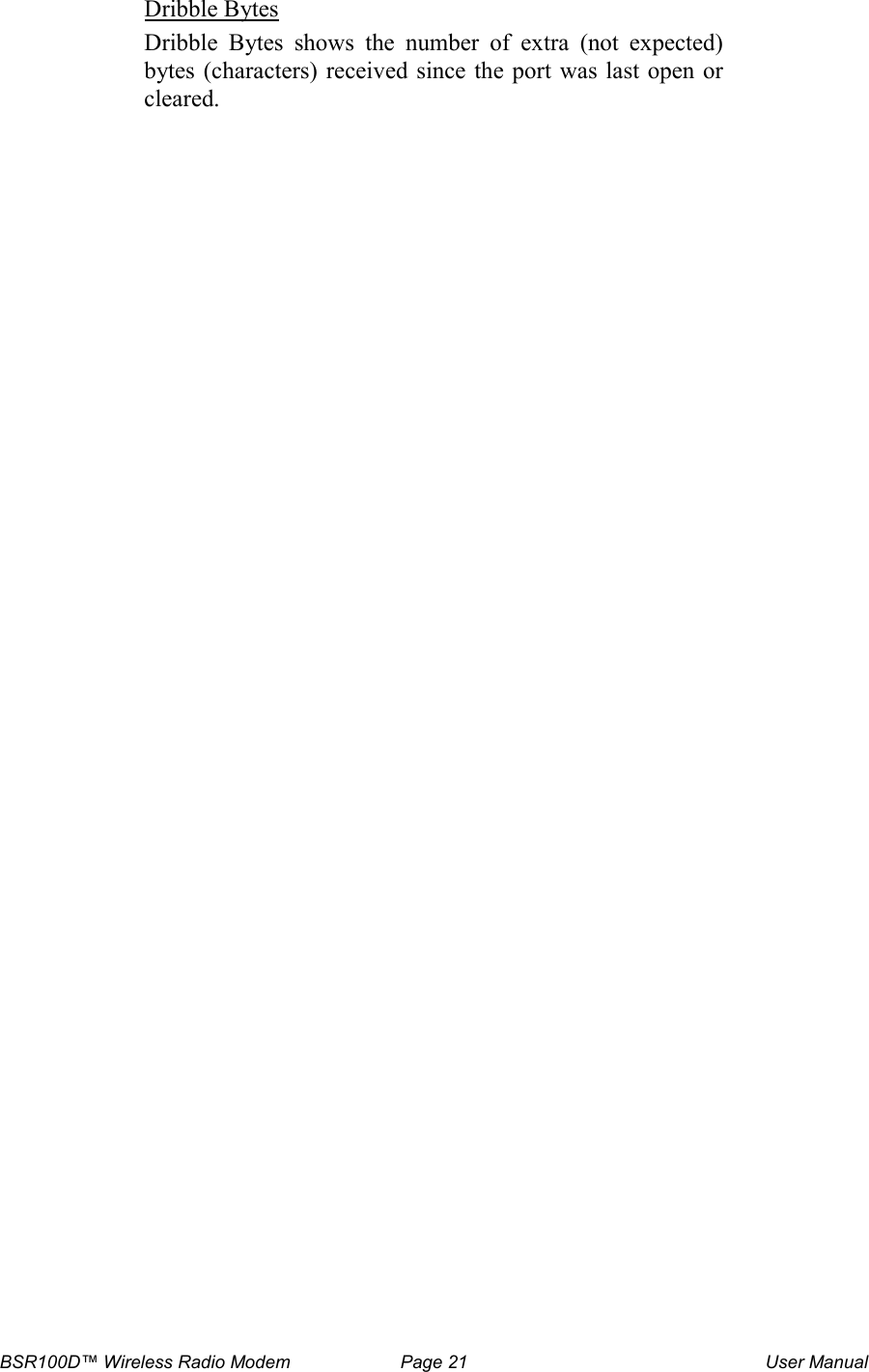

BSR100D™ Wireless Radio Modem Page 21 User Manual Dribble Bytes Dribble Bytes shows the number of extra (not expected) bytes (characters) received since the port was last open or cleared.

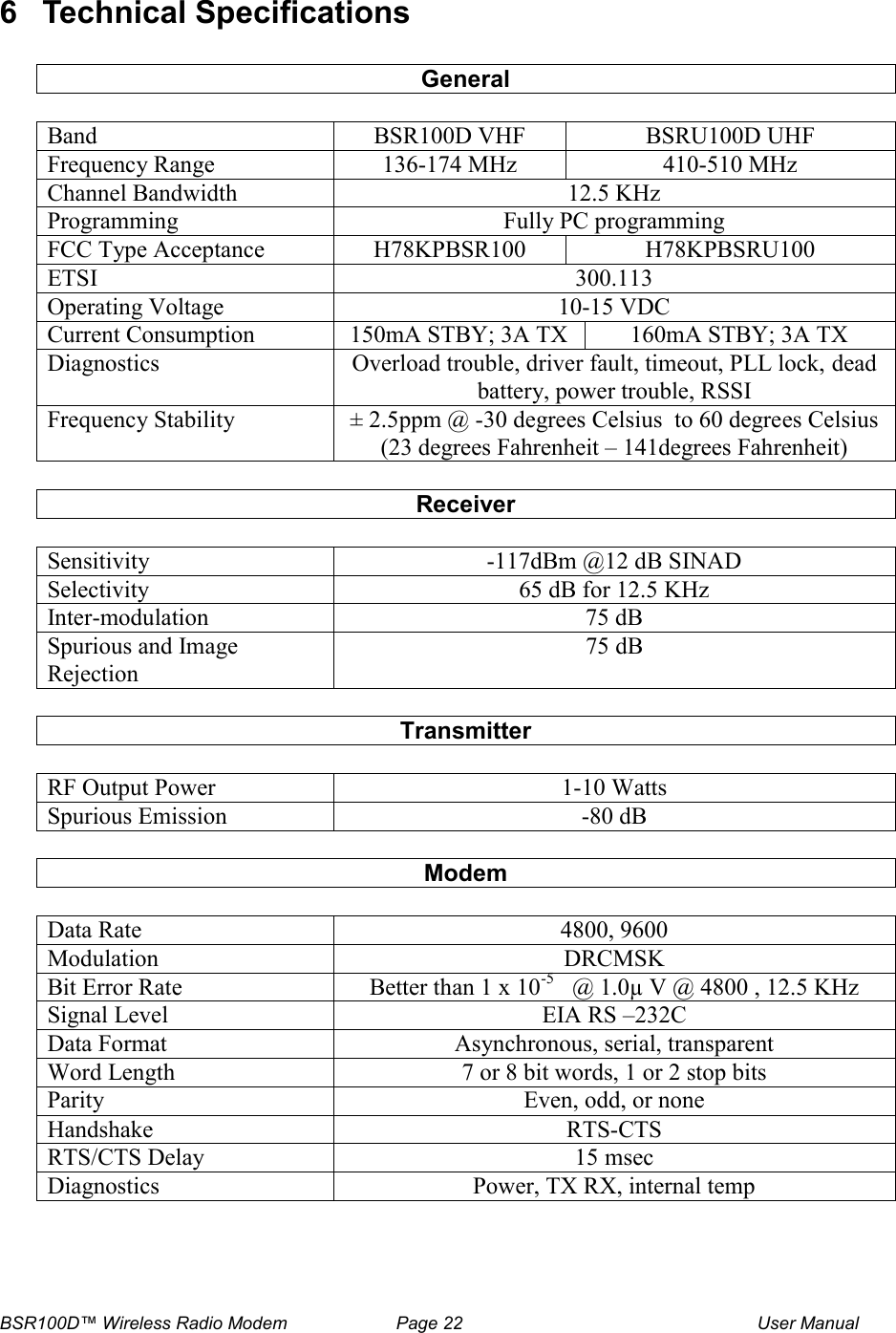

BSR100D™ Wireless Radio Modem Page 22 User Manual 6 Technical Specifications General Band BSR100D VHF BSRU100D UHF Frequency Range 136-174 MHz 410-510 MHz Channel Bandwidth 12.5 KHz Programming Fully PC programming FCC Type Acceptance H78KPBSR100 H78KPBSRU100 ETSI 300.113 Operating Voltage 10-15 VDC Current Consumption 150mA STBY; 3A TX 160mA STBY; 3A TX Diagnostics Overload trouble, driver fault, timeout, PLL lock, dead battery, power trouble, RSSI Frequency Stability ± 2.5ppm @ -30 degrees Celsius to 60 degrees Celsius (23 degrees Fahrenheit – 141degrees Fahrenheit) Receiver Sensitivity -117dBm @12 dB SINAD Selectivity 65 dB for 12.5 KHz Inter-modulation 75 dB Spurious and Image Rejection 75 dB Transmitter RF Output Power 1-10 Watts Spurious Emission -80 dB Modem Data Rate 4800, 9600 Modulation DRCMSK Bit Error Rate Better than 1 x 10-5 @ 1.0µ V @ 4800 , 12.5 KHz Signal Level EIA RS –232C Data Format Asynchronous, serial, transparent Word Length 7 or 8 bit words, 1 or 2 stop bits Parity Even, odd, or none Handshake RTS-CTS RTS/CTS Delay 15 msec Diagnostics Power, TX RX, internal temp

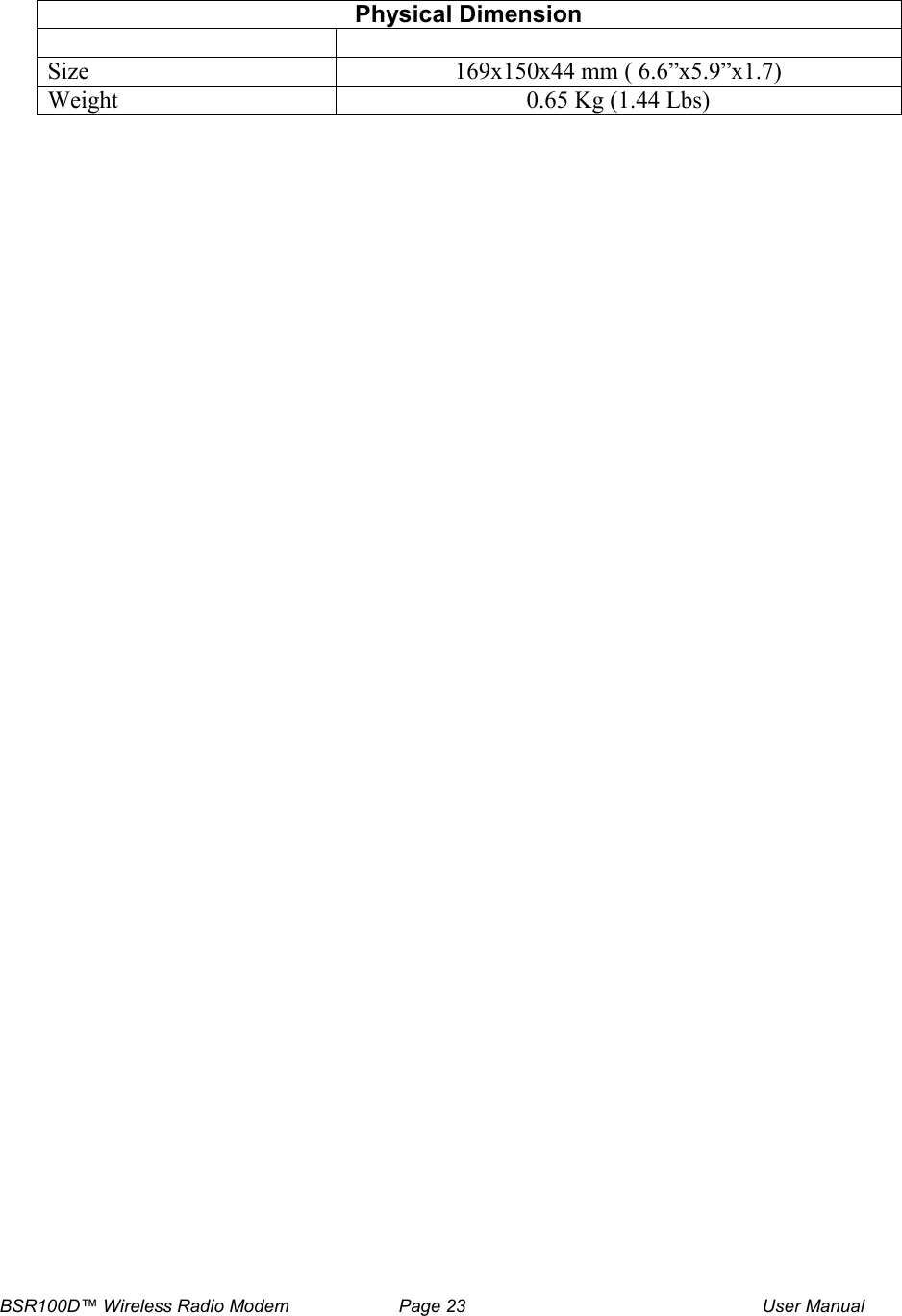

BSR100D™ Wireless Radio Modem Page 23 User Manual Physical Dimension Size 169x150x44 mm ( 6.6”x5.9”x1.7) Weight 0.65 Kg (1.44 Lbs)
