KP Electronic Systems KPMTWEN1HL AUTOMATIC METER READING TRANSMITTER User Manual MTU temp 2

KP Electronic Systems Ltd AUTOMATIC METER READING TRANSMITTER MTU temp 2

Users Manual

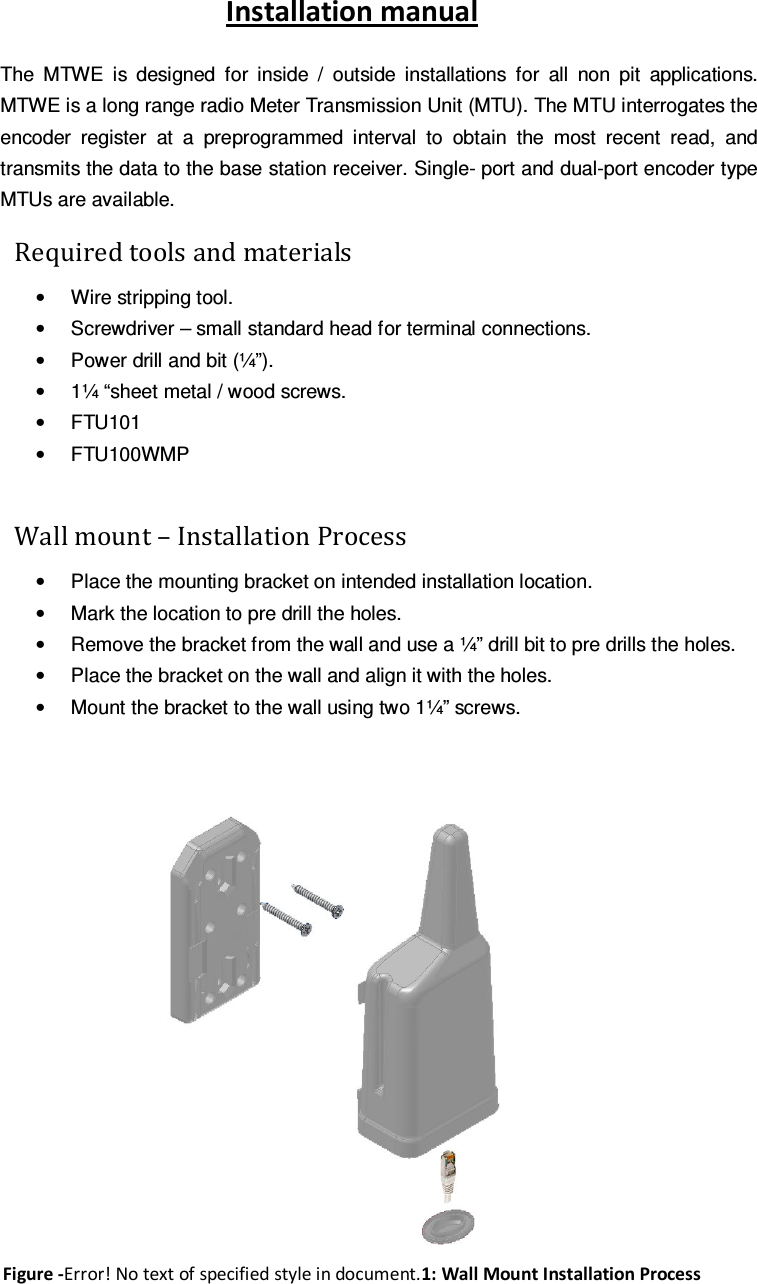

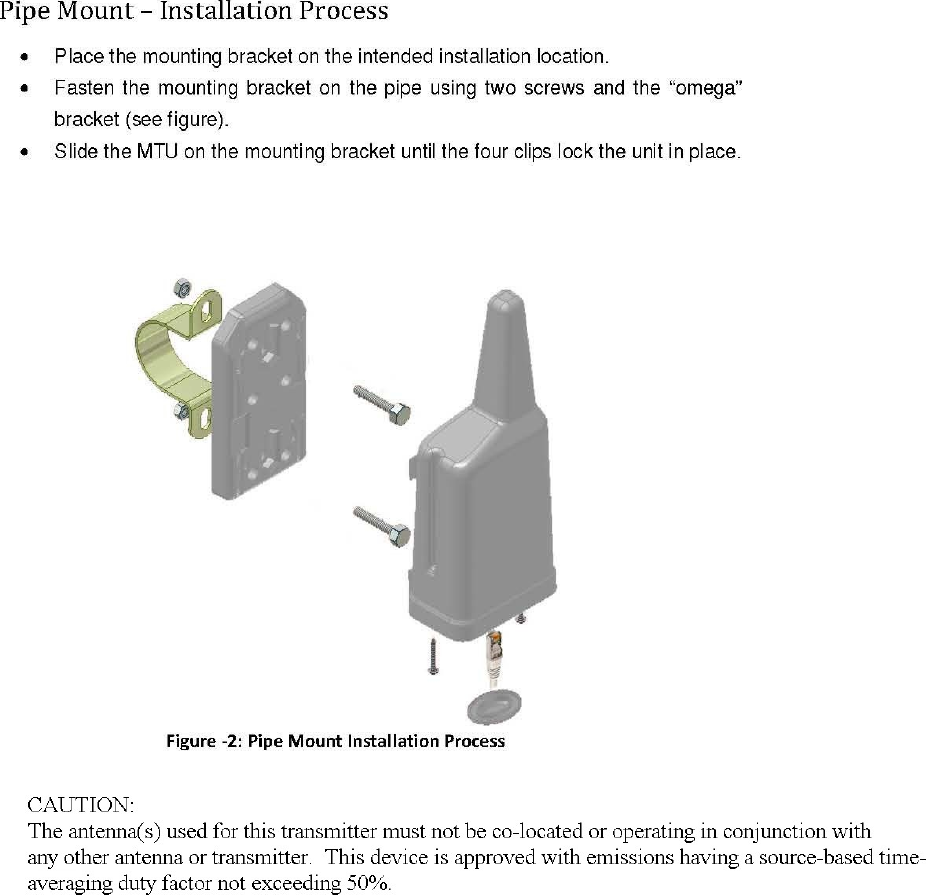

Installation manual The MTWE is designed for inside / outside installations for all non pit applications. MTWE is a long range radio Meter Transmission Unit (MTU). The MTU interrogates the encoder register at a preprogrammed interval to obtain the most recent read, and transmits the data to the base station receiver. Single- port and dual-port encoder type MTUs are available. Required tools and materials • Wire stripping tool. • Screwdriver – small standard head for terminal connections. • Power drill and bit (¼”). • 1¼ “sheet metal / wood screws. • FTU101 • FTU100WMP Wall mount – Installation Process • Place the mounting bracket on intended installation location. • Mark the location to pre drill the holes. • Remove the bracket from the wall and use a ¼” drill bit to pre drills the holes. • Place the bracket on the wall and align it with the holes. • Mount the bracket to the wall using two 1¼” screws. Figure -Error! No text of specified style in document.1: Wall Mount Installation Process
