KROHNE FMCW80G74LA Level Probing Radar User Manual HB OPTIWAVE7500 en 161026 4004375401 R01
KROHNE Level Probing Radar HB OPTIWAVE7500 en 161026 4004375401 R01
KROHNE >
manual_english
Radar (FMCW) Level Transmitter for high-precision
storage of liquids
OPTIWAVE 7500 C
OPTIWAVE 7500 COPTIWAVE 7500 C
OPTIWAVE 7500 C Handbook
HandbookHandbook
Handbook
© KROHNE 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without
the prior written authorisation of KROHNE Messtechnik GmbH.
Subject to change without notice.
2
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Copyright 2016 by
KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany)
:
IMPRINT
:::::::::::::::::::::::::::::::::::::::
CONTENTS
3
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
OPTIWAVE 7500 C
1 Safety instructions 7
1.1 Software history ............................................................................................................... 7
1.2 Intended use ..................................................................................................................... 7
1.3 Certification ...................................................................................................................... 8
1.4 Electromagnetic compatibility ......................................................................................... 8
1.5 Radio approvals ................................................................................................................ 9
1.5.1 European Union (EU)............................................................................................................... 9
1.5.2 U.S.A...................................................................................................................................... 11
1.5.3 Canada................................................................................................................................... 13
1.6 Safety instructions from the manufacturer................................................................... 15
1.6.1 Copyright and data protection .............................................................................................. 15
1.6.2 Disclaimer ............................................................................................................................. 15
1.6.3 Product liability and warranty .............................................................................................. 16
1.6.4 Information concerning the documentation......................................................................... 16
1.6.5 Warnings and symbols used................................................................................................. 17
1.7 Safety instructions for the operator............................................................................... 17
2 Device description 18
2.1 Scope of delivery............................................................................................................. 18
2.2 Device description .......................................................................................................... 19
2.3 Visual Check ................................................................................................................... 20
2.4 Nameplates .................................................................................................................... 21
2.4.1 Nameplate (examples).......................................................................................................... 21
3 Installation 22
3.1 General notes on installation ......................................................................................... 22
3.2 Storage ........................................................................................................................... 22
3.3 Transport ........................................................................................................................ 22
3.4 Pre-installation requirements ....................................................................................... 22
3.5 Pressure and temperature ranges ................................................................................ 23
3.6 Recommended mounting position ................................................................................. 24
3.6.1 General notes........................................................................................................................ 24
3.6.2 Tanks with conical bottoms .................................................................................................. 24
3.7 Mounting restrictions ..................................................................................................... 24
3.7.1 General data for TLPR devices ............................................................................................. 25
3.7.2 Obstacles in the tank ............................................................................................................ 25
3.7.3 Process connections............................................................................................................. 26
3.8 How to turn or remove the display module (option) ...................................................... 27
3.9 How to turn or remove the signal converter.................................................................. 28
3.10 Weather protection....................................................................................................... 29
3.10.1 How to attach the weather protection to the device........................................................... 29
3.10.2 How to open the weather protection .................................................................................. 31
4 Electrical connections 32
4.1 Safety instructions.......................................................................................................... 32
4.2 Electrical installation: 2-wire, loop-powered ................................................................ 32
CONTENTS
4
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
OPTIWAVE 7500 C
4.3 Electrical connection for current output ....................................................................... 36
4.3.1 Non-Ex devices ..................................................................................................................... 36
4.3.2 Devices for hazardous locations........................................................................................... 36
4.4 Protection category ........................................................................................................36
4.5 Networks ........................................................................................................................ 37
4.5.1 General information.............................................................................................................. 37
4.5.2 Point-to-point connection..................................................................................................... 37
4.5.3 Multi-drop networks ............................................................................................................. 38
5 Start-up 39
5.1 Start-up checklist........................................................................................................... 39
5.2 How to start the device................................................................................................... 39
5.3 Operating concept ..........................................................................................................39
5.4 Digital display screen .....................................................................................................40
5.4.1 Display screen layout............................................................................................................ 40
5.4.2 Keypad buttons ..................................................................................................................... 41
5.5 Remote communication with PACTware™ .................................................................... 43
5.6 Remote communication with the AMS™ Device Manager............................................. 44
6 Operation 45
6.1 User modes .................................................................................................................... 45
6.2 Normal mode.................................................................................................................. 45
6.3 Program mode................................................................................................................ 47
6.3.1 General notes........................................................................................................................ 47
6.3.2 Protection of the device settings (security levels) ............................................................... 47
6.3.3 How to get access to the Quick Setup menu ........................................................................ 49
6.3.4 Keypad functions................................................................................................................... 50
6.3.5 How to save settings changed in program mode ................................................................. 53
6.3.6 Menu overview ...................................................................................................................... 54
6.3.7 Function description ............................................................................................................. 60
6.4 Further information on device configuration in program mode ................................... 79
6.4.1 Standard Setup ..................................................................................................................... 79
6.4.2 Empty spectrum recording................................................................................................... 82
6.4.3 HART® network configuration ............................................................................................. 84
6.4.4 Distance measurement ........................................................................................................ 85
6.4.5 Level measurement .............................................................................................................. 85
6.4.6 How to configure the device to measure volume or mass................................................... 86
6.4.7 How to make a filter to remove radar signal interference .................................................. 87
6.4.8 ............................................................................................................................................... 87
6.5 Status messages and diagnostic data............................................................................ 88
7 Service 94
7.1 Periodic maintenance..................................................................................................... 94
7.1.1 General notes........................................................................................................................ 94
7.1.2 Maintainance of the O-rings for the housing covers............................................................ 94
7.1.3 How to clean the top surface of the device........................................................................... 95
7.1.4 How to clean horn antennas under process conditions....................................................... 95
7.2 Service warranty............................................................................................................. 95
CONTENTS
5
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
OPTIWAVE 7500 C
7.3 Spare parts availability...................................................................................................95
7.4 Availability of services .................................................................................................... 95
7.5 Returning the device to the manufacturer..................................................................... 96
7.5.1 General information.............................................................................................................. 96
7.5.2 Form (for copying) to accompany a returned device............................................................ 97
7.6 Disposal .......................................................................................................................... 97
8 Technical data 98
8.1 Measuring principle........................................................................................................98
8.2 Technical data................................................................................................................. 99
8.3 Minimum power supply voltage ................................................................................... 103
8.4 Guidelines for maximum operating pressure.............................................................. 104
8.5 Dimensions and weights .............................................................................................. 105
9 Description of HART interface 107
9.1 General description ...................................................................................................... 107
9.2 Software history ...........................................................................................................107
9.3 Connection variants...................................................................................................... 108
9.3.1 Point-to-Point connection – analogue / digital mode ........................................................ 108
9.3.2 Multi-Drop connection (2-wire connection) ....................................................................... 108
9.4 HART® device variables............................................................................................... 108
9.5 Field Communicator 475 (FC 475)................................................................................ 109
9.5.1 Installation .......................................................................................................................... 109
9.5.2 Operation............................................................................................................................. 109
9.6 Asset Management Solutions (AMS®) ......................................................................... 109
9.6.1 Installation .......................................................................................................................... 109
9.6.2 Operation............................................................................................................................. 110
9.6.3 Parameter for the basic configuration ............................................................................... 110
9.7 Field Device Tool / Device Type Manager (FDT / DTM)................................................ 110
9.7.1 Installation .......................................................................................................................... 110
9.7.2 Operation............................................................................................................................. 110
9.8 Process Device Manager (PDM)................................................................................... 110
9.8.1 Installation .......................................................................................................................... 110
9.8.2 Operation............................................................................................................................. 111
9.9 HART® menu tree for AMS .......................................................................................... 111
9.9.1 Overview AMS menu tree (positions in menu tree)............................................................ 111
9.9.2 AMS menu tree (details for settings).................................................................................. 111
9.10 HART® menu tree for PDM........................................................................................ 111
9.10.1 Overview PDM menu tree (positions in menu tree).......................................................... 111
9.10.2 PDM menu tree (details for settings) ............................................................................... 112
10 Appendix 116
10.1 Order code .................................................................................................................. 116
10.2 Spare parts ................................................................................................................. 116
10.3 Accessories................................................................................................................. 120
10.4 Glossary ...................................................................................................................... 121
CONTENTS
6
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
OPTIWAVE 7500 C
11 Notes 123
SAFETY INSTRUCTIONS
1
7
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.1 Software history
"Firmware revision" agrees with NAMUR NE 53. It is a series of numbers used to record the
revision status of embedded software (firmware) in electronic equipment assemblies. It gives
data on the type of changes made and the effect that changes have on compatibility.
Data about software revisions is shown in menu 1.1.0 IDENT. For more data, refer to
Function
description
on page 60. If it is not possible to refer to the device menu, record the serial number
of the device (given on the device nameplate) and speak to the supplier.
1.2 Intended use
This radar level transmitter measures distance, level, mass, volume and reflectivity of liquids,
pastes and slurries.
It can be installed on tanks, reactors and open channels.
Release
date
Printed circuit
assembly
Firmware
revision
Hardware
revision
Changes and
compatibility
Documentation
YYYY-MM-
DD Converter 1.00.0x 400xxxxx01 —HB OPTIWAVE
7500 R01
Sensor 1.00.0x 400xxxxx01
HMI (LCD display
option) 1.00.0x 400xxxxx01
CAUTION!
Responsibility for the use of the measuring devices with regard to suitability, intended use and
corrosion resistance of the used materials against the measured fluid lies solely with the
operator.
INFORMATION!
The manufacturer is not liable for any damage resulting from improper use or use for other than
the intended purpose.
CAUTION!
SIL-qualified devices:
SIL-qualified devices:SIL-qualified devices:
SIL-qualified devices:
For more data, refer to the Safety Manual.
1
SAFETY INSTRUCTIONS
8
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.3 Certification
The device meets the essential requirements of the EU Directives:
•Electromagnetic Compatibility (EMC) directive
•The safety part of the Low-Voltage directive
•For devices used in hazardous locations: ATEX directive
The manufacturer certifies successful testing of the product by applying the CE marking. For
more data about the EU Directives and European Standards related to this device, refer to the EU
Declaration of Conformity. You can find this documentation on the DVD-ROM supplied with the
device or it can be downloaded free of charge from the website (Download Center).
All devices are based on the CE marking and meet the requirements of NAMUR
Recommendations NE 21, NE 43, NE 53 and NE 107.
1.4 Electromagnetic compatibility
The device agrees with Electromagnetic Compatibility Directive.
You can install the device on tanks, open vessels or channels, but the type of antenna must agree
with the location of the device. For more data, refer to
Radio approvals
on page 9.
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
INFORMATION!
For SIL-approved devices; please refer to the safety manual.
CE marking
INFORMATION!
This agrees with Immunity and Emissions requirements for industrial environments.
SAFETY INSTRUCTIONS
1
9
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.5 Radio approvals
1.5.1 European Union (EU)
This level transmitter is approved to be used outside metallic tanks. If you use the device
outdoors, read the device nameplate to make sure that the device can be used for your
application. Refer also to the table that follows:
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) equipment are devices for the measurement of level in the open air
or in a closed space (a metallic tank etc.). TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar) equipment are
devices for the measurement of level in a closed space only. You can use LPR devices for TLPR
applications. The LPR and TLPR devices meet the requirements of the RED (Radio Equipment
Directive) for use in the member countries of the EU.
For more data about the order code, refer to Order code on page 116
.
Antenna type Order code Permitted for:
PEEK / Lens Ø20 mm / ¾¨ VFDFxxxxxxxxxxxxx1xx... TLPR
PEEK / Lens Ø25 mm / 1¨VFDFxxxxxxxxxxxxx2xx... TLPR
PEEK / Lens Ø40 mm / 1.57¨VFDFxxxxxxxxxxxxx3xx... LPR
PEEK / Lens Ø70 mm / 2.75¨VFDFxxxxxxxxxxxxx4xx... LPR

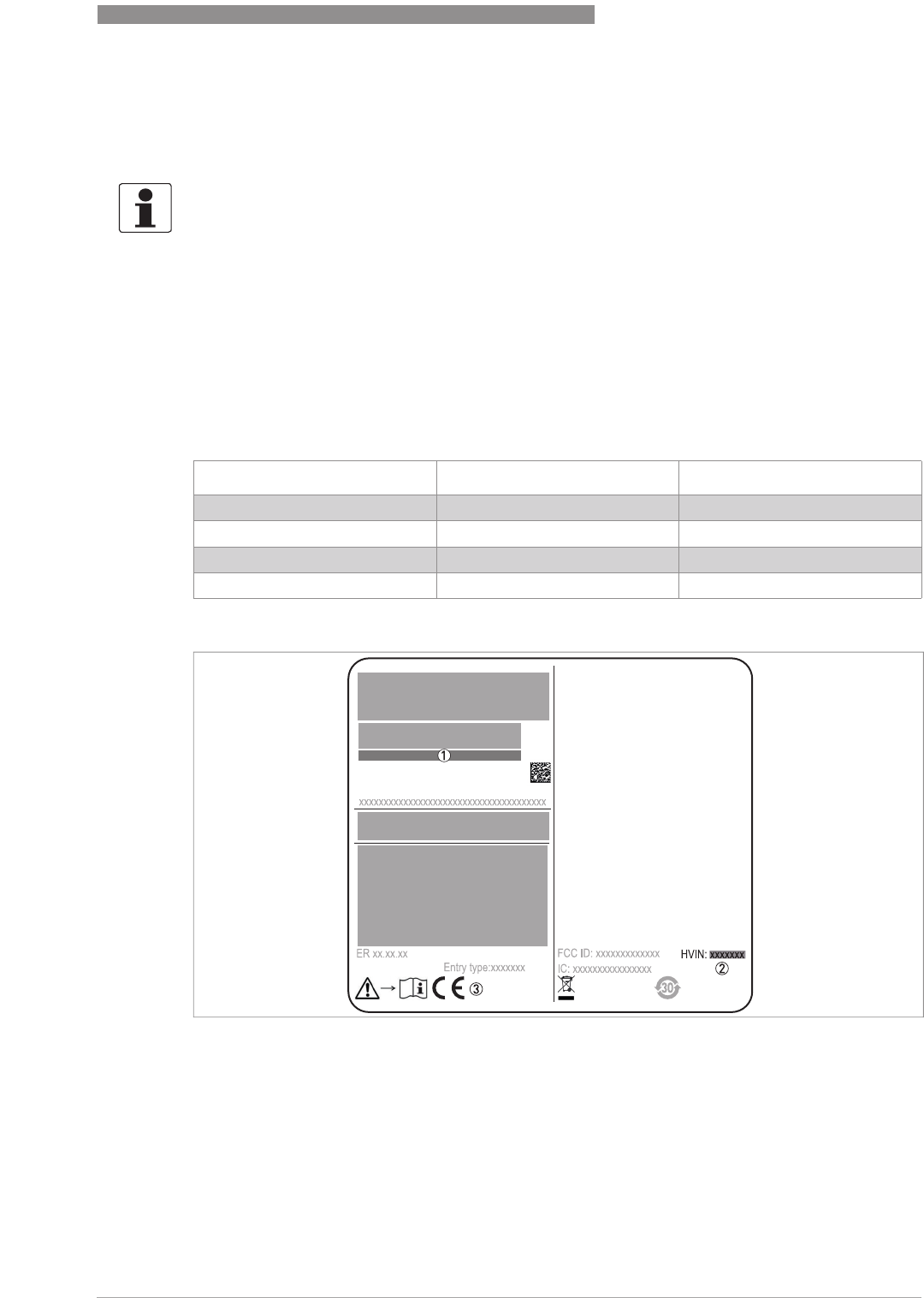

Figure 1-1: Radio approval information on the nameplate
1 Type code (defined in order)
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (80G = 80 GHz), the lo-
cation of the device (T=TLPR or L=LPR) and the type of signal converter (compact (C))
TLPR device: HVIN: 80G-T-C
LPR device: HVIN: 80G-L-C
3 CE sign
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
1
SAFETY INSTRUCTIONS
10
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
TLPR (Tank Level Probing Radar) devices only
Use approved personnel to install the device. The device and the tank agree with the RED (Radio
Equipment Directive) if you obey the instructions that follow:
•TLPR (Tank Level Probing Radar) are required to be installed at a permanent fixed position at
a closed (not open) metallic tank or reinforced concrete tank, or similar enclosure structure
made of comparable attenuating material;
•flanges and attachments of the TLPR equipment shall provide the necessary microwave
sealing by design;
•sight glasses shall be coated with a microwave-proof coating when necessary (i.e. electrically
conductive coating);
•manholes or connection flanges at the tank shall be closed to ensure a low-level leakage of
the signal into the air outside the tank;
•whenever possible, mounting of the TLPR equipment shall be on top of the tank structure
with the orientation of the antenna to point in a downward direction;
•installation and maintenance of the TLPR equipment shall be performed by professionally
trained individuals only.
For data about how to install EMI/RFI shielding gaskets, refer to the instructions supplied with
this accessory.
LPR (Level Probing Radar) devices only
Use approved personnel to install the device. If the device is operated in the open air (outdoors),
it agrees with the RED (Radio Equipment Directive) if you obey these instructions:
• The antenna must always point downwards. The boresight direction of the antenna must be
vertical. No other angles are permitted.
• Install the device more than 4 km / 2.485 mi away from radio astronomy sites.
• If the device is 4...40 km / 2.485...24.855 mi away from radio astronomy sites, do not install the
device more than 15 m / 49.21 ft above the ground.
Radio quiet zones: locations of radio astronomy sites (stations) in Europe and northern Eurasia
CAUTION!
If it is necessary to install the device less than 4 km / 2.485 mi from radio astronomy sites, you
must get the approval of the national regulatory authority before installation (e.g. ANFR
(France), Bundesnetzagentur (Germany), Ofcom (United Kingdom) etc.).
Country Name of the station Location
Latitude, ϕLongitude, λ
Finland Metsähovi 60°13'04" N 24°23'37" E
France Plateau de Bure 44°38'01" N 05°54'26" E
Germany Effelsberg 50°31'32" N 06°53'00" E
Italy Sardinia 39°29'50" N 09°14'40" E
Spain Yebes 40°31'27" N 03°05'22" W
Pico Veleta 37°03'58" N 03°23'34" W
Sweden Onsala 57°23’45" N 11°55’35" E
SAFETY INSTRUCTIONS
1
11
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.5.2 U.S.A.
This level transmitter is approved to be used outside metallic tanks. If you use the device in the
open air, read the device nameplate to make sure that the device can be used for your
application:
The Product Marketing Name (PMN) of this device is "Optiwave x500 series".
This level transmitter is approved to be used outside metallic tanks. If you use the device in the
open air, read the device nameplate to make sure that the device can be used for your
application. Only the antenna that follows is permitted for open-air applications:
•VFDFxxxxxxxxxxxxx3xx...
•VFDFxxxxxxxxxxxxx4xx...
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) equipment are devices for the measurement of level in the open air
or in a closed space (a metallic tank etc.). TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar) equipment are
devices for the measurement of level in a closed space only.
Antenna type Order code Permitted for:
PEEK / Lens Ø40 mm / 1.5¨VFDFxxxxxxxxxxxxx3xx... LPR + TLPR
PEEK / Lens Ø70 mm / 2.75¨VFDFxxxxxxxxxxxxx4xx... LPR + TLPR
LEGAL NOTICE!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference which may cause un-
desired operation.
Changes or modifications made to this equipment not expressly approved by the manufacturer
may void the FCC authorizations to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
1
SAFETY INSTRUCTIONS
12
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en

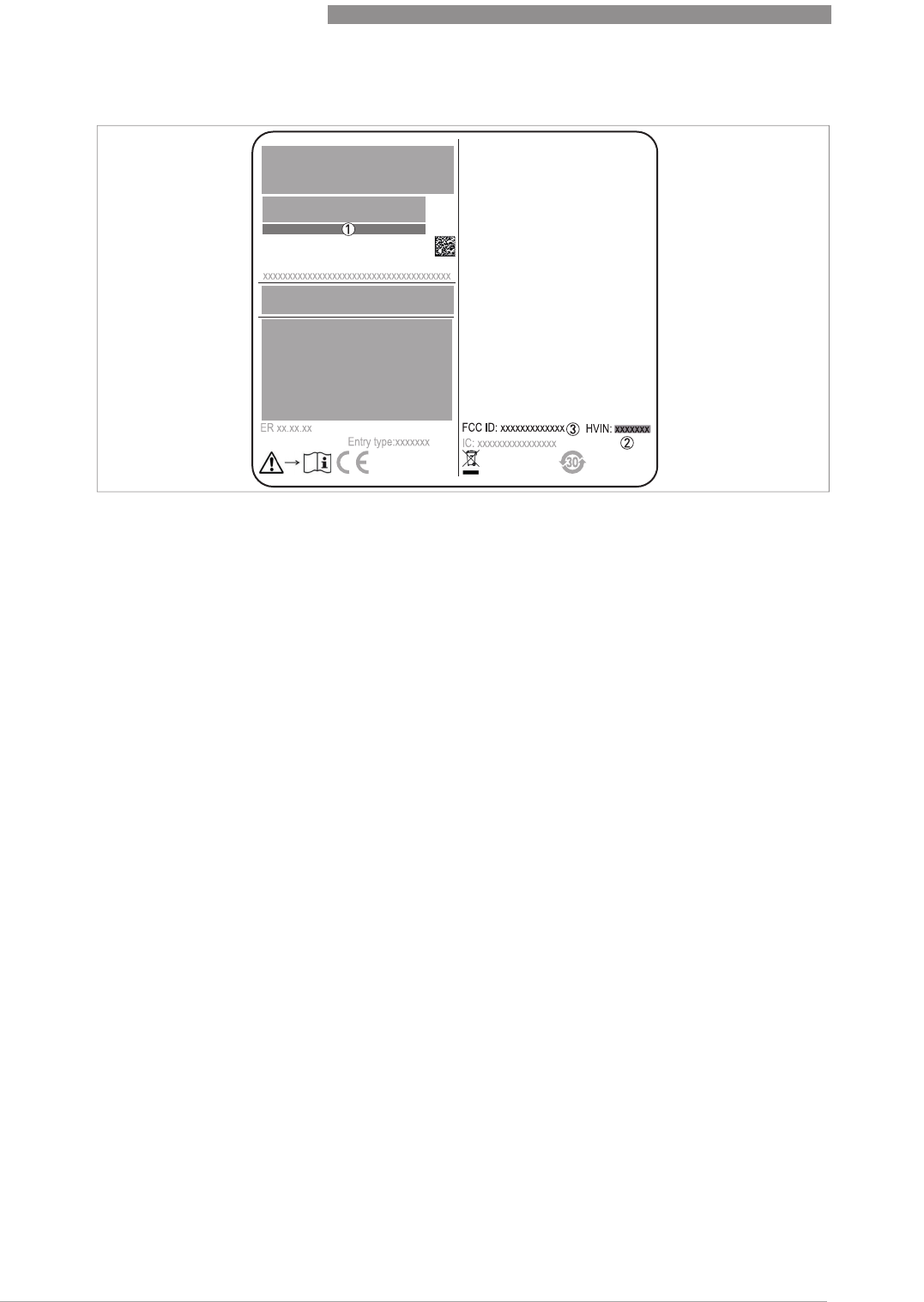

Figure 1-2: FCC ID
1 Type code (defined in order)
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (80G = 80 GHz), the lo-
cation of the device (T=TLPR or L=LPR) and the type of signal converter (compact (C))
TLPR device: HVIN: 80G-T-C
LPR device: HVIN: 80G-L-C
3 FCC ID
TLPR device: FCC-ID: Q6BFMCW80G74T-A
LPR device: FCC-ID: Q6BFMCW80G74L-A
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
SAFETY INSTRUCTIONS
1
13
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.5.3 Canada
This level transmitter is approved to be used outside metallic tanks. If you use the device in the
open air, read the device nameplate to make sure that the device can be used for your
application:
The Product Marketing Name (PMN) of this device is "Optiwave x500 series".
This level transmitter is approved to be used outside metallic tanks. If you use the device in the
open air, read the device nameplate to make sure that the device can be used for your
application. Only the antenna that follows is permitted for open-air applications:
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) equipment are devices for the measurement of level in the open air
or in a closed space (a metallic tank etc.). TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)
TLPR (Tank Level Probing Radar) equipment are
devices for the measurement of level in a closed space only.
Antenna type Order code Permitted for:
PEEK / Lens Ø20 mm / ¾¨ VFDFxxxxxxxxxxxxx1xx... TLPR
PEEK / Lens Ø25 mm / 1¨VFDFxxxxxxxxxxxxx2xx... TLPR
PEEK / Lens Ø40 mm / 1.57¨VFDFxxxxxxxxxxxxx3xx... LPR
PEEK / Lens Ø70 mm / 2.75¨VFDFxxxxxxxxxxxxx4xx... LPR
LEGAL NOTICE!
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause un-
desired operation.
This device and the handbook complies with the requirements of RSS-Gen. Operation is subject
to the conditions that follow:
1. The installation of the LPR/TLPR device shall be done by trained installers, in strict compliance
with the manufacturer
’
s instructions.
2. The use of this device is on a "no-interference, no-protection" basis. That is, the user shall ac-
cept operations of high-powered radar in the same frequency band which may interfere with or
damage this device. However, devices found to interfere with primary licensing operations will
be required to be removed at the user
’
s expense.
3. The TLPR device shall be installed and operated in a completely enclosed container to prevent
RF emissions, which can otherwise interfere with aeronautical navigation.
4. LPR devices: Ensure a vertically downward orientation of the transmit antenna and a installa-
tion only at fixed locations.
5. The installer / user of this device shall ensure that it is at least 10 km from the Dominion Radio
Astrophysical Observatory (DRAO) near Penticton, British Columbia. The coordinates of the
DRAO are latitude 49
°
19'15" N and longitude 119
°
37'12" W. For devices not meeting this 10 km
separation (e.g. those in the Okanagan Valley, British Columbia) the installer / user must coor-
dinate with, and obtain the written concurrence of, the Director of the DRAO before the equip-
ment can be installed or operated. The Director of the DRAO may be contacted at 250-497-2300
(tel.) or 250-497-2355 (fax). Alternatively, the Manager, Regulatory Standards, Industry Canada,
may be contacted.
1
SAFETY INSTRUCTIONS
14
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
•VFDFxxxxxxxxxxxxx3xx...
•VFDFxxxxxxxxxxxxx4xx...

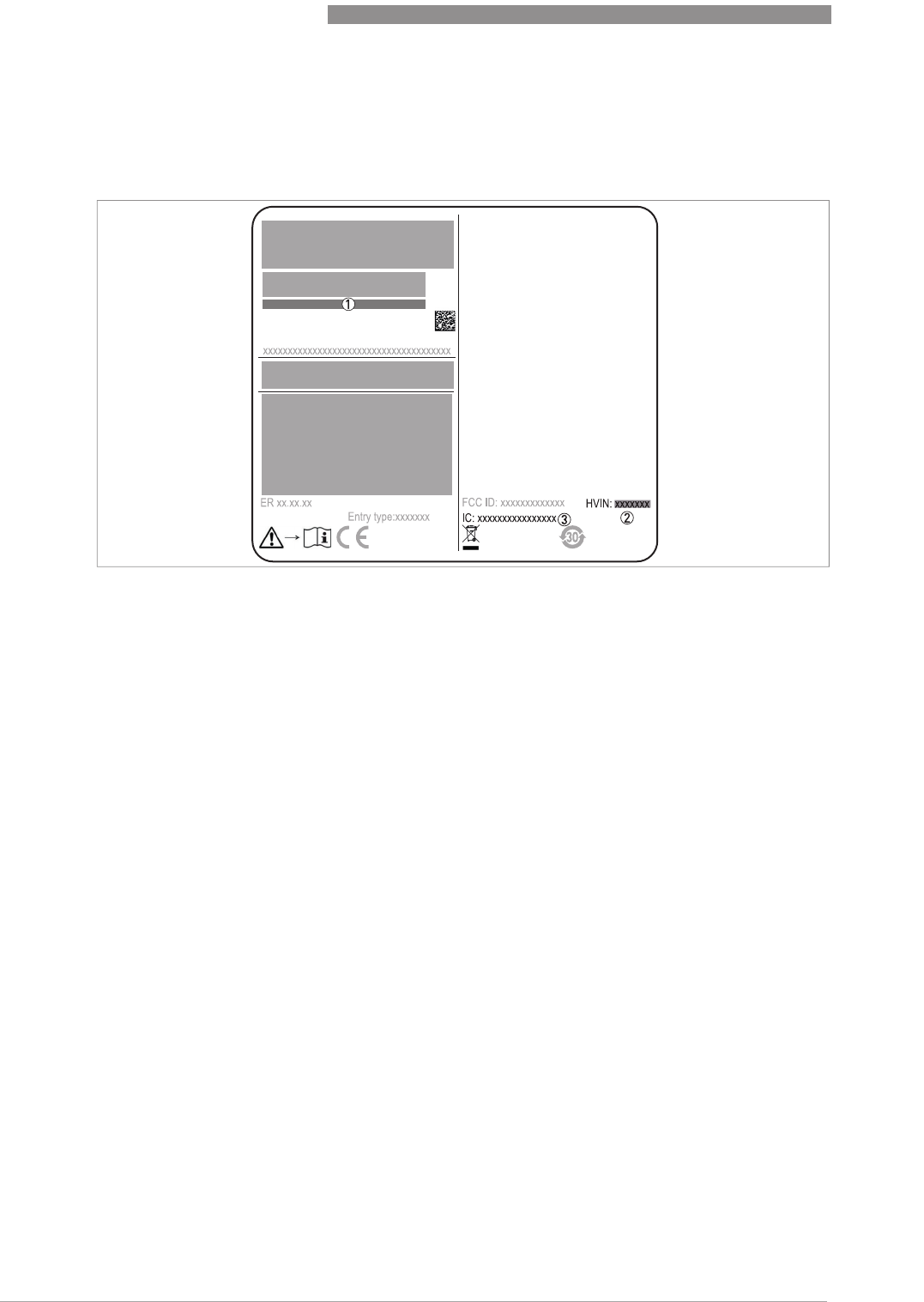

Figure 1-3: IC number
1 Type code (defined in order)
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (80G = 80 GHz), the lo-
cation of the device (T=TLPR or L=LPR) and the type of signal converter (compact (C))
TLPR device: HVIN: 80G-T-C
LPR device: HVIN: 80G-L-C
3 IC number
TLPR device: 1991D-FMCW80G74T-A
LPR device: 1991D-FMCW80G74L-A
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
SAFETY INSTRUCTIONS
1
15
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.6 Safety instructions from the manufacturer
1.6.1 Copyright and data protection
The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.
The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.
The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.
The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.
We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.
We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.
1.6.2 Disclaimer
The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.
This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.
Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.
The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.
1
SAFETY INSTRUCTIONS
16
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.6.3 Product liability and warranty
The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation or operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.
1.6.4 Information concerning the documentation
To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.
If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of icons as shown below.
SAFETY INSTRUCTIONS
1
17
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
1.6.5 Warnings and symbols used
Safety warnings are indicated by the following symbols.
• HANDLING
HANDLINGHANDLING
HANDLING
This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.
iRESULT
RESULTRESULT
RESULT
This symbol refers to all important consequences of the previous actions.
1.7 Safety instructions for the operator
DANGER!
This warning refers to the immediate danger when working with electricity.
DANGER!
This warning refers to the immediate danger of burns caused by heat or hot surfaces.
DANGER!
This warning refers to the immediate danger when using this device in a hazardous atmosphere.
DANGER!
These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.
WARNING!
Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.
CAUTION!
Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.
INFORMATION!
These instructions contain important information for the handling of the device.
LEGAL NOTICE!
This note contains information on statutory directives and standards.
WARNING!
In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.
2
DEVICE DESCRIPTION
18
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
2.1 Scope of delivery
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
Scope of delivery
Figure 2-1: Scope of delivery
1 Signal converter and antenna in the ordered version
2 Antenna extensions (option)
3 Quick start
4 Certificates and calibration report (if the device has the appropriate options)
5 DVD-ROM (including handbook, quick start, technical data sheet and related software)
6 Bar magnet
7 Handle (for removal of the optional display module)
8 Wrench (for removal of the device covers)
DEVICE DESCRIPTION
2
19
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
2.2 Device description
This device is a 80 GHz FMCW-radar level transmitter. It is a non-contact technology and is 2-
wire loop-powered. It is designed to measure the distance, level, mass, volume and reflectivity of
liquids, pastes and slurries. For more data about the measuring principle,.
Radar level transmitters use an antenna to emit a signal to the surface of the measured product.
The device has many antennas available. Thus, it can measure most products even in difficult
conditions. Also refer to
Technical data
on page 98.
If the device is ordered with the applicable options, it can be certified for use in hazardous areas.
The signal converter is attached directly to the process connection and the antenna. The
illustration that follows shows the types of antenna.
These accessories are available:
•Stainless steel weather protection.
•RS232 / HART® converter (VIATOR).
•USB / HART® converter.
Figure 2-2: Types of antenna
1 Lens antennas (available antenna sizes: Ø20 mm (0.75¨), Ø25 mm (1¨), Ø40 mm (1.5¨) and Ø70 mm (2.75¨) made of
PEEK)
INFORMATION!
For more data on accessories.
2
DEVICE DESCRIPTION
20
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
2.3 Visual Check
If the device is supplied with an FKM/FPM gasket, there is no symbol on the side of the process
connection.
WARNING!
If the display screen glass is broken, do not touch.
INFORMATION!
Inspect the packaging carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
Figure 2-3: Visual check
1 Device nameplate (for more data refer to
Nameplate (examples)
on page 21)
2 Process connection data (size and pressure rating, material reference and heat number)
3 Gasket material data – refer to the illustration that follows
Figure 2-4: Symbols for the supplied gasket material (on the side of the process connection)
1 EPDM
2 Kalrez® 6375
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
INFORMATION!
Compare the material references on the side of the process connection with the order.
DEVICE DESCRIPTION
2
21
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
2.4 Nameplates
2.4.1 Nameplate (examples)
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
Figure 2-5: Non-Ex nameplate attached to the housing
1 Cable entry size
2 Hardware revision / Software revision (according to NAMUR NE 53)
3 Signal output (analog, HART®, fieldbus, etc.), input voltage and maximum current (fieldbus options: basic current)
4 Degree of ingress protection (according to EN 60529 / IEC 60529)
5 Customer tag number
6 Date of manufacture
7 Order number
8 Type code (defined in order)
9 Model name and number. C = compact version.
10 Company logo, name and postal address
Country of manufacture / Company web address
3
INSTALLATION
22
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3.1 General notes on installation
3.2 Storage
•Store the device in a dry and dust-free location.
•Store the device in its original packing.
3.3 Transport
3.4 Pre-installation requirements
•Make sure that there is sufficient space on all sides.
INFORMATION!
Inspect the packaging carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
WARNING!
Do not keep the device in a vertical position. This will damage the antenna and the device will not
measure correctly.
Figure 3-1: How to lift the device
1 Remove the converter before you lift the device with a hoist.
WARNING!
Lift the device carefully to prevent damage to the antenna.
INFORMATION!
Obey the precautions that follow to make sure that the device is correctly installed.
INSTALLATION
3
23
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
•Protect the signal converter from direct sunlight. If necessary, install the weather protection
accessory.
•Do not subject the signal converter to heavy vibrations. The devices are tested for vibration
and agree with EN 50178 and IEC 60068-2-6.
3.5 Pressure and temperature ranges
For more data on pressure ratings,.
Figure 3-2: Pressure and temperature ranges
1 Temperature at the process connection
Non-Ex devices: The temperature range depends on the type of antenna, process connection and the seal material.
Refer to the table that follows.
Devices with Hazardous Location approvals: see supplementary instructions
2 Ambient temperature for operation of the display
-20...+70°C / -4...+158°F
If the ambient temperature is not between these limits, then this condition can stop the display. The device continues
to operate.
3 Ambient temperature
Non-Ex devices: -40...+80°C / -40...+185°F
Devices with Hazardous Location approvals: see supplementary instructions
WARNING!
The process connection temperature range must agree with the temperature limits of the
gasket material. The operating pressure range is subject to the process connection used and the
flange temperature.

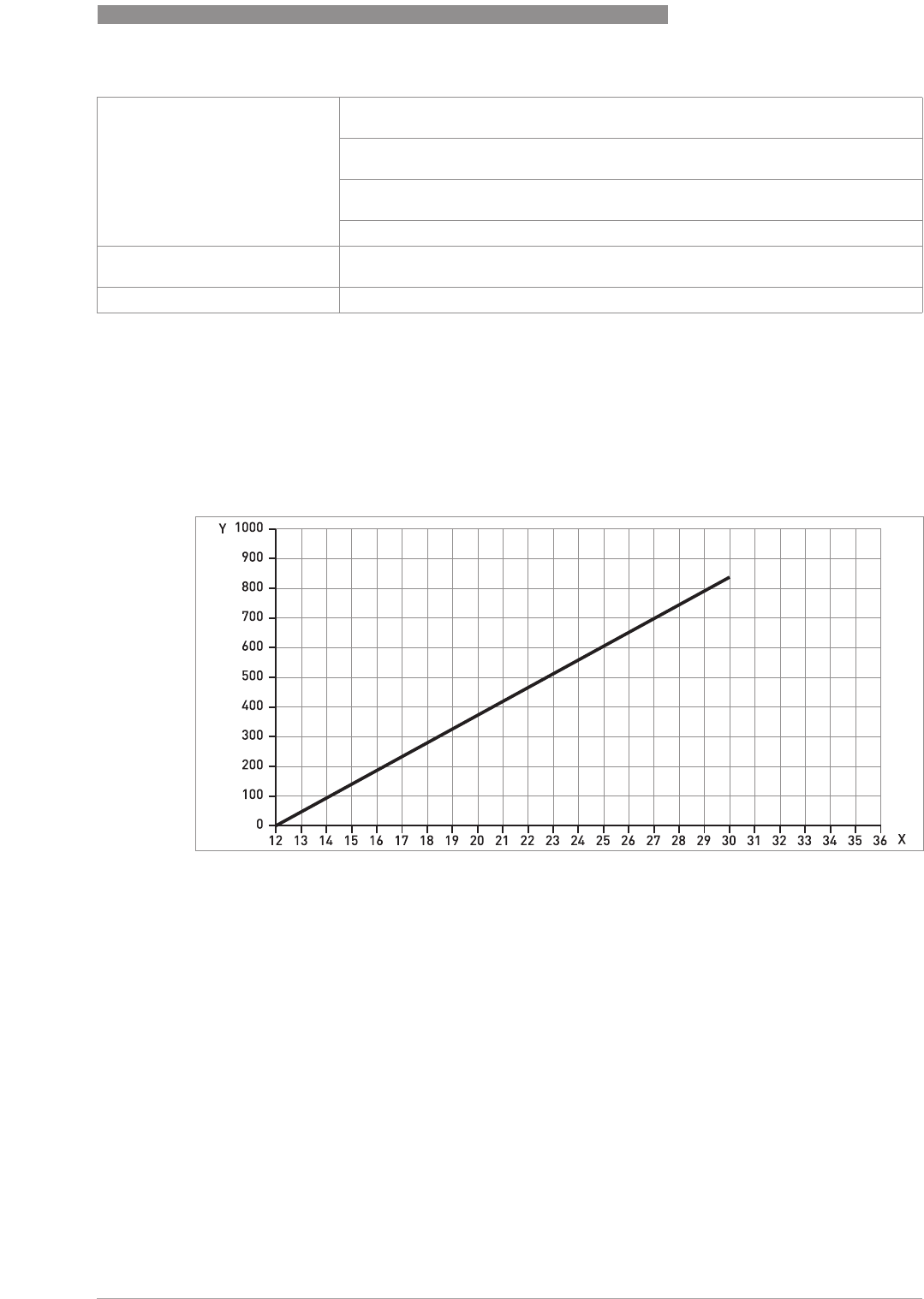

Figure 3-3: Ambient temperature / flange temperature, flange and threaded connection, in °C
3
INSTALLATION
24
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3.6 Recommended mounting position
We recommend that you prepare the installation when the tank is empty.
3.6.1 General notes
Point the cable entries on the housing in the direction of the nearest tank wall.
3.6.2 Tanks with conical bottoms
3.7 Mounting restrictions
We recommend that you prepare the installation when the tank is empty.
CAUTION!
Follow these recommendations to make sure that the device measures correctly. They have an
effect on the performance of the device.
CAUTION!
Follow these recommendations to make sure that the device measures correctly.

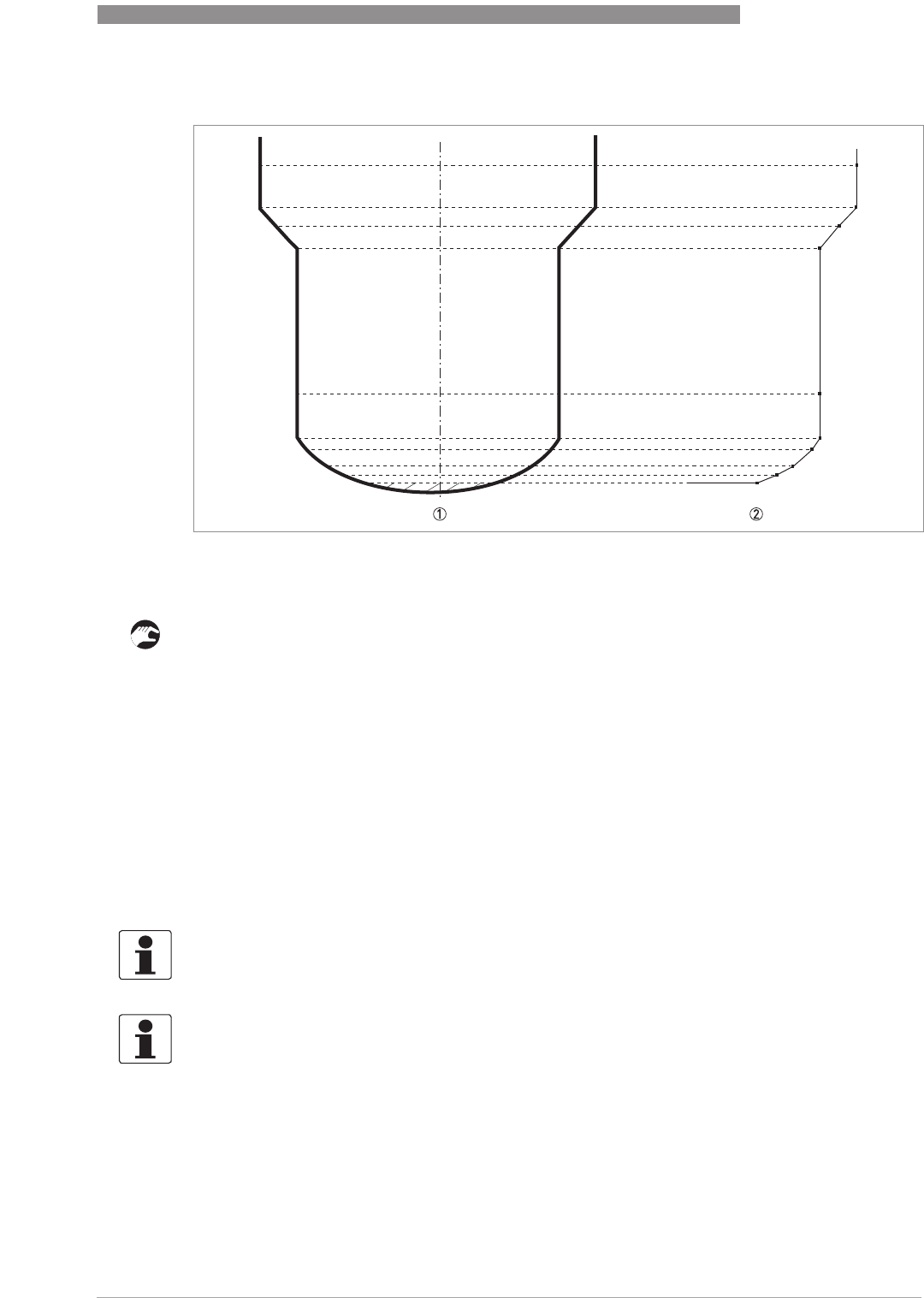

Figure 3-4: Tanks with dish-shaped or conical bottoms
Dish-shaped or conical bottoms have an effect on the measuring range. The device cannot measure to the bottom of the
tank.
1 Axis of radar beam
2 Minimum level reading
CAUTION!
Follow these recommendations to make sure that the device measures correctly. They have an
effect on the performance of the device.
INSTALLATION
3
25
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3.7.1 General data for TLPR devices
3.7.2 Obstacles in the tank
Obstacles in the tank can cause parasitic signals. They have an effect on the performance of the
device.

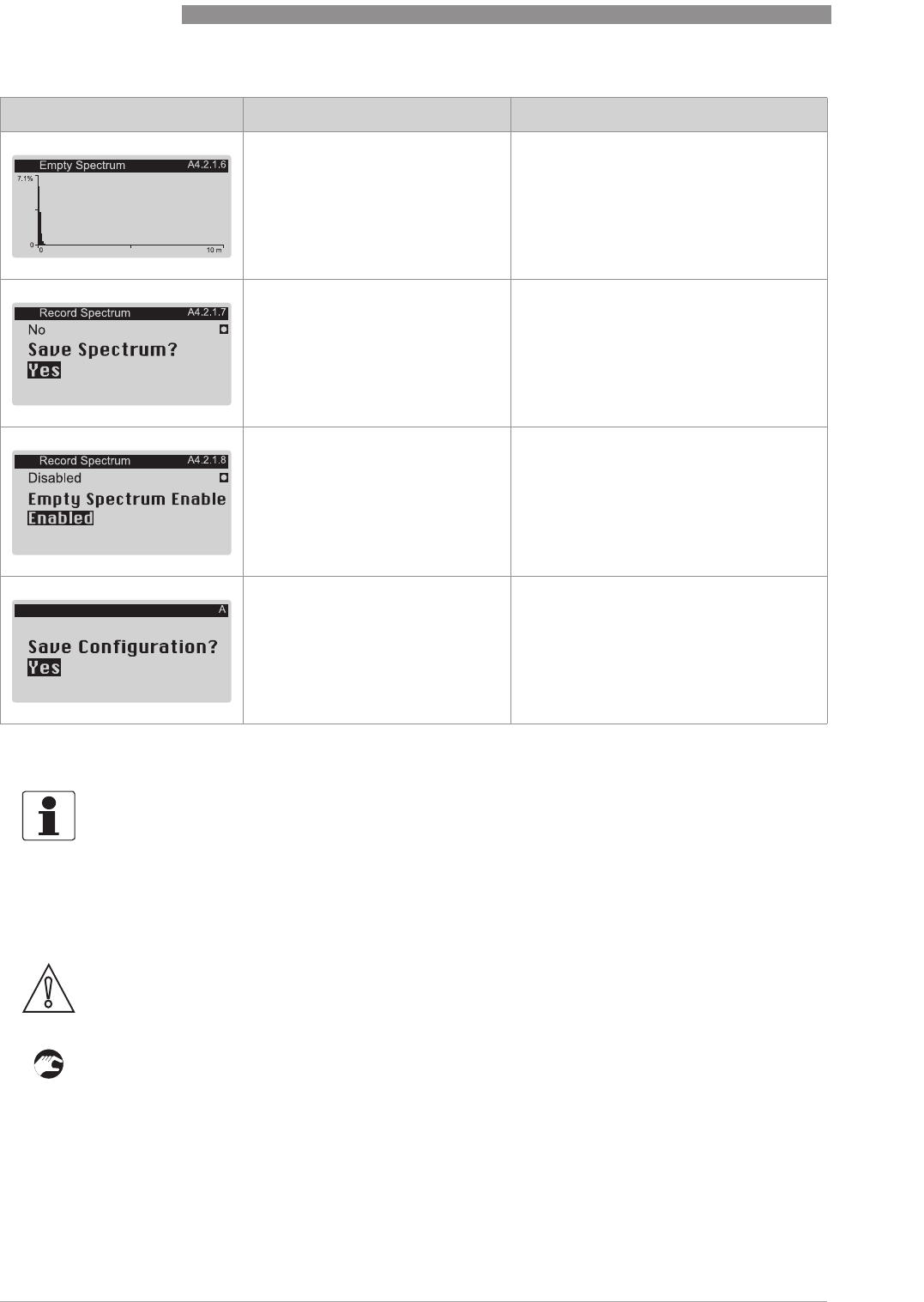

Do an Empty Spectrum recording (refer to Operation
OperationOperation
Operation) to remove parasitic signals with a filter.
CAUTION!
Do not install the device above objects in the tank (ladder, supports etc). Objects in the tank can
cause parasitic signals. If there are parasitic signals, the device will not measure correctly.
If it is not possible to install the device on another part of the tank, do an empty spectrum scan.
INFORMATION!
If possible, do not install a nozzle on the tank centerline.
CAUTION!
If there are parasitic signals, the device will not measure correctly. Parasitic signals are caused
by:
•
Objects in the tank.
•
Sharp corners that are perpendicular to the path of the radar beam.
CAUTION!
Do not put the device near to the product inlet. If the product that enters the tank touches the
antenna, the device will measure incorrectly. If the product fills the tank directly below the
antenna, the device will also measure incorrectly.
Figure 3-5: Product inlets
1 The device is in the correct position.
2 The device is too near to the product inlet.
CAUTION!
Do not put the device near to the product inlet. If the product that enters the tank touches the
antenna, the device will measure incorrectly. If the product fills the tank directly below the
antenna, the device will also measure incorrectly.
3
INSTALLATION
26
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3.7.3 Process connections
Equipment needed:
•Device
•Flange gasket (not supplied)
•Wrench (not supplied)
• Make sure the flange on the nozzle is level.
• Make sure that you use the applicable gasket for the flange dimensions and the process.
• Align the gasket correctly on the flange facing of the nozzle.
• Lower the antenna carefully into the tank.
• Make sure that you point the device in the correct direction. Refer to "Point the device in the
correct direction" in this section.
• Tighten the flange bolts.
iRefer to local rules and regulations for the correct torque to apply to the bolts.
Equipment needed:
•Device
•Gasket for G 1½ connection (not supplied)
•Thread seal tape (PTFE) for 1½NPT connection (not supplied)
•50 mm / 2¨ wrench (not supplied)
• Make sure the tank connection is level.
• ISO 228-1 (G) connection:
ISO 228-1 (G) connection:ISO 228-1 (G) connection:
ISO 228-1 (G) connection: Make sure that you use the applicable gasket for the connection
dimensions and the process.
• ISO 228-1 (G) connection:
ISO 228-1 (G) connection:ISO 228-1 (G) connection:
ISO 228-1 (G) connection: Align the gasket correctly.
• NPT connection:
NPT connection:NPT connection:
NPT connection: Wind the thread seal tape around the process connection in agreement with
good engineering practice.
• Lower the antenna carefully into the tank.
Requirements for flange connections
Figure 3-6: Flange connection
WARNING!
Do not tighten the connection to a torque more than 40 N
·
m / 29.5 lb
·
ft. If the connection is too
tight, this will damage the thread.
To prevent damage to the antenna, make sure that the minimum diameter of the hole for a
1
½
NPT or 2 NPT thread connection is not less than 43.4 mm / 1.71
¨
.
INSTALLATION
3
27
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
• Turn the threaded connection on the antenna to attach the device to the process connection.
• Make sure that you point the device in the correct direction. Refer to "Point the device in the
correct direction" in this section.
• Tighten the connection to the correct torque (not more than 40 N·m/ 29.5lb·ft).
3.8 How to turn or remove the display module (option)
If there is an object adjacent to the device that makes it difficult to read the display, you can
rotate the display in increments of 90°.
Follow this procedure:
• Disconnect the power supply from the device.
• Remove the housing cover with the wrench 1.
Figure 3-7: How to turn or remove the display module (option)
1 Tool: Wrench (for removal of the device covers)
2 Tool: Handle (for removal of the display module)
3
INSTALLATION
28
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en

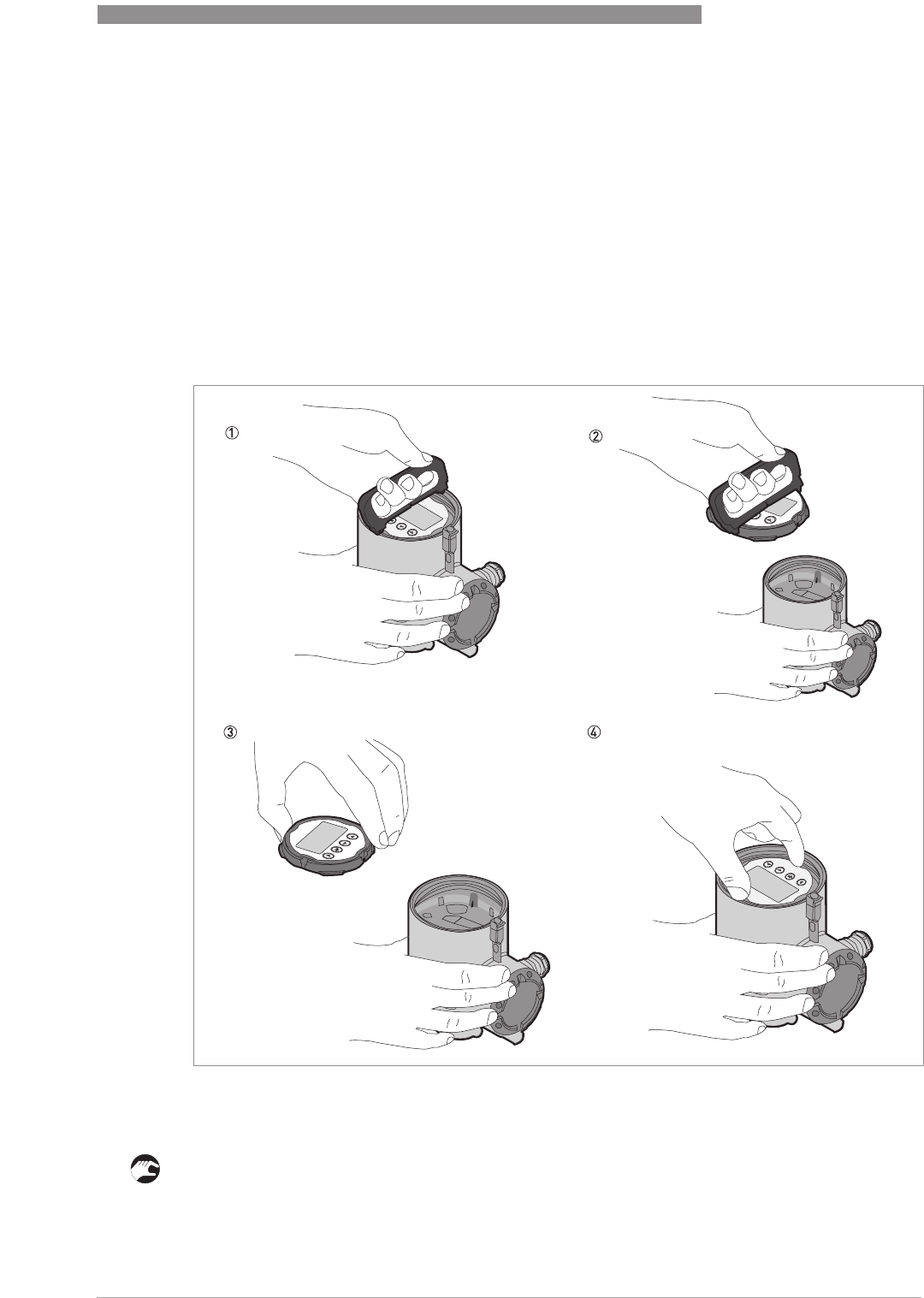

• Use the handle to remove the display module.
• First put the handle on side "a" and then on side "b" of the display, and then carefully remove
the display 2 from housing. Remove the handle from the display module first on side "a" and
then on side "b".Turn it into the favoured position 3.
• Turn the display module until it points to the user.
• Push the display onto the clips in the housing 4, until they make a click.
• Make sure that the housing cover has a gasket. Attach the cover on the housing and tighten it
by hand.
3.9 How to turn or remove the signal converter
INFORMATION!
Before you close the housing cover, refer to How to turn or remove the display module (option)
on page 27
.
INFORMATION!
The converter turns 360
°
. The converter can be removed from the process connection assembly
under process conditions.

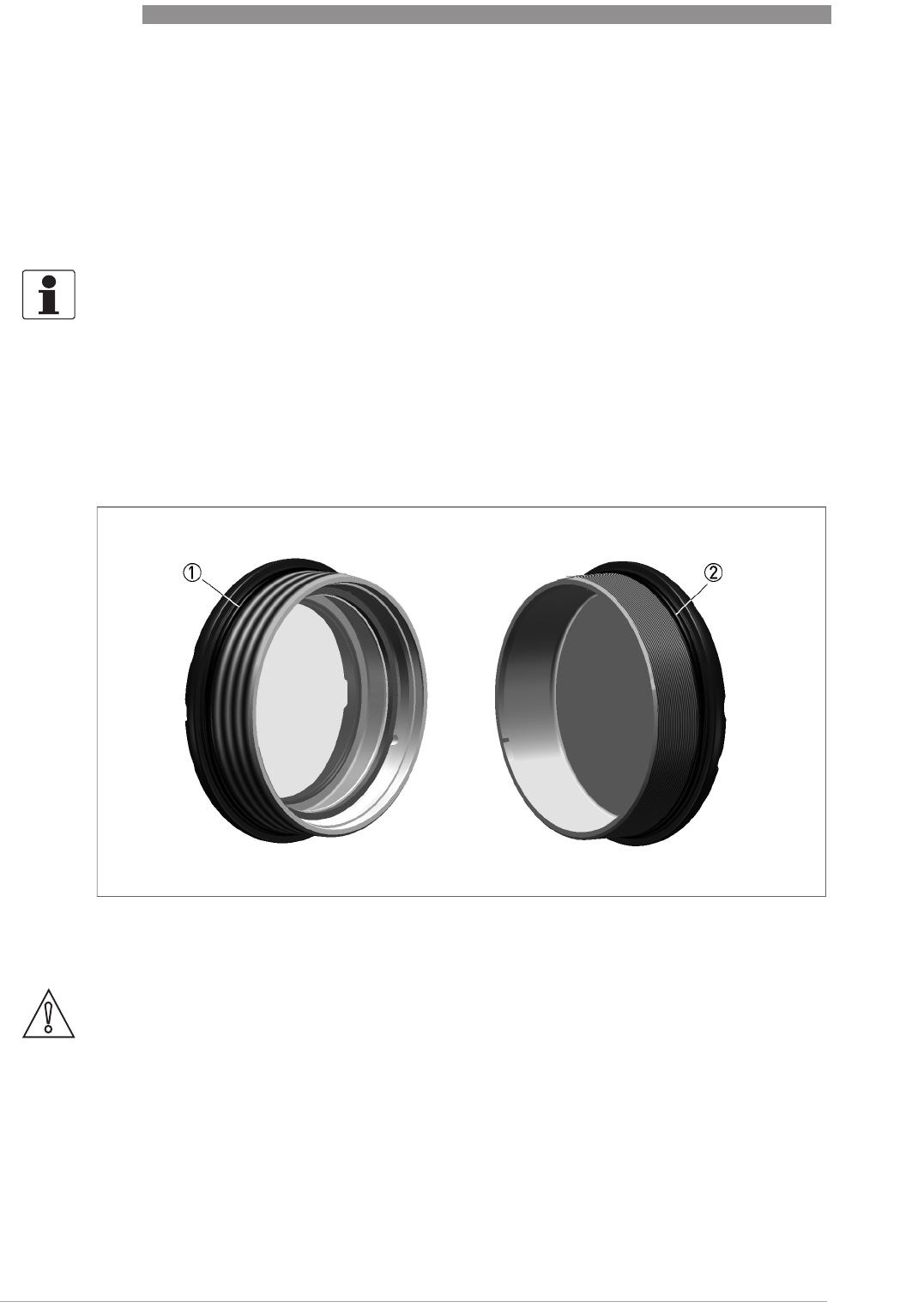

Figure 3-8: How to turn or remove the signal converter
1 Tool: 5 mm Allen wrench (not supplied)
2 Cover for the wave guide hole on top of the process connection assembly (not supplied)
CAUTION!
If you remove the converter, put a cover on the wave guide hole on top of the process connection
assembly.
When the converter is attached to the process connection assembly, tighten the lock screw.
INSTALLATION
3
29
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3.10 Weather protection
3.10.1 How to attach the weather protection to the device
The overall dimensions of the weather protection are on page 105.
• Put the weather protection clamp around the top of the device.
• Attach the two locking nuts to the threads on the weather protection clamp. Tighten the
locking nuts with a 10 mm socket wrench.
Figure 3-9: Equipment needed to assemble the weather protection
1 Weather protection cover (with a split pin to hold the cover on the clamp)
2 Device
3 Weather protection clamp (2 parts)
4 2 locking nuts
5 10 mm socket wrench (not supplied).

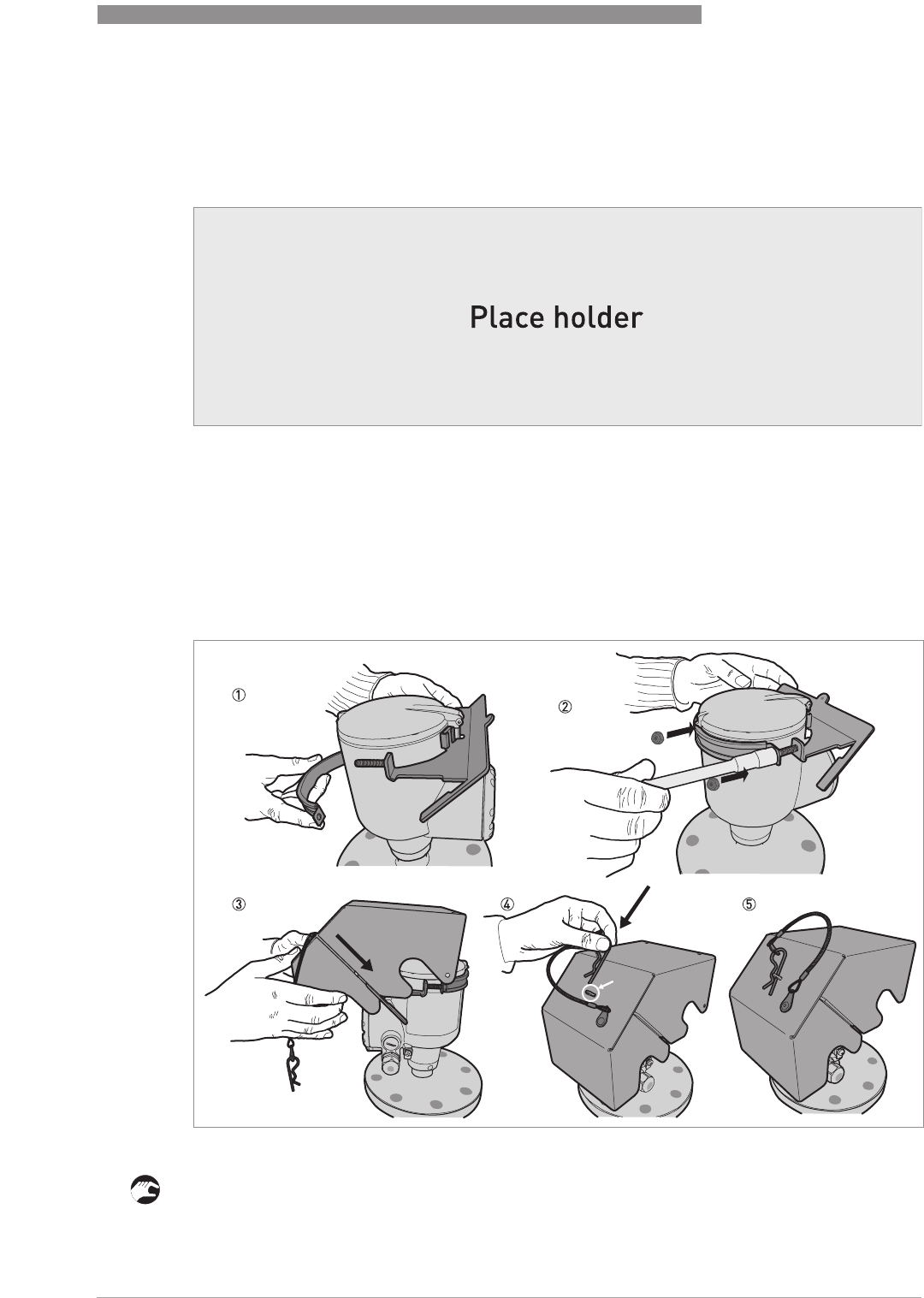

Figure 3-10: Installation of the weather protection
3
INSTALLATION
30
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
• Lower the weather protection cover onto weather protection clamp until the hole for the lock
is in the slot at the front of the cover.
• Put the R-clip into the hole at the front of the weather protection cover.
• End of the procedure.
INSTALLATION
3
31
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en

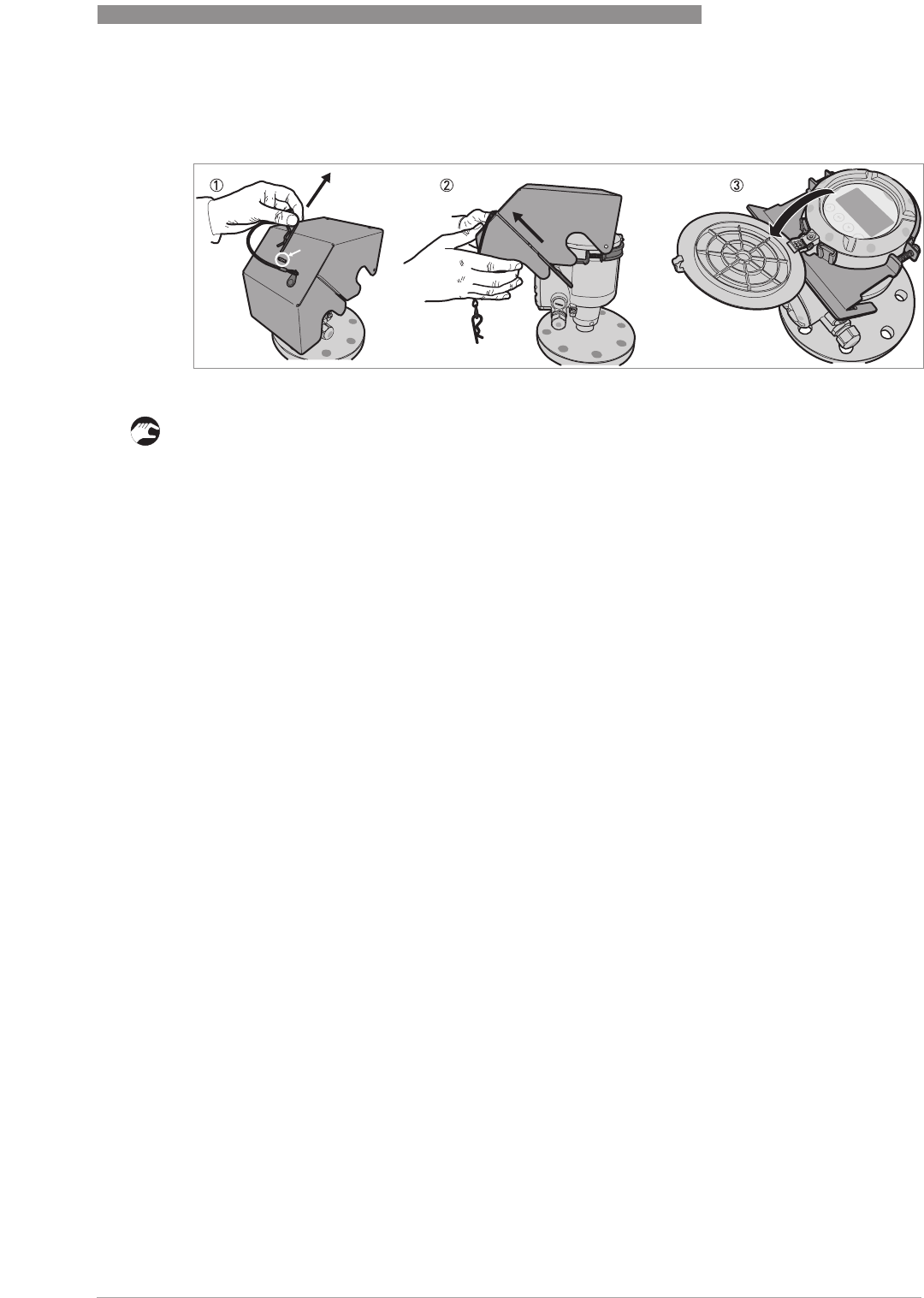

3.10.2 How to open the weather protection
1 Remove the R-clip from the hole at the front of the weather protection cover.
2 Remove the weather protection cover.
iLift the display screen cover.
Figure 3-11: How to open the weather protection
4
ELECTRICAL CONNECTIONS
32
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
4.1 Safety instructions
4.2 Electrical installation: 2-wire, loop-powered
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!
DANGER!
Observe the national regulations for electrical installations!
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
Terminals for electrical installation

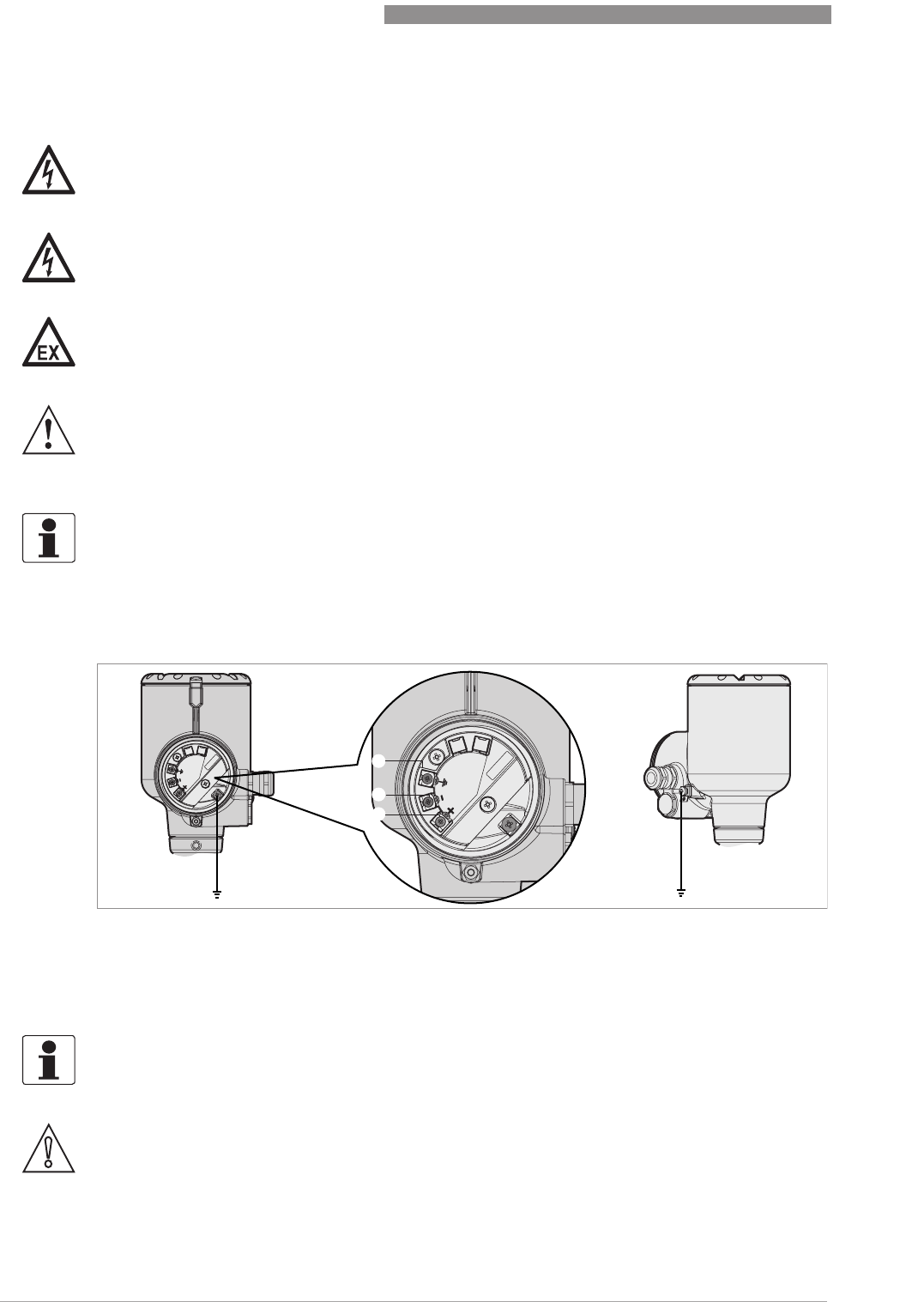

Figure 4-1: Terminals for electrical installation
1 Grounding terminal in the housing (if the electrical cable is shielded)
2 Current output -
3 Current output +
4 Location of the external grounding terminal (at the bottom of the converter)
4
4
1
2
3
INFORMATION!
Electrical power to the output terminal energizes the device. The output terminal is also used for
HART
®
communication.
CAUTION!
•
Use the applicable electrical cables with the cable glands.
•
Make sure that the current is not more than 5 A or that there is 5 A-rated fuse in the
electrical circuit that energizes the device.
ELECTRICAL CONNECTIONS
4
33
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Equipment needed:
•3 mm Allen wrench (not supplied)
•Cover wrench (supplied).
Procedure
1 Loosen the lock screw with a 3 mm Allen wrench (not supplied).
2 Remove the cover stop.
3 Turn the cover counterclockwise with the cover wrench (supplied).
4 Remove the cover.

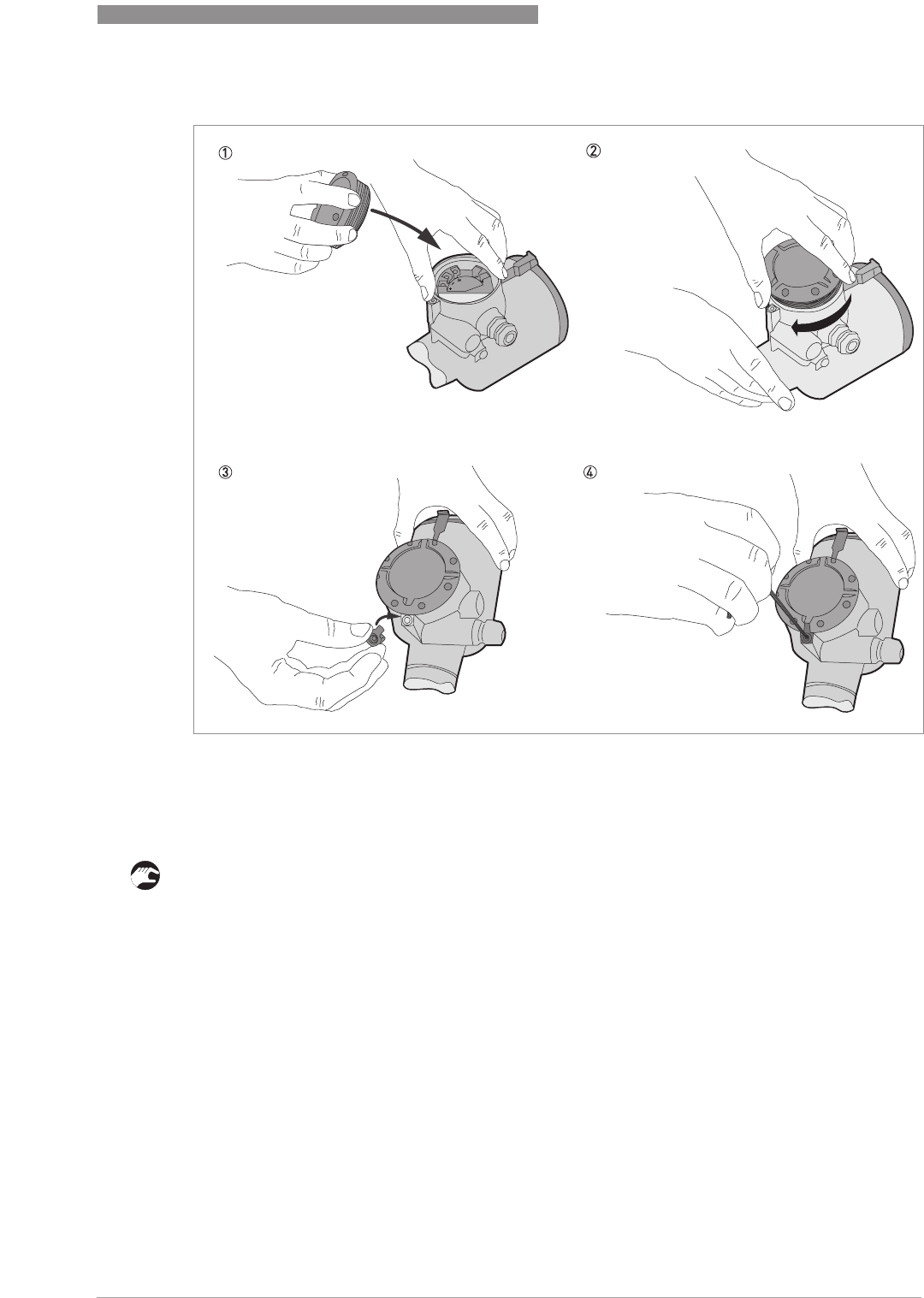

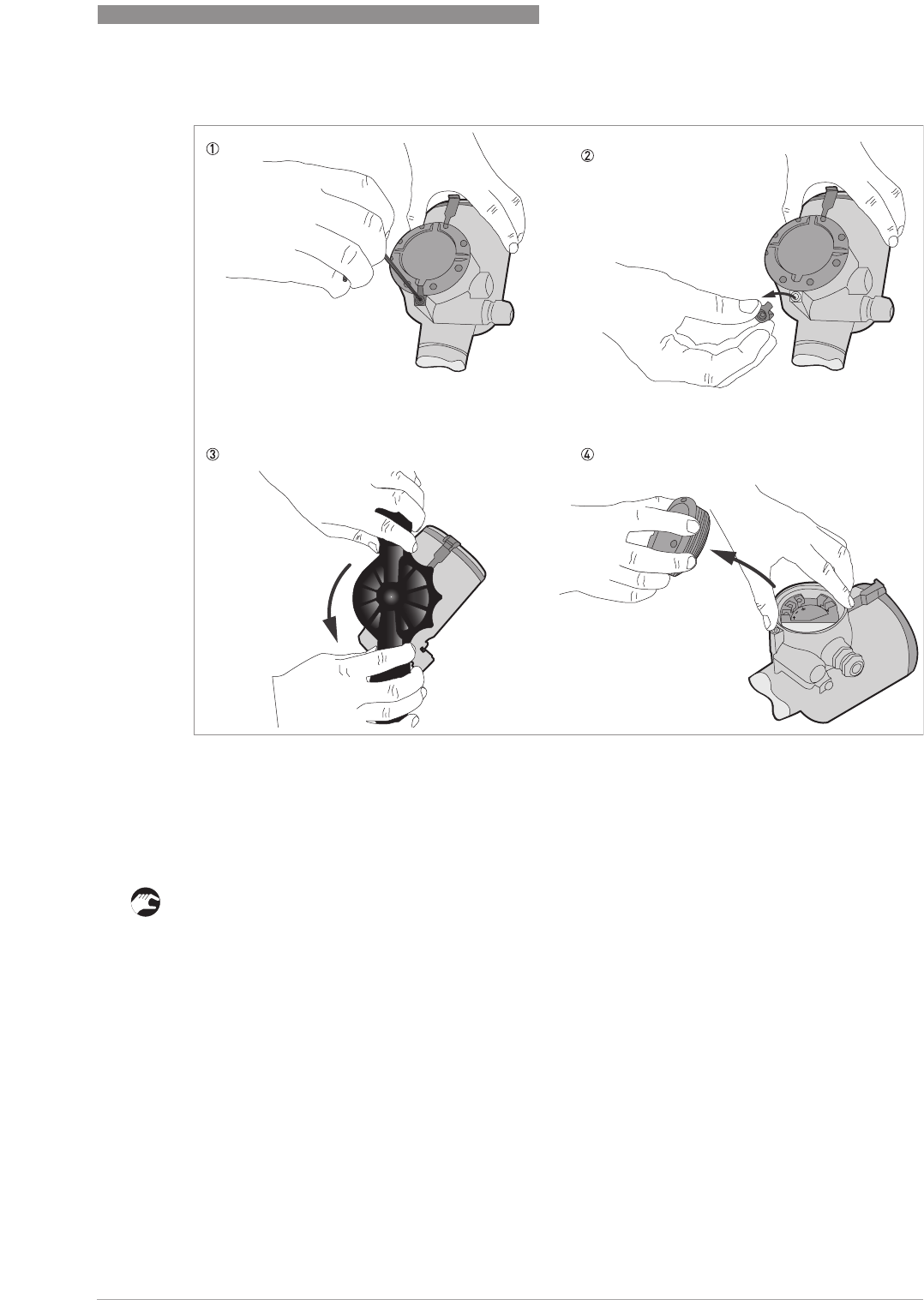

Figure 4-2: How to open the terminal compartment cover
4
ELECTRICAL CONNECTIONS
34
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Equipment needed:
•Small Phillips screwdriver (not supplied)
Procedure

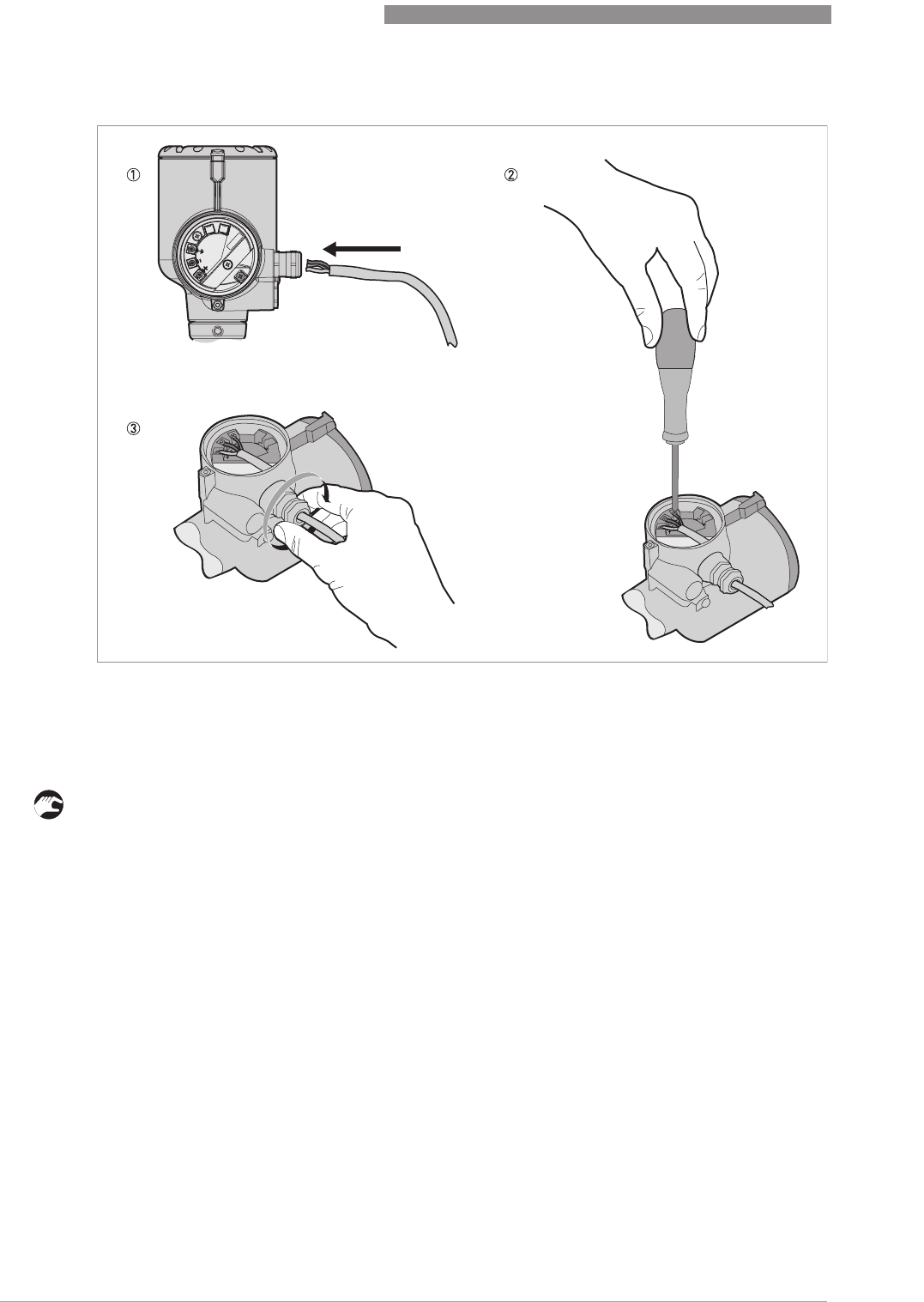

1 Connect the electrical wires to the connector.
Figure 4-3: Procedure for electrical installation
ELECTRICAL CONNECTIONS
4
35
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Equipment needed:
•3 mm Allen wrench (not supplied)
1 Put the cover on the housing and turn the cover clockwise until it is fully engaged.
2 Tighten the lock screw with a 3 mm Allen wrench (not supplied).
Figure 4-4: How to close the terminal compartment cover
4
ELECTRICAL CONNECTIONS
36
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
4.3 Electrical connection for current output
4.3.1 Non-Ex devices
4.3.2 Devices for hazardous locations
4.4 Protection category
• Make sure that the gaskets are not damaged.
• Make sure that the electrical cables are not damaged.

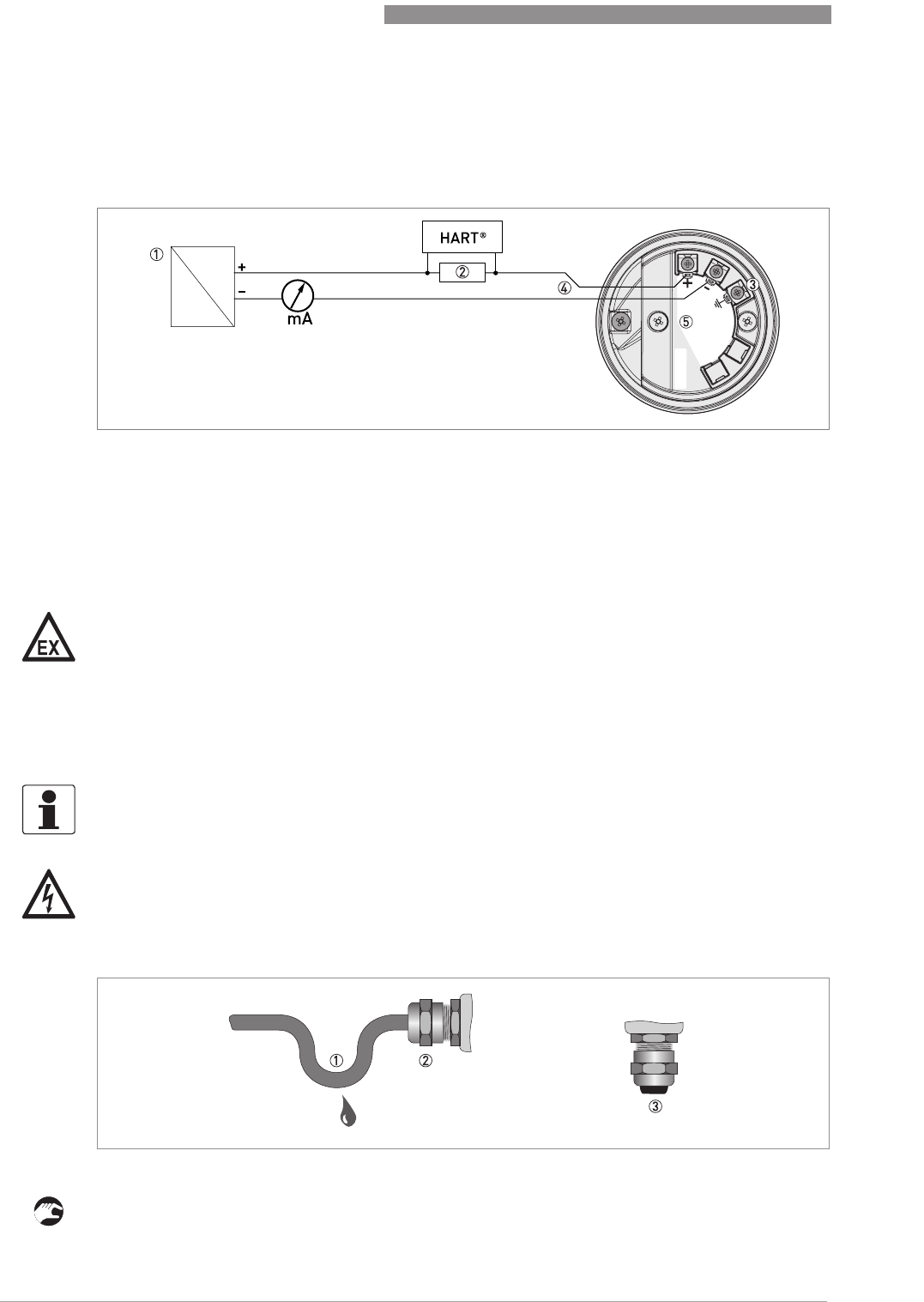

Figure 4-5: Electrical connections for non-Ex devices
1 Power supply
2 Resistor for HART® communication
3 Optional connection to the grounding terminal
4 Output: 12...30 VDC for an output of 22 mA at the terminal
5 Device
DANGER!
For electrical data for device operation in hazardous locations, refer to the related certificates of
compliance and supplementary instructions (ATEX, IECEx, etc.). You can find this documentation
on the DVD-ROM delivered with the device or it can be downloaded free of charge from the
website (Download Center).
INFORMATION!
The device fulfils all requirements per protection category IP66 / IP67.
DANGER!
Make sure that the cable gland is watertight.
Figure 4-6: How to make the installation agree with protection category IP67
ELECTRICAL CONNECTIONS
4
37
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
• Make sure that the electrical cables agree with the national electrical code.
• The cables are in a loop in front of the device 1 so water does not go into the housing.
• Tighten the cable feedthroughs 2.
• Close unused cable feedthroughs with dummy plugs 3.
The diameter of the outer sheath of the electrical cable (for the power supply and current output)
must be 6…10 mm or 0.24…0.39¨.
4.5 Networks
4.5.1 General information
The device uses the HART® communication protocol. This protocol agrees with the HART®
Communication Foundation standard. The device can be connected point-to-point. It can also
have a polling address of 1 to 63 in a multi-drop network.
The device output is factory-set to communicate point-to-point. To change the communication
mode from point-to-point
point-to-pointpoint-to-point
point-to-point to multi-drop
multi-dropmulti-drop
multi-drop,.
4.5.2 Point-to-point connection
Figure 4-7: Point-to-point connection (non-Ex)
1 Address of the device (0 for point-to-point connection)
2 4...20 mA + HART®
3 Resistor for HART® communication
4 Power supply
5 HART® converter
6 HART® communication software
4
ELECTRICAL CONNECTIONS
38
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
4.5.3 Multi-drop networks
Figure 4-8: Multi-drop network (non-Ex)
1 Address of the device (each device must have a different address in multidrop networks)
2 4mA + HART®
3 Resistor for HART® communication
4 Power supply
5 HART® converter
6 HART® communication software
START-UP
5
39
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
5.1 Start-up checklist
Check these points before you energize the device:
•Are all the wetted components (antenna, flange and gaskets) chemically resistant to the
product in the tank?
•Does the information on the signal converter nameplate agree with the operating data?
•Did you correctly install the device on the tank?
•Do the electrical connections agree with the national electrical codes? Use the applicable
electrical cables with the cable glands.
5.2 How to start the device
• Connect the converter to the power supply.
• Energize the converter.
iDevices with the LCD display option only:
Devices with the LCD display option only:Devices with the LCD display option only:
Devices with the LCD display option only: After 10 seconds the screen will display "Optiwave
7500" and the logo of the supplier. After 40 seconds the default screen will appear. The
device will show measurement data. Measurements agree with specifications given in the
customer order.
5.3 Operating concept
You can read measurements and configure the device with:
•A digital display screen (optional).
•A connection to a system or PC with PACTware™. You can download the Device Type
Manager (DTM) file from the website. It is also supplied on the DVD-ROM delivered with the
device.
•A connection to a system or PC with AMS™. You can download the Device Description (DD)
file from the website. It is also supplied on the DVD-ROM delivered with the device.
•A connection to a HART® Field Communicator. You can download the Device Description (DD)
file from the website. It is also supplied on the DVD-ROM delivered with the device.
DANGER!
Before you energize the device, make sure that the supply voltage and polarity are correct.
INFORMATION!
This chapter and the start of the chapter that follows tell you what data is given on the device
display in display mode and how to change device settings in configuration mode. If you know
about how this device operates, you can ignore this data. Continue with the quick setup
procedures. For more data about these procedures,.
5
START-UP
40
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
5.4 Digital display screen
5.4.1 Display screen layout
If you remove the housing cover, you can push the buttons on the keypad. If you cannot remove
the housing cover, you can operate the keypad with a bar magnet.
The output percentage bar graph is only shown if you set "One Value and Bar" or "Two Values
and Bar" in menu items C6.4.1 Function
FunctionFunction
Function (1st Meas. page) or C6.5.1 Function
FunctionFunction
Function (2nd Meas. Page). If
menu item C6.4.2 1st Value Variable (1st Meas. page) is set to "Level", then the device shows
"Level" as the current output percentage in normal mode (refer to item 1 in the illustration).
Display in normal mode

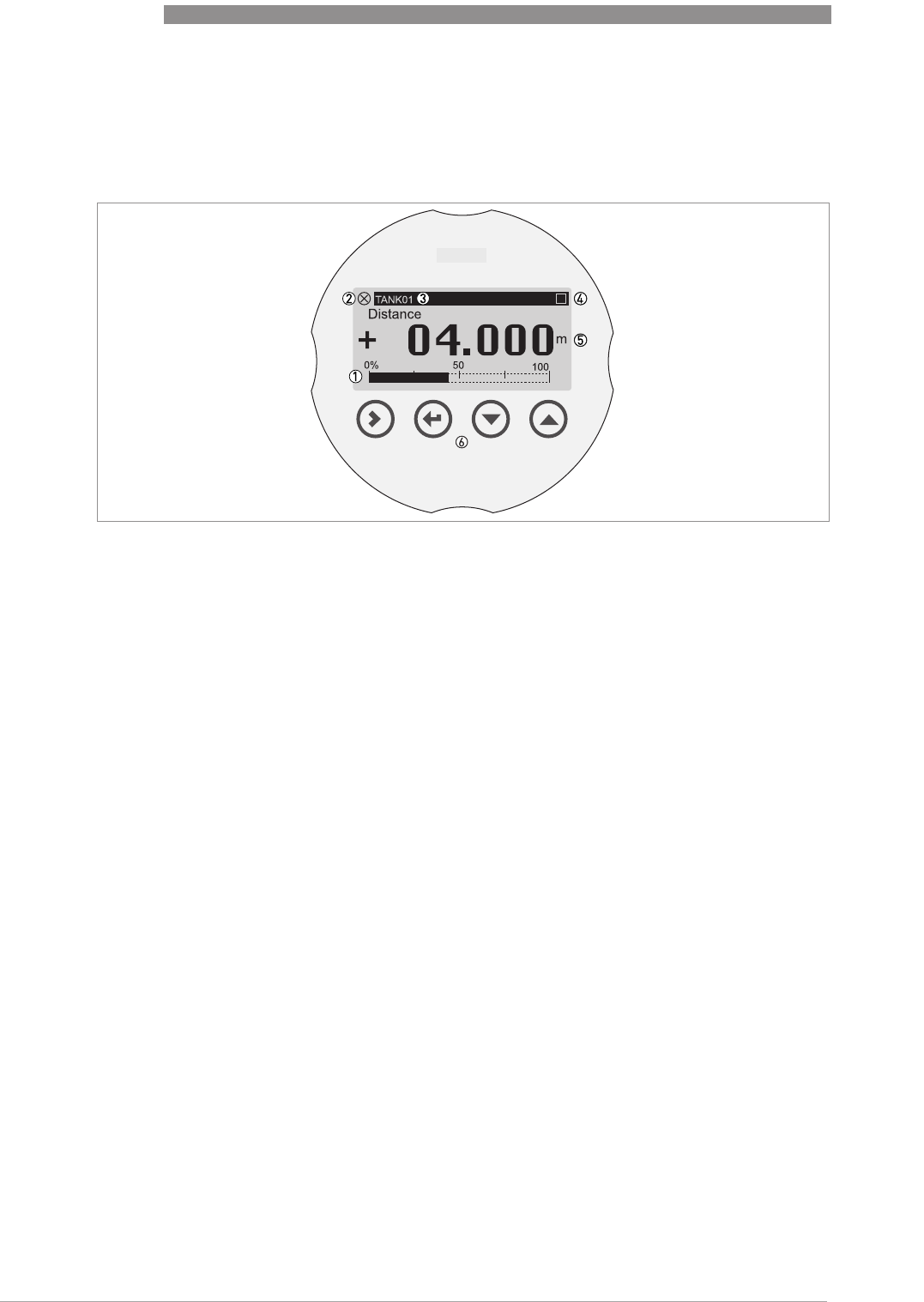

Figure 5-1: Display screen layout in normal mode (measurement data)
1 Current output percentage (bar graph)
2 Device status (NAMUR NE 107 symbols)
3 Device tag name
4 Keypad operation indicator (shown when you push a button or operate the keypad with a bar magnet)
5 Measurement value and units
6 Keypad buttons with Hall effect sensors (sensors sensitive to large changes in magnetic field strength)
START-UP
5
41
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
5.4.2 Keypad buttons
Functions of keypad buttons
For more data on keypad functions,.
Display in program mode

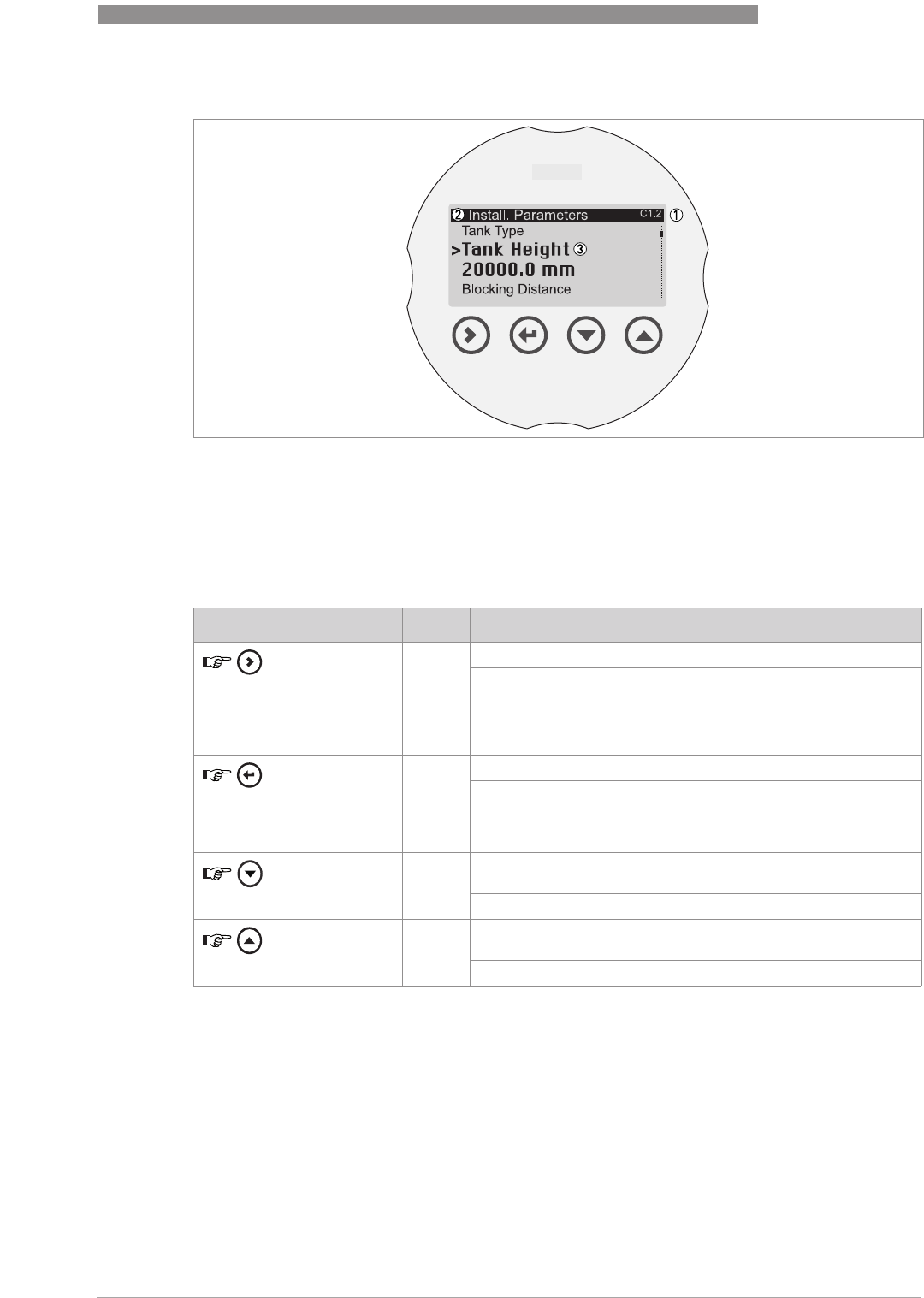

Figure 5-2: Display screen layout in program mode
1 Menu number or menu item number
2 Location (menu) of sub-menu or menu item
3 Menu item name
Keypad button Symbol Function
[Right] [>
>>
>] Normal mode:
Normal mode:Normal mode:
Normal mode: Enter Program mode
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode:
Menu:
Menu:Menu:
Menu: Enter the sub-menu or menu item
Menu item:
Menu item:Menu item:
Menu item: Move cursor one digit to the right (this includes the
decimal point). If the cursor is on the last digit, a push of this
button will move the cursor to the first digit.
[Return / Escape] [^
^^
^]Normal mode:
Normal mode:Normal mode:
Normal mode: None
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode:
Menu:
Menu:Menu:
Menu: Exit the menu. If you are in the top level menu (R), the
device goes back to normal mode.
Menu item:
Menu item:Menu item:
Menu item: Exit the menu item.
[Down] [
]Normal mode:
Normal mode:Normal mode:
Normal mode: Change screen (measurement pages 1 and 2 and
the status message page)
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Decrease value or change parameter
[Up] [
]Normal mode:
Normal mode:Normal mode:
Normal mode: Change screen (measurement pages 1 and 2 and
the status message page)
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Increase value or change parameter
5
START-UP
42
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Equipment needed
•Wrench for the housing cover (supplied)
•2.5 mm Allen wrench (not supplied)
• Undo the housing cover locking screw with a 2.5 mm Allen wrench.
• Remove the housing cover with the wrench supplied with the device.
• Push the buttons on the keypad.
iThis will operate the device. Refer also to the table at the start of this section.
How to push the keypad buttons with your hand

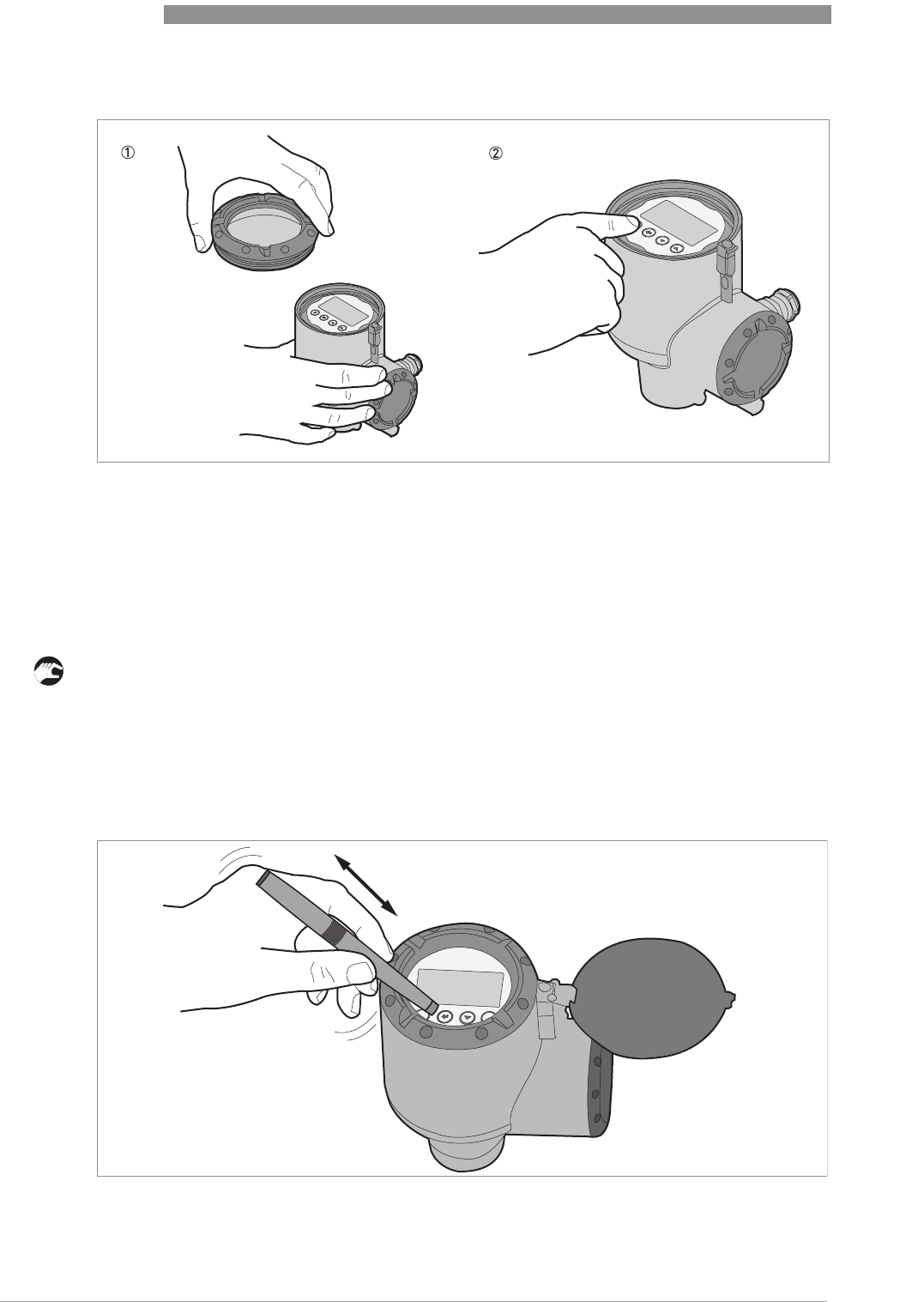

Figure 5-3: How to push the keypad buttons with your hand
1 Display housing cover
2 Keypad
How to operate the keypad buttons with a bar magnet
START-UP
5
43
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Equipment needed
•Bar magnet (supplied)
• Hold the bar magnet near to a keypad button.
iThe keypad button will operate. If you must operate the button more than one time, remove
the bar magnet and then hold it near to the button again.
5.5 Remote communication with PACTware™
PACTware™ displays measurement information clearly and lets you configure the device from a
remote location. It is an Open Source, open configuration software for all field devices. It uses
Field Device Tool (FDT) technology. FDT is a communication standard for sending information
between the system and the field device. This standard agrees with IEC 62453. Field devices are
easily integrated. Installation is supported by a user-friendly Wizard.
Install these software programs and equipment:
•Microsoft® .NET Framework version 1.1 or later.
•PACTware.
•HART® converter (USB, RS232...).
•The Device Type Manager (DTM) for the device.
The software and installation instructions are given on the DVD-ROM supplied with the device.
You can also download the latest version of PACTware™ and the DTM from our website.
Refer also to the PACTware™ consortium site at http://www.pactware.com.
Figure 5-4: How to operate the keypad buttons with a bar magnet
1 Display housing cover
2 Keypad
3 Bar magnet
INFORMATION!
It is not necessary to remove the display housing cover to do this procedure.
5
START-UP
44
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
5.6 Remote communication with the AMS™ Device Manager
The AMS™ Device Manager is an industrial Plant Asset Management (PAM) software tool. Its
role is to:
•Store configuration information for each device.
•Store and read process data.
•Store and read diagnostic status information.
•Help plan preventive maintenance to reduce a plant's downtime to a minimum.
The DD file is given on the DVD-ROM supplied with the device. You can also download it from our
website.

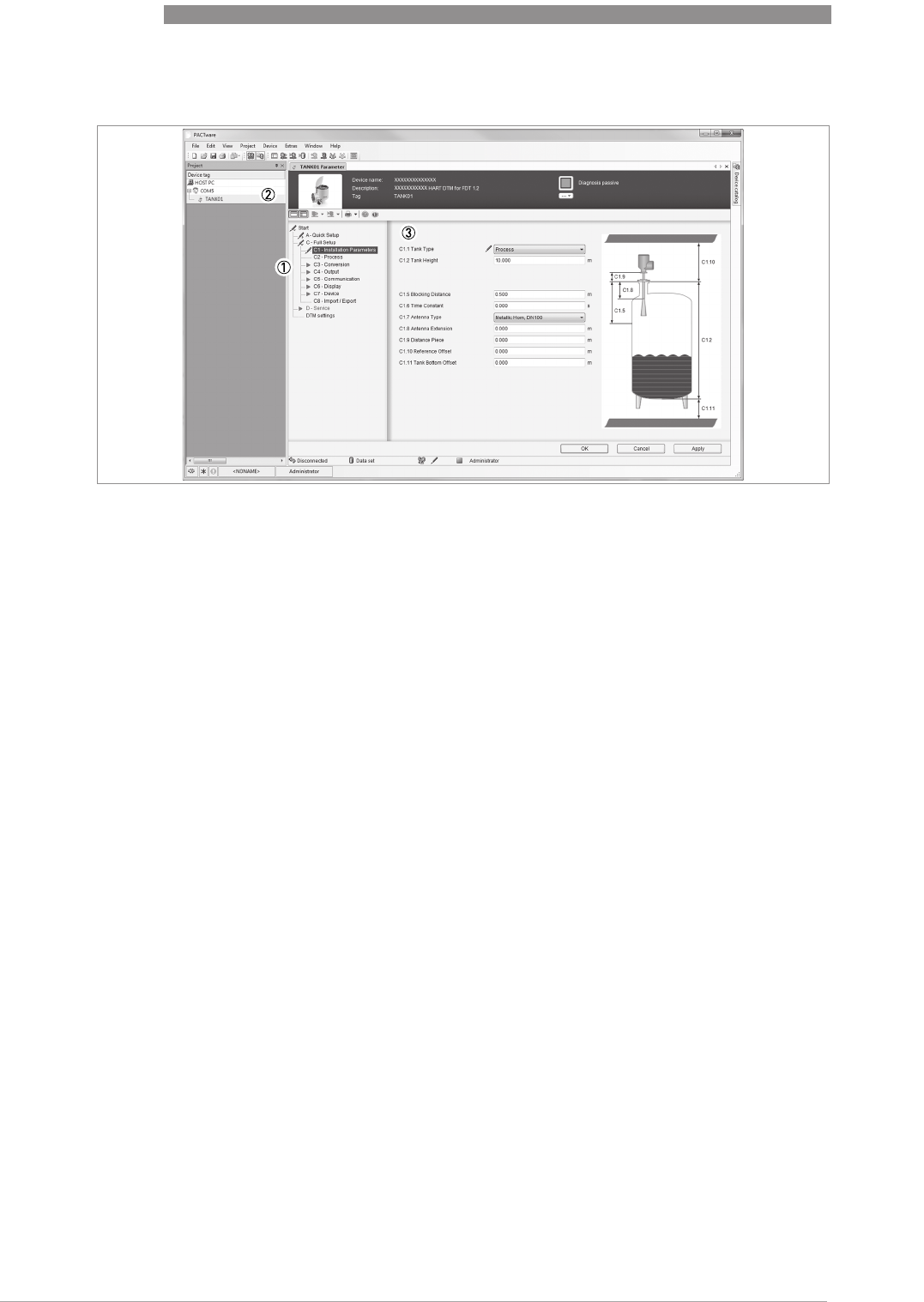

Figure 5-5: Screen from the PACTware™ user interface
1 DTM menu
2 Information for device identification
3 Installation parameters menu and menu items
OPERATION
6
45
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.1 User modes
6.2 Normal mode
This mode shows measurement data. Use the display keypad to change the type of
measurement data shown on the screen (on 2 "measurement data pages") and to read the
device status message page.
There are 5 options to show the measurement data on the display screen. Refer to the
illustration that follows:
Normal mode
Normal modeNormal mode
Normal mode This mode shows measurement data and status messages. For more data,.
Program mode
Program modeProgram mode
Program mode Use this mode to read and change parameters, commission the device,
create tables for volume or mass measurement, and change critical values
to measure in difficult process conditions.To change settings in Program
mode, you must use the device with the correct security level (user,
operator or expert). For more data about menu items,.
All users can read the settings in Program mode, but only users with
"Operator" and "Expert" security levels can change settings. For more data
about security levels,.
Measurement data options

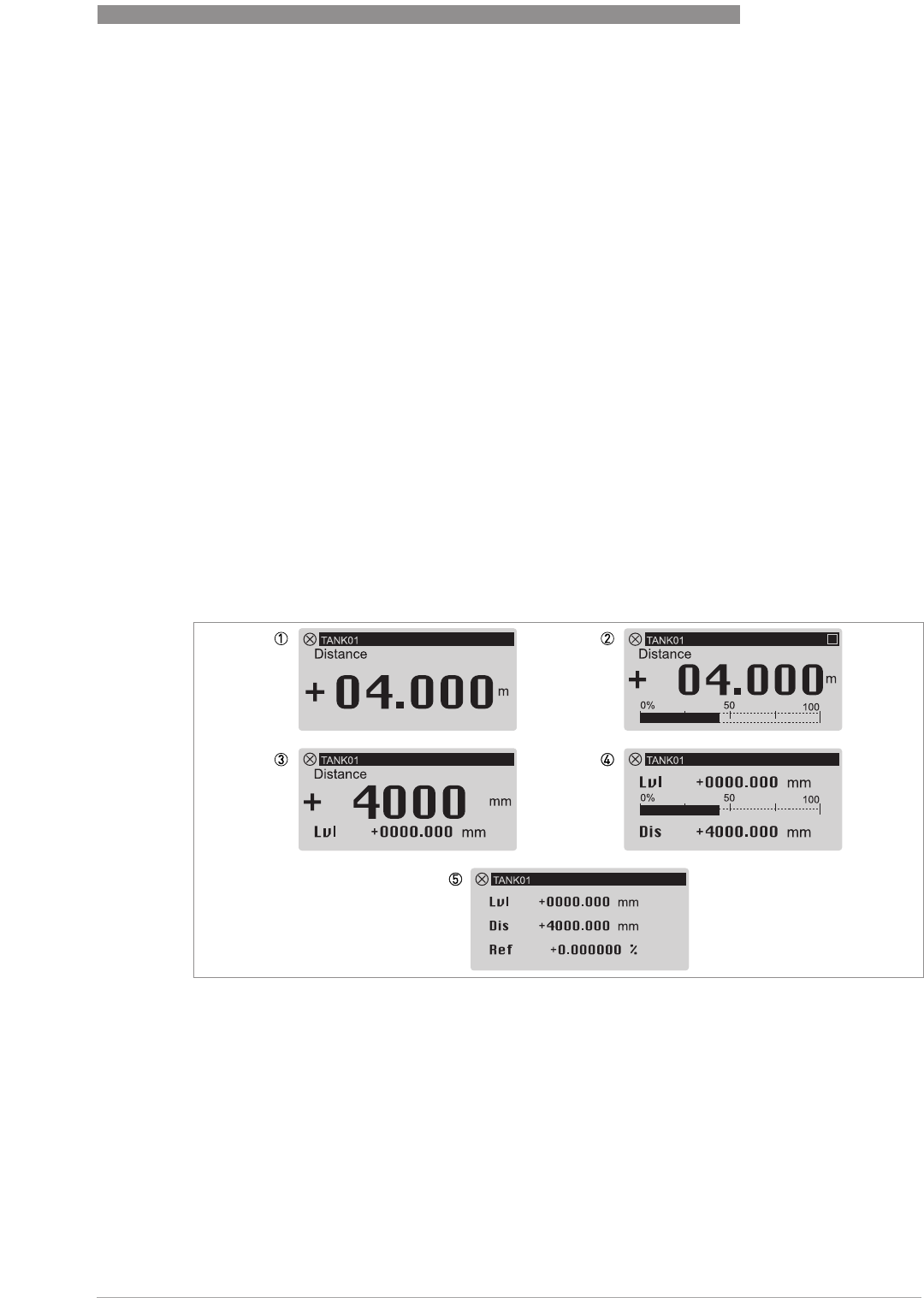

Figure 6-1: Measurement data options in normal mode
1 One value
2 One value and current output (%) bar
3 Two values
4 Two values and current output (%) bar
5 Three values
6
OPERATION
46
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Measurement data includes different measurement types (level, distance volume, ullage
volume, mass etc.). Some measurement tyypes will only be available if you entered the correct
parameters in Program mode.
In this example, the device measures a distance of 10 m, but C7.5.1 Length Unit is set to mm and
menu C6.4.5 Format 1st Value is set to X.XXXX (five digits with four decimal places). This is not
sufficient to measure 10 m.
You can change the number of digits and decimal places in the measurement values shown in
normal mode.
Volume measurement
You must make a conversion table (strapping table) to show measurement data as a volume or a
mass. Go to C3.2 Input table (Full Setup > Conversion
Full Setup > ConversionFull Setup > Conversion
Full Setup > Conversion) to make the strapping table. For more
data,.
Functions of keypad buttons (normal mode)
INFORMATION!
Go to C6.4.1 Function
FunctionFunction
Function or C6.5.1 Function
Function Function
Function (Full Setup > Display > 1st Measur. Page
Full Setup > Display > 1st Measur. PageFull Setup > Display > 1st Measur. Page
Full Setup > Display > 1st Measur. Page or Full Setup >
Full Setup > Full Setup >
Full Setup >
Display > 2nd Measur. Page
Display > 2nd Measur. PageDisplay > 2nd Measur. Page
Display > 2nd Measur. Page) in Program mode to change the layout of the display screen.
Users of all security levels can change this setting.
Measurement data format errors

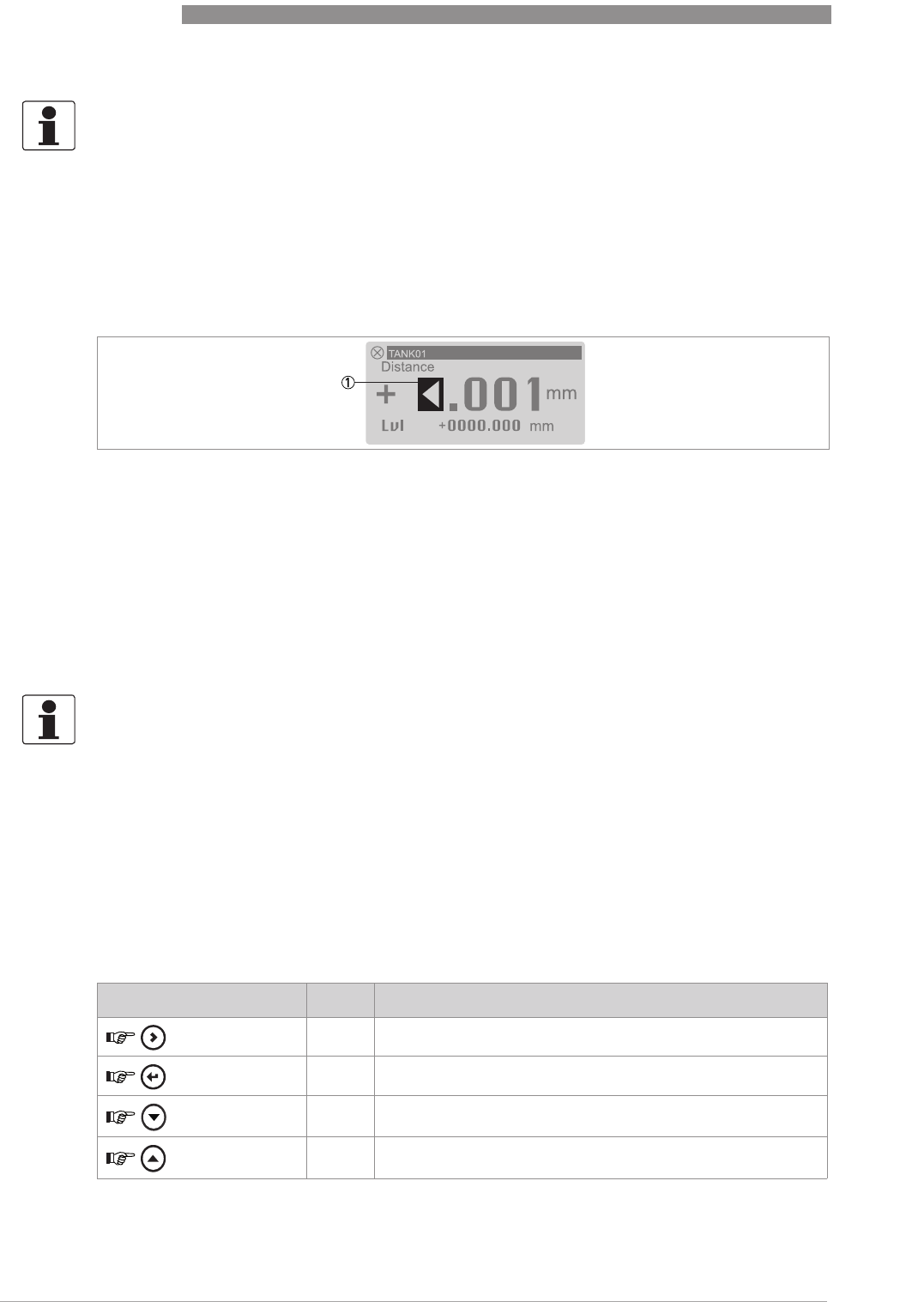

Figure 6-2: Error symbol: the number of digits and decimal places is not sufficient for the measurement data
1 Error symbol: the number of digits and decimal places is not sufficient for the measurement data. It is possible that
the length units must be changed from "mm" to "m".
INFORMATION!
Go to C6.4.5 Format 1st value
Format 1st valueFormat 1st value
Format 1st value, C6.4.7 Format 2nd value
Format 2nd valueFormat 2nd value
Format 2nd value, C6.4.9 Format 3rd value
Format 3rd valueFormat 3rd value
Format 3rd value, C6.5.5 Format
Format Format
Format
1st value
1st value1st value
1st value, C6.5.7 Format 2nd value
Format 2nd valueFormat 2nd value
Format 2nd value or C6.5.9 Format 3rd value
Format 3rd valueFormat 3rd value
Format 3rd value (Full Setup > Display > 1st Measur.
Full Setup > Display > 1st Measur. Full Setup > Display > 1st Measur.
Full Setup > Display > 1st Measur.
Page
PagePage
Page or Full Setup > Display > 2nd Measur. Page
Full Setup > Display > 2nd Measur. PageFull Setup > Display > 2nd Measur. Page
Full Setup > Display > 2nd Measur. Page) in Program mode to change the number of
digits and decimal places. If there is a large change in a measurement value, set the related
menu item to "Automatic".
Keypad button Symbol Function
[Right] [>
>>
>] Enter Program mode
[Return / Escape] [^
^^
^]—
[Down] [
]Change screen (measurement pages 1 and 2, and the status
message page)
[Up] [
]Change screen (measurement pages 1 and 2 and the status
message page)
OPERATION
6
47
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.3 Program mode
6.3.1 General notes
Change the settings of your device in Program
ProgramProgram
Program mode. Data about the menus is given. You can:
•Use the A Quick Setup
A Quick SetupA Quick Setup
A Quick Setup menu to change the display language, change the tag name, log in to
change settings, do standard setup and empty recording procedures.
•Use the B Test
B TestB Test
B Test menu to run diagnostic tests, read measurement and spectrum data.
•Use the C Full Setup
C Full SetupC Full Setup
C Full Setup menu to change settings. You can set up a conversion table for volume
or mass measurement, change current output values, use the device as a limit switch,
change HART® settings, change how the measurement data is shown in normal mode, read
device identification data, change critical parameters for difficult process conditions, change
the password, change measurement units or reset the device to factory default settings.
6.3.2 Protection of the device settings (security levels)
The settings of this device have three levels of data protection: "User", "Operator" and "Expert".
"Expert" is the highest level of protection. It is necessary to enter a different password for
"Operator" and "Expert" security levels. There is no password for the "User" security level.
Security levels and applicable functions in program mode
CAUTION!
If you did not supply all installation data to the supplier before the delivery, the standard setup
procedure in the Quick Setup menu is mandatory.
INFORMATION!
It is not possible to enter the D Service
D ServiceD Service
D Service menu. This menu is for factory calibration and approved
personnel only.
Security level
Security levelSecurity level
Security level Default password
Default passwordDefault password
Default password Applicable functions in program mode (overview)
Applicable functions in program mode (overview)Applicable functions in program mode (overview)
Applicable functions in program mode (overview)
Expert 0058
•
Read: Measurement data and error messages available at
the "User" security level (normal mode and menu items B2
Actual Values and C7.3.1 Message View)
•
Change: All sub-menus in menus A Quick Setup, B Test and
C Full Setup
NOTE:
NOTE:NOTE:
NOTE: You can change the password for the "Expert" security
level in menu item C7.2.2 Change Password. Refer to the
INFORMATION! note that follows.
6
OPERATION
48
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
If your security level is too low, the display will show a "lock" symbol adjacent to menu items in
Program mode. If it is necessary to change this setting, go to menu item menu item A3 Login or
C7.2.1 Login and set the device to the correct security level.
How to change the password
• Push [>
>>
>] to enter Program Mode.
• Push 2 × [
], [>
>>
>], 5 × [
], [>
>>
>], [
] and [>
>>
>] to go to the menu item C7.2.1 Login.
• Push [>
>>
>] to enter the menu item.
• Enter the password used at this time for a given security level ("Operator" or "Expert"). If it is
the default password, refer to the table at the start of this section.
• Push [^
^^
^] and [
] to go to the menu item C7.2.2 Change Password.
• Push [>
>>
>] to enter the menu item.
• Enter the password used at this time for the security level set at the start of this procedure. If
it is the default password, refer to the table at the start of this section.
• Enter the new password.
iIf you change the password for the "Operator" security level, then the first three digits must
be zero (000x). The last digit can be a number (1...9) or a letter (A...F). If you change the
password for the "Expert" security level, then the first two digits must be zero (00xx). The
last two digits can be a number (1...9) or a letter (A...F).
• Enter the new password again.
• Push 6 × [^
^^
^] to go back to normal mode.
Operator 0009
•
Read: Measurement data and error messages available at
the "User" security level (normal mode and menu items B2
Actual Values and C7.3.1 Message View)
•
Change: Binary Output (C4.3)
•
Change: All HART® settings (C5) – but not C5.1.1 Current
Loop Mode
NOTE:
NOTE:NOTE:
NOTE: You can change the password for the "Operator"
security level in menu item C7.2.2 Change Password. Refer to
the INFORMATION! note that follows.
User —
•
Read: Measurement data and error messages (normal mode
and men items B2 Actual Values and C7.3.1 Message View)
•
Read: All settings in menus A Quick Setup, B Test and C Full
Setup
•
Change: All settings in menu C6 Display (language, backlight
on/off, screen contrast and measurement data display
options (normal mode, pages 1 and 2)) and C7.5 Units
(length, volume, mass and custom units)
•
Change: Security level. Go to menu item A3 Login or C7.2.1
Login to change from "User" to "Operator" or "Expert"
security levels
Figure 6-3: Lock symbol
1 Lock symbol. If the display shows this symbol, you cannot change the setting.
OPERATION
6
49
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
iEnd of the procedure.
6.3.3 How to get access to the Quick Setup menu
The Quick Setup menu contains the menu items that are necessary for most configurations of
the device. The menu items are divided into 2 groups: "Standard Setup" and "Empty Spectrum".
The "Standard Setup" group lets the user (with security level "expert") set the tank height, tank
type (process, storage etc.), output variable, output current range, 0% range, 100% range, error
function and error delay. "Empty Spectrum" is a procedure that finds interference signals in the
tank and uses a filter to remove them from the measurement data.

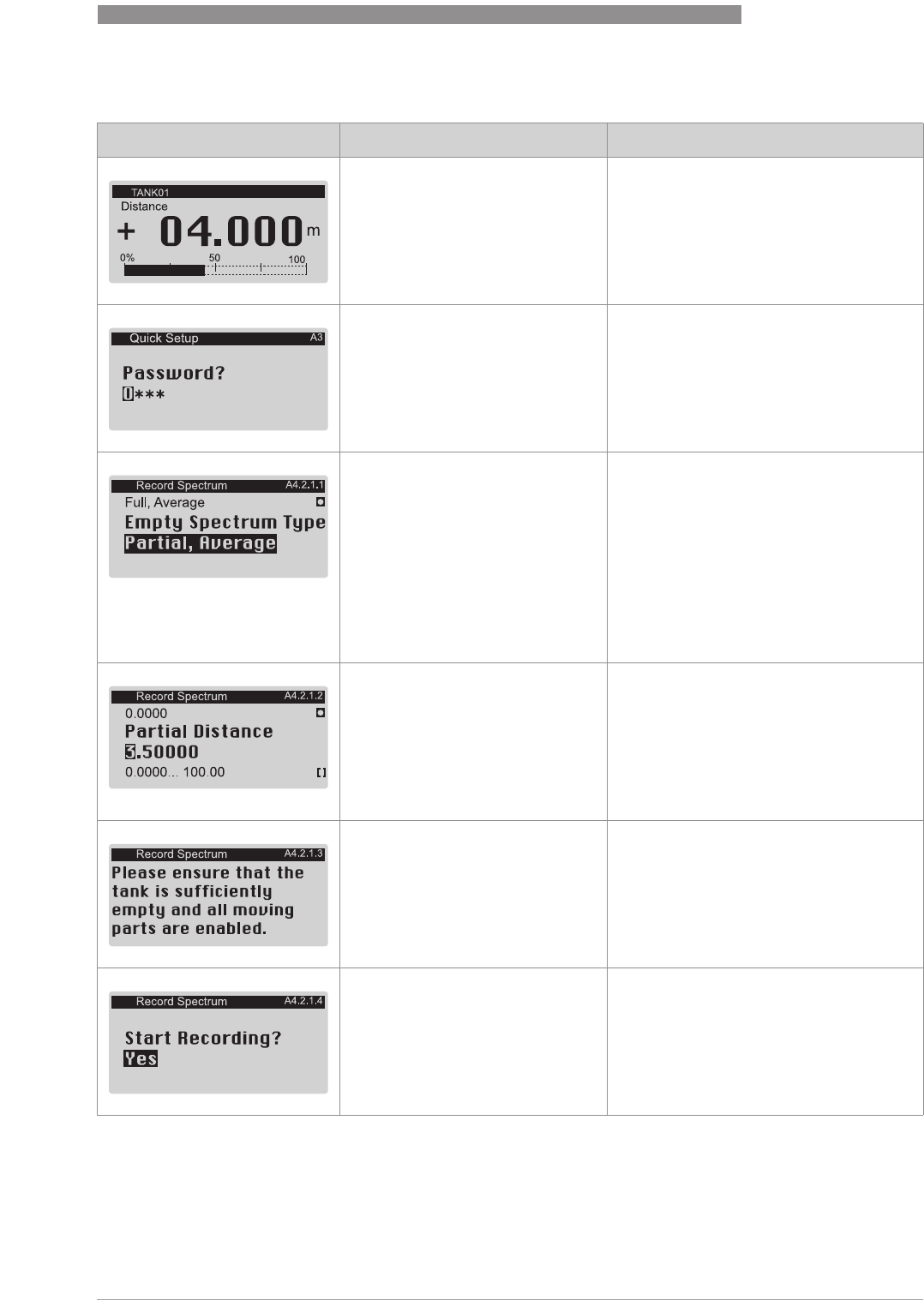

Do the steps that follow:
• Push [>
>>
>] to enter Program Mode.
• Push [>
>>
>], 2 × [
] to go to the menu item A3 Login.
• Enter the password used at this time for the "Expert" security level. If it is the default
password, refer to
Protection of the device settings (security levels)
on page 47.
• Push [^
^^
^], [
] and [>
>>
>] to go to the menu item A4.1 Standard Setup.
• Push [>
>>
>]. Do the basic configuration of the device in the "Standard Setup" menu. For more data
on the procedure, refer to
Standard Setup
on page 79. Push [^
^^
^] at the end of each step of the
procedure to continue to the next step.
• Push [
] and [>
>>
>] to go to the menu item A4.2.1 Record Spectrum.
• Push [>
>>
>] to start the empty spectrum recording procedure. For more data,. Push [^
^^
^] at the end
of each step of the procedure to continue to the next step.
INFORMATION!
Each security level has a four-digit hexadecimal password.
The first three digits of the password for the "Operator" security level must be zero (000x). The
last digit can be a number (1...9) or a letter (A...F).
The first two digits of the password for the "Expert" security level must be zero (00xx). The last
two digits can be a number (1...9) or a letter (A...F).
INFORMATION!
Make a note of the password and keep it in a safe place. If you lose the password, please speak
or write to your supplier.
INFORMATION!
If you de-energize and then energize the device, the security level will go back to "User".
CAUTION!
If you did not supply all installation data to the supplier before the delivery, the standard setup
procedure in the Quick Setup menu is mandatory.
6
OPERATION
50
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.3.4 Keypad functions
This is what you see when you are in Program mode. The functions of the buttons are given in the
table that follows:
Functions of buttons for menu navigation
Menu navigation

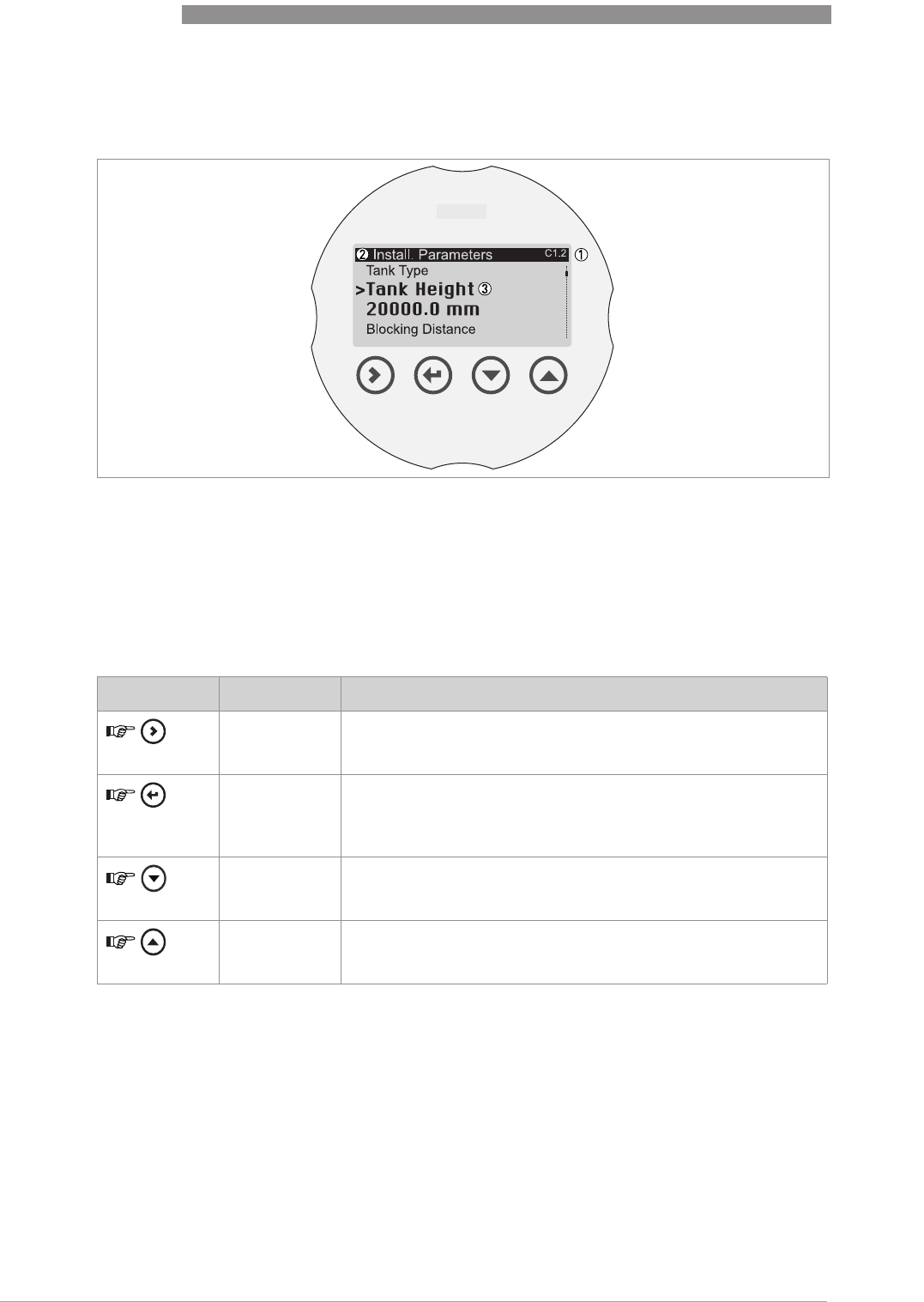

Figure 6-4: Menu navigation
1 Menu number or menu item number
2 Location (menu) of sub-menu or menu item
3 Menu item name
Button Description Function
Right
•
Go down a menu level (for example, from menu C1 to sub-menu
C1.1).
•
Enter the menu item.
Enter / Esc
(Escape)
•
Go up a menu level (for example, from sub-menu C1.1 to menu C1).
•
Go to Normal mode. If you changed settings in Program mode, you
must save or cancel your new settings. For more data, refer to
How
to save settings changed in program mode
on page 53.
Down
•
Scroll down the menu list (for example, from menu C1 to menu C2.
•
Scroll down the sub-menu list (for example, from sub-menu C2.1 to
sub-menu C2.2).
Up
•
Scroll up the menu list (for example, from menu C2 to menu C1).
•
Scroll up the sub-menu list (for example, from sub-menu C2.2 to
sub-menu C2.1).
OPERATION
6
51
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
This is what you see when you select a menu item that has a list of parameters. The functions of
the buttons are given in the table that follows:
Function of buttons in menu items that have a list of parameters
Lists of parameters in menu items

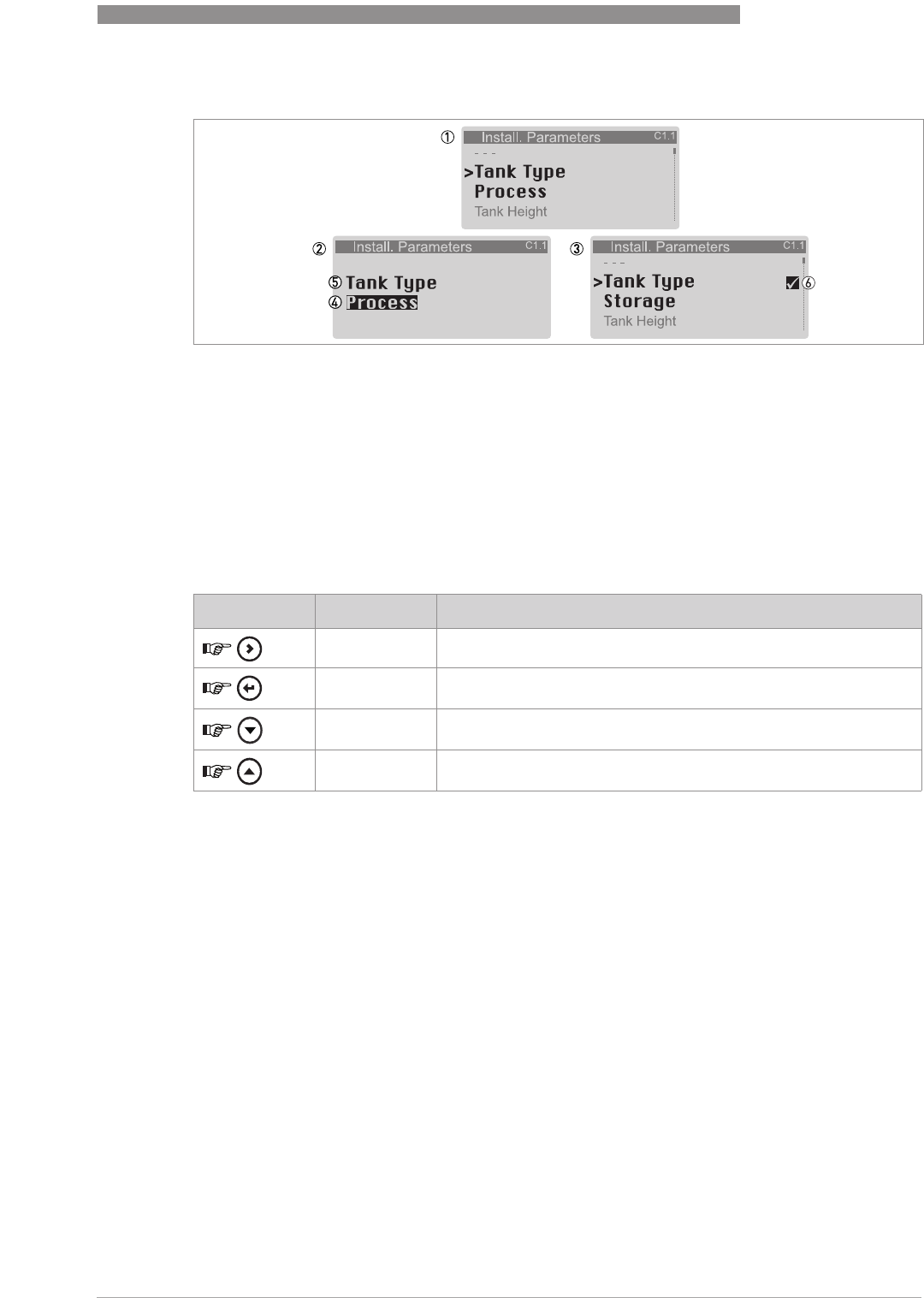

Figure 6-5: Lists of parameters in menu items
1 Menu item with parameter stored at this time (first screen). Push [>
>>
>] to enter the menu item.
2 Push [
] or [
] to change the parameter
3 Push [^
^^
^] to set the new parameter and go back to the menu level
4 Parameter
5 Menu item name
6 A "tick" symbol shows that there is a new setting (the new setting is not saved at this time)
Button Description Function
Right —
Enter / Esc
(Escape) Select the parameter and go back to the menu
Down Move down the list
Up Move up the list
6
OPERATION
52
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
This is what you see when you select a menu item that has a value.
The functions of the buttons are given in the table that follows:
Function of buttons in menu items that have values
Values in menu items

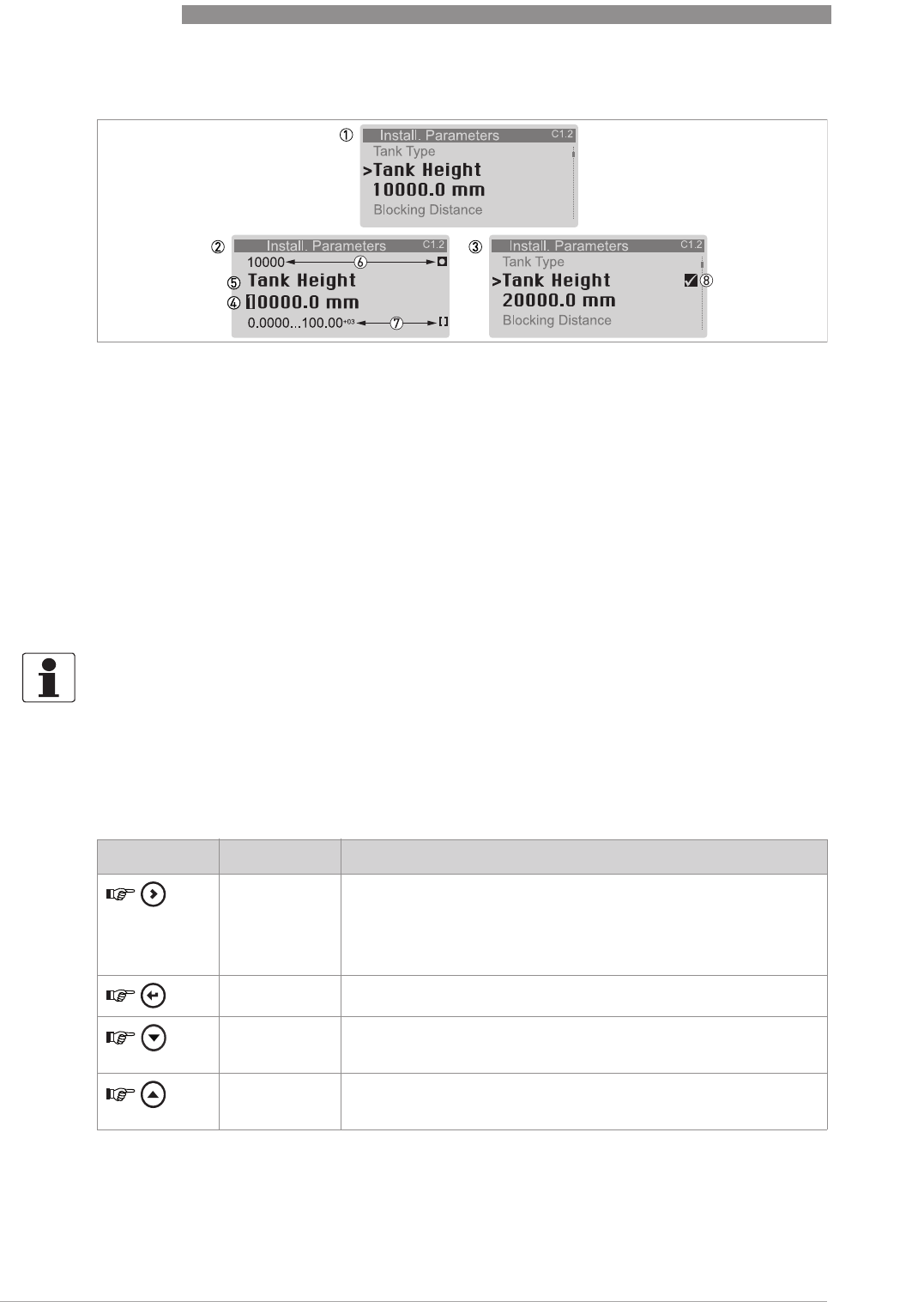

Figure 6-6: Values in menu items
1 Menu item with values stored at this time (first screen). Push [>
>>
>] to enter the menu item. A cursor shows on the first
digit.
2 Push [>
>>
>] again and again to move the cursor. Push [
] or [
] to change the value of the digit. If the digit is part of a
number, then make a selection from 0...9. If the digit is part of a custom unit name, then refer to the tables at the end
of this section for a list of the available characters. If the cursor is on the decimal point, you can change the position
of the decimal point.
3 Push [^
^^
^] to set the new parameter and go back to the menu level
4 Make a selection: put the cursor on a digit or the decimal point.
5 Menu item name
6 The factory default value (left side) and factory default symbol (right side)
7 The minimun and maximum values (min./max.) for this menu item (left side) and min./max. symbol (right side)
8 A "tick" symbol shows that there is a new setting (the new setting is not saved at this time)
INFORMATION!
If menu items have values that you can change, very large and very small values can be written
as a value with an exponent (b
n
). For example, if the value shown on the display is 100.00
+03
, this
value is equal to 100 × 10
3
or 100000.
Button Description Function
Right
•
Enter the menu item and see the value stored at this time.
•
Enter the menu item configuration level to change the value.
•
Move the cursor to the next digit on the right. If the cursor is on the
last digit, push [>
>>
>] again to go back to the first digit. You can also put
the cursor on the decimal point.
Enter / Esc
(Escape) Accept the value and go back to the sub-menu.
Down If the cursor is on a number, this button decreases the digit value. If
the cursor is on the decimal point, this button moves the decimal
point to the left (this decreases the value by a factor of 10).
Up If the cursor is on a number, this button increases the digit value. If
the cursor is on the decimal point, this button moves the decimal
point to the right (this increases the value by a factor of 10).
OPERATION
6
53
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Numbers
Lower case letters
Upper case letters
Special characters
6.3.5 How to save settings changed in program mode
• When you have changed parameters in all the necessary menu items, push [^
^^
^] to accept the
new parameter.
• Push [^
^^
^] again and again to go back to the "Save Configuration?" screen.
• The device will ask you to save or cancel your settings. Push [
] or [
] to make a selection
from Yes
YesYes
Yes, No
NoNo
No or Back
BackBack
Back. Back
BackBack
Back makes the display go back to Program mode. If this screen is set
to "Yes" or No", push [^
^^
^] to accept (Yes) or reject (No) the new settings.
iIf you push [^
^^
^] when the screen is set to "Yes" or No", the display goes back to normal
mode.
INFORMATION!
Values in menu items
Values in menu itemsValues in menu items
Values in menu items
If the digit is part of a custom unit name, then refer to the list of available characters that
follows:
0123456789
a b c d e f g h i j
k l m n o p q r s t
u v w x y z
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z
2 3
_ - / .
...
6
OPERATION
54
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.3.6 Menu overview
Menu overview: A – Quick Setup
Normal Program
Menu A Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^
A Quick Setup A1 Language
A2Tag
A3 Login
A4 Application
Assistant A4.1 Standard Setup A4.1.1.1 Length Unit
A4.1.2.1 Tank Type
A4.1.2.2 Tank Height
A4.1.2.2 Stillwell Height
A4.1.2.3 Stillwell Diameter
A4.1.3.1 Current Out. 1 Var.
A4.1.3.2 0% Range
A4.1.3.3 100% Range
A4.1.3.4 Current Out. Range
A4.1.3.5 Error Function
A4.1.3.6 Error Delay
A4.2 Empty
Spectrum /
A4.2.1 Record
Spectrum
A4.2.1.1 Empty Spectrum Type
A4.2.1.2 Partial Distance
A4.2.1.3 Partial Distance
A4.2.1.4 Start Recording?
A4.2.1.5 Empty Spectrum
A4.2.1.6 Empty Spectrum
Graph
A4.2.1.7 Save Spectrum?
A4.2.1.8 Empty Spectrum
Enable
OPERATION
6
55
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Menu overview: B – Test
Normal Program
Menu B Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
B Test B1 Simulation B1.1 Set Value B1.1.1 Sensor Value
B1.1.2 Level
B1.1.3 Distance
B1.1.4 Reflection
B1.1.5 Level Lin.
B1.1.6 Volume
B1.1.7 Mass
B1.1.8 Distance Lin.
B1.1.9 Ullage Volume
B1.1.10 Ullage Mass
B1.2 Output B1.2.1 Current Output 1
B2 Actual
Values B2.1 Operating Time
B2.2 Time/Date
B2.3 Sensor Value
B2.4 Level
B2.5 Distance
B2.6 Reflection
B2.7 Level Lin.
B2.8 Volume
B2.9 Mass
B2.10 Distance Lin.
B2.11 Ullage Volume
B2.12 Ullage Mass
B2.13 Sensor Temp.
B2.14 Converter Temp.
B3 Power
Spectrum B3.1 Request Spectrum
Pressure
B3.2 Power Spectrum
B4 Corrected
Spectrum B4.1 Request Spectrum
B4.2 Corrected
Spectrum
B5 Empty
Spectrum B5.1 Request Spectrum
B5.2 Empty Spectrum
6
OPERATION
56
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Menu overview: C – Full Setup
Normal Program
Menu C Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
C Setup C1 Install
Parameters C1.1 Tank Type
C1.2 Tank Height
C1.3 Stillwell Height
C1.4 Stillwell
Diameter
C1.5 Blocking
Distance
C1.6 Time Constant
C1.7 Antenna Type
C1.8 Antenna
Extension
C1.9 Distance Piece
C1.10 Reference
Offset
C1.11 Tank Bottom
Offset
C Setup C2 Process C2.1 Tracking
Velocity
C2.2 Epsilon R
Product
C2.3 Epsilon R Gas
C2.4 Measuring
Mode
C2.5 Overfill
Detection
C2.6 Overfill
Threshold
C2.7 Mult. Refl.
Enable
C2.8 Empty
Spectrum Enable
C2.9 Min Peak req.
C2.10 Min Plaus.
Window
C Setup C3 Conversion C3.1 Edit Table C3.1.1 Erase Table?
C3.1.2 Select Conversion
C3.2 Input Table C3.2.2 Point
C3.2.4 Level
C3.2.5 Conv. Value
OPERATION
6
57
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C Setup C4 Output C4.1 Current Output
1C4.1.1 Current Out. 1 Var.
C4.1.2 0% Range
C4.1.3 100% Range
C4.1.4 Current Out. Range
C4.1.5 Error Function
C4.1.6 Error Delay
C4.1.7 Low Error Current
C4.1.8 High Error Current
C4.1.9.2 Trimming / 4mA
Trimming
C4.1.9.5 Trimming / 20mA
Trimming
Normal Program
Menu C Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
6
OPERATION
58
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C Setup C5
Communication C5.1.2 HART C5.1.1Current Loop Mode
C5.1.2.1 Identification / Polling
Adress
C5.1.2.2 Identification / Tag
C5.1.2.3 Identification / Long
Tag
C5.1.2.4 Identification /
Manufacturer ID
C5.1.2.5 Identification / Device
Type
C5.1.2.6 Identification / Device
ID
C5.1.2.7 Identification /
Universal Revison
C5.1.2.8 Identification / Device
Revison
C5.1.2.9 Identification /
Software Revison
C5.1.2.10 Identification /
Hardware Revison
C5.1.3.1 Device Information /
Descriptor
C5.1.3.1 Device Information /
Message
C5.1.3.1 Device Information /
Date
C5.1.3.1 Device Information /
Cfg. Change Counter
C5.1.4.1 HART Variables /
Current Out. 1 Var.
C5.1.4.2 HART Variables / HART
sec./CO2 Var.
C5.1.4.3 HART Variables /
Tertiary Var.
C5.1.4.4 HART Variables /
Quarternary Var.
C Setup C6 Display C6.1 Language
C6.2 Backlight
C6.3 Contrast
Normal Program
Menu C Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
OPERATION
6
59
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C6.4 1st Meas. page C6.4.1 Function
C6.4.2 1st Value Variable
C6.4.3 0% Range
C6.4.4 100% Range
C6.4.5 Format 1st Value
C6.4.6 2nd Value Variable
C6.4.7 Format 2nd Value
C6.4.8 3rd Value Variable
C6.4.9 Format 3rd Value
C6.5 2nd Meas. page C6.5.1 Function
C6.5.2 1st Value Variable
C6..3 0% Range
C6.5.4 100% Range
C6.5.5 Format 1st Value
C6.5.6 2nd Value Variable
C6.5.7 Format 2nd Value
C6.5.8 3rd Value Variable
C6.5.9 Format 3rd Value
C Setup C7 Device C7.1 Information C7.1.1 Tag
C7.1.2 Serial Number
C7.1.3 Device Name
C7.1.4 V Number
C7.1.5 Electronic Revision
C7.1.6 Software Revision
C7.1.7 Electronic serial No.
C7.1.8 Production Date
C7.1.9 Calibration Date
C7.1.10 SIL Mode
C7.1.11 Custody Transfer Mode
C7.1.12 WHG Mode
C7.1.13 API-2350 Mode
C7 Device C7.2 Security C7.2.1 Login
C7.2.2 Change Password
C7.2.3 Reset Passwords
C7.3 Errors C7.3.1 Message
C7.3.2.1 Error-Mapping /
Sensor: Information
C7.4 Real Time Clock C7.4.1 Set Time
C7.4.2 Set Time
Normal Program
Menu C Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
6
OPERATION
60
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.3.7 Function description
A – Quick Setup menu
C7.5 Units C7.5.1 Length Unit
C7.5.2.1 Cst. Length / Text
C7.5.2.2 Cst. Length / Offset
C7.5.2.3 Cst. Length / Factor
C7.5.3 Volume
C7.5.4.1 Cst. Volume / Text
C7.5.4.2 Cst. Volume / Offset
C7.5.4.1 Cst. Volume / Factor
C7.5.5 Mass
C7.5.6.1 Cst. Mass / Text
C7.5.6.2 Cst. Mass / Offset
C7.5.6.3 Cst. Mass / Factor
C7.6 Factory Default C7.6.1 Reset to Fact. Def.?
Menu
No.
Function Function description Selection list Default
A1 Language Make a selection to show the
measurement data and settings in one
of the languages stored in in the
device.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
English, French, German,
Italian, Japanese, Chinese
(simplified), Portuguese,
Russian, Spanish, Czech, Polish,
Turkish
English
A2 Tag You can see the TAG name here. The
tag name can be a maximum of 8
characters long and it can have
numbers, upper-case and lower-case
letters and special characters. For
more data, , refer to
Keypad functions
on page 50 (values in menu items).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
Refer to "Function description" 00000000
A3 Login Enter the appropriate password here
to change settings. If you do not enter
the password, you can only change
settings for the "user" security level.
For more data, refer to
Protection of
the device settings (security levels)
on
page 47.
4-digit hexadecimal password Refer to
"Function
description
"
A4 Application Assistant
A4 Application AssistantA4 Application Assistant
A4 Application Assistant
Normal Program
Menu C Submenus
> ^↓ ↑> ^↓ ↑> ^↓ ↑> ^↓ ↑ >
OPERATION
6
61
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
B – Test menu
A4.1 Standard Setup This starts a quick set-up procedure
applicable to most applications. You
can set the length unit, installation
specifications (tank type, tank height,
still well height, still well diameter
etc.) and current output specifications
(0% range, 1000% range, error function
etc.). For more data about the
functions, refer to Table C – Full Setup,
in this section. For more data about the
procedure, refer to
Standard Setup
on
page 79.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: Expert
A4.2 Fixed and moving objects in the tank
cause interference signals. Put them
through this filter to correctly measure
the tank contents. This menu item
starts a quick set-up procedure. We
recommend that the tank is empty or
only filled to the minimum level before
you do the procedure. We also
recommend that if you installed the
device on a tank that has equipment
with parts that move (e.g. agitators),
start the equipment. Set the Save
Save Save
Save
Spectrum?
Spectrum? Spectrum?
Spectrum? step to "Yes", Empty
Empty Empty
Empty
Spectrum Enable
Spectrum EnableSpectrum Enable
Spectrum Enable step to "Enable" at
the end the procedure and set the Save
Configuration? screen to "Yes" to use
the data. For more data about the
procedure, refer to
Empty spectrum
recording
on page 82. Refer also to
"How to make a filter to remove radar
signal interference" on page 87.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: Expert
Menu
No.
Function Function description Selection list Default
B1 Simulation
B1.1 Set Value
B1.1 Set ValueB1.1 Set Value
B1.1 Set Value
B1.1.2 Level This sets the device to a given test level
value. This procedure sends an output
signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
-4900.0...+5100.0 m / -
1076...+16732 ft
+0 m
Menu
No.
Function Function description Selection list Default
6
OPERATION
62
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
B1.1.3 Distance This sets the device to a given test
distance value. This procedure sends
an output signal that agrees with the
test reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
-4900.0...+5100.0 m / -
1076...+16732 ft
+20.0 m
B1.1.4 Reflection This sets the device to a given test
reflection value. This procedure sends
an output signal that agrees with the
test reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
0...100% 0%
B1.1.5 Level Lin. This sets the device to a given test level
value (linearized). This menu item is
only available if you set up a
linearization table in menu item C3.1
C3.1 C3.1
C3.1
Edit Table
Edit TableEdit Table
Edit Table. This procedure sends an
output signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
-4900.0...+5100.0 m / -
1076...+16732 ft
+0 m
B1.1.6 Volume This sets the device to a given test
volume value. This menu item is only
available if you set up a conversion
(volume) table in menu item C3.1 Edit
C3.1 Edit C3.1 Edit
C3.1 Edit
Table
TableTable
Table. This procedure sends an output
signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
0...1.00
+06
m³
+0 m³
Menu
No.
Function Function description Selection list Default
OPERATION
6
63
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
B1.1.7 Mass This sets the device to a given test
mass value. This menu item is only
available if you set up a conversion
(mass) table in menu item C3.1 Edit
C3.1 Edit C3.1 Edit
C3.1 Edit
Table
TableTable
Table. This procedure sends an output
signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
0...10.000
+09
kg
0kg
B1.1.8 Distance Lin. This sets the device to a given test
distance value (linearized). This menu
item is only available if you set up a
linearization table in menu item C3.1
C3.1 C3.1
C3.1
Edit Table
Edit TableEdit Table
Edit Table. This procedure sends an
output signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
-4900.0...+5100.0 m +0 m
B1.1.9 Ullage Volume This sets the device to a given test
ullage volume value. This menu item is
only available if you set up a conversion
(volume) table in menu item C3.1 Edit
C3.1 Edit C3.1 Edit
C3.1 Edit
Table
TableTable
Table. This procedure sends an output
signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^], the display shows
the question "Start Simulation?" Push
[
] or [
] to set the display to "Yes".
Push [^
^^
^]again to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
0...1.00
+06
m³
1
Menu
No.
Function Function description Selection list Default
6
OPERATION
64
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
B1.1.10 Ullage Mass This sets the device to a given test
ullage mass value. This menu item is
only available if you set up a conversion
(mass) table in menu item C3.1 Edit
C3.1 Edit C3.1 Edit
C3.1 Edit
Table
TableTable
Table. This procedure sends an output
signal that agrees with the test
reading. Output will change to the
selected value, independent of the
measurement data.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
min-max:
0...10.000
+09
kg
1
B1.2 Output
B1.2 OutputB1.2 Output
B1.2 Output
B1.2.1 Current Output 1 This sets analogue output 1 to a test
value [mA]. Output will change to the
selected value, independent of the
measured value.
When you push [^
^^
^] to confirm the
value, the display shows the question
"Start Simulation?" Push [
] or [
] to
set the display to "Yes". Push [^
^^
^]again
to start the test.
Minimum security level to do the
Minimum security level to do the Minimum security level to do the
Minimum security level to do the
procedure:
procedure:procedure:
procedure: User
3.6...21.5 mA 21.5 mA
B2 Actual Values
B2.1 Operating Time
[s] This is the total time that the device is
energized in seconds. Read only —
B2.4 Level This menu item shows the level
readings measured at this time. This
measurement data is shown with the
units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units.
Read only —
B2.5 Distance This menu item shows the distance
readings measured at this time. This
measurement data is shown with the
units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units.
Read only —
B2.6 Reflection This menu item shows the percentage
of the emitted radar signal which
makes a reflection on the surface of
the tank or silo contents and is
received by the device.
Read only —
B2.7 Level Lin. This menu item shows the level
readings (linearized) measured at this
time. This measurement data is shown
with the units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units.
This menu item is only available if you
set up a linearization table in menu
item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
B2.8 Volume This menu item shows the volume
readings measured at this time. This
measurement data is shown with the
units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units. This
menu item is only available if you set
up a conversion (volume) table in menu
item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
Menu
No.
Function Function description Selection list Default
OPERATION
6
65
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
B2.9 Mass This menu item shows the mass
readings measured at this time. This
measurement data is shown with the
units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units. This
menu item is only available if you set
up a conversion (mass) table in menu
item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
B2.10 Distance Lin. This menu item shows the distance
readings (linearized) measured at this
time. This measurement data is shown
with the units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units.
This menu item is only available if you
set up a linearization table in menu
item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
B2.11 Ullage Volume This menu item shows the ullage
volume readings measured at this
time. This measurement data is shown
with the units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units.
This menu item is only available if you
set up a conversion (volume) table in
menu item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
B2.12 Ullage Mass This menu item shows the ullage mass
readings measured at this time. This
measurement data is shown with the
units set in menu C7.5 Units
C7.5 UnitsC7.5 Units
C7.5 Units. This
menu item is only available if you set
up a conversion (mass) table in menu
item C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table.
Read only —
B2.13 Sensor Temp. Temperature of the sensor (antenna)
electronics block. Read only —
B2.14 Converter Temp. Temperature of the converter
electronics block. Operation of display
can stop if the temperature is below -
20°C/ -4°F or above +70°C / +158°F.
Read only —
B3 Power Spectrum
B3.2 Power Spectrum This menu item shows the uncorrected
spectra of the radar signal which
makes a reflection on the surface of
the tank or silo contents and is
received by the device. This data is
shown as a graph of the percentage of
the full-scale signal against distance.
Read only —
B4 Corrected Spectrum
B4.2 Corrected
Spectrum This menu item shows the corrected
spectra of the radar signal which
makes a reflection on the surface of
the tank or silo contents and is
received by the device. This is the
result of the spectra from an empty
tank or silo subtracted from the power
spectra. This data is shown as a graph
of the percentage of the full-scale
signal against distance.
Read only —
B5 Empty Spectrum
Menu
No.
Function Function description Selection list Default
6
OPERATION
66
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C – Full Setup menu
B5.2 Empty Spectrurm This menu item shows the spectra of
the radar signal which makes a
reflection at the bottom of an empty
tank (or a partially full tank, if it is not
possible to remove all the tank
contents). This data is shown as a
graph of the percentage of the full-
scale signal against distance.
Read only —
1The maximum value in the conversion table
Menu
No.
Function Function description Selection list Default
C1 Install Parameters
C1.1 Tank Type The conditions in which the device is used. If
the surface of the product is flat, select
"Storage". If the surface of the product is
disturbed, select "Process". If the surface of
the product is agitated with vortexes and
foam, select "Agitator". If the device is
installed in a still well, select "Still Well".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Agitator, Still Well,
Process, Storage Process
C1.2 Tank Height Tank height is the distance from the flange
face/thread stop of the process connection
to the tank bottom. If you use the device for
an LPR (open-air) application, this value is
the maximum distance that the device must
measure (the measuring range). If you set
menu item C1.1 Tank Height to "Still Well",
this menu item is not available.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0...100.00
+03
mm /
0...196.85 ft
10000 mm /
32.808 ft
C1.3 Still Well Height The height of the still well. This menu item
is available if you set "Still Well" in menu
item C.1.1 Tank Type.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
500.0...100.00
+03
mm /
1.6404...328.08 ft
10000 mm /
32.808 ft
C1.4 Still Well
Diameter The inner diameter of the still well. This
menu item is available if you set "Still Well"
in menu item C.1.1 Tank Type.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
22.0...999.0 mm / 866.14
-
03
...39.331¨
100 mm /
3.937¨
C1.5 Blocking
Distance The distance from the flange facing or the
thread stop to the top limit of the measuring
range (a zone given by the user where it is
not possible to measure). We recommend a
minimum blocking distance of 100 mm / 4¨
below the bottom of the antenna. If the
distance is less than the blocking distance,
the device continues to show the blocking
distance on the display screen.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
75.0...5000.0 mm /
2.9528...196.85¨
500 mm /
19.685¨
Menu
No.
Function Function description Selection list Default
OPERATION
6
67
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C1.6 Time Constant Using this function, the device processes
several measurement readings to filter out
disturbances. Increasing the time constant
will smoothen the integrated readings,
decreasing will roughen the readings. s =
seconds.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0....100.0 sec (seconds) 0s
C1.7 Antenna Type The type of antenna attached to the device. If
you change the antenna, this setting will
have an effect on C1.2 Tank Height and C1.5
Blocking Distance. For more data, <Antenna
Selection>.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Metallic Horn (DN40),
Metallic Horn (DN50),
Metallic Horn (DN65),
Metallic Horn,(DN80),
Metallic Horn (DN100),
Metallic Horn (DN200),
Drop (PP, DN80), Drop
(PP, DN150); Drop (PTFE,
DN80), Drop (PTFE,
DN150); Drop (PEEK,
DN80), Drop (PEEK,
DN150) Hygienic (PEEK,
DN50)
Metallic Horn
(DN100)
C1.8 Antenna
Extension Optional antenna extension. These are
attached between the flange and the
antenna. Each segment is 105 mm / 4.1¨
long.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0…10000 mm /
0.0...393.7¨
0mm/0¨
C1.9 Distance piece Optional distance piece between the
converter and the process connection. This
is for the high-temperature version of the
device. Each segment is 105 mm / 4.1¨ long.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0…2000 mm /
0.0...78.74¨
0mm/ 0¨
C1.10 Reference
Offset Offset relating to a reference location
(distance). This value is positive when the
reference location is above the device flange
face and negative if below. For more
data,<Distance>.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
-5000.0+0…+5000.0 m / -
16404...+164404 ft
0m/ 0ft
C1.11 Tank Bottom
Offset Offset relating to a reference location
(level). The device reference point for this
parameter is the bottom of the tank (set in
menu item C1.2 Tank Height). This value is
positive when the reference location is
below the tank bottom and negative if above.
For more data,<Level>.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
-
5000.0+0…+5000.0 mm /
-16404...+164404 ft
0m/ 0ft
C2 Process
C2.1 Tracking
Velocity This menu item sets the maximum rate of
change of level in metres per minute or feet
per minute. The measured value cannot
change faster than the tracing velocity.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
1.2
+03
…60.0
+06
m/min /
3.937
+03
...196.85 ft
60.0
-
03
m 196.85
-
03
ft/min
Menu
No.
Function Function description Selection list Default
6
OPERATION
68
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C2.2 Epsilon R
Product The device automatically calculates the
level based on the product ε
r
. If you select
"TBF Full" or "TBF Auto" in menu item C2.4
Measuring Mode, you can change this value
manually to adjust readings.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
1.1...20 2.0
C2.3 Epsilon R Gas A major parameter for radar level
measurement devices. If the gas is not air,
set the ε
r
value to the ε
r
value of the gas.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
1.0...20 1.0
C2.4 Measuring
Mode The device uses the dielectric constant (ε
r
)
of the tank contents to monitor level. In
"Direct" mode (if the dielectric constant is
high), the level signal is a reflection on the
surface of the tank contents. If the dielectric
constant is low, the device uses "TBF Auto"
or "TBF Full" mode. The device in "TBF"
mode uses the radar reflection on the
bottom of the tank (the signal goes through
the tank contents). The tank must have a flat
bottom for the device to operate correctly in
TBF mode. This menu item is set by default
to "Direct" for tank contents with an ε
r
>1.8.
If ε
r
is very low (<1.6), use "TBF Full". If εr is
low (ε
r
= 1.5...1.7), use "TBF Auto" mode.
"TBF Auto" is an automatic mode that lets
the device make a selection between
"Direct" mode and "TBF" mode. If you use
"TBF Full" or "TBF Auto", enter the
dielectric constant in menu item C2.2
Epsilon R Product. Refer also to "Measuring
principle" on page 98.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Direct, TBF Partial, TBF
Full Direct
C2.5 Overfill
Detection If this function is in operation, the device will
monitor the level even if it is in the blocking
distance. The output shown on the display
screen stays fixed at the blocking distance,
but an error message will warn the user
that the tank is too full.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Disabled, Enabled Disabled
C2.6 Overfill
Threshold If you have set 2.5 Overfill Detection to
"Enabled", this menu item will be available.
If the device cannot easily measure in the
blocking distance (see menu item C1.5),
then you can change the overfill threshold.
This value is a percentage of the radar
signal amplitude. To enter the correct value,
we recommend that you speak or write to
your supplier.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0...100.0% 9.6602%
Menu
No.
Function Function description Selection list Default
OPERATION
6
69
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C2.7 Mult. Refl.
Enable Multiple reflections will cause the device to
display smaller level readings. Installation
of the device on a manhole or at the centre
of a dome roof, and high dielectric products
(εr > 5) can cause multiple reflections. A
very calm surface or a tank with a small
convex or flat roof can also cause multiple
reflections.
If this function is in operation, the device
looks for the first signal peak below the
process connection. This signal peak is then
used to measure the level of the tank
contents. If this function is not in operation,
the device looks for the largest signal below
the process connection.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Disabled, Enabled Disabled
C2.8 Empty
Spectrum
Enable
This function starts and stops the
interference signal filter. Interference
signals are the result of fixed and moving
obstacles inside the tank. If you must do a
spectrum analysis, record an empty
spectrum first. Do the "Empty Spectrum"
procedure (menu A4.2) in the Quick Setup
menu.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Disabled, Enabled Disabled
C3 Conversion
C3.1 Edit Table
C3.1 Edit TableC3.1 Edit Table
C3.1 Edit Table
C3.1.1 Erase Table? Before you can make a conversion table, you
must delete the data that is stored in the
device at this time. If you set this menu item
to "No" you will go back to menu C3.1. If you
set it to "Yes", you will go to menu item
C3.1.2 Select Conversion.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Yes, No No
C3.1.2 Select
Conversion If you must make a volume conversion table,
set this menu item to "Volume". If you must
make a mass conversion table, set this
menu item to "Mass". If you must make a
linearization table to make sure that the
readings always agree with reference
measurements, set this menu item to
"Linearization".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Volume, Mass,
Linearization Volume
C3.2 Input Table
C3.2 Input TableC3.2 Input Table
C3.2 Input Table
C3.2.2 Point This adds a point on the conversion table.
Each time you enter this menu item, this
number will automatically increment by 1
point. If it is necessary to change the data
for a point, change the point number. When
you push [^
^^
^], you go to menu item C3.2.4
Level.
Minimum security level to do the procedure:
Minimum security level to do the procedure:Minimum security level to do the procedure:
Minimum security level to do the procedure:
Expert
min-max:
001...050 001
Menu
No.
Function Function description Selection list Default
6
OPERATION
70
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C3.2.4 Level Enter the level value for the point given in
C3.2.2. Push [^
^^
^] to confirm the level value
and go to C3.2.5 Conv. Value.
Minimum security level to do the procedure:
Minimum security level to do the procedure:Minimum security level to do the procedure:
Minimum security level to do the procedure:
Expert
min-max:
0.0...100.0
+03
mm /
0.0...3937.0¨
0.0 mm / 0.0¨
C3.2.5 Conv. Value Enter the conversion value (volume, mass or
linearization) for the point given in C3.2.2.
Push [^
^^
^] to confirm the conversion value
and go back to menu C3.2.
Minimum security level to do the procedure:
Minimum security level to do the procedure:Minimum security level to do the procedure:
Minimum security level to do the procedure:
Expert
min-max:
Volume:
0.0...100.0
+09
m³/
0.0...26.417
+12
gal
Mass: 0.0...100.0
+09
kg /
0.0...220.46
+09
lb
Linearization:
0.0...100.0
+12
mm /
0.0...3.937
+12
¨
Volume:0.0 m³
/ 0.0 gal
Mass:0.0 kg /
0.0 lb
Linearization:
0.0 mm / 0.0¨
C4 Output
C4.1 Current Output 1
C4.1 Current Output 1C4.1 Current Output 1
C4.1 Current Output 1
C4.1.1 Current Out. 1
Var. Make a selection from the available output
functions to scale the current output values.
This is not shown in the normal mode.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Level, Sensor Value,
Reflection, Lin. Distance,
Lin. Level, Distance
Distance
C4.1.2 0% Range Give a measurement value to 0% output
(refer also to C4.1.1 Current Out. 1 Var for
the output function). This is the minimum
loop current (this does not include the error
current). The parameter set in menu item
C.4.1.4 Current Out. Range
C.4.1.4 Current Out. RangeC.4.1.4 Current Out. Range
C.4.1.4 Current Out. Range has an effect on
this current value.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
-4.9
+06
...+5.1
+06
mm / -
192.91
+03
...+200.79
+03
¨
0.0 mm
C4.1.3 100% Range Give a measurement value to 100% output
(refer also to C4.1.1 Current Out. 1 Var for
the output function). This is the maximum
loop current (this does not include the error
current). The parameter set in menu item
C.4.1.4 Current Out. Range
C.4.1.4 Current Out. RangeC.4.1.4 Current Out. Range
C.4.1.4 Current Out. Range has an effect on
this current value.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
-4.9
+06
...+5.1
+06
mm / -
192.91
+03
...+200.79
+03
¨
10000 mm
C4.1.4 Current Out.
Range This menu item sets the limits of the output
current range to 1 of 4 available options:
standard limits (4...20 mA), NAMUR NE 43-
compliant limits (3.8...20.5 mA), reversed
standard limits and reversed NAMUR NE
43-compliant limits. You use standard limits
when you want the 0% output to be 3.8 or
4 mA and the 100% output to be 20 mA or
20.5m A. You use reversed limits when you
want the 0% output to be to be 20 mA or
20.5 mA and 100% output to be 3.8 mA or
4mA.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
4-20 mA, 3.8-20.5 mA
(NAMUR), 4-20 mA
(reversed), 3.8-20.5 mA
(reversed)
4-20 mA
Menu
No.
Function Function description Selection list Default
OPERATION
6
71
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C4.1.5 Error Function This sets the behaviour of current output 1 if
an error occurs. If this menu item is set to
"Off", no signal is given (this parameter is
not available if menu item C4.1.4 is set to
"3.8-20.5 mA" (NAMUR) or "3.8-20.5 mA
(reversed)"). If this menu item is set to
"Hold", the output current stays at the value
where the error occurred (this parameter is
not available if menu item C4.1.4 is set to
"3.8-20.5 mA" (NAMUR) or "3.8-20.5 mA
(reversed)"). If this menu item is set to
"Low", the output current changes to 3.5 mA
(default value) if an error occurs. If this
menu item is set to "High", the output
current changes to 21.5 mA (default value) if
an error occurs.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Off, Low, High, Hold Low
C4.1.7 Low Error
Current This menu item is available if C4.1.5 Error
Function is set to "Low". You can change the
value to which the current output will
change if an error occurs.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
3.5...3.6 mA 3.5 mA
C4.1.8 High Error
Current This menu item is available if C4.1.5 Error
Function is set to "High". You can change
the value to which the current output will
change if an error occurs.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
21.0...21.5 mA 21.5 mA
C4.1.9 Trimming
C4.1.9.1 4mA Trimming Use this menu item if the current output of
the device is set to 4 mA, but the measured
loop current is not 4 mA. Enter the
measured value.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0...25.0 mA 4mA
C4.1.9.2 20mA Trimming Use this menu item if the current output of
the device is set to 20 mA, but the measured
loop current is not 20 mA. Enter the
measured value.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
min-max:
0.0...25.0 mA 20 mA
C5 Communication
C5.1 HART
C5.1 HARTC5.1 HART
C5.1 HART
C5.1.1 Current Loop
Mode Set this menu item to "On" if the "Primary
Variable" for current output 1 must also be
transmitted as a 4…20 mA signal. If this
menu item is set to "Off', this stops the
4…20 mA signal and starts HART® multi-
drop mode.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
On, Off On
C5.1.2 Identification
Menu
No.
Function Function description Selection list Default
6
OPERATION
72
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C5.1.2.1 Polling Address A polling address more than 0 will start
HART® multidrop mode. If you start HART®
multidrop mode, the current output stays
constant at 4 mA.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
000...063 0
C5.1.2.2 Tag Use this menu item to change the Tag name.
It can have a maximum of 8 characters. For
more data about the characters available,
refer to
Keypad functions
on page 50
,(values in menu items).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
—TANK01
C5.1.2.3 Long Tag Use this menu item to change the long Tag
name. It can have a maximum of 32
characters. For more data about the
characters available, refer to
Keypad
functions
on page 50 ,(values in menu
items).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
— —
C5.1.2.4 Manufacturer ID This is the manfacturer ID number given to
the supplier by the HART Foundation. Read Only —
C5.1.2.5 Device Type This is the device type number given to the
supplier by the HART Foundation. Read Only —
C5.1.2.6 Device ID This is the device ID number given to the
supplier by the HART Foundation. This
shows that the HART Foundation registered
the HART® device description (DD) file.
Read Only —
C5.1.2.7 Universal
Revision This is the version of the HART protocol
used by the device. Read Only —
C5.1.2.8 Device Revision This is the revision number for the HART®
device description. Read Only —
C5.1.2.9 Software
Revision This is the revision number for the device
software. Read Only —
C5.1.2.1
0Hardware
Revision This is the revision number for the device
hardware. Read Only —
C5.1.3 Device Information
C5.1.3.1 Descriptor You can give a short description (16
characters maximum) of the device in this
menu item.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
— —
C5.1.3.2 Message You can give more data in this menu item
(32 characters maximum).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
— —
C5.1.3.3 Date You can enter the date in this menu item
(Format: Year-Month-Day / YYYY-MM-DD) —2014-01-01
C5.1.3.4 Cfg. Change
Counter This function counts the number of changes
to the HART® device settings Read Only —
C5.1.4 HART Variables
Menu
No.
Function Function description Selection list Default
OPERATION
6
73
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C5.1.4.1 Current Out. 1
Var. This is the first measurement type shown on
HART® controllers. Make a selection from
the list.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Distance, Level, Sensor
Value, Reflection Distance
C5.1.4.2 HART/sec./CO2
Var. This is the second measurement type shown
on HART® controllers. Make a selection
from the list.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Distance, Level, Sensor
Value, Reflection Level
C5.1.4.2 Tertiary Var. This is the third measurement type shown
on HART® controllers. Make a selection
from the list.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
Distance, Level, Sensor
Value, Reflection Reflection
C5.1.4.2 Quaternary Var. This is the fourth measurement type shown
on HART® controllers. Make a selection
from the list.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Operator
Distance, Level, Sensor
Value, Reflection Sensor Value
C6 Display
C6.1 Language Data can be shown in one of the languages
stored in the device. Make a selection from
the list.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
English, German, French,
Italian Portuguese,
Spanish, Czech, Polish,
Chinese (simplified),
Japanese, Russian,
Turkish
English
C6.2 Backlight If you set this menu item to "Enabled", a
light comes on when you push a buton on
the display keypad and if the loop current is
more than 6 mA.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Disabled, Enabled Disabled
C6.3 Contrast The contrast control for the display screen.
You can select a shade of grey between light
grey (-10) and black (+10).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
min-max:
-10...+10 0
C6.4 1st Meas. Page
C6.4 1st Meas. PageC6.4 1st Meas. Page
C6.4 1st Meas. Page
C6.4.1 Function This menu item changes the configuration
of data shown on the display screen in
normal mode. There are two measurement
pages available to show readings in normal
mode. This setting is for the first page.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
One Value, One Value &
Bar, Two Values, Two
Values & Bar, Three
Values
One Value &
Bar
C6.4.2 1st Value
Variable This changes the measurement type of the
first value on the measurement page. Distance, Level,
Reflection, Sensor Value Distance
C6.4.3 0% Range This is the 0% value given to the bar graph
indicator in normal mode. The range is
related to the measurement type set in
C6.4.2 1st Value Variable. This menu item is
only available if you set C6.4.1 Function to
"One Value & Bar" or "Two Values & Bar".
Refer to "Function
description". Refer to
"Function
description".
Menu
No.
Function Function description Selection list Default
6
OPERATION
74
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C6.4.4 100% Range This is the 100% value given to the bar graph
indicator in normal mode. The range is
related to the measurement type set in
C6.4.2 1st Value Variable. This menu item is
only available if you set C6.4.1 Function to
"One Value & Bar" or "Two Values & Bar".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Refer to "Function
description". Refer to
"Function
description".
C6.4.5 Format 1st
Value You can change the number of decimal
places that are shown for the first value on
the measurement page in normal mode. For
example, if you set this menu item to "X.XX",
the value shown will be corrected to 2
decimal places. If you set this menu item to
"Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX, Automatic
X.XXX
C6.4.6 2nd Value
Variable This changes the measurement type of the
second value on the measurement page.
This menu item is only available if you set
C6.4.1 Function to "Two Values", "Two
Values & Bar" or "Three Values".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Distance, Level,
Reflection, Sensor Value Level
C6.4.7 Format 2nd
Value You can change the number of decimal
places that are shown for the second value
on the measurement page in normal mode.
For example, if you set this menu item to
"X.XX", the value shown will be corrected to
2 decimal places. If you set this menu item
to "Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX, Automatic
X.XXX
C6.4.8 3rd Value
Variable This changes the measurement type of the
third value on the measurement page. This
menu item is only available if you set C6.4.1
Function to "Three Values".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Distance, Level,
Reflection, Sensor Value Reflection
C6.4.9 Format 3rd
Value You can change the number of decimal
places that are shown for the second value
on the measurement page in normal mode.
For example, if you set this menu item to
"X.XX", the value shown will be corrected to
2 decimal places. If you set this menu item
to "Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX, Automatic
X.XXX
C6.5 2nd Meas. Page
C6.5 2nd Meas. PageC6.5 2nd Meas. Page
C6.5 2nd Meas. Page
Menu
No.
Function Function description Selection list Default
OPERATION
6
75
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C6.5.1 Function This menu item changes the configuration
of data shown on the display screen in
normal mode. There are two measurement
pages available to show readings in normal
mode. This setting is for the second page.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
One Value, One Value &
Bar, Two Values, Two
Values & Bar, Three
Values
Three Values
C6.5.2 1st Value
Variable This changes the measurement type of the
first value on the measurement page.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Distance, Level,
Reflection, Sensor Value Distance
C6.5.3 0% Range This is the 0% value given to the bar graph
indicator in normal mode. The range is
related to the measurement type set in
C6.4.2 1st Value Variable. This menu item is
only available if you set C6.4.1 Function to
"One Value & Bar" or "Two Values & Bar".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Refer to "Function
description". Refer to
"Function
description".
C6.5.4 100% Range This is the 100% value given to the bar graph
indicator in normal mode. The range is
related to the measurement type set in
C6.4.2 1st Value Variable. This menu item is
only available if you set C6.4.1 Function to
"One Value & Bar" or "Two Values & Bar".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Refer to "Function
description". Refer to
"Function
description".
C6.5.5 Format 1st
Value You can change the number of decimal
places that are shown for the first value on
the measurement page in normal mode. For
example, if you set this menu item to "X.XX",
the value shown will be corrected to 2
decimal places. If you set this menu item to
"Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX, Automatic
X.XXX
C6.5.6 2nd Value
Variable This changes the measurement type of the
second value on the measurement page.
This menu item is only available if you set
C6.4.1 Function to "Two Values", "Two
Values & Bar" or "Three Values".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Distance, Level,
Reflection, Sensor Value Level
C6.5.7 Format 2nd
Value You can change the number of decimal
places that are shown for the second value
on the measurement page in normal mode.
For example, if you set this menu item to
"X.XX", the value shown will be corrected to
2 decimal places. If you set this menu item
to "Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX
X.XXX
Menu
No.
Function Function description Selection list Default
6
OPERATION
76
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C6.5.8 3rd Value
Variable This changes the measurement type of the
third value on the measurement page. This
menu item is only available if you set C6.4.1
Function to "Three Values".
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
Distance, Level,
Reflection, Sensor Value Reflection
C6.5.9 Format 3rd
Value You can change the number of decimal
places that are shown for the second value
on the measurement page in normal mode.
For example, if you set this menu item to
"X.XX", the value shown will be corrected to
2 decimal places. If you set this menu item
to "Automatic", the device will adjust the
number of decimal places automatically.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
X, X.X, X.XX, X.XXX,
X.XXXX, X.XXXXX,
X.XXXXXXX, Automatic
X.XXX
C7 Device
C7.1 Information
C7.1 InformationC7.1 Information
C7.1 Information
C7.1.1 Tag Use this menu item to change the Tag name.
It can have a maximum of 8 characters. For
more data about the characters available,
refer to
Keypad functions
on page 50
,(values in menu items).
TANK01 —
C7.1.2 Serial Number This is the device fabrication number Ready only —
C7.1.3 Device Name This gives the device family name and model
code. Ready only —
C7.1.4 C7.1.4 V
Number This is the manufacturer's option code for
device configuration. Ready only —
C7.1.5 Electronic
Revision This is the hardware revision number. This
number agrees with NAMUR NE 53
Guidelines.
Ready only —
C7.1.6 C7.1.6 Software
Revision This is the software revision number. This
number agrees with NAMUR NE 53
Guidelines.
Ready only —
C7.1.7 Electronic serial
No. This is the hardware fabrication number.
This number agrees with NAMUR NE 53
Guidelines.
Ready only —
C7.1.8 Production Date This the date that the manufacturer finished
the device. The date format is: Year-Month-
Day.
Ready only —
C7.1.9 Calibration Date This the date that the manufacturer
calibrated the device. The date format is:
Year-Month-Day.
Ready only —
C7.2 Security
C7.2 SecurityC7.2 Security
C7.2 Security
C7.2.1 Login Enter the appropriate password here to
change settings. If you do not enter the
password, you can only change settings for
the "user" security level. For more data and
the default passwords for the "operator"
and "expert" security levels, refer to
Protection of the device settings (security
levels)
on page 47.
4-digit hexadecimal
password Refer to
"Function
description"
Menu
No.
Function Function description Selection list Default
OPERATION
6
77
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C7.2.2 Change
Password This changes the password for the
"operator" and "expert" security levels. For
the procedure to change the password,
refer to
Protection of the device settings
(security levels)
on page 47 (How to change
the password).
4-digit hexadecimal
password Refer to
"Function
description"
C7.2.3 Reset
Passwords This makes the passwords for the
"operator" and "expert" security levels go
back to the default passwords.
—E8EC
C7.2.4 Unlock
Extended Range This menu item can only be unlocked at the
factory. — —
C7.2.5 Unlock SIL This menu item can only be unlocked at the
factory. — —
C7.3 Errors
C7.3 ErrorsC7.3 Errors
C7.3 Errors

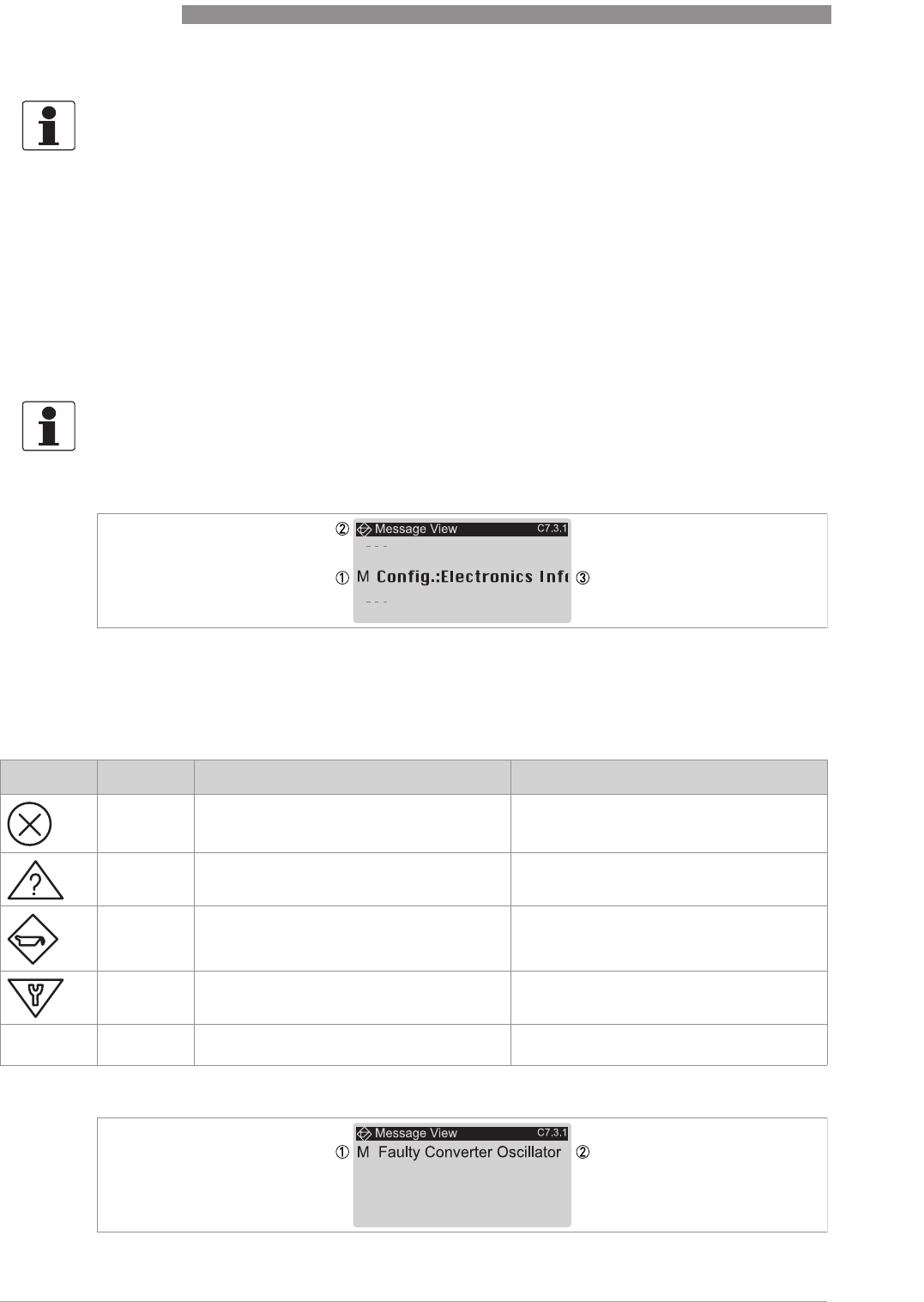

C7.3.1 Message View A log of device errors. Scroll down the list
and push [>
>>
>] to show the error details. The
error will have a letter code ("F", "S", "M",
"C" and "I") that agrees with NAMUR NE 107
Guidelines.
Ready only —
C7.3.2 Error-Mapping
C7.3.2.1 Sensor:
Information This permits you to change the error code
that is given to an incident.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
None, Information (I),
Maintenance Request
(M), Out of Specification
(S), Function Check (C),
Failure (F)
Information
C7.5 Units
C7.5.1 Length Unit The length unit shown in normal mode. If
you set this menu item to "Cst." (custom
length unit), enter values in menu items
C7.5.2.1 thru C7.5.2.3.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
m, cm, mm, ft, in, Cst. m
C7.5.2 Cst. Length
C7.5.2.1 Text Enter a text (8 characters maximum) for the
custom length unit. —Cst.
C7.5.2.2 Offset Enter an offset value. —0.0 m
C7.5.2.3 Factor Enter an offset factor. Multiply the value in
C7.5.4.3 Offset by this offset factor to
change m (metres) to the custom length
unit.
—1.0
C7.5.3 Volume The volume unit shown in normal mode if
you made a volume table in the C3
Conversion menu. If you set this menu item
to "Cst. Volume" (custom volume unit),
enter values in menu items C7.5.4.1 thru
C7.5.4.3.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
m³, L, hL, in³, ft³, gal,
ImpGal, yd³, bbl, bbl
(beer, US), Cst. Volume
m³
C7.5.4 Cst. Volume
C7.5.4.1 Text Enter a text (8 characters maximum) for the
custom volume unit. —Cst.
C7.5.4.2 Offset Enter an offset value. —0.0 m³
Menu
No.
Function Function description Selection list Default
6
OPERATION
78
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
3. Service menu
C7.5.4.3 Factor Enter an offset factor. Multiply the value in
C7.5.4.3 Offset by this offset factor to
change m³ (cubic metres) to the custom
volume unit.
—1.0
C7.5.5 Mass The mass unit shown in normal mode if you
made a mass table in the C3 Conversion
menu. If you set this menu item to "Cst.
Mass" (custom mass unit), enter values in
menu items C7.5.6.1 thru C7.5.6.3.
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: User
kg, t, lb, tn.sh., tn.l., Cst.
Mass
C7.5.6 Cst. Mass
C7.5.6.1 Text Enter a text (8 characters maximum) for the
custom volume unit. —Cst.
C7.5.6.2 Offset Enter an offset value. —0.0kg
C7.5.6.3 Factor Enter an offset factor. Multiply the value in
C7.5.4.3 Offset by this offset factor to
change kg (kilogram) to the custom mass
unit.
—1.0
C7.6 Factory Default
C7.6 Factory DefaultC7.6 Factory Default
C7.6 Factory Default
C7.6.1 Reset to Fact.
Def.? If you set this menu item to "YES", the
device goes back to its initial settings (set by
the manufacturer in the factory).
Minimum security level to change the
Minimum security level to change the Minimum security level to change the
Minimum security level to change the
setting:
setting:setting:
setting: Expert
Yes, No No
C7.7 Proof Test (for use in SIL mode)
C7.7 Proof Test (for use in SIL mode)C7.7 Proof Test (for use in SIL mode)
C7.7 Proof Test (for use in SIL mode)
C7.7.1 1Unsaved parameters will be lost!
Unsaved parameters will be lost!Unsaved parameters will be lost!
Unsaved parameters will be lost! If you have
made changes to the settings before this
test and you did not go back to normal mode
to save the settings, this data will not be
saved. Push [^
^^
^] to continue.
Minimum security level to do the procedure:
Minimum security level to do the procedure:Minimum security level to do the procedure:
Minimum security level to do the procedure:
User
Ready only —
C7.7.2 2Run Proof Test?
Run Proof Test?Run Proof Test?
Run Proof Test?
This menu item starts a proof test to make
sure that the device can be used in SIL
mode. Push [^
^^
^] to continue.
Yes, No No
C7.7.3 Proof Test
C7.7.3.1 3Proof Test is running...
Proof Test is running...Proof Test is running...
Proof Test is running...
At the end of the test, push [^
^^
^] to continue. — —
C7.7.3.2 4Device will be reset now!
Device will be reset now!Device will be reset now!
Device will be reset now!
Push [^
^^
^] to continue. This will restart the
device. End of the "Proof Test" procedure.
— —
Menu
No.
Function Function description Selection list Default
3.0.0 SERVICE Advanced settings. The settings in this
menu are protected with a password.
Only approved personnel can change
the parameters in this menu. For more
data, speak or write to your local sales
office.
Menu
No.
Function Function description Selection list Default
OPERATION
6
79
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en

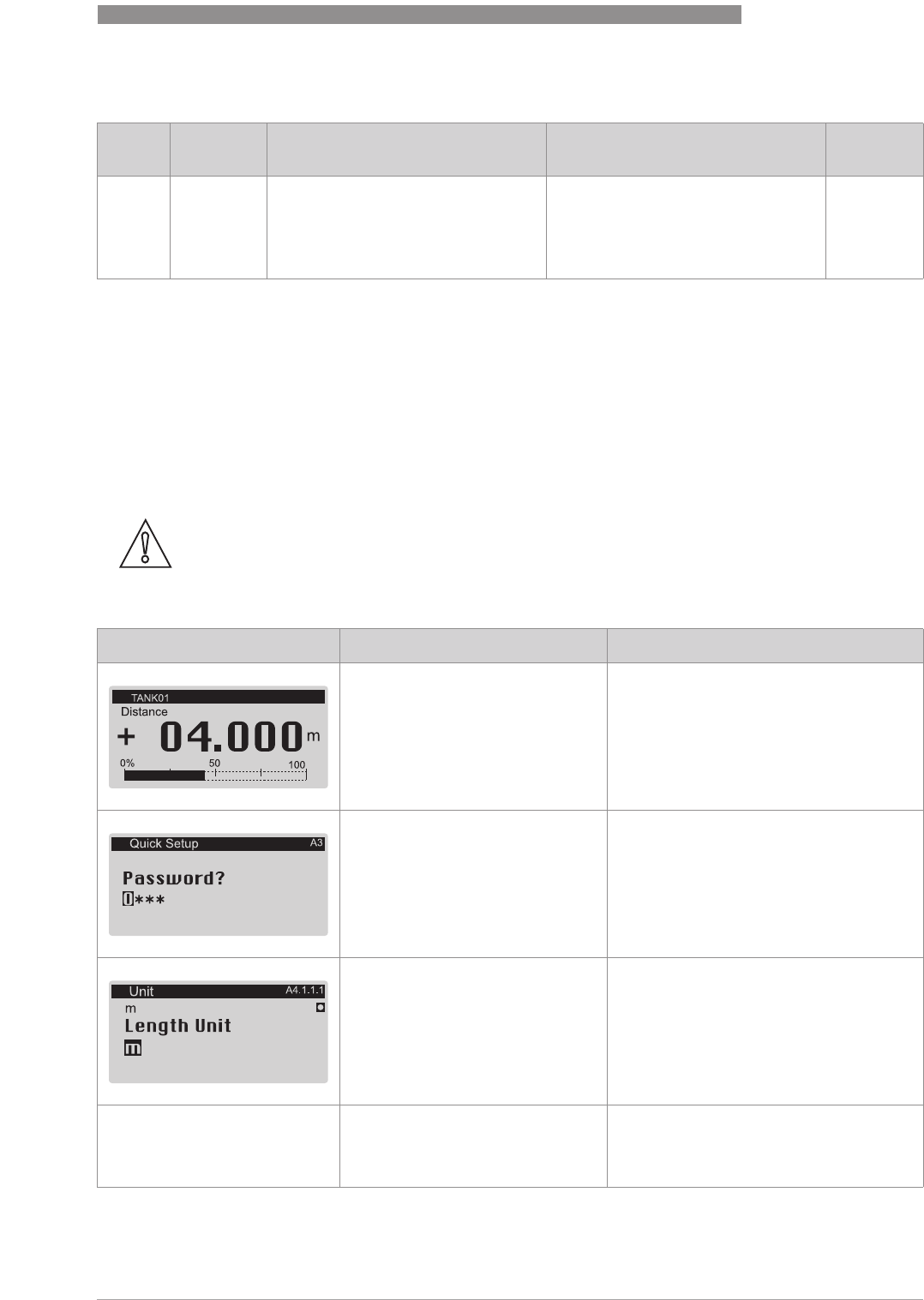

4. Master menu
6.4 Further information on device configuration in program mode
6.4.1 Standard Setup
Use this procedure (menu item A4.1 Standard Setup) to change the length unit, tank type, tank
height (this includes the stilliing well diameter and stilling well height if Tank Type
Tank TypeTank Type
Tank Type is set to
"Stilling Well"), current output variable, 0% range, 100% range, current output range and error
function. Values and parameters that can be changed are shown between the «... » marks in the
illustrations that follow. Push the keypad buttons in the correct sequence:
Procedure
Menu
No.
Function Function description Selection list Default
4.0.0 MASTER Factory settings. The settings in this
menu are protected with a password.
Only approved personnel can change
the parameters in this menu. For more
data, speak or write to your local sales
office.
CAUTION!
Make sure that you do this procedure before you use the device. The settings in this procedure
have an effect on the performance of the device.
Screen Steps Description
•
2× [>
>>
>], 2 × [
] and [>
>>
>]. Default screen.
Enter Program Mode and go to menu item
A3 Login.
•
2× [>
>>
>], 5 × [
, [>
>>
>], 8 × [
] and [^
^^
^]Enter the password used at this time for the
"Expert" security level. If it is the default
password, refer to
Protection of the device
settings (security levels)
on page 47.
•
[
] and 2 × [>
>>
>]
•
[
] or [
] for the selection of the
length unit (m, Cst., in, ft, mm or
cm).
•
[^
^^
^] to confirm.
Push these buttons to start the Standard
Setup procedure.
Length unit. Make a selection from the list
of parameters.
•
[
] or [
] for the selection of the
tank type ().
•
[^
^^
^] to confirm.
Tank type. Make a selection from the list of
parameters. .
6
OPERATION
80
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
•
[>
>>

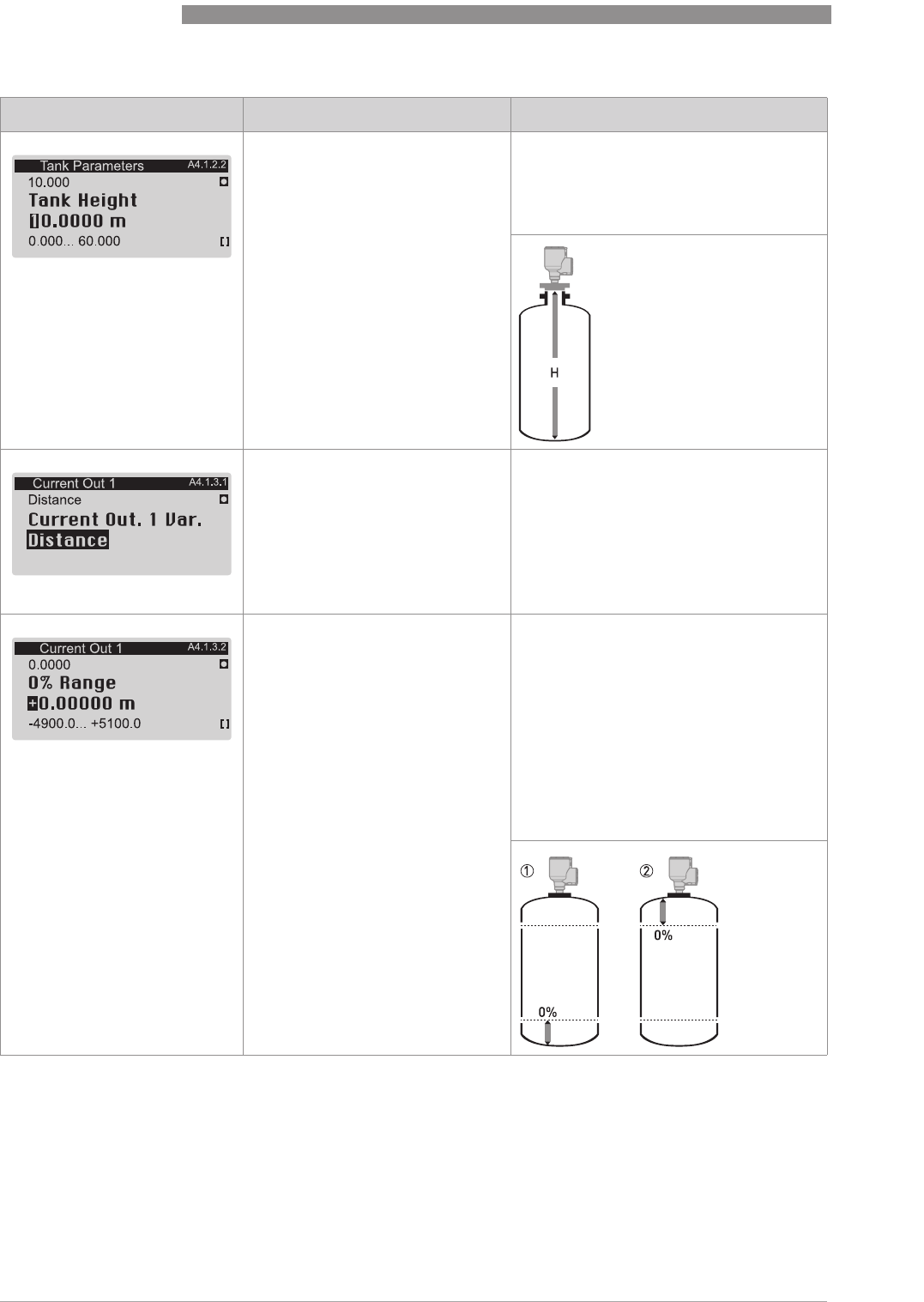

>] to change the position of the
cursor.
•
[
] to decrease the value (or move
the decimal point one digit to the
left) or [
] to increase the value (or
move the decimal point one digit to
the right).
•
[^
^^
^] to confirm.
Tank height. The distance from the flange
face / thread stop of the tank connection
down to the tank bottom. If the tank has a
dish-shaped or conical bottom, the tank
height is measured to a point on the tank
bottom directly below the antenna.
•
[
] or [
] for the selection of the
measurement name (Distance,
Level, Sensor Value or Reflection,
Volume (Mass), Ullage Volume
(Ullage Volume).
•
[^
^^
^] to confirm.
Current output 1 variable. The manufacturer
sets the current output variable (for current
output 1) to "Distance” before delivery.
If it is necessary to measure volume, ullage
volume, mass or ullage mass, refer to
How
to configure the device to measure volume
or mass
on page 86.
•
[>
>>
>] to change the position of the
cursor.
•
[
] to decrease the value (or move
the decimal point one digit to the
left) or [
] to increase the value (or
move the decimal point one digit to
the right).
•
[^
^^
^] to confirm.
0% range. Use this step to give the 0%
output setting in the tank.
Refer to the illustrations that follow. When
menu item A4.1.3.1 Current Out. 1 Var.
A4.1.3.1 Current Out. 1 Var.A4.1.3.1 Current Out. 1 Var.
A4.1.3.1 Current Out. 1 Var. is set
to "Level", illustration 1 shows the position
of 0% output as a level above the tank
bottom. When menu item A4.1.3.1 Current
A4.1.3.1 Current A4.1.3.1 Current
A4.1.3.1 Current
Out. 1 Var.
Out. 1 Var.Out. 1 Var.
Out. 1 Var. is set to "Distance", illustration
2 shows the position of 0% output as a
distance below the flange facing or thread
stop of the process connection.
Screen Steps Description
OPERATION
6
81
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
•
[>
>>

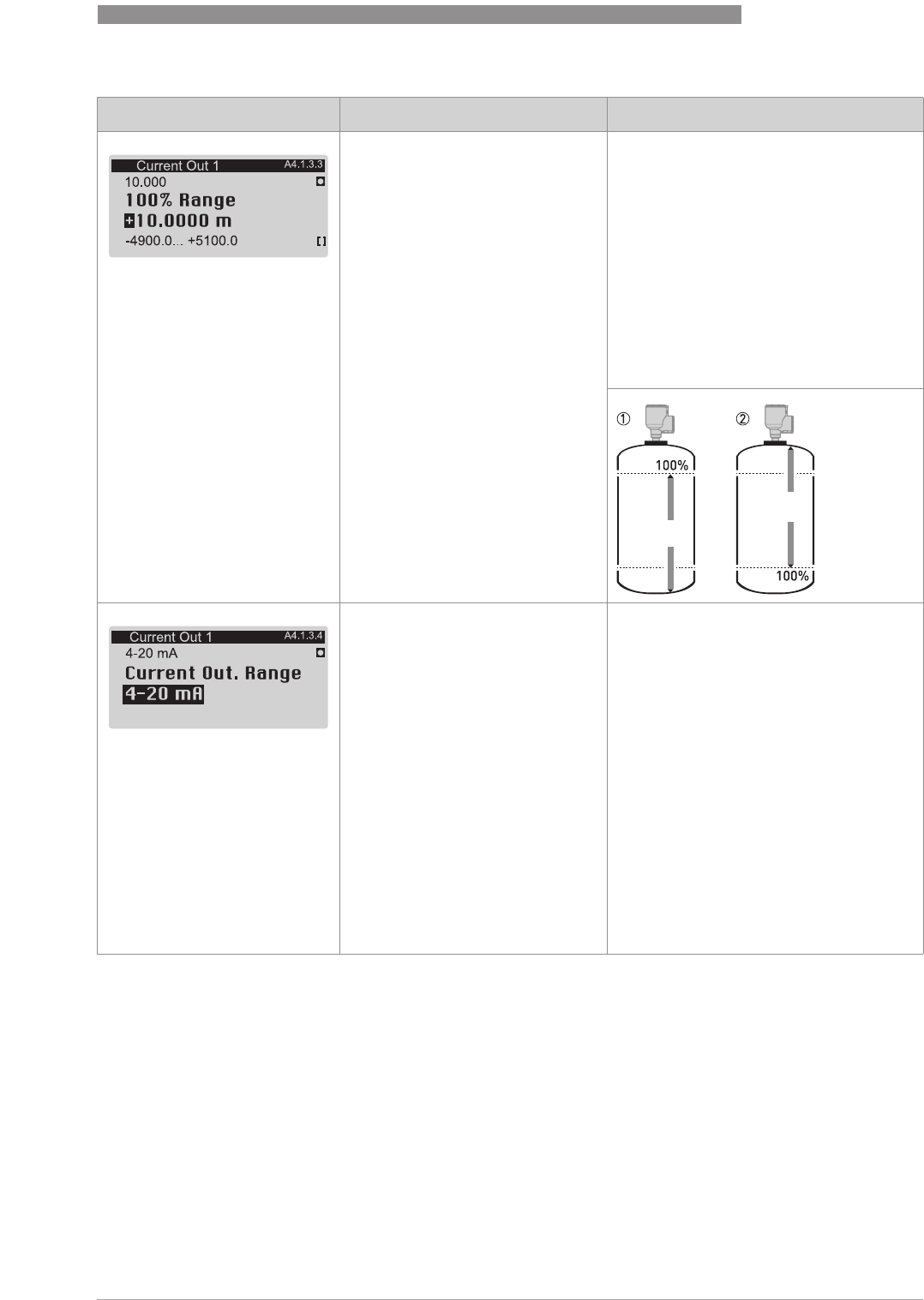

>] to change the position of the
cursor.
•
[
] to decrease the value (or move
the decimal point one digit to the
left) or [
] to increase the value (or
move the decimal point one digit to
the right).
•
[^
^^
^] to confirm.
100% range. Use this step to give the 0%
output setting in the tank. Refer to the
illustrations that follow. Illustration 1
shows the settings for level. Illustration 2
shows the settings for distance.
Refer to the illustrations that follow. When
menu item A4.1.3.1 Current Out. 1 Var.
A4.1.3.1 Current Out. 1 Var.A4.1.3.1 Current Out. 1 Var.
A4.1.3.1 Current Out. 1 Var. is set
to "Level", illustration 1 shows the position
of 100% output as a level above the tank
bottom. When menu item A4.1.3.1 Current
A4.1.3.1 Current A4.1.3.1 Current
A4.1.3.1 Current
Out. 1 Var.
Out. 1 Var.Out. 1 Var.
Out. 1 Var. is set to "Distance", illustration
2 shows the position of 100% output as a
distance below the flange facing or thread
stop of the process connection.
•
[
] or [
] for the selection of the
current output range (3.8-20.5 mA
(NAMUR), 4-20 mA, 3.8-20.5 mA
(reversed) or 4-20 mA (reversed).
•
[^
^^
^] to confirm.
Current output range. This menu item gives
current output values to the measuring
range between 0% and 100% values given in
the "0% range" and "100% range" steps.
If you set this menu item to "3.8-20.5 mA":
•
0% Range = 3.8 mA
•
100% Range = 20.5 mA
If you set this menu item to "4-20 mA":
•
0% Range = 4 mA
•
100% Range = 20 mA
If you set this menu item to "3.8-20.5 mA
(reversed)":
•
0% Range = 20.5 mA
•
100% Range = 3.8 mA
If you set this menu item to "4-20 mA
(reversed)":
•
0% Range = 20 mA
•
100% Range = 4 mA
Screen Steps Description
6
OPERATION
82
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.4.2 Empty spectrum recording
The empty spectrum recording procedure is important for the performance of the device. We
recommend that the tank is empty or only filled to the minimum level before you do the
procedure.
Use this procedure (menu item A4.2. Empty Spectrum) if there are fixed and moving objects in
the tank that can cause parasitic signals. The device does a scan for objects that do not change
their vertical positions in the tank (heating tubes, agitators, fuel assemblies etc.) and records the
data. The device can then use this data to put the measurement signal through a filter (empty
spectrum).
When the empty spectrum filter is on (when menu item C2.8 Empty Spectrum Enable is set to
"Enable"), it will ignore the parasitic signals. Because the device records the data from the
procedure, it is also not necessary to do the procedure again if you de-energize the device.
Before you do the empty spectrum recording procedure, install the device on the tank. For more
data about how to install the device, refer to
Installation
on page 22.
Values and parameters that can be changed are shown between the «... » marks in the
illustrations that follow. Push the keypad buttons in the correct sequence:
•
[

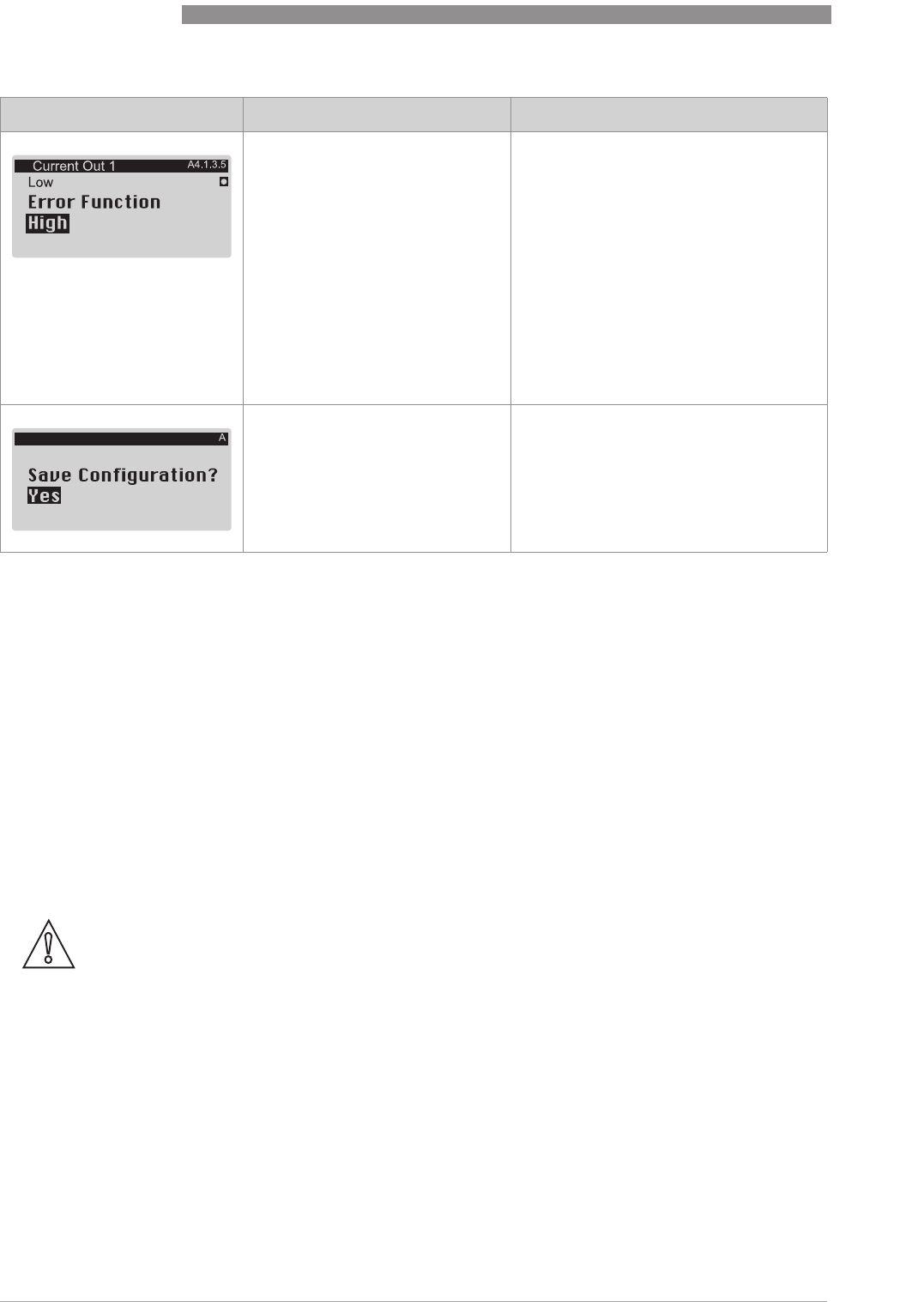

] or [
] for the selection of the
error function (Off, Hold, High or
Low).
•
[^
^^
^] to confirm.
Error Function. This sets the behaviour of
current output 1 if an error occurs.
If this menu item is set to "Off", no signal is
given (this parameter is not available if
menu item C4.1.4 is set to "3.8-20.5 mA"
(NAMUR) or "3.8-20.5 mA (reversed)"). If
this menu item is set to "Hold", the output
current stays at the value where the error
occurred (this parameter is not available if
menu item C4.1.4 is set to "3.8-20.5 mA"
(NAMUR) or "3.8-20.5 mA (reversed)"). If
this menu item is set to "Low", the output
current changes to 3.5 mA (default value) if
an error occurs. If this menu item is set to
"High", the output current changes to
21.5 mA (default value) if an error occurs.
•
3× [^
^^
^] to confirm.
•
[
] or [
] for the selection of the
save option (Yes, No or Back).
•
[^
^^
^] to confirm.
Save Configuration?
Save Configuration?Save Configuration?
Save Configuration? screen.
Set to "Yes" to save and use the settings and
data and go back to Normal Mode. Set to
"No" to cancel the changes to the device
settings and go back to Normal Mode. Set to
"Back" to stay in Program Mode.
Screen Steps Description
CAUTION!
Make sure that the tank is empty or only filled to the minimum level.
OPERATION
6
83
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Procedure
Screen Steps Description
•
2× [>
>>
>], 2 × [
] and [>
>>
>]. Default screen.
Enter Program Mode and go to menu item
A3 Login.
•
2× [>
>>
>], 5 × [
, [>
>>
>], 8 × [
] and [^
^^
^]Enter the password used at this time for the
"Expert" security level. If it is the default
password, refer to
Protection of the device
settings (security levels)
on page 47.
•
[
], [>
>>
>], [
] and 2 × [>
>>
>].
•
[
] or [
] for the selection of the
empty spectrum type (Full
(Average), Full (Max), Partial
(Average), Partial (Max)).
•
[^
^^
^] to confirm.
Push these buttons to start the Record
Spectrum (Empty Spectrum) procedure.
Empty spectrum type. Make a selection
from the list of parameters. If you can empty
the tank, set this menu item to "Full,
Average" or "Full, Max". If you cannot empty
the tank, set this menu item to "Partial,
Average" or "Partial, Max".
.
•
[>
>>
>] to change the position of the
cursor.
•
[
] to decrease the value (or move
the decimal point one digit to the
left) or [
] to increase the value (or
move the decimal point one digit to
the right).
•
[^
^^
^] to confirm.
Partial distance. If you set Empty Spectrum
Empty Spectrum Empty Spectrum
Empty Spectrum
Type
TypeType
Type to "Partial, Average" or "Partial, Max",
you will have one more step to do in this
procedure. You must give the distance
(partial distance) of the product surface
from the flange facing or thread stop of the
process connection.
•
[^
^^
^] to confirm. Make sure that the tank is empty or it
contains not more than the minimum
quantity. .
•
[
] or [
] to change the parameter
("No" or "Yes".
•
[^
^^
^] to confirm.
Start recording? Set this menu item to "Yes"
to continue to the subsequent step. Set this
menu item to "No" to go back to the menu.
6
OPERATION
84
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.4.3 HART® network configuration
The device uses HART® communication to send information to HART®-compatible equipment. It
can operate in either point-to-point or multidrop mode. The device will communicate in
multidrop mode if you change the polling address.
How to change from point-to-point to multidrop mode
• Enter Program mode.
• Push 2 × [
], [>
>>
>], 4 × [
], 2 × [>
>>
>], [
] and 2 × [>
>>
>] to go to menu item C5.1.2.1 Polling Adress.
• Enter a value between 001 and 063 and push [^
^^
^] to confirm.
• Push [^
^^
^] again and again to go back to the Save Configuration
Save ConfigurationSave Configuration
Save Configuration screen.
• Push [
] or [
] to set the screen to "Yes" and push [^
^^
^].
•
[^
^^
^] to confirm. Graph with the results of the empty
spectrum recording.
•
[
] or [
] to change the parameter
("No" or "Yes".
•
[^
^^
^] to confirm.
Save spectrum? If you set the menu item to
"Yes", the device will keep this empty
spectrum recording. If you set the menu
item to "No", the device will reject this data.
•
[
] or [
] to change the parameter
("Disable" or "Enable".
•
[^
^^
^] to confirm.
Empty Spectrum Enable. If you set the menu
item to "Enable", the device will use the
empty spectrum recording data. If you set
the menu item to "Disable", the device will
not use the empty recording data at this
time.
•
4× [^
^^
^] to confirm.
•
[
] or [
] for the selection of the
save option (Yes, No or Back).
•
[^
^^
^] to confirm.
Save Configuration?
Save Configuration?Save Configuration?
Save Configuration? screen.
Set to "Yes" to save and use the settings and
data and go back to Normal Mode. Set to
"No" to cancel the changes to the device
settings and go back to Normal Mode. Set to
"Back" to stay in Program Mode.
INFORMATION!
For more data, refer to Networks on page 37
.
Screen Steps Description
CAUTION!
Make sure that the address for this device is different from others in the multidrop network.
OPERATION
6
85
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
iThe output is set to multidrop mode. The current output is set to 4 mA. This value does not
change in multidrop mode.
How to change from multidrop to point-to-point mode
• Enter Program mode.
• Push 2 × [
], [>
>>
>], 4 × [
], 2 × [>
>>
>], [
] and 2 × [>
>>
>] to go to menu item C5.1.2.1 Polling Address.
• Enter the value 000 and push [^
^^
^] to confirm.
• Push [^
^^
^] again and again to go back to the Save Configuration
Save ConfigurationSave Configuration
Save Configuration screen.
• Push [
] or [
] to set the screen to "Yes" and push [^
^^
^].
iThe output is set to point-to-point mode. The current output changes to a range of 4...20 mA
or 3.8...20.5 mA (this range is set in menu item C4.1.4 Current Out. Range).
6.4.4 Distance measurement
Menu items related to distance measurement are:
•Current output 1 menu (C4.1)
•Tank Height (C1.2 – if C1.1 Tank Type is set to 'Storage", "Process" or Agitator") or Stilling
Well Height (C1.3 – if C1.1 Tank Type is set to "Stilling Well")
•Blocking Distance (C1.5)
6.4.5 Level measurement
Menu items related to level measurement are:
•Current output 1 menu (C4.1)
•Tank Height (C1.2 – if C1.1 Tank Type is set to 'Storage", "Process" or Agitator") or Stilling
Well Height (C1.3 – if C1.1 Tank Type is set to "Stilling Well")
•Blocking Distance (C1.5)
INFORMATION!
Reference Offset
Reference OffsetReference Offset
Reference Offset
If you move the reference point above the flange, add this value when you give a distance for the
0% Range and 100% Range settings. If you move the reference point below the flange, subtract
this value when you give a distance for the 0% Range and 100% Range settings.
CAUTION!
If the distance for 0% Range (standard scale) is set in the blocking distance, it is possible that the
device will not be able to use the full current output range.
INFORMATION!

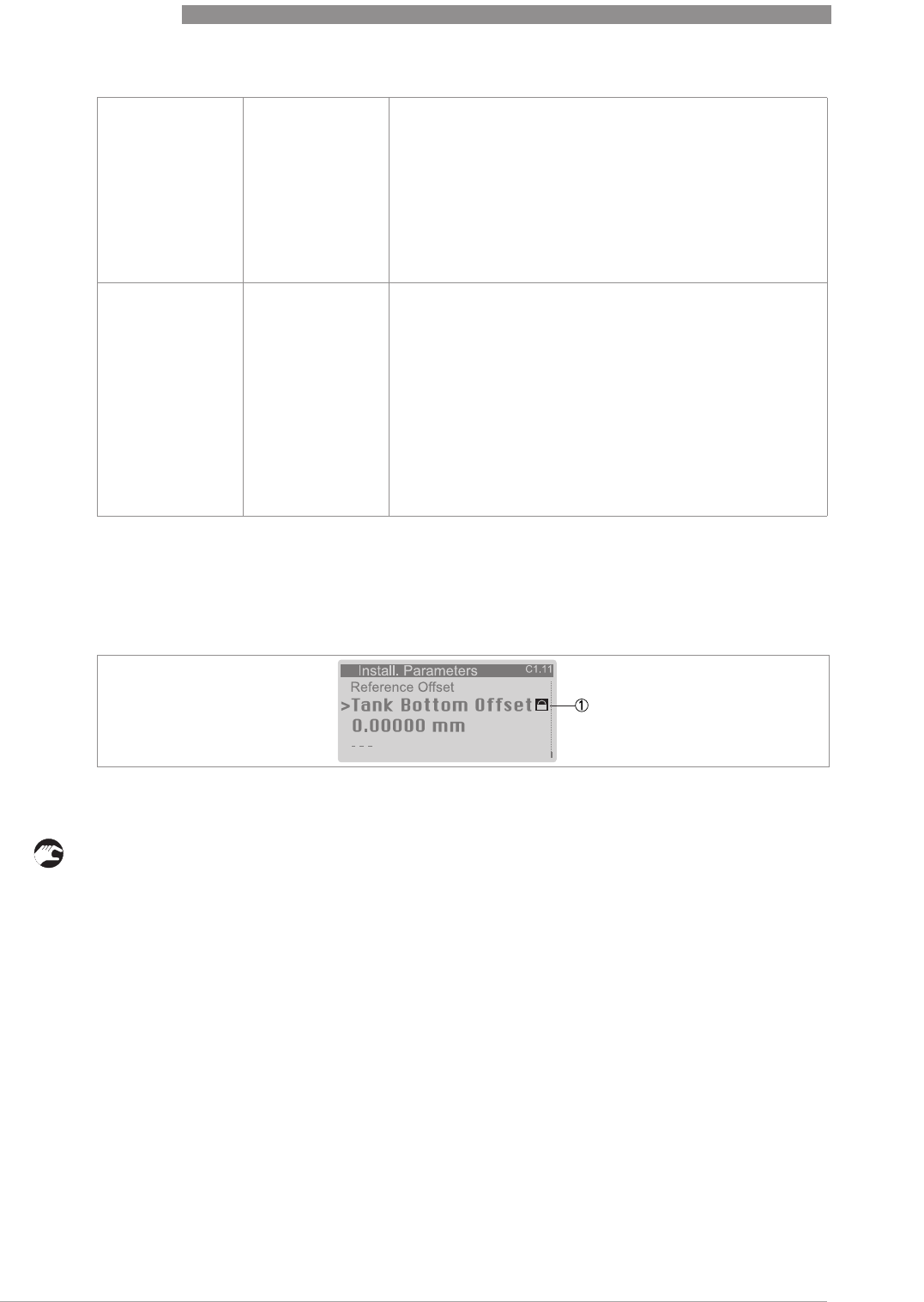

Tank Bottom Offset
Tank Bottom OffsetTank Bottom Offset
Tank Bottom Offset
If you move the tank bottom offset below the tank bottom (or the bottom of the stilling well), add
this value when you give a level for the 0% Range and 100% Range settings. If you move the tank
bottom offset above the tank bottom (or the bottom of the stilling well), subtract this value when
you give a level for the 0% Range and 100% Range settings.
CAUTION!
If the distance for 100% Range (standard scale) is set in the blocking distance, it is possible that
the device will not be able to use the full current output range.
6
OPERATION
86
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.4.6 How to configure the device to measure volume or mass
The device can be configured to measure volume or mass. It can also be configured to a custom
quantity to be measured. You can set up a strapping table in the conversion menu (C3
Conversion). Each entry is a pair of data (level – volume, level – mass or level – custom
measurement). The strapping table must have a minimum of 2 entries and a maximum of 50. The
reference point for the table is the bottom of the tank (as given in menu item Tank Height (C1.2)
or Stilling Well Height (C1.3)
How to prepare a strapping table (conversion table)
• Enter Program Mode.
• Push 2 × [
], [>
>>
>], 6 × [
], [>
>>
>], 3 × [
] and 3 × [>
>>
>] to go to C7.5.1 Length Unit.
• Push [
] and [
] to find the length unit that you will use in the table.
• If it is necessary to make a volume table, push [^
^^
^] to go back to the sub-menu level and then
push 2 × [
] and [>
>>
>] to go to C7.5.3 Volume.
• Push [
] and [
] to find the volume unit that you will use in the table.
• Push 3 × [^
^^
^] to go to the sub-menu level and then 4 × [
], 2 × [>
>>
>] to delete strapping table data
that the device uses at this time (Erase Table?). Push [
] and [
] to set this menu item to
"Yes" to delete the data.
• Push [^
^^
^] and then [
] and [
] to make a selection from the conversion table options (volume,
mass linearization).
• Push [^
^^
^] to go to the sub-menu level and then [
] and [>
>>
>] to enter the first point on the table.
• Push [^
^^
^] to make the strapping table.
• Enter the length value and push [^
^^
^].
• Enter the conversion value and push [^
^^
^] to go to the sub-menu level.
• Push [>
>>
>] to enter the subsequent point (02, 03, ..., 50) on the table.
• Repeat the last 3 steps to complete the table.
• If the table is complete, push [^
^^
^] again and again to go back to the "Save Configuration?"
screen.
• The device will ask you to save or cancel your settings. Push [
] or [
] to make a selection
from Yes
YesYes
Yes, No
NoNo
No or Back
BackBack
Back. Back
BackBack
Back makes the display go back to Program mode. If this screen is set
to "Yes" or No", push [^
^^
^] to accept (Yes) or reject (No) the new settings.
iIf you push [^
^^
^] when the screen is set to "Yes", the device will store the data for the
strapping table and go back to normal mode.
The device will give more accurate volume readings if you give more conversion data in these
areas:
•Surfaces with curves.
•Sudden changes in the cross section.
Refer also to the illustration that follows:
CAUTION!
Enter the data in numerical sequence (strapping table entry number 01, 02 etc.).
OPERATION
6
87
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
How to delete a volume or mass table
• Enter Program Mode.
• Push 2 × [
], [>
>>
>], 2 × [
] and 2 × [>
>>
>] to go to C3.1.1 Erase Table?.
• To delete strapping table data that the device uses at this time (Erase Table?), push [
] and
[
] to set this menu item to "Yes".
• Push [^
^^
^] again and again to go back to the "Save Configuration?" screen.
• The device will ask you to save or cancel your settings. Push [
] or [
] to make a selection
from Yes
YesYes
Yes, No
NoNo
No or Back
BackBack
Back. Back
BackBack
Back makes the display go back to Program mode. If this screen is set
to "Yes" or No", push [^
^^
^] to accept (Yes) or reject (No) the new settings.
iIf you push [^
^^
^] when the screen is set to "Yes", the device will delete the data for the
strapping table and go back to normal mode.
6.4.7 How to make a filter to remove radar signal interference
6.4.8
You can offset the tank bottom reference point to find the delayed radar reflection. Obey the
instructions that follow:

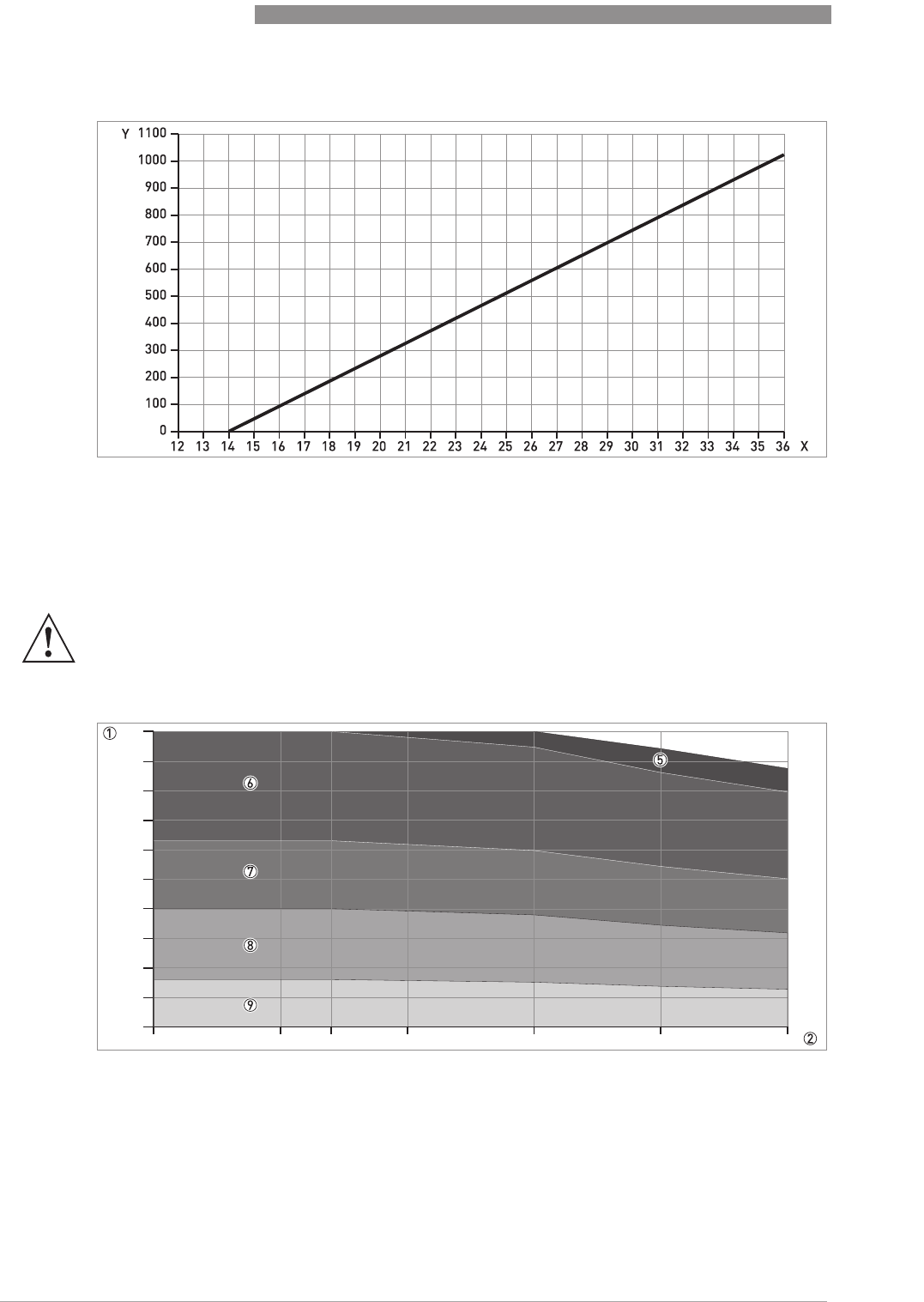

Figure 6-7: A plot of points for a volume or mass table
1
2
INFORMATION!
.
INFORMATION!
6
OPERATION
88
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
6.5 Status messages and diagnostic data
Messages shown agree with NAMUR Guidelines NE 107. The error messages for the device are
divided into status groups, each with one status signal. There are 16 status groups with fixed
status signals and 8 groups with status signals that can be changed. The status groups are also
divided into 4 groups: Sensor, Electronics, Configuration and Process.
Each status message (or status signal) has a special symbol which agrees with the NAMUR
Guidelines. This symbol is shown with the message.
Status messages (NAMUR NE 107)
INFORMATION!
INFORMATION!
The status group name and the status signal (F/S/M/C) are shown. For more data, refer to the
table that follows.
Figure 6-8: Device status and error messages
1 Device status letter code (NAMUR NE 107). In this example, M = Maintenance required.
2 Device status symbol (NAMUR NE 107)
3 Error message
Symbol Letter Message Description and effect
F
FF
FFailure No measurement is possible.
SOut of specification Measurements are available but they are
not sufficiently accurate. Do a check.
MMaintenance required Measurements continue to be accurate but
this could change after a short time.
CFunction check A test function is on. The value shown does
not agree with the correct measured value.
IInformation This status message does not have an effect
on device measurements.
OPERATION
6
89
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Figure 6-9: Description of the error (C7.3.1 Message View)
1 Device status letter code (NAMUR NE 107). In this example, M = Maintenance required.
2 Description of error
Status
type
Status group Error message Description Corrective action
F
FF
FSensor
SensorSensor
Sensor
Corrupt Sensor Parameter The device settings do not
agree with the correct
process conditions
Do a check of the device
settings (tank height etc.).
No Signal There is no signal from the
antenna or the antenna
signal is too weak for a long
time.
Do a check the device
installation. For more data
about installation, refer to
the handbook. If the
message is shown again,
speak or write to the
manufacturer.
Microwave Tuning Voltage
Error A microwave error occurred. De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Sensor Comm. Error Internal bus communication
error or hardware failure.
No measurement value The converter receives no
measurement data for a
long time.
F
FF
FElectronics
ElectronicsElectronics
Electronics
Fatal Converter Error (DM)
1An electronics or hardware
failure occurred. De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Fatal Converter Error (CO)
2An electronics or hardware
failure occurred.
Fatal Converter Error
(Generic) An electronics or hardware
failure occurred.
CO Safety Reaction 3 Current Output Safety
Reaction. This error
message is shown if the
current output is less than
3.6 mA or more than 21 mA.
Internal Comm. Error Internal bus communication
error.
Power Supply Error Internal voltage is too low to
energize the sensor. Check the electrical
connections to the power
supply connection or replace
the converter.
Sensor/Conv. FW Mismatch The sensor firmware version
in the sensor does not agree
with the converter firmware
version.
De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Max. Number of Restarts The device could not start
the measuring mode after a
given number of times that
the device was de-energized
and then energized again.
Inconsistent Parameters Internal bus communication
error.
Sensor Comm. Error Internal bus communication
error or hardware failure.
6
OPERATION
90
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
F
FF
FConfiguration
ConfigurationConfiguration
Configuration
Inconsistent NVRAM Incorrect data in the
parameter memory De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Incons. Converter Calib. Incorrect calibration data in
the converter module Speak or write to the
manufacturer.
Incons. Sensor Calibration Incorrect calibration data in
the sensor module
NVRAMs Mismatch The serial number of the
display screen does not
agree with the serial
number of the electronics
module.
Make sure that the display
screen agrees with the
electronic module. Go to
Full Setup
Full SetupFull Setup
Full Setup > Device
DeviceDevice
Device >
Information
InformationInformation
Information and record the
data in menu items C7.1.5
C7.1.5 C7.1.5
C7.1.5
Electronic Revision
Electronic RevisionElectronic Revision
Electronic Revision and
C7.1.6 Software Revision
C7.1.6 Software RevisionC7.1.6 Software Revision
C7.1.6 Software Revision. If
it is necessary, speak or
write to the manufacturer.
Conv. NVRAM Layout Error Incorrect data in the
parameter memory De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Disp. NVRAM Layout Error Incorrect data after an
update of the firmware.
CO Float Error 2 The device cannot use the
measurement data because
the device settings are
incorrect.
You must make the device
go back to its factory
settings. Enter Program
Mode. Set the device to the
"Expert" security level. Go to
Full Setup
Full SetupFull Setup
Full Setup > Device
DeviceDevice
Device >
Factory Default
Factory DefaultFactory Default
Factory Default > Reset to
Reset to Reset to
Reset to
Factory Default?
Factory Default?Factory Default?
Factory Default? and set this
menu item to "Yes". Then go
back to Normal Mode and
set the "Save
Configuration?" page to
"Yes". De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
C
CC
CElectronics
ElectronicsElectronics
Electronics
FW Update A firmware update of the
converter module continues. Wait for the firmware update
to finish.
Status
type
Status group Error message Description Corrective action
OPERATION
6
91
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
C
CC
CConfiguration
ConfigurationConfiguration
Configuration
Sensor Sim. Active The device simulates a
measurement value that is
set in menu item B1.1 Set
B1.1 Set B1.1 Set
B1.1 Set
Value
ValueValue
Value. This measurement
value can be a level,
distance or reflection value.
If you made a strapping
table, the device can also
simulate a volume or mass
value.
Push "Enter" to stop the
test.
Current Out. Sim. Active The device simulates a
current output value that is
set in menu item B1.2
B1.2 B1.2
B1.2
Output
OutputOutput
Output. The current output
test range is 3.6...21.5 mA.
Push "Enter" to stop the
test.
HART Sim. Active You can use a HART®
interface to simulate a
measurement value in the
device.
Use the HART® interface to
stop the test.
LCO Simulation Active The device simulate a a
current output value set in
sub-menu B1 Simulation
(distance, level, ullage
volume, ullage mass,
linearized distance, volume,
mass or linearized level).
Push "Enter" to stop the
test.
SysMon Simulation Active A system monitor sets the
device to a simulated
current output value.
Push "Enter" to stop the
test.
S
SS
SSensor
SensorSensor
Sensor
Sensor Voltage Low The voltage supplied to the
sensor is too low. Do a check of the power
supply.
Strong Signal The signal amplitude is too
large. It is possible that the
signal is saturated.
Make sure that the device
installation agrees with the
data in the handbook.
If the message is shown
again, speak or write to the
manufacturer.
Peak Lost (Level Lost) No signal peak was found in
the Search Window for a
long time (>20 s).
Make sure that the device
installation agrees with the
data in the handbook. . If it is
necessary, change the
device settings and do a new
empty spectrum recording.
If the message is shown
again, speak or write to the
manufacturer.
Overfill The signal peak is in the
blocking distance (refer to
menu item C1.5 Blocking
Distance). .
Make sure that the device
settings are correct and the
process conditions are in the
specified limits.
Elec. Temp. Out Of Spec. The temperature of the
sensor is not in the specified
limits.
Make sure that the device is
operated in the permitted
ambient temperature range.
S
SS
SElectronics
ElectronicsElectronics
Electronics
Elec. Temp. Out Of Spec. The temperature of the
converter is not in the
specified limits.
Make sure that the device is
operated in the permitted
ambient temperature range.
Status
type
Status group Error message Description Corrective action
6
OPERATION
92
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
S
SS
SProcess
ProcessProcess
Process
CO Undersaturation 2 The measurement value is
less than the minimum
value of the current output
range. The current output
cannot go lower than its
minimum value and thus
does not agree with the
correct measurement value.
Do a check of the process
conditions and the minimum
current output value.
CO Oversaturation 2 The measurement value is
more than the maximum
value of the current output
range. The current output
cannot go higher than its
maximum value and thus
does not agree with the
correct measurement value.
Do a check of the process
conditions and the
maximum current output
value.
M
MM
MSensor
SensorSensor
Sensor
Weak Signal The signal amplitude is too
small. Make sure that the device
installation agrees with the
data in the handbook.
If the message is shown
again, it is possible that a
different antenna must be
installed. Speak or write to
the manufacturer.
Bad Measurement Quality
(Old Measurement) The measurement value is
incorrect and does not
change for more than 10 s.
Make sure that the device
installation agrees with the
data in the handbook.
Speak or write to the
manufacturer.
Empty Spectrum invalid The empty spectrum
recording does not agree
with the process conditions
at this time (e.g. tank
height).
Do a new empty spectrum
recording.
Status
type
Status group Error message Description Corrective action
OPERATION
6
93
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
M
MM
MSensor Information
Sensor InformationSensor Information
Sensor Information
Failed Sensor MCU Test The sensor electronics does
a continuous self test
procedure. The test finds a
fault.
De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Failed Sensor Input Test
Bad Spectrum Quality There is a large change in
signal strength. Make sure that the device
installation agrees with the
data in the handbook.
If the message is shown
again, we recommend that
you install the device in a
stilling well.
Peak Lost in Tank Bottom The signal was lost near the
tank bottom. Spherical or
conical tanks can cause the
device to show this status
message.
The device will measure the
level of tak contents if you
fill the tank.
If the message is shown,
speak or write to the
manufacturer.
RC-Oscillator out of bounds The sensor electronics does
a continuous self test
procedure. The test finds a
fault.
De-energize and then
energize the device again.
If the message is shown
again, speak or write to the
manufacturer.
Sensor Reference out of
range
XCO out of bounds
Microwave Lock Error
Microwave Sweep Duration
Error
Microwave Supply Voltage
Error
1DM = data manager
2CO = current output
3This error message is shown if the device is in SIL mode. CO = current output.
Status
type
Status group Error message Description Corrective action
7
SERVICE
94
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
7.1 Periodic maintenance
7.1.1 General notes
In normal operational conditions, no maintenance is necessary. If it is necessary, maintenance
must be done by approved personnel (the manufacturer or personnel approved by the
manufacturer).
7.1.2 Maintainance of the O-rings for the housing covers
If the display cover 1 or the terminal compartment cover 2 of the housing is opened and closed,
make sure that the O-rings are correctly greased or, if it is necessary, replaced. For more data
about the replacement of the O-rings, refer to
Spare parts
on page 116.
INFORMATION!
For more data about regular inspections and maintenance procedures for devices with Ex and
other approvals, refer to the related supplementary instructions.
Figure 7-1: Maintainance of the O-rings
1 Display cover
2 Terminal compartment cover
CAUTION!
Use multi-purpose grease that is appicable for the operating temperature range the O-ring with
the properties that follow:
•
Operating temperature range of -30...+130
°
C / -22...+266
°
F without a negative effect on the
lubrification of the O-ring
•
Without silicone
•
The bonding properties must be satisfactory
•
Lithium-saponified
•
Water-resistant
•
Agrees with the O-ring material
SERVICE
7
95
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
7.1.3 How to clean the top surface of the device
Obey these instructions:
• Keep the thread of the terminal compartment cover clean.
• If dirt collects on the device, clean it. Wipe the plastic sun cover with a damp cloth.
7.1.4 How to clean horn antennas under process conditions
If it is possible that there will be build-up, a purging option is available for horn antennas.
For more data, refer to the table that follows:
7.2 Service warranty
Servicing by the customer is limited by warranty to:
•The removal and installation of the device.
•Compact version:
Compact version:Compact version:
Compact version: The removal and installation of the signal converter (with the weather
protection, if this option is attached). For more data, refer to
How to turn or remove the signal
converter
on page 28.
For more data on how to prepare the device before you send it back,, refer to
Returning the
device to the manufacturer
on page 96.
7.3 Spare parts availability
The manufacturer adheres to the basic principle that functionally adequate spare parts for each
device or each important accessory part will be kept available for a period of 3 years after
delivery of the last production run for the device.
This regulation only applies to spare parts which are subject to wear and tear under normal
operating conditions.
7.4 Availability of services
The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.
WARNING!
Do not let more than 5 mm / 0.2
¨
of dust collect on the top surface of the device. This is a
possible source of ignition in a potentially explosive atmosphere.
CAUTION!
Purge the antenna at intervals to make sure that the inner surface of the antenna stays clean
and the device measures accurately.
WARNING!
Only approved personnel can do an inspection of the device and repairs. If you find a problem,
send the device back to the supplier for inspection and/or repairs.
7
SERVICE
96
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
7.5 Returning the device to the manufacturer
7.5.1 General information
This device has been carefully manufactured and tested. If installed and operated in accordance
with these operating instructions, it will rarely present any problems.
INFORMATION!
For more precise information, please contact your local sales office.
CAUTION!
Should you nevertheless need to return a device for inspection or repair, please pay strict
attention to the following points:
•
Due to statutory regulations on environmental protection and safeguarding the health and
safety of the personnel, the manufacturer may only handle, test and repair returned devices
that have been in contact with products without risk to personnel and environment.
•
This means that the manufacturer can only service this device if it is accompanied by the
following certificate (see next section) confirming that the device is safe to handle.
CAUTION!
If the device has been operated with toxic, caustic, radioactive, flammable or water-endangering
products, you are kindly requested:
•
to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from
such dangerous substances,
•
to enclose a certificate with the device confirming that is safe to handle and stating the
product used.
SERVICE
7
97
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
7.5.2 Form (for copying) to accompany a returned device
7.6 Disposal
CAUTION!
To avoid any risk for our service personnel, this form has to be accessible from outside of the
packaging with the returned device.
Company: Address:
Department: Name:
Tel. no.: Fax no. and/or Email address:
Manufacturer's order no. or serial no.:
The device has been operated with the following medium:
This medium is: radioactive
water-hazardous
toxic
caustic
flammable
We checked that all cavities in the device are free from such substances.
We have flushed out and neutralized all cavities in the device.
We hereby confirm that there is no risk to persons or the environment through any residual media contained in the
device when it is returned.
Date: Signature:
Stamp:
CAUTION!
Disposal must be carried out in accordance with legislation applicable in your country.
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
According to the directive 2012/19/EU, the monitoring and control instruments marked with the
WEEE symbol and reaching their end-of-life must not be disposed of with other waste
must not be disposed of with other wastemust not be disposed of with other waste
must not be disposed of with other waste.
The user must dispose of the WEEE to a designated collection point for the recycling of WEEE or
send them back to our local organisation or authorised representative.
8
TECHNICAL DATA
98
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
8.1 Measuring principle
A radar signal is emitted via an antenna, reflected from the product surface and received after a
time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave).
The FMCW-radar transmits a high frequency signal whose frequency increases linearly during
the measurement phase (called the frequency sweep). The signal is emitted, reflected on the
measuring surface and received with a time delay, t. Delay time, t=2d/c, where d is the distance
to the product surface and c is the speed of light in the gas above the product.
For further signal processing the difference Δf is calculated from the actual transmitted
frequency and the received frequency. The difference is directly proportional to the distance. A
large frequency difference corresponds to a large distance and vice versa. The frequency
difference Δf is transformed via a Fourier transformation (FFT) into a frequency spectrum and
then the distance is calculated from the spectrum. The level results from the difference between
the tank height and the measured distance.

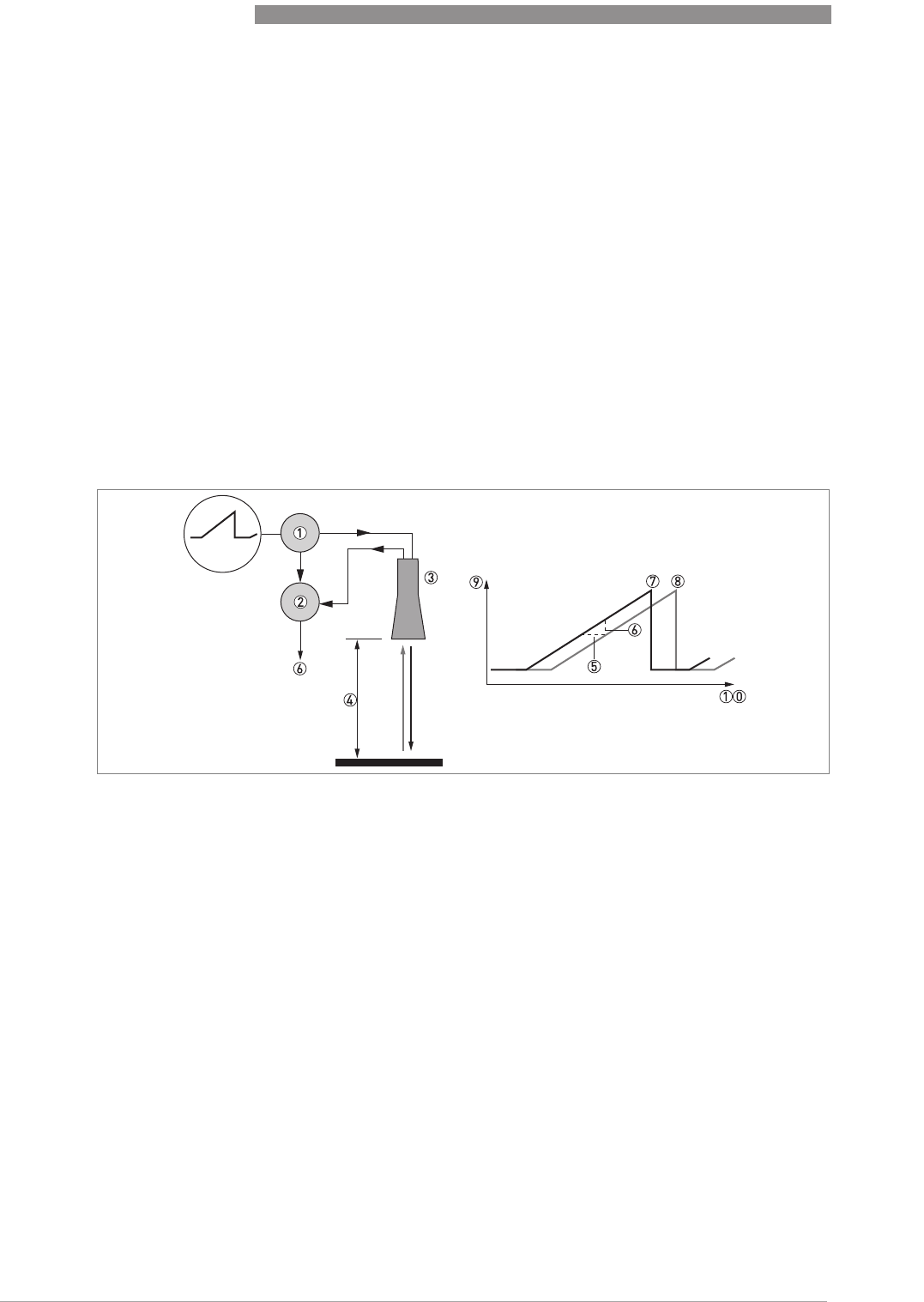

Figure 8-1: Measuring principle of FMCW radar
1 Transmitter
2 Mixer
3 Antenna
4 Distance to product surface, where change in frequency is proportional to distance
5 Differential time delay, Δt
6 Differential frequency, Δf
7 Frequency transmitted
8 Frequency received
9 Frequency
10 Time
TECHNICAL DATA
8
99
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
8.2 Technical data
INFORMATION!
•
The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local sales office.
•
Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Downloadcenter).
Measuring system
Measuring principle 2-wire loop-powered level transmitter; FMCW radar
Frequency range W-band (78...82 GHz)
Max. transmitted power 0.3 mW EIRP (TLPR: outside of the tank; LPR: in half sphere)
Application range Level measurement of liquids, pastes and slurries
Primary measured value Distance and reflection
Secondary measured value Level, volume and mass
Design
Construction The measurement system consists of a measuring sensor (antenna) and a signal
converter
Options Integrated LCD display (-20..+70°C/ -4…+158°F); if the ambient temperature is not
in these limits, then this condition can stop the display
Weather protection
Max. measuring range 37.5 m / 123 ft (option: 100 m / 328 ft)
Also depends on the dielectric constant of the product and the installation type.
Refer also to "Antenna selection".
Min. tank height 0.3 m / 12¨
Top dead zone 75 mm / 3¨, when tank height ≤37.5 m / 123 ft
200 mm / 7.9¨, when tank height > 37.5 m / 123 ft
Beam angle Convex lens, Ø25 mm: 11°
Convex lens, Ø40 mm: 7.8°
Display and user interface
Display and user interfaceDisplay and user interface
Display and user interface
Display LCD display
128 × 64 pixels in 8-step greyscale with 4-button keypad
Interface languages English, French, German, Italian, Spanish, Portuguese, Chinese (simplified),
Japanese, Czech, Polish and Turkish
Measuring accuracy
Resolution 1mm/ 0.04¨
Repeatability ±1mm/ ±0.04¨
Accuracy Standard: ±2mm/ ±0.8¨, when distance <10m/ 33ft;
±0.02% of measured distance, when distance > 10 m / 33 ft
Digital temperature drift Max. ±10 mm / ±0.39¨ for the full temperature range
Reference conditions acc. to EN 61298-1
Reference conditions acc. to EN 61298-1Reference conditions acc. to EN 61298-1
Reference conditions acc. to EN 61298-1
Temperature +15...+25°C / +59...+77°F
Pressure 1013 mbara ±50 mbar / 14.69 psia ±0.73 psi
Relative air humidity 60% ±15%
8
TECHNICAL DATA
100
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Target Metal plate in an anechoic chamber
Operating conditions
Temperature
TemperatureTemperature
Temperature
Ambient temperature -40…+80°C/ -40…+176°F
Ex: see supplementary operating instructions or approval certificates
Relative humidity 0...99%
Storage temperature -50…+85°C/ -58…+185°F
Process connection temperature
(higher temperature on request) -20…+150°C/ -4…+302°F (the process connection temperature must agree with
the temperature limits of the gasket material. Refer to "Materials" in this table.)
Ex: see supplementary operating instructions or approval certificates
Pressure
PressurePressure
Pressure
Process pressure -1…40 barg / -14.5…580 psig;
subject to the process connection used and the flange temperature
Other conditions
Other conditionsOther conditions
Other conditions
Dielectric constant (ε
r
)Direct mode: ≥1.5
TBF mode: ≥1.1
Refer also to "Technical data: Antenna selection".
Ingress protection IEC 60529: IP66/67
NEMA 250: NEMA type 4X (housing) and type 6P (antenna)
Maximum rate of change 10 m/min / 32.8 ft/min
Installation conditions
Process connection size The nominal diameter (DN) should be equal to or larger than the antenna diameter.
Process connection position Make sure that there are not any obstructions directly below the process
connection for the device. For more data, refer to
Installation
on page 22.
Dimensions and weights For dimensions and weights data, refer to on page .
Materials
Housing Standard: Polyester-coated aluminium
Option: Stainless steel (1.4404 / 316L)
Wetted parts, including antenna PEEK – this material agrees with FDA regulations
Process connection PEEK
Gaskets (and o-rings for the
sealed antenna extension option) BioControl®: FKM/FPM (-20…+150°C/ -4…+302°F); EPDM (-20°C…+150°C/ -
4…+302°F)
SMS, Tri-Clamp®, VARIVENT®, DIN 11851: without 1
Feedthrough PEI (-50...+150°C / -58...+302°F – max. range. The feedthrough temperature limits
must agree with the temperature limits of the gasket material and antenna type. If
the distance piece option is not attached, the maximum temperature is 150°C/
300°F.)
Cable gland Standard: none
Options: Plastic (Non-Ex: black, Ex i-approved: blue); nickel-plated brass; stainless
steel
Weather protection (Option) Stainless steel (1.4404 / 316L)
Process connections
Thread G1½ (ISO 228); 1½NPT (ASME B1.20.1)
Lens antenna, Ø25 mm
Lens antenna, Ø25 mmLens antenna, Ø25 mm
Lens antenna, Ø25 mm
Hygienic with G 1A adaptor BioControl® DN50; Tri-Clamp® 1½ or 2¨; DIN 11851 DN40 or DN50; SMS 51;
VARIVENT® Type N (DN40...150); others on request
TECHNICAL DATA
8
101
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Flange, EN 1092-1 DN25 in PN10, PN16, PN25, PN40, PN63 or PN100 (Type B1); others on request
Flange, ASME B16.5 1¨ in 150 lb, 300 lb or 600 lb RF; others on request
Lens antenna, Ø40 mm
Lens antenna, Ø40 mmLens antenna, Ø40 mm
Lens antenna, Ø40 mm
Hygienic BioControl® DN50; Tri-Clamp® 2¨; others on request
Flange, EN 1092-1 DN40...80 in PN10, PN16, PN25, PN40, PN63 or PN100 (Type B1); others on request
Flange, ASME B16.5 1½¨...3¨ in 150 lb, 300 lb or 600 lb RF; others on request
Electrical connections
Power supply Terminals output
Terminals output Terminals output
Terminals output – Non-Ex / Ex i:
Non-Ex / Ex i: Non-Ex / Ex i:
Non-Ex / Ex i:
12…30 VDC; min./max. value for an output of 21.5 mA at the terminal
Terminals output
Terminals output Terminals output
Terminals output – Ex d:
Ex d: Ex d:
Ex d:
14…36 VDC; min./max. value for an output of 21.5 mA at the terminal
Maximum current 21.5 mA
Current output load Non-Ex / Ex i:
Non-Ex / Ex i:Non-Ex / Ex i:
Non-Ex / Ex i: R
L
[Ω] ≤ ((U
ext
-12V)/21.5mA). For more data, refer to
Minimum
power supply voltage
on page 103.
Ex d:
Ex d:Ex d:
Ex d: R
L
[Ω] ≤ ((U
ext
-14 V)/21.5 mA). For more data, refer to
Minimum power supply
voltage
on page 103.
Cable entry Standard: M20×1.5; Option: ½NPT
Cable gland Standard: none
Options: M20×1.5 (cable diameter: 7…12 mm / 0.28…0.47¨); others are available on
request
Cable entry capacity (terminal) 0.5…3.31 mm² (AWG 20...12)
Input and output
Current output / HART
Current output / HARTCurrent output / HART
Current output / HART®
Output signal 4…20 mA HART®, 4…20 mA HART® (reversed), 3.8…20.5 mA or 3.8…20.5 mA
(reversed) acc. to NAMUR NE 43 2
Resolution ±3µA
Temperature drift Typically 50 ppm/K
Error signal High: 21.5 mA; Low: 3.5 mA acc. to NAMUR NE 43
Approvals and certification
CE This device fulfils the statutory requirements of the EC directives. The
manufacturer certifies successful testing of the product by applying the CE mark.
Vibration resistance EN 60068-2-6 and EN 60721-3-4 (1...9 Hz: 3 mm / 10...200 Hz:1g, 10g shock ½
sinus: 11 ms)
Explosion protection
Explosion protectionExplosion protection
Explosion protection
ATEX (Ex ia or Ex d)
DEKRA xxATEXxxxx X
(pending)
II 1/2 G, 2 G Ex ia IIC T6...T2 Ga/Gb or Ex ia IIC T6...T2 Gb;
II 1/2 D, 2 D Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db IP6X;
II 1/2 G, 2 G Ex d ia IIC T6...T2 Ga/Gb or Ex d ia IIC T6...T2 Gb;
II 1/2 D, 2 D Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db IP6X
ATEX (Ex ic)
DEKRA xxATEXxxxx X
(pending)
II 3 G Ex ic IIC T6...T2 Gc;
II 3 D Ex ic IIIC T90°C Dc
8
TECHNICAL DATA
102
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
IECEx
IECEx DEK xx.xxxx X
(pending) Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc;
Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc;
Ex d ia IIC T6...T2 or Ex d ia IIIC T6...T2 Gb;
Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db
cQPSus – Dual Seal-approved
(pending) NEC 500 (Division ratings)
NEC 500 (Division ratings)NEC 500 (Division ratings)
NEC 500 (Division ratings)
XP-AIS / Cl. I / Div. 1 / Gr. ABCD / T6-T1;
DIP / Cl. II, III / Div. 1 / Gr. EFG / T6-T1;
IS / Cl. I, II, III / Div. 1 / Gr. ABCDEFG / T6-T1;
NI / Cl. I / Div. 2 / Gr. ABCD / T6-T1
NEC 505 (Zone ratings)
NEC 505 (Zone ratings)NEC 505 (Zone ratings)
NEC 505 (Zone ratings)
Cl. I / Zone 0 / AEx d [ia] / IIC / T6-T1;
Cl. I / Zone 0 / AEx ia / IIC / T6-T1;
Cl. I / Zone 2 / AEx nA / IIC / T6-T1;
Zone 20 / AEx ia / IIIC / T90°C
Zone 20 / AEx tb [ia] / IIIC / T90°C
Hazardous (Classified) Locations, indoor/outdoor Type 4X and 6P, IP66, Dual Seal
CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)
Cl. I, Zone 0, Ex d [ia], IIC, T6-T1;
Cl. I, Zone 0, Ex ia, IIC, T6-T1;
Cl. I, Zone 2, Ex nA, IIC, T6-T1
CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)
XP-AIS / Cl. I / Div. 1 / Gr. BCD / T6-T1
DIP / Cl. II, III / Div. 1 / Gr. EFG / T6-T1
IS/ Cl.I/ Div.1/ Gr.BCD/ T6-T1
NI / Cl. I / Div. 2 / Gr. ABCD / T6-T1
NEPSI
GYJxxxxxx/xx
(pending)
Ex ia IIC T2~T6 Gb or Ex ia IIC T2~T6 Ga/Gb DIP A20/A21 T
A
T90°C IP6X
Ex d ia IIC T2~T6 Gb or Ex d ia IIC T2~T6 Ga/Gb DIP A20/A21 T
A
T90°C IP6X
DNV / INMETRO
DNV 14.00xx X
(pending)
Ex ia IIC T6…T3 Ga; Ex ia IIIC T70°C...T95°C Da IP6X;
Ex d [ia Ga] IIC T6...T3 Ga/Gb; Ex tb [ia Da] IIIC T70°C...T95°C Db IP6X
Other standards and approvals
Other standards and approvalsOther standards and approvals
Other standards and approvals
SIL
- only for 4...20 mA HART output 4...20 mA HART output only: SIL 2 – according to EN 61508 and for high/low demand
mode operation
EMC Electromagnetic Compatibility Directive 2004/108/EC
Radio approvals R & TTE
R & TTER & TTE
R & TTE
Radio Equipment and Telecommunications Terminal Equipment Directive
1999/5/EC
FCC Rules
FCC RulesFCC Rules
FCC Rules
Part 15
Industry Canada
Industry CanadaIndustry Canada
Industry Canada
RSS-211
LVD Agrees with the safety part of the Low-Voltage Directive 2006/95/EC
TECHNICAL DATA
8
103
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
8.3 Minimum power supply voltage
Use these graphs to find the minimum power supply voltage for a given current output load.
NAMUR NAMUR NE 21 Electromagnetic Compatibility (EMC) of Industrial Process and
Laboratory Control Equipment
NAMUR NE 43 Standardization of the Signal Level for the Failure Information of
Digital Transmitters
NAMUR NE 53 Software and Hardware of Field Devices and Signal Processing
Devices with Digital Electronics
NAMUR NE 107 Self-Monitoring and Diagnosis of Field Devices
CRN This certification is applicable for all Canadian provinces and territories. For more
data, refer to the website.
Construction code Option: NACE MR 0175 / MR 0103 / ISO 15156
1Tri-Clamp® is a registered trademark of Ladish Co., Inc. BioControl® is a registered trademark of Neumo-Ehrenberg-Group.
VARIVENT® is a registered trademark of GEA Tuchenhagen GmbH.
2HART® is a registered trademark of the HART Communication Foundation
Figure 8-2: Minimum power supply voltage for an output of 22 mA at the terminal (Non-Ex and Hazardous Location
approval (Ex i / IS))
X: Power supply U [VDC]
Y: Current output load RL [Ω]
8
TECHNICAL DATA
104
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
8.4 Guidelines for maximum operating pressure
Hazardous Location (Ex d / XP/NI) approved devices
Figure 8-3: Minimum power supply voltage for an output of 22 mA at the terminal (Hazardous Location approval (Ex d /
XP/NI))
X: Power supply U [VDC]
Y: Current output load R
L
[Ω]
WARNING!
Make sure that the devices are used within their operating limits.
Figure 8-4: Pressure / temperature de-rating (EN 1092-1), flange and threaded connection, in °C and barg
-50 0 50 100 150 200
0
10
20
30
40
50
60
70
80
90
100
20
TECHNICAL DATA
8
105
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
8.5 Dimensions and weights
INFORMATION!
CRN certification
CRN certificationCRN certification
CRN certification
There is a CRN certification option for devices with process connections that agree with ASME
standards. This certification is necessary for all devices that are installed on a pressure vessel
and used in Canada.
8
TECHNICAL DATA
106
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Antenna option weights
Type of housing Weights
Aluminium housing Stainless steel housing
[kg] [lb] [kg] [lb]
Compact 2.1 4.6 ?? ??
Antenna options Min./Max. weights
[kg] [lb]
Standard options, without converter
Standard options, without converterStandard options, without converter
Standard options, without converter
DN50 / 2¨ Hygienic antenna with clamp connection ??...?? ??...??
DN50 / 2¨ Hygienic antenna with thread connection ??...?? ??...??
DESCRIPTION OF HART INTERFACE
9
107
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
9.1 General description
The HART® Protocol is an open digital communication protocol for industry. It is free to use by
anyone. It is included in the software embedded in signal converters of HART-compatible
devices.
There are 2 classes of devices which support the HART® Protocol: operating devices and field
devices. There are 2 classes of operating devices (Master): PC-supported workstations (Primary
Master) and manual control units (Secondary Master). These can be used in control centres and
other locations. HART® field devices include sensors, converters and actuators. Field devices
include 2-wire and 4-wire devices, and also intrinsically-safe versions for use in hazardous
areas.
There are 2 primary operation modes for HART-compatible devices: point-to-point mode and
multi-drop mode.
If the device is used in point-to-point mode, the HART® Protocol uses the Bell 202 Frequency
Shift Keying (FSK) standard to put a digital signal on top of the 4...20 mA signal. The connected
device sends and receives digital signals that agree with the HART® Protocol, and sends analog
signals at the same time. Only 1 device can be connected to the signal cable.
If the device is used in multi-drop mode, the network only uses a digital signal that agrees with
the HART® Protocol. The loop current is set to 4 mA. You can connect a maximum of devices to
the signal cable.
An FSK or HART® modem is included in field devices and manual control units. It is necessary to
have an external modem for PC-supported workstations. The external modem is connected to
the serial interface.
9.2 Software history
HART® identification codes and revision numbers
INFORMATION!
In the table below, "x" is a placeholder for possible multi-digit alphanumeric combinations,
depending on the available version.
Release date Devices HART®
Device Revision DD Revision
2016-04 All revisions 1 1
Manufacturer ID: 69 (0x45)
Expanded Device Type: 0x45b1
Device Revision: 1
DD Revision 1
DD Version (NAMUR) 01.11
HART® Universal Revision: 7.4
FC 475 system SW.Rev.: ≥3.7
AMS version: ≥11.1
9
DESCRIPTION OF HART INTERFACE
108
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
9.3 Connection variants
The signal converter is a 2-wire device with 4...20 mA current output and HART® interface.
•Multi-Drop Mode is supported
Multi-Drop Mode is supportedMulti-Drop Mode is supported
Multi-Drop Mode is supported
In a Multi-Drop communication system, more than 1 device is connected to a common
transmission cable.
•Burst Mode is not supported
Burst Mode is not supportedBurst Mode is not supported
Burst Mode is not supported
There are two ways of using the HART® communication:
•as Point-to-Point connection and
•as Multi-Drop connection with 2-wire connection.
9.3.1 Point-to-Point connection – analogue / digital mode
Point-to-Point connection between the signal converter and the HART® Master.
The current output of the device is passive.
Also refer to
Point-to-point connection
on page 37.
9.3.2 Multi-Drop connection (2-wire connection)
Up to 63 devices may be installed in parallel (this signal converter and other HART® devices).
For an illustration of multi-drop networks, refer to
Multi-drop networks
on page 38.
9.4 HART® device variables
The HART® dynamic variables PV (Primary Variable), SV (Secondary Variable), TV (Third Variable)
and QV (Fourth Variable) can be assigned to any of the device variables.
PDM version: ≥6.0
FDT version: ≥1.2
HART® device variable Code Type
sensor value 0linear
level 1linear
distance 2linear
reflection 3linear
level linearization 1 4linear
volume conversion 2 5linear
mass conversion 2 6linear
distance linearization 1 7linear
ullage volume conversion 2 8linear
ullage mass conversion 2 9linear
1This HART® device variable is available if you created a linearization table in the conversion menu
2This HART® device variable is available if you created a strapping table in the conversion menu
DESCRIPTION OF HART INTERFACE
9
109
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
The HART® dynamic variable PV is always connected to the HART® current output which is, for
example, assigned to level measurement.
9.5 Field Communicator 475 (FC 475)
The Field Communicator is a hand terminal from Emerson Process Management that is
designed to configure HART® and Foundation Fieldbus devices. Device Descriptions (DDs) are
used to integrate different devices into the Field Communicator.
9.5.1 Installation
System and software requirements for the Field Communicator
•System card that includes the "Easy Upgrade Option"
•Field Communicator Easy Upgrade Programming Utility
•HART
®
Device Description file
For more data, refer to the Field Communicator User’s Manual.
9.5.2 Operation
The Field Communicator and the device's local display use almost the same procedures to
operate the signal converter. The online help for each menu item refers to the function number
given to each menu item on the local device display. Protection of settings is the same as on the
device's local display.
The Field Communicator always saves a complete configuration for communication with AMS.
9.6 Asset Management Solutions (AMS
®
)
The Asset Management Solutions Device Manager (AMS
®
) is a PC program from Emerson
Process Management which is designed to configure and manage HART
®
, PROFIBUS and
Foundation Fieldbus devices. Device Descriptions (DDs) are used to integrate different devices
into the AMS
®
.
9.6.1 Installation
Please read the README.TXT file in the Installation Kit.
If the Device Description has not been installed at this time, install the Installation Kit HART®
AMS. This .EXE file is given on the DVD-ROM supplied with the device. You can also download the
file from our website.
CAUTION!
The Field Communicator cannot be used to correctly configure, operate or read data from the
device unless the Device Description (DD) file is installed.
INFORMATION!
The Field Communicator will not give you access to the service menu. A simulation is only
possible for current outputs.
9
DESCRIPTION OF HART INTERFACE
110
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
For installation data, refer to the "AMS Intelligent Device Manager Books Online" section "Basic
AMS Functionality > Device Configurations > Installing Device Types > Procedures > Install
device types from media".
9.6.2 Operation
9.6.3 Parameter for the basic configuration
Due to AMS requirements and conventions, there are differences when operating the signal
converter with AMS and operating using the local keyboard. The service menu parameters are
not supported and simulation is only possible for current outputs. The online help for each
parameter contains its function number as a reference to the local device display.
9.7 Field Device Tool / Device Type Manager (FDT / DTM)
9.7.1 Installation
Before you operate the device, the Device Type Manager (Device DTM) must be installed in the
Field Device Tool Container. This .msi file is given on the DVD-ROM supplied with the device. You
can also download the file from our website. For installation and configuration data, refer to the
documentation that is supplied with the Device DTM on the DVD-ROM or in the "Downloads"
section of the website.
9.7.2 Operation
The DTM and the device's local display use almost the same procedures to operate the signal
converter. For more data, refer to
Operation
on page 45.
9.8 Process Device Manager (PDM)
The Process Device Manager (PDM) is a Siemens PC program designed to configure HART
®
and
PROFIBUS devices. Device Descriptions (DDs) are used to integrate different devices into the
PDM.
9.8.1 Installation
Install Device Description files supplied in the Device Install HART
®
PDM folder. This is
necessary for each type of field device that is used with SIMATIC PDM. This folder is available for
download from the website or on the DVD-ROM supplied with the device.
If you use PDM version 5.2, refer to PDM manual, section 11.1 - Install device / Integrate device
into SIMATIC PDM with Device Install.
If you use PDM version 6.0, refer to PDM manual, section 13 - Integrating devices.
For more data, refer to “readme.txt”. You can find this file in the Installation Kit.
INFORMATION!
For more data, refer to HART
®
menu tree for AMS on page 111
.
DESCRIPTION OF HART INTERFACE
9
111
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
9.8.2 Operation
There can be differences between the names of menus in the SIMATIC PDM software tool and
menus shown on the device display screen. Refer to the online help in SIMATIC PDM to find the
function number of each menu item. This function number agrees with the function number in
the device menus.
Use the same procedure for the protection of parameters in the supervisor menu.
9.9 HART
®
menu tree for AMS
Abbreviations of the following tables:
•
Opt
Optional, depending on device version and configuration
•
Rd
Read only
9.9.1 Overview AMS menu tree (positions in menu tree)
9.9.2 AMS menu tree (details for settings)
9.10 HART® menu tree for PDM
Abbreviations of the following tables:
•
Opt
Optional, depending on device version and configuration
•
Rd
Read only
•
Cust
Custody lock protection
•
Loc
Local PDM, affects only PDM views
9.10.1 Overview PDM menu tree (positions in menu tree)
Overview: Device Menu
INFORMATION!
For more data, refer to HART
®
menu tree for PDM on page 111
.
Download To Device...
Upload To PG/PC...
Quick Setup General
Security
Units
Application Assistant
9
DESCRIPTION OF HART INTERFACE
112
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Overview: View Menu
Overview: Diagnosis
9.10.2 PDM menu tree (details for settings)
Device Menu
Full Setup Process Install. Parameters
Process
Conversion
Output General
Current Output 1
Display General
1st Measurement Page
2nd Measurement Page
Device Information
Security
Units
Log
Factory Default
HART Identification & Info
Service Calibration Calibration
Sensor
Measured Value
Input / Outputs
Device Status Condensed Status (NE 107)
Standard
Additional
Cluster Check
Actual Values
Simulation Process Variables
Device Status
I/O
Test / Reset
Information
Downoad To Device...
Upload To PG/PC...
Quick Setup
General Language / Tag / Long Tag
Security Login / Change Password / Reset Passwords / Lock Status
Rd
/ Lock/Unlock
Device / Write Protect
Rd
/ (De)activate Write Protection / Unlock Extended
Range
DESCRIPTION OF HART INTERFACE
9
113
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Units Unit Length / Unit Volume / Unit Mass
Application Assistant Standard Setup / Record Empty Spectrum
Full Setup
Process Install. Parameters Tank Type / Tank Height / Blocking Distance / Time
Constant / Antenna Type / Antenna Extension /
Distance Piece / Reference Offset / Tank Bottom
Offset
Process Tracking Velocity / Epsilon R Product / Epsilon R
Gas / Measuring Mode / Overfill Detection / Overfill
Threshold
Opt
/ Mult. Refl. Enable / Empty Spectrum
Enable / Min. Peak Required / Min Plausability
Window
Conversion Select Conversion / Entry Count
Rd
/ Conversion
Table
Output General Type IO channel A
Rd
/ Type IO Channel B
Rd
Current Output 1 Current Out 1 Variable / 0% Range / 100% Range /
Current Out Range / Error Function / Low Error
Current / High Error Current / D/A Trim PV
Opt
Display General Language / Backlight
1st Measurement
Page Function / 1st Value Variable / Format 1st Value /
2nd Value Variable
Opt
/ Format 2nd Value
Opt
/ 3rd
Value Variable
Opt
/ Format 3rd Value
Opt
/ 0%
Range
Opt
/ 100% Range
Opt
2nd Measurement
Page Function / 1st Value Variable / Format 1st Value /
2nd Value Variable
Opt
/ Format 2nd Value
Opt
/ 3rd
Value VariableOpt / Format 3rd Value
Opt
/ 0%
Range
Opt
/ 100% Range
Opt
Device Information Tag
Rd
/ Long Tag
Rd
/ Serial Number
Rd
/
Manufacturer
Rd
/ Device Name
Rd
/ V Number
Rd
/
Electronic Revision
Rd
/ Field Device Revision
Rd
/
Software Revision
Rd
/ Hardware Revision
Rd
/
Electronics Serial No.
Rd
/ Production Date
Rd
Security Login / Change Password / Reset Passwords / Lock
Status
Rd
/ Lock/Unlock Device / Write Protect
Rd
/
(De)activate Write Protection / Unlock Extended
Range
Units Unit Length / Unit Volume / Unit Mass
Log Operating Time
Rd
/ Reset Log-Messages
Factory Default Reset To Fact. Default
HART Identification & Info Loop current Mode / Online Mode / Poll Address /
Tag / Long Tag / Manufacturer
Rd
/ Model
Rd
/ Device
Id
Rd
/ Universal Rev
Rd
/ Field Device Rev
Rd
/ DD-
Version
Rd
/ Descriptor / Message / Date / Final
assembly number / Configuration change count
Rd
/
Software Rev
Rd
/ Hardware rev
Rd
/ Write
Protect
Rd
/ Number of request preambles
Rd
/
Number of response preambles
Rd
9
DESCRIPTION OF HART INTERFACE
114
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
View Menu
Diagnosis
HART Identification & Info Loop current Mode / Online Mode
Poll Address / Tag / Long Tag / Manufacturer
Rd
/
Model
Rd
/ Device Id
Rd
/ Universal Rev
Rd
/ Field
Device Rev
Rd
/ DD-Version
Rd
/ Descriptor /
Message / Date / Final assembly number /
Configuration change count
Rd
/ Software Rev
Rd
/
Hardware rev
Rd
/ Write Protect
Rd
/ Number of
request preambles
Rd
/ Number of response
preambles
Rd
Service
Calibration Calibration Current Output 1
Sensor Manual Correction Offset / Manual Correction
Factor / Correction Offset
Rd
/ Correction Factor
Rd
/
Correction Offset Extended
Rd, Opt
/ Correction
Factor Extended
Rd, Opt
Measurement Value
Sensor Value
Rd
/ Media Level
Rd
/ Distance
Rd
/ Reflection
Rd
/ Level Linearization
Opt, Rd
/ Volume
Opt, Rd
/
Mass
Opt, Rd
/ Distance Linearization
Opt, Rd
/ Ullage
Opt, Rd
/ Ullage Mass
Opt, Rd
Input / Outputs
PV
Rd
/ PV % Range
Rd
/ PV output current
Rd
/ SV
Rd
/ TV
Rd
/ QV
Rd
Device Status
Condensed Status
(NE 107) Condensed Status (NE 107)
Rd
/ Device Simulation Active
Rd
Standard Device Status
Rd
/ Ext. Device Status
Rd
/ Write Protect
Rd
/ Device Diagnostic
Status 0
Rd
/ Device Diagnostic Status 1
Rd
/ AO Saturated
Rd
/ AO Fixed
Rd
Additional Device Status Simulation
Rd
/ Failure (F)
Rd
/ Function Check (C)
Rd
/ Out of
Specification (S)
Rd
/ Maintenance Required (M)
Rd
/ Electronics
Information
Rd
/ Sensor Information
Rd
Cluster Check Cluster Number
Rd
/ Failed Cluster Check
Rd
Actual Values
Operating Time
Rd
/ Sensor Value
Rd
/ Media Level
Rd
/ Distance
Rd
/ Reflection
Rd
/ Level Linearization
Rd,
Opt
/ Volume
Rd, Opt
/ Mass
Rd, Opt
/ Distance Linearization
Rd, Opt
/ Ullage Volume
Rd, Opt
/ Ullage Mass
Rd, Opt
/
Sensor Temp
Rd
/ Converter Temp
Rd
Simulation
Process Variables Simulation Values
Device Status Enable/Disable Status Simulation / Status Simulation
Opt
I/O Loop Test
Test / Reset
DESCRIPTION OF HART INTERFACE
9
115
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Device Reset / Reset Configuration Changed Flag
Information
Tag
Rd
/ Long Tag
Rd
/ Serial Number
Rd
/ Manufacturer
Rd
/ Device Name
Rd
/ V Number
Rd
/ Electronic
Revision
Rd
/ Field Device Revision
Rd
/ Software Revision
Rd
/ Hardware Revision
Rd
/ Electronics Serial
No.
Rd
/ Production Date
Rd
/ Calibration Date
Rd
/ Operating Time
Rd
10
APPENDIX
116
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
10.1 Order code
Make a selection from each column to get the full order code. The characters of the order code
highlighted in light grey describe the standard.
10.2 Spare parts
We supply spare parts for this device. When you send an order for a mechanical spare part, use
the reference numbers in the table that follows. When you send an order for an electronic spare
part, refer to
Order code
on page 116 and use the VFDE order code.
Mechanical spare parts
XF74 4 0 0 0 OPTIFLEX 7400 C 80 GHz Non-contact Radar (FMCW) level meter for lhygienic applications
OPTIFLEX 7400 C 80 GHz Non-contact Radar (FMCW) level meter for lhygienic applicationsOPTIFLEX 7400 C 80 GHz Non-contact Radar (FMCW) level meter for lhygienic applications
OPTIFLEX 7400 C 80 GHz Non-contact Radar (FMCW) level meter for lhygienic applications
Pressure / Temperature / Sealing
Pressure / Temperature / SealingPressure / Temperature / Sealing
Pressure / Temperature / Sealing
0Without
1 40 bar / -40°C...+150°C (-40°F…+302°F) / FKM, FPM
- for the Metallic Horn antenna and Wave Guide
540 bar / -50°C...+130°C (-58°F…+266°F) / EPDM
- for the Metallic Horn antenna and Wave Guide
640 bar / -20°C...+150°C (-4°F…+302°F) / Kalrez 6375
- for the Metallic Horn antenna and Wave Guide
A40 bar / -60°C...+130°C (-76°F…+266°F) / PFA - for the Metallic Horn antenna and Wave Guide
D40 bar / -40°C...+200°C (-40°F…+392°F) / FKM (Viton)
- for the Metallic Horn antenna and Wave Guide
K40 bar / -20°C...+250°C (-4°F…+482°F) / Kalrez 6375
- for the Metallic Horn antenna and Wave Guide
R16 bar / -20°C...+100°C (-4°F…+212°F) / PP - for the PP Wave Horn antenna
T40 bar / -50°C...+150°C (-58°F…+302°F) / PTFE - for the PTFE Wave Horn antenna
Material and Antenna
Material and AntennaMaterial and Antenna
Material and Antenna
0Without
1316L / Metallic horn (sheet metal) DN80 (3¨)
2316L / Metallic horn (sheet metal) DN100 (4¨)
3316L / Metallic horn (sheet metal) DN150 (6¨)
4316L / Metallic horn (sheet metal) DN200 (8¨)
GPP / Wave Horn, maximum socket length 200 mm / 7.9¨
HPTFE / Wave Horn, maximum nozzle length 200 mm / 7.9¨
L316L /Metallic wave guide ≤1m (3.28ft)
M316L /Metallic wave guide ≤1.5m (4.92ft)
N316L / Metallic wave guide ≤2m (6.56ft)
P316L / Metallic wave guide ≤2.5 m (8.2 ft)
R316L / Metallic wave guide ≤3m (9.84ft)
S316L / Metallic wave guide ≤3.5 m (11.48 ft)
T316L / Metallic wave guide ≤4 m (13.12 ft)
U316L / Metallic wave guide ≤4.5 m (14.76 ft)
V316L / Metallic wave guide ≤5m (16.4ft)
W316L / Metallic wave guide ≤5.5 m (18.04 ft)
X316L / Metallic wave guide ≤6 m (19.68 ft)
XF74
XF74XF74
XF74 4 0 0 0 Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
APPENDIX
10
117
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Material and Antenna extension
Material and Antenna extensionMaterial and Antenna extension
Material and Antenna extension
0Without
6PTFE, antenna extension for maximum nozzle length 300 mm / 11.8¨ 1
7PTFE, antenna extension for maximum nozzle length 400 mm / 15.7¨ 1
8PTFE, antenna extension for maximum nozzle length 500 mm / 19.7¨ 1
E316L / 100 mm (4¨) for the Metallic Horn antenna option only 1
F316L / 200 mm (8¨) for the Metallic Horn antenna option only 1
G316L / 300 mm (12¨) for the Metallic Horn antenna option only 1
H316L / 400 mm (16¨) for the Metallic Horn antenna option only 1
K316L / 500 mm (20¨) for the Metallic Horn antenna option only 1
R316L / 1000 mm (40¨) for the Metallic Horn antenna option only 1
W316L / "S" extension 1
X316L / "L" (right angle) extension 1
Y316L / Distance piece for high-temperature (HT) version
(Metallic Horn or Wave Guide antennas)
Process connection: Size / Pressure rating / Flange finish
Process connection: Size / Pressure rating / Flange finishProcess connection: Size / Pressure rating / Flange finish
Process connection: Size / Pressure rating / Flange finish
000Without
Threaded - ISO 228
G P 0 G1½ 2
Threaded - ASME B1.20.1
G A 0 1½NPT 2
EN / DIN Flanges - EN 1092-1 3
H E 1 DN50 PN16 - Type B1 flange 4
H G 1 DN50 PN40 - Type B1 flang 4
L E 1 DN80 PN16 - Type B1 flange
L G 1 DN80 PN40 - Type B1 flange
M E 1 DN100 PN16 - Type B1 flange
M G 1 DN100 PN40 - Type B1 flange
P E 1 DN150 PN16 - Type B1 flange
P G 1 DN150 PN40 - Type B1 flange
R E 1 DN200 PN16 - Type B1 flange 5
R G 1 DN200 PN40 - Type B1 flange 5
ASME B16.5 / ANSI Flanges 3
H 1 A 2¨ 150 lb RF 4
H 2 A 2¨ 300 lb RF 4
L 1 A 3¨ 150 lb RF
L 2 A 3¨ 300 lb RF
M 1 A 4¨ 150 lb RF
M 2 A 4¨ 300 lb RF
P 1 A 6¨ 150 lb RF
P 2 A 6¨ 300 lb RF
R 1 A 8¨ 150 lb RF 5
R 2 A 8¨ 300 lb RF 5
XF74
XF74XF74
XF74 4 0 0 0 Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
10
APPENDIX
118
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
JIS B2220 Flanges
H U P 10K 50A RF 4
L U P 10K 80A RF
M U P 10K 100A RF
PUP10K 150A RF
R U P 10K 200A RF 5
Alternative flange faces
0Without
2Type B2, EN 1092-1 (surface roughness must be specified in the order)
3Type C, EN 1092-1 (Tongue)
4Type D, EN 1092-1 (Groove)
5Type E, EN 1092-1 (Spigot)
6Type F, EN 1092-1 (Recess)
BFF, ASME B16.5 (Flat face)
0 0 0 0 Version
VersionVersion
Version
0Standard orders and orders for solid applications in China
6Orders with FCC radio approval (FCC Part 15 and RSS-
210)
AOrders for liquid applications in China
0 0 Adaptor
AdaptorAdaptor
Adaptor
0Without
1Adaptor for BM 70x flange system
0TAG Number
TAG NumberTAG Number
TAG Number
0Without
1Tag No. stainless steel plate
(16 characters max.)
Extra option
Extra optionExtra option
Extra option
0Without
1NACE design
(MR0175 / MR0103 / ISO 15156)
3Heating / Cooling 6
5Purge 6
6Purge + Heating / Cooling 6
XF74
XF74XF74
XF74 4 0 0 0 0 0 0 0 Order code
Order codeOrder code
Order code
1For device dimensions, refer to the "Dimensions and weights" section
2For the PP Wave Horn antenna option only
3Other flange faces are available. Refer to your local supplier for more data. Flanges with the PTFE Wave Horn antenna option have a
slip on-type design with an anti-blowout feature.
4Minimum flange size for the PTFE Wave Horn antenna. This is not available for the Metallic Horn antenna.
5This flange is not available for the PTFE Wave Horn antenna option
6For DN150 and DN200 Metallic Horn antenna only
APPENDIX
10
119
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
Other spare parts
Figure 10-1: Other spare parts
1 Cover without LCD display
2 Cover for Ex d module
3 Cover with LCD display
4 Set of fasteners for housing (lock screw, gaskets)
5 Cable gland
6 Signal cable (Non-Ex: grey, Ex: blue)
DANGER!
Remote version: Make sure that replacement signal cables for Ex-approved devices are supplied
by the manufacturer. Use of this signal cable is mandatory.
Item Description Quantity Part reference
Housing
1Cover without LCD display (HMI), aluminium 1XF50010100
Cover without LCD display (HMI), stainless steel 1XF50011100
2Cover for Ex d module, aluminium 1 1XF50010200
Cover for Ex d module, stainless steel 1 1XF50011200
3Cover with LCD display (English / German / French / Italian),
aluminium 1XF50010300
Cover with LCD display (English / German / French / Italian),
stainless steel 1XF50011300
Cover with LCD display (English / Spanish / French / Portuguese),
aluminium 1XF50010400
Cover with LCD display (English / Spanish / French / Portuguese),
stainless steel 1XF50011400
Cover with LCD display (English / Russian / Chinese / Japanese),
aluminium 1XF50010500
Cover with LCD display (English / Russian / Chinese / Japanese),
stainless steel 1XF50011500
4Set of fasteners for housing (lock screw, gaskets) 1 screw, 10 gaskets XF50010900
Cable gland / cable entry
10
APPENDIX
120
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
10.3 Accessories
We supply accessories for this device. When you send an order for a accessories, please give the
reference numbers that follow:
5Cable gland / M20×1.5, plastic; black, non-Ex 10 XF50030100
Cable gland / M20×1.5, plastic, blue, Ex i 10 XF50030200
Cable gland / M20×1.5, nickel-plated brass, Ex d 5XF50030300
Cable gland / M20×1.5, stainless steel, Ex d 2XF50030400
Cable gland / M20×1.5, nickel-plated brass, non-Ex / Ex i 5XF50030500
Cable gland / M20×1.5, stainless steel, non-Ex / Ex i 2XF50030600
Cable entry / ½NPT, nickel-plated brass, non-Ex / Ex i 5XF50030700
Cable entry / ½NPT, nickel-plated brass, Ex d 5XF50030800
Cable entry / ½NPT, nickel-plated brass, cFMus 5XF50030900
Cable entry / ½NPT, stainless steel, non-Ex / Ex i 2XF50031000
Cable entry / ½NPT, stainless steel, Ex d 2XF50031100
Cable entry / ½NPT, stainless steel, cFMus 2XF50031200
Options for remote version
6Signal cable 10 m / 32.8 ft (non-Ex: grey) 2 1XF50040100
Signal cable 25 m / 82 ft (non-Ex: grey) 2 1XF50040200
Signal cable 50 m / 164 ft (non-Ex: grey) 2 1XF50040300
Signal cable 75 m / 246 ft (non-Ex: grey) 2 1XF50040400
Signal cable 100 m / 328 ft (non-Ex: grey) 2 1XF50040500
Signal cable 10 m / 32.8 ft (Ex: blue) 3 1XF50040600
Signal cable 25 m / 82 ft (Ex: blue) 3 1XF50040700
Signal cable 50 m / 164 ft (Ex: blue) 3 1XF50040800
Signal cable 75 m / 246 ft (Ex: blue) 3 1XF50040900
Signal cable 100 m / 328 ft (Ex: blue) 3 1XF50041000
1Ex d-approved devices only
2For the remote version
3For the remote version. Make sure that replacement signal cables for Ex-approved devices are supplied by the manufacturer. Use of
this signal cable is mandatory.
Item Description Quantity Part reference
Item Description Quantity Part reference
1HMI Service tool (English / German / French / Italian) 1 1XF74010600
HMI Service tool (English / Spanish / French / Portuguese) 1 1XF74010700
HMI Service tool (English / Russian / Chinese / Japanese) 1 1XF74010800
HMI Service tool (English / Czech / Polish / Turkish) 1 1XF74xxxxxx
2Viator RS232 / HART converter 1XF74020600
3Viator USB / HART converter 1XF74020700
4EMI/RFI shielding gasket 1XF74050600
1If the device does not have the LCD display option, use this accessory to change the device configuration
APPENDIX
10
121
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
10.4 Glossary
E
F
I
L
M
O
P
R
S
Electromagnetic compatibility
Electromagnetic compatibilityElectromagnetic compatibility
Electromagnetic compatibility Defines how much a device influences or is influenced by other devices that
generate electromagnetic fields during operation. Refer to European
standard EN 61326-1 for further details.
FMCW
FMCWFMCW
FMCW Frequency-modulated continuous-wave radar technology. The signal is
continuously present, but the frequency is modulated, usually in
successive linear ramps over time (frequency sweeps).
Interference signals
Interference signalsInterference signals
Interference signals False radar reflections.
Level
LevelLevel
Level See the diagrams at the end of this section.
Mass
MassMass
Mass
Operators
OperatorsOperators
Operators Users who can choose how to display measurements. They cannot
configure the device in supervisor mode.
PACTware
PACTwarePACTware
PACTware™Software that operates and configures field devices from a remote
workstation. It is not necessary to use fieldbus software or programs
developed by the manufacturer.
Radar reflection
Radar reflectionRadar reflection
Radar reflection
Signal converter
Signal converterSignal converter
Signal converter A set of electronic components in the device that send the measurement
signal through some signal filters.
Supervisor
SupervisorSupervisor
Supervisor Users who can configure the device in supervisor mode. They cannot
configure the device in service mode.
10
APPENDIX
122
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
U
V
Ullage volume
Ullage volumeUllage volume
Ullage volume Unfilled volume. See the diagrams at the end of this section.
Volume
VolumeVolume
Volume
NOTES
11
123
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
11
NOTES
124
OPTIWAVE 7500 C
www.krohne.com 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
NOTES
11
125
OPTIWAVE 7500 C
www.krohne.com10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en
KROHNE – Process instrumentation and measurement solutions
•
Flow
•
Level
•
Temperature
•
Pressure
•
Process Analysis
•
Services
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.: +49 203 301 0
Fax: +49 203 301 10389
info@krohne.com
© KROHNE 10/2016 - 4004375401 - MA OPTIWAVE 7500 R01 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
