KTC Technology 00011 PAD User Manual
Shenzhen KTC Technology Co., Ltd. PAD
User Manual
1GB
8GB
Android 4.2 or above
Supports 802.11 b/g/n
Bluetooth 3.0/4.0
Built-in
Built-in
Micro USB 2.0(Supports OTG)
CPU frequency
DDR-RAM
NAND FLASH
Operating system
Wi-Fi
Bluetooth
GPS
G-sensor
Microphone
USB port
SIM card slot
Data services
Technical Specifications
Program
Specifications
Micro SIM card
GSM/GPRS/
EDGE/HSPA
WCDMA
MTK8382
Accessories List
PAD (1)
User Manual (1)
Power Adapter (1)
USB Data Cable (1)
Earphone cable (1) (optional)
Note: specific accessory in accordance with actual.
●
●
●
●
●
1
Supports Supports /
Quad-core
1.3GHz
/
/ /
/
//
//
2
Front Camera, 2 Mega Pixel
Rear Camera, 5 Mega Pixel
Li-polymer Battery, 3.7V, 4200mAh
Input: 100-240VAC, 50-60 Hz
Output: DC 5V 2A
32G max.
8" LED backlight Screen,
Resolution: 1280 x 800
213.8mm x 123.9mm x 8.7mm
Camera
Standard battery
Power adapter
Micro SD card
Main screen
Product size
MTK8127
MTK8382
Disclaimer: These specifications are for reference only
and shall not constitute any commitment in any way.
Concerning the product improvement, we shall reserve
the right to change the product specifications without
further notice.
RK3188
3.5mm earphone jack
Audio port
Environment
light detection Supports / /
Program
Specifications

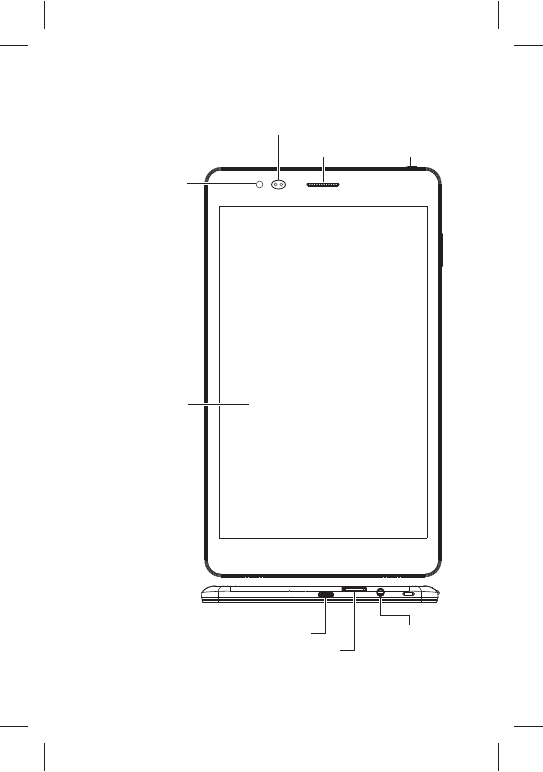

Machine structure map
3
Touch Screen
Front Camera
Power Button
Proximity sensor / environmental detection window
Earpiece
Micro SD Card Slot
Earphone port
Micro USB Port / Power Input Port
4

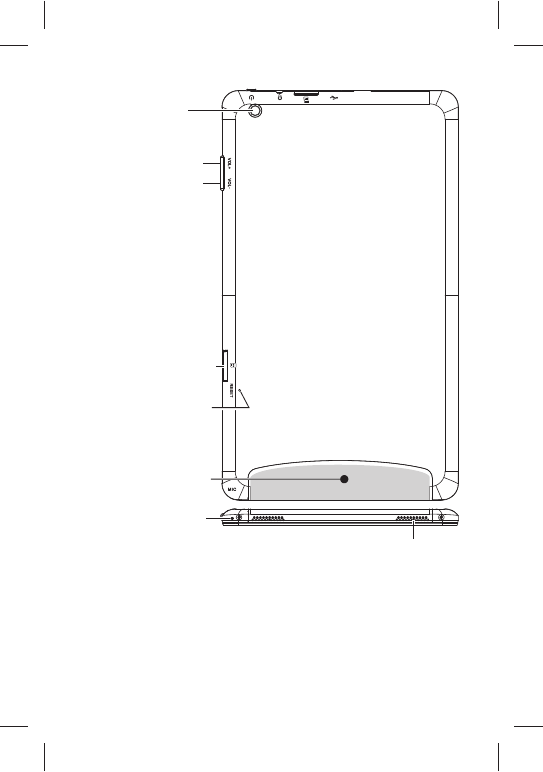

Volume+ Button
Volume- Button
Speaker
Antenna
Rear Camera
Microphone
Hard Reset Button
Hole
Micro SIM Card Slot
Warm Tips:
1. Do not cover antenna area with hands or other
objects, otherwise it may influence signal.
2. The machine schematic structure may be slightly
different with real object, please prevail with the real
object .

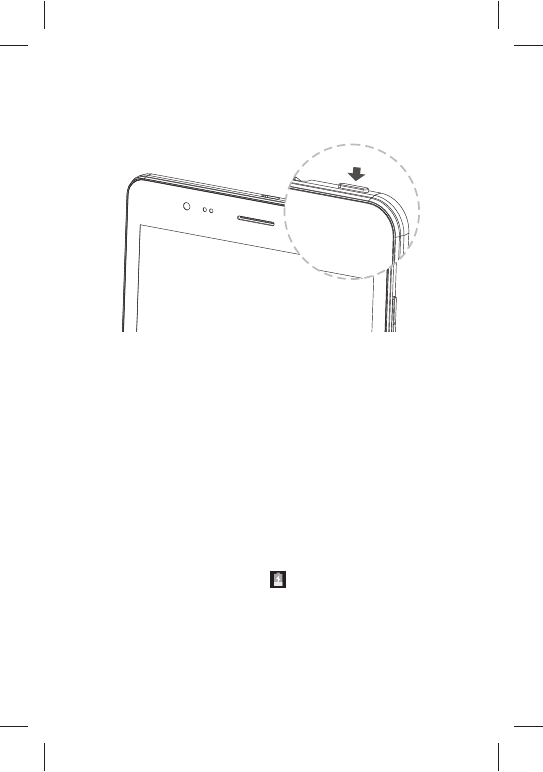

Turn on/off the machine
Press and hold the power button for a few seconds to
turn on /off the machine.
Screenshot
Press the power button and VOL- key simultaneously
to capture a screenshot, which will be saved in USB
storage > Pictures > Screenshots.
Battery Charging
Charging machine battery when using it for the first
time or battery is not used for a long time. Use the power
adapter matched with the machine, plug the adapter
power socket in 100-240VAC socket, then plug adapter
output port to machine power input port. When the
charging is normal, the icon in the status bar indicates
charging battery; when the charging is finished, the status
bar will prompt electric quantity 100%. Disconnect the
machine and charger, take off the charger from the
5
machine first, and then unplug it from the electrical outlet.
Tips:
1. Use manufacture approved charger or the charger
matched with machine model; unauthorized power
adapter or data cable may cause charger exploding or
damage the machine.
2. The device uses Micro USB interface for power
input, and supports charging through USB interface of
PC.
Important Safety Attentions
Thank you for purchasing our high performance &
multi-function tablet PC. It will bring you a better visual &
aural experience. To ensure safety, extend the service life
of the product, and give full play to the best performance
of the product, please read all the instructions and
nameplates carefully, follow the safety attentions, and
keep the user manual for future use.
Medical Device
Electromagnetic waves produced by the device in
working condition may interfere with the normal operation
of implantable medical devices or personal medical
devices such as pacemakers, embedding cochlea,
hearing-aids, etc. If you are using the above mentioned
medical devices, please consult the manufacturer for the
conditions or limitations of using the product.
Hearing Protection
● Please do not wear earphone without plugging it to
6
video source first. Turn down volume of the device before
putting the earplugs into ears.
● To avoid damaging hearing, it is suggested that you
use the lowest volume when listening to music or making
a voice call using the earphones.
● Please do not use earplugs for a prolonged period of
time.
Traffic Safety
● Please do not use the device when crossing the
road, riding a bicycle, motorbike, or any similar means of
transportation, or when driving a motor vehicle. Doing so
may cause you to become distracted and may result in
accidents.
● Wireless devices may interfere with the flight system
of a plane. Therefore, please comply with relevant rules
of airline companies. Turn off the device in places where
wireless devices are prohibited.
Operation Environment
● Only used in safe area with altitude under 5000m.
● Please do not use the device in places that have a
water source such as bathtubs, pools, washing machines.
The device should not be used in moist basements and
other similar environments, etc. If the device has been
splashed, turn it off immediately. Do not use it until it has
been dried properly.
● To avoid internal circuit fault of the device, please do
not charge or use the device in places which are dusty,
moist or dirty or near magnetic fields.
7
● Please do not store or transport the device in the
same container with flammable liquids, flammable gases
or explosives.
● Please turn off the device in places where the use of
wireless devices is expressly prohibited.
● Working environment temperature for the device is
-5℃~ 40℃. Please do not use the device when the
temperature is above or below this range, otherwise, fault
may occur.
Child Health
The device and its accessories may include several
small parts. Please keep them out of reach of children to
prevent accidental damage to the device or its
accessories, and to prevent accidental swallowing by
children which may result in apnea or other danger.
Environment Protection
Please comply with the local laws of disposing of the
device, battery and or its accessories, and support
recycling. Do not dispose the device, its battery and or its
accessories as ordinary household garbage.
Accessory Requirement
Only use the charger and accessories authorized by
the device manufacturer and compatible with the model
number of the device. The use of any other type of
chargers and or accessories may violate the guarantee
clause and related provisions of the state in which the
device is being used and may result in safety accidents. If
8
authorized batteries, chargers and or accessories are
needed, please contact the dealers of this device.
Safety Use of Battery and Charger
● When charging has been completed, or when the
device is not being charged, please disconnect the
charger from the device and from the power socket.
● Do not place the device near heating devices such
as microwave ovens, ovens, radiators, etc. Overheated
battery may cause explosion.
● Do not remove or refit batteries as this may cause
battery leakage, overheating, fire or explosion.
● If the battery leaks, do not allow the leaking liquid
contact with your skin or eyes. If such contact does occur,
wash the affected area thoroughly with clean water and
seek medical attention.
● If the power cord of the charger has been damaged,
do not continue to use it, so as to avoid electric shock or
fire.
Maintenance
● Please keep the device and its accessories dry. Do
not use external heating devices such as microwave
ovens to dry them.
● Do not allow the device and its accessories to
become impacted intensively by falling or any other
means, nor to become shocked, as this may cause
damage to the device or its accessories, fire or explosion
of the batteries.
● Do not place the device and its accessories in areas
9
with very high or very low temperature, as this may cause
device or battery accident, explosion, fire, or other
damages, battery function will be limited when
temperature is under -5℃.
● Do not place sharp metal objects such as large
headed pins near to the device as they may become
magnetically attached to the speaker and may result in
damage when the device is being used.
● Do not use strong chemicals, cleaner or detergent to
clean the device or its accessories. Before cleaning or
maintenance, please turn off the device and disconnect
the charger from the device.
● Do not disassemble the device and its accessories
by yourself; the damage caused in this case will not be
covered by maintenance.
● If the device falls or is exposed to any external force
which causes screen damaged or broken, do not touch or
try to remove the broken part. Stop using the device.
Seek immediate assistance for maintenance.
Screen Protection
● Do not place any objects on the device, to avoid
laceration.
● Do not use a sharp object to touch the screen.
Proper Use
Use the machine properly; please do not be over
indulge in the cyber world and games. Long time spends
on internet and game is harmful to physical and mental
health.
10
Troubleshooting
■ Your device can not be turned on.
The battery power is used up. Please fully charge your
device.
■ Your device can not access to the Internet via Wi-
Fi.
1. Check whether your device can receive any Wi-Fi
signal.
2. Check whether the wireless router supports DHCP. If
not, please configure a static IP address.
3. Check whether the wireless router has been
connected to the Internet.
■ Your device responds to operations slowly.
1. Check whether too many applications are running in
the backstage.
2. Check whether any incompatible-version application
has been installed.
3. Use the antivirus software to scan and kill the
malicious programs (if any).
■ Your device gets warm in use.
It is normal that your device gets warm in a long-time
use or in charging.
■ Your device crashes and its keys do not work.
Press and hold the power switch for 6 seconds, and the
system will turn off and restart automatically.
■ The total memory is smaller than the theoretical
memory.
A certain space has been used to store the system files
and install user applications, so it appears that the total
11
memory is smaller than the theoretical memory.
■ Some video files can not be played.
Your device supports most of the common audio and
video file formats, except a few special formats. We
suggest that you download a third-party player from the
application market to play those exceptional files.
■ SIM card is not recognized.
1. Check if the installed SIM card is compatible.
2. Restart the device.
3. Take out the SIM card, and install in steps properly.
■ The device can not receive any network signal,
or the received signal is too weak.
1. Signal interference may exist nearby; please move
to an open area before use.
2. Please contact your network operator and confirm
that your location has signal.
■ Can not make or answer calls, send or receive
messages when the device is under normal operating
conditions.
1. Check if the SIM card is properly installed and
recognized.
2. Check if the SIM card arrears down.
3. Check if flight mode is turned on.
4. Restart the device.
■ Network is busy.
The network traffic may be too high during peak hours,
and thus can not make calls. Please avoid using this
device in such period, or wait a moment and try again.
12
Important Statements
All contents and services obtained through your device
shall belong to a third party under the protection of
copyright, patent, trademark or other intellectual
properties, and shall be used for your personal non-
commercial purposes only. You are not allowed to use
any content or service in any way without the
authorization of the content or service provider.
In no case shall we be held liable for any direct, indirect
or accidental loss or damage caused by your accessing
any content, service, information or third-party software
through your device.
Third-party services are subject to change, deletion or
may stop without prior notice. We shall not imply or
assure that all services and contents will be kept
available at all time.
We shall not be responsible for providing any related
customer service for any third-party service or content.
Please refer your questions and service requests directly
to the relevant content or service provider.
Please remember to backup the data when using your
device. We shall not be held liable for any personal data
loss or damage caused by software or hardware
misoperation, product repair, battery replacement or any
other unexpected situations, or for any other indirect loss
arising thereof. Any misunderstandings in relation to this
Manual shall be beyond our control. Consequently, we
shall not bear any liability for any accidental loss caused
by the use of this Manual or for any third-party claim
13
caused by the use of your device.
Trademark
"Android" is the trademark of Google Inc.
"Micro SD" is the trademark of SD Card Association.
Other company names, product names or services may
be also the registered trademarks of other companies,
and shall be subject to the applicable laws, regulations
and international conventions, whether indicated and
marked on the product and in this Manual or not.
14
15
CE Statement
Notices for the use of pad
Your pad is a product of superior design and
craftsmanship and should be treated with care. The
following suggestions can help you comply with the terms
of repair kits, to extend the life of your pad.
1) Place the mobile pad and its parts and components
out of reach of small children.
2) Keep the pad dry. Rain, humidity and all types of
liquids which contain minerals will corrode electronic
circuits.
3) Don’t touch the pad with wet hands when charging, it
will cause electric shock or damage the pad.
4) Avoid placing the device in high temperature
environment. High temperatures will shorten the life of
electronic devices, damage batteries, and warp or melt
certain plastics. Avoid placing the device in significantly
low temperature environments. When the temperature
rises, the pad will produce water vapor that may damage
electronic circuit.
5) Avoid placing the pad in dusty or dirty places,
otherwise parts may be damaged.
6) To avoid damage to the pad, do not place it near a lit
cigarette, an open flame or any other heat source.
7) Do not open the device, non-professional approach
will cause damage to the pad.
8) Do not shake the pad or throw it from high places.
handling the pad roughly can damage internal circuit
boards.
9) Do not paint the pad, as paint will block headphones,
microphones or other removable parts, and cause the
16
part or the device to stop working.
10) Use clean, soft, dry cloth to clean the camera and
light sensor lenses. Do not use of harmful chemicals,
cleaning agents or cleaning fluids to clean the pad.
11) If mobile pad, battery, charger, or mobile pad
accessories are defective, send to the nearest qualified
service center for inspection.
12) If necessary, Service Centre staff will assist you
and will arrange for pad repairs.
13) To prevent possible hearing damage, do not listen
at high volume levels for long periods
Caution:
Use the Mobile pad in an environment with temperature
between -5℃and 40℃, For the following equipment:
Mobile pad is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
The earphones should be used carefully.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
The product shall only be connected to a USB interface
of version USB 2.0 or higher. The connection to a power
USB is prohibited.
Adapter shall be installed near the equipment and shall
be easily accessible.
The device complies with RF specifications when the
device used at 10 mm form your body.
Risk of explosion if battery Is replaced by an incorrect
type.
Dispose of used batteries according to the instructions.
The plug considered a disconnect device of adapter.
17
FCC Warning
1. Labelling requirements：
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
2. Information to user：
Any Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and
receiver.
--Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
18
--
technician for help.
3. RF warning for pad:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 5cm between the radiator & your
body.
4. Specific Absorption Rate (SAR) information for
MTK8382 program.
This pad meets the government's requirements for
exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons
regardless of age or health.
FCC RF Exposure Information and Statement The SAR
limit of USA (FCC) is 1.6 W/kg averaged over one gram of
tissue. Device types: 800P31C (FCC ID: ROU000
