KTV Global LT104AA FM Transmitter User Manual LT104 4 0

KTV Global Corporation FM Transmitter LT104 4 0

users manual

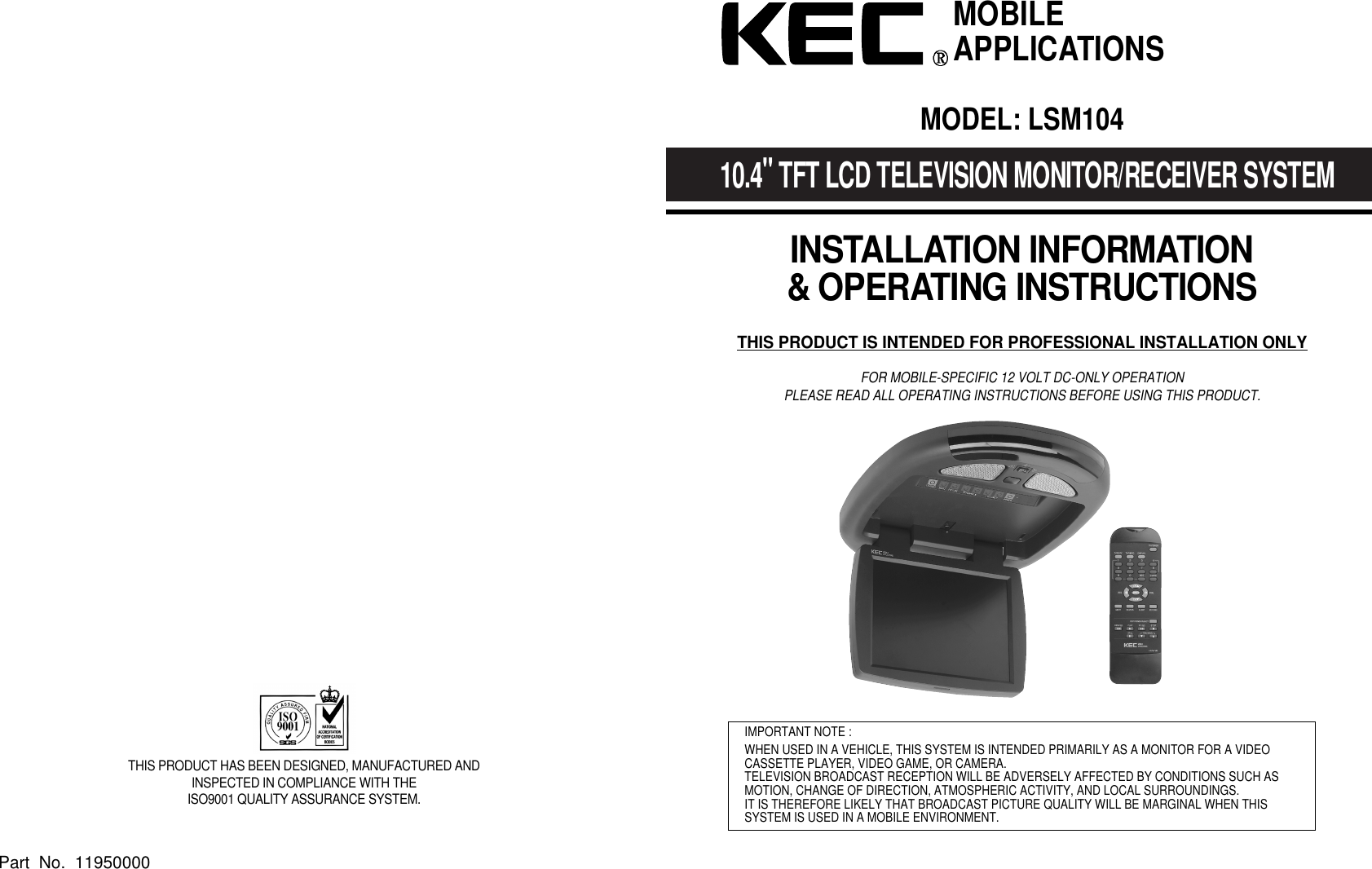

10.4"TFT LCD TELEVISION MONITOR/RECEIVER SYSTEMINSTALLATION INFORMATION& OPERATING INSTRUCTIONSTHIS PRODUCT IS INTENDED FOR PROFESSIONAL INSTALLATION ONLYFOR MOBILE-SPECIFIC 12 VOLT DC-ONLY OPERATIONPLEASE READ ALL OPERATING INSTRUCTIONS BEFORE USING THIS PRODUCT.IMPORTANT NOTE :WHEN USED IN A VEHICLE, THIS SYSTEM IS INTENDED PRIMARILY AS A MONITOR FOR A VIDEOCASSETTE PLAYER, VIDEO GAME, OR CAMERA.TELEVISION BROADCAST RECEPTION WILL BE ADVERSELY AFFECTED BY CONDITIONS SUCH ASMOTION, CHANGE OF DIRECTION, ATMOSPHERIC ACTIVITY, AND LOCAL SURROUNDINGS.IT IS THEREFORE LIKELY THAT BROADCAST PICTURE QUALITY WILL BE MARGINAL WHEN THIS SYSTEM IS USED IN A MOBILE ENVIRONMENT.MOBILEAPPLICATIONSTHIS PRODUCT HAS BEEN DESIGNED, MANUFACTURED ANDINSPECTED IN COMPLIANCE WITH THE ISO9001 QUALITY ASSURANCE SYSTEM.Part  No.  11950000MODEL: LSM104

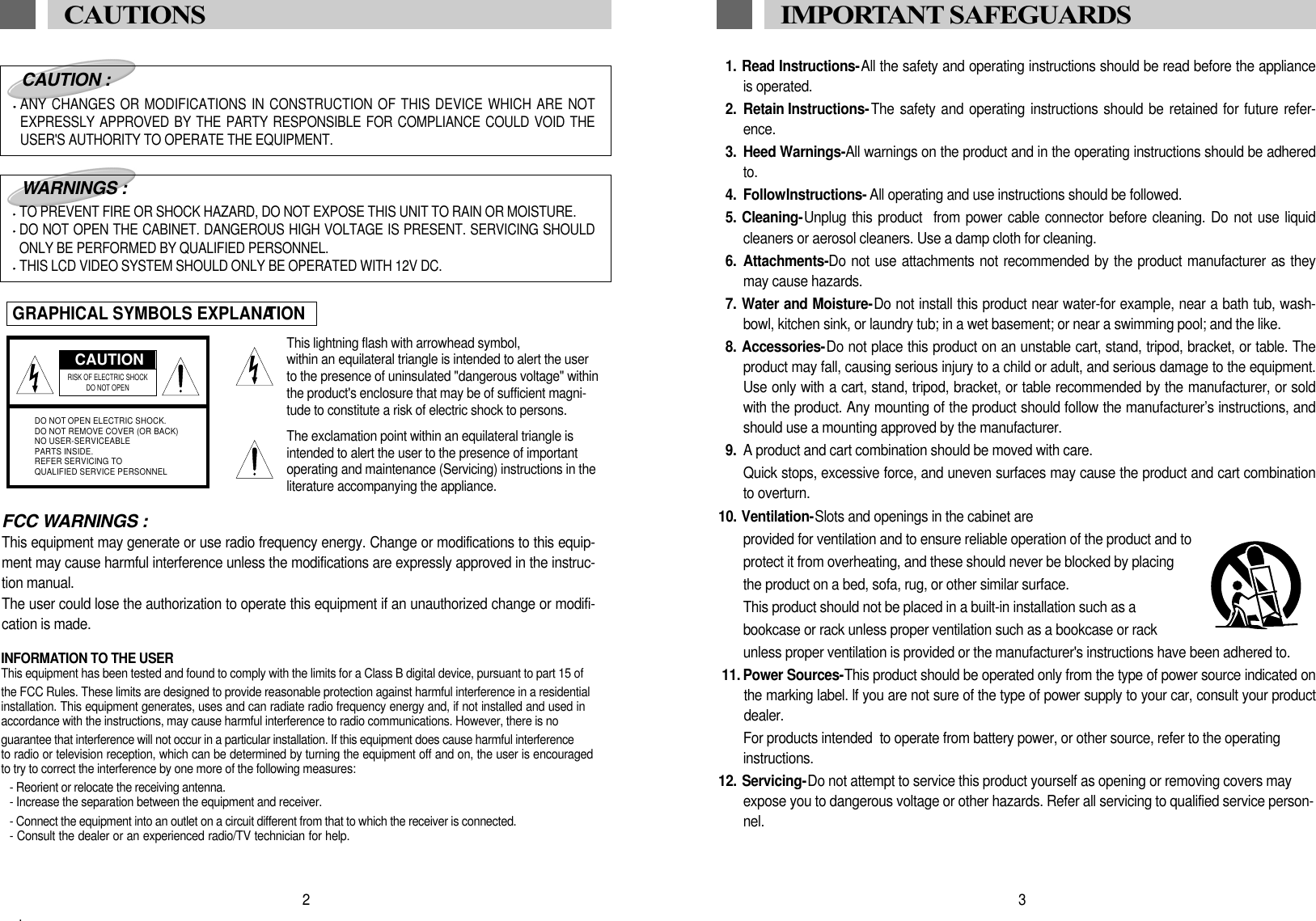

1. Read Instructions-All the safety and operating instructions should be read before the applianceis operated.2. Retain Instructions-The safety and operating instructions should be retained for future refer-ence.3. Heed Warnings-All warnings on the product and in the operating instructions should be adheredto.4. Follow Instructions- All operating and use instructions should be followed.5. Cleaning-Unplug this product  from power cable connector before cleaning. Do not use liquidcleaners or aerosol cleaners. Use a damp cloth for cleaning.6. Attachments-Do not use attachments not recommended by the product manufacturer as theymay cause hazards.7. Water and Moisture-Do not install this product near water-for example, near a bath tub, wash-bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.8. Accessories-Do not place this product on an unstable cart, stand, tripod, bracket, or table. Theproduct may fall, causing serious injury to a child or adult, and serious damage to the equipment.Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or soldwith the product. Any mounting of the product should follow the manufacturer’s instructions, andshould use a mounting approved by the manufacturer.9. A product and cart combination should be moved with care.Quick stops, excessive force, and uneven surfaces may cause the product and cart combinationto overturn.10. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a  bookcase or rack unless proper ventilation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.11. Power Sources-This product should be operated only from the type of power source indicated onthe marking label. lf you are not sure of the type of power supply to your car, consult your productdealer.For products intended  to operate from battery power, or other source, refer to the operating instructions.12. Servicing-Do not attempt to service this product yourself as opening or removing covers mayexpose you to dangerous voltage or other hazards. Refer all servicing to qualified service person-nel.3IMPORTANT SAFEGUARDS FCC WARNINGS :This equipment may generate or use radio frequency energy. Change or modifications to this equip-ment may cause harmful interference unless the modifications are expressly approved in the instruc-tion manual.The user could lose the authorization to operate this equipment if an unauthorized change or modifi-cation is made.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENDO NOT OPEN ELECTRIC SHOCK.DO NOT REMOVE COVER (OR BACK)NO USER-SERVICEABLEPARTS INSIDE.REFER SERVICING TOQUALIFIED SERVICE PERSONNELCAUTION :ANY CHANGES OR MODIFICATIONS IN CONSTRUCTION OF THIS DEVICE WHICH ARE NOTEXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THEUSER'S AUTHORITY TO OPERATE THE EQUIPMENT.WARNINGS :TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.DO NOT OPEN THE CABINET. DANGEROUS HIGH VOLTAGE IS PRESENT. SERVICING SHOULDONLY BE PERFORMED BY QUALIFIED PERSONNEL.THIS LCD VIDEO SYSTEM SHOULD ONLY BE OPERATED WITH 12V DC.GRAPHICAL SYMBOLS EXPLANATIONThis lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the userto the presence of uninsulated "dangerous voltage" withinthe product's enclosure that may be of sufficient magni-tude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle isintended to alert the user to the presence of importantoperating and maintenance (Servicing) instructions in theliterature accompanying the appliance.2CAUTIONS INFORMATION TO THE USERThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help..

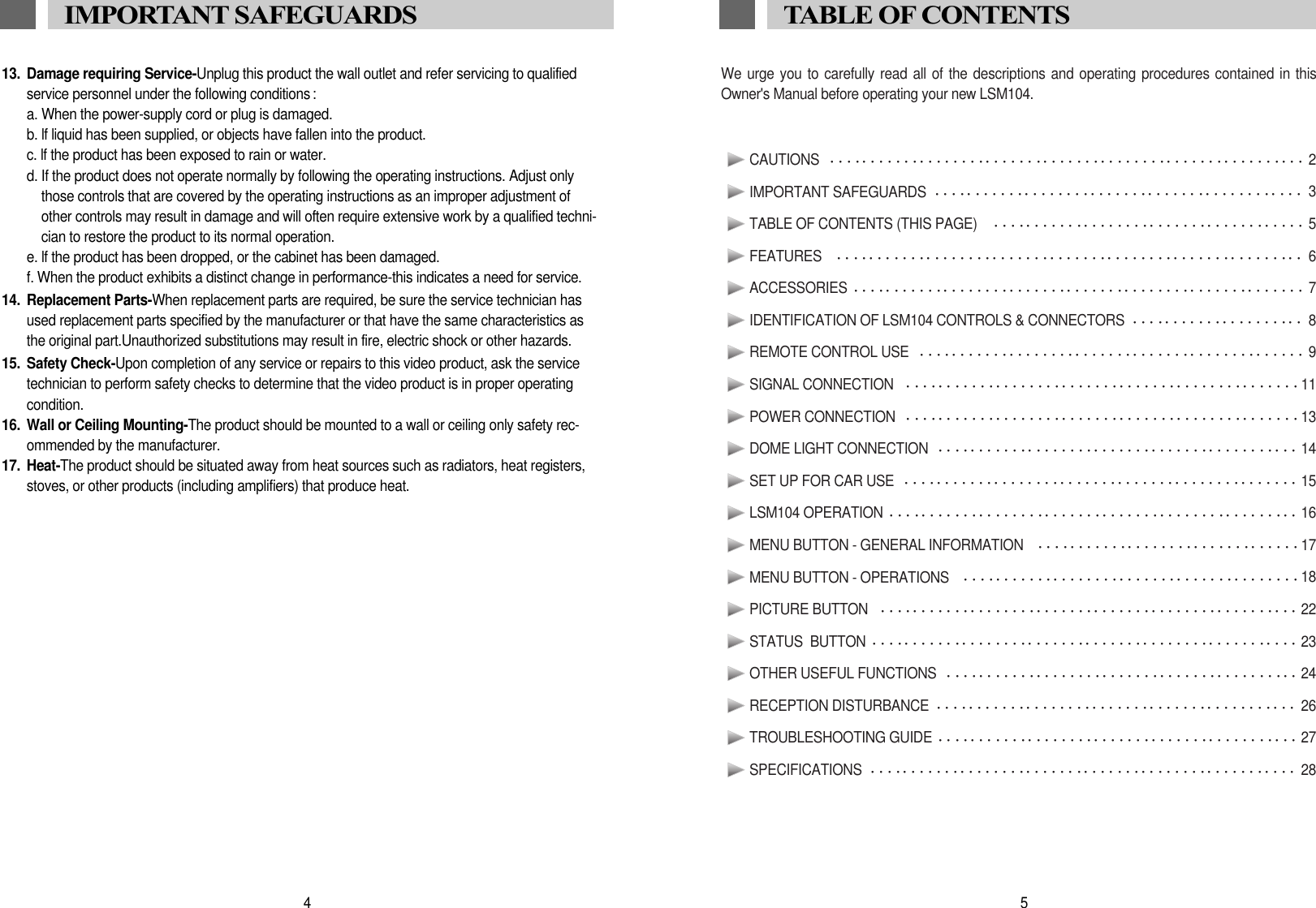

We urge you to carefully read all of the descriptions and operating procedures contained in thisOwner's Manual before operating your new LSM104.CAUTIONS  2IMPORTANT SAFEGUARDS  3TABLE OF CONTENTS (THIS PAGE)   5FEATURES   6ACCESSORIES  7IDENTIFICATION OF LSM104 CONTROLS & CONNECTORS  8REMOTE CONTROL USE  9SIGNAL CONNECTION   11POWER CONNECTION 13DOME LIGHT CONNECTION  14SET UP FOR CAR USE   15LSM104 OPERATION 16MENU BUTTON - GENERAL INFORMATION  17MENU BUTTON - OPERATIONS  18PICTURE BUTTON   22STATUS  BUTTON  23OTHER USEFUL FUNCTIONS  24RECEPTION DISTURBANCE  26TROUBLESHOOTING GUIDE 27SPECIFICATIONS  285TABLE OF CONTENTS13. Damage requiring Service-Unplug this product the wall outlet and refer servicing to qualifiedservice personnel under the following conditions :a. When the power-supply cord or plug is damaged.b. lf liquid has been supplied, or objects have fallen into the product.c. lf the product has been exposed to rain or water.d. If the product does not operate normally by following the operating instructions. Adjust onlythose controls that are covered by the operating instructions as an improper adjustment ofother controls may result in damage and will often require extensive work by a qualified techni-cian to restore the product to its normal operation.e. lf the product has been dropped, or the cabinet has been damaged.f. When the product exhibits a distinct change in performance-this indicates a need for service.14. Replacement Parts-When replacement parts are required, be sure the service technician hasused replacement parts specified by the manufacturer or that have the same characteristics asthe original part.Unauthorized substitutions may result in fire, electric shock or other hazards.15. Safety Check-Upon completion of any service or repairs to this video product, ask the servicetechnician to perform safety checks to determine that the video product is in proper operatingcondition.16. Wall or Ceiling Mounting-The product should be mounted to a wall or ceiling only safety rec-ommended by the manufacturer.17. Heat-The product should be situated away from heat sources such as radiators, heat registers,stoves, or other products (including amplifiers) that produce heat.4IMPORTANT SAFEGUARDS

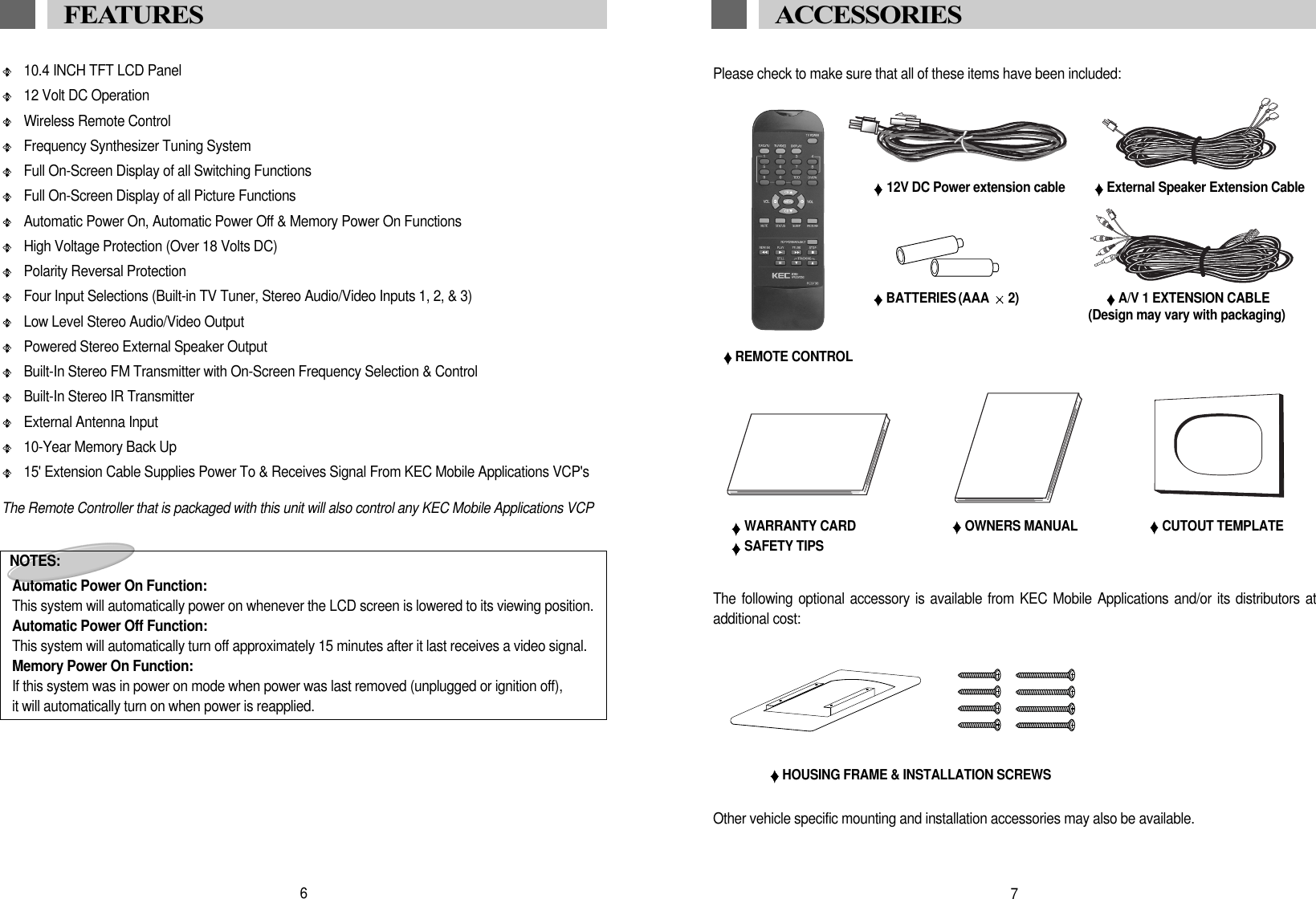

10.4 INCH TFT LCD Panel12 Volt DC OperationWireless Remote ControlFrequency Synthesizer Tuning SystemFull On-Screen Display of all Switching FunctionsFull On-Screen Display of all Picture FunctionsAutomatic Power On, Automatic Power Off & Memory Power On FunctionsHigh Voltage Protection (Over 18 Volts DC)Polarity Reversal ProtectionFour Input Selections (Built-in TV Tuner, Stereo Audio/Video Inputs 1, 2, & 3) Low Level Stereo Audio/Video OutputPowered Stereo External Speaker OutputBuilt-In Stereo FM Transmitter with On-Screen Frequency Selection & ControlBuilt-In Stereo IR TransmitterExternal Antenna Input10-Year Memory Back Up15' Extension Cable Supplies Power To & Receives Signal From KEC Mobile Applications VCP'sThe Remote Controller that is packaged with this unit will also control any KEC Mobile Applications VCPNOTES:Automatic Power On Function:This system will automatically power on whenever the LCD screen is lowered to its viewing position.Automatic Power Off Function:This system will automatically turn off approximately 15 minutes after it last receives a video signal.Memory Power On Function:If this system was in power on mode when power was last removed (unplugged or ignition off),it will automatically turn on when power is reapplied.6FEATURES Please check to make sure that all of these items have been included:REMOTE CONTROLA/V 1 EXTENSION CABLE(Design may vary with packaging)BATTERIES (AAA  2)WARRANTY CARDSAFETY TIPSOWNERS MANUALACCESSORIES HOUSING FRAME & INSTALLATION SCREWS7CUTOUT TEMPLATEOther vehicle specific mounting and installation accessories may also be available.The following optional accessory is available from KEC Mobile Applications and/or its distributors atadditional cost:12V DC Power extension cable External Speaker Extension Cable

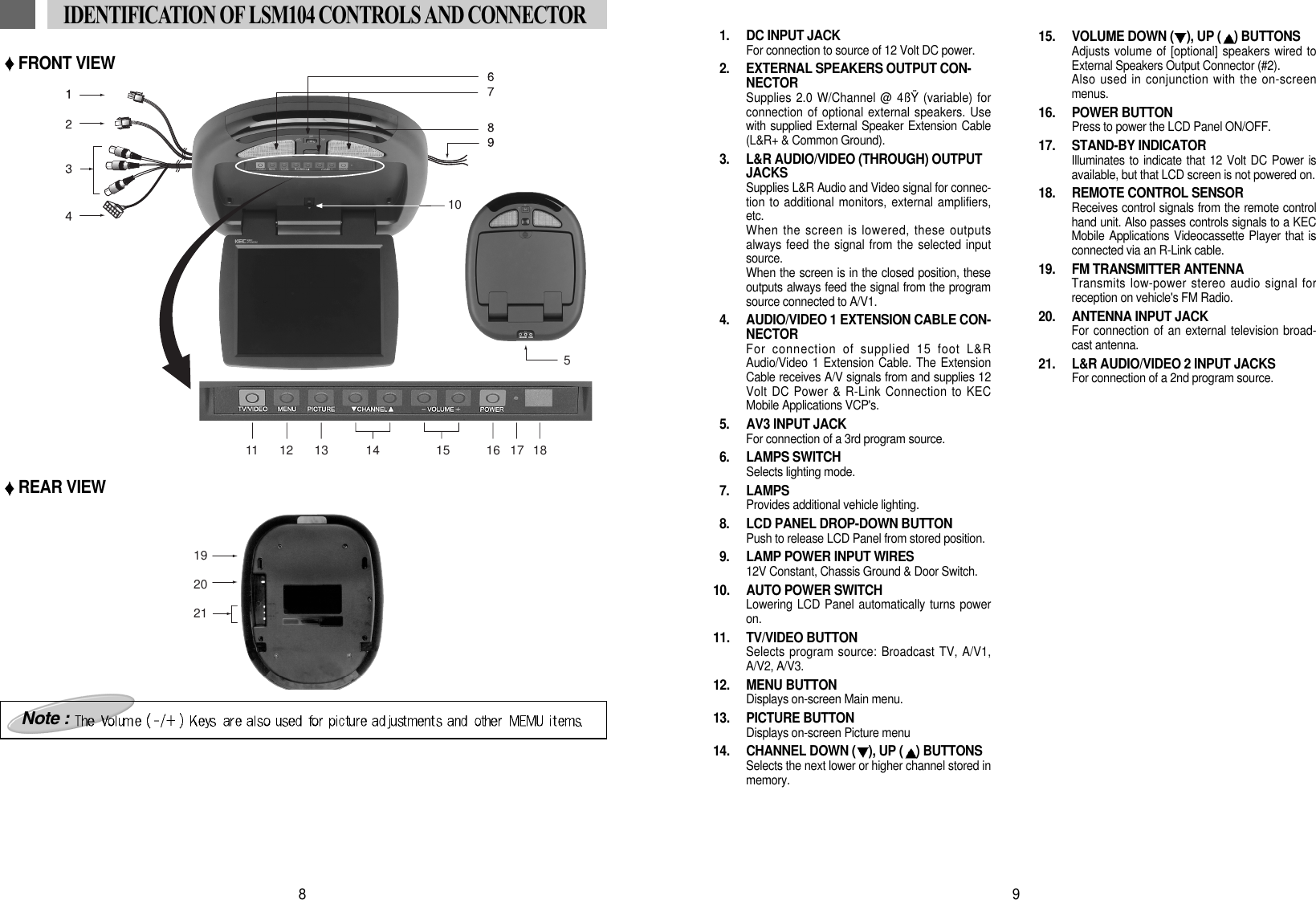

19202151011 12 13 14 15 16 17 188IDENTIFICATION OF LSM104 CONTROLS AND CONNECTORNote :FRONT VIEWREAR VIEW1.  DC INPUT JACKFor connection to source of 12 Volt DC power.2.  EXTERNAL SPEAKERS OUTPUT CON-NECTORSupplies 2.0 W/Channel @ 4ߟ (variable) forconnection of optional external speakers. Usewith supplied External Speaker Extension Cable(L&R+ & Common Ground).3.  L&R AUDIO/VIDEO (THROUGH) OUTPUTJACKSSupplies L&R Audio and Video signal for connec-tion to additional monitors, external amplifiers,etc.When the screen is lowered, these outputsalways feed the signal from the selected inputsource.When the screen is in the closed position, theseoutputs always feed the signal from the programsource connected to A/V1.4.  AUDIO/VIDEO 1 EXTENSION CABLE CON-NECTORFor connection of supplied 15 foot L&RAudio/Video 1 Extension Cable. The ExtensionCable receives A/V signals from and supplies 12Volt DC Power & R-Link Connection to KECMobile Applications VCP's.5.  AV3 INPUT JACKFor connection of a 3rd program source.6. LAMPS SWITCHSelects lighting mode.7. LAMPSProvides additional vehicle lighting.8.  LCD PANEL DROP-DOWN BUTTONPush to release LCD Panel from stored position.9.  LAMP POWER INPUT WIRES12V Constant, Chassis Ground & Door Switch.10.  AUTO POWER SWITCHLowering LCD Panel automatically turns poweron.11. TV/VIDEO BUTTONSelects program source: Broadcast TV, A/V1,A/V2, A/V3.12. MENU BUTTONDisplays on-screen Main menu.13. PICTURE BUTTONDisplays on-screen Picture menu14.  CHANNEL DOWN ( ), UP ( ) BUTTONSSelects the next lower or higher channel stored inmemory.15.  VOLUME DOWN ( ), UP ( ) BUTTONSAdjusts volume of [optional] speakers wired toExternal Speakers Output Connector (#2). Also used in conjunction with the on-screenmenus.16. POWER BUTTONPress to power the LCD Panel ON/OFF.17. STAND-BY INDICATORIlluminates to indicate that 12 Volt DC Power isavailable, but that LCD screen is not powered on.18.  REMOTE CONTROL SENSORReceives control signals from the remote controlhand unit. Also passes controls signals to a KECMobile Applications Videocassette Player that isconnected via an R-Link cable.19.  FM TRANSMITTER ANTENNATransmits low-power stereo audio signal forreception on vehicle's FM Radio. 20.  ANTENNA INPUT JACKFor connection of an external television broad-cast antenna.21.  L&R AUDIO/VIDEO 2 INPUT JACKSFor connection of a 2nd program source.9

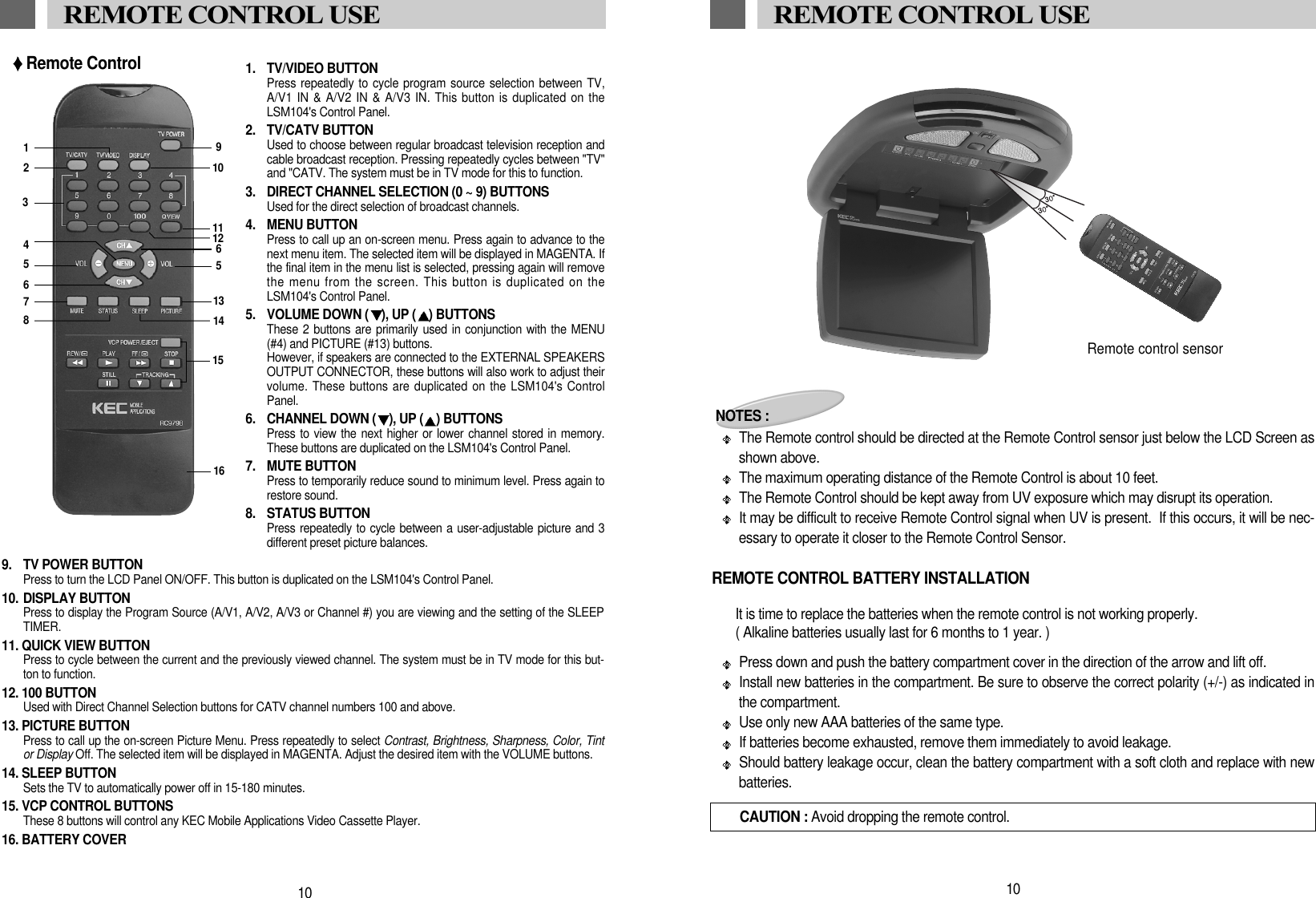

10REMOTE CONTROL USECAUTION : Avoid dropping the remote control.NOTES :The Remote control should be directed at the Remote Control sensor just below the LCD Screen asshown above. The maximum operating distance of the Remote Control is about 10 feet.The Remote Control should be kept away from UV exposure which may disrupt its operation.It may be difficult to receive Remote Control signal when UV is present.  If this occurs, it will be nec-essary to operate it closer to the Remote Control Sensor.It is time to replace the batteries when the remote control is not working properly.( Alkaline batteries usually last for 6 months to 1 year. )Press down and push the battery compartment cover in the direction of the arrow and lift off. Install new batteries in the compartment. Be sure to observe the correct polarity (+/-) as indicated inthe compartment. Use only new AAA batteries of the same type. If batteries become exhausted, remove them immediately to avoid leakage. Should battery leakage occur, clean the battery compartment with a soft cloth and replace with newbatteries.REMOTE CONTROL BATTERY INSTALLATIONRemote control sensor1. TV/VIDEO BUTTONPress repeatedly to cycle program source selection between TV,A/V1 IN & A/V2 IN & A/V3 IN. This button is duplicated on theLSM104's Control Panel.2. TV/CATV BUTTONUsed to choose between regular broadcast television reception andcable broadcast reception. Pressing repeatedly cycles between "TV"and "CATV. The system must be in TV mode for this to function.3. DIRECT CHANNEL SELECTION (0 ~ 9) BUTTONSUsed for the direct selection of broadcast channels.4. MENU BUTTONPress to call up an on-screen menu. Press again to advance to thenext menu item. The selected item will be displayed in MAGENTA. Ifthe final item in the menu list is selected, pressing again will removethe menu from the screen. This button is duplicated on theLSM104's Control Panel.5. VOLUME DOWN ( ), UP ( ) BUTTONSThese 2 buttons are primarily used in conjunction with the MENU(#4) and PICTURE (#13) buttons.However, if speakers are connected to the EXTERNAL SPEAKERSOUTPUT CONNECTOR, these buttons will also work to adjust theirvolume. These buttons are duplicated on the LSM104's ControlPanel.6. CHANNEL DOWN ( ), UP ( ) BUTTONSPress to view the next higher or lower channel stored in memory.These buttons are duplicated on the LSM104's Control Panel.7. MUTE BUTTONPress to temporarily reduce sound to minimum level. Press again torestore sound.8. STATUS BUTTONPress repeatedly to cycle between a user-adjustable picture and 3different preset picture balances.Remote Control10REMOTE CONTROL USE92651315143511046711812169. TV POWER BUTTONPress to turn the LCD Panel ON/OFF. This button is duplicated on the LSM104's Control Panel.10. DISPLAY BUTTONPress to display the Program Source (A/V1, A/V2, A/V3 or Channel #) you are viewing and the setting of the SLEEPTIMER.11. QUICK VIEW BUTTONPress to cycle between the current and the previously viewed channel. The system must be in TV mode for this but-ton to function.12. 100 BUTTONUsed with Direct Channel Selection buttons for CATV channel numbers 100 and above.13. PICTURE BUTTONPress to call up the on-screen Picture Menu. Press repeatedly to select Contrast, Brightness, Sharpness, Color, Tintor Display Off. The selected item will be displayed in MAGENTA. Adjust the desired item with the VOLUME buttons.14. SLEEP BUTTONSets the TV to automatically power off in 15-180 minutes.15. VCP CONTROL BUTTONSThese 8 buttons will control any KEC Mobile Applications Video Cassette Player.16. BATTERY COVER

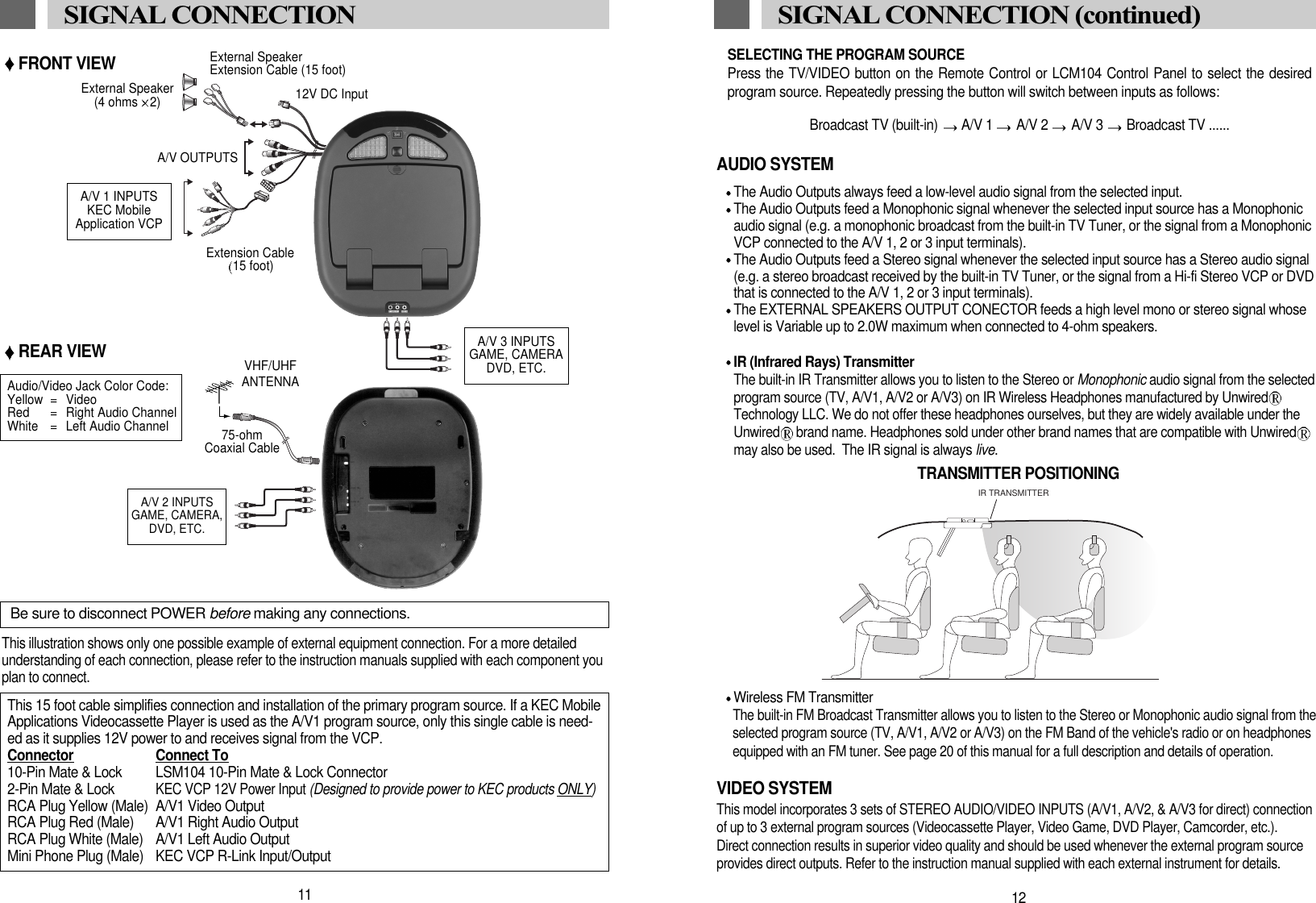

AUDIO SYSTEMThe Audio Outputs always feed a low-level audio signal from the selected input.The Audio Outputs feed a Monophonic signal whenever the selected input source has a Monophonicaudio signal (e.g. a monophonic broadcast from the built-in TV Tuner, or the signal from a MonophonicVCP connected to the A/V 1, 2 or 3 input terminals).The Audio Outputs feed a Stereo signal whenever the selected input source has a Stereo audio signal(e.g. a stereo broadcast received by the built-in TV Tuner, or the signal from a Hi-fi Stereo VCP or DVDthat is connected to the A/V 1, 2 or 3 input terminals).The EXTERNAL SPEAKERS OUTPUT CONECTOR feeds a high level mono or stereo signal whoselevel is Variable up to 2.0W maximum when connected to 4-ohm speakers.IR (Infrared Rays) TransmitterThe built-in IR Transmitter allows you to listen to the Stereo or Monophonic audio signal from the selectedprogram source (TV, A/V1, A/V2 or A/V3) on IR Wireless Headphones manufactured by UnwiredTechnology LLC. We do not offer these headphones ourselves, but they are widely available under theUnwired brand name. Headphones sold under other brand names that are compatible with Unwiredmay also be used.  The IR signal is always live.Wireless FM TransmitterThe built-in FM Broadcast Transmitter allows you to listen to the Stereo or Monophonic audio signal from theselected program source (TV, A/V1, A/V2 or A/V3) on the FM Band of the vehicle's radio or on headphonesequipped with an FM tuner. See page 20 of this manual for a full description and details of operation.VIDEO SYSTEMThis model incorporates 3 sets of STEREO AUDIO/VIDEO INPUTS (A/V1, A/V2, & A/V3 for direct) connectionof up to 3 external program sources (Videocassette Player, Video Game, DVD Player, Camcorder, etc.).Direct connection results in superior video quality and should be used whenever the external program sourceprovides direct outputs. Refer to the instruction manual supplied with each external instrument for details.12SIGNAL CONNECTION (continued)IR TRANSMITTERTRANSMITTER POSITIONINGSELECTING THE PROGRAM SOURCEPress the TV/VIDEO button on the Remote Control or LCM104 Control Panel to select the desiredprogram source. Repeatedly pressing the button will switch between inputs as follows:Broadcast TV (built-in)  A/V 1  A/V 2  A/V 3  Broadcast TV ......11SIGNAL CONNECTIONThis illustration shows only one possible example of external equipment connection. For a more detailedunderstanding of each connection, please refer to the instruction manuals supplied with each component youplan to connect.External Speaker(4 ohms 2)External SpeakerExtension Cable (15 foot)A/V 2 INPUTSGAME, CAMERA,DVD, ETC.A/V 1 INPUTSKEC MobileApplication VCPExtension Cable15 foot)A/V 3 INPUTSGAME, CAMERADVD, ETC.A/V OUTPUTSBe sure to disconnect POWER before making any connections.Audio/Video Jack Color Code:Yellow = VideoRed  = Right Audio ChannelWhite = Left Audio ChannelFRONT VIEWREAR VIEWVHF/UHFANTENNA75-ohmCoaxial Cable12V DC InputThis 15 foot cable simplifies connection and installation of the primary program source. If a KEC MobileApplications Videocassette Player is used as the A/V1 program source, only this single cable is need-ed as it supplies 12V power to and receives signal from the VCP.Connector Connect To10-Pin Mate & Lock LSM104 10-Pin Mate & Lock Connector 2-Pin Mate & Lock KEC VCP 12V Power Input (Designed to provide power to KEC products ONLY)RCA Plug Yellow (Male) A/V1 Video OutputRCA Plug Red (Male) A/V1 Right Audio OutputRCA Plug White (Male) A/V1 Left Audio OutputMini Phone Plug (Male) KEC VCP R-Link Input/Output

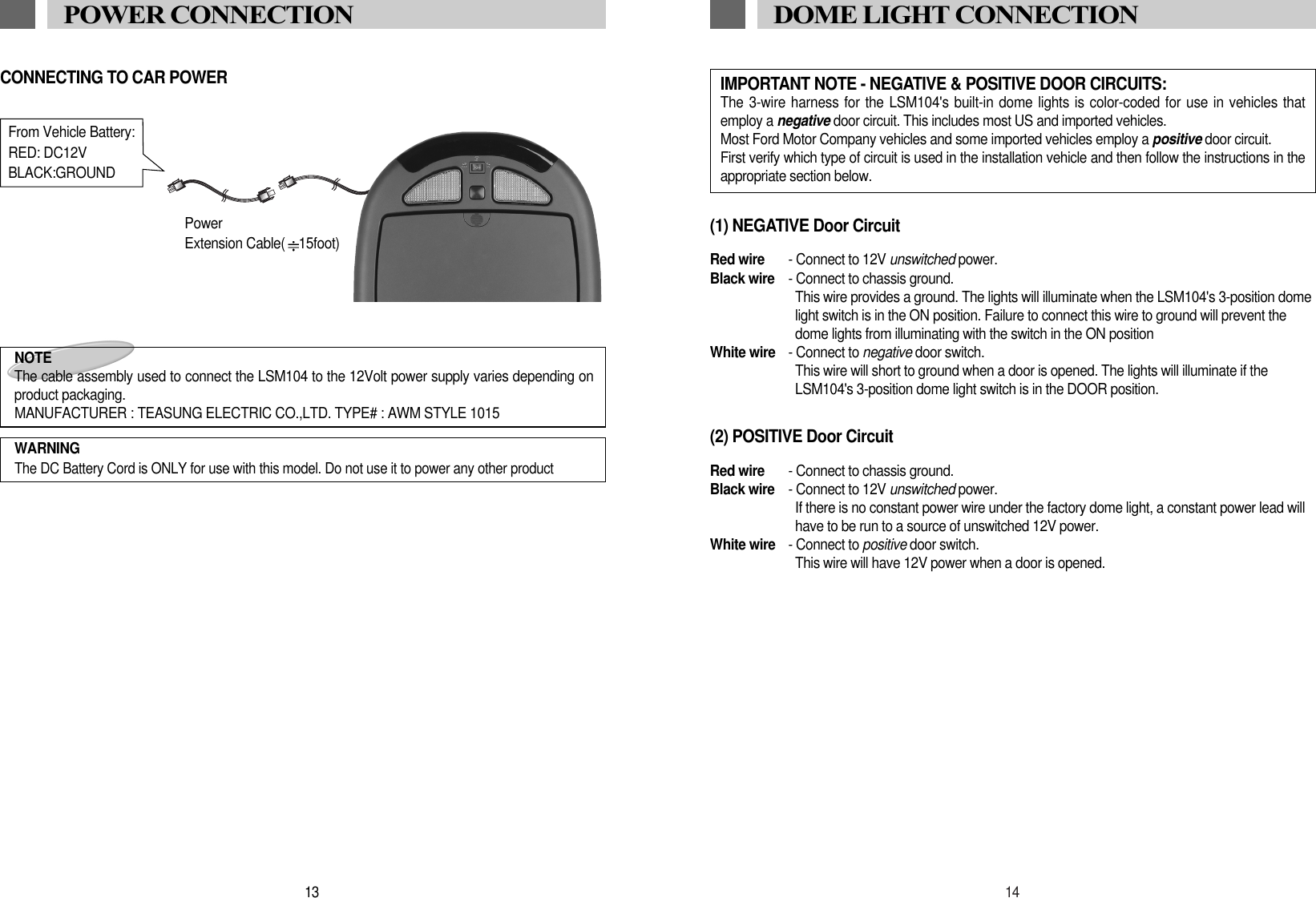

14DOME LIGHT CONNECTION(1) NEGATIVE Door CircuitRed wire - Connect to 12V unswitched power.Black wire - Connect to chassis ground.This wire provides a ground. The lights will illuminate when the LSM104's 3-position domelight switch is in the ON position. Failure to connect this wire to ground will prevent thedome lights from illuminating with the switch in the ON position White wire - Connect to negative door switch.This wire will short to ground when a door is opened. The lights will illuminate if theLSM104's 3-position dome light switch is in the DOOR position.(2) POSITIVE Door CircuitRed wire - Connect to chassis ground.Black wire - Connect to 12V unswitched power.If there is no constant power wire under the factory dome light, a constant power lead willhave to be run to a source of unswitched 12V power.White wire - Connect to positive door switch.This wire will have 12V power when a door is opened.IMPORTANT NOTE - NEGATIVE & POSITIVE DOOR CIRCUITS:The 3-wire harness for the LSM104's built-in dome lights is color-coded for use in vehicles thatemploy a negative door circuit. This includes most US and imported vehicles.Most Ford Motor Company vehicles and some imported vehicles employ a positive door circuit.First verify which type of circuit is used in the installation vehicle and then follow the instructions in theappropriate section below. 13POWER CONNECTIONNOTE The cable assembly used to connect the LSM104 to the 12Volt power supply varies depending onproduct packaging.MANUFACTURER : TEASUNG ELECTRIC CO.,LTD. TYPE# : AWM STYLE 1015WARNINGThe DC Battery Cord is ONLY for use with this model. Do not use it to power any other productFrom Vehicle Battery:RED: DC12VBLACK:GROUNDPowerExtension Cable( 15foot)CONNECTING TO CAR POWER

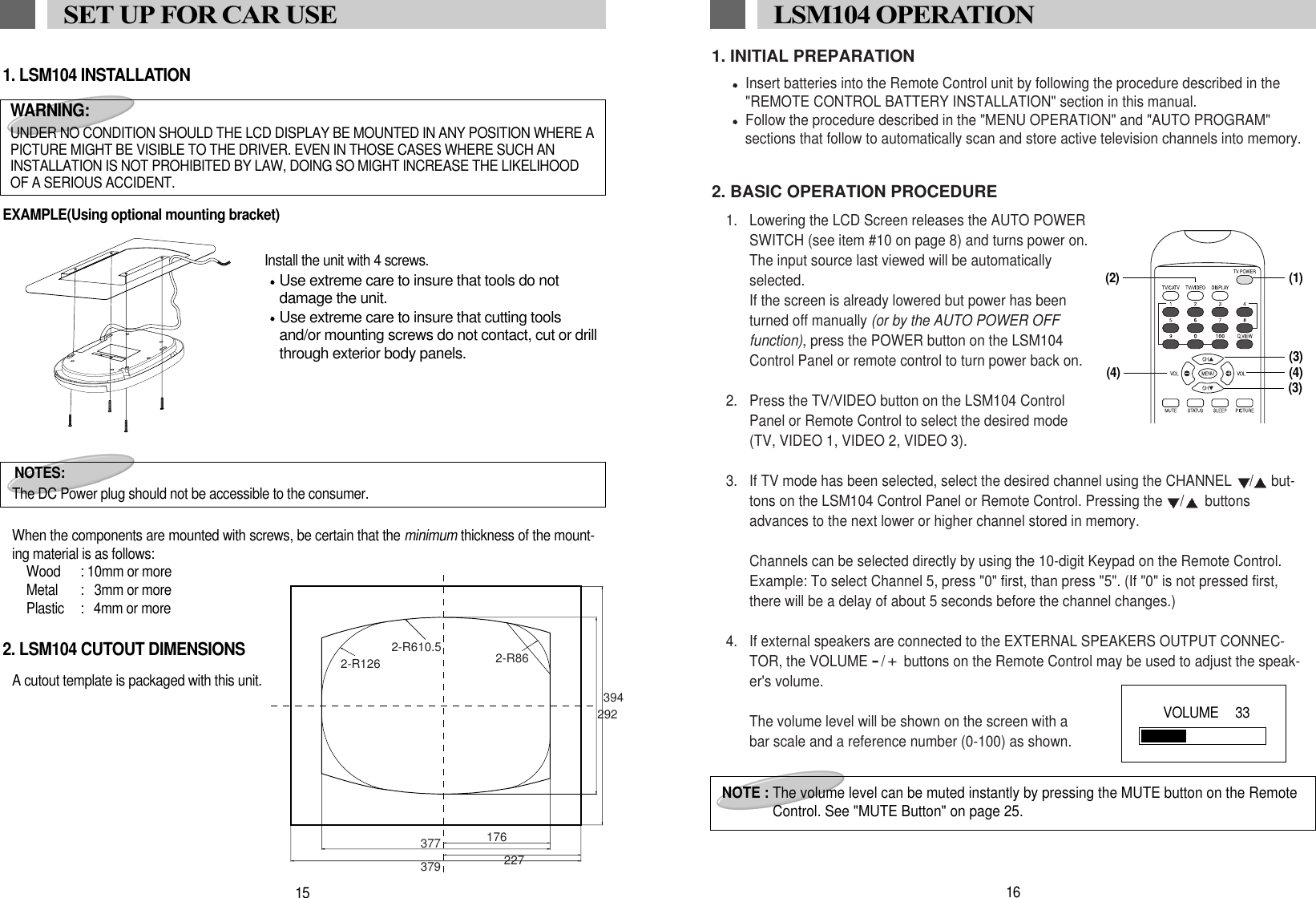

1. INITIAL PREPARATIONInsert batteries into the Remote Control unit by following the procedure described in the"REMOTE CONTROL BATTERY INSTALLATION" section in this manual.Follow the procedure described in the "MENU OPERATION" and "AUTO PROGRAM" sections that follow to automatically scan and store active television channels into memory.2. BASIC OPERATION PROCEDURE1. Lowering the LCD Screen releases the AUTO POWERSWITCH (see item #10 on page 8) and turns power on.The input source last viewed will be automaticallyselected. If the screen is already lowered but power has beenturned off manually (or by the AUTO POWER OFFfunction), press the POWER button on the LSM104Control Panel or remote control to turn power back on.2.  Press the TV/VIDEO button on the LSM104 ControlPanel or Remote Control to select the desired mode(TV, VIDEO 1, VIDEO 2, VIDEO 3).3.  If TV mode has been selected, select the desired channel using the CHANNEL  / but-tons on the LSM104 Control Panel or Remote Control. Pressing the  / buttonsadvances to the next lower or higher channel stored in memory.Channels can be selected directly by using the 10-digit Keypad on the Remote Control.Example: To select Channel 5, press "0" first, than press "5". (If "0" is not pressed first,there will be a delay of about 5 seconds before the channel changes.)4.  If external speakers are connected to the EXTERNAL SPEAKERS OUTPUT CONNEC-TOR, the VOLUME -/+buttons on the Remote Control may be used to adjust the speak-er's volume. The volume level will be shown on the screen with abar scale and a reference number (0-100) as shown. 16LSM104 OPERATION NOTE : The volume level can be muted instantly by pressing the MUTE button on the RemoteControl. See "MUTE Button" on page 25.(1)(3)(4) (4)(3)VOLUME   33(2)1. LSM104 INSTALLATIONEXAMPLE(Using optional mounting bracket)               Install the unit with 4 screws.Use extreme care to insure that tools do notdamage the unit.Use extreme care to insure that cutting toolsand/or mounting screws do not contact, cut or drillthrough exterior body panels.When the components are mounted with screws, be certain that the minimum thickness of the mount-ing material is as follows:Wood : 10mm or moreMetal :   3mm or morePlastic :  4mm or more2. LSM104 CUTOUT DIMENSIONSA cutout template is packaged with this unit.15SET UP FOR CAR USENOTES:The DC Power plug should not be accessible to the consumer.WARNING:UNDER NO CONDITION SHOULD THE LCD DISPLAY BE MOUNTED IN ANY POSITION WHERE APICTURE MIGHT BE VISIBLE TO THE DRIVER. EVEN IN THOSE CASES WHERE SUCH ANINSTALLATION IS NOT PROHIBITED BY LAW, DOING SO MIGHT INCREASE THE LIKELIHOODOF A SERIOUS ACCIDENT. 3942-R610.52-R126 2-R86176377379 227292

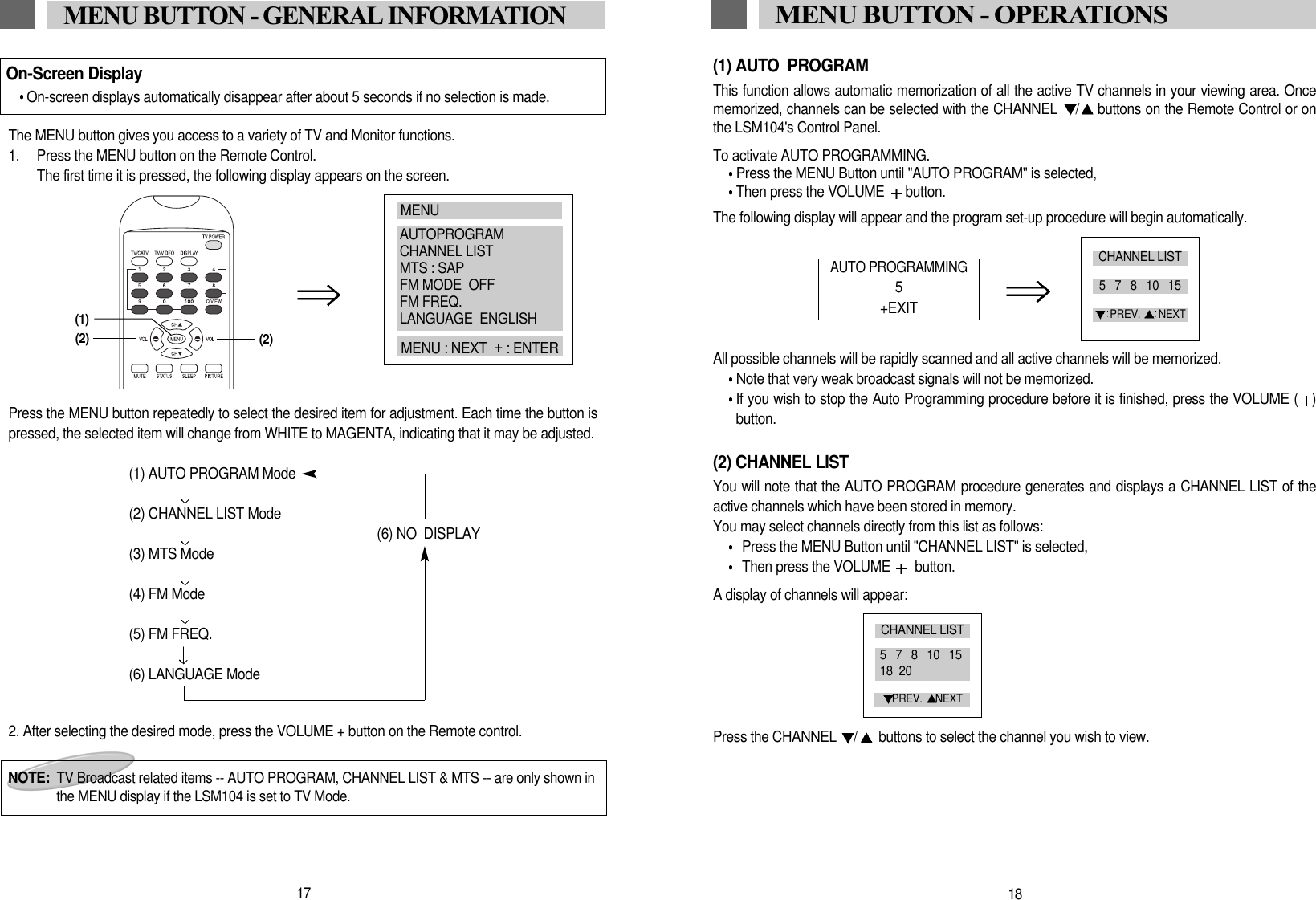

(1) AUTO  PROGRAMThis function allows automatic memorization of all the active TV channels in your viewing area. Oncememorized, channels can be selected with the CHANNEL  /buttons on the Remote Control or onthe LSM104's Control Panel. To activate AUTO PROGRAMMING. Press the MENU Button until "AUTO PROGRAM" is selected,Then press the VOLUME  button. The following display will appear and the program set-up procedure will begin automatically. All possible channels will be rapidly scanned and all active channels will be memorized.Note that very weak broadcast signals will not be memorized. If you wish to stop the Auto Programming procedure before it is finished, press the VOLUME ( )button.(2) CHANNEL LISTYou will note that the AUTO PROGRAM procedure generates and displays a CHANNEL LIST of theactive channels which have been stored in memory. You may select channels directly from this list as follows:Press the MENU Button until "CHANNEL LIST" is selected, Then press the VOLUME  button.  A display of channels will appear:Press the CHANNEL  /buttons to select the channel you wish to view.AUTO PROGRAMMING5+EXIT18MENU BUTTON - OPERATIONSCHANNEL LIST5   7   8   10   15PREV.  NEXTCHANNEL LIST5   7   8   10   1518  20PREV.  NEXTThe MENU button gives you access to a variety of TV and Monitor functions.1.  Press the MENU button on the Remote Control. The first time it is pressed, the following display appears on the screen.Press the MENU button repeatedly to select the desired item for adjustment. Each time the button ispressed, the selected item will change from WHITE to MAGENTA, indicating that it may be adjusted.(1) AUTO PROGRAM Mode(2) CHANNEL LIST Mode(6) NO  DISPLAY(3) MTS Mode(4) FM Mode(5) FM FREQ.(6) LANGUAGE Mode2. After selecting the desired mode, press the VOLUME + button on the Remote control.  On-Screen DisplayOn-screen displays automatically disappear after about 5 seconds if no selection is made.17MENU BUTTON - GENERAL INFORMATION(2)(2)(1)MENUAUTOPROGRAMCHANNEL LISTMTS : SAPFM MODE  OFFFM FREQ.LANGUAGE  ENGLISHMENU : NEXT  +: ENTERNOTE:  TV Broadcast related items -- AUTO PROGRAM, CHANNEL LIST & MTS -- are only shown inthe MENU display if the LSM104 is set to TV Mode.

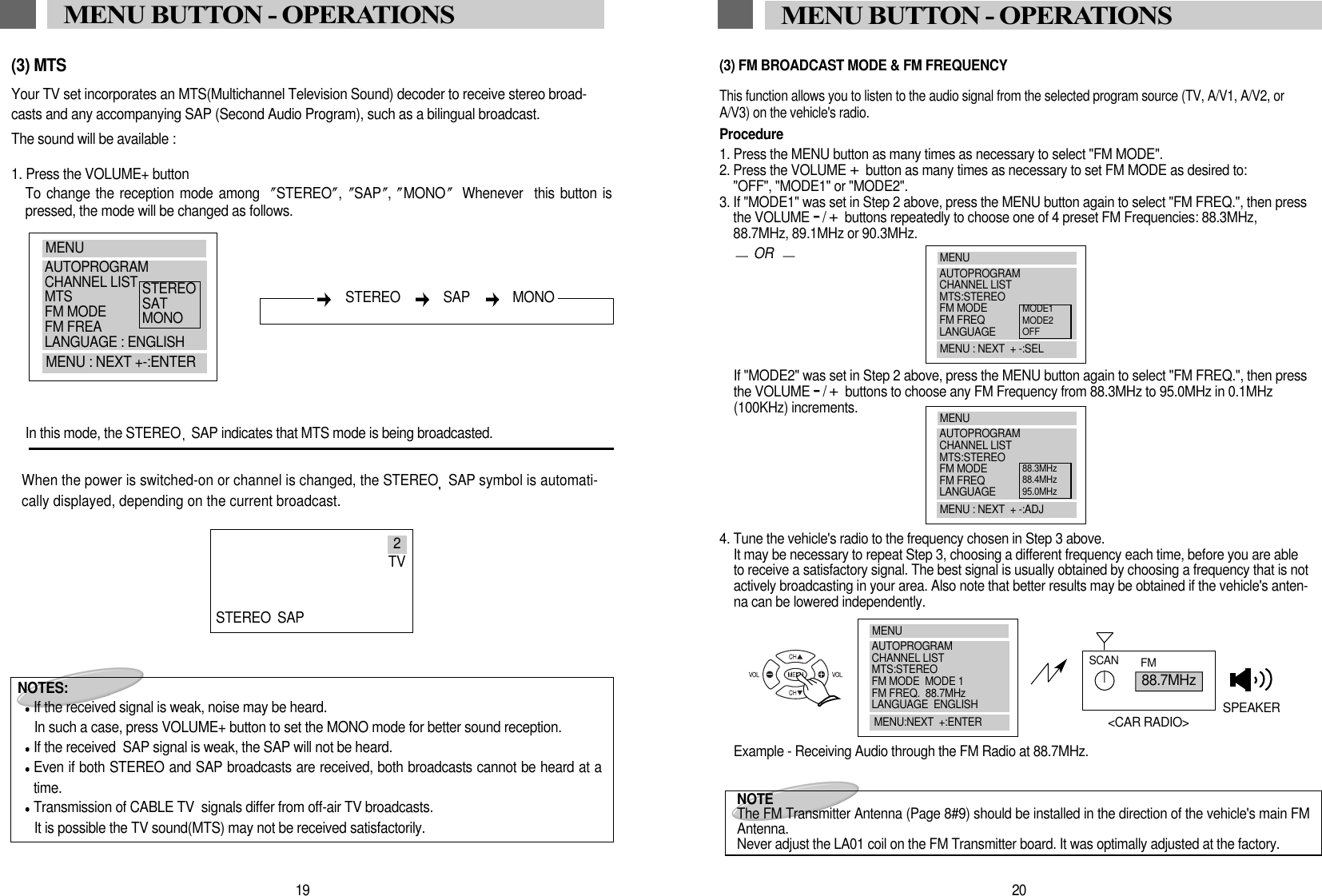

20MENU BUTTON - OPERATIONS(3) FM BROADCAST MODE & FM FREQUENCYThis function allows you to listen to the audio signal from the selected program source (TV, A/V1, A/V2, orA/V3) on the vehicle's radio. Procedure1. Press the MENU button as many times as necessary to select "FM MODE".2. Press the VOLUME +button as many times as necessary to set FM MODE as desired to:"OFF", "MODE1" or "MODE2".3. If "MODE1" was set in Step 2 above, press the MENU button again to select "FM FREQ.", then pressthe VOLUME -/+buttons repeatedly to choose one of 4 preset FM Frequencies: 88.3MHz,88.7MHz, 89.1MHz or 90.3MHz.ORIf "MODE2" was set in Step 2 above, press the MENU button again to select "FM FREQ.", then pressthe VOLUME -/+buttons to choose any FM Frequency from 88.3MHz to 95.0MHz in 0.1MHz(100KHz) increments. 4. Tune the vehicle's radio to the frequency chosen in Step 3 above.It may be necessary to repeat Step 3, choosing a different frequency each time, before you are ableto receive a satisfactory signal. The best signal is usually obtained by choosing a frequency that is notactively broadcasting in your area. Also note that better results may be obtained if the vehicle's anten-na can be lowered independently. Example - Receiving Audio through the FM Radio at 88.7MHz. 88.7MHzSCAN FMSPEAKER<CAR RADIO>NOTE The FM Transmitter Antenna (Page 8#9) should be installed in the direction of the vehicle's main FMAntenna. Never adjust the LA01 coil on the FM Transmitter board. It was optimally adjusted at the factory. MENUAUTOPROGRAMCHANNEL LISTMTS:STEREOFM MODEFM FREQLANGUAGEMENU : NEXT  + -:SELMODE1MODE2OFFMENUAUTOPROGRAMCHANNEL LISTMTS:STEREOFM MODEFM FREQLANGUAGEMENU : NEXT  + -:ADJ88.3MHz88.4MHz95.0MHzMENUAUTOPROGRAMCHANNEL LISTMTS:STEREOFM MODE  MODE 1FM FREQ.  88.7MHzLANGUAGE  ENGLISHMENU:NEXT  +:ENTER19MENU BUTTON - OPERATIONS(3) MTSYour TV set incorporates an MTS(Multichannel Television Sound) decoder to receive stereo broad-casts and any accompanying SAP (Second Audio Program), such as a bilingual broadcast.The sound will be available : 1. Press the VOLUME+ buttonTo change the reception mode among STEREO ,  SAP ,  MONO Whenever  this button ispressed, the mode will be changed as follows.In this mode, the STEREO SAP indicates that MTS mode is being broadcasted.When the power is switched-on or channel is changed, the STEREO SAP symbol is automati-cally displayed, depending on the current broadcast.NOTES:If the received signal is weak, noise may be heard.In such a case, press VOLUME+ button to set the MONO mode for better sound reception.If the received  SAP signal is weak, the SAP will not be heard.Even if both STEREO and SAP broadcasts are received, both broadcasts cannot be heard at atime.Transmission of CABLE TV  signals differ from off-air TV broadcasts. It is possible the TV sound(MTS) may not be received satisfactorily.MENUAUTOPROGRAMCHANNEL LISTMTSFM MODEFM FREALANGUAGE : ENGLISHMENU : NEXT +-:ENTERSTEREOSATMONOSTEREO   SAP   MONO2TVSTEREO SAP

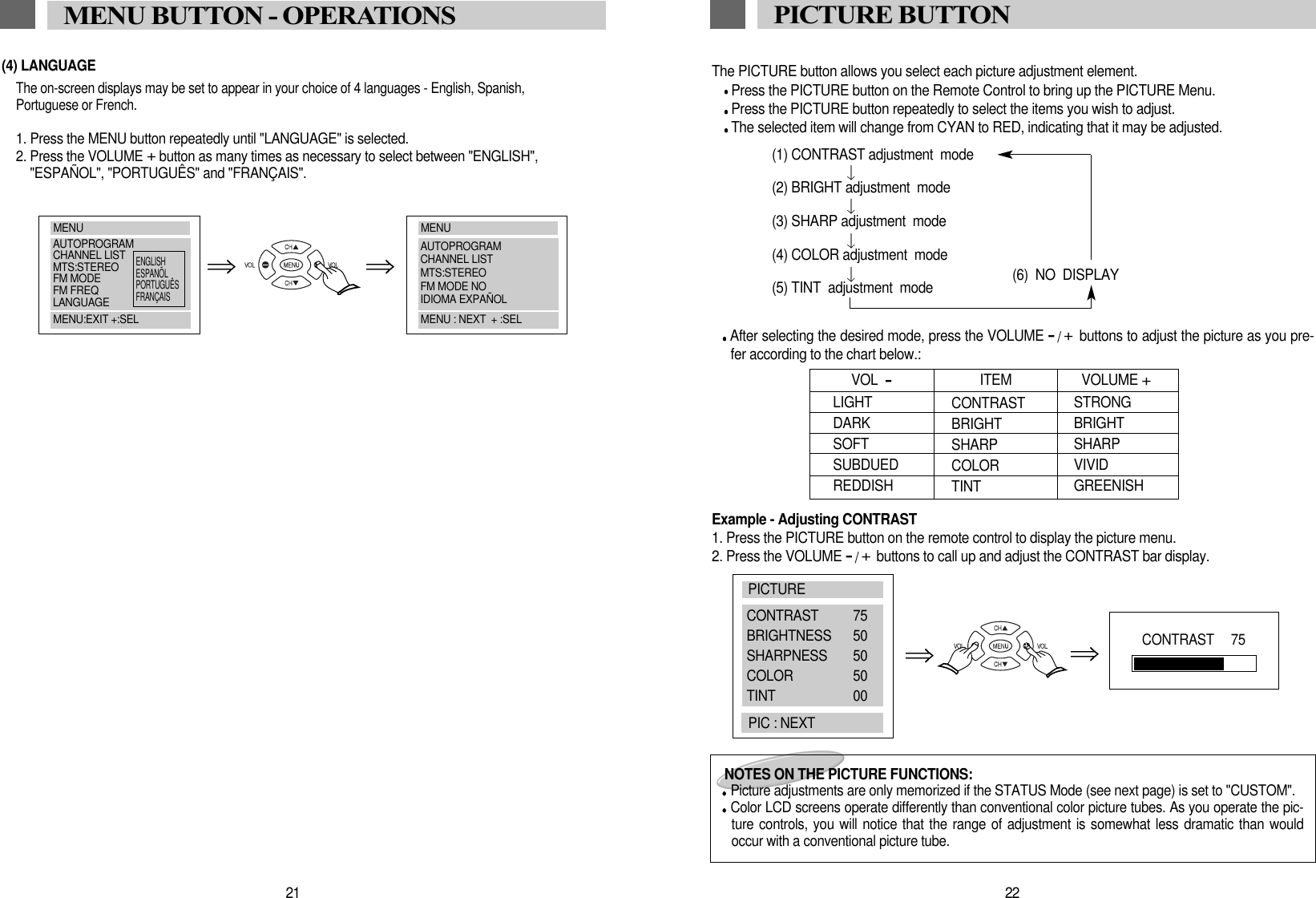

The PICTURE button allows you select each picture adjustment element.Press the PICTURE button on the Remote Control to bring up the PICTURE Menu.Press the PICTURE button repeatedly to select the items you wish to adjust. The selected item will change from CYAN to RED, indicating that it may be adjusted.(1) CONTRAST adjustment  mode(2) BRIGHT adjustment  mode(3) SHARP adjustment  mode(4) COLOR adjustment  mode(6)  NO  DISPLAY(5) TINT  adjustment  modeAfter selecting the desired mode, press the VOLUME -/+buttons to adjust the picture as you pre-fer according to the chart below.:Example - Adjusting CONTRAST  1. Press the PICTURE button on the remote control to display the picture menu. 2. Press the VOLUME -/+buttons to call up and adjust the CONTRAST bar display. 22PICTURE BUTTONLIGHTDARKSOFTSUBDUEDREDDISHVOL  -CONTRASTBRIGHTSHARP COLORTINTSTRONGBRIGHTSHARPVIVIDGREENISHITEM VOLUME +NOTES ON THE PICTURE FUNCTIONS:Picture adjustments are only memorized if the STATUS Mode (see next page) is set to "CUSTOM".Color LCD screens operate differently than conventional color picture tubes. As you operate the pic-ture controls, you will notice that the range of adjustment is somewhat less dramatic than wouldoccur with a conventional picture tube. CONTRAST   75PICTURECONTRAST 75BRIGHTNESS 50SHARPNESS 50COLOR 50TINT 00PIC : NEXT21MENU BUTTON - OPERATIONS(4) LANGUAGEThe on-screen displays may be set to appear in your choice of 4 languages - English, Spanish,Portuguese or French.1. Press the MENU button repeatedly until "LANGUAGE" is selected.2. Press the VOLUME +button as many times as necessary to select between "ENGLISH","ESPAÑOL", "PORTUGUÊS" and "FRANÇAIS".MENUAUTOPROGRAMCHANNEL LISTMTS:STEREOFM MODEFM FREQLANGUAGEMENU:EXIT +:SELENGLISHESPANÕLPORTUGUÊSFRANÇAISMENUAUTOPROGRAMCHANNEL LISTMTS:STEREOFM MODE NOIDIOMA EXPAÑOLMENU : NEXT  + :SEL

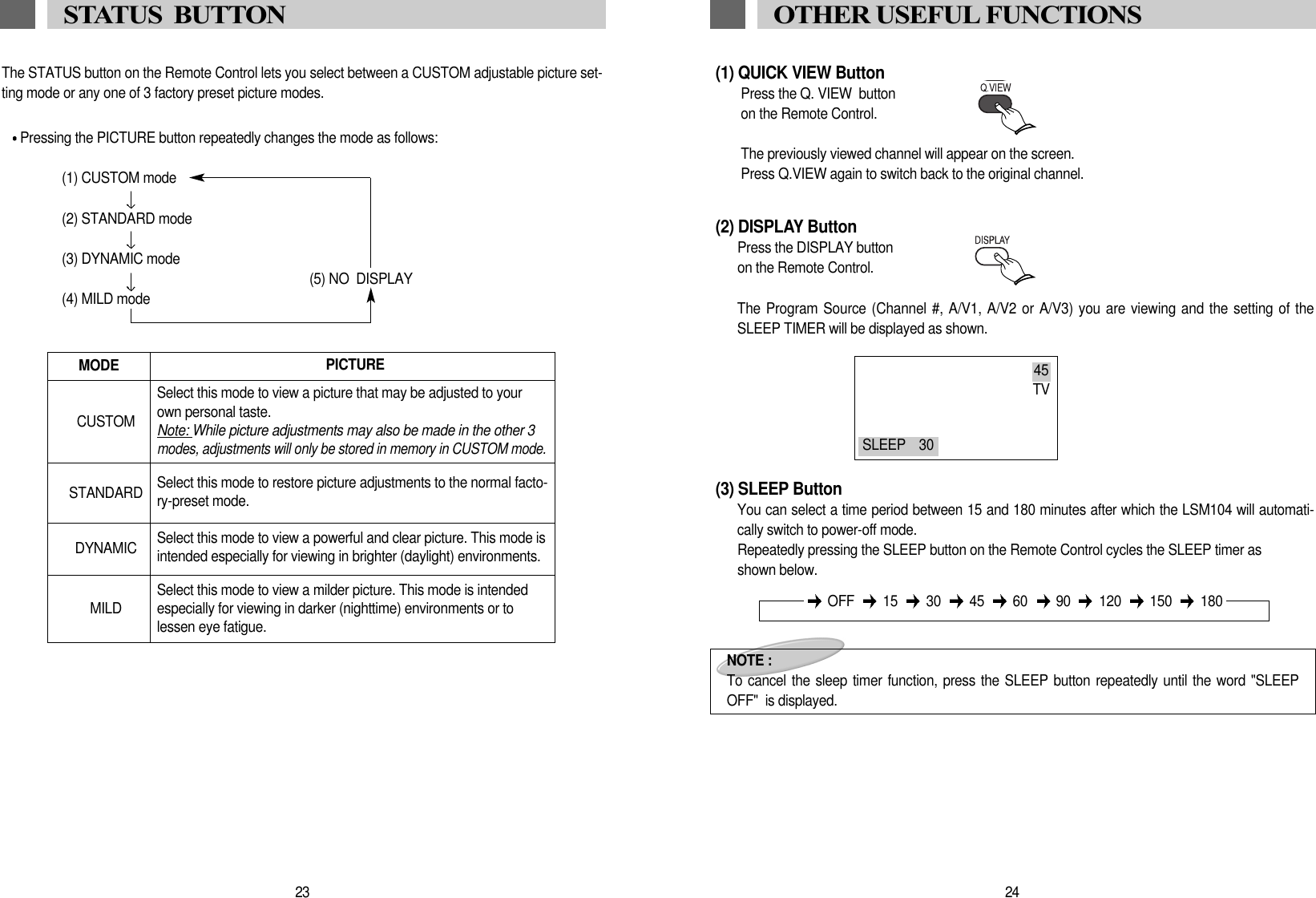

(1) QUICK VIEW ButtonPress the Q. VIEW  buttonon the Remote Control.The previously viewed channel will appear on the screen. Press Q.VIEW again to switch back to the original channel.(2) DISPLAY ButtonPress the DISPLAY buttonon the Remote Control.The Program Source (Channel #, A/V1, A/V2 or A/V3) you are viewing and the setting of theSLEEP TIMER will be displayed as shown. (3) SLEEP ButtonYou can select a time period between 15 and 180 minutes after which the LSM104 will automati-cally switch to power-off mode. Repeatedly pressing the SLEEP button on the Remote Control cycles the SLEEP timer asshown below.NOTE :To cancel the sleep timer function, press the SLEEP button repeatedly until the word "SLEEPOFF"  is displayed.24OTHER USEFUL FUNCTIONS45TVSLEEP    30OFF 15 30 45 60 90 120 150 180The STATUS button on the Remote Control lets you select between a CUSTOM adjustable picture set-ting mode or any one of 3 factory preset picture modes.Pressing the PICTURE button repeatedly changes the mode as follows:(1) CUSTOM mode(2) STANDARD mode(3) DYNAMIC mode(5) NO  DISPLAY(4) MILD modePICTUREMODESelect this mode to view a picture that may be adjusted to yourown personal taste. Note: While picture adjustments may also be made in the other 3modes, adjustments will only be stored in memory in CUSTOM mode. Select this mode to restore picture adjustments to the normal facto-ry-preset mode. Select this mode to view a powerful and clear picture. This mode isintended especially for viewing in brighter (daylight) environments.Select this mode to view a milder picture. This mode is intendedespecially for viewing in darker (nighttime) environments or tolessen eye fatigue. STANDARDCUSTOMDYNAMICMILD23STATUS  BUTTON

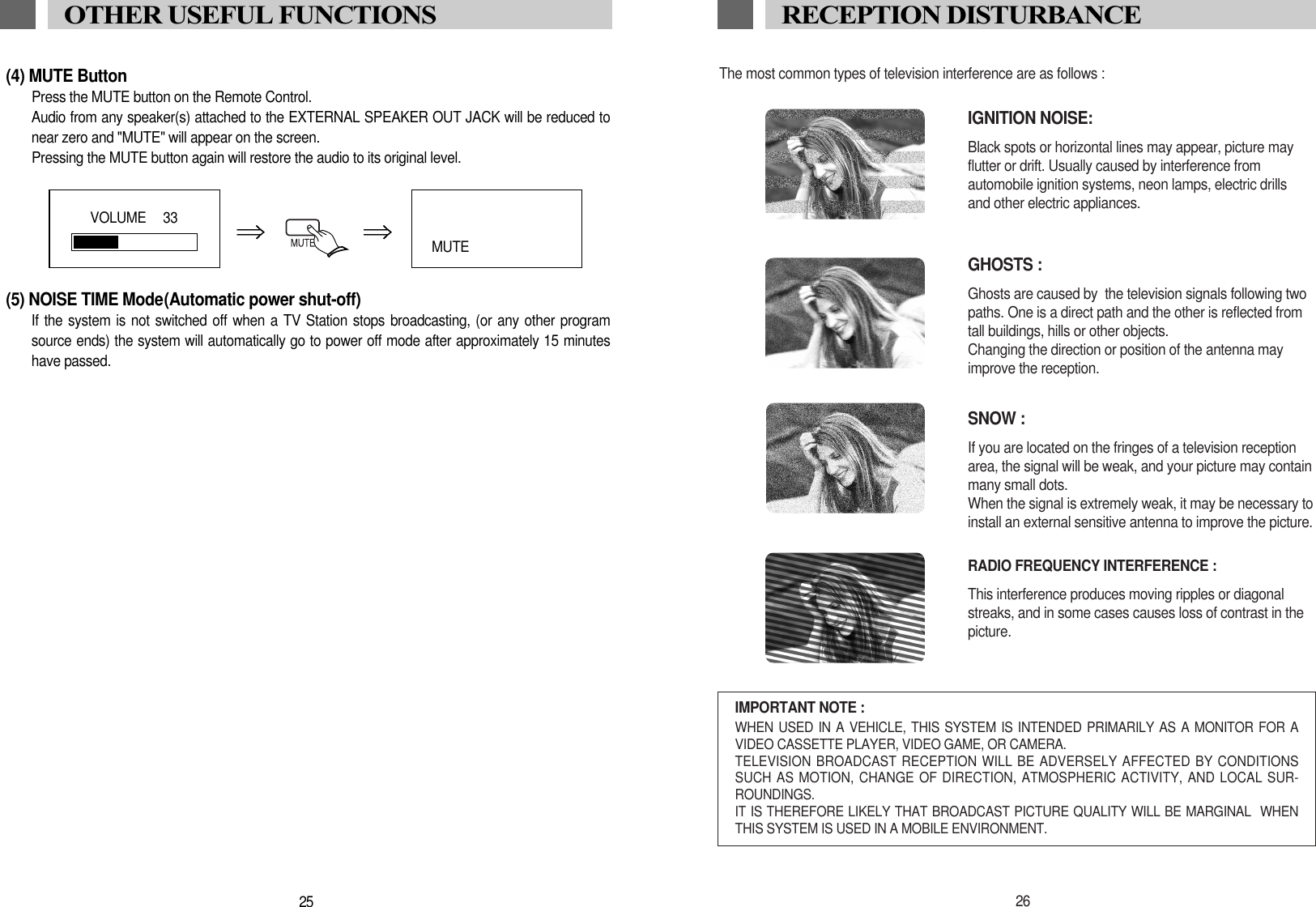

The most common types of television interference are as follows :IGNITION NOISE:Black spots or horizontal lines may appear, picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps, electric drillsand other electric appliances.GHOSTS :Ghosts are caused by  the television signals following two paths. One is a direct path and the other is reflected fromtall buildings, hills or other objects. Changing the direction or position of the antenna mayimprove the reception.SNOW : If you are located on the fringes of a television reception area, the signal will be weak, and your picture may containmany small dots. When the signal is extremely weak, it may be necessary to install an external sensitive antenna to improve the picture.RADIO FREQUENCY INTERFERENCE : This interference produces moving ripples or diagonal streaks, and in some cases causes loss of contrast in thepicture.IMPORTANT NOTE :WHEN USED IN A VEHICLE, THIS SYSTEM IS INTENDED PRIMARILY AS A MONITOR FOR AVIDEO CASSETTE PLAYER, VIDEO GAME, OR CAMERA.TELEVISION BROADCAST RECEPTION WILL BE ADVERSELY AFFECTED BY CONDITIONSSUCH AS MOTION, CHANGE OF DIRECTION, ATMOSPHERIC ACTIVITY, AND LOCAL SUR-ROUNDINGS.IT IS THEREFORE LIKELY THAT BROADCAST PICTURE QUALITY WILL BE MARGINAL  WHENTHIS SYSTEM IS USED IN A MOBILE ENVIRONMENT.26RECEPTION DISTURBANCE(4) MUTE ButtonPress the MUTE button on the Remote Control. Audio from any speaker(s) attached to the EXTERNAL SPEAKER OUT JACK will be reduced tonear zero and "MUTE" will appear on the screen. Pressing the MUTE button again will restore the audio to its original level. (5) NOISE TIME Mode(Automatic power shut-off)If the system is not switched off when a TV Station stops broadcasting, (or any other programsource ends) the system will automatically go to power off mode after approximately 15 minuteshave passed. 25OTHER USEFUL FUNCTIONSVOLUME   33MUTE

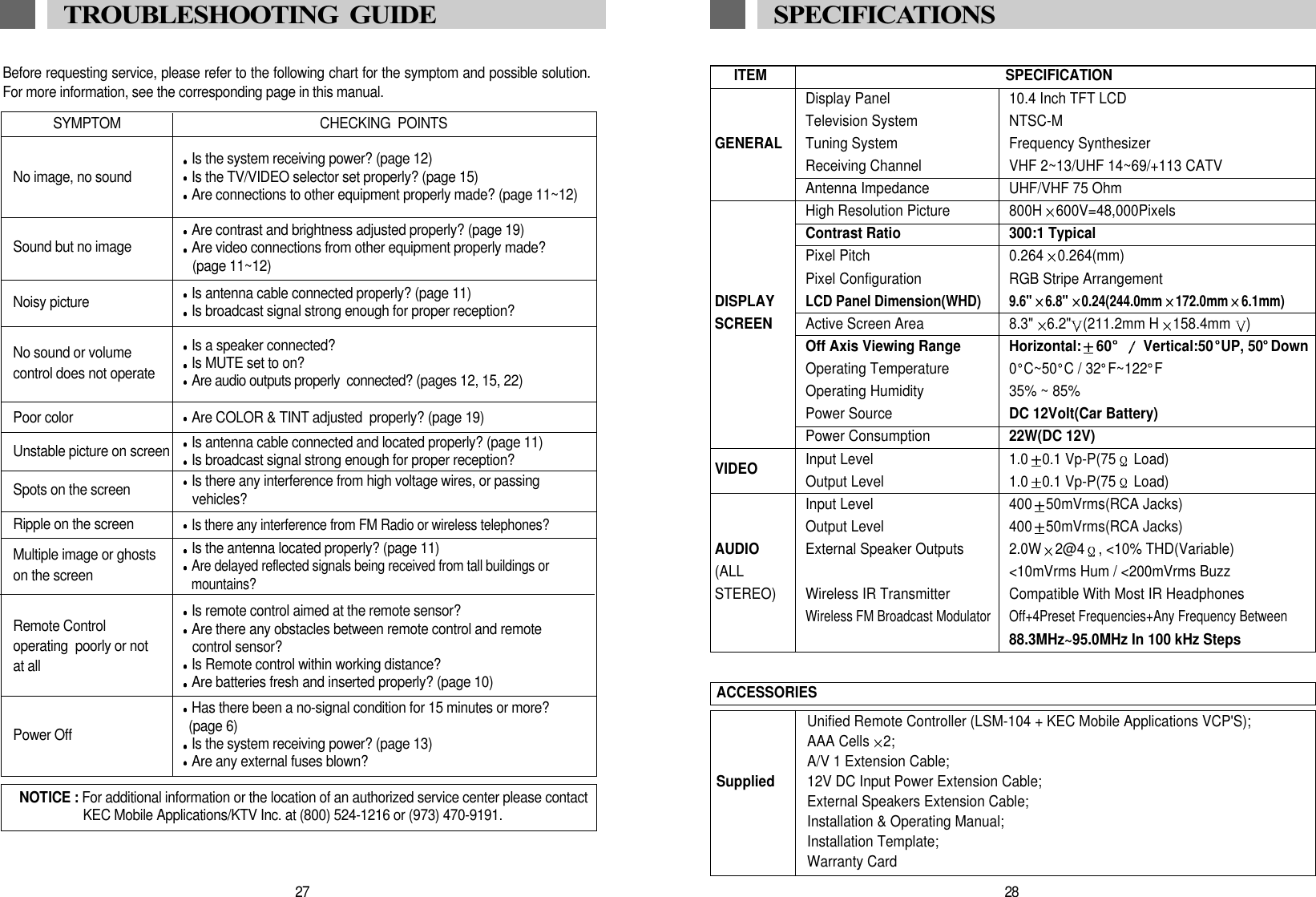

ITEM SPECIFICATIONDisplay Panel 10.4 Inch TFT LCDTelevision System NTSC-MGENERAL Tuning System Frequency SynthesizerReceiving Channel VHF 2~13/UHF 14~69/+113 CATVAntenna Impedance UHF/VHF 75 OhmHigh Resolution Picture 800H 600V=48,000PixelsContrast Ratio 300:1 TypicalPixel Pitch 0.264 0.264(mm)Pixel Configuration RGB Stripe ArrangementDISPLAYLCD Panel Dimension(WHD)9.6" 6.8" 0.24(244.0mm 172.0mm 6.1mm)SCREEN Active Screen Area 8.3" 6.2" (211.2mm H 158.4mm  )Off Axis Viewing Range Horizontal: 60 Vertical:50 UP, 50 DownOperating Temperature 0 C~50 C / 32 F~122 FOperating Humidity 35% ~ 85%Power Source DC 12Volt(Car Battery)Power Consumption 22W(DC 12V)VIDEO Input Level 1.0 0.1 Vp-P(75 Load)Output Level 1.0 0.1 Vp-P(75 Load)Input Level 400 50mVrms(RCA Jacks)Output Level 400 50mVrms(RCA Jacks)AUDIO External Speaker Outputs 2.0W 2@4 , <10% THD(Variable)(ALL <10mVrms Hum / <200mVrms BuzzSTEREO) Wireless IR Transmitter Compatible With Most IR HeadphonesWireless FM Broadcast Modulator Off+4Preset Frequencies+Any Frequency Between88.3MHz~95.0MHz In 100 kHz StepsUnified Remote Controller (LSM-104 + KEC Mobile Applications VCP'S);AAA Cells 2;A/V 1 Extension Cable;Supplied 12V DC Input Power Extension Cable;External Speakers Extension Cable;Installation & Operating Manual;Installation Template;Warranty CardACCESSORIES28SPECIFICATIONSBefore requesting service, please refer to the following chart for the symptom and possible solution.For more information, see the corresponding page in this manual. SYMPTOMNo image, no sound Is the system receiving power? (page 12)Is the TV/VIDEO selector set properly? (page 15)Are connections to other equipment properly made? (page 11~12)Sound but no image Are contrast and brightness adjusted properly? (page 19)Are video connections from other equipment properly made?(page 11~12)Unstable picture on screen Is antenna cable connected and located properly? (page 11)Is broadcast signal strong enough for proper reception?Spots on the screen Is there any interference from high voltage wires, or passing vehicles?Ripple on the screenIs there any interference from FM Radio or wireless telephones?Power OffHas there been a no-signal condition for 15 minutes or more? (page 6)Is the system receiving power? (page 13)Are any external fuses blown?Multiple image or ghostson the screenIs the antenna located properly? (page 11)Are delayed reflected signals being received from tall buildings or  mountains?Remote Control operating  poorly or not at allIs remote control aimed at the remote sensor? Are there any obstacles between remote control and remotecontrol sensor?Is Remote control within working distance? Are batteries fresh and inserted properly? (page 10)Noisy picture Is antenna cable connected properly? (page 11)Is broadcast signal strong enough for proper reception? No sound or volume control does not operateIs a speaker connected? Is MUTE set to on? Are audio outputs properly  connected? (pages 12, 15, 22)Poor color  Are COLOR & TINT adjusted  properly? (page 19)CHECKING  POINTSNOTICE : For additional information or the location of an authorized service center please contactKEC Mobile Applications/KTV Inc. at (800) 524-1216 or (973) 470-9191.27TROUBLESHOOTING  GUIDE
