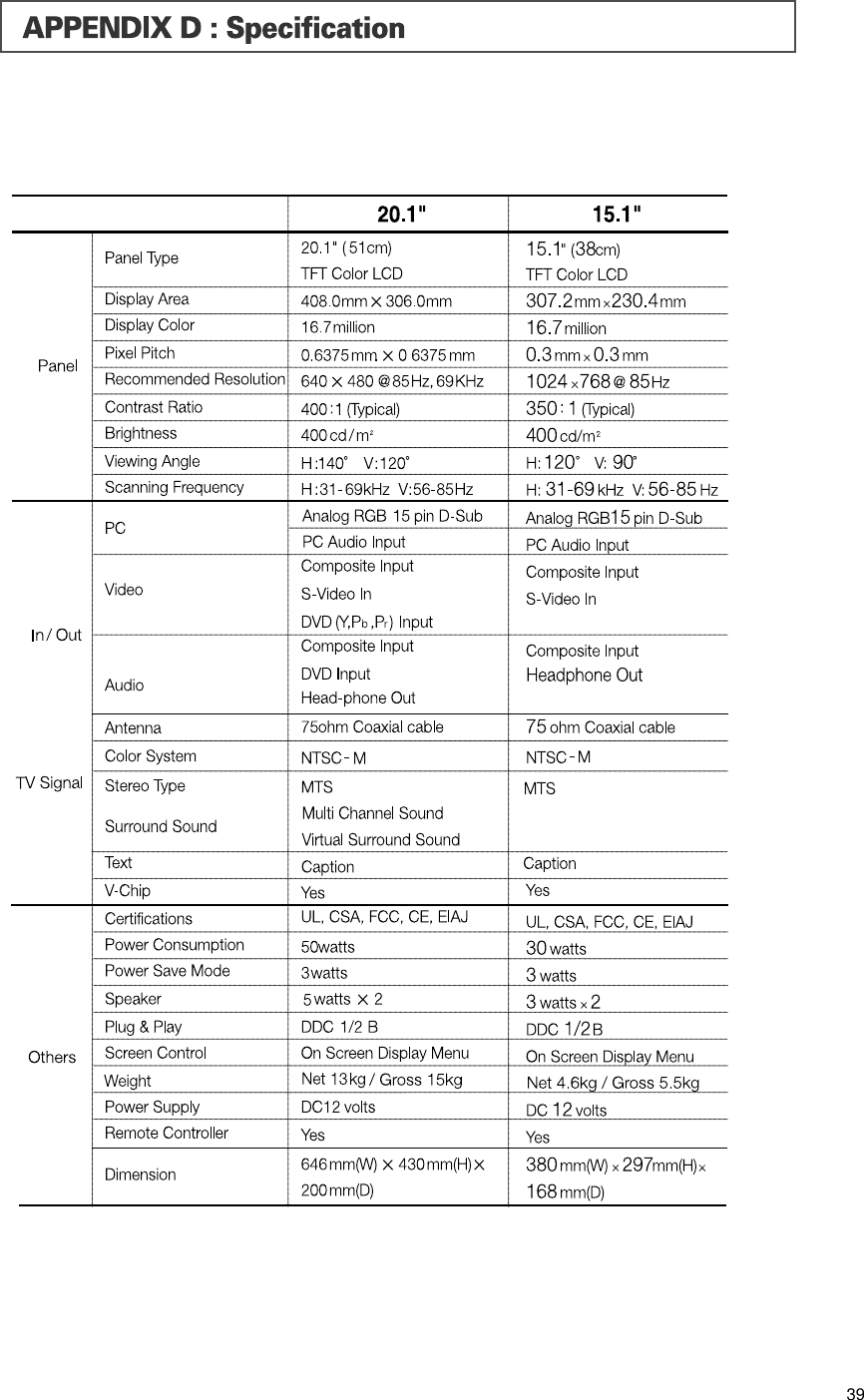

TFT LCD TVUser’s ManualKLT151KLT201

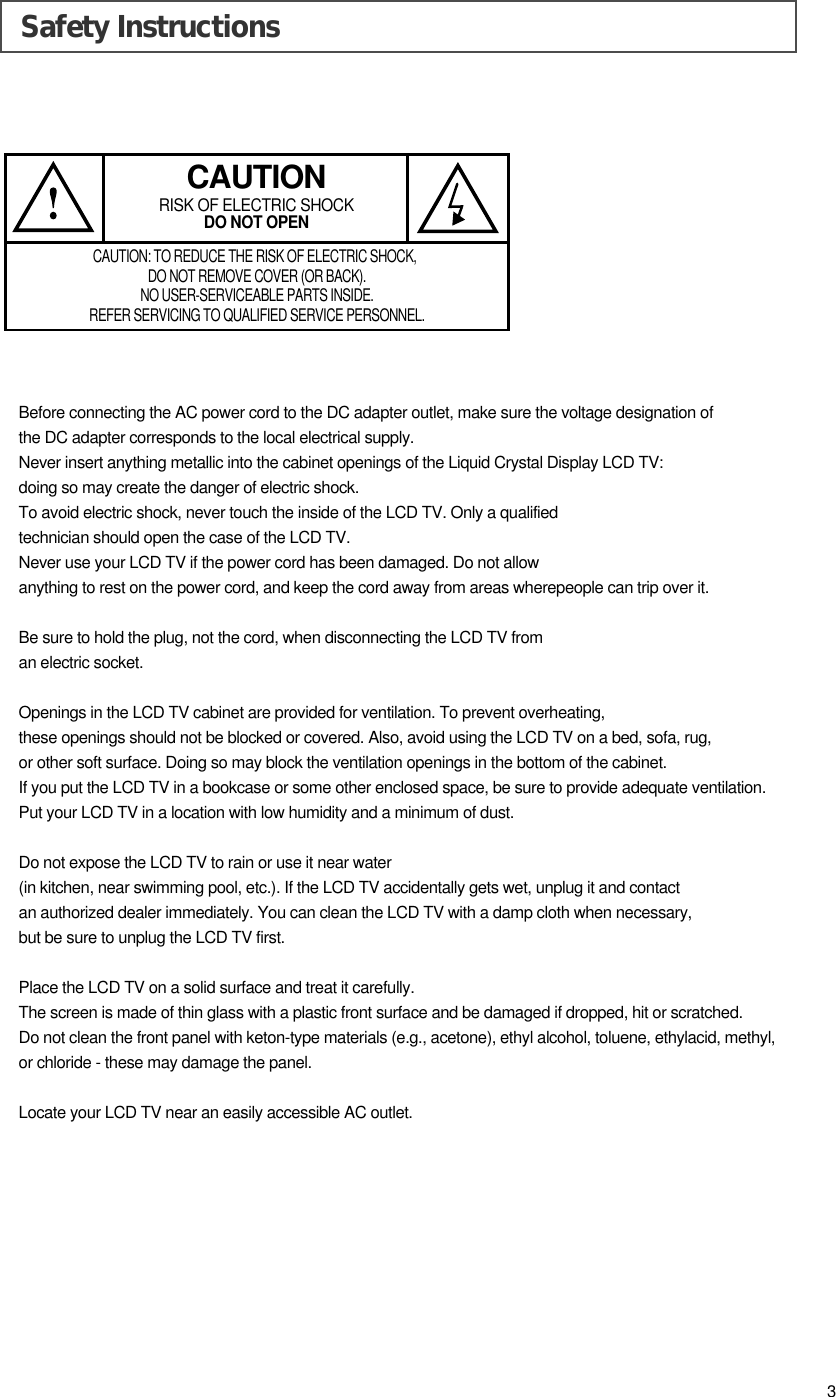

Safety InstructionsBefore connecting the AC power cord to the DC adapter outlet, make sure the voltage designation ofthe DC adapter corresponds to the local electrical supply.Never insert anything metallic into the cabinet openings of the Liquid Crystal Display LCD TV: doing so may create the danger of electric shock.To avoid electric shock, never touch the inside of the LCD TV. Only a qualified technician should open the case of the LCD TV.Never use your LCD TV if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from areas wherepeople can trip over it.Be sure to hold the plug, not the cord, when disconnecting the LCD TV from an electric socket.Openings in the LCD TV cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Also, avoid using the LCD TV on a bed, sofa, rug, or other soft surface. Doing so may block the ventilation openings in the bottom of the cabinet.If you put the LCD TV in a bookcase or some other enclosed space, be sure to provide adequate ventilation.Put your LCD TV in a location with low humidity and a minimum of dust.Do not expose the LCD TV to rain or use it near water (in kitchen, near swimming pool, etc.). If the LCD TV accidentally gets wet, unplug it and contact an authorized dealer immediately. You can clean the LCD TV with a damp cloth when necessary, but be sure to unplug the LCD TV first.Place the LCD TV on a solid surface and treat it carefully. The screen is made of thin glass with a plastic front surface and be damaged if dropped, hit or scratched. Do not clean the front panel with keton-type materials (e.g., acetone), ethyl alcohol, toluene, ethylacid, methyl, or chloride - these may damage the panel.Locate your LCD TV near an easily accessible AC outlet.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.3

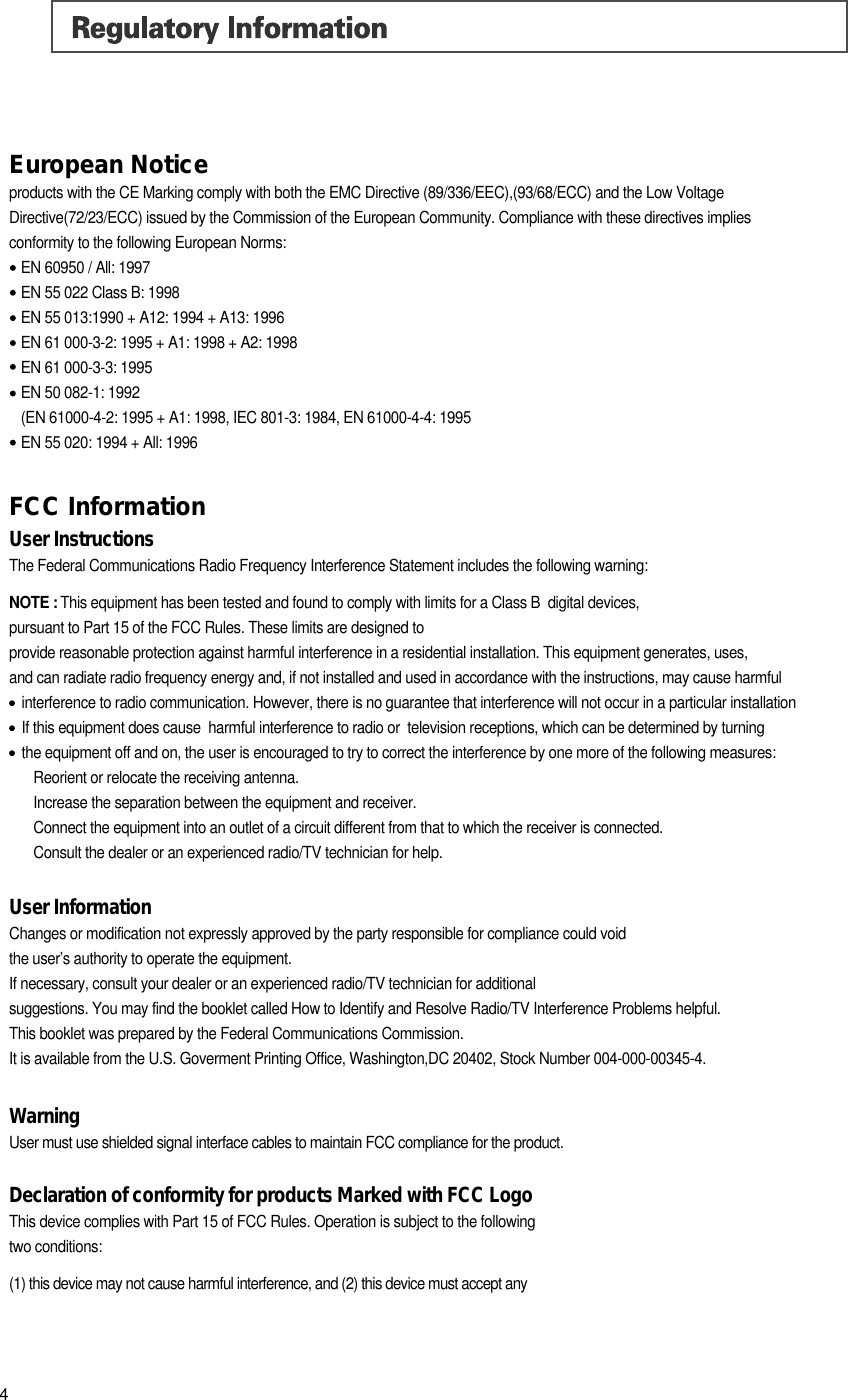

European Noticeproducts with the CE Marking comply with both the EMC Directive (89/336/EEC),(93/68/ECC) and the Low VoltageDirective(72/23/ECC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms:EN 60950 / All: 1997EN 55 022 Class B: 1998EN 55 013:1990 + A12: 1994 + A13: 1996 EN 61 000-3-2: 1995 + A1: 1998 + A2: 1998EN 61 000-3-3: 1995 EN 50 082-1: 1992 (EN 61000-4-2: 1995 + A1: 1998, IEC 801-3: 1984, EN 61000-4-4: 1995EN 55 020: 1994 + All: 1996FCC InformationUser InstructionsThe Federal Communications Radio Frequency Interference Statement includes the following warning:NOTE : This equipment has been tested and found to comply with limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communication. However, there is no guarantee that interference will not occur in a particular installationIf this equipment does cause harmful interference to radio or television receptions, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet of a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.User InformationChanges or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.If necessary, consult your dealer or an experienced radio/TV technician for additional suggestions. You may find the booklet called How to Identify and Resolve Radio/TV Interference Problems helpful.This booklet was prepared by the Federal Communications Commission. It is available from the U.S. Goverment Printing Office, Washington,DC 20402, Stock Number 004-000-00345-4.WarningUser must use shielded signal interface cables to maintain FCC compliance for the product.Declaration of conformity for products Marked with FCC LogoThis device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any 4
5

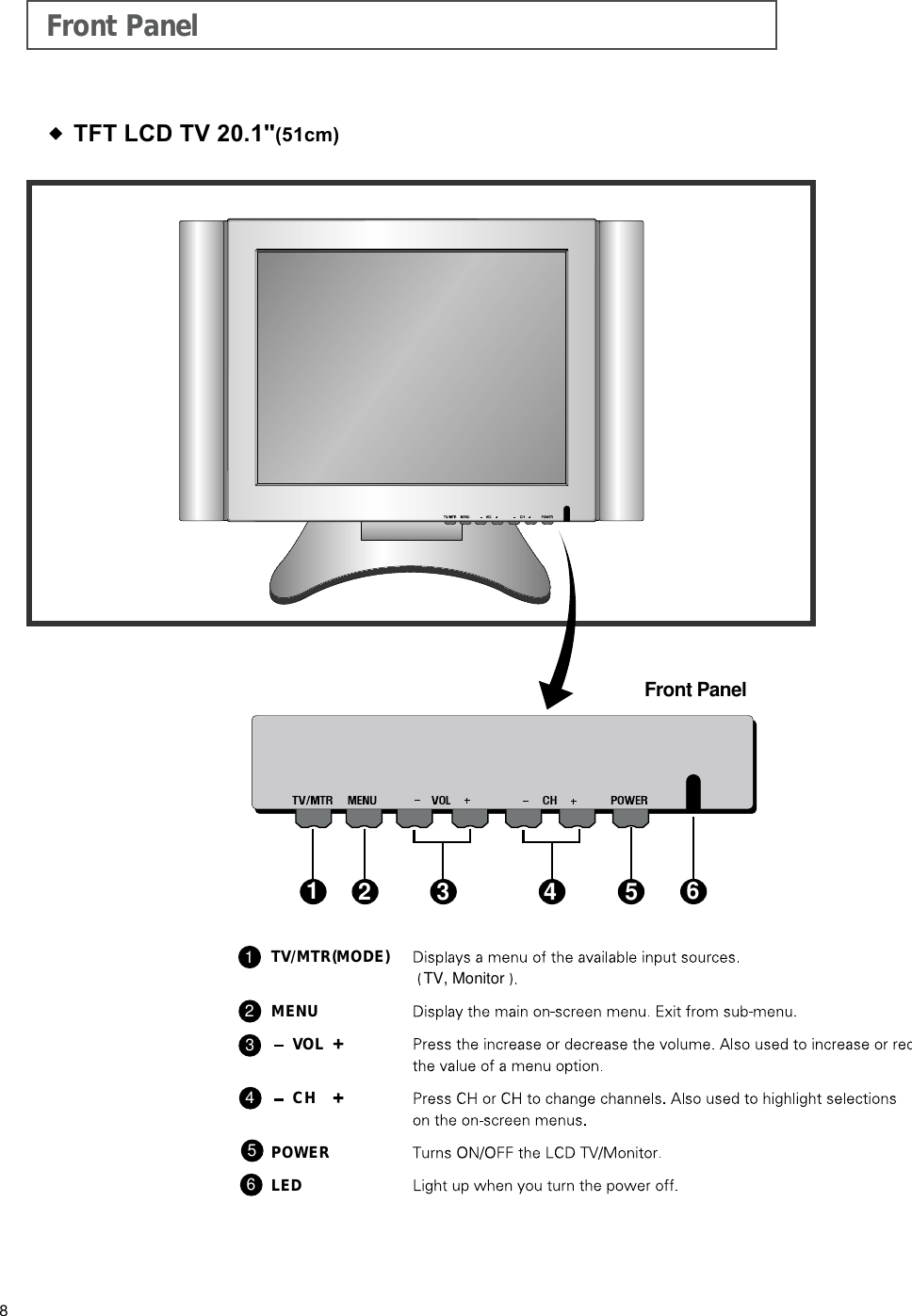

Front PanelTFT LCD TV 20.1"(51cm)Front Panel123 546123456TV/MTR(MODE)TV, MonitorMENUVOLCHPOWERLED8

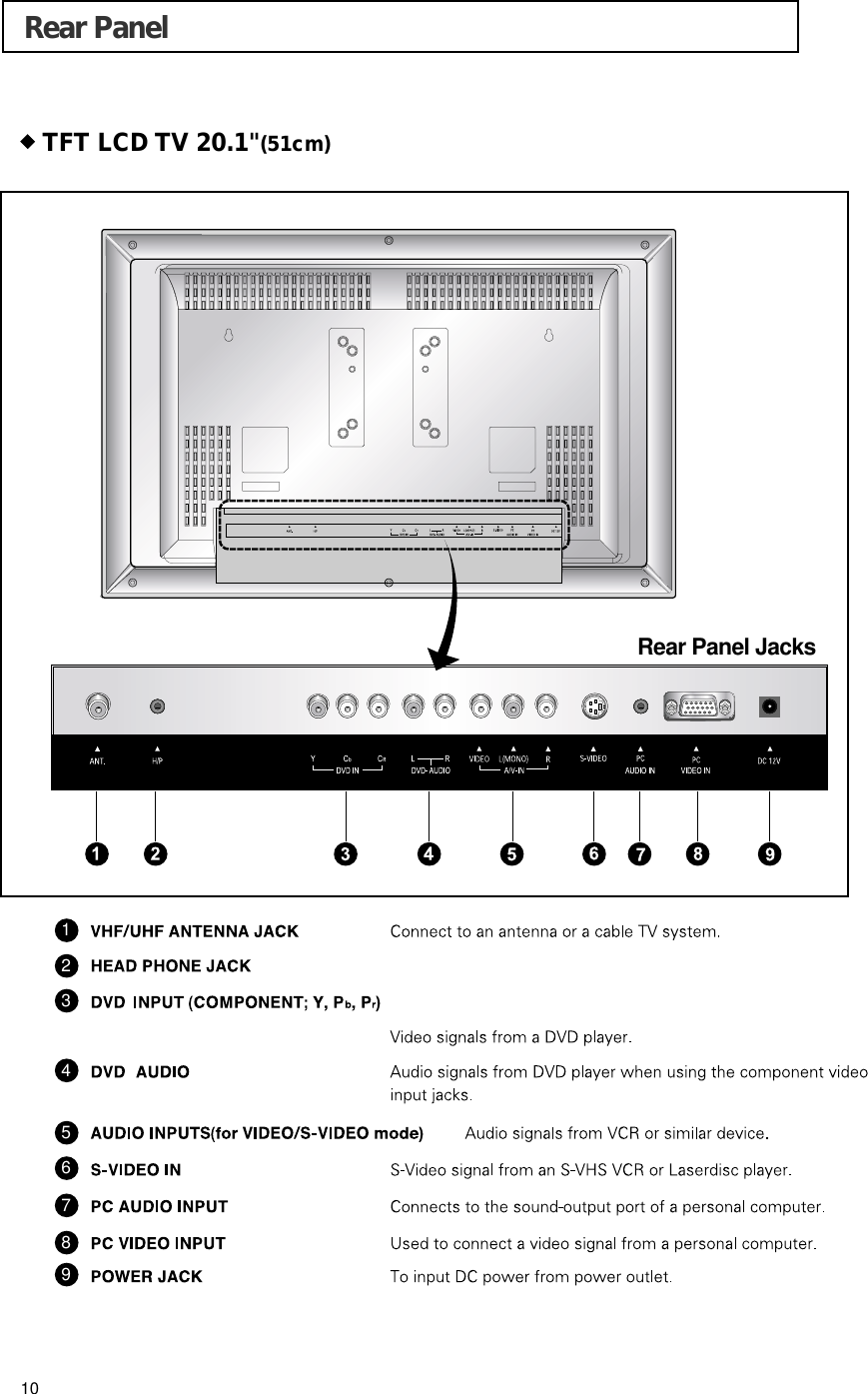

TFT LCD TV 20.1"(51cm)Rear PanelRear Panel Jacks15678943210

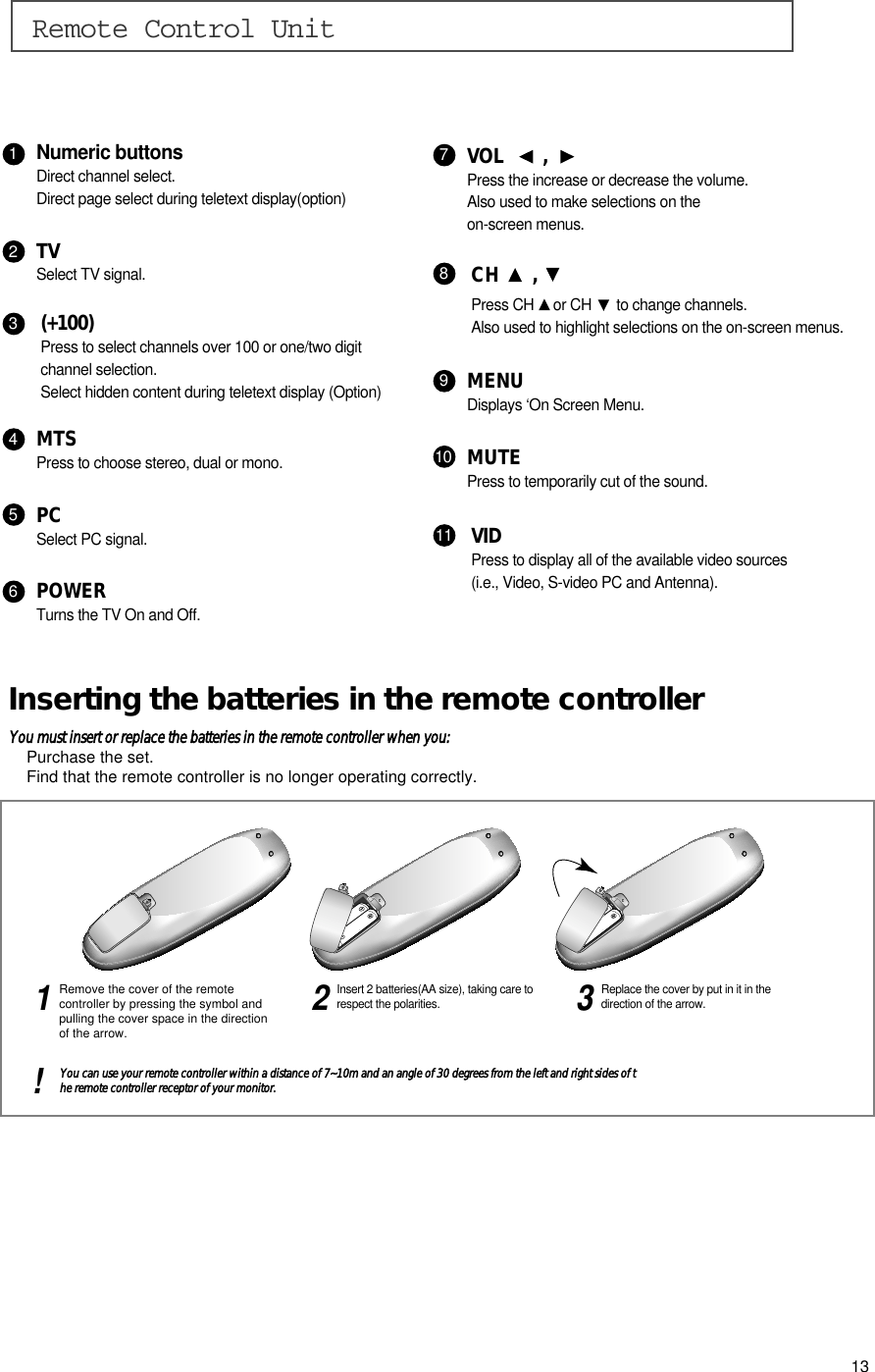

Remote Control Unit123457689111012

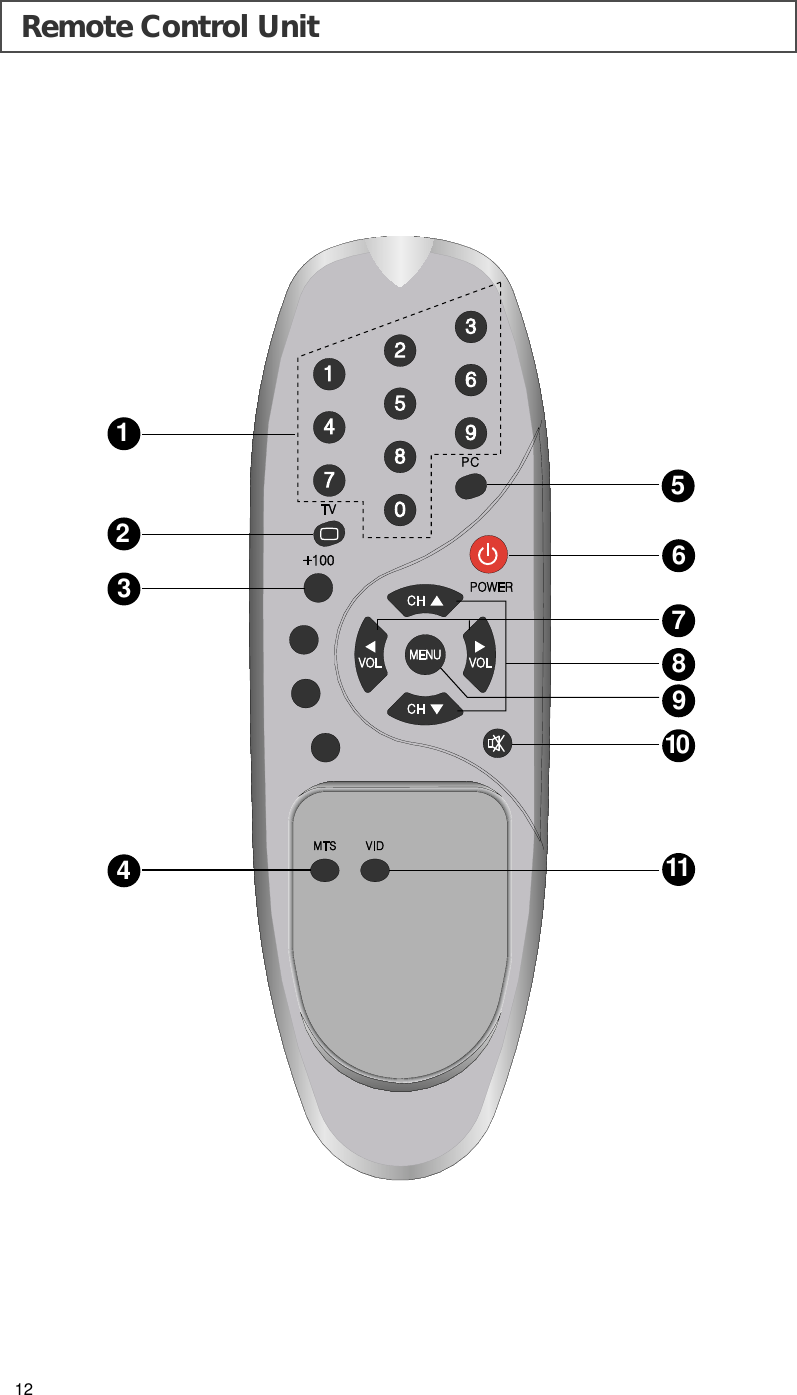

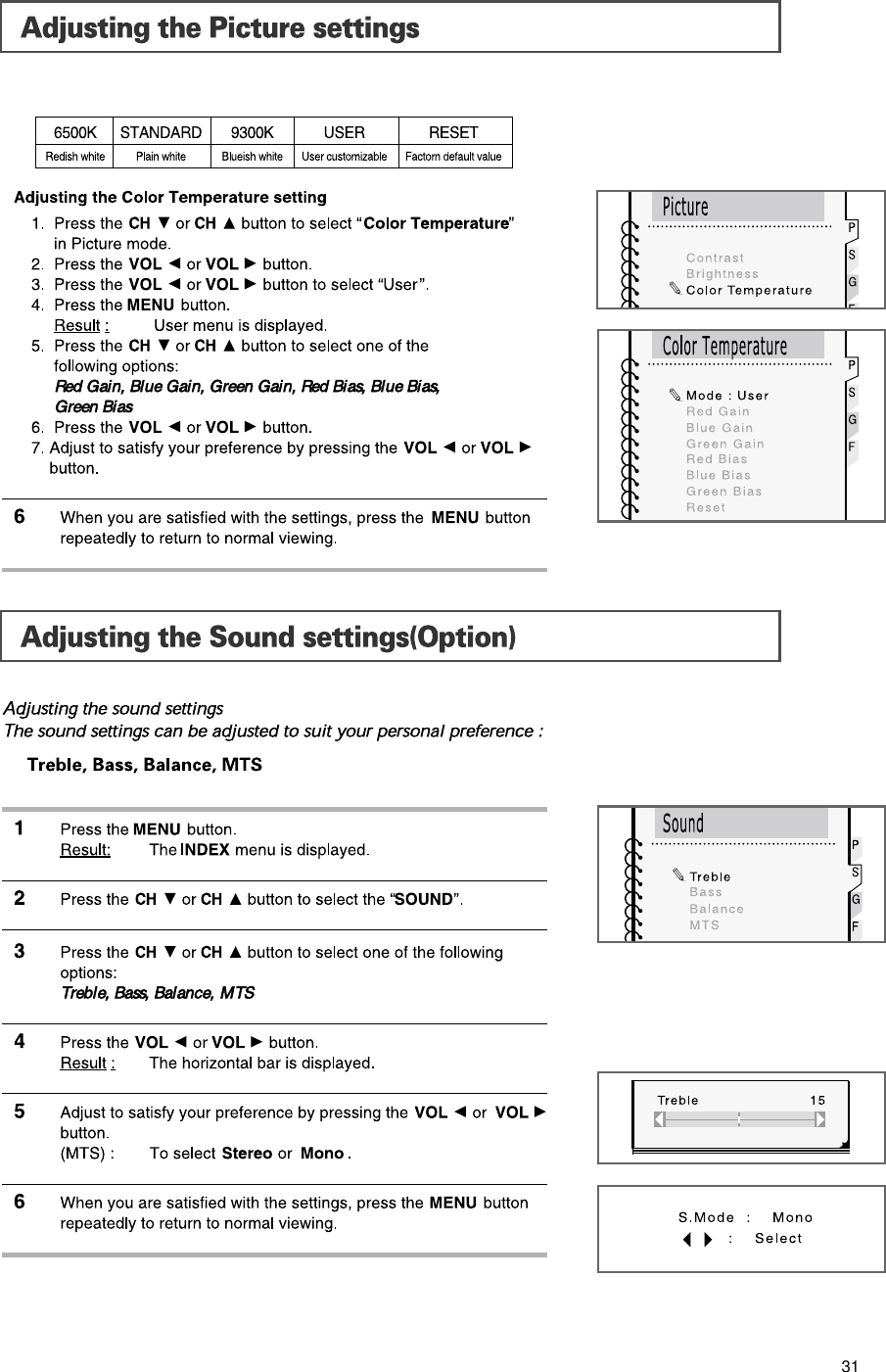

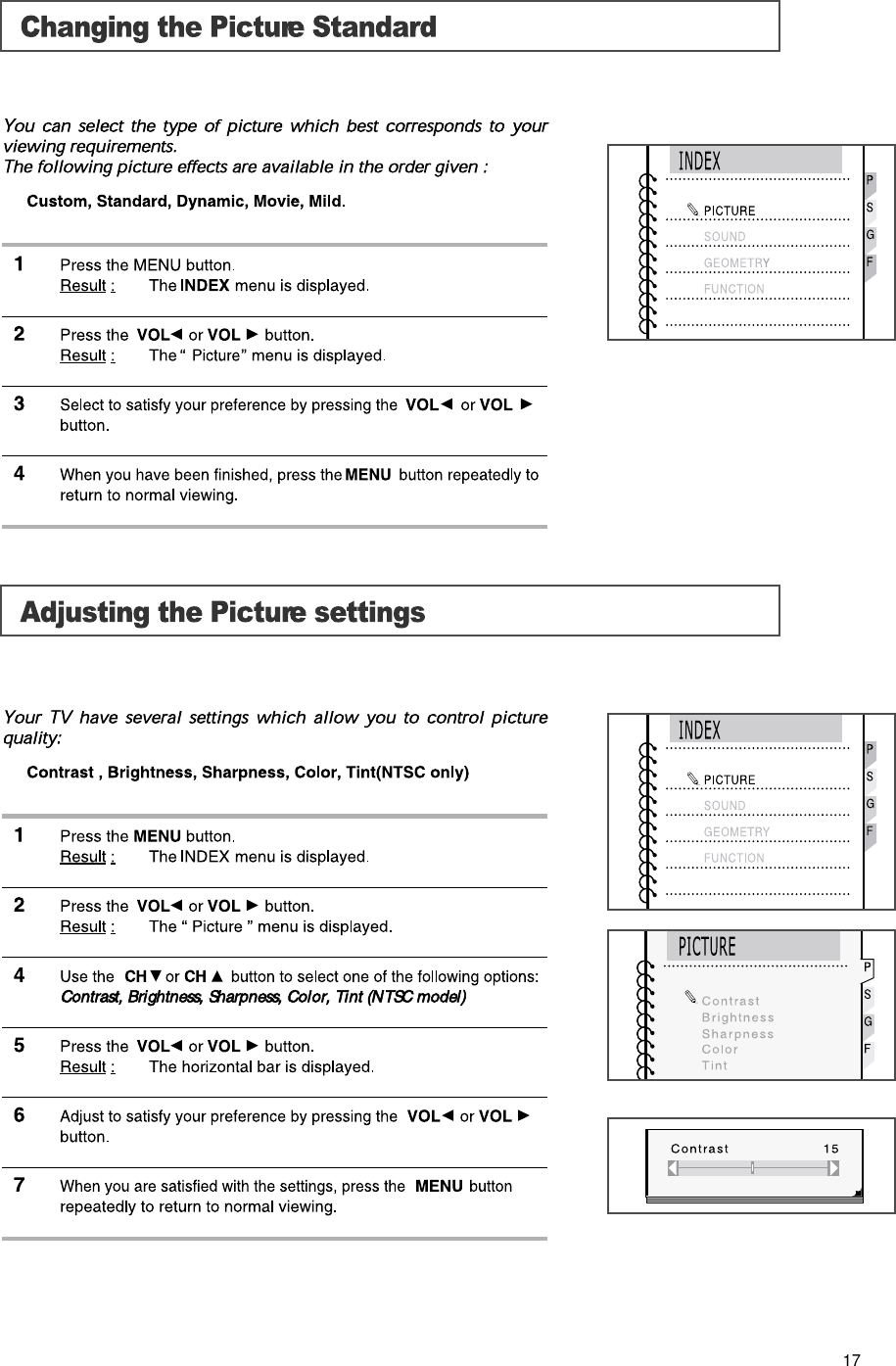

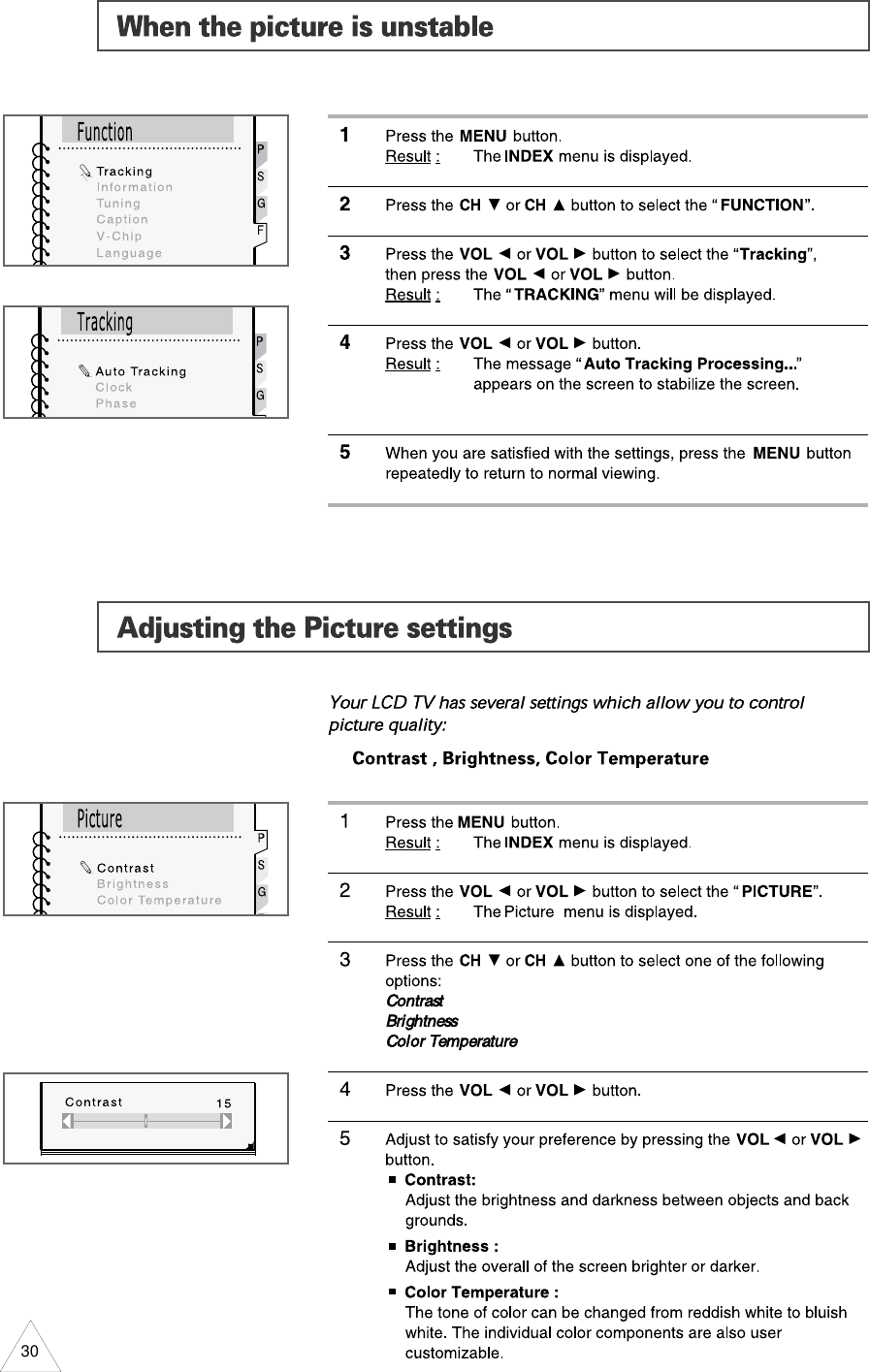

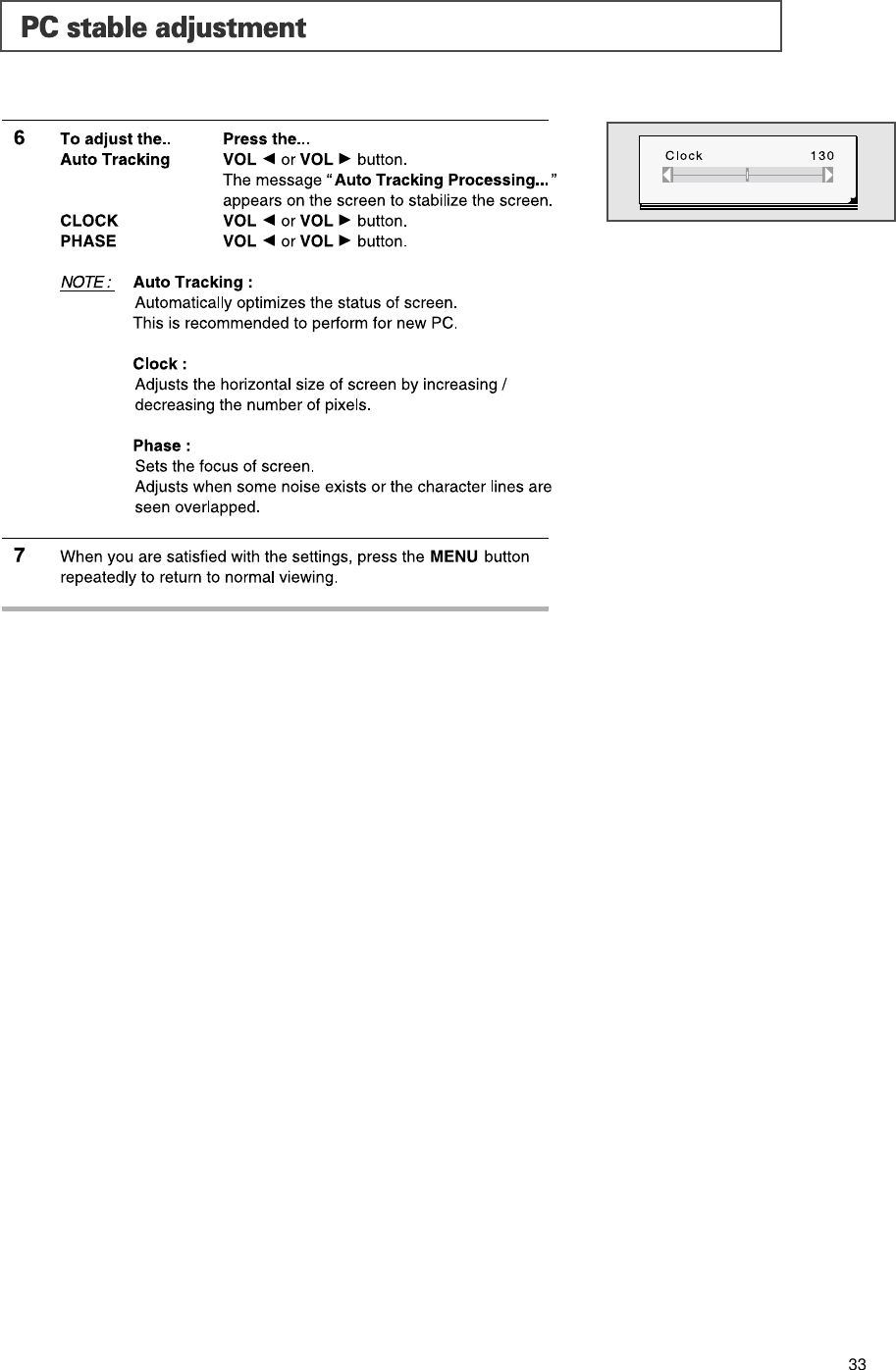

POWERTurns the TV On and Off.Numeric buttonsDirect channel select.Direct page select during teletext display(option)MENUDisplays ‘On Screen Menu.VOL , Press the increase or decrease the volume.Also used to make selections on the on-screen menus.MTSPress to choose stereo, dual or mono.MUTEPress to temporarily cut of the sound.TVSelect TV signal.PCSelect PC signal.CH , Press CH or CH to change channels.Also used to highlight selections on the on-screen menus.(+100)Press to select channels over 100 or one/two digit channel selection.Select hidden content during teletext display (Option)VIDPress to display all of the available video sources(i.e., Video, S-video PC and Antenna).Remote Control UnitInserting the batteries in the remote controllerYou must insert or replace the batteries in the remote controller when you:Purchase the set.Find that the remote controller is no longer operating correctly.Remove the cover of the remotecontroller by pressing the symbol andpulling the cover space in the direction of the arrow.You can use your remote controller within a distance of 7~10m and an angle of 30 degrees from the left and right sides of the remote controller receptor of your monitor.1!Insert 2 batteries(AA size), taking care torespect the polarities.2Replace the cover by put in it in thedirection of the arrow.3123456789101113

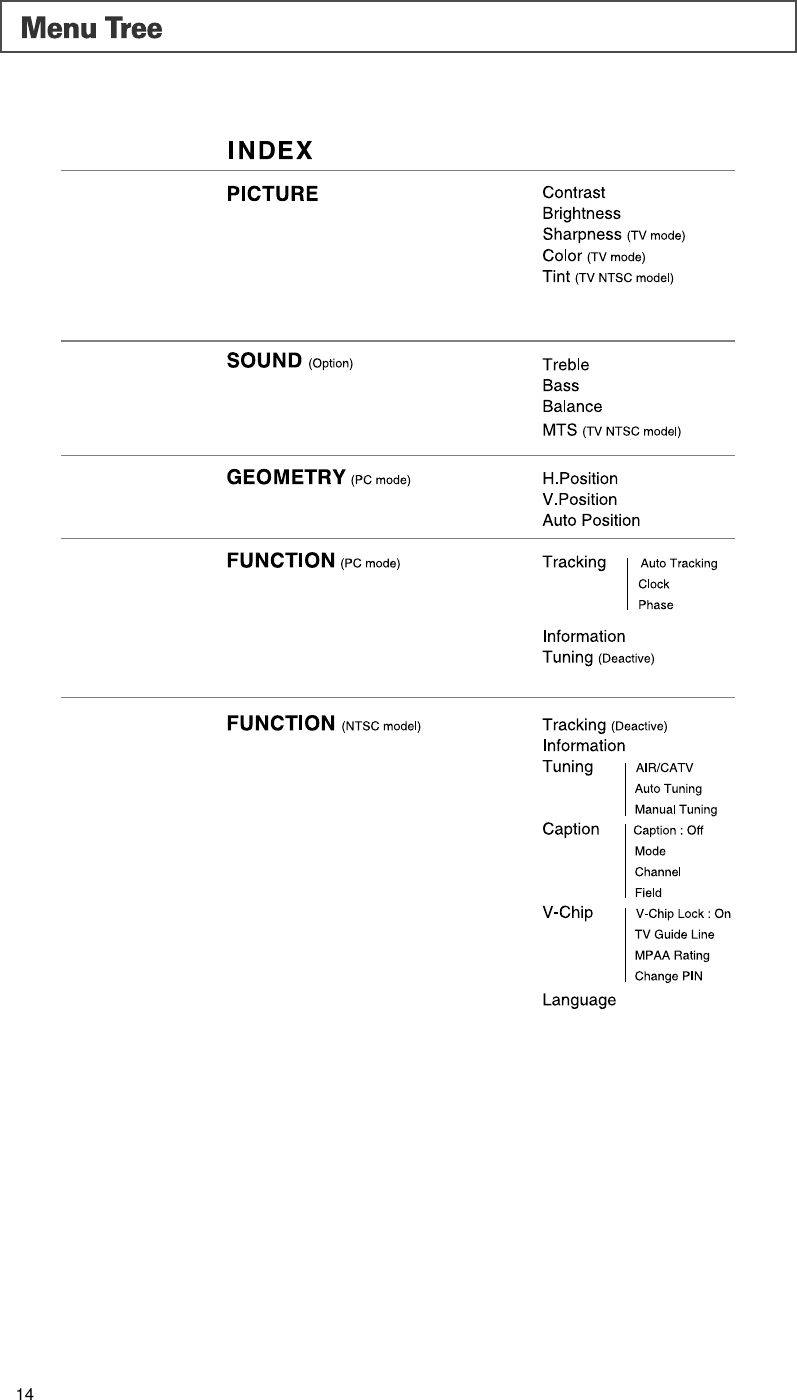

14

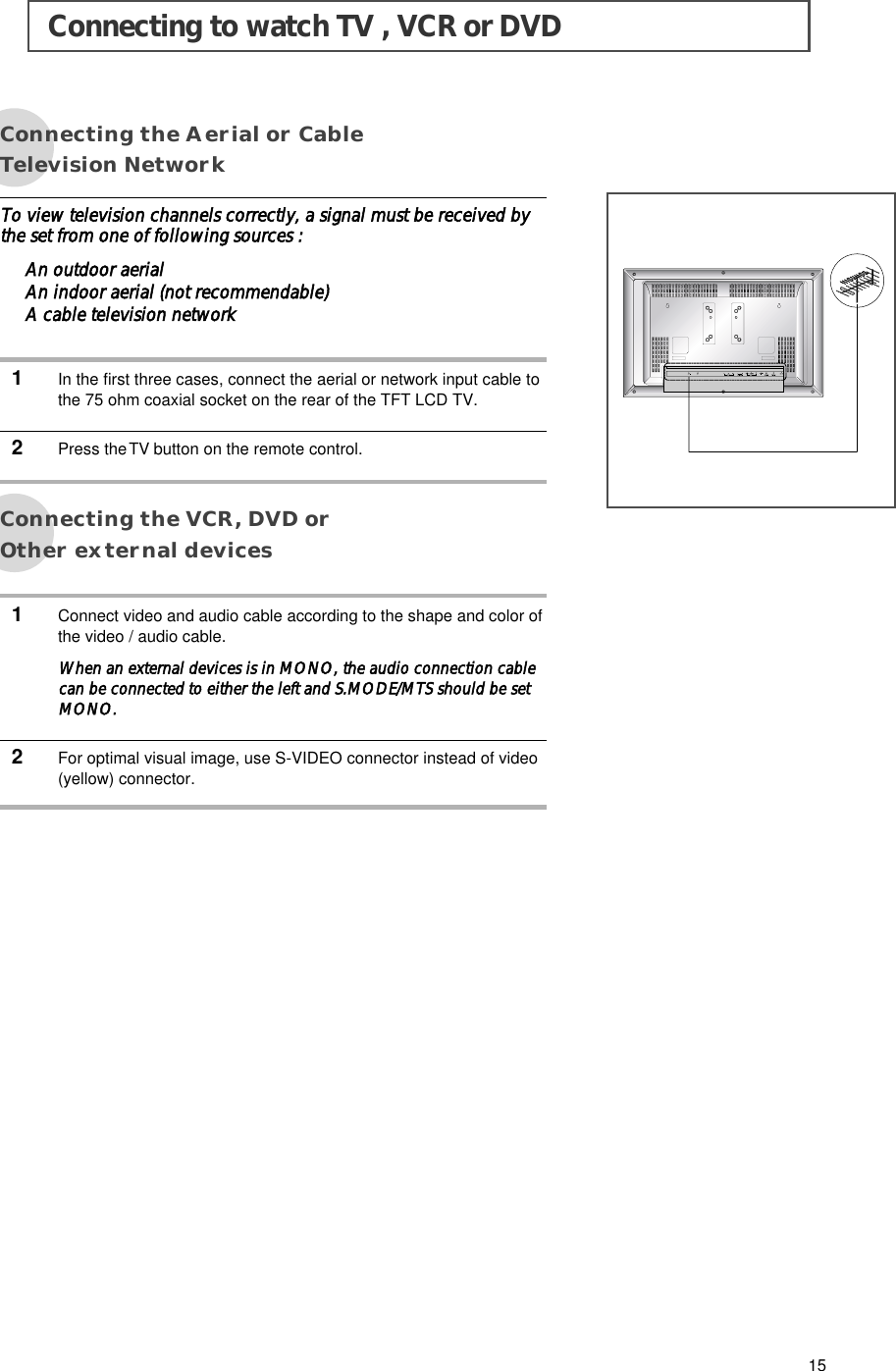

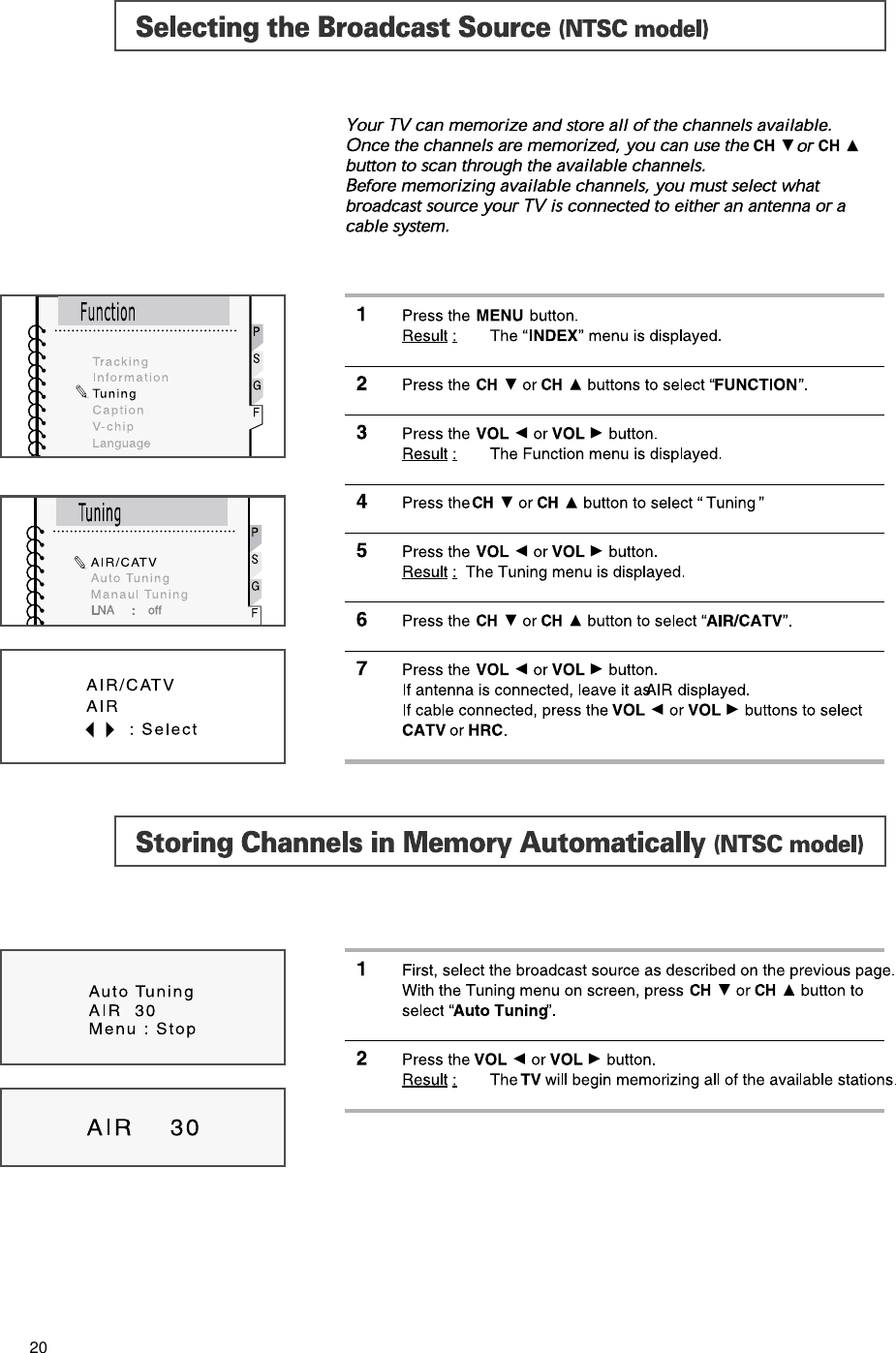

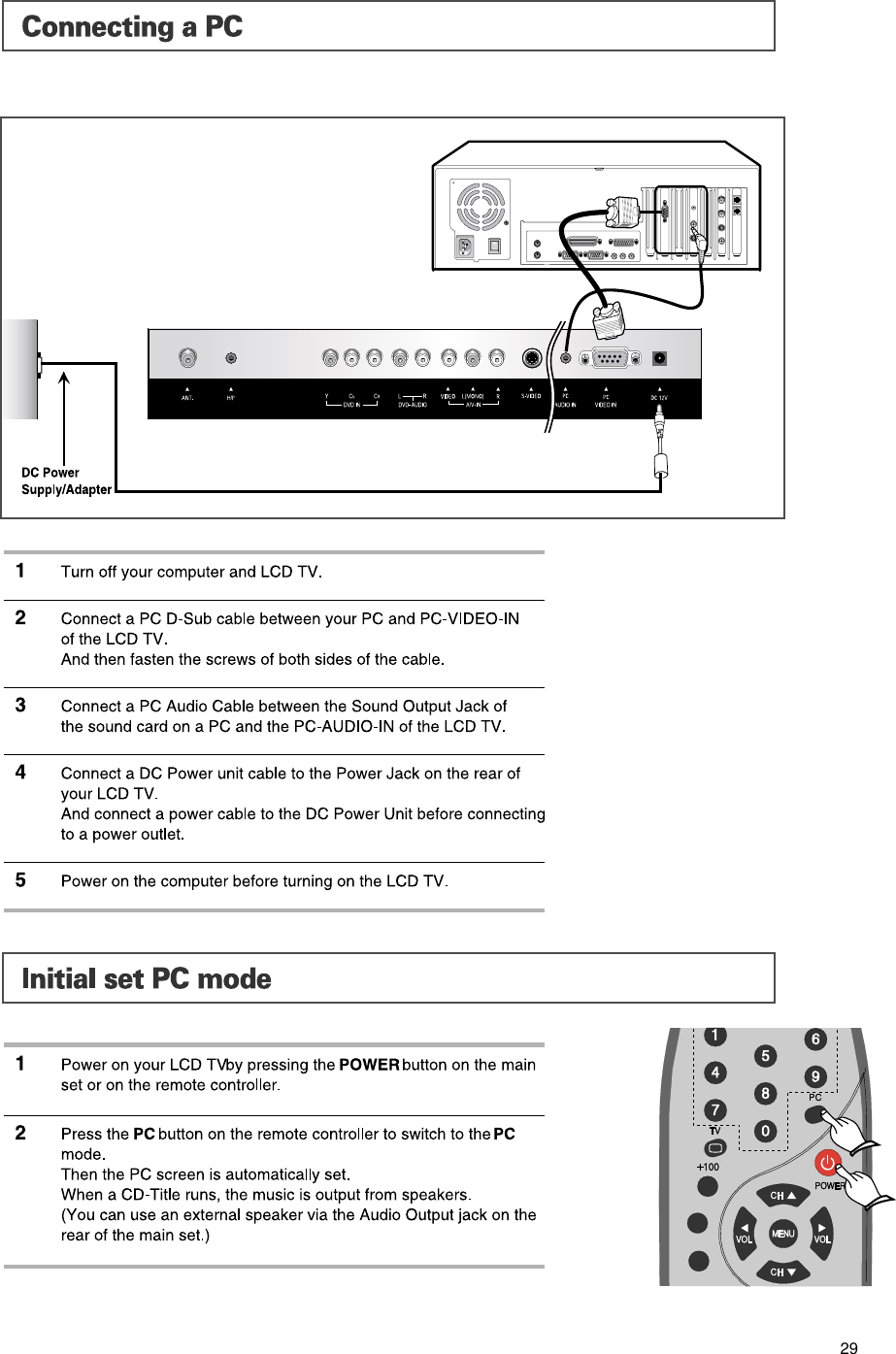

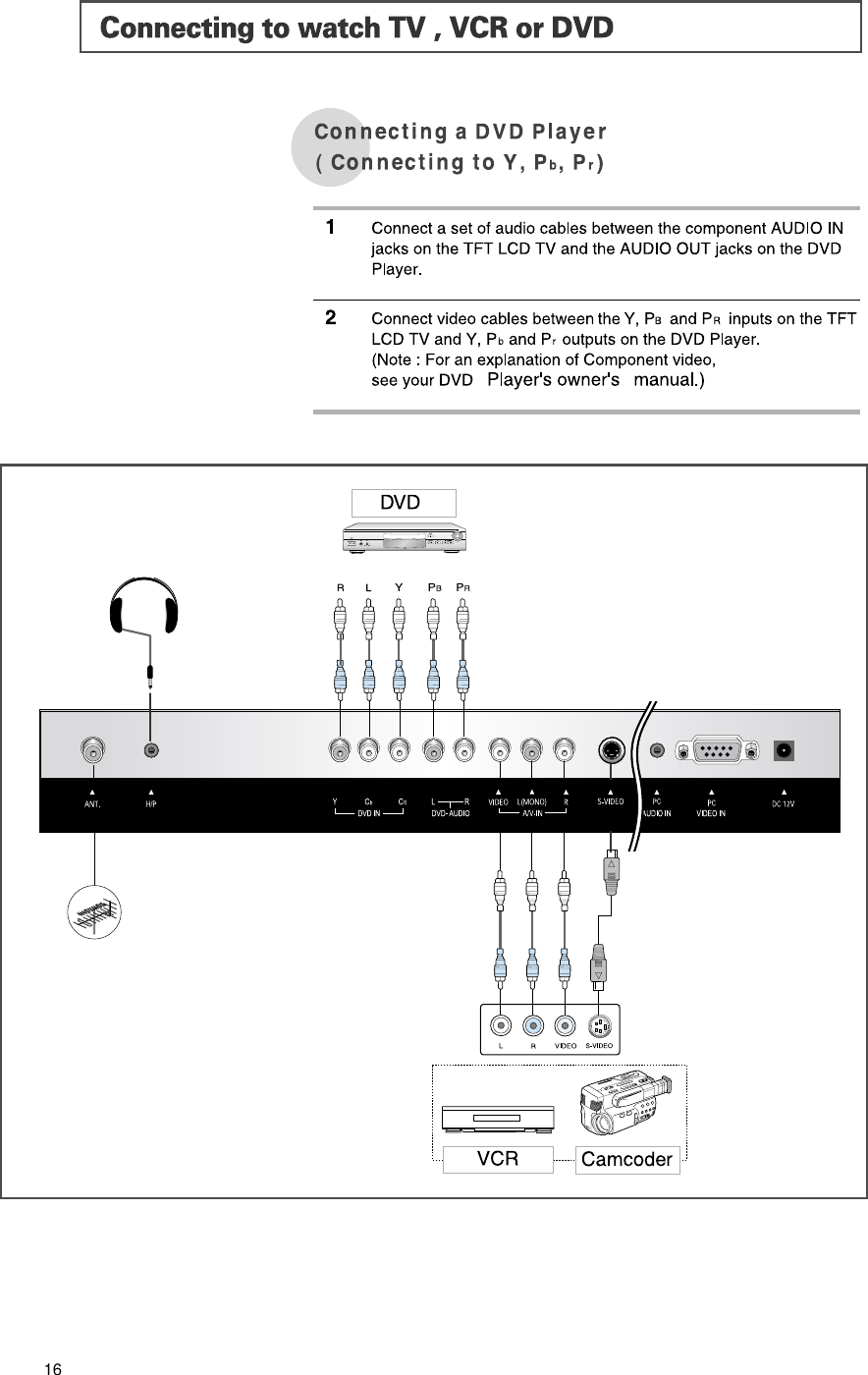

Connecting the Aerial or CableTelevision NetworkTo view television channels correctly, a signal must be received bythe set from one of following sources :An outdoor aerialAn indoor aerial (not recommendable)A cable television network1In the first three cases, connect the aerial or network input cable tothe 75 ohm coaxial socket on the rear of the TFT LCD TV.2Press the TV button on the remote control.Connecting the VCR, DVD orOther external devices1Connect video and audio cable according to the shape and color ofthe video / audio cable. When an external devices is in MONO, the audio connection cablecan be connected to either the left and S.MODE/MTS should be setMONO.2For optimal visual image, use S-VIDEO connector instead of video(yellow) connector.Connecting to watch TV , VCR or DVD15
