KTV Global LTW32DS 32" LCD TV Receiver/Monitor User Manual

KTV Global Corporation 32" LCD TV Receiver/Monitor Users Manual

Users Manual

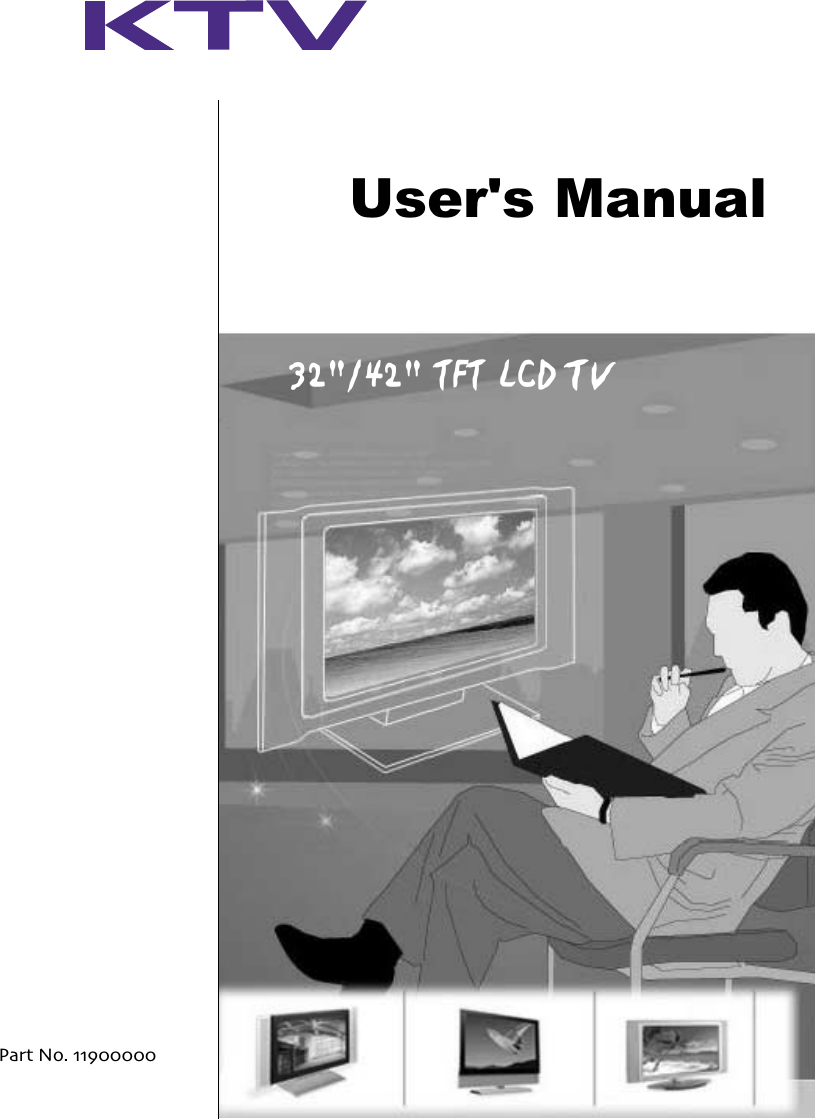

Part No User's Manual32"/42" TFT LCD TV
2

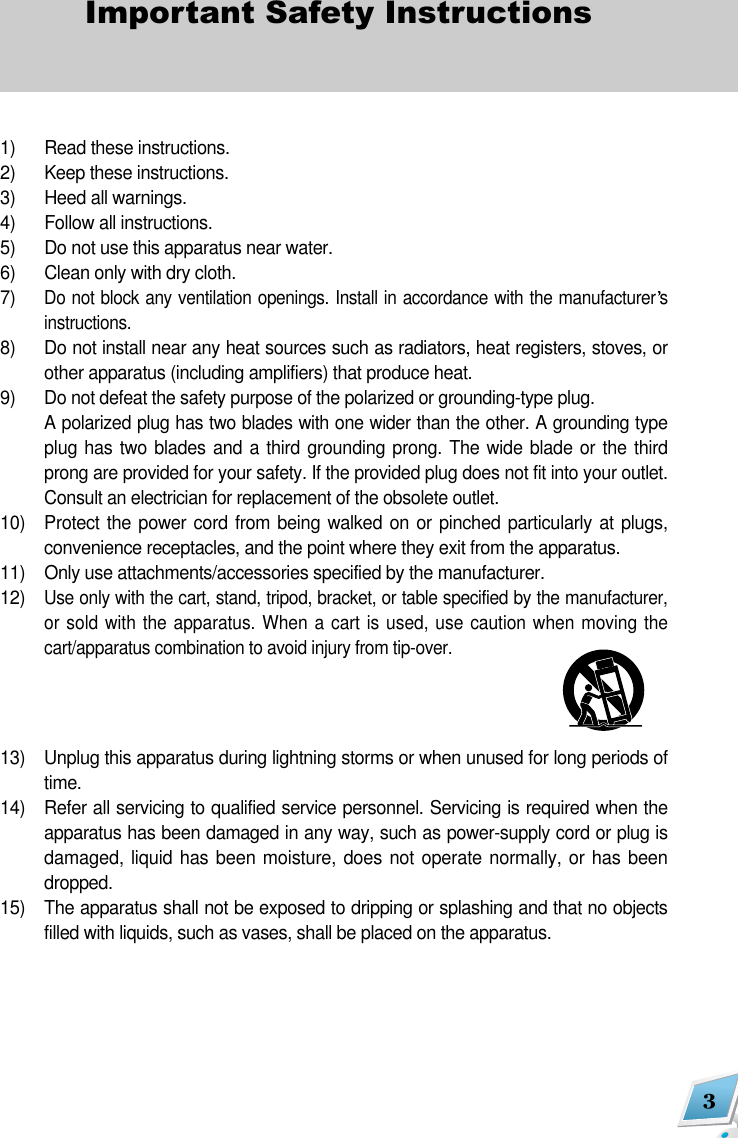

3Important Safety Instructions1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer sinstructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, orother apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding typeplug has two blades and a third grounding prong. The wide blade or the thirdprong are provided for your safety. If the provided plug does not fit into your outlet.Consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs,convenience receptacles, and the point where they exit from the apparatus.11) Only use attachments/accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,or sold with the apparatus. When a cart is used, use caution when moving thecart/apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods oftime.14) Refer all servicing to qualified service personnel. Servicing is required when theapparatus has been damaged in any way, such as power-supply cord or plug isdamaged, liquid has been moisture, does not operate normally, or has beendropped.15) The apparatus shall not be exposed to dripping or splashing and that no objectsfilled with liquids, such as vases, shall be placed on the apparatus.

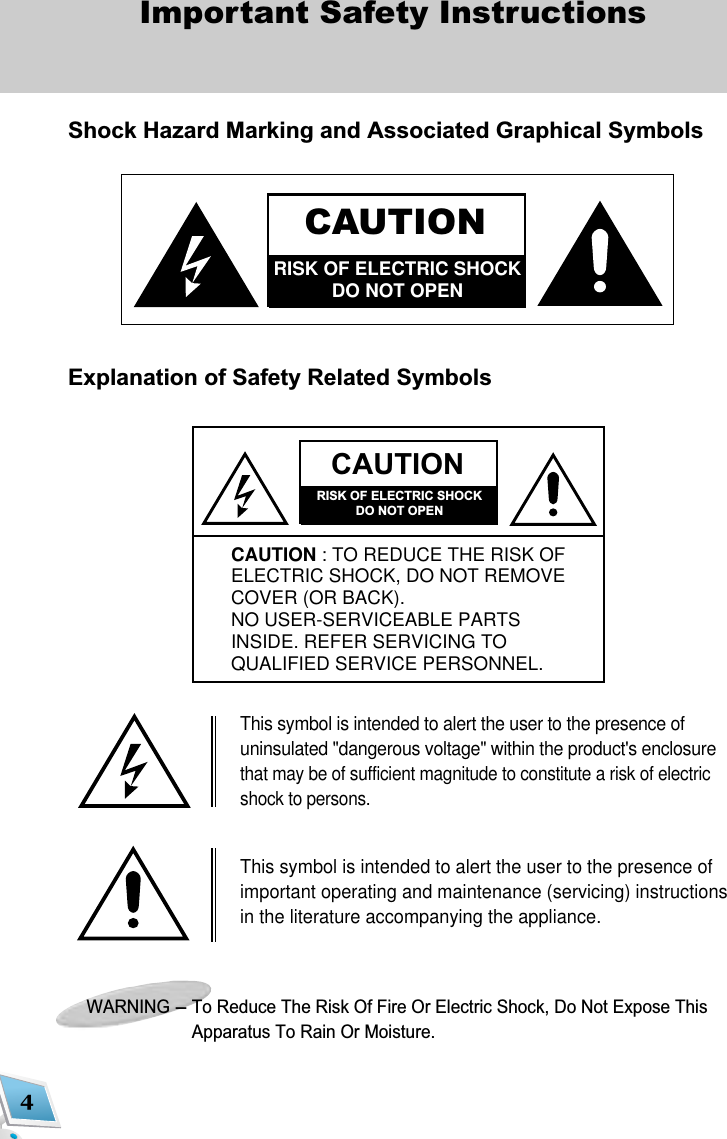

4Important Safety InstructionsShock Hazard Marking and Associated Graphical SymbolsExplanation of Safety Related SymbolsCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION : TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOT REMOVECOVER (OR BACK).NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TOQUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence ofuninsulated "dangerous voltage" within the product's enclosurethat may be of sufficient magnitude to constitute a risk of electricshock to persons. This symbol is intended to alert the user to the presence ofimportant operating and maintenance (servicing) instructionsin the literature accompanying the appliance. WARNING -To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose ThisApparatus To Rain Or Moisture.

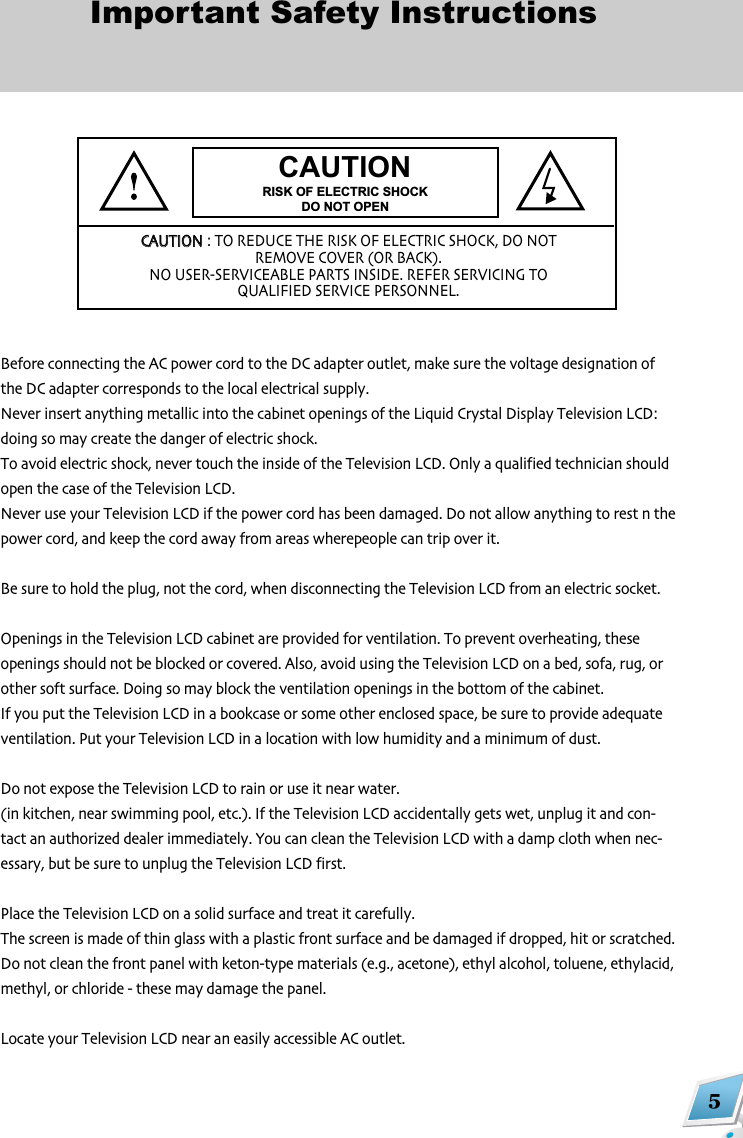

5Important Safety InstructionsBefore connecting the AC power cord to the DC adapter outlet make sure the voltage designation ofthe DC adapter corresponds to the local electrical supplyNever insert anything metallic into the cabinet openings of the Liquid Crystal Display Television LCD:doing so may create the danger of electric shockTo avoid electric shock never touch the inside of the Television LCD Only a qualified technician shouldopen the case of the Television LCDNever use your Television LCD if the power cord has been damaged Do not allow anything to rest n thepower cord and keep the cord away from areas wherepeople can trip over itBe sure to hold the plug not the cord when disconnecting the Television LCD from an electric socketOpenings in the Television LCD cabinet are provided for ventilation To prevent overheating theseopenings should not be blocked or covered Also avoid using the Television LCD on a bed sofa rug orother soft surface Doing so may block the ventilation openings in the bottom of the cabinetIf you put the Television LCD in a bookcase or some other enclosed space be sure to provide adequateventilation Put your Television LCD in a location with low humidity and a minimum of dustDo not expose the Television LCD to rain or use it near water(in kitchen near swimming pool etc) If the Television LCD accidentally gets wet unplug it and con,tact an authorized dealer immediately You can clean the Television LCD with a damp cloth when nec,essary but be sure to unplug the Television LCD firstPlace the Television LCD on a solid surface and treat it carefullyThe screen is made of thin glass with a plastic front surface and be damaged if dropped hit or scratchedDo not clean the front panel with keton,type materials (eg acetone) ethyl alcohol toluene ethylacidmethyl or chloride , these may damage the panelLocate your Television LCD near an easily accessible AC outletCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCCAAUUTTIIOONN: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOTREMOVE COVER (OR BACK)NO USER,SERVICEABLE PARTS INSIDE REFER SERVICING TOQUALIFIED SERVICE PERSONNEL

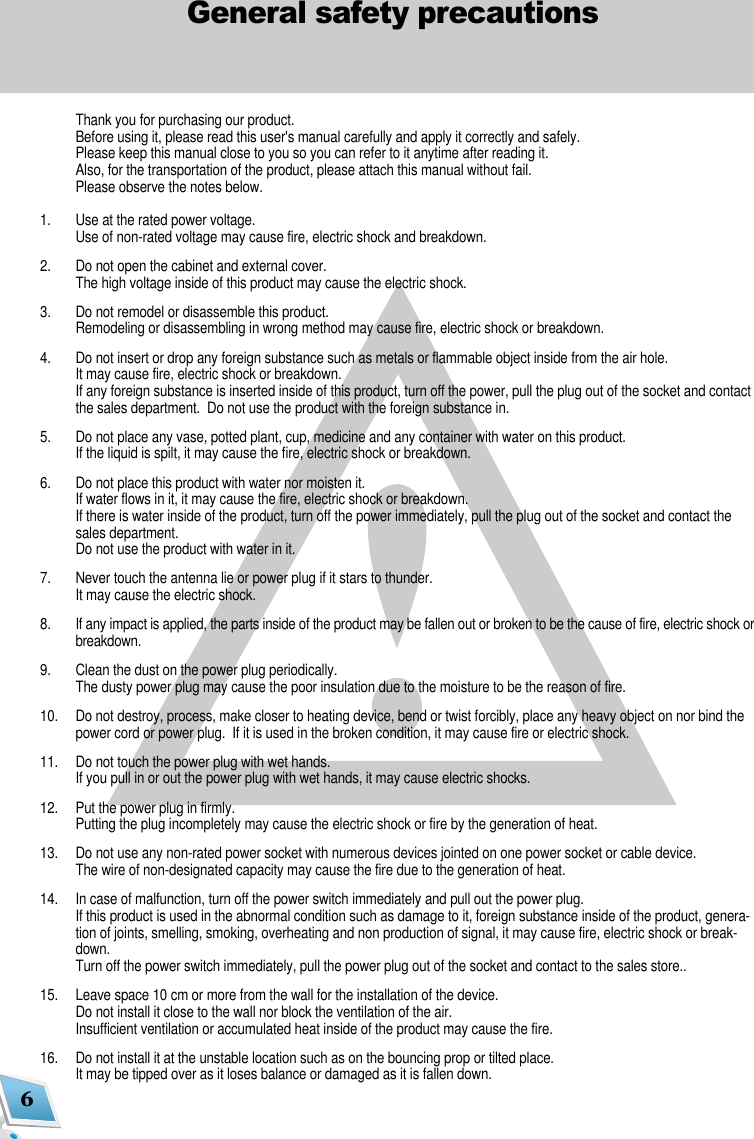

6General safety precautionsThank you for purchasing our product.Before using it, please read this user's manual carefully and apply it correctly and safely.Please keep this manual close to you so you can refer to it anytime after reading it.Also, for the transportation of the product, please attach this manual without fail.Please observe the notes below.1. Use at the rated power voltage.Use of non-rated voltage may cause fire, electric shock and breakdown.2. Do not open the cabinet and external cover.The high voltage inside of this product may cause the electric shock.3. Do not remodel or disassemble this product. Remodeling or disassembling in wrong method may cause fire, electric shock or breakdown.4. Do not insert or drop any foreign substance such as metals or flammable object inside from the air hole.It may cause fire, electric shock or breakdown.If any foreign substance is inserted inside of this product, turn off the power, pull the plug out of the socket and contactthe sales department. Do not use the product with the foreign substance in.5. Do not place any vase, potted plant, cup, medicine and any container with water on this product.If the liquid is spilt, it may cause the fire, electric shock or breakdown.6. Do not place this product with water nor moisten it.If water flows in it, it may cause the fire, electric shock or breakdown.If there is water inside of the product, turn off the power immediately, pull the plug out of the socket and contact thesales department.Do not use the product with water in it.7. Never touch the antenna lie or power plug if it stars to thunder.It may cause the electric shock.8. If any impact is applied, the parts inside of the product may be fallen out or broken to be the cause of fire, electric shock orbreakdown.9. Clean the dust on the power plug periodically.The dusty power plug may cause the poor insulation due to the moisture to be the reason of fire.10. Do not destroy, process, make closer to heating device, bend or twist forcibly, place any heavy object on nor bind thepower cord or power plug. If it is used in the broken condition, it may cause fire or electric shock.11. Do not touch the power plug with wet hands.If you pull in or out the power plug with wet hands, it may cause electric shocks.12. Put the power plug in firmly.Putting the plug incompletely may cause the electric shock or fire by the generation of heat. 13. Do not use any non-rated power socket with numerous devices jointed on one power socket or cable device.The wire of non-designated capacity may cause the fire due to the generation of heat.14. In case of malfunction, turn off the power switch immediately and pull out the power plug.If this product is used in the abnormal condition such as damage to it, foreign substance inside of the product, genera-tion of joints, smelling, smoking, overheating and non production of signal, it may cause fire, electric shock or break-down.Turn off the power switch immediately, pull the power plug out of the socket and contact to the sales store..15. Leave space 10 cm or more from the wall for the installation of the device.Do not install it close to the wall nor block the ventilation of the air.Insufficient ventilation or accumulated heat inside of the product may cause the fire.16. Do not install it at the unstable location such as on the bouncing prop or tilted place.It may be tipped over as it loses balance or damaged as it is fallen down.

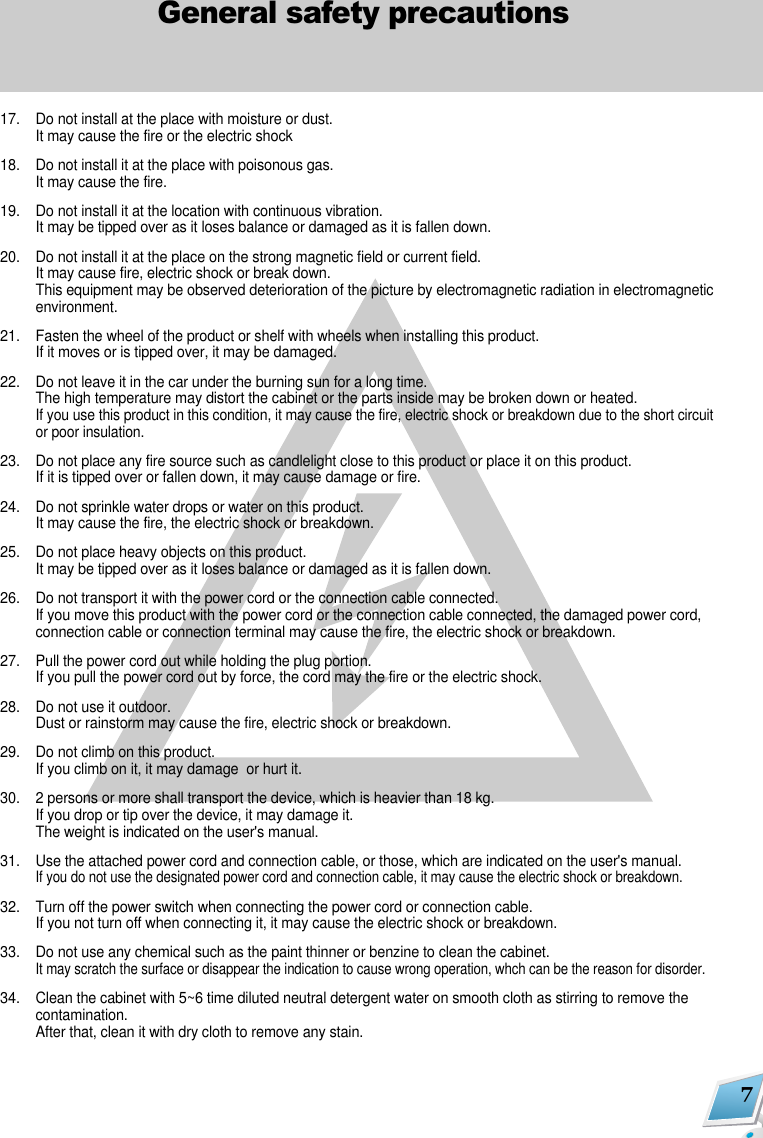

7General safety precautions17. Do not install at the place with moisture or dust.It may cause the fire or the electric shock18. Do not install it at the place with poisonous gas.It may cause the fire.19. Do not install it at the location with continuous vibration.It may be tipped over as it loses balance or damaged as it is fallen down.20. Do not install it at the place on the strong magnetic field or current field.It may cause fire, electric shock or break down.This equipment may be observed deterioration of the picture by electromagnetic radiation in electromagneticenvironment. 21. Fasten the wheel of the product or shelf with wheels when installing this product.If it moves or is tipped over, it may be damaged.22. Do not leave it in the car under the burning sun for a long time.The high temperature may distort the cabinet or the parts inside may be broken down or heated.If you use this product in this condition, it may cause the fire, electric shock or breakdown due to the short circuitor poor insulation.23. Do not place any fire source such as candlelight close to this product or place it on this product.If it is tipped over or fallen down, it may cause damage or fire.24. Do not sprinkle water drops or water on this product.It may cause the fire, the electric shock or breakdown.25. Do not place heavy objects on this product.It may be tipped over as it loses balance or damaged as it is fallen down.26. Do not transport it with the power cord or the connection cable connected.If you move this product with the power cord or the connection cable connected, the damaged power cord,connection cable or connection terminal may cause the fire, the electric shock or breakdown.27. Pull the power cord out while holding the plug portion.If you pull the power cord out by force, the cord may the fire or the electric shock.28. Do not use it outdoor.Dust or rainstorm may cause the fire, electric shock or breakdown.29. Do not climb on this product.If you climb on it, it may damage or hurt it.30. 2 persons or more shall transport the device, which is heavier than 18 kg.If you drop or tip over the device, it may damage it.The weight is indicated on the user's manual.31. Use the attached power cord and connection cable, or those, which are indicated on the user's manual.If you do not use the designated power cord and connection cable, it may cause the electric shock or breakdown.32. Turn off the power switch when connecting the power cord or connection cable.If you not turn off when connecting it, it may cause the electric shock or breakdown.33. Do not use any chemical such as the paint thinner or benzine to clean the cabinet.It may scratch the surface or disappear the indication to cause wrong operation, whch can be the reason for disorder.34. Clean the cabinet with 5~6 time diluted neutral detergent water on smooth cloth as stirring to remove thecontamination.After that, clean it with dry cloth to remove any stain.

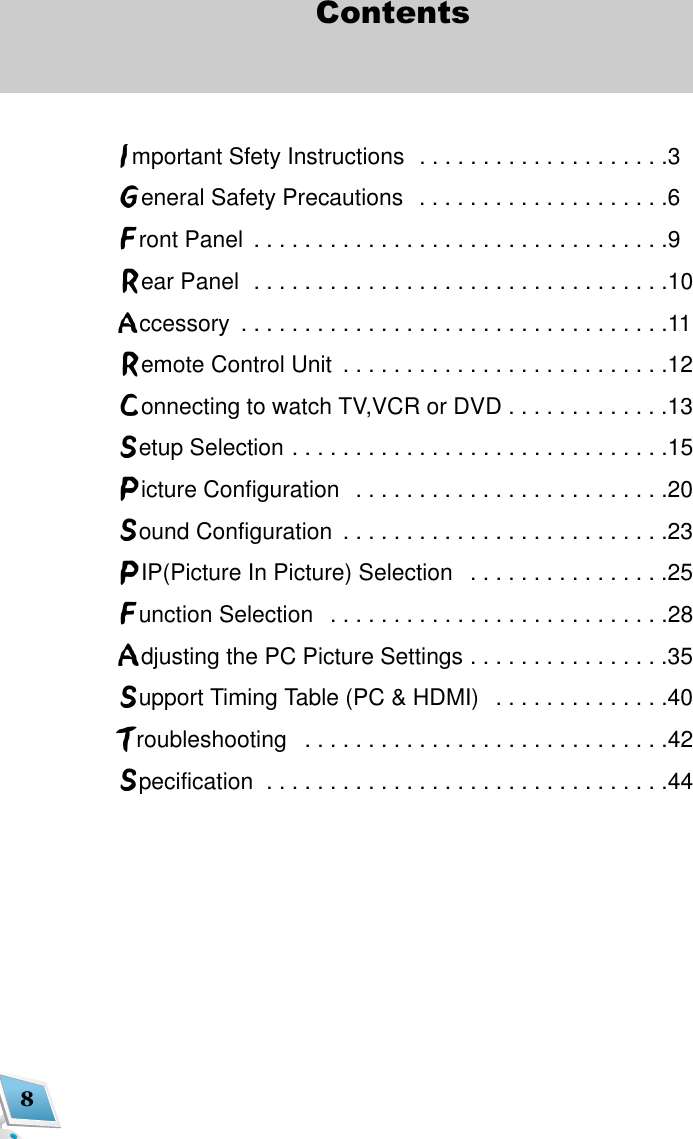

8ContentsImportant Sfety Instructions . . . . . . . . . . . . . . . . . . . .3General Safety Precautions . . . . . . . . . . . . . . . . . . . .6Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . .12Connecting to watch TV,VCR or DVD . . . . . . . . . . . . .13Setup Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15Picture Configuration . . . . . . . . . . . . . . . . . . . . . . . . .20Sound Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .23PIP(Picture In Picture) Selection . . . . . . . . . . . . . . . .25Function Selection . . . . . . . . . . . . . . . . . . . . . . . . . . .28Adjusting the PC Picture Settings . . . . . . . . . . . . . . . .35Support Timing Table (PC & HDMI) . . . . . . . . . . . . . .40Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

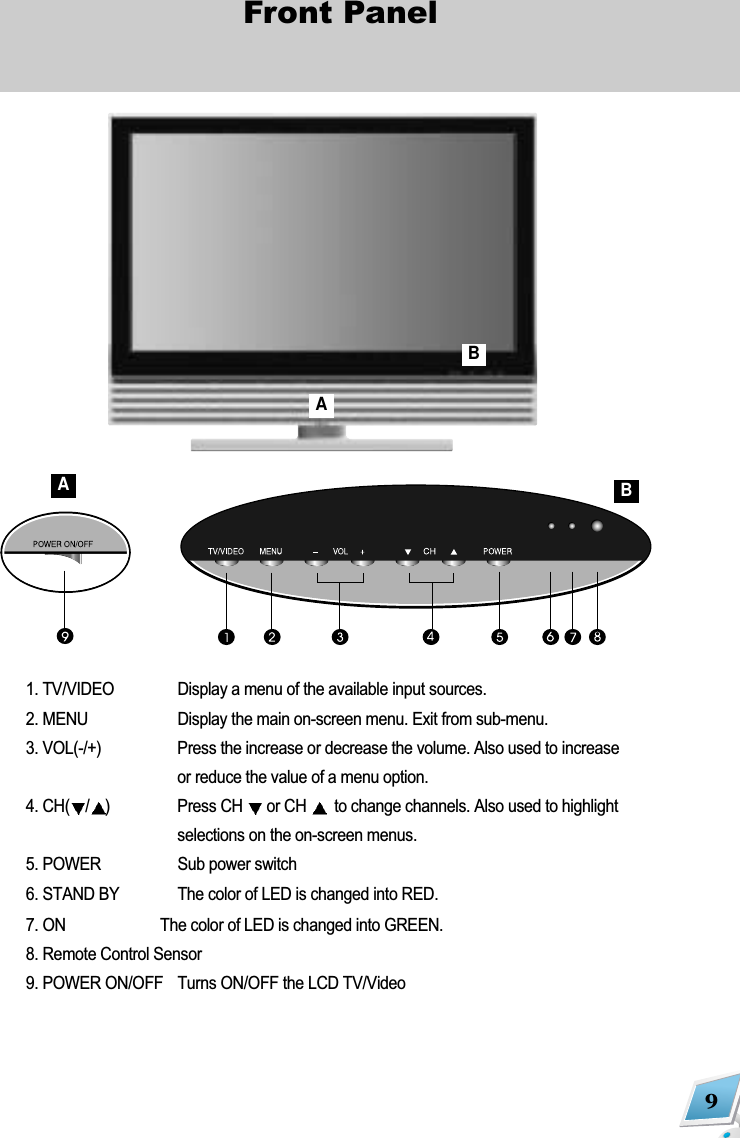

9Front PanelABAB1. TV/VIDEO Display a menu of the available input sources.2. MENU Display the main on-screen menu. Exit from sub-menu.3. VOL(-/+) Press the increase or decrease the volume. Also used to increaseor reduce the value of a menu option.4. CH( /) Press CH or CH to change channels. Also used to highlightselections on the on-screen menus.5. POWER Sub power switch 6. STAND BY The color of LED is changed into RED.7. ON The color of LED is changed into GREEN.8. Remote Control Sensor9. POWER ON/OFF Turns ON/OFF the LCD TV/Video

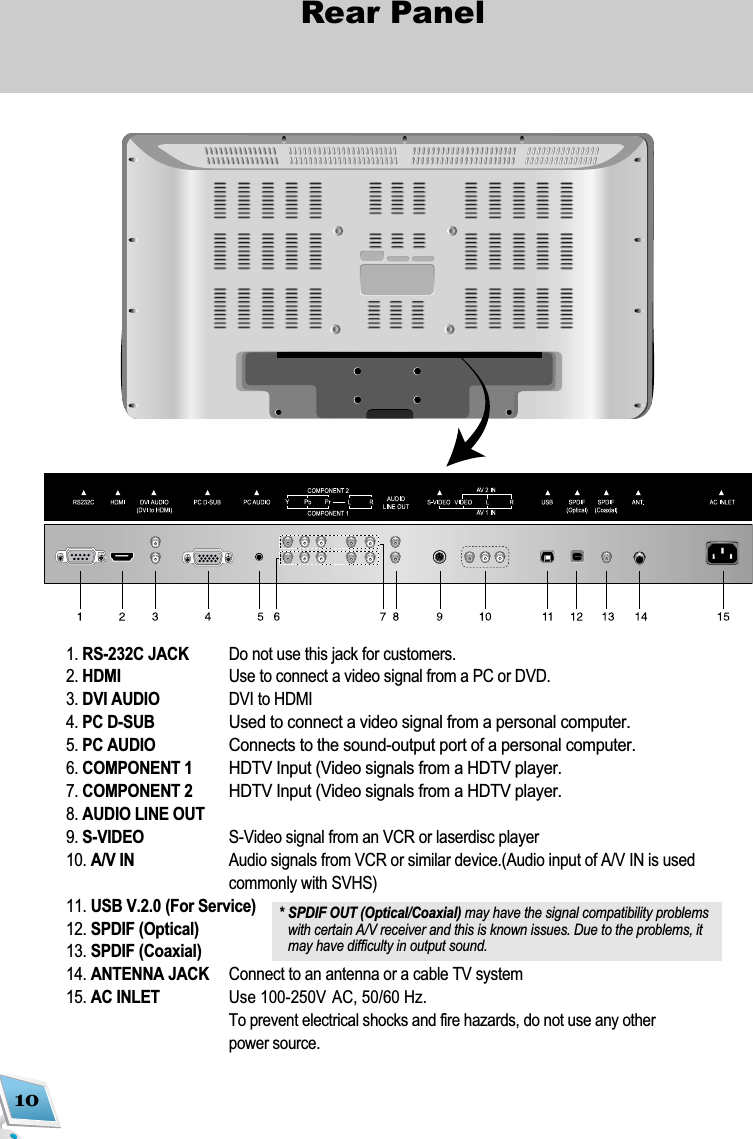

10Rear Panel1. RS-232C JACK Do not use this jack for customers.2. HDMI Use to connect a video signal from a PC or DVD.3. DVI AUDIO DVI to HDMI4. PC D-SUBUsed to connect a video signal from a personal computer.5. PC AUDIOConnects to the sound-output port of a personal computer.6. COMPONENT 1HDTV Input (Video signals from a HDTV player.7. COMPONENT 2HDTV Input (Video signals from a HDTV player.8. AUDIO LINE OUT9. S-VIDEO S-Video signal from an VCR or laserdisc player10. A/V IN Audio signals from VCR or similar device.(Audio input of A/V IN is used commonly with SVHS)11. USB V.2.0 (For Service)12. SPDIF (Optical)13. SPDIF (Coaxial)14. ANTENNA JACK Connect to an antenna or a cable TV system15. AC INLETUse 100-250V AC, 50/60 Hz.To prevent electrical shocks and fire hazards, do not use any other power source.* SPDIF OUT (Optical/Coaxial) may have the signal compatibility problemswith certain A/V receiver and this is known issues. Due to the problems, itmay have difficulty in output sound.

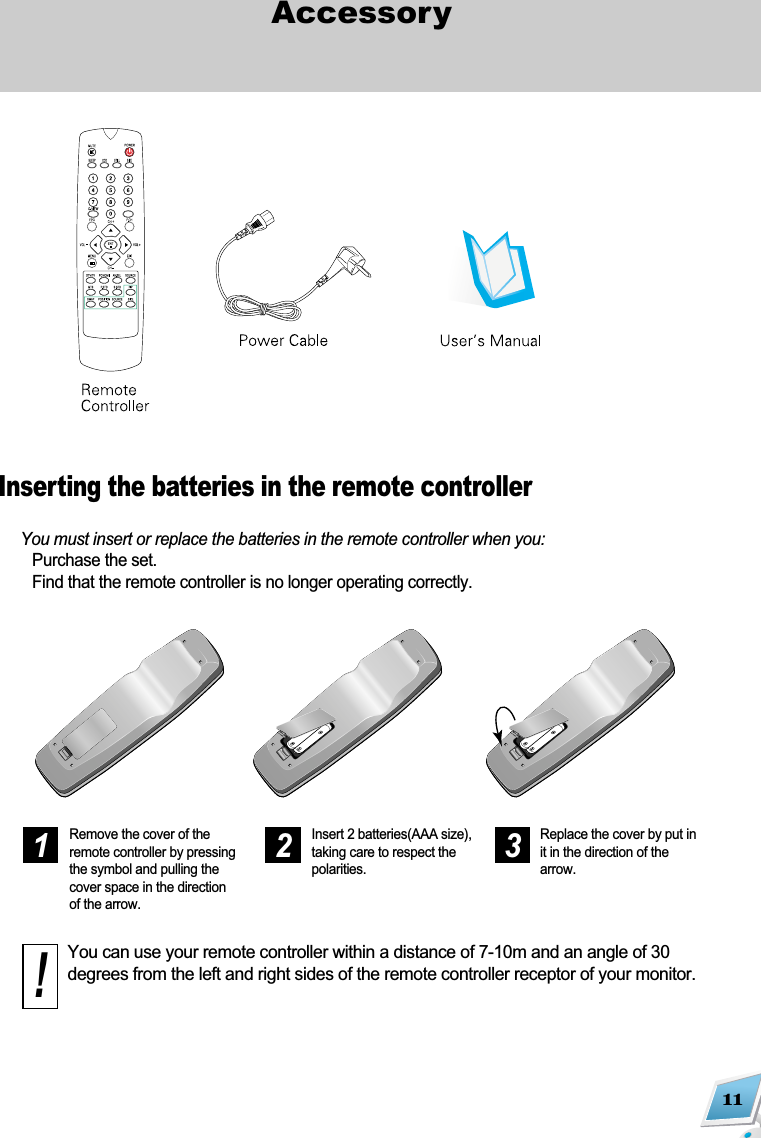

11AccessoryYou must insert or replace the batteries in the remote controller when you:Purchase the set.Find that the remote controller is no longer operating correctly.Remove the cover of theremote controller by pressingthe symbol and pulling thecover space in the directionof the arrow.Insert 2 batteries(AAA size),taking care to respect thepolarities.Replace the cover by put init in the direction of thearrow.You can use your remote controller within a distance of 7-10m and an angle of 30degrees from the left and right sides of the remote controller receptor of your monitor. 1 2 3!Inserting the batteries in the remote controller

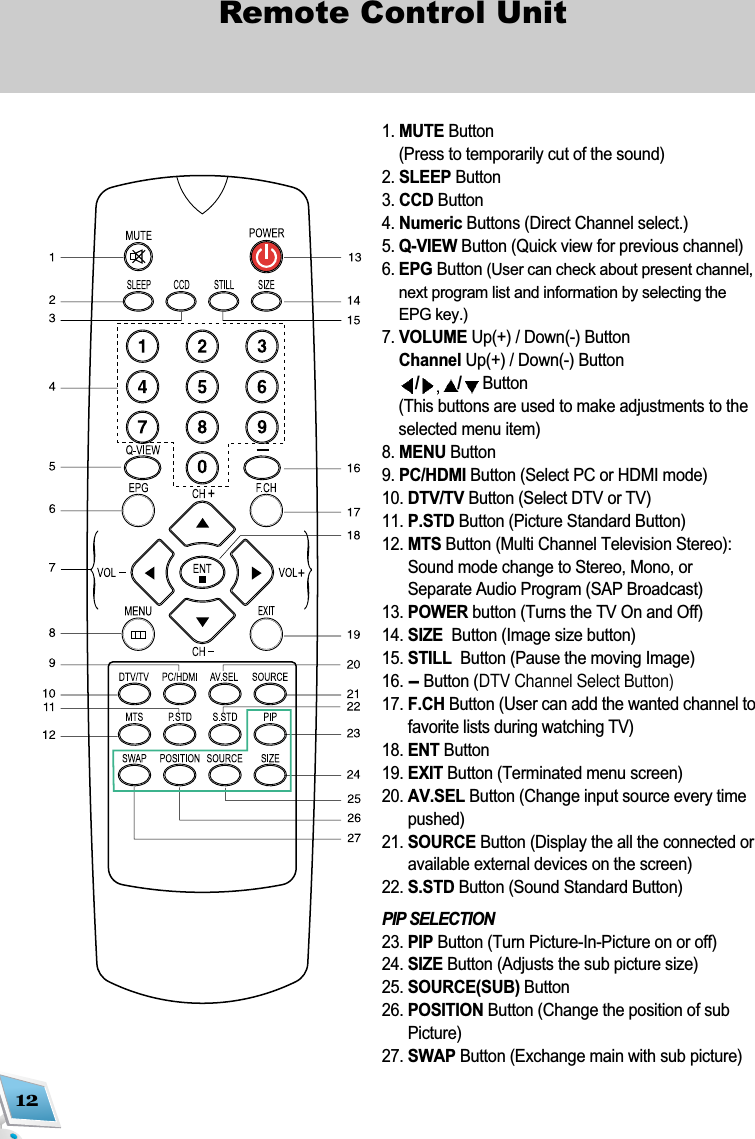

12Remote Control Unit1. MUTE Button (Press to temporarily cut of the sound)2. SLEEP Button3. CCD Button4. Numeric Buttons (Direct Channel select.)5. Q-VIEW Button (Quick view for previous channel)6. EPG Button (User can check about present channel,next program list and information by selecting theEPG key.)7. VOLUME Up(+) / Down(-) ButtonChannel Up(+) / Down(-) Button/ / Button (This buttons are used to make adjustments to theselected menu item)8. MENU Button9. PC/HDMI Button (Select PC or HDMI mode)10. DTV/TV Button (Select DTV or TV)11. P.STD Button (Picture Standard Button)12. MTS Button (Multi Channel Television Stereo):Sound mode change to Stereo, Mono, orSeparate Audio Program (SAP Broadcast)13. POWER button (Turns the TV On and Off)14. SIZE Button (Image size button)15. STILL Button (Pause the moving Image)16. -Button (DTV Channel Select Button)17. F.CH Button (User can add the wanted channel tofavorite lists during watching TV)18. ENT Button 19. EXIT Button (Terminated menu screen)20. AV.SEL Button (Change input source every timepushed)21. SOURCE Button (Display the all the connected oravailable external devices on the screen)22. S.STD Button (Sound Standard Button)PIP SELECTION23. PIP Button (Turn Picture-In-Picture on or off)24. SIZE Button (Adjusts the sub picture size)25. SOURCE(SUB) Button26. POSITION Button (Change the position of subPicture)27. SWAP Button (Exchange main with sub picture)
13Connecting to watch TV, VCR or DVDTo view television channels correctly, a signal must be received by the set from one of followingsources:An outdoor aerialAn indoor aerial (not recommendable)A cable television network1. In the first three cases, connect the aerial or network input cable to the 75 ohm coaxial socketon the rear of the TFT LCD TV.2. Press the TV button on the remote control.1. Connect video and audio cable according to the shape and color or the video / audio cable.When an external devices is in MONO, the audio connection cable can be connected toeither the left and S.MODE/MTS should be set MONO.2. For optimal visual image, use S-VIDEO connector instead of video (yellow) connector. Connecting the Aerial or Cable Television NetworkConnecting the VCR, DVD or Other external devices

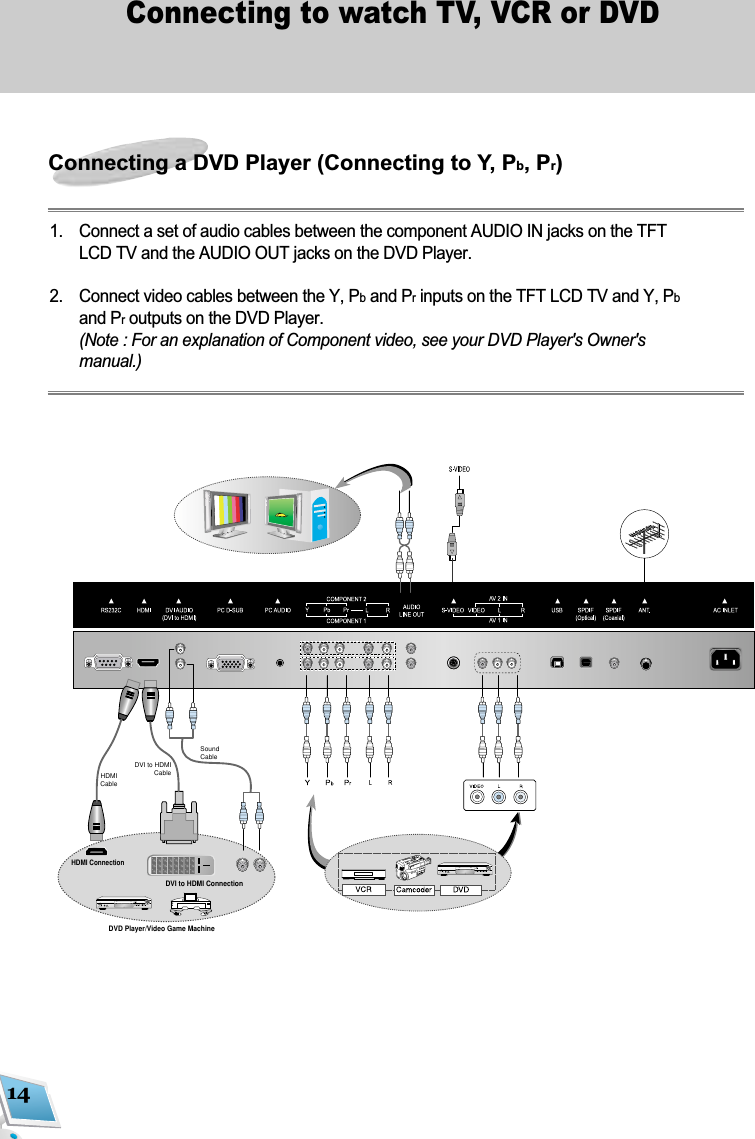

14Connecting to watch TV, VCR or DVD1. Connect a set of audio cables between the component AUDIO IN jacks on the TFTLCD TV and the AUDIO OUT jacks on the DVD Player.2. Connect video cables between the Y, Pband Prinputs on the TFT LCD TV and Y, Pband Proutputs on the DVD Player.(Note : For an explanation of Component video, see your DVD Player's Owner'smanual.)Connecting a DVD Player (Connecting to Y, Pb, Pr)DVI to HDMICableHDMICableDVI to HDMI ConnectionDVD Player/Video Game MachineHDMI ConnectionSound Cable

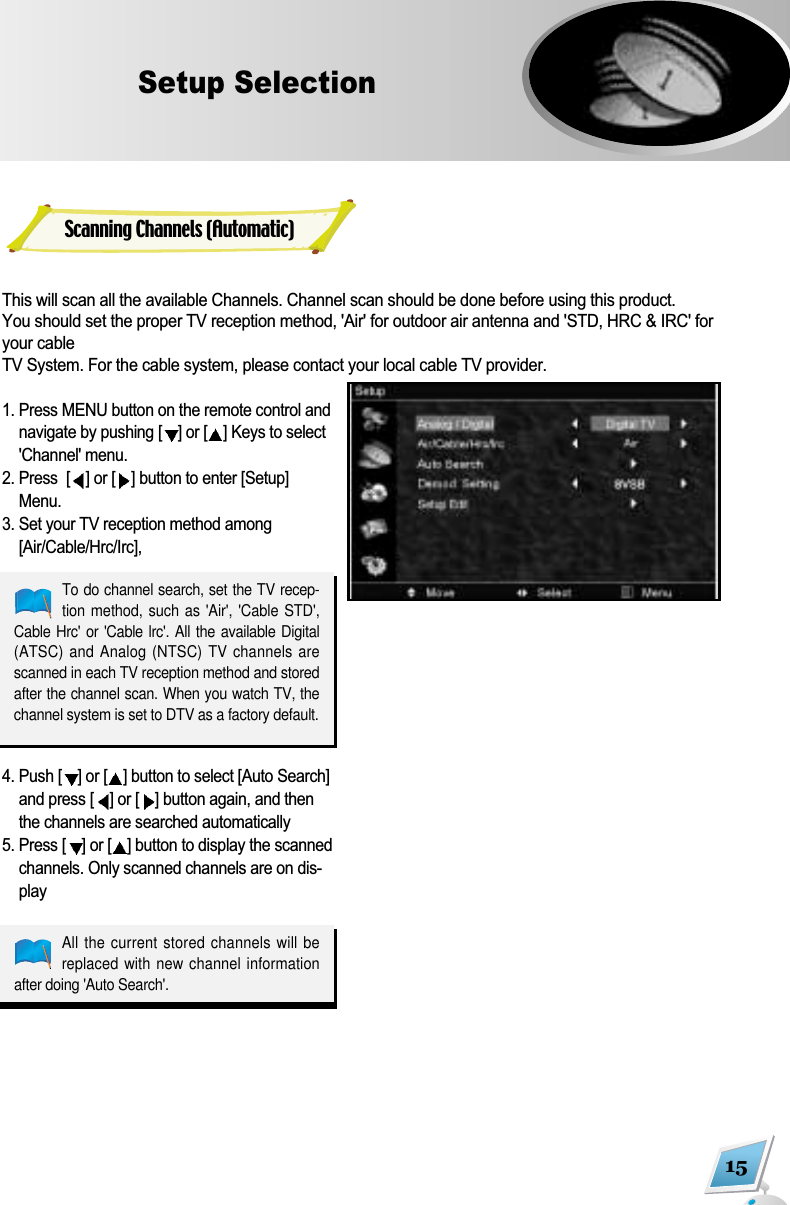

This will scan all the available Channels. Channel scan should be done before using this product. You should set the proper TV reception method, 'Air' for outdoor air antenna and 'STD, HRC & IRC' foryour cable TV System. For the cable system, please contact your local cable TV provider.1. Press MENU button on the remote control andnavigate by pushing [ ] or [ ] Keys to select'Channel' menu. 2. Press [ ] or [ ] button to enter [Setup]Menu.3. Set your TV reception method among[Air/Cable/Hrc/Irc], 4. Push [ ] or [ ] button to select [Auto Search]and press [ ] or [ ] button again, and thenthe channels are searched automatically5. Press [ ] or [ ] button to display the scannedchannels. Only scanned channels are on dis-play15Setup SelectionScanning Channels (Automatic)To do channel search, set the TV recep-tion method, such as 'Air', 'Cable STD',Cable Hrc' or 'Cable lrc'. All the available Digital(ATSC) and Analog (NTSC) TV channels arescanned in each TV reception method and storedafter the channel scan. When you watch TV, thechannel system is set to DTV as a factory default.All the current stored channels will bereplaced with new channel informationafter doing 'Auto Search'.

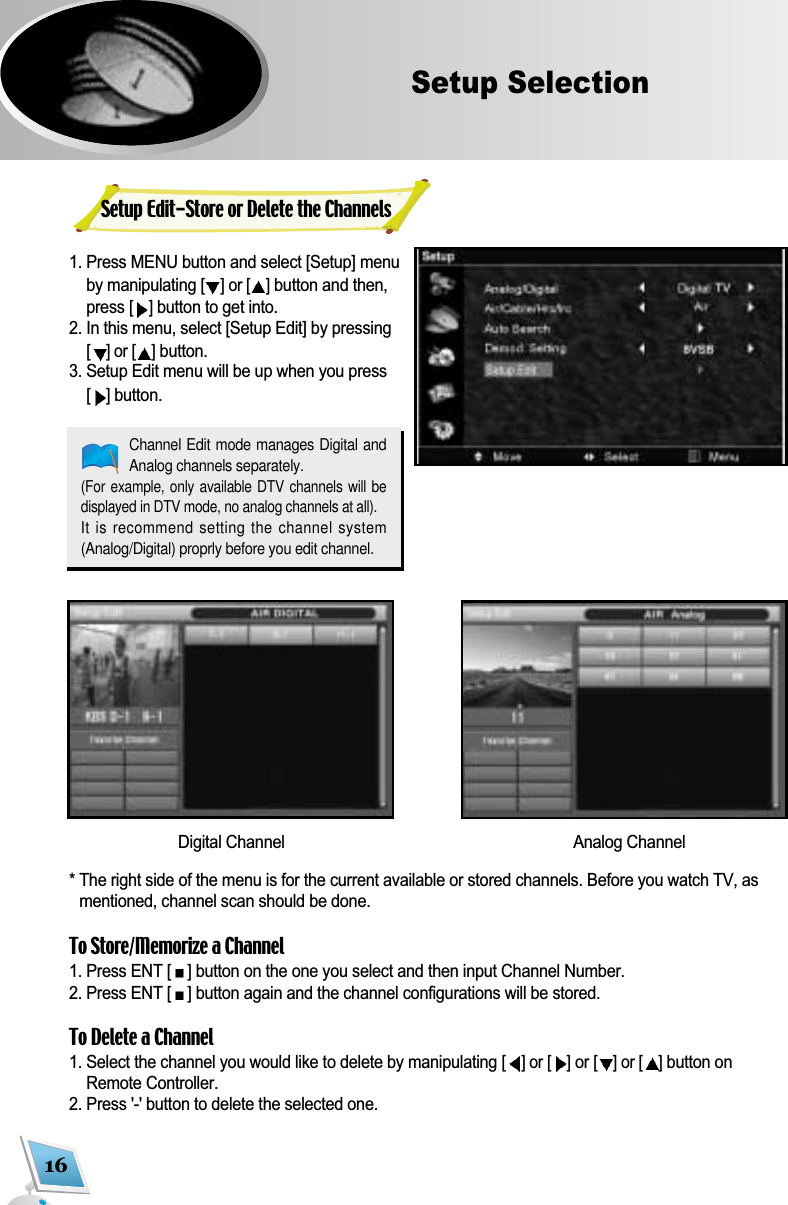

16Setup Selection1. Press MENU button and select [Setup] menuby manipulating [] or [ ]button and then,press [ ]button to get into.2. In this menu, select [Setup Edit] by pressing[] or [ ]button.3. Setup Edit menu will be up when you press[ ]button.* The right side of the menu is for the current available or stored channels. Before you watch TV, asmentioned, channel scan should be done.To Store/Memorize a Channel1. Press ENT [ ] button on the one you select and then input Channel Number.2. Press ENT [ ] button again and the channel configurations will be stored.To Delete a Channel1. Select the channel you would like to delete by manipulating [] or [ ]or [] or [ ]button onRemote Controller.2. Press '-' button to delete the selected one.Channel Edit mode manages Digital andAnalog channels separately.(For example, only available DTV channels will bedisplayed in DTV mode, no analog channels at all).It is recommend setting the channel system(Analog/Digital) proprly before you edit channel.Digital Channel Analog ChannelSetup Edit-Store or Delete the Channels

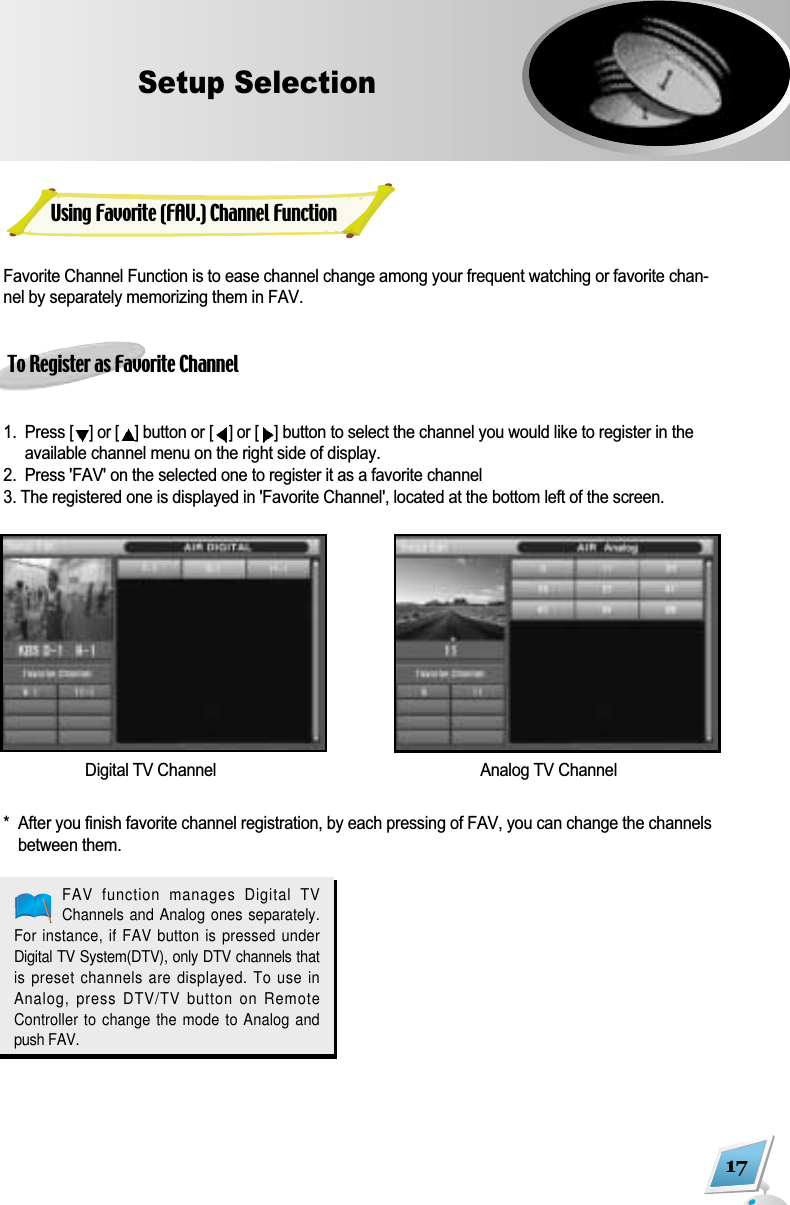

Favorite Channel Function is to ease channel change among your frequent watching or favorite chan-nel by separately memorizing them in FAV.To Register as Favorite Channel1. Press [] or [ ]button or [] or [ ]button to select the channel you would like to register in theavailable channel menu on the right side of display.2. Press 'FAV' on the selected one to register it as a favorite channel3. The registered one is displayed in 'Favorite Channel', located at the bottom left of the screen.* After you finish favorite channel registration, by each pressing of FAV, you can change the channelsbetween them.17Setup SelectionDigital TV Channel Analog TV ChannelFAV function manages Digital TVChannels and Analog ones separately.For instance, if FAV button is pressed underDigital TV System(DTV), only DTV channels thatis preset channels are displayed. To use inAnalog, press DTV/TV button on RemoteController to change the mode to Analog andpush FAV.Using Favorite (FAV.) Channel Function

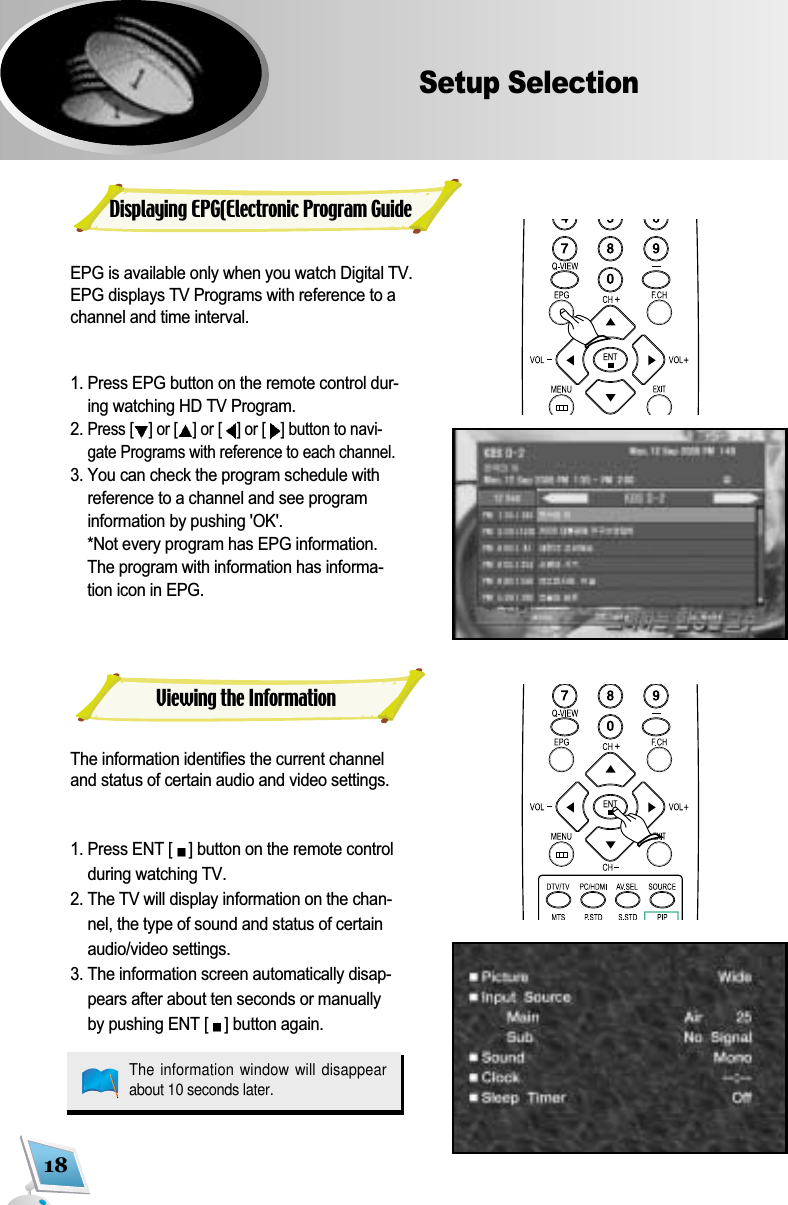

18Setup SelectionEPG is available only when you watch Digital TV.EPG displays TV Programs with reference to achannel and time interval.1. Press EPG button on the remote control dur-ing watching HD TV Program. 2. Press [ ] or [ ]or [ ] or [ ] button to navi-gate Programs with reference to each channel. 3. You can check the program schedule withreference to a channel and see programinformation by pushing 'OK'. *Not every program has EPG information.The program with information has informa-tion icon in EPG.The information identifies the current channeland status of certain audio and video settings. 1. Press ENT [ ] button on the remote controlduring watching TV. 2. The TV will display information on the chan-nel, the type of sound and status of certainaudio/video settings. 3. The information screen automatically disap-pears after about ten seconds or manuallyby pushing ENT [ ] button again. Displaying EPG(Electronic Program GuideViewing the InformationThe information window will disappearabout 10 seconds later.

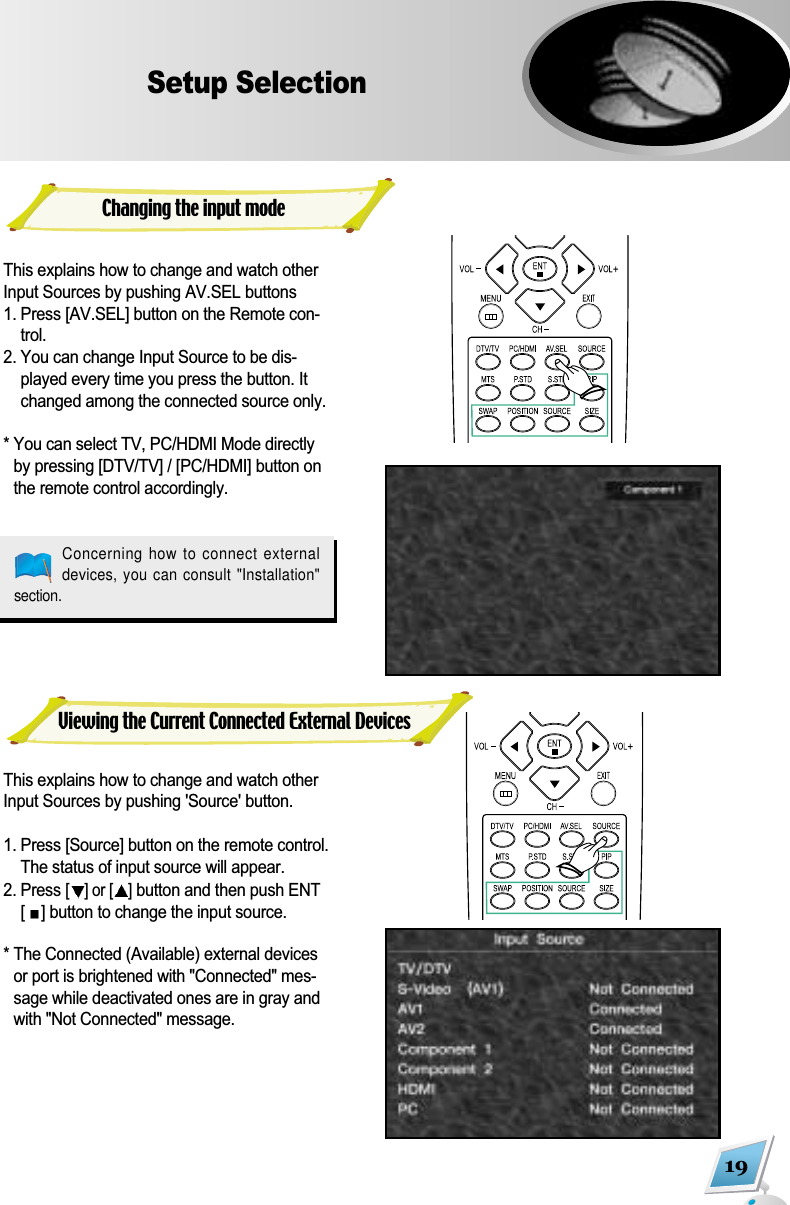

19Setup SelectionThis explains how to change and watch otherInput Sources by pushing AV.SEL buttons1. Press [AV.SEL] button on the Remote con-trol. 2. You can change Input Source to be dis-played every time you press the button. Itchanged among the connected source only.* You can select TV, PC/HDMI Mode directlyby pressing [DTV/TV] / [PC/HDMI] button onthe remote control accordingly. This explains how to change and watch otherInput Sources by pushing 'Source' button.1. Press [Source] button on the remote control.The status of input source will appear.2. Press [] or [ ]button and then push ENT[] button to change the input source. * The Connected (Available) external devicesor port is brightened with "Connected" mes-sage while deactivated ones are in gray andwith "Not Connected" message.Concerning how to connect externaldevices, you can consult "Installation"section.Changing the input modeViewing the Current Connected External Devices

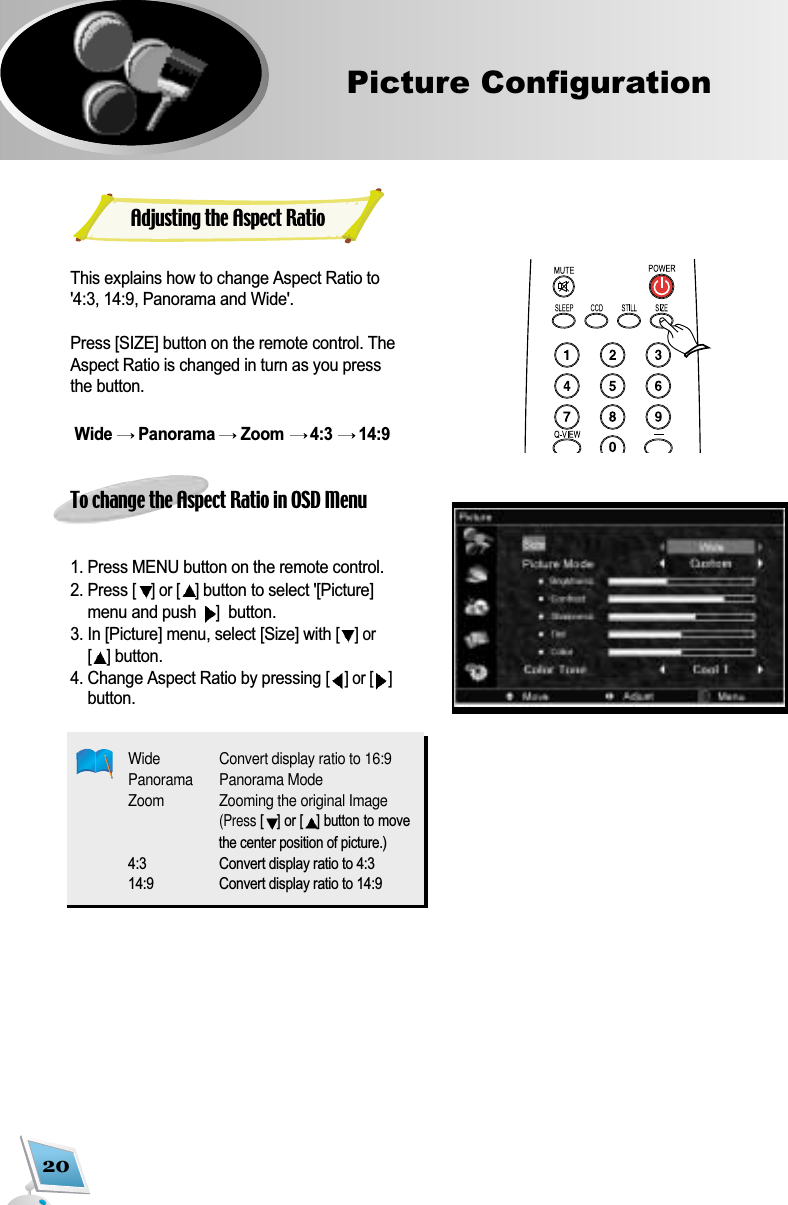

20Picture ConfigurationThis explains how to change Aspect Ratio to'4:3, 14:9, Panorama and Wide'.Press [SIZE] button on the remote control. TheAspect Ratio is changed in turn as you pressthe button. Wide Panorama Zoom 4:3 14:9 To change the Aspect Ratio in OSD Menu1. Press MENU button on the remote control. 2. Press [] or [ ]button to select '[Picture]menu and push ]button.3. In [Picture] menu, select [Size] with [] or[]button.4. Change Aspect Ratio by pressing [] or [ ]button.Wide Convert display ratio to 16:9Panorama Panorama ModeZoom Zooming the original Image(Press [] or [ ] button to movethe center position of picture.)4:3 Convert display ratio to 4:314:9 Convert display ratio to 14:9Adjusting the Aspect Ratio

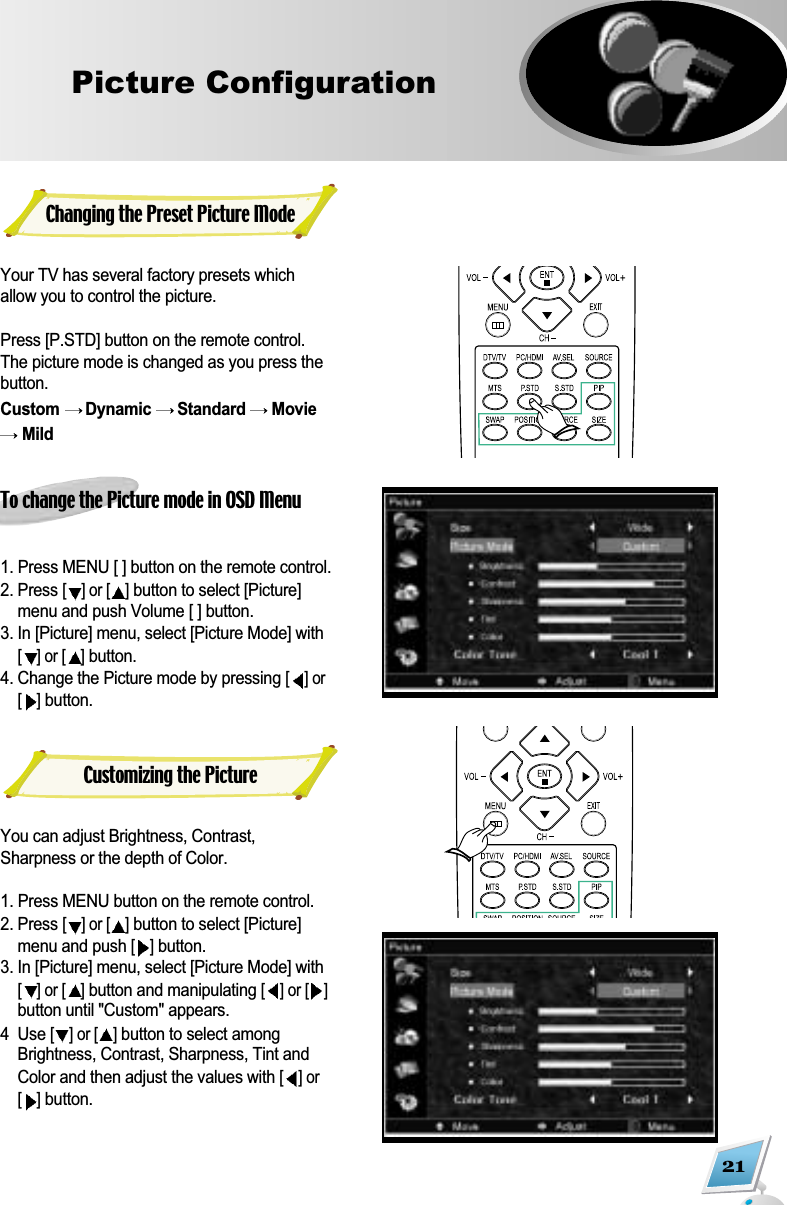

21Picture ConfigurationYour TV has several factory presets whichallow you to control the picture. Press [P.STD] button on the remote control.The picture mode is changed as you press thebutton. Custom Dynamic Standard MovieMildTo change the Picture mode in OSD Menu1. Press MENU [ ] button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push Volume [ ] button.3. In [Picture] menu, select [Picture Mode] with[] or [ ]button.4. Change the Picture mode by pressing [] or[]button.You can adjust Brightness, Contrast,Sharpness or the depth of Color.1. Press MENU button on the remote control.2. Press [] or [ ]button to select [Picture]menu and push [ ]button.3. In [Picture] menu, select [Picture Mode] with[] or [ ]button and manipulating [] or [ ]button until "Custom" appears.4 Use [] or [ ]button to select amongBrightness, Contrast, Sharpness, Tint andColor and then adjust the values with [] or[]button.Changing the Preset Picture ModeCustomizing the Picture

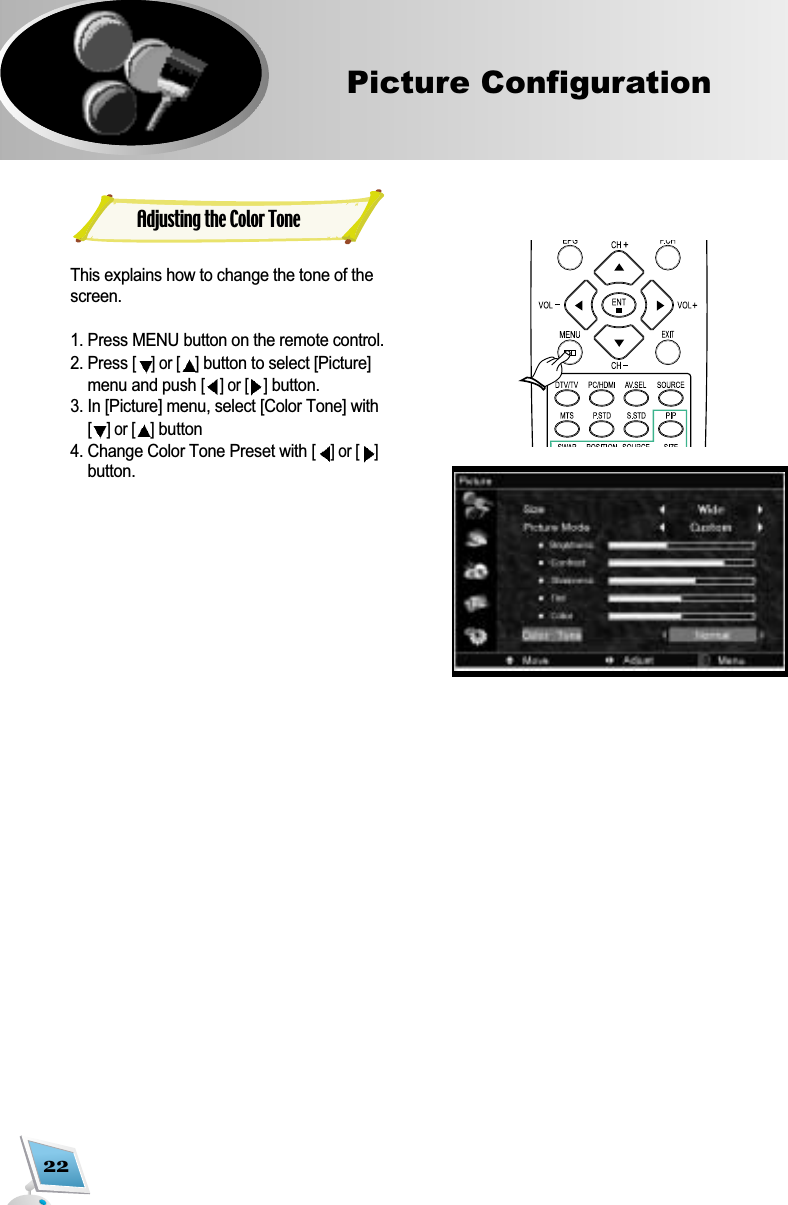

22Picture ConfigurationAdjusting the Color ToneThis explains how to change the tone of thescreen.1. Press MENU button on the remote control.2. Press [] or [ ]button to select [Picture]menu and push [] or [ ]button.3. In [Picture] menu, select [Color Tone] with[] or [ ]button4. Change Color Tone Preset with [] or [ ]button.

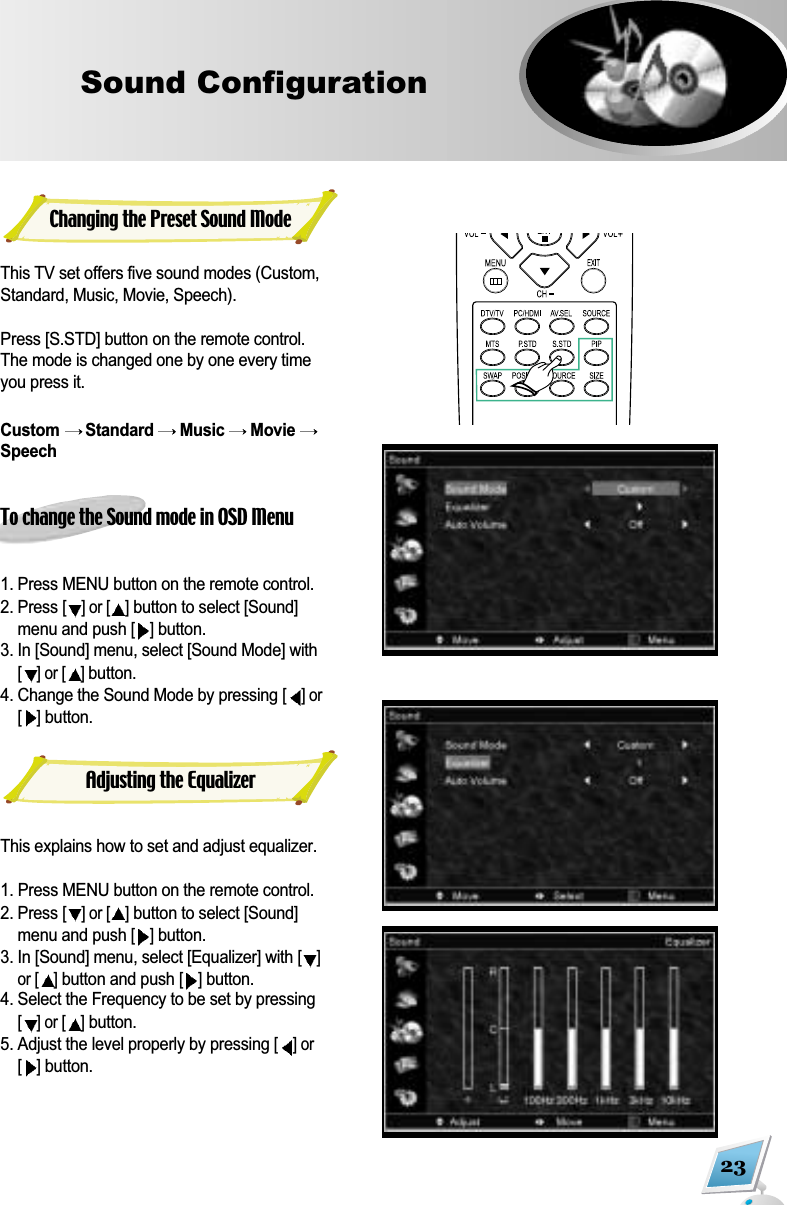

23Sound ConfigurationThis TV set offers five sound modes (Custom,Standard, Music, Movie, Speech).Press [S.STD] button on the remote control.The mode is changed one by one every timeyou press it.Custom Standard Music Movie SpeechTo change the Sound mode in OSD Menu1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Sound]menu and push [ ]button.3. In [Sound] menu, select [Sound Mode] with[] or [ ] button.4. Change the Sound Mode by pressing [] or[]button.This explains how to set and adjust equalizer.1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Sound]menu and push [ ]button.3. In [Sound] menu, select [Equalizer] with [ ]or [ ]button and push [ ]button.4. Select the Frequency to be set by pressing[] or [ ]button. 5. Adjust the level properly by pressing [] or[]button.Changing the Preset Sound ModeAdjusting the Equalizer

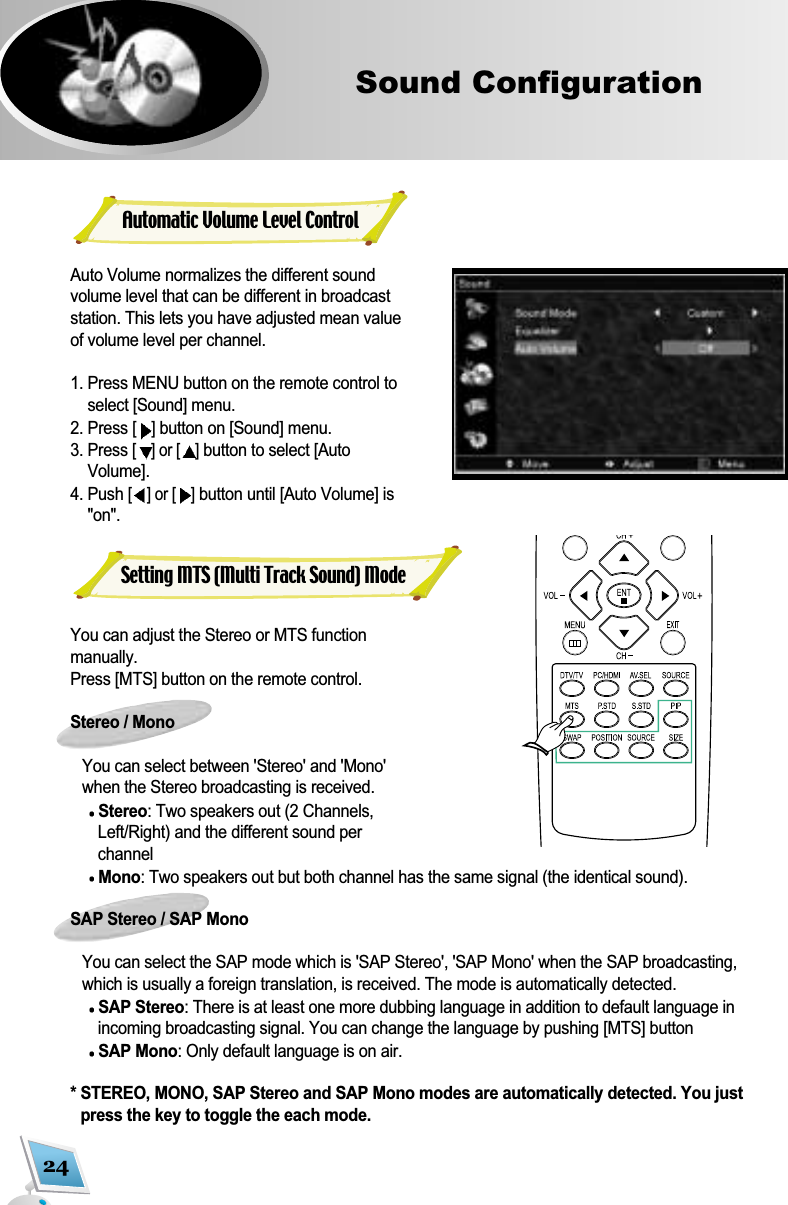

24Sound ConfigurationAuto Volume normalizes the different soundvolume level that can be different in broadcaststation. This lets you have adjusted mean valueof volume level per channel.1. Press MENU button on the remote control toselect [Sound] menu. 2. Press [ ]button on [Sound] menu.3. Press [] or [ ]button to select [AutoVolume]. 4. Push [] or [ ]button until [Auto Volume] is"on".You can adjust the Stereo or MTS functionmanually. Press [MTS] button on the remote control. Stereo / MonoYou can select between 'Stereo' and 'Mono'when the Stereo broadcasting is received. Stereo: Two speakers out (2 Channels,Left/Right) and the different sound perchannel Mono: Two speakers out but both channel has the same signal (the identical sound).SAP Stereo / SAP MonoYou can select the SAP mode which is 'SAP Stereo', 'SAP Mono' when the SAP broadcasting, which is usually a foreign translation, is received. The mode is automatically detected.SAP Stereo: There is at least one more dubbing language in addition to default language inincoming broadcasting signal. You can change the language by pushing [MTS] buttonSAP Mono: Only default language is on air.* STEREO, MONO, SAP Stereo and SAP Mono modes are automatically detected. You justpress the key to toggle the each mode.Automatic Volume Level ControlSetting MTS (Multi Track Sound) Mode

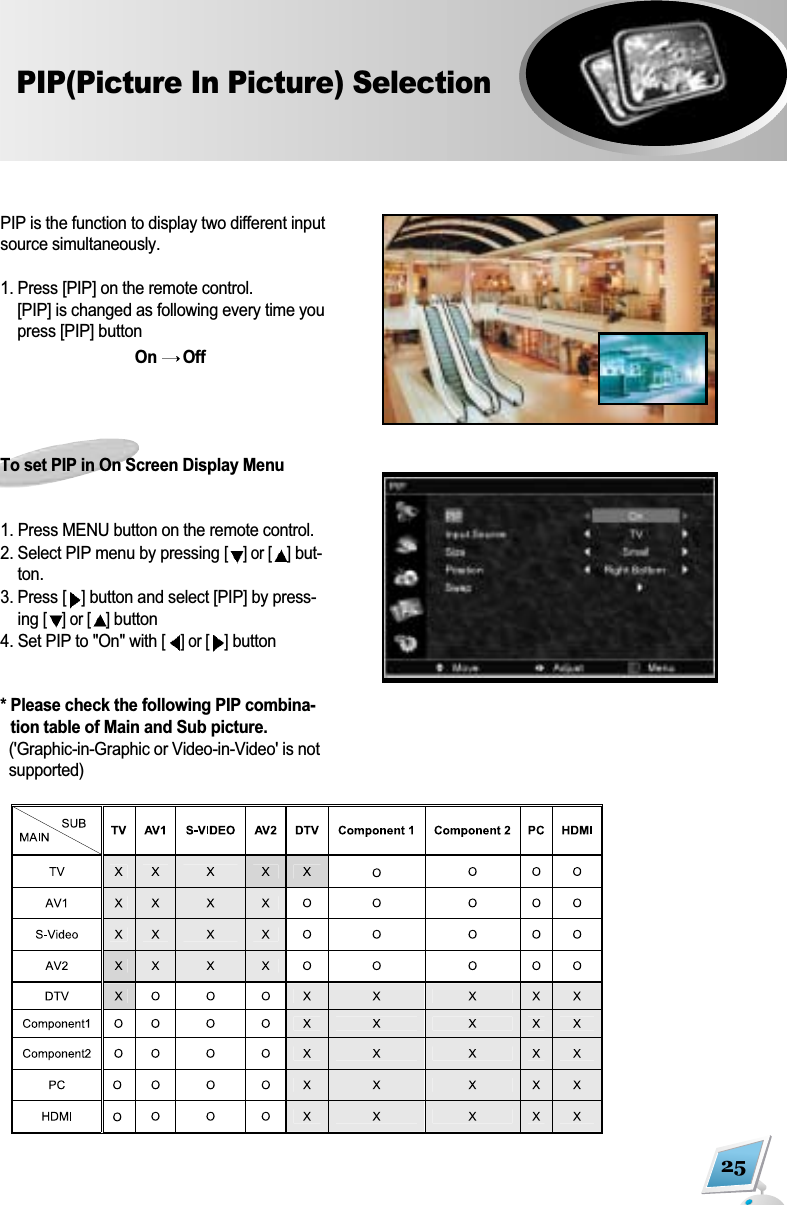

25PIP(Picture In Picture) SelectionPIP is the function to display two different inputsource simultaneously.1. Press [PIP] on the remote control.[PIP] is changed as following every time youpress [PIP] buttonOn OffTo set PIP in On Screen Display Menu1. Press MENU button on the remote control.2. Select PIP menu by pressing [] or [ ]but-ton.3. Press [ ]button and select [PIP] by press-ing [] or [ ]button4. Set PIP to "On" with [] or [ ]button* Please check the following PIP combina-tion table of Main and Sub picture.('Graphic-in-Graphic or Video-in-Video' is notsupported)

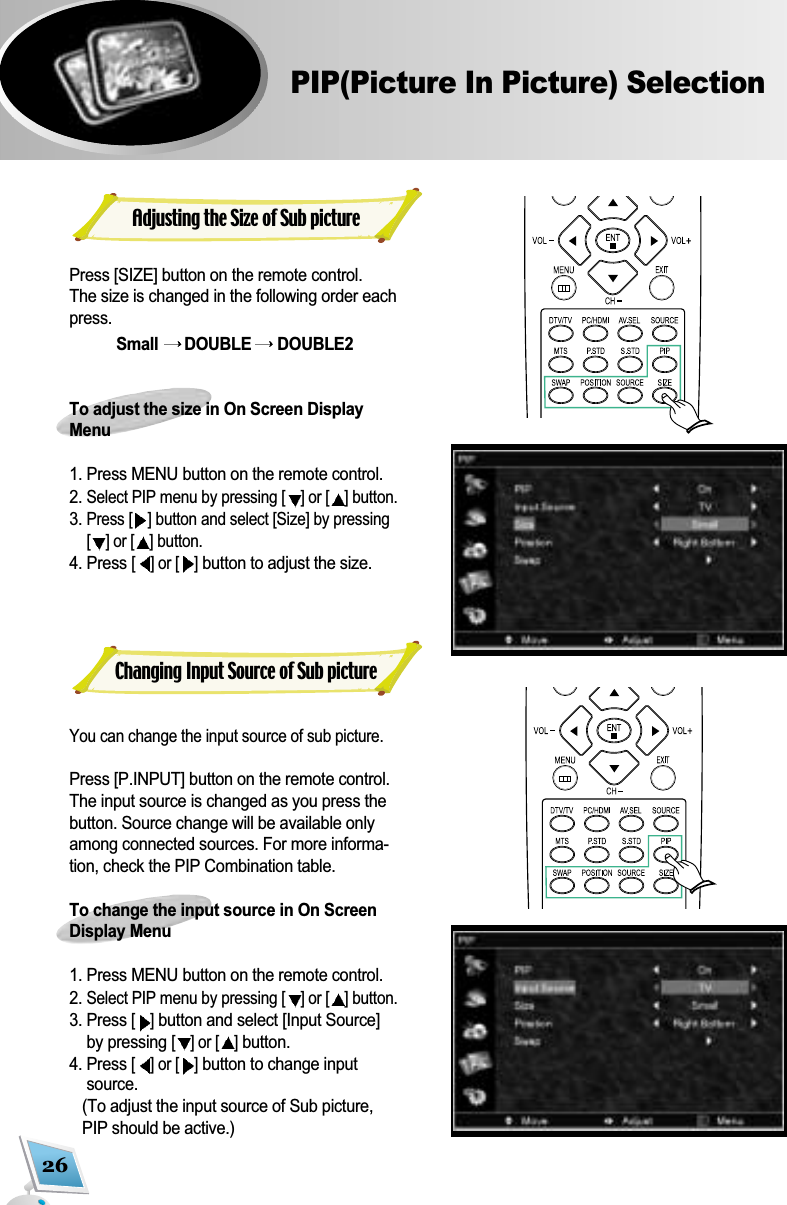

26PIP(Picture In Picture) SelectionAdjusting the Size of Sub picturePress [SIZE] button on the remote control. The size is changed in the following order eachpress. Small DOUBLE DOUBLE2To adjust the size in On Screen DisplayMenu 1. Press MENU button on the remote control.2. Select PIP menu by pressing [ ] or [ ] button. 3. Press [ ] button and select [Size] by pressing[] or [ ] button.4. Press [] or [ ]button to adjust the size. You can change the input source of sub picture. Press [P.INPUT] button on the remote control. The input source is changed as you press thebutton. Source change will be available onlyamong connected sources. For more informa-tion, check the PIP Combination table. To change the input source in On ScreenDisplay Menu1. Press MENU button on the remote control.2. Select PIP menu by pressing [ ] or [ ] button. 3. Press [ ]button and select [Input Source]by pressing [] or [ ]button.4. Press [] or [ ]button to change inputsource. (To adjust the input source of Sub picture,PIP should be active.) Changing Input Source of Sub picture

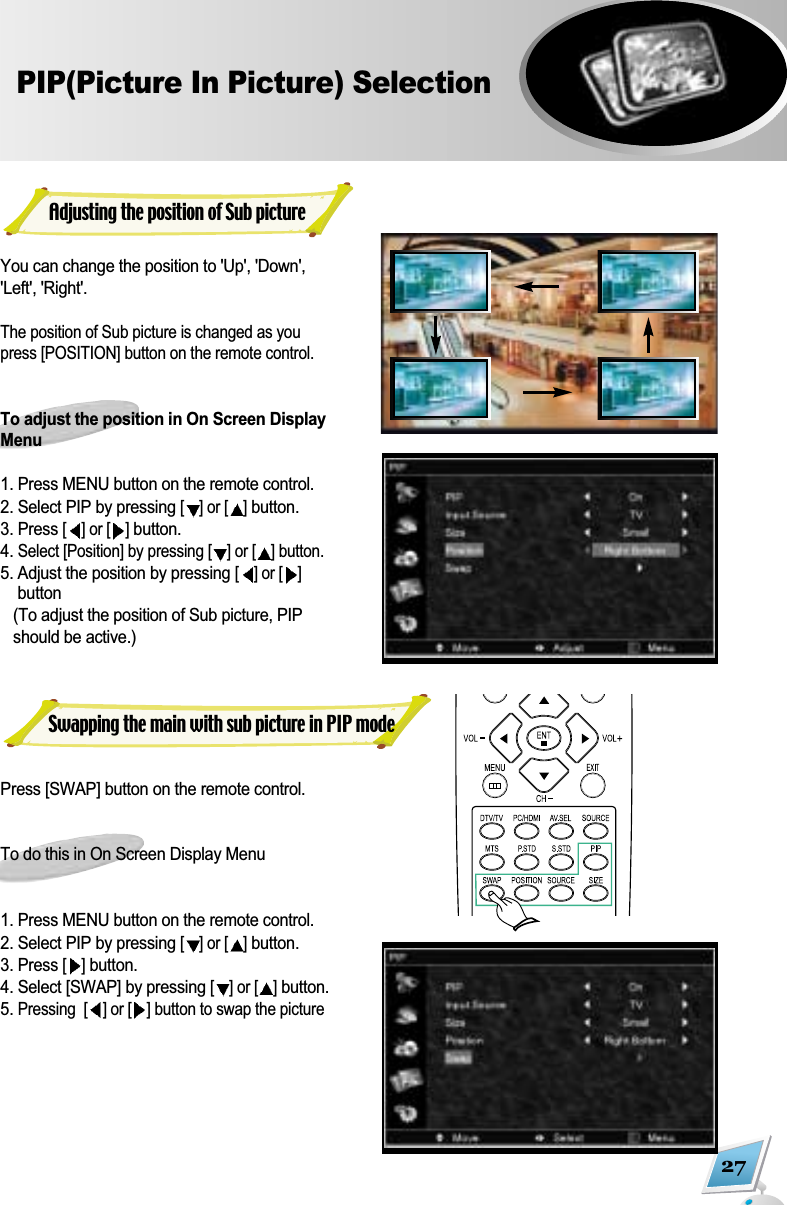

27PIP(Picture In Picture) SelectionYou can change the position to 'Up', 'Down','Left', 'Right'. The position of Sub picture is changed as youpress [POSITION] button on the remote control.To adjust the position in On Screen DisplayMenu1. Press MENU button on the remote control. 2. Select PIP by pressing [] or [ ]button. 3. Press [] or [ ]button. 4. Select [Position] by pressing [ ] or [ ] button.5. Adjust the position by pressing [] or [ ]button(To adjust the position of Sub picture, PIPshould be active.)Press [SWAP] button on the remote control. To do this in On Screen Display Menu 1. Press MENU button on the remote control. 2. Select PIP by pressing [] or [ ]button. 3. Press [ ]button. 4. Select [SWAP] by pressing [] or [ ]button.5. Pressing [ ] or [ ] button to swap the pictureAdjusting the position of Sub pictureSwapping the main with sub picture in PIP mode

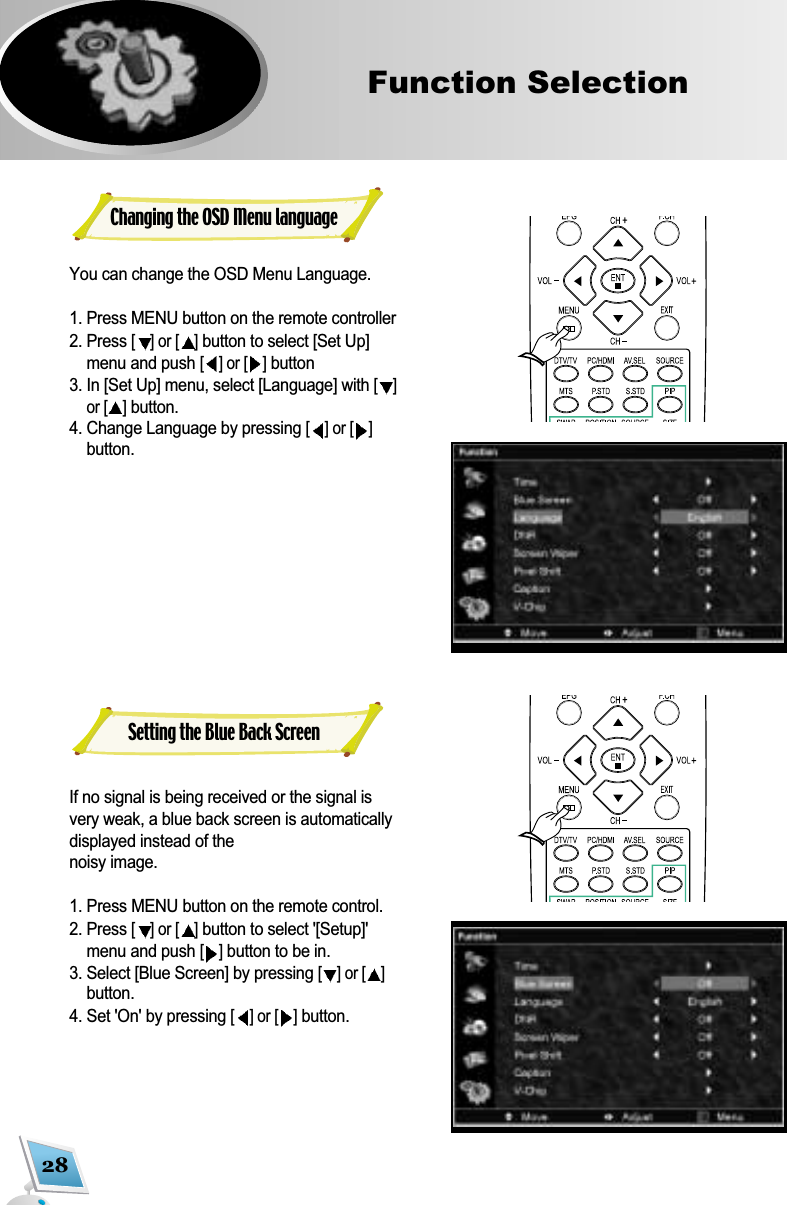

28Function Selection Changing the OSD Menu languageYou can change the OSD Menu Language.1. Press MENU button on the remote controller 2. Press [] or [ ]button to select [Set Up]menu and push [] or [ ]button3. In [Set Up] menu, select [Language] with [ ]or [ ]button.4. Change Language by pressing [] or [ ]button.If no signal is being received or the signal isvery weak, a blue back screen is automaticallydisplayed instead of the noisy image. 1. Press MENU button on the remote control.2. Press [] or [ ]button to select '[Setup]'menu and push [ ]button to be in.3. Select [Blue Screen] by pressing [] or [ ]button. 4. Set 'On' by pressing [] or [ ]button.Setting the Blue Back Screen

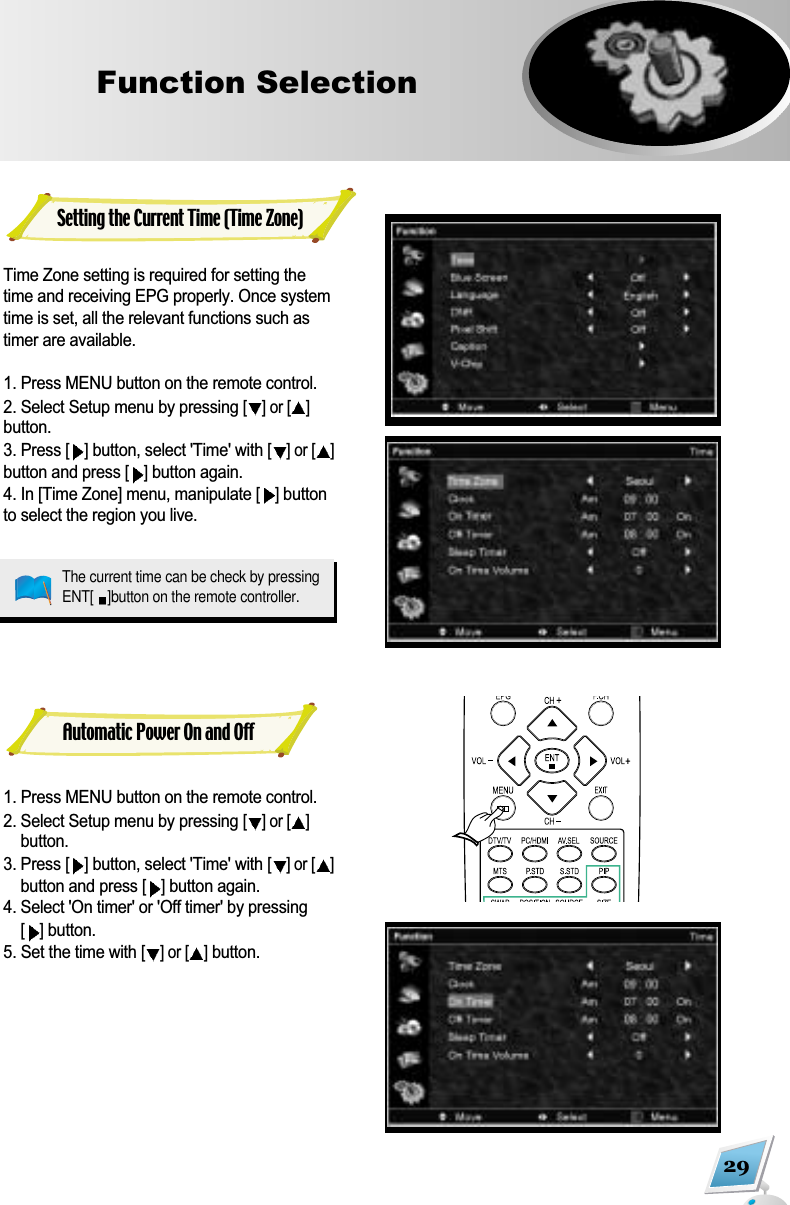

29Function Selection Setting the Current Time (Time Zone)Time Zone setting is required for setting thetime and receiving EPG properly. Once systemtime is set, all the relevant functions such astimer are available.1. Press MENU button on the remote control. 2. Select Setup menu by pressing [] or [ ]button. 3. Press []button, select 'Time' with [] or [ ]button and press [ ]button again.4. In [Time Zone] menu, manipulate [ ]buttonto select the region you live.1. Press MENU button on the remote control. 2. Select Setup menu by pressing [] or [ ]button. 3. Press [ ]button, select 'Time' with [] or [ ]button and press [ ]button again.4. Select 'On timer' or 'Off timer' by pressing[ ]button.5. Set the time with [] or [ ]button.Automatic Power On and OffThe current time can be check by pressingENT[ ]button on the remote controller.

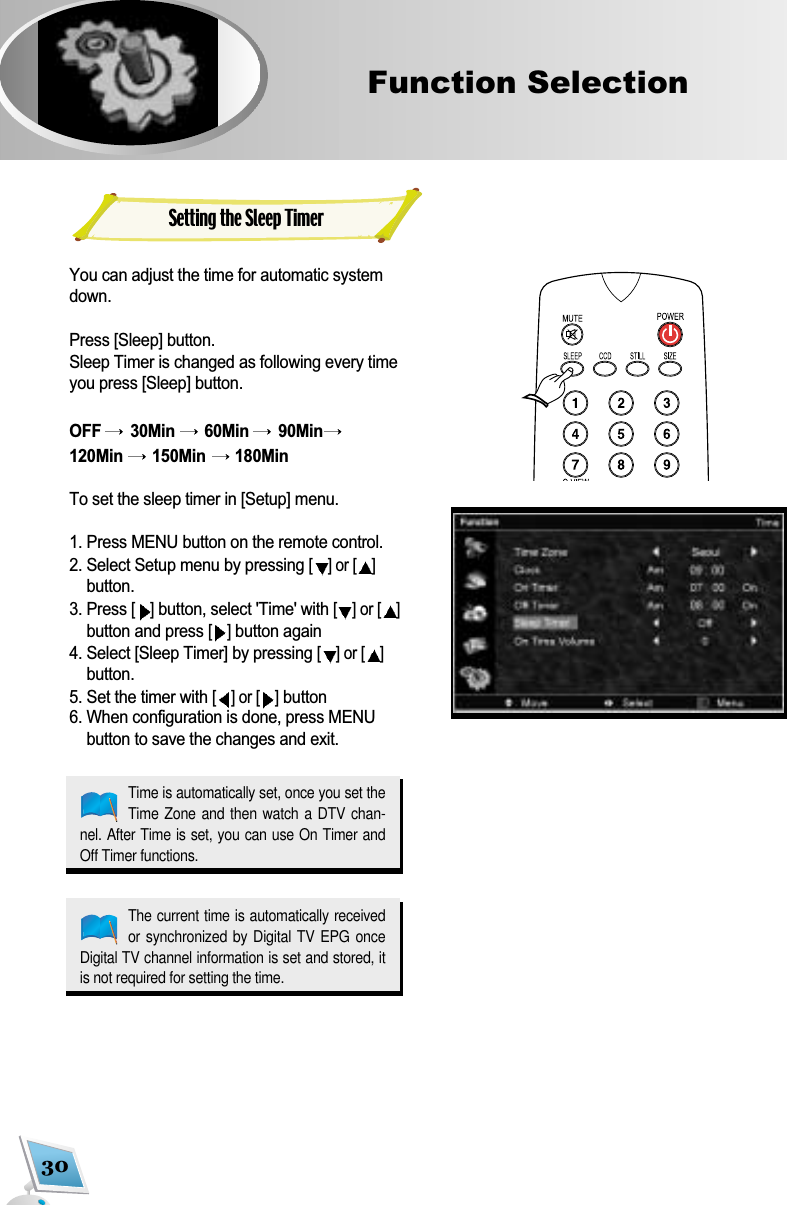

30Function Selection Setting the Sleep TimerYou can adjust the time for automatic systemdown.Press [Sleep] button.Sleep Timer is changed as following every timeyou press [Sleep] button.OFF 30Min 60Min 90Min120Min 150Min 180MinTo set the sleep timer in [Setup] menu.1. Press MENU button on the remote control.2. Select Setup menu by pressing [] or [ ]button.3. Press [ ]button, select 'Time' with [] or [ ]button and press [ ]button again 4. Select [Sleep Timer] by pressing [] or [ ]button. 5. Set the timer with [] or [ ]button6. When configuration is done, press MENUbutton to save the changes and exit.Time is automatically set, once you set theTime Zone and then watch a DTV chan-nel. After Time is set, you can use On Timer andOff Timer functions.The current time is automatically receivedor synchronized by Digital TV EPG onceDigital TV channel information is set and stored, itis not required for setting the time.

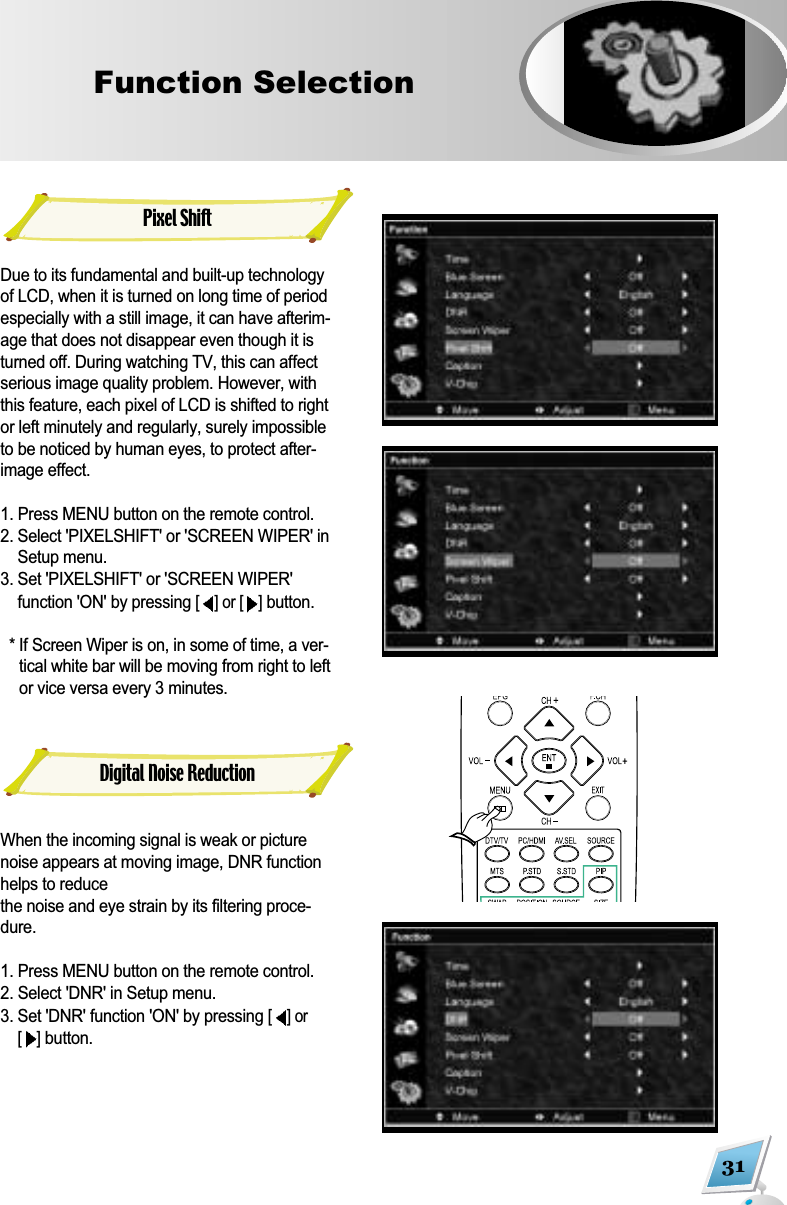

31Function Selection Pixel ShiftDue to its fundamental and built-up technologyof LCD, when it is turned on long time of periodespecially with a still image, it can have afterim-age that does not disappear even though it isturned off. During watching TV, this can affectserious image quality problem. However, withthis feature, each pixel of LCD is shifted to rightor left minutely and regularly, surely impossibleto be noticed by human eyes, to protect after-image effect.1. Press MENU button on the remote control. 2. Select 'PIXELSHIFT' or 'SCREEN WIPER' inSetup menu. 3. Set 'PIXELSHIFT' or 'SCREEN WIPER'function 'ON' by pressing [] or [ ]button. * If Screen Wiper is on, in some of time, a ver-tical white bar will be moving from right to leftor vice versa every 3 minutes.When the incoming signal is weak or picturenoise appears at moving image, DNR functionhelps to reduce the noise and eye strain by its filtering proce-dure. 1. Press MENU button on the remote control. 2. Select 'DNR' in Setup menu. 3. Set 'DNR' function 'ON' by pressing [] or[]button.Digital Noise Reduction

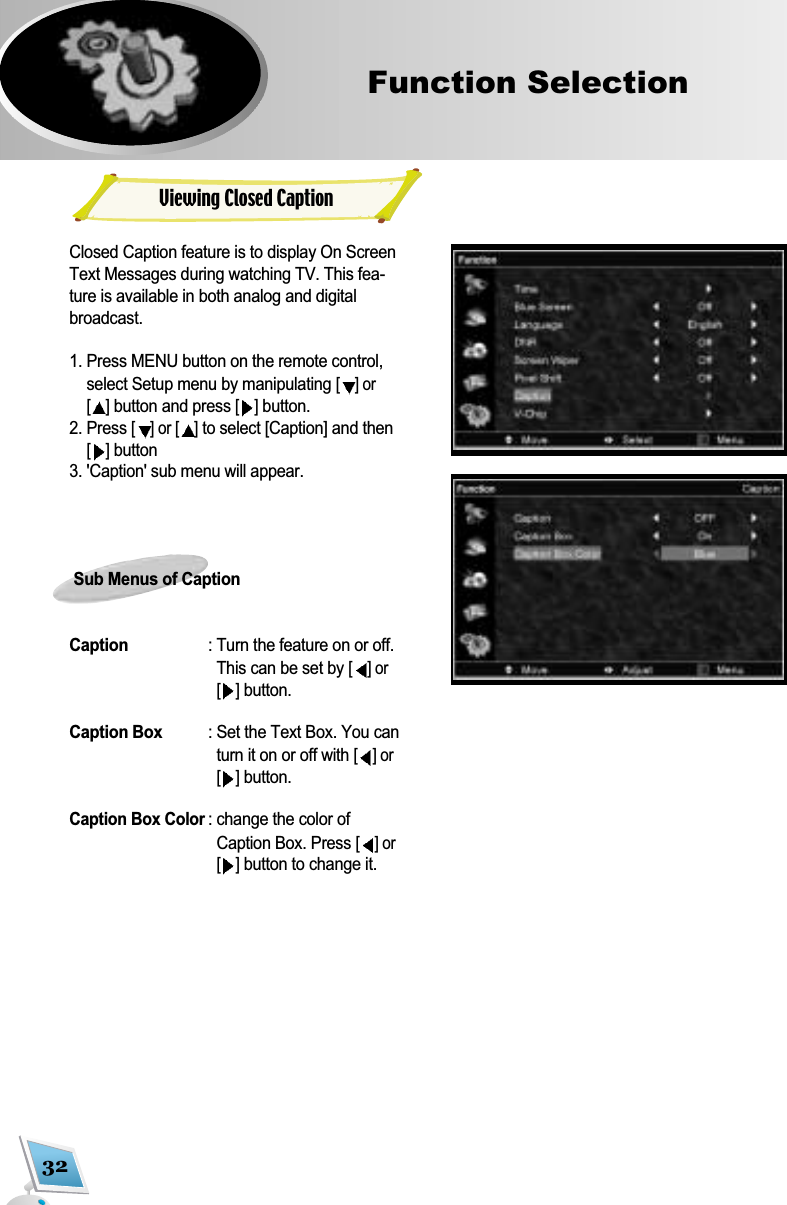

32Function Selection Closed Caption feature is to display On ScreenText Messages during watching TV. This fea-ture is available in both analog and digitalbroadcast.1. Press MENU button on the remote control,select Setup menu by manipulating [] or[]button and press [ ]button.2. Press [] or [ ]to select [Caption] and then[ ]button3. 'Caption' sub menu will appear.Sub Menus of CaptionCaption : Turn the feature on or off.This can be set by [] or[]button.Caption Box : Set the Text Box. You canturn it on or off with [] or[]button.Caption Box Color: change the color ofCaption Box. Press [] or[]button to change it.Viewing Closed Caption

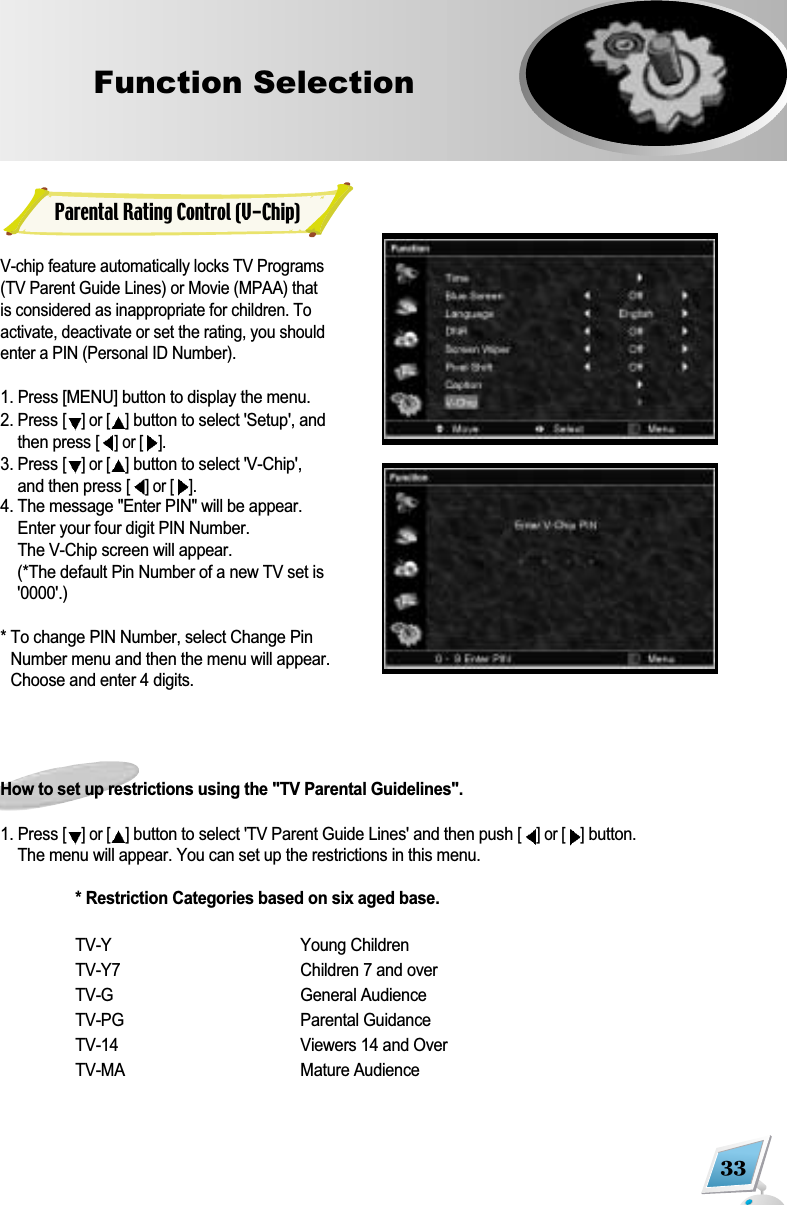

33Function Selection V-chip feature automatically locks TV Programs(TV Parent Guide Lines) or Movie (MPAA) thatis considered as inappropriate for children. Toactivate, deactivate or set the rating, you shouldenter a PIN (Personal ID Number).1. Press [MENU] button to display the menu.2. Press [] or [ ]button to select 'Setup', andthen press [] or [ ].3. Press [] or [ ]button to select 'V-Chip',and then press [] or [ ].4. The message "Enter PIN" will be appear.Enter your four digit PIN Number. The V-Chip screen will appear. (*The default Pin Number of a new TV set is'0000'.)* To change PIN Number, select Change PinNumber menu and then the menu will appear.Choose and enter 4 digits. How to set up restrictions using the "TV Parental Guidelines".1. Press [] or [ ]button to select 'TV Parent Guide Lines' and then push [] or [ ]button. The menu will appear. You can set up the restrictions in this menu.* Restriction Categories based on six aged base.TV-Y Young ChildrenTV-Y7 Children 7 and overTV-G General AudienceTV-PG Parental GuidanceTV-14 Viewers 14 and OverTV-MA Mature AudienceParental Rating Control (V-Chip)

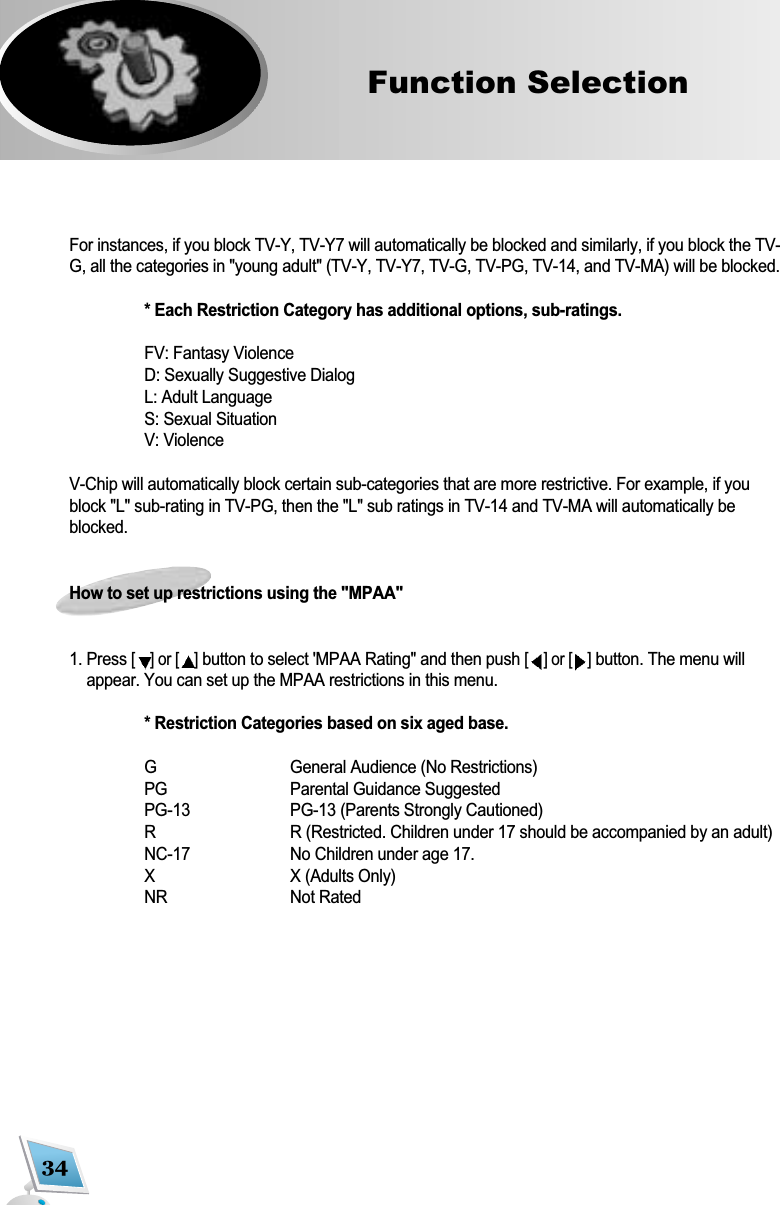

34Function Selection For instances, if you block TV-Y, TV-Y7 will automatically be blocked and similarly, if you block the TV-G, all the categories in "young adult" (TV-Y, TV-Y7, TV-G, TV-PG, TV-14, and TV-MA) will be blocked.* Each Restriction Category has additional options, sub-ratings.FV: Fantasy ViolenceD: Sexually Suggestive DialogL: Adult LanguageS: Sexual SituationV: ViolenceV-Chip will automatically block certain sub-categories that are more restrictive. For example, if youblock "L" sub-rating in TV-PG, then the "L" sub ratings in TV-14 and TV-MA will automatically beblocked.How to set up restrictions using the "MPAA"1. Press [] or [ ]button to select 'MPAA Rating" and then push [] or [ ]button. The menu willappear. You can set up the MPAA restrictions in this menu.* Restriction Categories based on six aged base.G General Audience (No Restrictions)PG Parental Guidance SuggestedPG-13 PG-13 (Parents Strongly Cautioned)R R (Restricted. Children under 17 should be accompanied by an adult)NC-17 No Children under age 17.X X (Adults Only)NR Not Rated

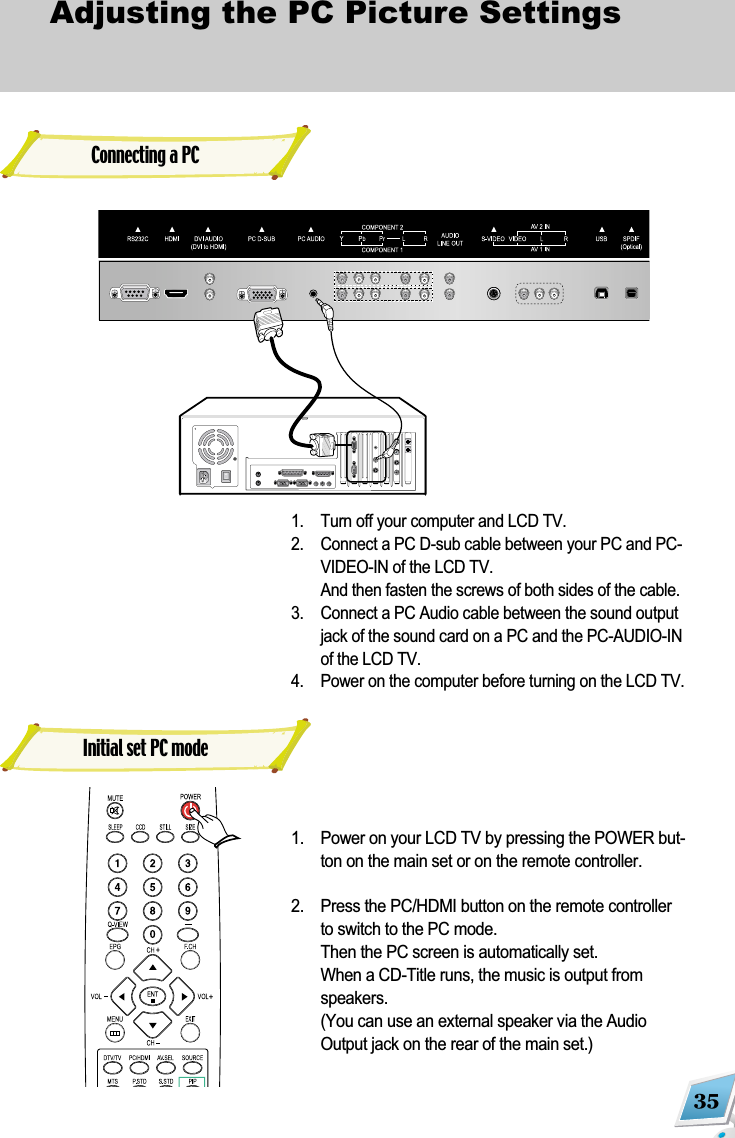

35Adjusting the PC Picture Settings 1. Turn off your computer and LCD TV.2. Connect a PC D-sub cable between your PC and PC-VIDEO-IN of the LCD TV.And then fasten the screws of both sides of the cable.3. Connect a PC Audio cable between the sound outputjack of the sound card on a PC and the PC-AUDIO-INof the LCD TV.4. Power on the computer before turning on the LCD TV.1. Power on your LCD TV by pressing the POWER but-ton on the main set or on the remote controller.2. Press the PC/HDMI button on the remote controllerto switch to the PC mode.Then the PC screen is automatically set.When a CD-Title runs, the music is output fromspeakers.(You can use an external speaker via the AudioOutput jack on the rear of the main set.)Initial set PC modeConnecting a PC

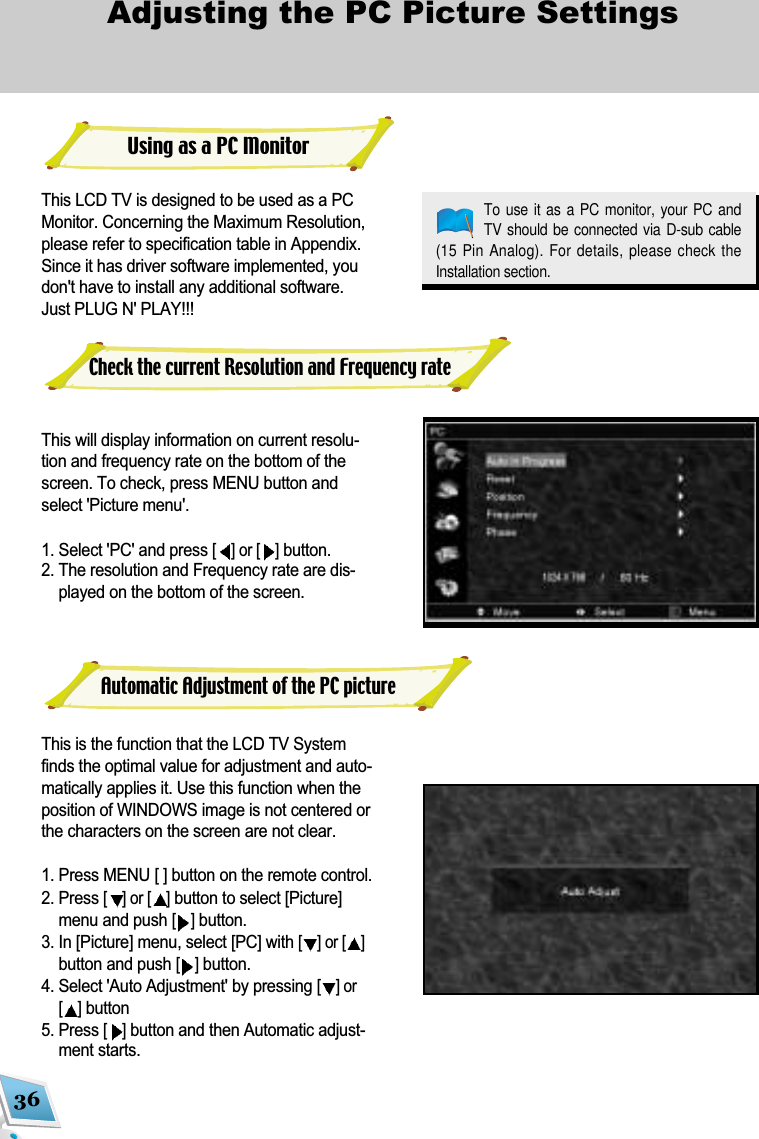

36Adjusting the PC Picture Settings This LCD TV is designed to be used as a PCMonitor. Concerning the Maximum Resolution,please refer to specification table in Appendix.Since it has driver software implemented, youdon't have to install any additional software.Just PLUG N' PLAY!!! This will display information on current resolu-tion and frequency rate on the bottom of thescreen. To check, press MENU button andselect 'Picture menu'. 1. Select 'PC' and press [] or [ ]button. 2. The resolution and Frequency rate are dis-played on the bottom of the screen.This is the function that the LCD TV Systemfinds the optimal value for adjustment and auto-matically applies it. Use this function when theposition of WINDOWS image is not centered orthe characters on the screen are not clear. 1. Press MENU [ ] button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push [ ]button.3. In [Picture] menu, select [PC] with [] or [ ]button and push [ ]button.4. Select 'Auto Adjustment' by pressing [] or[]button 5. Press []button and then Automatic adjust-ment starts.Using as a PC MonitorTo use it as a PC monitor, your PC andTV should be connected via D-sub cable(15 Pin Analog). For details, please check theInstallation section.Check the current Resolution and Frequency rateAutomatic Adjustment of the PC picture

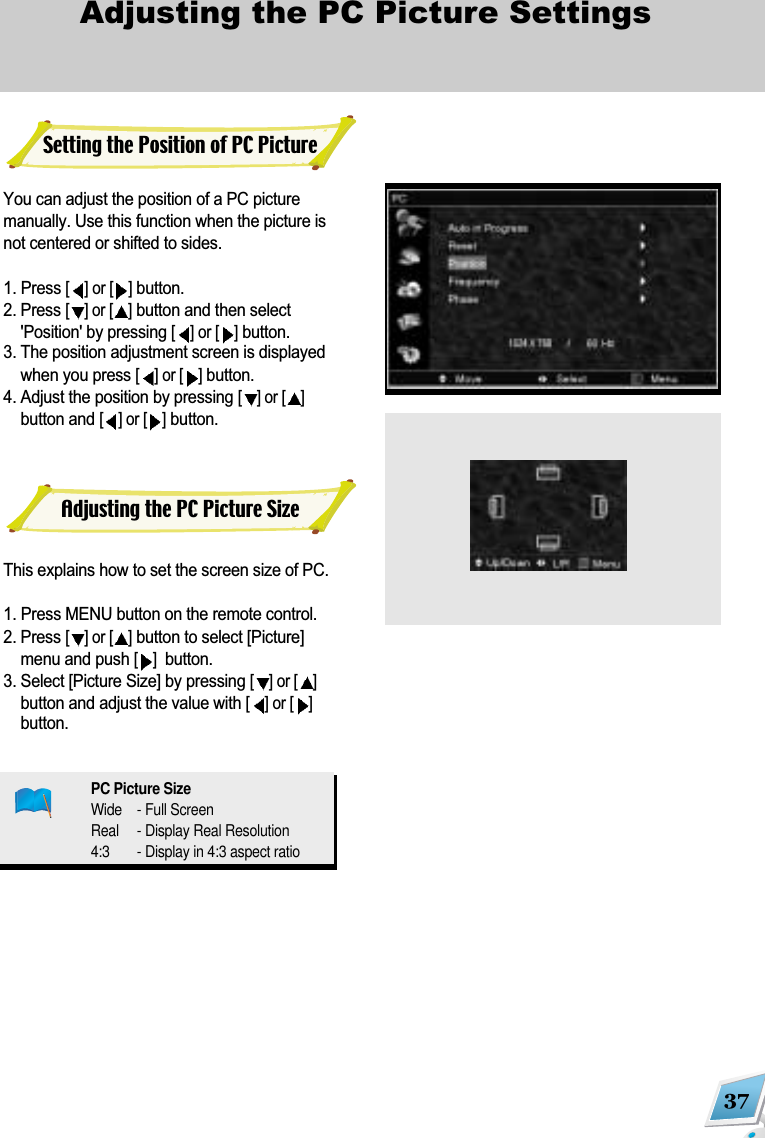

37Adjusting the PC Picture Settings You can adjust the position of a PC picturemanually. Use this function when the picture isnot centered or shifted to sides.1. Press [] or [ ]button. 2. Press [] or [ ]button and then select'Position' by pressing [] or [ ]button. 3. The position adjustment screen is displayedwhen you press [] or [ ]button. 4. Adjust the position by pressing [] or [ ]button and [] or [ ]button.This explains how to set the screen size of PC.1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push [] button.3. Select [Picture Size] by pressing [] or [ ]button and adjust the value with [] or [ ]button.Setting the Position of PC PictureAdjusting the PC Picture SizePC Picture SizeWide - Full ScreenReal - Display Real Resolution4:3 - Display in 4:3 aspect ratio

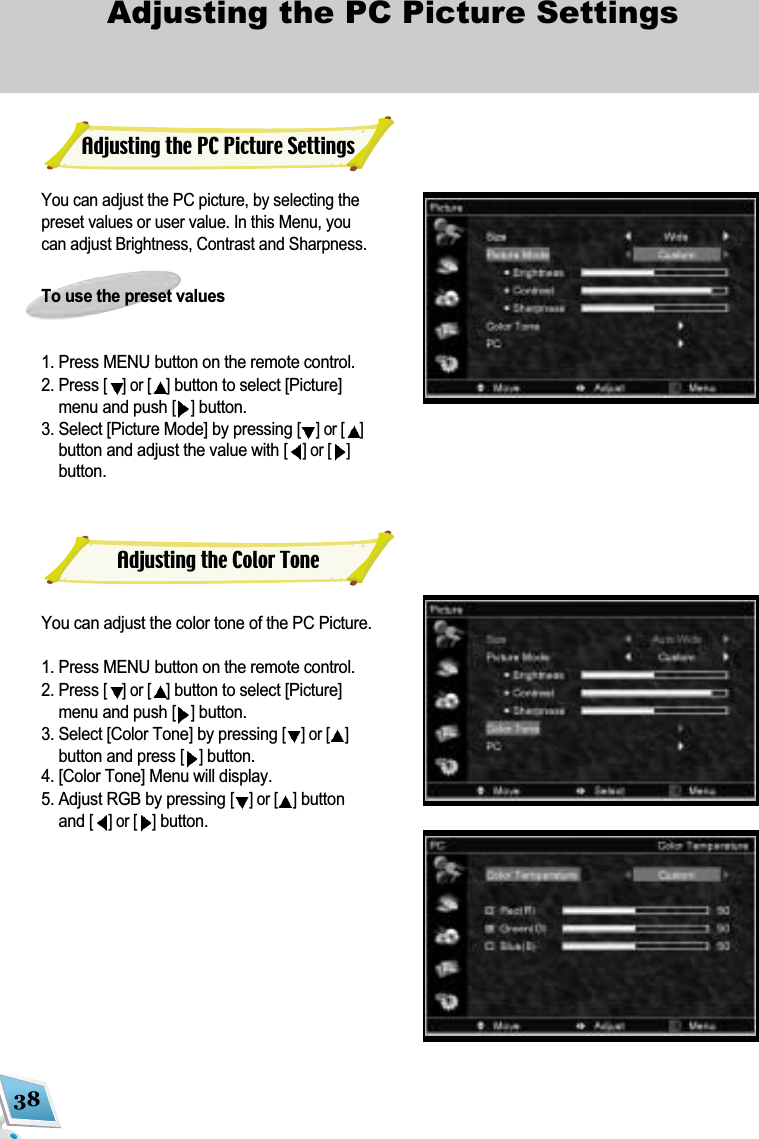

38Adjusting the PC Picture Settings You can adjust the PC picture, by selecting thepreset values or user value. In this Menu, youcan adjust Brightness, Contrast and Sharpness.To use the preset values1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push [ ]button.3. Select [Picture Mode] by pressing [] or [ ]button and adjust the value with [] or [ ]button.You can adjust the color tone of the PC Picture.1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push [ ]button.3. Select [Color Tone] by pressing [] or [ ]button and press [ ]button. 4. [Color Tone] Menu will display.5. Adjust RGB by pressing [] or [ ]buttonand [] or [ ]button.Adjusting the PC Picture SettingsAdjusting the Color Tone

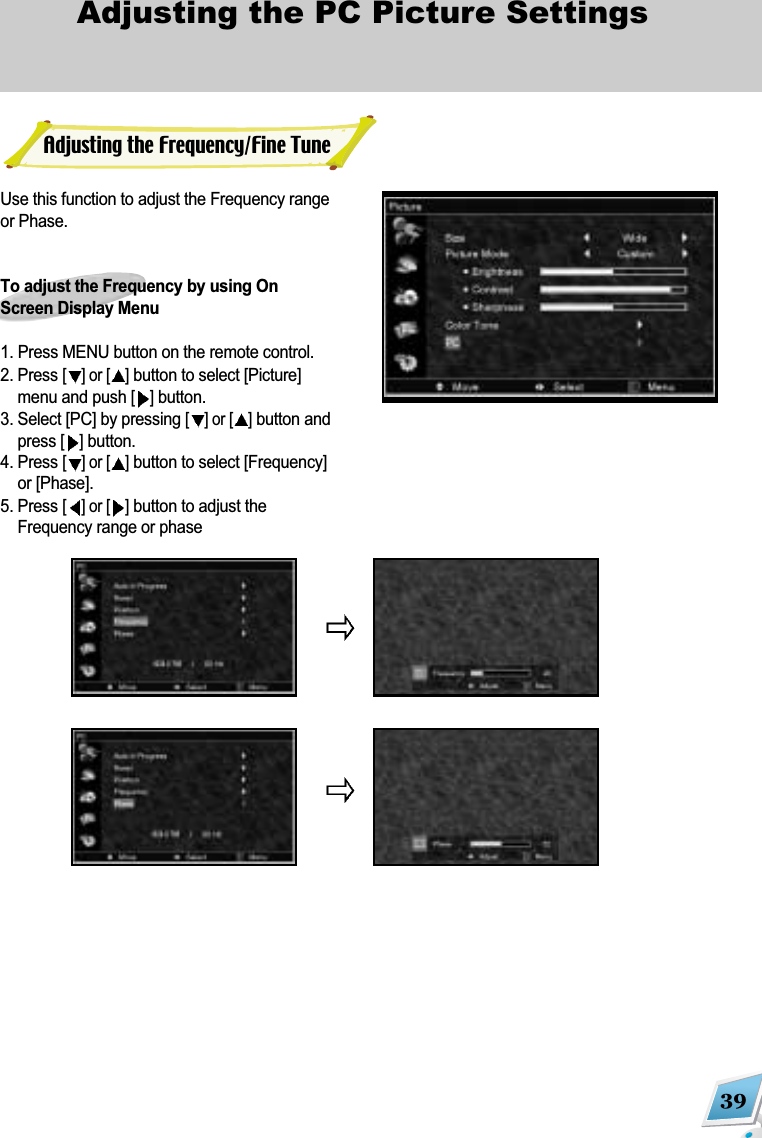

39Adjusting the PC Picture Settings Use this function to adjust the Frequency rangeor Phase.To adjust the Frequency by using OnScreen Display Menu1. Press MENU button on the remote control. 2. Press [] or [ ]button to select [Picture]menu and push [ ]button.3. Select [PC] by pressing [] or [ ]button andpress []button.4. Press [] or [ ]button to select [Frequency]or [Phase]. 5. Press [] or [ ]button to adjust theFrequency range or phase Adjusting the Frequency/Fine Tune

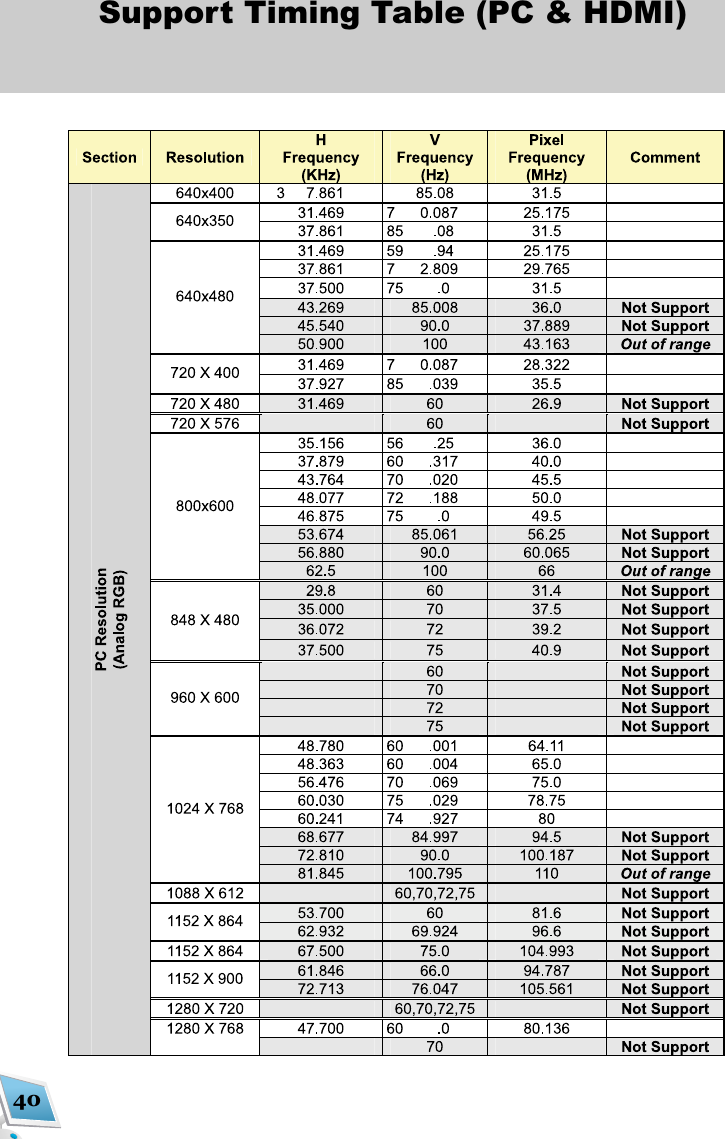

40Support Timing Table (PC & HDMI)
41Support Timing Table (PC & HDMI)

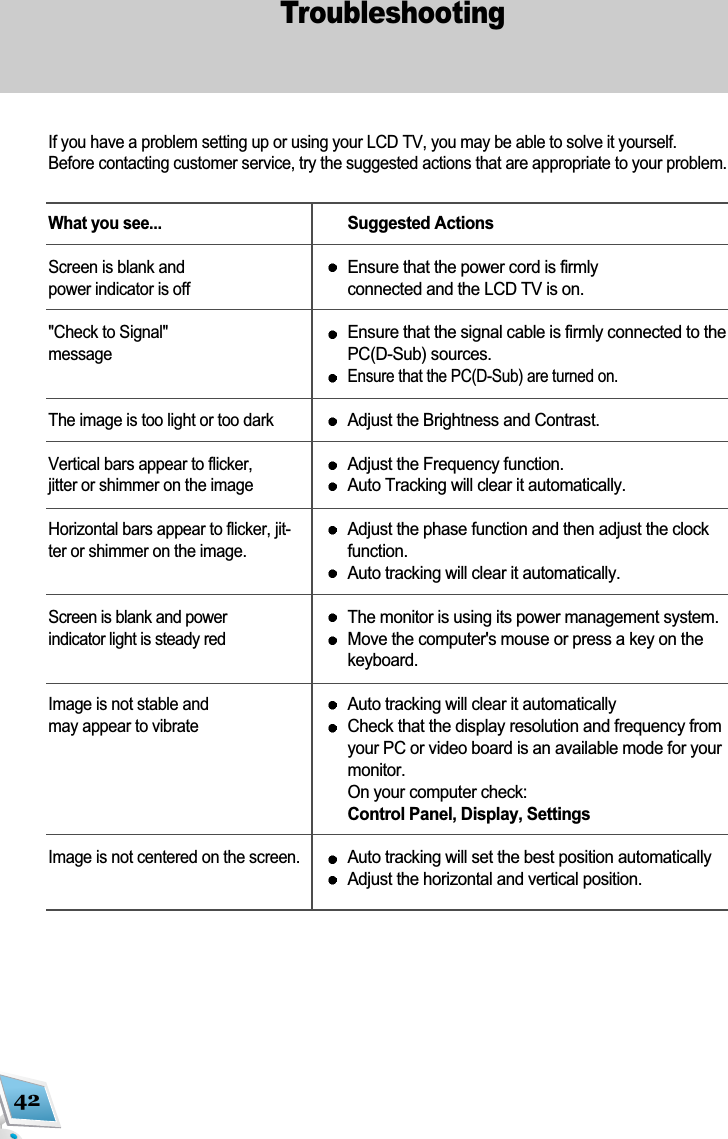

42TroubleshootingIf you have a problem setting up or using your LCD TV, you may be able to solve it yourself.Before contacting customer service, try the suggested actions that are appropriate to your problem.What you see...Screen is blank andpower indicator is off"Check to Signal" messageThe image is too light or too darkVertical bars appear to flicker, jitter or shimmer on the imageHorizontal bars appear to flicker, jit-ter or shimmer on the image.Screen is blank and power indicator light is steady red Image is not stable andmay appear to vibrateImage is not centered on the screen.Suggested ActionsEnsure that the power cord is firmlyconnected and the LCD TV is on.Ensure that the signal cable is firmly connected to thePC(D-Sub) sources.Ensure that the PC(D-Sub) are turned on.Adjust the Brightness and Contrast.Adjust the Frequency function.Auto Tracking will clear it automatically.Adjust the phase function and then adjust the clockfunction.Auto tracking will clear it automatically.The monitor is using its power management system.Move the computer's mouse or press a key on thekeyboard.Auto tracking will clear it automaticallyCheck that the display resolution and frequency fromyour PC or video board is an available mode for yourmonitor.On your computer check:Control Panel, Display, SettingsAuto tracking will set the best position automatically Adjust the horizontal and vertical position.

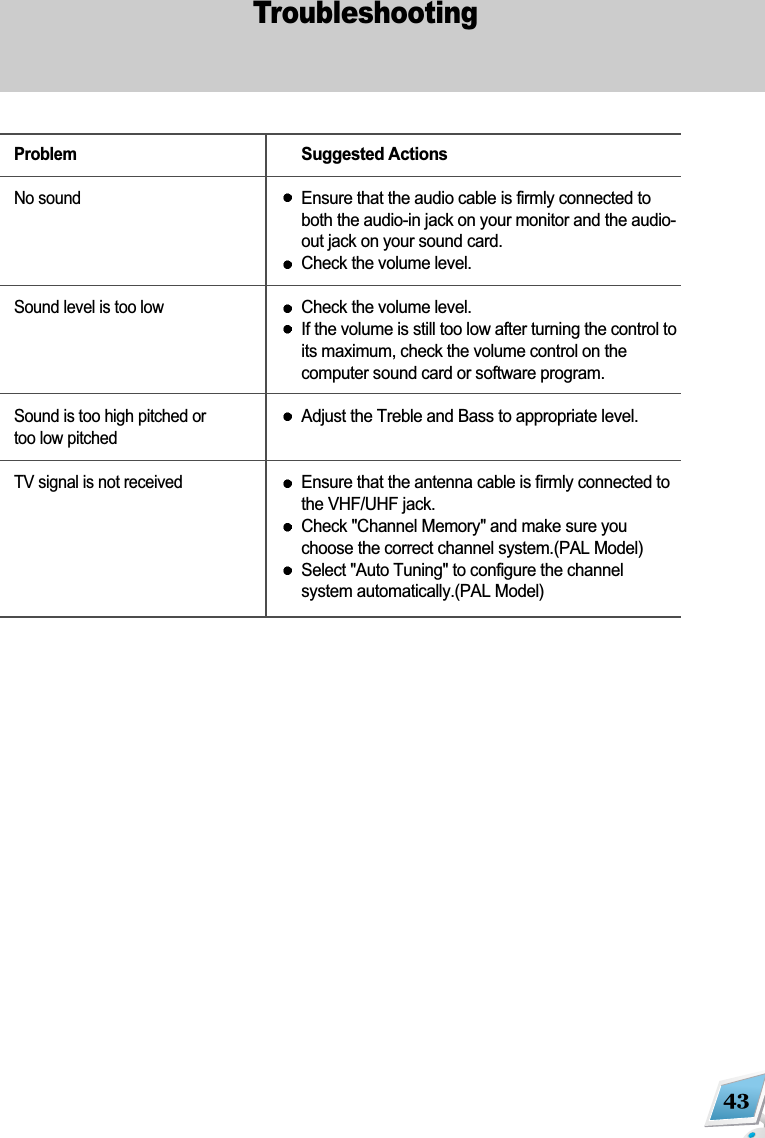

43TroubleshootingProblemNo soundSound level is too lowSound is too high pitched ortoo low pitchedTV signal is not receivedSuggested ActionsEnsure that the audio cable is firmly connected toboth the audio-in jack on your monitor and the audio-out jack on your sound card.Check the volume level.Check the volume level.If the volume is still too low after turning the control toits maximum, check the volume control on the computer sound card or software program.Adjust the Treble and Bass to appropriate level.Ensure that the antenna cable is firmly connected to the VHF/UHF jack.Check "Channel Memory" and make sure youchoose the correct channel system.(PAL Model)Select "Auto Tuning" to configure the channel system automatically.(PAL Model)

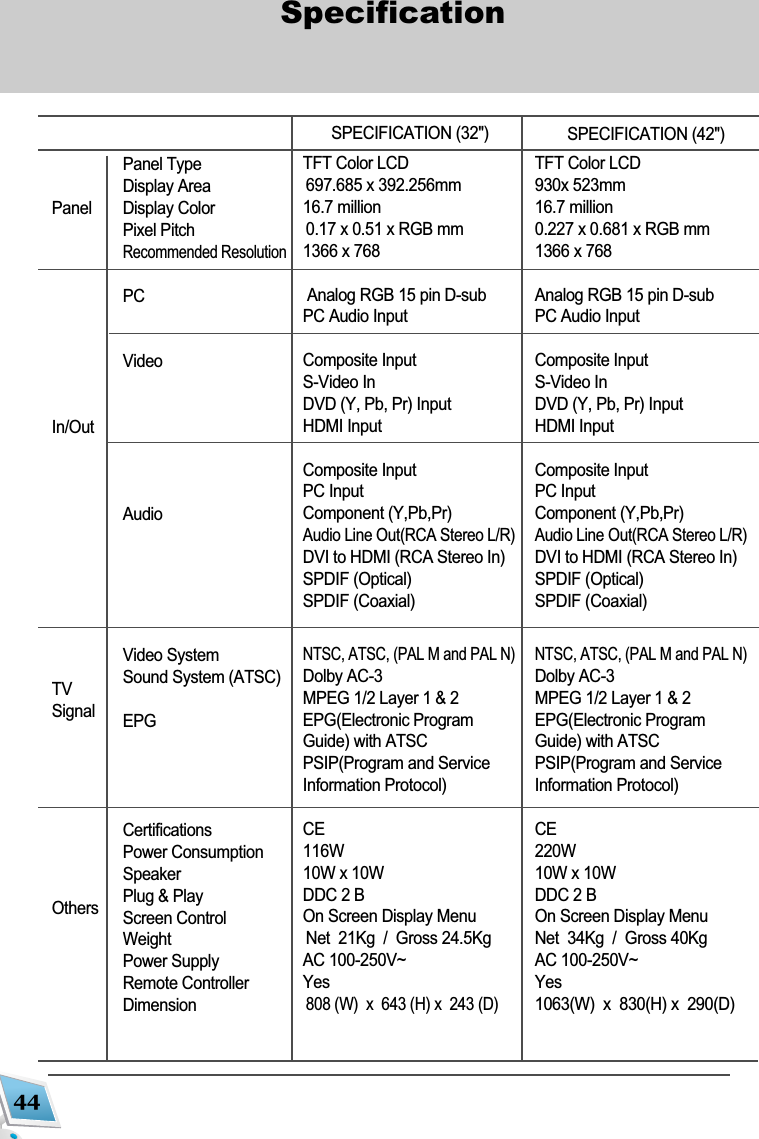

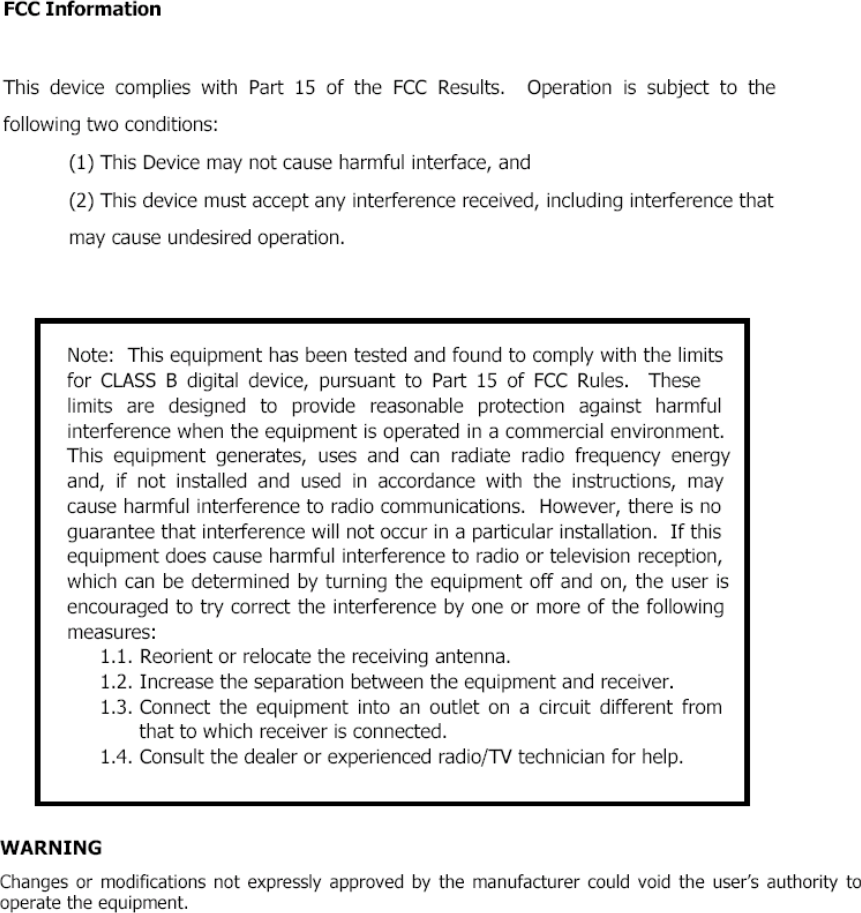

44Specification Panel TypeDisplay AreaDisplay ColorPixel PitchRecommended ResolutionPC VideoAudioVideo SystemSound System (ATSC)EPGCertificationsPower ConsumptionSpeakerPlug & PlayScreen ControlWeightPower SupplyRemote ControllerDimensionPanelIn/OutTV SignalOthersTFT Color LCD930x 523mm16.7 million0.227 x 0.681 x RGB mm1366 x 768Analog RGB 15 pin D-subPC Audio InputComposite InputS-Video InDVD (Y, Pb, Pr) InputHDMI Input Composite InputPC InputComponent (Y,Pb,Pr)Audio Line Out(RCA Stereo L/R)DVI to HDMI (RCA Stereo In)SPDIF (Optical)SPDIF (Coaxial)NTSC, ATSC, (PAL M and PAL N)Dolby AC-3MPEG 1/2 Layer 1 & 2EPG(Electronic ProgramGuide) with ATSCPSIP(Program and ServiceInformation Protocol)CE220W10W x 10WDDC 2 BOn Screen Display MenuNet 34Kg / Gross 40KgAC 100-250V~Yes1063(W) x 830(H) x 290(D)SPECIFICATION (42")TFT Color LCD697.685 x 392.256mm16.7 million0.17 x 0.51 x RGB mm1366 x 768Analog RGB 15 pin D-subPC Audio InputComposite InputS-Video InDVD (Y, Pb, Pr) InputHDMI Input Composite InputPC InputComponent (Y,Pb,Pr)Audio Line Out(RCA Stereo L/R)DVI to HDMI (RCA Stereo In)SPDIF (Optical)SPDIF (Coaxial)NTSC, ATSC, (PAL M and PAL N)Dolby AC-3MPEG 1/2 Layer 1 & 2EPG(Electronic ProgramGuide) with ATSCPSIP(Program and ServiceInformation Protocol)CE116W10W x 10WDDC 2 BOn Screen Display MenuNet 21Kg / Gross 24.5KgAC 100-250V~Yes808 (W) x 643 (H) x 243 (D)SPECIFICATION (32")
