USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
WE55UDT108
![](/img.php?id=3568057&img=bg2.png)
1
En
CONTENTS
Important Safety Instructions 2
Safety Information 3
Preparation 4
What's Included
Front View
Rear View

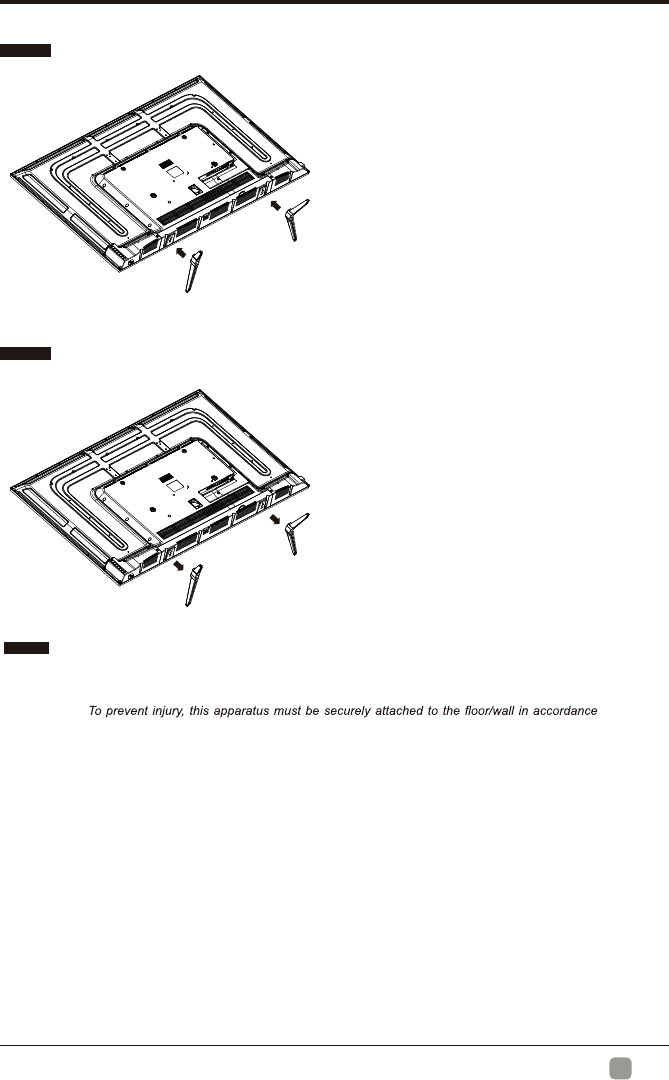

Installing the Stand
Removing the Stand for Wall-Mounting
Wall-Mounting Screws
Remote Control
Connecting External Devices 9
Customizing TV Settings 10
Initial Setup
Streaming
My Media
Viewing Photos
Listening to Music
Watching Videos
TV Settings
General
Audio
Network
Channel
Time
Lock
APP settings
Source
Parental Control 21
Troubleshooting 23
Maintaining 24
25
OTT APP Service 26
![](/img.php?id=3568057&img=bg3.png)
2
En
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re or electric
shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to
dripping or splashing. Objects lled with liquids, such
as vases should not be placed on apparatus.
WARNING: The batteries shall not be exposed to
excessive heat such as sunshine, re or the like.
WARNING: The mains plug is used as disconnect
device, the disconnect device shall remain readily
operable.
WARNING: To reduce the risk of electric shock, do
not remove cover (or back) as there are no user-
serviceable parts inside. Refer servicing to qualied
personnel.
This lightning ash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical earth.
This product contains electrical or electronic
materials. The presence of these materials
may,if not disposed of properly, have potential
adverse effects on the environment and
human health.
Presence of this label on the product means it
should not be disposed of as unsorted
waste and must be collectedseparately. As a
consumer, you are responsible for ensuring
that this product is disposed of properly.
• Read these instructions – All the safety and
operating instructions should be read before this
product is operated.
• Keep these instructions – The safety and
operating instructions should be retained for future
reference.
• Heed all warnings – All warnings on the
appliance and in the operating instructions should
be adhered to.
• Follow all instructions – All operating and use
instructions should be followed.
• Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or near
a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specied by
the manufacturer.
• Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated
environment.
![](/img.php?id=3568057&img=bg4.png)
3
En
SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this
user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the label at the
rear of the product.
• To prevent overload, do not share the same power supply socket with too many other electronic
components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm or when not in using the television for long periods, turn off the power switch on
the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such
as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid
is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit
yourself is dangerous and may invalidate the product’s warranty. Qualied personnel must only service
this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long
period, or when the batteries are exhausted.
• Do not break open or throw exhausted batteries into a re.
• For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.
• Install only new batteries of the same type in your product.
• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the
life of the batteries or cause batteries to leak.
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal
Hydride) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• Do not attempt to recharge disposable batteries.
• Do not short circuit battery terminals.
• Keep away from children.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least
5cm (2’’) clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the
remote control.
• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based uids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the
wide blade,or the third prong is provided for your safety. If the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Refer all servicing to a qualied service personnel.Servicing is required if the apparatus does not operate
normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the
apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.
• Always connect your television to a power outlet with protective ground connection.
• Minimum 5cm distances around the apparatus for sufcient ventilation.
• The ventilation should not be impeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
• No naked ame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
![](/img.php?id=3568057&img=bg5.png)
4
En
PREPARATION

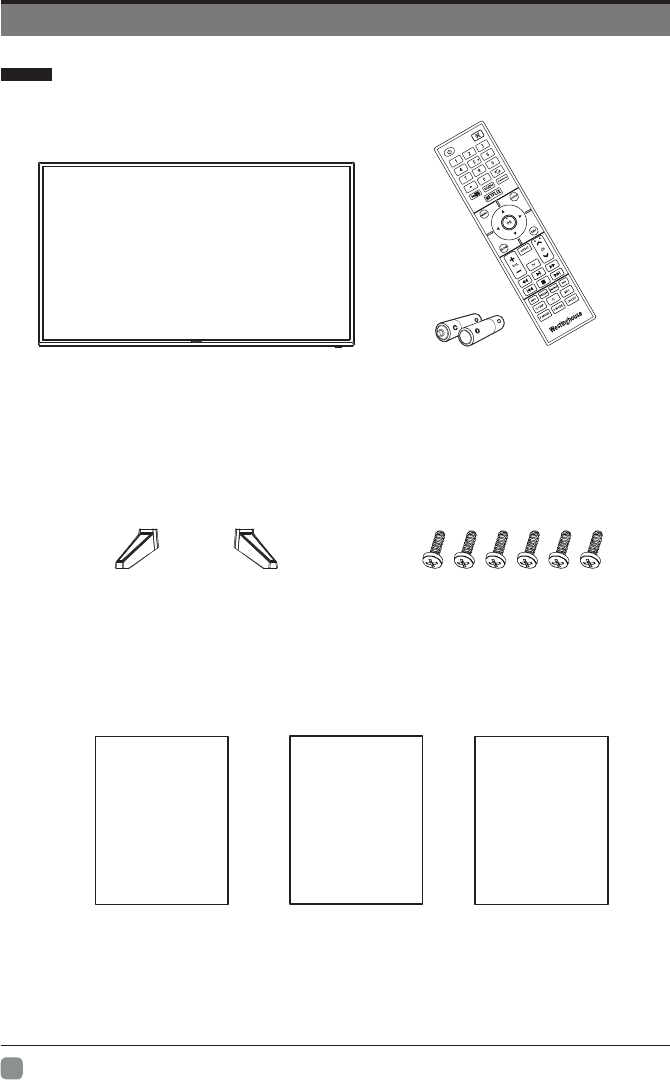

What's Included
Quick Connect Guide
Quick
Connect
Guide
User Manual
User Manual
Remote Control with Batteries
Warranty Card
Warranty
Card
TV Set
TV Stand Six Screws ) 41x4M(
![](/img.php?id=3568057&img=bg6.png)
5
En
PREPARATION

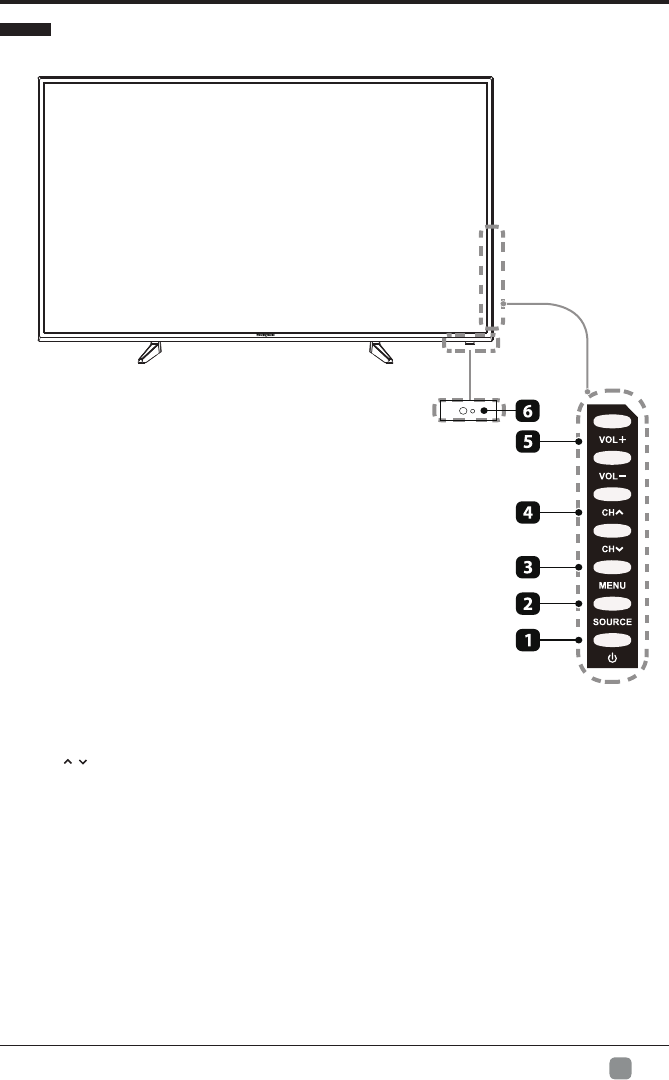

Front View
1. POWER
Switch the TV between On / Standby mode.
2. SOURCE
Press to select among different input signal sources.
3. MENU
Display the main menu.
4. CH /
Press to select a channel.
5. VOL +/-
Press to adjust the volume.
6. POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
IR (Infrared Receiver)
Receive IR signals from the remote control.
![](/img.php?id=3568057&img=bg7.png)
6
En
PREPARATION

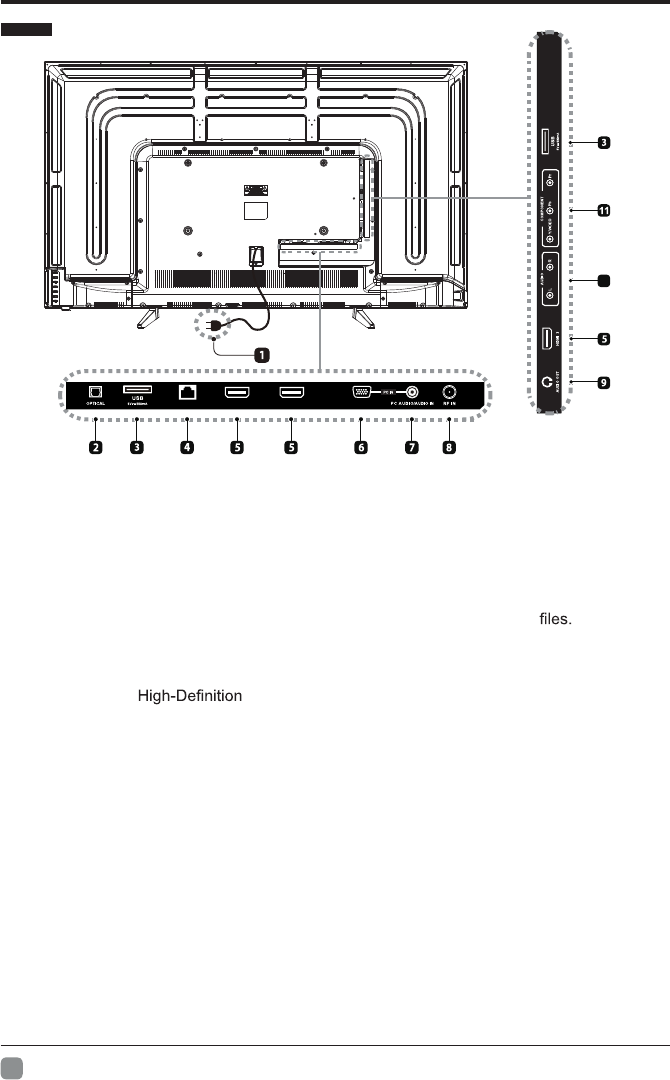

Rear View
1. Power Cord
Connect to AC power outlet.
2. OPTICAL Output
Connect a digital sound system to this
jack.
3. USB Port
Connect to a USB storage device to play compatible movie and photo
4. LAN
Network connection port.
5. HDMI Input
Connect to a (HD) signal input device.
6. VGA Input
Connect to a computer or other devices with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. DTV/TV Input
Connect to the antenna (75Ω VHF/UHF) socket with the RF coaxial cable.
9. Headphone Socket
Connect to the Headphones.
10. AUDIO Input
Connect to the AUDIO (L/R) output sockets on external audio devices.
11. COMPOSITE/COMPONENT IN
Connect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets.
COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R).
10
LA N HDMI 2 HDMI 1 VGA
![](/img.php?id=3568057&img=bg8.png)
7
En
PREPARATION
Installing the Stand
Removing the Stand for Wall-Mounting
• 1. Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2. Fix the Left Base Stand to the main
unit using 3 pcs provided screws.
• 3. Fix the Right Base Stand to the
main unit using 3 pcs provided screws.
• 1.Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2.Untighten the 6 pcs screws holding
the stand assembly and remove them.
• 3.Attach the wall-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
Wall-Mounting Screws
Mount the VESA bracket using 4*M6*12 isometric threaded screws (not included).
WARNING:
with the installation instruction.
WARNING:
Never place a television set in an unstable location. A television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:
-Using cabinets or stands recommended by the manufacturer of the television set.
-Only using furniture that can safely support the television set.
-Ensuring the television set is not overhanging the edge of the supporting furniture.
-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring
both the furniture and the television set to a suitable support.
-Not placing the television set on cloth or other materials that may be located between the television
set and supporting furniture.
-Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be
applied.
( M4x14)
( M4x14)
![](/img.php?id=3568057&img=bg9.png)
8
En
PREPARATION
Remote Control
1. : Switch the TV between On and Standby
mode.
2. : Mute and restore TV sound.
3. 0~9: Select a program.(ATV/DTV mode)
4. : Enter multiple program channel number
such as 2-1.
5. : Return to the previous viewing channel.
6. APP: Press to select the desired APP.
7. MENU: Display the main menu.
8. SOURCE: Select among the different input
signal sources:TV/HDMI1/HDMI2/HDMI3/USB/
VGA/AV/Component.
9. : Allows you to navigate the on
screen display menus and adjust the system
settings to your preference.
10. OK:
11. RETURN: Return to previous menu.
12. EXIT: Exit the on screen display menu.
ASPECT: Select the aspect ratio 13.
TV: Press to turn to TV mode.
14. VOL+/-: Adjust the volume.
15. CH / : Select the channel.
16.
17.
: Stop the playback.
Freeze the picture.
Display the favorite channel list.
Add or delete Favorite channels.
18.
: Skip to the beginning of the previous
chapter/track/photo.
19.
: Skip to the beginning of the next chapter/
track/photo.
20.
: Reverse playback rapidly.
21.
: Advance playback rapidly.
22.
23.
: Start playback or pause.
24.
25.
P.MODE: Select picture mode: dynamic/movie/
user/standard.
S.MODE: Select sound mode: standard/music/
movie/user.
26.
CH.LIST: Display program list.
27.
CC: Closed Caption selection: ON/OFF/CC On
Mute.
such as the current channel and input source.
28.
V-CHIP:
INFO:
FREEZE:
ADD/ERASE:
FAV:
Set up parental control.
Display the present screen information
29. MTS: Switch among different audio channels:
STEREO/MONO/SAP.
30.
settings:standard/wide/wide zoom/zoom.
31.
32.
![](/img.php?id=3568057&img=bga.png)
9
En

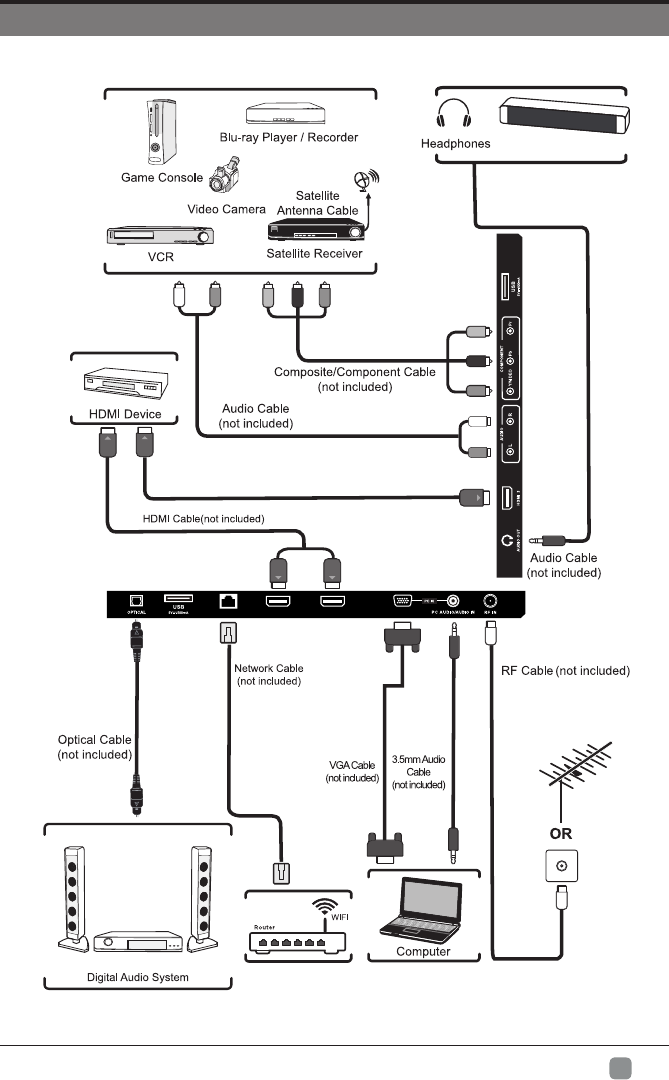

CONNECTING EXTERNAL DEVICES
Soundbar
LA N HDMI 2 HDMI 1 VGA
![](/img.php?id=3568057&img=bgb.png)
10
En
CUSTOMIZING TV SETTINGS

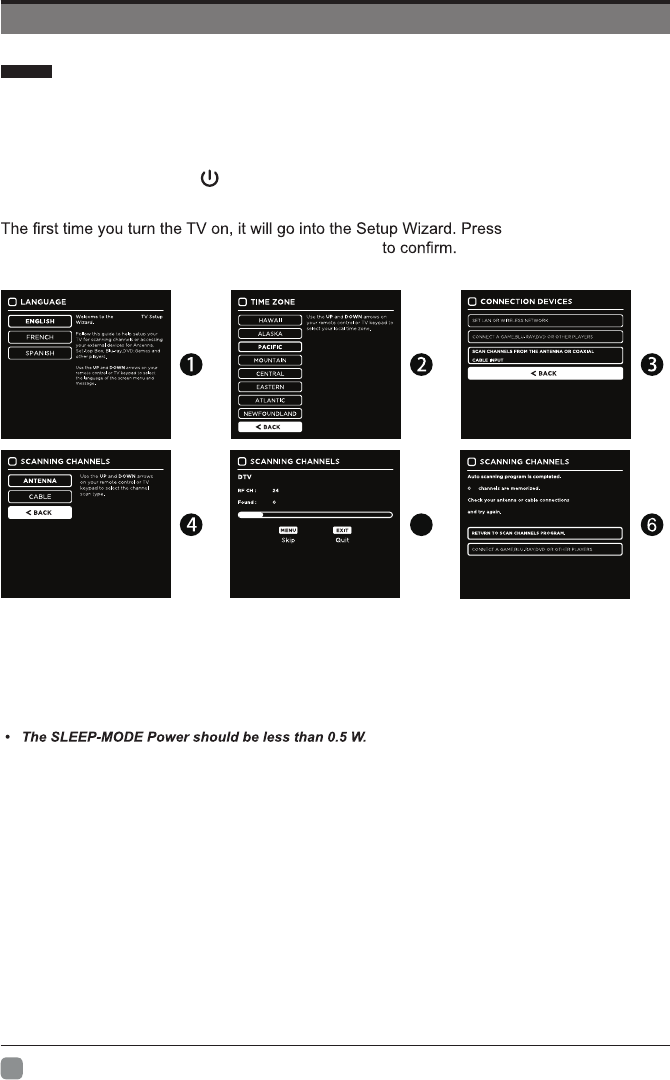

Initial Setup
Connect the power cord to the power socket after you have completed all the physical
connections. At this stage, the TV will enter Standby Mode and the red LED indicator will
illuminate.
In Standby Mode, press the button on the main unit or on the remote control to turn the TV
on. The red LED indicator will turn blue.
the Arrow buttons to
highlight and select your desired mode and press OK
5
• If channels cannot be
found, this frame will be
displayed automatically.
Westinghouse
![](/img.php?id=3568057&img=bgc.png)
11
En
CUSTOMIZING TV SETTINGS

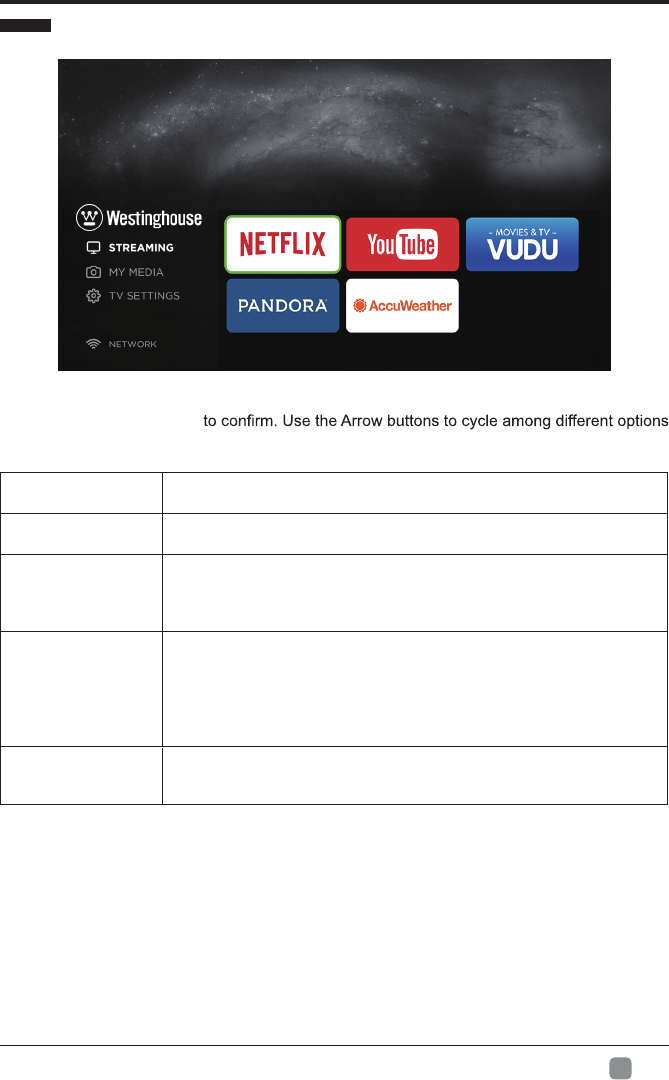

STREAMING
Press MENU to display the main interface, then use the Arrow buttons to highlight
STREAMING and press OK
and select desired apps to enter.
NETFLIX Enjoys TV shows & movies streamed instantly over the Internet.
YouTube YouTube your way on the best screen in your house.
VUDU Discover, watch and collect the latest movies and TV shows in
high quality 1080p. Free to sign up. No subscriptions, late fees or
commitments.
Pandora
Free personalized radio that offers effortless and endless music
enjoyment and discovery. Just start with the name of one of your
favorite artists, songs, genres or composers and Pandora will do the
rest. It’s easy to create personalized stations that play only music
you’ll love
AccuWeather Displays the current weather conditions and the temperature
anywhere in the world in centigrade or Fahrenheit.
To obtain the best result to watching the 4k video on your 4K TV:
1. you need a high-speed internet connection and make sure your network bandwidth meets
2. access to the real 4K media; only 4K media can show the best image on 4K TV, FHD/1080p
the 4k content provider's requirement.
media not as detailed as 4K media.
