KYE SYSTEMS GG000H Bluetooth Headset User Manual BT 03i
KYE Systems Corp Bluetooth Headset BT 03i
User Manual
_________________________________________________________________________________________________English
1
BT-03i user’s manual
_________________________________________________________________________________________________English
2
Index
Overview
Getting started
How to answer the phone call
Specification
_________________________________________________________________________________________________English
3
Safety Information
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation
of the device.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Caution: Users are not permitted to make changes or modify the device in any way. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
_________________________________________________________________________________________________English
4
1. Overview

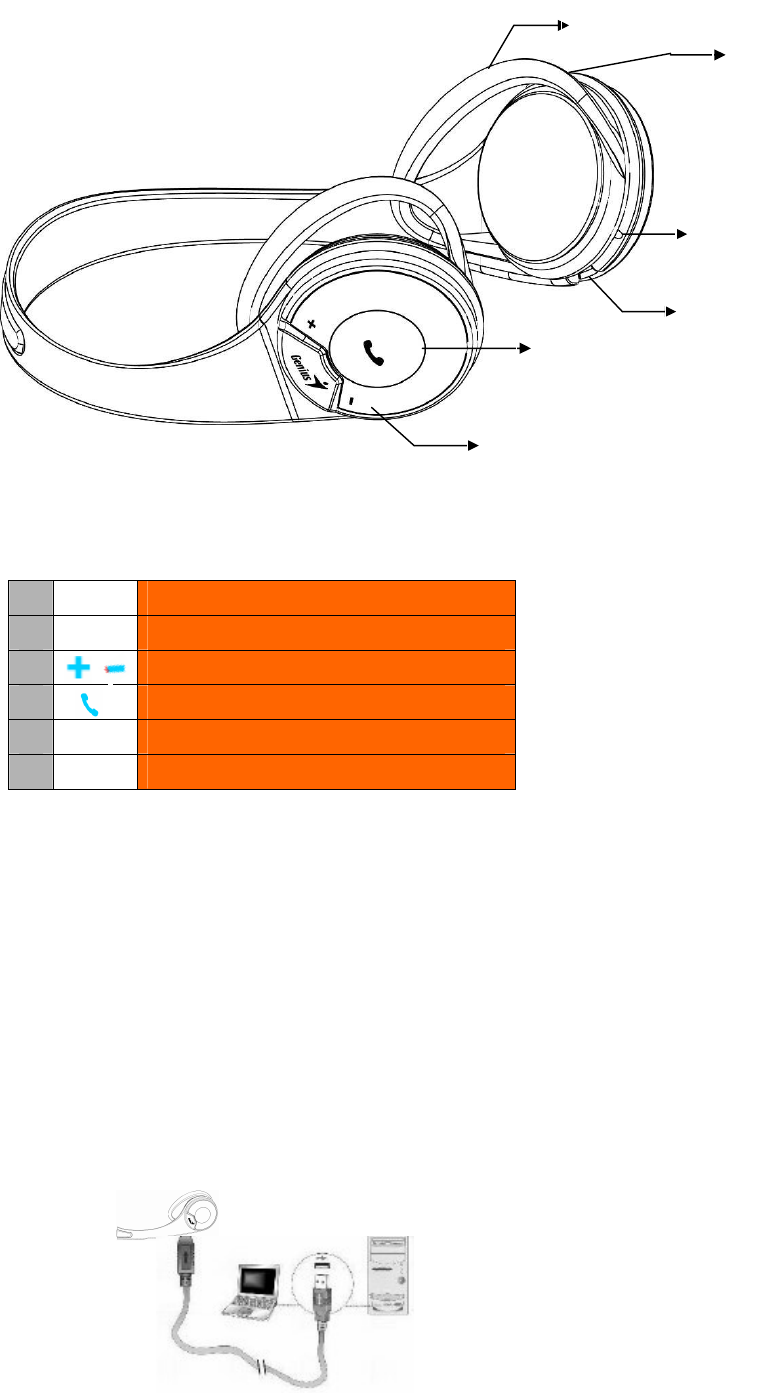

1-1 Function keys:
A Silicon ear hook
B Power key
C Volume control (Slide control)
D Answer phone key
E Microphone
F USB connector (charging)
1-2 Package contents:
Wireless headset
110~240V AC adaptor
50cm USB cable
Quick guide
CD manual

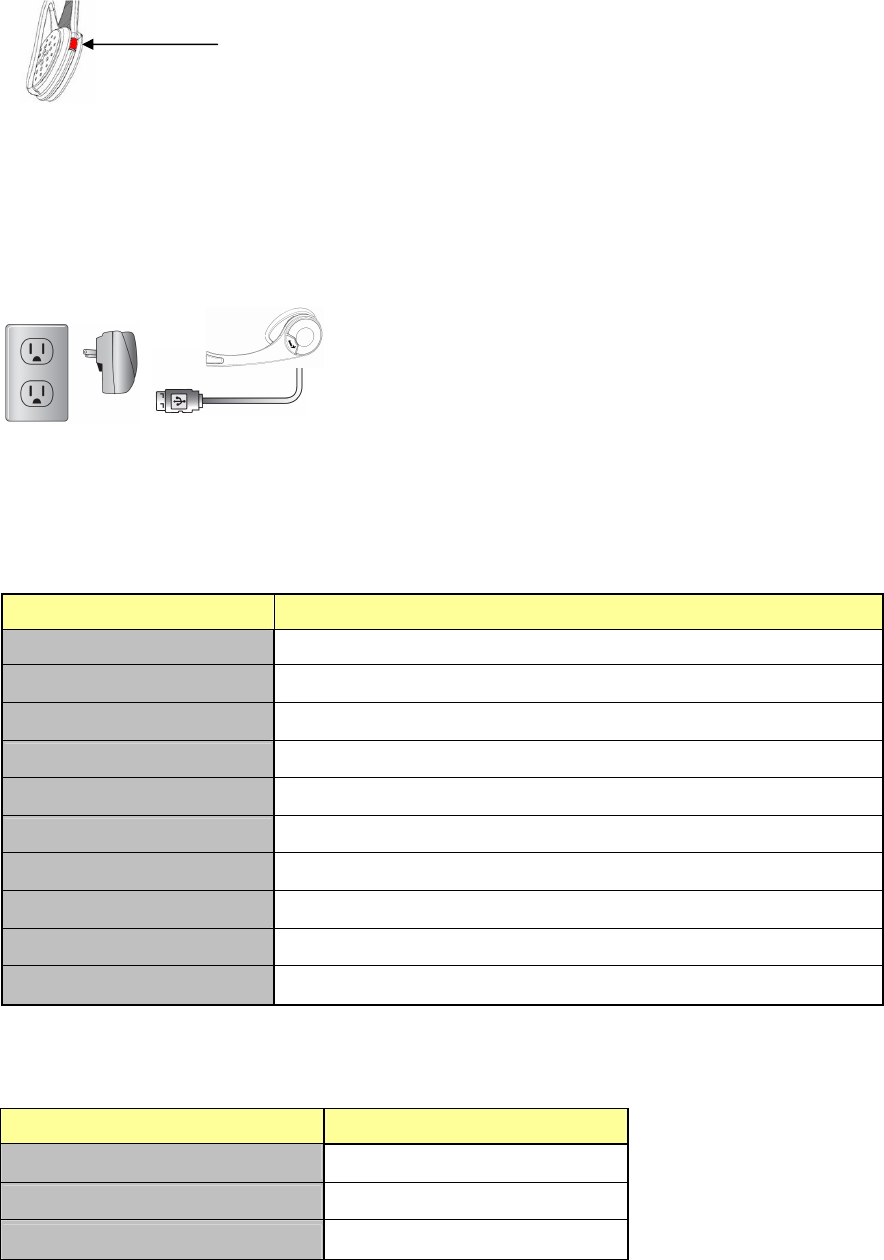

1-3 Charging:
USB charge:
1. Plug your USB cable (Mini B side) into your wireless headset.
2. Plug your USB cable (A side) into your PC/NB.
A
B
C
D
E
F
_________________________________________________________________________________________________English
5
3. The Power key LED will be red when it is charging.
4. When the light turns off, the headset is ready for use.
Adapter Charge:
1. Plug your USB cable (Mini B side) into your wireless headset.
2. Plug the USB (A side) into the adapter, then the plug the adapter into a power outlet.
3. The Power key LED will be red when it is charging.
4. When the light turns off, the headset is ready for use.
1-4 LED light defined:
Event LED Status
Power On Red LED ON, Volume Blue LED ON, Hook Blue LED ON
Power On after 5 sec. Red LED OFF, Volume Blue LED OFF, Hook Blue LED OFF
Enter Pairing Red LED blinks fast for 0.05 seconds, then is OFF for 0.05 seconds*
Connection Mode Red LED blinks slow for 0.05 seconds, then is OFF for 5 seconds*
Adjust Volume Volume Blue LED ON
Adjust Volume after 5 sec. Volume Blue LED OFF
Answer Call Hook Blue LED ON
Hang Up Call Hook Blue LED OFF
USB Charger Connected Red LED ON
Battery Charge OK Red LED OFF
* Continuously
1-5 Buttons defined:
Button Press Seconds
Press 3
Long Press 5
Very Long Press 8
Power key will be red continually
_________________________________________________________________________________________________English
6
Button 1 function
Mode Power
Press --- Power On ;
Connect to Last Paired Audio gateway and A2DP Media
Long Press --- Enter Pairing
Power OFF
Very Long Press --- Reset Paired Device
Press --- Power Off
Long Press --- Power Off
Phone Mode
Very Long Press --- Power Off
Button 2 function
Phone Mode Event Hook
Incoming Call Short touch --- Answer Call
Active Call Short touch --- Hang Up Call
Event
Volume Slide function
Volume Up
Volume Control
Volume Down
2. Getting started
2-1 Power on:
After you complete the charging, press the power key for three seconds to turn on the headset. After
you turn on the wireless headset, the power LED will be lit RED, the volume and answer key will be lit
BLUE.
2-2 Power off:
Press the power key for three seconds in any mode and the wireless headset will power off.
2-3 Pairing:
When the headset is off, press the power key for five seconds until the RED light blinks quickly, then
the headset is under pairing mode. You can connect with other Bluetooth devices now.
- Connect with mobile phone
Turn on your mobile phone Bluetooth function, then search for the Bluetooth device, and the mobile
phone will show “BT-03i” on the screen. When connected, input “0000” to complete the connection.
You can listen to music from your mobile phone and receive phone calls as well.
(Make sure the mobile phone supports A2DP and mp3 music play)
- Connect with PC/NB
Open PC/NB Bluetooth application software and start the search for the wireless headset. Once it
finds the wireless headset, it will show “BT-03i”.
_________________________________________________________________________________________________English
7
When connected, input”0000” to complete the pairing. After you get a connection, connect to A2DP
protocol, and you can open the media player to listen to music.
3. How to answer the phone call
When connected with a mobile phone, the connection protocol will be “headset” profile. When you
receive an incoming call, you can touch “ “ answer key, then you can receive the phone call.
When you answer the call, the answer key “ “ will be lit blue until you finish the phone call. When
you want to finish the phone call, just touch the answer key again, and you can hang up the phone
call and the blue light will turn off.
When you receive a phone call, the music will pause automatically, once you hang up the call, the
music will start playing again.
(Make sure the mobile phone supports Bluetooth function)
Button 2 function
Phone Mode Event Hook
Incoming Call Short touch --- Answer Call
Active Call Short touch --- Hang Up Call
4. Specifications
Bluetooth spec Bluetooth2.0+EDR
Main chip CSR BC-05
Profile A2DP, headset, hands free
Range 33 feet
Battery 320mA rechargeable Hi-polymer Li-on battery
Working voltage <30mA
Charging time 3 hours
Working time Up to 15 hours
Driver unit 30mm full range driver
Sensitivity 145dB +/- 3dB
Frequency response 18Hz~22KHz
Impedance 32 ohm
Control interface Touch panel
Dimension 146 x 143 x 57mm
