KYE SYSTEMS GKZH8 TwinTouch 600 User Manual TT600
KYE Systems Corp TwinTouch 600 TT600
Manual
ENGLISH
1

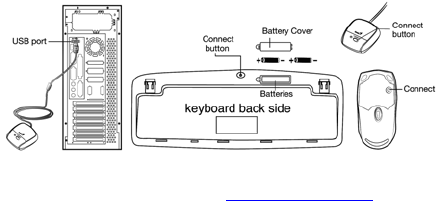

Hardware Installation
1. Install two AA batteries in the mouse and two AA batteries in the
keyboard.
2. Plug in the USB receiver to a USB port of your PC.
3. Turn on your PC.
Software Installation
You can download the software from www.geniusnet.com. Go to Service
& Support and select “Drivers”. In Product Line, select “Keyboard &
Mouse combination”, then go to “Select Model” and select “TwinTouch
600”. Then select the OS you are using. Click on the file name to start the
download. Once you have downloaded the driver to your PC, click on the
file name to start the software installation. Just follow the instructions
shown on the screen to complete the installation.
Important Notice
1. Default hotkeys operate immediately when using Windows XP or
above.
2. When the mouse is in sleep mode (power saving mode), press any
button on the mouse to wake it up.
ID Channel Setting
The channel buttons are factory preset. The green LED, the data
transmissions indicator on the receiver will be lit when the keyboard or
mouse is in normal operation. If the keyboard / mouse do not work then
you have to reset the ID channel setting. Please press the connect button
on the receiver first and press the connect buttons under the mouse and
ENGLISH
2
keyboard within 20 seconds.
Keyboard hot key definition
Open browser in Netscape or IE.
Open mail folder.
Open the Windows calculator program.
Remove the sound.
Notes on Battery Usage
When you use the battery, carefully read and strictly observe the Safety
Instructions and the notes described below:
Different battery types and surrounding temperatures may affect the
battery performance.
Avoid using batteries in extremely cold environments as low
temperatures can shorten the battery life and reduce wireless device
performance.
If you are using a new rechargeable battery or rechargeable battery that
has not been used for an extended period of time (batteries that pass
the expiry date are exceptions) it might affect the period of time you
can use this device. Therefore, to maximize their performance and
lifetime, we recommend that you fully charge the batteries and
discharge them for at least one complete cycle before use.
The battery may feel warm when using the wireless device for an
extended period of time or using the flash continuously. This is normal
and not a malfunction.
The wireless device may feel warm when being used continuously or
for an extended period of time. This is normal and not a malfunction.
If you will not be using the batteries for an extended period of time,
remove them from the wireless device to prevent leakage or corrosion.
Always keep the terminals in a clean state.
Never use manganese batteries.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
