KYE Systems Corp Wireless Mouse Manual

users manual

Wireless Mouse
Model : GM-03018U/T, GM-03018U/R

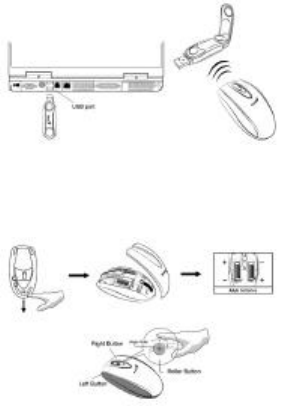

Hardware Installation
1.
You can connect the receiver to a USB port of a PC
2.
Install two AAA batteries in the mouse.
3.
Turn on your computer.
4.
After you open Windows, please press the button on the receiver first and then press the button under the
mouse for channel setting.
Important: Remember do not put the batteries in the wrong direction, use the same types of batteries. Also,
keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the
receiver immediately. Please remove the batteries if you do not use this device for at least two weeks.
Warning: (Troubleshooting)
1.
Please do not use Wireless Mini Navigator on a desk which is made of glass, mirror, iron, or black velvet.
Also, a flat surface is necessary or the Optical Sensor will error easily. When you use Wireless Mini
Navigator on a desk that is made of metal, try using a pad and reduce the receiving distance.
2.
Before the first installation is completed (channel setting ready), the mouse will not work in DOS.
3.
The Wireless Mini Navigator channel provides 256 ID-codes, and it automatically selects the ID # for your
mouse. You can only set up one Wireless Mini Navigator at a time. But if you have additional Wireless
Mini Navigator sets in an area of 10 square meters, more interference will occur between the receiver and
your mouse.
4.
If you feel the mouse does not move smooth as usual, then the batteries have lost their charge, so please
replace them. Also, the wireless icon will be blinking “red” when there is a battery-low situation. The LED
on the receiver shows the battery-recharging status (from shining to LED completely “on” for battery full).
You should set up the channel every time you replace the batteries.
5.
The Wireless Mini Navigator with radio frequency gives you free movement and an enjoyable experience.
For optimal performance, place the receiver at least 8 inches (about 20 cm) away from the mouse and other
electrical devices, such as the computer, monitor, and etc.
Software Installation
1. Make sure the mouse is connected to the computer.
2. Put the Setup disk (or CD) into the disk drive.
3. Follow the instructions on the screen to finish the software installation.

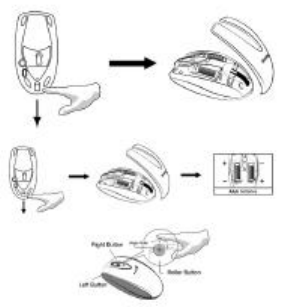

Factory Setting/ faceplates changng
Button Assignments
The Button Assignment feature lets you work in a more efficient way because you can assign the most
frequently used commands in Windows to the mouse buttons.
Magic-Roller
Press the “Magic-Roller” to surf the Internet and Windows documents
Left Button
Provides traditional mouse functions such as click, double click and drag.
Right Button
You can assign this button frequently used keyboard and mouse functions in addition to features like
EasyJump, Auto-Panning, Zoom, etc.
Roller Button
You can assign this button frequently used keyboard and mouse functions in addition to features like
EasyJump, Auto-Panning, Zoom, etc.
Side Buttons
You can assign certain functions to the upper or lower side button with the roller.
MouseMate Software Features
Browsing Speed
You can adjust the browsing speed when you surf the Internet or Windows documents.
Browsing
Direction
Move the “Magic-Roller” forward and the screen will browse to the top of the document. Move it in
reverse and the document will go in the opposite direction
Button Find
Automatically positions the cursor on the default button, usually the OK button, when the dialog box
appears on your screen.
Trails
This option makes it easier to find the cursor when using an LCD monitor. This option cannot be used if
your monitor does not support it.
Loop
When you move the cursor to the top (or bottom) of the screen, it will automatically move the cursor to the
bottom (or top) of the screen.
Mouse Speed
This function lets you adjust the speed at which the pointer moves across the screen.
Double Click
Speed
Use this function to set the double click speed of the mouse.
Swap Left/Right
Select this option if you want to have the mouse operate with the right mouse button as the primary button.
Pointers Folders
This lets you change the shape of the cursor.
Office Mode
Only supports Microsoft Office along with some new applications. Features include zoom, scrolling and
Auto-scrolling features. It’s similar to Microsoft’s IntelliMouse.
Genius Mode
Supports all applications that use scrollbars, including Office, with zoom, Auto-panning, and scrolling
functions.
About
Click here to open the Genius Homepage
“www.geniusnet.com.tw”
Orientation
This function lets you set the angle when you move the mouse upward. It gives you a more comfortable
angle when holding the mouse. This function works best with a portable trackball.
EasyJump
“EasyJump” now has two working modes: Office EasyJump mode and Traditional EasyJump mode.
“Office EasyJump” lets you use eight commonly used applications and 16 Cyber functions more easily and
quickly.
Once you press the button you assigned, “Office EasyJump” will be displayed on a Frisbee. Note that the
functions are only available in the applications they belong to.
Click this application button to show the mouse control panel. You can check or modify the mouse
properties.
Click this function and the pan icon appears. You can move the mouse in any direction in a document or a
spreadsheet. The farther you move the pointer from the pan icon, the faster you can pan in that direction.
Click this function and Office EasyJump Frisbee will always be on the screen and the button will change to .
Click it again to cancel this effect.
This is a programmable application button. Press the right button on this icon and a dialog box will display
for you to select an executable program. Click on this button to launch your specific application.
Click this function to implement the “replace” function in the current application.
Click on this application to launch Microsoft Word.
Click this function to perform the “cut” function in Word.
Click this function to implement the “paste” function in Word.
Click on this application to launch Microsoft Excel.
Click this function to implement the “select all” function in Excel.
Click this function to perform the “undo” function in Excel.
Click on this application to launch Microsoft Power Point.
Click this function to implement the “zoom in” function in PowerPoint.
Click this function to implement the “zoom out” function in PowerPoint.
Click on this application to launch Outlook Express or any other email client application installed in your
system.
Click this function to open a new email.
Click this function to forward a selected email in your mailbox.
Click on this application to open Microsoft Internet Explore or any other Internet browser installed in your
system.
Click this function to return to the previous web page in your open Internet browser.
Click this function to more forward to the next web page in your open Internet browser.
Click on this application to launch Windows media player or any other multimedia player installed in your
system.
Click this function to play/pause the current running media player.
Click this function to stop the current running media player.
Note: All the functions related to Office applications are programmable. Place the cursor on the function
icon you want to change, and click the right button to select or reset the unit from the popup menu. From
the dialog box, you can choose another function to use in the EasyJump Frisbee.
To change from Office EasyJump mode to Traditional EasyJump mode, just click the right button on the
Genius logo in the center of the EasyJump Frisbee.
The “Traditional EasyJump” lets you use eight Cyber functions more easily and quickly.
Once you press the button you assigned, the “EasyJump” Frisbee will pop up and eight functions will be
displayed on Frisbee.
Click this button to close the current window.
Click this button and the cursor will jump to the horizontal scrollbar. When you move your mouse, the
open document or spreadsheet will scroll horizontally.
Click this button and the cursor will jump to the vertical scrollbar. When you move your mouse, the open
document or spreadsheet will scroll vertically.
Click this button to open the Start Menu.
Click this button to open the Help button.
Click this button to open the Genius Mouse Control Panel.
Click the button and you can move the mouse in any direction in a document or a spreadsheet. The farther
you move the pointer from the pan icon, the faster you can pan in that direction.
The buttons in “EasyJump Options” are especially used for Internet. The default function is “Open
Browser” (button like ). You can select other functions from “EasyJump Options” in the “Settings” folder
of the Genius Mouse Control Panel. The functions in “EasyJump Options” are:
“Add to Favorite [IE] ” “Organize Favorite [IE] ”
“Add Bookmark [NetScape] ” “Edit Bookmark [NetScape] ”
“Go Next [Forward] ” “Go Previous [Back] ”
“Run Application”
Switch Applications
When the right-button or Magic-Roller is set to “Switch AP”, you can quickly switch from one open
application to another without moving the mouse. To switch to a specific application, press the right button
or the Magic-Roller to select the application.
Zoom function for Office and IE Applications
Press the “Ctrl” key and move the “Magic-Roller” forward (or backward) to set the Zoom In/Out function.
You can also use just one hand to Zoom In/Out: set the right button to be the “Ctrl” function, press the right
button and move the “Magic-Roller” forward (or backward) to enlarge (or decrease) the document window.
Auto-Panning
You can set this function in the Button Assignment menu. Move the mouse, and the document moves in the
direction you just moved.
Uninstall the Software
Follow these instructions to remove the software from your hard disk. In Windows, click on the Start
button, select Programs and move to the mouse software. Then click on Uninstall software.
Customize the Software
This section shows you how to customize the software. To open the software control panel, you can
double-click on the icon in the task bar or select the “Software” icon from the program group.
Close the Software
Click the right button on the taskbar, and select “Close Software” to close the software.
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)
this device may not cause harmful interference, and 2) this device must accept any interference received,
including interference that may cause undesired operation.
The equipment has been certified to comply with the limits for a Class B computing device pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed or used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by switching the equipment off and on. The user can try to correct the interference by the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or and experience radio/TV technician for help.
Changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
