Welcome to Bluetooth Traveler Mouse Help Center
The Help Center is the essential reference for customer, with much detail
technical information, documentation, technical articles.
This Help Center release contains all the newest information on the
Bluetooth Traveler Mouse. This documentation will guide you through setup
Bluetooth Traveler Mouse.
Setup Guide
This section describes the following topics to guide customer finishing
setup procedure:
Setup Required
To setup the Bluetooth Traveler Mouse package, you need a personal
computer or notebook computer with following hardware required:
CPU PIII 800MHz
RAM 128M
KEYBOARD
MOUSE
Wire devices to setup the
package on your computer
To setup the Bluetooth Traveler Mouse package, you also need one of the
following operation system:
Windows 98 SE
Windows ME
Windows 2000
Windows XP
Windows Server 2003
Setup Step
To assist you in setup the package, please refer to following steps:

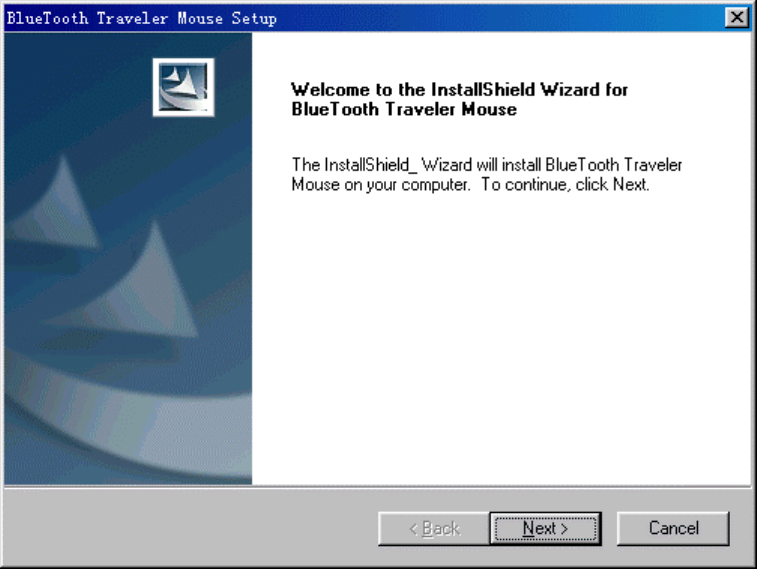

• Run Setup.exe in the Bluetooth Traveler Mouse package.
InstallShield Wizard will help you finish the package setup.
• Click 'Next' button when you already plug a bluetooth hci dongle
or bluetooth hid dongle into the usb port on your computer.

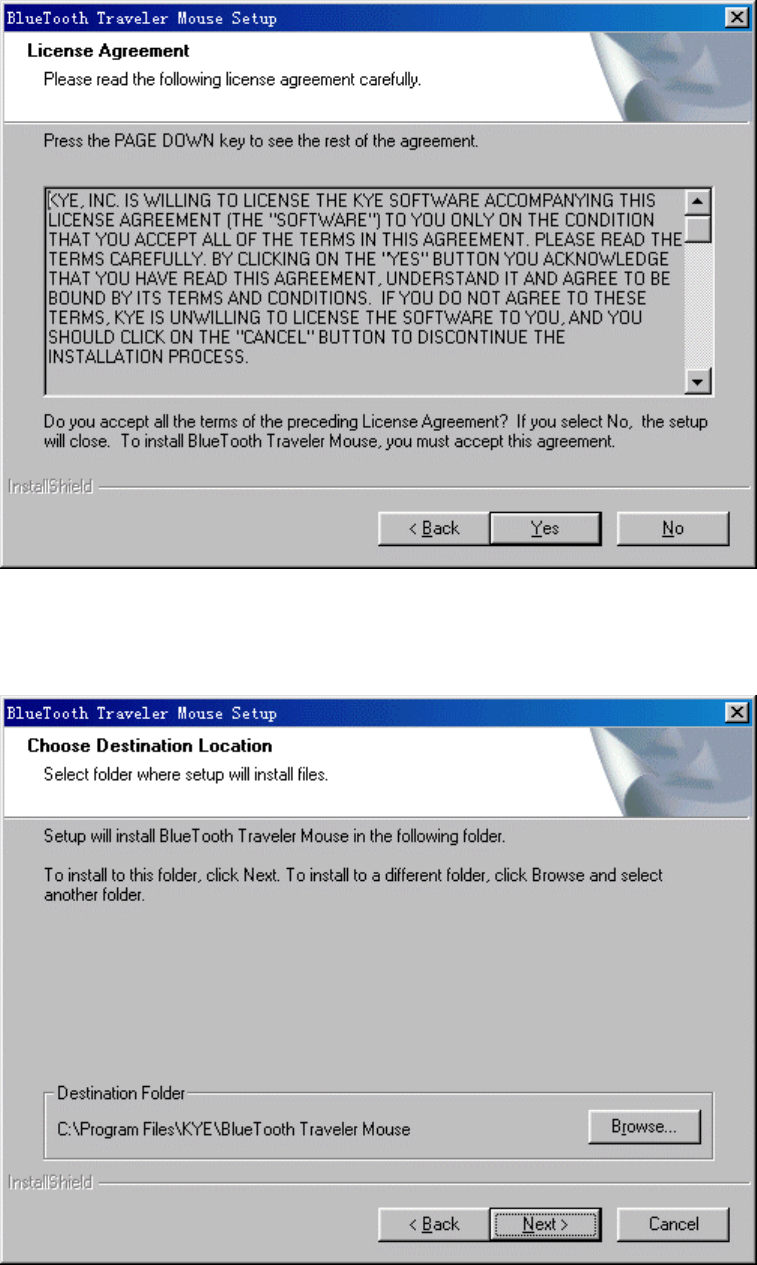

• Click 'Yes' button when you accept the license to go on.
• Choose the position of the package on the computer by Click 'Browse'
button, and Click 'Next' button to go on.

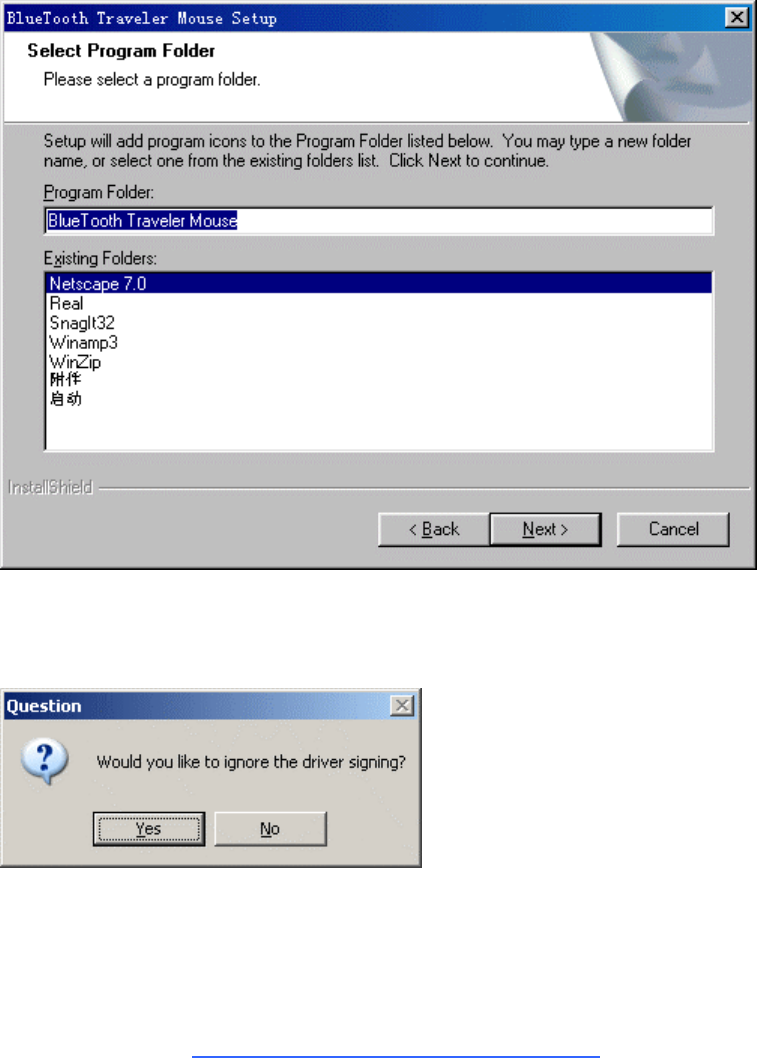

• Please Choose the Program Folder and then Click 'Next' button.
• Do you want to ignore the digital signing on Windows 2000 , Windows
Xp or Windows Server 2003 operation system to setup the driver?
• Please refer to Auto Find Bluetooth Traveler Mouse to connect
bluetooth devices

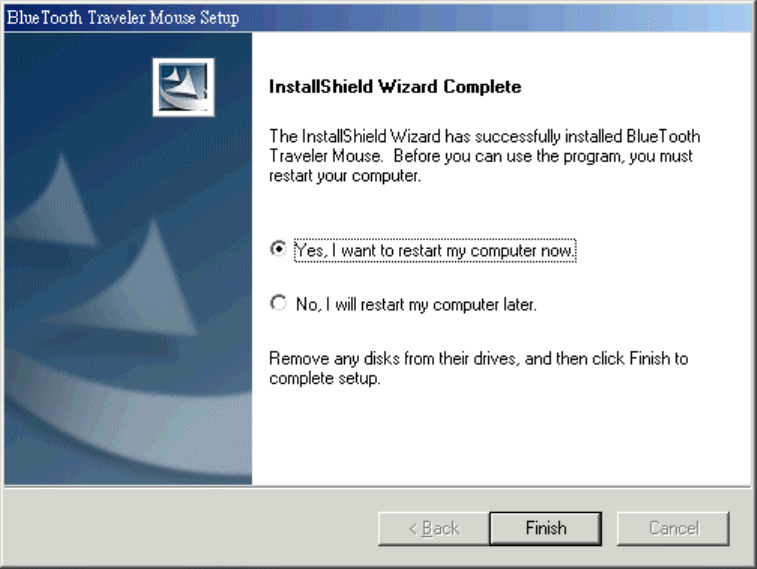

• Click 'Finish' button to finish the setup procedure.
All the package is already setup on your computer. so you will find that
an icon has been added to the task bar of the operation system. Also an
shortcut will be placed on the desktop. the bluetooth hid stack has been
installed on your computer.
Find Devices
This section summarizes operation setups for you to use bluetooth hid
devices.
Auto Find Bluetooth Traveler Mouse
This chapter introduce you a quickly way to connect Bluetooth Traveler
Mouse. This wizard will work when no Bluetooth Traveler Mouse has been
connected to system.
please refer to following steps as the picture show:
• Be sure that the Bluetooth Traveler Mouse are full power supported.
• Press the 'Connect' button on Bluetooth Traveler Mouse.
• When Bluetooth Traveler Mouse has been connected to system, the
dialog wizard will disapear.
Find Bluetooth HID Devices
This chapter assist you in finding bluetooth hid devices include mouse
and keyboard.
please refer to following steps:
• Click the 'Find Bluetooth HID Devices' shortcut on desktop or from
program folder. A Wizard will popup on the desktop.

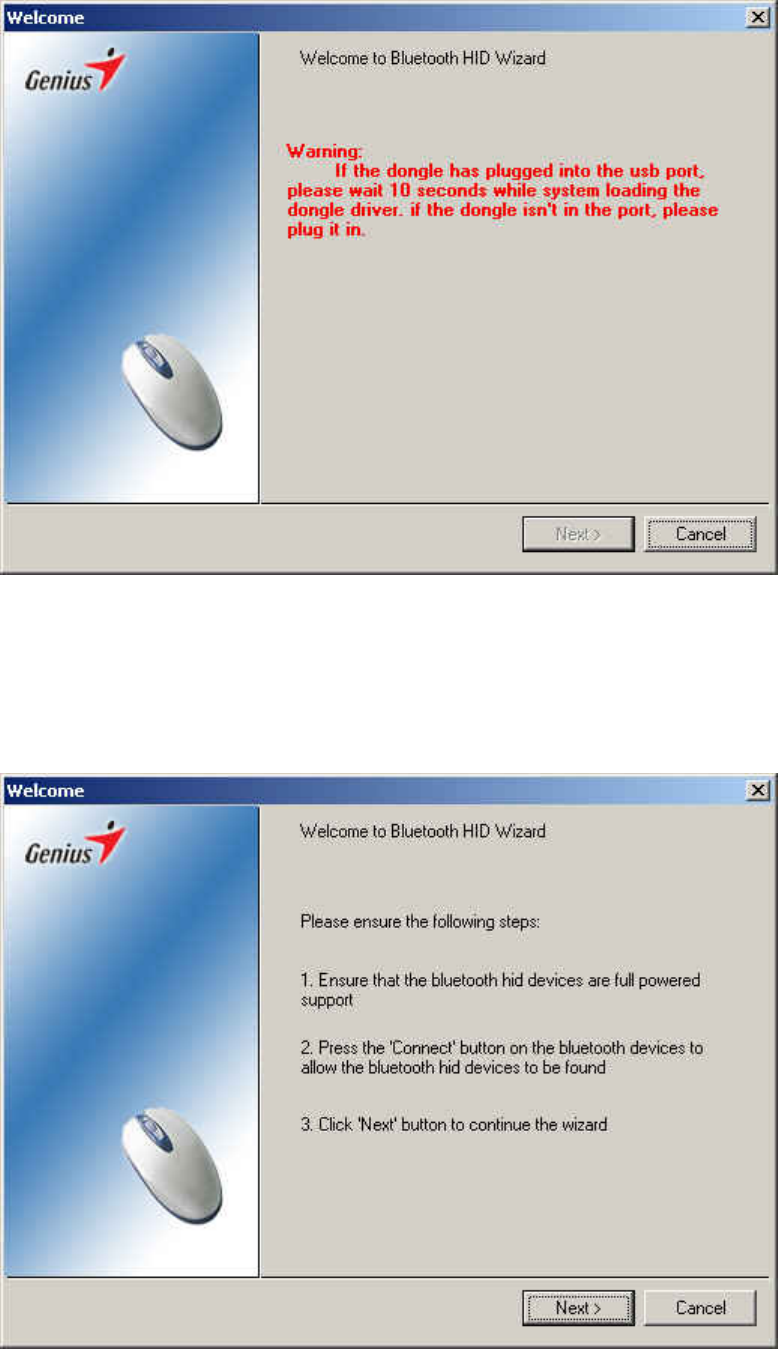

• When you see the picture above, it means that no bluetooth hci dongle
plug or bluetooth hid dongle doesn't switch from hid mode to hci
mode. what you do is plug a bluetooth hci dongle or wait for system
switch hid dongle to hci mode.
• After you plug a hci dongle or system already switch hid dongle from
hid mode to hci mode, you will see the picture above. It means system
get ready for inquiring any bluetooth hid devices around the dongle.
Click 'Next' button when you are sure that bluetooth hid devices
are full powered and you has ready pushed the 'Connect' button on
the bluetooth hid devices.

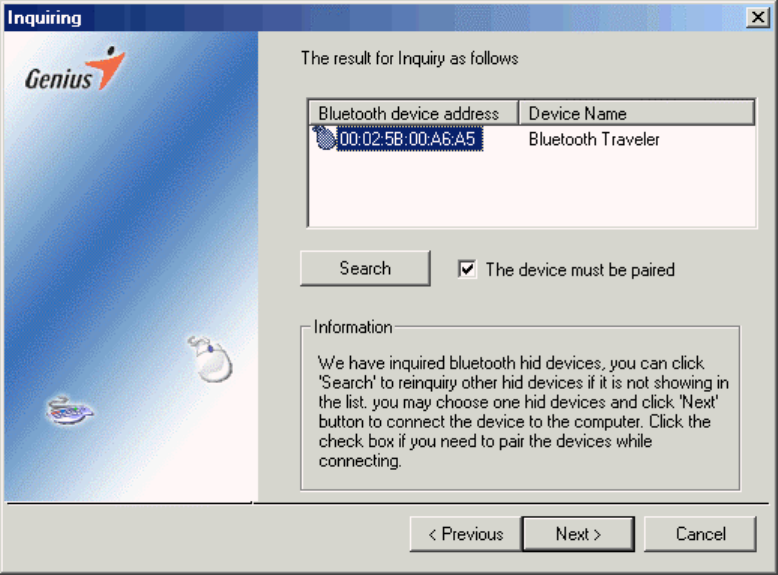

• the picture above show that system inquire a hid device during the
available inquired time. the list box show the bluetooth hid devices
information such as BD_ADDR, bluetooth device name.
• For information safety reason, some device need to be paired with
dongle. such as bluetooth hid keyboard. to bluetooth hid mouse, the
pairing procedure is optional. But if you want to use bluetooth hid
devices in hid mode. you must pair the hid device with dongle. For
Bluetooth Traveler Mouse, We set the PIN CODE as NULL, so you have
no need to input anything in the Bluetooth PIN code dialog. you click
next button and go on to connect the device.

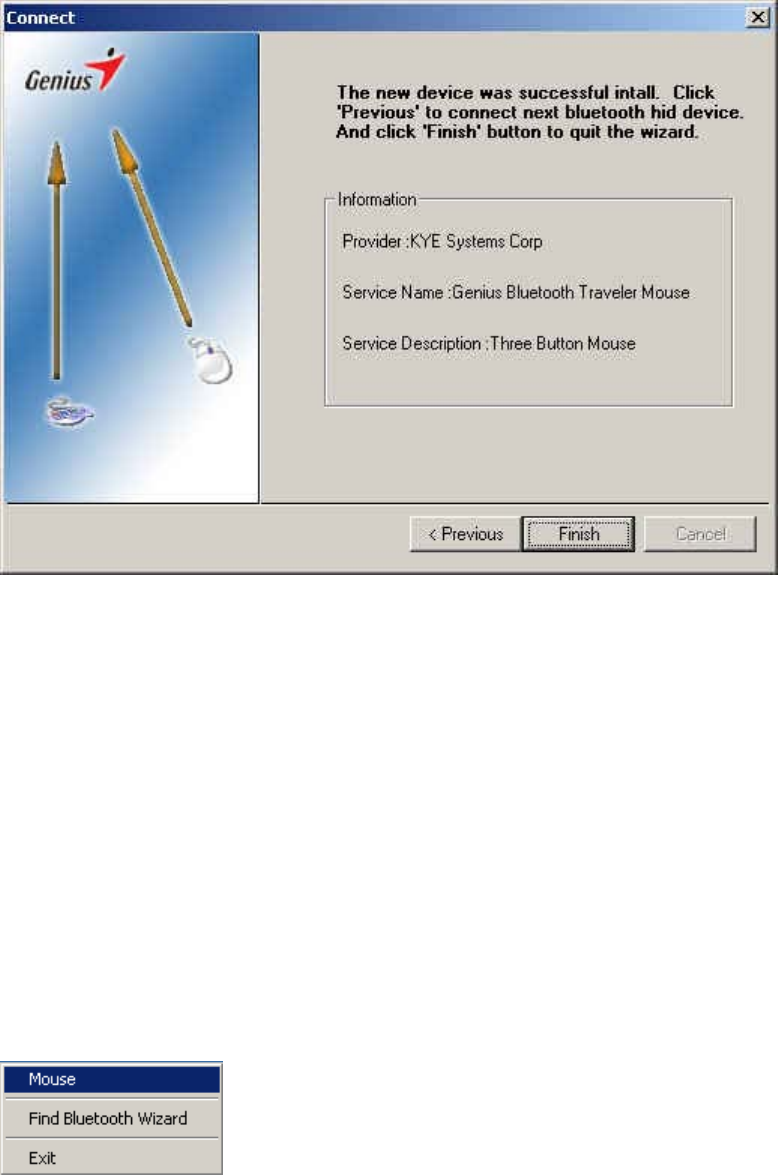

• The Wizard connect the hid device you chose. the dialog show that
the device has been registered to operation system. Click 'Finish'
button.
Find Bluetooth Mouse
This section help you with finding bluetooth mouse devices, exclude
bluetooth keyboard.
please refer to following steps:
• Click task icon on the taskbar and choose 'Mouse' item. or you can
do this by choose mouse property from Control Panel.

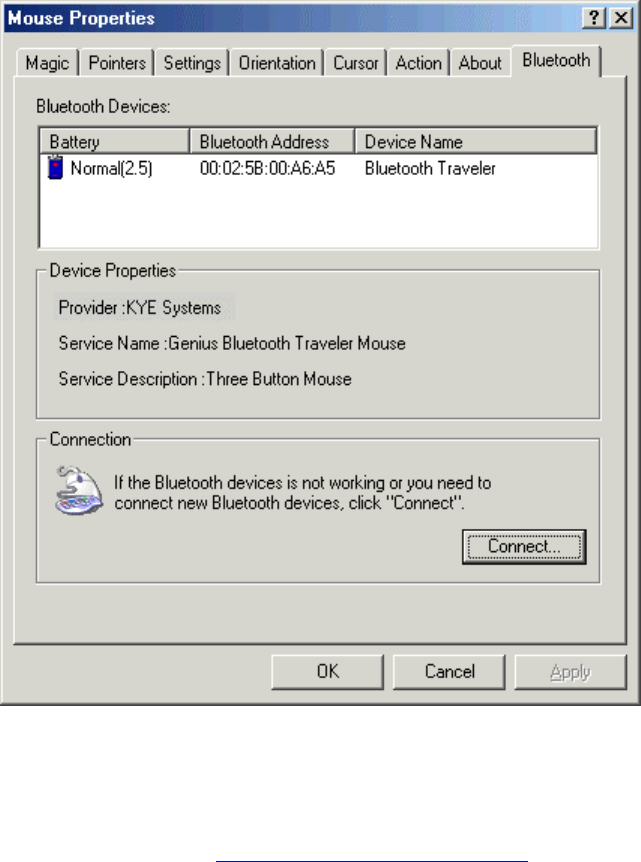

• Click 'Bluetooth' property page from the mouse property
• The list box will show the bluetooth mouse connected. Click
'Connect...' button to find another new bluetooth mouse.
• And then refer to Find Bluetooth HID Devices
Getting Support
This chapter give you the way to support.
How to ...
This section provide you most useful method from installing to use:
How to make a bluetooth device be ready?
Most bluetooth hid devices have a 'Connect' button or other, it make the
bluetooth hid device can be inquired in later 30 seconds according
bluetooth profile. you should press the 'Connect' button before your
computer begin to inquire the blueooth devices.
How to quickly use my bluetooth keyboard and mouse after reboot my
computer?
The bluetooth stack support reconnecting automatically. if the bluetooth
keyboard or mouse has been connect to computer and can work properly, after
system reboot, the bluetooth mouse and keyboard will reconnect to computer
when you press any key on bluetooth keyboard or press any button on
bluetooth mouse.
Troubleshooting
This section provide you most useful information for you to clean your
most trouble:
Why bluetooth mouse can't move smoothly or stop working?
Maybe it is no power support. please exchange the battery. And touch the
bluetooth device, then it will connect to operation system automatically.
And when bluetooth hid devices has low power. the icon on the task bar
will flash automatically.
when the operation system are very busy, the bluetooth mouse will move
slowly as any other usb mouse.
Why I can't find my bluetooth device by inquiring it?
First, please ensure that your bluetooth device are full powered and
transmission range is less 10 meters
Second, you must press Connect button on your bluetooth device to let your
bluetooth device can be discoverd.
If you still can't find your bluetooth device, please unplug the bluetooth
dongle from the usb port on your computer. and plug it again after a few
seconds.
Why I can't use my keyboard after I replace my battery in Bluetooth
Keyboard?
you should reconnect your bluetooth keyboard with Wizard or from keyboard
control panel. because bluetooth keyboard need a PIN code.
Why my bluetooth mouse can't be useful for a little long time after system
coming back from standby mode.
when you use the hid mode dongle, it will switch from hid mode to hci mode
after system coming back from standby mode, it will take you a little time.
Why my bluetooth mouse can't scroll before installing driver package and
after uninstalling driver packet?
bluetooth mouse is a standard 3 buttons usb mouse before installing driver
package and after uninstalling driver packet. you should install driver
packet if you want scroll and more functions.
Why my computer wake up from standby automatically soon after I sleep
computer by bluetooth mouse?
To save battery power, bluetooth mouse will automatically originate some
events to enter lower power state soon after you didn't use the bluetooth
mouse. these event will wake up computer. all these event will originate
in 5 seconds, so when you didn't use the bluetooth mouse for 5 seconds
before you sleep computer. bluetooth mouse will not originate all these
event to wake up computer until you move it.
What's the meaning of different icons on taskbar?
To make the user interface more friendly, we design different icons to
show different status of bluetooth system on the machine.
No HCI dongle is on the computer or the dongle is HID mode, it
hasn't been switched to HCI mode.
A bluetooth HCI dongle is on the computer or a HID dongle has
been switched to HCI mode.
Bluetooth HCI dongle has connected to bluetooth hid devices.
Bluetooth hid device connected to the dongle has low power
supported.
Knowledge Center
This chapter will show you much knowledge about bluetooth technology.
Bluetooth
Bluetooth is a standard for a small , cheap radio chip to be plugged into
computers, printers, mobile phones, etc.A Bluetooth chip is designed to
replace cables by taking the information normally carried by the cable, and
transmitting it at a special frequency to a receiver Bluetooth chip, which will
then give the information received to the computer, phone whatever.
bluetooth hid stack
bluetooth hid stack is a protocol stack that defines how devices with Bluetooth
wireless communications can use the HID Protocol initially to discover the
feature set of a HID, and then communicate with the HID.
hid dongle
hid dongle is a Bluetooth hardware with Universal Serial Bus (USB) port. and
the hardware is working like a standard USB composite device with a HID
Keyboard and a HID Mouse. Bluetooth Keyboard and Bluetooth Mouse can
connected to the hid dongle automatically when they paired during connecting.
and bluetooth hid devices will work like a standard USB keyboard and USB
mouse. hid dongle can be switched to hci mode.
hid mode
In this mode the device will appear as a USB Composite Device containing
HID keyboard and HID mouse functionality. In this mode, USB VendorID =
0x0458 ProductID = 0x1000.
On start up, the radio will become connectable to allow the last used Bluetooth
mouse and keyboard to reconnect. See Last Used Devices for details of how
these are determined. The page-scan interface is set to 100ms to allow the
devices to reconnect quickly.
When the mouse and keyboard become active, they will reconnect to the USB
device and the Bluetooth HID reports will be translated to USB HID and
passed to the host via the appropriate HID endpoint.
If the Bluetooth HID mouse or keyboard connection is lost at anytime, the
dongle will enter page scan again to allow the device to reconnect.
hci dongle
hci dongle is Bluetooth hardware with Universal Serial Bus (USB) port. and the
hardware is embeded with Bluetooth Host Controller Interface.
hci mode
In this mode, the dongle will behave as a standard USB HCI Bluetooth dongle.
As with a standard USB dongle USB VendorID = 0x0458 ProductID = 0x0001
in this mode.
BD_ADDR
BD_ADDR is the unique address of a Bluetooth device. Each Bluetooth
transceiver is allocated a unique 48-bit Bluetooth device address (BD_ADDR).
This address is derived from the IEEE802 standard.
bluetooth device name
The Bluetooth device name is the user-friendly name that a Bluetooth device
presents itself with.
inquire
In the Bluetooth system, an inquiry procedure is defined which is used in
applications where the destination’s device address is unknown to the source.
One can think of public facilities like printers or facsimile machines, or access
points to a LAN. Alternatively, the inquiry procedure can be used to discover
which other Bluetooth units are within range. During an inquiry substate, the
discovering unit collects the Bluetooth device addresses and clocks of all units
that respond to the inquiry message. It can then, if desired, make a connection
to any one of them by means of the previously described page procedure.
Bluetooth PIN code
The Bluetooth PIN is used to authenticate two Bluetooth devices (that have not
previously exchanged link keys) to each other and create a trusted relationship
between them. The PIN is used in the pairing procedure to generate the initial
link key that is used for further authentication. The PIN may be entered on UI
level but may also be stored in the device; e.g.in the case of a device without
sufficient MMI for entering and displaying digits.
Uninstall Bluetooth Traveler Mouse
To uninstall Bluetooth Traveler Mouse package from operation system, you
should click 'Uninstall Bluetooth Traveler Mouse' shortcut in the program
folder from start menu. And then restart the computer.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
