users manual

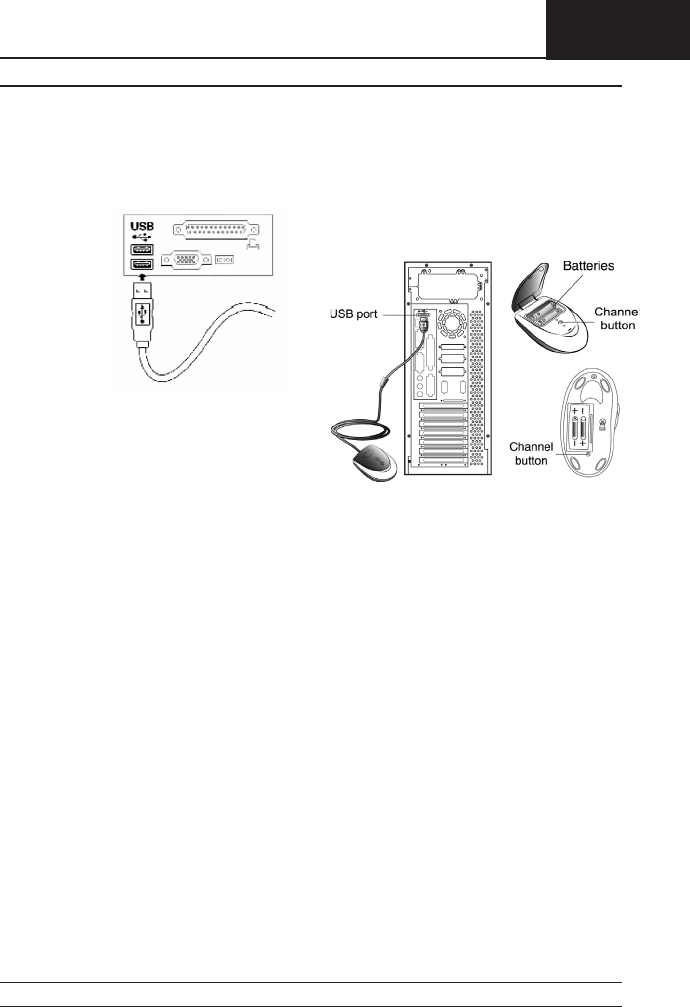

Hardware Installation
1. You can connect the receiver to a USB port of a PC
2. Install two AA batteries in the mouse.
3. Turn on your computer.
4. After you open Windows, please press
the button on the receiver first and
then press the button under the mouse
for channel setting.
Important: You can use the battery charger
receiver to recharge two AA each time
when you use the PC. Plug the battery
charger receiver USB connector into the
PC directly and remember do not put the batteries in the wrong direction, use the
same types of batteries, and do not recharge via the USB hub, that will make your
receiver, main-board and hub burn or become non-usable easily. Also, keep all
drinks away! If any spill occurs on the receiver, unplug the USB connector first and
clean the receiver immediately. Please remove the batteries if you do not use this de-
vice for at least two weeks.
Warning: (Troubleshooting)
1. Please do not use Wireless optical mouse on a desk which is made of glass, mir-
ror, iron, or black velvet. Also, a flat surface is necessary or the Optical Sensor
will error easily. When you use Wireless optical mouse on a desk that is made of
metal, try using a pad and reduce the receiving distance.
2. Before the first installation is completed (channel setting ready), the mouse will
not work.
3. The Wireless optical mouse channel provides 256 ID-codes, and it automatically
selects the ID # for your mouse. You can only set up one Wireless optical mouse
at a time. But if you have additional Wireless optical mouse sets in an area of 10
square meters, more interference will occur between the receiver and your
mouse.
1
ENGLISH

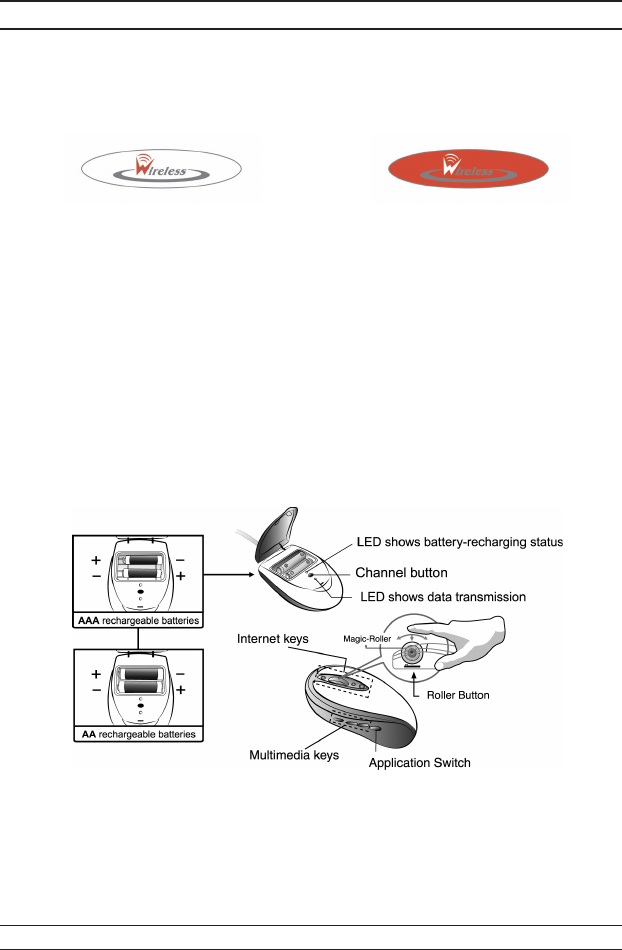

4. If you feel the mouse does not move smooth as usual, then the batteries have lost
their charge, so please replace them. Also, the wireless icon will be blinking
“red” when there is a battery-low situation. The LED on the receiver shows the
battery-recharging status (from shining to LED completely “on” for battery full).
You should set up the channel every time you replace the batteries.
5. If you need to buy new batteries, please choose Ni-MH (Nickel-Metal-Hydride)
AA batteries, 1.2V, 1300 to 1600 mAH. Please do not mix or use other types
of batteries (Li-ion, Ni-Cd, Alkaline, etc.)
6. The Wireless optical mouse with radio frequency gives you free movement and
an enjoyable experience. For optimal performance, place the receiver at least 8
inches (about 20 cm) away from the mouse and other electrical devices, such as
the computer, monitor, and etc.
Software Installation
1. Make sure the mouse is connected to the computer.
2. Put the Setup disk (or CD) into the disk drive.
3. Follow the instructions on the screen to finish the software installation.
Factory Setting
2
10 “One Touch” keys for fast access to multimedia, the Internet, and the application
switch.
Button Assignments
The Button Assignment feature lets you work in a more
efficient way because you can assign the most frequently
used commands in Windows to the mouse buttons.
1. Left Button: Provides traditional mouse functions
like click, double click and drag.
2. Right Button: You can assign this button to fre-
quently used keyboard and mouse functions in addi-
tion to features like Easy Jump, Auto-Panning,
Zoom, etc.
3. Magic-Roller: Press the “Magic-Roller” to surf the
Internet and Windows documents
4. Back: See previous page when viewing the Internet
5. Forward: Go to next page when viewing the Internet
6. WWW: Open browser (Netscape or IE)
7. Play & Pause: Play and pause of audio or video CD’s
8. Vol. +: Increase volume
9. Vol. -: Decrease volume
10. Application Switch: You can switch between active programs and documents
3
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference,
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
The equipment has been certified to comply with the limits for a Class B
computing device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed or used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by switching the equipment off
and on. The user can try to correct the interference by the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or and experience radio/TV technician for help.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
