KYE SYSTEMS GMZHL NAVIGATOR 900 Pro/ NAVIGATOR 900 User Manual Navigator 900BT
KYE Systems Corp NAVIGATOR 900 Pro/ NAVIGATOR 900 Navigator 900BT
Users Manual
ENGLISH
1
Hardware Installation

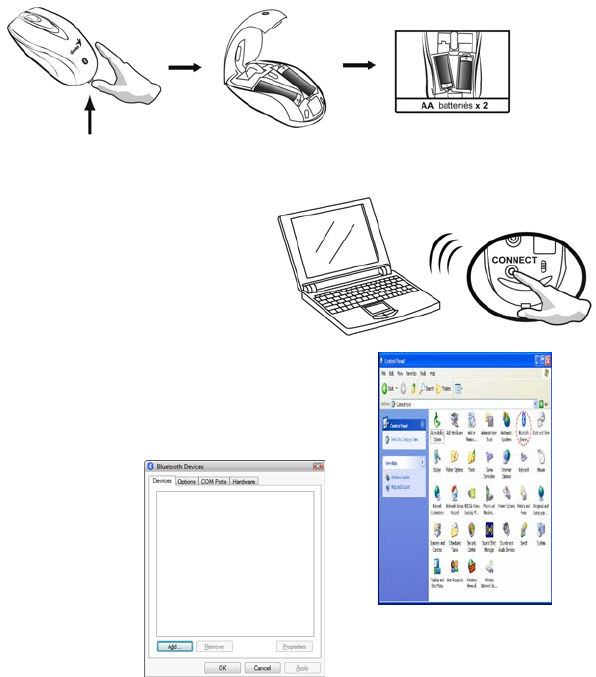

1. Push the button to open the upper cover and insert two AA batteries in
the mouse.
Pairing Process in Windows XP SP2
1. Press and hold the
“CONNECT” button under
the mouse until the LED
turns green.
2. Open the Windows control panel, then
select “Bluetooth devices”.
3. Click
“Add…..”
ENGLISH
2
4. Select “My device is setup and ready to
be found”, then click “Next”.
5. In “Peripherals (Keyboards, mice,
joysticks)”, select Genius Bluetooth
Mouse and click “Next”.
6. Select “Don’t use a passkey” and click “Next”.
ENGLISH
3

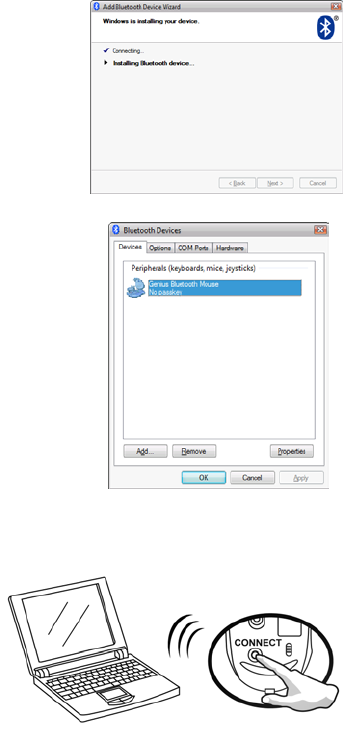

7. Windows will start to connect the
Genius Bluetooth Mouse
automatically. Press the finish button
after the connection process is
completed.
Once the connection between the Genius
Bluetooth Mouse and your computer is
established, the connection will be kept
permanently. That means the connection
will re-establish automatically each time
you run Windows.
Pairing Process in Mac OS X 10.2.6 or later
1. Press and hold the “CONNECT” button under the mouse until the LED
turns green.
ENGLISH
4

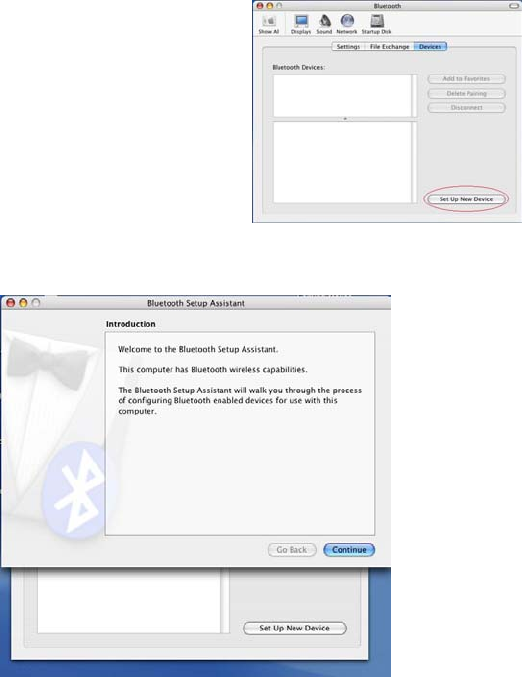

2. Click the Bluetooth icon on the
task bar and select “Setup
Bluetooth device”.
3. Click “Continue” when the “Bluetooth Setup Assistant” appears.
ENGLISH
5

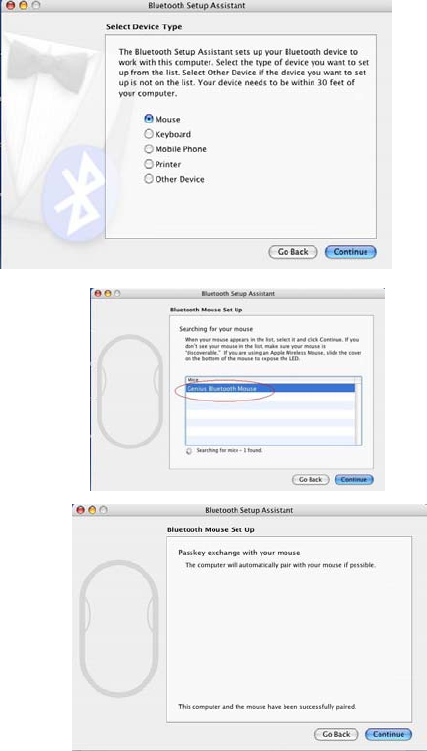

4. Choose “Mouse”
and press
“Continue” to the
next step.
5. When Bluetooth finds the
“Genius Bluetooth Mouse”,
please press “Continue” to the
next step.
6. Click “Continue” when the
“Passkey exchange with your
mouse” appears.
ENGLISH
6
7. The connection is now successful and you can use your Genius Bluetooth
Mouse.
Now you can use the Genius Bluetooth Mouse wirelessly with a Bluetooth
enabled Apple computer. Afterwards, the connection of the Genius Bluetooth
mouse will re-establish automatically each time Mac OS X runs.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Per FCC 15.21, you are cautioned that changes or modifications
not expressly approved by the part responsible for compliance
could void the user’s authority to operate the equipment.
ENGLISH
7
[R1]
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for
help.
ENGLISH
8
FCC RF Radiation Exposure Statement: This equipment
complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not
be co-located or operating in conjunction with any other antenna
or transmitter.
