KYE SYSTEMS GMZHT NAVIGATOR 900G LASER WIRELESS MOUSE User Manual USERS MANUAL
KYE Systems Corp NAVIGATOR 900G LASER WIRELESS MOUSE USERS MANUAL
USERS MANUAL
ENGLISH
1
Navigator 900G Laser (GM-060038)

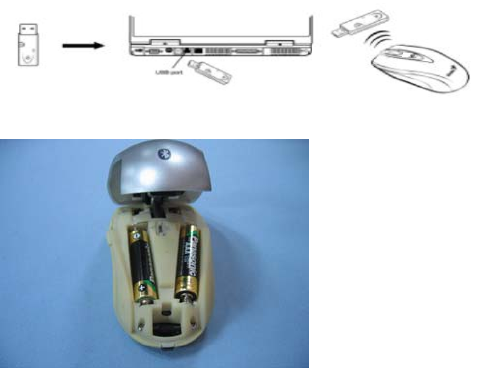

Hardware Installation
1. You can connect the receiver to a USB port of a PC
2. Install two AAA batteries in the mouse.
3. Turn on your computer. The mouse can be worked.
Note: If the mouse does not have connection to the receiver, press the button on
the receiver first and then press the button under the mouse for channel setting
again.
Important: Remember do not put the batteries in the wrong direction; use the
same types of batteries. Also, keep all drinks away! If any spill occurs on the
receiver, unplug the USB connector first and clean the receiver immediately.
Please switch the button to "off" under the mouse once you don't use it for a
long time, and remove the batteries if you do not use this device for at least two
ENGLISH
2
weeks.
Warning: (Troubleshooting)
1. Please do not use wireless laser mouse on a desk, which is made of glass or
mirror. Also, a flat surface is necessary or the laser sensor will error easily.
When you use wireless laser mouse on a desk that is made of metal, try
using a pad and reduce the receiving distance.
2. The wireless laser mouse channel provides 16 channels and 256 ID-codes,
and it automatically selects the ID # for your mouse. You can only set up
one wireless laser mouse at a time.
3. If the power indicator is on (see Button Assignments), then the
batteries have lost their charge, so you need to replace them.
This device complies with Part 15 of the FCC rules, operation is subject to the
following two conditions.
(
1
)
This device may not cause harmful interference and,
(
2
)
This device must accept any interference received,
including interference that may cause undesired operation .
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT
Software Installation
1. Make sure the mouse is connected to the computer.
2. Put the CD driver into the CD drive.
3. Follow the instructions on the screen to finish the software installation.

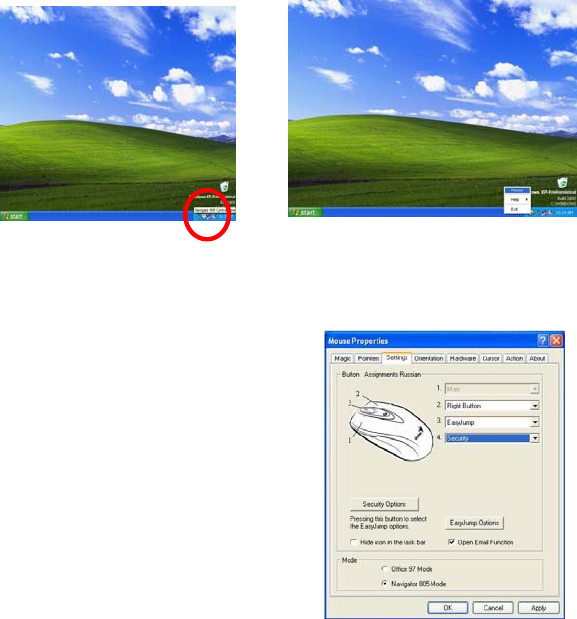

Security Function Setting:
1. After you install software driver, please click the mouse icon on the task bar
ENGLISH
3
and select “Mouse”.
2. Click “Settings” when the
3. Mouse Properties appears up and click “Security Options”.
4. Choose a picture from your images
to display when the computer is
locked. Also set your password for
unlock computer. Then, press “OK”,
and the security setting will be
finished.
ENGLISH
4
Factory Setting

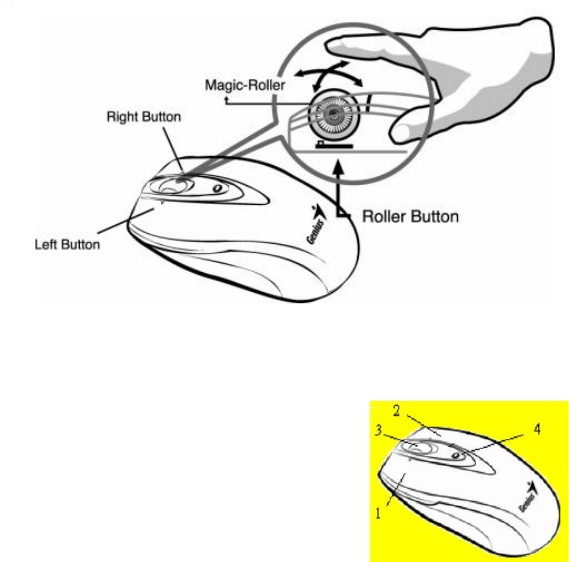

Button Assignments
1. Left Button: Provides traditional mouse
functions like click, double click and drag.
2. Right Button: You can assign this button to
frequently used keyboard and mouse
functions in addition to features like Easy
Jump, Auto-Panning, Zoom, etc.
3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows
documents.
Horizontal Scroll: Press the roller to the left and the cursor scrolls to the
left; press the roller to the right and the cursor scrolls to the right.
4. Power indicator: If your battery power is low, the LED will brighten.
