users manual
ENGLISH
1

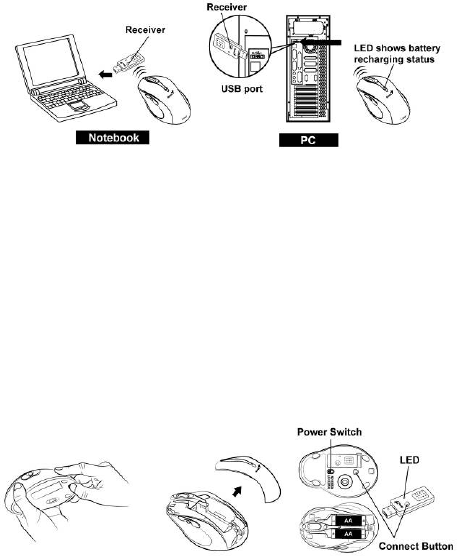

Hardware Installation
1. You can connect the receiver to a USB port of a PC or Notebook.
2. Install the enclosed two AA batteries as directed
3. Turn on your computer
4. The channel setting is factory preset. Please try on the mouse after
complete above procedures; if it is not working; Please re-connect by
pressing the button on the receiver first and observe for flash light and
press connect button underneath the mouse , then receiver will be lit and
off when connection is confirmed.
Software Installation
1. Make sure the mouse is connected to the computer
2. Place the setup disk (CD driver) into a DVD/CD Rom drive
3. Follow the instruction on the screen to complete the software installation
ENGLISH
2
Warning (Trouble shooting)
1. Please do not use the wireless laser out on a desk that is made of glass
or mirror
2. Although that the mouse has granted the eye safety certification, it is
strongly suggested that a direct eye contact with the laser lens should be
avoid.
3. The wireless laser mouser gives you free movement and an enjoyable
wireless experience. For Optimal performance, place the receiver at
least 8 inches (20cm) away from the mouse device.
4. For “HELP: of the Genius driver, please double
click the icon right hand side.
Mouse button definition:
1. Smart-search button Using the mouse to mark “key words” and press
the button for fast access to open Yahoo, Google webpage or your PC
system(Yahoo is the default webpage, you can change it in ioCentre
software). All the information or files you searched will be listed.
2. Flip 3D button Provides fast access to scan all open windows in one
easy view.
3. Zoom in/out button Press this button, then scroll the middle button.
Scrolling up is “Zoom-in” and scrolling down is “Zoom-out”. Press the
button again to release the function.
ENGLISH
3
4. Left Button Provides traditional mouse functions such
as click, double click and drag.
5. Turbo roller button Provides quick roller- up
6. Roller button/Middle button Scroll the button to surf the Internet and
Windows documents.
7. Right button Provides traditional mouse click function
8. Turbo roller button Provides quick roller down
9. Battery low indicator The LED will be lit /flash when battery power is
low.
ENGLISH
4
10. FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Change or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
