KYE SYSTEMS GMZIB Traveler T925 Laser User Manual UserMan ok
KYE Systems Corp Traveler T925 Laser UserMan ok
Users Manual
ENGLISH
1

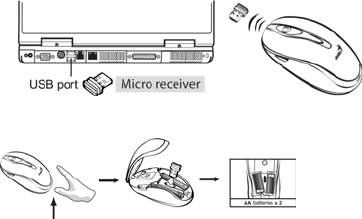

Hardware Installation
1. You can connect the receiver to a USB port of a PC.
2. Install two AA batteries in the mouse.
3. Turn on your computer. The mouse can now work.
Software Installation
1. Make sure the mouse is connected to the computer.
2. Put the CD driver into the CD drive.
3. Follow the instructions on the screen to finish the software
installation.
Warning: (Troubleshooting)
1. Please do not use wireless laser mouse on a desk, which is made of
glass or mirror.
2. The wireless laser mouse automatically selects the channel for your
mouse.
3. If you feel the mouse does not move smooth as usual, please check
the battery indicator on the mouse. If the batteries have lost their
charge, replace them. Remember do not put the batteries in the wrong
direction.
Not
e：
Class 1 Laser Product. Passed eye-safety regulation.(IEC 60825-1)
ENGLISH
2

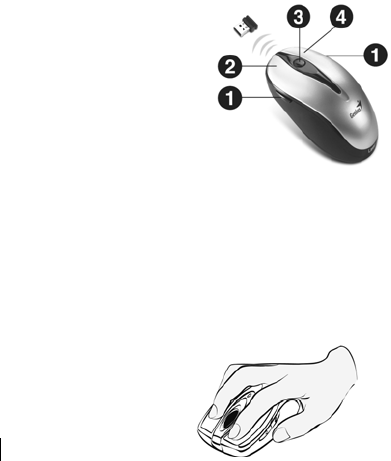

Button Assignments
1. Press the side button as indicated and gently slide your finger over
the crystal sensing area of the OptoWheel to activate the turbo scroll
function and release the side button to
disable.
2. Left Button: Provides traditional mouse
functions such
as click, double click and drag.
3. 8 way scroll function or Middle button:
Gently slide your finger over the OptoWheel
to scroll in eight different directions to surf
the Internet and Windows documents or press the OptoWheel down
to activate the middle button function. Flip 3D button: Provides fast
access to all opened windows in one easy view.
4. Right button: Provides traditional mouse click function
Note: Adjust dpi resolution
Press left and right button together for three
seconds, the resolution will switch from 1600 to
800 dpi. Press both buttons again for three
seconds and it will revert to 1600 dpi. The LED
flash is shorter for 800 dpi.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
