KYE SYSTEMS GMZIW Micro Traveler 900BT (GM-090004/T) User Manual Hardware Installation
KYE Systems Corp Micro Traveler 900BT (GM-090004/T) Hardware Installation
MANUAL rev
English
1
Hardware Installation
1. Install one AA battery in the mouse.
Factory Settings
1. Left Button: Provides traditional mouse functions like click,
double click and drag.
2. Magic-Roller: Press the “Magic-Roller” to surf the Internet
and Windows documents.
3. Right Button: Provides traditional mouse click functions.

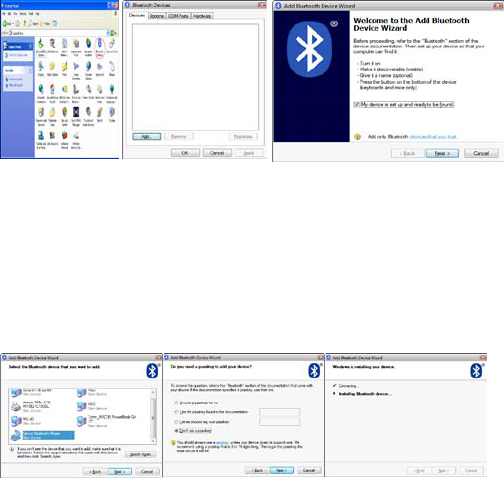

Pairing Process in 7,Vista and Windows XP SP2
1. Open the Windows control panel, then select “Bluetooth
devices”.
2. Click “Add…..”
3. Select “My device is setup and ready to be found”, then click
“Next”.
English
2
4. Press and hold the “CONNECT” button under the mouse.
5. In “Peripherals (Keyboards, mice, joysticks)”, select Genius
Bluetooth Mouse and click “Next”.
6. Select “Don’t use a passkey” and click “Next”.
7. Windows will start to connect the Genius Bluetooth Mouse
automatically. Press the finish button after the connection
process is completed.
Once the connection between the Genius Bluetooth
Mouse and your computer is established, the connection
will be kept permanently. That means the connection
will re-establish automatically each time you run
Windows.
English
3
Pairing Process in Mac OS X 10.2.8 or later
1. Press and hold the “CONNECT” button under the mouse.
2. Click the Bluetooth icon on the task bar and select “Setup
Bluetooth device”.
3. Click “Continue” when the “Bluetooth Setup Assistant” appears.
4. Choose “Mouse” and press “Continue” to the next step.
5. When Bluetooth finds the “Genius Bluetooth Mouse”, please
press “Continue” to the next step.
6. Click “Continue” when the “Passkey exchange with your
mouse” appears.
7. The connection is now successful and you can use your Genius
Bluetooth Mouse.
Now you can use the Genius Bluetooth Mouse wirelessly with a
Bluetooth enabled Apple computer. Afterwards, the connection of the
Genius Bluetooth mouse will re-establish automatically each time
Mac OS X runs.
Note:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment. (15.21)
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.(15.19(a)(3))
