KYE SYSTEMS GMZK1 Wireless Mouse User Manual
KYE Systems Corp Wireless Mouse
User manual
ENGLISH
1
Hardware Installation

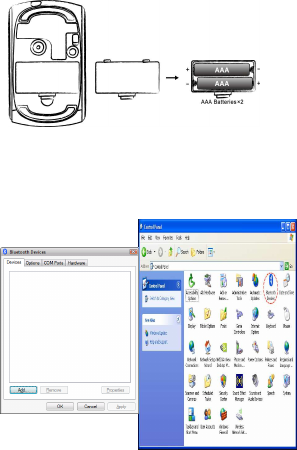

1. Install two AAA batteries in the mouse.
Pairing Process in Vista and Windows XP SP2
1. Open the Windows control panel, then select “Bluetooth
devices”.
2. Click
“Add…..”
ENGLISH
2

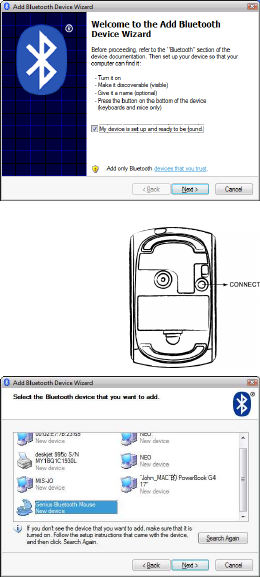

3. Select “My device
is setup and ready to
be found”, then
click “Next”.
4. Press and hold the “CONNECT” button
under the mouse.
5. In “Peripherals
(Keyboards, mice,
joysticks)”, select
Genius Bluetooth
Mouse and click
“Next”.
ENGLISH
3

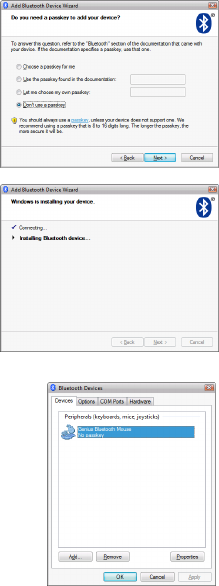

6. Select “Don’t use a
passkey” and click “Next”.
7. Windows will start to
connect the Genius
Bluetooth Mouse
automatically. Press the
finish button after the
connection process is
completed.
Once the connection between the
Genius Bluetooth Mouse and your
computer is established, the connection
will be kept permanently. That means
the connection will re-establish
automatically each time you run
Windows.
ENGLISH
4

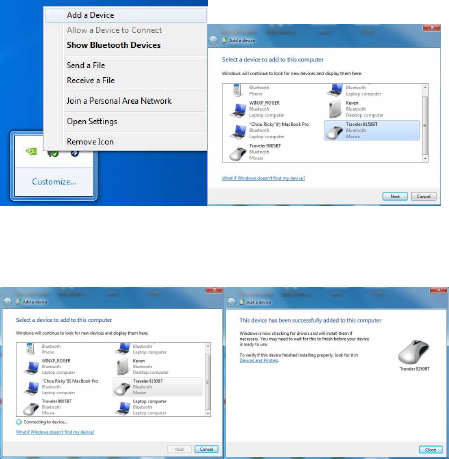

Pairing Process in Windows 7
1. Select the Bluetooth device icon and click the right mouse button
to open the function list, then select “Add a Device”.
2. Press and hold the “CONNECT” button under the mouse.
3. Select Genius Bluetooth Mouse, and click “Next”.
4. Windows will start to connect the Genius Bluetooth Mouse
automatically. Press the “Close” button after the connection
process is completed.
ENGLISH
5

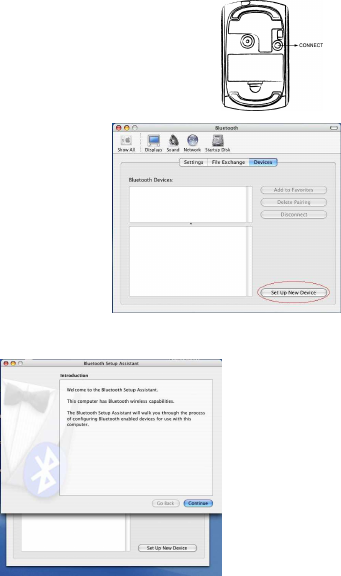

Pairing Process in Mac OS X 10.2.8 or later
1. Press and hold the “CONNECT” button
under the mouse.
2. Click the Bluetooth icon
on the task bar and select
“Setup Bluetooth device”.
3. Click “Continue” when the “Bluetooth Setup Assistant” appears.
ENGLISH
6

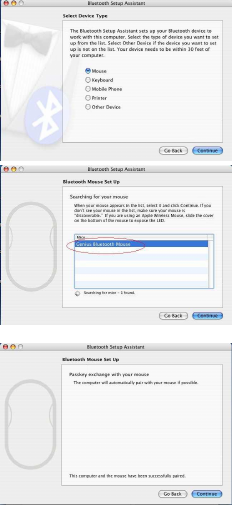

4. Choose “Mouse” and
press “Continue” to the
next step.
5. When Bluetooth finds the
“Genius Bluetooth
Mouse”, please press
“Continue” to the next
step.
6. Click “Continue” when
the “Passkey exchange
with your mouse”
appears.
7. The connection is now successful and you can use your Genius
Bluetooth Mouse.
ENGLISH
7

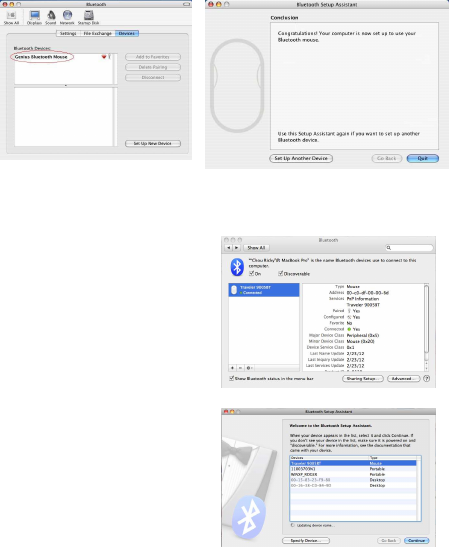

Pairing Process in Mac OS X 10.5 or later
1. Click the Bluetooth icon on
the task bar and click the +
sign to “Setup new device”.
2. Press and hold the
“CONNECT” button under
the mouse.
3. When Bluetooth finds the
“Genius Bluetooth Mouse”,
press “Continue” to the next
step.
ENGLISH
8

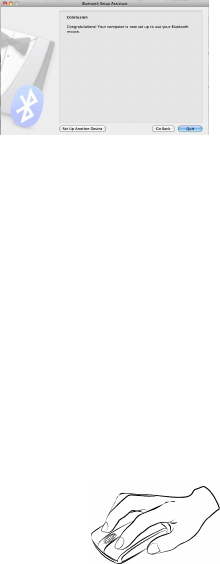

4. When Mac connects with the
Genius Bluetooth Mouse,
press “Quit” and return to the
Bluetooth setup screen.
5. The connection is now successful and you can use your Genius
Bluetooth Mouse.
Now you can use the Genius Bluetooth Mouse wirelessly with a
Bluetooth enabled Apple computer. Afterwards, the connection of the
Genius Bluetooth mouse will re-establish automatically each time
Mac OS X runs.
Software Installation (for 4D scrolling only)
1.
Make sure the mouse is connected to the computer.
2.
Put the CD driver into the CD drive.
3.
Follow the instructions on the screen to finish the software
installation.
Adjust dpi resolution
Press left and right button together for three
seconds, the resolution will switch from 1600
to 800 dpi. Press both buttons again for three
seconds and it will revert to 1600 dpi. The
LED flash is shorter for 800 dpi.
ENGLISH
9
Note:
Class 2 Laser Product. The last pointer is dangerous to
eyes! Do not stare into the beam, and be sure to avoid any
child using the pointer. (IEC 60825-1)

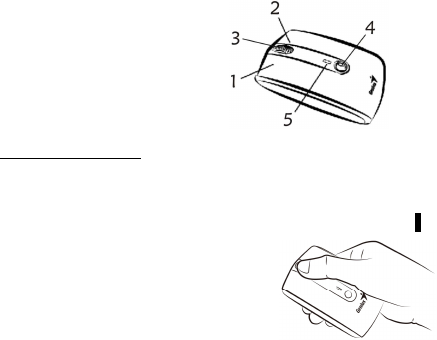

Factory Setting
Use “Switch Button” to switch from “Mouse mode” and “Presenter
mode” for different functions. LED flash will show you which mode
you are in now. When LED is “BLUE”, it is in Mouse mode and when
LED is in “RED”, it is in Presenter mode.

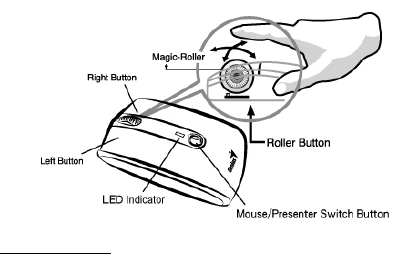

In Mouse mode:
1. Left Button: Provides traditional mouse functions like click,
double click and drag.
2. Right Button: Provides traditional mouse click functions.
ENGLISH
10
3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and
Windows documents.
Horizontal Scroll: Press the roller to the left and the cursor
scrolls to the left; press the roller to the right and the cursor
scrolls to the right.
4. Switch Button: To switch between Mode-1 (Mouse) and
Mode-2 (Presenter) function.
5. LED indicator: If your battery power is low, the LED will
brighten. When LED is “BLUE” it is in Mouse mode.
In Presenter Mode:
1. Left Button: Next page when you are in PowerPoint.
2. Right Button: Previous page when you are in PowerPoint.
3. Magic-Roller: Press the “Magic-Roller” to use laser point.
ENGLISH
11
Horizontal Scroll: Press the roller to the right is F5 (like
keyboard function) to use PowerPoint in your presentation. Press
the roller to the left to ESC.
4. Switch Button: To switch between Mode-1 (Mouse) and
Mode-2 (Presenter) function.
5. LED indicator: If your battery power is low, the LED will
brighten. When LED is “Red” it is in Presenter mode.
Button Function:
Button
Mouse mode Presenter mode
1 Left Button Next page
2 Right Button Previous page
3
Magic-Roller Laser On/Off
Horizontal Scroll Scroll right: F5
Scroll left: ESC
4 Mode switch Mode switch
5 LED indicator is blue
LED indicator is red
Remark:
If not in use for a while, the Bluetooth Mouse will go into sleep
mode. Move or click any button on the Bluetooth Mouse to wake
it up, it takes less than three seconds for it to work again.
ENGLISH
12
If not in use for 30 minutes or longer, the Bluetooth Mouse will
disconnect from your computer. Move or click any button on the
Bluetooth Mouse for reconnection, it takes about six seconds for
the mouse to start working normally.
Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment. (15.21)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.(15.19(a)(3))
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
