KYE SYSTEMS GMZKF TRAVELER 9000LS (GM-120018/T) User Manual Hardware Installation
KYE Systems Corp TRAVELER 9000LS (GM-120018/T) Hardware Installation
USERS MANUAL
English
1

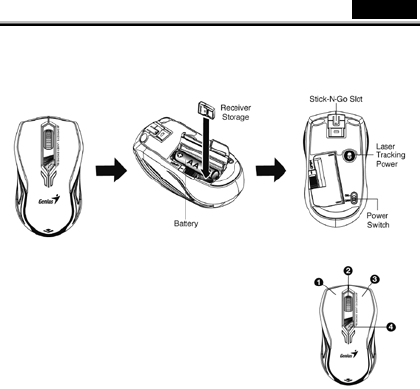

Hardware Installation
1. Connect the receiver to a USB port of a PC.
2. Install one AA or AAA battery in the mouse as instructed.
3. Make sure that you have switched on the power switch underneath the mouse.
Mouse Button Assignments
1. Left Button: Provides traditional mouse functions like
click, double click and drag.
2. Magic-Roller: Press the “Magic-Roller” to surf the
Internet and Windows documents.
3. Right Button: Provides traditional mouse click
functions.
4. DPI adjustment: Default is 1200 dpi, 800 dpi (1 flash),
1200dpi (2 flashes), 1600 dpi (3 flashes)
Note: Download the programmable driver from our website:
www.geniusnet.com
Warning: (Troubleshooting)
1. The connection of the wireless device is factory preset, so when you plug the
USB receiver into any USB port, the connection between the micro receiver and
the mouse will be established automatically.
2. In case your PC did not install the hardware successfully, remove the micro
receiver from the USB port and go Human Interface Devices under Device
Manager to remove the mouse then plug in the micro receiver to a USB port
again.
3. If you feel the mouse does not move smooth as usual, it is possible the battery has
lost its charge so you need to replace it. Remember to put the battery in the correct
direction.
English
2
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the interference by one
or more of the following measures:
1. Reorient the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Any special accessories needed for compliance must be specified in the instruction manual.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment.
CAUSION: Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
IC statement: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC ID: FSUGMZKF
