KYE SYSTEMS GMZKP TRAVELER D6600 (GM-130012/T) User Manual Hardware Installation
KYE Systems Corp TRAVELER D6600 (GM-130012/T) Hardware Installation
User Manual
GM-130012/T(Traveler D6600) English
1

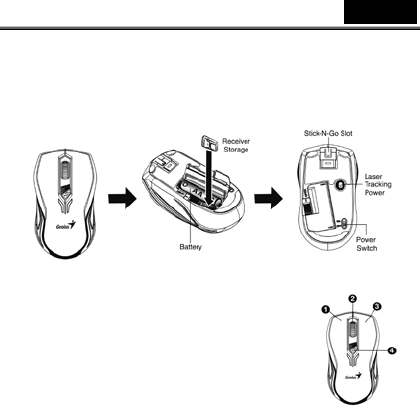

Hardware Installation
1. Connect the receiver to a USB port of a PC or Notebook.
2. Install one AA or AAA battery in the mouse as instructed.
3. Make sure that you have switched on the power switch underneath the mouse.
4. Use the OTG cable to connect your tablet PC.
(OTG cable for Android OS 4.0 + for tablet PC and smart phones)
Mouse Button Assignments
1. Left Button: Provides traditional mouse functions like
click, double click and drag.
2. Magic-Roller: Press the “Magic-Roller” to surf the
Internet and Windows documents.
3. Right Button: Provides traditional mouse click functions.
4. Change device Button: Press this button to change
another PC or Notebook device.
Note: Download the programmable driver from our website:
www.geniusnet.com
Warning: (Troubleshooting)
1. Do not use the wireless optical/laser mouse on a desk which is made of glass or
mirror.
2. The connection of the wireless device is factory preset, so when you plug the
USB receiver into any USB port, the connection between the micro receiver and
the mouse will be established automatically.
3. In case your PC did not install the hardware successfully, remove the micro
receiver from the USB port and go Human Interface Devices under Device
Manager to remove the mouse then plug in the micro receiver to a USB port
again.
4. If you feel the mouse does not move smooth as usual, it is possible the battery has
lost its charge so you need to replace it. Remember to put the battery in the correct
direction.
GM-130012/T(Traveler D6600) English
2
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
correct the interference by one or more of the following measures: 1.Reorient
the receiving antenna. 2.Increase the separation between the equipment and
receiver. 3.Connect the equipment into and outlet on a circuit different from
that to which the receiver is connected. 4.Consult the dealer or an experienced
radio/TV technician for help. Any special accessories needed for compliance
must be specified in the instruction manual. Warning: A shielded-type power
cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O
devices to this equipment. CAUSION: Any changes or modifications not
expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
FCC ID: FSUGMZKP
