KYE SYSTEMS GMZKQ PICO DONGLE (GM-130012/R) User Manual Hardware Installation

KYE Systems Corp PICO DONGLE (GM-130012/R) Hardware Installation

Contents

User Manual

GM-130012/R(Pico Dongle) English
1

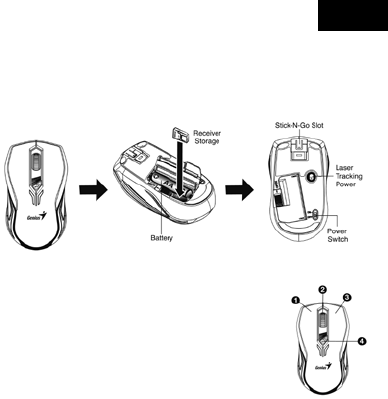

Hardware Installation
1. Connect the receiver to a USB port of a PC or Notebook.
2. Install one AA or AAA battery in the mouse as instructed.
3. Make sure that you have switched on the power switch underneath the mouse.
4. Use the OTG cable to connect your tablet PC.
(OTG cable for Android OS 4.0 + for tablet PC and smart phones)
Mouse Button Assignments
1. Left Button: Provides traditional mouse functions like
click, double click and drag.
2. Magic-Roller: Press the “Magic-Roller” to surf the
Internet and Windows documents.
3. Right Button: Provides traditional mouse click functions.
4. Change device Button: Press this button to change
another PC or Notebook device.
Note: Download the programmable driver from our website:
www.geniusnet.com
Warning: (Troubleshooting)
1. Do not use the wireless optical/laser mouse on a desk which is made of glass or
mirror.
2. The connection of the wireless device is factory preset, so when you plug the
USB receiver into any USB port, the connection between the micro receiver and
the mouse will be established automatically.
3. In case your PC did not install the hardware successfully, remove the micro
receiver from the USB port and go Human Interface Devices under Device
Manager to remove the mouse then plug in the micro receiver to a USB port
again.
4. If you feel the mouse does not move smooth as usual, it is possible the battery has
lost its charge so you need to replace it. Remember to put the battery in the correct
direction.
GM-130012/R(Pico Dongle) English
2
FCC Compliance and Advisory Statement
FCC Warning：
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user＇s authority to operate
the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and
on, the user is encouraged to try to correct the interference by one or more of
the
following measures:
_ Reorient or relocate the receiving antenna.
_ Increase the separation between the equipment and receiver.
_ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
_ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the
following two conditions : (1) this device may not cause harmful interference,
and
(2) this device must accept any interference received, including interference
that
may cause undesired operation
FCC ID: FSUGMZKQ
GM-130012/R(Pico Dongle) English
3
Safety Warning：
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
Remark:
Whenever new battery is installed, make sure that it is fresh 1.5V AA battery.
A) Remove the battery cover.
B) Insertone AA battery into the battery compartment, make sure to properly
orient the positive(+) and negative(-) ends as specified by the marks in the
battery compartment. Replace the battery cover and make sure it is locked.
C) Switch on the mouse, the LED in bottom of mouse will blink.
D) Correct Disposal of this product. This marking indicates that this
product should not be disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
