KYE SYSTEMS GMZL3 EnergyMouse 2 (GM-130024/T) User Manual USERS MANUAL
KYE Systems Corp EnergyMouse 2 (GM-130024/T) USERS MANUAL
USERS MANUAL
Energ
y Mouse 2 GM-130024/T English
-
1
-

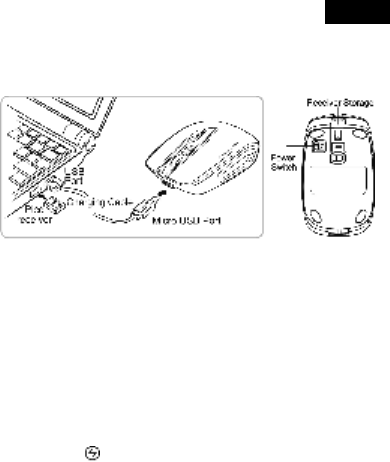

Hardware Installation
For Mouse use:
1.
Plug the wireless pico receiver to a USB port of a PC.
2.
Make sure the power switch located underneath the mouse is switched to "ON".
For Mouse with power bank function charging:
1.
How to start charge Energy Mouse 2
a. Plug the Micro USB cable into the Energy Mouse 2 Micro USB port, and then insert
the other end of the cable into USB port of your power supply (e.g. AC charger, or
computer USB port). The power level LED indicators will be flashing in sequence.
b. When the charge is completed, the four LEDs will stay on for 6 minutes, and then turn
off for power saving.
2.
How to charge your mobile device using the Energy Mouse 2
a. Connect your device to the Energy Mouse 2 USB output port and the charging
will start automatically.
b. When your mobile device charge completed or just disconnect the cable; Energy
Mouse 2 will automatically turn off in 10 seconds.
3.
How to check power capacity of Energy Mouse 2
a. Press and hold button for two seconds for the power level. The four LEDs will
show the power capacity.
4.
How to turn off Energy Mouse 2 when charging is finished
a. Just remove the charger cable. Energy Mouse 2 will
automatically turn off automatic off in 10 seconds.
Energ
y Mouse 2 GM-130024/T English
-
2
-
Mouse Button Assignments
1.
Left Button: Provides traditional mouse
functions like click, double click and drag.
2.
Magic-Roller: Press the “Magic-Roller” to surf
the Internet and Windows documents.
3.
Right Button: Provides traditional mouse click
functions.
4.
Button: Press this button and release to
turn it on. The power level LED indicators will
display battery’s capacity.
5.
Power Level LED indicators: When the
charge is completed, the four LEDs will stay on for 6
minutes, and then turn off for power
saving.
Discharge:
Charging:
● LED On ○ LED Off ⊙ LED Blinking
Remark: Power level low indication
If the LED is flashing four times, then the power level is low, and you need to recharge
the mouse immediately.
Note: Download the programmable driver from our website: www.geniusnet.com
LED
Indicators ●●●● ●●●○ ●●○○ ●○○○ ⊙⊙⊙⊙
Blinking
Power Level
100-75% 75-50%
50-25%
25-5% 5%
LED
Indicators ⊙○○○ ●⊙○○ ●●⊙○ ●●●⊙ ●●●●
Power Level
0-25% 25-50%
50-75%
75-100%
100%
Energ
y Mouse 2 GM-130024/T English
-
3
-
Warning: (Troubleshooting)
1.
Make sure the Energy Mouse 2 is completely charged before first usage.
2.
Use the standard cable or it could cause damage to Energy Mouse 2.
3.
Confirm the voltage of the mobile device is 5V before you use Energy Mouse 2
to charge
it.
4.
To maintain the life span and quality of Energy Mouse 2 battery, we recommend you
unplug the power cable promptly after Energy Mouse 2 is fully charged and when not in
use fully charge it every four months.
5.
Do not drop, knock, disassemble or attempt to repair Energy Mouse 2 by yourself or you
will void the warranty. If there is any problem, you can contact a service center for
assistance.
6.
Do not leave Energy Mouse 2 in a vehicle, expose it to sunlight or put it near any heat
source for a long time as strong light and high temperature will lead to battery damage.
7.
Store Energy Mouse 2 in a cool, dry place, and keep it away from fire and moisture.
8.
Do not put any object (except the USB cable) into any of the Energy Mouse 2
micro USB
input or USB output ports to avoid short circuit damage.
9.
Keep Energy Mouse 2 away from children and pets. Do not use the wireless optical/laser
mouse on a desk which is made of glass or mirror.
10.
The connection of the wireless device is factory preset, so when you plug the USB
receiver into any USB port, the connection between the micro receiver and the mouse
will
be established automatically.
11.
In case your PC did not install the hardware successfully, remove the micro receiver from
the USB port and go Human Interface Devices under Device Manager to remove the
mouse, then plug in the micro receiver to a USB port again.
Energ
y Mouse 2 GM-130024/T English
-
4
-
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, according to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection a
gainst harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. Howe
ver, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encourage
d to try correct the interference by one or more of the following measures:
1. Reorient the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into and outlet on a circuit different from that to which
the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Any special accessories needed for compliance must be specified in the instruction
manual.
Warning: A shielded
-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to
this equipment.
CAUSION: Any changes or modificat
ions not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
SAR compliance has been evaluated in the product(s), and con be used in host
product(s) with substantially similar physical dimensions,
construction, and electrical and
RF characteristics. End
-users must be provided with specific information required to satisfy
RF exposure compliance for all final host devices. Compliance of this device in all final host
configurations is the responsibility of the Grantee.
The separation distance
-20 cm must be clearly stated in the operating and/or
installation manual that is supplied to the User. This application is being made on behalf of
the Grantee.
