KZ Broand Technologies AIRSTREAM4000 WiMAX Outdoor CPE User Manual DATA SHEET
KZ Broadband Technologies, Ltd. WiMAX Outdoor CPE DATA SHEET
User Manual
AirStream 4000
© Copyright of KZ Broadband Technologies Ltd. 1601 Tower C, Skyworth Building, High-Tech Industrial Park, Nanshan District,
Shenzhen, China 518057 Tel: +86 (755) 33639088 Fax: +86 (755) 33631919
www.kztech.cn
AirStreamTM 4000 WiMAX Outdoor CPE
Reliable & Convenient Wireless Broadband Access
The KZTECH AirStreamTM 4000 Customer Premises Equipment (CPE) is a high performance
802.16e WiMAX CPE product designed to enable quick WiMAX service deployment to the remote
customers. It provides high data throughput and networking features to end users who need both
bandwidth and roaming capabilities in the certain area.
RELIABLE PERFORMANCE
AirStreamTM 4000 is a cost effective outdoor data CPE based on the WiMAX Forum's standard
implementation of the IEEE 802.16e Wave II specification. It is able to meet the most demanding requirements of large service
providers with high throughput and availability. It also supports standard TR069 and OMA-DM management interface for
centralized auto provision and upgrade management. Network operators can count on the performance as well as reliability of this
device. It has one data port and a simple firewall for security, providing an effective all-in-one solution to home networking needs.
Factors such as integrated design, reduced power consumption, increased effective antenna gain, and improved heat dissipation
design further improve the operational life span of this device.
AirStreamTM 4000 can provide quick broadband wireless access. Its built-in router function provides multiple VLAN support,
TOS/DSCP tagging and rate limiting to ensure greater service feasibility and reliability. Easy-to-read signal strength indicators and
data activity indicator in the back panel make it intuitive for users to check the status of the device.
CONVENIENT USAGE & MANAGEMENT
The AirStreamTM 4000 is a user-friendly WiMAX CPE, and very easy to install and maintain. Easy and simple installation for non
professional user delivers instant broadband anywhere. All access ports in the plug and play AirStreamTM 4000 are integrated and it
comes with all the necessary device drivers pre-loaded. Subscribers just connect the device to their computer or home switch/router
and the device is ready to offer an experience of surfing over Internet. The LEDs on the AirStreamTM 4000 have also been designed
for user convenience, and offer a clear sign of what the device is doing. The compact design is well suited for residential home use
in the outdoor environment. The IP addresses can be statically allocated or dynamically obtained via DHCP.
AirStreamTM 4000 offers rich management features which facilitate the task of carrier. It supports local management access, Telnet,
WEB, and centralized remote OTA configuration, upgrades management and device monitoring via KZ Tech iManagerTM 2000
EMS product.
To meet the different requirements of varied countries and regions, AirStreamTM 4000 is designed to be operated under several
frequencies bands. It supports wide frequency bands in 2.3-2.7GHz and 3.3-3.6GHz, which covers almost all the main frequency
for WiMAX network globally.
TECHNICAL FEATURES
AirStreamTM 4000 supports for 2x2 MIMO, adaptive modulation and coding (AMC) technology to maximize the system capacity
and bandwidth throughput by automatically adjusting modulation to respond to various signal qualities. With high gain directional
patch antenna, AirStreamTM 4000 enables a longer reception range from the base station. This yields more efficient use of the
network with a larger cell reach, guaranteed carrier class service, and customer service probability.
Advanced Orthogonal Frequency Division Multiplexing (OFDM) modulation enhances performance in non-line-of-sight (NLOS)
conditions to ensure immunity to interference and multi-path conflicts typical of deployments in densely populated urban areas.
Moreover, sophisticated QoS capabilities in the 802.16e MAC ensure true end-to-end QoS and support high quality data services.
The integrated product architecture allows the lowest possible cost of ownership. Simple installation procedure further reduces the
product deployment and support cost for service providers.
AirStream 4000
© Copyright of KZ Broadband Technologies Ltd. 1601 Tower C, Skyworth Building, High-Tech Industrial Park, Nanshan District,
Shenzhen, China 518057 Tel: +86 (755) 33639088 Fax: +86 (755) 33631919
www.kztech.cn
SPECTIFICATION
Physical
Dimensions 265 mm (L) × 265 mm (W) × 80
mm (D)
Weight < 3 Kg
Power Consumption < 15 W
Power Supply 48VDC (PoE)
Environmental
Temperature - 30 ℃ -- 55 ℃
Humidity 95% maximum Non-condensing
Wireless Interface
Frequency Bands 3.65-3.7 GHz
Radio Access 802.16e (Wave 2 MIMO)
Operation Mode TDD (2x2 MIMO)
Channel Bandwidth 7 / 8.75/ 10 MHz
Antenna Gain 15 dbi (cross polarized)
Modulation QPSK, 16QAM, 64QAM
FFT 1024/512 FFT points
FEC Convolution and Turbo Code
Authentication TTLS/TLS
User Interfaces
Data Interface: 1 RJ45 10/100M LAN Port
LED Indicator: Power, System Run, LAN Activity,
WiMAX RF Signal (4),
Power Supply: 48 VDC Passive PoE
Data Networking
Networking Configuration
DHCP or static IP address assignment
Bridge and Router Operation Support
Built-in DHCP Server for LAN devices
ETH-CS and IP-CS Auto Adaptation
Data Features
802.1p/q, DSCP or TOS marking
VPN Pass-through support (PPTP, L2TP and IPsec)
Built-in L2TP client support
Firewall & Access Control
IP Filtering, Virtual Server and SPI Firewall
LAN Device Access Control
Device Management
Management Features
CLI, Telnet and WEB management interfaces
SNMP and SYSLOG for Log and Alarm Reporting
Auto Provision & Upgrade Management
Standard TR069 management with WIB Support
OMA-DM Management Support
Industry Standards
IEEE
IEEE 802.3 10Base Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.1p CoS Priority Protocol
IEEE 802.1Q VLAN Tagging
AirStream 4000
© Copyright of KZ Broadband Technologies Ltd. 1601 Tower C, Skyworth Building, High-Tech Industrial Park, Nanshan District,
Shenzhen, China 518057 Tel: +86 (755) 33639088 Fax: +86 (755) 33631919
www.kztech.cn

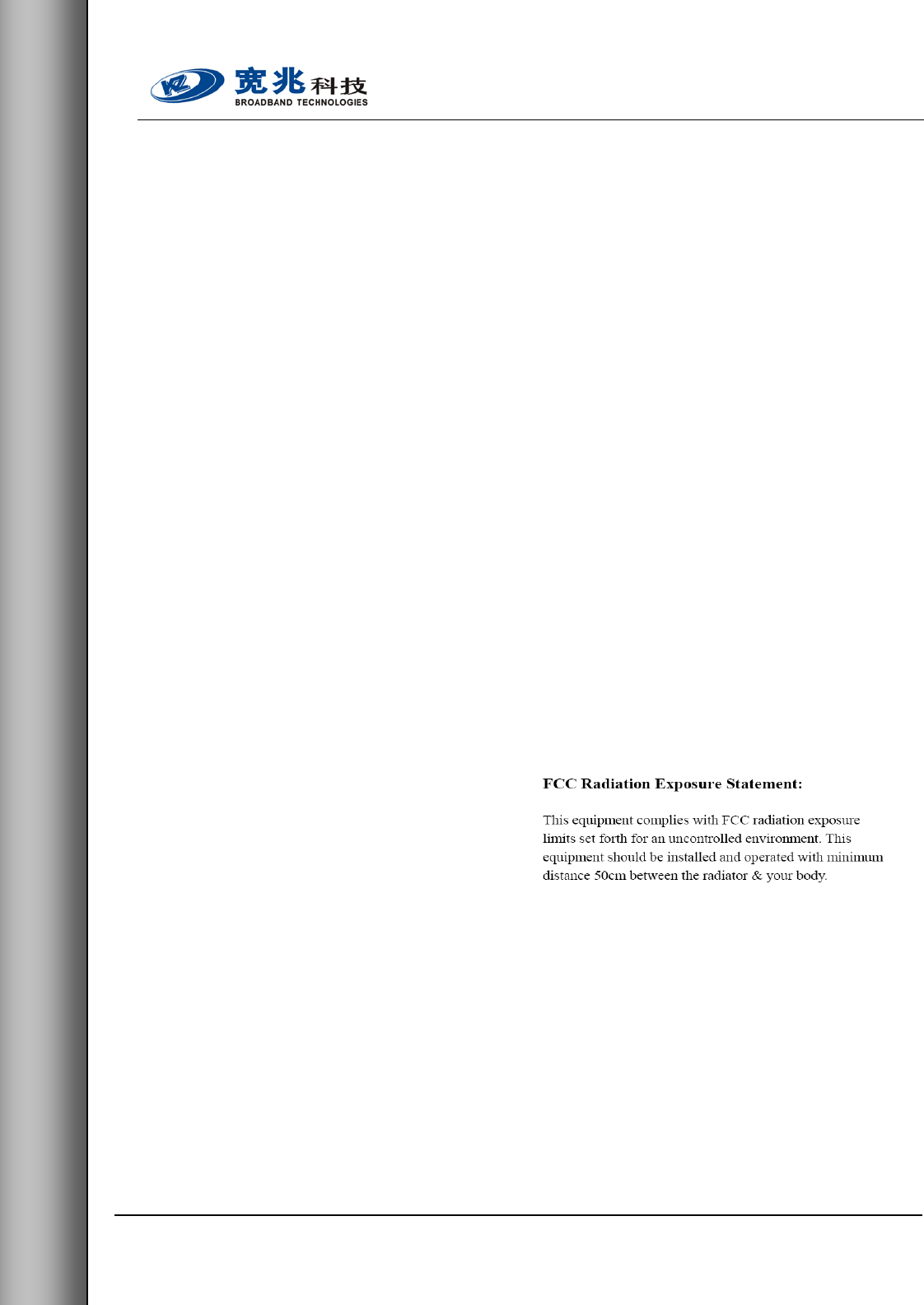

Information to Users
According to the FCC Part 15.19, 15.21, and 15.105
rules, forthis EUT, the instructions or operation
manual furnished the user shall include the
following or similar statement, placed in a
prominent location in the text of the manual:
FCC Warning
This device complies with Part 15 of the FCC Rules.
Operation issubject to the following two conditions:
(1) This device may not cause harmful interference,
and(2) this device must accept any interference
received, including interference that may
causeundesired operation.
NOTE 1: This equipment has been tested and found
to comply with the limits for a Class Bdigital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to providereasonable protection
against harmful interference in a residential
installation. This equipmentgenerates, uses and can
radiate radio frequency energy and, if not installed
and used inaccordance with the instructions, may
cause harmful interference to radio
communications.However, there is no guarantee
that interference will not occur in a particular
installation. Ifthis equipment does cause harmful
interference to radio or television reception, which
can bedetermined by turning the equipment off and
on, the user is encouraged to try to correct
theinterference by one or more of the following
measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment
and receiver.
‐Connect the equipment into an outlet on a circuit
different from that to which the receiver
isconnected.
