Mechanical Lock
Parts Price Book
Effective February 18, 2019
2
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
3
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
General Terms and Conditions of Sa le
1. ENTIRE AGREEMENT: This Agreement constitutes the entire agreement between dormakaba USA Inc. and the Purchaser, and contains
all of the terms and conditions relating to the sale of the product(s). This agreement supersedes all prior agreements, previous catalog
terms and conditions, and other documents unless expressly incorporated herein
2. PAYMENT TERMS: Unless otherwise stated, terms are net 30 days from the date of invoice. dormakaba USA Inc. reserves the right
to charge interest at 1.5% per month (18% annually) on any overdue amounts. If dormakaba USA Inc. discovers that the Purchaser’s
financial condition does not warrant the above payment terms, then dormakaba USA Inc., in its absolute discretion, may demand that
the Purchaser pay in advance, pay cash upon delivery, or refuse Purchaser’s order. In the latter case, dormakaba USA Inc. cannot be
held liable for any damages of any nature whatsoever for its refusal to deliver goods in whole or in part.
3. PRICES: The product price(s) shall be according to dormakaba USA Inc.’s price list in effect at the time of acceptance of the purchase
order or according to its authorized quotation in force at the time of acceptance of the applicable purchase order.
4. TAXES: The price does not include any amounts for U.S. or International Federal Custom Duties, Canadian, U.S. or International,
Federal, Provincial, State, Local Excise, Goods and Services, Sales or Use, or Value added taxes. However, should dormakaba USA Inc.
be obligated to pay any of the foregoing taxes, the Purchaser, upon demand, shall, within fifteen (15) days, reimburse dormakaba USA
Inc. the total amount disbursed in respect thereof.
5. MINIMUM ORDER REQUIREMENTS: The minimum order amount for all orders accepted is $400 USD, excluding the shipping and
insurance charges. This does not apply to cut keys.
6. PRODUCT INFORMATION: Unless expressly stated in this Agreement, all information contained in the product brochures, pamphlets,
or information circulars, are for reference purposes only and based on information available at time of publication. dormakaba USA
Inc. reserves the right to make reasonable changes in its products or discontinue certain products from time to time and to deliver
the modified products, or to offer replacement product in the event a product has been discontinued without any liability whatsoever.
Purchaser shall have the option to purchase any other product in the event of a discontinued product, provided however, Purchaser
shall be responsible to pay any price difference.
7. INSTALLATION: Unless otherwise expressly stated, the costs and materials required for installation are not included in the prices and/
or quotations.
8. POINT OF DELIVERY & SHIPPING: Delivery points and terms are FOB dormakaba USA Inc. warehouses in the Continental USA and
Canada for dormakaba USA Inc. products. Should Purchaser request a shipping method or carrier different than dormakaba USA Inc.’s
standard, then the full amount of the shipping cost will be invoiced to the Purchaser. Drop shipments to a third party are subject to a
$25 surcharge, which is invoiced to Purchaser. dormakaba USA Inc. will no longer ship to third parties in Canada.
9. DELIVERY TERMS: dormakaba USA Inc. will notify the Purchaser if for any reason, it is unable to deliver the products as scheduled, and
dormakaba USA Inc. cannot be held liable for any damages of any nature resulting from these delays.
10. FORCE MAJEURE: Should a delay in delivery be caused by a Force Majeure event, the time of delivery shall be extended by a reasonable
amount of time with regard to all applicable circumstances. Upon mutual agreement, the parties shall set a new date for delivery.
Except as to payments due hereunder, neither party shall be liable for failure to perform hereunder for the duration of and to the
extent such failure is occasioned by a Force Majeure event, which is defined as follows: war, riots, insurrections, fire, flood, explosions,
strikes and other labor or industrial disturbances, inevitable accidents, Government, State, Provincial or Municipal regulations and/or
ordinances, an act of God, embargoes, blockades, delay in obtaining materials, legal restrictions, currency regulations, or any cause or
condition beyond the reasonable control of the parties. Where such conditions continue for more than three (3) months, either party
shall be free to terminate the Agreement. In the case of termination, dormakaba USA Inc. shall be paid the value proportionate to
the Agreement price for the finished product and/or the work-in-progress as of the date of termination and the supportable costs.
11. FAILURE TO ACCEPT DELIVERY: If Purchaser fails to accept delivery at the scheduled time, the purchase price shall become due
and payable in accordance with the original payment schedule and all risks associated with the product or parts of the product to be
delivered, shall be borne by the Purchaser. Purchaser shall be responsible for all storage and handling costs incurred and to be incurred
as a result thereof.
12. TITLE: Unless otherwise stipulated in this Agreement, ownership of the goods shall remain with dormakaba USA Inc. until full payment
of the sale price has been received. Until complete payment has been received, Purchaser undertakes to warrant and keep the goods
free and clear of all liens, other charges or encumbrances.
13. RETURN POLICY: Purchaser must obtain a Return Goods Authorization (RGA) number from dormakaba USA Inc.’s Customer Service
by calling in North America: (800) 849-8324 or Worldwide: (336) 725-1331, before returning any products whatsoever. The Purchaser
must have the product serial number and invoice number pertaining to the original purchase available to give to the Customer
Service Agent. dormakaba USA Inc. will send via Facsimile or email (as indicated by Purchaser) the Return Goods Authorization form,
which includes the RGA number along with the “Ship To” address and RGA return instructions. RGAs expire after sixty (60) days from
date of issuance. Returns of product by Purchaser are FOB dormakaba USA Inc..
14. WARRANTY: Subject to the limitations herein, dormakaba USA Inc. warrants its new products from the date received by Purchaser
from material or workmanship flaws. Specific new product warranties may vary according to products and if different, they are listed
in the respective product section of the Access Control catalog or the respective product installation manual. Third party product(s)
sold by dormakaba USA Inc. are warranted only to the extent provided by the original manufacturer’s warranty and Purchaser must
refer to the original manufacturer’s warranty in such case. Refurbished or reconditioned dormakaba USA Inc. products are warranted
for a ninety (90) day period from date of shipment. Failure of the Purchaser to notify dormakaba USA Inc. within the time limit
set in this section shall constitute Purchaser’s waiver to have the malfunction or damage remedied. The express warranties as set
4
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
out herein, are the exclusive warranties given and accepted in lieu of any and all other warranties, expressed or implied, statutory
or otherwise, including but not limited to warranty of fitness for a particular purpose and merchantability. To the extent that they
cannot be disclaimed, the implied warranties are limited in duration to the life of the express warranty. Incidental and consequential
damages are excluded from coverage under this warranty. Some States/jurisdictions do not allow for the disclaimers, limitations and
exclusions identified above; as a result, they may not apply to you. This warranty gives you specific rights, and you may also have other
legal rights which may vary from State to State, or from one jurisdiction to another. No distributor, dealer, sales representative nor
any other person has been authorized to make any affirmation, representation or warranty regarding the product, other than those
contained in this limited warranty, and if made, shall not be enforceable against dormakaba USA Inc. dormakaba USA Inc. reserves
the right to modify this warranty at any time, it being understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
• dormakaba USA Inc. will, at their discretion and at no charge, either repair, exchange or replace the product provided it is returned
complete to dormakaba USA Inc. during the warranty period. However, Purchaser is responsible for the labor to remove and
reinstall the product(s) from Purchaser’s premises.
• Defective parts, which have been replaced, become the property of dormakaba USA Inc. who may dispose of them in any manner.
Replacement parts become the property of the Purchaser upon their delivery.
• dormakaba USA Inc. is not liable for any defects in materials, designs, drawings or information provided by the Purchaser, nor for
information which is missing and could not be reasonably identified as such, by dormakaba USA Inc..
• dormakaba USA Inc. does not warrant the following:
(a) Normal wear and tear from use;
(b) Printer ribbons, batteries, key cards and other consumable parts used or supplied with the product;
(c) Damage of any nature to hardware finishes;
(d) Faulty or defective product operation(s) caused by unusual or unforeseeable use or conditions;
(e) Improper installation, operation or maintenance of the product;
(f) Any product or system in which dormakaba USA Inc.’s product(s) is incorporated;
(g) Force Majeure as defined by Section 10 of this Agreement;
(h) Repairs or alterations carried out by anyone other than dormakaba USA Inc.;
14.1 VARIANCE: Any claims that the quantity and description of goods delivered and the quantity and description of goods ordered do
not conform to this Agreement are waived unless the Purchaser advises dormakaba USA Inc.’s Customer Service department in
writing, within fifteen (15) days from the date of receipt of the product(s).
14.2 RETURNS FOR CREDIT: In order to return new merchandise, the Purchaser must obtain a Returned Goods Authorization (RGA)
number from dormakaba USA Inc. Customer Service department. There is a twenty-five percent (25%) restocking charge applied
to all returns of new product. Custom products cannot be returned for credit for any reason other than product failure. Credit will
not be offered for product that is returned incomplete or damaged.
15. LIMITATION OF LIABILITY: The total liability of dormakaba USA Inc. for all claims of any kind, whether in contract, liability or
otherwise, arising out of, connected with or resulting from dormakaba USA Inc.’s performance or breach of this Agreement or
services furnished hereunder shall in no event exceed the total purchase price expressed in this Agreement. dormakaba USA Inc.
shall not under any circumstances be held liable for loss of profits or revenues, loss of use of product or any other product software,
system, or facility, loss of data or information, lack or loss of productivity, interest charges or cost of capital, cost of substitute
product, software, systems or services, cost of purchases or replacement power, downtime costs. Incidental, special, consequential
damages are excluded from coverage under this warranty.
16. ASSIGNMENT: dormakaba USA Inc. may assign this Agreement in whole or in part, to any parent, subsidiary or affiliated corporation.
Subject to the prior written approval of dormakaba USA Inc., Purchaser may assign the present Agreement to any parent, subsidiary
or affiliated corporation.
17. DAMAGES: If Purchaser does not fulfill its obligations or is in default or breach of contract by the terms of this Agreement, dormakaba
USA Inc. may then terminate the Agreement by notice in writing as set out on the face of dormakaba USA Inc.’s acknowledgement.
dormakaba USA Inc. has the right to claim compensation for any loss it incurs as a result of Purchaser’s default, in addition to any
other rights or recourse in equity and in law.
18. APPLICABLE LAW: This Agreement shall be governed by and construed in accordance with the laws of the State of North Carolina,
USA.
19. TERMINATION: If the Purchaser terminates this Agreement, in whole or in part, by written notice, dormakaba USA Inc. will, upon
receipt of the termination notice, cease the performance of the contract according to the instructions of the Purchaser. In such a
case, Purchaser may be invoiced for costs incurred depending on the nature of the product and shall be responsible for payment of
same.
20. SEVERABILITY: Any term, condition or provision of this Agreement, or any part thereof, which is or may be found to be prohibited
or unenforceable in any jurisdiction shall, as regards such jurisdiction and to the extent of such prohibition or unenforceability, be
deemed to be severed from this Agreement, and the remaining terms, conditions and provisions of this Agreement shall remain in
full force and effect.
21. WAIVER: Any act or omission by dormakaba USA Inc. will not constitute or be deemed to be a waiver of the rights granted to
dormakaba USA Inc. by the terms of this Agreement.
Disclaimer: While reasonable efforts were made to ensure the accuracy of this document at the time of printing, dormakaba USA Inc.
assumes no liability for any errors or omissions. This information is subject to be revised without notice, and changes may be incorporated
in future releases.
General Terms and Conditions of Sa le (continued)
5
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Terms and Conditions -
How to Order
Simplex Simplex 5000 Series Cylindrical (Manufactured after March 2005) -
Simplex 5000 Series Cylindrical (Manufactured Prior to April 2005) -
Simplex 5010 Series Exit Trim -
Simplex 1000 Series 22-30
Simplex L1000 Series 32-41
Simplex EE1000 Series 42-44
Simplex 8100 Series 46-52
Simplex LP1000 Series 54-55
Simplex 2015 Series 56-57
Simplex 3000 Series 58-61
Simplex 6200 Series 62-64
Simplex 7100 Series 65-67
Simplex 900 Series 68-72
9600 Series 9600 Series -
File Guard Series File Guard Series
LD450 and LD470 Series LD450 and LD470 Series
Table of Contents
6
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Contact your local supplier or call
1.800.849.8324 or 1.336.725.1331
www.dormakaba.us
&
Where to Order
For More Information

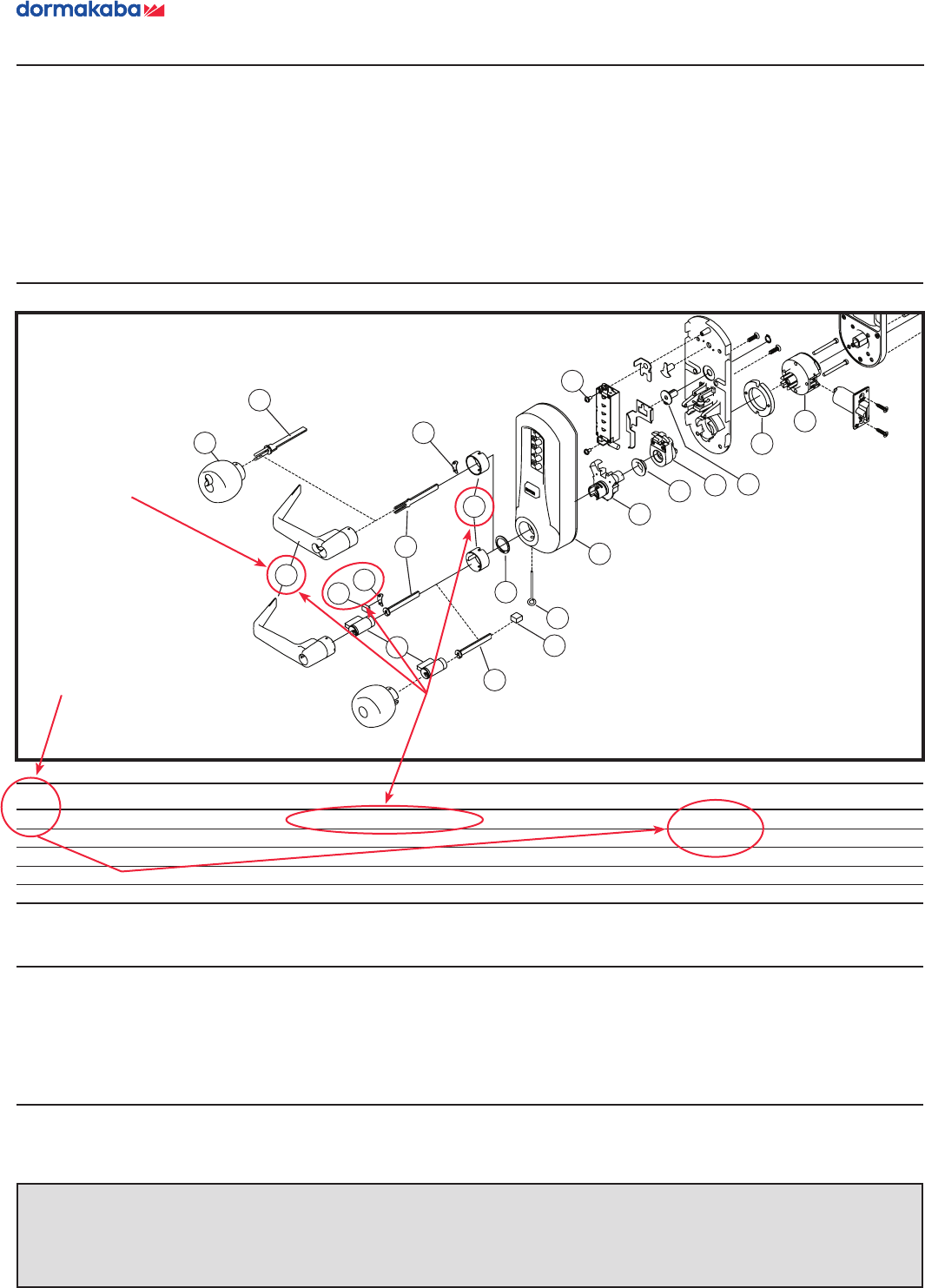

How to Order

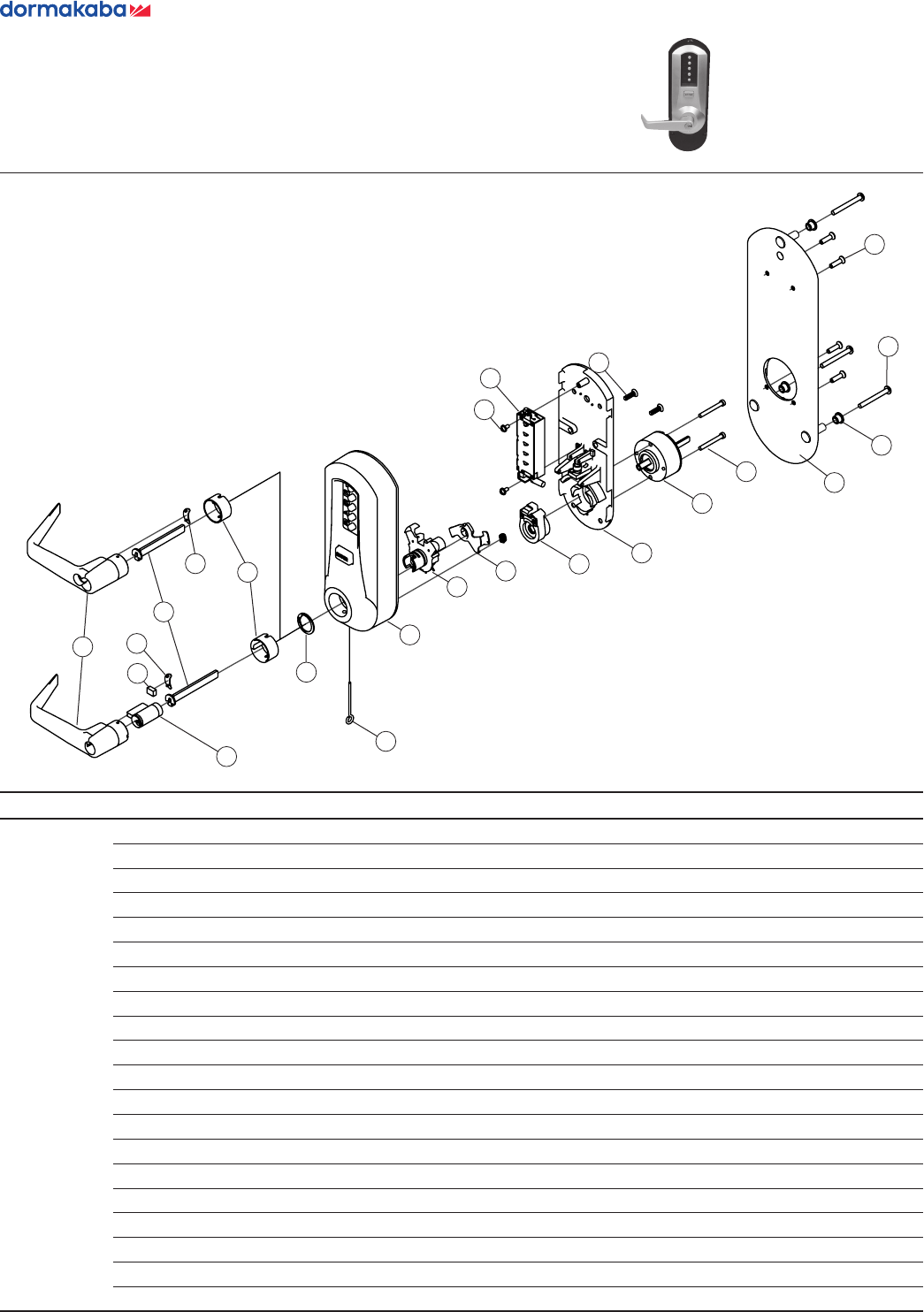

Step A: Locate the part you are looking to replace in the appropriate exploded view drawing. Each part is given
an item number.
Step B: Find the item number in the left column of the appropriate chart and determine part number.
Step C: If the description of your part also includes additional item numbers in parentheses, those items combine to
make a kit. When ordering, please note that the part number listed for this item includes all items listed in the
description. (Note: The additional item numbers in parentheses also reference parts in the exploded view drawing.)
Example
The following are registered names and/or trademarks:
Abloy®, Adams Rite®, Arrow®, ASSA®, Best®, Black & Decker®, Cal Royal®,
Corbin Russwin®, Detex®, Dorma®, Precision®, Kaba®, Marks®, Medeco®, Monarch®,
Precision®, Sargent®, Schlage®, Simplex®, Von Duprin®, Weiser®, Yale®
1
283
82
10
9
12
13
16 17
23
24
19
82
81 4
3
6
14
4
5
Step A:
Find item number
of part to replace
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Chrome 3422926D01 $75.00
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Brass 342290301 $75.00
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Brass 342290401 $75.00
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Dark Bronze 3422974401 $75.00
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Chrome 3422902601 $75.00
Step C:
Item number in parenthesis indicate
additional items included with part
Step B:
Find item numbers in chart
7
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
8
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

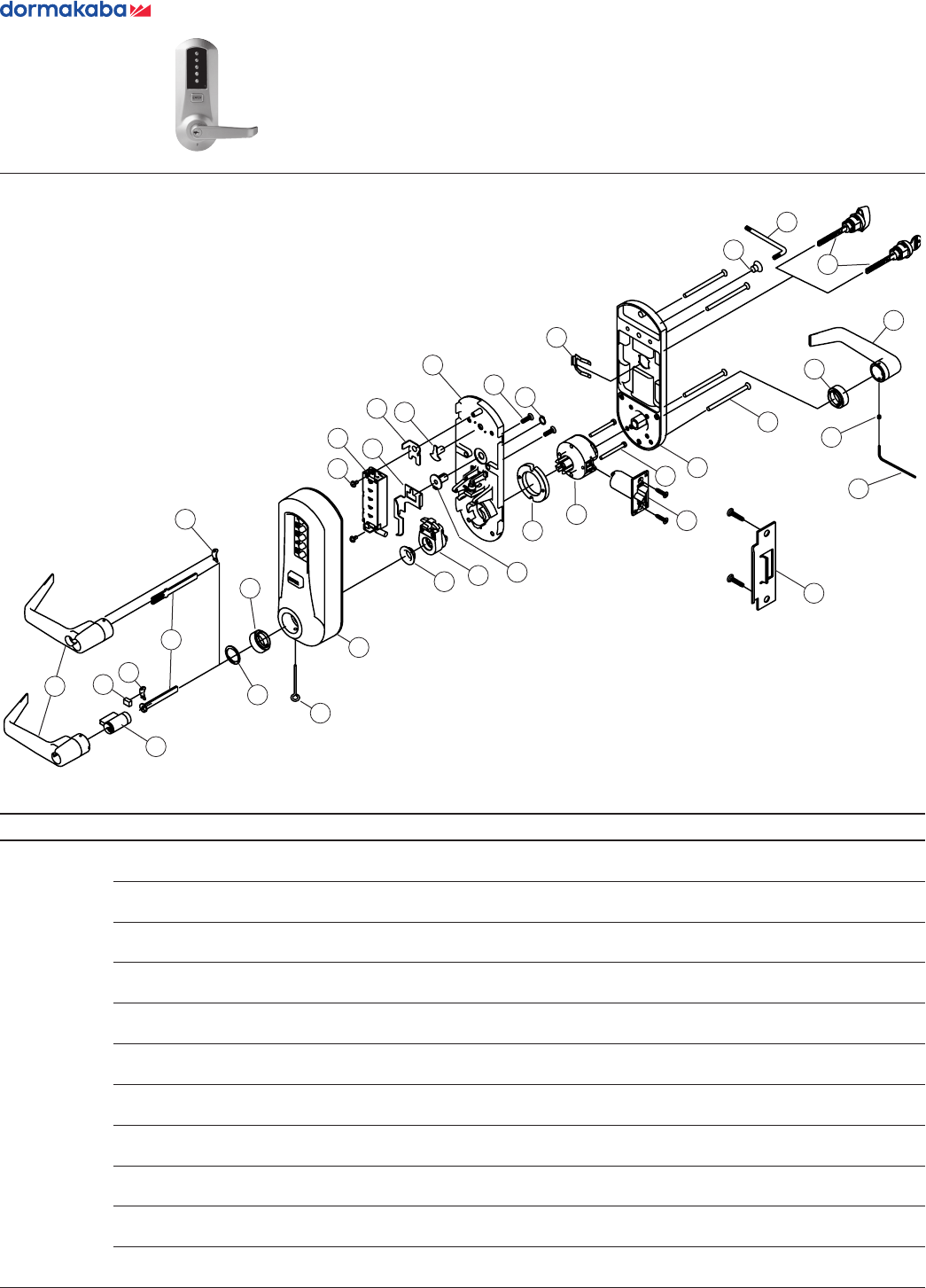

Simplex

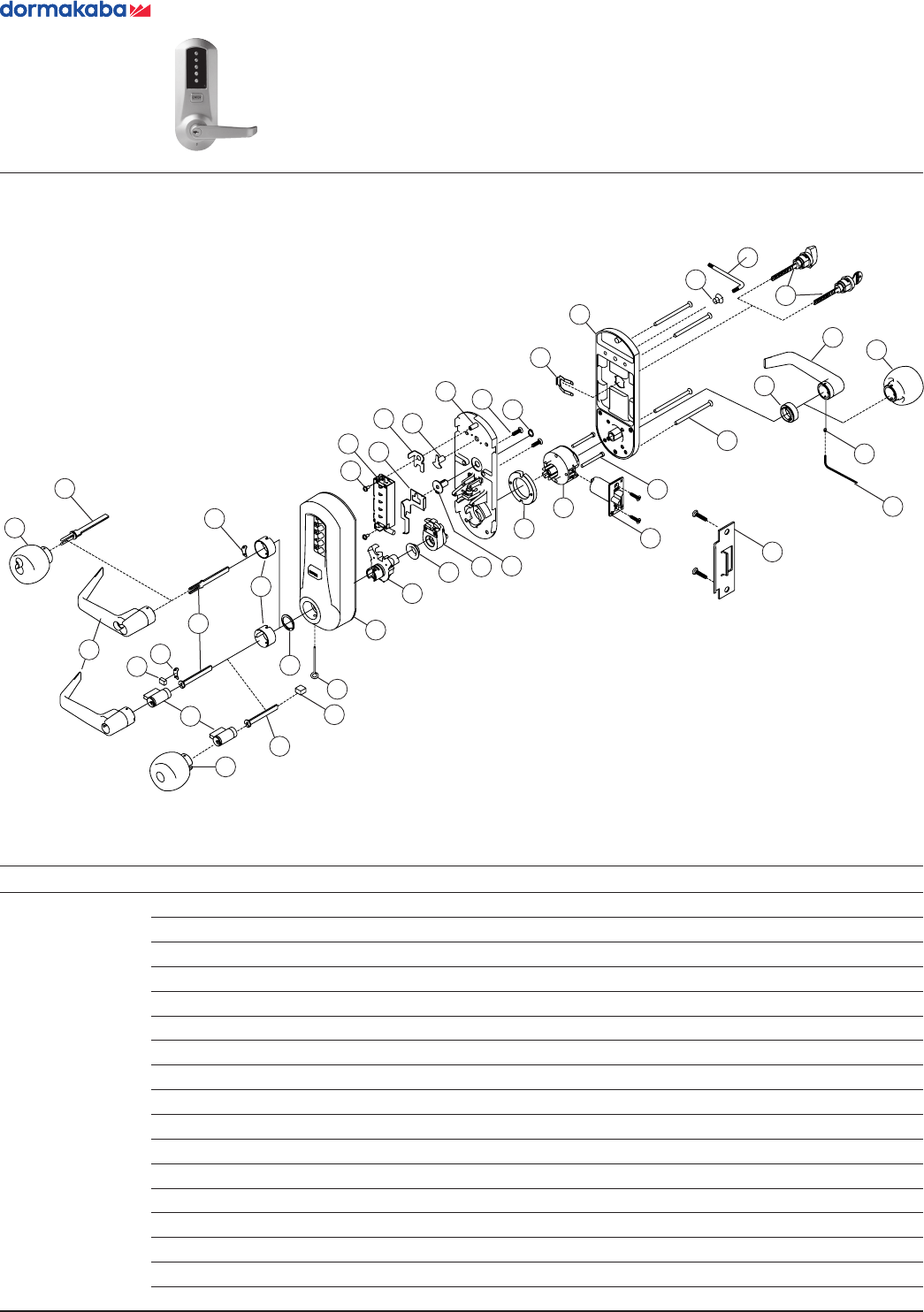

5000 Series (Manufactured After March 2005)
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Chrome 3422926D01 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Brass 342290301 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Brass 342290401 $87. 50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Dark Bronze 3422974401 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Chrome 3422926D01 $87.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Satin Chrome 3423026D01 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Bright Brass 342300301 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Satin Brass 342300401 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Dark Bronze 3423074401 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Bright Chrome 3423002601 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Satin Chrome 3423126D01 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Bright Brass 342310301 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Satin Brass 342310401 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Dark Bronze 3423174401 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Bright Chrome 3423102601 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Satin Chrome 3423226D01 $127.00
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Bright Brass 342320301 $116.50
43
283
82
10
9
12
13
16 17
23
24
27
28
29
32
37
38
19
82
81 4
3
6
15
14
20 21
22 25 26
30
31
35
84
36
39
33
34
18
4
5
1
See Page 6 for
How to Order instructions
9
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
5000 Series (Manufactured After March 2005)
Series Simplex
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Satin Brass 342320401 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Dark Bronze 3423274401 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Bright Chrome 3423202601 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Satin Chrome 3423326D01 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Bright Brass 342330301 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Satin Brass 342330401 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Dark Bronze 3423374401 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Bright Chrome 3423302601 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Satin Chrome 3423426D01 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Bright Brass 342340301 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Satin Brass 342340401 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Dark Bronze 3423474401 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Bright Chrome 3423402601 $116.50
2 1 Kaba KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456226D01 $44.50
Kaba KIL Cylinder (w/keys), Keyed Differently Satin Brass 545620401 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456826D01 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Brass 545680401 $44.50
KABA90 Key Blank, 50/Box - Available from Ilco Division - Rocky
Mount
KABA90 $0.00
3 1 Cylinder Keeper - Lever Sleeve Accessory Kit, KIL
(Includes 1 ea. #3, #4, #6, #83)
6470600001 $16.50
4 1 Outside Lever Insert (10 Pack) 5452700010 $11.50
5 1 Tailpiece Kit, KIL (Includes 5 tailpieces - fits various cylinders) 7489200001 $18.50
Tailpiece Kit, Best (6 and 7-pin) 6472400001 $14.00
Tailpiece Kit, Corbin-Russwin/Sargent 2447100001 $14.00
Tailpiece Kit, Assa/Medeco/Yale (5/6/7-pin) 7483600001 $14.00
Tailpiece Kit, Schlage 5461800001 $14.00
6 1 Lever Sleeve - Lever Sleeve Accessory Kit, KIL (Includes 1 ea. #3, #4,
#6, #83)
6470600001 $16.50
Lever Sleeve - Lever Sleeve Accessory Kit, IC (Includes 1 ea. #4, #6) 6470700001 $16.50
9 1 External Retaining Ring (10 Pack) 5451700010 $11.50
10 1Lever Release Tool - Accessory Tool Kit (Includes 1 ea. #10, #38) 6471700001 $11.50
12 1Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Satin Chrome 7495626D01 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Bright Brass 749560301 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Satin Brass 749560401 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Dark Bronze 7495674401 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Wrinkle Black 7495608301 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Bright Chrome 7495602601 $163.00
Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Satin Chrome 7496026D01 $163.00
Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Bright Brass 749600301 $163.00
File Guard SeriesLD and LD Series
10
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
12 1Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Satin Brass 749600401 $163.00
Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Dark Bronze 7496074401 $163.00
Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Wrinkle Black 7496008301 $163.00
Outside Housing, Interior Code Change
(Includes code buttons and enter button)
Bright Chrome 7496002601 $163.00
13 1Outside Driver Assembly (Includes 1 ea. of #9, #13) 7495400001 $42.00
14 2Screw, #6-32 x 5/16”, Pan hd, SEM - Screw Pack
(10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
15 1Combination Chamber 7483200001 $95.50
16 1Driver Bearing (10 Pack) 3418900010 $11.50
17 1Extension Sleeve Assembly (Fits standard or passage) 7490000001 $33.00
18 1Passage Actuator Plate - Passage Kit (Includes 1 ea. #18, #19, #26) 6474700001 $18.50
19 1Passage Actuator Cam - Passage Kit (Includes 1 ea. #18, #19, #26) 6474700001 $18.50
20 1Interior Code Change Bracket -Interior Code Change Actuator Kit
(Includes 1 ea. #20, #21)
6474800001 $14.00
21 1Interior Code Change Actuator - Interior Code Change Actuator Kit
(Includes 1 ea. #20, #21)
6474800001 $14.00
22 1Outside Base Assembly without Chamber 7520700001 $81.50
23 11⁄4” Spacer (Includes 2 ea. #23, #29) 6471200001 $11.50
24 1Cylindrical Drive Unit Assembly (CDU) 7484100001 $56.00
25 2Outside Base Screw (10 Pack) 5446100010 $11.50
26 1Retaining Ring (10 Pack) 20144000010 $11.50
27 1Latch 1⁄2” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Chrome 20416826D01 $41.00
Latch 1⁄2” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 2041680301 $41.00
Latch 1⁄2” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Brass 2041680401 $41.00
Latch 1⁄2” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Dark Bronze 20416874401 $41.00
Latch 3⁄4” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Chrome 20114426D01 $70.00
Latch 3⁄4” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 2011440301 $70.00
Latch 3⁄4” Floating Face, 2 3/4” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 20114474401 $70.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Chrome 751852601 $41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 751850301 $41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Brass 751850401 $41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Dark Bronze 7518574401 $41.00
28 1ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Satin Chrome 20411926D01 $12.50
ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Bright Brass 2041190301 $12.50
ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Satin Brass 2041190401 $12.50
ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Dark Bronze 20411974401 $21.00
Simplex
5000 Series (Manufactured After March 2005)
11
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
28 1Standard “T” Strike Plate Kit (Includes Screws) Satin Chrome 20422726D01 $11.50
Standard “T” Strike Plate Kit (Includes Screws) Bright Brass 2042270301 $11.50
Standard “T” Strike Plate Kit (Includes Screws) Bright Brass 2042270401 $11.50
Standard “T” Strike Plate Kit (Includes Screws) Dark Bronze 20422774401 $21.00
29 2Connecting Screw, Phillips 8-32 X 1 3⁄8” (Includes 2 ea. #23, #29) 6471200001 $11.50
30 1Passage Spring Clip (10 Pack) 20174000010 $11.50
31 1Inside Housing Assembly, Complete Satin Chrome 7484426D01 $99.00
Inside Housing Assembly, Complete Bright Brass 748440301 $99.00
Inside Housing Assembly, Complete Satin Brass 748440401 $99.00
Inside Housing Assembly, Complete Dark Bronze 7484474401 $99.00
Inside Housing Assembly, Complete Wrinkle Black 7484408301 $99.00
Inside Housing Assembly, Complete Bright Chrome 7484402601 $99.00
Inside Housing Assembly, Complete, Interior Code Change Satin Chrome 7487626D01 $116.50
Inside Housing Assembly, Complete, Interior Code Change Bright Brass 748760301 $116.50
Inside Housing Assembly, Complete, Interior Code Change Satin Brass 748760401 $116.50
Inside Housing Assembly, Complete, Interior Code Change Dark Bronze 7487674401 $116.50
Inside Housing Assembly, Complete, Interior Code Change Wrinkle Black 7487608301 $116.50
Inside Housing Assembly, Complete, Interior Code Change Bright Chrome 7487602601 $116.50
Inside Housing Assembly, Complete, Passage Satin Chrome 7490426D01 $116.50
Inside Housing Assembly, Complete, Passage Bright Brass 749040301 $116.50
Inside Housing Assembly, Complete, Passage Satin Brass 749040401 $116.50
Inside Housing Assembly, Complete, Passage Dark Bronze 7490474401 $116.50
Inside Housing Assembly, Complete, Passage Wrinkle Black 7490408301 $116.50
Inside Housing Assembly, Complete, Passage Bright Chrome 7490402601 $116.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Satin Chrome 7492726D01 $128.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Bright Brass 749270301 $128.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Satin Brass 749270401 $128.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Dark Bronze 7492774401 $128.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Wrinkle Black 7492708301 $128.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Bright Chrome 7492702601 $128.50
32 4Mounting Screw Kit (4 ea., 3 different lengths) Satin Chrome 6475326D01 $17.50
Mounting Screw Kit (4 ea., 3 different lengths) Bright Brass 647530301 $17.50
33 1Torx Screw - Interior Code Change Screw Kit (Includes 1 ea. #33, #34) 6475200001 $16.50
34 1Torx Wrench - Interior Code Change Screw Kit (Includes 1 ea. #33, #34) 6475200001 $16.50
35 1Housing Bearing (10 Pack) 3419100010 $11.50
36 1Inside Lever Kit (Includes 1 ea. #36, #37, #38) Satin Chrome 3418626D01 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Bright Brass 341860301 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Satin Brass 341860401 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Dark Bronze 3418674401 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Bright Chrome 3418602601 $64.00
37 2Inside Lever Set Screw (10 Pack) 5446300010 $11.50
38 1Hex Wrench - Accessory Tool Kit (Includes 1 ea. #10, #38) 6471700001 $11.50
39 1Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Satin Chrome 80127926D01 $51.50
Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Bright Brass 8012790301 $51.50
Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Satin Brass 8012790401 $51.50
Simplex
5000 Series (Manufactured After March 2005)
Series Simplex
File Guard SeriesLD and LD Series
12
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
81 1Outside Knob, KIK (Includes 1 ea. #6, #81, #83) Satin Chrome 3424626D01 $87.50
Outside Knob, KIK (Includes 1 ea. #6, #81, #83) Bright Brass 342460301 $87.50
Outside Knob, KIK (Includes 1 ea. #6, #81, #83) Satin Brass 342460401 $87.50
Outside Knob, KIK (Includes 1 ea. #6, #81, #83) Dark Bronze 3424674401 $87.50
Outside Knob, KIK (Includes 1 ea. #6, #81, #83) Bright Chrome 3424602601 $87.50
Outside Knob, Corbin-Russwin (Includes 1 ea. #6, #81) Satin Chrome 3424426D01 $116.50
Outside Knob, Corbin-Russwin (Includes 1 ea. #6, #81) Bright Brass 342440301 $116.50
Outside Knob, Corbin-Russwin (Includes 1 ea. #6, #81) Satin Brass 342440401 $116.50
Outside Knob, Corbin-Russwin (Includes 1 ea. #6, #81) Dark Bronze 3424474401 $116.50
Outside Knob, Corbin-Russwin (Includes 1 ea. #6, #81) Bright Chrome 3424402601 $116.50
Outside Knob, Sargent (Includes 1 ea. #6, #81) Satin Chrome 3424526D01 $116.50
Outside Knob, Sargent (Includes 1 ea. #6, #81) Bright Brass 342450301 $116.50
Outside Knob, Sargent (Includes 1 ea. #6, #81) Satin Brass 342450401 $116.50
Outside Knob, Sargent (Includes 1 ea. #6, #81) Dark Bronze 3424574401 $116.50
Outside Knob, Sargent (Includes 1 ea. #6, #81) Bright Chrome 3424502601 $116.50
Outside Knob, Best (Includes 1 ea. #6, #81) Satin Chrome 3424826D01 $116.50
Outside Knob, Best (Includes 1 ea. #6, #81) Bright Brass 342480301 $116.50
Outside Knob, Best (Includes 1 ea. #6, #81) Satin Brass 342480401 $116.50
Outside Knob, Best (Includes 1 ea. #6, #81) Dark Bronze 3424874401 $116.50
Outside Knob, Best (Includes 1 ea. #6, #81) Bright Chrome 3424802601 $116.50
Outside Knob, Schlage (Includes 1 ea. #6, #81) Satin Chrome 3424926D01 $116.50
Outside Knob, Schlage (Includes 1 ea. #6, #81) Bright Brass 342490301 $116.50
Outside Knob, Schlage (Includes 1 ea. #6, #81) Satin Brass 342490401 $116.50
Outside Knob, Schlage (Includes 1 ea. #6, #81) Dark Bronze 3424974401 $116.50
Outside Knob, Schlage (Includes 1 ea. #6, #81) Bright Chrome 3424902601 $116.50
Outside Knob, Assa/Medeco/Yale (Includes 1 ea. #6, #81) Satin Chrome 3425026D01 $116.50
Outside Knob, Assa/Medeco/Yale (Includes 1 ea. #6, #81) Bright Brass 342500301 $116.50
Outside Knob, Assa/Medeco/Yale (Includes 1 ea. #6, #81) Satin Brass 342500401 $116.50
Outside Knob, Assa/Medeco/Yale (Includes 1 ea. #6, #81) Dark Bronze 3425074401 $116.50
Outside Knob, Assa/Medeco/Yale (Includes 1 ea. #6, #81) Satin Chrome 3425002601 $116.50
82 1Tailpiece Kit, KIK - Includes 5 tailpieces - fits various cylinders 7489200001 $18.50
Tailpiece Kit, Best (Knob Only) 6 and 7-pin 7498800001 $14.00
Tailpiece Kit, Corbin-Russwin (Knob Only) 7498900001 $14.00
Tailpiece Kit, Sargent (Knob Only) 7499000001 $14.00
Tailpiece Kit, Assa/Medeco/Yale (Knob Only) 7498700001 $14.00
Tailpiece Kit, Schlage (Knob Only) 5461800001 $14.00
83 1Cylinder Keeper, Knob - Lever Sleeve Accessory Kit, KIL
(Includes 1 ea. #3, #4, #6, #83)
6470600001 $16.50
84 1Inside Knob Kit (Includes 1 ea. #37, #38, #84) Satin Chrome 3424726D01 $64.00
Inside Knob Kit (Includes 1 ea. #37, #38, #84) Bright Brass 342470301 $64.00
Inside Knob Kit (Includes 1 ea. #37, #38, #84) Satin Brass 342470401 $64.00
Inside Knob Kit (Includes 1 ea. #37, #38, #84) Dark Bronze 3424774401 $64.00
Inside Knob Kit (Includes 1 ea. #37, #38, #84) Bright Chrome 3424702601 $64.00
Simplex
5000 Series (Manufactured After March 2005)
13
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Additional Kits & Accessories Finish Part Number Li Price (USD)

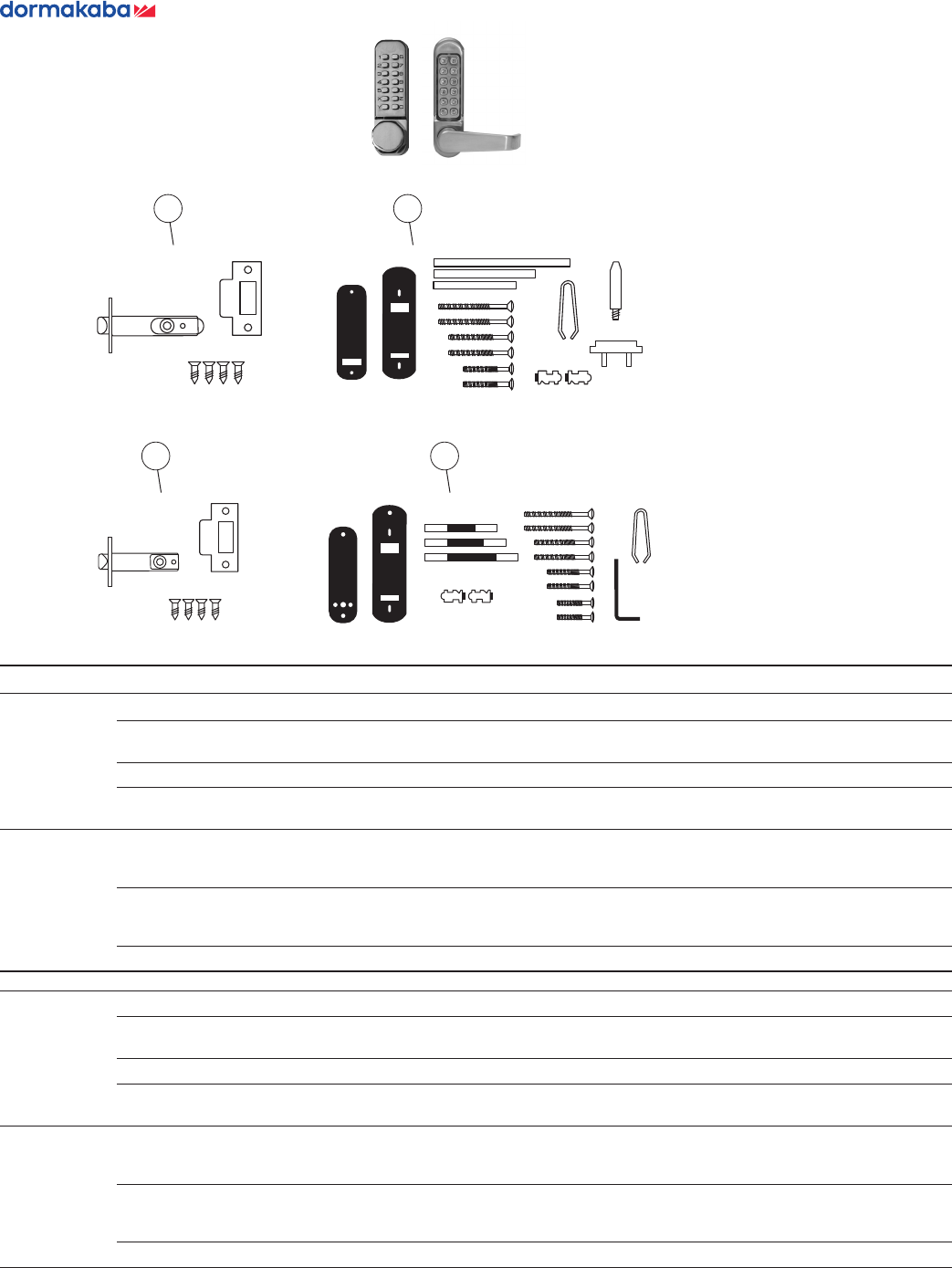

Installation Hardware Kit (Includes 1 ea. #3, #4, #10, #23,
#38; 2 ea. #37; 4 ea. #32)
Satin Chrome 7485926D01 $33.00
Installation Hardware Kit (Includes 1 ea. #3, #4, #10, #23,
#38; 2 ea. #37; 4 ea. #32)
Bright Brass 748590301 $33.00
Product Documentation Kit PKG2863 $17.50
Lubriplate Aero Grease Tubes 6475400001 $15.50
Lever Return Spring (Fits inside and outside driver) (10 Pack) 5448200010 $23.50
Actuator Button Spring (10 Pack) 5451400010 $16.50
Tamper Proof Screw Kit (4 ea., 3 lengths) (Includes Wrench) Satin Chrome 6468326D01 $25.50
Tamper Proof Screw Kit (4 ea., 3 lengths) (Includes Wrench) Bright Brass 646830301 $25.50
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Satin Chrome 20148426D01 $68.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Satin Chrome 20423126D41 $74.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Bright Brass 2042310341 $74.00
Wrap Plate, 15” (381mm) x 5” (127mm) Satin Chrome 20423226D41 $105.00
Wrap Plate, 15” (381mm) x 5” (127mm) Bright Brass 2042320341 $105.00
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $62.00
Latch Extension Assembly - Converts to 3 3/4” (95mm) backset 20402200001 $37.00
Latch Extension Assembly - Converts to 5” (130mm) backset 20402300001 $33.00
Installation Jig (for use with 5000/1000/L1000/E5000) 6468426D01 $429.50
Simplex 5000/1000/L1000 Cylindrical Wood Demo Mount
(lock not included)
20304400041 $175.00
Simplex 5000 Cylindrical Acrylic Demo Mount (lock not included) SP5000ACLMT $326.50
Note: For kit items that show additional reference #s in parentheses, the quantity required for 1 lock is included in kit.
Note: Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Simplex
5000 Series (Manufactured After March 2005)
Series Simplex
File Guard SeriesLD and LD Series
14
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, KIL - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3419726D01 $87.50
Outside Lever, KIL - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 341970301 $87.50
Outside Lever, KIL - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 341970401 $87.50
Outside Lever, KIL - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3419774401 $87.50
Outside Lever, Schlage - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3419926D01 $116.50
Outside Lever, Schlage - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 341990301 $116.50
Outside Lever, Schlage - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 341990401 $116.50
Outside Lever, Schlage - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3419974401 $116.50
Outside Lever, Corbin-Russwin - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3420026D01 $116.50
Outside Lever, Corbin-Russwin - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 342000301 $116.50
Outside Lever, Corbin-Russwin - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 342000401 $116.50
When ordering a replacement housing for locks produced prior to April 2005, you must order a new lever and lever sleeve accessory kit.

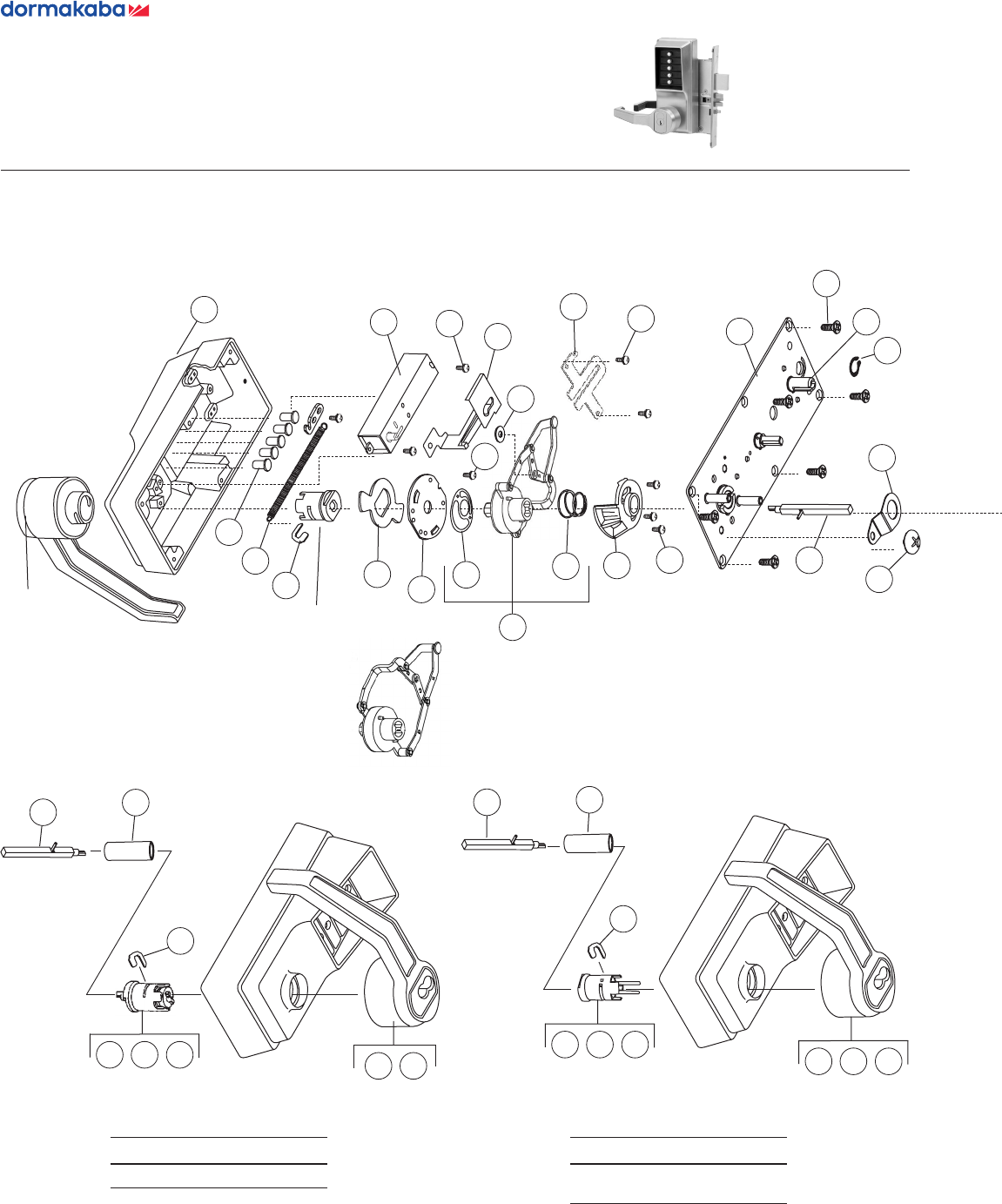

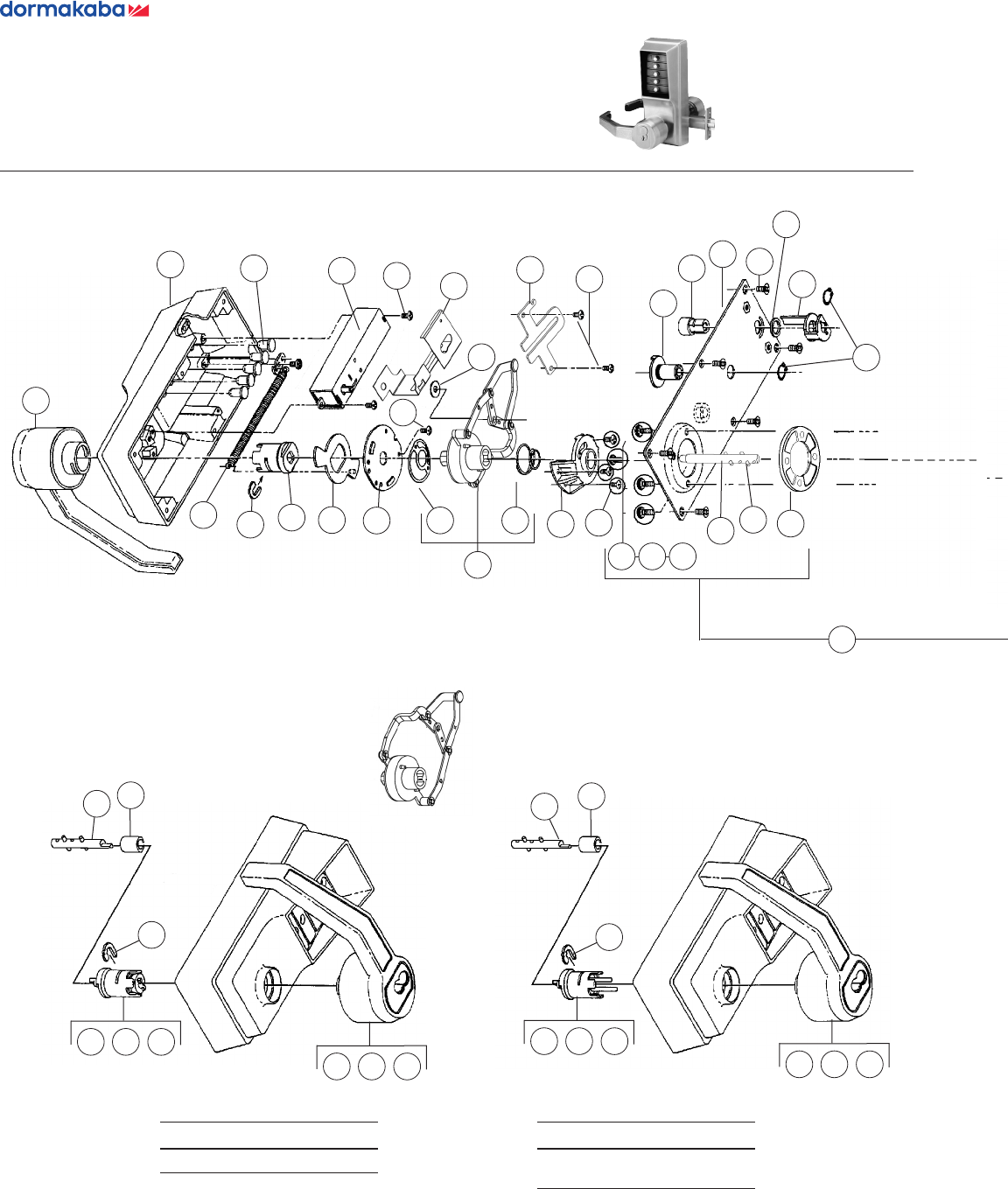

1
2
10
9
12
16 17
23 27
29
28
31
32
37
38
19
4
35
3
15
14
20 21
22
25
26
30
24
35
36
39
33
34
18
4
5
See Page 6 for
How to Order instructions

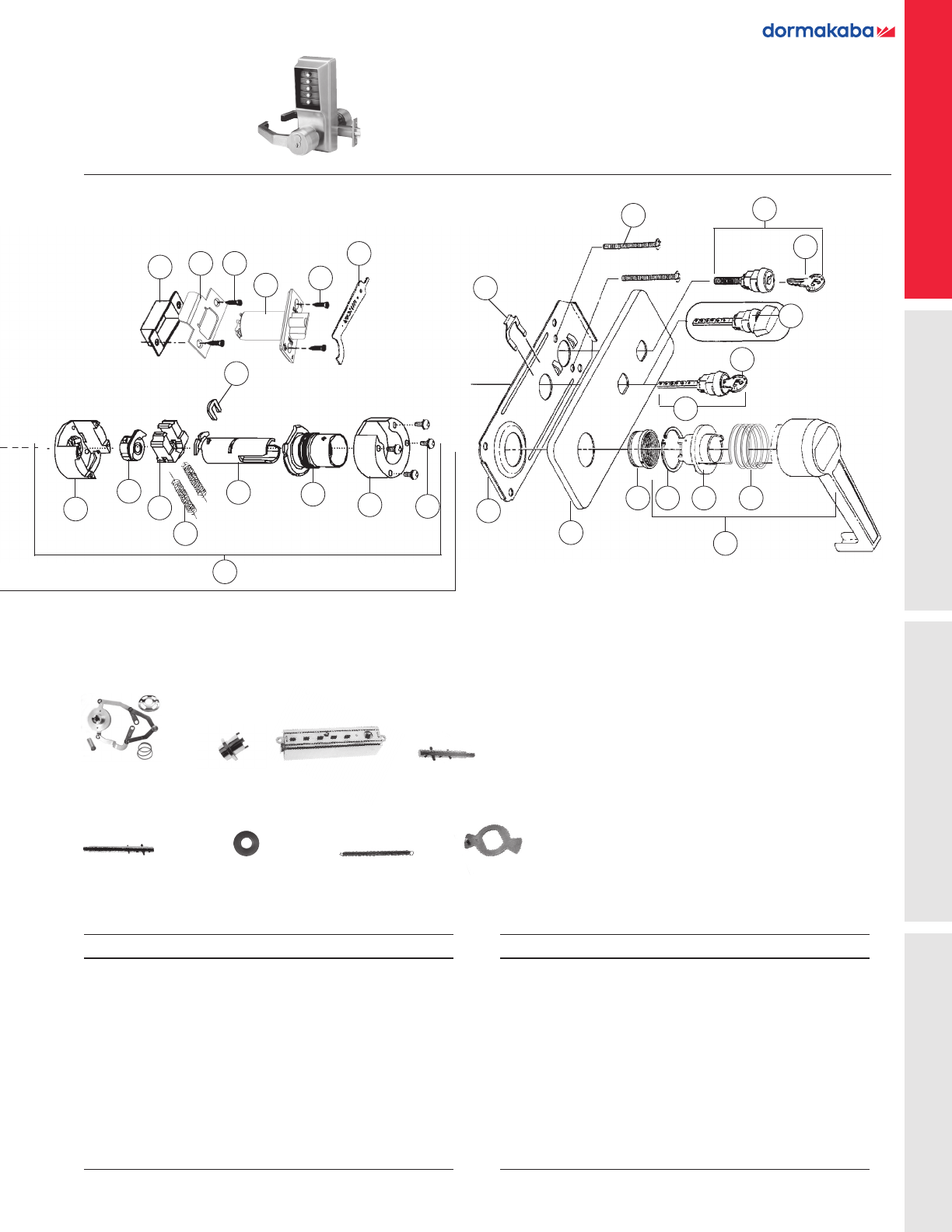

Simplex
5000 Series (Manufactured Prior to April 2005)
15
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, Corbin-Russwin - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3420074401 $116.50
Outside Lever, Sargent - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3420126D01 $116.50
Outside Lever, Sargent - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 342010301 $116.50
Outside Lever, Sargent - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 342010401 $116.50
Outside Lever, Sargent - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3420174401 $116.50
Outside Lever, Best - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3420326D01 $116.50
Outside Lever, Best - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 342030301 $116.50
Outside Lever, Best - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 342030401 $116.50
Outside Lever, Best - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3420374401 $116.50
Outside Lever, Assa/Medeco/Yale - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 3420426D01 $116.50
Outside Lever, Assa/Medeco/Yale - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 342040301 $116.50
Outside Lever, Assa/Medeco/Yale - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 342040401 $116.50
Outside Lever, Assa/Medeco/Yale - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 3420474401 $116.50
2 1 Kaba KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456226D01 $44.50
Kaba KIL Cylinder (w/keys), Keyed Differently Satin Brass 545620401 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456826D01 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Brass 545680401 $44.50
KABA90 Key Blank, 50/Box - Available from Ilco Division - Rocky Mount KABA90
3 1 Cylinder Retainer (10 Pack) 5456900010 $11.50
4 1 Outside Lever Insert (10 Pack) 5452700010 $11.50
5 1 Tailpiece Kit, KIL (Includes 5 tailpieces - fits various cylinders) 7489200001 $18.50
Tailpiece Kit, Best (6 and 7-pin) 6472400001 $14.00
Tailpiece Kit, Corbin-Russwin/Sargent 2447100001 $14.00
Tailpiece Kit, Assa/Medeco/Yale 7483600001 $14.00
Tailpiece Kit, Schlage 5461800001 $14.00
9 1 External Retaining Ring (10 Pack) 5451700010 $11.50
10 1Lever Release Tool - Accessory Tool Kit (Includes 1 ea. #10, #38) 6471700001 $11.50
12 1Outside Housing, Exterior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 7495726D01 $210.00
Outside Housing, Exterior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 749570301 $210.00
Outside Housing, Exterior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 749570401 $210.00
Outside Housing, Exterior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 7495774401 $210.00
Outside Housing, Exterior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Wrinkle Black 7495708301 $210.00
When ordering a replacement housing for locks produced prior to April 2005, you must order a new lever and lever sleeve accessory kit.
Simplex
5000 Series (Manufactured Prior to April 2005)
Series Simplex
File Guard SeriesLD and LD Series
16
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
12 1Outside Housing, Interior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Chrome 7496126D01 $210.00
Outside Housing, Interior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Bright Brass 749610301 $210.00
Outside Housing, Interior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Satin Brass 749610401 $210.00
Outside Housing, Interior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Dark Bronze 7496174401 $210.00
Outside Housing, Interior Code Change with Driver -
No longer available - order 1 ea. #1, #6, #12, #13 from p. 4-6
Wrinkle Black 7496108301 $210.00
13 1 Outside Driver - No longer available -
order 1 ea. #1, #6, #12, #13 from p. 4-6
N/A
14 2 Screw, #6-32 x 5/16”, Pan hd, SEM -
Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
15 1 Combination Chamber 7483200001 $95.50
16 1 Driver Bearing (10 Pack) 3418900010 $11.50
17 1 Extension Sleeve Assembly (Fits standard or passage) 7490000001 $33.00
18 1 Passage Actuator Slide - Passage Kit (Includes 1 ea. #18, #19, #26) 6474700001 $18.50
19 1 Passage Actuator Cam - Passage Kit (Includes 1 ea. #18, #19, #26) 6474700001 $18.50
20 1 Interior Code Change Actuator -
Interior Code Change Actuator Kit (Includes 1 ea. #20, #21)
6474800001 $14.00
21 1 Interior Code Change Actuator Cam -
Interior Code Change Actuator Kit (Includes 1 ea. #20, #21)
6474800001 $14.00
22 1 Outside Base Assembly without chamber 7520700001 $81.50
23 1 1⁄4” Spacer (Includes 2 of each #23, #29) 6471200001 $11.50
24 1 Cylindrical Drive Unit Assembly (CDU) 7484100001 $56.00
25 2 Screw, #10-24 x .625” Phillips, Outside Base (10 Pack) 5446100010 $11.50
26 1 Retaining Ring (10 Pack) 20144000010 $11.50
27 1 Latch 1⁄2” Floating Face - 3 Hour Fire Rated (Includes Screws) Satin Chrome 20416826D01 $41.00
Latch 1⁄2” Floating Face - 3 Hour Fire Rated (Includes Screws) Bright Brass 2041680301 $41.00
Latch 1⁄2” Floating Face - 3 Hour Fire Rated (Includes Screws) Satin Brass 2041680401 $41.00
Latch 3/4” Floating Face - 3 Hour Fire Rated (Includes Screws) Satin Chrome 20114426D01 $70.00
Latch 3/4” Floating Face - 3 Hour Fire Rated (Includes Screws) Bright Brass 2011440301 $70.00
Latch 3/4” Floating Face - 3 Hour Fire Rated (Includes Screws) Bright Brass 20114474401 $70.00
28 1 ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Satin Chrome 20411926D01 $12.50
ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Bright Brass 2041190301 $12.50
ASA Strike Kit 4 7⁄8” Long (124 mm) (Includes Screws) Satin Brass 2041190401 $12.50
Standard “T” Strike Plate Kit (Includes Screws) Satin Chrome 20422726D01 $11.50
Standard “T” Strike Plate Kit (Includes Screws) Bright Brass 2042270301 $11.50
Standard “T” Strike Plate Kit (Includes Screws) Satin Brass 2042270401 $11.50
29 2Connecting Screw, Phillips 8-32 X 1 3⁄8” (Includes 2 ea. #23, #29) 6471200001 $11.50
Connecting Screw, Phillips 8-32 X 1 5⁄8” (Includes 2 ea. #23, #29) 6471200001 $11.50
30 1Passage Spring Clip (10 Pack) 20174000010 $11.50
31 1Inside Housing Assembly, Complete Satin Chrome 7484426D01 $99.00
Inside Housing Assembly, Complete Bright Brass 748440301 $99.00
Inside Housing Assembly, Complete Satin Brass 748440401 $99.00
Inside Housing Assembly, Complete Dark Bronze 7484474401 $99.00
When ordering a replacement housing for locks produced prior to April 2005, you must order a new lever and lever sleeve accessory kit.
Simplex
5000 Series (Manufactured Prior to April 2005)
17
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
31 1Inside Housing Assembly, Complete Wrinkle Black 7484408301 $99.00
Inside Housing Assembly, Complete, Interior Code Change Satin Chrome 7487626D01 $116.50
Inside Housing Assembly, Complete, Interior Code Change Bright Brass 748760301 $116.50
Inside Housing Assembly, Complete, Interior Code Change Satin Brass 748760401 $116.50
Inside Housing Assembly, Complete, Interior Code Change Dark Bronze 7487674401 $116.50
Inside Housing Assembly, Complete, Interior Code Change Wrinkle Black 7487608301 $116.50
Inside Housing Assembly, Complete, Passage Satin Chrome 7490426D01 $116.50
Inside Housing Assembly, Complete, Passage Bright Brass 749040301 $116.50
Inside Housing Assembly, Complete, Passage Satin Brass 749040401 $116.50
Inside Housing Assembly, Complete, Passage Dark Bronze 7490474401 $116.50
Inside Housing Assembly, Complete, Passage Wrinkle Black 7490408301 $116.50
Inside Housing Assembly, Complete, Interior Code Change w/ Passage Satin Chrome 7492726D01 $128.50
Inside Housing Assembly, Complete, Interior Code Change with Passage Bright Brass 749270301 $128.50
Inside Housing Assembly, Complete, Interior Code Change with Passage Satin Brass 749270401 $128.50
Inside Housing Assembly, Complete, Interior Code Change with Passage Dark Bronze 7492774401 $128.50
Inside Housing Assembly, Complete, Interior Code Change with Passage Wrinkle Black 7492708301 $128.50
32 4Mounting Screw Kit (4 ea. of 3 sizes) Satin Chrome 6475326D01 $17.50
Mounting Screw Kit (4 ea. of 3 sizes) Bright Brass 647530301 $17.50
33 1 Torx Screw - Interior Code Change Screw Kit (Includes 1 ea. #33, #34) 6475200001 $16.50
34 1Torx Wrench - Interior Code Change Screw Kit (Includes 1 ea. #33, #34) 6475200001 $16.50
35 2 Housing Bearing (10 Pack) 3419100010 $11.50
36 1 Inside Lever Kit (Includes 1 ea. #36, #37, #38) Satin Chrome 3418626D01 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Bright Brass 341860301 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Satin Brass 341860401 $64.00
Inside Lever Kit (Includes 1 ea. #36, #37, #38) Dark Bronze 3418674401 $64.00
37 2Inside Lever Set Screw (10 Pack) 5446300010 $11.50
38 1Hex Wrench - Accessory Tool Kit (Includes 1 ea. #10, #38) 6471700001 $11.50
39 1 Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Satin Chrome 80127926D01 $51.50
Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Bright Brass 8012790301 $51.50
Passage Thumbturn & Keyturn Kit (Includes 1 ea. #30, #39) Satin Brass 8012790401 $51.50

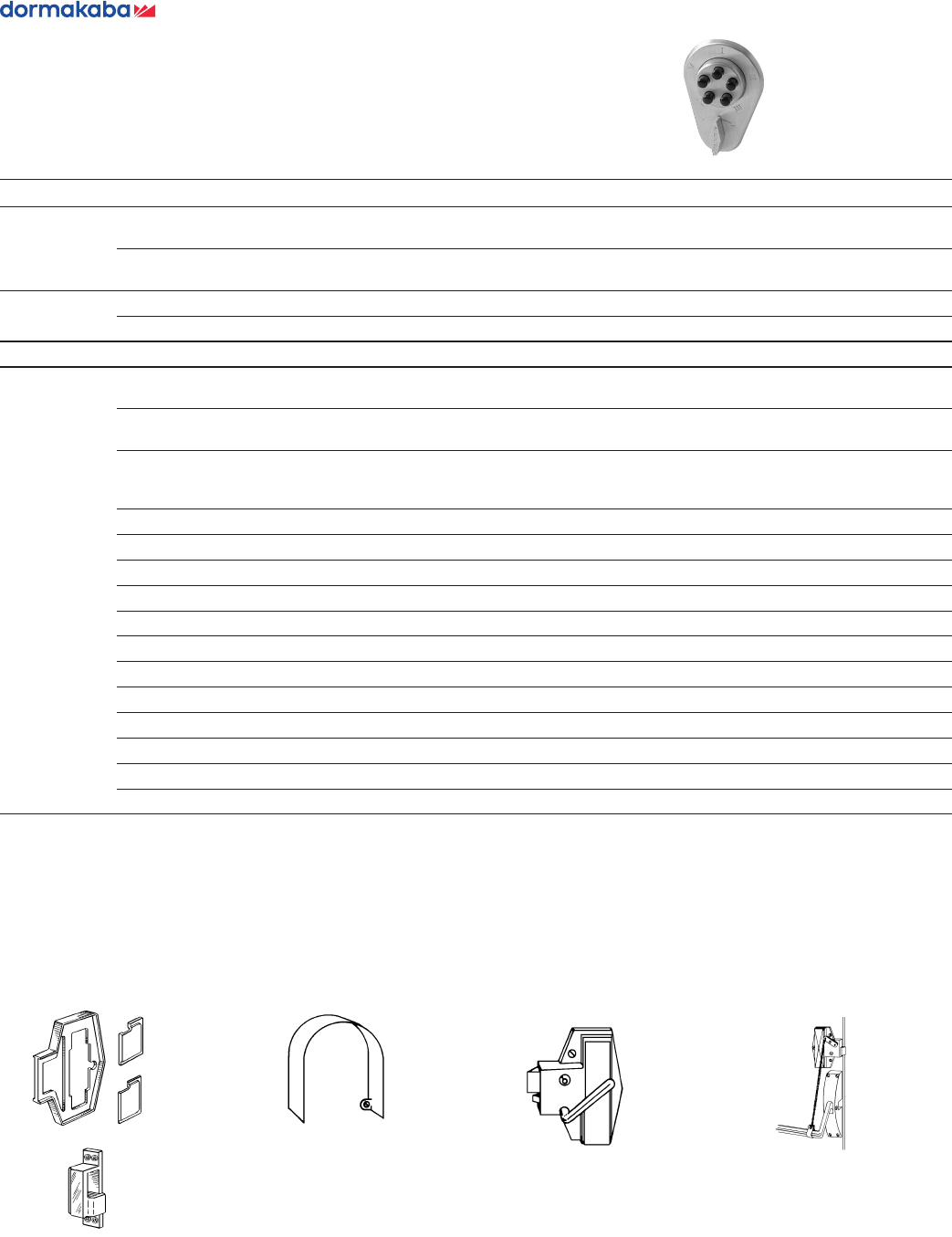

Additional Kits & Accessories Finish Part Number Li Price (USD)
Installation Hardware Kit
(Includes 1 ea. #3, #4, #10, #23, #38; 2 ea. #37; 4 ea. #32)
Satin Chrome 7485926D01 $33.00
Installation Hardware Kit
(Includes 1 ea. #3, #4, #10, #23, #38; 2 ea. #37; 4 ea. #32)
Bright Brass 748590301 $33.00
Product Documentation Kit PKG2863 $17.50
Lubriplate Aero Grease Tubes 6475400001 $15.50
Lever Return Spring (Fits inside and outside driver (10 Pack) 5448200010 $23.50
Actuator Button Spring (10 Pack) 5451400010 $16.50
Tamper Proof Screw Kit (4 ea. of 3 sizes) (Includes Wrench) Satin Chrome 6468326D41 $25.50
Tamper Proof Screw Kit (4 ea. of 3 sizes) (Includes Wrench) Bright Brass 646830341 $25.50
Notes:
• For kit items that show additional reference #s in parentheses, the quantity required for 1 lock is included in kit.
• Serial # should be properly identified to assure the correct parts are ordered based on the time of manufacture of your lock.
• When ordering a replacement housing for locks produced prior to April 2005, you must order a new lever and lever sleeve accessory kit.
• Lubriplate Aero grease is the “only” lubricant that should be used.
• Parts availability may be limited on older component parts no longer used in production units.
Simplex
5000 Series (Manufactured Prior to April 2005)
Series Simplex
File Guard SeriesLD and LD Series
18
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Chrome 3422926D01 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Brass 342290301 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Satin Brass 342290401 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Dark Bronze 3422974401 $87.50
Outside Lever, KIL (Includes 1 ea. #1, #3, #4, #6) Bright Chrome 3422902601 $87.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Satin Chrome 3423026D01 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Bright Brass 342300301 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Satin Brass 342300401 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Dark Bronze 3423074401 $116.50
Outside Lever, Schlage (Includes 1 ea. #1, #4, #6) Bright Chrome 3423002601 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Satin Chrome 3423126D01 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Bright Brass 342310301 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Satin Brass 342310401 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Dark Bronze 3423174401 $116.50
Outside Lever, Corbin-Russwin (Includes 1 ea. #1, #4, #6) Bright Chrome 3423102601 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Satin Chrome 3423226D01 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Bright Brass 342320301 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Satin Brass 342320401 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Dark Bronze 3423274401 $116.50
Outside Lever, Sargent (Includes 1 ea. #1, #4, #6) Bright Chrome 3423202601 $116.50

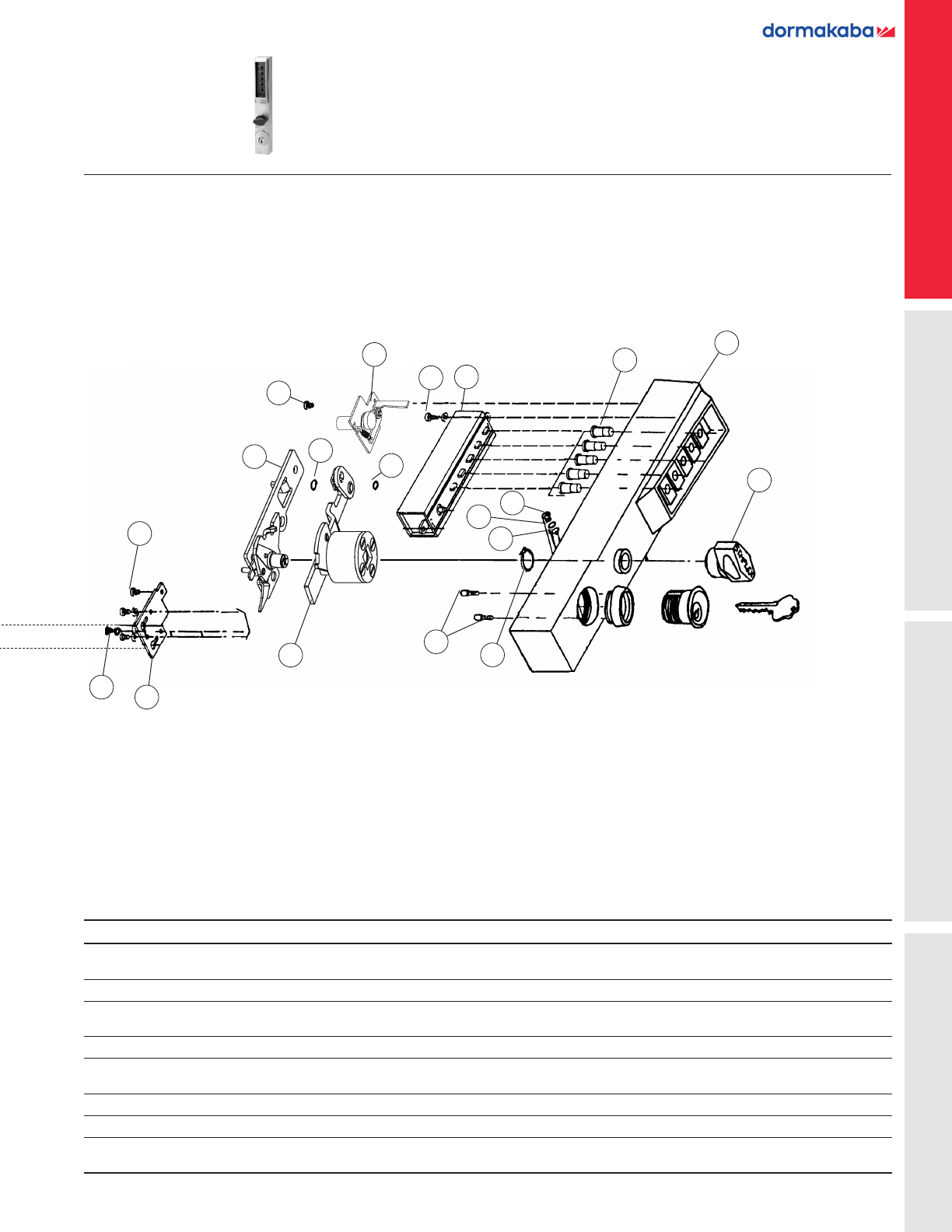

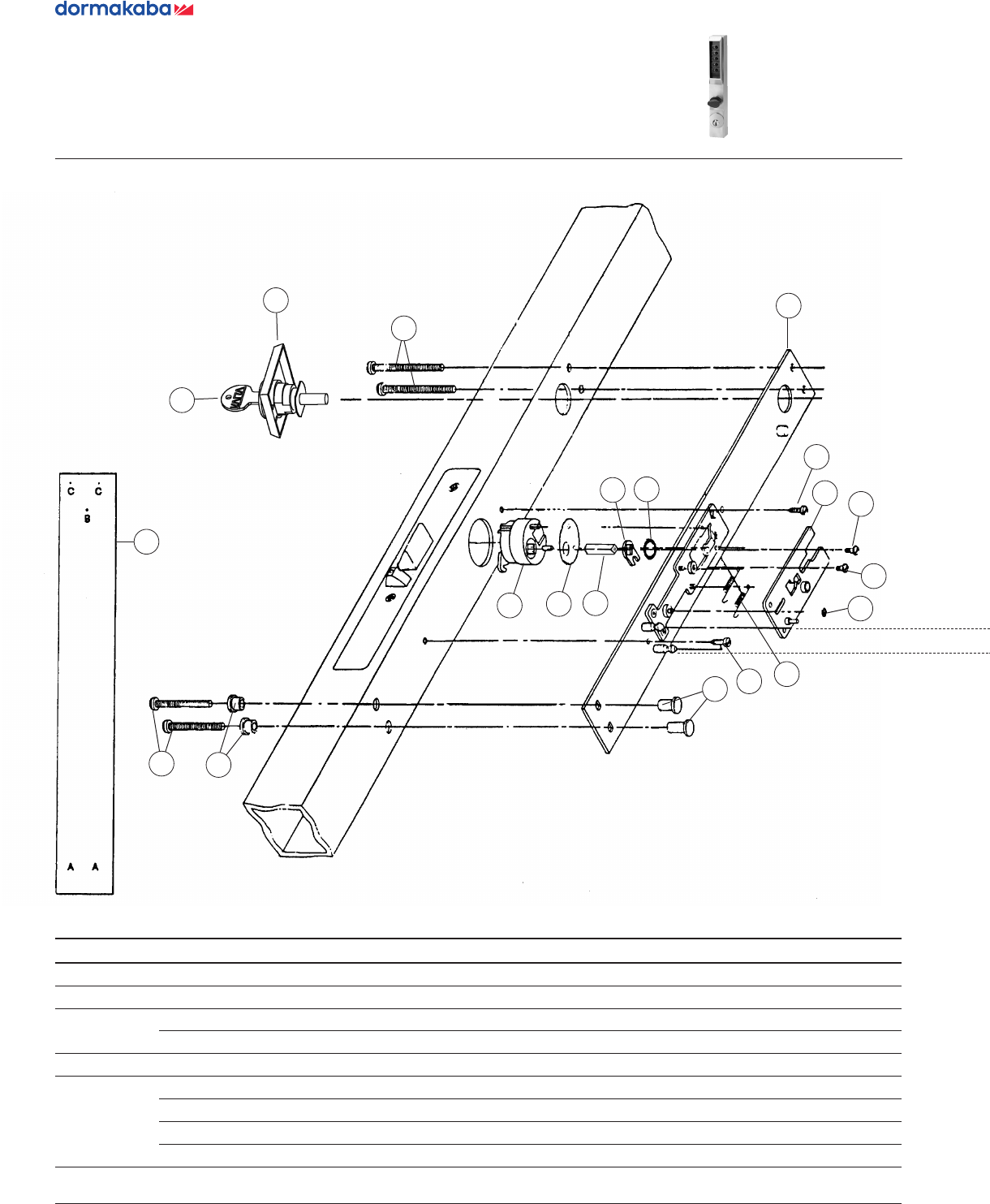

Simplex

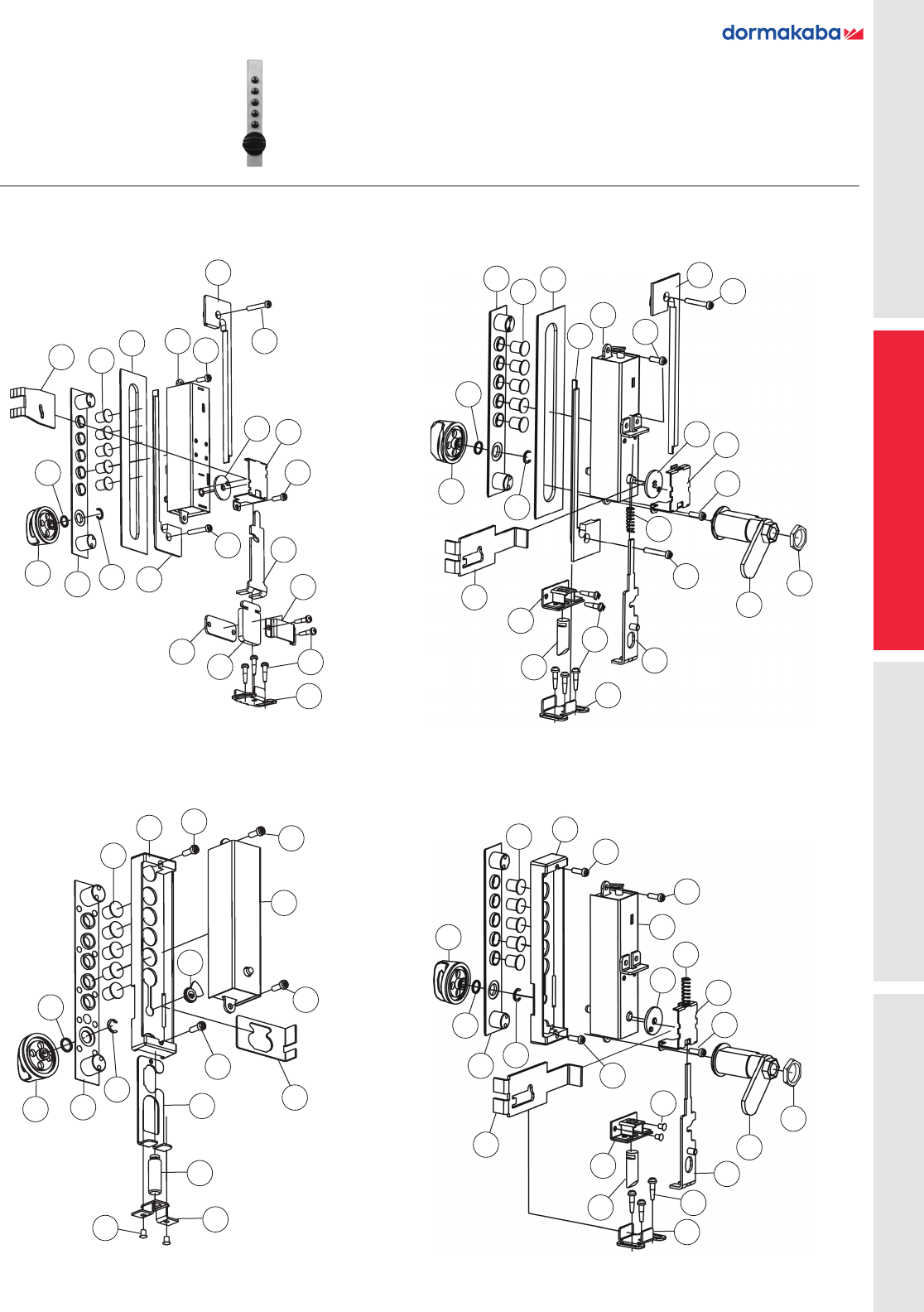

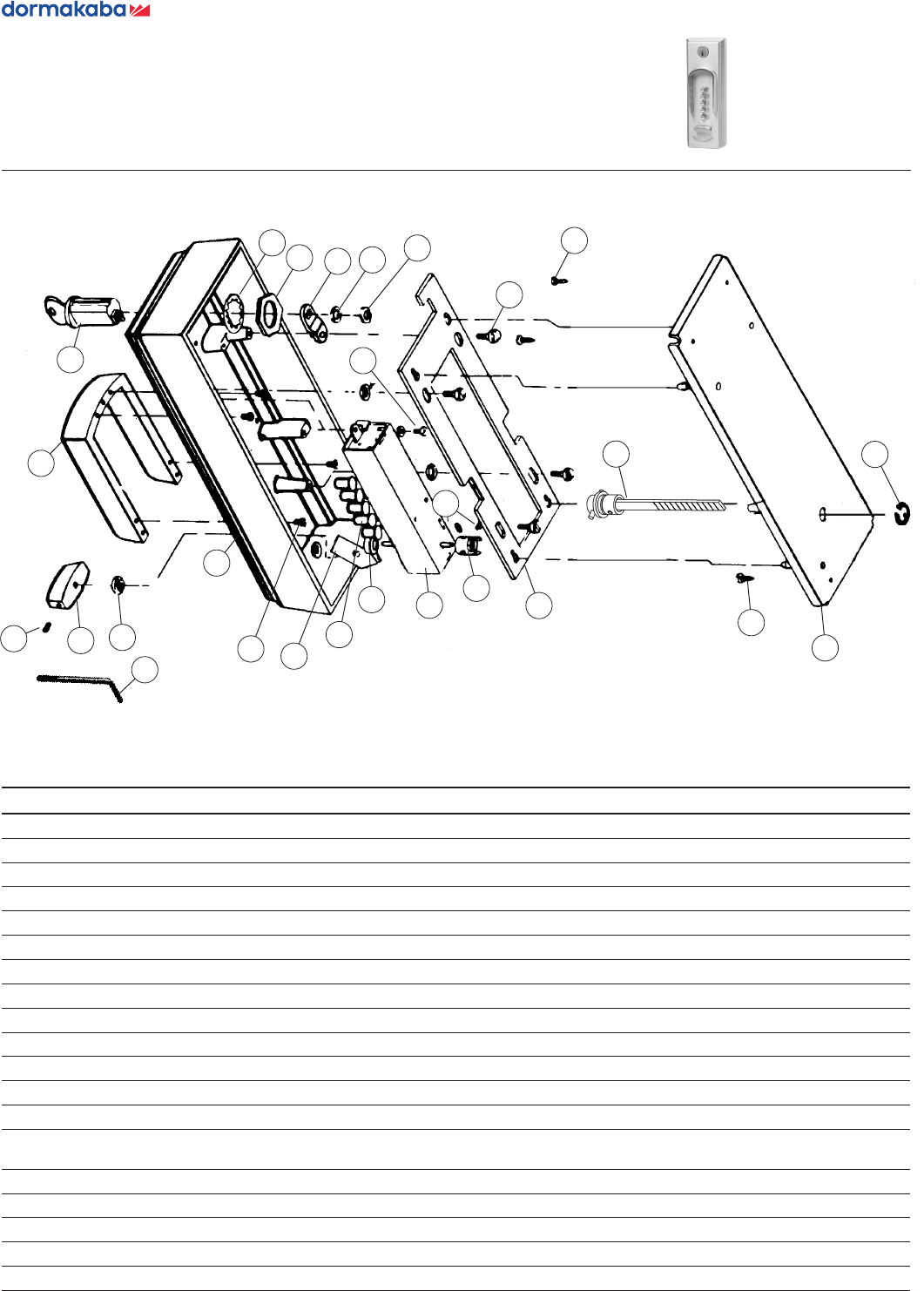

5010 Exit Trim
See Page 6 for
How to Order instructions
2
9
10
12
13
14 15 18
20
21 22
24
5
4
19
17
16
26
25
3
6
4
1
19
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
5010 Exit Trim
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Outside Lever, Best (Includes 1 ea. #1, #4, #6) Satin Chrome 3423326D01 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Bright Brass 342330301 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Satin Brass 342330401 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Dark Bronze 3423374401 $116.50
Outside Lever, Best (Includes 1 ea. #1, #4, #6) Bright Chrome 3423302601 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Satin Chrome 3423426D01 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Bright Brass 342340301 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Satin Brass 342340401 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Dark Bronze 3423474401 $116.50
Outside Lever, Assa/Medeco/Yale (Includes 1 ea. #1, #4, #6) Bright Chrome 3423402601 $116.50
2 1 Kaba KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456226D01 $44.50
Kaba KIL Cylinder (w/keys), Keyed Differently Satin Brass 545620401 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Chrome 5456826D01 $44.50
Schlage KIL Cylinder (w/keys), Keyed Differently Satin Brass 545680401 $44.50
KABA90 Key Blank, 50/Box - Available from Ilco Division - Rocky Mount KABA90 $0.00
3 1 Cylinder Keeper - Lever Sleeve Accessory Kit, KIL (Includes 1 ea. #3, #4, #6) 6470600001 $16.50
4 1 Outside Lever Insert (10 Pack) 5452700010 $11.50
5 1 Tailpiece Kit, KIL (Includes 5 tailpieces - fits various cylinders) ET/Mortise 6474500001 $18.50
Tailpiece Kit, Best (6 and 7-pin) ET/Mortise 6474300001 $14.00
Tailpiece Kit, Corbin-Russwin/Sargent ET/Mortise 2452000001 $14.00
Tailpiece Kit, Assa/Medeco/Yale ET/Mortise Yale (5/6/7-pin) 7483600001 $14.00
Tailpiece Kit, Schlage ET/Mortise 2452700001 $14.00
6 1 Lever Sleeve - Lever Sleeve Accessory Kit, KIL (Includes 1 ea. #3, #4, #6) 6470600001 $16.50
Lever Sleeve - Lever Sleeve Accessory Kit, IC (Includes 1 ea. #4, #6) 6470700001 $16.50
9 1 External Retaining Ring (10 Pack) 5451700010 $11.50
10 1Lever Release Tool - Accessory Tool Kit (Includes 1 ea. #11, other tools) 6471700001 $11.50
12 1Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Satin Chrome 7497626D01 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Bright Brass 749760301 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Satin Brass 749760401 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Dark Bronze 7497674401 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Wrinkle Black 7497608301 $163.00
Outside Housing, Exterior Code Change
(Includes code buttons and enter button)
Bright Chrome 7497602601 $163.00
13 1Outside Driver Assembly (Includes 1 ea. #9, #13) 7520100001 $42.00
14 1Key Override Detector Kit (Includes detector, spring and washer) 3430800001 $14.00
15 1Extension Sleeve Assembly - ET 7511600001 $33.00
16 2Screw, #6-32 x 5/16”, Pan hd, SEM - Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”) 6477600001 $11.50
17 1Combination Chamber 7483200001 $95.50
18 1Outside Base Assembly without Chamber 7520700001 $81.50
19 2Screw, #10-24 x .625” Phillips, Outside Base (10 Pack) 5446100010 $11.50
20 1Exit Trim Drive Unit 7496800001 $56.00
Series Simplex
File Guard SeriesLD and LD Series
20
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
21 2Connecting Screw 8-32 X 1 3/8” (Incl. 4 ea. #21 - 2 ea. 2 lengths,
and 1⁄4” spacers)
6471200001 $11.50
Connecting Screw 8-32 X 1 5/8” (Incl. 4 ea. #21 - 2 ea. 2 lengths,
and 1/4” spacers)
6471200001 $11.50
22 1Universal Mounting Plate (Includes Fixed Sex Nuts) Wrinkle Black 7524608301 $53.50
24 3Mounting Bushing (10 Pack) Black 4422906810 $11.50
25 3Mounting Screw - Installation Hardware Kit (Includes 2 ea. #21; 3 ea.
#24, #25; 4 ea. #26)
Satin Chrome 6472526D01 $35.00
Mounting Screw - Installation Hardware Kit (Includes 2 ea. #21; 3 ea.
#24, #25; 4 ea. #26)
Bright Brass 647250301 $35.00
26 4 Screw, 10-24 X .75” (10 Pack) Mounting Plate Screw 5459700010 $11.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Installation Hardware Kit (Includes 2 ea. #21; 3 ea. #24, #25; 4 ea. #26) Satin Chrome 6472526D01 $35.00
Installation Hardware Kit (Includes 2 ea. #21; 3 ea. #24, #25; 4 ea. #26) Bright Brass 647250301 $35.00
Lubriplate Aero Grease Tubes 6475400001 $15.50
Lever Return Spring (Fits inside and outside driver) (10 Pack) 5448200010 $23.50
Actuator Button Spring (10 Pack) 5451400010 $16.50
Product Documentation Kit PKG3052 $17.50
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Satin Chrome 20148426D01 $68.00
5010 Series Exit Trim Wooden Demo Mount 20305600041 $175.00
Simplex
5010 Exit Trim
Notes:
• For kit items that show additional reference #s in parentheses, the quantity required for 1 lock is included in kit.
• Lubriplate Aero grease is the “only” lubricant that should be used.
• Parts availability may be limited on older component parts no longer used in production units.
21
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
22
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

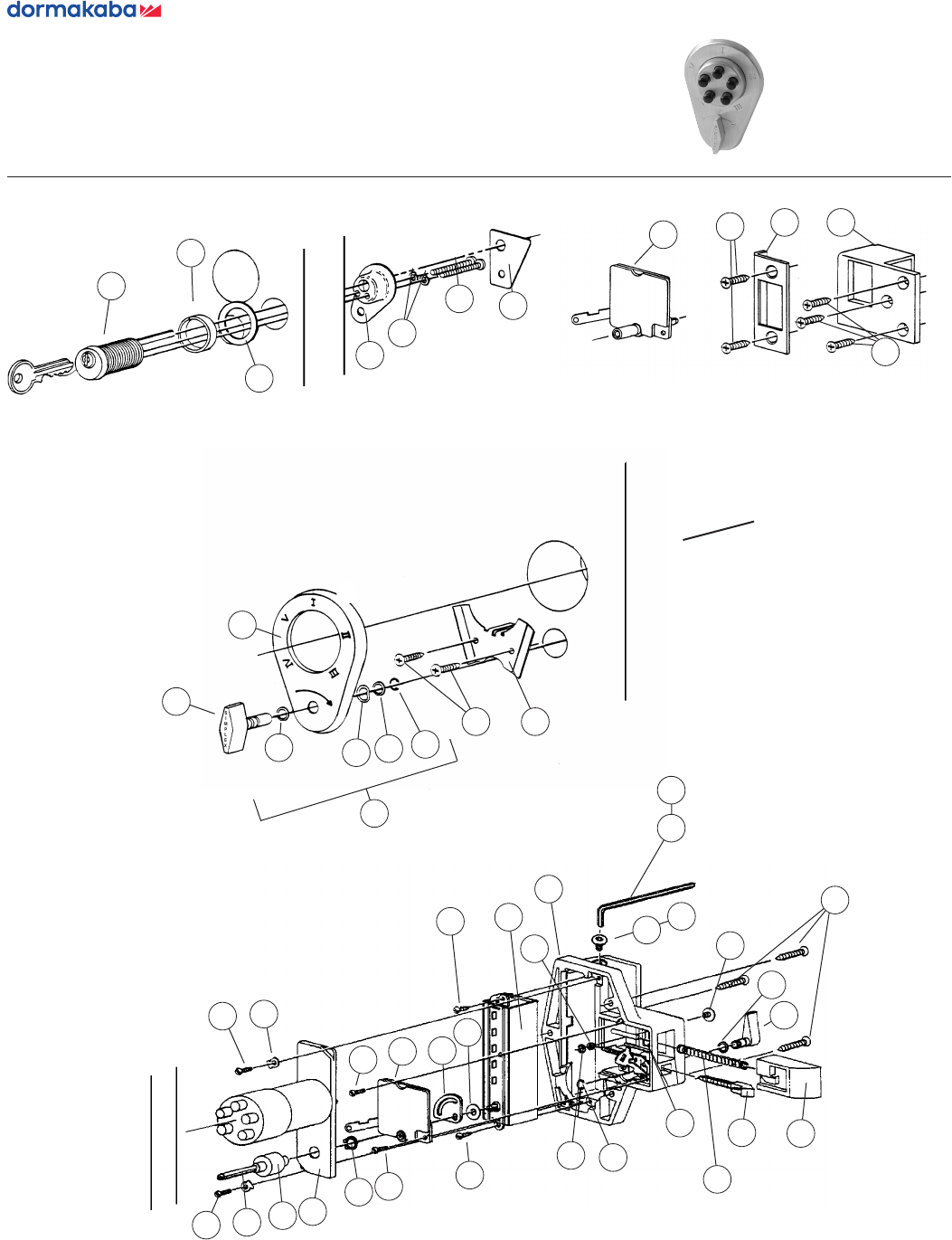

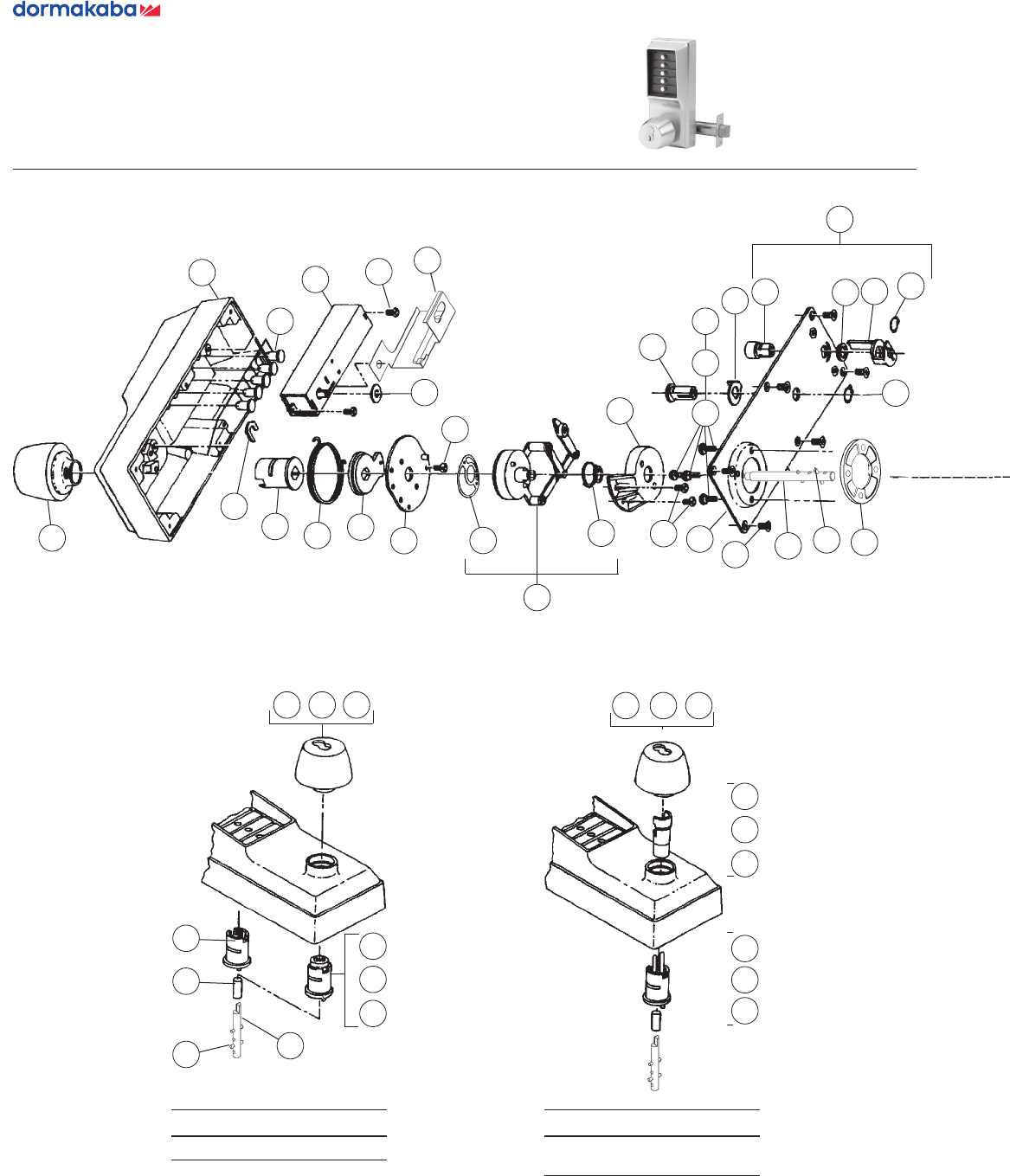

Simplex
1000 Series
16
22
46 911
19
12 1
2
3
73
73 23
6
25
24 26 21 40
86
38
13
7
8
74
37
72
40
44
45
79
20
39
35
Note: Older model locks used knob insert (27, 31, 48) to the right. Current production is more represented by model on left.
38 38
34
61
77 53 49
47
29
27
31
48
30
32
34
51
52
54
62
51
55
50
Key Override Models
Medeco/ASSA/Yale/Schlage
Key Override Models
Best & Equivalents Corbin/
Russwin/Sargent
23
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data

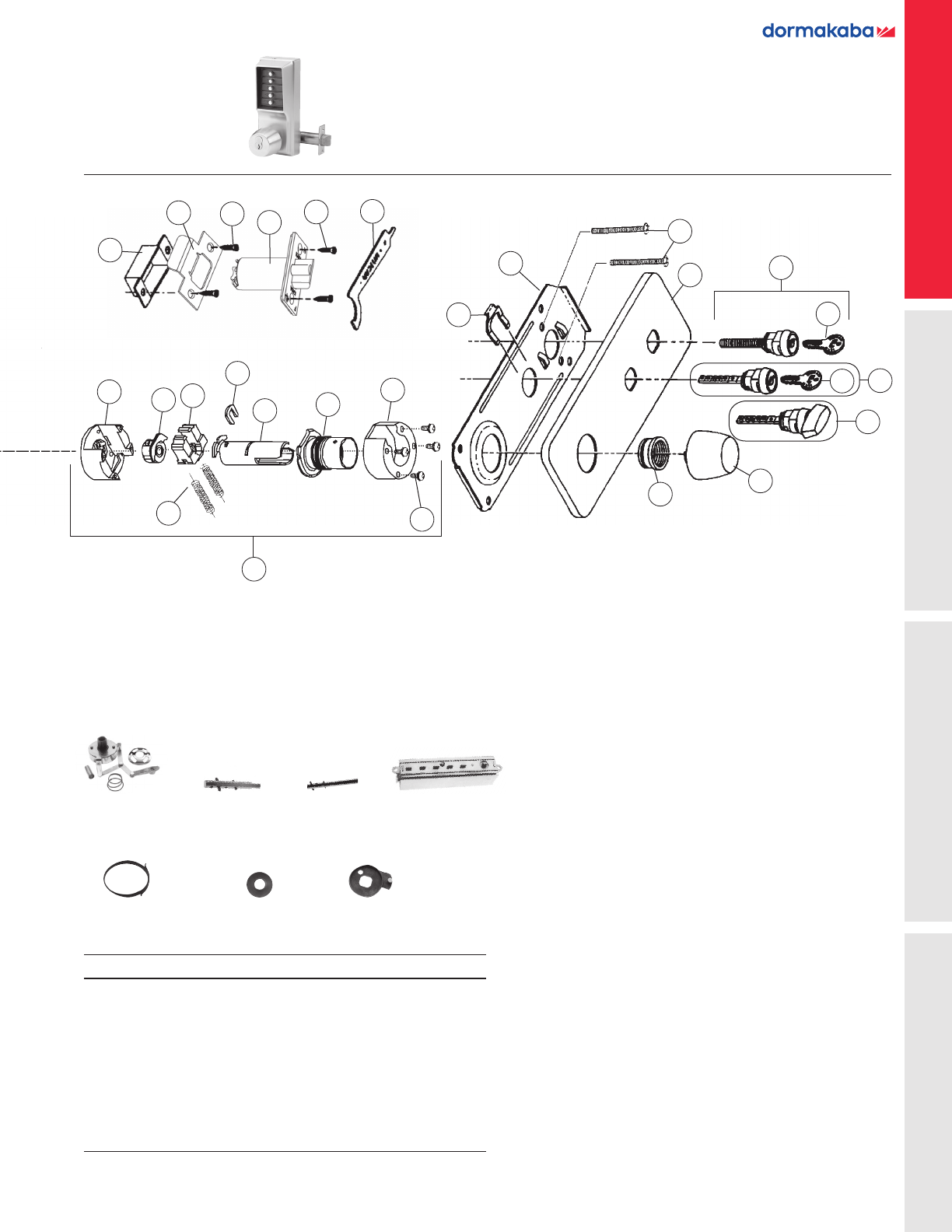

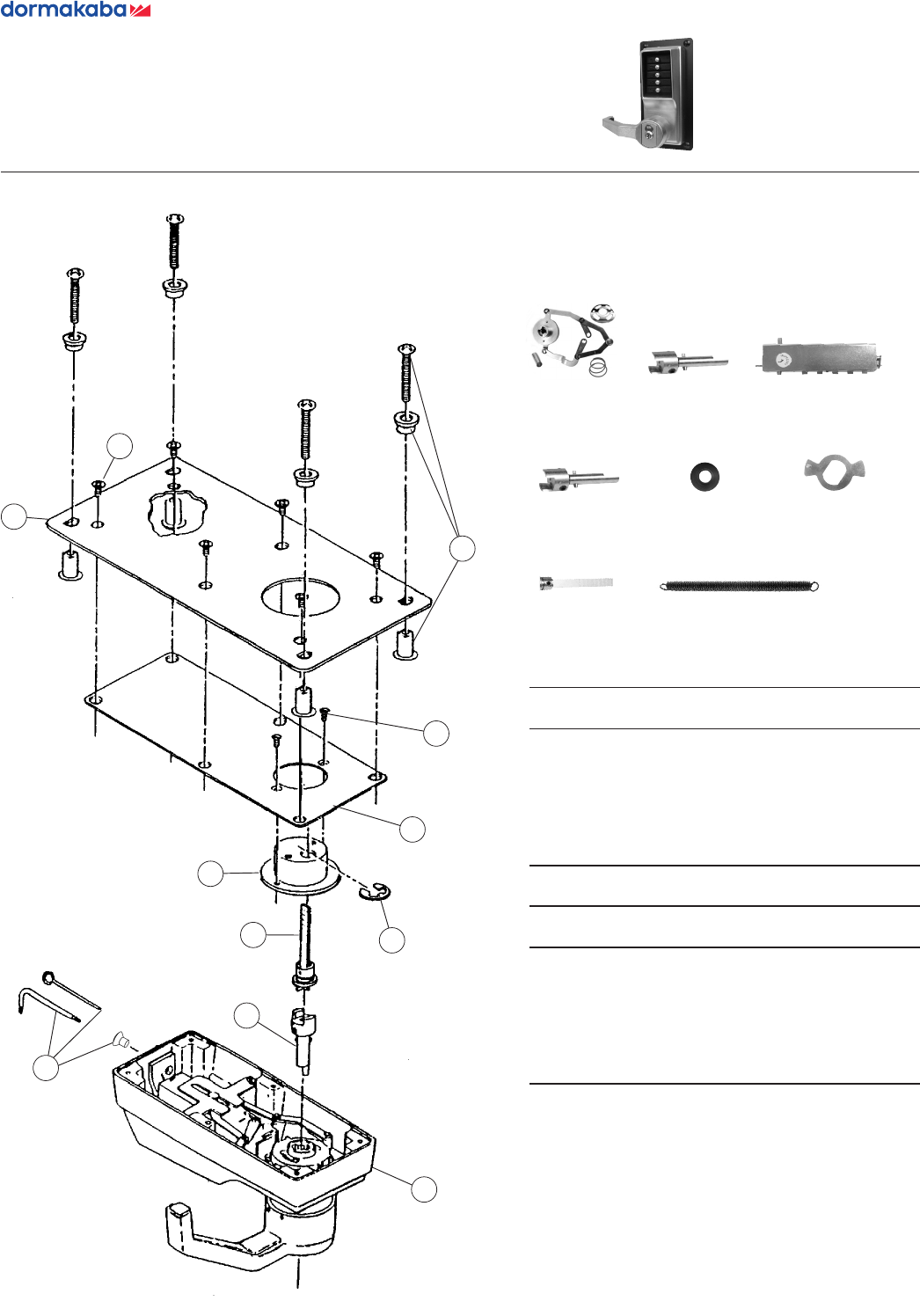

Simplex
1000 Series
See Page 6 for
How to Order instructions
75
84 63
78
68 85
14
66
42
65
67
18
16
83
43
28
69
33 71
70
87
15
82
81
17
56 56
1000 Series Service Kit
Clutch Assembly K/O Drive Shaft Standard
Drive Shaft
Combination
Chamber
Stop PlateChamber Shaft BushingKnob Return Spring
Item Part Number Li Price (USD)
1000 Series Service Kit 203035-000-01 $125.00
• Chamber Shaft Bushing
• Clutch Assembly
• Combination Chamber
• Drive Shaft (No Key Override)
• Drive Shaft (Key Override)
• Knob Return Spring
• Stop Plate
Series Simplex
File Guard SeriesLD and LD Series
24
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Combination Chamber M-56 / M-63 (Old # 201429-000-01) 7436600001 95.50
2 5 Pushbuttons (10 Pack) Black 20002410610 12.50
Pushbuttons (10 Pack) Silver 20002410910 12.50
3 1 Shaft Bushing (5 Pack) 20002600005 11.50
6 1 Clutch Cover Assembly 20100900001 12.50
7 1 Balance Spring - Clutch Spring Kit (Includes 1 ea. #7, #8) 20101600001 11.50
8 1 Double Wave Spring - Clutch Spring Kit (Includes 1 ea. #7, #8)
(Replaced 201018-000-01)
20101600001 11.50
9 1 Knob Return Spring - Knob Return Spring Kit (Includes 1 ea. #9, #11) 20104000001 11.50
11 1 Stop Plate Assembly - Knob Return Spring Kit (Includes 1 ea. #9, #11) 20104000001 11.50
12 1 Front Housing Satin Chrome 20104926D01 87.50
Front Housing Bright Chrome 20104902601 87.50
Front Housing Bright Brass 2010490301 87.50
Front Housing Antique Brass 2010490501 87.50
13 1 Drive Shaft Shaft Assembly for Non Key Override 20105000001 15.50
14 1 Shoe Housing Cover 20127700001 11.50
15 1 Installation Wrench (spanner wrench) - Code Change Tool Kit
(Includes 1 ea. #15, #18)
20127800001 10.50
16 1 Knob Assembly - No Key Override (Includes spacer)
(Old number 201284)
Satin Chrome 3426426D01 64.00
Knob Assembly - No Key Override (Includes spacer)
(Old number 201284)
Bright Chrome 3426402601 64.00
Knob Assembly - No Key Override (Includes spacer)
(Old number 201284)
Bright Brass 342640301 64.00
Knob Assembly - No Key Override (Includes spacer)
(Old number 201284)
Antique Brass 342640501 64.00
17 1 Strike Box (Old Number 55068-000-01) 20128700001 9.50
18 1 DF-59 Key - Code Change Tool Kit (Includes 1 ea. #15, #18)
(Includes 1 ea. #15, #18)
20127800001 10.50
19 1 Clutch Backing Plate 20130400001 9.50
20 1 Combination Change Stud - Combination Change Actuator Kit
(Includes 1 ea. #20, #21, #26, #40)
20133600001 12.50
21 1 Combination Change Sleeve - Combination Change Actuator Kit
(Includes 1 ea. #20, #21, #26, #40)
20133600001 12.50
22 1 Retainer Clip (For Front Knob) (5 Pack) 20134300005 11.50
23 1 Chamber Release - Passage Kit (For models with passage set)
(Includes 1 ea. #23, #24, #25, #40)
20182500001 23.50
24 1 Chamber Release Cam - Passage Kit (For models with passage set)
(Includes 1 ea. #23, #24, #25, #40)
20182500001 23.50
25 1 Actuator Stud - Passage Kit (For models with passage set)
(Includes 1 ea. #23, #24, #25, #40)
20182500001 23.50
26 1 Combination Change Sleeve Washer - Combination Change Actuator
Kit (Includes 1 ea. #20, #21, #26, #40)
20133600001 12.50
27 1Knob Insert (Also fits Falcon / Arrow / Eagle / KSP / Lloyd Matheson)
(used with 201382 ONLY)
20136500001 17.50
28 2 Shoe Spring (For Cylindrical Drive Unit) (10 Pack) 20136600010 10.50
29 1 Best Knob Key Override Assembly - (Also fits Falcon / Arrow /
Eagle / KSP / Lloyd Matheson) Removable core not included
(Old number 201382-000-01) (Knob Insert not Required)
Satin Chrome 3426326D01 87.50
Simplex
1000 Series
25
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
29 1 Best Knob Key Override Assembly - (Also fits Falcon / Arrow /
Eagle / KSP / Lloyd Matheson) Removable core not included
(Old number 201382-000-01) (Knob Insert not Required)
Bright Chrome 3426302601 87.50
Best Knob Key Override Assembly - (Also fits Falcon / Arrow /
Eagle / KSP / Lloyd Matheson) Removable core not included
(Old number 201382-000-01) (Knob Insert not Required)
Bright Brass 342630301 87.50
Best Knob Key Override Assembly - (Also fits Falcon / Arrow /
Eagle / KSP / Lloyd Matheson) Removable core not included
(Old number 201382-000-01) (Knob Insert not Required)
Antique Brass 342630501 87.50
30 1 Best Drive Sleeve Assembly (Also fits Falcon / Arrow / Eagle / KSP /
Lloyd Matheson) (Includes 1 ea. #22, #30)
20139100001 37.00
31 1 Corbin / Russwin Knob Insert (used with 201523 ONLY) 20141400001 17.50
32 1 Corbin / Russwin Drive Sleeve Assembly (Includes 1 ea. #22, #30) 20142100001 37.00
33 1 Key DF-5 (For Models with passage set) (2 Pack) 20142200002 8.00
34 1 Shaft Self-aligning Bushing (For Models 1021 & 1041) 20142500001 10.50
35 1 Clutch Sub-Assembly (Includes 1 ea. #7, #8, #35) 20143000001 40.00
38 1 Roll Pin (Upper Pin) 0.100” (2.5 mm) dia. (Includes 1 ea. #38, #57; 2 ea.
#42, #86; 4 ea. #44, #45, #56, #79)
Satin Chrome 20421026D01 11.50
Roll Pin (Upper Pin) 0.100” (2.5 mm) dia. (Includes 1 ea. #38, #57; 2 ea.
#42, #86; 4 ea. #44, #45, #56, #79)
Bright Chrome 2042100301 11.50
Roll Pin (Upper Pin) 0.100” (2.5 mm) dia. (Includes 1 ea. #38, #57; 2 ea.
#42, #86; 4 ea. #44, #45, #56, #79)
Antique Brass 2042100501 11.50
39 1 Back Plate Sub-assembly (Includes 1 ea. #20, #21, #26, #37, #40) 20143900001 24.50
40 1 Retainer Ring 3⁄8” (9 mm) (For passage set and combination change
sleeve) (10 Pack)
20144000010 11.50
42 2 Screw 8-32 x 2 1⁄2” (64 mm) (For mounting lock to door)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Satin Chrome 20421026D01 11.50
Screw 8-32 x 2 1⁄2” (64 mm) (For mounting lock to door)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Bright Brass 2042100301 11.50
Screw 8-32 x 2 1⁄2” (64 mm) (For mounting lock to door)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Antique Brass 2042100501 11.50
43 4 Sems Screw Phillips 6-32 x 1⁄4” (6 mm) R.H.M.S.
(For shoe housing cover)
20144600010 8.00
44 4 Sems Screw Phillips 8-32 x 7⁄16” (11 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Satin Chrome 20421026D01 11.50
Sems Screw Phillips 8-32 x 7⁄16” (11 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Bright Brass 2042100301 11.50
Sems Screw Phillips 8-32 x 7⁄16” (11 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Antique Brass 2042100501 11.50
45 4 Sems Screw, Phillips 8-32 x 11⁄16” (17 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Satin Chrome 20421026D01 11.50
Sems Screw, Phillips 8-32 x 11⁄16” (17 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Bright Brass 2042100301 11.50
Sems Screw, Phillips 8-32 x 11⁄16” (17 mm) R.H.M.S. (For spacer)
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Antique Brass 2042100501 11.50
46 1 Drive Sleeve Assembly - No Key Override (Old # 201062-045-01)
(Includes 1 ea. #22, #46)
20149900001 25.50
47 1 Corbin / Russwin Knob Key Override Assembly Removable core
not included (Old #201523) (Includes Spacer)
(Knob Insert not Required)
Satin Chrome 3426526D01 87.50
Corbin / Russwin Knob Key Override Assembly Removable core
not included (Old #201523) (Includes Spacer)
(Knob Insert not Required)
Bright Chrome 3426502601 87.50
Simplex
1000 Series
Series Simplex
File Guard SeriesLD and LD Series
26
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
47 1
Corbin / Russwin Knob Key Override Assembly Removable core
not included (Old #201523) (Includes Spacer)
(Knob Insert not Required)
Bright Brass 342650301 87.50
Corbin / Russwin Knob Key Override Assembly Removable core
not included (Old #201523) (Includes Spacer)
(Knob Insert not Required)
Antique Brass 342650501 87.50
48 1 Sargent Knob Insert (used with 201526 ONLY) 20152400001 17.50
49 1 Sargent Knob Key Override Assembly (Old #201526) Removable
core not included (Includes Spacer) (Knob Insert not Required)
Satin Chrome 3426626D01 87.50
Sargent Knob Key Override Assembly (Old #201526) Removable
core not included (Includes Spacer) (Knob Insert not Required)
Bright Chrome 3426602601 87.50
Sargent Knob Key Override Assembly (Old #201526) Removable
core not included (Includes Spacer) (Knob Insert not Required)
Bright Brass 342660301 87.50
Sargent Knob Key Override Assembly (Old #201526) Removable
core not included (Includes Spacer) (Knob Insert not Required)
Antique Brass 342660501 87.50
50 1 Sargent Drive Sleeve Assembly (Includes 1 ea. #22, #50) 20153000001 37.00
51 1 Drive Shaft Assembly for Key Override (Old #201267-045-01) 20154700001 17.50
52 1 Medeco / ASSA / Yale Drive Sleeve Assembly (Use spacer #
201569 and #203054 for 5-6pin Medeco / ASSA cylinders)
(Includes 1 ea. #22, #52)
20154800001 57.00
53 1 Medeco / ASSA / Yale Knob Key Override Assembly. Removable
core not included. (Use spacer #201569 and #203054 for 5-6pin
Medeco / ASSA cylinders) (old # 201517)
Satin Chrome 3426826D01 87.50
Medeco / ASSA / Yale Knob Key Override Assembly. Removable
core not included. (Use spacer #201569 and #203054 for 5-6pin
Medeco / ASSA cylinders) (old # 201517)
Bright Chrome 3426802601 87.50
Medeco / ASSA / Yale Knob Key Override Assembly. Removable
core not included. (Use spacer #201569 and #203054 for 5-6pin
Medeco / ASSA cylinders) (old # 201517)
Bright Brass 342680301 87.50
Medeco / ASSA / Yale Knob Key Override Assembly. Removable
core not included. (Use spacer #201569 and #203054 for 5-6pin
Medeco / ASSA cylinders) (old # 201517)
Antique Brass 342680501 87.50
54 1 Schlage Drive Sleeve Assembly (Old # 201559-045-01) (Includes 1 ea.
#22, #54)
20155500001 57.00
55 1 Schlage Knob Key Override Assembly. Removable core not included Satin Chrome 3426726D01 87.50
Schlage Knob Key Override Assembly. Removable core not included Bright Chrome 3426702601 87.50
Schlage Knob Key Override Assembly. Removable core not included Bright Brass 342670301 87.50
Schlage Knob Key Override Assembly. Removable core not included Antique Brass 342670501 87.50
56 4 Combination Screw; Phillips 8-32 x 3⁄4” (19 mm) (For Latch & Strike
Plate) (10 Pack)
Satin Chrome 20156526D10 11.50
Combination Screw; Phillips 8-32 x 3⁄4” (19 mm) (For Latch & Strike
Plate) (10 Pack)
Bright Brass 2015650310 11.50
Combination Screw; Phillips 8-32 x 3⁄4” (19 mm) (For Latch & Strike
Plate) (10 Pack)
Antique Brass 2015650510 11.50
57 1 Rubber Bumper (For Door Frame) (Self adhesive strip of 4) (5 Pack) 20156800005 11.50
58 1 Medeco Knob Spacer (For 5 and 6-pin Medeco / ASSA) 20156900001 17.50
62 1 ASSA Drive Sleeve Assembly (Includes 1 ea. #22, #62) 20160900001 57.00
63 1 Shoe (Old # 201272-000-01) 20172300001 11.50
64 1Unified Trim Plate - Standard (Not shown in exploded view) Satin Chrome 20173626D01 37.00
Unified Trim Plate - Standard (Not shown in exploded view) Bright Chrome 20173602601 37.00
Unified Trim Plate - Standard (Not shown in exploded view) Bright Brass 2017360301 37.00
Unified Trim Plate - Standard (Not shown in exploded view) Antique Brass 2017360501 37.00
65 1Reinforcing Plate 20173800001 12.50
Simplex
1000 Series
27
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
66 1 Passage Spring Clip (10 Pack) 20174000010 11.50
67 1 Unified Trim Plate (For Passage set Models) Satin Chrome 20174526D01 37.00
Unified Trim Plate (For Passage set Models) Bright Chrome 20174502601 37.00
Unified Trim Plate (For Passage set Models) Bright Brass 2017450301 37.00
Unified Trim Plate (For Passage set Models) Antique Brass 2017450501 37.00
68 1 Inside Drive Sleeve Assembly (Includes 1 ea. #68, #78)
(Old #20127504501)
20178200001 17.50
69 1 Combination Change Plug Assembly with (2) DF59 keys Satin Chrome 20178726D01 19.50
Combination Change Plug Assembly with (2) DF59 keys Bright Brass 2017870301 19.50
Combination Change Plug Assembly with (2) DF59 keys Antique Brass 2017870501 19.50
70 1Passage Set Thumb Turn Plug Assembly Satin Chrome 20180726D01 19.50
Passage Set Thumb Turn Plug Assembly Bright Brass 2018070301 19.50
Passage Set Thumb Turn Plug Assembly Antique Brass 2018070501 19.50
71 1 Passage Set Key Turn Plug Assembly (with (2) DF5 keys) Satin Chrome 20181826D01 19.50
Passage Set Key Turn Plug Assembly (with (2) DF5 keys) Bright Brass 2018180301 19.50
Passage Set Key Turn Plug Assembly (with (2) DF5 keys) Antique Brass 2018180501 19.50
72 2 Sems Screw Phillips 6-32 x 7⁄16” (11 mm) R.H.M.S. (For clutch cover)
(Includes 10 ea. #72, #73, #74)
6477600001 11.50
73 2 Sems Screw Phillips 6-32 x 5⁄16” (8 mm) R.H.M.S. (For combination
chamber & clutch backing plate) (Includes 10 ea. #72, #73, #74)
Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 11.50
74 6 Screw - Phillips 6-32 x 3/8” (10 mm) F.H.M.S. (For back plate)
(Replaces 201444-022-10) (Includes 10 ea. #72, #73, #74)
Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 11.50
75 1 Drive Insert (Old # 201218-000-01) 20401500001 24.50
78 1 Retainer Clip (For Inside Knob) (5 Pack) 20412000005 11.50
79 4 Sems Screw Phillips 8-32 x 5⁄16” (5 mm) R.H.M.S. (For spacer)
(Old # 201449) (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79)
Satin Chrome 20421026D01 11.50
Sems Screw Phillips 8-32 x 5⁄16” (5 mm) R.H.M.S. (For spacer)
(Old # 201449) (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79)
Bright Brass 2042100301 11.50
Sems Screw Phillips 8-32 x 5⁄16” (5 mm) R.H.M.S. (For spacer)
(Old # 201449) (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79)
Antique Brass 2042100501 11.50
80 1 Spacer (Passage Feature for 1031/1041 Models)
(Not shown in exploded view) (10 Pack)
20416000010 11.50
81 1 Standard “T” Strike Plate (Old # 201288 or 204167) Satin Chrome 20422726D01 11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Bright Brass 2042270301 11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Antique Brass 2042270501 11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Bright Chrome 20422702601 11.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-26D)
Satin Chrome 20411926D01 12.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-03)
Bright Brass 2041190301 12.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-05)
Antique Brass 2041190501 12.50
82 1 1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Satin Chrome 20416826D01 41.00
1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Bright Brass 2041680301 41.00
1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Antique Brass 2041680501 41.00
Simplex
1000 Series
Series Simplex
File Guard SeriesLD and LD Series
28
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
82 13⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Bright Brass 2011440301 70.00
3⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Antique Brass 2011440501 70.00
3⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Satin Chrome 20114426D01 70.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Chrome 751852601 41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 751850301 41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Antique Brass 751850501 41.00
83 1 Thread Ring (Old #201282) Satin Chrome 20416926D01 12.50
Thread Ring (Old #201282) Bright Brass 2041690301 12.50
Thread Ring (Old #201282) Antique Brass 2041690501 12.50
84 1 Shoe Retainer and Bridge Assembly 20419900001 40.00
85 1 Shoe Retainer Cap Assembly Satin Chrome 20420026D01 34.00
Shoe Retainer Cap Assembly Bright Chrome 20420002601 34.00
Shoe Retainer Cap Assembly Bright Brass 2042000301 34.00
Shoe Retainer Cap Assembly Antique Brass 2042000501 34.00
86 1 1⁄4” Spacer, Door Thickness Kit
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Satin Chrome 20421026D01 11.50
1⁄4” Spacer, Door Thickness Kit
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Bright Brass 2042100301 11.50
1⁄4” Spacer, Door Thickness Kit
(Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44, #45, #56, #79)
Antique Brass 2042100501 11.50
87 1 Cylindrical Drive Unit Assembly (Includes 1 ea. #14, #63, #68, #75,
#78, #84, #85; 2 ea. #28; 4 ea. #43)
Satin Chrome 20420226D01 109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #14, #63, #68, #75,
#78, #84, #85; 2 ea. #28; 4 ea. #43)
Bright Chrome 20420202601 109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #14, #63, #68, #75,
#78, #84, #85; 2 ea. #28; 4 ea. #43)
Bright Brass 2042020301 109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #14, #63, #68, #75,
#78, #84, #85; 2 ea. #28; 4 ea. #43)
Antique Brass 2042020501 109.50
88 1 Back Plate Assembly (Includes 1 ea. #39, #86, #87; 4 ea. #44)
(Not shown in exploded view)
Satin Chrome 20420326D01 128.50
Back Plate Assembly (Includes 1 ea. #39, #86, #87; 4 ea. #44)
(Not shown in exploded view)
Bright Brass 2042030301 128.50
Back Plate Assembly (Includes 1 ea. #39, #86, #87; 4 ea. #44)
(Not shown in exploded view)
Antique Brass 2042030501 128.50
89 1 Screw Pack (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79) (Not shown in exploded view)
Satin Chrome 20421026D01 11.50
Screw Pack (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79) (Not shown in exploded view)
Bright Brass 2042100301 11.50
Screw Pack (Includes 1 ea. #38, #57; 2 ea. #42, #86; 4 ea. #44,
#45, #56, #79) (Not shown in exploded view)
Antique Brass 2042100501 11.50
90 1 Installation Hardware Kit (Includes 1 ea. #15, #17, #69, #81, #83,
#89; 2 ea. #86) (Not shown in exploded view)
Satin Chrome 20421126D11 41.00
Installation Hardware Kit (Includes 1 ea. #15, #17, #69, #81, #83,
#89; 2 ea. #86) (Not shown in exploded view)
Bright Brass 2042110311 41.00
Installation Hardware Kit (Includes 1 ea. #15, #17, #69, #81, #83,
#89; 2 ea. #86) (Not shown in exploded view)
Antique Brass 2042110511 41.00
Simplex
1000 Series
29
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Additional Kits & Accessories Finish Part Number Li Price (USD)
Rubber Knob Insert Kit for Die Cast Knobs 6479200001 $11.00
Lubriplate Aero Grease Tubes 6475400001 $14.50
Best Key Override Spacer (not shown) 3800-00-3007 $24.00
Sargent Key Override Spacer (not shown) 20402800001 $24.00
Corbin-Russwin Key Override Spacer (not shown) 20402900001 $24.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Bright Brass 2014840301 $64.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Antique Brass 2014840501 $64.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Satin Chrome 20148426D01 $64.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Satin Chrome 20423126D41 $70.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Bright Brass 2042310341 $70.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Antique Brass 2042310541 $70.00
Wrap Plate, 15” (381mm) x 5” (127mm) Satin Chrome 20423226D41 $99.00
Wrap Plate, 15” (381mm) x 5” (127mm) Bright Brass 2042320341 $99.00
Wrap Plate, 15” (381mm) x 5” (127mm) Antique Brass 2042320541 $99.00
Anti-Spy Shield (1000/L1000 Series) Black 20160008301 $44.00
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $58.50
Latch Extension Assembly - Converts to 3 3/4” (95mm) backset 20402200001 $35.00
Latch Extension Assembly - Converts to 5” (130mm) backset 20402300001 $31.00
Installation Jig (for use with 5000/1000/L1000/E5000) 6468426D01 $405.00
Simplex 1000/L1000 Cylindrical Wood Demo Mount
(lock not included)
20304400041 $165.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC
fire rating for “A” labeled doors. 2 3⁄4” (70 mm) backset
Bright Brass 2016050301 $66.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC
fire rating for “A” labeled doors. 2 3⁄4” (70 mm) backset
Antique Brass 2016050501 $66.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC
fire rating for “A” labeled doors. 2 3⁄4” (70 mm) backset
Satin Chrome 20160526D01 $66.00
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout)(old #1000-14-03) Bright Brass 2018210301 $44.00
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout)(old #1000-14-05) Antique Brass 2018210501 $44.00
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout)(old #1000-14-26D) Satin Chrome 20182126D01 $44.00
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076
privacy Model only)
Bright Brass 2040040301 $66.00
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076
privacy Model only)
Antique Brass 2040040501 $66.00
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076
privacy Model only)
Satin Chrome 20400426D01 $66.00
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Satin Chrome 5507126D01 $38.50
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Bright Brass 550710301 $38.50
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Antique Brass 550710501 $38.50
Simplex
1000 Series
Notes:
• Removable core cylinders are not included. Best equivalent core is available – see above.
• Lubriplate Aero grease is the “only” lubricant that should be used.
Series Simplex
File Guard SeriesLD and LD Series
30
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Knob Conversion Assembly Finish Part Number Li Price (USD)
Corbin / Russwin Conversion Assembly (C)
(Includes 1 ea. #22, #32, #34, #47, #51)
Satin Chrome 20141726D01 $144.00
Corbin / Russwin Conversion Assembly (C)
(Includes 1 ea. #22, #32, #34, #47, #51)
Bright Chrome 20141702601 $144.00
Corbin / Russwin Conversion Assembly (C)
(Includes 1 ea. #22, #32, #34, #47, #51)
Bright Brass 2014170301 $144.00
Corbin / Russwin Conversion Assembly (C)
(Includes 1 ea. #22, #32, #34, #47, #51)
Antique Brass 2014170501 $144.00
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) (Includes 1 ea. #22, #29, #30, #34, #51)
Satin Chrome 20149026D01 $144.00
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) (Includes 1 ea. #22, #29, #30, #34, #51)
Bright Chrome 20149002601 $144.00
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) (Includes 1 ea. #22, #29, #30, #34, #51)
Bright Brass 2014900301 $144.00
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) (Includes 1 ea. #22, #29, #30, #34, #51)
Antique Brass 2014900501 $144.00
ASSA / Medeco / Yale Conversion Assembly-Request Spacer 201569
for 5-pin Medeco. (M) (Includes 1 ea. #22, #34, #51, #52, #53)
Satin Chrome 20151926D01 $144.00
ASSA / Medeco / Yale Conversion Assembly-Request Spacer 201569
for 5-pin Medeco. (M) (Includes 1 ea. #22, #34, #51, #52, #53)
Bright Chrome 20151902601 $144.00
ASSA / Medeco / Yale Conversion Assembly-Request Spacer 201569
for 5-pin Medeco. (M) (Includes 1 ea. #22, #34, #51, #52, #53)
Bright Brass 2015190301 $144.00
ASSA / Medeco / Yale Conversion Assembly-Request Spacer 201569
for 5-pin Medeco. (M) (Includes 1 ea. #22, #34, #51, #52, #53)
Antique Brass 2015190501 $144.00
Sargent Conversion Assembly (R) (Includes 1 ea. #22, #34,
#49, #50, #51)
Satin Chrome 20153226D01 $144.00
Sargent Conversion Assembly (R) (Includes 1 ea. #22, #34,
#49, #50, #51)
Bright Chrome 20153202601 $144.00
Sargent Conversion Assembly (R) (Includes 1 ea. #22, #34,
#49, #50, #51)
Bright Brass 2015320301 $144.00
Sargent Conversion Assembly (R) (Includes 1 ea. #22, #34,
#49, #50, #51)
Antique Brass 2015320501 $144.00
Schlage Conversion Assembly (S) (Includes 1 ea. #22, #34
#51, #54, #55)
Satin Chrome 20155826D01 $144.00
Schlage Conversion Assembly (S) (Includes 1 ea. #22, #34
#51, #54, #55)
Bright Chrome 20155802601 $144.00
Schlage Conversion Assembly (S) (Includes 1 ea. #22, #34
#51, #54, #55)
Bright Brass 2015580301 $144.00
Schlage Conversion Assembly (S) (Includes 1 ea. #22, #34
#51, #54, #55)
Antique Brass 2015580501 $144.00
Use these conversion assemblies to convert an existing 1000 Series lock from standard to key override, or from one key override to another.
Time Mode Option Parts Finish Part Number Li Price (USD)
Pneumatic Timer with Microswitch 20021000001 $264.00
Modified Chamber Link 20157500001 $24.00
Pneumatic Timer without Microswitch 20157700001 $192.50
Spacer 20157800001 $5.50
Modified Cover Plate Assembly 20158000001 $34.00
Parts availability may be limited on older component parts no longer used in production units.
Simplex
1000 Series
31
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
32
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
L1000 Series
Note: Older model locks used knob insert (27, 31, 48) to the right. Current production is more represented by model on left.
Key Override Models
Medeco/ASSA/Yale/Schlage
Key Override Models
Best & Equivalents Corbin/
Russwin/Sargent
41
25 1
56
66
3
65
28
55
73
967
12
10
83
20
44
26
43
42
11
38
2
40
48
52
16
65
21 75
65
85
27 76
15 15
53 53
11 11
61
60 69
63
57 68 62
49 64
58
50 59
Right Hand
Clutch
33
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
L1000 Series
See Page 6 for
How to Order instructions
L1000 Series Service Kit
LH Clutch
Assembly
Fixed Sleeve Combination
Chamber
K/O Drive Shaft
Lever Return SpringChamber Shaft BushingStandard
Drive Shaft
Item Part Number Li Price (USD)
L1000 Series Service Kit
(Left Hand)
203038-000-01 $165.00
• LH Clutch Assembly
• Fixed Sleeve
• Combination Chamber
• K/O Drive Shaft
• Standard Drive Shaft
• Lever Return Spring
• Chamber Shaft Bushing
• LH Stop Plate
777
78
6
35
22
22
18 47
8
14
30 31
79
36
34
19
5
82
74
13
45
29
70
81
32
46
84
51
54
Item Part Number Li Price (USD)
L1000 Series Service Kit
(Right Hand)
203037-000-01 $165.00
• RH Clutch Assembly
• Fixed Sleeve
• Combination Chamber
• K/O Drive Shaft
• Standard Drive Shaft
• Lever Return Spring
• Chamber Shaft Bushing
• RH Stop Plate
Left Hand Kit Shown
LH Stop Plate
Series Simplex
File Guard SeriesLD and LD Series
34
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Combination Chamber (M-63/M-56) (Old # 201764-000-0) 7436600001 $95.50
2 5 Pushbuttons (10 Pack) Black 20002410610 $12.50
Pushbuttons (10 Pack) Silver 20002410910 $12.50
3 1 Bushing, Shaft (5 Pack) 20002600005 $11.50
5 1 Cover for Shoe Housing 20127700001 $11.50
6 1 Installation Wrench (spanner wrench) - Code Change Tool Kit
(Includes 1 ea. #6, #8)
20127800001 $10.50
7 1 Strike Box 20128700001 $9.50
8 1 DF-59 Key - Code Change Tool Kit (Includes 1 ea. #6, #8) 20127800001 $10.50
9 1 Combination Change Stud - Combination Change Actuator Kit
(Includes 1 ea. #9, #10, #12, #16)
20133600001 $12.50
10 1 Combination Change Sleeve - Combination Change Actuator Kit
(Includes 1 ea. #9, #10, #12, #16)
20133600001 $12.50
11 1 Front Knob Retainer Clip (5 Pack) 20134300005 $11.50
12 1 Combination Change Sleeve Washer - Combination Change Actuator
Kit (Includes 1 ea. #9, #10, #12, #16)
20133600001 $12.50
13 2 Shoe Spring (For Cylindrical Drive Unit) (10 Pack) 20136600010 $10.50
14 1 Key DF-5 (For Passage Set) (2 Pack) 20142200002 $8.00
15 1 Shaft Self-Aligning Bushing (For Models 1021 & 1041) 20142500001 $10.50
16 1 Retainer Ring 3⁄8” I.D. (10 Pack) 20144000010 $11.50
18 2 Screw, 8-32 x 2 1⁄2” (For Mounting)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Satin Chrome 20421026D01 $11.50
Screw, 8-32 x 2 1⁄2” (For Mounting)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Bright Brass 2042100301 $11.50
Screw, 8-32 x 2 1⁄2” (For Mounting)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Antique Brass 2042100501 $11.50
19 4 Sems Screw, Phillips 6-32 x 1⁄4” R.H.M.S.
(For Shoe Housing Cover) (10 Pack)
20144600010 $8.00
20 4 Sems Screw, Phillips 8-32 x 7⁄16” R.H.M.S. (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Satin Chrome 20421026D01 $11.50
Sems Screw, Phillips 8-32 x 7⁄16” R.H.M.S. (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Bright Brass 2042100301 $11.50
Sems Screw, Phillips 8-32 x 7⁄16” R.H.M.S. (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Antique Brass 2042100501 $11.50
21 4 Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Satin Chrome 20421026D01 $11.50
Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Bright Brass 2042100301 $11.50
Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S (For Spacer)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, 21, #22, #75)
Antique Brass 2042100501 $11.50
22 4 Combination Screw, Phillips 8-32 x 3⁄4”
(For latch and strike plate) (10 Pack)
Satin Chrome 20156526D10 $11.50
Combination Screw, Phillips 8-32 x 3⁄4”
(For latch and strike plate) (10 Pack)
Bright Brass 2015650310 $11.50
Combination Screw, Phillips 8-32 x 3⁄4”
(For latch and strike plate) (10 Pack)
Antique Brass 2015650510 $11.50
23 1 Rubber Bumper (For Door Frame) (Self Adhesive Strip of 4) (5 Pack) 20156800005 $11.50
24 1 Spacer for Medeco 5 - 6 pin Medeco/ASSA 20156900001 $17.50
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
35
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
25 1 Front Lock Housing Satin Chrome 20170026D01 $87.50
Front Lock Housing Bright Chrome 20170002601 $87.50
Front Lock Housing Bright Brass 2017000301 $87.50
Front Lock Housing Antique Brass 2017000501 $87.50
26 1 Clutch Backing Plate 20170800001 $10.50
27 1 Double Wave Spring - Clutch Spring Kit (Includes 1 ea. #27, #40) 20176800001 $11.50
28 1 Guide Bracket 20172100001 $9.50
29 1 Retractor Shoe 20172300001 $11.50
30 1 Inside Lever Fixed Sleeve - RH - Fixed Sleeve Kit (Includes 1 ea. #30,
#31,#32)
20172700001 $42.00
Inside Lever Fixed Sleeve - LH- Fixed Sleeve Kit (Includes 1 ea. #30,
#31,#32)
20173300001 $42.00
31 1 Inside Lever Coil Return Spring - RH 20173000001 $11.50
Inside Lever Coil Return Spring - LH 20173200001 $11.50
32 1 Inside Lever Fixed Sleeve Retainer Clip 20173400001 $8.00
33 1 Unified Trim Plate - Standard (Not Shown on Exploded View) Satin Chrome 20173626D01 $37.00
Unified Trim Plate - Standard (Not Shown on Exploded View) Bright Chrome 20173602601 $37.00
Unified Trim Plate - Standard (Not Shown on Exploded View) Bright Brass 2017360301 $37.00
Unified Trim Plate - Standard (Not Shown on Exploded View) Antique Brass 2017360501 $37.00
34 1 Reinforcing Plate 20173800001 $12.50
35 1 Passage Spring Clip (10 Pack) 20174000010 $11.50
36 1 Unified Trim Plate - Passage Set Model Satin Chrome 20174526D01 $37.00
Unified Trim Plate - Passage Set Model Bright Chrome 20174502601 $37.00
Unified Trim Plate - Passage Set Model Bright Brass 2017450301 $37.00
Unified Trim Plate - Passage Set Model Antique Brass 2017450501 $37.00
38 1 Outside Lever Return Spring - Stop Plate Kit - RH (Includes 1 ea. #38, #43) 20177300001 $16.50
Outside Lever Return Spring - Stop Plate Kit - LH (Includes 1 ea. #38, #43) 20177400001 $16.50
40 1 Balance Spring - Clutch Spring Kit (Includes 1 ea. #27, #40) 20176800001 $11.50
41 1 Outside Lever Handle Assembly Non Key Override* - Right Handed Satin Chrome 20177026D01 $115.50
Outside Lever Handle Assembly Non Key Override* - Right Handed Bright Chrome 20177002601 $115.50
Outside Lever Handle Assembly Non Key Override* - Right Handed Bright Brass 2017700301 $115.50
Outside Lever Handle Assembly Non Key Override* - Right Handed Antique Brass 2017700501 $115.50
Outside Lever Handle Assembly Non Key Override* - Left Handed Satin Chrome 20177126D01 $115.50
Outside Lever Handle Assembly Non Key Override* - Left Handed Bright Chrome 20177102601 $115.50
Outside Lever Handle Assembly Non Key Override* - Left Handed Bright Brass 2017710301 $115.50
Outside Lever Handle Assembly Non Key Override* - Left Handed Antique Brass 2017710501 $115.50
42 1 Outside Drive Sleeve Assembly Non Key Override (Includes 1 ea. #11, #42) 20177200001 $28.00
43 1 Stop Plate - Stop Plate Kit - RH (Includes 1 ea. #38, #43) 20177300001 $16.50
Stop Plate - Stop Plate Kit - LH (Includes 1 ea. #38, #43) 20177400001 $16.50
44 1 Clutch Cover Assembly - Right Handed 20178000001 $12.50
Clutch Cover Assembly - Left Handed 20178100001 $12.50
45 1 Inside Drive Sleeve Assembly (Includes 1 ea. #45, #74) 20178200001 $17.50
46 1 Inside Lever - Inside Lever Kit - RH (Includes 1 ea. #30, #31, #32, #46) Satin Chrome 20178526D01 $146.00
Inside Lever - Inside Lever Kit - RH (Includes 1 ea. #30, #31, #32, #46) Bright Chrome 20178502601 $146.00
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
Series Simplex
File Guard SeriesLD and LD Series
36
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
46 1 Inside Lever - Inside Lever Kit - RH (Includes 1 ea. #30, #31, #32, #46) Bright Brass 2017850301 $146.00
Inside Lever - Inside Lever Kit - RH (Includes 1 ea. #30, #31, #32, #46) Antique Brass 2017850501 $146.00
Inside Lever - Inside Lever Kit - LH (Includes 1 ea. #30, #31, #32, #46) Satin Chrome 20178626D01 $146.00
Inside Lever - Inside Lever Kit - LH (Includes 1 ea. #30, #31, #32, #46) Bright Chrome 20178602601 $146.00
Inside Lever - Inside Lever Kit - LH (Includes 1 ea. #30, #31, #32, #46) Bright Brass 2017860301 $146.00
Inside Lever - Inside Lever Kit - LH (Includes 1 ea. #30, #31, #32, #46) Antique Brass 2017860501 $146.00
47 1Combination Change Plug Assembly with (2) DF59 keys (Includes 2 ea. #8) Satin Chrome 20178726D01 $19.50
Combination Change Plug Assembly with (2) DF59 keys (Includes 2 ea. #8) Bright Brass 2017870301 $19.50
Combination Change Plug Assembly with (2) DF59 keys (Includes 2 ea. #8) Antique Brass 2017870501 $19.50
48 1 Clutch Assembly - RH (Includes 1 ea. #27, #40, #48) 20178800001 $58.50
Clutch Assembly - LH (Includes 1 ea. #27, #40, #48) 20178900001 $58.50
49 1 Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - RH
Satin Chrome 20179026D01 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - RH
Bright Chrome 20179002601 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - RH
Bright Brass 2017900301 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - RH
Antique Brass 2017900501 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - LH
Satin Chrome 20179126D01 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - LH
Bright Chrome 20179102601 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - LH
Bright Brass 2017910301 $177.00
Best Outside Lever Assembly* (Also fits Falcon / Arrow /
Eagle & KSP / Lloyd Matheson Removable Core) - LH
Antique Brass 2017910501 $177.00
50 1 Best Outside Drive Sleeve Assembly (Also fits Falcon / Arrow / Eagle &
KSP / Lloyd Matheson Removable Core) (Includes 1 ea. #11, #50)
20179200001 $38.50
51 1 Passage Set Thumbturn Plug Assembly (Includes 1 ea. #35, #51) Satin Chrome 20180726D01 $19.50
Passage Set Thumbturn Plug Assembly (Includes 1 ea. #35, #51) Bright Brass 2018070301 $19.50
Passage Set Thumbturn Plug Assembly (Includes 1 ea. #35, #51) Antique Brass 2018070501 $19.50
52 1 Drive Shaft Assembly for Non Key Override (Standard) 20181200001 $17.50
53 1 Drive Shaft Assembly for Key Override 20181300001 $21.00
54 1 Passage Set Key Turn Plug Assembly with (2) DF-5 keys Satin Chrome 20181826D01 $19.50
Passage Set Key Turn Plug Assembly with (2) DF-5 keys Bright Brass 2018180301 $19.50
Passage Set Key Turn Plug Assembly with (2) DF-5 keys Antique Brass 2018180501 $19.50
55 1 Chamber Release Cam - Passage Kit (Includes 1 ea. #16, #55, #56)
(For Passage Set)
20182500001 $23.50
56 1 Chamber Release - Passage Kit (Includes 1 ea. #16, #55, #56)
(For Passage Set)
20182500001 $23.50
57 1 Schlage Outside Lever Assembly - RH Satin Chrome 20182926D01 $177.00
Schlage Outside Lever Assembly - RH Bright Chrome 20182902601 $177.00
Schlage Outside Lever Assembly - RH Bright Brass 2018290301 $177.00
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
37
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
57 1 Schlage Outside Lever Assembly - RH Antique Brass 2018290501 $177.00
Schlage Outside Lever Assembly - LH Satin Chrome 20183026D01 $177.00
Schlage Outside Lever Assembly - LH Bright Chrome 20183002601 $177.00
Schlage Outside Lever Assembly - LH Bright Brass 2018300301 $177.00
Schlage Outside Lever Assembly - LH Antique Brass 2018300501 $177.00
58 1 Sargent Outside Drive Sleeve Assembly (Includes 1 ea. #11, #58) 20183100001 $49.00
59 1Corbin / Russwin Outside Drive Sleeve Assembly (Includes 1 ea. #11, #59) 20183200001 $49.00
60 1 Schlage Outside Drive Sleeve Assembly (Includes 1 ea. #11, #60) 20184000001 $49.00
61 1 Medeco / ASSA / Yale Outside Drive Sleeve Assembly (Old ASSA
#204010) (Includes 1 ea. #11, #61)
20184200001 $49.00
62 1 Sargent Outside Lever Assembly - RH Satin Chrome 20192526D01 $177.00
Sargent Outside Lever Assembly - RH Bright Chrome 20192502601 $177.00
Sargent Outside Lever Assembly - RH Bright Brass 2019250301 $177.00
Sargent Outside Lever Assembly - RH Antique Brass 2019250501 $177.00
Sargent Outside Lever Assembly - LH Satin Chrome 20192626D01 $177.00
Sargent Outside Lever Assembly - LH Bright Chrome 20192602601 $177.00
Sargent Outside Lever Assembly - LH Bright Brass 2019260301 $177.00
Sargent Outside Lever Assembly - LH Antique Brass 2019260501 $177.00
63 1 Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) RH
Satin Chrome 20192726D01 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) RH
Bright Chrome 20192702601 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) RH
Bright Brass 2019270301 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) RH
Antique Brass 2019270501 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) LH
Satin Chrome 20192826D01 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) LH
Bright Chrome 20192802601 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) LH
Bright Brass 2019280301 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Old #s for ASSA
204008 RH, 204009 LH) LH
Antique Brass 2019280501 $177.00
64 1 Corbin / Russwin Outside Lever Assembly - RH Satin Chrome 20192926D01 $177.00
Corbin / Russwin Outside Lever Assembly - RH Bright Chrome 20192902601 $177.00
Corbin / Russwin Outside Lever Assembly - RH Bright Brass 2019290301 $177.00
Corbin / Russwin Outside Lever Assembly - RH Antique Brass 2019290501 $177.00
Corbin / Russwin Outside Lever Assembly - LH Satin Chrome 20193026D01 $177.00
Corbin / Russwin Outside Lever Assembly - LH Bright Chrome 20193002601 $177.00
Corbin / Russwin Outside Lever Assembly - LH Bright Brass 2019300301 $177.00
Corbin / Russwin Outside Lever Assembly - LH Antique Brass 2019300501 $177.00
65 5 Sems Screw, Phillips 6-32 x 7⁄16” (11 mm) R.H.M.S. (For clutch cover,
clutch backing plate, and guide bracket) (Old # 201448-022-10)
(Includes 10 ea. #65, #66, #67) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
66 2 Sems Screw, Phillips 6-32 x 5⁄16” (8 mm) R.H.M.S. (For comb. cham-
ber) (Old # 201447-022-10) (Includes 10 ea. #65, #66, #67) Screw
Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
Series Simplex
File Guard SeriesLD and LD Series
38
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
67 6 Screw Phillips 6-32 x 3⁄8” F.H.M.S. (For Back Plate)
( Old # 201444-022-10) (Includes 10 ea. #65, #66, #67) Screw Pack
(10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
69 1 ASSA Outside Drive Sleeve Assembly (Includes 1 ea. #11, #69) 20401000001 $49.00
70 1 Drive Insert 20401500001 $24.50
74 1 Inside Knob Retainer Clip (Old # 201344) (5 Pack) 20412000005 $11.50
75 4 Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S. (For spacer) (Old # 201449)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Satin Chrome 20421026D01 $11.50
Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S. (For spacer) (Old # 201449)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Bright Brass 2042100301 $11.50
Sems Screw, Phillips 8-32 x 5⁄16” R.H.M.S. (For spacer) (Old # 201449)
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Antique Brass 2042100501 $11.50
76 1 Cross Pin .100” (2.5 mm) x .500 (1.27 mm) long
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Satin Chrome 20421026D01 $11.50
Cross Pin .100” (2.5 mm) x .500 (1.27 mm) long
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Bright Brass 2042100301 $11.50
Cross Pin .100” (2.5 mm) x .500 (1.27 mm) long
(Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21, #22, #75)
Antique Brass 2042100501 $11.50
77 1 Standard “T” Strike Plate (Old # 201288 or 204167) Satin Chrome 20422726D01 $11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Bright Brass 2042270301 $11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Antique Brass 2042270501 $11.50
Standard “T” Strike Plate (Old # 201288 or 204167) Bright Chrome 20422702601 $11.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-26D)
Satin Chrome 20411926D01 $12.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-03)
Bright Brass 2041190301 $12.50
ASA Strike (For 4 7⁄8” (105 mm) long cutout)
(Old # 201413 or 1000-15-05)
Antique Brass 2041190501 $12.50
78 1 1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Satin Chrome 20416826D01 $41.00
1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Bright Brass 2041680301 $41.00
1⁄2” (13 mm) Floating Front Throw Latch 2 3⁄4” (70 mm) Backset Antique Brass 2041680501 $41.00
3⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Satin Chrome 20114426D01 $70.00
3⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Bright Brass 2011440301 $70.00
3⁄4” (19mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front.
Antique Brass 2011440501 $70.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Satin Chrome 7518526D01 $41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Bright Brass 751850301 $41.00
Latch 1⁄2” Floating Face, 2 3/8” Backset - 3 Hour Fire Rated
(Includes Screws)
Antique Brass 751850501 $41.00
79 1 Thread Ring Satin Chrome 20416926D01 $12.50
Thread Ring Bright Chrome 20416902601 $12.50
Thread Ring Bright Brass 2041690301 $12.50
Thread Ring Antique Brass 2041690501 $12.50
81 1 Shoe Retainer and Bridge Assembly 20419900001 $40.00
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
39
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
L1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
82 1 Shoe Retainer Cap Assembly Satin Chrome 20420026D01 $34.00
Shoe Retainer Cap Assembly Bright Chrome 20420002601 $34.00
Shoe Retainer Cap Assembly Bright Brass 2042000301 $34.00
Shoe Retainer Cap Assembly Antique Brass 2042000501 $31.50
83 1 1⁄4” Spacer, Door Thickness (Old # 201449) (Includes 1 ea. #23, #76; 2
ea. #18, #83; 4 ea. #20, #21, #22, #75)
Satin Chrome 20421026D01 $11.50
1⁄4” Spacer, Door Thickness (Old # 201449) (Includes 1 ea. #23, #76; 2
ea. #18, #83; 4 ea. #20, #21, #22, #75)
Bright Brass 2042100301 $11.50
1⁄4” Spacer, Door Thickness (Old # 201449) (Includes 1 ea. #23, #76; 2
ea. #18, #83; 4 ea. #20, #21, #22, #75)
Antique Brass 2042100501 $11.50
84 1 Cylindrical Drive Unit Assembly (Includes 1 ea. #5, #29, #45, #70, #74,
#81, #82; 2 ea. #13; 4 ea. #19)
Satin Chrome 20420226D01 $109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #5, #29, #45, #70, #74,
#81, #82; 2 ea. #13; 4 ea. #19)
Bright Chrome 20420202601 $109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #5, #29, #45, #70, #74,
#81, #82; 2 ea. #13; 4 ea. #19)
Bright Brass 2042020301 $109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #5, #29, #45, #70, #74,
#81, #82; 2 ea. #13; 4 ea. #19)
Antique Brass 2042020501 $109.50
85 1 Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - LH Satin Chrome 20420426D01 $128.50
Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - LH Bright Brass 2042040301 $128.50
Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - LH Antique Brass 2042040501 $128.50
Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - RH Satin Chrome 20420526D01 $128.50
Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - RH Bright Brass 2042050301 $128.50
Back Plate Assembly (Includes 1 ea. #73, #83, #84; 4 ea. #20) - RH Antique Brass 2042050501 $128.50
86 1 Screw Pack (Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21,
#22, #75) (Not shown in exploded view)
Satin Chrome 20421026D01 $11.50
Screw Pack (Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21,
#22, #75) (Not shown in exploded view)
Bright Brass 2042100301 $11.50
Screw Pack (Includes 1 ea. #23, #76; 2 ea. #18, #83; 4 ea. #20, #21,
#22, #75) (Not shown in exploded view)
Antique Brass 2042100501 $11.50
87 1 Installation Hardware Kit (Includes 1 ea. #6, #7, #47, #77, #79, #86; 2
ea. #83) (Not shown in exploded view)
Satin Chrome 20421126D11 $41.00
Installation Hardware Kit (Includes 1 ea. #6, #7, #47, #77, #79, #86; 2
ea. #83) (Not shown in exploded view)
Bright Brass 2042110311 $41.00
Installation Hardware Kit (Includes 1 ea. #6, #7, #47, #77, #79, #86; 2
ea. #83) (Not shown in exploded view)
Antique Brass 2042110511 $41.00
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Best Key Override Spacer (not shown) 3800-00-3007 $25.50
Sargent Key Override Spacer (not shown) 20402800001 $25.50
Corbin-Russwin Key Override Spacer (not shown) 20402900001 $25.50
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder
(Sold international only, not available for U.S.)
Satin Chrome 20148426D01 $68.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Satin Chrome 20423126D41 $74.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Bright Brass 2042310341 $74.00
Wrap Plate, 10.5” (267mm) x 5” (127mm) Antique Brass 2042340541 $70.00
Series Simplex
File Guard SeriesLD and LD Series
40
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
L1000 Series
Additional Kits & Accessories Finish Part Number Li Price (USD)
Wrap Plate, 15” (381mm) x 5” (127mm) Satin Chrome 20423226D41 $105.00
Wrap Plate, 15” (381mm) x 5” (127mm) Bright Brass 2042320341 $105.00
Wrap Plate, 15” (381mm) x 5” (127mm) Antique Brass 2012320541 $99.00
Anti-Spy Shield (1000/L1000 Series) Black 20160008301 $46.50
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $62.00
Latch Extension Assembly - Converts to 3 3/4” (95mm) backset 20402200001 $37.00
Latch Extension Assembly - Converts to 5” (130mm) backset 20402300001 $33.00
Installation Jig (for use with E5000/5000/1000/L1000) 6468426D01 $429.50
Simplex 1000/L1000 Cylindrical Wood Demo Mount (lock not included) 20304400041 $175.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset
Bright Brass 2016050301 $70.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset
Antique Brass 2016050501 $70.00
3⁄4” (19 mm) Flat Front Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset
Satin Chrome 20160526D01 $70.00
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout) (old #1000-14-03) Bright Brass 2018210301 $46.50
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout) (old #1000-14-05) Antique Brass 2018210501 $46.50
ASA Roller Strike (For 4 7⁄8” (105 mm) long cutout) (old #1000-14-26D) Satin Chrome 20182126D01 $46.50
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076 privacy
Model only)
Bright Brass 2040040301 $70.00
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076 privacy
Model only)
Antique Brass 2040040501 $70.00
3⁄4” (19 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A”
labeled doors. 2 3⁄4” (70 mm) backset. Beveled front. (For L1076 privacy
Model only)
Satin Chrome 20400426D01 $70.00
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A” la-
beled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Satin Chrome 5507126D01 $41.00
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A” la-
beled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Bright Brass 550710301 $41.00
1⁄2” (13 mm) Brass Latch - carries 3-hour UL/ULC fire rating for “A” la-
beled doors. 2 3⁄4” (70 mm) backset. Fixed beveled front face.
Antique Brass 550710501 $41.00
Lever Conversion Assemblies Finish Part Number Li Price (USD)
Schlage Conversion Assembly (S) - RH Satin Chrome 20184526D01 $186.50
Schlage Conversion Assembly (S) - RH Bright Chrome 20184502601 $186.50
Schlage Conversion Assembly (S) - RH Bright Brass 2018450301 $186.50
Schlage Conversion Assembly (S) - RH Antique Brass 2018450501 $186.50
Schlage Conversion Assembly (S) - LH Satin Chrome 20184626D01 $186.50
Schlage Conversion Assembly (S) - LH Bright Chrome 20184602601 $186.50
Schlage Conversion Assembly (S) - LH Bright Brass 2018460301 $186.50
Schlage Conversion Assembly (S) - LH Antique Brass 2018460501 $186.50
Sargent Conversion Assembly (R) - RH Satin Chrome 20193126D01 $186.50
Sargent Conversion Assembly (R) - RH Bright Chrome 20193102601 $186.50
Sargent Conversion Assembly (R) - RH Bright Brass 2019310301 $186.50
Sargent Conversion Assembly (R) - RH Antique Brass 2019310501 $186.50
Sargent Conversion Assembly (R) - LH Satin Chrome 20193226D01 $186.50
Sargent Conversion Assembly (R) - LH Bright Chrome 20193202601 $186.50
*When ordering an outside lever assembly for older locks, it may be necessary to order a respective outside drive sleeve assembly.
(See Conversion Assemblies)
41
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
L1000 Series
Lever Conversion Assemblies Finish Part Number Li Price (USD)
Sargent Conversion Assembly (R) - LH Bright Brass 2019320301 $186.50
Sargent Conversion Assembly (R) - LH Antique Brass 2019320501 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - RH
Satin Chrome 20193326D01 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - RH
Bright Chrome 20193302601 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - RH
Bright Brass 2019330301 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - RH
Antique Brass 2019330501 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - LH
Satin Chrome 20193426D01 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - LH
Bright Chrome 20193402601 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - LH
Bright Brass 2019340301 $186.50
Medeco / ASSA / Yale Conversion Assembly -
Request Spacers 201569 for 5 - 6 pin Medeco/ASSA. (M)
(Old # for ASSA 204013 RH, 204014 LH) - LH
Antique Brass 2019340501 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - RH
Satin Chrome 20193526D01 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - RH
Bright Chrome 20193502601 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - RH
Bright Brass 2019350301 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - RH
Antique Brass 2019350501 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - LH
Satin Chrome 20193626D01 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - LH
Bright Chrome 20193602601 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - LH
Bright Brass 2019360301 $186.50
Best / Falcon / Arrow / Eagle / KSP / Lloyd Matheson
Conversion Assembly (B) - LH
Antique Brass 2019360501 $186.50
Corbin / Russwin Conversion Assembly (C) - RH Satin Chrome 20193726D01 $186.50
Corbin / Russwin Conversion Assembly (C) - RH Bright Chrome 20193702601 $186.50
Corbin / Russwin Conversion Assembly (C) - RH Bright Brass 2019370301 $186.50
Corbin / Russwin Conversion Assembly (C) - RH Antique Brass 2019370501 $186.50
Corbin / Russwin Conversion Assembly (C) - LH Satin Chrome 20193826D01 $186.50
Corbin / Russwin Conversion Assembly (C) - LH Bright Chrome 20193802601 $186.50
Corbin / Russwin Conversion Assembly (C) - LH Bright Brass 2019380301 $186.50
Corbin / Russwin Conversion Assembly (C) - LH Antique Brass 2019380501 $186.50
Use these conversion assemblies to convert an existing L1000 Series lock from standard to key override, or from one key override to another.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
42
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

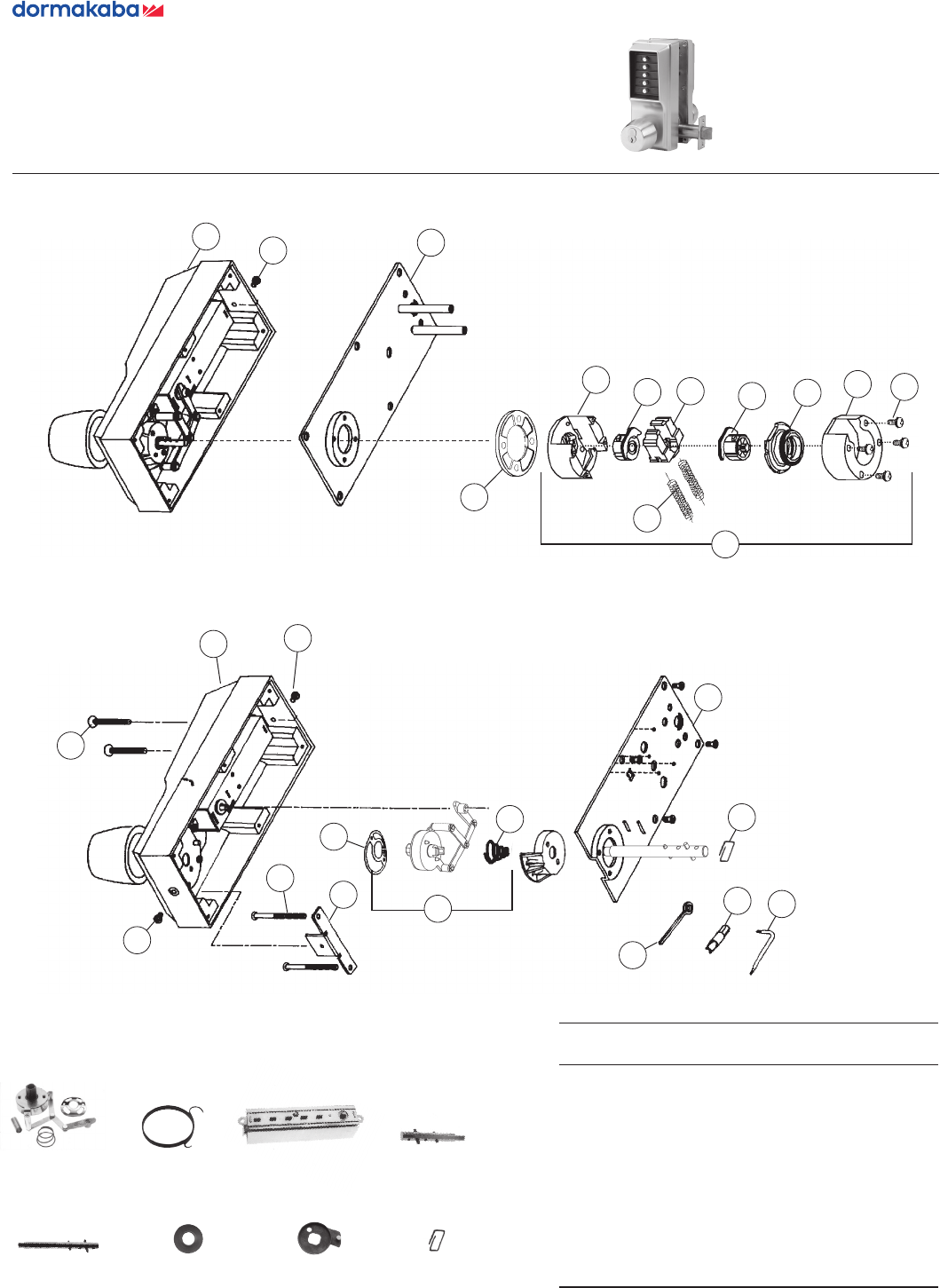

Simplex
EE1000 Series
Outside
Inside
17 714
22 19 21 20 25 6
4
5
23
11
7
10
16 7
9
3
27
13
2
12
15
1
18
24
See Page 6 for
How to Order instructions
EE1000 Series Service Kit
Combination
Chamber
K/O Drive Shaft
Chamber Shaft BushingStandard
Drive Shaft
Item Part Number Li Price
(USD)
EE1000 Series Service Kit 203036-000-01 $125.00
• Chamber Shaft Bushing
• Clutch Assembly
• Combination Chamber
• Drive Shaft (No Key Override)
• Drive Shaft (Key Override)
• Drive Shaft Retainer Clip
• Return Spring
• Stop Plate
Shaft Retainer Clip (must be used)
* Requires two (2) kits to service both sides of lock
Stop Plate
Knob Return Spring
Shaft Retainer
Clip
Clutch Assembly
43
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
EE1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Torx Anti-Tamper Wrench - Code Change Tool/Screw Kit
(Includes 1 ea. #1, #2, #7)
Satin Chrome 7454326D01 $14.00
Torx Anti-Tamper Wrench - Code Change Tool/Screw Kit
(Includes 1 ea. #1, #2, #7)
Bright Brass 745430301 $14.00
2 1 Code Change Tool - Code Change Tool/Screw Kit
(Includes 1 ea. #1, #2, #7
Satin Chrome 7454326D01 $14.00
Code Change Tool - Code Change Tool/Screw Kit
(Includes 1 ea. #1, #2, #7
Bright Brass 745430301 $14.00
3 1 Double Wave Spring - Clutch Spring Kit (Includes 1 ea. #3, #27) 20101600001 $11.50
4 1 Cover for Shoe Housing 20127700001 $11.50
5 2 Shoe Springs 20136600010 $10.50
6 4 Sems screw Phillips 6-32 x 1⁄4” (11 mm) R.H.M.S. (for shoe housing cover) 20144600010 $8.00
7 1 Combination Change Screw Satin Chrome 20187126D05 $14.00
Combination Change Screw Bright Brass 2018710305 $14.00
Combination Change Screw Antique Brass 2018710505 $14.00
8 1 Combination Change Bracket (For use on older models only) 20188200001 $12.50
9 1 Lock Mounting Bracket 20190500001 $21.00
10 2 Flat Phillips Head Screw 2 15⁄16” x 1⁄32” 20190600002 $17.50
11 2 Spanner Screw – Tamper Proof 20190700010 $28.00
12 1 2-#10 Size Insert Bit (fits #11) 20191100002 $42.00
13 1 Inside Lock Cover Plate Assembly 20191200001 $57.00
14 1 Outside Lock Cover Plate Assembly 20191600001 $51.50
15 1 Retainer Clip (Drive Shaft) 20191800002 $11.50
16 1 Housing (Inside) Satin Chrome 20192326D01 $101.00
Housing (Inside) Bright Brass 2019230301 $101.00
Housing (Inside) Antique Brass 2019230501 $101.00
17 1 Housing (Outside) Satin Chrome 20192426D01 $101.00
Housing (Outside) Bright Brass 2019240301 $101.00
Housing (Outside) Antique Brass 2019240501 $101.00
18 1 Clutch Assembly (EE1000 Only) (Includes 1 ea. #3, #18, #27) 20195600001 $42.00
19 1 Drive Insert 20401500001 $24.50
20 1 Drive Insert (EE1000 Only) 20416400001 $12.50
21 1 Retractor Shoe 20416500001 $15.50
22 1 Shoe Retainer and Bridge 20419900001 $40.00
23 1 Spacer Kit (Includes 1 ea. #23, 4 ea. #6, various door thickness screws)Satin Chrome 20421026D01 $11.50
Spacer Kit (Includes 1 ea. #23, 4 ea. #6, various door thickness screws)Bright Brass 2042100301 $11.50
Spacer Kit (Includes 1 ea. #23, 4 ea. #6, various door thickness screws)Antique Brass 2042100501 $11.50
24 1 Cylindrical Drive Unit Assembly (Includes 1 ea. #19, #20, #21, #22, #25,
#28; 2 ea. #5; 4 ea. #6)
20420800001 $113.00
25 1 Shoe Retainer Cap Assembly 20420900001 $34.00
26 1 Installation Hardware Kit (Not Shown in exploded view) Bright Brass 2042120311 $56.00
Installation Hardware Kit (Not Shown in exploded view) Antique Brass 2042120511 $56.00
Installation Hardware Kit (Not Shown in exploded view) Satin Chrome 20421226D11 $56.00
27 1 Clutch Balance Spring - Clutch Spring Kit (Includes 1 ea. #3, #27) 20101600001 $11.50
Series Simplex
File Guard SeriesLD and LD Series
44
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
EE1000 Series
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Best Key Override Spacer (not shown) 3800-00-3007 $25.50
Sargent Key Override Spacer (not shown) 20402800001 $25.50
Corbin-Russwin Key Override Spacer (not shown) 20402900001 $25.50
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Satin Chrome 20148426D01 $68.00
Anti-Spy Shield (1000/L1000 Series) Black 20160008301 $46.50
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $62.00
Simplex EE1000 Series Wooden Demo Mount 20408600041 $175.00
Notes
• See 1000 Series Exploded View and Replacement Parts on Page 2-9 for parts not shown or numbered on this page.
• Service kit can be used on both sides of lock
*(Requires (2) kits to service both sides)
• Lubriplate Aero grease is the “only” lubricant that should be used.
* All EE1000 Series Locksets with a serial number consisting of three letters followed by five digits will no longer be
using the code change bracket (Part No. 201882)
Parts availability may be limited on older component parts no longer used in production units.
45
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
46
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

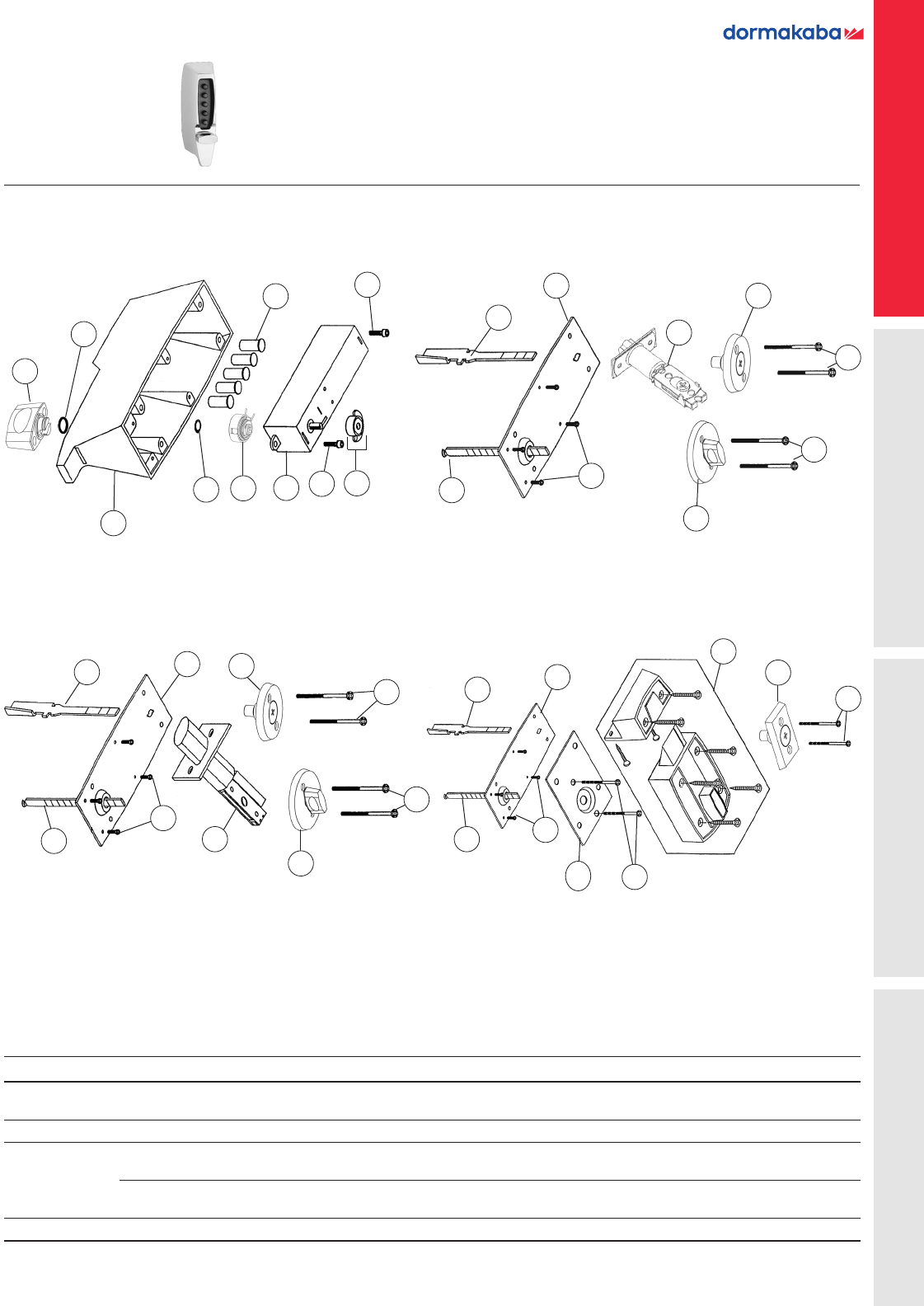

Simplex
8100 Series
35 126
3
33 33 25
8
13
55
34
51
45
46
21 32
19
12
11
5
18
2
20
See
Diagrams
Below
See
Diagrams
Below 53
Right Hand
Clutch
32
7
5
46
38
24 39
29
23 31
46
7
5
30
27
37
28 40
Key Override Models
Medeco/ASSA/Yale/Schlage
Key Override Models
Best & Equivalents Corbin/
Russwin/Sargent
47
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data

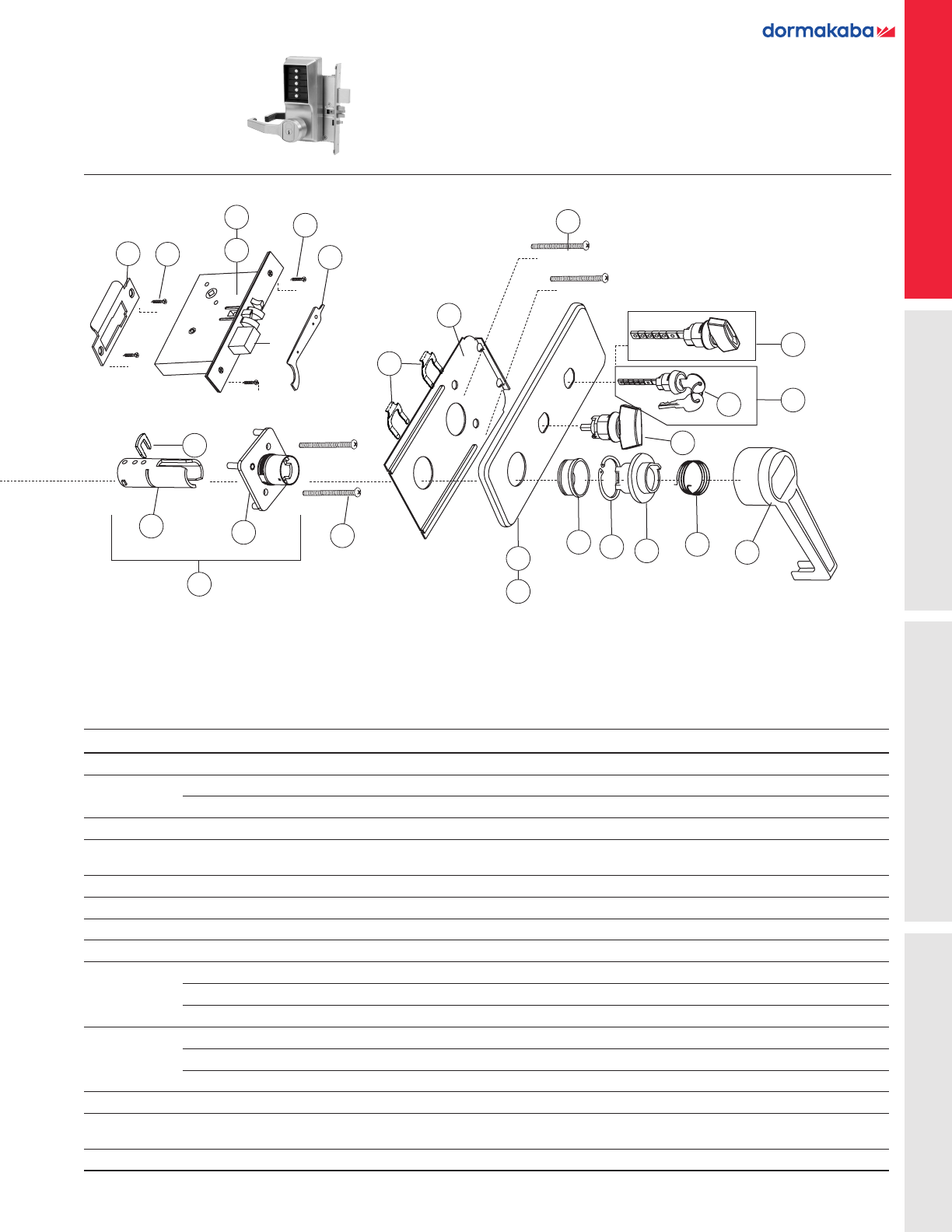

Simplex
8100 Series
See Page 6 for
How to Order instructions
C
LP
57 10 4
10
17
50
9
41
56
60
Optional
654
48
49
22
15
14
16
43
52 61
47
59
42
58
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Combination Chamber (M-56/M-63) 7436600001 $95.50
2 5 Pushbuttons (10 Pack) Black 20002410610 $12.50
Pushbuttons (10 Pack) Silver 20002410910 $12.50
3 1 Bushing, Shaft (5 Pack) 20002600005 $11.50
4 1 Installation Wrench (spanner wrench) - Code Change Tool Kit (In-
cludes 1 ea. #4; 2 ea. DF-59 keys)
20127800001 $10.50
5 1 Front Lever Retainer Clip (5 Pack) 20134300005 $11.50
6 1 Key DF-5 (For Passage and Lockout) (2 Pack) 20142200002 $8.00
7 1 Shaft Self-Aligning Bushing 20142500001 $10.50
8 1 Retaining Ring 3⁄8” I.D. (10 Pack) 20144000010 $11.50
9 2 Screw, 8-32 x 2 1⁄2” Kit (For Mounting) (Includes 2 ea. #9) Satin Chrome 20421026D01 $11.50
Screw, 8-32 x 2 1⁄2” Kit (For Mounting) (Includes 2 ea. #9) Bright Brass 2042100301 $11.50
Screw, 8-32 x 2 1⁄2” Kit (For Mounting) (Includes 2 ea. #9) Antique Brass 2042100501 $11.50
10 4 Combination Screw, Phillips 8-32 x 3⁄4” (10 Pack) Satin Chrome 20156526D10 $11.50
Combination Screw, Phillips 8-32 x 3⁄4” (10 Pack) Bright Brass 2015650310 $11.50
Combination Screw, Phillips 8-32 x 3⁄4” (10 Pack) Antique Brass 2015650510 $11.50
11 1 Clutch Backing Plate 20170800001 $10.50
12 1 Wave Spring - Clutch Spring Kit (L1000 / 8100) (Includes 1 ea. #12,
#19)
20176800001 $11.50
13 1 Guide Bracket 20172100001 $9.50
Series Simplex
File Guard SeriesLD and LD Series
48
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
14 1 Inside Lever Fixed Sleeve - RH - Fixed Sleeve Kit (Includes 1 ea. #14, #15, #16) 20172700001 $42.00
Inside Lever Fixed Sleeve - LH - Fixed Sleeve Kit (Includes 1 ea. #14, #15, #16) 20173300001 $42.00
15 1 Inside Lever Coil Return Spring - RH 20173000001 $11.50
Inside Lever Coil Return Spring - LH 20173200001 $11.50
16 1 Inside Lever Fixed Sleeve Retainer Clip 20173400001 $8.00
17 2 Passage Spring Clip (for passage and lockout) (10 Pack) 20174000010 $11.50
18 1 Outside Lever Return Spring - Stop Plate Kit - RH (Includes 1 ea. #18, #20) 20177300001 $16.50
Outside Lever Return Spring - Stop Plate Kit - LH (Includes 1 ea. #18, #20) 20177400001 $16.50
19 1 Clutch Balance Spring - Clutch Spring Kit (L1000/8100)
(Includes 1 ea. #12, #19)
20176800001 $11.50
20 1 Stop Plate Assembly - Stop Plate Kit - RH (Includes 1 ea. #18, #20) 20177300001 $16.50
Stop Plate Assembly - Stop Plate Kit - LH (Includes 1 ea. #18, #20) 20177400001 $16.50
21 1 Clutch Cover Assembly - RH 20178000001 $12.50
Clutch Cover Assembly - LH 20178100001 $12.50
22 1 Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - RH Satin Chrome 20178526D01 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - RH Bright Chrome 20178502601 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - RH Bright Brass 2017850301 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - RH Antique Brass 2017850501 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - LH Satin Chrome 20178626D01 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - LH Bright Chrome 20178602601 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - LH Bright Brass 2017860301 $146.00
Inside Lever Assembly (Includes 1 ea. #14, #15, #16, #22) - LH Antique Brass 2017860501 $146.00
23 1 Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core)
Satin Chrome 20179026D01 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core)
Bright Chrome 20179002601 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - RH
Bright Brass 2017900301 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - RH
Antique Brass 2017900501 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - LH
Satin Chrome 20179126D01 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - LH
Bright Chrome 20179102601 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - LH
Bright Brass 2017910301 $177.00
Best Outside Lever Assembly (Also fits Falcon / Arrow / Eagle & KSP /
Lloyd Matheson) (Removable Core) - LH
Antique Brass 2017910501 $177.00
24 1 Best Outside Drive Sleeve Assembly (Also fits Falcon / Arrow / Eagle &
KSP / Lloyd Matheson) (Removable Core)
20179200001 $38.50
25 1 Chamber Release Cam - Passage Kit (Passage, Lockout) (Includes 1 ea.
#8, #25, #26)
20182500001 $23.50
26 1 Chamber Release - Passage Kit (For Passage Set)
(Includes 1 ea. #8, #25, #26)
20182500001 $23.50
Simplex
8100 Series
49
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
27 1 Schlage Outside Lever Assembly (Removable Core) - RH Satin Chrome 20182926D01 $177.00
Schlage Outside Lever Assembly (Removable Core) - RH Bright Chrome 20182902601 $177.00
Schlage Outside Lever Assembly (Removable Core) - RH Bright Brass 2018290301 $177.00
Schlage Outside Lever Assembly (Removable Core) - RH Antique Brass 2018290501 $177.00
Schlage Outside Lever Assembly (Removable Core) - LH Satin Chrome 20183026D01 $177.00
Schlage Outside Lever Assembly (Removable Core) - LH Bright Chrome 20183002601 $177.00
Schlage Outside Lever Assembly (Removable Core) - LH Bright Brass 2018300301 $177.00
Schlage Outside Lever Assembly (Removable Core) - LH Antique Brass 2018300501 $177.00
28 1 Medeco / ASSA / Yale Outside Drive Sleeve Assembly (Removable
Core) (Old # for ASSA 204010)
20184200001 $49.00
29 1 Sargent Outside Lever Assembly (Removable Core) - RH Satin Chrome 20192526D01 $177.00
Sargent Outside Lever Assembly (Removable Core) - RH Bright Chrome 20192502601 $177.00
Sargent Outside Lever Assembly (Removable Core) - RH Bright Brass 2019250301 $177.00
Sargent Outside Lever Assembly (Removable Core) - RH Antique Brass 2019250501 $177.00
Sargent Outside Lever Assembly (Removable Core) - LH Satin Chrome 20192626D01 $177.00
Sargent Outside Lever Assembly (Removable Core) - LH Bright Chrome 20192602601 $177.00
Sargent Outside Lever Assembly (Removable Core) - LH Bright Brass 2019260301 $177.00
Sargent Outside Lever Assembly (Removable Core) - LH Antique Brass 2019260501 $177.00
30 1 Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - RH
Satin Chrome 20192726D01 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - RH
Bright Chrome 20192702601 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - RH
Bright Brass 2019270301 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - RH
Antique Brass 2019270501 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - LH
Satin Chrome 20192826D01 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - LH
Bright Chrome 20192802601 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - LH
Bright Brass 2019280301 $177.00
Medeco / ASSA / Yale Outside Lever Assembly (Removable Core) (Old
# for ASSA 204008 LH, 204009 RH) - LH
Antique Brass 2019280501 $177.00
31 1 Corbin / Russwin Outside Lever Assembly (Removable Core) - RH Satin Chrome 20192926D01 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - RH Bright Chrome 20192902601 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - RH Bright Brass 2019290301 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - RH Antique Brass 2019290501 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - LH Satin Chrome 20193026D01 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - LH Bright Chrome 20193002601 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - LH Bright Brass 2019300301 $177.00
Corbin / Russwin Outside Lever Assembly (Removable Core) - LH Antique Brass 2019300501 $177.00
32 6 Sems Screw, Phillips 6-32 x 7⁄16” (11 mm) R.H.M.S. (Includes 10 ea. #32,
#33, #34) (clutch cover, clutch backing plate and guide bracket) Screw
Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
33 2 Sems Screw, Phillips 6-32 x 5⁄16” (8 mm) R.H.M.S. (Includes 10 ea. #32,
#33, #34) (chamber) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
34 6 Screw, Phillips 6-32 x 3⁄8” F.H.M.S. (back plate) (Includes 10 ea. #32,
#33, #34) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
Simplex
8100 Series
Series Simplex
File Guard SeriesLD and LD Series
50
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
35 1 Front Lock Housing Satin Chrome 20300026D01 $101.00
Front Lock Housing Bright Chrome 20300002601 $101.00
Front Lock Housing Bright Brass 2030000301 $101.00
Front Lock Housing Antique Brass 2030000501 $101.00
38 1 Corbin / Russwin Outside Drive Sleeve Assembly (Removable Core) 20403600001 $49.00
39 1 Sargent Outside Drive Sleeve Assembly (Removable Core) 20403700001 $49.00
40 1 Schlage Outside Drive Sleeve Assembly (Removable Core) 20403800001 $49.00
41 1 Inside Lever Retainer Clip (5 Pack) 20412000005 $11.50
42 1 Unified Trim Plate for Deadbolt Satin Chrome 80121826D01 $38.50
Unified Trim Plate for Deadbolt Bright Chrome 80121802601 $38.50
Unified Trim Plate for Deadbolt Bright Brass 8012180301 $38.50
Unified Trim Plate for Deadbolt Antique Brass 8012180501 $38.50
43 1 Thread Ring Satin Chrome 80122726D01 $12.50
Thread Ring Bright Brass 8012270301 $12.50
Thread Ring Antique Brass 8012270501 $12.50
44 1 Gear Detention Spring (Not shown in exploded view) 80123100001 $10.50
45 1 Drive Shaft Assembly Bracket Screw (Includes 1 ea. #45, #51) 80124700001 $11.50
46 1 Drive Shaft Assembly ALL models EXCEPT Schlage 80123900001 $34.00
Schlage Drive Shaft Assembly 80129300001 $34.00
47 1 Inside Drive Sleeve - RH 80124000001 $35.00
Inside Drive Sleeve - LH 80125700001 $35.00
48 1 Thumb Turn Assembly (Passage & Lockout) Satin Chrome 80127926D01 $51.50
Thumb Turn Assembly (Passage & Lockout) Bright Brass 8012790301 $51.50
Thumb Turn Assembly (Passage & Lockout) Antique Brass 8012790501 $51.50
49 1Thumb Turn Assembly (Deadbolt) Satin Chrome 80124326D01 $36.00
Thumb Turn Assembly (Deadbolt) Bright Brass 8012430301 $36.00
Thumb Turn Assembly (Deadbolt) Antique Brass 8012430501 $36.00
50 1 Reinforcing Plate 80124500001 $12.50
51 1 Drive Shaft Assembly Bracket (Includes 1 ea. #45, #51) 80124700001 $11.50
52 1 Inside Lever Sleeve Base - RH Satin Chrome 80124826D01 $42.00
Inside Lever Sleeve Base - RH Bright Brass 8012480301 $42.00
Inside Lever Sleeve Base - RH Antique Brass 8012480501 $42.00
Inside Lever Sleeve Base - LH Satin Chrome 80124926D01 $42.00
Inside Lever Sleeve Base - LH Bright Brass 8012490301 $42.00
Inside Lever Sleeve Base - LH Antique Brass 8012490501 $42.00
53 1 Clutch Assembly (Includes 1 ea. #12, #19, #53) - RH 80125200001 $58.50
Clutch Assembly (Includes 1 ea. #12, #19, #53) - LH 80125300001 $58.50
54 1 Passage Plug Assembly - with (2) DF5 Keys (Passage & Lockout) Satin Chrome 80127926D01 $51.50
Passage Plug Assembly - with (2) DF5 Keys (Passage & Lockout) Bright Brass 8012790301 $51.50
Passage Plug Assembly - with (2) DF5 Keys (Passage & Lockout) Antique Brass 8012790501 $51.50
55 1 Back Plate Assembly - RH 80126000001 $80.50
Back Plate Assembly - LH 80127200001 $80.50
Simplex
8100 Series
51
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Item Qty/Lock Description Finish Part Number Li Price (USD)
56 1 Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - RH (old #
80126126D41)
Satin Chrome 80127426D01 $175.00
Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - RH (old #
8012610341)
Bright Brass 8012740301 $175.00
Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - RH (old #
8012610541)
Antique Brass 8012740501 $175.00
Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - LH (old #
80127526D41)
Satin Chrome 80127326D01 $175.00
Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - LH (old #
8012750341))
Bright Brass 8012730301 $175.00
Mortise Assembly with Deadbolt (Includes 1 ea. #56 #57) - LH (old #
8012750541)
Antique Brass 8012730501 $175.00
57 1 Strike Plate (Includes screws) - RH Satin Chrome 80126226D01 $19.50
Strike Plate (Includes screws) - RH Bright Brass 8012620301 $19.50
Strike Plate (Includes screws) - RH Antique Brass 8012620501 $19.50
Strike Plate (Includes screws) - LH Satin Chrome 80127626D01 $19.50
Strike Plate (Includes screws) - LH Bright Brass 8012760301 $19.50
Strike Plate (Includes screws) - LH Antique Brass 8012760501 $19.50
58 1 Inside Lever Sleeve Assembly - RH Satin Chrome 80126526D01 $60.50
Inside Lever Sleeve Assembly - RH Bright Chrome 80126502601 $60.50
Inside Lever Sleeve Assembly - RH Bright Brass 8012650301 $60.50
Inside Lever Sleeve Assembly - RH Antique Brass 8012650501 $60.50
Inside Lever Sleeve Assembly - LH Satin Chrome 80126626D01 $60.50
Inside Lever Sleeve Assembly - LH Bright Chrome 80126602601 $60.50
Inside Lever Sleeve Assembly - LH Bright Brass 8012660301 $60.50
Inside Lever Sleeve Assembly - LH Antique Brass 8012660501 $60.50
59 1 Unified Trim Plate - without Deadbolt Satin Chrome 80127826D01 $38.50
Unified Trim Plate - without Deadbolt Bright Chrome 80127802601 $38.50
Unified Trim Plate - without Deadbolt Bright Brass 8012780301 $38.50
Unified Trim Plate - without Deadbolt Antique Brass 8012780501 $38.50
60 1 Mortise Assembly - without Deadbolt - RH Satin Chrome 80128726D01 $165.50
Mortise Assembly - without Deadbolt - RH Bright Brass 8012870301 $165.50
Mortise Assembly - without Deadbolt - RH Antique Brass 8012870501 $165.50
Mortise Assembly - without Deadbolt - LH Satin Chrome 80128826D01 $165.50
Mortise Assembly - without Deadbolt - LH Bright Brass 8012880301 $165.50
Mortise Assembly - without Deadbolt - LH Antique Brass 8012880501 $165.50
61 2 Mounting Screw Kit (Includes 4 ea. #61; 2 pins) 6477726D01 $21.00
62 1 Installation Hardware Kit (Not shown in exploded view) Satin Chrome 80125926D01 $42.00
Installation Hardware Kit (Not shown in exploded view) Bright Brass 8012590301 $42.00
Installation Hardware Kit (Not shown in exploded view) Antique Brass 8012590501 $42.00
Simplex
8100 Series
Series Simplex
File Guard SeriesLD and LD Series
52
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
8100 Series
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Best Key Override Spacer (not shown) 3800-00-3007 $25.50
Sargent Key Override Spacer (not shown) 20402800001 $25.50
Corbin-Russwin Key Override Spacer (not shown) 20402900001 $25.50
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Satin Chrome 20148426D01 $68.00
Anti-Spy Shield (1000/L1000 Series) Black 20160008301 $46.50
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $62.00
Installation Jig (for use with E5000/5000/1000/L1000) 6468426D01 $429.50
Simplex 8100 Mortise Wood Demo Mount (lock not included) 20408300041 $175.00
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
53
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
54
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
LP1000 Series
Notes
For lock assembly, see L1000 section.
See Page 6 for
How to Order instructions
1
8
9
3
2
4
5
6
10
7
12
LP1000 Series Service Kit
Combination
Chamber
Chamber Shaft Bushing
Drive Shaft All
Others
Item Part Number Li Price
(USD)
LP1000 Series Service Kit (LH) 203040-000-01 $165.00
• Chamber Shaft Bushing
• Clutch Assembly
• Combination Chamber
• Lever Return Spring
• Key Override Shaft (Best)
• Key Override Shaft (all others)
• Stop Plate
• Tailpiece Assembly
LH Stop Plate
Drive Shaft
K/O “BEST ONLY”
LH Clutch Assembly
Lever Return SpingTail Piece Assembly
w/ clip
Item Part Number Li Price
(USD)
LP1000 Series Service Kit (RH) 203039-000-01 $165.00
• Chamber Shaft Bushing
• Clutch Assembly
• Combination Chamber
• Lever Return Spring
• Key Override Shaft (Best)
• Key Override Shaft (all others)
• Stop Plate
• Tailpiece Assembly
Left Hand Kit Shown
55
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
LP1000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Mounting Plate Black 2435501201 $28.00
2 1 Lock Adapter 4424700001 $22.50
3 1 E - Ring (For Tailpiece Assembly) (10 Pack) 5419800010 $11.50
4 1 Tail Piece Assembly (Includes 1 ea. #3, #4) 7430300001 $15.50
5 1 Drive Shaft Assembly (Short) (For All Key Override Cores Except Best
and Equivalents)
7452900001 $24.50
Drive Shaft Assembly (Long) (For Best Key Override and Equivalents) 7467900001 $24.50
6 1 Torx Anti-Tamper Wrench - Code Change Tool/Screw Kit (Includes
Wrench, Code Change Tool, Screw)
Satin Chrome 7454326D01 $14.00
Torx Anti-Tamper Wrench - Code Change Tool/Screw Kit (Includes
Wrench, Code Change Tool, Screw)
Bright Brass 745430301 $14.00
Torx Anti-Tamper Wrench - Code Change Tool/Screw Kit (Includes
Wrench, Code Change Tool, Screw)
Antique Brass 745430501 $14.00
7 4 Thru-Bolt Screw Kit (Includes 4 ea. screw, bushing, sex nut) Satin Chrome 7454426D01 $17.50
Thru-Bolt Screw Kit (Includes 4 ea. screw, bushing, sex nut) Bright Brass 745440301 $17.50
Thru-Bolt Screw Kit (Includes 4 ea. screw, bushing, sex nut) Antique Brass 745440501 $17.50
8 6 Screw, Phillips 6-32 x 5⁄8”” F.H.M.S. (Back Plate) (Replaced 201444-022-
10) (201955-000-01) (10 Pack)
20416600010 $9.50
9 1 Back Plate (Replaced 24354-000-01) 20404300001 $19.50
10 1 Lock Adapter Screw (5 Pack) 20411200005 $10.50
11 1 Installation Hardware Kit (Includes 1 ea. #6, #7, #8) 7455426D01 $25.50
Installation Hardware Kit (Includes 1 ea. #6, #7, #8) 745540301 $25.50
12 1 Front Lock Housing (Housing ONLY) Satin Chrome 20300026D01 $101.00
Front Lock Housing (Housing ONLY) Bright Chrome 20300002601 $101.00
Front Lock Housing (Housing ONLY) Bright Brass 2030000301 $101.00
Front Lock Housing (Housing ONLY) Antique Brass 2030000501 $101.00
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Best Key Override Spacer (not shown) 3800-00-3007 $25.50
Sargent Key Override Spacer (not shown) 20402800001 $25.50
Corbin-Russwin Key Override Spacer (not shown) 20402900001 $25.50
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Bright Brass 2014840301 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Antique Brass 2014840501 $68.00
Best Equivalent Removable Core Cylinder (Sold international only, not
available for U.S.)
Satin Chrome 20148426D01 $68.00
Anti-Spy Shield (1000/L1000 Series) Black 20160008301 $46.50
Weather Cover (1000/L1000/5000/E5000) Smoke 5464400041 $62.00
Simplex LP1000 Exit Trim Wood Demo Mount (lock not included) 20408700041 $175.00
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
56
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
18 26
14
10 11 20
6
9
16
1
7
19
24
2
25
3
4
89
22
23
17
15
5
21
13
12
Simplex
2015 Series
See Page 6 for
How to Order instructions
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Lock-in Plate 2410900001 $33.00
2 1 Stop Arm (Includes #2, #5, #7, #14, #19) 74241200001 $103.00
3 1 Front Housing Satin Chrome 3404426D01 $116.50
4 1 1/2” VisiGuard Satin Chrome 3404626D01 $16.50
5 1 Control Shaft Sleeve (Includes #2, #5, #7, #14, #19) 74241200001 $103.00
6 4 Lock-In Slide Shoulder Screws (For Drive Hub) (10 Pack) 4412100010 $15.50
7 1 Drive Hub (Includes 1 ea. #7, 3 pcs of #14) 4412200001 $15.50
81 Control Shaft Bushing (Includes 1 ea. of #8, #17, #23) 20001326D01 $11.50
9 4 No. 7 PanHead Sheet Metal Screws (For Rear Cover) (10 Pack) 5407700010 $10.50
10 1 Control Lock Cylinder Lock Washer (Includes #10, #11, #12, #13) 6476600001 $11.50
11 1 Control Lock Cyl. Nut (Includes #10, #11, #12, #13) 6476600001 $11.50
12 1 Plug Lock Washer (Includes #10, #11, #12, #13) 6476600001 $11.50
13 1 Plug Nut (Includes #10, #11, #12, #13) 6476600001 $11.50
14 3 8-32 x 3/16” (5 mm) Self-Locking Hex Socket Set Screw Kit
(Includes 1 ea. #7, 3 pcs #14)
4412200001 $15.50
15 1 Allen Wrench 5/64” x 1 31/32 (2 x 50 mm) 6471700001 $11.50
16 1 E-Ring (For Tailpiece Assembly) (10 Pack) 5419800010 $11.50
17 1 Set Screw 6-32 x 1/4” (6 mm) (Includes 1 ea. #8, #17, #23) (10 Pack) 20001326D01 $11.50
18 1 Control Lock (Includes #10, #11, #12, #13, #18, #20) Satin Chrome 7416626D01 $64.00
19 1 Combination Chamber (Includes 1 ea. #2, #5, #7, #14, #19) 74241200001 $103.00
57
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
2015 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
20 1 Control Lock Cam & Stud Assembly 7430200001 $10.50
21 1 Tailpiece Assy (Includes 1 ea. #16, #21) 7430300001 $15.50
22 1 Back Plate Assembly 7430400001 $31.50
23 1 Turn Knob Kit (Includes 1 ea. #8, #17, #23) Satin Chrome 20001326D01 $11.50
24 5 Pushbuttons (10 Pack) Satin Chrome 20002410910 $12.50
25 6 Screw 6-32 x 5/16” RHMS (10 mm) (For combination chamber and
VisiGuard) (10 Pack) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate grease 6475400001 $15.50
Simplex 2015 Wooden Demo Mount 20409600041 $175.00
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
58
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

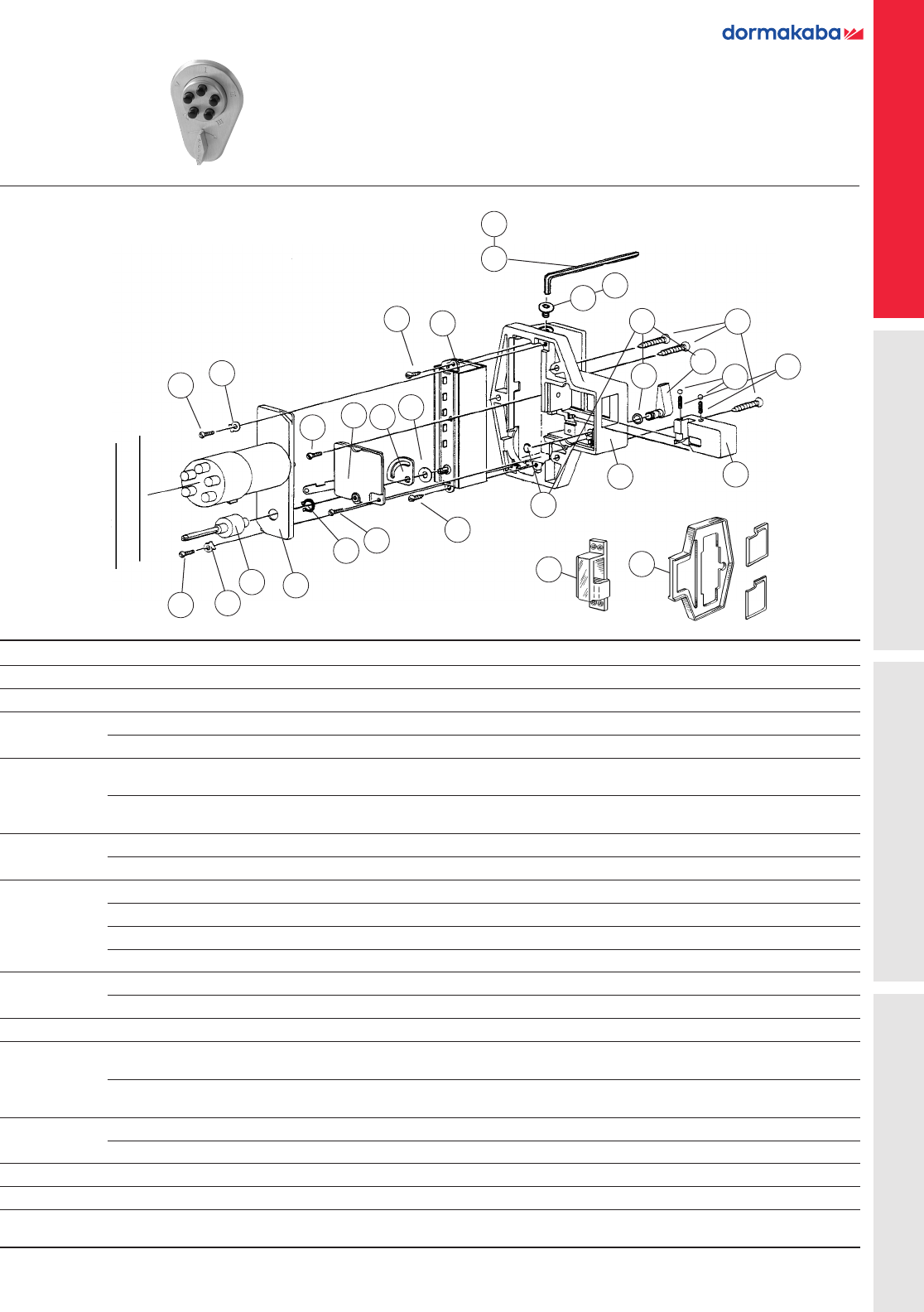

Simplex
3000 Series
37
16
36
15
52
65
32 414
2
9
8
5
19
25
39
40
37
55
17
TEMPLATES
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Plate Lock 2416500001 $10.50
2 1 Slide Yoke Cam - Yoke Kit (Includes 1 ea. #2, #5, #14) 6476700001 $21.00
4 1 Cam Cover Satin Chrome 2419326D01 $9.50
Cam Cover Duranodic 241935501 $9.50
5 1 Yoke Spacer - Yoke Kit (Includes 1 ea. #2, #5, #14) 6476700001 $21.00
6 1 Lock Housing without Cylinder Guard Satin Chrome 3404726D01 $58.50
Lock Housing without Cylinder Guard Duranodic 340475501 $58.50
Lock Housing with Cylinder Guard (Includes 1 ea. #6, #18, #29, #31) Satin Chrome 7442526D01 $83.50
Lock Housing with Cylinder Guard (Includes 1 ea. #6, #18, #29, #31) Duranodic 744255501 $83.50
8 1 Special Head Screw No. 5-40 UNC-2A x 3⁄16” (5mm) long
(For cam drive) (10 Pack)
4418800010 $14.00
See Page 6 for
How to Order instructions
59
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
3000 Series
66
47
11
28
51
66
63
48
6
29
18 31
13 26
43
1
33
50
35
Item Qty/Lock Description Finish Part Number Li Price (USD)
9 1 Special Head Screw No. 6-32 UNC-2A x 1⁄8” (3mm) long
(For forward slide) (10 Pack)
4419100010 $14.00
11 1 Bushing (For Combination Chamber Control Shaft) (10 Pack) 4420700010 $14.00
13 2 Threaded Self-tapping Screw No. 4-24 SP x 5⁄16” (8mm) long
(For cylinder retention) (10 Pack)
4421400010 $12.50
14 1 Square Shaft Kit 5⁄8” (16mm) long (For cam drive) (Includes 1 ea. #2, #5, #14) 6476700001 $21.00
15 2 Threaded Bushing; “D” Shaped
(For lower drive assembly mounting plate)(10 Pack)
Black 4422601210 $27.00
16 2 Bushing; “O” Shaped (For lower drive assembly mounting) (10 Pack) Black 442291910 $18.50
17 3 Retaining Ring (For slide, stud code lever, and interposer) (10 Pack) 5411400010 $10.50
18 1 Washer 1⁄4” (6mm) Shim (For cylinder guard 74425)
(Includes 1 ea. #18, #29, #31)
6476800001 $10.50
Series Simplex
File Guard SeriesLD and LD Series
60
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
3000 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
19 2 Extension Spring (For slide stile plate assembly) (10 Pack) 5423700010 $11.50
25 2 Phillips Head Screw No. 10-24 UNC - 2A x 2 1⁄8” (54mm) long
(For securing upper lock housing) (10 Pack)
5424700010 $11.50
26 1 Retaining Ring (For drive knob) (10 Pack) 5425100010 $11.50
28 1 Grip Ring (For combination chamber control shaft) (10 Pack) 5425300010 $11.50
29 1 Ball Bearing; 3⁄32” (2mm) dia. (For cylinder guard)
(Includes 1 ea. #18, #29, #31)
6476800001 $10.50
31 1 Round Head Screw No. 5-40 UNC-2A x 1⁄4” (6mm) long (For lock housing
prepped for cylinder guard) (Includes 1 ea. #18, #29, #31)
6476800001 $10.50
32 1 Cam Plug No. 4580 Adams Rite 5425800001 $15.50
33 1 Pan Head Screw No. 6-32 UNC-2AA x 3⁄16” (5mm) long
(For cylinder cam stop) (10 Pack)
5426000010 $8.00
35 1 Slotted Flat Head Screw No. 2-56 x 1⁄4” (6mm) long
(For code change assembly plate) (10 Pack)
5426500010 $8.00
36 2 Phillips Head Machine Screw No. 10-24 x 1 1⁄2” (38mm) long
(For lower drive assembly mounting) (10 Pack)
Black 5427500010 $11.50
37 1Self-tapping Sheet Metal Screw No. 6 (For securing drive assembly)(10 Pack) 5428400010 $8.00
38 1 Screwdriver 2 1⁄2” (64mm) Blade; Flat Point (For combination code
change) (Not shown on exploded view)
5428500001 $10.50
39 1 Template (Cardboard)- 1 1⁄8” (28mm) L 6414300001 $9.50
Template (Cardboard)- 1 1⁄8” (28mm) L 6414400001 $9.50
Template (Cardboard)- 3 1⁄32” (25mm) R 6414500001 $9.50
Template (Cardboard)- 3 1⁄32” (25mm) L 6414600001 $9.50
40 1 Slide Assembly- 3 1⁄32” (25mm) L 7433100001 $15.50
Slide Assembly- 3 1⁄32” (25mm) R 7433200001 $15.50
Slide Assembly- 1 1⁄8” (28mm) L 7433300001 $15.50
Slide Assembly- 1 1⁄8” (28mm) R 7433400001 $15.50
43 1 Clutch Assembly (Complete) 6475500001 $52.50
47 1 Code Change Assembly (Complete) 7434800001 $23.50
48 1 Knob Assembly (Includes 1 ea. #26, #48) Black 743491901 $12.50
50 1 Interposer Drive and Ball Assembly (Complete) 7435400001 $23.50
51 1 Combination Chamber (M-63)/(M-56) 7436600001 $95.50
52 1 Trim Plate Assembly with (2) DF59 Keys (Complete) Black 743771901 $18.50
55 1 Complete Mounting Plate Assembly (For 1 1⁄8” (28 mm) backset); RH
(Complete) (Includes 1 ea. #2, #5, #8, #9, #14, #17, #19, #32, #40, #55) -
Old # 744161901
Black 30301941 $72.00
Complete Mounting Plate Assembly (For 1 1⁄8” (28 mm) backset); LH
(Complete) (Includes 1 ea. #2, #5, #8, #9, #14, #17, #19, #32, #40, #55) -
Old # 744181901
Black 30401941 $72.00
Complete Mounting Plate Assembly (For 31⁄32” (25 mm) backset); RH
(Complete) (Includes 1 ea. #2, #5, #8, #9, #14, #17, #19, #32, #40, #55) -
Old # 744201901
Black 30101941 $72.00
Complete Mounting Plate Assembly (For 31⁄32” (25 mm) backset); LH
(Complete) (Includes 1 ea. #2, #5, #8, #9, #14, #17, #19, #32, #40, #55) -
Old # 744221901
Black 30201941 $72.00
63 5 Pushbuttons (10 Pack) Black 20002410610 $12.50
Pushbuttons (10 Pack) Silver 20002410910 $12.50
65 2 DF-59 Keys (For combination change control lock) (Includes spanner
wrench not needed for 3000 code change )
20127800001 $10.50
66 2 Sems Screw Kit Phillips 6 - 32 x 5⁄16” (8mm) R.H.M.S. (For combination
chamber) (Old #54199 & #54200) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
61
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
3000 Series
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Simplex 3000 Series Narrow Stile Demo Mount (Includes Adams Rite
latch and paddle)
74378CH $763.50
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
62
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data

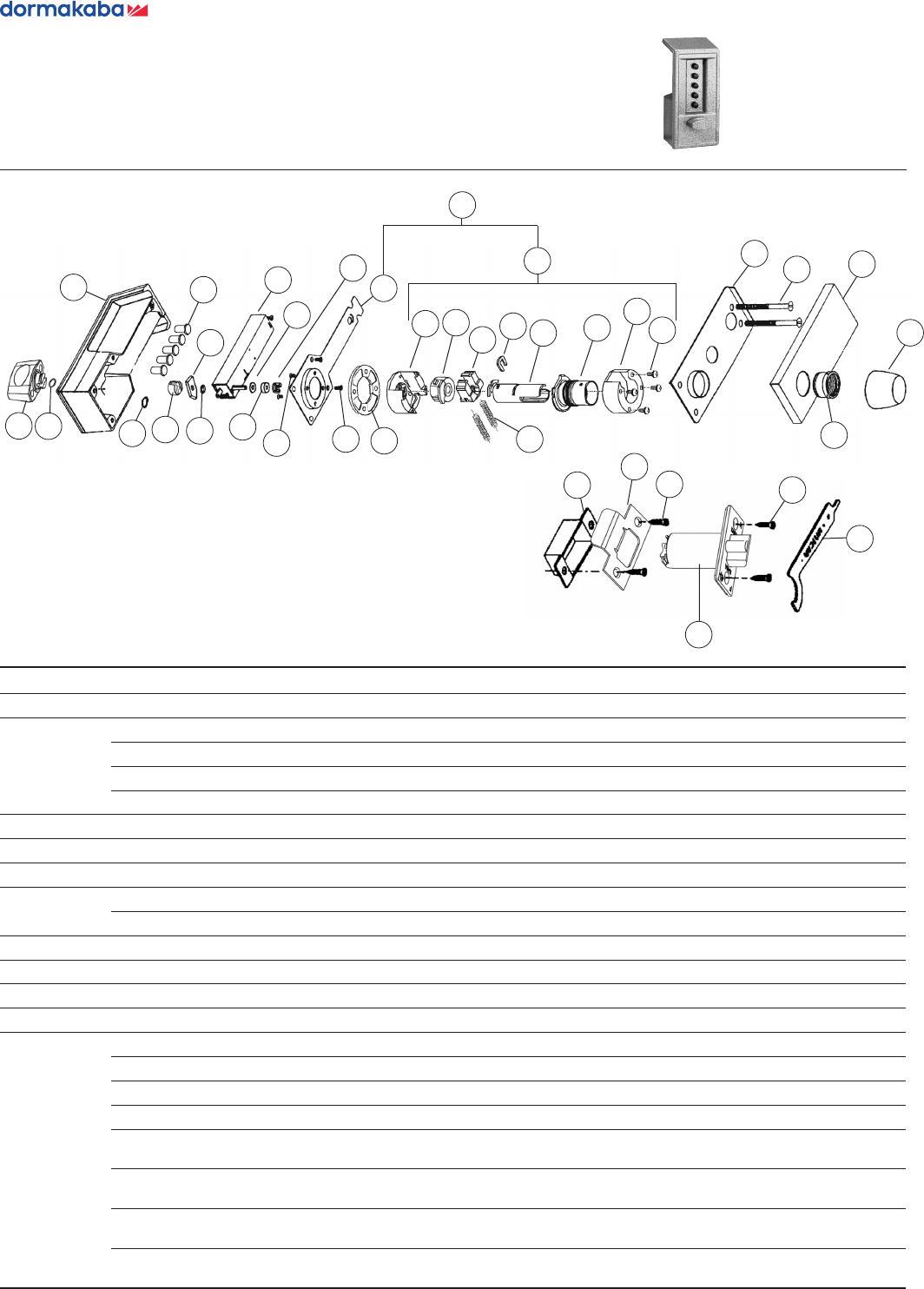

Simplex
6200 Series
See Page 6 for
How to Order instructions
33 8
21
37
19
26
26
10
21
17
4
40 28 34 29 41
18
24
36
22
514 6
20
39
42
23
35
7
9
11
30
16
43
44
3
12
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 5 Pushbuttons (10 Pack) Black 3401910610 $12.50
2 1 Front Lock Housing Gold Tone 5500106001 $89.50
Front Lock Housing Almond 5500106701 $89.50
Front Lock Housing Black 5500108501 $89.50
Front Lock Housing Grey 5500108601 $89.50
3 1 Drive Hub - Drive Hub Kit (Includes 1 ea. #3, #17; 2 pcs #7) 6477200001 $11.50
4 1 Back Plate Sub-assembly (Old # 55095) 5504400001 $31.50
5 1 Inside Door Reinforcing Plate 5505700001 $10.50
6 1 Inside Trim Plate Satin Chrome 5506026D01 $18.50
Inside Trim Plate Bright Brass 550600301 $18.50
7 1 Spacer - Drive Hub Kit (Includes 1 ea. #3, #17; 2 pcs #7) 6477200001 $11.50
8 1 Retainer Ring for Turn Knob (10 Pack) 5508000010 $11.50
9 1 Stop Arm Washer - Combination Chamber Kit (Includes 1 ea. #9, #16, #30) 7487000001 $98.00
10 1 Force Proof Clutch Assembly 5509100001 $33.00
11 1 Latch 1⁄2” (13mm) Throw; 2 3⁄8” (60mm) Backset; Flat Front; 7/8” Barrel Hole Prep Satin Chrome 5511526D01 $38.50
Latch 1⁄2” (13mm) Throw; 2 3⁄8” (60mm) Backset; Flat Front; 7/8” Barrel Hole Prep Bright Brass 551150301 $38.50
Latch 1⁄2” (13mm) Throw; 2 3⁄4” (70mm) Backset; Flat Front; 7/8” Barrel Hole Prep Satin Chrome 5511626D01 $38.50
Latch 1⁄2” (13mm) Throw; 2 3⁄4” (70mm) Backset; Flat Front; 7/8” Barrel Hole Prep Bright Brass 551160301 $38.50
Latch 1⁄2” (13mm) Throw; 2 3⁄8” (60mm) Backset; Floating Front; HD, UL
Listed; 1” Barrel Hole Prep
Satin Chrome 20416826D01 $41.00
Latch 1⁄2” (13mm) Throw; 2 3⁄8” (60mm) Backset; Floating Front; HD, UL
Listed; 1” Barrel Hole Prep
Bright Brass 2041680301 $41.00
Latch 1⁄2” (13mm) Throw; 2 3⁄4” (70mm) Backset; Floating Front; HD, UL
Listed; 1” Barrel Hole Prep
Satin Chrome 7518526D01 $41.00
Latch 1⁄2” (13mm Throw; 2 3⁄4” (70mm) Backset; Floating Front; HD, UL
Listed; 1” Barrel Hole Prep
Bright Brass 751850301 $41.00
63
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
6200 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
12 1 Wave Spring Washer (For front knob assembly) (10 Pack) 5424600010 $11.50
14 2 Mounting Screw 1⁄4” x 20 NC (2 screws x 2 sizes) for Doors 1 3⁄8” - 2 1⁄4” Satin Chrome 5530026D01 $25.50
Mounting Screw 1⁄4” x 20 NC (2 screws x 2 sizes) for Doors 1 3⁄8” - 2 1⁄4” Bright Brass 553000301 $25.50
15 1 Accessory Kits (For Lock Installation) (Not shown in Exploded View) Satin Chrome 5530026D01 $25.50
Accessory Kits (For Lock Installation) (Not shown in Exploded View) Bright Brass 553000301 $25.50
16 1 Combination Chamber Kit (M64) (Includes 1 ea. #9, #16, #30) (Old #
55013-000-01)
7487000001 $98.00
17 1 Shaft Bushing - Drive Hub Kit (Includes 1 ea. #3, #17; 2 ea. #7) 6477200001 $11.50
18 1 Cover for Shoe Housing 20127700001 $11.50
19 1 Installation Wrench (Spanner Wrench) 20127800001 $10.50
20 1 Inside Knob (Old # 55073) or 201284 Satin Chrome 3426426D01 $64.00
Inside Knob (Old # 55073) or 201284 Bright Brass 342640301 $64.00
21 1 Strike Box (Old # 55068-000-01) 20128700001 $9.50
22 2 Shoe Spring (10 Pack) 20136600010 $10.50
23 4 Sems Screw Phillips 6-32 x 1⁄4” (6mm) R.H.M.S. (For shoe housing
cover) (10 Pack)
20144600010 $8.00
24 4 Sems Screw Phillips 8-32 x 7⁄16” (11mm) R.H.M.S. (For spacer) Satin Chrome 20421026D01 $11.50
Sems Screw Phillips 8-32 x 7⁄16” (11mm) R.H.M.S. (For spacer) Bright Brass 2042100301 $11.50
25 4 Sems Screw Phillips 8-32 x 11⁄16” (11mm) R.H.M.S. (For spacer) Satin Chrome 20421026D01 $11.50
Sems Screw Phillips 8-32 x 11⁄16” (11mm) R.H.M.S. (For spacer) Bright Brass 2042100301 $11.50
26 4 Combination Screw; Phillips 8-32 x 3⁄4” (19mm) (For Latch & Strike)
(10 Pack)
Satin Chrome 20156526D10 $11.50
Combination Screw; Phillips 8-32 x 3⁄4” (19mm (For Latch & Strike)
(10 Pack)
Bright Brass 2015650310 $11.50
Combination Screw; Phillips 8-32 x 3⁄4” (19mm) (For Latch & Strike)
(10 Pack)
Antique Brass 2015650510 $11.50
27 1 Rubber Bumper (For Door Frame) (Not Shown on Exploded View) 20156800005 $11.50
28 1 Retractor Shoe (old # 201272) 20172300001 $11.50
29 1 Inside Drive Sleeve Assembly (Includes 1 ea. #29, #34) 20178200001 $17.50
30 1 Stop Arm - Combination Chamber Kit (Includes 1 ea. #9, #16, #30) 7487000001 $98.00
31 2 Sems Screw Phillips 6-32 x 5⁄16” (8mm) R.H.M.S. (For combination
chamber) (Old Part # 201447-000-10) Screw Pack
(10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
32 4 Sems Screw Phillips 6-32 x 3⁄8” (10mm) F.H.M.S. (For back plate) (Old
Part # 201444-000-10) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
33 1 Turn Knob Assembly (Old # 55128) (Includes 1 ea. #8, #33) 20201406001 $25.50
Turn Knob Assembly (Old # 55128) (Includes 1 ea. #8, #33) 20201406701 $25.50
Turn Knob Assembly (Old # 55128) (Includes 1 ea. #8, #33) 20201408501 $25.50
Turn Knob Assembly (Old # 55128) (Includes 1 ea. #8, #33) 20201408601 $25.50
34 1 Retainer Clip (For Inside Knob) (Old # 201344) 20412000005 $11.50
35 4 Sems Screw Phillips 8 - 32 x 5⁄16” (5mm) R.H.M.S. (For spacer)(old # 201449) Satin Chrome 20421026D01 $11.50
Sems Screw Phillips 8 - 32 x 5⁄16” (5mm) R.H.M.S. (For spacer)
(old # 201449)
Bright Brass 2042100301 $11.50
36 1 Drive Insert (Old # 55077) 20413800001 $24.50
37 1 Strike Plate (old # 201288) Satin Chrome 20422726D01 $11.50
Strike Plate (old # 201288) Bright Brass 2042270301 $11.50
39 1 Rose Bushing / Thread Ring Privacy Locks Satin Chrome 20416926D01 $12.50
Rose Bushing / Thread Ring Privacy Locks Bright Brass 2041690301 $12.50
40 1 Shoe Retainer and Bridge Assembly 20419900001 $40.00
Series Simplex
File Guard SeriesLD and LD Series
64
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
6200 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
41 1 Shoe Retainer Cap Assembly Satin Chrome 20420026D01 $34.00
Shoe Retainer Cap Assembly Bright Brass 2042000301 $34.00
42 1 1⁄4” Spacer, Door Thickness Satin Chrome 20421026D01 $11.50
1⁄4” Spacer, Door Thickness Bright Brass 2042100301 $11.50
43 1 Cylindrical Drive Unit Assembly (Includes 1 ea. #18, #28, #29, #34,
#36, #40, #41; 2 ea. #22; 4 ea. #24)
Satin Chrome 20420626D01 $109.50
Cylindrical Drive Unit Assembly (Includes 1 ea. #18, #28, #29, #34,
#36, #40, #41; 2 ea. #22; 4 ea. #24)
Bright Brass 2042060301 $109.50
44 1 Back Plate Assembly (Includes 1 ea. #4, #24, #42, #43) Satin Chrome 20420726D01 $121.50
Back Plate Assembly (Includes 1 ea. #4, #24, #42, #43) Bright Brass 2042070301 $121.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Simplex 6200 Series Wooden Demo Mount 20409400041 $175.00
6200 Filler Plate - Black Only 550721901 $23.50
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
65
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
14
12
4
19
18
13 9
26
26
Simplex
7100 Series
See Page 6 for
How to Order instructions
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Rim Deadlocking Latch 2 3⁄8” (60mm) Backset with Strike Box
(7106 only) (Includes 1 ea. #1, #15, #35)
40275091941 $51.50
3 1 Wave Spring Washer (For front knob assembly) (10 Pack) 5424600010 $11.50
4 1 7104 Latch Bolt Assembly Adjustable 2 3⁄4” (70mm & 2 3⁄8” (60mm)
backset (Includes 1 ea. #4, #28) (Replaced 202003)
Satin Chrome 5444426D01 $36.00
7104 Latch Bolt Assembly Adjustable 2 3⁄4” (70mm) & 2 3⁄8” (60mm)
backset (Includes 1 ea. #4, #28) (Replaced 202003)
Bright Brass 544440301 $36.00
5 1 Retainer Ring (10 Pack) 5508000010 $11.50
14 12
1
17
15
13 9
26
21
3
7
68
8
10
5
16
20 28
14 12
9
13 22
26
26
19
18
Front Housing, All Models
Interior: 7102, 7108 Interior: 7106
Interior: 7104
Series Simplex
File Guard SeriesLD and LD Series
66
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
7100 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
6 1 Combination Chamber (M-71) Common
(For all 7000/7100 Series Locks) (old # 202056)
7466000001 $95.50
7 5 Pushbuttons (10 Pack) Black 20002410610 $12.50
Pushbuttons (10 Pack) Silver 20002410910 $12.50
8 2 Screw Thread Forming 6-32 UNC x 5⁄16” (8mm) Pan Head
(For combination chamber) (Includes 10 ea. #8, #9) Screw Pack
(10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
9 4 Screw Thread Forming 6-32 UNC x 3⁄8” Flat Head (For Back Plate)
(Includes 10 ea. #8, #9) Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)
6477600001 $11.50
10 1 Front Lock Housing (old # 202002-***-01) Bright Brass 2020750301 $93.50
Front Lock Housing (old # 202002-***-01) Antique Copper 202075AC01 $93.50
Front Lock Housing (old # 202002-***-01) Black 2020751901 $93.50
Front Lock Housing (old # 202002-***-01) Antique White 202075AW01 $93.50
Front Lock Housing (old # 202002-***-01) Satin Chrome 20207526D01 $93.50
Front Lock Housing (old # 202002-***-01) Gold Vein 202075GV01 $93.50
Front Lock Housing (old # 202002-***-01) Silver Vein 202075SV01 $93.50
12 1 Back Plate Old Style (narrow) (7000 series) 20200400001 $11.50
Back Plate New Style (wide) (7100 series) 20209100001 $11.50
13 1 Tailpiece (For latch / deadbolt) (Includes 1 ea. #13, #14) 6476900001 $11.50
14 1 Tailpiece (For combination change) (Includes 1 ea. #13, #14) 6476900001 $11.50
15 1 7106 Rim Deadlocking Latch Inside Back Plate 20201200001 $10.50
16 1 Outside Turn Knob Assembly (Includes 1 ea. #3, #5, #16) Bright Brass 2020140301 $25.50
Outside Turn Knob Assembly (Includes 1 ea. #3, #5, #16) Satin Chrome 20201426D01 $25.50
Outside Turn Knob Assembly (Includes 1 ea. #3, #5, #16) Antique White 202014AW01 $25.50
Outside Turn Knob Assembly (Includes 1 ea. #3, #5, #16) Gold Vein 202014GV01 $25.50
Outside Turn Knob Assembly (Includes 1 ea. #3, #5, #16) Silver Vein 202014SV01 $25.50
17 2 Connecting Bolt Pan Head Screws (For 7106) (5 Pack) 20202100005 $14.00
18 1 Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Bright Brass 2020250301 $28.00
Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Antique Copper 202025AC01 $28.00
Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Satin Chrome 20202526D01 $28.00
Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Antique White 202025AW01 $28.00
Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Gold Vein 202025GV01 $28.00
Inside Turn Knob and Rose Assembly For Models 7102/7104/7108 Silver Vein 202025SV01 $28.00
19 1 Inside Combination Change Assembly For Models 7102/7104/7108 Bright Brass 2020260301 $28.00
Inside Combination Change Assembly For Models 7102/7104/7108 Antique Copper 202026AC01 $28.00
Inside Combination Change Assembly For Models 7102/7104/7108 Satin Chrome 20202626D01 $28.00
Inside Combination Change Assembly For Models 7102/7104/7108 Antique White 202026AW01 $28.00
Inside Combination Change Assembly For Models 7102/7104/7108 Gold Vein 202026GV01 $28.00
Inside Combination Change Assembly For Models 7102/7104/7108 Silver Vein 202026SV01 $28.00
20 1 Force Proof Clutch Assembly (Complete) 20208100001 $28.00
21 1 7106 Combination Change Assembly Black 2020281901 $28.00
22 1 7102 Deadbolt Assembly 2 3⁄4” (70mm) backset Satin Chrome 20205226D01 $36.00
7102 Deadbolt Assembly 2 3⁄4” (70mm) backset Bright Brass 2020520301 $36.00
7108 Deadbolt Assembly 2 3⁄8” (60mm) backset Satin Chrome 20206426D01 $36.00
7108 Deadbolt Assembly 2 3⁄8” (60mm) backset Bright Brass 2020640301 $36.00
67
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
7100 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
26 4 Connecting Bolts - Flat Head Phillips Screws.
(For 1 3⁄8” to 2 1/4” doors) (Includes 4 ea. #26 - 4 pcs x
3 different lengths)
Satin Chrome 6477426D01 $14.00
Connecting Bolts - Flat Head Phillips Screws.
(For 1 3⁄8” to 2 1/4” doors) (Includes 4 ea. #26 - 4 pcs x
3 different lengths)
Bright Brass 647740301 $14.00
28 1 Cam Assembly (For 7106 - “C” Up) 20207700001 $10.50
Cam Assembly (For 7104 - “D” Down) 20208000001 $10.50
Cam Assembly (For 7102/7108 - “D” Up) 20207900001 $10.50
31 1 7102/7108 Installation Hardware Kit Bright Brass SP71020301 $28.00
7102/7108 Installation Hardware Kit Satin Chrome SP710226D01 $28.00
33 1 7104 Installation Hardware Kit Bright Brass SP71040301 $28.00
7104 Installation Hardware Kit Satin Chrome SP710426D01 $28.00
35 1 7106 Installation Hardware Kit Black SP71061901 $28.00
36 1 7104 Strike Kit Satin Chrome 20423026D01 $11.50
7104 Strike Kit Bright Brass 2042300301 $11.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Simplex 7100 Series Wooden Demo Mount - Dual Mount Displays 1 ea.
7108/7104 (Locks Not Included)
20418900041 $175.00
Simplex 7100 Series Wooden Demo Mount - 7106 Model Only - (Lock
Not Included)
20409200041 $175.00
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
68
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Continued
to NL&DL
models below
3
40
10 25 10 13
222
44
Gear plate for key
override model locks
Standard strike plate
and strike box for all
model locks
47
12
27
55
28 4
16
16
17 9
38
14
32
31
31 38 1
29
36 42
7
35
24
23 34
11
10
18
39
5
52
15
26
13
30
36
31
19
45
43
32
31
33
NL
Spring latch
models
Simplex
900 Series
See Page 6 for
How to Order instructions
Cylinder assembly for key override model locks.
69
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
900 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Sector Cam (For Combination Chamber Control Shaft) 2404600001 $7.00
2 1 Holding Bracket (For attaching face plate to outside of door) 2406300001 $8.00
4 1 Clip Flange Cover Satin Chrome 2410826D01 $7.00
Clip Flange Cover Satin Brass 241080401 $7.00
5 1 Latch Bolt (For Models 9170000, 9190000, 9350000, 9380000,
9290000, NL)
Satin Chrome 3401126D01 $10.50
Latch Bolt (For Models 9170000, 9190000, 9350000, 9380000,
9290000, NL)
Satin Brass 340110401 $10.50
6 1 Deadbolt (For Models 9020000, 9040000, 9060000, 9100000, DL) Satin Chrome 3401226D01 $10.50
Deadbolt (For Models 9020000, 9040000, 9060000, 9100000, DL) Satin Brass 340120401 $10.50
7 1 Lock Housing (For Models 9170000, 9190000, 9350000 & 9380000, NL) Satin Chrome 3402126D01 $33.00
Lock Housing (For Models 9170000, 9190000, 9350000 & 9380000, NL) Satin Brass 340210401 $33.00
Lock Housing (For Models 9020000, 9040000, 9060000 & 9100000, DL) Satin Chrome 3402226D01 $33.00
Lock Housing (For Models 9020000, 9040000, 9060000 & 9100000, DL) Satin Brass 340220401 $33.00
9 1 Mortise Strike Box Satin Chrome 3402326D01 $11.50
Mortise Strike Box Satin Brass 340230401 $11.50
10 2 Nylon Washer, Spacer (For Face Plate and Inside Knob) (10 Pack) 3403700010 $8.00
11 1 Latch Holdback Button - (For Latch Holdback Assembly)
(Include 1 ea. #11, #26, #30, #33)
Satin Chrome 7446926D01 $9.50
Latch Holdback Button - (For Latch Holdback Assembly)
(Include 1 ea. #11, #26, #30, #33)
Satin Brass 744690401 $9.50
12 1 Spacer Collar (For Models 9060000 & 9350000) Satin Chrome 4411226D01 $7.00
Spacer Collar (For Models 9060000 & 9350000) Satin Brass 441120401 $7.00
13 2 Knob Retainer Ring (For Face Plate and Inside Knob) (5 Pack) 5401100005 $7.00
14 1 Lock washer (For Key Override Assembly) (10 Pack) 5402900010 $7.00
15 1 Latch Return Spring (For Models 9170000, 9190000, 9350000,
9380000, 9290000, NL) (10 Pack)
5405000010 $11.50
Adapter Kit
31
31 38
36 42 18
6
8
13
29
1
36
31
19
45
43
32
31
57
56
20
21
39
10
58
32
DL
Deadbolt
models
35
24
23 34
Series Simplex
File Guard SeriesLD and LD Series
70
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
900 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
16 2 Strike Mounting Screw (#10 x 1”) (10 Pack) Satin Chrome 5405226D10 $9.50
Strike Mounting Screw (#10 x 1”) (10 Pack) Satin Brass 540520410 $9.50
17 1 Flat Strike Satin Chrome 5405326D01 $7.00
Flat Strike Satin Brass 540530401 $7.00
18 3 Housing Mounting Screw (#10 x 1 1⁄2”) (10 Pack) Satin Chrome 5406126D10 $9.50
Housing Mounting Screw (#10 x 1 1⁄2”) (10 Pack) Satin Brass 540610410 $9.50
19 1 Clutch Retainer Ring (10 Pack) 5407000010 $10.50
20 2 Spring (For Deadbolt Ball Bearings) (10 Pack) 5407400010 $7.00
21 2 Ball Bearings (For Deadbolt) (10 Pack) 5407500010 $7.00
22 2 Holding Bracket Screw (#7 x 1⁄2” Sheet Metal) (10 Pack) 5407700010 $7.00
23 1 Allen Head Button Screw (#10 x 32) Kit (Includes 1 ea. #23, #24) Satin Chrome 5408226D01 $9.50
Allen Head Button Screw (#10 x 32) Kit (Includes 1 ea. #23, #24) Satin Brass 540820401 $9.50
24 1 Allen Wrench (1⁄8”) Kit (Includes 1 ea. #23, #24) Satin Chrome 5408226D01 $9.50
Allen Wrench (1⁄8”) Kit (Includes 1 ea. #23, #24) Satin Brass 540820401 $9.50
25 1 Shake-proof Spring Washer (For Face Plate Assembly) (10 Pack) 5408400010 $9.50
26 1 Latch Button Spring (For Latch Holdback Assembly) (Includes 1 ea. #11,
#26, #30, #33)
Satin Chrome 7446926D01 $9.50
Latch Button Spring (For Latch Holdback Assembly) (Includes 1 ea. #11,
#26, #30, #33)
Satin Brass 744690401 $9.50
27 1 Flange Washer (For Key Override Cylinder) Satin Chrome 5409726D01 $7.00
Flange Washer (For Key Override Cylinder) Satin Brass 540970401 $7.00
28 2 Screw (For Securing Key Override Cylinder) (10 Pack) 5409900010 $7.00
29 2 Washer, Shim (For Combination Chamber) (10 Pack) 5410900010 $6.00
30 1 Retainer Clip, E-Ring (For Latch Holdback Assembly) (Includes 1 ea. #11,
#26, #30, #33)
Satin Chrome 7446926D01 $9.50
Retainer Clip, E-Ring (For Latch Holdback Assembly) (Includes 1 ea. #11,
#26, #30, #33)
Satin Brass 744690401 $9.50
31 2 Screw, Panhead (#4 - 40 x 5⁄16”) (For Securing Gear Plate) (10 Pack) 5411700010 $6.00
32 2 Washer (For Mounting Center Plate) (10 Pack) 5412000010 $6.00
33 1 Washer (For Latch Holdback Assembly) (Includes 1 ea. #11, #26, #30,
#33)
Satin Chrome 7446926D01 $9.50
Washer (For Latch Holdback Assembly) (Includes 1 ea. #11, #26, #30,
#33)
Satin Brass 744690401 $9.50
34 1 Tamper Proof Access Screw Kit (Includes 1 ea. #34, #35) (For Combina-
tion Change)
Satin Chrome 5413326D01 $11.50
Tamper Proof Access Screw Kit (Includes 1 ea. #34, #35) (For Combina-
tion Change)
Satin Brass 541330401 $11.50
35 1 Tamper Proof Allen Wrench Kit (Includes 1 ea. #34, #35) (For Removing
Tamper Access Screw)
Satin Chrome 5413326D01 $11.50
Tamper Proof Allen Wrench Kit (Includes 1 ea. #34, #35) (For Removing
Tamper Access Screw)
Satin Brass 541330401 $11.50
36 2 Round Head Sheet Metal Screw (#5 x 5⁄16”) (Combination Chamber) (10
Pack)
5414400010 $7.00
37 1 Key Blank (For Key Override Cylinder) 54266 $5.00
38 1 Gear Plate Assembly* (For locks without key bypass for Models
9020000, 9040000, DL)
74042200001 $17.50
Gear Plate Assembly (For locks without key bypass) (For Models
9170000, 9190000, NL)
7407110001 $17.50
71
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Simplex
900 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
38 1 Gear Plate Assembly* for Key Bypass Locks (For 9350000) (NLM 100) 74162100001 $23.50
Gear Plate Assembly* for Key Bypass Locks (For 9380000) (NLM 200) 74163100001 $23.50
Gear Plate Assembly* for Key Bypass Locks (For 9060000) (DLM 100) 74164200001 $23.50
Gear Plate Assembly* for Key Bypass Locks (For 9100000) (DLM 200) 74167200001 $23.50
Gear Plate Assembly* for Key Bypass Locks with Horizontal Style Tail-
piece (Best) (DLBM100)
74164400001 $23.50
Gear Plate Assembly* for Key Bypass Locks with Horizontal Style Tail-
piece (Best) (DLBM200)
74167400001 $23.50
Gear Plate Assembly* for Key Bypass Locks with Horizontal Style Tail-
piece (Best) (NLBM100)
74162200001 $23.50
Gear Plate Assembly* for Key Bypass Locks with Horizontal Style Tail-
piece (Best) (NLBM100)
74163200001 $23.50
42 1 Combination Chamber (M-55) Dimensions: 7⁄8” x 15⁄16” x 3 7⁄8” (22 mm
x 24 mm x 98 mm) (Includes 1 ea. #1, #9, #42)
7408000001 $70.00
43 1 Ball Bearing Clutch Assembly (For connecting outside turn knob) (In-
cludes 1 ea. #19, #43)
7410300001 $10.50
44 1 Face Plate with Outside Knob (Includes 1 ea. #3, #13, #25, #40; 2 ea.
#10)
Satin Chrome 7411826D01 $15.50
Face Plate with Outside Knob (Includes 1 ea. #3, #13, #25, #40; 2 ea.
#10)
Satin Brass 741180401 $15.50
45 1 Center Plate and Barrel Assembly with Metal Buttons (100 Series) (For
9020000, 9060000, 9170000, 9350000)
Satin Chrome 7412426D01 $28.00
Center Plate and Barrel Assembly with Metal Buttons (100 Series) (For
9020000, 9060000, 9170000, 9350000)
Satin Brass 741240401 $28.00
Center Plate and Barrel Assembly with Metal Buttons (200 Series)
(For 9040000, 9100000, 9190000, 9380000, 9290000)
Satin Chrome 7412526D01 $28.00
Center Plate and Barrel Assembly with Metal Buttons (200 Series)
(For 9040000, 9100000, 9190000, 9380000, 9290000)
Satin Brass 741250401 $28.00
47 1 Key Override Cylinder (For 1 3⁄4” - 2 1⁄8” Thick Door) Satin Chrome 7416126D01 $64.00
Key Override Cylinder (For 1 3⁄4” - 2 1⁄8” Thick Door) Satin Brass 741610401 $64.00
52 1 Trigger Assembly (For NL + NLM Models) Satin Chrome 7429026D01 $9.50
Trigger Assembly (For NL + NLM Models) Satin Brass 742900401 $9.50
53 1 Drill Jig “C” Clamp (For wood doors) (Not Shown on Exploded View) 7430000001 $186.50
54 1 Metal Template (Not Shown on Exploded View) 7430100001 $104.00
55 1 Clip and Flange Assembly Satin Chrome 7441426D01 $7.00
Clip and Flange Assembly Satin Brass 744140401 $7.00
56 1 Surface-mounted Cast Strike (For metal door frames; spacers in-
cluded) (Not Shown on Exploded View)
Satin Chrome 7446426D01 $14.00
Surface-mounted Cast Strike (For metal door frames; spacers in-
cluded) (Not Shown on Exploded View)
Satin Brass 744640401 $14.00
57 1 Riser Plate to Shim Lock Housings 1⁄4” (6 mm) or 3⁄8” (10 mm)
(Not Shown on Exploded View)
Satin Chrome 7446826D01 $25.50
Riser Plate to Shim Lock Housings 1⁄4” (6 mm) or 3⁄8” (10 mm)
(Not Shown on Exploded View)
Satin Brass 744680401 $25.50
58 1 Latch Holdback Assembly Slide Button Activated for NL + NLM Models
(Includes 1 ea. #11, #26, #30, #33)
Satin Chrome 7446926D01 $9.50
Latch Holdback Assembly Slide Button Activated for NL + NLM Models
(Includes 1 ea. #11, #26, #30, #33)
Satin Brass 744690401 $9.50
Series Simplex
File Guard SeriesLD and LD Series
72
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
Simplex
900 Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
59 1 Outside Knob Assembly – Includes Hardware (Includes 1 ea. #13, #25,
#40; 2 ea. #10)
Satin Chrome 7447026D01 $9.50
Outside Knob Assembly – Includes Hardware (Includes 1 ea. #13, #25,
#40; 2 ea. #10)
Satin Brass 744700401 $9.50
60 1 Inside Knob Assembly – Includes Hardware (Includes 1 ea. #10, #13, #39) Satin Chrome 7447126D01 $10.50
Inside Knob Assembly – Includes Hardware (Includes 1 ea. #10, #13, #39) Satin Brass 744710401 $10.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Adapter Kit for Doors with Metal Frames (Includes riser plates and
surface strike) - Old Part # 74464/74468)
Satin Brass 8000441 $40.00
Adapter Kit for Doors with Metal Frames (Includes riser plates and
surface strike) - Old Part # 74464/74468)
Satin Chrome 80026D41 $40.00
Face Plate Shield (not for Key Override) Inhibits unatuhorized
observation of the combination - Satin Chrome finish only
(Old part# 2408100001)
Satin Chrome 80526D41 $35.00
Master Keys - For Key Override Models (Old part# 54266-1) 54266111 $15.50
Cut Keys - Service Keys for Key Override Models (Old part# 54266-2) 54266211 $8.50
Blank Keys 54266 $5.00
Inside Lever Handle Satin Brass 744370401 $40.00
Inside Lever Handle Satin Chrome 7443726D01 $40.00
Panic Bar Release Kit Satin Brass 744380401 $40.00
Inside Lever Handle Satin Chrome 7443826D01 $40.00
Strike Spacers (10 Pack) Satin Brass 240950410 $11.50
Strike Spacers (10 Pack) Satin Chrome 2409526D10 $10.50
Key Override Tailpiece (5 Pack) 2408600005 $17.50
Lubriplate Aero Grease Tubes 6475400001 $15.50
Simplex 900 Series Wooden Demo Mount 20305300041 $175.00
Face Plate Shield Inside Lever Handle Panic Bar Release Kit
Adapter Kit
Notes
When ordering replacement cut keys, SL# must be supplied to factory.
Parts availability may be limited on older component parts no longer used in production units.
73
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
74
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
9600 Series
75
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
9600 Series
Exploded View
966 Sheet Metal/Deadbolt
5
89
12
13
13
10
9
16
19 18
17
16
13
4
2
962 Wood/Deadbolt
5
2
613
12
7
11
10 14
13
16
16
18
20
3
1
17
18
11
7
4
21
966 Sheet Metal/Spring Latch
1
58
9
12
13
10
15
14
13
21
20
16
2
3
16
23
22
19
18
17
4
9
962 Wood/Spring Latch
356
7
12
13
7
11
10 14
13
16
4
1
2
22
23
11
15
16
20
21
17
18
See Page 6 for
How to Order instructions
Series Simplex
File Guard SeriesLD and LD Series
76
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
9600 Series
Exploded View
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 1 Clutch Knob Kit (Includes 1 ea. #1, #2,#4) Black 7490608301 $14.00
2 1 Nylon Spacer (10 Pack) 3403700010 $11.50
3 1 Escutcheon Plate (fits wood application without trim plate) (sm 14-20 gauge) Bright Brass 34031std0301 $11.50
Escutcheon Plate (fits wood application without trim plate) (sm 14-20 gauge) Satin Brass 34031std0401 $11.50
Escutcheon Plate (fits wood application without trim plate) (sm 14-20 gauge) Satin Chrome 34031std26D01 $11.50
Escutcheon Plate (fits .125 wood application with trim plate) (sm 1⁄8” metal) Bright Brass 340311250301 $11.50
Escutcheon Plate (fits .125 wood application with trim plate) (sm 1⁄8” metal) Satin Brass 340311250401 $11.50
Escutcheon Plate (fits .125 wood application with trim plate) (sm 1⁄8” metal) Satin Chrome 3403112526D01 $11.50
Escutcheon Plate (fits .188 sheet metal applications) (sm 3⁄16” metal) Bright Brass 340311880301 $11.50
Escutcheon Plate (fits .188 sheet metal applications) (sm 3⁄16” metal) Satin Brass 340311880401 $11.50
Escutcheon Plate (fits .188 sheet metal applications) (sm 3⁄16” metal) Satin Chrome 3403118826D01 $11.50
Escutcheon Plate (fits .250 sheet metal applications) (sm 1⁄4” metal) Bright Brass 340312500301 $11.50
Escutcheon Plate (fits .250 sheet metal applications) (sm 1⁄4” metal) Satin Brass 340312500401 $11.50
Escutcheon Plate (fits .250 sheet metal applications) (sm 1⁄4” metal) Satin Chrome 3403125026D01 $11.50
4 1 Knob Retainer Clip (5 Pack) 5401100005 $11.50
5 5 Push Buttons (.406” long) Black 3401910610 $12.50
Push Buttons (.590” long) (fits .188 and .250 sheet metal applications) Black 20002410610 $12.50
6 1 Trim Plate Black 3400508301 $9.50
7 2 Back Cover Plate (2 Pack) 3400600001 $11.50
8 1 Back Up Plate 3417300001 $11.50
9 2 Back Up Plate Screws (7⁄16” long) (sheet metal) 5443000010 $9.50
10 1 Cam Kit (CT sheet metal, non-spring loaded applications) (assy required)
(Includes 1 ea. #10, #16, retainer ring)
2420900001 $14.00
Cam Kit (CT wood, deadbolt applications) (Includes 1 ea. #10, #14, #16) 2404300001 $14.00
Cam Kit (CT wood/sheet metal spring loaded bolt applications) (Includes
1 ea. #10,#14, #15, #16)
2450900001 $14.00
Cam Kit (ET sheet metal, non-spring loaded applications) (assy required)
(Includes 1 ea. #10, #16, retainer ring)
7410400001 $14.00
Cam Kit (ET wood/sheet metal, spring loaded bolt applications) (Includes
1 ea. #10, #14, #15, #16)
7457000001 $14.00
Cam Kit (ET wood deadbolt applications) (Includes 1 ea. #10, #14, #16) 2403600001 $14.00
11 2 Cover Plate Screws (#5 - 40 x 5⁄8” (16mm)) Wood Machine Screw (10
Pack)
5442700010 $9.50
Cover Plate Screws (#5 - 40 x 3⁄4” (19mm)) Wood Machine Screw (10
Pack)
5442900010 $9.50
12 1 Combination Chamber Kit with Spring Return for Cross Throw Models
(Includes 1 ea. #1, #2, #4, #12)
7488100001 $70.00
Combination Chamber Kit NO Spring Return for deadbolt Models (In-
cludes 1 ea. #1, #2, #4, #12)
7466200001 $70.00
Combination Chamber Kit with Spring Return for Spring Loaded End
Throw Models or Spring Loaded Cross Throw Conversion Kit Models
(Includes 1 ea. #1, #2, #4, #12)
7491000001 $70.00
Combination Chamber Kit NO Spring Return for 2 Point End Throw
Models (Includes 1 ea. #1, #2, #4, #12)
7467800001 $70.00
13 2 Combination Chamber Screw Kit (#5 - 40 X 3⁄8” long (8mm)) 5442800010 $9.50
14 1 Cam Cover (Included in follower kits - see #16) see #16 $0.00
15 1 Follower Spring (ET spring loaded bolt only) (10 Pack) 5430000010 $9.50
77
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
9600 Series
Exploded View
Item Qty/Lock Description Finish Part Number Li Price (USD)
16 1 Follower Kit (Sheet metal/wood, CT, spring loaded bolt)
(Includes 1 ea. #10, #14, #15, #16)
2450900001 $14.00
Follower Kit (Sheet metal/wood, ET, spring loaded bolt)
(Includes 1 ea. #10, #14, #15, #16)
7457000001 $14.00
Follower Kit (Sheet metal, CT, deadbolt) (Includes 1 ea. #10, #16,
bushing and retainer (Not Shown))
2420900001 $14.00
Follower Kit (Sheet metal, ET, deadbolt) (Includes 1 ea. #10, #16,
bushing and retainer (Not Shown))
7410400001 $14.00
Follower Kit (Wood, CT, deadbolt) (Includes 1 ea. #10, #14, #16) 2404300001 $14.00
Follower Kit (Wood, ET, deadbolt) (Includes 1 ea. #10, #14, #16) 2403600001 $14.00
17 1 Latch Bolt Kit (Deadbolt, Round, Sheet metal)
(Includes 1 ea. #17, #18; 2 ea. #19)
7403000001 $10.50
Latch Bolt Kit (Deadbolt, Flat, Rectangular, Wood)
(Includes 1 ea. #17, #18, #21; 2 ea. #11; 5 ea. #20)
7456100001 $10.50
Latch Bolt Kit (Spring Loaded Bolt, Round, Sheet metal or wood)
(Includes 1 ea. #17, #18, #21; 2 ea. #19; 5 ea. #20)
7470200001 $10.50
18 1 Bolt Guide (Included in follower kits - see #17) see #17 $0.00
19 2 Rivets (10 Pack) 5403001810 $9.50
20 5 Bracket Screws (Fit wood or metal) (10 Pack) 5401600010 $9.50
21 1 Strike (fits TM/RM models) (Included in follower kits - see #17) see #17 $0.00
22 1 Key Override Cylinder (Includes 1 ea. #22, #23) (Specify key cut) 7457300001 $15.50
23 1 Cylinder Nut (Includes 1 ea. #22, #23) 7457300001 $15.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
* Specify Finish: 03 - Bright Brass
04 - Satin Brass
26D - Satin Chrome
**Specify Key Cut
Notes:
• If an item number is included in a kit description, unless noted, that number is referencing the item number on the previous page.
• If an item number is not shown on a picture you are referencing, then it is not used on that model.
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
Series Simplex
File Guard SeriesLD and LD Series
78
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
File Guard Series
Item Qty/Lock Description Finish Part Number Li Price (USD)
1 Replacement Cylinder for F2580 Series Bar A6828SC $17.50
1 “Standard” Clevis Pin 3⁄8” Thread F9451 $9.50
“Standard” Clevis Pin 3” Thread F9452 $10.50
1 “Swing-Away” Clevis Pin 3⁄8” Thread F9453 $9.50
“Swing-Away” Clevis Pin 3” Thread F9454 $10.50
1 Notch Pin 3⁄8” Thread F9460 $9.50
Notch Pin 3” Thread F9463 $10.50
1 “Standard” Notch & Clevis Pin Set 3⁄8” Thread (2500 Series Accessory Pack) F9470 $17.50
“Standard” Notch & Clevis Pin Set 3” Thread F9471 $21.00
1 “Swing-Away” Notch & Clevis Pin Set 3⁄8” Thread (2570 Series Accessory Pack) F9472 $17.50
“Swing-Away” Notch & Clevis Pin Set 3” Thread F9473 $21.00
1 “Build-In-Lock” Notch Pin Set 3⁄8” Thread (2580 Series Accessory Pack) F9474 $17.50
1 Reinforcing Pin Plate F9475 $6.00
1 Cam Cover, ET (FG Series) 2403500001 $7.00
1 Cam, ET (FG Series) 2404200001 $6.00
1 Bolt Retainer (FG Series) 2443600001 $6.00
1 Follower Plate, ET (FG Series) 2443700001 $8.00
1 Push Buttons (10 Pack) (FG Series) 3401910610 $12.50
1 Spacer Washer (10 Pack) (FG Series) 3403700010 $11.50
1 Lock Housing - Black - PBL (FG Series) 3413001201 $15.50
1 Locking Bolt, Round (FG Series) 4428900001 $7.00
1 Combination Chamber (Includes turn knob kit below) (FG Series) 7466200001 $70.00
1 Turn Knob (Includes knob, spacer, retainer) (FG Series) 7490608301 $14.00
1 Chamber Screw - Screw Pack (10 ea. 6-32 x 3/8”, 5/16”, 7/16”)(FG Series) 6477600001 $11.50
Additional Kits & Accessories Finish Part Number Li Price (USD)
Lubriplate Aero Grease Tubes 6475400001 $15.50
Accessory Pack (FG Series/F250x Series)) F25002 $18.50
Accessory Pack (F257x Series) F25703 $18.50
Accessory Pack (F258x Series) F25804 $18.50
Notes
• Lubriplate Aero grease is the “only” lubricant that should be used.
Parts availability may be limited on older component parts no longer used in production units.
See Page 6 for
How to Order instructions
79
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
80
Mechanical Lock Parts Price Book - February 2019Electronic Access & Data
LD450 & LD470 Series
Item Qty/Lock LD 450 Parts Only Finish Part Number Li Price (USD)
1 1 2 3/8” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Brass 647960301 $37.00
2 3/8” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Satin
Stainless
6479632D01 $37.00
2 3/4” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Brass 647970301 $37.00
2 3/4” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Satin
Stainless
6479732D01 $37.00
2 1 Installation Hardware Pack (Includes 1 ea. Tweezers, Latch Holdback Clip,
Latch Support Post, Short/Medium/Long Spindles; 2 ea. Coded Tumblers -
RED, Uncoded Tumblers - BLUE, Short/Medium/Long Mounting Bolts)
Brass 648000301 $33.00
Installation Hardware Pack (Includes 1 ea. Tweezers, Latch Holdback Clip,
Latch Support Post, Short/Medium/Long Spindles; 2 ea. Coded Tumblers -
RED, Uncoded Tumblers - BLUE, Short/Medium/Long Mounting Bolts)
Satin
Stainless
6480032D01 $33.00
Lubriplate Aero Grease Tubes 6475400001 $15.50
Item Qty/Lock LD 470 Parts Only Finish Part Number Li Price (USD)
1 1 2 3/8” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Brass 647980301 $41.00
2 3/8” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Satin
Stainless
6479832D01 $41.00
2 3/4” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Brass 647990301 $41.00
2 3/4” Latch (Includes 1 ea. Latch, Strike, Strike Box; 4 ea. Mounting Screws) Satin
Stainless
6479932D01 $41.00
2 1 Installation Hardware Pack (Includes 1 ea. Tweezers, Hex Wrench, Lever Plug,
Short/Medium/Long Spindles; 2 ea. Coded Tumblers - RED, Uncoded Tumblers
- BLUE, Extra Short/Short/Medium/Long Mounting Bolts)
Brass 648010301 $37.00
Installation Hardware Pack (Includes 1 ea. Tweezers, Hex Wrench, Lever Plug,
Short/Medium/Long Spindles; 2 ea. Coded Tumblers - RED, Uncoded Tumblers
- BLUE, Extra Short/Short/Medium/Long Mounting Bolts)
Satin
Stainless
6480132D01 $37.00
Lubriplate Aero Grease Tubes 6475400001 $15.50
Parts availability may be limited on older component parts no longer used in production units.
See Page 6 for
How to Order instructions
LD450
Series
LD470
Series
1
1
2
2
81
Mechanical Lock Parts Price Book - February 2019 Electronic Access & Data
Series Simplex
File Guard SeriesLD and LD Series
2941 Indiana Ave.
Winston-Salem NC
27105
T: 1 800 849 8324
www.dormakaba.us
KAA1099_2_19
