E-Plex® 5200 Specifications

E-Plex®

5200 Series

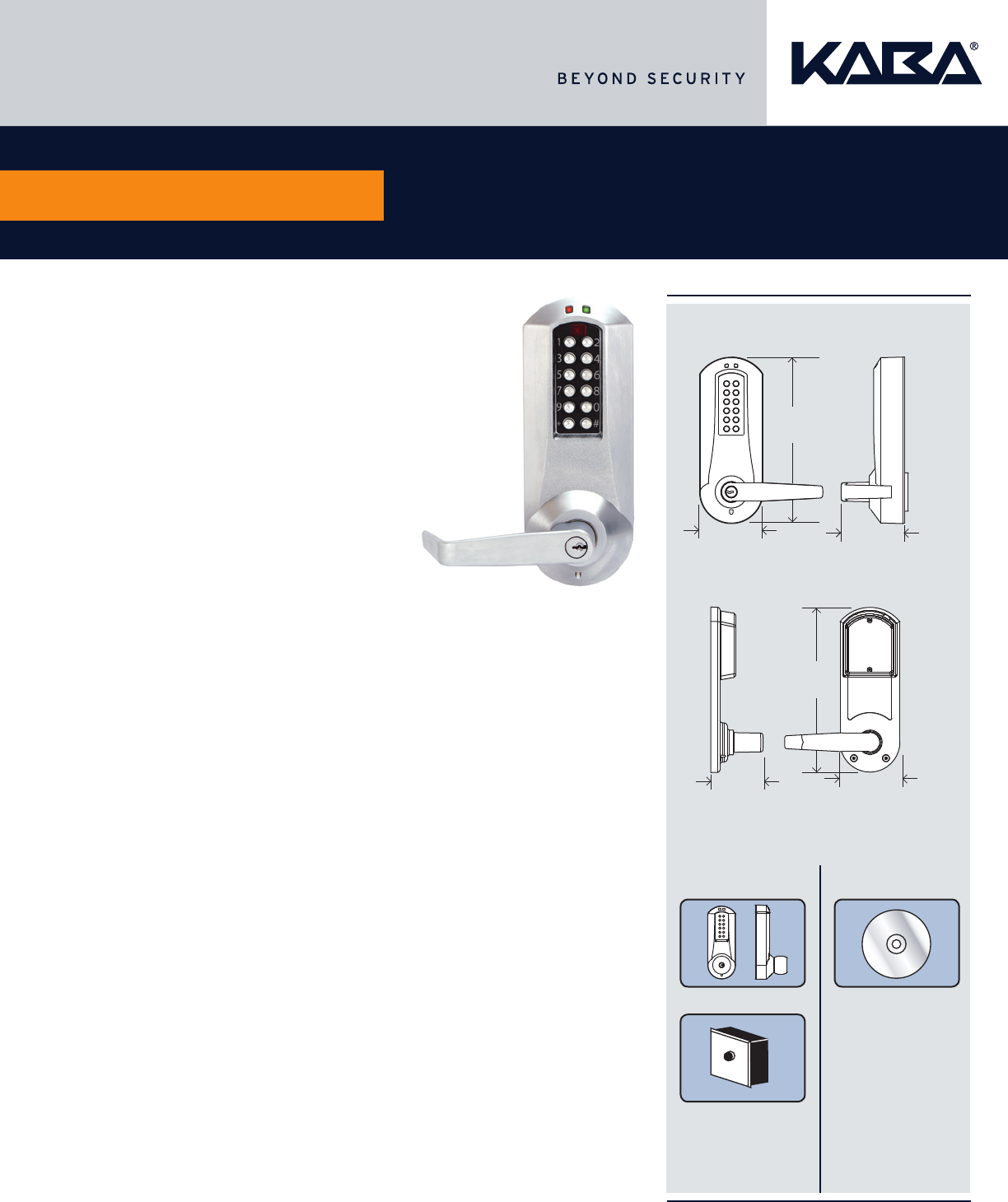

Cylindrical Dimensions

• Knob

Dimensions

Interior

Exterior

313⁄16"

(97 mm)

33⁄8"

(86 mm)

87⁄8"

(225 mm)

87⁄8"

(225 mm)

21⁄8"

(54 mm)33⁄16"

(81 mm)

Dimensions

Interior

Exterior

313⁄16"

(97 mm)

33⁄8"

(86 mm)

87⁄8"

(225 mm)

87⁄8"

(225 mm)

21⁄8"

(54 mm)33⁄16"

(81 mm)

• Remote Unlock

• PC Software

Optional Features Required Feature

FEATURES

Access Control:

Electronic pushbutton lock—eliminates problems and costs

associated with issuing, controlling, and collecting keys and cards

Number of Codes

3,000 access codes per door; over 100 million

possible code combinations

Audit Trail:

The most recent 30,000 lock events are recorded in

memory, including use of the mechanical key override

Programming:

Locks are programmed via E-Plex Enterprise Software (not included)—provides easy

management of doors and users. Upgradable to wireless.

Handing:

Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:

Key-in-lever cylinders, small format interchangeable cores, large format removable cores

Lock Function Customization:

Locks are easily customized on site via keypad to work as various BHMA lock

functions, eliminating the requirement to stock multiple locks for different applications.

Built-in options include: Entry, Privacy, and Residence lock, (thumbturn required for

Privacy and Residence functions).

Three Operation Modes:

• PIN access per Access Schedule

• Lockout

• Passage—can be toggled on/off or can be pre-programmed to relock after a certain

number of hours (from 1 to 24)

Scheduling:

Access Schedules—Up to 16 different access schedules may be programmed into lock

Holiday / Vacation—Up to 32 different holiday / vacation blocks may be programmed

into lock

PRODUCT FACTSHEET

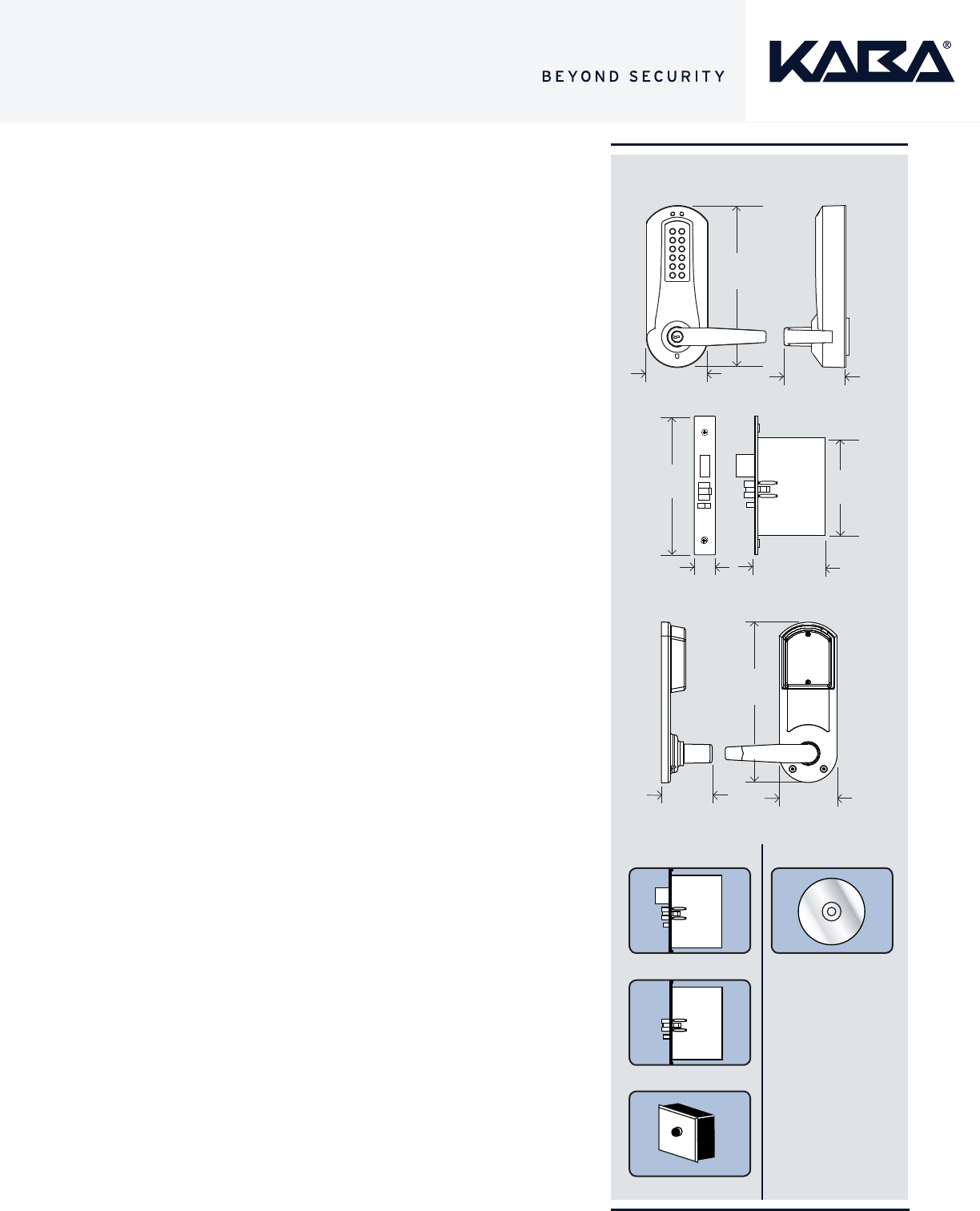

Mortise Dimensions

FEATURES (CONTINUED)

Passage Options:

• First manager in (or privileged user) automatically according to access schedules

• Manually toggled on / off at lock

Authority Levels:

Six different levels allow who has access to specific lock functions, including:

Master Level—

Performs all set-up and programming functions

Manager Level—Administers common programming functions

Access User Level—Entry granted with valid PIN

Service Level—Codes for single event or up to four-day access, or no expiry option for

"Super" Service users

Guest Level—1-365 day durations

Maintenance Level—No access is granted, but can upload/download info to/from the lock

User Parameters:

Code length—Adjustable to accept 4 to 8 digits

Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable

period of 0 to 90 seconds

Relock time—Adjustable from 2 to 20 seconds

Battery Operation:

Batteries located in interior housing cover; offers quick and easy battery replacements;

Four AA Alkaline batteries provide up to 180,000 cycles (performance varies based on

settings); lock data is maintained if batteries fail

Ease of Installation:

LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

MECHANICAL FEATURES

Construction:

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical

drive wear tested for extensive use in indoor and outdoor applications

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Door Handing:

E-Plex 5200 Cylindrical and E-Plex 5200 Mortise—Non-handed, pre-assembled

for left-hand door installations; easily changed in the field

E-Plex 5200 Exit Trim—Non-handed

Backsets:

E-Plex 5200 Cylindrical—2 3

⁄

4" (70 mm), 2 3

⁄

8" (60 mm)

E-Plex 5200 Mortise—2 3

⁄

4" (70 mm)

E-Plex 5200 Exit Trim—Varies by exit device type

Latch:

E-Plex 5200 Cylindrical—1

⁄

2" (13 mm) latch, 3

⁄

4" (19 mm) latch (optional)

with three-hour UL/ULC fire rating

E-Plex 5200 Mortise—3

⁄

4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

• Remote Unlock

• Deadbolt

• Without Deadbolt

Optional Features

• PC Software

Required Feature

Dimensions

Interior

Exterior

313⁄16"

(97 mm)

33⁄8"

(86 mm)

87⁄8"

(225 mm)

87⁄8"

(225 mm)

21⁄8"

(54 mm)33⁄16"

(81 mm)

Exterior

E-Plex®5700 Mortise

Specification Sheet

Features

Access Control: Electronic pushbutton lock with dual credential capability – PIN and /

or PROX card (HID, 125khz, 26 to 84 bit format). Lock is scheduled to

require credentials based on security and convenience requirements

PIN only

PROX card only

PIN + PROX card

Locking Device: ASM, American Standard Mortise with 1 1⁄4" (32 mm) face plate;

offered with or without 1" deadbolt

Number of Codes: 3,000 access codes per door; over 100 million possible code combinations

Audit Trail: The most recent 30,000 lock events are recorded in memory

including use of the mechanical key override

Programming: Locks are programmed via E-Plex Advanced Access Control

Software (not included) - provides easy

management of doors and users

Built-In Locks are easily customized on site via keypad to work as various

Customization: BHMA functions eliminating the requirement to stock multiple locks

to meet different applications - built-in options include: entry,

storeroom, privacy and residence function

Handing: Non-handed, pre-assembled for left hand door installations - easily

changed in the field

Scheduling: Access schedules Up to 16 different access schedules may be

programmed into lock

Holiday / Vacation Up to 32 different holiday / vacation blocks

may be programmed into lock

Passage Options: First manager in (or privileged user)

Automatically according to access schedules

Manually toggled on / off at lock

Authority Levels: Six different levels allow you to control who has access to specific

lock functions, includes:

Service codes – programmed for one time access or “come and

go” access for 1 to 24 hours

Guest management – access for temporary users expiring from

1 to 365 days

User Parameters: Code length Adjustable to accept 4 to 8 digits

Anti-tamper lockout Adjustable from 3 to 9 invalid attempts with an

adjustable period of 0 to 90 seconds

Re-lock time Adjustable from 2 to 20 seconds

Battery Operation: Batteries located in interior housing cover; offers quick and easy

battery replacements for institutions (Four AA Alkaline batteries

provide up to 120,000 cycles) Lock data is maintained if batteries fail

Ease of Installation: LectroBolt™ (patent pending) eliminates wiring to or through the

door - no risk of pinched wires

Dimensions

Optional Features

• Remote Unlock

• Deadbolt • Without Deadbolt

Interior Exterior

313⁄16"

(97 mm)

33⁄8"

(86 mm)

11⁄4"

(32 mm)

21⁄8"

(54 mm)33⁄16"

(81 mm)

41⁄8"

(105 mm)

57⁄8"

(149 mm)

87⁄8"

(225 mm)

87⁄8"

(225 mm)

8"

(203 mm)

E-Plex®5700 Mortise

Specification Sheet

Features

Access Control: Electronic pushbutton lock with dual credential capability – PIN and /

or PROX card (HID, 125khz, 26 to 84 bit format). Lock is scheduled to

require credentials based on security and convenience requirements

PIN only

PROX card only

PIN + PROX card

Locking Device: ASM, American Standard Mortise with 1 1⁄4" (32 mm) face plate;

offered with or without 1" deadbolt

Number of Codes: 3,000 access codes per door; over 100 million possible code combinations

Audit Trail: The most recent 30,000 lock events are recorded in memory

including use of the mechanical key override

Programming: Locks are programmed via E-Plex Advanced Access Control

Software (not included) - provides easy

management of doors and users

Built-In Locks are easily customized on site via keypad to work as various

Customization: BHMA functions eliminating the requirement to stock multiple locks

to meet different applications - built-in options include: entry,

storeroom, privacy and residence function

Handing: Non-handed, pre-assembled for left hand door installations - easily

changed in the field

Scheduling: Access schedules Up to 16 different access schedules may be

programmed into lock

Holiday / Vacation Up to 32 different holiday / vacation blocks

may be programmed into lock

Passage Options: First manager in (or privileged user)

Automatically according to access schedules

Manually toggled on / off at lock

Authority Levels: Six different levels allow you to control who has access to specific

lock functions, includes:

Service codes – programmed for one time access or “come and

go” access for 1 to 24 hours

Guest management – access for temporary users expiring from

1 to 365 days

User Parameters: Code length Adjustable to accept 4 to 8 digits

Anti-tamper lockout Adjustable from 3 to 9 invalid attempts with an

adjustable period of 0 to 90 seconds

Re-lock time Adjustable from 2 to 20 seconds

Battery Operation: Batteries located in interior housing cover; offers quick and easy

battery replacements for institutions (Four AA Alkaline batteries

provide up to 120,000 cycles) Lock data is maintained if batteries fail

Ease of Installation: LectroBolt™ (patent pending) eliminates wiring to or through the

door - no risk of pinched wires

Dimensions

Optional Features

• Remote Unlock

• Deadbolt • Without Deadbolt

Interior

Exterior

313⁄16"

(97 mm)

33⁄8"

(86 mm)

11⁄4"

(32 mm)

21⁄8"

(54 mm)33⁄16"

(81 mm)

41⁄8"

(105 mm)

57⁄8"

(149 mm)

87⁄8"

(225 mm)

87⁄8"

(225 mm)

8"

(203 mm)

Interior

PRODUCT FACTSHEET

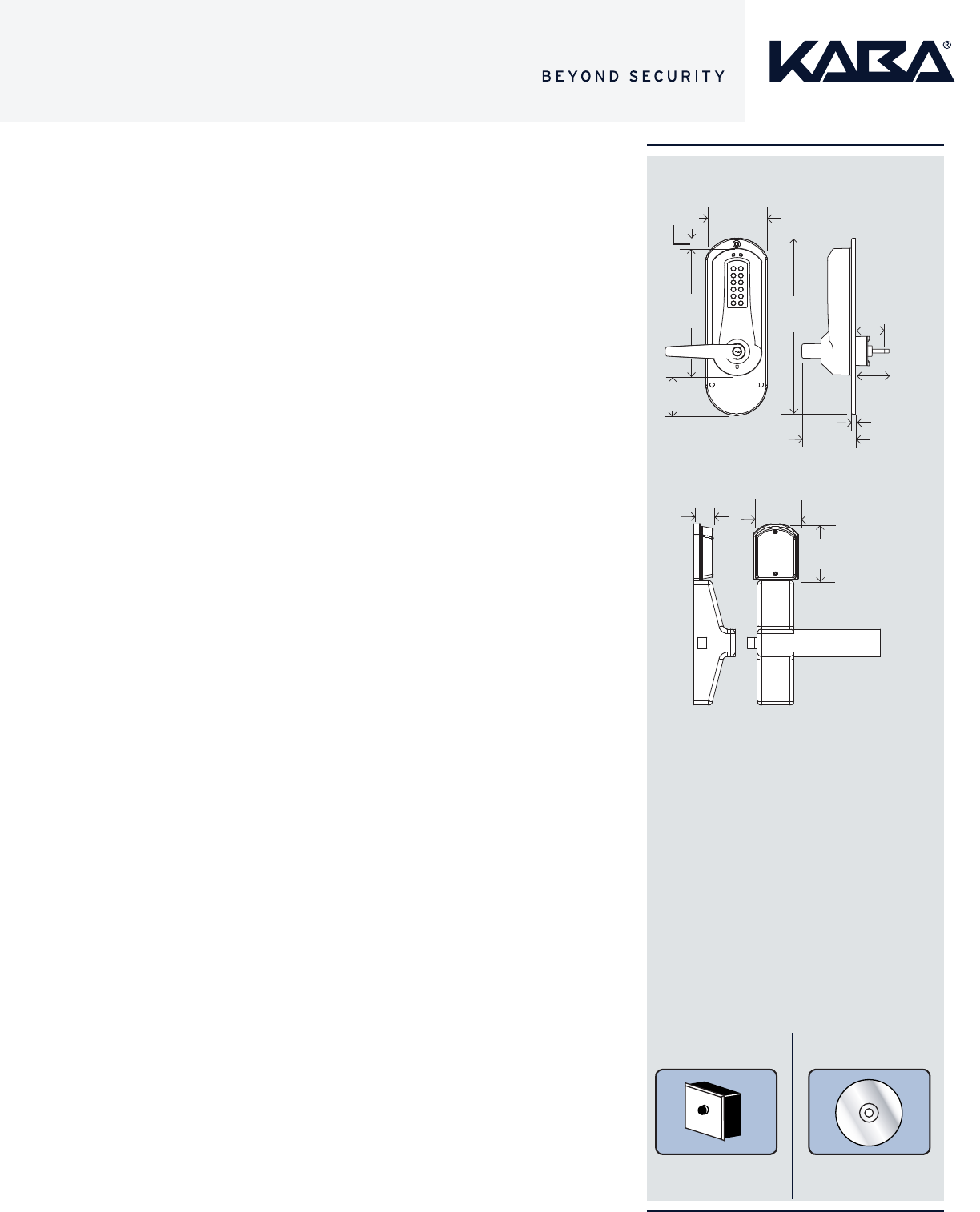

Exit Trim Dimensions

MECHANICAL FEATURES (CONTINUED)

Minimum Stile Recommended:

5" (127 mm)

Weight:

E-Plex 5200 Cylindrical—9.5 lbs. (4.30 kg)

E-Plex 5200 Exit Trim—9.5 lbs. (4.30 kg)

E-Plex 5200 Mortise—11.5 lbs. (5.20 kg)

KEY OVERRIDE

Universal Key-In-Lever Cylinders:

Schlage "C" Keyway, (keyed different) and tailpieces for compatibility with:

Abloy 5277 Kaba Gemini 4730

Abloy 5477 Kaba Peaks 1099

Arrow C100 Marks

ASSA 65611 Medeco 20W200H1

ASSA 65691 Sargent 10 Line

Corbin Russwin 2000-03 Schlage 23-001

Kaba 1539 Schlage Primus 20-760

Kaba 1599

Australian: Kaba expert 107K5, Boyd KC286

European: Quattro S/Expert, AP2 (5 and 6-pin)

Interchangeable Cores:

Small format Best and equivalents (6 or 7-pin length)

Removable Cores:

Large format ASSA, Medeco, Yale, Abloy (5 or 6-pin), Corbin Russwin, Schlage, and Sargent

INSTALLATION

Ease of Installation:

LectroBolt eliminates wiring to or through the door—no risk of pinched wires

Door Preparation:

E-Plex 5200 Cylindrical and E-Plex 5200 Exit Trim—

ASA 161 doo

r preparation—

easily installs with two additional through bore

holes (

wood or metal doors)

E-Plex 5200 Mortise

—ASA 86 door

preparation with two additional through bore holes

Door Thickness:

E-Plex 5200 Cylindrical—1 3

⁄

8" (35 mm) to 2 1⁄

4" (57 mm)

Pre-assembled to accommodate doors 1 5

⁄

8" (41 mm) to 2" (50 mm)

E-Plex 5200 Mortise—1 3

⁄

4" (44 mm) to 2 1⁄

4" (57 mm)

Pre-assembled to accommodate doors 1 5

⁄

8" (41 mm) to 2" (50 mm)

E-Plex 5200 Exit Trim—1 3

⁄

4" (44 mm) to 2 1⁄

4" (57 mm)

Pre-assembled to accommodate doors 1

3

⁄

4

" (44 mm) to 2

1⁄

8

" (54 mm)

Items Supplied:

E-Plex 5200 Cylindrical and E-Plex 5200 Mortise—

Lock assembly,

installation manual,

template, quick reference guide, operations manual, and required hardware

E-Plex 5200 Exit Trim—Lock assembly, installation manual, template, quick reference

guide, operations manual, and required hardware. Exit Device and mounting hardware

not included.

• Remote Unlock

Exit Device Compatibility

Arrow S1250

Arrow S3883F/S3800

Black & Decker (K-2)

QED111/112

Cal Royal 9800

Cal Royal 2200

Corbin Russwin

ED5200/5200A

Detex 1001 BP1

Detex 10/F10 Series

Dorex 8500R/8500F

Dorex 9500PR/9500FR

Dorma 9300/F9300

Monarch 18R*, F18R*

Precision 21/FL21

Sargent 2828

Sargent 3828

Sargent 8810E/8800

Sargent 8888

Von Duprin 22/22F

Von Duprin 98/98F

Von Duprin 99/99F

Von Duprin XP98/99

Yale YME2100/2100

Yale 7100

*(requires special K-Hub Adapter)

Dimensions

Exit Device Compatibility

Arrow S1250

Arrow S3800

Corbin Russwin

5200 / 5200A

Detex 10 / F10

Dorma 9300 / 9300F

Monarch 18R / F-18R

Precision 21 / FL 21

Sargent 2828

Sargent 3828

Sargent 8800

Sargent 8888

Von Duprin 22/22F

Von Duprin 98/98F

Von Duprin 99 / 99F

Yale 7100

Interior Exterior

125⁄16"

(313 mm)

41⁄16"

(103 mm)

33⁄16"

(81 mm)

37⁄8"

(98 mm)

13⁄8"

(35 mm)

25⁄16"

(59 mm)

MAX

2"

(51 mm)

MIN

1⁄4"

(6 mm)

87⁄8"

(225 mm)

41⁄4"

(108 mm)

11⁄16"

(17 mm)

23⁄4"

(70 mm)

Exterior

Interior

Optional Feature

• PC Software

Required Feature

PRODUCT FACTSHEET

Disclaimer: While reasonable efforts were made to ensure the accuracy of this document at the time of printing, Kaba assumes no liability for any errors or omissions.

This information is subject to be revised without notice, and changes may be incorporated in future releases

KAA1058 0214

Copyright © 2014 Kaba Access & Data Systems Americas. All rights reserved.

Kaba Access & Data Systems Americas

2941 Indiana Avenue

Winston-Salem, NC 27105

Tel: 1-800-849-8324

www.kaba-adsamericas.com

INSTALLATION (CONTINUED)

Additional Items Supplied with Key-in-Lever Cylinder Model Only:

E-Plex 5200 Cylindrical and E-Plex 5200 Mortise—Universal Kaba 1599 6-pin

cylinder with tailpiece, four additional tailpieces, and two nickel silver keys

E-Plex 5200 Exit Trim—Universal Kaba 1599 6-pin cylinder with

tailpiece, four additional tailpieces, nickel silver keys, and spare cylinder retainer

CERTIFICATION AND TESTING

Accessibility Standard:

Americans with Disabilities Act (ADA)

Durability:

E-Plex 5200 Cylindrical—ANSI/BHMA A156.25, Grade 1 Certification

E-Plex 5200 Mortise—ANSI/BHMA A156.13, Grade 1 Certification

E-Plex 5200 Exit Trim—ANSI/BHMA A156.3, Grade 1 Certification

Fire Rating:

Three-hour UL/ULC fire door rating for "A" labeled doors

Environmental:

Indoor/Outdoor Approved

Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)

Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)

WARRANTY

Warranty:

Three-year warranty from date of installation; built-in warranty counter in lock memory

AVAILABLE FINISHES

Standard Finishes:

Satin Chrome 26D (626) housings and levers

Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes:

Bright Brass 03 (605) housings and levers

Satin Brass 04 (606) housings and levers

Bright Chrome 026 (625) housings and levers

Dark Bronze (744–simulates 10B/613) housings and levers

with Satin Brass (606) pushbuttons

Standard Finishes

Satin Chrome

Bright Brass

Bright Chrome

Black

Satin Brass

Dark Bronze

Optional Finishes
