E-PLEX®

1” MORTISE INSTALLATION INSTRUCTIONS

TABLE OF CONTENTS

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Exploded Install Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Handing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

A. Mortise Handing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

B. Door Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

C. Installing the Strike . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

D. Installing Outside Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

E. Installing Inside Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

F. Installing the Inside Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

G. Changing Key-In-Lever Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

H. Installing / Removing Outside Lever (Key-In-Lever) KIL . . . . . . . . . . . . . . . . . . . . . . . . . .11

I. Installing / Removing Outside Lever (Interchangeable/ . . . . . . . . . . . . . . . . . . . . . . . . . .11

removable core models)

J. Installing the Battery Pack and Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

K. Testing the Operation of the Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

L. Programming and Software Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

M. Installing Rubber Bumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Warning

The Master Code of this lock has been factory preset: 1,2,3,4,5,6,7,8. To activate

lock functions, the master combination must be changed at time

of installation.

Warnings and Cautions

Important: Carefully inspect windows, door frame, door, lights, etc.

to ensure that the recommended procedures will not cause damage. Kaba

Access Control’s warranty does not cover damages caused by installation.

Caution: Wear safety glasses when preparing door.

Introduction

The purpose of this manual is to instruct the installer on the proper

installation procedure for the E-Plex 5x63, 5x64, 5x68 and 5x69 1"

American Steel Mortise (ASM) Mortise locks. These instructions pertain

to models with and without deadbolts. For models without deadbolts,

please disregard any references to a thumbturn in the instructions.

TOOLS REQUIRED

• Safety glasses

• 1⁄2" (13 mm) chisel

• 1⁄8" (3 mm) drill bit

• 1⁄4" (7 mm) drill bit

• 1⁄2" (13 mm) drill bit

• 21⁄8" (54 mm) hole saw

• Drill

• Awl or center punch

• Hammer

• Small flat screwdriver

• Phillips screwdriver (#2)

• Fine steel file

• Mortising machine

• Router

• Mortise faceplate router

template

• Adjustable square

• Tape measure

• Pencil

• Tape

• Cleaning supplies

(drop cloth, vacuum)

OPERATIONAL NOTE:

The E-Plex Mortise lock is almost identical to the E-Plex 5000 Cylindrical

lock with the following exceptions:

1. Operation of the Lever When the lock’s handing is properly set,

only a downward rotation of lever will actuate latch.

2. Key Override Use The key override differs in that rotating the key

does not actuate the latch. To use the key override the key must be

inserted into the cylinder and rotated counter clockwise until it

stops (approximately 90 degrees) then while holding the key in this

position with one hand use the other hand to rotate the lever down-

ward to retract the latch. Once the lever has rotated a few degrees

the key may be released.

For technical assistance please call

1-800-849-TECH (8324) or 336-725-1331

INSTALLATION QUALIFICATIONS

These instructions are designed for use by maintenance professionals or lock

installers who are familiar with common safety practices and competent to

perform the steps described. Kaba Access Control is not responsible for

damage, injury or malfunction due to incorrect installation.

Outside Unit

Assembly

Outside Lever

Assembly

Mounting

Plate

Mortise Lock

Mortise Faceplate

Strike

Mortise

Spindle

Thumbturn

Spindle

Lower

Mounting

Screws Release

Tool

Mounting

Plate

Screws

Allen

Wrench

Battery Cover

Screws

Battery Pack Cover

Battery Pack

Lectrobolt

Inside Unit Assembly

Inside Lever

Security

Screw Tool

Upper

Mounting Screw

E-PLEX 1" Mortise Lock

5x63, 5x64, 5x68 and 5x69

Handing Diagram

To determine handing, face the door from the exterior (access) side and

select the corresponding diagram below.

LH RH LHR RHR

Chart

Model Number Handing Deadbolt

E5x63 LH/RHR

E5x64 RH/LHR

E5x68 LH/RHR

E5x69 RH/LHR

Yes

A. MORTISE HANDING

The 1" Mortise is not field reversible. You must have the

appropriate model for the door handing of the installation.

For LH (left hand) and

RHR (right hand reverse)

For RH (right hand) and

LHR (left hand reverse)

B. DOOR PREPARATION

If using the installation jig to prepare the door, refer

to the instructions provided with the jig, then pro-

ceed with step 7.

B-1 Mark the handle height on the edge of the door,

as determined directly from the strike.

The axis of rotation of the handle is level

with the bottom lip of the strike.

B-2 Align the template along the vertical

center line of the mortise (CL) at the

desired handle height, and tape it to

the door.

B-3 Mark all holes and cutouts for

the mortise in the edge of the

door and remove the template.

B-4 Locate the two sets of vertical fold

lines on the template allowing you to

adjust the positioning of the template

depending on the bevel of the door.

Note: Fold lines on template are for

1 3⁄8" door. Some thickness and bevel

conditions may make it necessary to

re-position the template for marking

each side of the door.

B-5 If the door has no bevel, fold the

template along the solid lines. Align

the fold with the edge of the door

and mark the holes for the lock.

Repeat on the other side of the door. If the door has a 3° bevel, fold and

align the dashed line marked “H” on the template with the higher-beveled

edge of the door and mark the lock holes on that side of the door. Repeat

on the side with the lower-beveled edge using the dashed line marked “L.”

RH/LHR (ASM shown) LH/RHR

1⁄4"

Door

(CL)

Lever Centerline=

Bottom Edge of Strike lip

Mortise

B-6 Prepare the cutout for the mortise in the edge of the door using a mortis-

ing machine, router and chisel (for dimensions, refer to template). Ensure

clearance is provided for moving latch parts as indicated on the template.

B-7 When making holes, drill from both sides of the door to prevent unsightly

damage (for dimensions, refer to template). Drill the small holes before

the large holes. This will keep small holes on location before the 2 1⁄8" holes

are made tangent with them.

B-8 Check the bevel of the mortise

faceplate. If adjustment is

required, loosen the two bevel

screws (R) and adjust mortise

front plate angle to match the

bevel of the door.

B-9 Re-tighten screws.

B-10 Install the mortise with two 1"

Phillips screws (Q) provided.

B-11 Install mortise faceplate (P)

with the two 8-32 x 1⁄4" screws provided.

C. INSTALLING THE STRIKE

C-1 Align the paper template on the door frame

to match with the desired handle height,

and along the vertical center line of the

mortise (CL), which is also the center line of

the door, allowing for any bumpers on the

door frame.

Respect applicable building codes regarding

handle height.

C-2 Select the strike for the desired handing, according to

the depiction on the template. Mark the location of the

strike cutout and mounting screws.

Logo

(CL)

Strike

Cutout

C-3 Drill pilot holes for the strike mounting screws.

Mortise the door frame for the strike dimensions

shown. 3 3⁄8" (L) X 1" (D) X 1" (W)

Note: Make certain not to mortise

over screw holes drilled earlier.

C-4 Position the strike against the door frame and align

it with the mounting screw holes. Then mark the

outline of the strike.

C-5 Remove any material from within the strike outline

(a) so that the strike will be flush with the door

frame.

C-6 Install the strike using the screws provided.

D. INSTALLING OUTSIDE

UNIT ASSEMBLY

Note: Ensure that the mounting hole for the red

collars is cleaned out so that the collars are not

crushed upon installation. If necessary, the hole

can be opened up to 5⁄16".

D-1 For door thickness of 1 3⁄8", insert the square

spindle (G) into the outside housing hub.

D-2 If your lock comes with a thumbturn, insert

the end (with the ring groove) of the thumb-

turn spindle (F) into the small spindle hole

in the outside housing.

D-3 Place the outside housing on the door so that the bottom spindle engages

the hub on the mortise, and the top thumbturn spindle passes through

the mortise top hub. The outside unit assembly (c) will rest flush against

the door. Ensure the red collar is seated into the top left mounting hole.

3 3⁄8

E. INSTALLING INSIDE UNIT ASSEMBLY

E-1 Place inside mounting plate flush against the door

as shown. For a door thicknesses of 1 3⁄8" insert

diagonally (as shown) two 1 1⁄2" Phillips flat head

screws (supplied in parts door kit).

Note: The screws must correspond to the two

through holes in the mortise.

E-2 Insert the square spindle (G) into the inside housing

hub.

E-3 Put the thumbturn (T), if applicable in a vertical

position and place the inside trim assembly on

the door so that the upper spindle (F) engages

the thumbturn and mortise hubs, respectively.

Ensure the red collar is seated into its mounting

hole. Carefully push the inside housing flush

against the door.

E-4 Supplied hardware should correspond to the chart below:

Door LectroBolt Top Mounting Lower

Thickness Size Screw Size Mounting Screws

1 3⁄8"2

3⁄8" 2 1⁄2"5⁄8"

(35 mm) (60 mm) (64 mm) (16 mm)

E-5 Insert the LectroBolt™ through the red inside

housing hole marked with the lightening bolt

symbol. For now, only partially tighten the

LectroBolt™ to keep the red collars in position.

E-6 Then, insert and tighten the other three mounting

screws. (Refer to the chart for correct screw

lengths.)

E-7 Finish tightening the LectroBolt™ to secure the

lock on the door.

Warning: If using a power drill, please be careful not to

over-tighten as this could cause damage to the mounting

screws and threads.

F. INSTALLING THE INSIDE LEVER

Insert the inside lever (A) onto the inside unit assembly.

Secure the inside lever with the hex screw (B) (supplied)

using the allen wrench (C) (supplied).

Red

Collar

Lectrobolt

5⁄8"

(16mm)

Kaba Access Control warrants this product to be free from defects in

material and workmanship under normal use and service for a period

of three (3) years. Kaba Access Control will repair or replace, at our

discretion, 5000 Series Locks found by Kaba Access Control analysis

to be defective during this period. Our only liability, whether in tort or

in contract, under this warranty is to repair or replace products that are

returned to Kaba Access Control within the three (3) year warranty

period.

This warranty is in lieu of and not in addition to any other warranty or

condition, express or implied, including without limitation merchantabil-

ity, fitness for purpose or absence of latent defects.

ATTENTION: This warranty does not cover problems arising out of

improper installation, neglect or misuse. All warranties implied or

written will be null and void if the lock is not installed properly and /or

if any supplied component part is substituted with a foreign part. If the

lock is used with a wall bumper, the warranty is null and void. If a

doorstop is required, we recommend the use of a floor secured stop.

The environment and conditions of use determine the life of finishes

on Kaba Access Control products. Finishes on Kaba Access Control

products are subject to change due to wear and environmental

corrosion. Kaba Access Control cannot be held responsible for the

deterioration of finishes.

Authorization to Return Goods

Returned merchandise will not be accepted without prior approval.

Approvals and Returned Goods Authorization Numbers (RGA Numbers)

for the 5000 Series are available through our Customer Service

department in Winston-Salem, NC (800) 849-8324. The serial number

of a lock is required to obtain this RGA Number. The issuance of an

RGA does not imply that a credit or replacement will be issued.

The RGA number must be included on the address label when material

is returned to the factory. All component parts including latches and

strikes (even if not inoperative) must be included in the package with

return. All merchandise must be returned prepaid and properly pack-

aged to the address indicated.

* Simplex 5000 locks are warranted three (3) years from date of

purchase. E-Plex 5x00 locks are warranted three (3) years from

date of activation.

KABA E-PLEX®5x00 SERIES

LIMITED WARRANTY

KABA ACCESS CONTROL

2941 INDIANA AVENUE

WINSTON-SALEM, NC 27199-3770

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

BUSINESS REPLY MAIL

FIRST-CLASS MAIL PERMIT NO. 1563

POSTAGE WILL BE PAID BY ADDRESSEE

WINSTON-SALEM, NC

Thank you for purchasing our product. In order to

protect your investment and to enable us to better

serve you in the future, please fill out this registration

card and return it to Kaba Access Control, or

This lock will be used in what type of facility?

oCommercial Building oIndustrial / Manufacturing oAirport

oCollege/University oGovernment/Military oSchool/Educational

oHospital/Healthcare oOther (please specify)

What area is being secured with this lock? (e.g. Front Door, Common Door, Exercise Room)

This lock is:

oNew Installation

oReplacing a conventional keyed lock

oReplacing a Kaba Mechanical Pushbutton Lock

oReplacing a Kaba Electronic Access Control

oReplacing a Keyless Lock other than Kaba

How did you learn about Kaba Access Control Pushbutton Locks?

oAdvertisement o Previous Use oInternet / Web oAnother Use

oLocksmith oMaintenance oTraining Class oOther (please specify)

What was your reason for buying this lock?

Who installed your lock?

oLocksmith oMaintenance oOther

oCheck here if you would like more information on Kaba Access Control locks.

Name

Position

Company

Address

City

State ZIP (Postal Code) Country

Phone

Name of Dealer Purchased From

Date of Purchase

Lock Model Number

REGISTRATION CARD

Notes

G. CHANGING KEY-IN-LEVER CYLINDER

On key-in-lever models of the E-Plex 5000 series, the outside lever comes

preassembled with Kaba’s key-in-lever cylinder (Kaba 1599). To use a dif-

ferent key-in-lever cylinder follow remaining steps in this section.

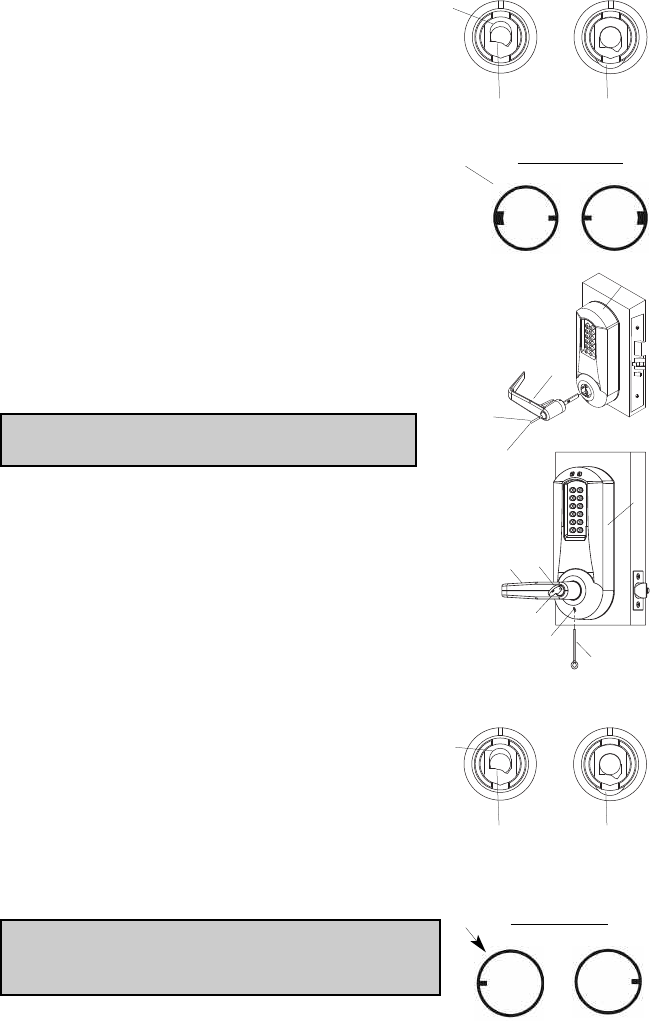

G-1 To remove KIL (key-in-lever) cylinder (a) from the

outside lever (b). Remove the cylinder insert (e)

and the cylinder retainer (c) using a small flat

bladed screwdriver or small needle nose pliers.

G-2 Determine the proper tailpiece (d) from the

chart below for your KIL cylinder.

You must use a Kaba tailpiece. The K 2 tailpiece is preassembled with

the Kaba 1599.

G-3 Assemble the required tailpiece (d) (from above)

with your KIL cylinder. All tailpieces must be

installed vertically (with key removed from

cylinder) for proper installation.

G-4 Insert the KIL cylinder (a) into the outside lever and secure it with the

cylinder retainer (c) and the cylinder insert (e) until the KIL cylinder is

snug and unable to move freely.

Assa 65611, Australian: Kaba expert 107K5 &

Boyd KC286, Corbin-Russwin 2000-03, Kaba

1599, Schlage 23-001, Schlage Primus 20-760,

Kaba Peaks 1099

Medeco 20W200H1

Arrow C100, Sargent 10 LINE

Marks

Abloy 5277, Abloy 5477, Assa 65691,

Kaba 1539, Kaba Gemini 4730

KIL CYLINDERTAILPIECE

H. INSTALLING / REMOVING OUTSIDE LEVER

(Key-In-Lever models only)

H-1 Make certain the lever catch is up as shown (c).

To successfully install the outside lever, the

lever sleeve (f) tab must be positioned correct-

ly with the respective notch on the lever. The

lock comes shipped with the lever sleeve

already installed in the lock housing. When

installing lever, ensure it is oriented to engage

the lever sleeve to accommodate desired lock

handing as shown.

H-2 Insert one of the supplied keys (a) into the out-

side lever (b) and rotate key counterclockwise

45 degrees.

H-3 Insert the outside lever (b) until it is flush to

the outside unit assembly (g). Secure the out-

side lever by rotating the key (a) clockwise 45

degrees to horizontal position. Remove key.

Note: To remove the outside lever from the

outside unit assembly, follow the step below.

H-4 Insert one of the supplied keys (a) into the outside

lever and rotate it counterclockwise 45 degrees.

Insert release tool (d) into the small hole (e) under

lever as shown. Gently push lever catch up until it

clicks. Remove tool, then remove outside lever (b).

I. INSTALLING / REMOVING OUTSIDE LEVER

(Interchangeable / Removable Core Models)

I-1 Make certain the lever catch is up as shown (c).

To successfully install the outside lever, the lever

sleeve (f) tab must be positioned correctly with

the respective notch on the lever. The lock comes

shipped with the lever sleeve already installed in

the lock housing. When installing lever, ensure it

is oriented to engage the lever sleeve to

accommodate desired lock handing as shown.

Note: For all interchangeable/removable cylinders

except ASSA/Medeco/Yale, proceed to section I-2.

For ASSA/Medeco/Yale cylinders, skip to section I-5.

KIL Lever Sleeve

45º

Correct

Position

Incorrect

Position

45º

IC Lever Sleeve

Correct

Position

Incorrect

Position

I-2 Insert the outside lever (a) until it is flush to the

outside unit assembly (b). To secure the outside

lever, insert the release tool (d) (or screwdriver) into

the outside lever as shown, and slide the lever

catch down until it clicks. Make certain lever is

attached before installing the core.

I-3 Insert the supplied tailpiece (e) vertically into the

outside lever as shown. Make certain that you

rotate the tailpiece so that it will align with the

interchangeable core. For screw cap type cylinders

(Schlage) (g), the tailpiece must be assembled to

the cylinder first as shown (vertical position).

Insert the interchangeable core into the outside

lever.

Note: To remove the outside lever from the

outside unit assembly, follow steps below.

I-4 Remove the interchangeable core (g).

Then remove the tailpiece (e).

I-5 For ASSA/Medeco/Yale interchangeable/remov-

able cylinders, the tailpiece must be prepped for

the desired length before installation.

When using a Yale cylinder on a cylindrical latch

application, measure the door thickness of the

intended application.

I-6 Notice the score marks on the flat portion of

the ASSA/Medeco/Yale tailpiece. Using the

diagram to the right, locate the score mark on

your tailpiece that matches your cylinder prep

for the intended application, and break the

tailpiece off accordingly.

I-7 Using 2 pairs of pliers, break the tailpiece to

the desired length of the intended applica-

tion by holding 1 pair of pliers on the good

side of the score mark and one pair on the

other side of the score mark. Slowly move

the 2nd pair of pliers up and down until the

unneeded portion of the tailpiece breaks

free.

I-8 Insert the Medeco tailpiece (e) vertically into

the outside lever as shown. Make certain that you

rotate the tailpiece slightly so that it will align with

the interchangeable/removable cylinder. Insert the

interchangeable/removable cylinder into the outside

lever.

Note: To remove the outside lever from the outside unit

assembly, follow steps below.

vertical

YALE 6 & 7 PIN,

CYLINDRICAL – THIN DOOR

(1 3⁄8" (35 mm) to 1 1⁄2" (38 mm))

(DO NOT SHORTEN TAILPIECE -

For 1 5⁄8" (41 mm) to 2 1⁄4" (57 mm))

ASSA/MEDECO 5, 6 & 7 PIN,

CYLINDRICAL – DO NOT SHORTEN TAILPIECE

ASSA & MEDECO 6 PIN,

EXIT & MORTISE

MEDECO 5 PIN,

EXIT & MORTISE

YALE 6 & 7 PIN,

EXIT & MORTISE

I-9 Remove the interchangeable/removable cylinder. Then remove the tail-

piece (e).

Note: You may want to use needle nose pliers for some tailpieces.

I-10 Insert the lever release tool (d) into the small hole (f) under lever as

shown. Gently push lever catch up until it clicks. Remove tool, then

remove outside lever (a).

Note: You may want to use needle nose pliers for some tailpieces.

Insert the release tool (d) into the small hole (f) under the lever as shown.

Gently push lever catch up until it clicks. Remove tool, then remove the outside

lever (a).

Note: Do not shut door until installing batteries and testing operation as

outlined in the following two sections.

J. INSTALLING THE BATTERY PACK AND

COVER/CHANGING

BATTERIES

J-1 To install the battery pack (f) and

cover (g), snap the cable connector

onto the top of the loaded battery

pack. Then place the battery pack

into the cover, terminals at the top.

Put the two security screws (h) into

the cover and fasten the cover to the

inside housing with the security

screw tool (i).

Caution: Over-tightening these screws could strip

the threads in the housing or crack the cover.

Warning: If the lock goes without power for more than two minutes, you will

lose the lock’s current date and time only. If this happens, program the lock

with the correct date and time. Refer to Operations Manual.

J-2 Remove the two screws (h) securing the battery cover to

the housing, using the security screw tool (i) provided with

your lock.

J-3 Remove the four depleted batteries and install four new

Alkaline only AA batteries. Ensure that each battery is

installed in the proper direction as shown at each battery

location in the battery holder (f).

Warning: Do not install a 9V battery. Your lock operates on 4 alkaline only AA

batteries (6V). A 9V will ruin the electronics in the lock, and void your warranty!

J-4 Reconnect the battery cable. Place the battery holder into the cover.

Screw the back cover onto the inside housing, ensuring that the cable is

not trapped under the edge of the cover.

Caution: Over-tightening these screws could strip the threads in the housing or

crack the cover.

K. TESTING THE OPERATION OF THE LOCK

K-1 Rotate inside lever and hold. Ensure that the mortise latch is fully retract-

ed and flush with the mortise faceplate. Release the inside lever; the latch

should be fully extended.

K-2 Enter the factory-set combination: 1,2,3,4,5,6,7,8. You should see a green

light and hear a high-pitched tone as you push each button. When the lock

opens you will briefly hear the sound of an electric motor. If 1,2,3,4,5,6,7,8

does not seem to work, please follow the steps to perform a hard reset by

following the procedure in section L.

K-3 Rotate outside lever and hold. Ensure that the latch is fully retracted and

flush with the latch faceplate. Release the outside lever; the latch should

be fully extended. When the lock re-locks, you will again hear the motor.

K-4 Insert key into the outside lever. Rotate key counterclockwise to stop posi-

tion and hold. Ensure that the latch is fully retracted and flush with the

latch faceplate. Rotate the key clockwise to the horizontal position and

remove the key. The latch should be fully extended.

K-5 To test the deadbolt function (where applicable), turn the thumbturn knob

to extend the deadbolt. A red light should flash once. Then, turn the

thumbturn again and verify that the deadbolt is retracted and there is a

flash of the green light.

Note: Refer to the Operating Manual to set up lock operation.

L. PROGRAMMING AND SOFTWARE SETTINGS:

L-1 You must change the master Code from the factory default to another

code to program the lock. For further information on how to manually

program the E-Plex 3x00/5x00 Series Models, refer to the companion

“E-Plex 3x00/5x00 Operation Manual.” Software is required to program

the E3200/E5200 Series Locks.

L-2 When configuring the E3000/E5000 Series Locks using the optional

Standard Software, choose the box that contains “Entry Lock with

Passage (Cylindrical or Mortise without Deadbolt)” during lock setup.

L-3 When configuring the E3200/3700 and E5200/E5700 Series Locks

using the Enterprise Software, select the appropriate lock type during

lock setup. .

M. INSTALLING RUBBER BUMPERS

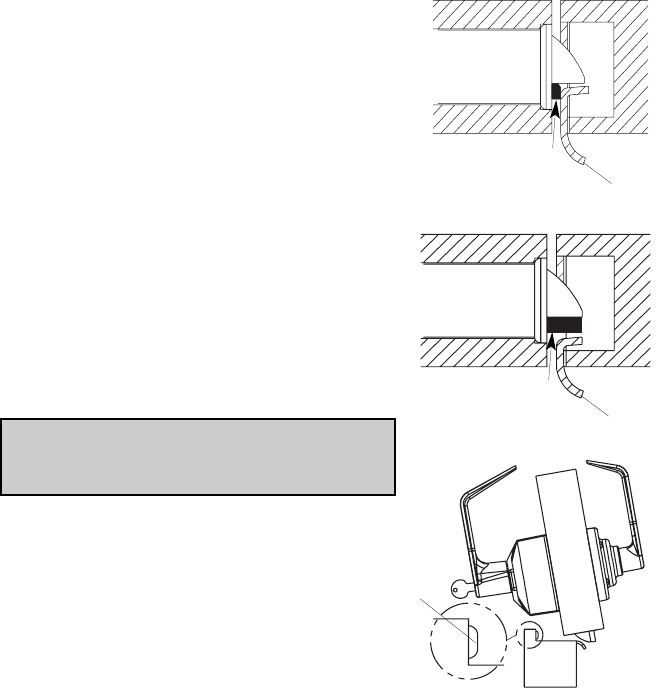

M-1 Close the door and apply pressure making sure

the deadlatch (a) rests on the strike plate (b) as

shown. Standing on the frame (door step)

side of the door, check for gaps between the

door and the frame on the three sides of the

frame (left, right and top).

M-2 Mark locations where the gaps are

approximately 3⁄16" (5 mm). Make sure

these locations are free from grease and

dust. Peel the bumpers (c) (supplied) from

their protective backing without touching

the adhesive surface and stick them on the

marked locations.

Note: Allow 24 hours for bumper adhesive to

set before testing. The door may be operated

manually during this time.

Correct

Incorrect

Kaba Access Control

2941 Indiana Avenue

Winston-Salem, NC 27105 USA

Tel: (800) 849-8324 (336) 725-1331

Fax: (800) 346-9640 (336) 725-3269

www.kabaaccess.com PKG3140 0912

Kaba Access Operations Manual E Plex Electronic Pushbutton Lock 5000/5200/5600/5700 Series 1 Mortise Installation Inst 5x00 Instructions Pkg3140

E-Plex 5x00 Series Installation Instructions 1 Mortise - PKG3140 e-plex-5x00-series-installation-instructions-1-mortise-pkg3140 E-Plex 5700 Electronic Pushbutton Lock - Kaba Access & Data Systems

Kaba E-Plex Electronic Pushbutton Lock - 5000/5200/5600/5700 Series 1 Mortise Installation Inst e-plex-5x00-series-installation-instructions-1-mortise-pkg3140 Installation Instructions

Navigation menu

Versions of this User Manual:

Views

Navigation
