Kaba Ilco IRKET10 REMOTE User Manual

User manual

型号：T-4B-GM-10

Model： T-4B-GM-10

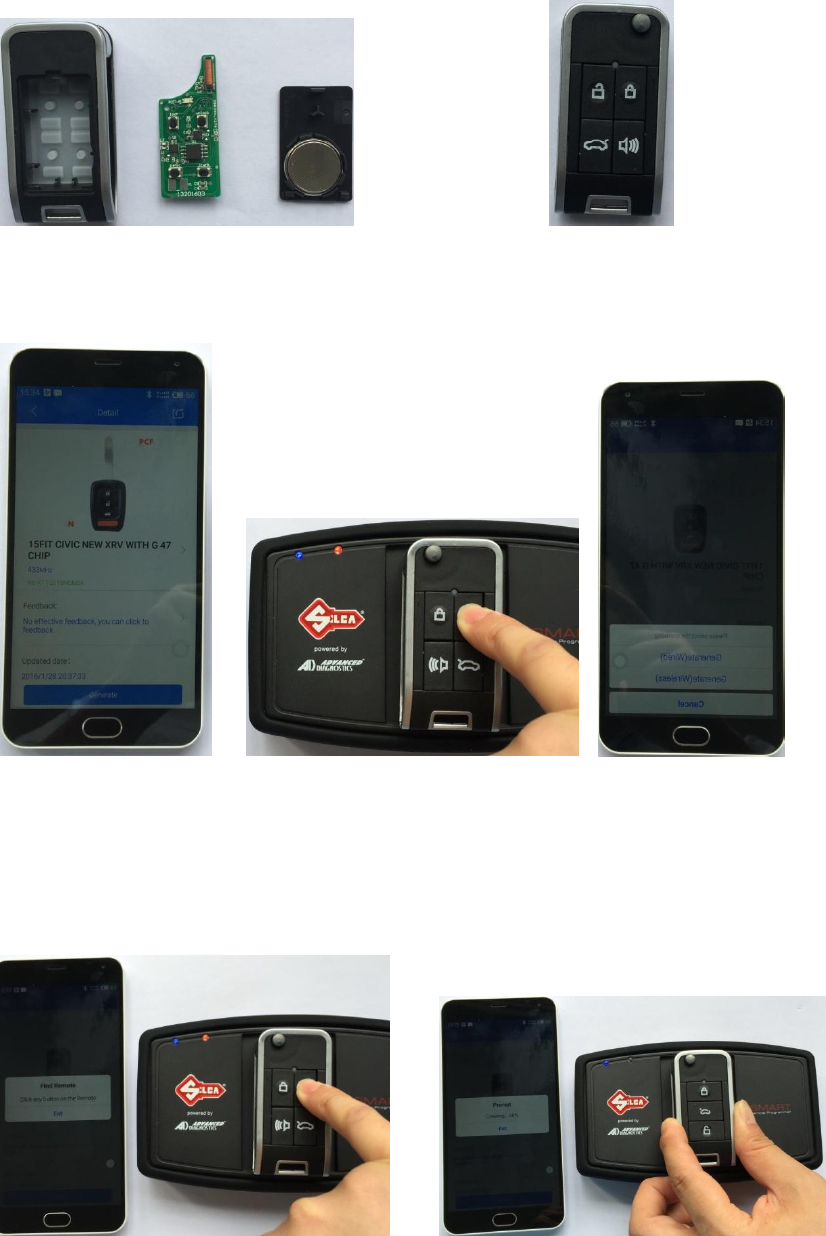

遥控器 PCBA 装配到外壳里面，盖好后盖。

Fit the Remote PCBA into the shell, place the back cover

点击 APP“生成”选项，遥控器放置在生成器的感应区域，点击“无线生成”选

项。

Click APP” Generate” option, set the remote onto the induction area of the generator,

click “generate (wireless)” option

Press any button of the remote, when “creating 100%” comes out, the remote is

generated.

电气参数 Electric parameter：

工作电压 Operating voltage：3.3V

输入功率 Input power：0.1W

输入电流 Input current：30mA

发射频率 Transmitting frequency：315MHZ&433.92MHZ

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-- Consult the dealer or an experienced radio/TV technician for help.
