Overview

The Confidant RFID asserts a softer, more engaging look to

reflect true hospitality. Together with graceful lines and

clean aesthetics, its RFID technology enhances the guest

experience while extending the service life of the lock. This

ultra-modern lock conveniently functions with dormakaba

access management software and stand-alone devices.

Mobile Access

This Bluetooth Low Energy (BLE) capable lock can operate

using the dormakaba Mobile Access Solutions.

Applications

• Available with mortise or tubular latch applications

• Suitable for small to very large scale hotels

• Easily replaces existing mechanical or electronic door locks

• Works with third party mortise lock case and door

hardware

• Access control for guest rooms, common areas, and

back-of-house

Security Features

• Vandalism and attack resistant

• Improved tamper resistance; tamper alarm is reset by

emergency key or dormakaba handheld programming

device

• Emergency access: emergency keycard and

electronic override

Low Maintenance

• Operates with a completely sealed contactless reader

• Batteries last up to 50,000 openings or up to 3 years

• Low battery indicator alerts staff

• Audit trail is retained during battery replacement and

lock programming

• Wear resistant construction and finish

Access Management Software

The Confidant RFID lock is supported by dormakaba’s

robust access management software solution that features

an array of access control workflows for both guest and

staff access. Optionally, choose dormakaba’s online access

management solution for superior control and monitoring.

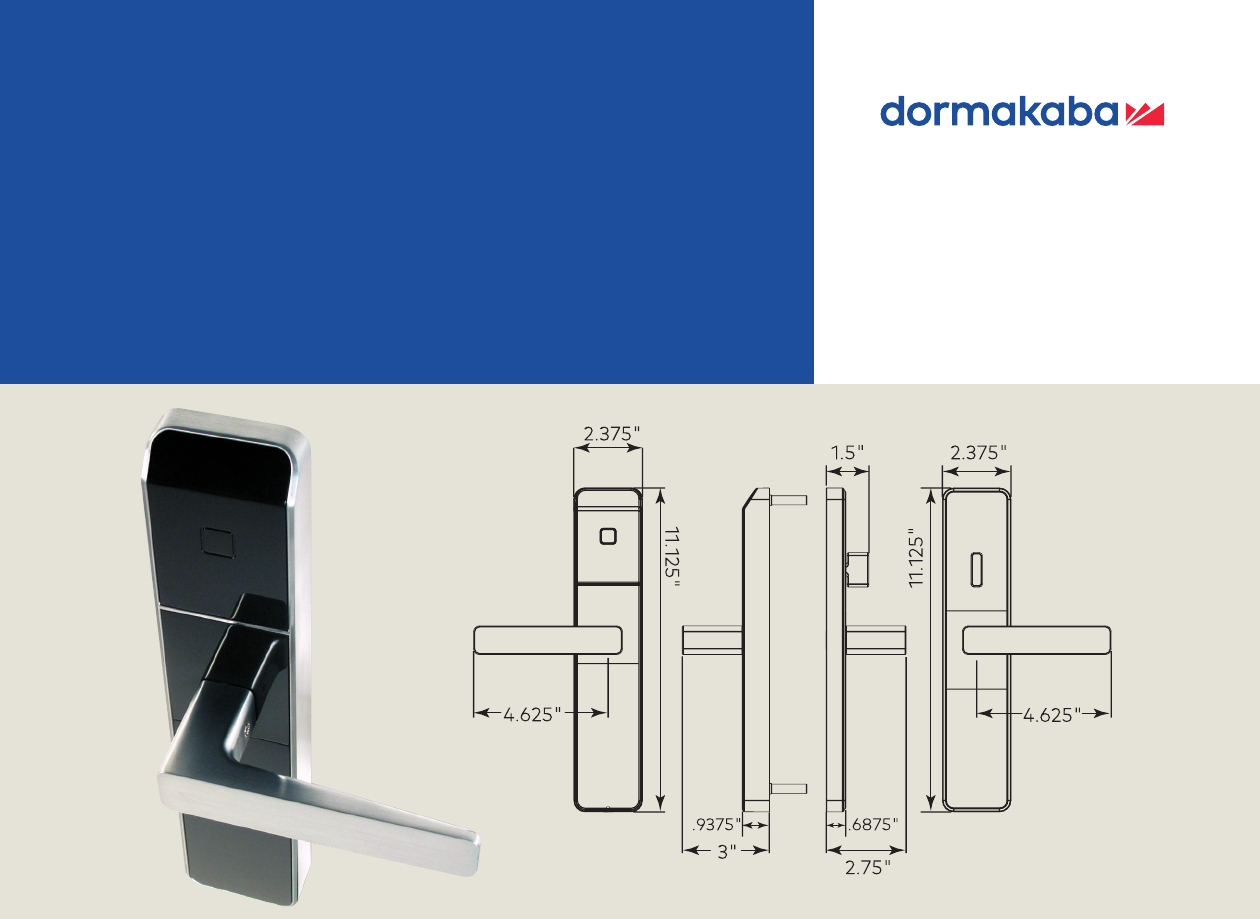

Confidant RFID

Mechanical Features

Outside Housing Zinc cast alloy construction with steel mounting plate/Field reversible levers. Ergonomic RFID reader with target to guide user/

LEDs for visual feedback. Panel that conceals lock batteries (3 alkaline AA type) and programming interface. Spindle socket

Inside Housing Stainless steel trim with a steel mounting plate construction / Field reversible levers (only short return levers) Privacy turn knob

(optional)

Levers Available in short or long return designs. Outside lever free to rotate upward and downward in locked mode

Standard Finishes Satin chrome or satin brass

Batteries 3 AA batteries for up to 50,000 openings or up to 3 years (based on 10 openings per day). Low battery indicator: alerts staff

that batteries need to be changed soon

Deadbolt

1" (25 mm) (for ASM mortise), projected by inside thumbturn and retracted with the latch by the interior handle, emergency

override or specific staff keycards.

Optional auto deadbolt available

Door Thickness From 1 ⅜" to 2 ½" (35mm to 66mm)

Standard Backset 2 ¾" (70mm) mortise and tubular latch. 2 ⅜" (80mm) tubular latch only

Locking Options ANSI lock case with 1 ¼" or 1" lock front mortise. Optional automatic deadbolt.

Online

Configurations

Messenger Ready Outside escutcheon with Messenger connector

DAJ mortise (ANSI lock case)

Standard inside escutcheon

Messenger Online Outside escutcheon with Messenger connector

DAJ mortise (ANSI lock case)

Inside enclosure with Messenger module.

Mobile Access Options

BLE ready

BLE enabled

Upgradable to BLE by adding BLE module

End cap with BLE module included, no further upgrades needed

Lock Operation

Date/Time Stamp Real time: date and hours/minutes

Programming & Audit

Trail Downloading

Using handheld units (dormakaba M-Unit, FDU, HH6) or remotely through Messenger wireless system to obtain key use history

reports from the lock, or using a 4K audit keycard

Preregistered

Keycards Keys can be made up to ten days in advance without cancelling current or arriving guests

Keycard Expiry Configurable expiration dates; can be automatically set for check out date or manually applied when making key during check in

process

Passage Mode Set by authorized keycard or Messenger system. Can optionally be configured to perform an automated/pre-defined passage

mode time

Lockout Mode Set by authorized keycard or Messenger system

Keycards Accepted RFID cards or tags (ISO14443A with Mifare Classic) available in Mini, 1K

and 4K memory sizes (4 byte NUID type)

Feedback “Dual sensory” audible and light indicators

Diagnostics Light indicators and handheld display

Audit Memory Saflok systems: up to 4000 events

Ilco systems: up to 2000 events

Disability Feature Available for special openings

Privacy Ovveride Emergency keycards

Certifications & Testing

Accessibility Standard ADA (Americans with Disability Act) compliant levers

Fire Rating Meets UL 10C and ULC S-104, on fire door rated up to and including 3 hours with dormakaba ANSI lock case (ASM mortise) and

20 minutes with dormakaba tubular latch.

Electronics Compliant IEC 61000-4, FCC Part 15 and Industry Canada RSS-210. CE R&TTE Directive 1999/EC.

Environmental

Operating Conditions

-31°F to 151°F (-35ºC to 66°C)

0% to 85% non-condensing humidity at 86°F (30°C)

Warranty

Standard Factory

Warranty Two years

Extended Warranty dormakaba Service Plans available

Short Long
