ILCO

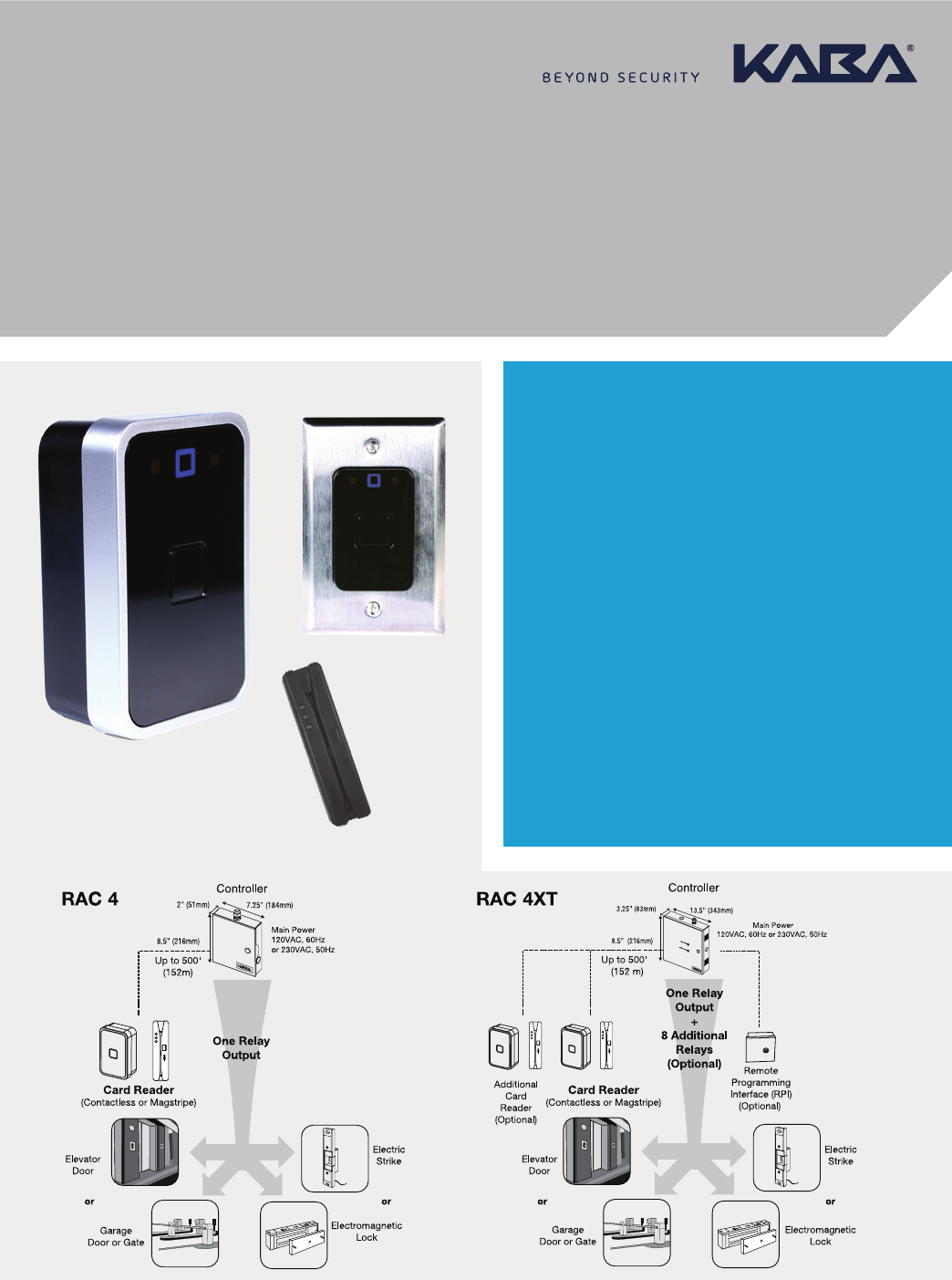

RAC 4/4XT (Remote Access Controller)
Overview
A Remote Access Controller (RAC) is a device that
operates a special remote access point, such as
elevators, parking entrances or any other door
requiring an electric strike or electro-magnetic lock.
Magstripe readers (insert or swipe) and contactless
readers (RFID) are available.
Models
• RAC 4: one relay output
• RAC 4XT: one relay output and 8 additional relays
• Additional Features: battery backup, 8 additional
relays, remote programming interface, 2 card
readers
Applications
• Remote access points - elevator, parking entrance,
outdoor swimming pool
• Locking devices - electric strike, magnetic lock.
Kaba
www.kabalodging.com
ILCO: 1.877.468.3555
www.ilcostore.com M3570_01_16

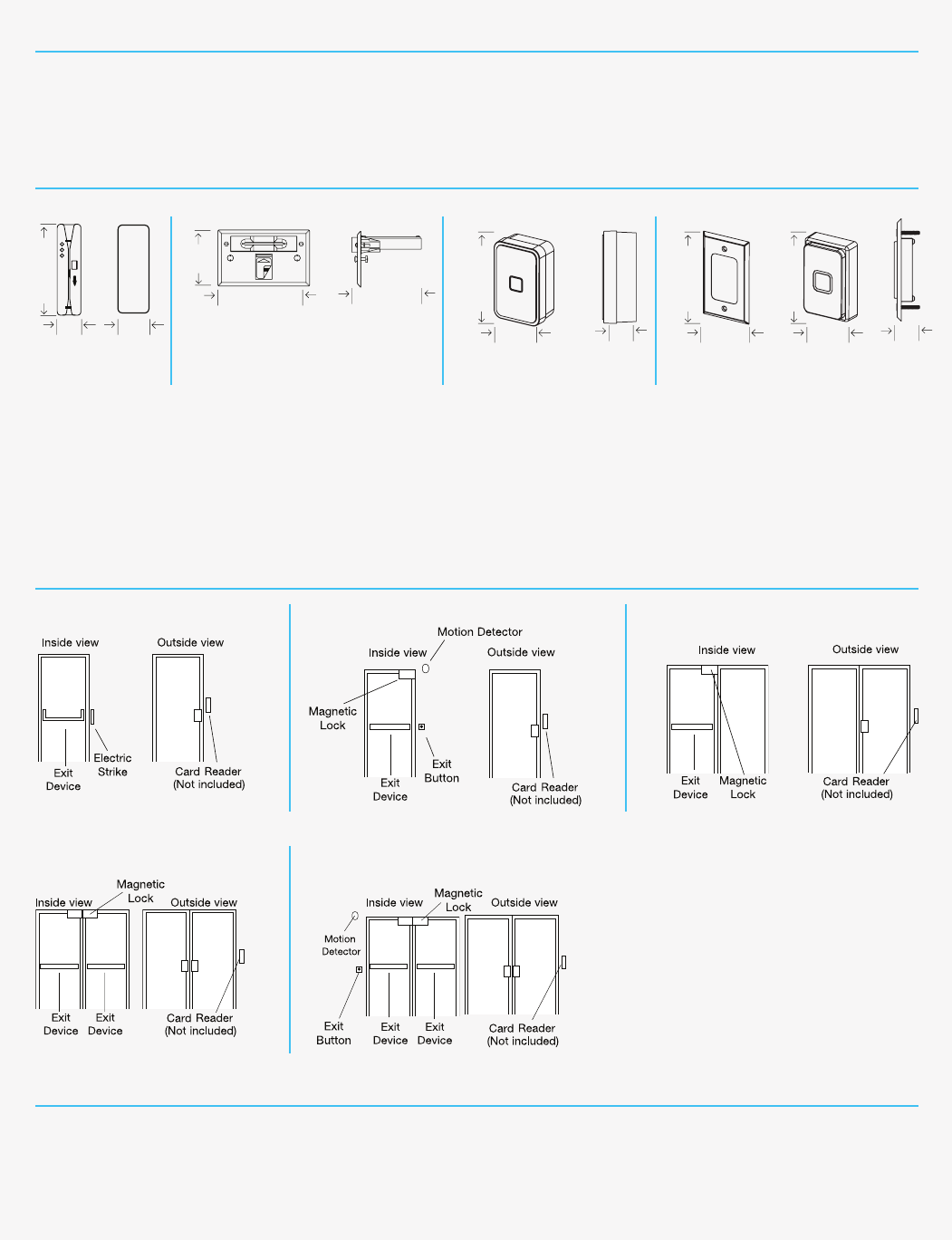

Controller Box Dimensions and Weight:
Controller Box: RAC 4: 8.5"H x 7.25"W x 2" D (216 W x 184 H x 51 D mm), 3.5 lbs (1.6 kg)
RAC 4XT: 13.5" H x 12.375" W x 3.25" D (343 W x 314 H x 83 D mm), 14 lbs (6.4 kg)
Remote Programming 4-1/8"H x 2-29/32" D x 4-5/32" W (104.78 H x 73.82 D x 105.57 W mm)
Interface:
Reader Dimensions and Weight:
Door Hardware Units:
Certification:
Swipe
Front
View
Front
View
Front
View
Front
View
Front
View
Side
View
Side
View
Side
View
Side
View
Single Door Single Door Double Doors
(Single Door Active)
Double Doors
(Both Doors Active)
Double Doors
(Both Doors Active)
Insert Contactless (Surface Mount) Contactless (Flush Mount)
2.81"
71.37mm
3"
70mm
4.5"
114.3mm
Not for exterior applications
2.75"
70mm
5"
127mm
1.375"
34.98mm
1.25"
34mm
4.5"
114.3mm
2.75"
69.85mm
1.81"
45.97mm
1"
25.4mm
2.75"
69.85mm
1.75"
44.45mm
.81"
20.57mm
Swipe Reader: 5.1"H x 1.34"W x 1.36"D (130 H x 34 W x 35 D mm) 0.44 lbs (0.20 kg)
Insert Reader: 4.5" W x 2.75"H x 3"D (114 W x 70 H x 70 D mm), 3.75 lbs (1.7 kg)
Contactless Reader 1.8125" W x 2.8125" H x 1" D (46 W x 71 H x 25 D mm), 0.1 lbs (0.05 kg)
(Surface Mount):
Contactless Reader 1.75" W x 2.75" H x .8125" D (44W x 70 H x 21 D mm), 0.2 lbs (0.10 kg)
(Flush Mount):
• Certified to the UL294 standard
• Certified to the CSA 22.2 No. 205 standard
• Interfaces with fire panels meeting NFPA 101 fire access alarm standard
• Meets FCC and CE requirements
