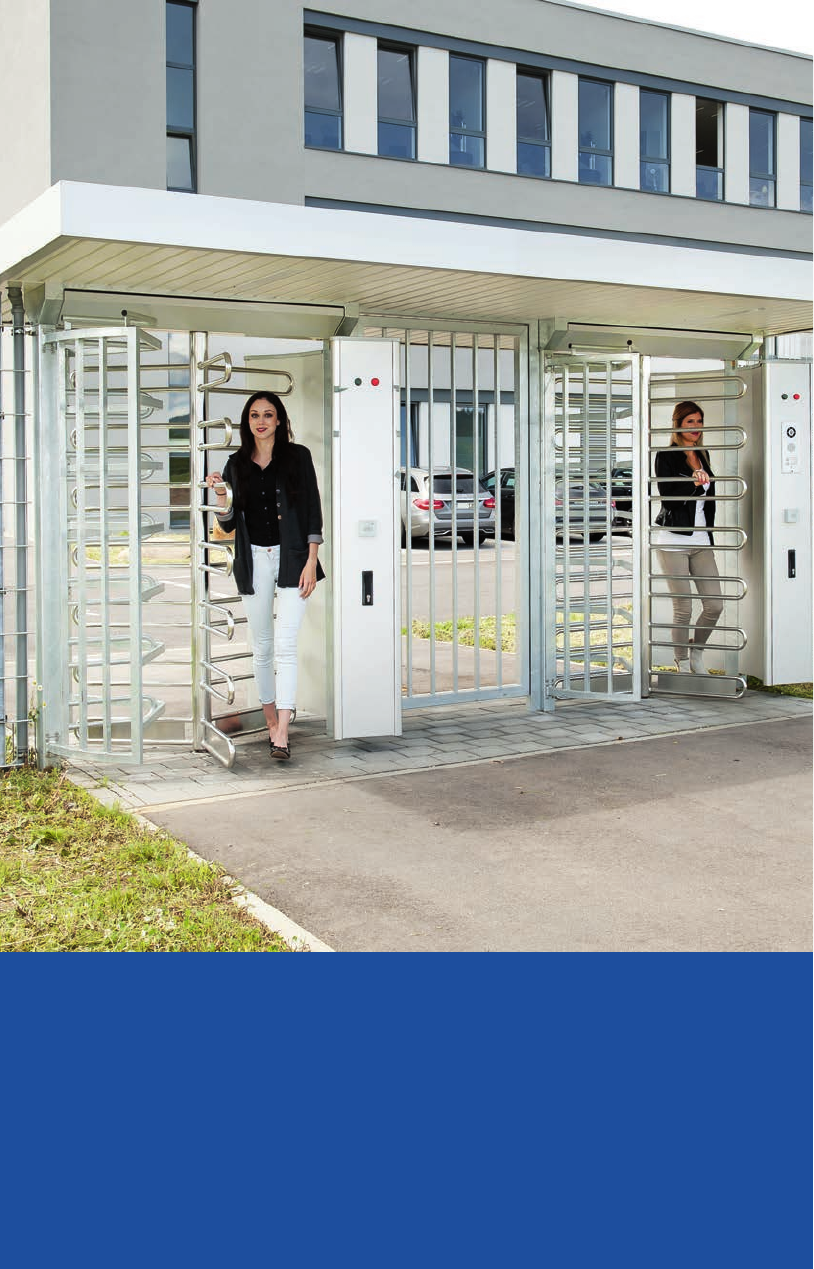

Full Height
Turnstiles & Gates
We make access in
life smart and secure.
dormakaba Full Height Turnstiles & Gates
Full Height Turnstiles and Gates
For reliable security.
Robust Full Height Turnstiles and Gates from
dormakaba are especially suitable for securing
the perimeter of buildings and property.
04 Full Height Turnstiles
and Gates
06 FTS-E01 /FTS-E02
Full Height Turnstiles
07 FTS-E06/FTS-E03
Full Height Turnstiles
08 FTS-E04/FTS-E05
Full Height Turnstiles
09 FTS-M02/FTS-M03
Full Height Turnstiles
10 FTS-M05
Full Height Turnstiles
11 FTS Series optional
canopies
13 FTS Series options
14 Optional components
Installation examples
15 FGE-M01
Full Height Gates
16 FGE-M01 optional
canopies
17 FGE-M01 options
FGE-M01 installation
examples
18 Architectural and
design consultation
19 Service and
installation
Contents
2
dormakaba entrance solutions
3
Entrance solutions by dormakaba
Security. Sustainability. Reliability.
dormakaba stands for security, sustainability
and reliability. Our mission is to make the lives
of our customers smart and secure. Holding
true to our mission, we invest in innovation to
develop entrance solutions that exceed your
demands and expectations.
The commitment to develop innovative yet
practical products is what differentiates
dormakaba. Our full Height Turnstiles and
Gates are powerful examples of our dedica-
tion to providing premium physical access
systems that perform as designed throughout
the life of your building.
To ensure our entrance solutions perform at
the highest level, we provide the most com-
prehensive offering of services in the industry.
You can trust dormakaba for exceptional
product support, including installation,
retrofit, replacement and maintenance.
We will continue to deliver systems that
define security and convenience. Together
with first class service, on-going training and
aftermarket sales support, our priority will
always be adding value for our customers and
esteem to our brands.
“ The commitment to develop
innovative yet practical
solutions is what differentiates
dormakaba.”
dormakaba Full Height Turnstiles & Gates

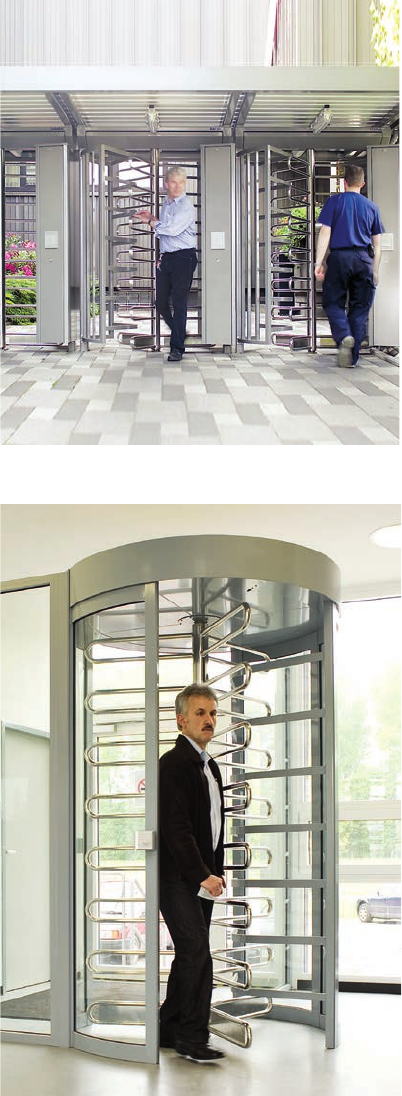

The ideal solution for perimeter security
These robust Full Height Turnstiles and Gates
are especially suitable for securing the perime-
ter of buildings and property. Modular versions
enable individual combinations of multiple
units. The end-point locking system developed
by dormakaba prevents people from being
trapped in the gates.
Versatility
dormakaba Full Height Turnstiles and Gates
feature a modular design. Two, three, and
four-winged units with straight or U-shaped
bars can be combined. The same applies for
units with bicycle doors, integrated doors,
an emergency egress, or of resistance class
WK2. The canopies fit with any of the single,
multiple, or space-saving double units.
Minimal power consumption
The quiet low-energy drive consumes very little
power and adapts to the speed of the person
entering.
Safe passage
Turnstiles with integrated end-point clocking
prevent people from being trapped or
jammed. After release the turnstile may be
stopped at any time and rotated backward,
providing it has not yet completed half of its
rotation. Once the turnstile has completed
half of its rotary motion, the unit can only be
exited in the released direction.

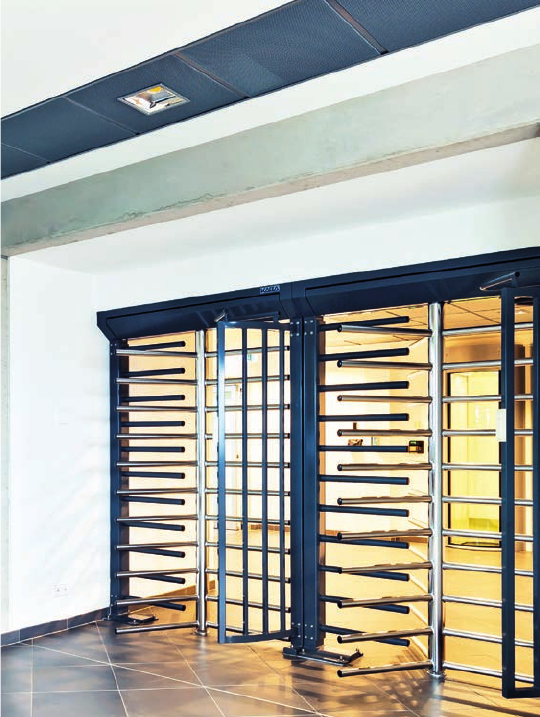

Full Height Turnstiles and Gates
Secure, durable, and modular.
Throughput rate = up to 20 per minute
Security level = ●●●●○
Comfort = ●●●○○

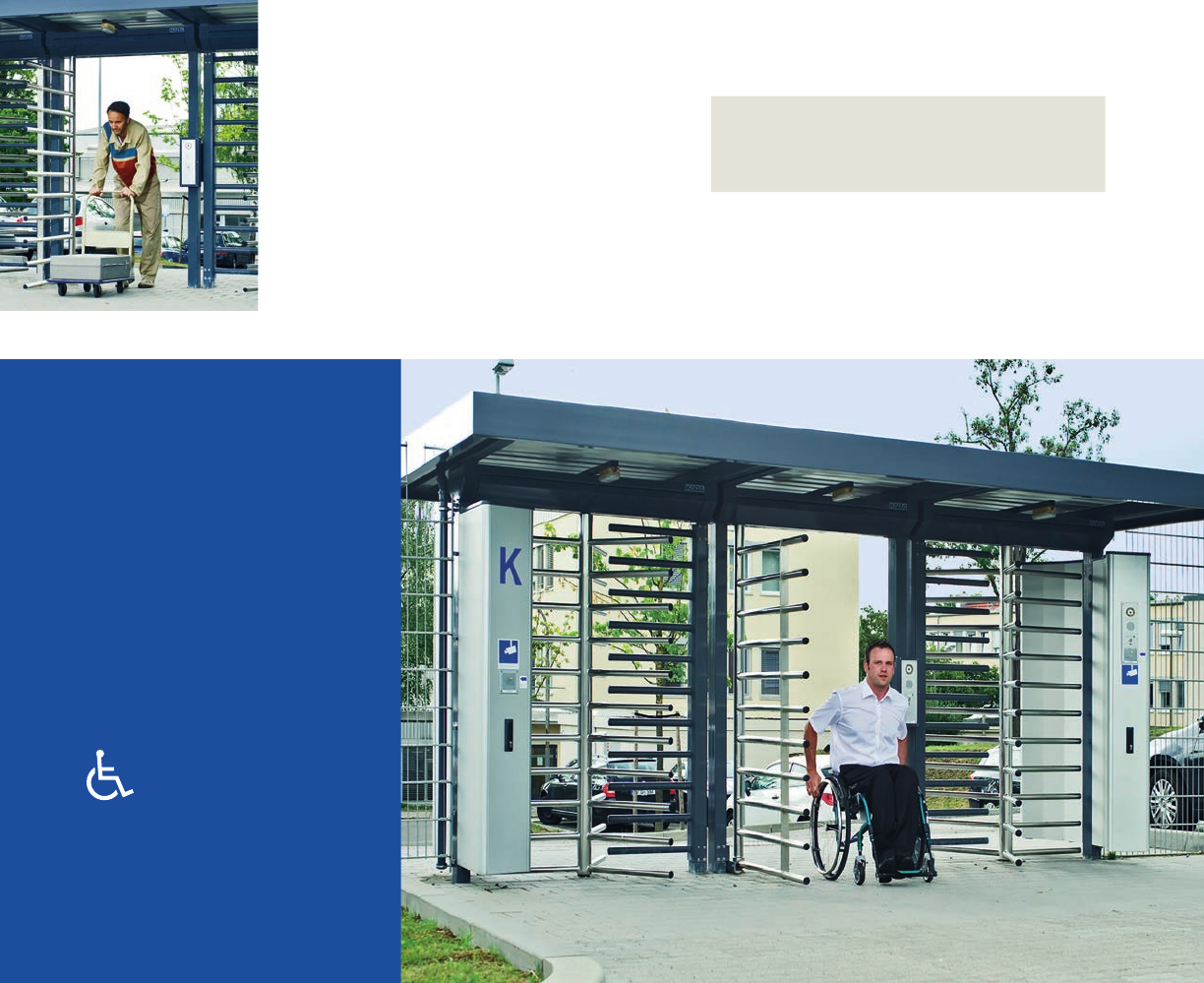

Full Height
Gate as goods
entrance
4
The right
combination of
security, user
comfort, and
personal safety.
Full Height Gates in a matching
design offer a fitting solution
for ADA compliance.
Additional functions
include versions with
Integrated bicycle door
with power assist
function.
Full Height Turnstiles
allow safe access to
underground parking
garage, securing
vehicles and
protecting residents
and employees.
Full Height Turnstile
on pallet with
integrated door
allows controlled
access to authorized
laborers, offering
construction site
protection.
5
Secure, durable, and modular
Advantages of dormakaba Full
Height Turnstiles and Gates
• Our end-point locking system
prevents people from being
trapped.
• Versions with integrated bicycle
door.
• Full Height Gates for barrier-
free access or as a goods
entrance.
• An emergency egress function
or in resistance class WK2.
• Space-saving double units.
• Modular combination of bars,
canopies, guiding, and barrier
elements.
• Lasting quality for indoor and
outdoor applications.
• Turnstile column and bars
made of stainless steel.
• Rotating speed adapts to the
pedestrian.
• Low-energy drive.
• Low power consumption.
• Performance in the event of a
power failure can be freely
determined.
• Can be used in regions with
harsh environmental conditions.
• Integrated random generator.
• Optional secondary
identification for additional
security.
• Spacing between shearing
edges eliminates risk of injury.
dormakaba Full Height Turnstiles & Gates
6

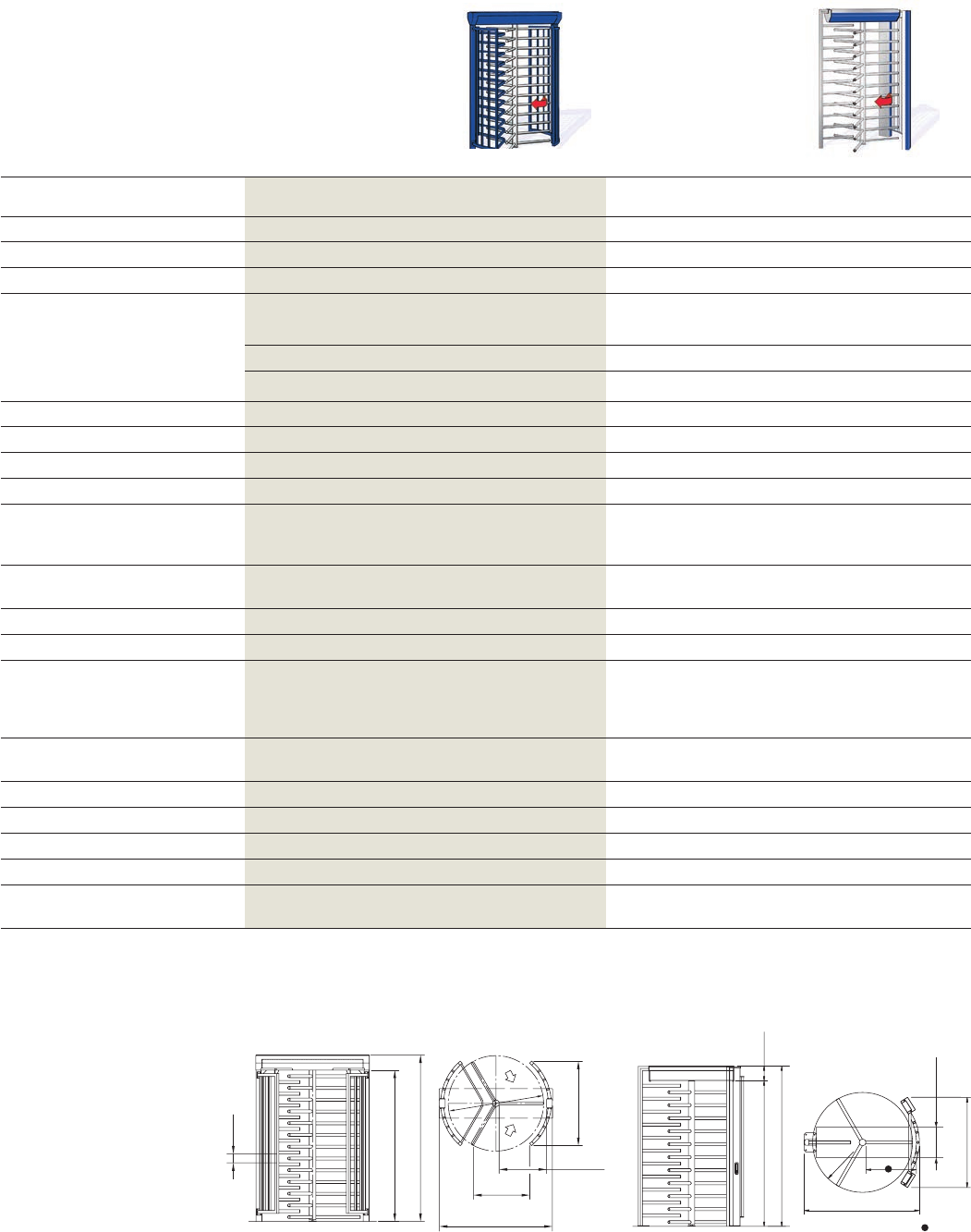

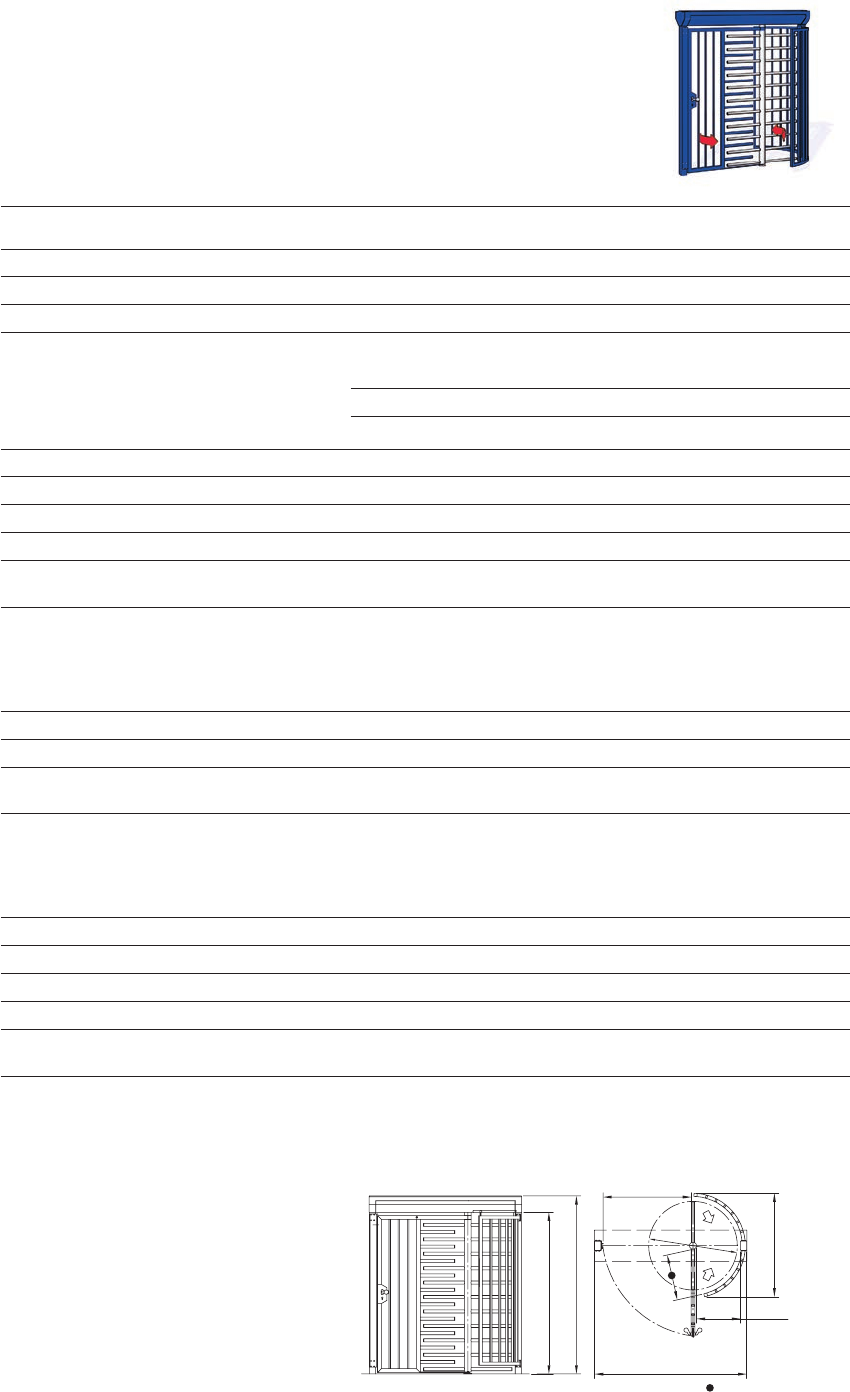

FTS-E01 / FTS-E02
Full Height Turnstiles
Standard units FTS-E01 FTS-E02 Option
Construction column diameter 44-1/2” (1130 mm) 51-13/16” (1300 mm)
Portal width 53-15/16” (1370 mm) 60-5/8” (1540 mm)
Total height 89-3/8” (2270 mm) 89-3/8” (2270 mm)
Total height with
optional canopy D1 94-1/16” (2390 mm) 94-1/16” (2390 mm)
optional canopy D2 95-1/4" (2420 mm) 95-1/4” (2420 mm)
optional canopy D3 95-1/4” (2420 mm) 95-1/4” (2420 mm)
Passage height 81-1/8” (2060 mm) 81-1/8” (2060 mm)
Passage width 22-1/16” (560 mm) 25-7/16” (646 mm)
Portal and housing Steel Steel.
Lockable maintenance opening Aluminum Aluminum.
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
180° each with 11 straight crossbars Ø1-9/16”
(Ø40 mm), made of glossy AISI 304 stainless steel
with black plastic cover caps.
120° each with 11 straight crossbars Ø1-9/16”
(Ø40 mm), made of glossy AISI 304 stainless steel
with black plastic cover caps.
Barrier element With 11 straight horizontal crossbars Ø1-5/8”
(Ø42 mm), made of steel.
With 11 straight horizontal crossbars Ø1-5/8”
(Ø42 mm), made of steel.
Passage limitation With steel columns. With steel columns.
Additional function — —
Finish Rotating unit made of glossy stainless steel,
hot-dip galvanized steel elements, aluminum
elements in RAL 9006 (white aluminum).
Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in
RAL 9006 (white aluminum).
Function (see Notes below) Power assist Mechanical (Manual)
Electronic (1)
Electronic (2)
Power assist
Electrical equipment Control system integrated in the unit. Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 253 VA. 100 - 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 20 VA. 10 VA.
Installation In sleeve foundation, measure X = 5-15/16” (150 mm) In sleeve foundation, measure X = 5-15/16” (150 mm)
Protection classes Housing IP33, components conducting supply
voltage IP43.
Housing IP33, components conducting supply
voltage IP43.
Notes
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Electronic (1)—One direction electroni-
cally controlled/opposite direction
blocked (behavior in event of power
failure: both directions blocked or one
direction free, one direction blocked).
• Electronic (2)—Electronically controlled
in both directions (behavior in event of
power failure: both directions blocked or
both directions free).
• Power assist—Power-assisted motion;
servo-positioning drive/ electronically
controlled in both directions (behavior in
event of power failure can be selected
for each direction: free or blocked).
81-1/8" (2060)
89-3/8" (2270)
53-15/16" (1370)
22-1/16"
(560)
51-3/8"
(1305)
23"
(585)
*Ø44-1/2 (Ø1130)
Ø*
30-1/8"
(765)
81-1/8" (2060)
89-3/8" (2270)
60-5/8" (1540)
25-7/ 16"
(646)
60-5/8" (1540)
51-3/16" (1300)
45-3/8"
(1152)
*Ø51-3/16 (Ø1300)
Ø*
7
FTS-E01 FTS-E02 FTS-E06 FTS-E03 specifications

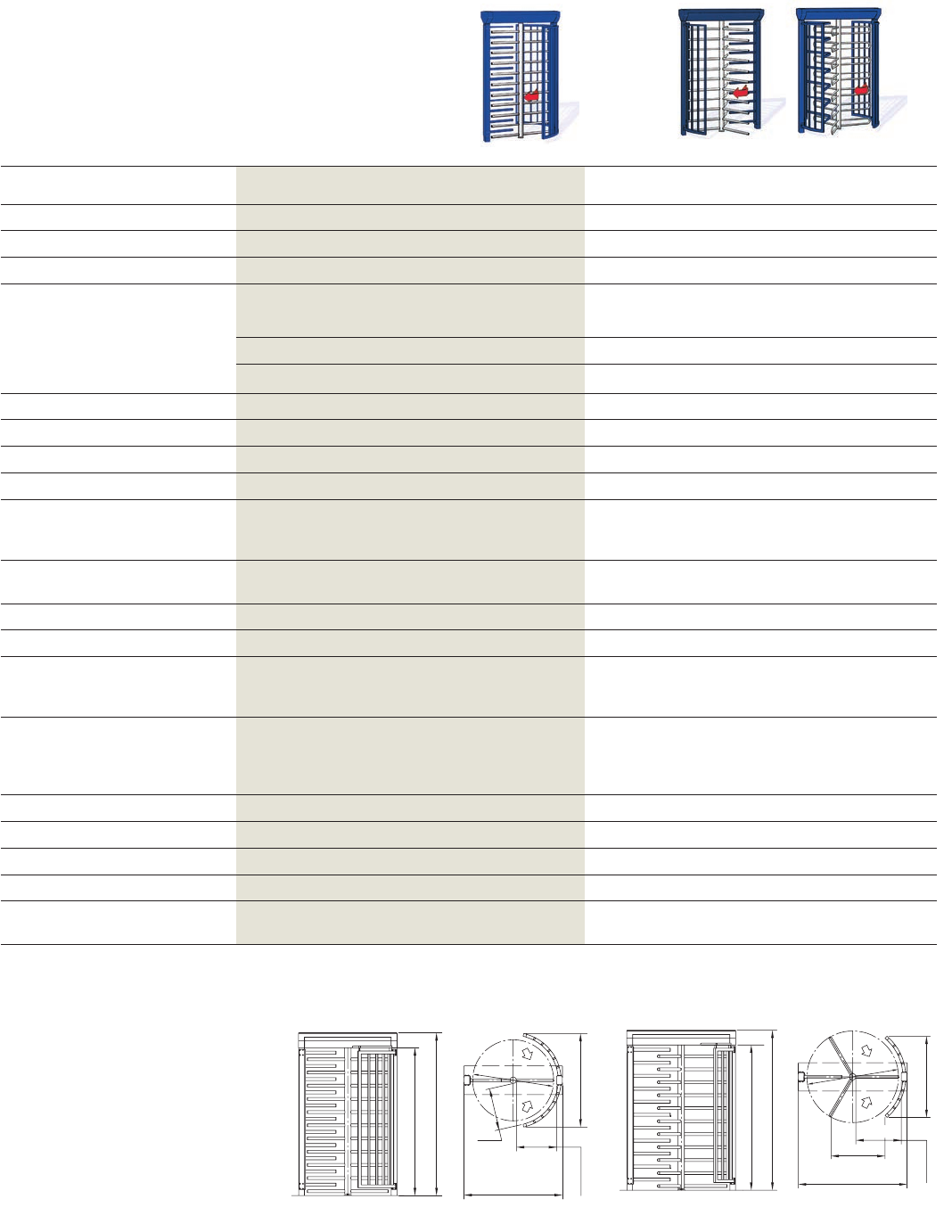

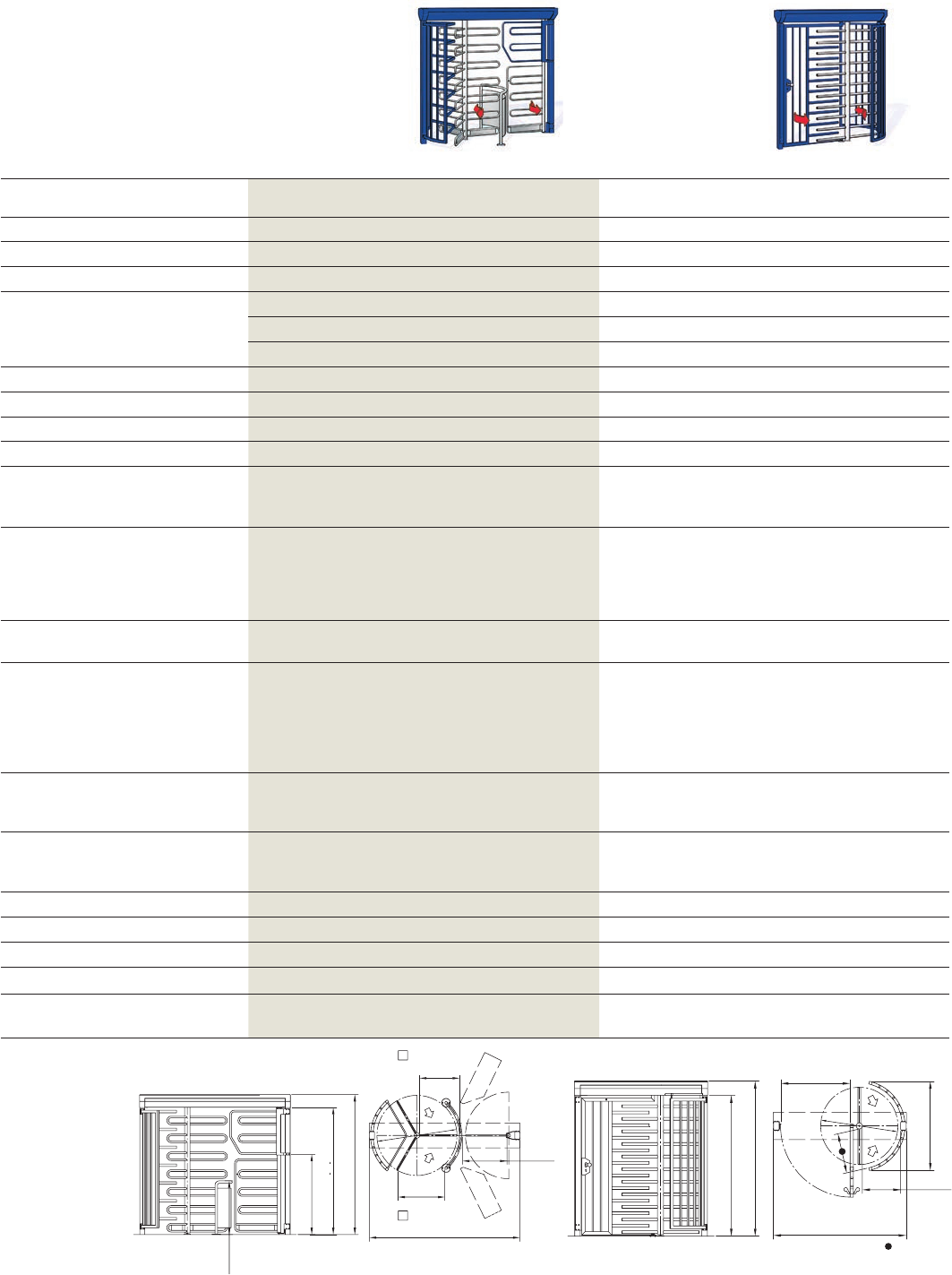

FTS-E06 / FTS-E03
Full Height Turnstiles
Standard units FTS-E06 FTS-E03
Construction column diameter 51-13/16" (1300 mm) 51-13/16” (1300 mm)
Portal width 92-1/8" (2340 mm) 60-5/8" (1540 mm)
Total height 89-3/8" (2270 mm) 89-3/8” (2270 mm)
Total height with
optional canopy D1 94-1/16" (2390 mm) 94-1/16" (2390 mm)
optional canopy D2 95-1/4” (2420 mm) 95-1/4” (2420 mm)
optional canopy D3 95-1/4” (2420 mm) 95-1/4” (2420 mm)
Passage height 81-1/8" (2060 mm) 81-1/8" (2060 mm)
Passage width 25-7/16" (646 mm) 21-5/8” (550 mm)
Portal and housing Steel. Steel.
Lockable maintenance opening Aluminum. Aluminum.
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
120° each with 11 straight crossbars Ø1-9/16"
(Ø40 mm), made of glossy. AISI 304 stainless steel
with black plastic cover caps.
90° each with 11 straight crossbars Ø1-9/16”
(Ø40 mm), made of glossy. AISI 304 stainless
steel with black plastic cover caps.
Barrier element In middle part with 21 straight crossbars, Ø1-5/8”
(Ø42 mm) made of steel.
With 11 straight horizontal crossbars Ø1-5/8”
(Ø42 mm), made of steel.
Passage limitation With steel columns. With steel columns.
Additional function Minimal space requirement due to interlocking
rotating units.
—
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, stainless steel
maintenance opening in RAL 9006 (white aluminum).
Rotating unit made of glossy stainless steel,
hot-dip galvanized steel elements, aluminum
elements in RAL 9006 (white aluminum).
Function (see Notes on page 6) Mechanical (Manual)
Electronic (1)
Electronic (2)
Power assist
Mechanical (Manual)
Electronic (1)
Electronic (2)
Power assist
Electrical equipment Control system integrated in the unit. Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 253 VA. 100 - 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA. 10 VA.
Installation In sleeve foundation, measure X = 5-15/16" (150 mm). In sleeve foundation, measure X = 5-15/16” (150 mm).
Protection classes Housing IP33, components conducting supply
voltage IP43.
Housing IP33, components conducting supply
voltage IP43.
Ø*
81-1/8" (2060)
8-5/16
(210)
89-3/8" (2270)
57-11/16" (1465)
92-1/8" (2340)
15-3/4"
(400)
45-3/8" (1152)
*Ø51-3/16 (Ø1300)
Ø* Ø*
AA
25-7/ 16" (646)
A
21-5/8"
(550)
81-1/8" (2060)
89-3/8" (2270)
*Ø51-3/16 (Ø1300)
Ø*
60-5/8" (1540)
35-9/16"
(904)
25-3/8"
(645)
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
Full Height Turnstiles
dormakaba Full Height Turnstiles & Gates
8
FTS-E04 / FTS-E05
Full Height Turnstiles
Standard units FTS-E04 FTS-E05
Construction column diameter 51-13/16” (1300 mm) 51-13/16” (1300 mm)
Portal width 60-5/8” (1540 mm) 59-1/16” (1500 mm)
Total height 89-3/8” (2270 mm) 89-3/8” (2270 mm)
Total height with
optional canopy D1 – –
optional canopy D2 – –
optional canopy D3 – –
Passage height 81-1/8” (2060 mm) 81-1/8” (2060 mm)
Passage width 25-7/16” (646 mm) 25-7/16” (646 mm)
Portal and housing Steel Steel.
Lockable maintenance opening AISI 304 stainless steel Aluminum.
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
120° each with 13 straight crossbars Ø1-9/16”
(Ø40 mm), made of glossy AISI 304 stainless steel
with black plastic cover caps.
120° each with 11 bar-shaped crossbars Ø1-9/16”
(Ø40 mm) in hot-dip galvanized steel with
black plastic cover caps.
Barrier element Curved with 12 steel bars and protection against
sawing through in the vertical tubes.
With 11 straight horizontal crossbars Ø1-5/8”
(Ø42 mm), made of steel.
Passage limitation With steel columns. With steel columns.
Additional function The unit complies with resistance class WK2. —
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, stainless steel
maintenance opening in RAL 9006 (white
aluminum).
Rotating unit made of steel, hot-dip galvanized
steel elements.
Function (see Notes on page 6) Power assist Electronic (2)
Power assist
Electrical equipment Control system integrated in the unit. Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 253 VA. 100 - 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 20 VA. 10 VA.
Installation In sleeve foundation, measure X = 5-15/16” (150 mm). On finished floor level FFL.
Protection classes Housing IP33, components conducting supply
voltage IP43.
Housing IP33, components conducting supply
voltage IP43.
81-1/8" (2060)
89-3/8" (2270)
*Ø51-3/16 (Ø1300)
Ø*
8-1/4"
(210)
15-3/4"
(400)
59-1/16" (1500)
46-3/16" (1173)
A
25-13/16" (
656)
A
30-1/8"
(765)
81-1/8" (2060)
89-3/8" (2270)
*Ø51-3/16 (Ø1300)
Ø*
60-5/8" (1540)
25-7/ 16"
(646)
4-3/4"
(120)
45-3/8"
(1152)
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
9
FTS-M02 / FTS-M03
Full Height Turnstiles
Standard units FTS-M02 FTS-M03
Construction column diameter 51-13/16" (1300 mm) 44-1/2” (1130 mm)
Portal width 92-1/8" (2340 mm) 76-3/8" (1940 mm)
Total height 89-3/8" (2270 mm) 89-3/8” (2270 mm)
with optional canopy D1 94-1/16" (2390 mm) 94-1/16" (2390 mm)
with optional canopy D2 95-1/4” (2420 mm) 95-1/4” (2420 mm)
with optional canopy D3 95-1/4" (2420 mm) 95-1/4” (2420 mm)
Passage height 81-1/8" (2060 mm) 81-1/8" (2060 mm)
Passage width 25-7/16" (646 mm) 22-1/16” (560 mm)
Portal and housing Steel. Steel.
Lockable maintenance opening Aluminum. Aluminum.
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
120° each with 7 U-shaped crossbars Ø1-1/16”
(Ø27 mm), made of glossy AISI 304 stainless steel.
180° each with 11 straight crossbars Ø1-9/16”
(Ø40 mm), made of glossy AISI 304 stainless steel
with black plastic cover caps.
Barrier element Curved with 7 horizontal steel bars. Integrated swing door with 10 straight horizontal
steel crossbars Ø1-5/8” (Ø42 mm), and continuous
frame with steel columns. Equipped with knob on
both sides and latch bolt lock (prepared for on-site
profile cylinder).
Passage limitation Half-height made of curved tubular AISI 304
stainless steel with plate panel.
With steel columns.
Additional function Automatic bike door with three U-shaped crossbars
Ø1-1/16” (Ø27 mm) and guard plate at bottom.
Tube frame, guard plate and crossbars made of AISI
304 glossy stainless steel. Fixed barrier element
above the bike door with two U-shaped crossbars
Ø1-1/16” (Ø27 mm) and tube frame made of steel.
Integrated door that can be opened when required.
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in
RAL 9006 (white aluminum).
Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in
RAL 9006 (white Aluminum).
Function (see Notes on page 6) Power assist. Automatic bicycle door with two
induction loops and loop detector, electronically
controlled in two directions.
Mechanical (Manual)
Power assist The rotating unit turns automatically
90° in passage direction when the door is opened.
Electrical equipment Control system integrated in the unit. Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 506 VA. 100 - 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA. 10 VA.
Installation In sleeve foundation, measure X = 5-15/16" (150 mm). In sleeve foundation, measure X = 5-15/16” (150 mm).
Protection classes Housing IP33, components conducting supply
voltage IP43.
Housing IP33, components conducting supply
voltage IP43.
FTS-E04 FTS-E05 FTS-M02 FTS-M03 specifications
51-3/16" (1300)
89-3/8" (2270)
81-1/8" (2060)
34-1/4"
(870)
96-1/16" (2440)
29-15/16"
(760)
25-7/ 16"
(646)
28-1/4"
(718)
*Ø51-3/16 (Ø1300)
Ø*
89-3/8" (2270)
81-1/8" (2060)
76-3/8" (1940)
22-1/16"
(560)
39-13/16"
(1011)
23" (585)
51-3/8"
(1305)
*Ø44-1/2" (Ø1130)
Ø*
A
A
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
Full Height Turnstiles
dormakaba Full Height Turnstiles & Gates
10
FTS-M05
Full Height Turnstiles
Standard units FTS-M04
Construction column diameter 44-1/2" (1130)
Portal width 76-3/8" (1940)
Total height 89-3/8" (2270)
Total height with
optional canopy D1 94-1/16" (2390)
optional canopy D2 95-1/4" (2420)
optional canopy D3 95-1/4” (2420)
Passage height 81-18" (2060)
Passage width 22-1/16” (560)
Portal and housing Steel.
Lockable maintenance opening Aluminum.
Rotating unit with tubular column,
Ø3-1/2" (Ø89 mm)
180° each with 11 straight crossbars Ø1-9/16” (Ø40 mm), made of
glossy AISI 304 stainless steel with black plastic cover caps.
Barrier element Integrated swing door with 10 straight horizontal steel crossbars
Ø1-5/8” (Ø42 mm), and continuous frame with steel columns.
Equipped with knob on both sides and emergency release mortise
lock (prepared for on-site profile cylinder), electric emergency door
opener, currentless open.
Passage limitation With steel columns.
Additional function The unit has an emergency egress function.
Finish Rotating unit made of glossy stainless steel, hot-dip galvanized
steel elements, aluminum elements in RAL 9006 (white aluminum).
Function Power assist.*
Emergency egress function: "individual authorization" must be
granted by the highest authority on building supervision. The
rotating unit turns automatically 90° in passage direction when the
door is opened.
Electrical equipment Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 335 VA.
Standby power consumption 20 VA.
Installation In sleeve foundation, measure X = 5-15/16” (150 mm).
Protection classes Housing IP33, components conducting supply voltage IP43. Door
terminal IP44.
89-3/8" (2270)
81-1/8" (2060)
76-3/8" (1940)
23" (585)
22-1/16"
(560)
44-5/16"
(1126)
52"
(1321)
*Ø44-1/2" (Ø1130)
Ø*
A
A
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
*
Power assist—Power-assisted motion; servo-positioning drive/
electronically controlled in both directions (behavior in event of power
failure can be selected for each direction: free or blocked).
11
FTS-M05 specifications Optional canopies
FTS Series optional canopies
Canopy FTS-E01 FTS-E02 FTS-E03 FTS-E04 FTS-E05 FTS-E06 FTS-M02 FTS-M03 FTS-M05
Canopy D1 Depth 59-1/16" or 109-1/6" (1500 mm or 2770 mm)
Total height 4-3/4" (120 mm)
Width
64-15/16" (1650 mm) ○––––––––
71-5/8" (1820 mm) – ○ ○ ––––––
87-3/8” (2220 mm) – – – – – – – ○ ○
103-3/16" (2620 mm) – – – – – ○–––
107-1/16" (2720 mm) – – – – – – ○– –
Canopy D2 / Canopy D3 Depth 111" or 147-1/4” (2820 mm or 3740 mm) with 7-7/8" (200 mm) canopy edge or
Depth 183-1/16” (4650 mm) with 15-3/4” (400 mm) canopy edge
Width
72-1/16" (1830 mm) ○––––––––
78-3/4" (2000 mm) – ○ ○ ––––––
94-1/2" (2400 mm) – – – – – – – ○ ○
110-1/4" (2800 mm) – – – – – ○–––
114-3/16" (2900 mm) – – – – – – ○– –
Canopies prevent people from climbing over and provide weather protection.
○ optional – not available
Canopy D1
• Hot-dip galvanized steel substructure, trapezoidal sheet cover in
RAL 9002 grey-white (optional plastic coating in an RAL color).
• For multiple units we supply one continuous canopy. For four units or
more, a central water outlet is required.
• The distance between units is 2" (50 mm).
Canopy D2
• Hot-dip galvanized steel substructure, trapezoidal sheet cover in RAL
9002 grey-white (optional plastic coating in an RAL color).
• With silver anodized canopy edge and water outlet in grey PVC.
• From depth 147-1/4" (3740 mm) and above, the unit has to be
installed in the sleeve foundation and equipped with reinforced posts.
• For multiple units, we supply one continuous canopy. The distance
between units is 2" (50 mm).
• The canopy edge is continuous with a length of max. 20' 11/32" (6.4 m).
Canopy D3
• Hot-dip galvanized steel substructure, trapezoidal sheet cover in RAL
9002 grey-white (optional plastic coating in an RAL color).
• With silver anodized canopy edge and water outlet in grey PVC.
• Canopy underside with aluminum cladding in lotus white.
• From depth 147-1/4" (3740 mm) and above, the unit has to be
installed in the sleeve foundation and equipped with reinforced posts.
• For multiple units we supply one continuous canopy. The distance
between units is 2" (50 mm).
• The canopy edge is continuous with a length of max. 20' 11/32" (6.4 m).
Full Height Turnstiles
dormakaba Full Height Turnstiles & Gates
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
4-3/4"
(120
71-5/8" (1820)
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
4-3/4"
(120
71-5/8" (1820)
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
4-3/4"
(120
71-5/8" (1820)
60-5/8" (1540)
7-7/8"
(200)
78-3/4" (2000)
60-5/8" (1540)
Depth
Depth
Depth
Panelling
Depth
Depth
Depth
Panelling
Depth
Depth
Depth
Panelling

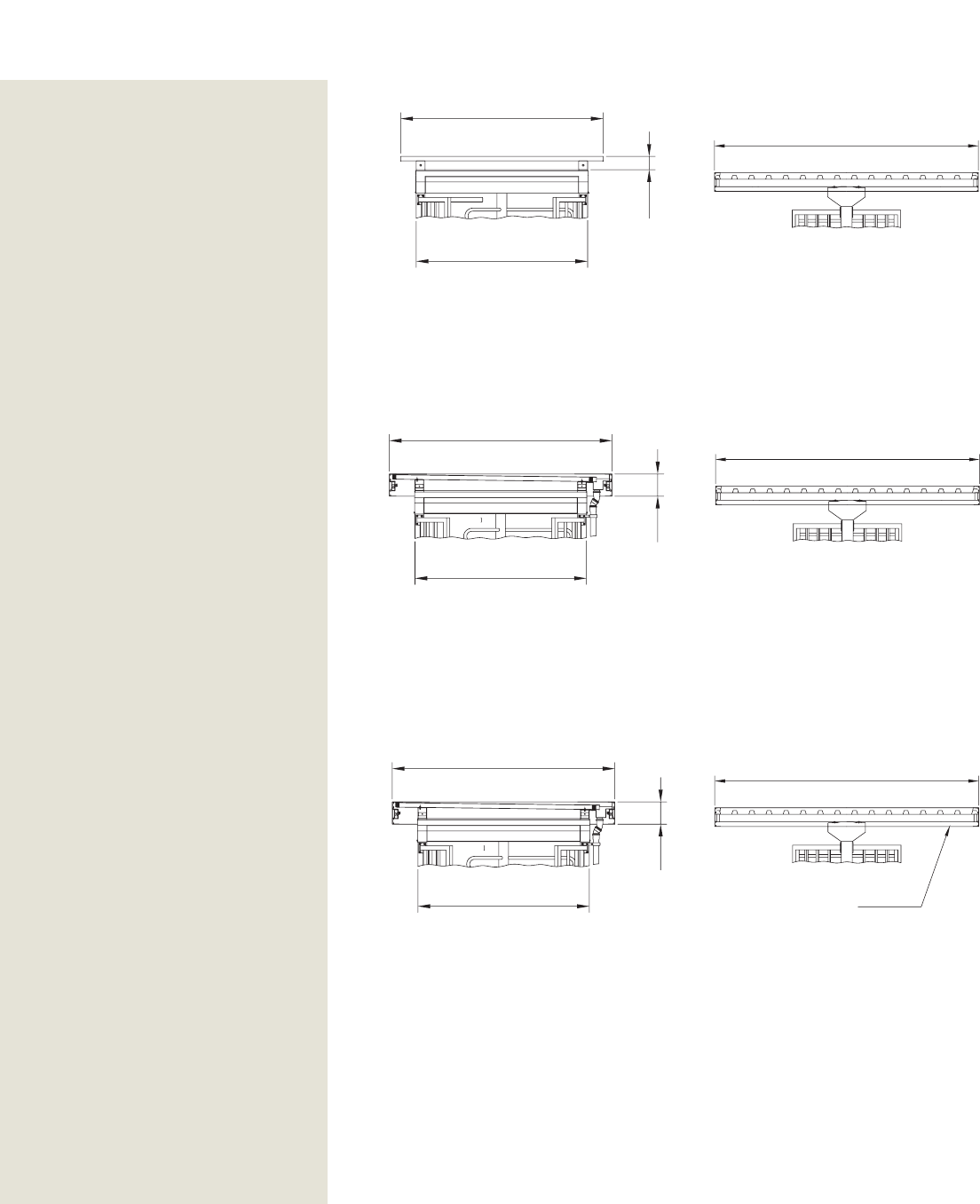

Canopy D1 with trapezoidal
sheet cover.
Canopy D2 with trapezoidal
sheet cover, canopy edge
profile, and water outlet.
Canopy D3 with trapezoidal
sheet cover, canopy edge
profile, panelling, and water
outlet.
Note
In illustrations, measurements
are shown as inches followed by
millimeters; for example, 1" (25).
12
FTS Series optional canopies
13
FTS Series Optional canopies Turnstile options
FTS-E01
FTS-E02
FTS-E03
FTS-E04
FTS-E05
FTS-E06
FTS-M02
FTS-M03
FTS-M05

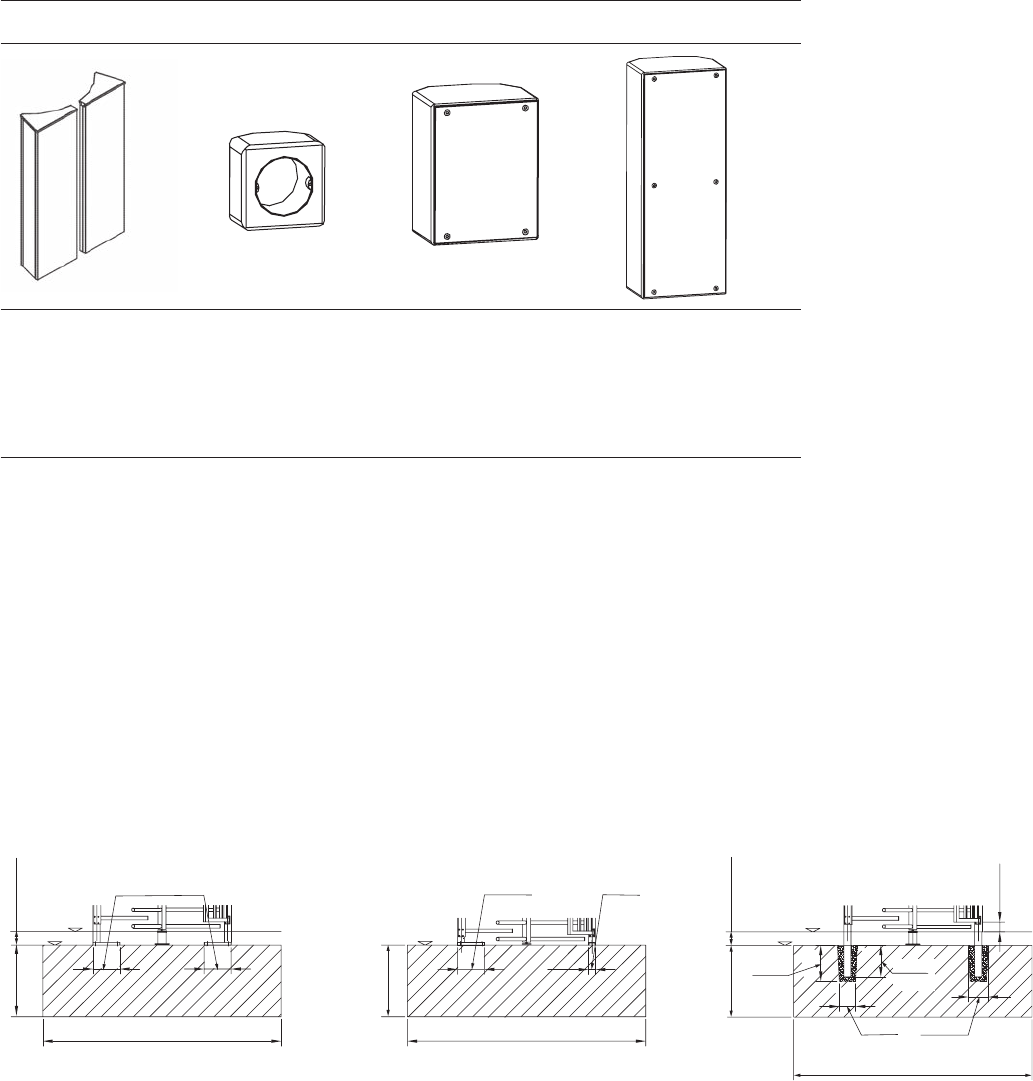

Construction
Housing with lockable front panel made of silver anodized light metal, light metal plastic-coated
according to RAL or glossy stainless steel. –○–––○–––
Canopies D1, D2 and D3. Versions depending on unit type: hot-dip galvanized steel substructure
and aluminum canopy edge 200 or 400 and trapezoidal sheet, available plastic-coated in RAL
color. The water outlet can be in stainless steel or plastic-coated in a RAL color instead of grey.
○○○– – ○○○○
Curved barrier element, hot-dip galvanized or plastic-coated according to RAL, instead of straight
crossbars. –○ ○ ––––––
Rotating unit with curved crossbars including curved barrier element. – ○–––––––
Rotating unit made of AISI 316 or AISI 304 stainless steel. ○○○– – ○○○○
For each direction: mechanical pivoted lever unlocking with profile half cylinder, installed in
maintenance opening. ○○○– – ○○○○
Finish
Steel and aluminum parts: additional plastic coating according to RAL. ○○○○○○○○○
Function
Door opener currentless open/currentless closed. – – – – – – – ○–
Door check with slide bar installed in portal housing or drive for each integrated door. – – – – – – – ○ ○
Two concrete blocks with embedded induction loops instead of loops supplied loose. – – – – – – ○– –
Counter. –––––––○ ○
Random generator with or without horn. ○○○○○○○○○
Electrical equipment
Plug-in power supply unit to supply external nodes, 24 VDC/1A. – – – – – – – ○ ○
Installation preparation on flat surface as rectangular cut-out for components provided by the
customer. ○○○– – ○–○ ○
Different consoles made completely of stainless steel or plastic or aluminum in color of unit or in
RAL 9006. Front panels of aluminum consoles available in plastic or stainless steel. ○○○○–○–○ ○
Button for manual single release. ○○○○○○–––
Electric key-operated push button for single or continuous release. – – – – – – – ○ ○
Operating panels and frames or surface mount housing. ○○○○○○○○○
Additional circuit boards for expanding existing inputs and outputs on power assist units. ○○○○○○○○○
Various signal devices. ○○○–○○○○○
Star hub to connect a maximum of four OPL 05s. – – – – – – – ○ ○
Various LED lighting and twilight switch options ○○○– – ○○○○
Installation
Turnstile unit can be assembled at the factory for "finished floor level" and "sub floor level"
mounting. ○○○–○––––
Mounting on finished floor level X = 0. ○○○–○○○○○
Mounting on sub floor level X = 5-15/16" (150 mm). ○○○–○○○○○
○ optional – not available
FTS Series options
Full Height Turnstiles
dormakaba Full Height Turnstiles & Gates
14
Housing Console 1 Console 2 Console 3
Konsole 4
Konsole 2
Konsole 1
Konsole 3
Konsole 5
Konsole 4
Konsole 2
Konsole 1
Konsole 3
Konsole 5
Konsole 4
Konsole 2
Konsole 1
Konsole 3
Konsole 5
Housing with lockable
front panel made of
silver anodized
aluminum, plastic-
coated according to
RAL or glossy
stainless steel
Plastic in color of
unit or in RAL 9006
Aluminum in color of
unit or in RAL 9006
Aluminum in color of
unit or in RAL 9006
Width 3-11/16" (94 mm) Width 5-1/2" (140 mm) Width 5-1/2" (140 mm)
Height 3-11/16" (94 mm) Height 7-1/16" (180 mm) Height 14-3/8" (365 mm)
Depth 2-9/16" (65 mm) Depth 4-5/16" (110 mm) Depth 4-5/16” (110 mm)

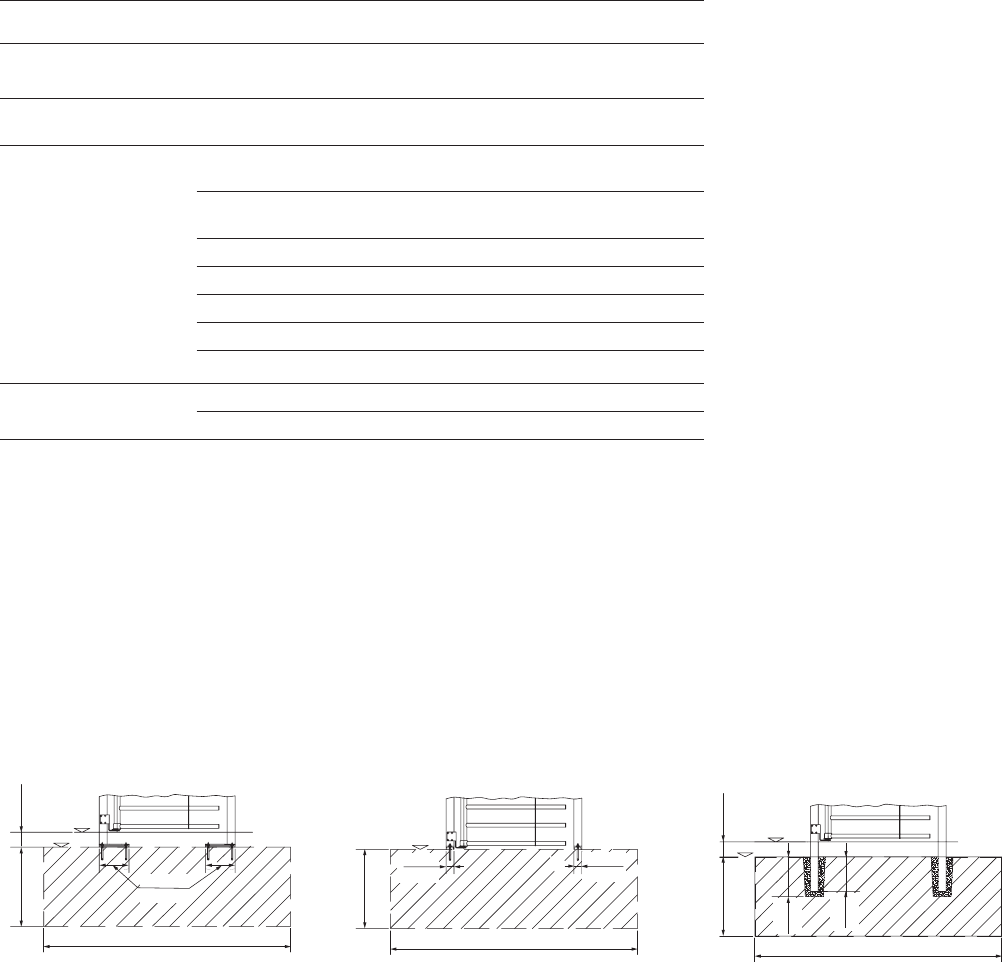

Installation examples
Based on FTS-E02 turnstile
Sub floor level Finished floor level Sleeve foundation
H = 31-1/2"
(800)
15-3/4"
(400)
X = 5-15/16"
(150)
4-5/16"
(110)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16" (300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16"
(300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
3-1/8"
(80)
7-1/16"
(180)
13-3/4"
(350)
8-11/16"
(220)
FFB
FFB
RFB
FFB
RFB
X = 5-15/16"
(150)
H = 31-1/2"
(800)
15-3/4"
(400)
X = 5-15/16"
(150)
4-5/16"
(110)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16" (300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16"
(300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
3-1/8"
(80)
7-1/16"
(180)
13-3/4"
(350)
8-11/16"
(220)
FFB
FFB
RFB
FFB
RFB
X = 5-15/16"
(150)
H = 31-1/2"
(800)
15-3/4"
(400)
X = 5-15/16"
(150)
4-5/16"
(110)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16" (300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
H = 31-1/2"
(800)
11-13/16"
(300)
104-3/4" (2660) ✗ Depth 33-7/ 16" (850)
3-1/8"
(80)
7-1/16"
(180)
13-3/4"
(350)
8-11/16"
(220)
FFB
FFB
RFB
FFB
RFB
X = 5-15/16"
(150)
Note
In illustrations, measurements
are shown as inches followed by
millimeters; for example, 1" (25).
FTS Series optional components
15

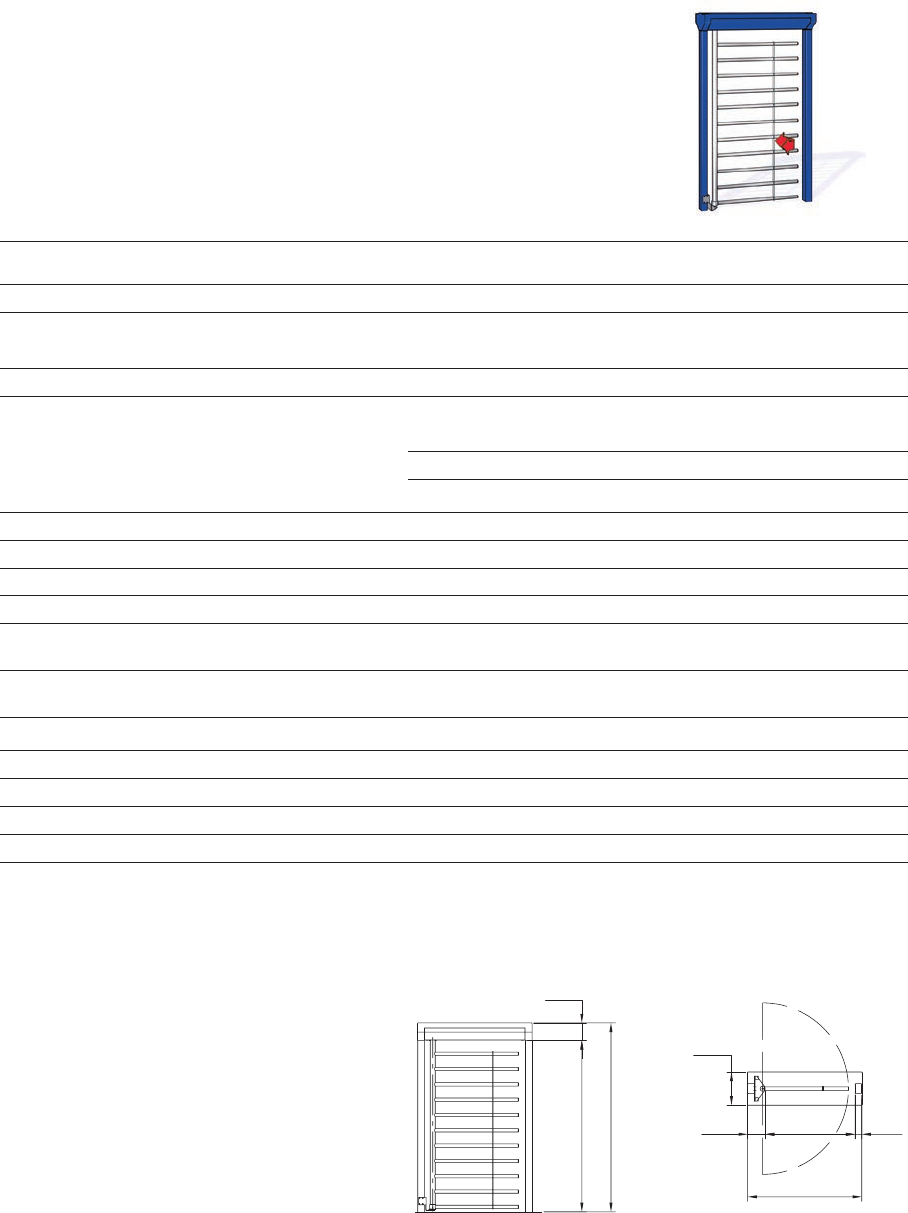

Standard unit FGE-M01
Application Passage of persons and material handling
Construction
Portal width 53-15/16" (1370)
Total height 89-3/8" (2270)
Total height with
optional canopy D1 94-1/16" (2390)
optional canopy D2 95-1/4" (2420)
optional canopy D3 95-1/4” (2420)
Passage height 81-1/8" (2060)
Passage width 41-1/2” (1080)
Portal and housing Steel.
Lockable maintenance opening Aluminum.
Hinge door with tubular column Ø3-1/2" (Ø89 mm) With 11 straight crossbars Ø1-9/16" (Ø40 mm) and vertical
reinforcement plate made of glossy AISI 304 stainless steel.
Finish Hinge door made of glossy stainless steel. Hot-dip galvanized steel
elements. Aluminum elements in RAL 9006 (white aluminum).
Function Power assist*
Electrical equipment Control system integrated in the unit.
Power supply 100 - 240 VAC, 50/60 Hz, 253 VA.
Installation In sleeve foundation, measure X = 5-15/16” (150 mm).
Protection classes Housing IP33, components conducting supply voltage IP43.
3-1/8"
(80)
53-15/16" (1370)
42-1/2"
(1080)
8-1/4"
(210)
15-3/4"
(400)
89-3/8" (2270)
81-1/8" (2060)
8-1/4"
(210)
3-1/8"
(80)
53-15/16" (1370)
42-1/2"
(1080)
8-1/4"
(210)
15-3/4"
(400)
89-3/8" (2270)
81-1/8" (2060)
8-1/4"
(210)
FGE-M01
Full Height Gate
Note
Full-height gates in a matching
design offer a fitting solution for
ADA compliance.
FGE-M01 Full Height Gates specifications
*
Power assist—Power-assisted motion; servo-positioning drive/
electronically controlled in both directions (behavior in event of power
failure can be selected for each direction: free or blocked).
Full Height Gates
dormakaba Full Height Turnstiles & Gates
Canopies prevent people from
climbing over and provide
weather protection.
Canopy D1
Hot-dip galvanized steel
substructure, trapezoidal
sheet cover in RAL 9002
grey-white (optional plastic
coating in a RAL color). For
multiple units we supply one
continuous canopy. For four
units or more, a central water
outlet is required. The distance
between units is 2" (50 mm).
Canopy D2
Hot-dip galvanized steel
substructure, trapezoidal
sheet cover in RAL 9002
grey-white (optional plastic
coating in a RAL color). With
silver anodized canopy edge
and water outlet in grey PVC.
For multiple units, we supply
one continuous canopy. The
distance between units is 2"
(50 mm). The canopy edge is
continuous with a length of
max. 20' 11/32" (6.4 m).
Canopy D3
Hot-dip galvanized steel
substructure, trapezoidal
sheet cover in RAL 9002
grey-white (optional plastic
coating in a RAL color). With
silver anodized canopy edge
and water outlet in grey PVC.
Canopy underside with
aluminum cladding in lotus
white. For multiple units we
supply one continuous canopy.
The distance between units is
50 mm. The canopy edge is
continuous with a length of
max. 20' 11/32" (6.4 m).
Canopy D1 with
trapezoidal sheet cover.
Depth:
59-1/16" (1500) or
89-3/8" (2700)
Total height:
64-15/16” (1650)
Canopy D2 with
trapezoidal sheet cover,
canopy edge profile and
water outlet.
Depth:
111” (2820)
(canopy edge
7-7/8" [200])
Total height:
72-1/16” (1830)
Canopy D3 with
trapezoidal sheet cover,
canopy edge profile,
panelling and water
outlet.
Depth:
111” (2820)
(canopy edge
7-7/8” [200])
Total height:
72-1/16” (1830)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650)
59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650) 59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650) 59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650)
59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650) 59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
7-7/8"
(200)
4-3/4"
(120)
64-15/16" (1650) 59-1/16" (1500) / 109-1/16" (2770)
7-7/8"
(200)
72-1/16" (1830)
53-15/16" (1370)
72-1/16" (1830)
53-15/16" (1370)
111" (2820)
111" (2820)
Note
In illustrations, measurements
are shown as inches followed by
millimeters; for example, 1" (25).
16
FGE-M01 optional canopies
17
FGE-M01 Optional canopies Options Installation examples
Option FGE-M01
Construction For each direction: mechanical pivoted lever unlocking with profile
half cylinder, installed in maintenance opening.
Finish Steel and aluminum parts: additional plastic coating according to
RAL.
Electrical equipment Installation preparation on flat surface as rectangular cut-out for
components provided by the customer.
Different consoles made completely of stainless steel or plastic or
aluminum in color of unit or in RAL 9006.
Operating panels and frames or surface mount housing.
Additional circuit boards for expanding existing inputs and outputs.
Various signal devices.
Heating.
Various lighting and twilight switch options.
Installation Mounting on finished floor level X = 0.
Mounting on sub floor level X = 5-15/16” (150 mm).
Sub floor level Finished floor level Sleeve foundation
98" (2490)
FFB
RFB
31-1/2"
(800)
5-15/16"
(150)
11-13/16"
(300)
98" (2490)
31-1/2"
(800)
5-15/16"
(150)
98" (2490)
31-1/2"
(800)
FFB
RFB
FFB
15-3/4"
(400)
13-3/4"
(350)
3-1/8"
(80)
3-1/8"
(80)
98" (2490)
FFB
RFB
31-1/2"
(800)
5-15/16"
(150)
11-13/16"
(300)
98" (2490)
31-1/2"
(800)
5-15/16"
(150)
98" (2490)
31-1/2"
(800)
FFB
RFB
FFB
15-3/4"
(400)
13-3/4"
(350)
3-1/8"
(80)
3-1/8"
(80)
98" (2490)
FFB
RFB
31-1/2"
(800)
5-15/16"
(150)
11-13/16"
(300)
98" (2490)
31-1/2"
(800)
5-15/16"
(150)
98" (2490)
31-1/2"
(800)
FFB
RFB
FFB
15-3/4"
(400)
13-3/4"
(350)
3-1/8"
(80)
3-1/8"
(80)
FGE-M01 installation examples
Note
In illustrations, measurements
are shown as inches followed by
millimeters; for example, 1" (25).
FGE-M01 options
Full Height Gates
dormakaba Full Height Turnstiles & Gates
18
We provide unparalleled support at every
phase of your project—from design consulta-
tion and specifications to installation and
maintenance.
Our in-house consultants are here to assist
you from the start of your project with design
and writing non-proprietary specifications
and schedules. Next, you can rely on our
customer service team to provide exceptional
product support, while our nationwide
network of service professionals can help with
the final phases of installation and proper
maintenance.
Our comprehensive specification writing
services include consultation on our complete
range of entrance solutions:
• Automatic door systems (sliding, swinging,
and revolving doors)
• Glass systems and hardware
• Architectural hardware
• Operable walls
Consulting services include:
• Developing code-compliant access solution
specifications and schedules
• Developing detailed specifications for all
other product groups
• Meeting with the design professional and/or
owner to discuss project requirements and
security coordination
• Assisting with development of a
professional key system
• Preparing budgets
• Reviewing substitution requests
• Reviewing submittals
• Responding to RFIs, owner’s comments, and
comments from other entities
• Assisting with punch list development and
administration
Architectural and design consultation
Project support at every phase.
For comprehensive
project support, call
dormakaba at
844-SPECNOW
(844-773-2669)
We provide the most comprehensive
project support services in the
industry. From specification and new
installation to dependable
maintenance, our goal is your
satisfaction.
19
Architectural and design consultation Service and installation
Service and installation
A commitment to excellence.
Service and installation
A commitment to excellence.
With an emphasis on service excellence,
dormakaba is committed to delivering, installing
and servicing automatic, revolving, and manual
doors and hardware for commercial
applications.
dormakaba’s nationwide network of service
professionals provides responsive and
comprehensive sales, technical, project
management, and maintenance support.
Dedicated to the highest level of expertise,
all our service technicians are certified by the
American Association of Automatic Door
Manufacturers (AAADM).
With more than 28 offices throughout North
America, our certified professionals are ready
to respond to your service needs.
Visit
go.dormakaba.com/ServiceAMER
to learn more about dormakaba
Service and Installation.
Our nationwide network of
service professionals is
certified by the American
Association of Automatic
Door Manufacturers.
DORMA USA, Inc.
Dorma Drive,
Drawer AC
Reamstown, PA 17567
844-SPECNOW
www.dormakaba.com
KAA1365 0217 1.5M CT

Navigation menu
