InSync™ Lock Series

SAM RF ™ Software

Key Control Systems for Multihousing

When it comes to residents’ needs, developers and property

managers know that a facility’s amenities are equally important

as a well-designed unit. Today’s renters want common areas

that build a sense of community or concierge services to help

manage busy lifestyles. Every amenity, every convenience are

selling propositions—and that includes security and access

control. Kaba InSync locks and SAM RF software offers the

perfect combination of style and security.

Kaba InSync locks are the leading choice for developers

and property managers seeking an advanced access control

solution that streamlines key management, simplifies

operations, and increases community security. InSync locks

are ideal for all types of multihousing applications, including

apartment homes, student housing, assisted living, and

military family housing facilities. With a variety of lock models

available, InSync locks are ideal for both retrofit and new

construction projects.

InSync locks work together with SAM RF software to create

a single system that manages both key and access control

at perimeter entries, amenity and utility doors as well as

apartment or bedroom doors. With the InSync system,

administrators program the locks once; the software programs

critical information, such as access codes, onto the key.

When a resident presents a newly encoded key to the lock,

it voids the previous key. Only one key is required for use at

multiple access points, creating a convenient and efficient user

experience. InSync lock models accommodate virtually all door

types and preparations as well as common area applications,

and the locks feature contemporary finishes and lever options

to complement today’s design trends.

An InSync RFID key with dual

technologies lets a property leverage a

single credential to work in tandem with

a hard-wired access control system.

InSync Locks & SAM RF Software:

The Perfect Combination of Style and Security

SAM RF Software

From design to installation, SAM RF software is intuitive and

easy to use and includes the following features:

• User interface with drop down menus for programming

keys, creating users and authorizations, and generating

system transaction reports

• Customizable authorization group setup to provide

management control over employee access and keymaking

restrictions

• ID and password protection for advanced security and

administration

• Multiple database options to enable management of several

properties from a single system

• Multiple and customizable key levels, including Resident,

Zone, Master, Limited Use, and Emergency

SAM RF Key FOB RFID Technology

• Proximity reader replaces hard contact FOBs or readers for

reliable reads, longer life, and minimal maintenance

• Read/write technology enables reusable and

reprogrammable keys

• High-security encryption unique to each property

• Time-stamp expiration option for increased security

• Special polymer construction repels moisture and protects

embedded access codes

Dual Technology: Compatibility with Single-Key Convenience

The InSync RFID key with dual technologies contains standard

HiTag technology along with either Prox, MIFARE®, or

DESFire®. Keys are configured based on the operating protocol

of an existing perimeter system. An InSync RFID key with dual

technologies lets a property leverage a single credential to work

in tandem with a hard-wired access control system.

3

→Apartment Entry Door (D, I, L, M)

→Bedroom Doors (D, I, L, M)

→Patio Storage Closet (D, I, L, M)

→ Community Room (CL, CM)

→ Pool Gate (CL, CM)

→Pedestrian Gate (CL, CM)

→Roll-up Garage Door (CR)

→Parking Arm (CR)

→Elevator (CR)

→Business Center (CL, CM)

→ Exercise Room (CL, CM)

→ Store Room (D, I, L, M)

→Mechanical Room (D, I, L, M)

→Office Door (D, I, L, M)

→ Stairwell Door (CL, CM, CP)

→Entrance Door (CL, CM, CP, CR)

→Leasing Office (CR, D, I, L, M)

Applications

InSync is a complete line of locks for every residential and community living application. Unit locks are able to store an audit trail

of up to 200 entries, Suite locks can store up to 100 entries while common locks are designed for heavy-traffic areas and can store

up to 2,000 entries.

Electronic lock models include:

• InSync D deadbolt

• InSync I interconnect lock set

• InSync L lock with tubular latch

• InSync M lock with ASM mortise

• InSync CR common reader

• InSync CP common lock for exit devices

• InSync CL common lock with tubular latch

• InSync CM common lock with mortise

All InSync locks operate using four AA standard alkaline batteries.

There is no wiring required. InSync locks fit standard door

preparation and meet UL requirements for either 20-minute (D, I, L)

or three-hour (M) fire ratings. InSync locks maintain entry records by

time, date, and key ID information; non-volatile memory maintains

programming and audit information.

InSync configuration options include:

• Unit — Designed for apartment entry, offices, utility rooms,

and more

• Suite — Ideal for multiple leases per apartment, such as

student housing

• Common — Used for perimeter entries and amenity spaces,

including “pay-for-use” areas, common locks can have

restrictions by time schedule and use

• Entry — Used to make an InSync Unit lock behave like a hotel

lock; the lock will always automatically re-lock behind a

resident and the thumbturn works like a privacy switch

(L and M models only)

• Suite Egress — Used to make a Suite lock act like a Unit lock

where the key or the thumbturn is used to manually re-lock

the lock (L and M lock models only)

InSync Locks

InSync locks cover a full spectrum of hardware offerings to fit a property’s design, budget, and security needs.

4

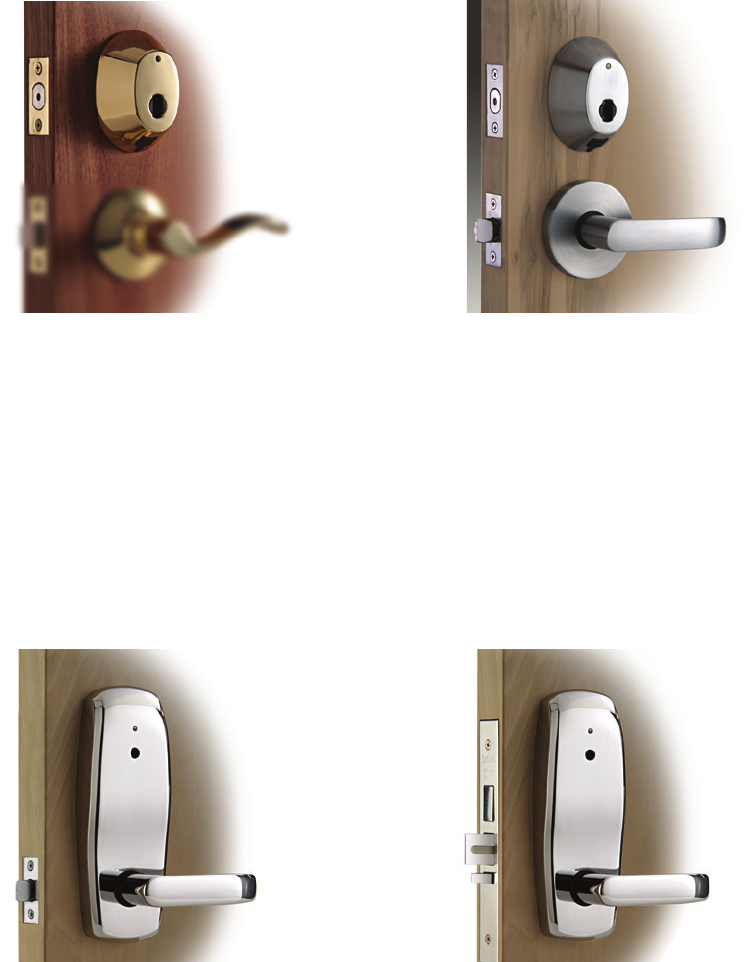

InSync Lock Model Options

Specifications

• 1" deadbolt (D, I)

• 2⅜"(60mm)or2¾"(70mm)backset(D, I)

• Interior thumbturn (D, I)

• Standard deadbolt door prep (D, I)

• Doorthickness:1⅜"–2"(D, I)

• UL certified for use on fire-rated doors (D, I)

(20-minute rating)

• Environmental: Indoor/Outdoor approved (D, I)

 -31°Fto151°F(-35°Cto66°C)

• Uses 4 AA batteries (D, I)

• Interconnected single motion egress (I)

When the inside lever is rotated, both latch and deadbolt

are simultaneously retracted

• ADA-compliant levers and thumbturns (I)

InSync I

Electronic Interconnect

Lock Set

InSync D

Electronic Deadbolt

Note: Passage lever shown above is not included.

Specifications

• ½" tubular deadlatch (L)

• 2⅜"(60mm)or2¾"(70mm)backset(L)

• ULcertifiedforuseonfire-rateddoors:

20-minute rating (L)

• Interior thumbturn (Unit models only) (L, M)

• Complete lever set/single motion egress (L, M)

• Uses 4 AA batteries (L, M)

• ADA-compliant levers and thumbturns (L, M)

• Environmental: Indoor/Outdoor approved (L, M)

 -31°Fto151°F(-35°Cto66°C)

• 1" automatic deadbolt (ADB) (M)

• 2¾"(70mm)backset(M)

• UL certified for use on fire doors:

20-minute rating or 3-hour rating (M)

• 8" mortise lock (M)

• ¾"dead-lockinglatch(M)

• ADA-compliant levers and thumbturns (L, M)

InSync M

Electronic Lock with

ASM Mortise

InSync L

Electronic Lock

with Tubular

Deadlatch

5

InSync C products provide a variety of alternatives when

addressing community access control.

Specifications

• Remote control unit (RCU) switch works with electrified

locking devices (CR)

• Controls electronic strikes and magnetic latches up to 24

volts AC/DC (CR)

• Functions as elevator control unit (ECU) with a single relay

(CR)

• Environmental: Indoor/Outdoor approved (CR, CP)

 -31°Fto151°F(-35°Cto66°C)

• Available in flush or surface mount (CR)

• Works in conjunction with rim and vertical exit hardware

for common area doors (CP)

• Interfaces with industry-leading exit devices* (CP)

• Compatible with a variety of rim and surface mount vertical

rod panic hardware* (CP)

• ½" tubular dead latch (CL)

• Single motion egress with common area electronics

(CL, CM)

• ¾"anti-picklatch(CM)

• Available with UL 20-minute or 3-hour rating (CM)

* See Multihousing Price Book or www.kaba-adsamericas.com

for compatibility

InSync CP Series

Electronic Lock

for Exit Devices

InSync CR Series

Electronic

Common Reader

InSync Common Area Locks

InSync CM

Electronic Lock with

ASM Mortise

InSync CL

Electronic Lock

with Tubular

Deadlatch

Note: Continental and Vintage Levers are NOT available in Satin Nickel. All other lever styles are available in all finishes

Extra heavy chrome (EHC™ – PVD) finish – available on Apogee satin chrome lever ONLY

Custom lever options are also available – contact Kaba Access and Data Systems Americas for all availability and lead times

Hardware Finish and Lever Options

Apogee™Arc Gala Troy Continental Vintage

Bright Chrome 26 Bright Brass U3 Satin Chrome 26D Satin Brass U4 Satin Nickel U15 Dark Mahogany

10B

6

Kaba Access & Data Systems Americas

2941 Indiana Ave.

Winston-Salem NC 27105

USA

1-800-849-8324

www.kaba-adsamericas.com KAA1245 0216
