dormakaba Half-height Sensor Barriers HSB
2
dormakaba Sensor Barriers
Contactless solutions for access control.
dormakaba’s security Sensor Barriers offer ease of
use in a contactless access control solution that is
simple and effective — seamlessly handling large
traffic flows quickly and efficiently.
04 Half-height Sensor
Barriers HSB
Sensor Barrier HSB
advantages
Economical
06 HSB-E10 / HSB-E11
Moderate
07 HSB-M01 / HSB-E07
08 HSB-E02 / HSB-E04
Premium
09 HSB-E08
10 HSB-E12 / HSB-S05
11 Options
12 Optional components
Installation options

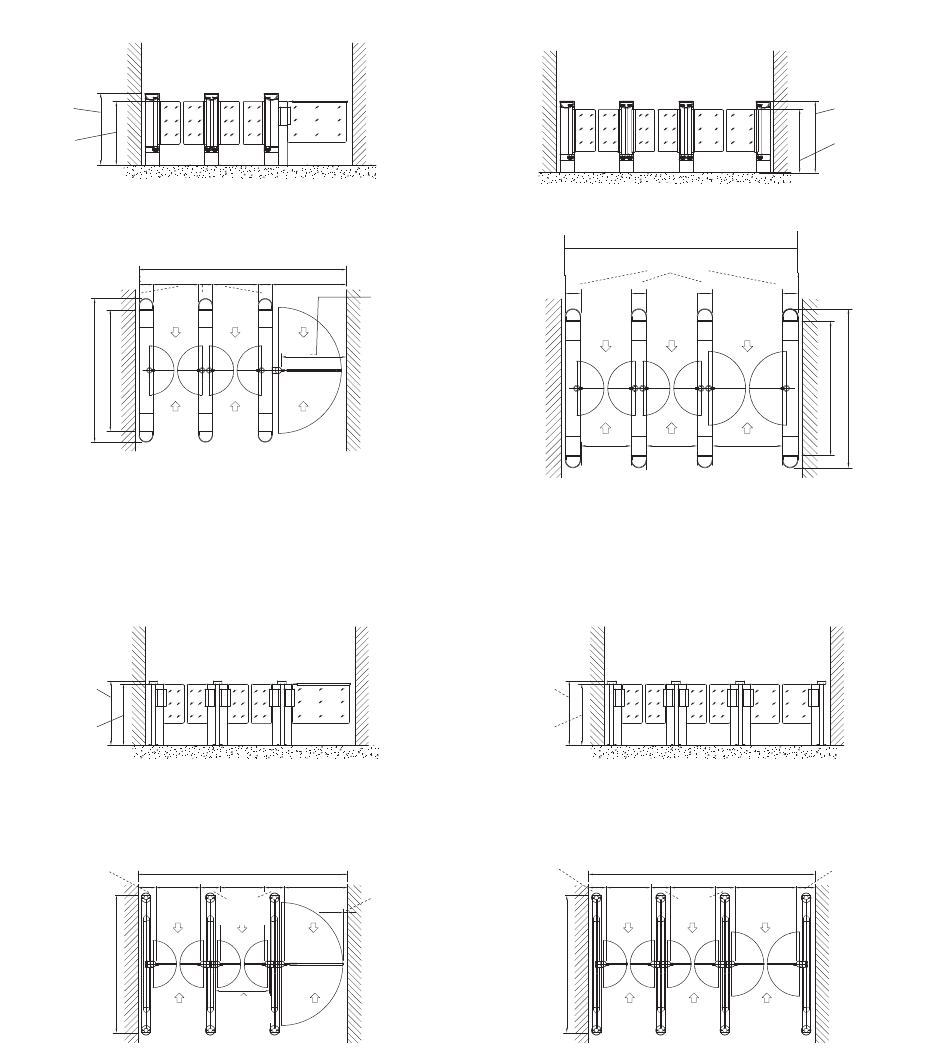

13 Installation diagrams
14 Architectural and design
consultation
15 Service and installation
Contents
dormakaba entrance solutions
3
Entrance solutions by dormakaba
Security. Sustainability. Reliability.
dormakaba stands for security, sustainability
and reliability. Our mission is to make the lives
of our customers smart and secure. Holding
true to our mission, we invest in innovation to
develop entrance solutions that exceed your
demands and expectations.
The commitment to develop innovative yet
practical products is what differentiates
dormakaba. Our Sensor Barriers are powerful
examples of our dedication to providing
premium physical access systems that
perform as designed throughout the life of
your building.
To ensure our entrance solutions perform at
the highest level, we provide the most com-
prehensive offering of services in the industry.
You can trust dormakaba for exceptional
product support, including installation,
retrofit, replacement and maintenance.
We will continue to deliver systems that
define security and convenience. Together
with first class service, on-going training and
aftermarket sales support, our priority will
always be adding value for our customers and
esteem to our brands.
“ The commitment to develop
innovative yet practical
solutions is what differentiates
dormakaba.”

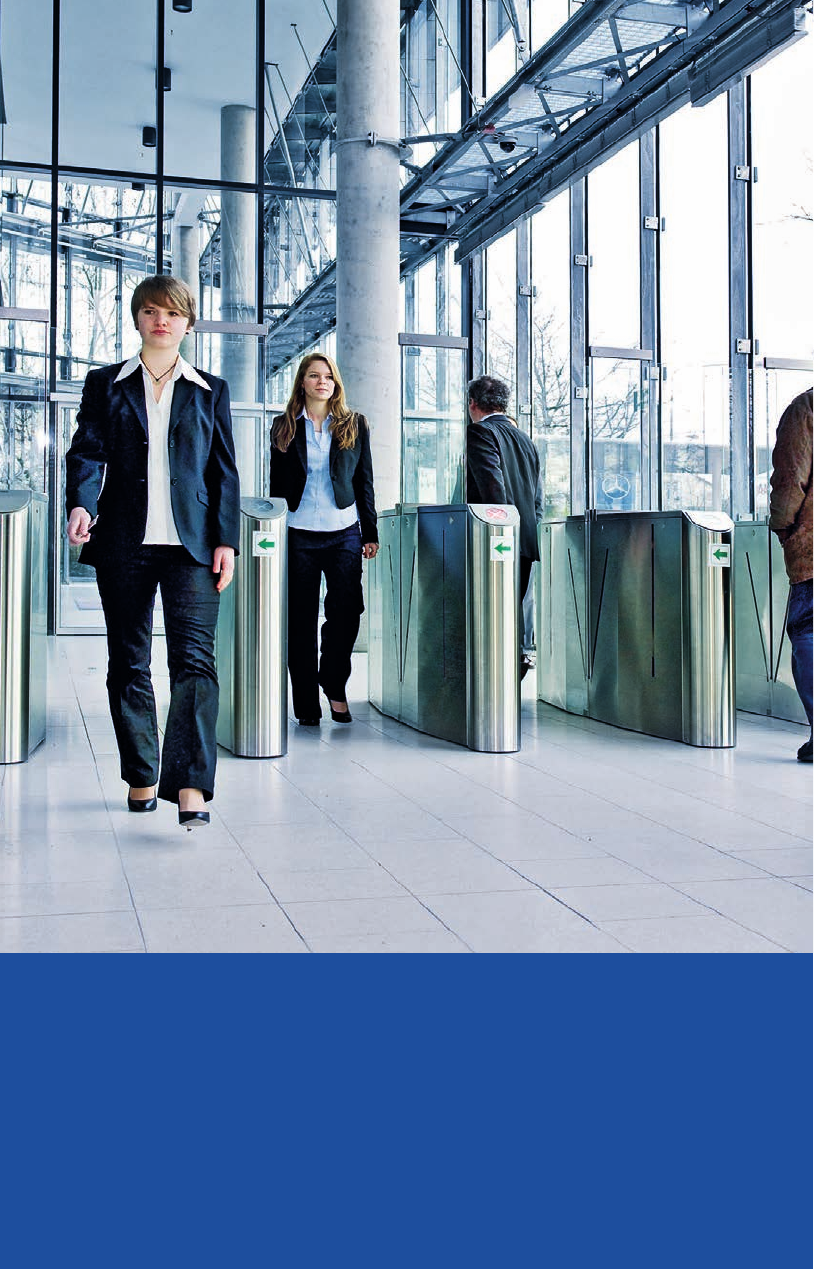

dormakaba Half-height Sensor Barriers HSB

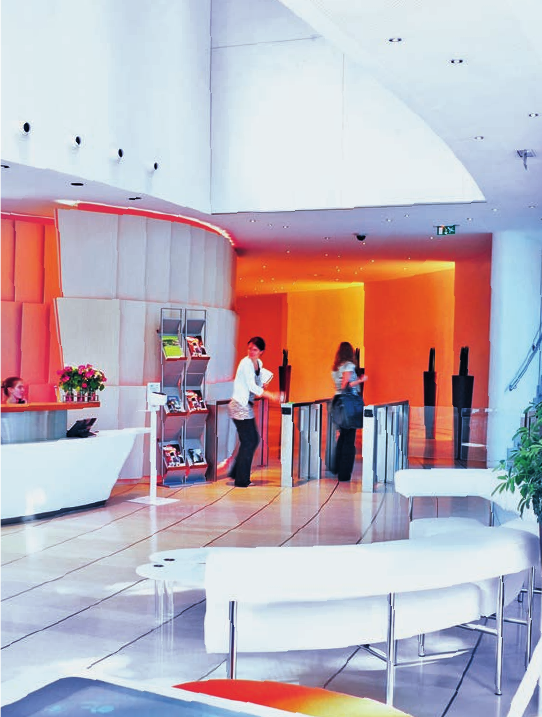

Contactless passage
The dormakaba HSB product portfolio
consists of sensor-controlled passage units
with automatic door elements in various
versions. The modular combination of personal
safety, throughput rate and design enables
entrances to be customized as required to
provide convenient contactless passage, even
with luggage.
Tried-and-tested HSB Sensor Barriers are
equipped with door leaves, can be individually
customized, and are offered in a wide variety
of materials and finishes. You can choose
between a stainless steel housing or
transparent side walls to coordinate with the
design of the entrance area. Moreover, the
Sensor Barriers are available in three different
lengths—depending on the sensor system used
and the level of security desired.

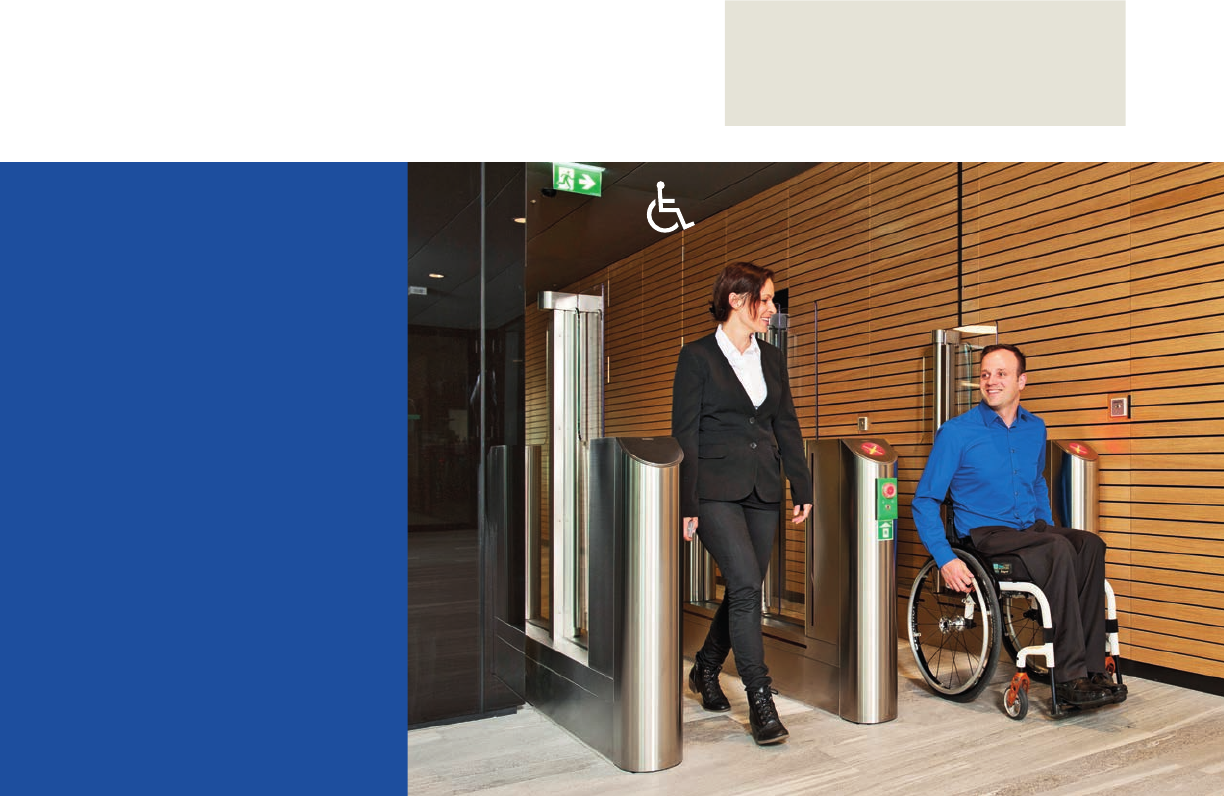

Sensor Barrier HSB advantages
• 36" (915 mm) width available—compliant
with ADA standards.
• Integrates with any access control system.
• Comfortable passage, even with luggage.
• No contact with the door leaves.
• High throughput rate along with high level
of personal safety.
• Different security levels for anti-tailgating
requirements.
• Versatile transparent designs.
• Modular system.
• Door wings always open in direction of
passage.
• Audio and visual alarm on unauthorized
passage.
• Fire alarm integration.
Half-height Sensor Barriers HSB
Slender, secure and convenient.
Throughput rate = up to 30 per minute
Security level = ●●●○○
Comfort = ●●●●●
Staff supervision = yes
The modular combination of personal
safety, throughput rate, and design enables
entrances to be customized as required.
4
Sensor Barrier HSB categories
• Economical units offer a
minimal installation length and
a simple sensor system monitors
the passage area by offering
single passage in both directions.
• Moderate units offer tailgating
monitoring at 10" in both
directions.
• Premium units offer tailgating
monitoring at 4.5" in both
directions. This enhanced
sensor system includes luggage
and child detection.

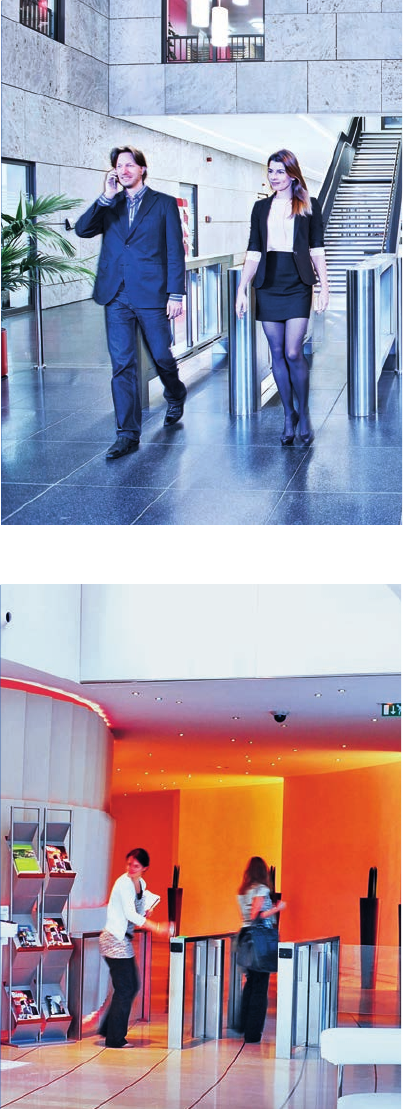

The slender profile in
various configurations
harmonizes with
contemporary
interior design.

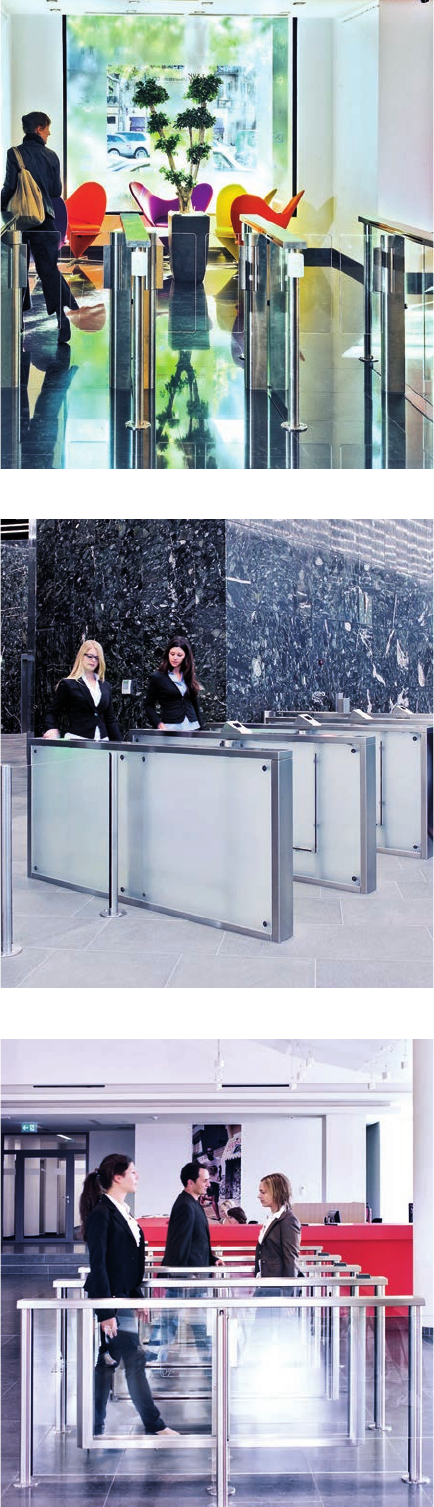

Sensor Barriers
stylishly integrate
into timeless
interiors, allowing
convenient and
secure passage.
Sensor Barriers can
be customized with
extension units and
other options
depending on the
unit specified.
5
Half-height Sensor Barriers HSB
dormakaba Half-height Sensor Barriers HSB
6

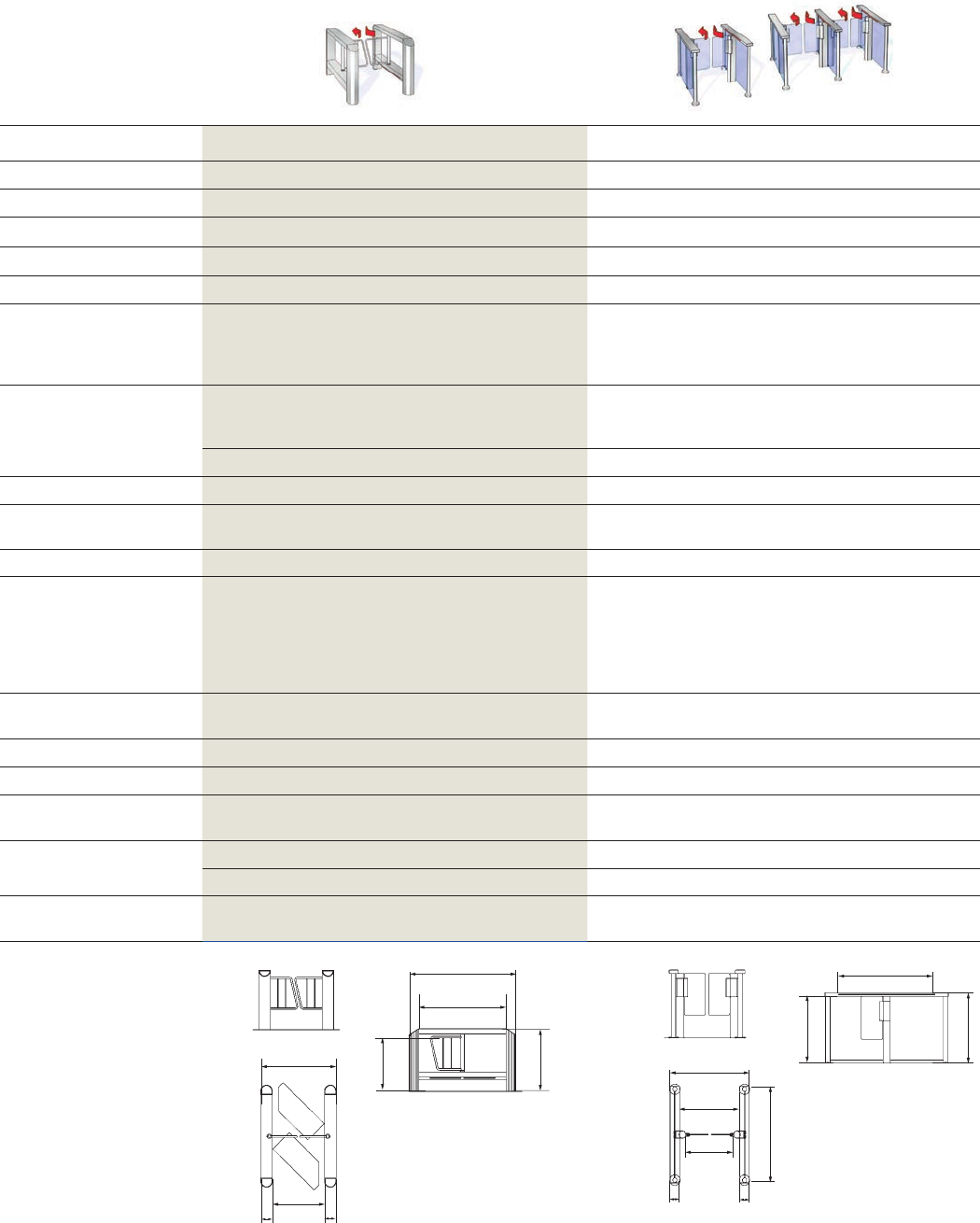

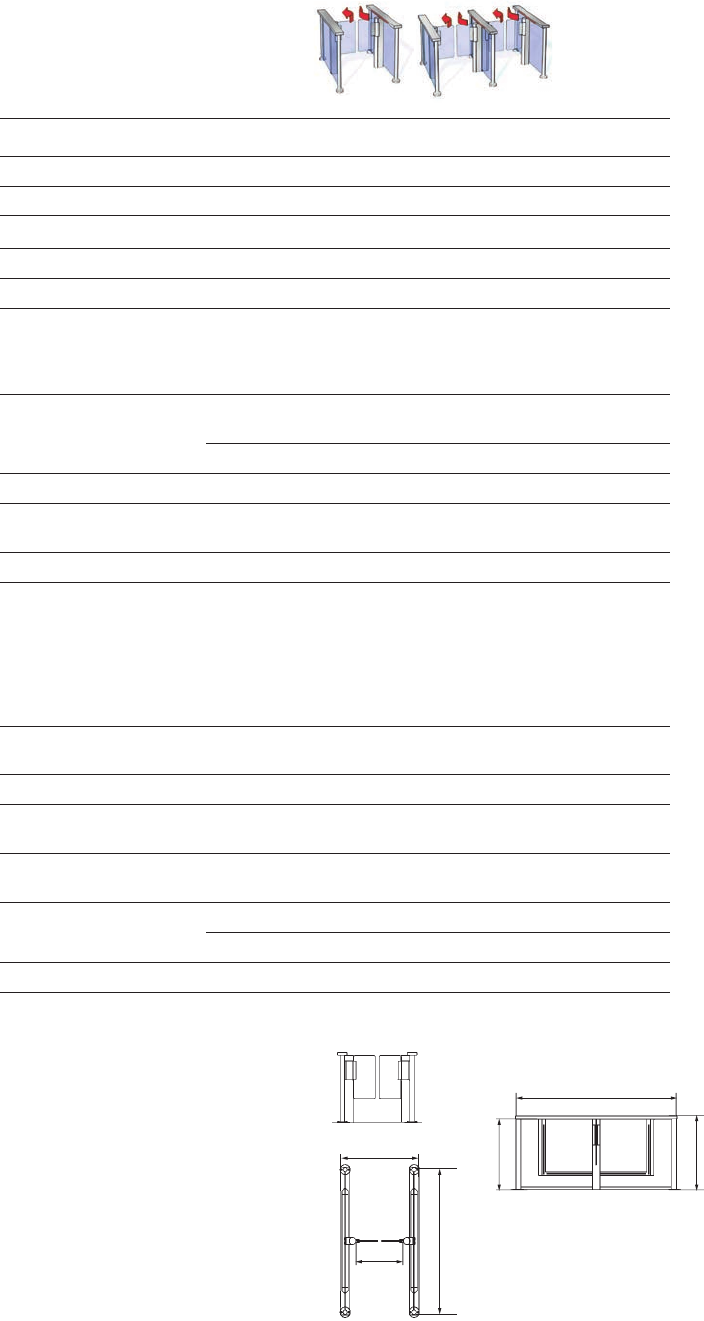

Standard units HSB-E10 HSB-E11
Note Description of single unit Description of single unit
Interlock height 40-3⁄16" (1020 mm)
37-3/16" (945 mm)
Interlock length 57-7/8" (1470 mm)
50-13/16" (1290 mm)
Passage width 25-9⁄16" (650 mm)
25-9/16" (650 mm)
Total width 41-5⁄16" (1050 mm) 42-1/8" (1070 mm)
Housing, base columns,
guiding elements
AISI 304 stainless steel with satin finish. AISI 304 Ø2-3/8" (Ø60 mm) stainless steel tube
with 3/8" (10 mm) toughened safety glass panel
and AISI 304 stainless steel handrail with integrated
sensor system..
Barrier elements Two door leaves made of transparent
polycarbonate; upper edge 35-7⁄16" (900 mm).
Two door leaves made of transparent polycarbonate,
upper edge 3-7/16" (900 mm).
Swinging area monitored by separation sensors. Swinging area monitored by separation sensors.
Finish Stainless steel semi-gloss smooth finish. Stainless steel semi-gloss smooth finish.
Function Type 2—power assisted motion; two servo-
positioning drives/electrically controlled in both
directions.
Type 2–power assisted motion; two servo-
positioning drives/electrically controlled in both
directions.
Drives Integrated in the swing tube. Integrated in the swing tube.
Operating modes Closed–basic position closed “night operation”: the
door leaves open automatically in the direction of
passage and then close again if authorization is
granted.
Closed–basic position closed “night operation”: the
door leaves open automatically in the direction of
passage and then close again if authorization is
granted.
Electrical equipment Control system and power supply integrated
in the unit.
Control system and power supply integrated in
the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA 17 VA
Standard adjustment in case
of power failure
Door leaves move freely. Door leaves move freely.
Installation Dowelled on finished floor level, FFL. Dowelled on finished floor level, FFL.
Not suitable for outdoor installation. Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting
supply voltage IP43.
Housing IP32, components conducting supply
voltage IP42.
41-5/16"
(1050)
7-7/8"
(200)
7-7/8"
(200)
57 -7/8"
(1470)
35-7/16"
(900)
40-3/16"
(1020)
25-9/16"
(650)
HSB-E10
Economical units
offer a minimal
installation length
and a simple sensor
system monitors the
passage area by
offering single
passage in both
directions.
50 -3/16"
(1290)
35-7/16"
(900)
37-3/16"
(945)
HSB-E11
31-7/8"
(810)
5-1/8"
(130)
5-1/8"
(130)
42-1/18"
(1070)
25-9/16"
(650)
Note: In illustrations,
measurements are
shown as inches followed
by millimeters;
for example, 1" (25).
HSB-E10 / HSB-E11
Economical
7

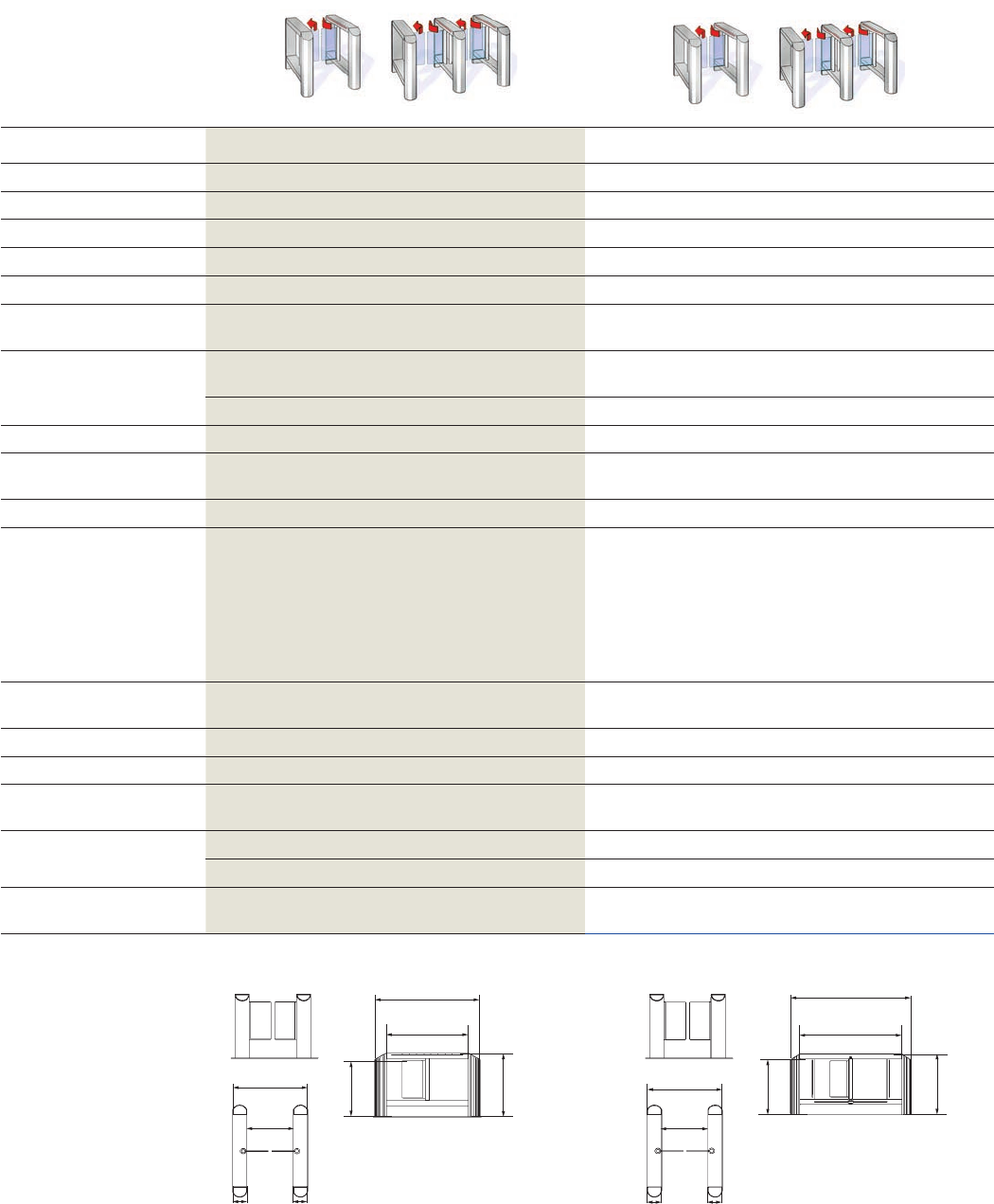

HSB-E10 HSB-E11 HSB-M01 HSB-E07 specifications
Moderate units offer
tailgating monitoring
at 10" in both
directions.

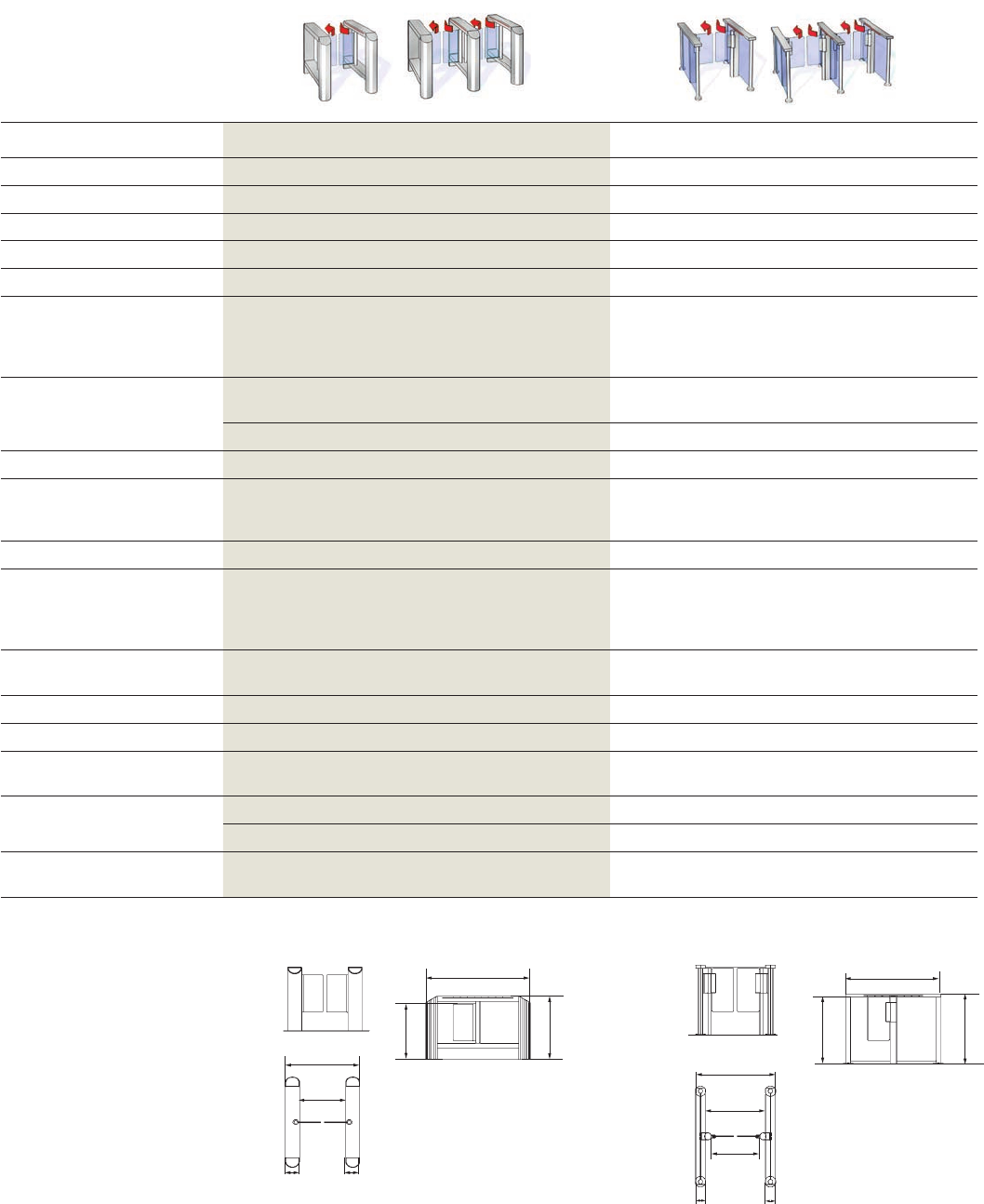

Standard units HSB-M01 HSB-E07
Note Description of single unit Description of single unit
Interlock height 40-3⁄16" (1020 mm)
37-3/16" (945 mm)
Interlock length 69-5⁄16" (1760 mm)
65-3/8" (1660 mm)
Passage width
35
-7⁄16"
(900 mm) 25-9/16" (650 mm)
Total width
51
-3⁄16
" (1300 mm)
42-1/8" (1070 mm)
Housing, base columns,
guiding elements
AISI 304 stainless steel with satin finish. AISI 304 Ø2-3/8" (Ø60 mm) stainless steel tube with
3/8" (10 mm) toughened safety glass panel and AISI
304 stainless steel handrail with integrated sensor
system.
Barrier elements
Two door leaves made of curved AISI 304 Ø 1-1/16" (26.9 mm)
stainless steel tubes with Ø 3/8" (10 mm)
vertical struts, upper edge
35
-7⁄16
" (900 mm).
Two door leaves made of transparent polycarbonate,
upper edge 35-7/16" (900 mm)
Swinging area monitored by a light grid. Swinging area monitored by separation sensors.
Finish Stainless steel semi-gloss smooth finish. Stainless steel semi-gloss smooth finish.
Function Type 2-power assisted motion; two servo-positioning
drives/electrically controlled in both directions.
Type 2–power assisted motion; two servo-positioning
drives/electrically controlled in both directions.
Drives Integrated in the swing tube. Integrated in the swing tube.
Operating modes Closed–basic position closed “night operation”: the door
leaves open automatically in the direction of passage
and then close again if authorization is granted.
Open–basic position open “day-operation”: the door
leaves are closed automatically if authorization is not
granted for passage.
Closed–basic position closed “night operation”: the door
leaves open automatically in the direction of passage
and then close again if authorization is granted.
Electrical equipment Control system and power supply integrated in
the unit.
Control system and power supply integrated in
the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA 17 VA
Standard adjustment in case
of power failure
Door leaves move freely. Door leaves move freely.
Installation Dowelled on finished floor level FFL. Dowelled on finished floor level, FFL.
Suitable for outdoor installation. Not suitable for outdoor installation.
Protection classes Housing IP54, components conducting supply voltage
IP54.
Housing IP32, components conducting supply voltage
IP42.
7-7/8"
(200)
7-7/8"
(200)
69 -5/16"
(1760)
35-7/16"
(900)
40-3/16"
(1020)
56 -11/16"
(1440)
35-7/16"
(900)
HSB-M01
51-3/16"
(1300)
65 -3/8"
(1660)
35-7/16"
(900)
37-3/16"
(945)
HSB-E07
31-7/8"
(810)
5-1/8"
(130)
5-1/8"
(130)
42-1/18"
(1070)
25-9/16"
(650)
65-3/8"
(1660)
Note: In illustrations,
measurements are
shown as inches followed
by millimeters;
for example, 1" (25).
HSB-M01 / HSB-E07
Moderate
dormakaba Half-height Sensor Barriers HSB
8

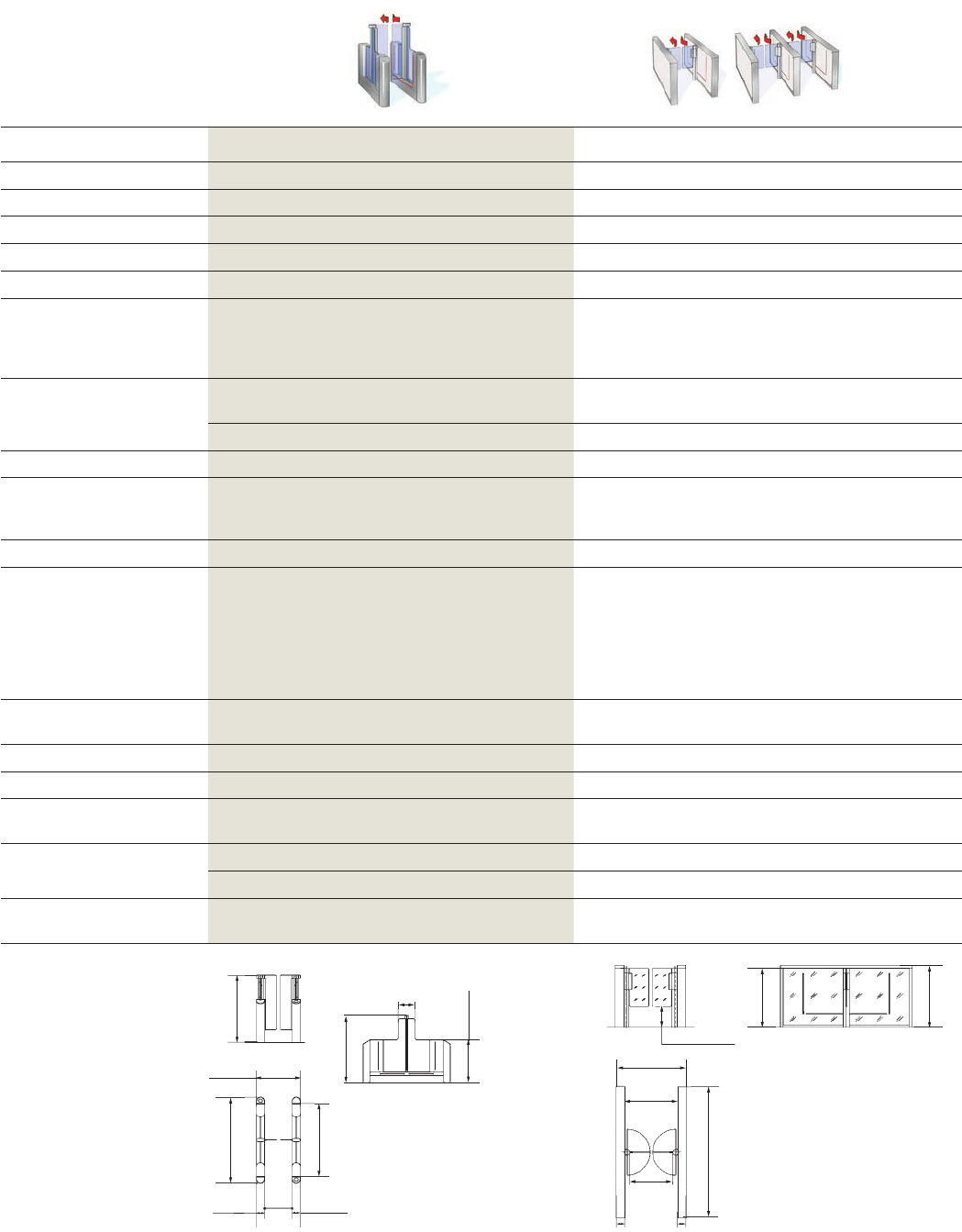

Standard units HSB-E02 HSB-E04
Note Description of single unit Description of single unit
Interlock height 40-3⁄16" (1020 mm) 40-3⁄16” (1020 mm)
Interlock length 69-5⁄16" (1760 mm)
80
-11⁄16
" (2050 mm)
Passage width 25-9⁄16" (650 mm) 25-9⁄16” (650 mm)
Total width 41-5⁄16" (1050 mm) 41-5⁄16” (1050 mm)
Housing, base columns,
guiding elements
AISI 304 stainless steel with satin finish. AISI 304 stainless steel with satin finish.
Barrier elements Two door leaves made of transparent polycarbonate;
upper edge 35-7⁄16" (900 mm).
Two door leaves made of transparent polycarbonate,
upper edge
35-7⁄16”
(900 mm).
Swinging area monitored by separation sensors. Swinging area monitored by separation sensors.
Finish Stainless steel semi-gloss smooth finish. Stainless steel semi-gloss smooth finish.
Function Type 2-power assisted motion; two servo-positioning
drives/electrically controlled in both directions.
Type 2– power assisted motion; two servo-positioning
drives/electrically controlled in both directions.
Drives Integrated in the swing tube. Integrated in the swing tube.
Operating modes Open–basic position open “day-operation”: the door
leaves are closed automatically if authorization is
not granted for passage.
Closed–basic position closed "night operation": the
door leaves open automatically in the direction of
passage and then close again if authorization is
granted.
Open–basic position open “day-operation”: the door
leaves are closed automatically if authorization is not
granted for passage.
Closed–basic position closed “night operation”: the
door leaves open automatically in the direction of
passage and then close again if authorization is
granted.
Electrical equipment Control system and power supply integrated
in the unit.
Control system and power supply integrated in
the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA 17 VA
Standard adjustment in
case of power failure
Door leaves move freely. Door leaves move freely.
Installation Dowelled on finished floor level, FFL. Dowelled on finished floor level, FFL.
Not suitable for outdoor installation. Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage
IP43.
Housing IP43, components conducting supply
voltage IP43.
41-5/16"
(1050)
7-7/8"
(200)
7-7/8"
(200)
69 -9/16"
(1760)
35-7/16"
(900)
40-3/16"
(1020)
56 -3/4"
(1440)
25-9/16"
(650)
HSB-E02
Moderate units offer
tailgating monitoring
at 10" in both
directions.
41-5/16"
(1050)
7-7/8"
(200)
7-7/8"
(200)
35-7/16"
(900)
40-3/16"
(1020)
25-9/16"
(650)
HSB-E04
80 -11/16"
(2050)
68 -1/8"
(1730)
Note: In illustrations,
measurements are
shown as inches followed
by millimeters;
for example, 1" (25).
HSB-E02 / HSB-E04
Moderate
9
Standard units HSB-E08
Note Description of single unit
Interlock height 37-3/16" (945 mm)
Interlock length 79-1/8" (2010 mm)
Passage width 2-9/16" (650 mm)
Total width 42-1/8" (1070 mm)
Housing, base columns,
guiding elements
AISI 304 Ø2-3/8" (Ø60 mm) stainless steel tube with
3/8" (10 mm) toughened safety glass panel and
AISI 304 stainless steel handrail as well as horizontal
and vertical sensors mounted on the guiding elements.
Barrier elements Two door leaves made of transparent polycarbonate,
upper edge 35 7⁄16" (900 mm).
Swinging area monitored by separation sensors.
Finish Stainless steel semi-gloss smooth finish.
Function Type 2–power assisted motion; two servo-positioning drives/
electrically controlled in both directions.
Drives Integrated in the swing tube.
Operating modes Open–basic position open "day-operation": the door leaves
are closed automatically if authorization is not granted for
passage.
Closed–basic position closed “night operation”: the door
leaves open automatically in the direction of passage and
then close again if authorization is granted.
Electrical equipment Control system and power supply integrated in
the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power
consumption
17 VA
Standard adjustment in
case of power failure
Door leaves move freely.
Installation Dowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classes Housing IP32, components conducting supply voltage IP42.
Premium units offer
tailgating monitoring
at 4.5" in both
directions. This
enhanced sensor
system includes
luggage and child
detection.
79-1/8"
(2010)
79-1/8"
(2010)
35-7/16"
(900)
37-3/16"
(945)
HSB-E08
42-1/8"
(1070)
25-9/16"
(650)
HSB-E02 HSB-E04 HSB-E08 specifications
Note: In illustrations,
measurements are
shown as inches followed
by millimeters;
for example, 1" (25).
HSB-E08
Premium
dormakaba Half-height Sensor Barriers HSB
10
Premium units offer
tailgating monitoring
at 4.5" in both
directions. This
enhanced sensor
system includes
luggage and child
detection.
Note: In illustrations,
measurements are
shown as inches followed
by millimeters;
for example, 1" (25).
63"
(1600)
HSB-E12
41-5/16"
(1070)
80-11/16"
(2050)
68-1/8"
(1730)
15-3/4"
(400)
40-3/16"
(1020)
63"
(1600)
7-7/8"
(200)
7-7/8"
(200)
35-7/16"
(900)
37-3/16"
(945)
HSB-S05
31-7/8"
(810)
5-1/8"
(130)
5-1/8"
(130)
79-1/8"
(2010)
42-1/8"
(1070)
12-5/8" (320)
25-9/16"
(650)
Standard units HSB-E12 HSB-S05
Note Description of single unit Description of single unit
Interlock height 63" (1600 mm) 37-3⁄16" (945 mm)
Interlock length 80-11/16" (2050 mm) 79-1/8" (2010 mm)
Passage width 25-9/16" (650 mm) 25-9⁄16" (650 mm)
Total width 41-5/16" (1050 mm) 42-1/8" (1070 mm)
Housing, base columns,
guiding elements
AISI 304 stainless steel with satin finish. Rectangular AISI 304 stainless steel posts with 5⁄16" (8 mm)
satin-finished toughened safety glass panel and AISI
304 stainless steel handrail as well as horizontal and
vertical sensors integrated in the guiding elements.
Barrier elements Two door leaves made of transparent
polycarbonate, upper edge 35-7⁄16" (900 mm).
Two door leaves made of transparent polycarbonate,
upper edge 35-7⁄16" (900 mm).
Swinging area monitored by separation sensors. Swinging area monitored by separation sensors.
Finish Stainless steel semi-gloss smooth finish. Stainless steel semi-gloss smooth finish.
Function Type 2–power assisted motion; two servo-
positioning drives/electrically controlled in both
directions.
Type 2– power assisted motion; two servo-positioning
drives/electrically controlled in both directions.
Drives Integrated in the swing tube. Integrated in the swing tube.
Operating modes Open–basic position open “day-operation”: the door
leaves are closed automatically if authorization is
not granted for passage.
Closed–basic position closed “night operation”: the
door leaves open automatically in the direction of
passage and then close again if authorization is
granted.
Open–basic position open “day-operation”: the door
leaves are closed automatically if authorization is not
granted for passage.
Closed–basic position closed “night operation”: the door
leaves open automatically in the direction of passage
and then close again if authorization is granted.
Electrical equipment Control system and power supply integrated in
the unit.
Control system and power supply integrated in
the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA 17 VA
Standard adjustment in case
of power failure
Door leaves move freely. Door leaves move freely.
Installation Dowelled on finished floor level, FFL. Dowelled on finished floor level, FFL.
Not suitable for outdoor installation. Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply
voltage IP43.
Housing IP32, components conducting supply voltage
IP42.
HSB-E12 / HSB-S05
Premium
11
HSB-E12 HSB-S05 specifications Options
Options
HSB-E10
HSB-E11
HSB-M01
HSB-E07
HSB-E02
HSB-E04
HSB-E08
HSB-E12
HSB-S05
Cover plate made of wood. – – – – – ○ ○ – –
Passage width increased to 35-7⁄16" (900 mm) for disabled users and transit of goods. ○ ○ –○○○○○○
Angular base columns. – ○–○– – ○– –
AISI 304 back wall. ○–○–○ ○ –––
AISI 304 closed base. ○–––○ ○ – – ○
Door leaf extends to a height of 47-1/4" (1200 mm) instead of 35-7⁄16" (900 mm). – – – – – – ○–○
Door leaf extends to a height of 70-7/8" (1800 mm) instead of 63" (1600 mm). –––––––○–
Function
Induction loops embedded in concrete stones. – – ○––––––
Emergency and escape route modules with emergency push button, additional emergency push
button available. ○○○○○○○○○
Electrical equipment
Installation preparation on flat surface for on-site components or using mounting plate for
surface installation. ○○○○○○○○–
Plastic cover plates instead of stainless steel plate for installation of antennas provided by
customer. ○–○–○ ○ –○ ○
Push button for manual single release. ○○○○○○○○○
Operating panel and frame or surface mount housing. ○○○○○○○○○
Additional boards to expand the existing inputs and outputs. ○○○○○○○○○
Various signal devices.. ○○○○○○○○○
Installation
Pallet with stainless steel ramp and norament rubber covering, height approx. 1-1/4" (32 mm). ○○○○○○○○○
On adjustable mounting plate X = 3-1/8"– 7-1⁄16" (80–180 mm) for sub floor level.. ○○○○○○○○○
With cast-in clamping elements and cover rosettes for sub floor level. – ○–○– – ○– –
Economical Moderate Premium
○ optional – not available
dormakaba Half-height Sensor Barriers HSB
12

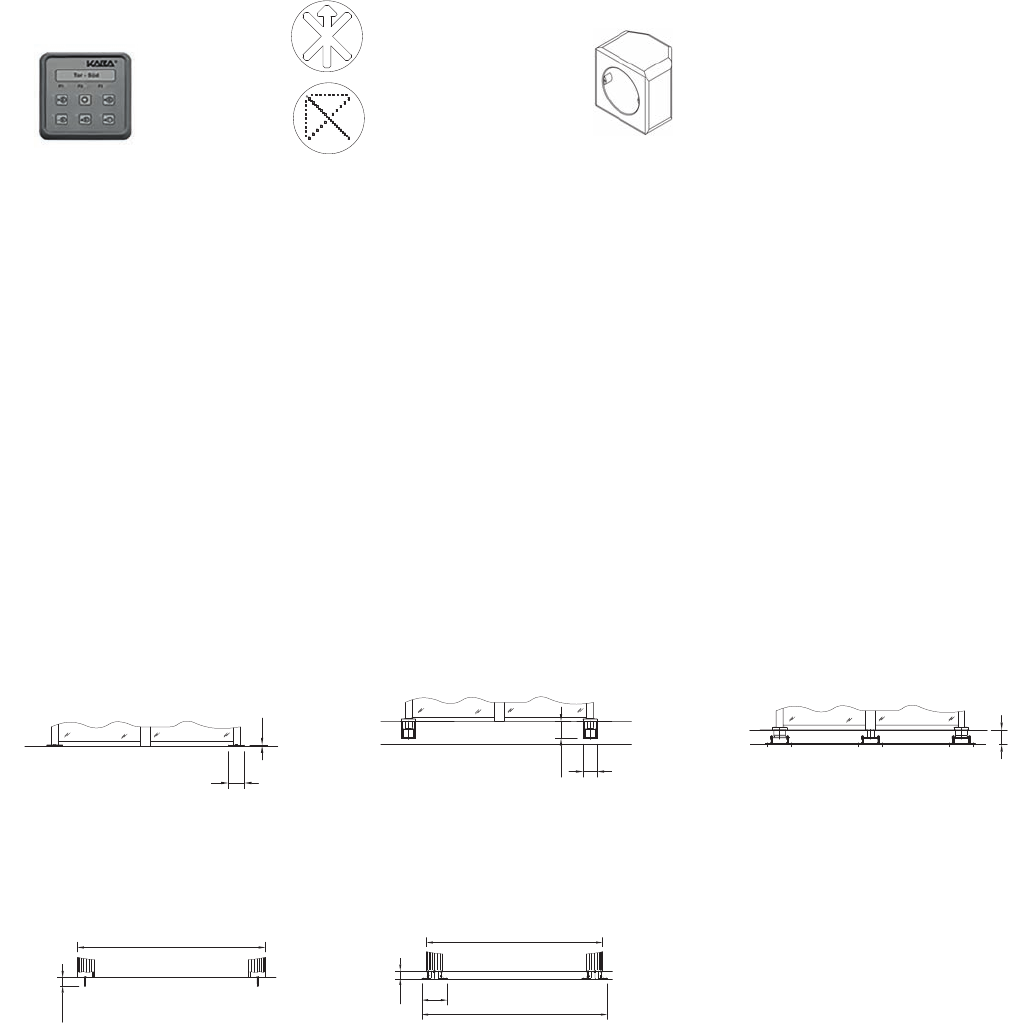

Installation options
Ø4-3/4"
(Ø120)
5-15/16"
(150)
73" (1854)
10"
(254)
Installation HSB-E07, -E08, -E11
dowelled on finished floor level FFL
Cast-in with clamping elements
On sub floor level SFL with mounting
plates
Installation HSB-E02, -E04, -E10, -M01
dowelled on finished floor level FFL
On sub floor level SFL with mounting
plates level FFL
X
X
Ø5-1/2"
(Ø140)
5/16" (7)
3-15/16"
(100)
69-5/16" (1760) 69-5/16" (1760)
Optional components
OPL 05 operating panel Signal device LED arrow-cross
(installed in the housing or in
the cover plate on both sides)
Console 1 with plastic adapter in RAL
9006, W,H,D 3-11/16”, 3-11-16”,
2-9/16”(94/94/65 mm)with Ø2-9/16”
(Ø65 mm) cut-out, fixed to lateral
barrier.
13
Optional components Installation options Installation diagrams
Installation diagrams
40-3/16"
(1020)
40-3/16"
(1020)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
25-9/16"
(650)
25-9/16"
(650)
25-9/16"
(650)
37-3/16"
(945)
35-7/16"
(900)
79-1/8" (2010)
79 ⅛" (2010 mm)
11-7/16"
(290 mm)
11
7
⁄
16
"
(290 mm)
2-3/4"
(70)
80-11/16" (2050)
80-11/16" (2050)
68-1/8" (1730)
68-1/8" (1730)
116-7/16" (2597)
25-9/16"
(650)
41-5/8"
(1057)
36-7/16"
(925)
7-7/8"(200)
118-1/8" (3000)
25-9/16"
(650)
25-9/16"
(650)
30 ⅞"
(785 mm)
36-7/16"
(925)
10-13/16"
(275)
10-1/4"
(260)
10-1/4"
(260)
37-3/16"
(945)
35-7/16"
(900)
130-1/2" (3315)
25-9/16"
(650)
25-9/16"
(650)
35 -7/16"
(900)
HSB-E04 examples
HSB-E08 examples
120-11/16" (3065)
7-7/8" (200)
dormakaba Half-height Sensor Barriers HSB
14
We provide unparalleled support at every
phase of your project—from design
consultation and specifications to installation
and maintenance.
Our in-house consultants are here to assist
you from the start of your project with design
and writing non-proprietary specifications
and schedules. Next, you can rely on our
customer service team to provide exceptional
product support, while our nationwide
network of service professionals can help with
the final phases of installation and proper
maintenance.
Our comprehensive specification writing
services include consultation on our complete
range of entrance solutions:
• Automatic door systems (sliding, swinging,
and revolving doors)
• Glass systems and hardware
• Architectural hardware
• Operable walls
Consulting services include:
• Developing code-compliant access solution
specifications and schedules.
• Developing detailed specifications for all
other product groups.
• Meeting with the design professional and/or
owner to discuss project requirements and
security coordination.
• Assisting with development of a
professional key system.
• Preparing budgets.
• Reviewing substitution requests.
• Reviewing submittals.
• Responding to RFIs, owner’s comments, and
comments from other entities.
• Assisting with punch list development and
administration.
Architectural and design consultation
Project support at every phase.
For comprehensive
project support, call
dormakaba at
844-SPECNOW
(844-773-2669)
We provide the most comprehensive
project support services in the
industry. From specification and new
installation to dependable
maintenance, our goal is your
satisfaction.
15
Architectural and design consultation Service and installation
Service and installation
A commitment to excellence.
Service and installation
A commitment to excellence.
With an emphasis on service excellence,
dormakaba is committed to delivering, installing
and servicing automatic, revolving, and manual
doors and hardware for commercial
applications.
dormakaba’s nationwide network of service
professionals provides responsive and
comprehensive sales, technical, project
management, and maintenance support.
Dedicated to the highest level of expertise, all
our service technicians are certified by the
American Association of Automatic Door
Manufacturers (AAADM).
With more than 28 offices throughout North
America, our certified professionals are ready to
respond to your service needs.
Visit
go.dormakaba.com/ServiceAMER
to learn more about dormakaba
Service and Installation.
Our nationwide network of
service professionals is
certified by the American
Association of Automatic
Door Manufacturers.
DORMA USA, Inc.
Dorma Drive,
Drawer AC
Reamstown, PA 17567
844-SPECNOW
www.dormakaba.com
KAA1361 0217 1.5M CT

Navigation menu
