Tripod & Waist
Height Turnstiles
We make access in
life smart and secure.
dormakaba Tripod And Waist Height Turnstiles
2
Tripod and Waist Height Turnstiles
Two looks for reliable access control.

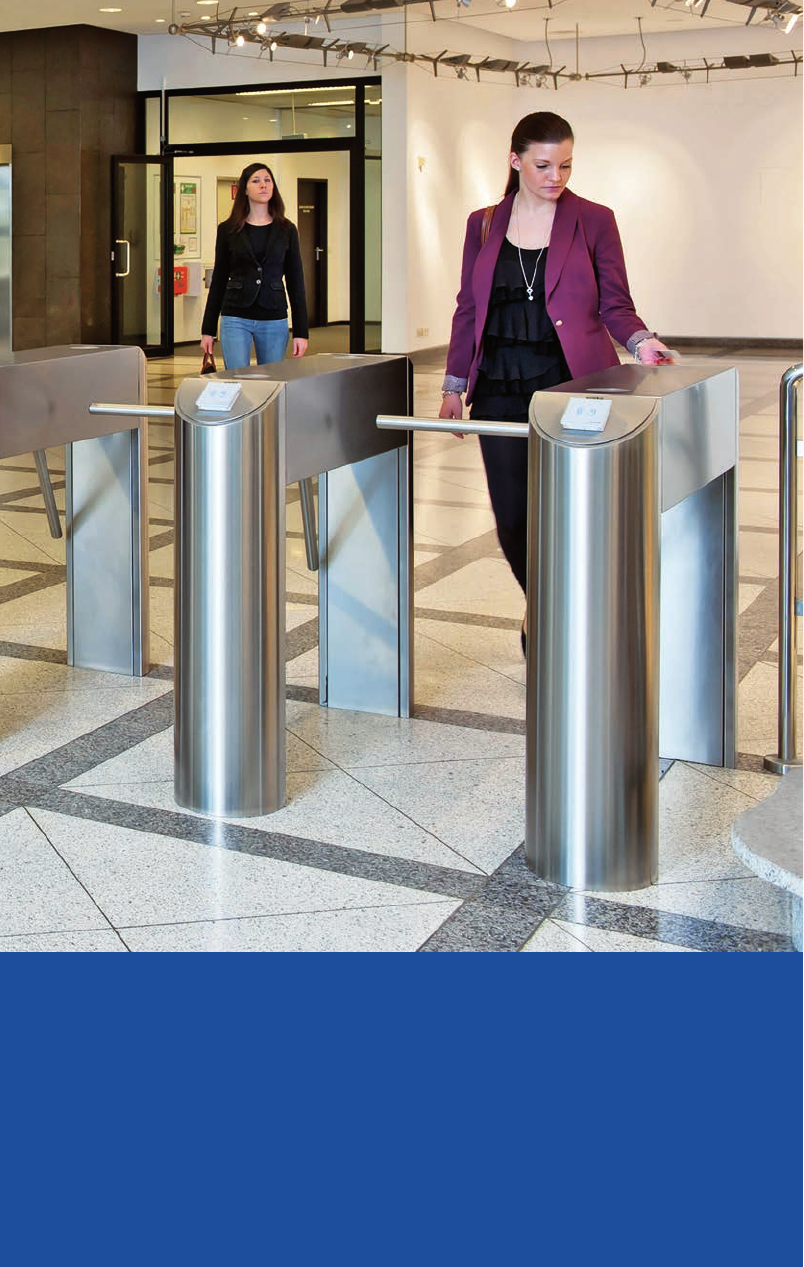

With the advantage of proven
technology, dormakaba Tripod
Turnstiles (shown above)
comfortably control user flow
even in times of high throughput.

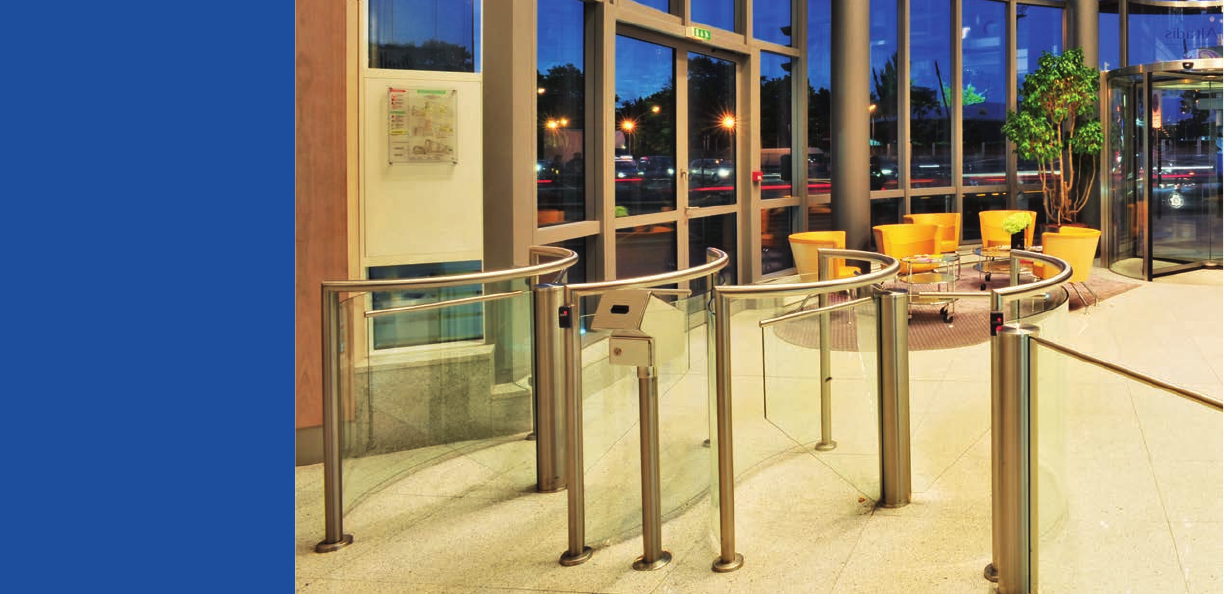

The motor-driven dormakaba
Waist Height Turnstiles (see cover)
in transparent glass and high
quality stainless steel efficiently
control access and aesthetically
complement any décor.
Tripod Turnstiles
04 All-purpose Tripod
Turnstiles
06 TPB-E02
07 TPB-S03/TPB-C01
08 Options
09 Installation examples
TPB/E02 / TPB-C01 /
TPB-S03

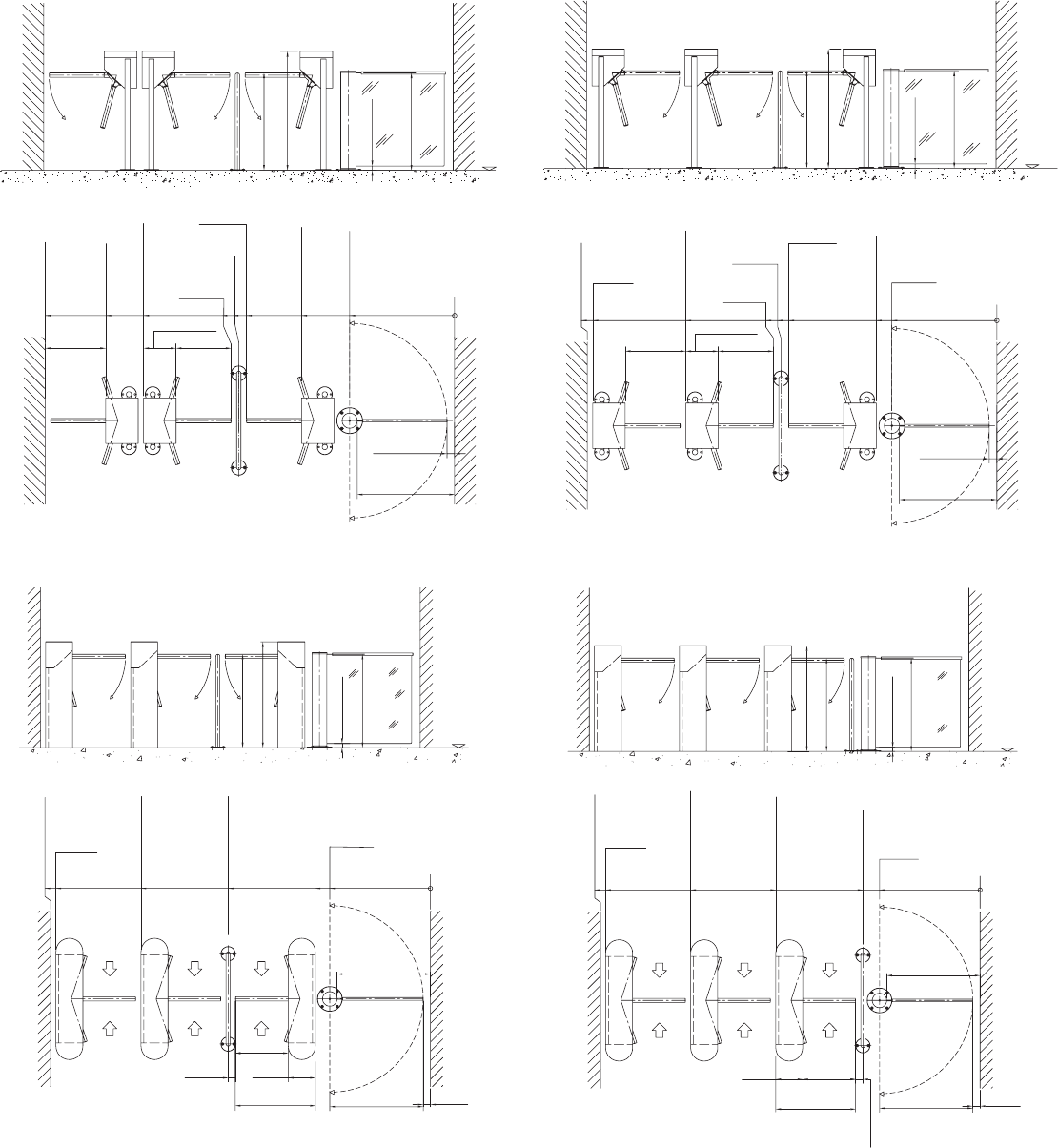

Installation diagrams
TPB-E02
10 Installation diagrams
TPB-S03 / TPB-C01
Waist Height Turnstiles
11 Transparent Waist
Height Turnstiles
13 HTS-E01
14 HTS-E03
15 HTS-M01
16 Options
Installation examples
1 7 Installation diagrams:
HTS-E03 with tall
glass and bevelled
glass barrier elements
18 Architectural and
design consultation
19 Service and
installation
Contents
2
3
dormakaba entrance solutions
3
Entrance solutions by dormakaba
Security. Sustainability. Reliability.
dormakaba stands for security, sustainability
and reliability. Our mission is to make the lives
of our customers smart and secure. Holding
true to our mission, we invest in innovation to
develop entrance solutions that exceed your
demands and expectations.
The commitment to develop innovative yet
practical products is what differentiates
dormakaba. Our Tripod and Waist Height
Turnstiles are powerful examples of our
dedication to providing premium physical
access systems that perform as designed
throughout the life of your building.
To ensure our entrance solutions perform
at the highest level, we provide the most
comprehensive offering of services in the
industry. You can trust dormakaba for
exceptional product support, including
installation, retrofit, replacement and
maintenance.
We will continue to deliver systems that
define security and convenience. Together
with first class service, on-going training and
aftermarket sales support, our priority will
always be adding value for our customers and
esteem to our brands.
“ The commitment to develop
innovative yet practical
solutions is what differentiates
dormakaba.”
dormakaba Tripod And Waist Height Turnstiles
4
dormakaba Tripod Turnstiles accommodate
reception staff and control visitor access
in the most aberrant situations. Our proven
technology comfortably controls high
throughput user flow.
Versatility
For controlled access to buildings or any
facility, a variety of attractive designs for
single or multiple lanes are available. Our
high-quality Tripod Turnstiles are made of
stainless steel and suitable for indoor and
outdoor applications.
Minimal power consumption
The quiet, low-energy drive consumes minimal
power. The low-energy activation minimizes
the risk of injury during rotation.
Clearing and barring passage automatically
In an emergency, versions with foldable bars
allow for clear egress in both directions.* The
foldable crossbar is reset automatically as
soon as the critical event has ended. Dual
direction can also be initiated by authorized
reception staff with an operating device.
Advantages of dormakaba Tripod Turnstiles
• Foldable bars and automatic reset.
• Modular for individual and multiple lanes.
• Comfortable passage thanks to servo-
positioning drive.
• Minimal energy consumption due to
low-energy drive.
• Low-energy drive ensures safe passage.
• Suitable for outdoor applications.
• With additional equipment, suitable for
emergency egress.
• Barrier-free solutions in conjunction with
automatic swing doors in a matching
design.
All-purpose Tripod Turnstiles
Practical, reliable, easy to use.
Throughput rate = up to 45 per minute
Security level = ●○○○○
Comfort = ●●●○○
Staff supervision = yes
4

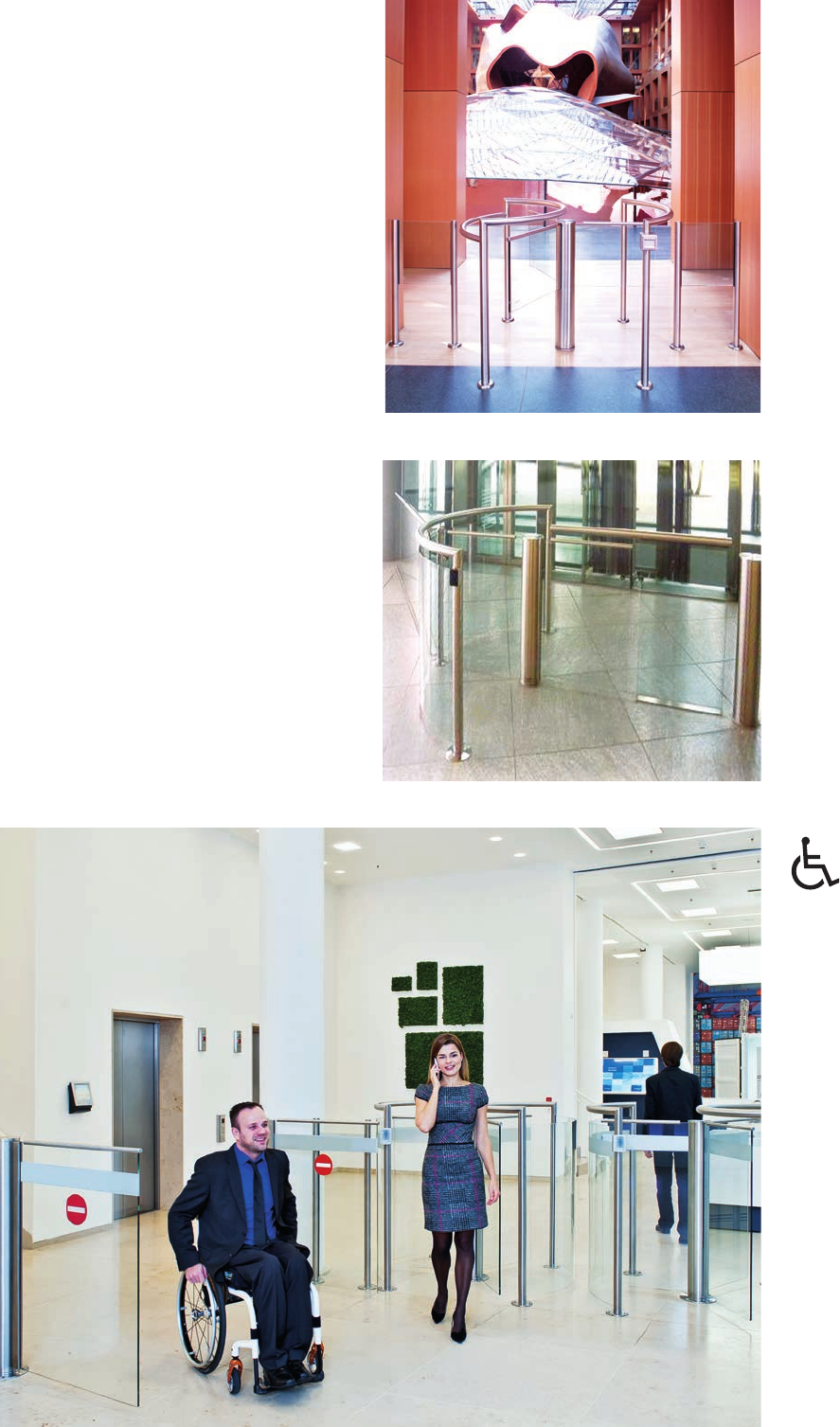

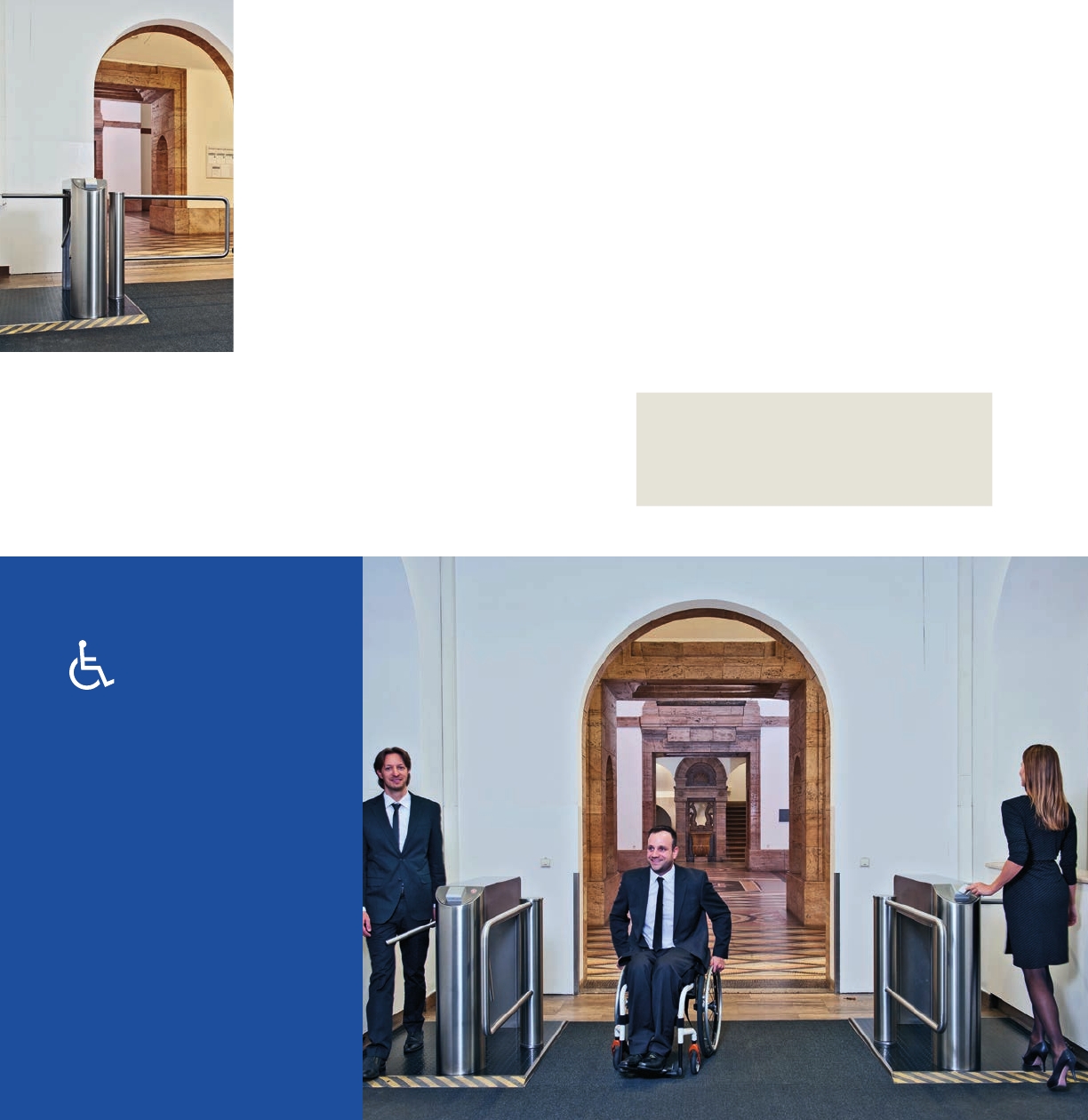

As a solution for ADA
compliance, we offer
swing gates in a
matching design.
* Individual authorization
required (competent
building authority)
Mobile application
installed on pallet
5

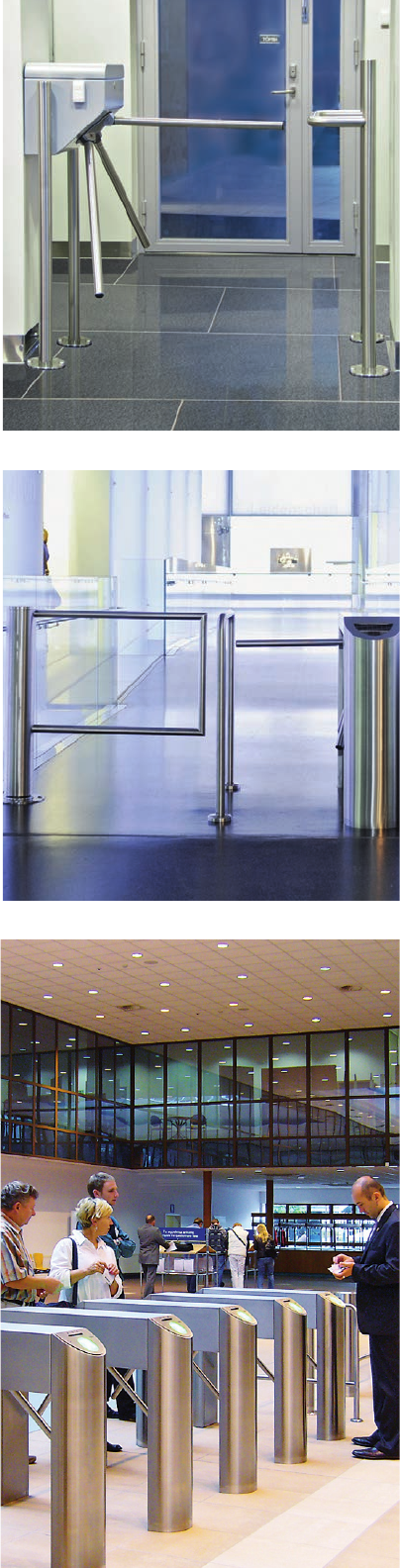

Multiple units
arranged to
control access in
large venues such
as theaters,
arenas and
convention
centers.
Various types
of installations can
be configured
in combination
with guiding
bars and swing
doors.
Tripod Turnstiles
offer a compact
access solution for
confined interior
areas.
5
All-purpose Tripod Turnstiles
dormakaba Tripod
Turnstiles are
developed with a
clear focus on the
requirements of
users, operators,
and the structural
environment.
dormakaba Tripod And Waist Height Turnstiles
6

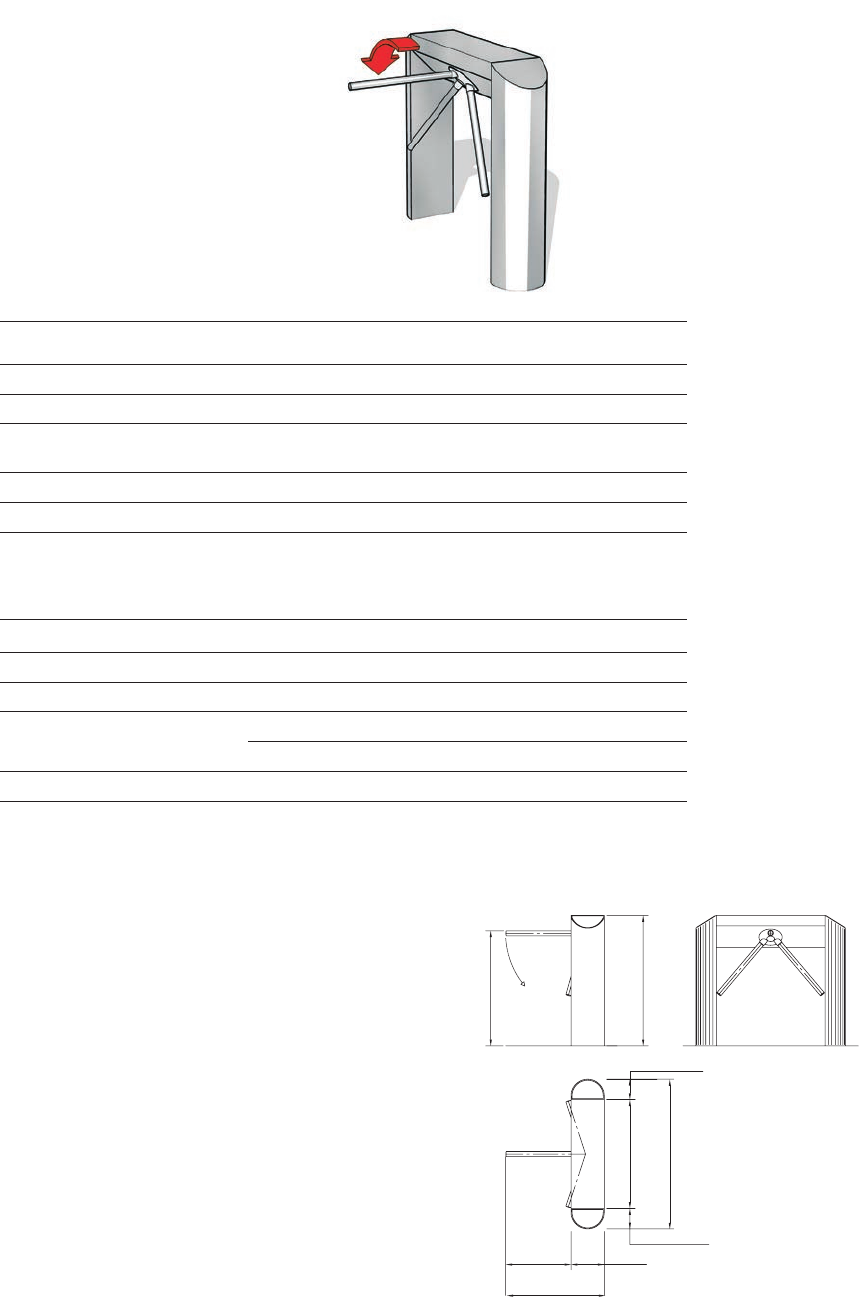

Standard units TPB-E02
Construction Housing and base columns in a single unit (open design).
Housing material AISI 304 stainless steel.
Base column, base or flange
plate material
AISI 304 stainless steel.
Crossbar material AISI 304 stainless steel.
Finish Stainless steel satin finish.
Function (see Notes below) Mechanical (Manual)
Electronic (1)
Electronic (2)
Power assist
Electrical equipment Control system integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Dowelled on finished floor level, FFL.
Suitable for outdoor installation.
Protection classes Housing IP33, components conducting supply voltage IP43.
Notes
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Electronic (1)—One direction
electronically controlled/opposite
direction blocked (behavior in event of
power failure: both directions blocked or
one direction free, one direction blocked).
• Electronic (2)—Electronically controlled
in both directions (behavior in event of
power failure: both directions blocked or
both directions free).
• Power assist—Power-assisted motion;
servo-positioning drive/ electronically
controlled in both directions (behavior in
event of power failure can be selected
for each direction: free or blocked).
35-7/16"
(900)
35-7/16"
(900)
40-9/16"
(1030)
40-3/16"
(1020)
43-5/16"
(1110)
Ø1-7/8"
(Ø48)
20-1/16"
(510)
11-13/16"
(300)
16-9/16"
(420)
19-1/4"
(488)
10-1/4"
(260)
6-5/16"
(160)
6-5/16"
(160)
46-1/16"
(1170)
30-5/16"
(770)
6-5/16" (160)
6-5/16" (160)
46-1/16"
(1170)
33-7/16"
(850)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
30-5/16"
(770)
20-1/16"
(510)
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
TPB-E02
TPB-E02
Tripod Turnstiles
7

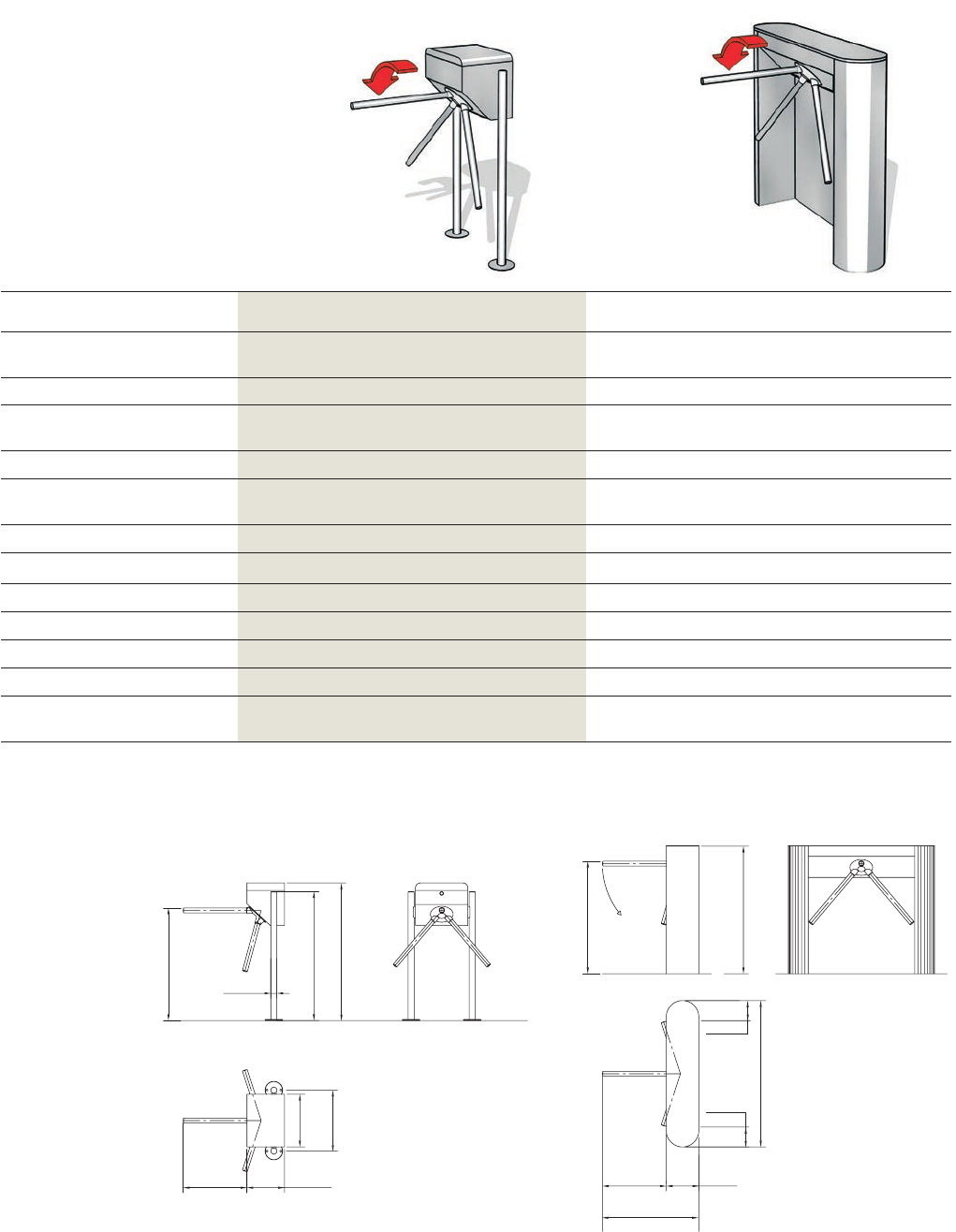

Standard units TPB-S03 TPB-C01
Construction Housing with base column and flange plate. Housing and base columns enclosed with additional
back plate made of stainless steel AISI 304.
Housing material Aluminium. AISI 304 stainless steel.
Base column, base or flange
plate material
AISI 304 stainless steel. AISI 304 stainless steel.
Crossbar material AISI 304 stainless steel. AISI 304 stainless steel.
Finish Stainless steel satin finish.
Aluminium housing painted in RAL 9006.
Stainless steel satin finish.
Function Electronic (2)*Electronic (2)*
Electrical equipment Control system integrated in the unit. Control system integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA. 110 – 230 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA. 10 VA.
Installation Dowelled on finished floor level, FFL. Dowelled on finished floor level, FFL.
Suitable for outdoor installation. Not suitable for outdoor installation.
Protection classes Housing IP33, components conducting supply
voltage IP43.
35-7/16"
(900)
35-7/16"
(900)
40-9/16"
(1030)
40-3/16"
(1020)
43-5/16"
(1110)
Ø1-7/8"
(Ø48)
20-1/16"
(510)
11-13/16"
(300)
16-9/16"
(420)
19-1/4"
(488)
10-1/4"
(260)
6-5/16"
(160)
6-5/16"
(160)
46-1/16"
(1170)
30-5/16"
(770)
6-5/16" (160)
6-5/16" (160)
46-1/16"
(1170)
33-7/16"
(850)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
30-5/16"
(770)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
40-9/16"
(1030)
40-3/16"
(1020)
43-5/16"
(1110)
Ø1-7/8"
(Ø48)
20-1/16"
(510)
11-13/16"
(300)
16-9/16"
(420)
19-1/4"
(488)
10-1/4"
(260)
6-5/16"
(160)
6-5/16"
(160)
46-1/16"
(1170)
30-5/16"
(770)
6-5/16" (160)
6-5/16" (160)
46-1/16"
(1170)
33-7/16"
(850)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
30-5/16"
(770)
20-1/16"
(510)
Note
In illustrations,
measurements
are shown as
inches followed
by millimeters;
for example,
1" (25).
TPB-S03
TPB-C01
TPB-E02 TPB-S03 TPB-C01 specifications
Tripod Turnstiles
* Electronic (2)—Electronically controlled in both
directions (behavior in event of power failure:
both directions blocked or both directions free).
TPB-S03 / TPB-C01
Tripod Turnstiles
dormakaba Tripod And Waist Height Turnstiles
8
TPB-E02
TPB-S03
TPB-C01
Function
Counter, random generator with audible signal. ○○○
Escape route module with emergency push-button, additional emergency
push-button available. ○○○
Collapsible bars on unit types 1.1, 1.2 and 2. Automatic reset on Electronic (2). ○○○
Electrical equipment
Installation preparation for components provided by customer. Including cover plate. ○– –
Push button on flat surface. ○○○
Operating panels and frames or surface mount housing. ○○○
Additional circuit boards for expanding existing inputs and outputs on unit Electronic (2). ○○○
Various signal devices. ○○○
Star hub (connection of max. four OPLs possible). ○○○

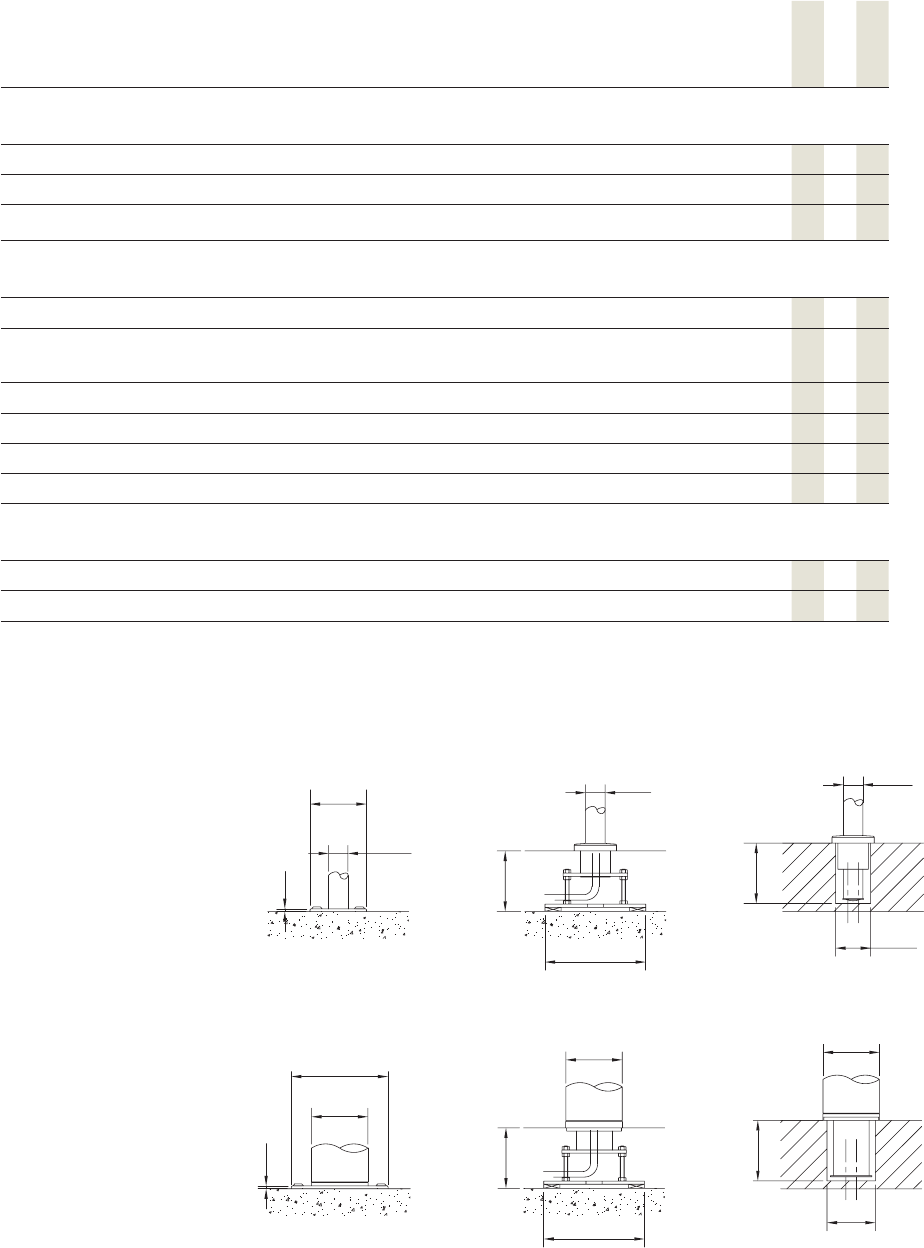

Installation
Pallet with stainless steel ramp and rubber covering, approx. 3' 3-5/16" x 4' 11-1/16"
(1.0 m x 1.5 m), height approx. 1-1/4" (32 mm). ○○○
With substructure X = 3-1/8"– 6-5/16" (80 – 160 mm) for sub floor level. ○–○
With substructure X = 3-1/8"– 7-1/16" (80 – 180 mm) for sub floor level. –○–
With cast-in clamping sleeves and rosettes for structural floor level. –○–
○ optional – not available

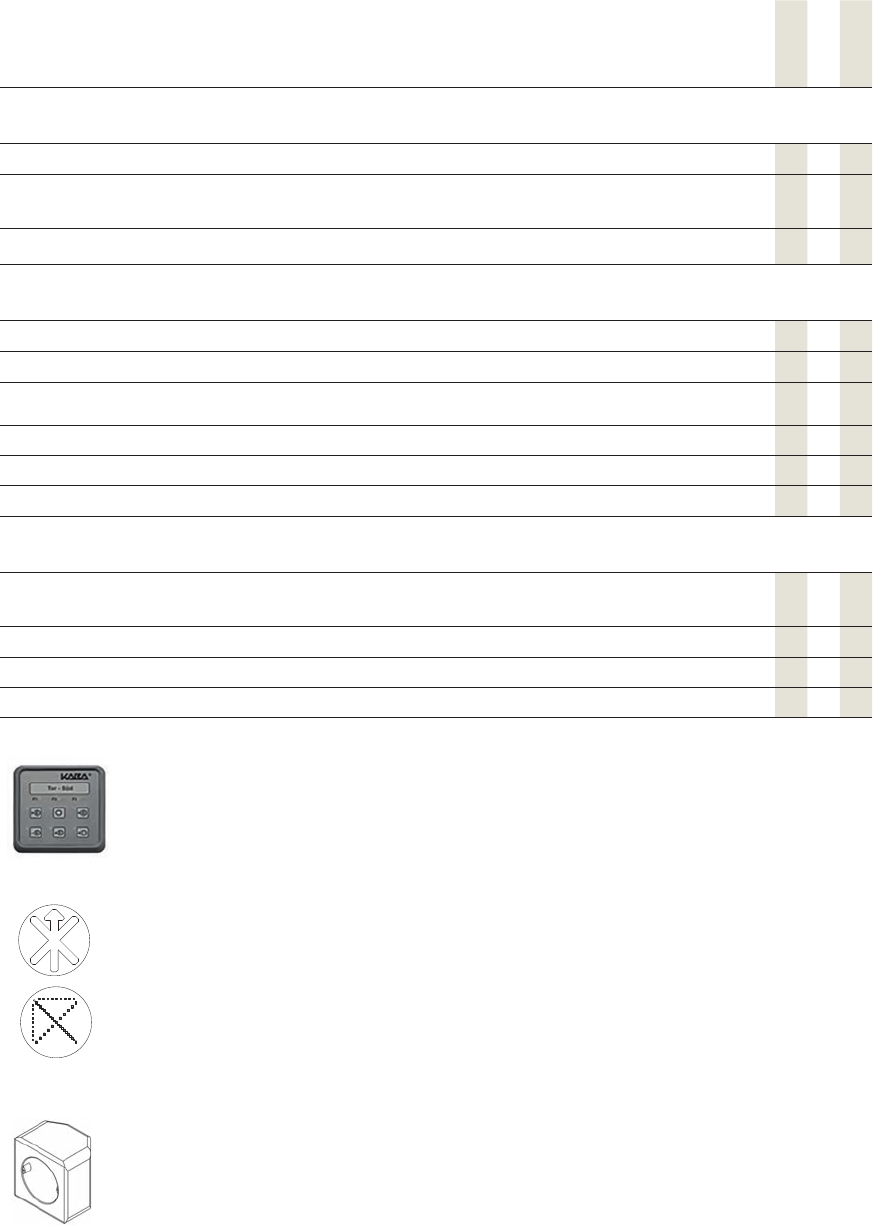

Tripod Turnstile options
OPL 05 operating panel
Signal device LED
arrow-cross (installed
in the housing or in the
cover plate on both
sides).
Console 1 with plastic
adapter in RAL 9006,
W 3-11/16", H 3-11-16",
D 2-9/16" (W 94 mm,
H 94 mm, D 65 mm)
with Ø2-9/16" (Ø65
mm) cut-out, fixed to
lateral.barrier.
9
10"
(254)
5-1/2"
(140)
X
9-5/8"
(244)
3-15/16"
(100)
10"
(254)
5-1/2"
(140)
X
9-5/8"
(244)
3-15/16"
(100)
Ø1-7/8"
(Ø48)
Ø1-7/8"
(Ø48)
5-15/16"
(150)
Ø3-7/16"
(Ø87)
FFB
FFB
RFB
Rosette Ø4-1/8" (Ø105)
Dimension X =
3-1/8"–4-3/4"
(80–120)
9-13/16"
(250)
Flange Ø5-1/2" (Ø140)
Ø1-7/8"
(Ø48)
Ø1-7/8"
(Ø48)
5-15/16"
(150)
Ø3-7/16"
(Ø87)
FFB
FFB
RFB
Rosette Ø4-1/8" (Ø105)
Dimension X =
3-1/8"–4-3/4"
(80–120)
9-13/16"
(250)
Flange Ø5-1/2" (Ø140)

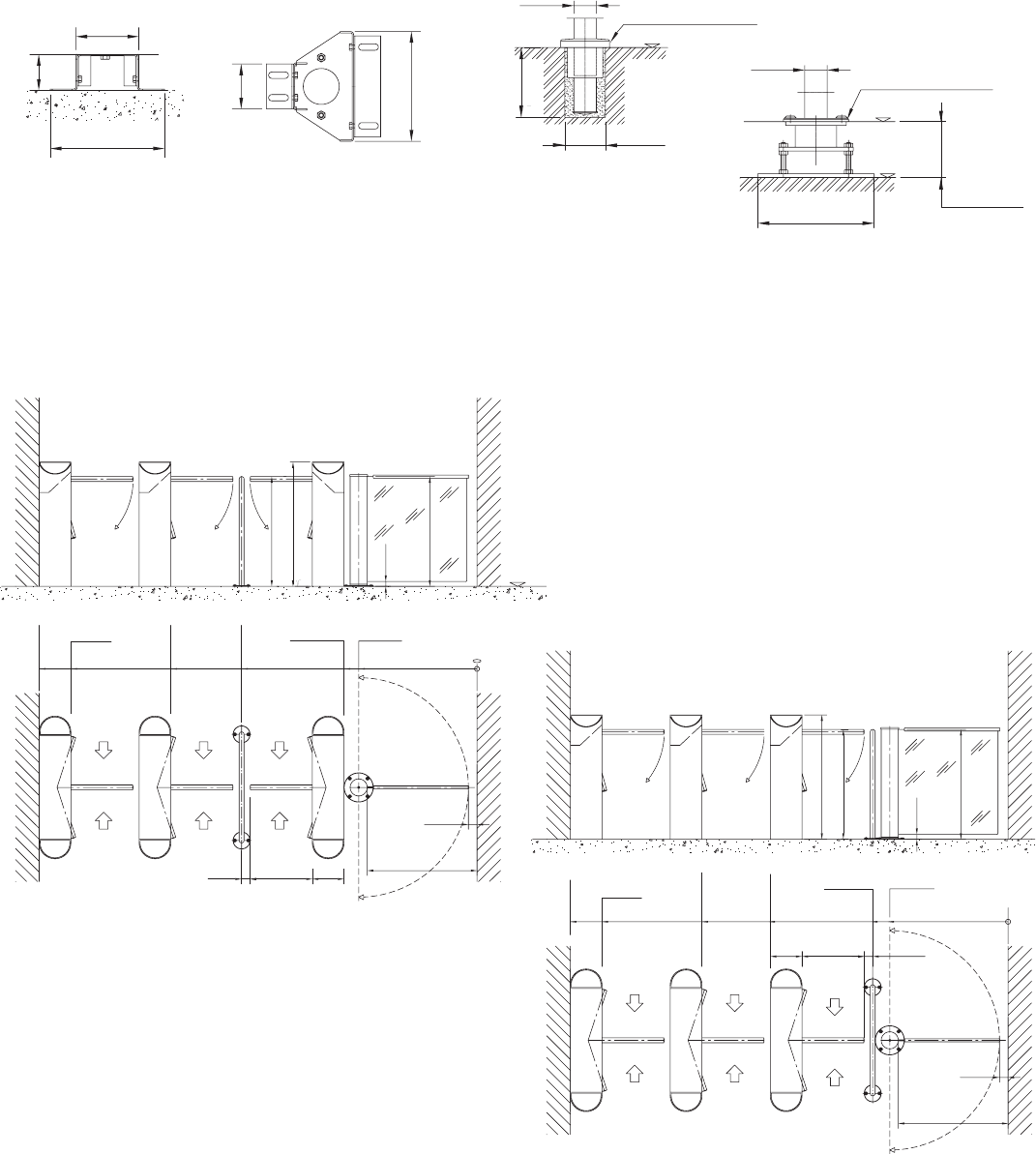

Tripod Turnstile installation examples
Installation diagrams
Substructure Cast-in
Substructure
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
FFB
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330)
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
FFB
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330)
0
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
FFB
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330)
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
FFB
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330)
0
TPB-E02 / TPB-C01
TPB-E02
TPB-S03
Options Installation
Tripod Turnstiles
Note
In illustrations,
measurements are
shown as inches followed
by millimeters; for
example, 1" (25).
dormakaba
10
Tripod and Waist Height Turnstiles
Tripod Turnstile installation diagrams
TPB-S03
TPB-C01
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
2-3/4" (70)
127" (3225)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
55-11/16" (1415)
38-3/16" (970)
0
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
147-1/16"
(3735)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
43-7/8" (1115)
38-3/16"
(970)
0
2-3/4" (70)
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
2-3/4" (70)
127" (3225)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
55-11/16" (1415)
38-3/16" (970)
0
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
147-1/16"
(3735)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
43-7/8" (1115)
38-3/16"
(970)
0
2-3/4" (70)
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
2-3/4" (70)
127" (3225)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
55-11/16" (1415)
38-3/16" (970)
0
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
147-1/16"
(3735)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
43-7/8" (1115)
38-3/16"
(970)
0
2-3/4" (70)
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
2-3/4" (70)
127" (3225)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
55-11/16" (1415)
38-3/16" (970)
0
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1-9/16" (40)
FFB
147-1/16"
(3735)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
43-7/8" (1115)
38-3/16"
(970)
0
2-3/4" (70)
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900)
DB = 35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900) 40-3/16"
(1020)
1-9/16" (40)
FFB
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
43-11/16" (1110)
76-3/4" (1950)
38-3/16"
(970)
0
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
44-1/2" (1130)
77-9/16" (1970)
38-3/16"
(970)
0
2-3/4"
(70)
2-3/4"
(70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
1-9/16" (40)
FFB
35-7/16"
(900)
DB = 35-7/16"
(900)
2-3/4"
(70)
2-3/4" (70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
35-7/16"
(900)
DB = 35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900) 40-3/16"
(1020)
1-9/16" (40)
FFB
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
43-11/16" (1110)
76-3/4" (1950)
38-3/16"
(970)
0
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
44-1/2" (1130)
77-9/16" (1970)
38-3/16"
(970)
0
2-3/4"
(70)
2-3/4"
(70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
1-9/16" (40)
FFB
35-7/16"
(900)
DB = 35-7/16"
(900)
2-3/4"
(70)
2-3/4" (70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
35-7/16"
(900)
DB = 35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900) 40-3/16"
(1020)
1-9/16" (40)
FFB
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
43-11/16" (1110)
76-3/4" (1950)
38-3/16"
(970)
0
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
44-1/2" (1130)
77-9/16" (1970)
38-3/16"
(970)
0
2-3/4"
(70)
2-3/4"
(70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
1-9/16" (40)
FFB
35-7/16"
(900)
DB = 35-7/16"
(900)
2-3/4"
(70)
2-3/4" (70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
35-7/16"
(900)
DB = 35-7/16"
(900)
35-7/16"
(900)
35-7/16"
(900) 40-3/16"
(1020)
1-9/16" (40)
FFB
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
43-11/16" (1110)
76-3/4" (1950)
38-3/16"
(970)
0
142-1/8"
(3610)
144-1/16" (3660)
109-13/16" (2790)
44-1/2" (1130)
77-9/16" (1970)
38-3/16"
(970)
0
2-3/4"
(70)
2-3/4"
(70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
35-7/16"
(900)
40-3/16"
(1020)
1-9/16" (40)
FFB
35-7/16"
(900)
DB = 35-7/16"
(900)
2-3/4"
(70)
2-3/4" (70)
30-5/16"
(770)
20-1/16"
(510)
10-1/4"
(260)
Design
Transparent glass and premium stainless steel
give these motor-driven turnstiles their
exceptional appearance. They blend elegantly
with vintage and modern building interiors alike.
Versatility
Our space-saving turnstiles are functional and
attractive and can be arranged in almost any
configuration as your access requirements
dictate. Glass turnstiles are designed
exclusively for interior applications while our
stainless steel models without glass can be
specified for outdoor installation.
Barrier-free access/goods transport
Access can be granted for those requiring
wheelchair passage or goods transport using
either a separate swing door or a door that is
integrated with the turnstile.
Minimal power consumption
The quiet low-energy drive consumes very little
power and adapts itself to the speed of the
person entering.
Advantages of dormakaba Waist Height
Turnstiles
• Quiet, low-noise operation.
• Low power consumption.
• Elegant, transparent design.
• Space-saving, as multiple installation.
• Servo-positioning drive provides comfortable
passage
• Barrier-free solutions with automatic swing
doors in matching design.
• Swing doors suitable for installation in
emergency and escape routes.
• Versatile design of glass wings, guiding
elements and bar handles.
• Direction of passage/denial of passage in
case of power failure can be pre-set.
• Optional height adjustment up to 47-1/4"
(1200 mm).
Transparent Waist Height Turnstiles
Elegant, quiet, versatile.
Throughput rate = up to 25 per minute
Security level = ●●○○○
Comfort = ●●○○○
Staff supervision = yes
In prestigious
entrance areas, VIP
rooms, or at access
points to an
executive suite,
dormakaba's
transparent
motor-driven
turnstiles efficiently
control access and
aesthetically
complement any
interior.

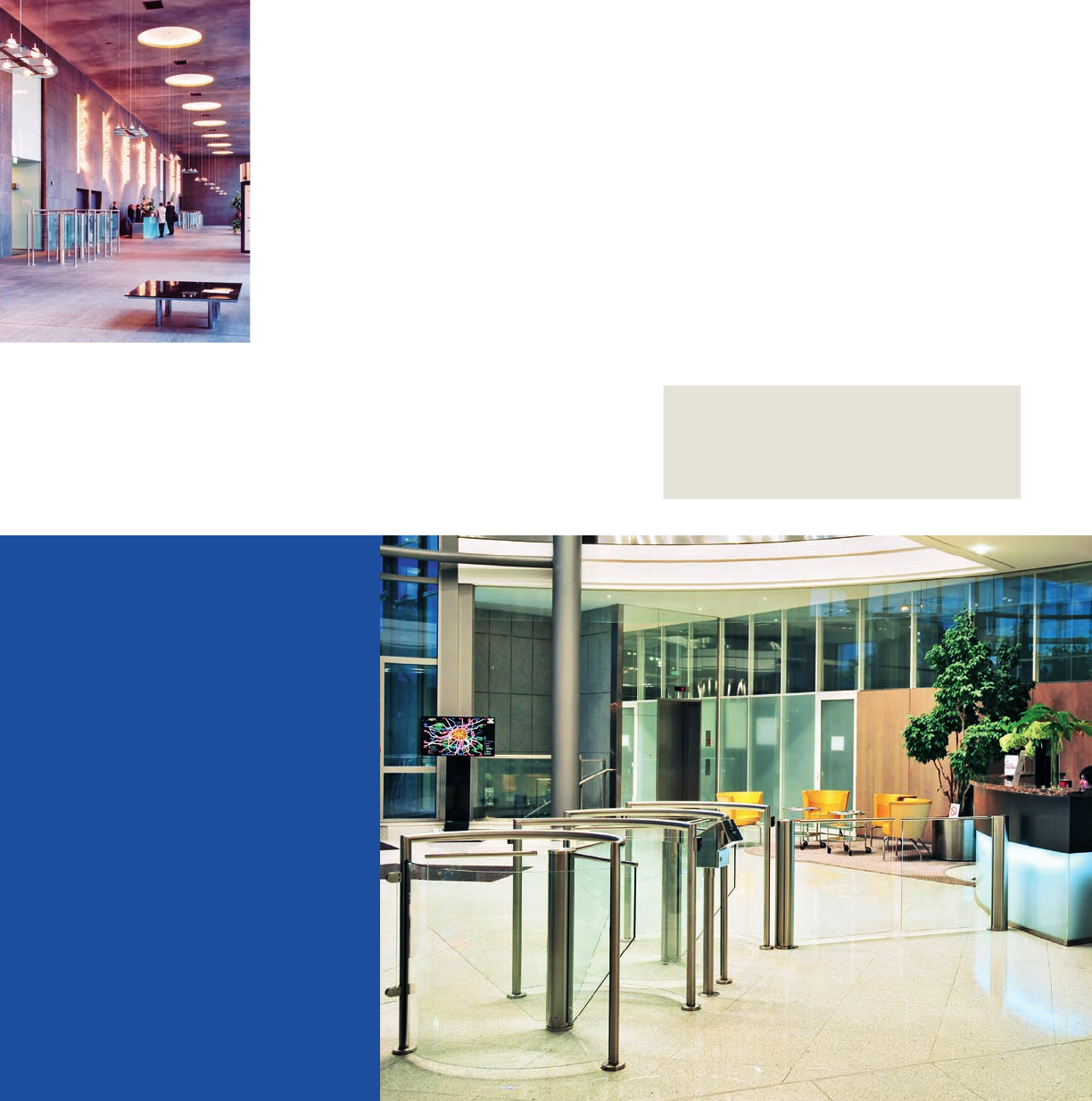

Multiple lane installation
in foyer within eyeshot of
reception staff.
Transparent Waist Height Turnstiles
11
dormakaba

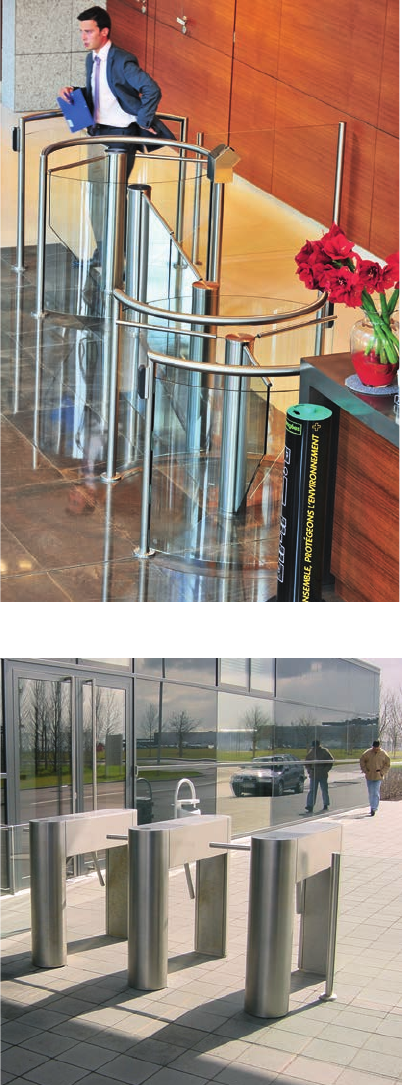

Perfectly coordinated:
warm wood, glass,
and stainless steel
offer unobtrusive
corporate ambience.
Automatic swing
doors in a matching
transparent design
offer a fitting
solution for ADA
compliance.
User and operator
requirements, as
well as design and
environmental
considerations can
be specified to
achieve your overall
entry solution.
Waist Height
Turnstiles
12
Tripod and Waist Height Turnstiles
Space-saving
transfer solution with
integrated swing
door for goods,
supply and material
access.
13

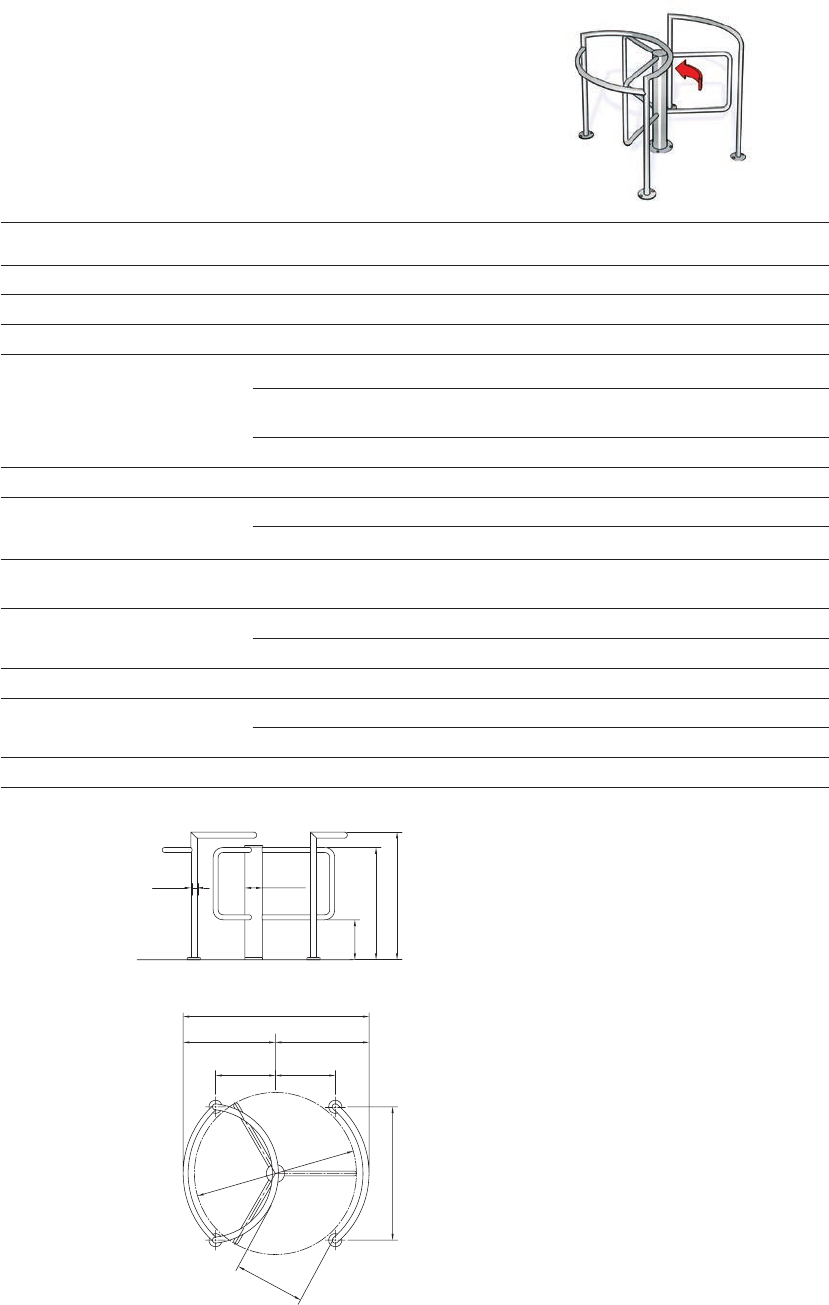

HTS-E01 specifications
HTS-E01
Waist Height Turnstiles
Standard units HTS-E01
Construction
Material AISI 304 stainless steel.
Side barrier elements Made of AISI 304 stainless steel tubing Ø1-7/8" (Ø48 mm), mitered.
Rotating units With tubular column Ø5-1/2" (Ø140 mm) made of AISI 304 stainless steel.
With three U-shaped barrier elements made of AISI 304 stainless steel tubing
Ø1-9/16" (Ø40 mm).
Locking system, drive and toothed holding brake installed in tubular column.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/electrically controlled in 2 directions.
Passage side can be selected - inwards right or inwards left.
Electrical equipment Control unit in external switch cabinet:
H 11-1/8" – W 6-5/8" – D 4-1/2" (H 283 mm – W 168 mm – D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free
Standby power consumption 15 VA.
Installation Dowelled on finished floor level, FFL.
Suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
Note
In illustrations,
measurements are
shown as inches followed
by millimeters; for
example, 1" (25).
HTS-E01
Waist Height Turnstiles
dormakaba Tripod And Waist Height Turnstiles
14

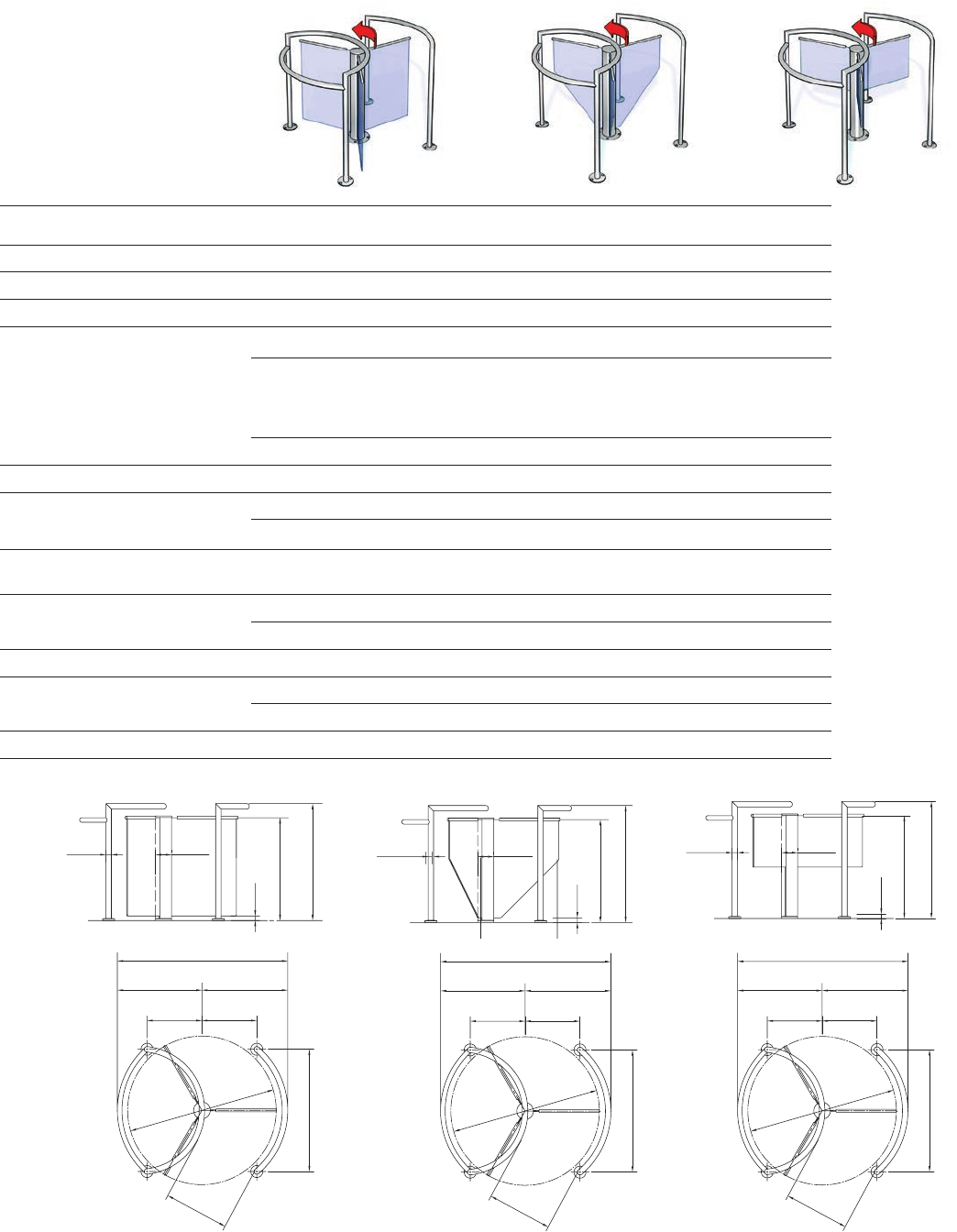

Standard units HTS-E03
Construction
Material AISI 304 stainless steel / toughened safety glass, 3/8" (10 mm).
Side barrier elements Made of AISI 304 stainless steel tubing Ø1-7/8" (Ø48 mm), mitered.
Rotating units With tubular column Ø5-1/2" (Ø140 mm) made of AISI 304 stainless steel.
With three glass elements and stainless steel bar handles. Glass elements are one of:
Option 1: Three tall glass elements
Option 2: Three bevelled glass elements
Option 3: Three half-height glass elements
Locking system, drive and toothed holding brake installed in tubular column.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/electrically controlled in 2 directions.
Passage side can be selected: inwards right or inwards left.
Electrical equipment Control unit in external switch cabinet:
H 11-1/8" – W 6-5/8" – D 4-1/2" (H 283 mm – W 168 mm – D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free.
Standby power consumption 15 VA.
Installation Dowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
Option 1 Option 2 Option 3
HTS-E03 Option 2
Option 1 Option 3
HTS-E03
Waist Height Turnstiles
15

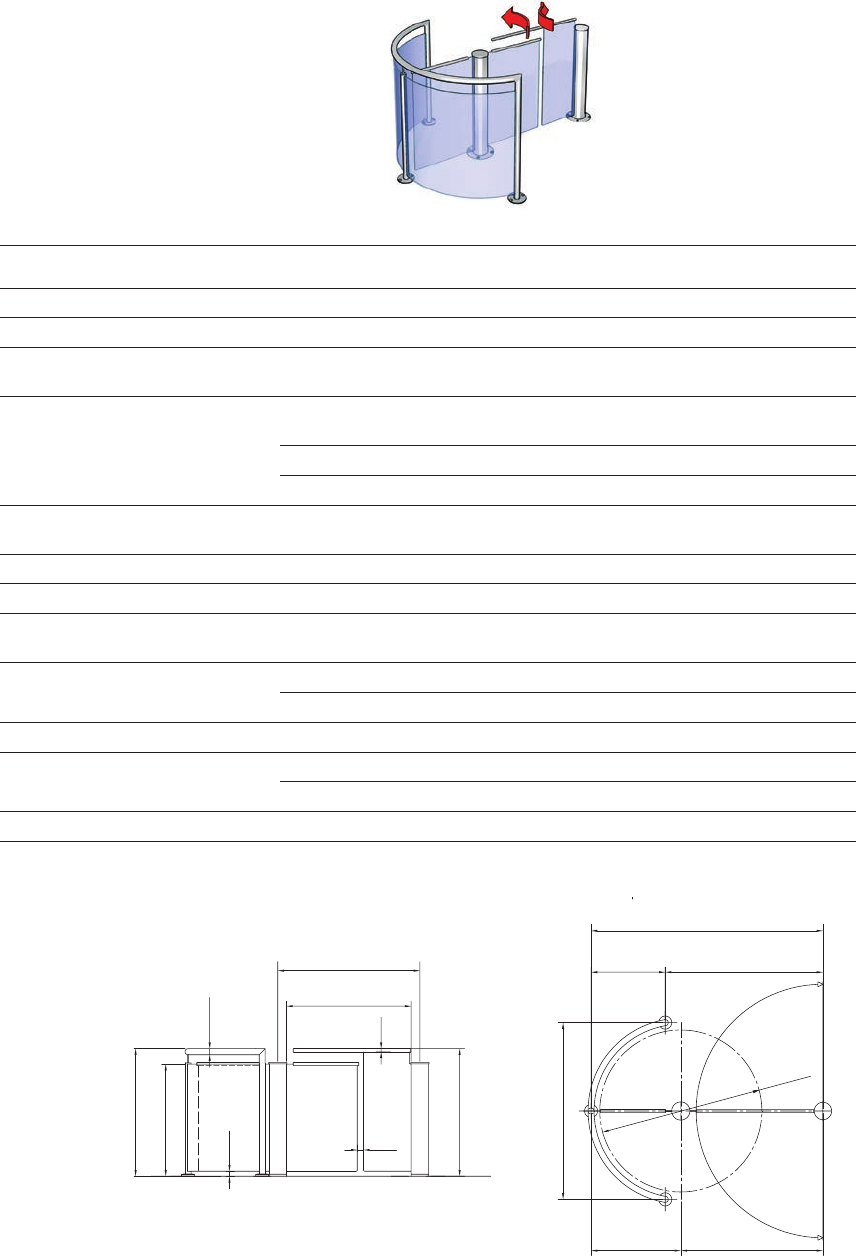

HTS-E03 HTS-M01 specifications
Waist Height Turnstiles
HTS-M01
Waist Height Turnstiles
Standard units HTS-M01
Construction
Material AISI 304 stainless steel / toughened safety glass, 3/8" (10 mm).
Side barrier elements Made of AISI 304 tubular stainless steel, Ø1-7/8" (Ø48 mm), mitered, with 8
mm tempered safety glass.
Rotating unit 180° rotating unit; tubular column made of AISI 304 stainless steel, Ø5-1/2"
(Ø140 mm).
With two tall glass elements and stainless steel bar handles.
Locking system, drive and toothed holding brake installed in tubular column.
HTS-M01 swing door Tubular column made of Ø5-1/2" (Ø140 mm) stainless steel with 3/8" (10 mm)
TSG glass element and bar handle.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/ electrically controlled in both directions.
Electrical equipment Two control units in external switch cabinet:
H 11-1/8" – W 6-5/8" – D 4-1/2" (H 283 mm – W 168 mm – D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free.
Standby power consumption 15 VA.
Installation Dowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
22-3/8"
(568)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/ 16"
(900)
40-1/4"
(1023)
58-11/16"
(1491)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
42-1/8"
(1070)
HTS-E01 HTS-E03 HTS-E05
HTS-M01
HTS-E04
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1-9/16"
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18-7/8"
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
44-7/8"
(1140)
39-3/8"
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
55-13/16"
(1418)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1-9/16"
(40)
73-1/4"
(1860)
23-7/16"
(595)
49-13/16"
(1265)
44-7/8"
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
Note
In illustrations,
measurements are
shown as inches followed
by millimeters; for
example, 1" (25).
HTS-M01
dormakaba Tripod And Waist Height Turnstiles
16
Waist Height Turnstile options
Installation examples
HTS-E01
HTS-E03
HTS-M01
Construction
Barrier elements with glass panel. ○ ○ –
Three bevelled barrier elements. –○–
Three half-height barrier elements. –○–
Electrical equipment
Installation preparation with adapter or mounting plate. ○○○
Consoles with adapter made of plastic or aluminium (also available in stainless steel for
an additional charge). ○○○
Push button in stainless steel tube console for manual single release. ○○○
Operating panels and frames or surface mount housing. ○○○
Additional circuit boards for expanding existing inputs and outputs. ○○○
Star hub (connection of max. four OPLs possible). ○○○
Installation
With adjustable mounting plates X = 3-1/8" – 7-1/16" (80 – 180 mm) for sub floor level. ○○○
With cast-in clamping elements. ○○○
○ optional – not available
Note
In illustrations,
measurements are
shown as inches followed
by millimeters; for
example, 1" (25).
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø5-1/2"
(Ø140)
Ø1-7/8"
(Ø48)
5/16"
(8)
5/16"
(8)
9-13/16"
(250)
9-13/16"
(250)
Ø1-7/8"
(Ø48)
X
X
Ø1-7/8"
(Ø48)
Ø3-7/16"
(Ø87)
9-7/16"
(240)
5-1/2"
(140)
5-15/16"
(150)
5-15/16"
(150)
4-3/4"
(120)
Guiding elements
Column
17
Options Installation
Waist Height Turnstiles
Waist Height Turnstile installation diagrams
HTS-E03 with tall glass
barrier elements
HTS-E03 with bevelled
glass barrier elements
1-9/16" (40)
40-1/4"
(1023)
35-7/16"
(900)
1-9/16" (40)
35-13/16"
(910)
35-7/16"
(900)
35-7/16"
(900)
FFB
152-1/16" (3862)
165-7/16" (4202)
199-11/16"
(5072)
202-7/8"
(5152)
38-3/16" (970)
133-1/8" (3382)
114-1/4" (2902)
90-15/16" (2310)
72-1/16" (1830)
53-1/8" (1350)
35-7/16"
(900)
2-3/4"
(70)
Ø9-7/16"
(Ø240)
Ø51-13/16"
(Ø1300)
22-3/8"
(568)
0
198-11/16"
(5046)
42-15/16"
(1090)
40-1/4" (1023)
35-7/16" (900)
35-7/16"
(900)
2-3/4"
(70)
35-7/16" (900)
19-3/16"
(487)
19-3/16"
(487)
58-11/16"
(1491)
24-13/16"
(630)
58-11/16"
(1491)
FFB
RFB
Reader Mounting
Reader Mounting
Reader Mounting
Reader Mounting
1-9/16" (40)
40-1/4"
(1023)
35-7/16"
(900)
1-9/16" (40)
35-13/16"
(910)
35-7/16"
(900)
35-7/16"
(900)
FFB
152-1/16" (3862)
165-7/16" (4202)
199-11/16"
(5072)
202-7/8"
(5152)
38-3/16" (970)
133-1/8" (3382)
114-1/4" (2902)
90-15/16" (2310)
72-1/16" (1830)
53-1/8" (1350)
35-7/16"
(900)
2-3/4"
(70)
Ø9-7/16"
(Ø240)
Ø51-13/16"
(Ø1300)
22-3/8"
(568)
0
198-11/16"
(5046)
42-15/16"
(1090)
40-1/4" (1023)
35-7/16" (900)
35-7/16"
(900)
2-3/4"
(70)
35-7/16" (900)
19-3/16"
(487)
19-3/16"
(487)
58-11/16"
(1491)
24-13/16"
(630)
58-11/16"
(1491)
FFB
RFB
Reader Mounting
Reader Mounting
Reader Mounting
Reader Mounting
dormakaba Tripod And Waist Height Turnstiles
Architectural and design consultation
Project support at every phase.
We provide unparalleled support at every
phase of your project—from design
consultation and specifications to
installation and maintenance.
Our in-house consultants are here to
assist you from the start of your project
with design and writing non-proprietary
specifications and schedules. Next, you
can rely on our customer service team to
provide exceptional product support, while
our nationwide network of service
professionals can help with the final
phases of installation and proper
maintenance.
Our comprehensive specification writing
services include consultation on our
complete range of entrance solutions:
• automatic door systems (sliding,
swinging, and revolving doors)
• glass systems and hardware
• architectural hardware
• operable walls
Consulting services include:
• Developing code-compliant access
solution specifications and schedules.
• Developing detailed specifications for all
other product groups.
• Meeting with the design professional
and/or owner to discuss project
requirements and security coordination.
• Assisting with development of a
professional key system.
• Preparing budgets.
• Reviewing substitution requests.
• Reviewing submittals.
• Responding to RFIs, owner’s comments,
and comments from other entities.
• Assisting with punch list development
and administration.
For comprehensive
project support, call
dormakaba at
844-SPECNOW
(844-773-2669)
We provide the most comprehensive
project support services in the industry.
From specification and new installation
to dependable maintenance, our goal is
your satisfaction.
18
1919
Service and installation
A commitment to excellence.
Service and installation
A commitment to excellence.
With an emphasis on service excellence,
dormakaba is committed to delivering, installing
and servicing automatic, revolving, and manual
doors and hardware for commercial
applications.
dormakaba’s nationwide network of service
professionals provides responsive and
comprehensive sales, technical, project
management, and maintenance support.
Dedicated to the highest level of expertise, all
our service technicians are certified by the
American Association of Automatic Door
Manufacturers (AAADM).
With more than 28 offices throughout North
America, our certified professionals are ready to
respond to your service needs.
Visit
go.dormakaba.com/ServiceAMER
to learn more about dormakaba
Service and Installation.
Architectural and design consultation Service and installation
Our nationwide network of
service professionals is
certified by the American
Association of Automatic
Door Manufacturers.
DORMA USA, Inc.
Dorma Drive,
Drawer AC
Reamstown, PA 17567
844-SPECNOW
www.dormakaba.com
KAA1364 0217 1.5M CT
