Oracode
Order Guide
Effective 01/08/2018
Table of Contents
How to Order ...................................................................................................................................4
Oracode System ..............................................................................................................................5
Oracode 660 ....................................................................................................................................6-7
Oracode 660 American Standard Mortise (ASM) 1 ¼" ..........................................................8
Oracode 660 American Standard Mortise (ASM) 1" ..............................................................9
Oracode 660 European Standard Mortise (ESM) .................................................................. 10-11
Oracode 660 Cylindrical ................................................................................................................12

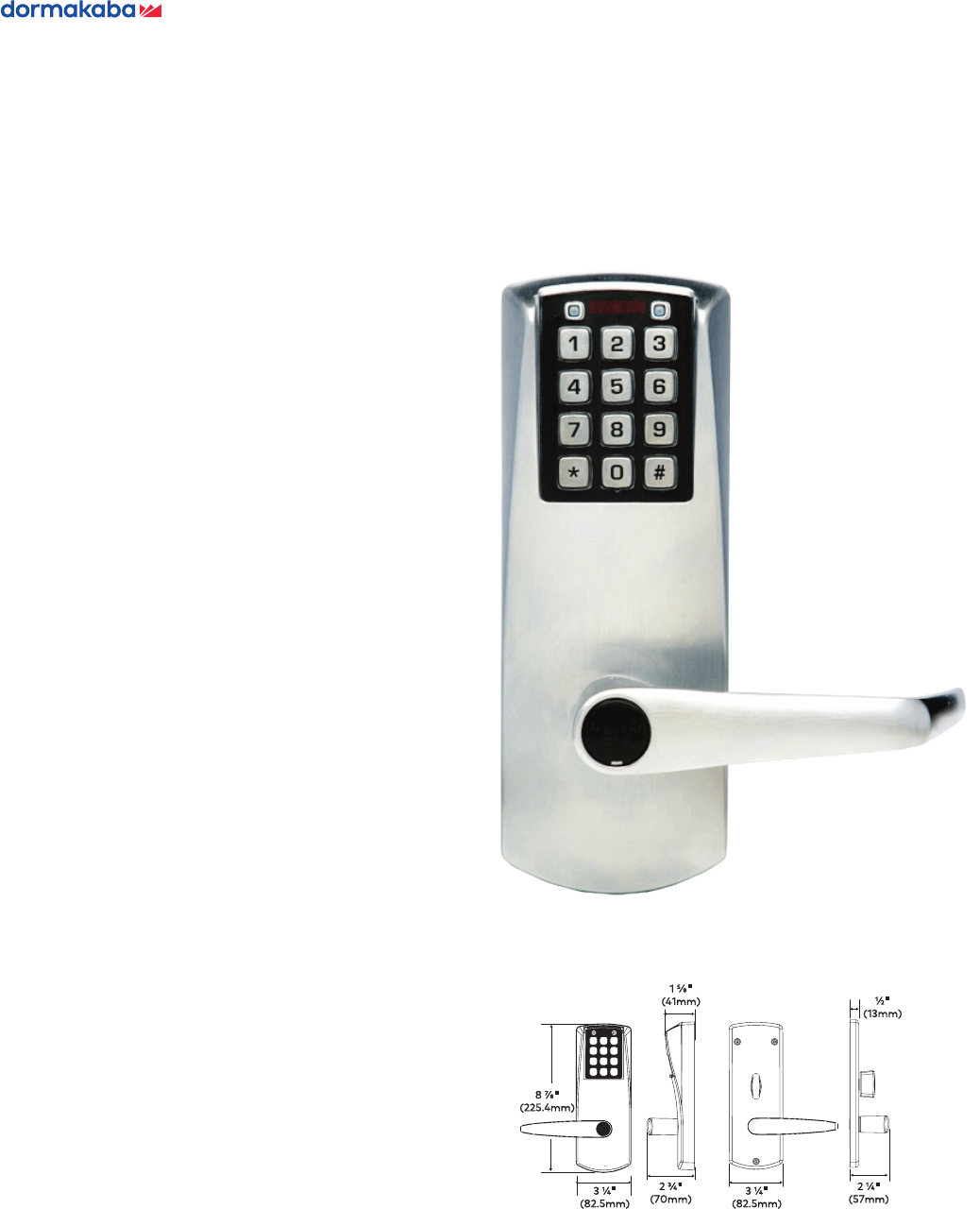

Oracode 660 Exit Device Operator .............................................................................................13-14

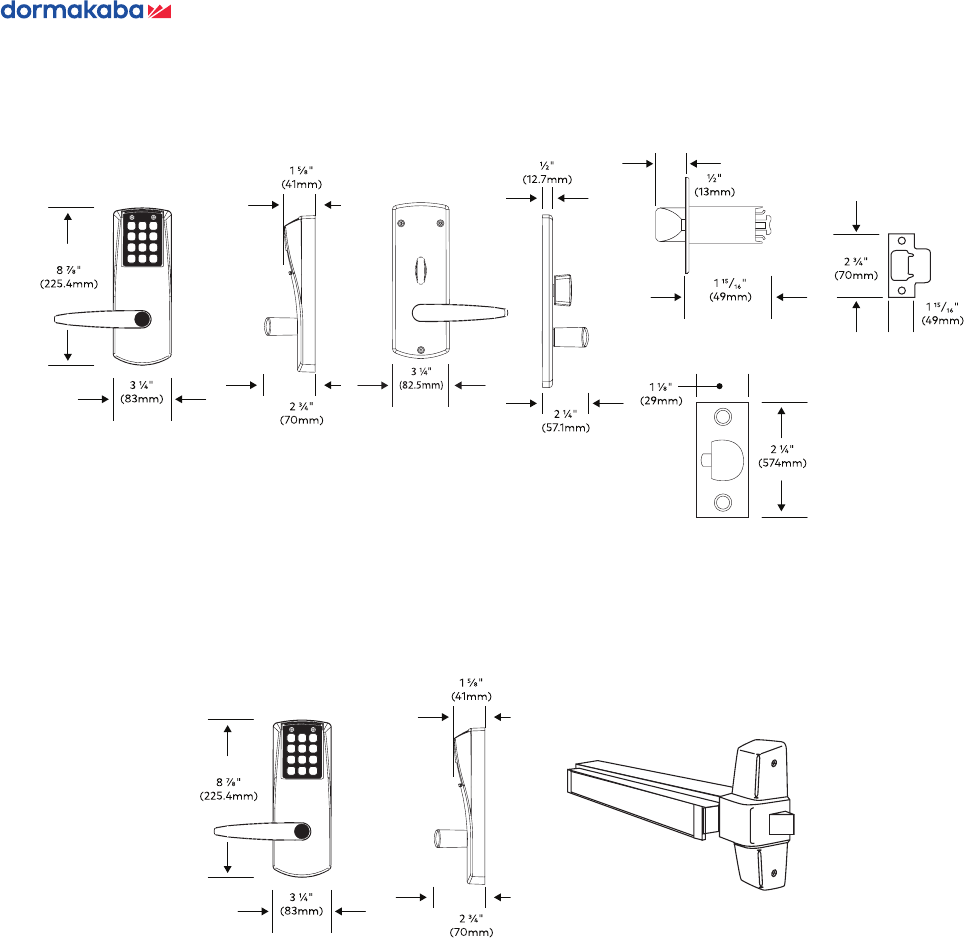

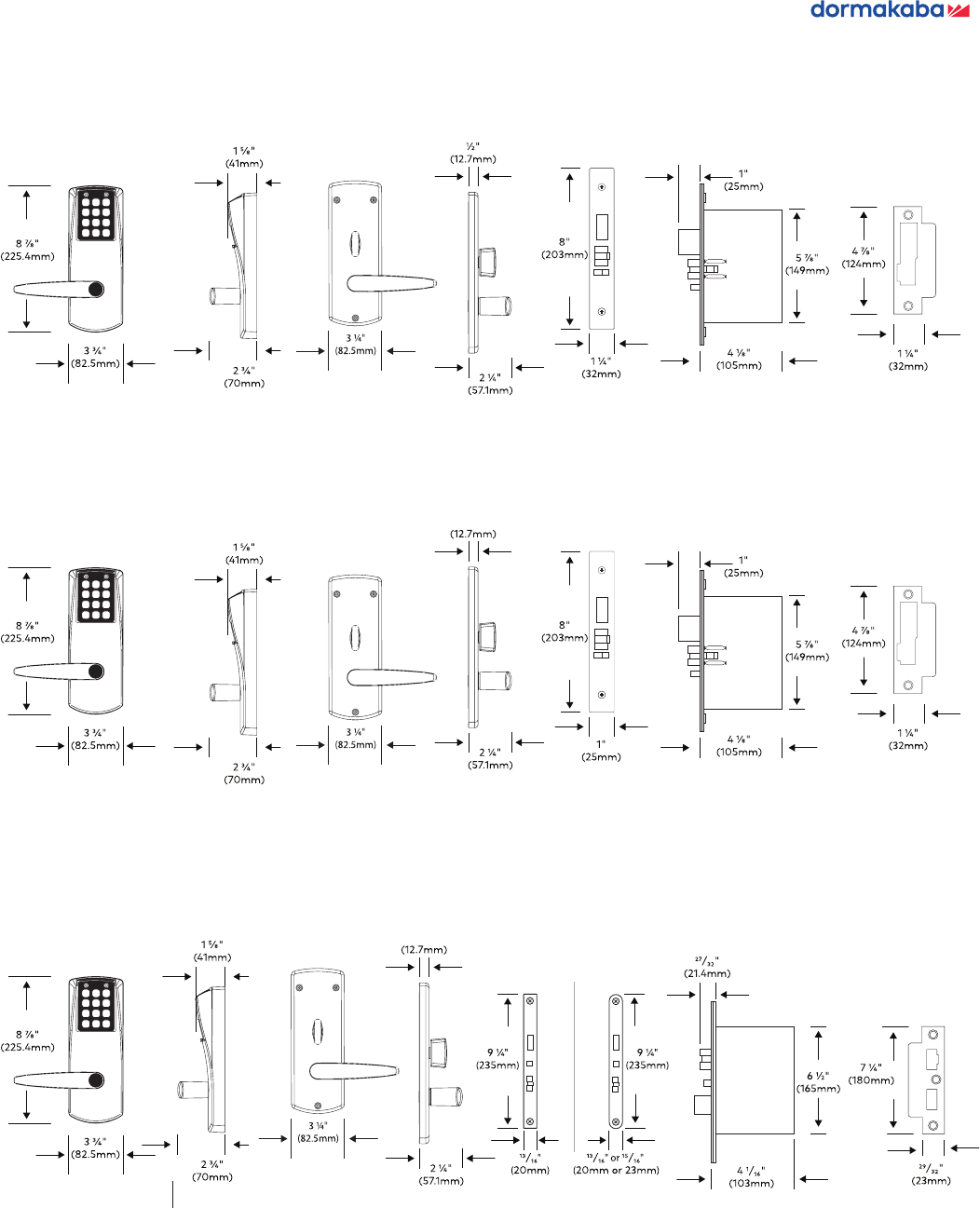

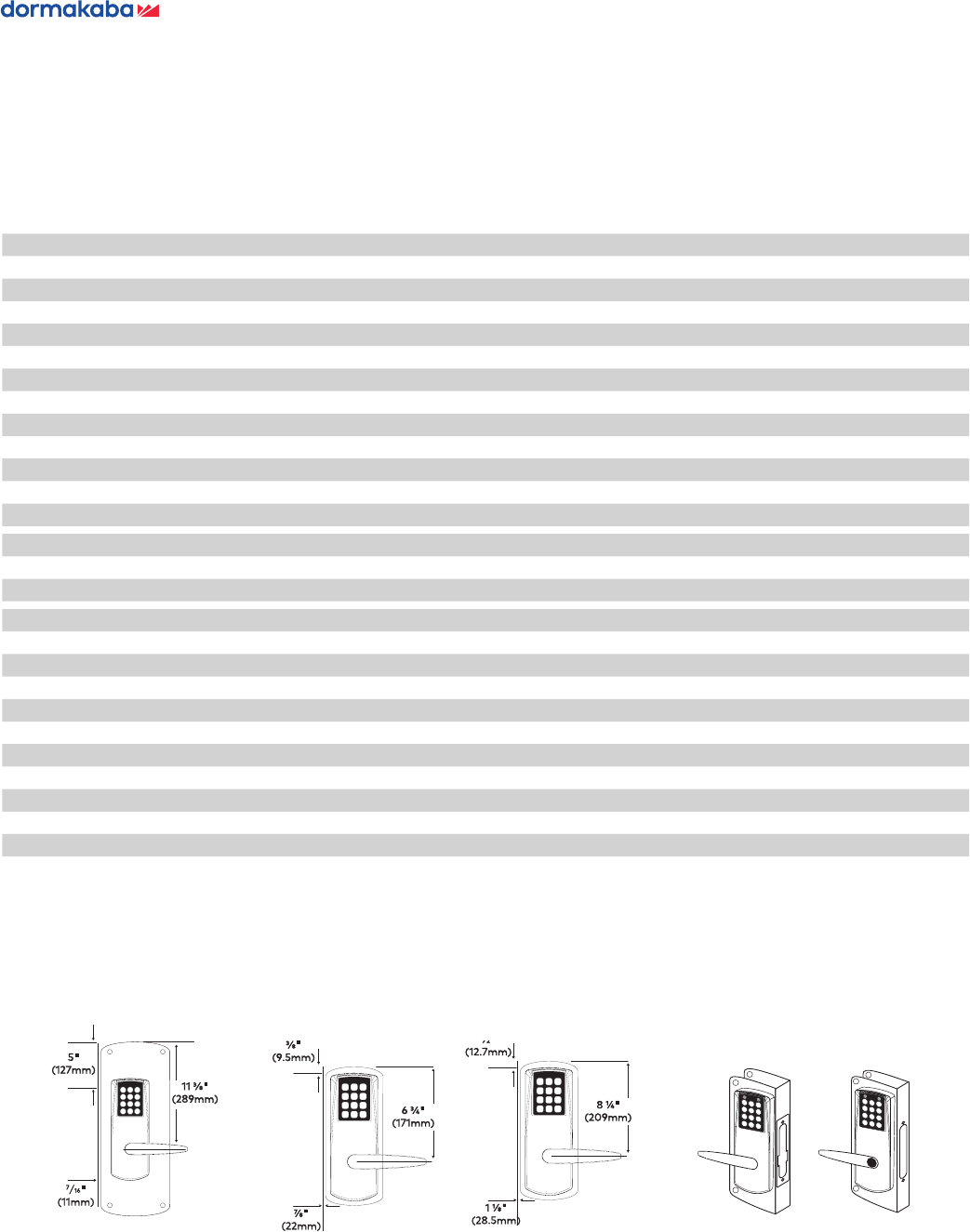

Oracode 660 Dimensions .............................................................................................................. 15-16
Oracode 480i ...................................................................................................................................17-18

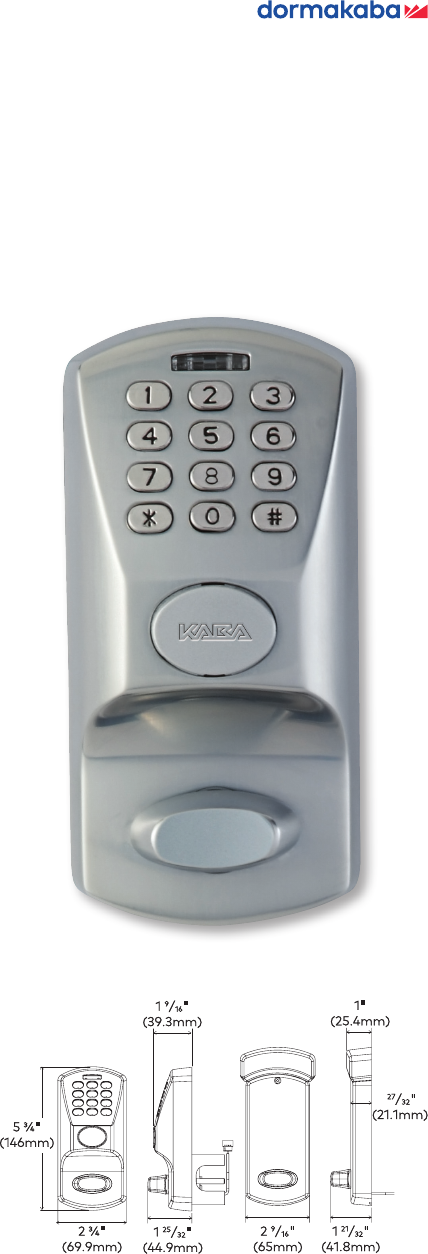

Oracode 480i Deadbolt ................................................................................................................. 19
Oracode Smart Controller ............................................................................................................20-21
M-Unit ...............................................................................................................................................22

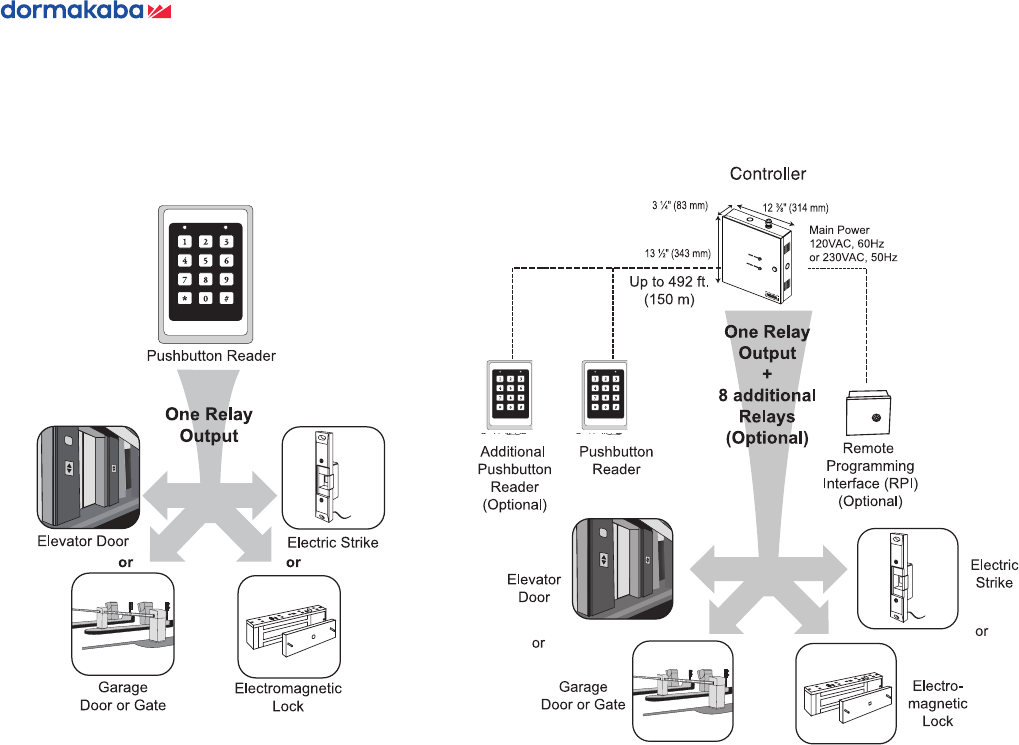

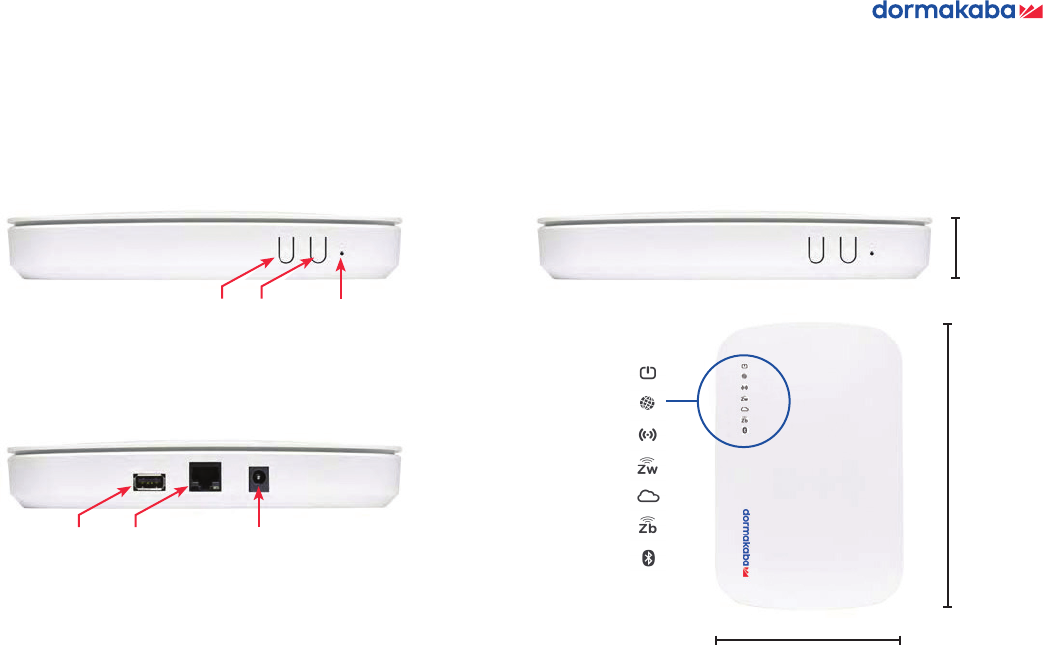

Remote Access Controller .............................................................................................................23-24
Remote Access Controller 660G ..................................................................................................25
Remote Access Controller 660G XT ............................................................................................ 26
Lock Accessories Decorative Plates ............................................................................................ 27-28
Lock Accessories Strikes ................................................................................................................ 29

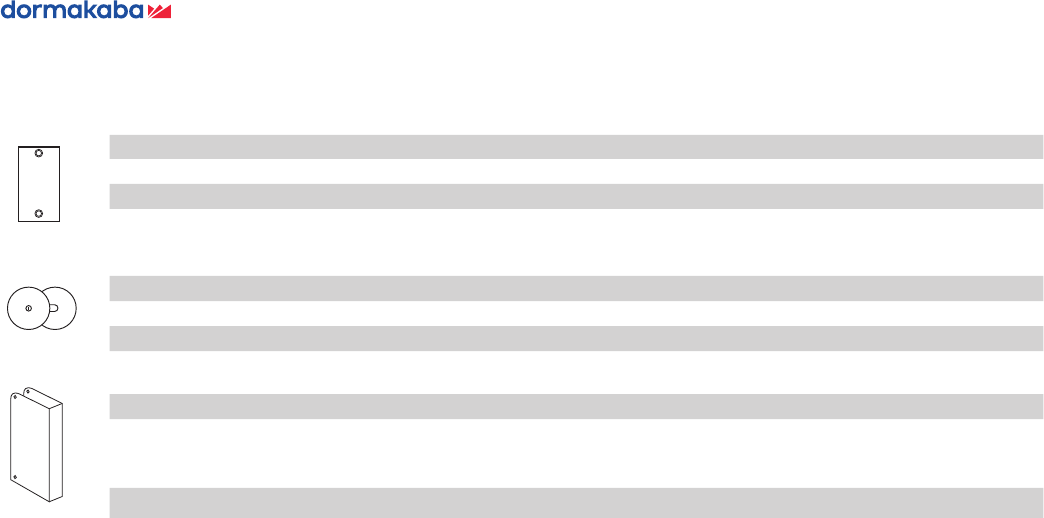

Lock Accessories Miscellaneous Plates ......................................................................................30
Lock Accessories Miscellaneous Compatible with Oracode 660 Series ..............................31
Lock Accessories Wood Mounts and Demo Locks ................................................................... 32

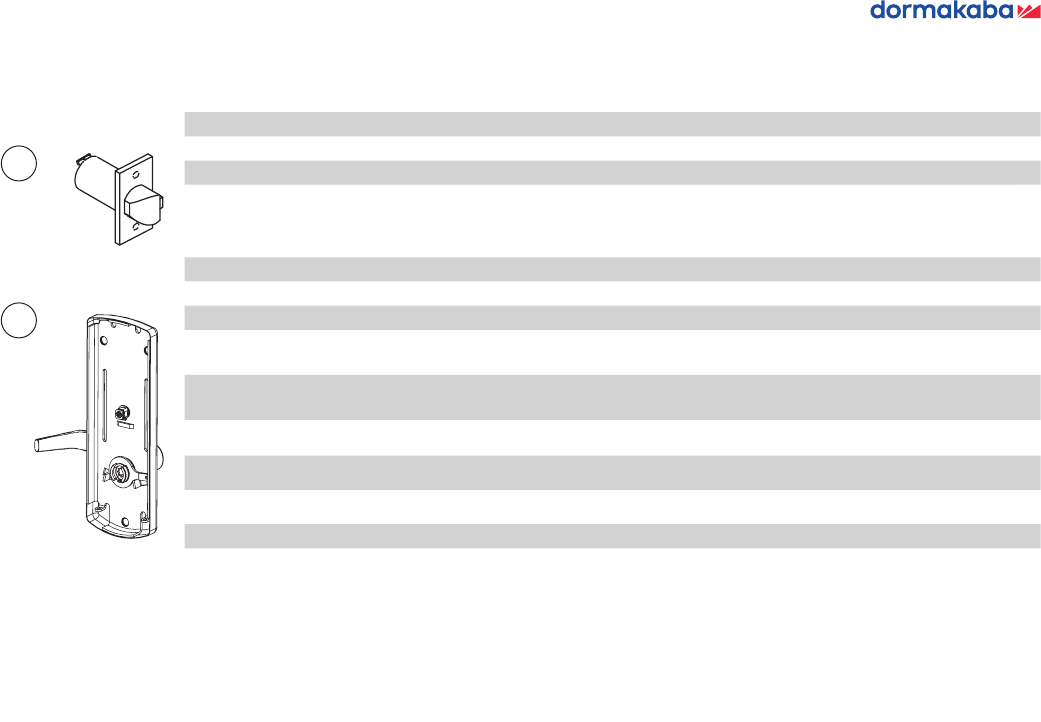

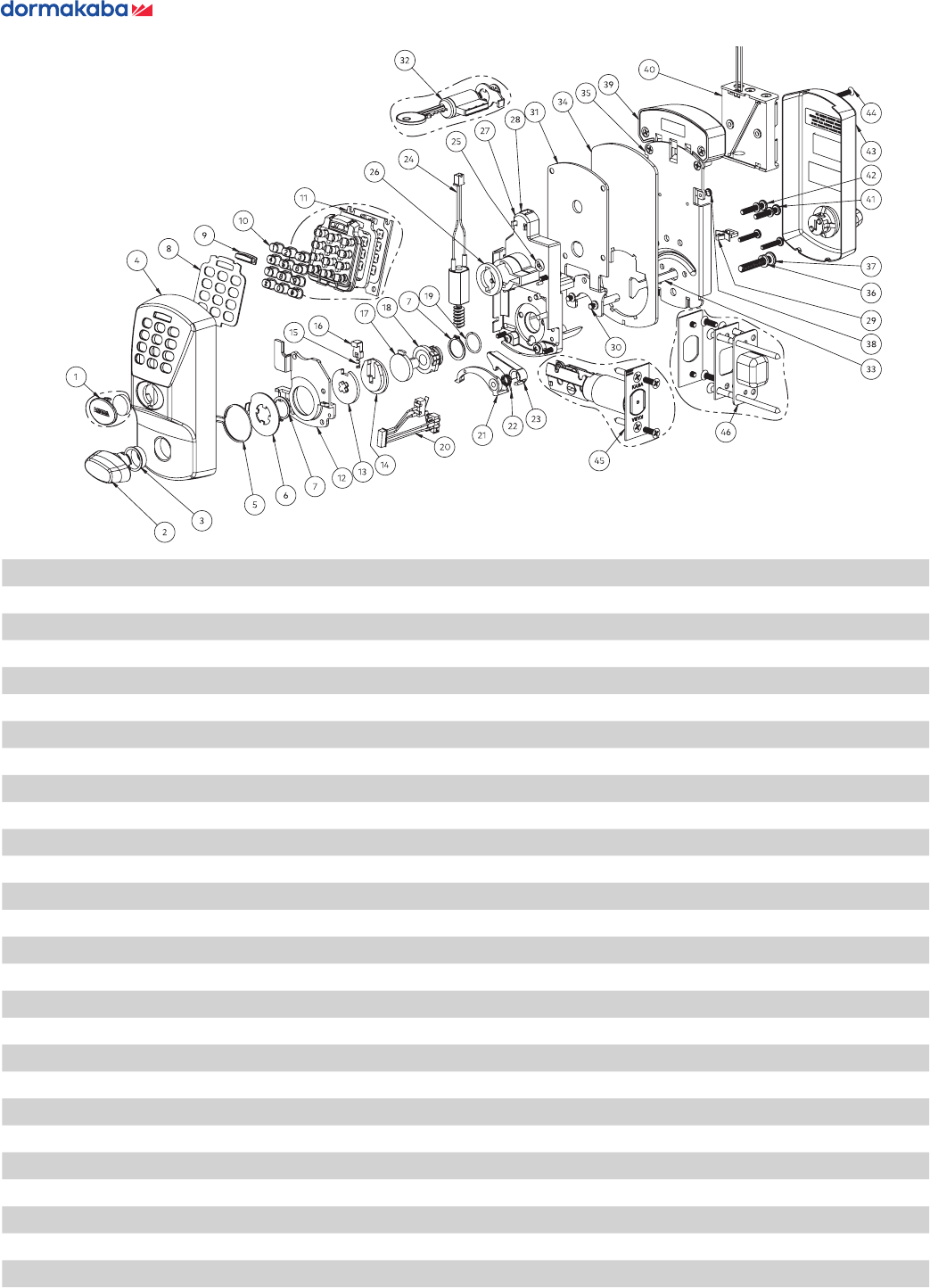

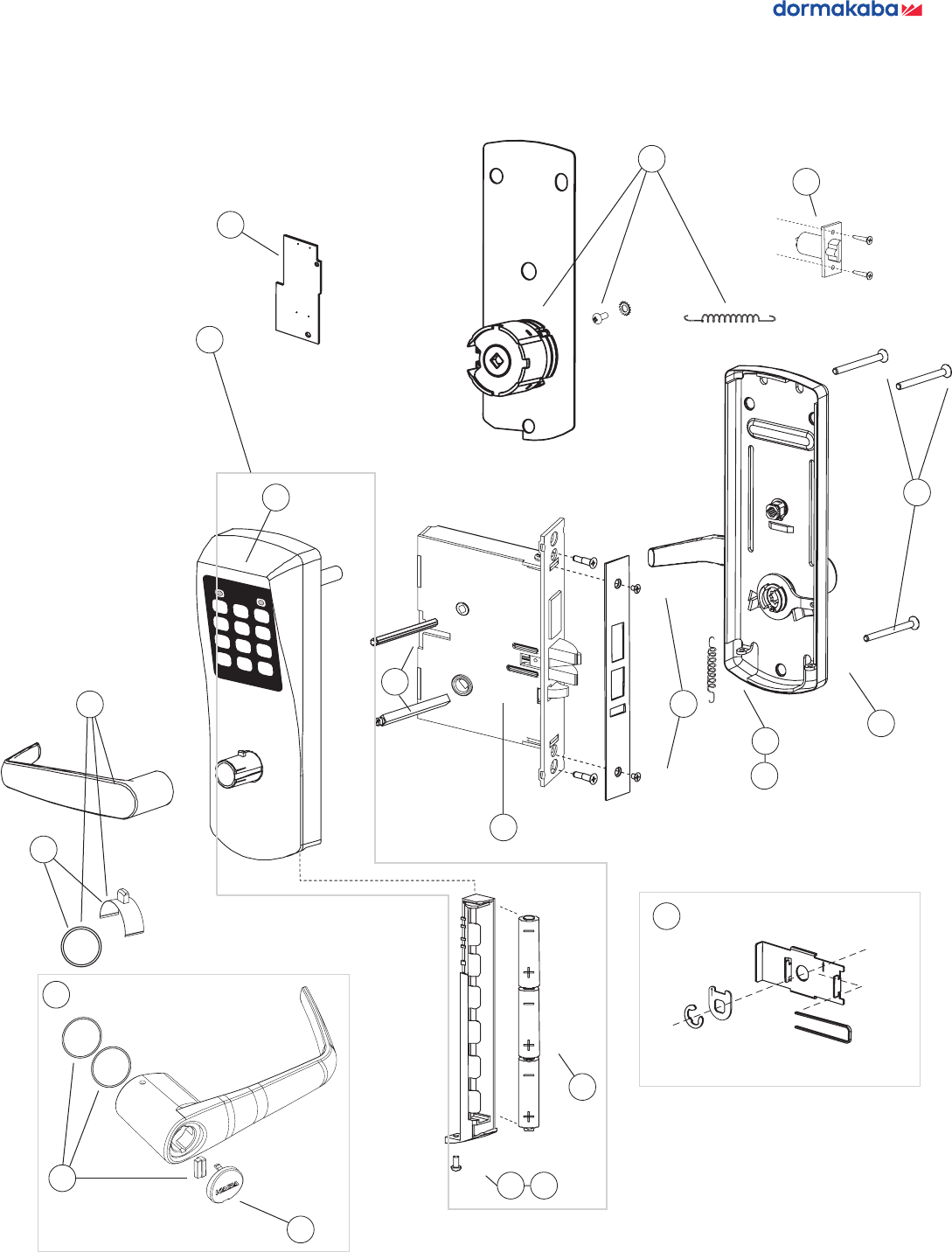

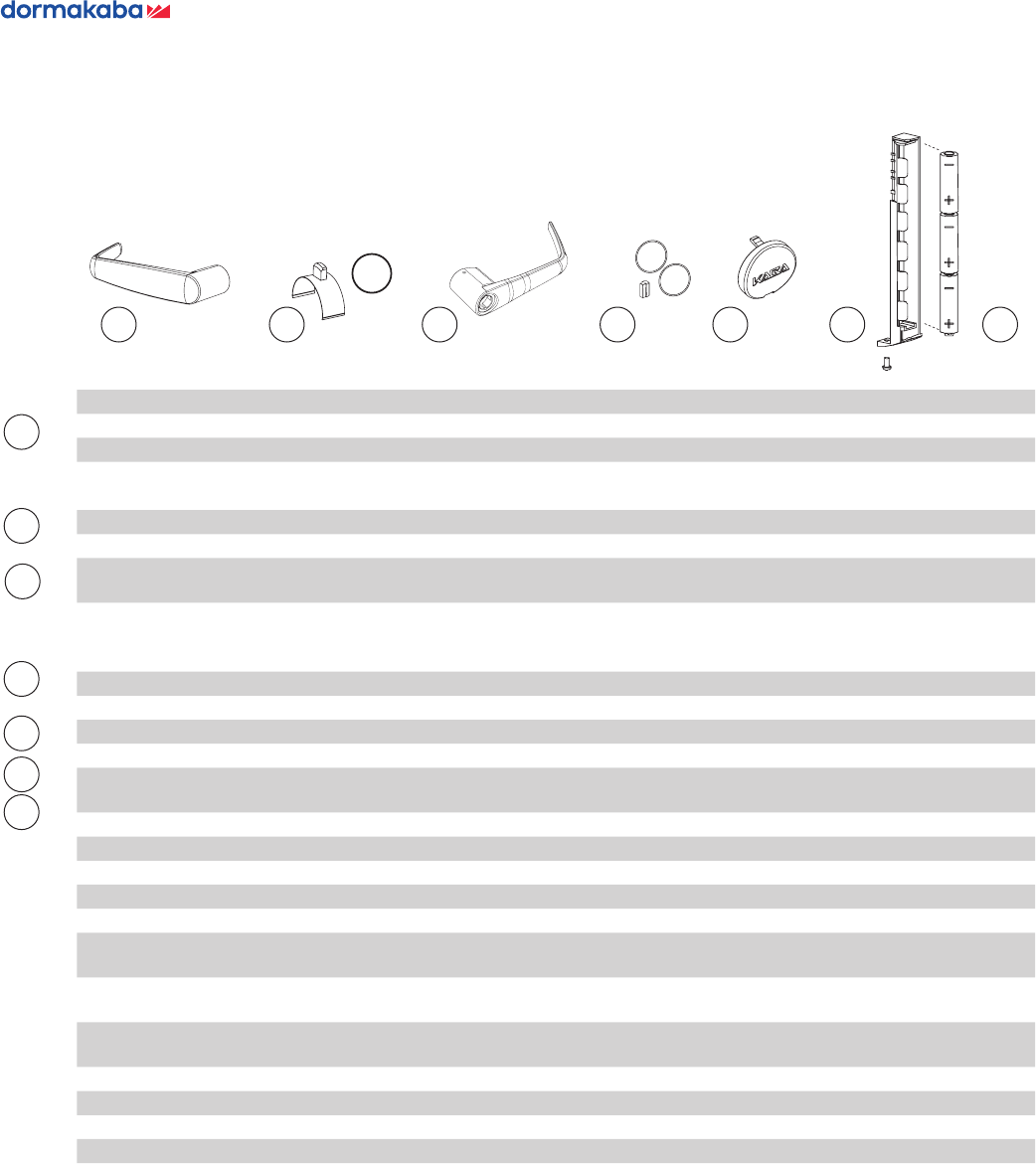

660 Lock Replacement Parts .......................................................................................................33-38
460 Lock Replacement Parts .......................................................................................................39-41

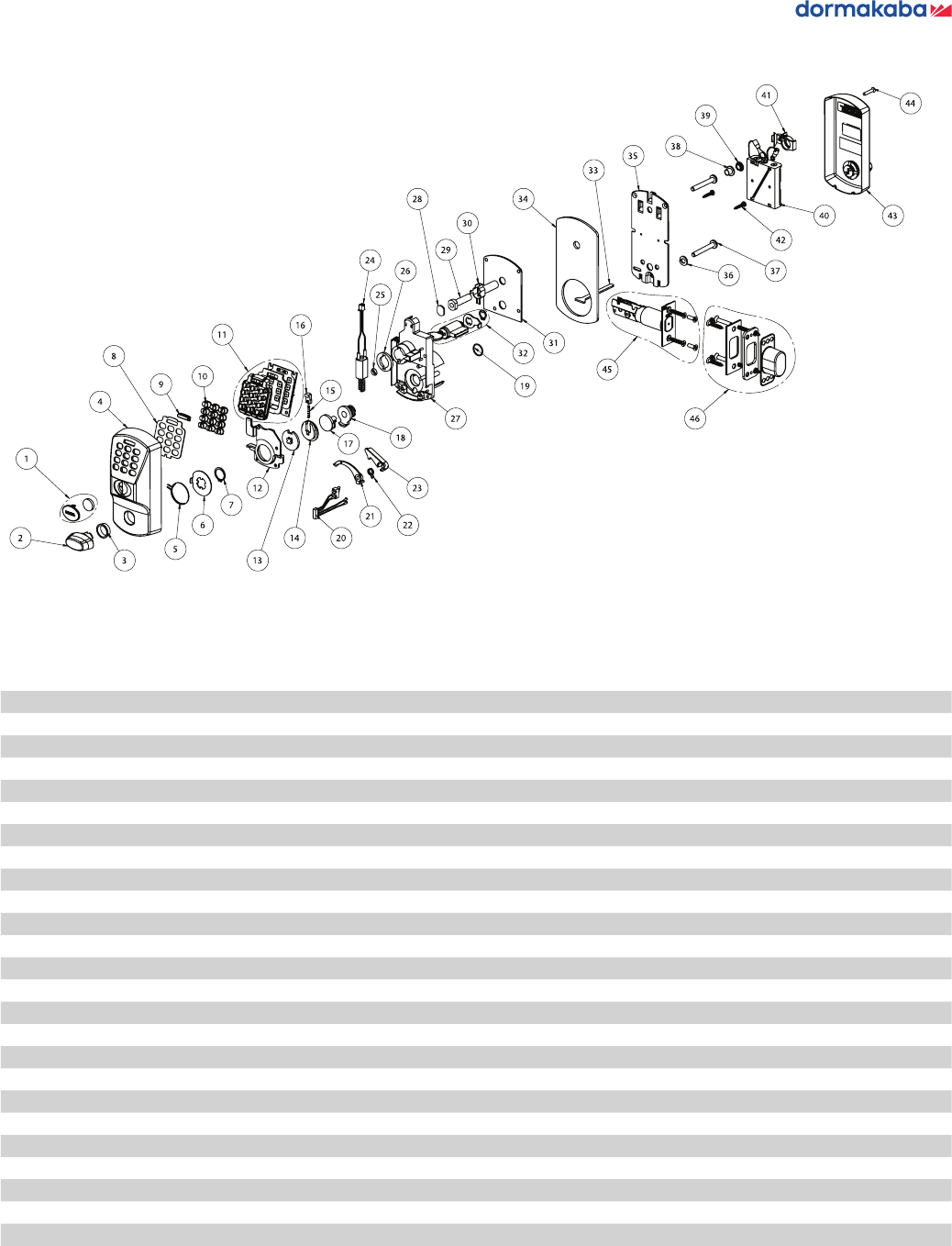

480i Lock Replacement Parts ......................................................................................................42-43
3
Oracode Order Guide
For More Information
www.kabalodging.com
The following are registered trademarks: Microsoft®, Excel®, Windows®, Apple®

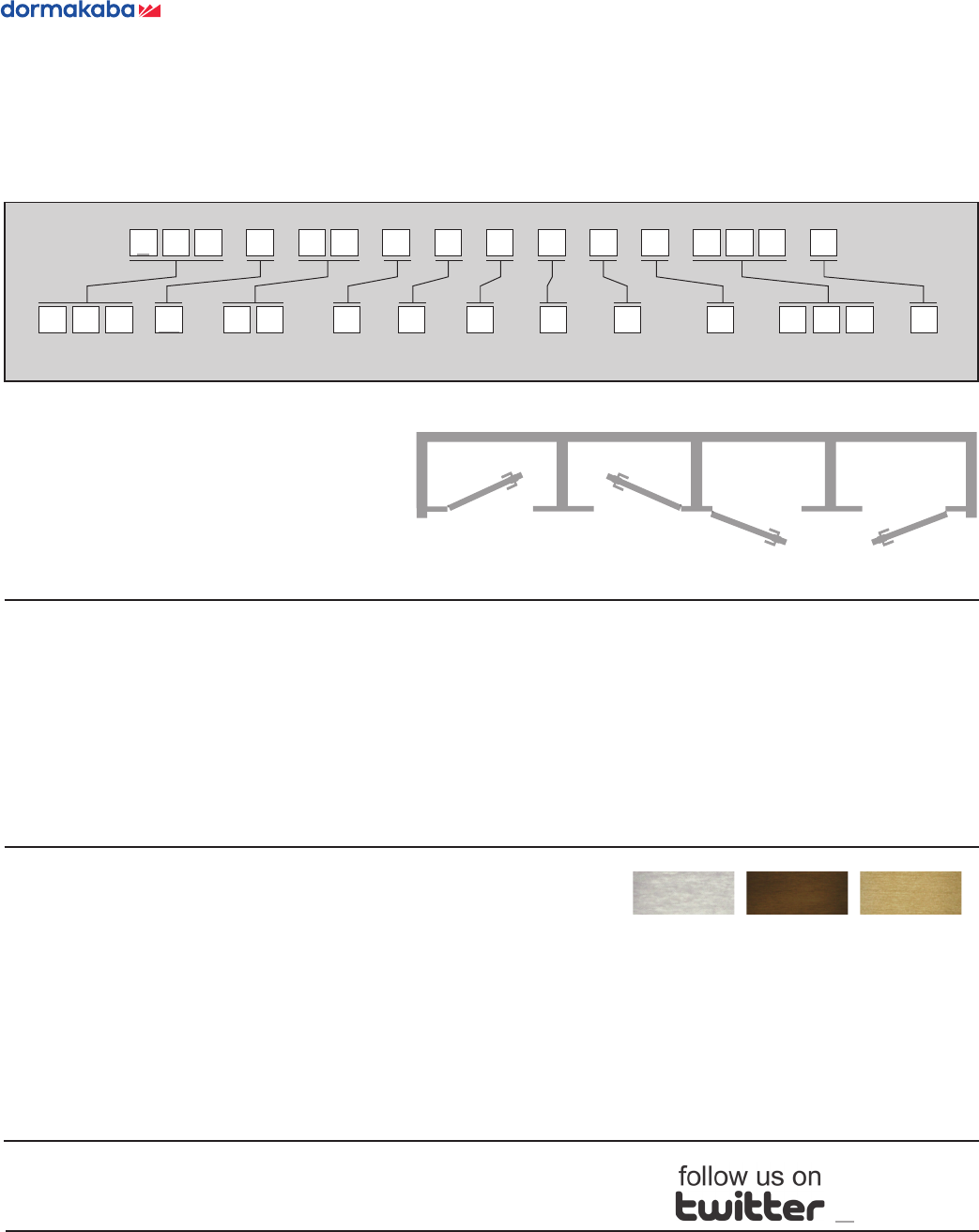

Door Handing
Some locks also require you to specify door
handing. To determine handing, face the
door from the exterior (access) side and
select the corresponding diagram below.
Left Hand Right Hand Right Hand Reverse
Left Hand Reverse
Inside Inside Inside Inside
Where to Order
Contact your Oracode Sales Manager
@kabaaccess
6 6 0 W 1 1 2 1 K L 1 0 6 2 6 B
6 6
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSIONS DOOR
THICKNESS
FINISH HUB
W 2 01
Example
Lock Functions
Lock
These locks remain permanently in locked mode. For higher security, the mortise version includes a 1" deadbolt. This is
suitable for applications where the person in the locked area needs added protection. ANSI equivalent functions: Hotel
Guest Lock (F15).
Exit Device Operator
These locks operate with an exit device to permit controlled access from the outside. The lock mode (passage or locked)
can be changed. ANSI equivalent functions: Holdback Door (F06).
Finishes
Oceanfront Finish
More durable than a Physical Vapor Deposition (PVD) finish, the Oceanfront
finish will resist acid-salt spray. The Oceanfront finish is ideal for outdoor
severe environments, including oceanfront properties. An outdoor gasket
and a security screw for the battery pack comes standard with this option.
Cleaning the Lock Finish
As a Kaba customer, we recommend that you regularly maintain your electronic lock finish. To remove salt and
pollutants, we strongly recommend only using a water-damp rag rather than any harsh or caustic chemicals. Lock Body
Finish and Mortise Faceplates All locks will be shipped standard with a stainless steel mortise faceplate for all finishes
including custom finishes.
Oceanfront
Satin Chrome
Oceanfront
Oil-rubbed
Bronze
Oceanfront
Satin Brass
How to Order
To order any of the products in this catalog, a part number must be provided. In most situations the part number has to
be assembled to specify the desired product, as various options are available.
Build the model number with the desired options
4

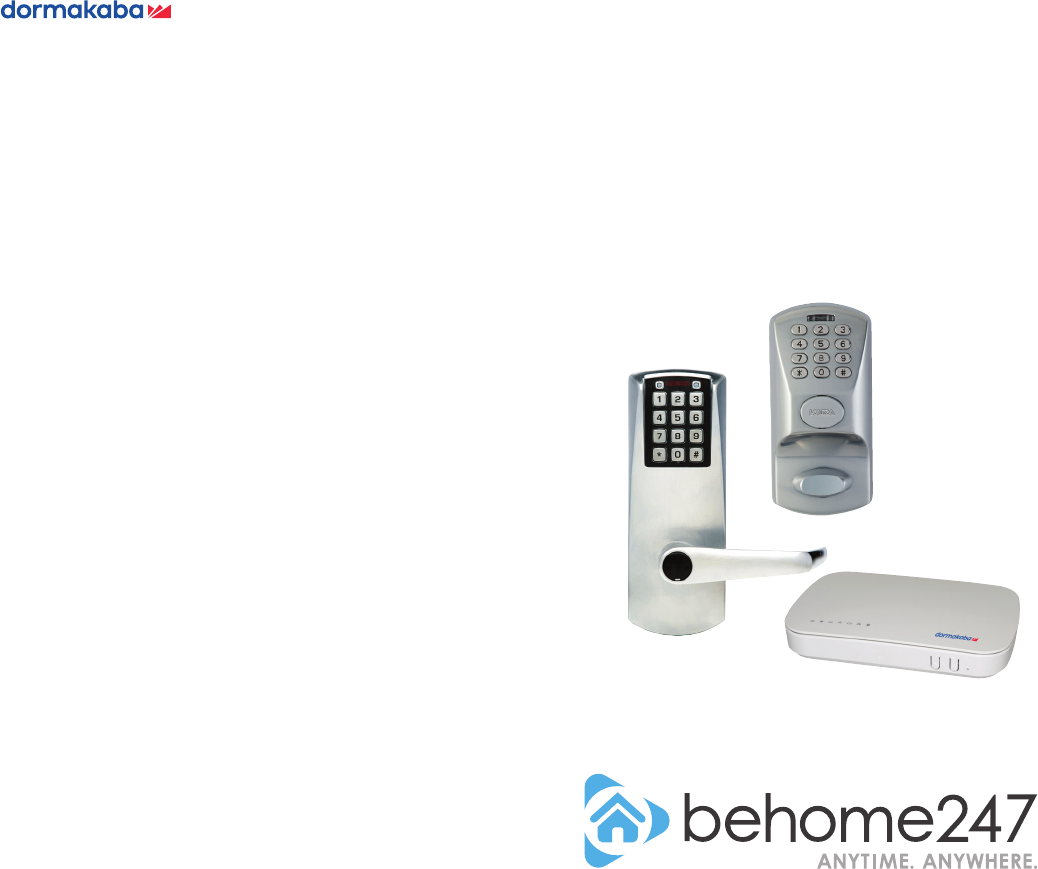

Principles of the Keyless Entry
The Oracode Access Control System eliminates the need for keys or keycards. Security is provided at the lock with a
6-digit pushbutton access code that has 1 million possible combinations and tamper shutdown to discourage code
guessing. Valid access codes (or PINs) can only be generated using the password protected web-based software with
the correct site code. Emergency access is provided by a mechanical key override with a removable core that can be
keyed to an existing master key system. Egress is by interior handle and is free at all times.
The Oracode cylindrical lock installs quickly in place of standard cylindrical locks with the addition of three
mounting screws.
The lock is also available in standard and slim mortise versions. The lever handle is ADA (Americans with Disabilities Act)
compliant. The lock keypad is a familiar and easy-to-use design. The locking action is sure and smooth, and the
attractive and robust design of the lock compliments any decor.
The lock is easy to program and features a 5,000 record audit trail to create user accountability. Once the lock is
programmed, there is no need for management to visit the lock, except for necessary audits and routine maintenance.

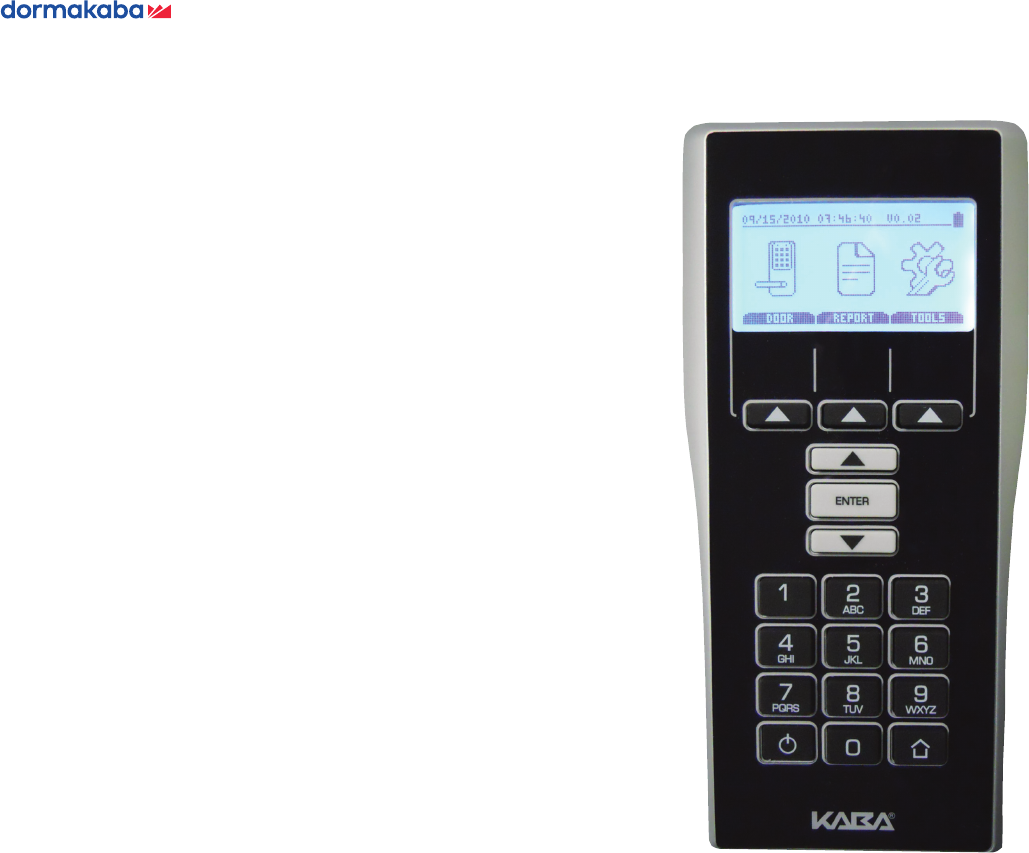

To program and audit the K series locks, a hand-held module is used to carry data to the lock. Note: i Series locks do not
require programming at the lock. Programming involves setting the lock’s identity (room number), setting the current
date and time, and selecting other lock features. PINs for access to the lock are then generated using the
web-based software.
How the System Works:
The Oracode system utilizes proprietary web-based software to generate a unique time sensitve 6-digit PIN for each
guest. Each PIN is valid for a specific room and time period, expiring automatically at the end of the guest’s reservation.
Each installation of the Oracode system has a unique and permanent site code that prevents access using PINs from
other sites. Since codes can be generated months or even years in advance, guests can be pre-registered by SMS or
e-mail to either a mobile device or laptop, and there is no need to visit the lock. Guests can check-in or out
without assistance.
Guests can change their PIN to any 6-digit code for easy memorization. Guests who need to return to their room after
their pre-registered stay has expired can be issued a one-time code. Presently there are 128 access levels available for
guest, master, housekeeping, and other users of the lock. Additional features that can be allocated to different users
include passage and lockout modes, and emergency deadbolt override. These multiple access levels allow management
to restrict staff access to specific groups of rooms. The audit trail indicates which staff code opened the door
and when.
Oracode System
5
Providing access through a secure keycode while allowing free egress, Oracode 660 is as reliable as a mechanical lock
with all the added features of an electronic lock, including audit trail, date/time stamp, and passage and lockout mode.
The lock supports up to one million possible code combinations and records the last 5,000 events for increased
accountability. The lock is easy to install and works with the Oracode Live web application.
Security Features
• No keys or keycards
• Secure, time-sensitive codes
• Audit memory with last 5,000 events stored in the lock
• Vandalism and attack resistant
• 1" solid deadbolt (mortise model)
• Tamper shutdown protection
• Electronic-code secured website
• Emergency access by mechanical key override
(bump-resistant core)
Easy to Install and Maintain
• Available with cylindrical, exit trim, and mortise locking
device options
• Totally sealed with no exposed electronics
• No software
• Access codes, lock setup, and audit trail not erased
during battery replacement
Functions
• Six-digit guest codes
• Multiple user levels
• Audible and visual sensors
• Adjustable unlock times
• Personalized code programmed by user
•
Finish Options
• Oceanfront Satin Chrome
• Oceanfront Oil-rubbed Bronze
• Oceanfront Satin Brass
Applications
Ideal for property management companies, time-share
resorts, corporate housing, individual apartments, or
condominiums that can have up to 15,000 rooms.
Oracode 660 Series locks replace existing cylindrical,
mortise, or exit trim locking devices in either exterior or
interior applications.
Online Oracode 660i
The Oracode 660i is the online solution for any property.
Upgrading to Oracode 660i provides property managers
and owners additional flexibility, security, and peace of
mind. The online technology allows the user to
communicate directly with the Oracode 660i lock from
anywhere in the world. Connected to Oracode Live, the lock sends notifications through the website, keeping property
managers and owners informed in real time of an occurring event.
Oracode 660
6
Oracode 660
MECHANICAL FEATURES
Description Heavy-duty electronic lockset, cylindrical, mortise, or exit trim locking device options; clutch mechanism
activated by numeric combination
Handing Left or right handed, field reversible
Door Preparation Door preparation drawing and drilling template provided
Guest Privacy Interior thumbturn or mortise version (optional)
Numeric Keypad Vandal-resistant, 12-button, metal keys
Weight 8 lbs. (3.6 kg)
Lever Type Short and long levers available, inside knob
Mechanical Key Override In-handle, removable core type KIL, proprietary keyway
Door Thickness From 1 ⅜" to 2 ½" (35 mm to 64 mm)
LOCK OPERATION
Combination Codes 6+ digits per code
Personalized Code Programmable by end user
Emergency Access Mechanical key override
Programming Audit Trail Using Oracode M-Unit (stand-alone) or online (Oracode Live)
Date/Time Stamp Real time; date and hours/minutes
Time Parameters Lock time and set-up parameters are maintained for up to four weeks, facilitating battery changes and lock
shipping (stand-alone). Time adjust via wireless link (Oracode Live).
Passage Mode Set or remove by authorized access code
Code Expiry Code expires at the end of the stay
Access 128 different access levels
Lockout Mode Set or remove by authorized secure access code
Feedback Audible and visible indicators
Audit Memory Last 5,000 events stored in lock. Audit trail is permanently maintained to ensure the highest level of security.
Disability Feature Unlock time is adjustable from 5 to 15 seconds by administrator user level
Power Three AA batteries with a 2-3 year lifespan (approximately 18 months for Oracode 660i online version)
OWNERMANAGER BENEFITS
Flexibility Remote code generation, extension, or cancellation. Up to one million possible combinations.
Simplicity No keys, no cards. Eliminates the cost of managing or replacing keys or cards. No more late-night meets to
replace lost keys. Installs in minutes. No software to install.
Interface The web-based, stand-alone and online Oracode Live system can interface with various PMS
Communication with
the Lock (Oracode Live) Receive notifications of lock events that occur in real time, such as Guest First Arrival and Guest Early
Checkout. Set up alerts, such as Low Battery or Internet Down. Cancel codes or extend a stay remotely.
Receive lock communications by e-mail, SMS, or directly in “live events”.
GUEST BENEFITS
Easy Access Guests do not have to check out, pick up, or drop off keys
Peace of Mind Guests do not need to remember where they put their keys or access codes
Certifications and Testing
Accessibility Standard ADA compliant lever (Code of Federal Regulations 28 CFR Part 36 – 2010 “ADA Standards for Accessible
Design”)
Fire Rating Listed for pre-prepared manufactured doors and certified for retrofitting on existing doors by Underwriters
Laboratories for use on fire door having up to a three-hour rating. Evaluated in accordance with UL 10B and
UL 10C.
Electronics FCC Part 15 Class B and CE directive 89/336/EEC compliant
Environmental Operating -31 ºF to 151 ºF (-35 ºC to 66 ºC) 0% to 85% non-condensing humidity at 86 ºF (30 ºC)
Conditions
Florida Building Code Approved in the exterior door category (exterior door components). Certified compliance to the Florida
Building Code FL13061.1 for installation in HVHZ (High Velocity Hurricane Zone) areas for mortise with
deadbolt and auto deadbolt locking devices only (Refer to Florida Building.org for actual product approvals
and specifications)
Durability Meets requirements of ANSI A156.25 for dust, rain, humidity, and salt spray corrosion tests
WARRANTY
Standard Factory Warranty Two years
FINISHES
Standard Finish Oceanfront Satin Chrome, Oceanfront Oil-rubbed Bronze, Oceanfront Satin Brass
7
Oracode 660

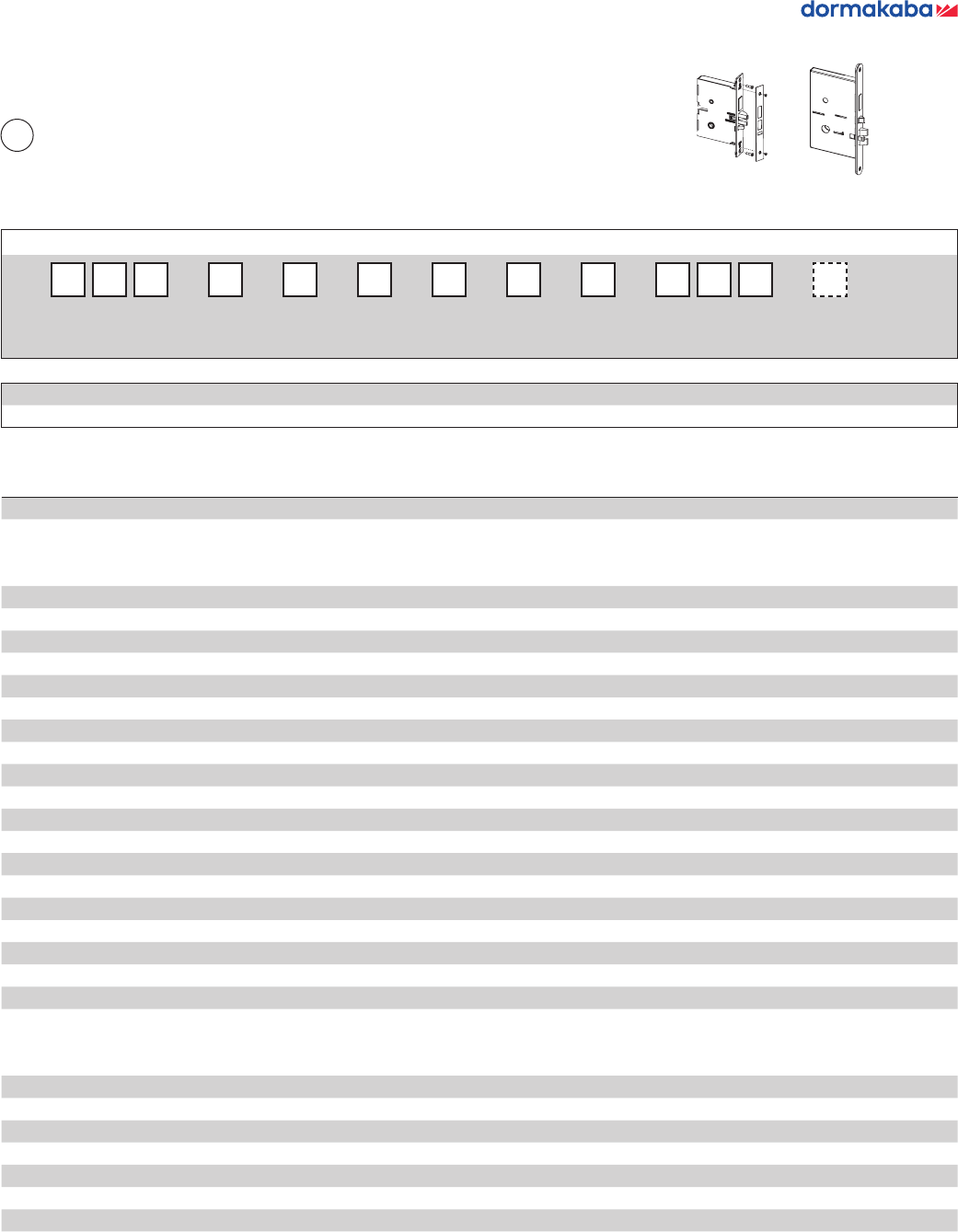

American Standard Mortise (ASM) Lock 1 ¼" Mortise
Example
Build the model number with the desired options
Choose One Option from Each Category
Model Description
660 Deadbolt operated by the thumbturn
661 Unit Lock, no deadbolt, no thumbturn, no privacy
662 Privacy Lock, no deadbolt, privacy thumbturn
664 Demo Lock
667 Common Door Lock, no deadbolt, no thumbturn, no privacy
Online Description
W For 660 i Series Online Lock (leave blank if not required)
Locking Device Description
10 ASM with 1¼" (32 mm) face plate, field reversible handing (660)
16 ASM with 1¼" (32 mm) face plate, field reversible handing, Auto-deadbolt (660)
12 ASM with 1¼" (32 mm) face plate, field reversible handing (661 and 667)
14 ASM with 1¼" (32 mm) face plate, field reversible handing (662)
Keypad Description
2 Metal keypad
Lever Description
1 Long/Long
2 Short/Short
C Short/Knob
A Long/Knob
Override Description
K Mechanical key cylindrical Lori universal (1539) key-in-knob
D Core in box keyed differently
Handing Description
LLeft
R Right
F Dual Handed (L & R), Left Hand Reverse, Right Hand Reverse (X & Y)
Version Description
1
Door Thickness Description
01 ⅝" – 2 ½" (41 – 63 mm), For doors greater than 2 ½" (63 mm) order a thick door kit in Lock
Accessories
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
BOracode Smart Controller for use with Oracode/BeHome247
Integrated Solution
** Locks are assembled "Right-Hand" and may be field reversed for Left-Hand doors
Model Description
66X American Standard Mortise (ASM) Lock 1¼" Mortise
–
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
8
Oracode 660
American Standard Mortise (ASM) Lock 1" Mortise
Example
Build the model number with the desired options
Choose One Option from Each Category
Model Description
660 Deadbolt operated by the thumbturn
661 Unit Lock, no deadbolt, no thumbturn, no privacy
662 Privacy Lock, no deadbolt, privacy thumbturn
667 Common Door Lock, no deadbolt, no thumbturn, no privacy
Online Description
W For 660 i Series Online Lock (leave blank if not required)
Locking Device Description
11 ASM with 1" (25 mm) face plate, no field reversible handing (660)
17 ASM with 1" (25 mm) face plate, no field reversible handing, Auto-deadbolt (660)
13 ASM with 1" (25 mm) face plate, no field reversible handing (661 and 667)
15 ASM with 1" (25 mm) face plate, no field reversible handing (662)
Keypad Description
2 Metal keypad
Lever Description
1 Long/Long
2 Short/Short
C Short/Knob
A Long/Knob
Override Description
K Mechanical key cylindrical Lori universal (1539) key-in-knob
D Core in box keyed differently
Handing Description
LLeft
R Right
Version Description
1
Door Thickness Description
01 ⅝" – 2 ½" (41 – 63 mm), For doors greater than 2 ½" (63 mm) order a thick door kit in Lock
Accessories
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
BOracode Smart Controller for use with Oracode/BeHome247
Integrated Solution
Model Description
66X American Standard Mortise (ASM) Lock 1" Mortise
–
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
9
Oracode 660
European Standard Mortise (ESM) Lock
Example
Build the model number with the desired options
Choose One Option from Each Category
Model Description
660 Deadbolt operated by the thumbturn
661 Unit Lock, no deadbolt, no thumbturn, no privacy
662 Privacy Lock, no deadbolt, privacy thumbturn
664 Demo Lock
667 Common Door Lock, no deadbolt, no thumbturn, no privacy
Online Description
W For 660 i Series Online Lock (leave blank if not required)
Locking Device Description
00 No locking mechanism, no strike (660)
30 ESM, with no faceplate, field reversible handing (660)
31 ESM, with no faceplate, field reversible handing (661 and 667)
Keypad Description
2 Metal keypad
Lever Description
1 Long/Long
2 Short/Short
C Short/Knob
A Long/Knob
Override Description
K Mechanical key cylindrical Lori universal (1539) key-in-knob
D Core in box keyed differently
Handing Description
L* Left or Right Hand Reverse
R Right or Left Hand Reverse
N No locking mechanism
Version Description
1
Door Thickness Description
01 ⅜" – 2 ½" (41 – 63 mm), For doors greater than 2 ½" (63 mm) order a thick door kit in Lock
Accessories
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
BOracode Smart Controller for use with Oracode/BeHome247
Integrated Solution
* For locking devices 30 and 31, locks are assembled "Right Hand" and may be field reversible for left hand doors.
Model Description
66X European Standard Mortise (ESM) Lock
–
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
10
Oracode 660
European Standard Mortise (ESM) Lock
ESM Faceplates and Strikes
Mortise face plates are not included with European Standard Mortise (ESM). To order see below.
Description Part
13/16" (20 mm) round face plate with deadbolt cutout 128-508593-DXXX
13/16" (20 mm) round face plate without deadbolt cutout 128-508593-OXXX
29/32" (23 mm) round face plate with deadbolt cutout 128-508595-DXXX
29/32" (23 mm) round face plate without deadbolt cutout 128-508595-OXXX
13/16" (20 mm) square face plate with deadbolt cutout 128-508594-DXXX
13/16" (20 mm) square face plate without deadbolt cutout 128-508594-OXXX
7 ¼" (180 mm) strike with deadbolt - universal 041-510141-XXXK
Replace XXX by 626 (Satin Chrome) or 606 (Satin Brass)
11
Choose One Option from Each Category
Model Description
661 Unit Lock, no deadbolt, no thumbturn, no privacy
662 Privacy Lock, no deadbolt, privacy activated with thumbturn
664 Demo Lock
667 Common Door Lock, no deadbolt, no thumbturn, no privacy
Online Description
W For 660 i Series Online Lock (leave blank if not required)
Locking Device Description
50 2 ¾" (70 mm) backset with ½" (13 mm) latch
54 2 ⅜" (60 mm) backset with ½" (13 mm) latch (not fire rated)
Keypad Description
2 Metal keypad
Lever Description
1 Long/Long
2 Short/Short
C Short/Knob
A Long/Knob
Override Description
K Mechanical key cylindrical Lori universal (1539) key-in-knob
D Core in box keyed differently
Handing Description
F Dual Handed (L & R), Left Hand Reverse, Right Hand Reverse (X & Y) (Assembled Right Hand)
N No locking mechanism
Version Description
1
Door Thickness Description
01 ⅝" – 2 ½" (41 – 63 mm), For doors greater than 2 ½" (63 mm) order a thick door kit in Lock
Accessories
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
BOracode Smart Controller for use with Oracode/BeHome247
Integrated Solution
Oracode 660

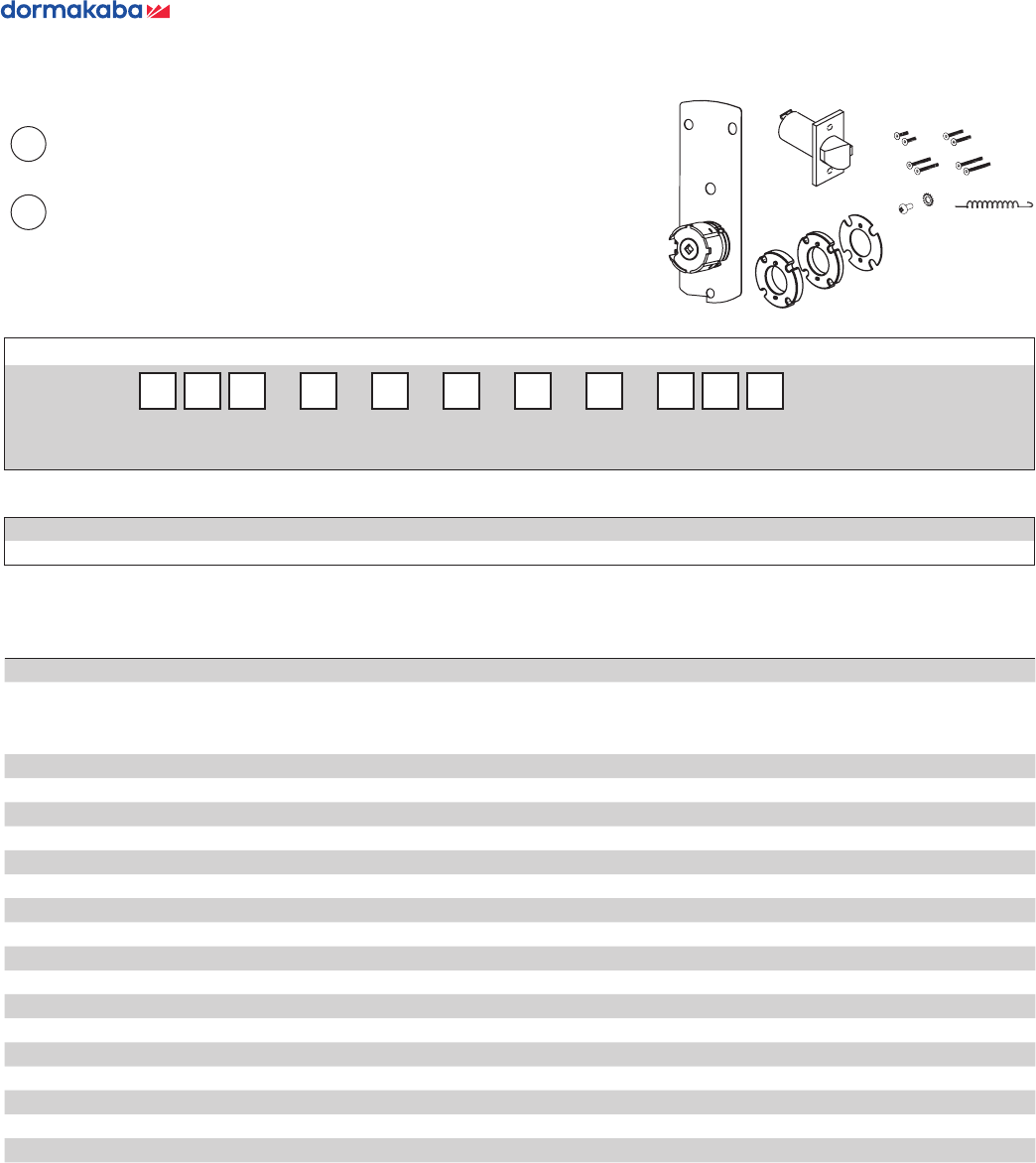

Cylindrical Lock
Example
Build the model number with the desired options
Model Description
66X Cylindrical Lock
–
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
12
Oracode 660

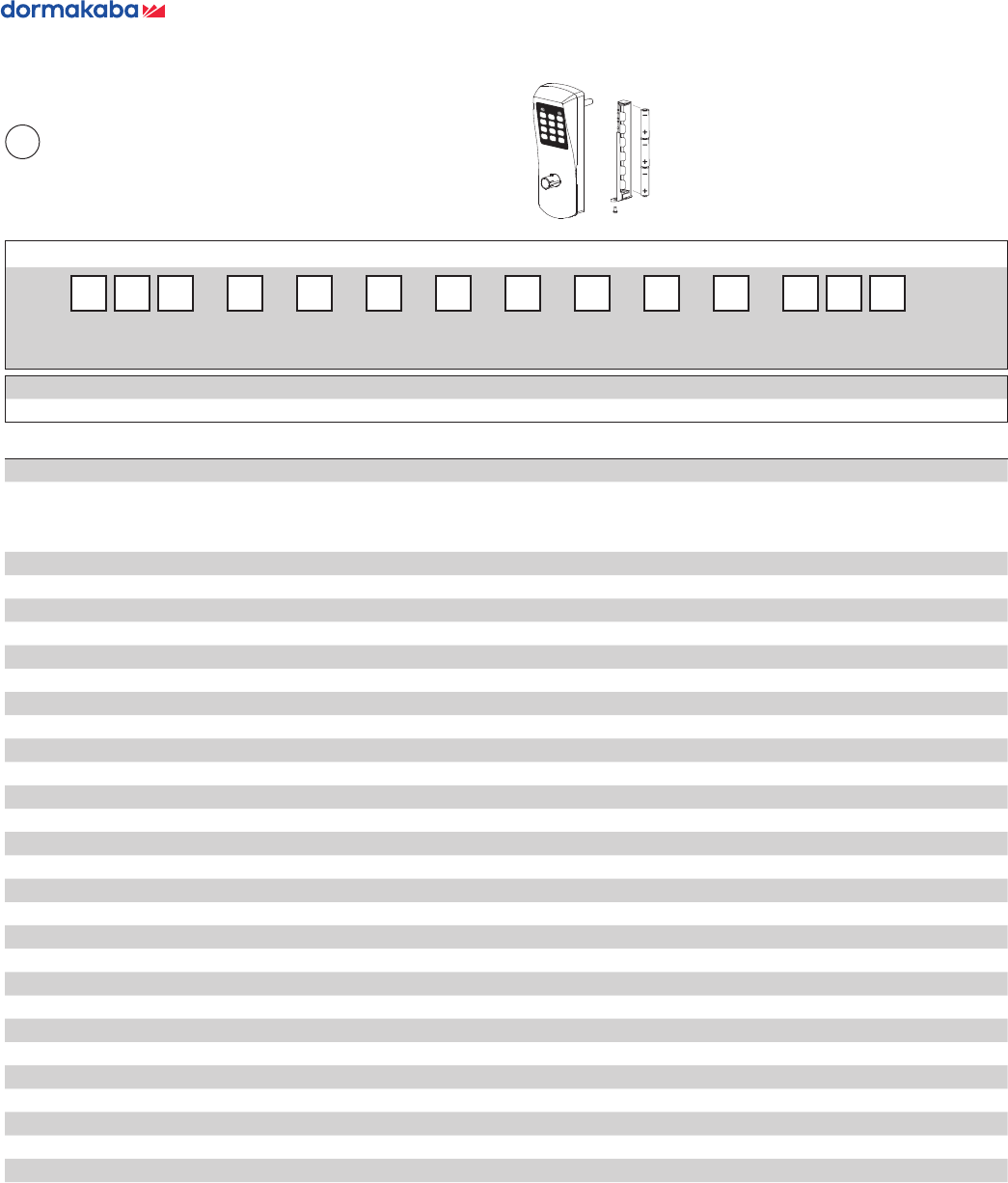

Exit Device Operator
Example
Build the model number with the desired options
Choose One Option from Each Category
Model Description
631 Rim Operator Includes Dorma Exit Device
632 Mortise Operators, Exit Device not included
633 Rim Operators, Exit Device not included
634 Vertical Rod, Surface Mount Operators, Exit Device not included
635 Vertical Rod, Concealed Operators, Exit Device not included
Online Description
WFor 660 i Series Online Lock (leave blank if not required)
For 631 Description
6 Dorma 9300, not UL fire rated
For 632 Description
0Von Duprin 9875, 9975EO-F
AArrow S3908, S1908
7Dorma F9500/9500
For 633 Description
0Von Duprin 98/99 EO-F
1Arrow S3888
2Yale 7100-36
5Precision 21, F21
6Detex 10, FL 10
7Dorma F9300/9300
8Arrow S1808, S3808*
9Detex V40
HHager 4500
For 634 Description
0Von Duprin 9827, 9927EO-F
1Arrow S3708, S1708*
2Yale 7170
5Precision 22, FL22
6Detex 20, FL20
7Dorma 9400
HHager 4500
SSargent 8710
For 635 Description
0Von Duprin 9847, 9947EO-F
2Yale 7160
7Dorma 9100
Keypad Description
2 Metal keypad
Lever Description
1 Long
2 Short
Model Description
63X Exit Device Operator
N–
MODEL ONLINE EXIT DEVICE
TYPE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
13
Override Description
K Mechanical key cylindrical Lori universal (1539) key-in-knob
D Core in box keyed differently
Version Description
1 Operator mounted on the adapter plate outside the door
4 Exit Device mounted on the adapter plate inside the door
Door Thickness Description
1 1¾" (46 mm) – 2" (53 mm)
2 2" (53 mm) – 2¼" (57 mm)
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
BOracode Smart Controller for use with Oracode/BeHome247
Integrated Solution
Oracode 660
Exit Device Operator
Exit Device Operator
• Allows exit doors equipped with panic devices to double as controlled entrances
• Weight: 3 lbs. (1.3 kg)
• Minimum door style required 5" (127 mm)
• Supplied with gasket kit for exterior doors. All fitted with adapter plate.
Exit Device
• Stainless steel Dorma exit device supplied with Oceanfront Satin Chrome lock operator.
• Stain Brass exit device supplied with Oceanfront Satin Brass lock operator.
* For compatibility with Arrow S3808, S1808, S3708, and S1708, order a square spindle to cross-point spindle adapter
(part #032-511055)
14
Front
Front
Front
Side
Side
Side
Back
Back
Back
Back Side
Back Side
Back Side
ASM Mortise
ASM Mortise
ESM Faceplate 20mm ESM Mortise
Strike
Strike
Strike
Oracode 660 1¼" Mortise Lock
Oracode 660 1" Mortise Lock
Oracode 660 European Standard Mortise Lock
Oracode 660
Dimensions
15
Oracode 660
Dimensions
Front
Front
Side
Side Exit Device
Back Back Side
Faceplate
Latch
T-Strike
Oracode 660 Cylindrical Lock
Oracode 660 Exit Device Operation
16
Oracode 480i
The Oracode 480i is a deadbolt solution that offers increased security and peace of mind to homeowners, guests, staff,
and property managers. Its small, sleek design blends in with most levers and enhances the design of any property. The
lock is easy to install and works with the Oracode Live web application.
Security Features
• No keys or keycards
• Secure, time-sensitive codes
• Audit memory with last 5,000 events stored in lock
• Vandalism and attack resistant
• 1" solid brass deadbolt
• Tamper shutdown protection
• Electronic-code secured website
• Emergency access by mechanical key override
(bump-resistant core)
Simple Retrofit
• Property managers can keep existing locksets and reuse them as needed
Easy to Install and Maintain
• Installs in minutes in existing deadbolt door prep
• No new holes to drill
• Totally sealed with no exposed electronics
• No software
Functions
• Six-digit guest codes
• The deadbolt is projected or retracted with a thumbturn
• Multiple user levels
Finish Options
• Oceanfront Satin Chrome
• Oceanfront Oil-rubbed Bronze
Applications
Ideal for vacation rentals, property management companies,
timeshares, corporate housing, or individual apartments and
condominiums. The 480i lock replaces existing deadbolts and gives
the property management company or owner the ability to grant
access remotely.
Online Oracode 480i
The Oracode 480i is the online solution for any property.
Upgrading to Oracode 480i provides property managers and
owners additional flexibility, security, and peace of mind. The
online technology allows the user to communicate directly with
the Oracode 480i lock from anywhere in the world. Connected to
Oracode Live, the lock sends notifications through this website,
keeping property managers and owners informed in real time of any occurring event.
17
Oracode 480i
Features
Programming Audit Trail Using Oracode M-Unit (stand-alone) or online (Oracode Live)
Date/Time Stamp Real time; date and hours/minutes
Time/Parameters Lock time and set-up parameters are maintained for up to four weeks, facilitating battery
changes
and lock shipping (stand-alone). Time adjust via wireless link (Oracode Live).
Passage Mode Set by authorized secure access code
Code Expiry Code expires at the end of the stay
Access 128 different access levels
Lockout Mode Set or remove by authorized secure access code
Feedback Audible and visible indicators
Audit Memory Last 5,000 events stored in lock
Audit Trail is permanently maintained to ensure the highest level of security
Disability Feature Unlock time is adjustable from 5 to 15 seconds by administrator user level
Power Three AA batteries with approximately 18 months lifespan
Owner/Manager Benefits
Flexibility Remote code generation, extension, or cancellation
Up to one million possible codes
Simplicity No keys, no cards. Eliminates the cost of managing or replacing keys or cards
No more late-night meets to replace lost keys
Installs in minutes. No software to install.
Interface
The web-based stand-alone and online Oracode Live system can interface with various PMS
Communication Receive notifications of lock events that occur in real time, such as Guest First Arrival
with the Lock and Guest Early Checkout. Set up alerts, such as Low Battery or Internet
(Oracode Live) Down. Cancel codes or extend stay remotely. Receive lock communications by e-mail,
SMS, or directly in “live events.”
Guests Benefits
Easy Access Guests do not have to check out, pick up, or drop off keys
Peace of Mind Guests do not need to remember where they put their keys or access cards
Certifications and Testing
Fire Rating Listed for pre-prepared manufactured doors and certified for retrofitting on existing doors
by Underwriters Laboratories for use on fire doors having up to a three-hour rating.
Evaluated in accordance with UL 10B and UL 10C.
Electronics FCC Part 15 Class B and CE directive 89/336/EEC compliant
Environmental -31º F to 151º F (-35º C to 66º C)
Operating Conditions 0% to 85% non-condensing humidity at 86º F (30º C)
Warranty
Standard Factory Two years
Warranty
Finishes Oceanfront Satin Chrome
Oceanfront Oil-rubbed Bronze
18
Oracode 480i
Deadbolt
Choose One Option from Each Category
Model Description
480 Unit Lock
484 Demo Lock
Online Description
W For 480i Series Online Lock
R 480i i Ready Lock
Locking Device Description
60 Adjustable Deadbolt, 2 ⅜" – 2 ¾"
Keypad Description
2 Metal keypad
Lever Description
1 Thumbturn
Override Description
K Kaba 1539 6-pin cylinder, Schlage "C" Keyway
D Core in box keyed differently
Handing Description
F (L & R), Left Hand Reverse, Right Hand Reverse (X & Y), field reversible
Version Description
1
Door Thickness Description
01 ⅜" – 2" (35 mm – 50 mm)
For doors greater than 2 ⅛" (54 mm), order a thick door kit in Lock Accessories
Finish Description
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Hub Description
H Standard Oracode Controller
B Oracode Smart Controller for use with Oracode/BeHome247 Integrated Solution
Model Description
480i Deadbolt Lock with Key Override
Example
Build the model number with the desired options
MODEL ONLINE LOCKING
DEVICE
KEYPAD LEVER OVERRIDE HANDING VERSION DOOR
THICKNESS
FINISH HUB
19
Overview
The Oracode Smart Controller takes property management
to the next level with Smart Home Automation. Supporting
both ZigBee and Z-Wave wireless communications protocols,
the Oracode Smart Controller allows Oracode i-Series locks
and other Smart Home devices (such as thermostat, lights,
pool and spa controls), to be managed remotely through a
single controller unit.
The Oracode access control system integrates with the
BeHome247 energy management system, allowing Property
Managers to enhance the guest experience by creating a
welcoming and comfortable environment.
The ability to manage other connected devices through the
Oracode Smart Controller streamlines property operations
and saves time and money. When the property is unoccupied,
the Oracode Smart Controller allows Property Managers to
adjust and monitor connected devices remotely to reduce
energy consumption, detect issues or problems, improve
security and maximize savings, thereby providing more value
for property owners.
Features & Benefits
• Easy, plug-and-play installation.
• Dedicated ZigBee channel connects only with Oracode
i-Series locks, enhancing security and reducing the chance
of unauthorized access.
• Allows connection with up to six Oracode i-Series locks per
Oracode Smart Controller.
• Ability to simultaneously connect with over 200 Z-Wave
devices.
• Provides optional/backup cellular 3G internet access
through USB connection port.
Connectors
• DC Power Jack (12VDC, 1.5A)
• RJ-45 Connector
• External USB Connector
Dimensions (H x W x D)
• 1.3" x 7.7" x 5.0"
• 34 mm x 196 mm x 127 mm
Oracode Smart Controller
Be smart.
Stay in control.
Oracode 660i
Series
Partners with
Smart Controller
Oracode 480i
Series
20
Front
Back
Select
USB
Sync
Ethernet
Reset
1.3"
34 mm
7.7"
196 mm
1. Power
2. Internet
3. Wi-Fi
4. Z-wave
5. Service
6. ZigBee
7. Bluetooth
5.0
127 mm
Power
Oracode Smart Controller
• Ethernet
- WAN: (10/100/1000 Mbps)
• Wireless
- Wi-Fi: IEEE 802.11 b/g/n and 802.11 a/n/ac
- ZigBee: Built-in ZigBee on Board
- Z-Wave: Built-in Z-Wave Module on Board
- Bluetooth LE: Built-in Bluetooth LE Module on Board
Hardware
• Processor and Memory
- Processor: 880MHz MIPS SoC, Dual-Core
- NAND Flash: 128MB
- DDR3: 256MB
• Power Adapter
- Input: 100-240VAC, 50-60Hz
- Output: 12VDC, 1.5A, Max. 12Watts
• Connectors
- 1 DC Power Jack
- 1 RJ-45 Connector
- 1 External USB Connector
• Antennas
- 1 Wi-Fi Internal Antennas
- 1 Z-Wave Internal Antenna
- 1 ZigBee Internal Antenna
- 1 Bluetooth LE Internal Antenna
• LEDs and Buttons
- 7 LEDs: Single-Color LED (Green)
- 3 Buttons: Reset, RF Select, RF Sync
• Compliance
- FCC, CE, RoHS
- UL Listed
Environment
• Operation
- Temperature: 0° - 40°C (32° - 104°F)
- Humidity: 10% - 80% RH (non-condensing)
• Storage
- Temperature: -20° - 60°C (-4° - 140°F)
- Humidity: 0% - 90% RH (non-condensing)
Ordering Information
• Oracode Smart Controller
- Part Number: 051-515201
Dimension DiagramIllustration
Network
21
What is the Oracode M-Unit?
The Oracode M-Unit is a hand-held device that provides
programming and auditing capabilities. The M-Unit is required for use with
Oracode K series locks and is optional for use with Oracode i series locks.
Core Benefits
1. Plug and Play
Does not require additional software or drivers and works just like a USB
key.
2 Durable
Extremely robust and designed to with stand regular wear
and tear.
3. Fully Compatible
Uses the USB mass storage standard supported by Windows® and
Apple® operating systems. No driver is required.
How is the M-Unit synchronized?
No synchronization or software required, simply drag and drop the file into
the appropriate drive to get started.
How are locks programmed?
Locks are programmed through infrared communication between the
M-Unit and the Oracode locks.
What is the warranty?
Two Years
How is the M-Unit charged?
The Oracode M-Unit can either be charged when connected to a computer
using a USB cable or with a USB cable and adaptor (included in the M-Unit
kit).
What are the part numbers?
For use with 220-240 volt, order MUNIT-11-120
For use with 110-120 volt, order MUNIT-11-110
M-Unit
Kaba's M-Unit is a user-friendly portable
programming and auditing device.
For further information please call toll free, 1.877.468.3555 or visit our website www.kabalodging.com
To check out our online store go to www.ilcostore.com
22
Remote Access Controller
23
Control Panel Features
• Fire alarm panel interface
• Power supply in the controller panel
• Programmable access time delay from 1 second to
2 min
• Distance from reader to controller box up to 492
feet (150 m)
• Audit memory of last 1,000 transactions
• Auto-Lock/Unlock Time Zone, Guest Time Zone,
Staff Time Zone
• Single relay for individual doors
Options for RAC 660G XT
• Tamper protected panels
• Panel status indicators – AC power, battery status
• Programming and auditing from up to 100 feet
(30 m) from the control panel
• Rechargeable battery back up option, four hours
stand-by, fully powered
• Eight (8) relay outputs for elevator applications
• Dual reader option for egress/ingress access
control
• Remote Programming Interface
A Remote Access Controller (RAC) is a device that operates a special access point, such as an elevator, parking entrance
or any other door requiring an electric strike or electro-magnetic lock.
The controller box is concealed in a utility space behind a wall or ceiling with a key-locked cover to prevent tampering.
The keypad is connected to the controller box that is mounted in a convenient location, such as within a driver’s reach at
the entrance to a garage or beside an elevator call button. When a user enters a code, the controller (programmed with
user access information) grants or denies access according to their privileges. Parking garages can be set up using the
RAC so that only authorized users can enter the garage through pedestrian doors (protected by a lock or exit device
operator) and use the garage doors.
The controller maintains an audit trail and provides other features, including programmable access times and
emergency unlocking of doors when signaled by a fire alarm. In addition, flexible time zones offer greater customization
for controlling access to public areas by staff and guests. The RAC is available in two packages the RAC 660G (a low
cost, simple solution) and the RAC 660G XT (an extendable total access control solution).
Certification
• Certified to the UL294 standard
• Certified to the CSA 22.2 No. 205 standard
• Interfaces with fire panels meeting NFPA 101 fire access
alarm standard
• Meets FCC and CE requirements
Power
• Input power: 120VAC, 60Hz (North America) or 230VAC,
• 50Hz (International)
• Output power: 12 VDC, 0.75 AMP for electric strike or
electro-magnetic lock
Dimensions and Weight
660G: 8 ½" h x 7 ¼" w x 2" d (216 h x 184 w x 51 mm d),
3.5 lbs. (1.6 kg)
660G XT: 13 ½" h x 12 ⅜" w x 3 ¼" d
(343 h x 314 w x 83 mm d), 14 lbs. (6.4 kg)
Remote Programming Interface: 4 3⁄16" h x 4 3⁄16" w x 2 1⁄16" d
(106 mm h x 106 mm w x 52 mm d), 1 ¼ lbs. (0.6 kg)
Environmental Operating Conditions
• The controller box is intended for indoor use
• 32º F to 120º F (0 º C to 49º C)
Remote Access Controller
Features RAC 660G RAC660G XT
Single relay output Standard Standard
Variable access delay Standard Standard
Power failure 3-day auto-recovery; real time clock (RTC) Standard Standard
Infared (IR) serial programming and auditing Standard Standard
Relay bypassing (passage function) Standard Standard
Keypad (ingress) Standard Standard
Unlock delay programmable by dip switches Standard Standard
Tamper alarm input N/A Standard
Fire alarm input Standard Standard
Power status LEDs feedback N/A Standard
Battery back-up N/A Optional
Keypad (egress) N/A Optional
Remote unlock input Optional Optional
Request to exit (Rex) input Optional Optional
24
RAC 660G RAC 660G XT
Remote Access Controller
660G
Example
Build the model number with the desired options
Choose One Option from Each Category
Series Description
C62 Remote Access Controller 660G
Configuration Description
S Single Keypad
Keypad 1 Description
22 x 6
33 x 4
Cable Length Description
A15 ft. (Standard)
B25 ft.
C50 ft.
D75 ft.
E100 ft.
Keypad 2 Description
N None Available (only on 660G XT)
Track Description
N None
Keyswitch Description
N None
Power Supply Description
1North America 126-511910
2 International 126-511896
Series Description
C62 Remote Access Controller 660G
SERIES CONFIGURATION KEYPAD 1 KEYPAD 2 TRACK KEYSWITCH POWER SUPPLYCABLE LENGTH
25
Remote Access Controller
600G XT
Example
Build the model number with the desired options
Choose One Option from Each Category
Series Description
C63 Remote Access Controller 660G XT
Configuration Description
D Two keypads ready
Keypad 1 Description
22 x 6
33 x 4
Cable Length Description
A15 ft. (Standard)
B25 ft.
C50 ft.
D75 ft.
E100 ft.
Keypad 2 Description
22 x 6
33 x 4
N None
Track Description
N None
Keyswitch Description
N None
Power Supply Description
1North America 126-511910
2 International 126-511896
Battery Backup Description
N None optional
B With battery
P Battery ready (battery not included)
Remote Programming
Interface Description
N None
Relay Expansion Description
N None
Series Description
C63 Remote Access Controller 660G XT
SERIES CONFIGURATION KEYPAD 1 KEYPAD 2 TRACK KEYSWITCH POWER
SU PPLY
BATTERY
BACKUP
REMOTE
PROGRAMMING
INTERFACE
RELAY
EXPANSION
CABLE LENGTH
26
Lock Accessories
Decorative Plates
Narrow 14" (356 mm) X 3¼" (82.5 mm)
Location Finish Plate Number Availability
Indoor/Outdoor Stainless Steel 061-511461-630 (long) Stock
Indoor/Outdoor Oil-rubbed Bronze 061-511461-743 Stock
Standard 14" (356 mm) X 4⅝" (117 mm)
Location Finish Plate Number Availability
Indoor/Outdoor Stainless Steel 061-513071-630 Stock
Indoor/Outdoor PVD Satin Brass 061-513071-906 Stock
Long 17½" (445 mm) X 4⅝” (117 mm)
Location Finish Plate Number Availability
Indoor Satin Brass 062-513073-606 Stock
Indoor/Outdoor Stainless Steel 062-513073-630 Stock
Indoor/Outdoor PVD Satin Brass 062-513073-906 Stock
Decorative Plates Compatible with 660 Series
Plated Cold Rolled Steel, Solid Brass, Stainless Steel.
Mounting screws and washers included where applicable. All plates are 1⁄32" (0.8 mm) thick. Compatible with mortise
(ASM, ESM) and cylindrical lock.
* Decorative plates can only be used on the front housing for Exit Device Operator Model 630
STOCK: Standard stock item. Three weeks lead time might apply if you order more than 200 of each item.
CUSTOM: Four weeks lead time might apply. Must validate price for each order before quoting customer.
Narrow Standard Long
27
Lock Accessories
Decorative Plates
Long & Wide 17½" (445 mm) X 6⅞" (175 mm)
Location Finish Plate Number Availability
Indoor Left Hand Satin Brass 062-513074-L606 Stock
Indoor Right Hand Satin Brass 062-513074-R606 Stock
In/Outdoor Left Hand Stainless Steel 062-513074-L630 Stock
In/Outdoor Right Hand Stainless Steel 062-513074-R630 Stock
In/Outdoor Left Hand PVD Satin Brass 062-513074-L906 Custom
In/Outdoor Right Hand PVD Satin Brass 062-513074-R906 Custom
Retrofit Plate 101⁄16" (256 mm) X 3¾" (95 mm). Suggested for System 700 Lock retrofit.
Location Finish Plate Number Availability
Indoor/Outdoor Stainless Steel 061-513072-630 Stock
Indoor/Outdoor PVD Black 061-513072-922 Stock
Indoor/Outdoor PVD Satin Brass 061-513072-906 Stock
Retrofit Plate 10¼" (260 mm) X 3¼" (82.5 mm)
Location Finish Plate Number Availability
Indoor Stainless Steel 061-511460-630 Stock
Wrap 1¾" (44 mm) X 1511⁄16" (399 mm) X 5½" (140 mm). Standard (AMM) Mortise 1¼" face plate.
Location Finish Plate Number Availability
Indoor Satin Brass 062-513075-906 Stock
Indoor/Outdoor Stainless Steel 062-513075-630 Stock
Wrap 1⅜" (35 mm) X 15½" (394 mm) X 5½" (140 mm). Standard (ASM) Mortise 1" face plate.
Location Finish Plate Number Availability
Indoor Satin Brass 062-510206-606 Custom
Indoor/Outdoor Stainless Steel 062-510206-630 Custom
Wrap 1¾ " Cylindrical, 2¾" Backset 061-513922-605 Stock
Wrap 1¾ " Cylindrical, 2¾" Backset 061-513922-630 Stock
Wrap 1¾ " Cylindrical, 2⅜" Backset 061-514227-630 Stock
Decorative Plates Compatible with 660 Series
Plated Cold Rolled Steel, Solid Brass, Stainless Steel.
Mounting screws and washers included where applicable. All plates are 1⁄32" (0.8 mm) thick. Compatible with mortise
(ASM, ESM) and cylindrical lock.
Retrofit Plate Retrofit Plate Wrap Plate Wrap Plate
Long and Wide
STOCK: Standard stock item. Three weeks lead time might apply if you order more than 200 of each item.
CUSTOM: Four weeks lead time might apply. Must validate price for each order before quoting customer.
28
Lock Accessories
Strikes
Standard Mortise Stike
All strikes include mounting screws
For strikes only, omit the “K” from the product number
Left Hand Reverse Door requires Right Hand Strike
Right Hand Reverse Door requires Left Hand Strike
Finishes to match locks.
All strikes include mounting screws
For strikes only, omit the “K” from the product number
AMM Strike Finish Part Number
AMM 12" (305 mm) Dust box not included Satin Brass 041-512197-606K (LH)
AMM 12" (305 mm) Dust box not included Stainless Steel 041-512197-630K (RH)
AMM 12" (305 mm) Dust box not included Satin Brass 041-512198-606K (LH)
AMM 12" (305 mm) Dust box not included Stainless Steel 041-512198-630K (RH)
Smoke Seal 4⅞" (124 mm) Dust Box not included, Left Hand Satin Brass 041-508275-606K
Smoke Seal 4⅞" (124 mm) Dust Box not included, Right Hand Satin Brass 041-508276-606K
Smoke Seal 4⅞" (124 mm) Dust Box not included, Left Hand Stainless Steel 041-508275-630K
Smoke Seal 4⅞" (124 mm) Dust Box not included, Right Hand Stainless Steel 041-508276-630K
ESM Mortise Strike
ESM 7¼" (180 mm) with deadbolt, Universal (Reversible) Satin Brass 041-510141-606K
ESM 7¼" (180 mm) with deadbolt, Universal (Reversible) Stainless Steel 041-510141-630K
Cylindrical Strike
Strike 2¾" (70 mm) Dust box not included, T-Strike Satin Brass 032-512389-606
Strike 2¾" (70 mm) Dust box not included, T-Strike Satin Chrome 032-512389-626
4⅞" Strike (124 mm) Dust box not included, ASA Satin Brass 204119-606-K
4⅞" Strike (124 mm) Dust box not included, ASA Satin Chrome 204119-626-K
Standard 4⅞" Strike Finish Part Number
*Standard 4⅞" (124 mm) Left Hand Satin Brass 504131-606-K
*Standard 4⅞" (124 mm) Right Hand Satin Brass 504132-606-K
*Standard 4⅞" (124 mm) Left Hand Stainless Steel 504131-630-K
*Standard 4⅞" (124 mm) Right Hand Stainless Steel 504132-630-K
Extended Lip 4⅞" Strike
Extended Lip 4⅞" (124 mm) Left Hand Satin Brass 502815-606-K
Extended Lip 4⅞" (124 mm) Right Hand Satin Brass 502816-606-K
Extended Lip 4⅞" (124 mm) Left Hand Stainless Steel 502815-630-K
Extended Lip 4⅞" (124 mm) Right Hand Stainless Steel 502816-630-K
Long 6¾" Strike
Long 6¾" (171 mm) Left Hand Satin Brass 502780-606-K
Long 6¾" (171 mm) Right Hand Satin Brass 502781-606-K
Long 6¾" (171 mm) Left Hand Stainless Steel 502780-630-K
Long 6¾" (171 mm) Right Hand Stainless Steel 502781-630-K
Extra Long 8½" Strike
Extra Long 8½" (216 mm) Right Hand Satin Brass 506102-606-K
Extra Long 8½" (216 mm) Left Hand Satin Brass 506103-606-K
Extra Long 8½" (216 mm) Right Hand Stainless Steel 506102-630-K
Extra Long 8½" (216 mm) Left Hand Stainless Steel 506103-630-K
AMM 12" Smoke Seal
4⅞"
Standard 4⅞" Extended Lip 4⅞" Long 6¾" Extra Long 8½"
ESM 7¼" Cylindrical
ASA Strike 4⅞"
Cylindrical
T-Strike 2¾"
29
Lock Accessories
Miscellaneous Plates
Door Filler Plates
Description Part Number
2¾" x 1⅛" (70 x 29 mm) Prime Coat Steel 061-507858
2¼" x 1⅛" (57 x 24 mm) Prime Coat Steel 061-507857
2¼" x 1⅛" (57 x 29 mm) Brass Plated Steel 061-507856
Hole Filler Plates
Description Part Number
2⅜" (60 mm) Diameter Silver Coated 061-507860
2⅜" (60 mm) Diameter Brass Plated Steel 061-507859
Deadbolt Wrap-Around Plate
Description Part Number
Stainless Steel Stainless Steel 061-507862
Latch Extension (only for cylindrical lock)
For 5" (127 mm) backset (without Kick-Off feature) 118-511933
For 5" (127 mm) backset (without Kick-Off feature) (with instructions) 062-511901
30
Lock Accessories
Miscellaneous Compatible with Oracode 660 Series
Description Part Number
Outdoor Kit
Includes: Outside housing gasket, Stainless Steel battery holder screw
062-510180
ADA Thumbturn Adapter – Black Finish
Suggested for handicap adapted rooms
062-510211-622
ESM Face Plates
13⁄16” (20 mm) round faceplate
With deadbolt cutout
Without deadbolt cutout
29⁄32" (23 mm) round faceplate
With deadbolt cutout
Without deadbolt cutout
13⁄16" (20 mm) square faceplate
With deadbolt cutout
Without deadbolt cutout
Replace XXX by 626 (Satin Chrome) or 606 (Satin Brass)
128/508593-DXXX
128/508593-OXXX
128/508595-DXXX
128/508595-OXXX
128/508594-DXXX
128/508594-OXXX
Thick Door Kit (660)
Includes: (3) mounting screws, (1) lock lever spindle and (1) thumbturn spindle
For door thickness 2½" - 3¾" (66 mm-95 mm)
Replace XXX by 606 for Satin Brass or 626 for Satin Chrome
062-512868-xxx
Torx Bit (T-15)
For battery holder screw
138-510294
Mortise Stabilizer Bracket
Hollow Metal Door 1¼" (31 mm)
Hollow Metal Door 1" (25 mm)
50567701045
505677101045
Deluxe Screw Cover (Set for two (2) locks)
Includes: screw, washer, snap screw retaining ring, snap screw cap
Chrome
Brass
For standard door thickness only
062-510852-CR
062-510852-BR
ASM Reverse Handing Tool
For use when changing the handing of reversible ASM (set of 2)
027-510382-K
Tool to Remove 660 Lever
For 660 Electronic and key override
138-510576
Spare Parts Box for Oracode Lock with Mechanical Override
Long Lever
Short Lever
Includes: Spindle (2), turn knob spindle (2), mounting screw (6), battery holder screw (5),
battery holder and batteries (3), Allen key ⅛", tool to remove outside lever (1), springs (8),
Torx bit, spanner bit, outside Levers (2), Caps (4), Plugs for “K” cores (4)
ASM Reverse Handing Tool (1)
Replace XXX by 626 (Satin Chrome) or 606 (Satin Brass)
062-511010A3XXX
062-511010A4XXX
Drill Plates
Description
Part Number
Oracode 660
Set of drilling plates ASM, ESM Right and Left Hand
Used as Replacement Part for the installation jig below
138-510192
Installation Jig
Description
Part Number
Oracode 660 Steel Installation Jig equipped with drill plate for ASM 138-510190
Oracode 660 Steel Installation Jig equipped with drill plate for ESM 138-510191
Oracode 660 Light Duty Jig Includes: Drill plate for System 660 Lock Retrofit (ASM) 138-510193
31
Lock Accessories
Wood Mounts and Demo Locks
Wood Mount for Lock All wooden mounts are pre-cut and assembled.
Description Part Number
Oracode 660 ASM 1¼" 050-514159-5
Oracode 660 ESM 20 mm 050-514159-4
Oracode 660 Cylindrical 050-514159-6
Oracode 460 050-514159-8
Oracode 660K with KIL – Lock Demo Wood Stand, Override: Lori K-I-K core with entry key
Description Finish Lever Part Number
ASM 1¼" Oceanfront Satin Chrome Long 6641021KR10-U26
ASM 1¼" Oceanfront Oil-rubbed Bronze Long 6641021KR10-U13
Cylindrical: 2¾" Satin Chrome Long 6645021KR10-626
Oracode 660i with KIL – Lock Demo Wood Stand, Override: Lori K-I-K core with entry key.
Includes Oracode Smart Controller.
Description Finish Lever Part Number
ASM 1¼" Oceanfront Satin Chrome Long 664W1021KR10-U26B
Cylindrical: 2¾" Oceanfront Satin Chrome Long 664W5021KF10-U26B
Oracode 480i with KIL – Lock Demo Wood Stand, Override: Lori K-I-K core with entry key.
Includes Oracode Smart Controller.
Description Finish Part Number
Deadbolt Oceanfront Oil-rubbed Bronze 484W6021KF10+U13B
Deadbolt Oceanfront Satin Chrome 484W6021KF10+U26B
32
660 Lock Replacement Parts
6
2
6
10
3
6
4a
4c
4d
Key Override Model
4b
1
9
8
2a
11
5
4
5a
7
6
2b
See pages 30-34 for product descriptions and ordering numbers
33
660 Lock Replacement Parts
Outside Lock Housing
Includes: Complete front housing, battery holder,
alkaline batteries, and battery screw.
Choose One Option from Each Category
Lock Type Description
F66
Keypad Description
2 Metal
Lever Description
0 None
1 Long
2 Short
Override Description
K Key-in-knob
0
1
C Common Door
0
N
S Storeroom Lock
Model Description
– New standard model
Z Refurbished (if available in inventory)
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Series Description
F66 Outside Lock Housing
Example
Build the model number with the desired options
/ 0 0
LOCK TYPE KEYPAD OVERRIDE MODEL FINISHLEVER
1
34
660 Lock Replacement Parts
Choose One Option from Each Category
Model Description
M76
Latch Type Description
A ASM Mortise
E ESM Mortise
Faceplate Description
1 1¼" (32 mm), reversible handing (ASM mortise only)
2 1" (25 mm), no reversible handing (ASM mortise only)
0 None (see lock accessories page for ordering)
3 Round 20 mm (ESM mortise only)
4 Square 20 mm (ESM mortise only)
5 Round 23 mm (ESM mortise only)
Deadbolt Description
D With Deadbolt
K Without Deadbolt, With Kickoff
T Auto-deadbolt (ASM mortise only)
Handing Description
L Left or Right Hand Reverse
R Right or Left Hand Reverse
F Dual Handed (L & R), Left Hand Reverse, Right Hand Reverse (X & Y)
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
000 Faceplate not included (ESM only)
Refurbished Description
2If Available
Series Description
M76 Mortise
Example
Build the model number with the desired options
M 7 6 – 1 –
MODEL LATCH
TYPE
DEADBOLT HANDING FINISH REFURBISHEDFACEPL ATE
Mortise
Includes: Mounting screws, faceplate, faceplate screws, (strike not included)
2
ASM Mortise ESM Mortise
35
660 Lock Replacement Parts
Cylindrical Drive and Latch
Includes: Cylindrical drive, latch, spacer screws, spacer and
gasket for different door thicknesses.
Spring and storeroom function locking screw and washer for
inside housing.
Choose One Option from Each Category
Lock Type Description
C76
Latch Description
0 No latch – 2¾" and 2⅜" backset
1 Standard – ½" (13 mm), 2 ¾" (70 mm) backset
2 Special – ½" (13 mm), 2 ⅜" (60 mm) backset (Not UL Rated)
Handing Description
0 Dual handed, field reversible
Backset Description
1 2 ¾" (60 mm)
2 2 ⅜" (70 mm)
N
–
Finish Description
U06 Oceanfront Satin Brass
U26 Oceanfront Satin Chrome
U13 Oceanfront Oil-rubbed Bronze
Series Description
C76 Cylindrical Drive and Latch
Example
Build the model number with the desired options
N –
LOCK TYPE HANDING BACKSET FINISH-LATCHLATCH
2a
2b
36
660 Lock Replacement Parts
Item Description Part Number
Latch
½" (13 mm) 2¾" (70 mm) backset 032-512392-XXX
½" (13 mm) 2⅜" (60 mm) backset (not UL fire rated) 032-512391-XXX
Replace XXX by finish: Satin Brass (606), Satin Chrome (626).
Inside Lock Housing for Mortise Version
Trim Plate with Long Lever B76/P1EN10-XXX
Trim Plate with Short Lever B76/P2EN10-XXX
Trim Plate with Knob
Inside Lock Housing for Auto-deadbolt/ Mortise version B76/T1Ex10-XXX
(R or L)
Inside Lock Housing for Auto-deadbolt/ Mortise version B76/T2Ex10-XXX
(R or L)
Inside Lock Housing for Cylindrical Version
Trim Plate with Long Lever & Privacy / Office
mechanism B76/C1EN10-XXX
Trim Plate with Short Lever & Privacy / Office
mechanism B76/C2EN10-XXX
Trim Plate with Knob
Replace XXX by finish. (Satin Brass (606), Satin Chrome (626)
Add a Z at the end of finish if a refurbished housing is required (if available in inventory)
2b
3
37
660 Lock Replacement Parts
Item Descripton Part Number
Outside Lever Long 062-510983-1XXX
Outside Lever Short 062-510983-2XXX
Includes: Lever, catch assembly and nylon bearing. Replace XXX by desired finish.
Catch Assembly and Nylon Bearing Pack (for Electronic overrides) (10 / pk) 062-510510-K
Outside Lever
Lori Override Long 062-510783-XXX
Outside Lever
Lori Override Short 062-510908-XXX
Includes: Lever, nylon bearing, cylinder plug, spring washer, Kaba cap
Cylinder Plug, nylon bearing and spring washer pack, K Lever Lock 062-511446
Cap (10/pack) Black Kaba Logo 062-510804-2
Battery Holder Includes: (3) battery holder, Torx screws,
no batteries 118-509978-K
Batteries 9 Alkaline AA batteries 132-505601-K
Spanner Screw for Higher Security Includes: 3 Spanner screws, Hex bit 062-511915
Battery Holder Screw Pack Spanner (10 / pack) 810-510182-K
Battery Holder Screw Pack Tork (10 / pack) 810-511898-K
Hardware Bag (Screws and Spindles)
Includes: Thumbturn (hex) spindle, Square spindle, Torx-head battery screw, compression spring
(1) 1 lever extension spring, 3 mounting screws (10 – 24, ⅛" Hex head)
Standard Door Thickness 1⅜" – 2½"
(35 mm – 66 mm) 062-510261-A626
Thick Door > 2½" – 3¾" (67 mm - 95 mm)
Includes 3 mounting screws (1⅛" Hex head) 062-510189-xxxK
Washer Kit 660/760/790/79M/RT/E-Plex "E" Outside Levers (parts for 10 levers) 062-515218-E
Washer Kit 660/760/790/79M/RT/E-Plex "K" Outside Levers 062-515218-K
Note: Thin, Thick and wavy washers to improve fit.
Replace XXX by desired finishes: Satin Brass (606), Satin Chrome (626) H66-CNKN20-606
For Oracode 662 with privacy feature use Hardware bag (screws and spindles) H66-CNKN20-626
4
4 4a 4b 4c 4d 5a 5
4a
4b
4c
4d
5a
5
38
460 Lock Replacement Parts
ITEM NUMBER DESCRIPTION PART NUMBER
1 PROTECTIVE CAP KIT 460K BLACK 062-514077-BK
PROTECTIVE CAP KIT 460K GOLD 062-514077-GD
PROTECTIVE CAP KIT 460K SILVER 062-514077-SR
2 OUTSIDE TURN KNOB oceanfront SATIN CHROME KBEDBCO0040-626
OUTSIDE TURN KNOB oceanfront OIL-RUBBED BRONZE KBEDBCO0040-742
3 BUSHING KB-EDBCO-0050
4 OUTSIDE HOUSING oceanfront SATIN CHROME KBEDBCO0010-626
OUTSIDE HOUSING oceanfront OIL-RUBBED BRONZE KBEDBCO0010-742
5 STOP PLATE SPRING KB-EDBCO-0080
6 STOP PLATE KB-EDBCO-0060
7 RETAINING RING KB-EDBCO-0070
8 GASKET BUTTON KB-EDBCO-0260
9 LED COVER BUTTON KB-EDBCO-0480
10 BUTTON CAP KIT 460 062-514890
11 460 PCB FIELD REPLACEMENT KIT 064-514238
12 TOP PLATE KB-EDBCO-0150
13 DRIVE HUB KB-EDBCO-0120
14 CLUTCH DISK KB-EDBCO-0110
15 COMPRESSION SPRING KB-EDBCO-0140
16 ENGAGIN PIECE KB-EDBCO-0130
17 DETECTION HUB KB-EDBCO-0100
18 DRIVEN HUB KB-EDBCO-0090
19 PLAIN WIRE RING KB-EDBCO-0290
20 CLUTCH AND OVERRIDE SWITCH ASSY KB-EDBCO-A011
39
460 Lock Replacement Parts
ITEM NUMBER DESCRIPTION PART NUMBER
21 CLUTCH GEAR KB-EDBCO-0170
22 CLUTCH SPRING KB-EDBCO-0180
23 CLUTCH ARM KB-EDBCO-0160
24 MOTOR AND GASKET ASSY 460 062-514891
25 PUSH ON FASTENER KB-EDBCO-0380
26 CYLINDER GASKET KB-EDBCO-0330
27 BACK SUPPORT KB-EDBCO-0020
28 NYLON WASHER KB-EDBCO-0250
29 POST 12-24 NC KB-EDBCO-0240
30 OUTSIDE SLEEVE KB-EDBCO-0230
31 BACK PLATE KB-EDBCO-0030
32 CYLINDER CORE ASSY KIT 460K 062-514076
33 TAIL PIECE: DOOR 1⅜ "- 2⅛" THK KB-EDBCO-0280-1
TAIL PIECE: DOOR 2⅛ "- 2½" THK KB-EDBCO-0280-2
34 WEATHER GASKET KIT 460K 062-514078
35 BACK PLATE KB-EDBCO-0310
36 SPLIT LOCK WASHER ¼" SCREW KB-EDBCO-0740
37 MOUNTING SCREW DR THK 1⅜" - 2" KB-EDBCO-0350-1
MOUNTING SCREW DR THK 2⅛" - 2½" KB-EDBCO-0350-2
38 INSIDE SLEEVE KB-EDBCO-0320
39 CONICAL SPRING KB-EDBCO-0210
40 CELL CASE ASSEMBLY KB-EDBCO-A008
41 PLASTIC COVER KB-EDBCO-0520
42 PAN HEAD TAPPING SCREW KB-EDBCO-0660
43 INSIDE HOUSING COVER ASSY KBEDBCOA014-605
INSIDE HOUSING COVER ASSY SATIN CHROME KBEDBCOA014-626
INSIDE HOUSING COVER ASSY OIL-RUBBED BRONZE KBEDBCOA014-844
44 FLAT HD SCREW 6-32 X ¾" (13.05 MM) KBEDBCO03603605
FLAT HD SCREW 6-32 X ¾" (13.05 MM) STAINLESS STEEL KBEDBCO03603630
FLAT HD SCREW 6-32 X ¾" (13.05 MM) OIL-RUBBED BRONZE KBEDBCO03603743
45 DEADBOLT LATCH ASSY 460K STAINLESS STEEL KBEDBCOA006-626
46 STRIKE PLATE KIT 460K STAINLESS STEEL 032-514075-630
40
460 Lock Replacement Parts
Description Part Number
Tailpiece Kit 460 2 ⅛" – 2 ½" Door 5 Per Pack 062-514079-1
Tailpiece Kit 460 1⅜" – 2 ⅛" Door 5 Per Pack 062-514079-2
Inside Plate Batt. Assy 118-514190
Inside HSG Cover/Turnknob 460K, Oceanfront Oil-rubbed Bronze 118-512343-CU13
Inside HSG Cover/Turnknob 460K, Oceanfront Satin Chrome 118-512343-CU26
Front Housing 460K Elect. Lock, Oil-rubbed Bronze KB-EDBCO-A003-613
Front Housing 460K Elect. Lock, Satin Chrome KB-EDBCO-A003-626
Built in Shop
Inside Housing For 460 Lock, Oceanfront Oil-rubbed Bronze B46/P1KN10-U13
Inside Housing For 460 Lock, Oceanfront Satin Chrome B46/P1KN10-U26
Front Housing Elect. 460K Lock, Oceanfront Oil-rubbed Bronze F46/21KN10N-U13
Front Housing Elect. 460K Lock, Oceanfront Satin Chrome F46/21KN10N-U26
41
480i Lock Replacement Parts
42
NO. PART NUMBER QT Y. DESCRIPTION
1 062-514077-BK 1 PROTECTIVE CAP KIT 480K BLACK
2 KB-EDBCO-0040 1 OUTSIDE TURN KNOB
3 KB-EDBCO-0050 1 BUSHING
4 KB-EDBCO-0010 1 OUTSIDE HOUSING
5 KB-EDBCO-0080 1 TORSION SPRING
6 KB-EDBCO-0060 1 STOP PLATE
7 KB-EDBCO-0070 2 RETAINING RING
8 KB-EDBCO-0260 1 BUTTON'S GASKET
9 KB-EDBCO-0480 1 LED COVER BUTTON
10 062-514890 1 BUTTONS CAP KIT 460 - 480
11 064-514238 1 460 - 480 PCB FIELD REPLACEMENT KIT
12 KB-EDBCO-0900 1 TOP PLATE
13 KB-EDBCO-0120 1 DRIVE HUB
14 KB-EDBCO-0110 1 CLUTCH DISK
15 KB-EDBCO-0140 1 COMPRESSION SPRING
16 KB-EDBCO-0130 1 ENGAGING PIECE
17 KB-EDBCO-0100 1 DETECTION HUB
18 KB-EDBCO-0890 1 DRIVEN HUB
19 KB-EDBCO-0290 1 PLAIN WIRE RING
20 KB-EDBCO-A025 1 CLUTCH AND OVERRIDE SWITCHES ASS'Y
21 KB-EDBCO-0170 1 CLUTCH GEAR
22 KB-EDBCO-0180 1 TORSION SPRING
23 KB-EDBCO-0160 1 CLUTCH ARM
24 062-514891 1 MOTOR & GASKET ASS'Y 460 - 480
25 KB-EDBCO-0380 1 PUSH ON FASTENER
26 KB-EDBCO-0330 1 CYLINDER GASKET
43
27 KB-EDBCO-0880 1 BACK SUPPORT
28 KB-EDBCO-0910 1 PLASTIC JACKET
29 KB-EDBCO-0800 1 WIRE SADDLE
30 KB-EDBCO-0820 2 SCREW POST
31 KB-EDBCO-0810 1 BACK PLATE OUTSIDE HOUSING
32 062-514076 1 CYLINDER CORE ASSY KIT 460 - 480
33 KB-EDBCO-0280 1 TAIL PIECE DOOR 1 3/8" TO 2"
34 062-515744 1 WEATHER GASKET KIT 480
35 KB-EDBCO-0920 1 INSIDE TRIM BACK PLATE
36 KB-EDBCO-0740 1 SPLIT LOCK WASHER, SS, NO. 12
37 KB-EDBCO-0350-3 1 MACHINE SCREW, PAN HEAD, SS, PH #3, 12-24 X 1 1/4"
38 KB-EDBCO-0830 1 MACHINE SCREW, SS 304, PAN HD, PH #1, M3 X 0.5 X 3mm
39 118-514389-V 1 ANTENNA HOLDER ASSY
40 KB-EDBCO-A023 1 CELL CASE ASS'Y 3X AA
41 062-515743 1 SCREW KIT FOR 1 3/8" - 2" THK DOOR
42 062-515742 1 SCREW KIT FOR 2" - 2 1/2" THK DOOR
43 KB-EDBCO-A014 1 INSIDE COVER
44 KB-EDBCO-0360-3 1 MACHINE SCREW, FLAT HEAD, SS 304, PH # 2; 6-32 X 19.05
45 KB-EDBCO-A006-626 1 DEADBOLT LATCH ASS'Y 480K STAINLESS STEEL
46 032-514075-630 1 STRIKE PLATE KIT 480K STAINLESS STEEL
480i Lock Replacement Parts
dormakaba Canada, Inc.
7301 Boul Décarie
Montréal QC H4P 2G7
Canada
1-877-468-3555
M3400_01/18

Navigation menu
