A Tyco International Company

North AmericA

ProDUct GUiDe 2010/11

Founded in 1986, Kantech (part of Tyco Security Products) designs, markets

and supports integrated access control technologies that are ready to use right

out of the box. Kantech’s solutions provide a compact, entry-level solution for

smaller businesses while the EntraPass access control software combines

with the powerful KT-300 or KT-400 door controllers to provide enhanced

capabilities for enterprise scale applications. For additional convenience and

security, Kantech solutions can easily link to American Dynamics Intellex digital

video management systems to provide an integrated access control and video

solution. Kantech also offers out-of-the box integration with intrusion detection

and telephone entry systems. All managed from a uniﬁed software package.

For more information on Kantech access control technologies,

visit www.kantech.com

EntraPass Security Software

EntraPass Comparison Chart ....................................6

EntraPass Special Edition ......................................7

EntraPass Corporate Edition ...................................10

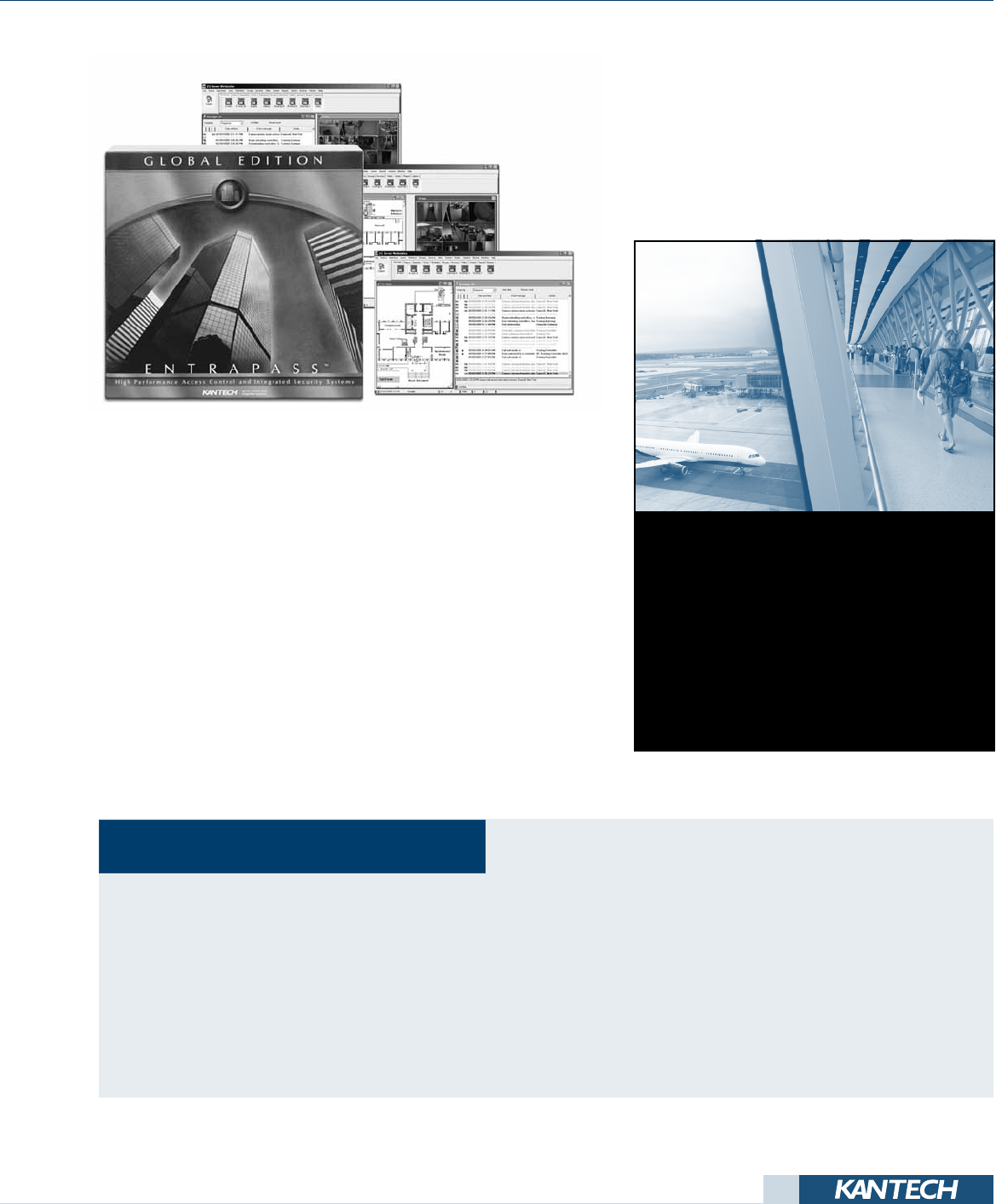

EntraPass Global Edition ......................................13

EntraPass Kantech Advantage Program (KAP) . . . . . . . . . . . . . . . . . . . . . . 16

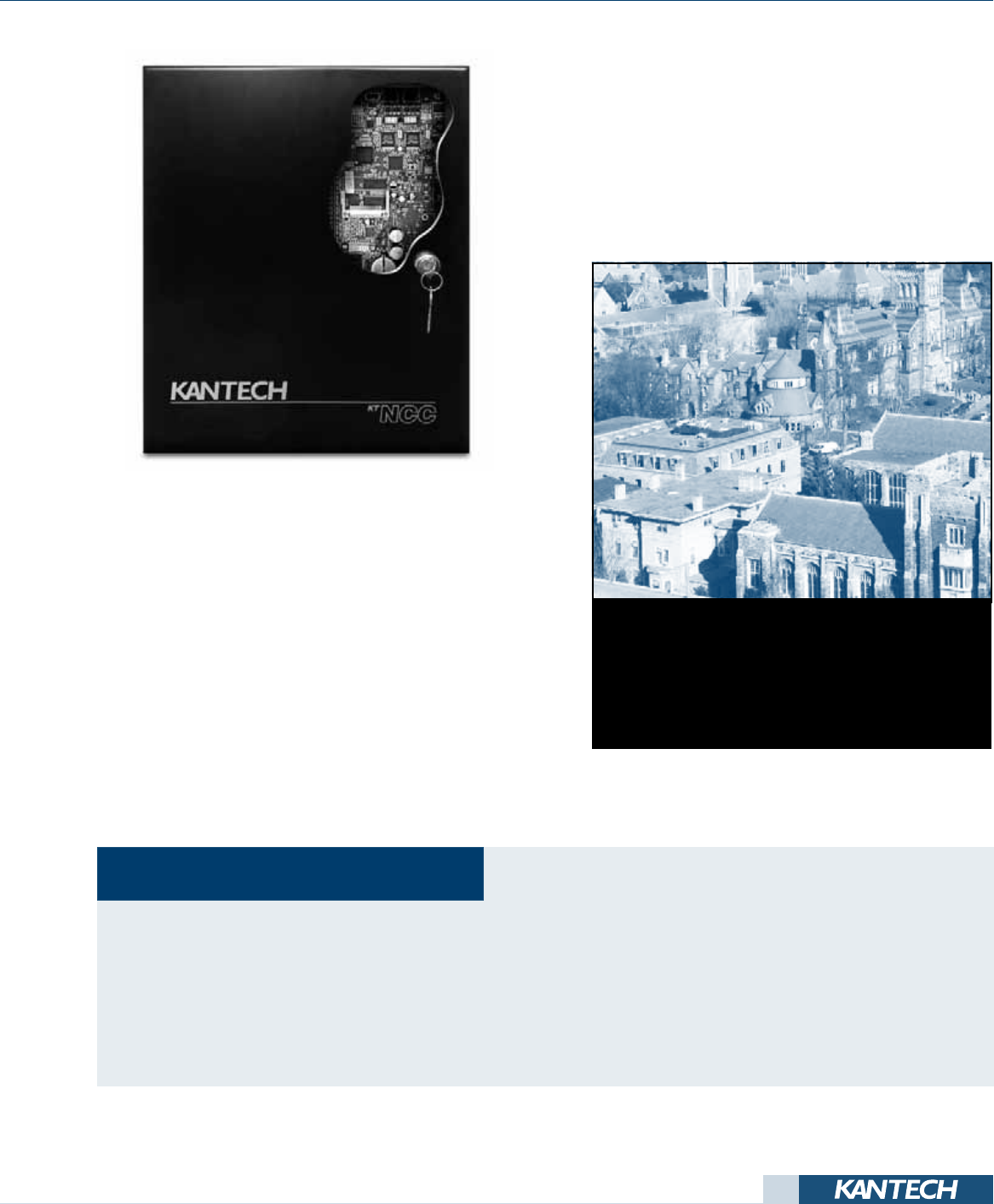

KT-NCC (Network Communication Controller) . . . . . . . . . . . . . . . . . . . . . . 17

EntraPass Advanced Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Door Controllers

KT-400 Door Controller ........................................... 25

KT-300 Door Controller ........................................... 28

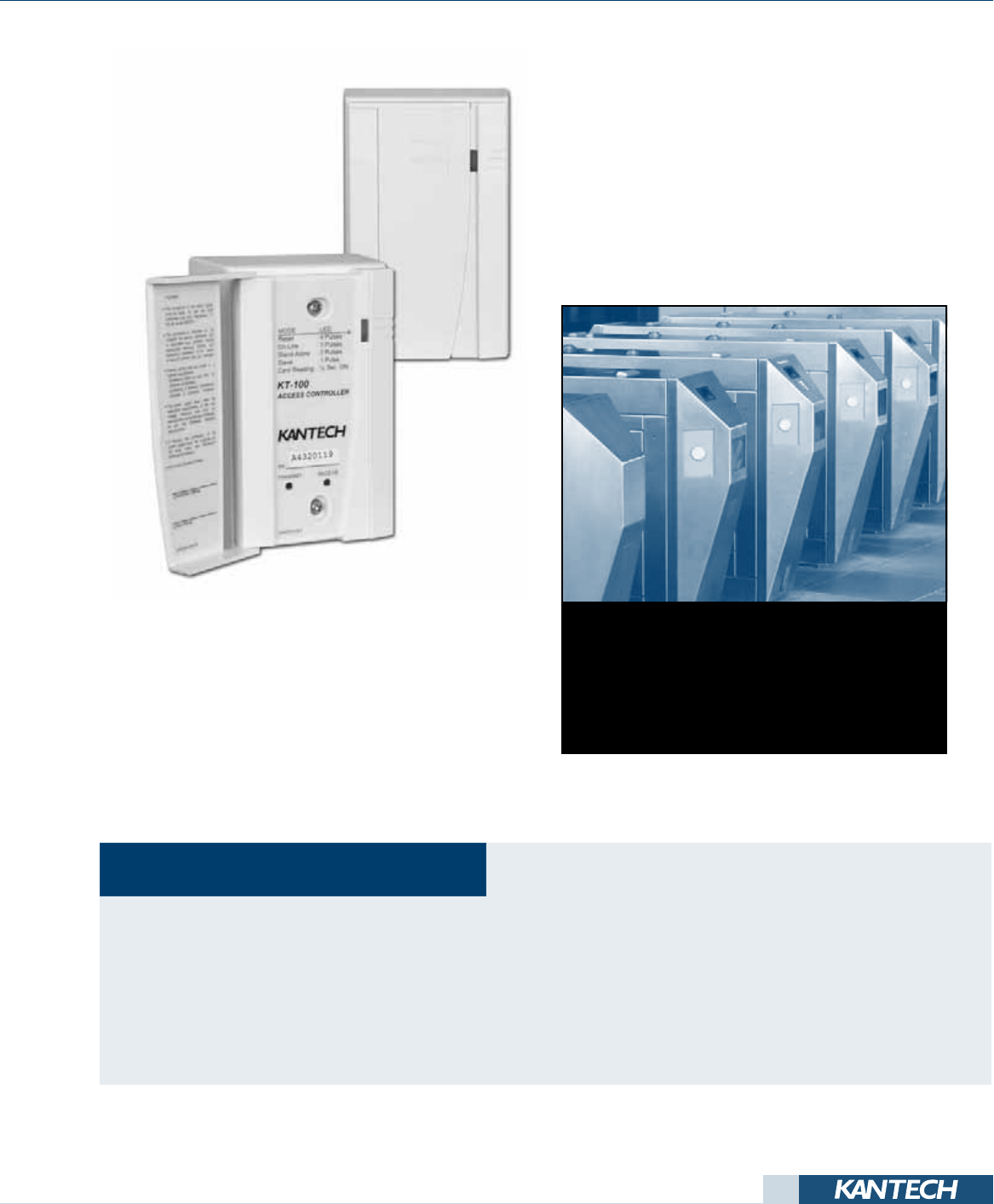

KT-100 Mini Door Controller ....................................... 31

ioPass Stand-Alone Door Controller/Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

KT-300 & KT-400 Demo Kit ........................................34

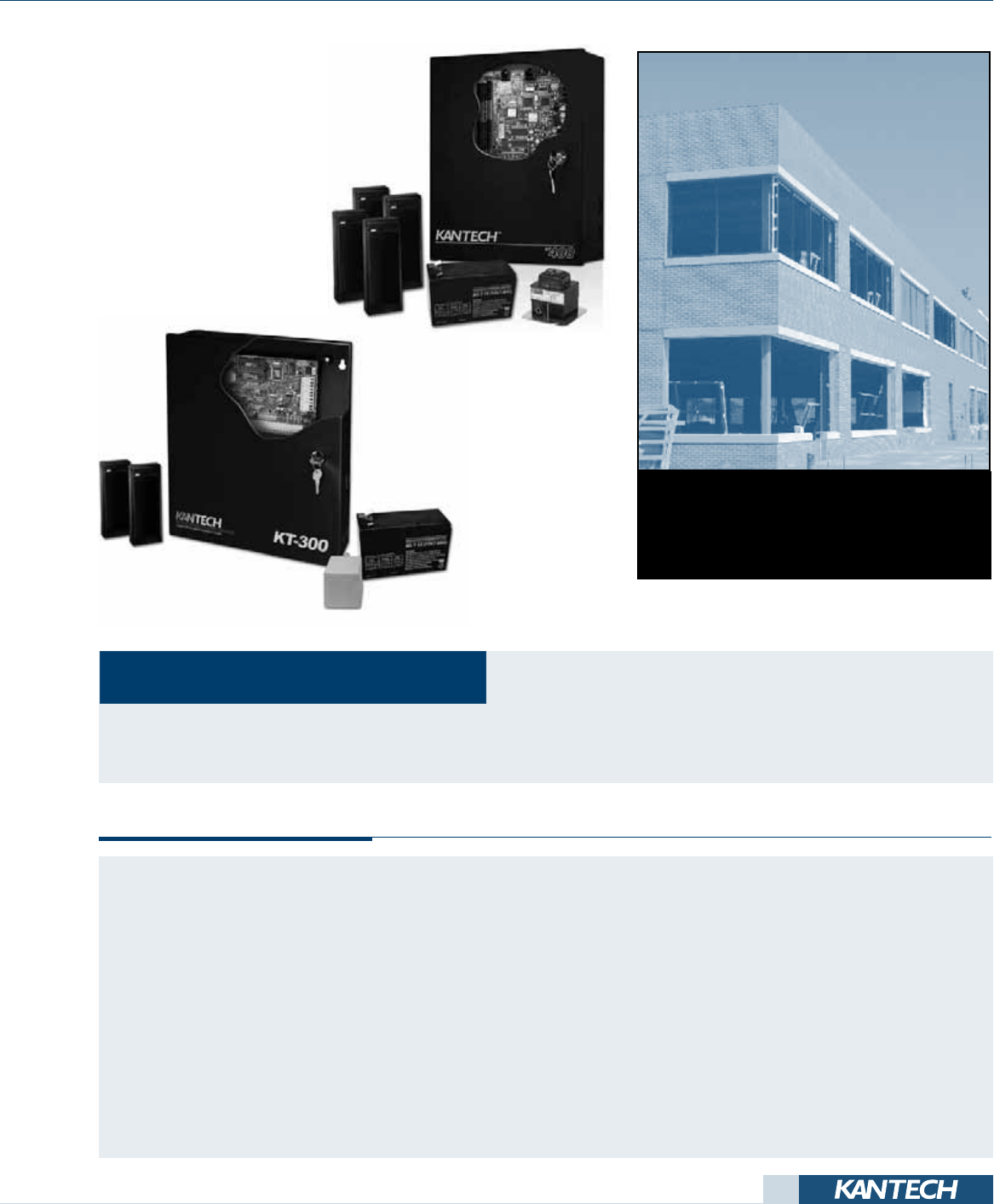

Access Control Kits

Starter Kits .....................................................36

Expansion Kits ..................................................37

Multi-Door Controller & Expansion Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

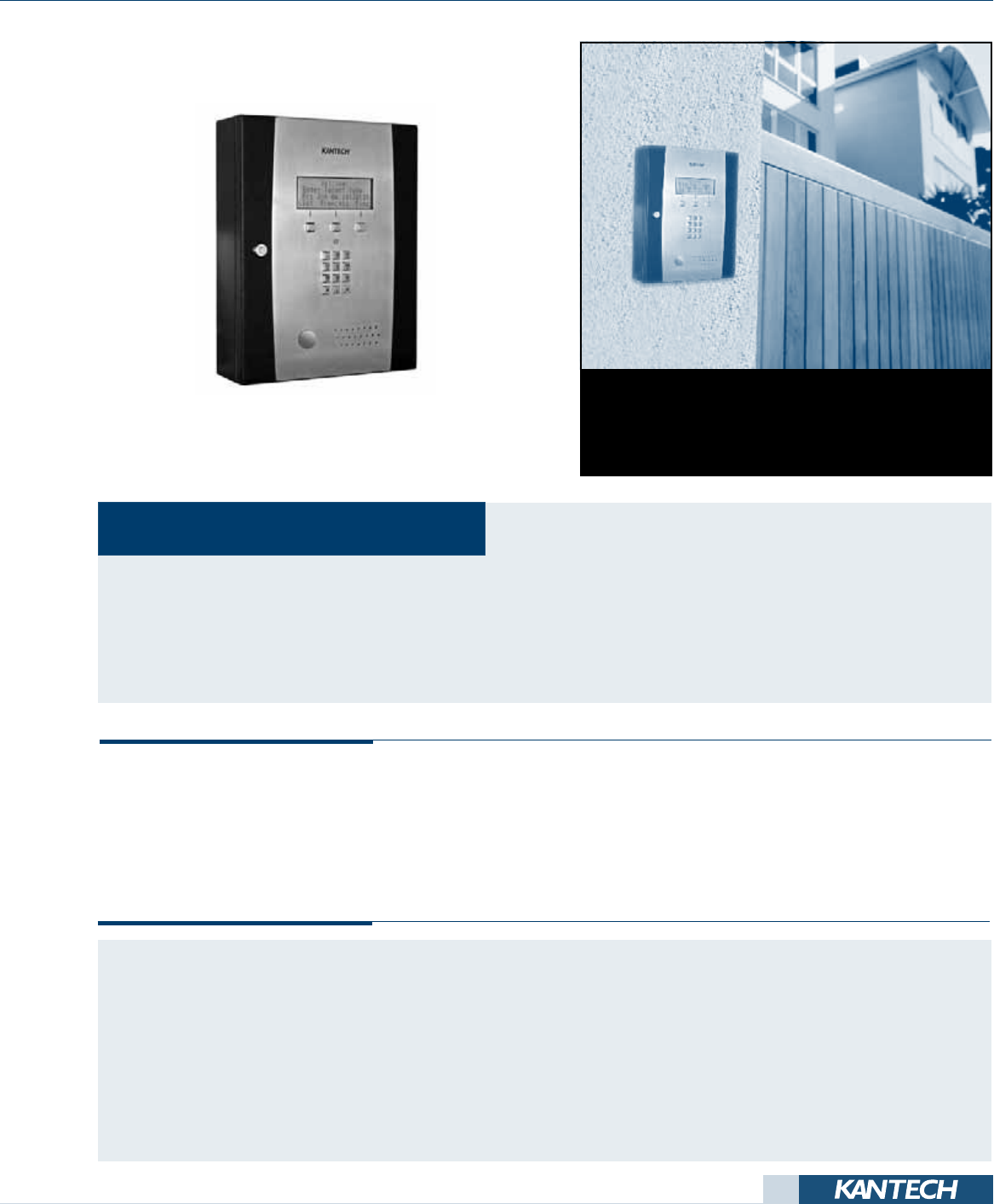

Telephone Entry System

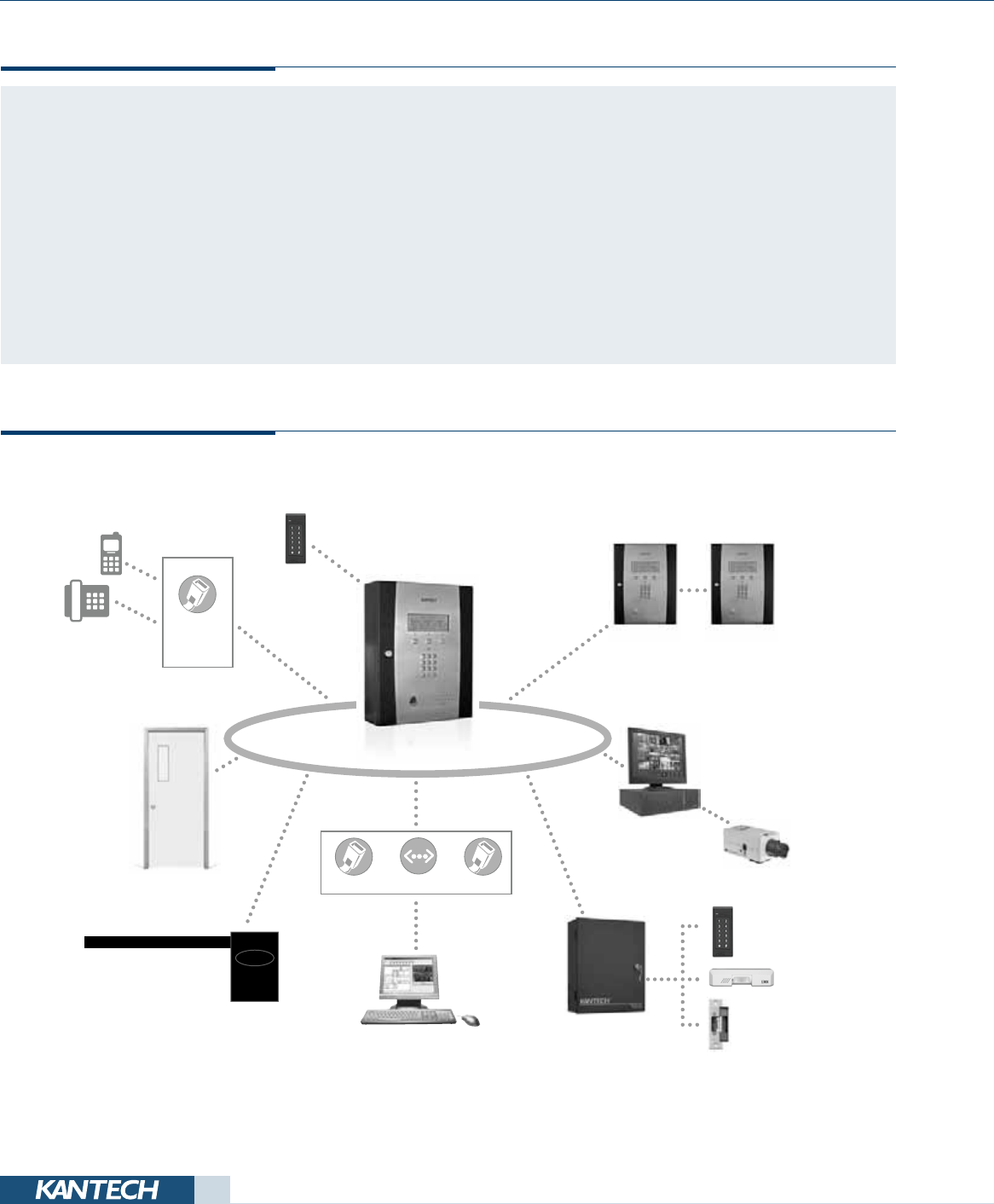

Kantech Telephone Entry System (KTES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Readers, Keypads, & Cards

Choosing Card & Reader Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

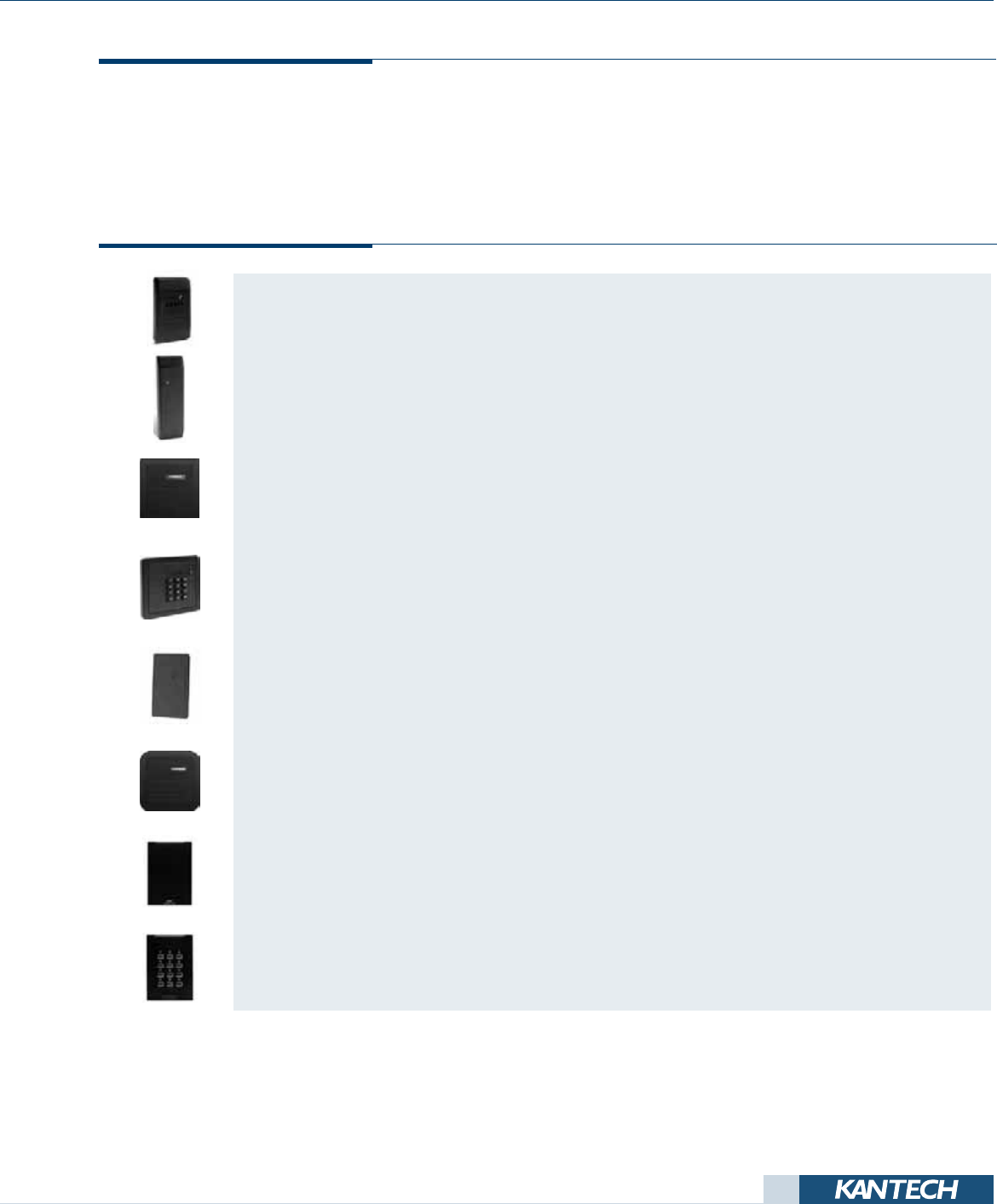

Readers & Cards Comparison Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

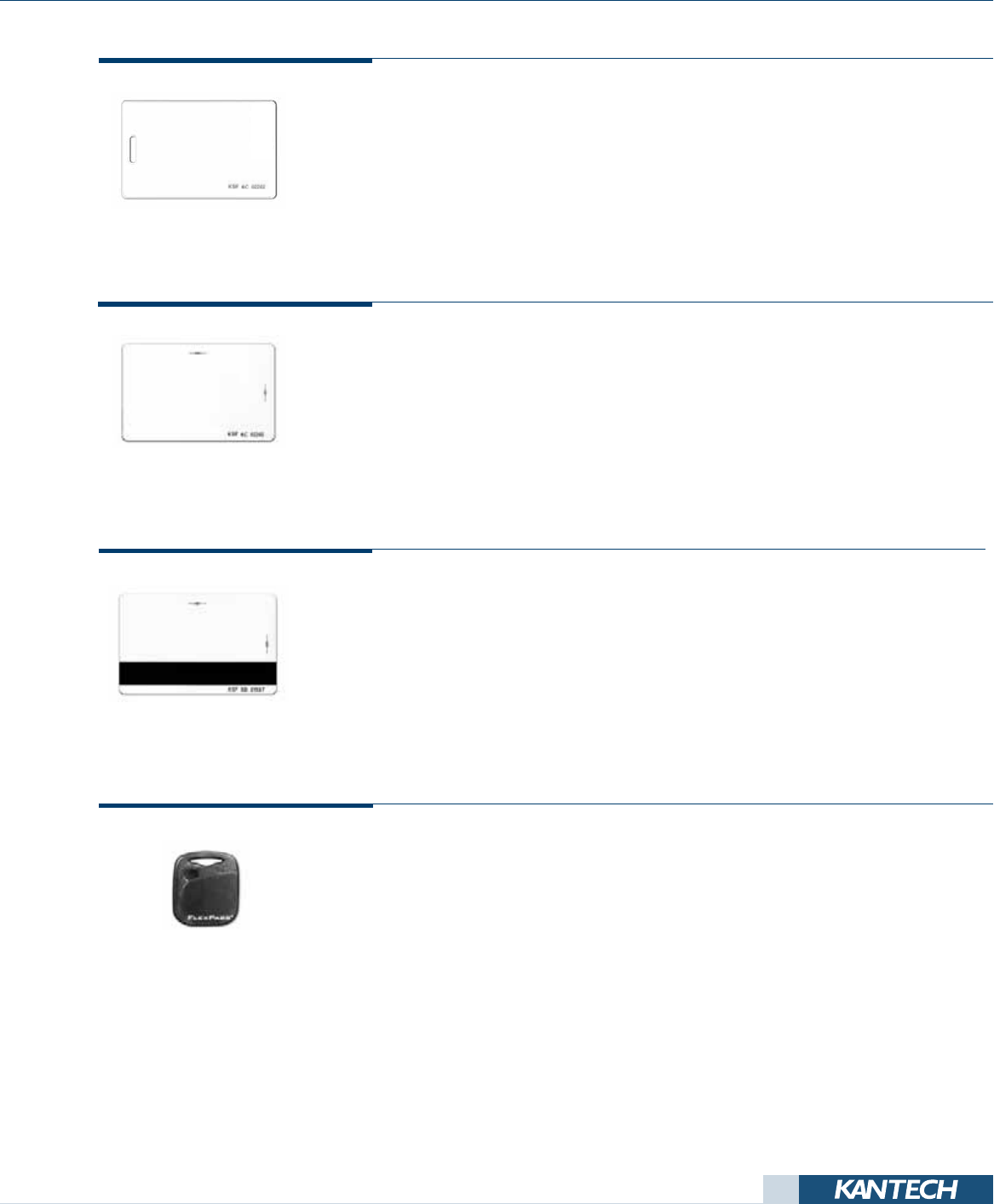

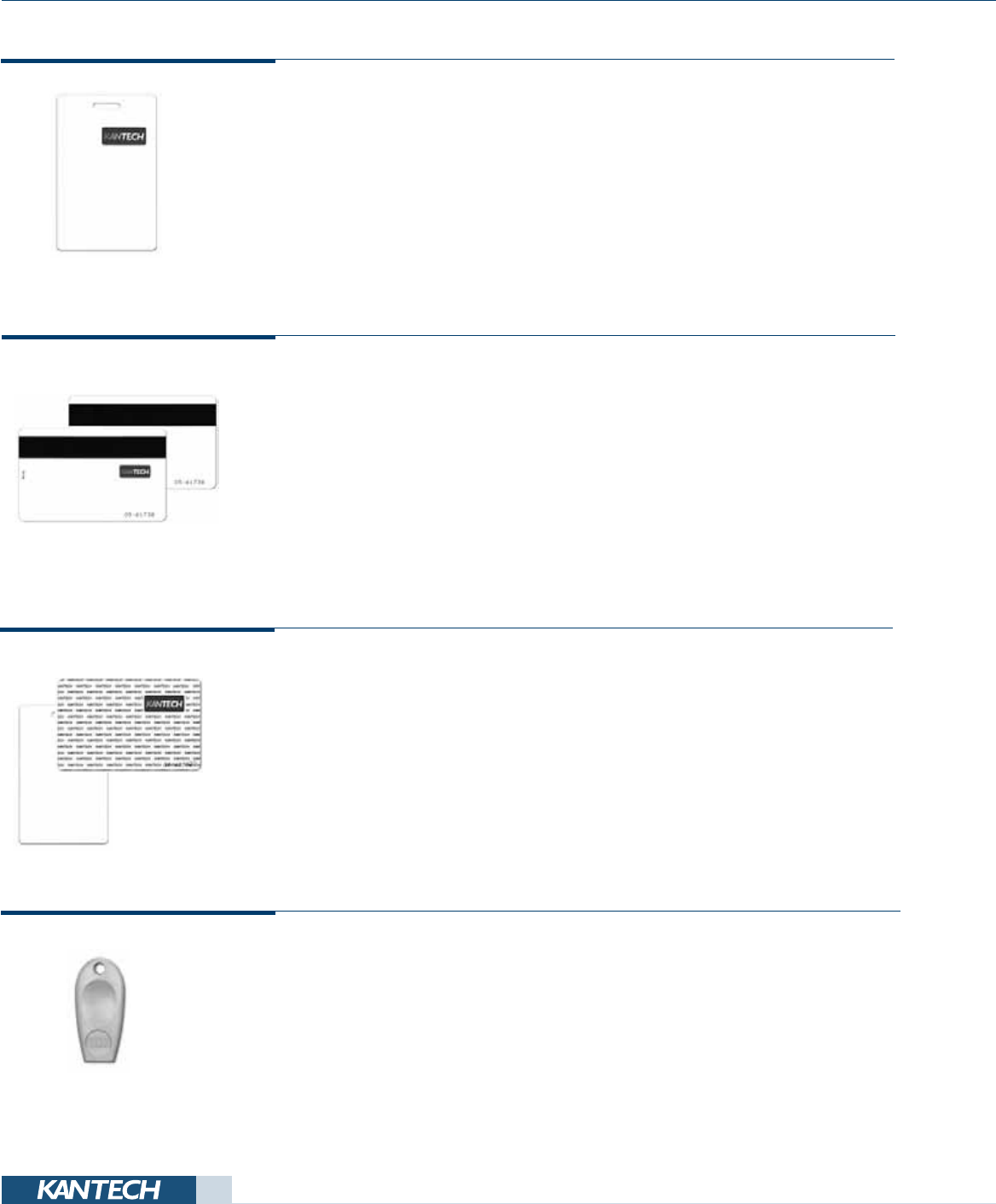

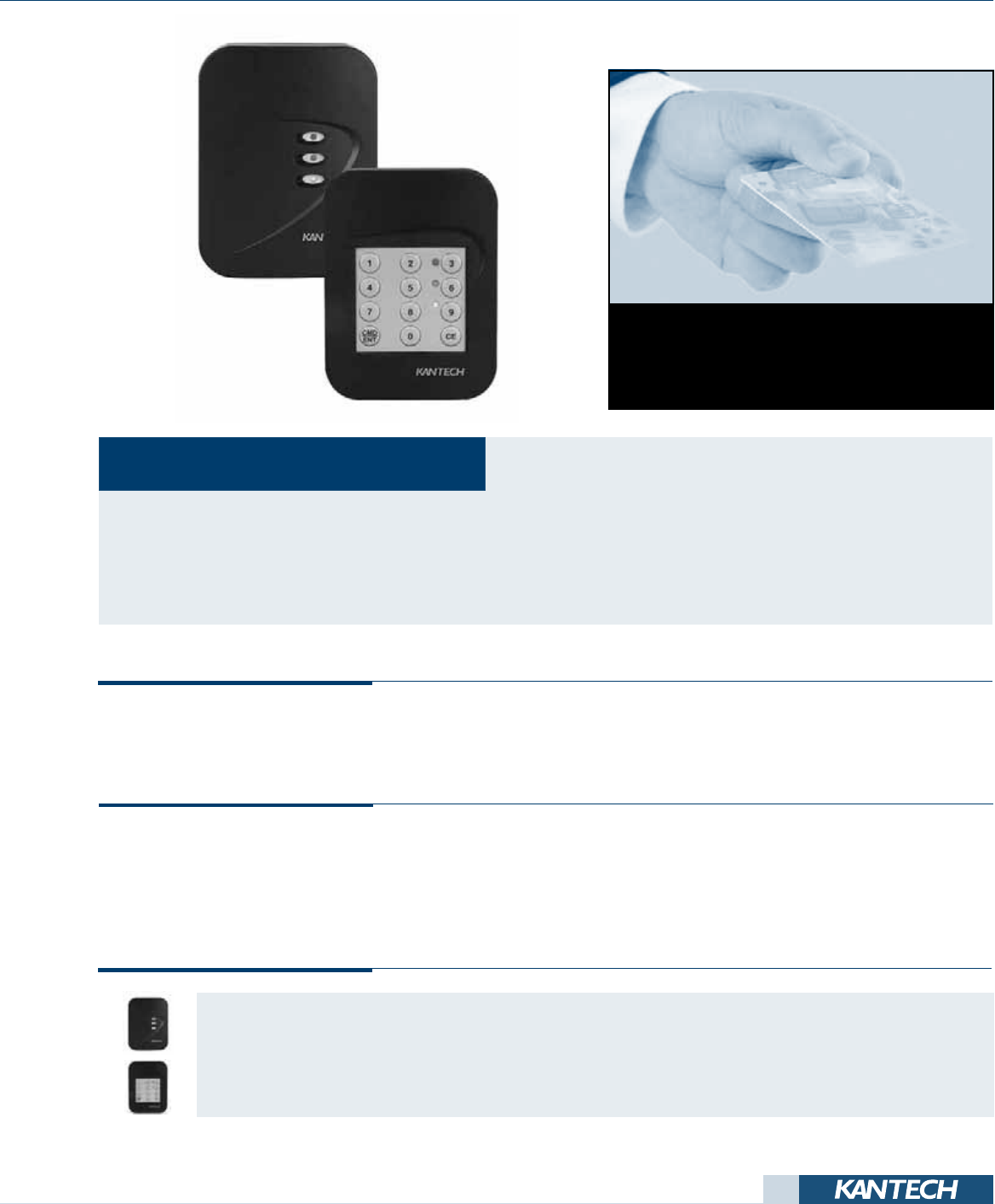

ioProx Proximity Readers & Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Multi-Technology Proximity/Smart Card Readers . . . . . . . . . . . . . . . . . . . . . . . 51

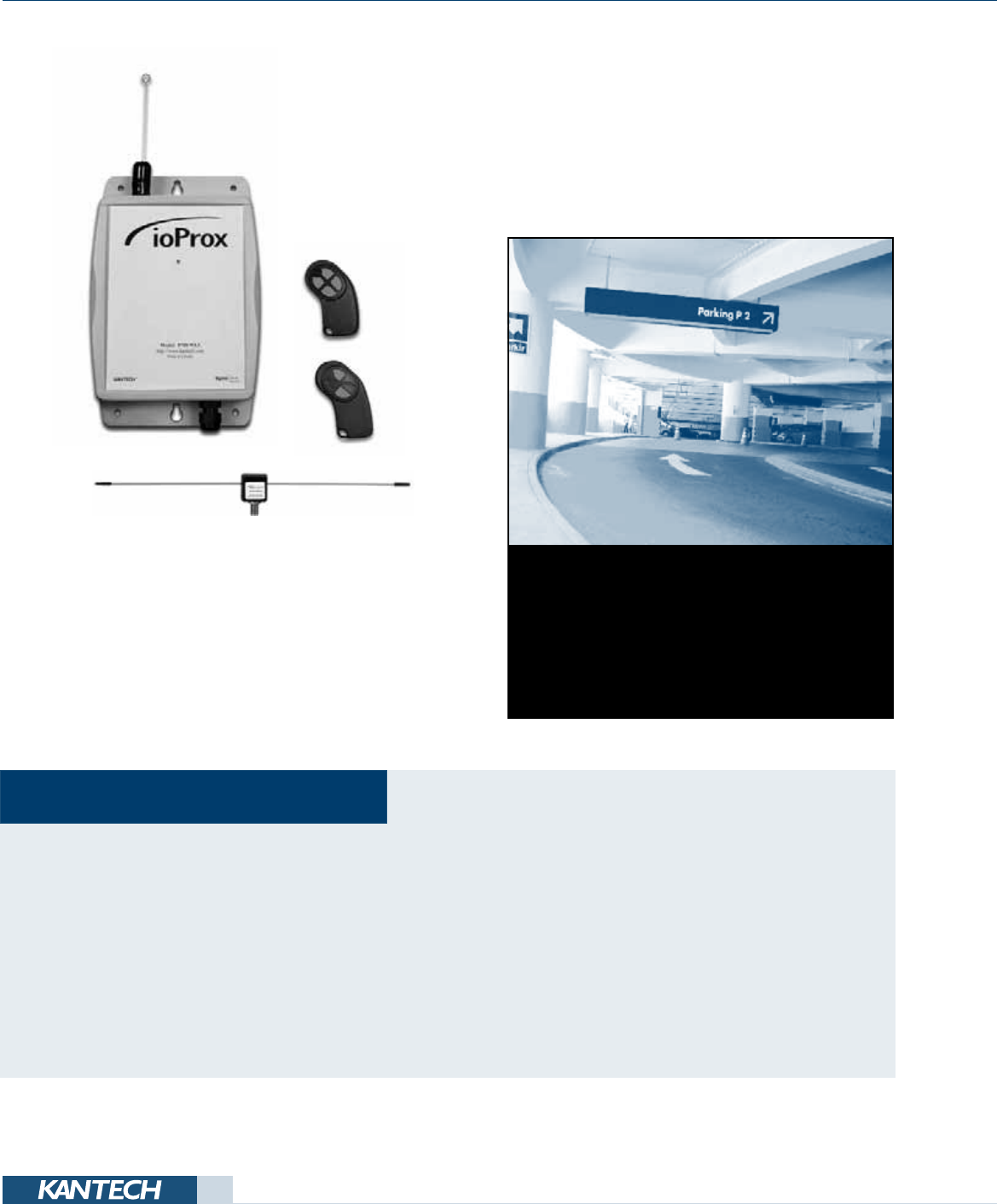

ioProx Proximity Receiver & Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

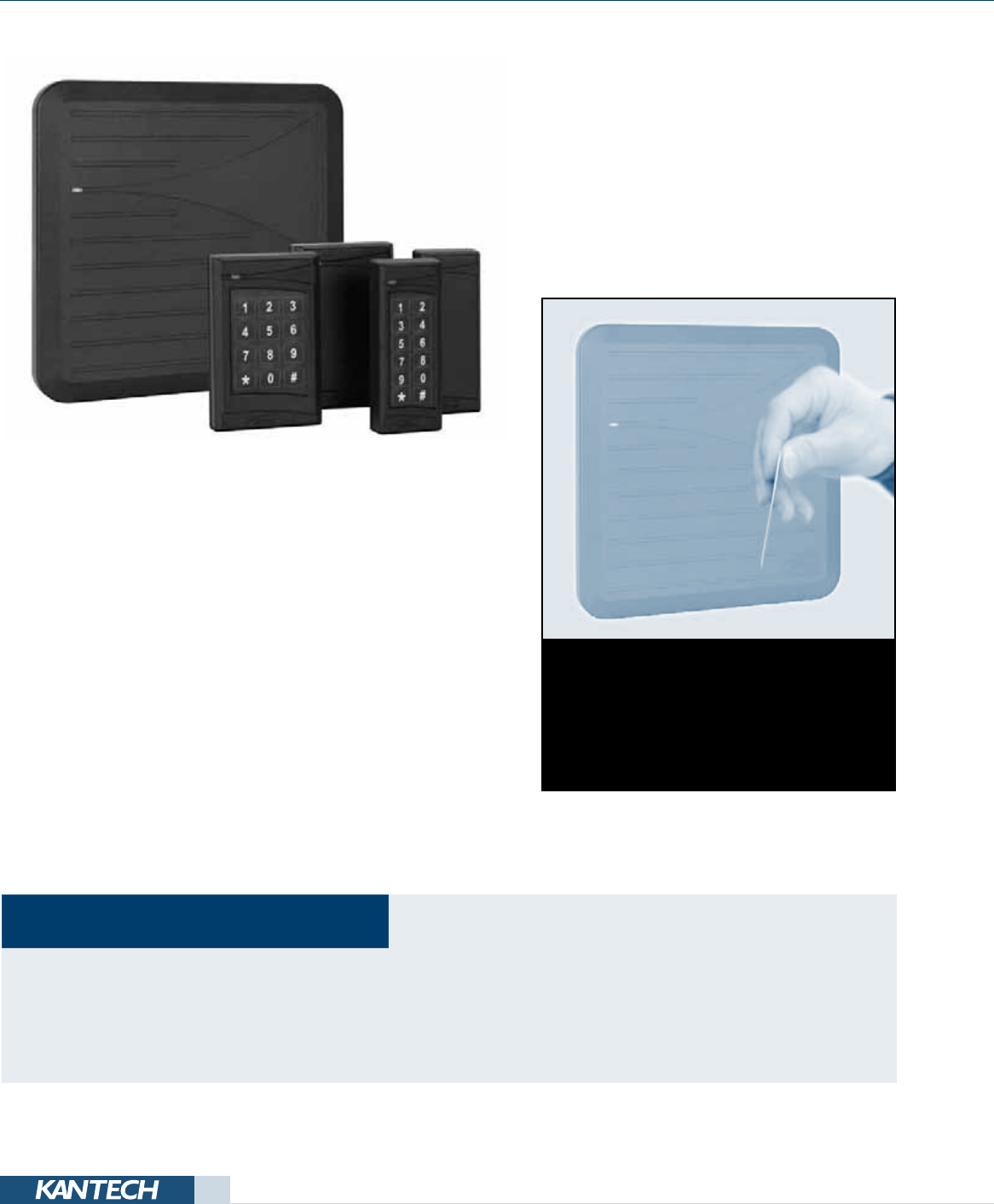

HID Proximity Readers & Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

ShadowProx Proximity Readers & Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

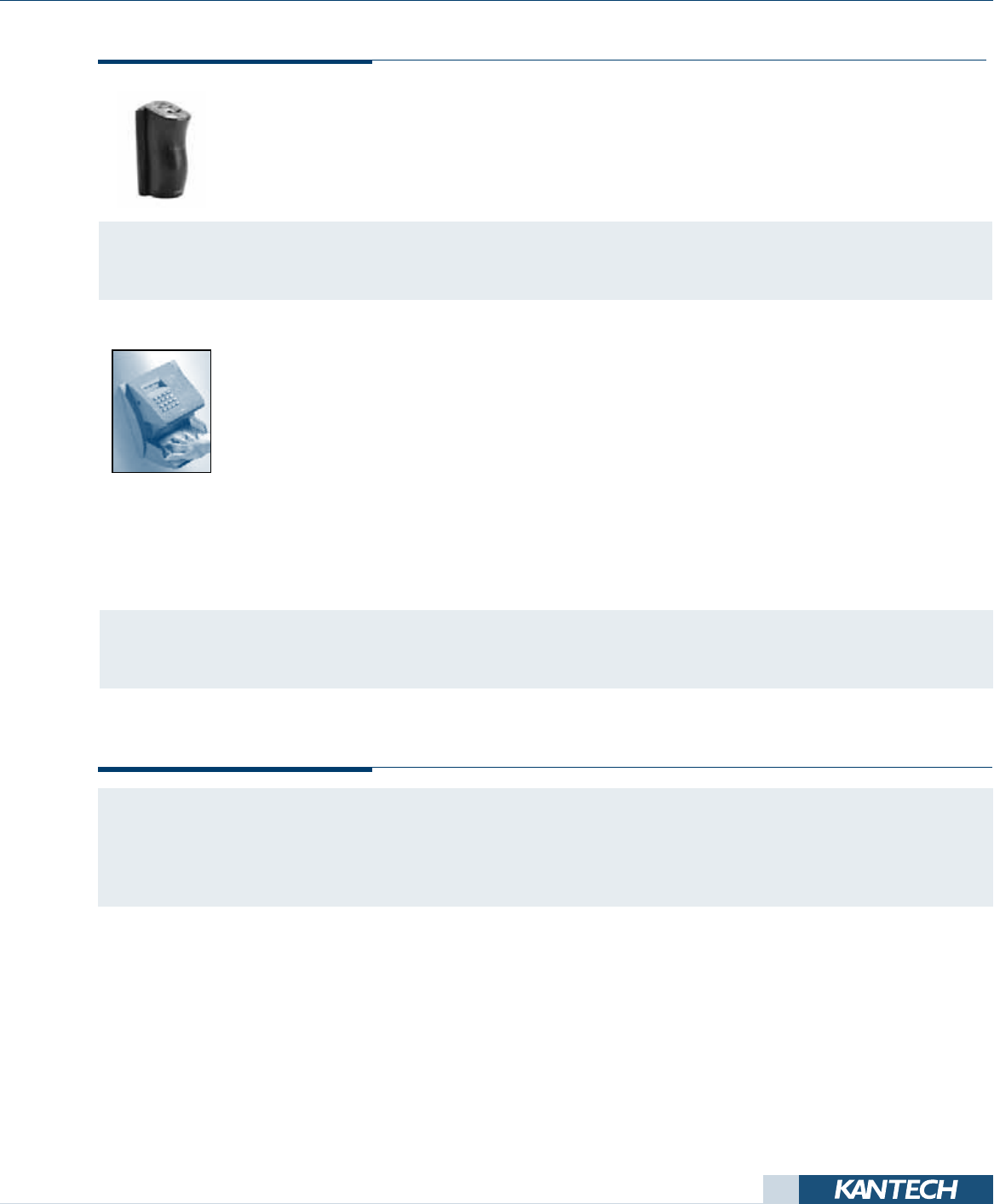

Biometric Readers ...............................................60

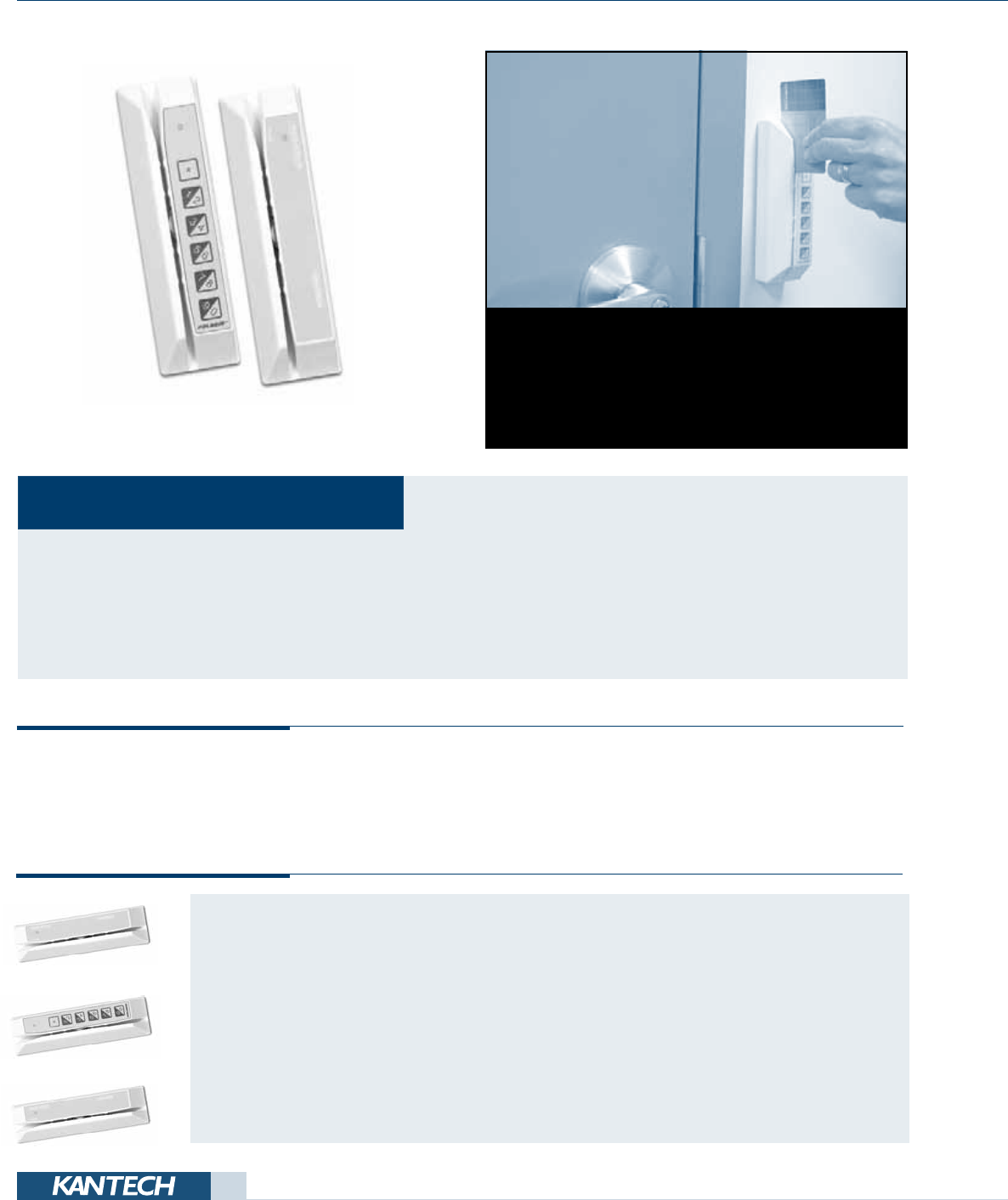

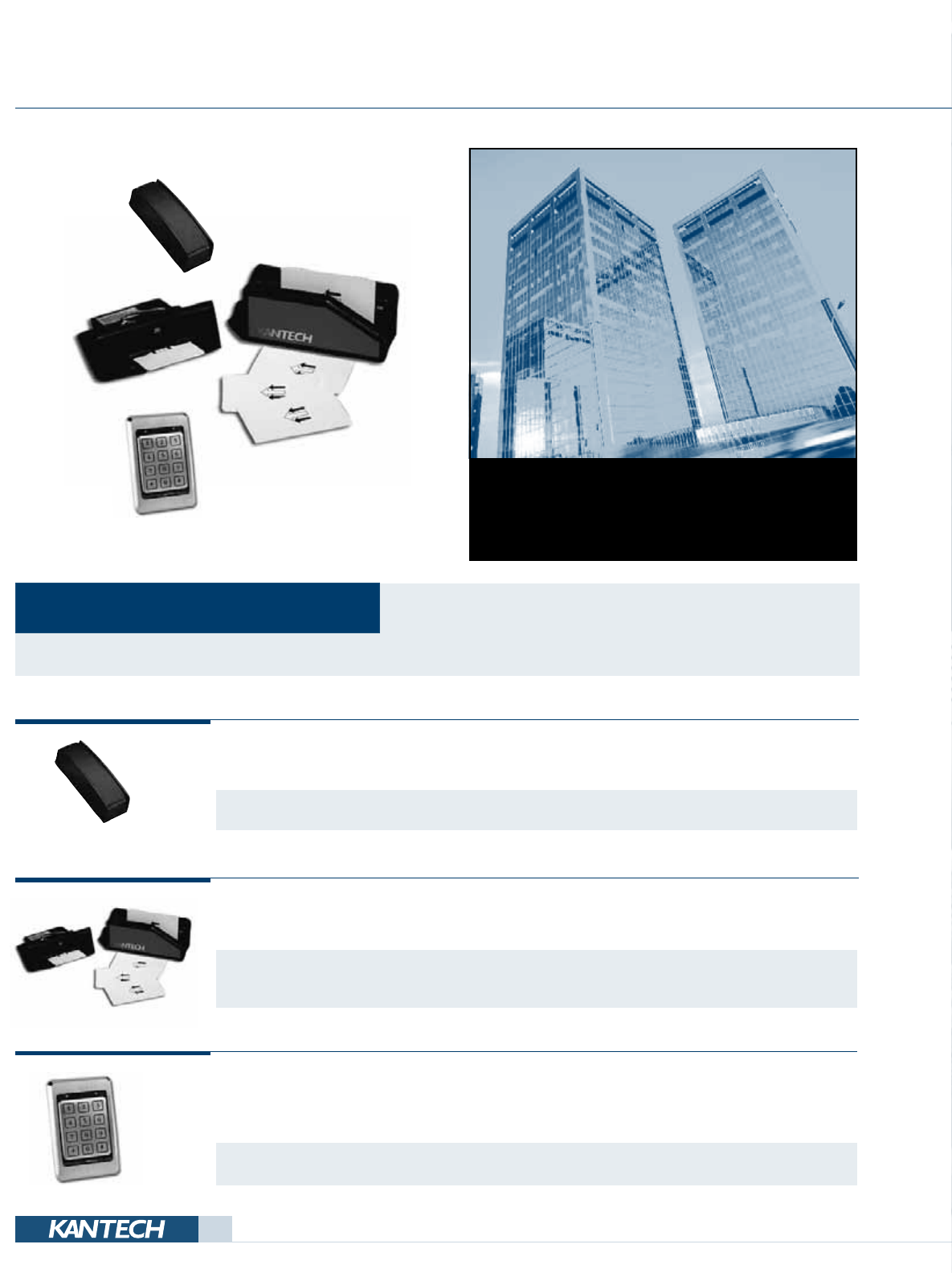

Polaris Magnetic Stripe Readers & Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Other Readers & Keypads ......................................... 64

Exit Control Devices, Electric Strikes & Locks

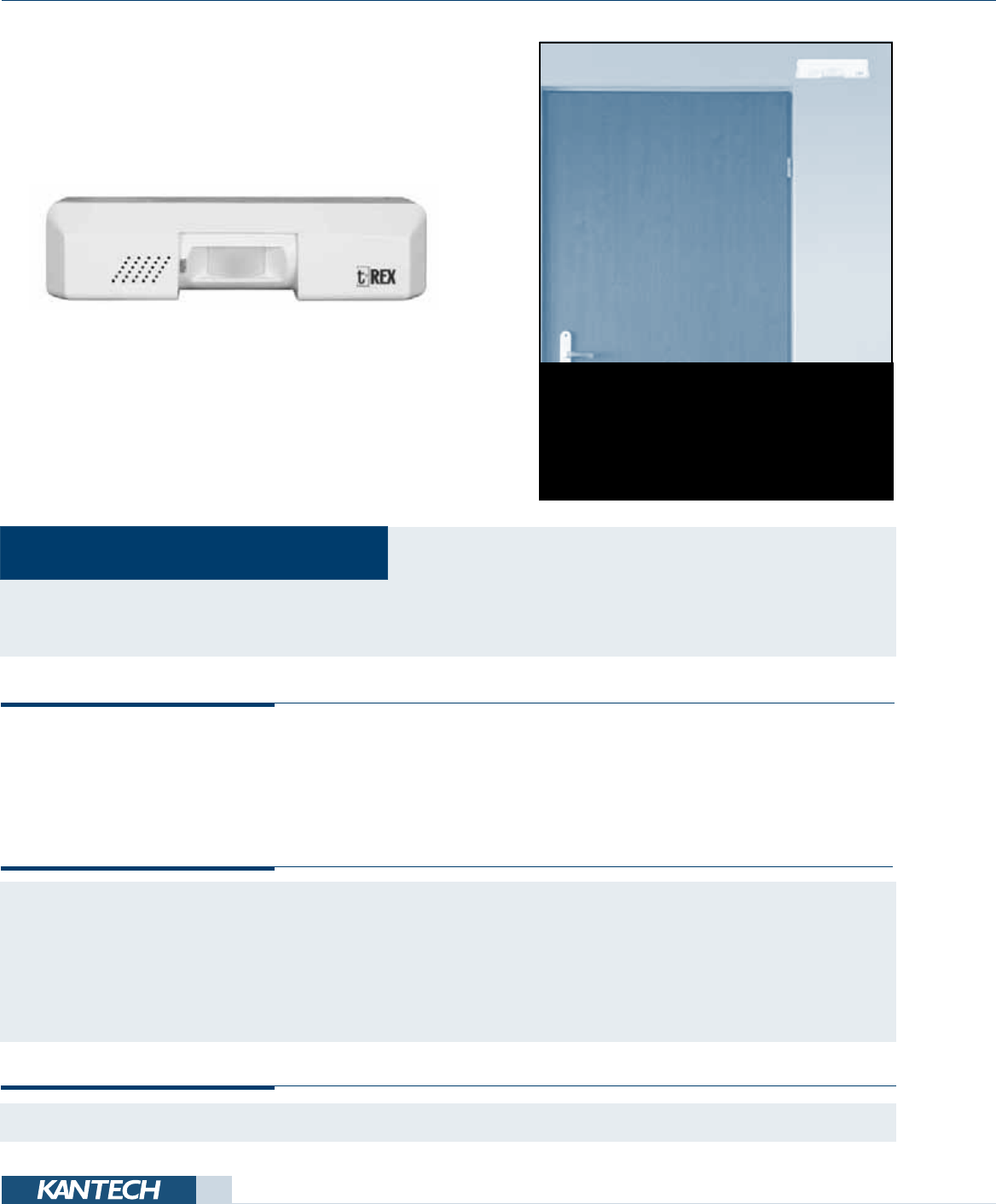

T.Rex Request to Exit Detector ..................................... 66

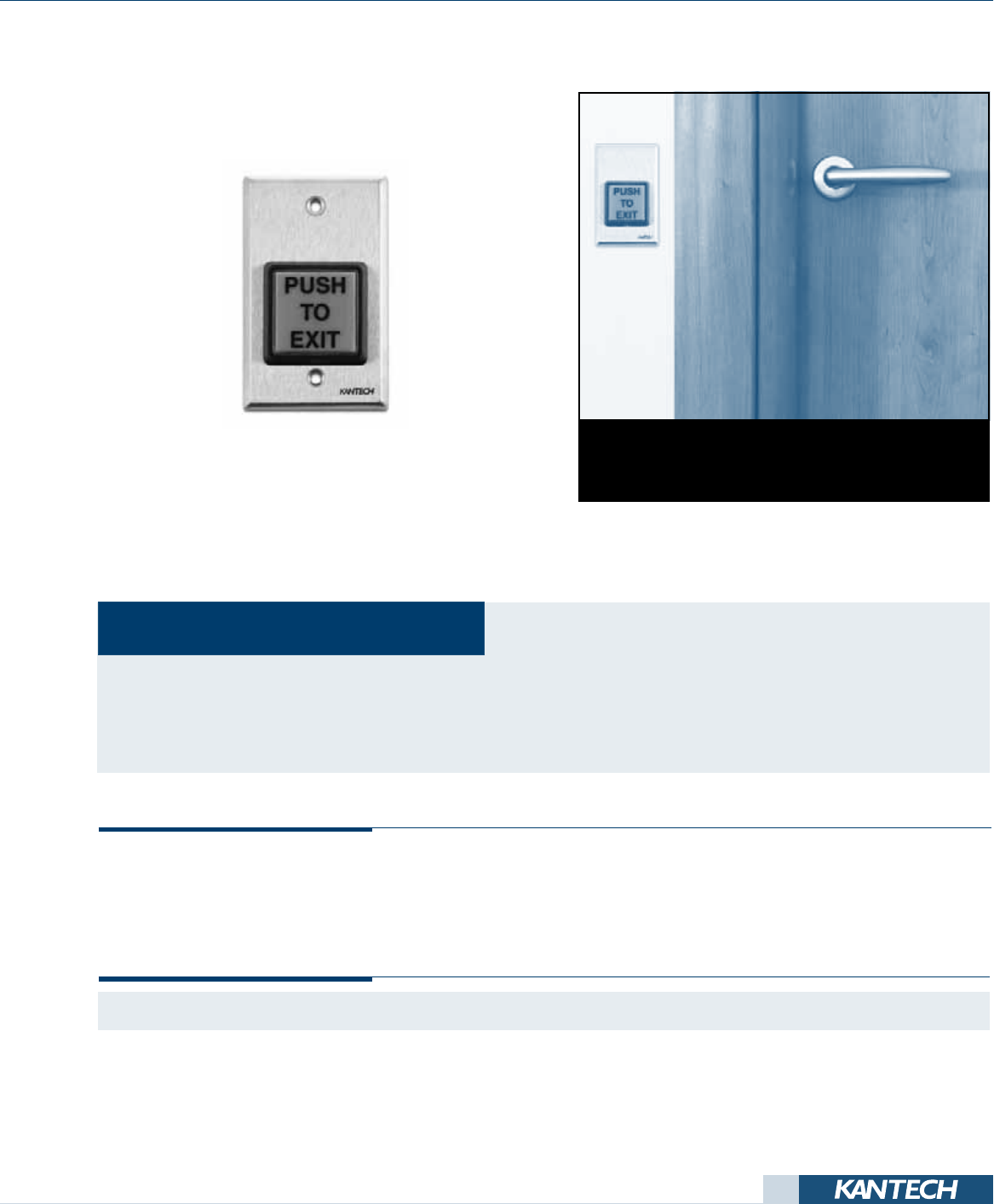

PB-EXIT Control Button ........................................... 67

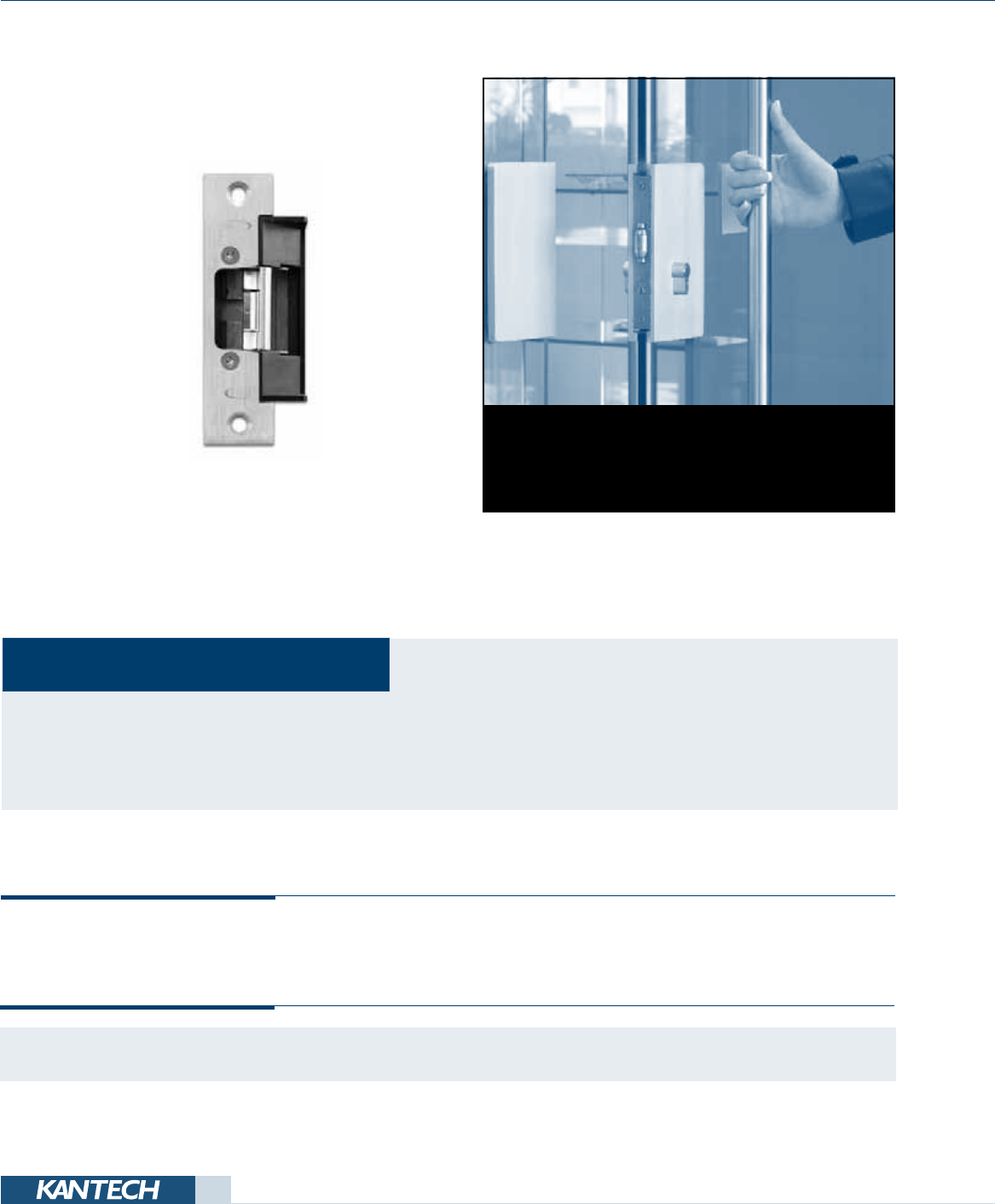

Electric Strikes .................................................. 68

Electromagnetic Locks ............................................ 69

Access Control Accessories

Network Communication Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Cables ........................................................ 72

Index

Index .........................................................73

Contents

Kantech offers a full suite of access control products that are reliable, easy to install and easily scalable.

WHY ACCESS CONTROL?

Nothing is more vital to the health of an organization than making sure that its people, material assets and operations are safe and

secure. Access control addresses the full scope of risks that might arise, including risks that other security systems such as burglar

alarms and intrusion detection simply are not designed to handle. By preventing people from entering places where they do not

belong, access control protects against theft as well as liability and disruption to your operations. Access control can also integrate

with other security and operational systems to give you a comprehensive, cohesive management tool.

TRACKING ACCESS

One of the biggest advantages that our access control systems offer is the ability to determine quickly who may have gained access

to critical areas before and after an incident. Even our smallest, single door applications have reporting available that shows an audit

trail of door access activity, while our mid-range and large-scale systems can provide in-depth, user-defined documentation.

IMPROVED SECURITY

Access control enhances security by eliminating the need for keys, which are easily lost or duplicated & disappear when terminated

employees fail to return them. By using our access control badges instead, you can quickly & conveniently adjust or delete

privileges any time an employee’s status changes. If you install our access control software on a networked system, you can even

perform these tasks from a remote location. Avoiding the annual expense of re-keying a facility is just one of the many financial

benefits you will accrue from investing in an access control system from Kantech.

VISUAL VERIFICATION

Our access control systems let you assign different color badges to identify varying levels of access for visitors, temporary

employees, contractors, & regular full-time employees. You can also incorporate photo IDs on badges as an additional measure for

confirming that the person using a card is the same person to whom it was issued.

LOGISTICS

Profitability at warehouses & distribution centers depends on efficiency & security making sure the right people are in the right place

at the right time, & keeping out those who should not be there. Our access control systems help you do this, controlling access to

improve employee productivity & punctuality.

WORKPLACE SAFETY

Certain work environments can be hazardous, especially where there is heavy equipment or intense activity. Access control systems

from Kantech help you ensure that only authorized individuals enter these areas.

RISK MANAGEMENT

By restricting who gains entry to your property, our access control systems limit your exposure to liability for “slip and fall” cases

while also reducing the risk of workplace violence and more. With litigation and work-related assaults costing businesses billions of

dollars each year, organizations simply no longer can afford to do without this kind of protection.

RELIABILITY AND SERVICE

At Kantech, we understand the importance of quality products and customer service, and we are dedicated to providing both.

Explore our product line and you will discover the easiest to use and easiest to install access control systems in the industry. Call

our state-of-the-art Technology Center and receive advanced technical support. Visit the member center on our website and you

will find innovative online tools to help locate the product information you need to expedite purchasing decisions.

We will continue to focus on what matters most to you. Count on us for responsive customer service and reliable access control

solutions that are as scalable and easy to install as they are easy to use.

COMMON ABBREVIATIONS

mm = millimeters kg = kilograms

in or ‘’ = inches lbs = pounds

km = kilometers mi = miles

MB = megabytes MHz = megahertz

GB = gigabytes kHz = kilohertz

Helpful tips on Model Numbers

The following characters at the end of a

model number signify

EN = English

SP = Spanish

FR = French

KSF = Kantech Secure Format

XSF = Kantech eXtended Secure Format

W26 = 26-bit Wiegand Format

PLATE = Backplate

KP = Keypad

Examples

E-COR-EN-V4

E-COR-SP-V4

E-COR-FR-V4

HID-C1336KSF

VPRX-IO-XSF

VPRX-IO-W26

T.REX-PLATE

KP-2500

Guidelines for the Product Guide

Each chapter introduces a family of products available from Kantech & includes useful information for placing your order. You will find

listings of key features, model numbers, & comparison charts that provide a fast & easy overview of each product line. Please refer to

the legend below for additional help in understanding the model numbers. The product dimensions are represented as height x width x

depth, or height x width x length or diameter.

EntraPass is a robust suite of high

performance software that allows

customers to design & operate

any number of doors where card

access is required - securely,

quickly & efficiently. EntraPass is

compatible with Kantech’s entire

line of door controllers.

EntraPass Security Software

EntraPass Comparison Chart

CHOOSE THE ACCESS CONTROL SOFTWARE THAT IS RIGHT FOR YOU

EntraPass Comparison Table

EntraPass

Special Edition

EntraPass

Corporate Edition

EntraPass

Global Edition

Operator Workstations 1 2 + 1 (up to 20+1) 4 + 1 (up to 128+1)

# of Gateways 1 on System 1 (up to 41) 1 (up to 128)

# of Cards Unlimited Database*Unlimited Database*Unlimited Database*

Maximum # Readers/Keypads 128 (KT-100/KT-300), 256 (KT-400) 34,816 per Gateway (KT-300)

69,632 per Gateway (KT-400)

Per Global Gateway: 2,048 (KT-300), 4,096 (KT-400)

Per Corporate Gateway: 34,816 (KT-300),

69,632 (KT-400)

Maximum # Controllers 64 per System 17,408 per Gateway 4,096 per Global Gateway

512 per KT-NCC, 69,932 per Corporate Gateway

Sites (loops) per Gateway 64 (Serial, RS-485, TCP/IP & Dial-up) 32 Local (Serial, RS-485, TCP/IP)

& 512 Remote

(Dial-up, Kantech IP Link or KT-400)

32 Local (Serial, RS-485, TCP/IP)

7 with KT-NCC (3 local & 4 TCP/IP)

512 Remote (Dial-up, Kantech IP Link or KT-400)

per Corporate Gateway

EntraPass WebStation No Yes, 4 Concurrent Connections Yes, 21 Concurrent Connections

Muster Reports

Roll Call Report

Yes

Video Integration HDVR and Intellex Video Management

Systems **

HDVR and Intellex Video Management

Systems **

HDVR and Intellex Video Management

Systems **

Integrated Badging Yes Yes Yes

Maximum # Remote Dial-up Sites/

IP-link/KT-400 64 512 per Gateway 512 per Corporate Gateway

Maximum # Online Local Sites/

UDS-1100 32 32 per Gateway 32 per Global Gateway, 32 per Corporate Gateway,

2 RS-485, 1 RS-232, 4 UDS-10 per KT-NCC

Elevator Floors per Car 64 64 64

Access Levels per Site 250 250 -

Schedules of 4 Time Zones (each) 100 System Schedules Unlimited System Schedules

100 Component Schedules

Unlimited System Schedules

100 Component Schedules

System Operator Passwords Unlimited Unlimited Unlimited

Operator Security Levels Unlimited, Pre-defined (3) Unlimited, Pre-defined (3) Unlimited, Pre-defined (3)

Concurrent Operator

Languages per System 2 2 2

# of Report & Badging Printers 1 per System 1 per Workstation 1 per Workstation

Areas Management No No Yes, 100 per Global Gateway & KT-NCC

Anti-Passback Yes Yes Yes

Global Anti-Passback No No Yes

Relay Activation * & # via keypad Yes Yes Yes

Export reports

(ASCII CSV, Paradox, Dbase IV) Yes Yes Yes

Operating System

Virtual Alarm Systems No No Yes, 100 per Global Gateway & KT-NCC

Arm/Disarm External Alarms

(KT-100, KT-300 or KT-400)

DSC PowerSeries Integration

Yes

PC-1616-1832-1864

Yes

PC-1616-1832-1864

Yes, using Corporate Gateway

PC-1616-1832-1864 using Corporate Gateway

Uninterrupted Data Backup Schedule Yes Yes Yes

# of Guard Tours Not Applicable Not Applicable 100, per Global Gateway & KT-NCC

SmartLink &

SmartLink Task Commander No Yes Yes

Video Archive via

EntraPass Video Vault No Yes≠Yes≠

Redundancy Server No Yes≠Yes≠

Card Gateway No Yes≠Yes≠

* In stand-alone mode: 6,144 (KT-100); 8,000 (KT-300/128k); 56,000 (KT-300/512k)

** Requires v3.1 or higher for Intellex Ultra, DVMS, IP, & v2.6 or higher for Intellex LT; visit www.americandynamics.net for more detailed information about Intellex

≠ Optional, sold separately

Windows XP Pro, Server 2003, Server 2008,

Vista and Windows 7 Pro 32 and 64-bit with their

latest Service Packs

Windows XP Pro, Server 2003, Server 2008,

Vista and Windows 7 Pro 32 and 64-bit with their

latest Service Packs

Windows XP Pro, Server 2003, Server 2008,

Vista and Windows 7 Pro 32 and 64-bit with their

latest Service Packs

EntraPass protects hospital staff & their patients

by preventing unauthorized access to sensitive

or secure areas.

EntraPass Special Edition

EntraPass Special Edition is a single-workstation security software package that accommodates an unlimited number of cardholders

& controls up to 128 doors with KT-100 & KT-300, up to 256 doors with KT-400. With a distributed architecture, EntraPass Special

Edition provides connections to remote sites using direct connections, dial-up modems, & IP communication using Kantech IP Link

with KT-100 & KT-300 door controllers, or using the KT-400 Ethernet-ready four-door controller. Both IP Link & KT-400 provide

secure communication via 128-bit AES encryption with the EntraPass system & communicate over the network only as required,

keeping network traffic down to a minimum. The EntraPass Special Edition also integrates with Kantech Telephone Entry System

(KTES) to bring you an access control solution with telephone entry access capabilities. Video integration with American Dynamics

HDVR and Intellex video management systems allows operators to define video parameters and to use video features from

EntraPass user interfaces.

EntraPass Special Edition

FEATURES

• Controls up to 128 readers with KT-100 & KT-300; and up to 256

readers with KT-400

• Integrates with KT-400, an Ethernet-ready four-door controller with

onboard IP connectivity

• Emailing reports capability

• Encrypted site communication

• Express setup automatically configures system components

• EntraPass workspaces let you control what operators can see

• Embed DVR, IP cameras, web pages, or network files into EntraPass

using WebViews

• Two concurrent languages per system

• Elevator control for up to 64 floors per elevator

• Integrated badging solution

• Integrates with Kantech Telephone Entry System

• Time & attendance & roll call reporting

• Full integration with DSC PowerSeries Alarm Panels

• Integrates with American Dynamics HDVR and Intellex Digital Video

Management Systems

Processor: (without video integration): Dual Core. Compatible with

Windows 7 in 32 and 64-bit Versions

Processor (with video integration): Intel Core 2 Quad Processor Q9400

(6M Cache, 2.66 GHz, 1333 MHz FSB). Compatible with Windows 7 in

32 and 64-bit versions

RAM: 2 GB

Free Hard Disk Space for Software: 20 GB (30 GB with video

integration)

Screen Resolution: 1024 x 768

Graphic Adapter Card (without video integration): AGP or PCI Express

8X graphics card with 64 MB memory and DirectX 9.0 support

Graphic Adapter Card (with video integration): NVS 295 or equivalent

DVD/CD-ROM Drive: 48x

Network Interface Card: 10/100Base-T (Gigabit or greater with video

integration)

Operating System Compatibility: Windows XP Pro, Server 2003, Server

2008, Vista and Windows 7 Pro 32 and 64-bit with their latest Service

Packs

Software

E-SPE-EN-V4 EntraPass Special Edition v4.xx, software and English manual only

E-SPE-FR-V4 EntraPass Special Edition v4.xx, software and French manual only

E-SPE-SP-V4 EntraPass Special Edition v4.xx, software and Spanish manual only

E-SPE-V4 EntraPass Special Edition v4.xx software only

E-SPE-UPG-V4 EntraPass Special Edition upgrade from v3.xx to v4.xx software only

KAP (Kantech Advantage Program - see note at end of EntraPass section in this guide)

E-SPE-KTK-1 Kantech Token for EntraPass Special (1)

Manuals

E-SPE-MAN-EN EntraPass Special Edition manual, English

E-SPE-MAN-FR EntraPass Special Edition manual, French

E-SPE-MAN-SP EntraPass Special Edition manual, Spanish

RECOMMENDED COMPUTER REQUIREMENTS

MODEL NUMBERS

EntraPass Special Edition

* A variety of IP cameras & DVR web pages have been tested successfully using WebViews. For a detailed list, please contact your sales representative

** Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 needs to be connected to a KT-300 or KT-400)

† Direct: KT-300 or KT-400, via RS-232 or RS-485 with USB-485 or VC-485 converter; KT-100 via RS-485 with USB-485 or VC-485 converter

≠ Ethernet TCP/IP: using Kantech IP Link (KT-100 also requires VC-485 converter) or KT-400

§ Requires software v3.1 or higher for Intellex Ultra, DVMS, and IP; v2.6 or higher for Intellex LT

KT-100, KT-300, KT-400,

and Kantech Telephone Entry System

Badging Printer

(optional)

Printers

(optional)

Single Workstation System

WebViews (IP cameras

and DVR web pages)*

KT-400

DSC PowerSeries

Alarm Panels

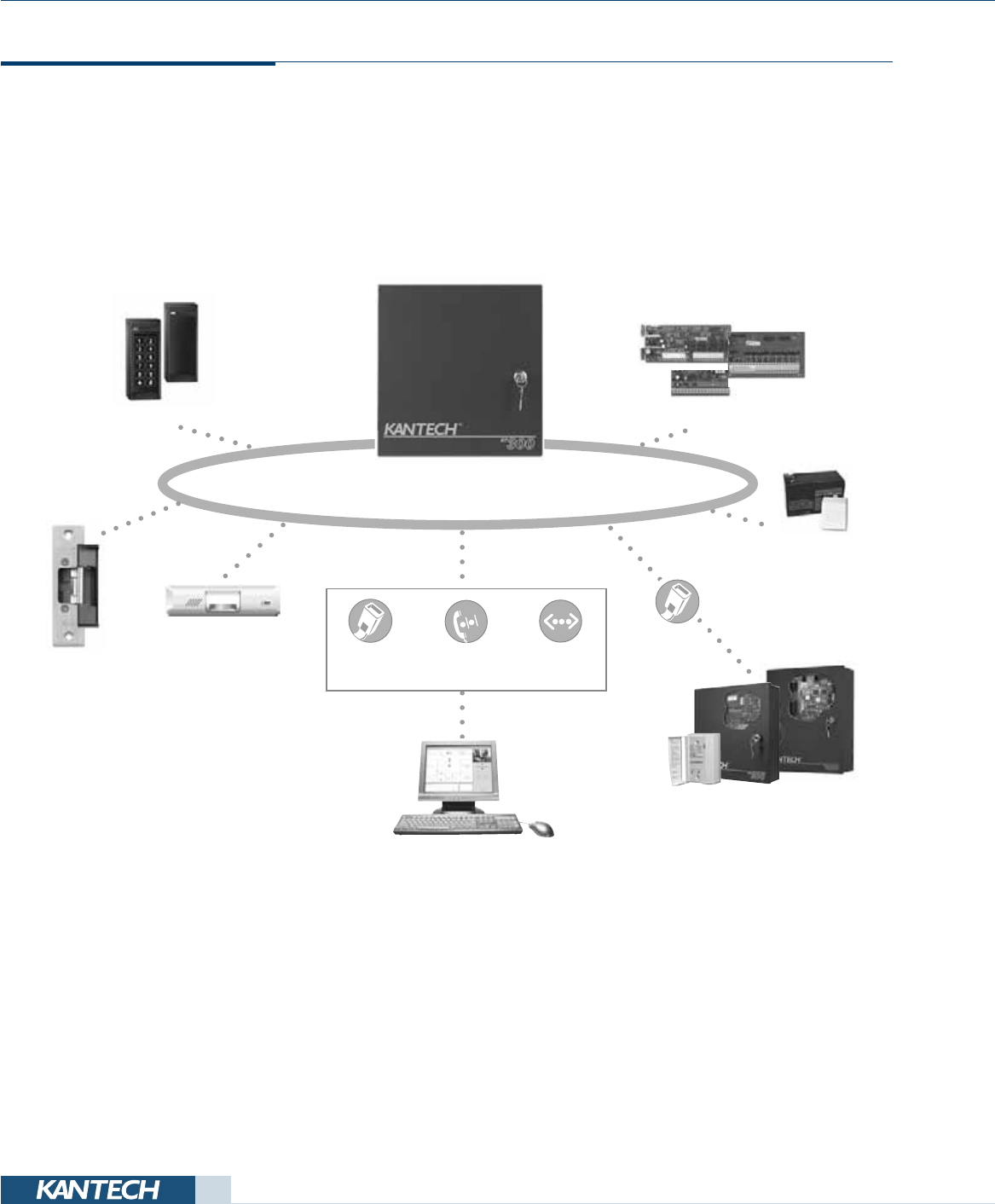

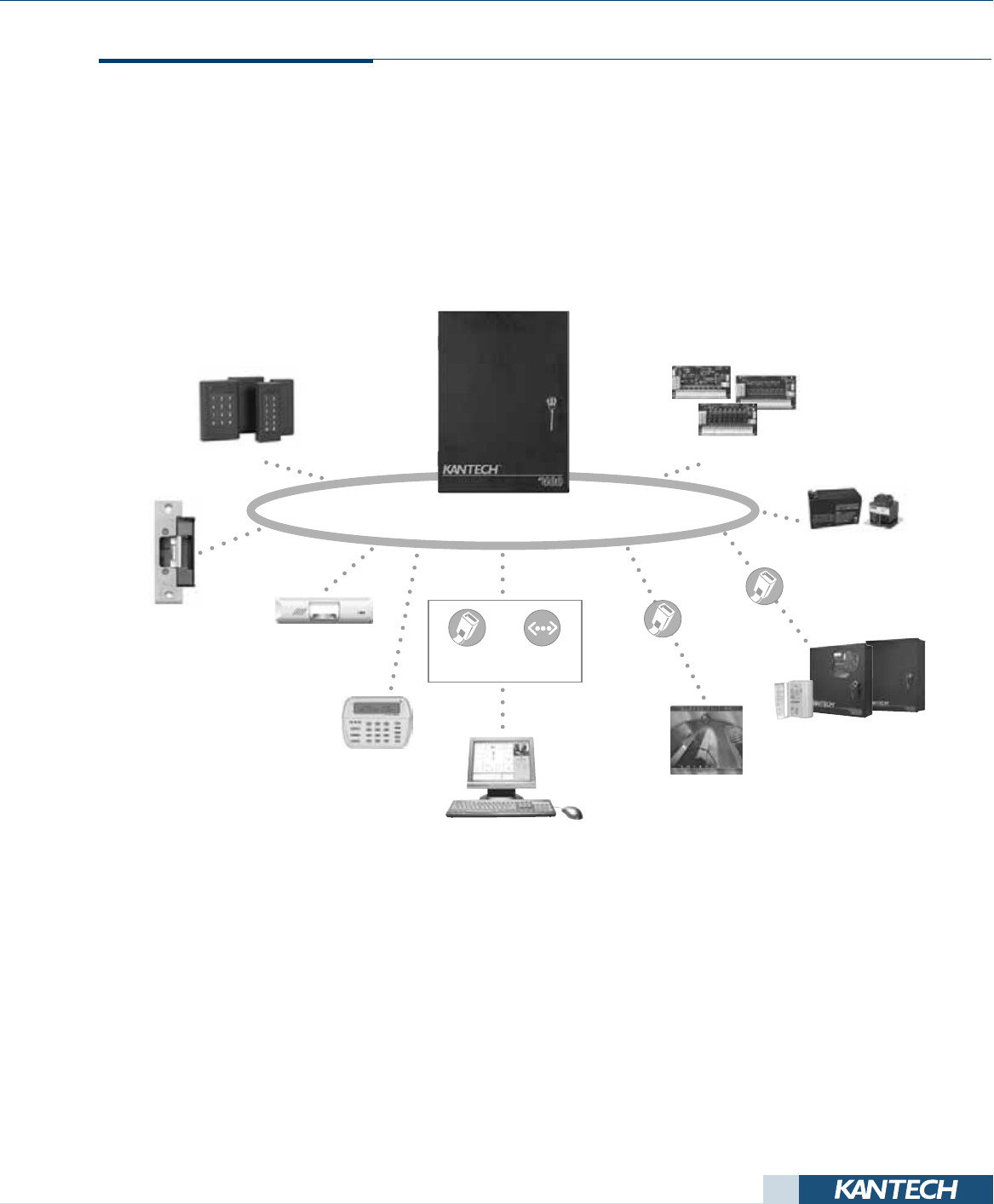

SYSTEM DIAGRAM

DSC PowerSeries

Alarm Panels

American Dynamics

Digital Video Systems§ (optional)

Dial-up** Direct†IP≠

EntraPass Corporate Edition

Warehouse managers around the globe rely

on EntraPass for both efficient operations

and security. EntraPass helps improve

productivity by tracking employees’

attendance. It also helps to keep anyone

without authorization away from valuable

inventory as well as heavy machinery that can

pose a liability.

EntraPass Corporate Edition

EntraPass Corporate Edition is a powerful, multi-user access control system that provides features such as WebViews for integrating

and displaying live video from IP cameras and SmartLink Task Commander that allows you to automate system tasks. The software

also integrates with Kantech Telephone Entry System, providing a robust security solution for multi-tenant buildings. The software

adapts easily to meet the needs of growing businesses, allowing users to manage one building or access multiple remote sites from

a network.

This proven platform gives you the ultimate balance between power and affordability in a network environment. EntraPass Corporate

Edition’s distributed system architecture provides connections to remote sites using direct connections, dial-up modems, and IP

communication servers using Kantech IP Link with KT-100 and KT-300 door controllers or the KT-400 Ethernet-ready four-door

controller. Both IP Link and KT-400 provide secure communication via 128-bit AES encryption with the EntraPass system and keep

network traffic down to a minimum by communicating over the network only when necessary. Integration with American Dynamics

HDVR and Intellex digital video management systems, dramatically increases security by allowing visual observations of monitored

areas. It also allows security personnel to link an access control event to a video clip directly from their access control application.

EntraPass Corporate Edition

• Supports up to 20 workstations and controls hundreds of thousands

of doors

• Operates securely over a network using either Kantech IP Link with

KT-100 and KT-300 controllers or the Ethernet ready KT-400 controller

• EntraPass workspaces let you control what operators can see

• Manage your system remotely with EntraPass WebStation

• Embed DVRs, IP cameras, web pages, or network files into EntraPass

using WebViews

• Eight operator configurable desktops with unlimited interactive floor

plans provide a highly customized experience for each workstation

• SmartLink Task Commander automates system tasks

• Integrated badging solution

• Elevator control for up to 64 floors per elevator

• Optional redundancy server ensures that critical data is available even

in the event of server communication failure

• Card gateway allows for real-time card management with third party

databases (Oracle/MS SQL HR)

• Full integration with DSC PowerSeries Alarm Panels

• Time and attendance and roll call reporting

• Integrates with Kantech Telephone Entry System

• Integrates with American Dynamics HDVR and Intellex Digital Video

Management Systems

feAtures

Software Each EntraPass Corporate Edition software package includes: two additional workstation licenses, one server/workstation

license, one gateway license and one WebStation license

E-COR-EN-V4 EntraPass Corporate Edition v4.xx, software and English manual only

E-COR-FR-V4 EntraPass Corporate Edition v4.xx, software and French manual only

E-COR-SP-V4 EntraPass Corporate Edition v4.xx, software and Spanish manual only

E-COR-V4 EntraPass Corporate Edition software only

E-COR-UPG-EN-V4 EntraPass Corporate Edition upgrade from v3.xx to v4.xx software and English manual only

E-COR-UPG-FR-V4 EntraPass Corporate Edition upgrade from v3.xx to v4.xx software and French manual only

E-COR-UPG-SP-V4 EntraPass Corporate Edition upgrade from v3.xx to v4.xx software and Spanish manual only

E-COR-UPG-V4 EntraPass Corporate Edition upgrade from v3.xx to v4.xx software only

Additional Gateway and Workstation Licenses

E-COR-WS1 EntraPass Corporate Edition, license for 1 additional workstations (v3.xx and higher)

E-COR-WS6 EntraPass Corporate Edition, license for 6 additional workstations (v3.xx and higher)

E-COR-COM EntraPass Corporate Edition, license for 40 additional gateways (v3.xx and higher)

Options

E-COR-RDN EntraPass Corporate Edition option, license for 1 Redundancy Server (v3.xx and higher)

E-COR-SQL EntraPass Corporate Edition option, license for 1 Card Gateway (Oracle/MS-SQL HR interface) (v3.xx and higher)

E-COR-VVM EntraPass Corporate Edition option, license for 1 EntraPass Video Vault (v3.xx and higher)

E-COR-WEB-1 EntraPass Corporate Edition option, license for 1 concurrent WebStation (v4.xx and higher)

E-COR-WEB-3 EntraPass Corporate Edition option, license for 3 concurrent WebStation (v4.xx and higher)

KAP (Kantech Advantage Program - see note at end of EntraPass section in this guide)

E-COR-KTK-1 Kantech Token for EntraPass Corporate (1)

E-COR-KTK-2 Kantech Tokens for EntraPass Corporate (2)

E-COR-KTK-3 Kantech Tokens for EntraPass Corporate (3)

E-COR-KTK-5 Kantech Tokens for EntraPass Corporate (5)

E-COR-KTK-10 Kantech Tokens for EntraPass Corporate (10)

Manuals

E-COR-MAN-EN EntraPass Corporate Edition manual, English

E-COR-MAN-FR EntraPass Corporate Edition manual, French

E-COR-MAN-SP EntraPass Corporate Edition manual, Spanish

MoDel nuMBers

Processor: (without video integration): Dual Core. Compatible with

Windows 7 in 32 and 64-bit Versions

Processor (with video integration): Intel Core 2 Quad Processor Q9400

(6M Cache, 2.66 GHz,1333 MHz FSB). Compatible with Windows 7 in 32

and 64-bit versions

RAM: 2 GB

Free Hard Disk Space for Software: 20 GB (30 GB with video integration)

Screen Resolution: 1024 x 768

Graphic Adapter Card (without video integration): AGP or PCI Express 8X

graphics card with 64 MB memory and DirectX 9.0 support

Graphic Adapter Card (with video integration): NVS 295 or equivalent

DVD/CD-ROM Drive: 48x

Network Interface Card: 10/100Base-T (Gigabit or greater with video

integration)

Operating System Compatibility: Windows XP Pro, Server 2003, Server

2008, Vista and Windows 7 Pro 32 and 64-bit with their latest Service

Packs

recoMMenDeD coMPuter reQuireMents

EntraPass Corporate Edition

* A variety of video products have been tested successfully using WebViews. For a complete list, contact Kantech sales

** Direct: using RS-232 or RS-485 with USB-485 or VC-485 converter, KT-100 using RS-485 with converter

† IP using Kantech IP Link or KT-400 Ethernet controller

≠ Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 must be connected to KT-300 or KT-400)

§ Requires software v3.1 or higher for Intellex Ultra, DVMS, and IP; v2.6 or higher for Intellex LT

KT-100, KT-300, KT-400

and Kantech Telephone Entry System

Printers (optional)

Server/Gateway

Web Server

Web Browser

American Dynamics

Digital Video Systems§ (optional)

1 to 16 Cameras

or Domes

Workstation (up to 20)

WebViews (IP cameras and

DVR web pages)*

DSC PowerSeries

Alarm Panels

DSC PowerSeries

Alarm Panels

KT-400

Direct** Dial-up≠

IP†

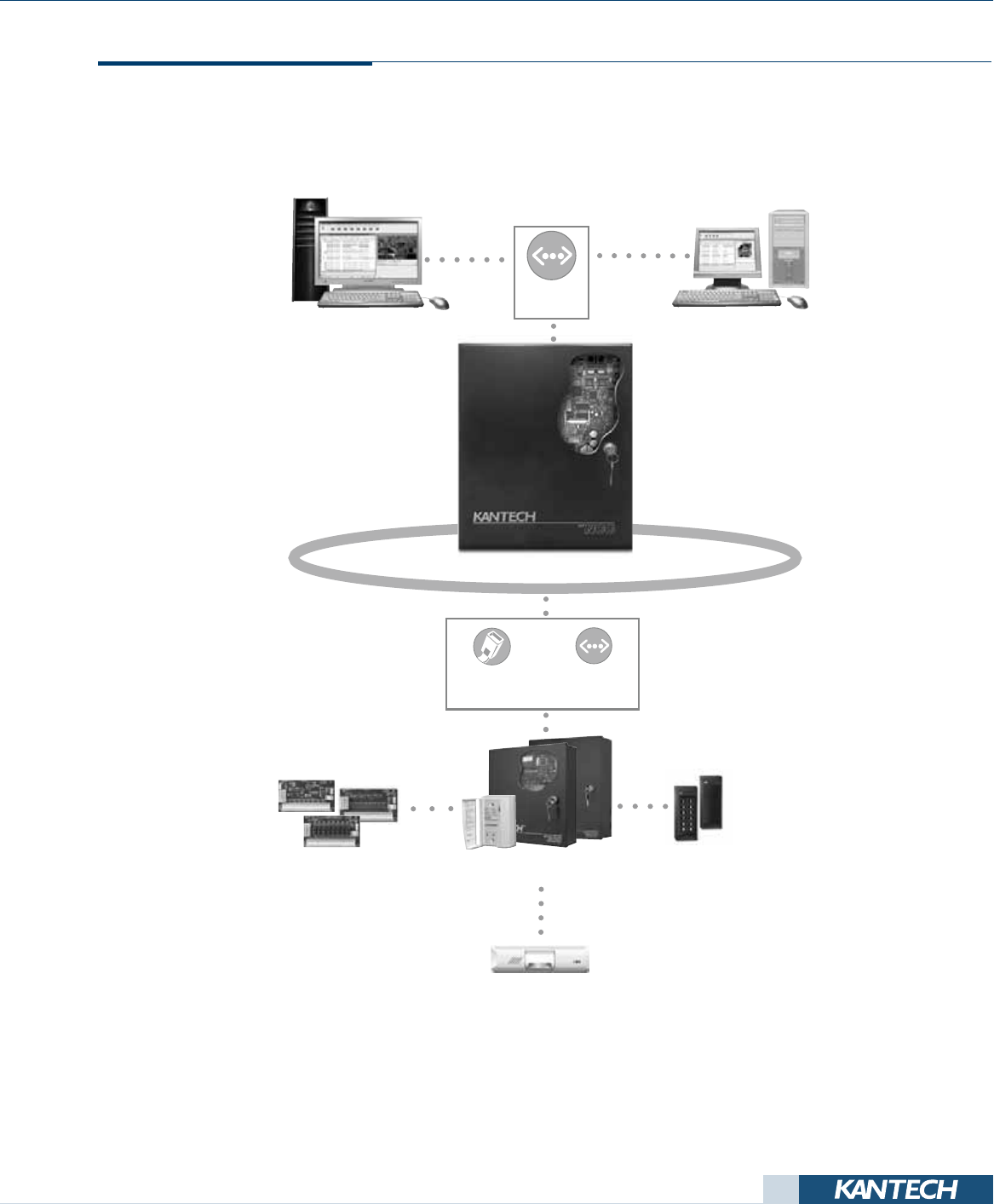

SYSTEM DIAGRAM

EntraPass Global Edition

EntraPass Global Edition is the most

powerful software package Kantech has to

offer. It features global anti-passback, area

management, WebViews for integrating and

displaying live video from IP cameras, and

SmartLink Task Commander that allows you

to automate system tasks.

EntraPass Global Edition

EntraPass provides solutions for even the most demanding and widely-dispersed applications. The software also integrates with

Kantech Telephone Entry System, providing a robust security solution for multi-tenant buildings. The EntraPass Global Edition

multi-workstation software package accommodates an unlimited number of users, controls up to 266,144 card readers per Global

Gateway, and allows users to simultaneously access the system from up to 128 workstations connected to the network. EntraPass

Global Edition’s distributed architecture supports connections to remote sites using direct connections, dial-up modems, and IP

communication with KT-100 and KT-300 controllers using Kantech IP Link, or the KT-400 Ethernet-ready four-door controller with

an onboard Ethernet port. Both Kantech IP Link and KT-400 provide secure communication via 128-bit AES encryption with the

EntraPass system. All communication is sent over the network only when required, keeping network traffic down to a minimum.

Video integration between EntraPass Global Edition and American Dynamics HDVR and Intellex digital video management systems

dramatically increases security by linking access control events, such as “door forced open”, to a video clip directly from the access

control application.

FEATURES

• Supports up to 128 workstations & controls

hundreds of thousands of doors

• Supports KT-NCC for extremely reliable

global functionality when used with the

KT-100, KT-300, & KT-400 door controllers

• Supports Kantech IP Link with KT-100 &

KT-300 controllers or the Ethernet-ready

KT-400 controller (requires Corporate

Gateway)

• Create multiple cards per user for more

efficient card management

• EntraPass workspaces let you control what

operators can see

• Manage your system remotely with EntraPass

WebStation

• Embed DVRs, IP cameras, web pages, or

network files into EntraPass using WebViews

• Eight operator-configurable desktops with

unlimited interactive floor plans provide

a highly customized experience for each

workstation

• Integrates with Kantech Telephone Entry

System (requires Corporate Gateway)

• Interfaces with paging systems, HVAC

systems, & more with innovative SmartLink

feature

• SmartLink Task Commander automates

system tasks

• Optional redundancy server ensures that

critical data is available even in the event of

server communication failure

• Card gateway allows for real-time card

management with third party databases

(Oracle/MS SQL HR)

• Full integration with DSC PowerSeries Alarm

Panels

• Time & attendance & roll call reporting

• Integrates with American Dynamics HDVR

and Intellex Digital Video Management

Systems

EntraPass Global Edition

Processor: (without video integration): Dual Core. Compatible with

Windows 7 in 32 and 64-bit Versions

Processor (with video integration): Intel Core 2 Quad Processor Q9400

(6M Cache, 2.66 GHz,1333 MHz FSB). Compatible with Windows 7 in

32 and 64-bit versions

RAM: 2 GB

Free Hard Disk Space for Software: 20 GB (30 GB with video integration)

Screen Resolution: 1024 x 768

Graphic Adapter Card (without video integration): AGP or PCI Express 8X

graphics card with 64 MB memory and DirectX 9.0 support

Graphic Adapter Card (with video integration): NVS 295 or equivalent

DVD/CD-ROM Drive: 48x

Network Interface Card: 10/100Base-T (Gigabit or greater with video

integration)

Operating System Compatibility: Windows XP Pro, Server 2003, Server

2008, Vista and Windows 7 Pro 32 and 64-bit with their latest Service

Packs

RECOMMENDED COMPUTER REQUIREMENTS

Software Each EntraPass Global Edition software package includes: four additional workstation licenses, one server/workstation

license, one gateway (Windows NCC) license and one WebStation license

E-GLO-EN-V4 EntraPass Global Edition v4.xx, software and English manual only

E-GLO-FR-V4 EntraPass Global Edition v4.xx, software and French manual only

E-GLO-V4 EntraPass Global Edition v4.xx software only

E-GLO-UPG-EN-V4 EntraPass Global Edition upgrade from v3.xx to v4.xx software and English manual only

E-GLO-UPG-FR-V4 EntraPass Global Edition upgrade from v3.xx to v4.xx software and French manual only

E-UPG-V4 EntraPass Global Edition upgrade from v3.xx to v4.xx software only

Additional Gateway and Workstation Licenses

E-GLO-WS1 EntraPass Global Edition, license for 1 additional workstation (v3.xx and higher)

E-GLO-WS8 EntraPass Global Edition, license for 8 additional workstations (v3.xx and higher)

E-GLO-COM-WIN EntraPass Global Edition, license for 16 additional Global gateways (Windows NCC) (v3.xx and higher)

E-GLO-CORCOM EntraPass Global Edition, license for 40 additional Corporate gateways (v3.xx and higher)

Options

E-GLO-RDN EntraPass Global Edition option, license for 1 Redundancy Server (v3.xx and higher)

E-GLO-SQL EntraPass Global Edition option, license for 1 Card Gateway (Oracle/MS-SQL HR interface) (v3.xx and higher)

E-GLO-VVM EntraPass Global Edition option, license for 1 EntraPass Video Vault (v3.xx and higher)

E-GLO-WEB-1 EntraPass Global Edition WebStation option, license for 1 web concurrent (v4.xx and higher)

E-GLO-WEB-3 EntraPass Global Edition WebStation option, license for 3 web concurrent (v4.xx and higher)

KAP (Kantech Advantage Program - see note at end of EntraPass section in this guide)

E-GLO-KTK-1 Kantech Token for EntraPass Global (1)

E-GLO-KTK-2 Kantech Token for EntraPass Global (2)

E-GLO-KTK-3 Kantech Token for EntraPass Global (3)

E-GLO-KTK-5 Kantech Token for EntraPass Global (5)

E-GLO-KTK-10 Kantech Token for EntraPass Global (10)

E-GLO-KTK-20 Kantech Token for EntraPass Global (20)

Manuals

E-GLO-MAN-EN EntraPass Global Edition manual, English

E-GLO-MAN-FR EntraPass Global Edition manual, French

MODEL NUMBERS

EntraPass Global Edition

* Requires software v3.1 or higher for Intellex Ultra, DVMS, and IP and v2.6 or higher for Intellex LT

** Many different video products have been tested successfully using WebViews - for an updated list please contact your sales representative

† Direct: using RS-232 or RS-485 with USB-485 or VC-485 converter, KT-100 using RS-485 with converter

≠ IP under Global Gateways using Lantronix Universal Device

§ Dial-up: KT-300 only, using RS-232 serial modem at remote site (KT-100 needs to be connected to a KT-300 or KT-400)

∞ IP using Kantech IP Link or KT-400 Ethernet controller

DSC PowerSeries

Alarm Panels

Workstation (up to 128)

Printers (optional)

Server

WebViews (IP Cameras

and DVR web pages)**

Web Browser

Web Server American Dynamics

Digital Video Systems* (optional)

1 to 16 Cameras

or Domes

Corporate

Gateway

Global Gateway or

KT-NCC Network

Communication Controller

KT-100, KT-300 and KT-400

KT-100, KT-300, KT-400

and Kantech Telephone Entry System

IP≠

Direct†

Dial-up§

IP∞

Direct†

KT-400

SYSTEM DIAGRAM

EntraPass Kantech Advantage Program (KAP)

An optional Kantech Advantage Program (KAP) program provides 12 months of updates and end user online training. As EntraPass

continues to deliver new features and enhancements, it is more important than ever that you have the education and tools necessary

to most effectively use the solution. These optional KAP’s ensure that you receive new functionalities and end user online training with

software updates. EntraPass customers who choose not to purchase a KAP will still continue to receive technical support for their current

installations and can purchase options but will not receive new features as they become available. Customers who purchase and activate

KAP’s during the first year are entitled to a bonus of up to 12 months of online training. KAPs are obtained by purchasing Kantech tokens.

The size of your EntraPass installation (Special, Corporate, or Global Edition), along with the number of installed options, will determine

how many tokens will be required to purchase a KAP plan. The base EntraPass systems require a minimum of one to three tokens per

year to maintain. To this base a number of tokens needs to be added, depending on the options you have installed on your system.

Below is an easy calculation table. You can also log into EntraPass and go into the server registration window to obtain this information

which is automatically calculated by your system.

EntraPass Special Edition

System/Option Details Tokens

per year

EntraPass Special Edition Base System No option installs on Special Edition 1

EntraPass Corporate Edition

System/Option Details Tokens

per year

EntraPass Corporate Edition Base System before options 1

Web Concurrent Licenses For each three concurrent licenses 1

Video Vault For each Video Vault 1

Card Gateway For each Card Gateway 1

Redundant Server For Redundant Server option 1

Workstations Corporate Edition For every pack of four active workstations 1

Corporate Gateways Not Applicable 0

SmartLinks Not Applicable 0

Server workstation Not Applicable 0

EntraPass Global Edition

System/Option Details Tokens

per year

EntraPass Global Edition Base System System before options 3

Web Concurrent Licenses For each three concurrent licenses 1

Video Vault For each Video Vault 1

Card Gateway For each Card Gateway 1

Redundant Server For Redundant Server option 1

Workstations Global Edition For every pack of ﬁve active workstations 1

Corporate Gateways Not Applicable 0

Global Gateways Not Applicable 0

SmartLinks Not Applicable 0

Server workstation Not Applicable 0

KT-NCC is perfect for customers looking for a better

way to manage access control for a widely-dispersed

environment without running into reliability issues

common with most PCs.

KT-NCC (Network Communication Controller)

KT-NCC

The Kantech KT-NCC is a powerful way to expand an EntraPass Global Edition System. Instead of relying on a PC for

communication between the controllers and server, the dependable KT-NCC is in control. There are fewer PCs to maintain,

operating systems to upgrade, and security emergencies to manage.

KT-NCC includes onboard TCP/IP which eliminates the costs associated with buying and maintaining a third party communication

device to link to the network. The KT-NCC manages communication between the EntraPass software and the door controllers. It

also administers global features such as anti-passback, alarm systems, guard tours, and secondary access levels. All events from

the controllers are stored in the KT-NCC for additional security in the event of a communication failure between the controllers and

the server. The KT-NCC supports any combination of up to 128 controllers (KT-100, KT-300 or KT-400).

KT-NCC (Network Communication Controller)

FEATURES

• Powerful panel architecture removes a layer

of PCs to improve reliability and save money

• Onboard TCP/IP eliminates the need for an

external network communication device

• Supports any combination of up to 128

controllers (KT-100, KT-300, or KT-400)

• Embedded redundancy ensures critical data

is always protected

• Seven LED modes provide quick assessment

of system status

• Flashable firmware enables fast, convenient

updates

• Battery backup provides alternative for

Universal Power Supply (UPS)

• Global functionality such as anti-passback,

guard tours, and alarm systems management

is easier than ever to implement

KT-NCC-ACC Accessory kit for KT-NCC, includes RS-232 to VC-485 flat cable with RJ-12 male connectors, and screwdriver

KT-NCC-CAB Black metal cabinet for KT-NCC, includes KT-LOCK and ground cable

KT-NCC

KT-NCC Embedded Network Communication Controller (NCC), includes black metal cabinet (KT-NCC-CAB) and accessory kit

(KT-NCC-ACC) with lock (KT-LOCK) and tamper switch (KT-TAMPER), compatible with EntraPass Global Edition v3.17 and higher

KT-NCC-PCB Embedded NCC PCB only, includes accessory kit (KT-NCC-ACC), battery and ground cables, hardware to affix wire and the PCB

MODEL NUMBERS

ACCESSORIES

KT-NCC (Network Communication Controller)

Expansion Modules

Request to Exit Detector

KT-100, KT-300 or KT-400

Door Controllers

KT-NCC

EntraPass Global

Edition Server

Redundancy Server

(optional)

Ethernet

TCP/IP

RS-485 or

RS-232

Ethernet

TCP/IP

SYSTEM DIAGRAM

ioProx Readers

EntraPass integrates with American Dynamics

Intellex digital video management system to

provide real-time video monitoring as well as

video playback of critical access events.

EntraPass Advanced Security Features

EntraPass supports a wide range of advanced solutions that include access control, video surveillance, intrusion detection, and

security management (guard tours, remote video management, video/alarm verification). With these advanced features, the Kantech

EntraPass solution readily provides tremendous performance and value to monitoring stations and their customers.

EntraPass Advanced Security Features

DSC PowerSeries Alarm Panel Integration

EntraPass Advanced Security Features

Workspaces

EntraPass workspaces simplify and improve system management by providing customized views of the system based on an operator’s

access privileges. Each workspace is created and defined in terms of devices - gateways, sites, doors, relays, etc. - and is configured

to identify what areas of the EntraPass system the operator can access and view, such as desktop display, card fields, etc. Workspaces

enable the creation of different views of the EntraPass system that can be saved and applied to any operator. This feature allows an

operator to further create and refine their own views by filtering out components that are not necessary for day-to-day operations. The

operator can create, save and reuse temporary workspaces. This feature is useful whenever a recurring operation is needed on the

system, such as when creating reports. Workspaces can also be applied to desktops to specify which events and messages can be

displayed on a particular PC. An installer can use such a workspace in addition to their own operator workspace to filter messages during

a customer installation.

EntraPass v4.03 and higher provides full integration with DSC PowerSeries alarm panels (PC1616, PC1832, PC1864). A KT-400

controller or Corporate Gateway can be directly connected to DSC Power Series alarm panel to receive intrusion events, view the status

of zones, and manage partitions and user codes. In addition you can arm/disarm single/multiple partitions via reader (KT-400 only) or

manual operation.

Card Gateway

The Card Gateway is an external interface where the customer will be able to make additions, modifications and deletions to the card

database through Oracle or MS-SQL tables. The Card Gateway also creates a real-time, mirror copy of the EntraPass card databases

(card, card group, card type and badge tables) in the Oracle or MS-SQL database. This application may be installed and run on the

server’s computer.

Server/Gateway

Workstation

Card Gateway

HR Database

(Oracle or MS-SQL)

EntraPass Advanced Security Features

* Requires v3.1 or higher for IntellexUltra, DWMS, IP and v2.6 or higher for Intellex LT, EDVR v1.53 or higher. Visit www.americandynamics.net for more detailed information about Intellex.

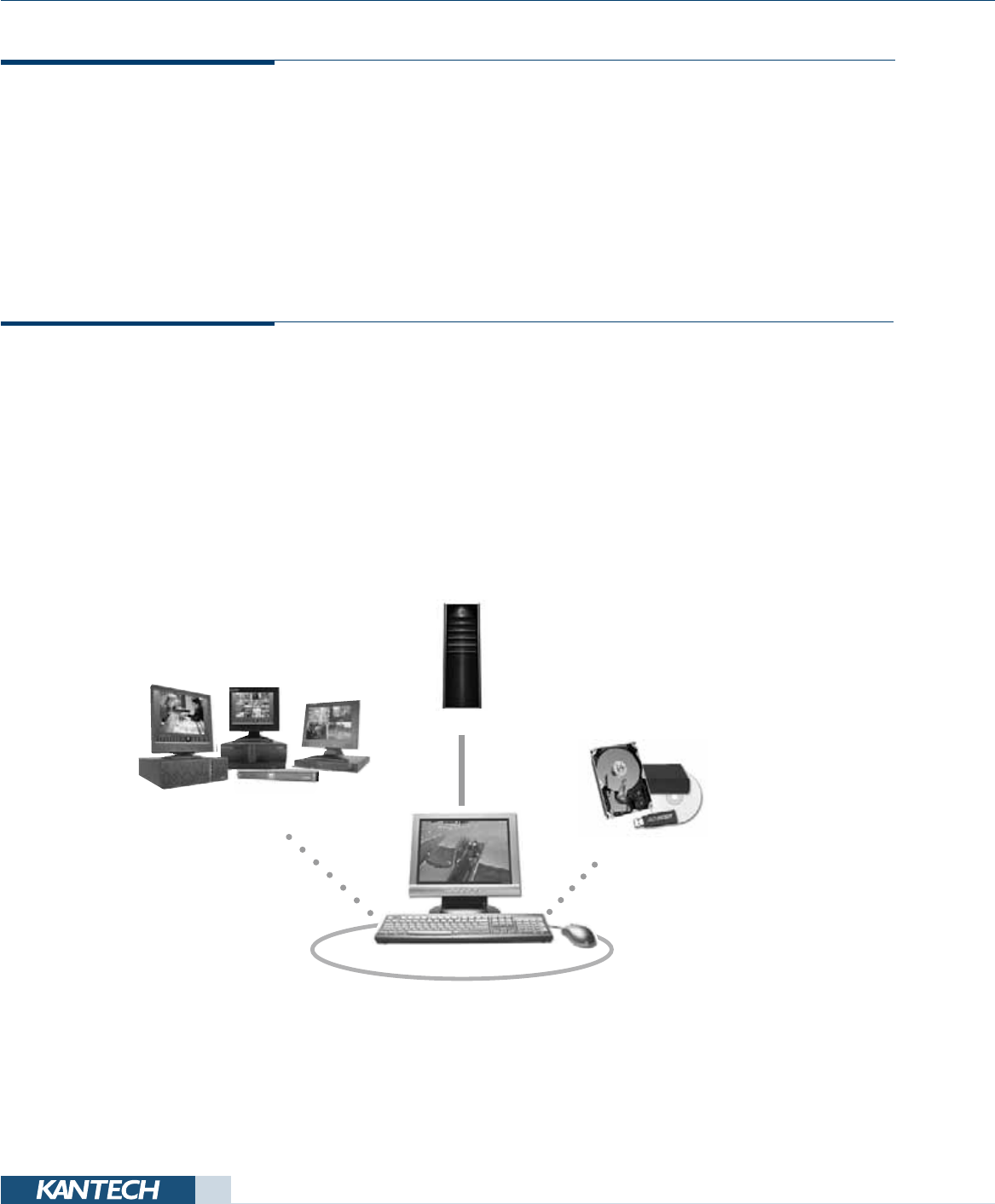

EntraPass Video Vault

(Up to 40 Video Vault)

Server

Digital Storage Devices

(up to 24)

American Dynamics

Digital Video Management Solutions

Enhanced Video Integration

Kantech provides a powerful integrated access control and digital video solution with its EntraPass access control software and American

Dynamics’ Intellex Digital Video Management System. By combining the easy-to-use EntraPass interface with the power of Intellex, this

integrated solution sets the standard for real-time video monitoring as well as video playback of critical access events. Video can be

linked to access control events and recorded from different Intellex systems simultaneously. Presets (called from any kind of alarm),

sequences, dome control, and 1x1, 2x2, 3x3, and 4x4 views are available through the EntraPass software. All cameras can be called up

directly from a floor plan simply by double-clicking on the camera icon.

This integrated solution is made even more powerful with EntraPass Video Vault, which allows users to automatically archive and

password-protect video clips through the EntraPass system.

EntraPass Video Vault Option

Installed on the network, the optional Video Vault offers an alternative to manually saving each video clip one-by-one. Simply pre-define

groups for the video clips (such as door forced open or rejected card) and Video Vault saves them to the appropriate group based on

whatever schedules are chosen.

The file type (.KVI, .KVA, .IMG, or .AVI) can be pre-designated prior to saving; and both .KVI and .KVA file types can be assigned

password protection. Video clips can also be organized as .BMP images in lieu of icons. Select the first frame (taken from the onset

of pre-alarm footage), the event frame (which coincides with the precise moment of the alarm), or any other frame within the clip. Video

vault can connect up to 128 Intellex systems via integration with EntraPass and can archive the imported video to as many as 24 digital

storage devices.

SmartLink

SmartLink allows EntraPass to integrate with any third party application or database. SmartLink uses built-in macros to help to design in

the most commonly requested integrated applications such as CCTV multiplexers, HVAC systems, LCD panels, video matrix switchers,

etc. The integration is accomplished by using an RS-232 or network connection between the system and the third-party device. For

advanced system integration, SmartLink enables communication with software applications such as time and attendance, badging, human

resource management, student registration, and more through Ethernet, TCP/IP, an RS-232 port, API, or with DLLs. This allows complete

and real-time data exchange between systems, eliminating duplicate data entry.

An optional Redundancy Server with a mirror database monitors all data activity on the primary EntraPass server and creates a real-time

copy of the system database. In the event of primary server failure, the mirror database automatically launches the redundancy server

which supports all the features and functionality of the primary server. Once the primary server returns online, all archives are merged and/

or the entire database is merged/copied from the redundancy server, without interrupting system operations.

Redundancy Server

Managed Security Services

Kantech offers an industry first security solution designed to combine the power of and to bridge the gap between a hosted and a fully

managed solution. Offering access control to your customers has never been easier. Kantech Managed Security Services solutions are

in place worldwide and are the security industry’s preferred choice. Customers can remotely manage their access control system from

anywhere in the world via the internet.

No on-site PC or server is required, there is no need for on-site software and no specialized training is required. Fully featured, secure,

flexible and easy to install, Kantech is the access control solution of choice from a single door to a large enterprise. Add it all up and

Kantech Managed Security Services offers low cost of ownership and real-time monitoring, all within a web-based, easy-to-use interface.

Workstation

Redundancy Server

Server/Gateway

EntraPass Advanced Security Features

In busy environments like casinos,

Kantech door controllers help to

prevent the public from wandering

into restricted areas where they

don’t belong. You can make

security and building operations

even more effective by integrating

our door controllers with alarm

panels, HVAC systems, and CCTV

systems, such as those from

American Dynamics.

Door Controllers

Security professionals can count on the scalability

of KT-400 to handle their ever-changing needs.

From a small, single-door business, to a bustling

multi-tenant facility, KT-400 is very flexible and is

easily expandable.

KT-400 Door Controller

KT-400 is an Ethernet-ready four-door controller that provides 128-bit AES encrypted communication with the EntraPass system

and is a highly secure solution for any security-conscious business. KT-400 can easily be integrated into an existing EntraPass

system with other Kantech controllers (KT-100 and KT-300) or can provide the foundation for a brand new security installation. With

an onboard Ethernet port, an external IP device is no longer required to connect to the network. The onboard port is dual-sensing,

which means the system senses whether the connection is 10Base-T or 100Base-T, and adjusts automatically for faster connectivity.

KT-400 manages network polling and communicates with the EntraPass Gateway only when an event has occurred. Communication

integrity is ensured through a heartbeat signal which is sent at regular intervals to the EntraPass system. This asynchronous

communication significantly reduces the amount of bandwidth required to manage the access control system over the network.

KT-400 Door Controller

FEATURES

• Supports four readers

• Onboard Ethernet 128-bit AES-encrypted

communication with the EntraPass system

ensures a high degree of network security

• Control the occupancy level in a defined

location with the anti-passback feature

• 100,000 cards capacity and provides up

to 20,000 concurrent events in stand-alone

mode

• 256 outputs (four onboard) provide scalability

• Communicates with the EntraPass Gateway

only when an event has occurred, ensuring

low network bandwidth consumption (Special

and Corporate Editions only)

• Verify and configure IP settings with a built-in

web configuration page

• Supervised door lock outputs with internal or

external power supply

• LEDs provide important controller status and

diagnostic information

• Additional battery supervision and monitoring

help ensure controller functionality

KT-400-ACC KT-400 Accessory Kit includes, four 1.0 K ohm, 32/5.6 K ohm resistors, ground wire, and screwdriver

KT-400-CAB KT-400 black metal cabinet with lock (KT-LOCK)

KT-400-CON KT-400 removable terminal block spare kit

KT-ACPW-LED UL AC power LED indicator

KT-3LED-PLATE UL-listed alarm, three-color LED indicator mounted on single gang plate

KT-TAMPER Tamper switch for KT-400-CAB & KT-MOD-CAB metal cabinets

KT-LOCK Lock for KT-400-CAB & KT-MOD-CAB metal cabinets and two keys

KT-400 KT-400 four-door controller, IP-ready, accessory kit (KT-400-ACC), metal cabinet (KT-400-CAB) with lock (KT-LOCK)

KT-400-PCB KT-400 four-door controller (PCB only), IP-ready, accessory kit (KT-400-ACC)

MODEL NUMBERS

KT-400 Door Controller

ACCESSORIES

KT-MOD-INP16 KT-400 expansion module 16-zone input with SPI cable (KT-MOD-SPI-16)

KT-MOD-OUT16 KT-400 expansion module 16-output with SPI cable (KT-MOD-SPI-16)

KT-MOD-REL8 KT-400 expansion module 8-relay with SPI cable (KT-MOD-SPI-16)

KT-MOD-SPI-16 KT-400 SPI cable 40.6 cm (16 in) for expansion modules, with connector at one end

KT-MOD-SPI-36 KT-400 SPI cable 91.4 cm (36 in) for expansion modules, with connector at one end

KT-MOD-CAB KT-400 expansion module cabinet, black, with 91.4 cm (36 in) SPI cable (KT-MOD-SPI-36) & lock (KT-LOCK)

EXPANSION MODULES

TR1675 TR1675 KT-400 transformer, wire-in, 110 VAC/ 16.5 VAC (75 VA), UL approved

KT-SW1224 Power supply for expansion modules 12 VDC, 2 Amp

POwER SUPPLIES

* KT-400 is only available with EntraPass v4.01 and higher

KT-400 Door Controller

SYSTEM DIAGRAM

RS-485

Direct

12 V Battery and

16 VAC, 75 VA

Transformer

Readers Expansion Modules

Door Locking

Devices Request to Exit

Detector

Additional KT-100,

KT-300, or KT-400 in Loop

EntraPass Software

(Special, Corporate, and Global Editions

with Corporate Gateway)

Direct Ethernet

EntraPass Software

(Global Gateway)

KT-400

DSC PowerSeries

Alarm Panels

KT-300 Door Controller

The KT-300 is a powerful and scalable

door controller that is designed to meet the

highest standards of access control and door

monitoring applications. The KT-300 controls

2 doors and is easily linked to a network

controlling millions of doors.

KT-300 Door Controller

The KT-300 door controller supports up to two readers, which can be installed either on a single door (to monitor both entry and

exit) or on two separate doors. It provides connections for all peripheral devices necessary for a complete access control system and

can be linked with other door controllers to provide control over millions of doors.

Stand-alone mode protects against power or system failures and the system stores cardholder and event data, which is

automatically transmitted back to the EntraPass system once the network connection is restored. Flash memory allows for firmware

updates from an EntraPass workstation in just a few minutes.

Built-in Combus expansion means that relay, input, and output modules can be added to connect HVAC systems, elevators, motion

detectors, and more. The Combus is a communication protocol that is integral to the KT-300. It uses a four-conductor cable bus to

which several expansion modules can be connected.

KT-300 Door Controller

FEATURES

• Controls two doors and easily links to a

network

• Update the firmware directly from system

workstation

• Fast, up to 115,200 baud

• Ready to go, no DIP switches or jumpers

to set

• 5V and 12V reader power

• Interfaces with an external alarm system

• Supervises battery conditions and reports low

battery/no battery status to the system

• Automatic trouble reporting

• All power outputs are individually protected

against short circuits and surges by a

self-resetting PTC

• Choice of two memory capacities, 128K

or 512K

KT-300/128K KT-300 two-door controller, 128KB memory, accessory kit (KT-300-ACC), metal cabinet (KT-300CAB) with lock (KT-LOCK)

KT-300/512K KT-300 two-door controller, 512KB memory, accessory kit (KT-300-ACC), metal cabinet (KT-300CAB) with lock (KT-LOCK)

KT-300PCB128 KT-300 two-door controller PCB only, 128KB memory, accessory kit (KT-300-ACC)

KT-300PCB512 KT-300 two-door controller PCB only, 512KB memory, accessory kit (KT-300-ACC)

MODEL NUMBERS

ACCESSORIES

KT-4051CAB KT-300 expansion module cabinet black

KT-PC4108 KT-300 expansion module, 8-zone input module

KT-PC4204 KT-300 expansion module, 4-relay and COMBUS additional power supply

KT-PC4216 KT-300 expansion module, 16-output module

KT3-LCD KT-300 expansion module, LCD time and date display

EXPANSION MODULES

KT-300-ACC KT-300 accessory kit, includes: two 1.0K ohm, ten 5.6K ohms, two 120 ohms end-of-line resistors, PCB standoff, lock hole

cover, ground wire and screwdriver

KT-300CAB KT-300 accessory, black metal cabinet with lock (KT-LOCK)

KT-LOCK Lock for KT-300-CAB & KT-4051-CAB, metal cabinets, 2 keys

KT-TAMPER Tamper switch for KT-300-CAB & KT-4051CAB, metal cabinets

KT-300FLASH Replacement firmware

KT-RM1 External isolation relay, single pole, double through (SPDT) for output RL1/RL2

TR1637W/CSA KT-300 transformer, wire-in, 110 VAC/ 16 VAC (37 VA), CSA approved

TR1640P/UL KT-300 transformer, plug-in, 110 VAC/ 16 VAC (40 VA), UL approved

TR1640P/CSA KT-300 transformer, plug-in, 110 VAC/ 16 VAC (40 VA), CSA approved

TR1640W-220 KT-300 transformer, wire-in, 220 VAC/ 16 VAC (37 VA), CE approved

POWER SUPPLIES

Door Locking Devices

Request to Exit Detector

12V Battery and

16 VAC, 40 VA

Transformer

Readers

EntraPass Software

Ethernet

TCP/IP

†

Dial-Up

RS-485

KT-300 Door Controller

Expansion Modules

SYSTEM DIAGRAM

* Direct via RS-232 or RS-485 with USB-485 or VC-485 converters

** Dial-up: Using RS-232 serial modem at remote site

† Ethernet TCP/IP: Using Lantronix Universal Device Server, or using Kantech IP Link with EntraPass Special Edition/Corporate Edition/Global Edition. A Corporate Gateway is required

with EntraPass Global Edition

Direct

KT-300

Additional KT-100,

KT-300 or KT-400 in Loop

The KT-100 can control two readers on one door.

When coupled with the EntraPass access control

software, it offers a compact, versatile solution for

applications such as turnstiles.

KT-100 Mini Door Controller

The KT-100 Mini Door Controller is compact and versatile with a space-saving design that incorporates all the components and

equipment found in much larger controllers. Choose it for installations near a door, within a ceiling, involving turnstiles and parking

gates, or anywhere that requires less than 3.28 m (10 ft) of wiring.

The KT-100 contains all the intelligence and necessary inputs/outputs to manage one door or link to a network controlling thousands

of doors.

The firmware program is stored in the controller flash memory and can easily be downloaded from the system’s EntraPass

workstation without changing the memory chips. The KT-100 also allows installers to arm/disarm an external alarm system and to

assign appropriate user permissions.

KT-100 Mini Door Controller

FEATURES

• Single door controller

• Flash memory programming

• Fast communication speed, up to

115,200 baud

• Automated trouble reporting

• Quick and easy installation, in a single gang

box

• Interfaces with an external alarm system

• Update firmware directly from the workstation

• No DIP switches or jumpers to set decreases

installation time

KT-100 KT-100 mini door controller, for two readers one door

MODEL NUMBERS

EntraPass Software

Direct*

Request to Exit

Detector

16 VAC, 40 VA

Transformer

Additional KT-100,

KT-300 or KT-400 in Loop

KT-100

Ethernet

TCP/IP**

Door Locking Devices

Power Supply

(12 VDC)

12V Battery

* Direct: Using USB-485 or VC-485 converter with first controller in loop

** Ethernet TCP/IP: Using VC-485 and KT-IP IP Link Module

SYSTEM DIAGRAM

MUSB-1WHT Plastic surface mounting box, white

ACCESSORY

Readers

RS-485

ioPass Stand-Alone Door Controller/Reader

ioPass, a fully programmable stand-alone access control system, permits entry using proximity technology, keypad with PIN, or both,

for up to 5000 people. Compact and surface mountable, ioPass is programmed directly from the keypad with visual confirmation of

each operation on the 16-character, 2-line LCD. ioPass also features invalid password lockout. The system can be programmed to

activate an alarm relay and/or to automatically deactivate the card after five incorrect entries.

FEATURES

• Up to 5000 card users

• Use integrated reader, keypad, or both

• Integrated or external ioProx proximity

reader

• Read range of up to 16.5 cm (6.5 in)

• Six languages, programmable from key-

pad

• Higher security provided by concealed

door relay module

• Auxiliary relay to arm/disarm an external

alarm system

• Audit trail on the unit

• Duress function available

• Invalid password lockout

SA-500-EN ioPass stand-alone door controller, with integrated ioProx reader, up to 5,000 users, ten keytags (P40KEY), one relay module

(SA-RM56) English manual

SA-600-EN ioPass stand-alone door controller, with external ioProx reader, up to 5,000 users, ten keytags (P40KEY), one relay module

(SA-RM56) English manual

MODEL NUMBERS

SA-RM56 Additional/replacement relay module for SA-500 or SA-600 units

ACCESSORY

The ioPass relay module is separate from the

unit and can be concealed inside a wall or

ceiling, providing higher security.

KT-300 & KT-400 Demo Kit

EntraPass demo software is the ideal way to demonstrate the exceptional features of EntraPass. Sample databases can also be

downloaded to be used with the EntraPass demo software. The EntraPass demo software and databases can be used with both

the KT-300 demo kit and the KT-400 demo kit to provide a complete access control experience. The demo kits can also be used to

demonstrate the read range for ioProx readers as well as the ioProx card programming.

Kantech’s all-inclusive Demo Kit provides an

easy, portable solution. This self-contained

unit lets you give a professional presentation

with minimal set-up time.

KT-300 & KT-400 Demo Kit

DU4-120V-PLC Demo Kit, includes: PCB controller (KT-400-PCB), proximity readers with integrated keypad (P225KPXSF & P325KPXSF),

proximity readers (P225XSF & P325XSF), USB to RS-485 converter (USB-485), USB cable, five keytags (P40KEY), three

standard cards (P10SHL), UL rated transformer (TR1640P/UL), with Pelican case

DU4-120V Demo Kit, includes: PCB controller (KT-400-PCB), proximity readers with integrated keypad (P225KPXSF & P325KPXSF),

proximity readers (P225XSF & P325XSF), USB to RS-485 converter (USB-485), USB cable, five keytags (P40KEY), three

standard cards (P10SHL), UL rated transformer (TR1640P/UL), no case

DU3-120V-PLC Demo Kit, includes: PCB controller (KT-300PCB128), proximity reader with integrated keypad (P225KPXSF), proximity reader

(P325XSF), USB to RS-485 converter (USB-485), USB cable, five keytags (P40KEY), three standard cards (P10SHL), UL rated

transformer (TR1640P/UL), and push buttons, with Pelican case

DU3-120V Demo Kit, includes: PCB controller (KT-300PCB128), proximity reader with integrated keypad (P225KPXSF), proximity reader

(P325XSF), USB to RS-485 converter (USB-485), USB cable, five keytags (P40KEY), three standard cards (P10SHL), UL rated

transformer (TR1640P/UL), and push buttons, no case

MODEL NUMBERS

Choosing an access control system

doesn’t have to require hours

spent sorting through hundreds of

software, hardware, and reader

offerings. Kantech’s Access

Control Kits include all of the

components you need to get up and

running quickly and easily.

Access Control Kits

Starter Kits

MODEL NUMBERS

SK-CE402 EntraPass Corporate Edition software CD-ROM, KT-400 controller (1), ioProx P225XSF reader (4), USB-485 converter (1), TR1675

transformer (1), KT-BATT-12 battery (1) and ioProx P40KEY keyfob (5). (USA and Canada)

SK-CE403 EntraPass Corporate Edition software CD-ROM, KT-400 controller (1), ioProx P325XSF reader (4), USB-485 converter (1), TR1675

transformer (1), KT-BATT-12 battery (1) and ioProx P40KEY keyfob (5). (USA and Canada)

SK-SE302 EntraPass Special Edition software CD-ROM, KT-300/128K controller (1), ioProx P225XSF reader (2), USB-485 converter (1),

TR1640P/UL transformer (1), KT-BATT-12 battery (1), KT-RM1 relay (2) and ioProx P40KEY keyfob (5). (USA only)

Small and medium organizations can benefit

from access control just as much as large

enterprises. Kantech Access Control Starter

Kits make it easy to get started.

Starter Kits

Kantech Access Control Starter Kits offer a comprehensive solution for growing businesses that are seeking an easy-to-use and

highly reliable access control system. This all-inclusive kit provides everything needed to create a complete access control system.

From the powerful EntraPass software and KT-300 or KT-400 door controllers to all of the peripherals in between, the Starter Kit

makes sure nothing is left to chance.

Expansion Kits

Everything required to expand an existing

access control system is included in one

easy-to-install Expansion Kit.

Expansion Kits

The Expansion Kits offer a comprehensive and easy to install solution for small to medium size businesses to expand their access

control system in 2-door increments (KT-300) or 4-door increments (KT-400). The expansion kits are compatible with EntraPass

Special Edition, Corporate Edition and Global Edition.

MODEL NUMBERS

EK-400 KT-400 controller (1), TR1675 transformer (1) and KT-BATT-12. (USA and Canada)

EK-402 KT-400 controller (1), ioProx P225XSF reader (4), TR1675 transformer (1) and KT-BATT-12. (USA and Canada)

EK-403 KT-400 controller (1), ioProx P325XSF reader (4), TR1675 transformer (1) and KT-BATT-12. (USA and Canada)

EK-302 KT-300/128K controller (1), ioProx P225XSF reader (2), TR1640P/UL transformer (1), KT-BATT-12 battery (1), KT-RM1 relay (2).

(USA only)

EK-IP302 KT-300/128K controller (1), ioProx P225XSF reader (2), VC-485 converter (1), TR1640P/UL transformer (1), KT-BATT-12 battery (1),

KT-RM1 relay (2) and KT-IP communication device (1). (USA only)

EK-IP300 KT-300/128K controller (1), VC-485 converter (1), TR1640P/UL transformer (1), KT-BATT-12 battery (1), KT-RM1 relay (2) and KT-IP

communication device (1). (USA only)

EK-DU302 KT-300/128K controller (1), P225XSF reader (2), TR1640P/UL transformer (1), KT-BATT-12 battery (1), KT-RM1 relay (2) and

DU-MODEM-RS modem (1). (USA only)

EK-DU300 KT-300/128K controller (1), TR1640P/UL transformer (1), KT-BATT-12 battery (1), KT-RM1 relay (2) and DU-MODEM-RS modem (1).

(USA only)

Multi-Door Controller & Expansion Kits

Kantech’s multi-door controllers cost- effectively

consolidate multiple KT-300 door controllers in a

single enclosure.

Multi-Door Controller & Expansion Kits

Kantech Multi-Door Controller Kits provide all the necessary hardware components in one box, from powerful KT-300 Kantech door

controllers to readers and keytags, to complete or extend an access control system. The Multi-Door Controller Kits are available

in two enclosure size models: a 28” enclosure that can accommodate up to four KT-300 controllers and a 42” enclosure that can

accommodate up to six KT-300 controllers. The kits are ideal for large applications where space, time and budget are important

considerations. Rather than having to install separate enclosures for each Kantech door controller, the Multi-Door Controller Kits

enable you to mount multiple door controllers inside a single enclosure. This is a valuable benefit for sites with limited wall space.

For added convenience, the Kantech Multi-Door Expansion Kit lets you expand your access control system in four-door increments.

This kit provides the basic peripherals to expand your system such as additional KT-300 controllers, transformers, rechargeable

batteries and more - all with the convenience of one model number.

EK-4RDR-12

42-inch Multi-Door Controller kit

shipped with 2 KT-300 controllers.

Image shown fully conﬁgured.

EK-4RDR-8

28-inch Multi-Door Controller Kit

shipped with 2 KT-300 controllers.

Image shown fully conﬁgured.

EK-4RDR-ADD

Multi-Door Expansion Kit

Multi-Door Controller & Expansion Kits

FEATURES

• Controls up to 8 or 12 doors from one

enclosure (depending on model size

enclosure)

• Cost-effectively consolidate multiple Kantech

door controllers in a single enclosure to

provide a streamlined installation

• Supports all Kantech software including

EntraPass Special Edition, EntraPass

Corporate Edition, and EntraPass Global

Edition

• Expand the system in four-door increments

using the Multi-Door Expansion Kit

MODEL NUMBERS

EK-4RDR-8 4-Door Kit, 8-Door Enclosure Multi-Door Controller Kit includes KT-CAB3000LDR 28” enclosure with door cover (1),

KT-MP300 mounting plates (2), KT-BB100/BB101 battery brackets, KT-300PCB128 controller - PCB only (2), KT-300 ACC

accessory kits (2), ioProx P225XSF readers (4), TR1640P/UL transformers (2), KT-BATT-12 rechargeable batteries (2), KT-RM1

relays (4), ioProx P40KEY keytags (25), KT-TAMPER tamper switch (1), KT-LOCK lock and keys (1). UL certified kit.

EK-4D-8 4-Door Kit, 8-Door Enclosure Multi-Door Controller Kit includes KT-CAB3000LDR 28” enclosure with door cover (1),

KT-MP300 mounting plates (2), KT-BB100/BB101 battery brackets, KT-300PCB128 controller - PCB’s only (2), KT-300 ACC

accessory kits (2), TR1640P/UL transformers (2), KT-BATT-12 rechargeable batteries (2), KT-RM1 relays (4), KT-TAMPER

tamper switch (1), KT-LOCK lock and keys (1). UL certified kit. NO READERS.

EK-4RDR-12 4-Door Kit, 12-Door Enclosure Multi-Door Controller Kit includes KT-CAB4000LDR 42” enclosure with door cover (1),

KT-MP300 mounting plates (2), KT-BB100/BB101 battery brackets, KT-300PCB128 controller - PCB’s only (2), KT-300 ACC

accessory kits (2), ioProx P225XSF readers (4), TR1640P/UL transformers (2), KT-BATT-12 rechargeable batteries (2), KT-RM1

relays (4), ioProx P40KEY keytags, KT-TAMPER tamper switch (1), KT-LOCK lock and keys (1). UL certified kit.

EK-4D-12 4-Door Kit, 12-Door Enclosure Multi-Door Controller Kit includes KT-CAB4000LDR 42” enclosure with door cover (1),

KT-MP300 mounting plates (2), KT-BB100/BB101 battery brackets, KT-300PCB128 controller - PCB’s only (2), KT-300 ACC

accessory kits (2), TR1640P/UL transformers (2), KT-BATT-12 rechargeable batteries (2), KT-RM1 relays (4), KT-TAMPER

tamper switch (1), KT-LOCK lock and keys (1). UL certified kit. NO READERS.

EK-4RDR-ADD Multi-Door Expansion Kit includes KT-MP300 mounting plates (2), KT-BB100/BB101 battery plates (2), KT-300PCB128

controller - PCBs only (2), KT-300-ACC accessory kits (2), ioProx P225XSF readers (4), TR1640P/UL transformers (2),

KT-BATT-12 rechargeable batteries (2), KT-RM1 relays (4). UL certified kit.

EK-4D-ADD Multi-Door Expansion Kit includes KT-MP300 mounting plates (2), KT-BB100/BB101 battery plates (2), KT-300PCB128

controller - PCBs only (2), KT-300-ACC accessory kits (2), TR1640P/UL transformers (2), KT-BATT-12 rechargeable batteries

(2), KT-RM1 relays (4). UL certified kit. NO READERS.

ACCESSORIES

KT-CAB3000LDR 28-inch enclosure with door cover for up to four KT-300 PCB controllers, or up to three KT-400-PCB controllers.

KT-CAB4000LDR 42-inch enclosure with door cover for up to six KT300 PCB controllers, or up to four KT-400-PCB controllers.

KT-MP200 Mounting plates (15.2 x 10.2 cm/6 x 4 in) for KT-PC4108 and KT-PC4216 modules. Compatible with enclosure

KT-CAB3000LDR and KT-CAB4000LDR (Package of 4).

KT-MP300 Mounting plates (15.2 x 20.3 cm/6 x 8 in) for KT-300PCB and KT-PC4204 module. Compatible with enclosure

KT-CAB3000LDR and KT-CAB4000LDR (Package of 2).

KT-MP400 Mounting plate (15.5 x 29.9 cm/6 x 11.8 in) for KT-400-PCB and KT-NCC-PCB. Compatible with enclosure

KT-CAB3000LDR and KT-CAB4000LDR.

KT-MP500 Mounting plate (34.9 x 34.9 cm/13.6 x 13.6 in) for KT-400-PCB and KT-NCC-PCB. Compatible with enclosure

KT-CAB3000LDR [up to (2) KT-MP500] and KT-CAB4000LDR [up to (3) KT-MP500].

KT-BB100 Battery bracket (right side). Compatible with enclosure KT-CAB3000LDR and KT-CAB4000LDR.

KT-BB101 Battery bracket (left side). Compatible with enclosure KT-CAB3000LDR and KT-CAB4000LDR.

Kantech simplifies telephone-entry

and access control for apartment

and commercial office tenants.

Kantech Telephone Entry System

Kantech Telephone Entry System (KTES)

The Kantech Telephone Entry System (KTES) is an ideal entry system for small, medium, and large sites with an existing access

control system, or applications that require telephone entry access only. The system provides visitor access control to apartment

buildings, gated communities, condominiums, office buildings, and industrial sites. A tenant communicates directly with a visitor

using the KTES and can grant or deny admittance directly from a telephone land line or cellular phone with the touch of a button.

The KTES is simple and easy to install, can co-exist with Kantech controllers and can be remotely managed using EntraPass

software. A simplified version of the EntraPass software is included with the KTES for fast configuration & firmware upgrades, live

transaction monitoring & system backup.

FEATURES

• Stand-alone or integrates with an access

control system

• Convenient remote/secure IP

communication, programming and

management with EntraPass software

• Electronic directory with a capacity of up to

3,000 tenants

• Reader support for access control features

• Dynamic visitor language selection

• Large 4-line, 20-character LCD with high

contrast and backlighting

• Easily programmable directly from the

keypad

• Alternate telephone number available to

reach tenant

• Vandal- and weather-resistant stainless

steel housing

• Versatile alarm and trouble reporting

capabilities

• One telephone line supports up to five units

MODEL NUMBERS

With phone line option:

KTES-125US and KTES-125CDN Kantech

Telephone Entry System: standard 125 tenants;

optional 250 tenants using EntraPass v4.03 and

higher; maximum 3,000 tenants (see options for

more details). Also includes KTES EntraPass

software, 16 VAC/40 VA UL or CSA approved

transformer (1) and KTES-ACC-KIT accessory

kit (1).

no phone bill options:

KTES-5048MC System kit includes: controller

& decoder with cabinet for up to 48 lines max.

Requires KTES-125xx, line card KTES-5000RB,

interconnecting cable KTES-5000IC and

transformer 16 VAC, 40 VA (TR1640P/UL or

TR1640P/CSA)

KTES-5000MC System kit includes: controller

with cabinet for up to 1152 lines max. per

system. Requires KTES-125xx, KTES-5000AC

and transformer 16 VAC, 40 VA (TR1640P/UL or

TR1640P/CSA)

KTES-5000AC Auxiliary relay cabinet &

decoder for up to 96 lines max. per cabinet.

Requires KTES-5000RB, KTES-5000IC and

transformer 16 VAC, 40 VA (TR1640P/UL or

TR1640P/CSA). Compatible with KTES-5000MC

KTES-5000RB Line Card for 12 tenants.

Requires Interconnecting cable KTES-5000IC

KTES-5000IC Interconnecting cable CA71A/

RJ71C. Compatible with line card KTES-5000RB

Kantech puts control in the hands of residents and

property managers with its advanced, vandal-resistant

telephone entry system.

Kantech Telephone Entry System (KTES)

ACCESSORIES

E-KTES-3000 Option for a maximum of 3,000 tenants in total. Requires EntraPass V4.02 or higher. One option per unit

KTES-ACC-KIT Accessory kit for KTES-125 unit

KTES-CAM-N Covert color camera kit with bracket for KTES-125 unit

KTES-FBOX Flush mounting box for flush installation with black trim ring for KTES-125 unit

KTES-HEAT Heater kit for installation below 0°C (32°F) for KTES-125 unit

KTES-INDEX-F Paper index illuminated with LED

KTES-INDEX-R Paper Index black trim ring to be used with flush installation of KTES. Compatible with KTES-INDEX-F

KTES-MPLATE Mounting plate for goose neck installation for KTES-125 unit

KTES-POSTAL Postal lock bracket with switch for KTES-125 unit

KTES-PS-NA Power supply 100V-240 VAC IN / 19 VDC, 3.15 Amps OUT and AC power cord, 3-pin model. Compatible with KTES-125US

and KTES-125CDN only

SYSTEM DIAGRAM

Telephone

Company

EntraPass Software

(Special, Corporate & Global Editions

with Corporate Gateway)

Integrated with

Access Control System

oror

RS-485Modem IP

Additional Kantech Telephone

Entry Systems per site

Gate

Up to 3,000 Tenants

Entrance Door

Digital Video

Management

System

Reader

Kantech Telephone Entry System

Our access control solutions are

complemented by a complete line

of proximity, Smart Card, bar code

magnetic stripe and biometric

readers/cards.

Readers, Keypads & Cards

Kantech provides a full selection of readers and cards representing the most advanced and popular technologies available today.

Proximity, biometrics, magnetic stripe, bar code, Wiegand, and multiple technology offer a host of security options with cost, durability,

reliability, versatility, and the level of security varying from one to the next. To find out which type of reader is right for you, learn more

about the features and capabilities of each in the section below and on the next page.

PROXIMITY

Proximity readers continuously transmit a low-level fixed radio frequency (RF) signal that

provides energy to the card. When the card is held at a certain distance from the reader,

the RF signal is absorbed by a small coil inside the card that powers up the card’s microchip

which contains a unique identification code. Once powered, the card transmits the code to

the reader. The whole process is completed in microseconds. The big advantage of proximity

over other technologies lies in its simplicity. There are no moving parts, no mechanical wear,

no slots, and no read heads to maintain. The reader can be concealed inside walls or special

enclosures and poses even fewer problems when surface-mounted because it has no opening

with which to jam or tamper.

The proximity card is extremely secure and practically impossible to duplicate. Proximity cards

are less prone to physical damage or loss, saving you money in reduced card replacement

costs. Read ranges depend primarily on the reader. The larger the read range, the larger the

reader’s concealed antenna and, hence, the size of the reader. A reader’s read range is always

specified using standard cards. If the card’s coil is smaller, as in thin photo ID cards, keytag

or keytag type cards, it may reduce the read range by up to 40%. There is a great variety of

proximity readers designed for different environments including vandal resistant mullion mounts,

smaller decor styles, and integrated keypad/reader units.

MULTI-TECHNOLOGY

Multi-technology cards are most often used on sites where a system, such as one that

measures time and attendance, is already in place and uses magnetic stripe or bar code cards.

If the customer wants higher security proximity cards for the access control system, the existing

cards can be replaced by dual-technology cards which combine proximity and a second

technology, such as bar code or magnetic stripe or even smart card. This is a more convenient

alternative than asking employees to carry two cards. It is also less expensive and less time

consuming than switching out all of the cards.

MAGNETIC STRIPE

The typical magnetic stripe card accommodates three tracks or areas for storing data. Banking

and credit card operations rely on this technology, most frequently using Track 2 (sometimes

referred to as ABA-2 or ISO-2) to store their data. The card must be swiped or inserted into the

reader so that the read head can pick up the card’s encoded data. This contact operation

creates wear on both the card and the read head. With new high-density magnetic stripes,

however, loss of data due to reasons other than physical damage is now uncommon. This

technology provides a medium level of security because it is possible, with the right equipment

and proper knowledge, to duplicate cards. Yet, lower cost for both readers and cards makes it

an attractive choice for many users.

BAR CODE

Bar code technology is very common in non-security applications but it is seldom the

technology of choice for security. The card is swiped so that the cell inside the reader can read

the bar code through a lens. Visible bar code technology has obvious security drawbacks. For

example, cards can be duplicated with a photocopier or by faxing. Although it is possible to

mask the bar code with a filter that makes duplication more difficult, most buyers prefer more

secure technologies. The cards have an average life of 18 to 30 months. The reader lens

requires cleaning once a year on average, or more if installed in dusty environments such as

parking lots.

Choosing Card & Reader Technology

Key Questions to Ask Yourself When Choosing a Reader Technology

WHAT LEVEL OF SECURITY DO YOU NEED?

Different access control technologies provide different levels of security. Combining proximity technology with biometrics yields the

highest level of security by adding an extra layer of ID verification. You can also use either of these independently or opt for other

types of readers that offer a less expensive yet viable alternative for medium and low level security.

WHERE WILL THE READER BE USED?

Heavy traffic requires a technology that can process authorization data quickly. A proximity reader takes less than half a second

whereas a biometric reader requires up to two seconds and is better suited to less busy situations. Environmental factors can also

affect readers. Proximity readers are the most impervious to the elements. Biometric readers, being the most sensitive, should be

used exclusively indoors.

WILL THE READER GROW WITH YOUR ORGANIZATION?

You may find it more efficient and cost-effective to continue using your current technology throughout your operation as it grows.

Multi-technology cards offer the option of combining old with new, letting you retain existing bar code, Wiegand, or mag stripe

functions while adopting another type of access control like proximity technology.

Choosing Card & Reader Technology

WIEGAND

This technology was originally created to provide a permanently encoded card when magnetic stripe

cards were too sensitive to magnetic fields. The Wiegand card contains a stream of “Wiegand effect”

wire inside. As the card is swiped through an electromagnetic field inside the reader, the bits of wire

create a data stream that is used to identify the user. Wiegand was the most common technology in

high security applications before the advent of lower cost proximity technology.

BIOMETRICS

Biometric technologies include fingerprint, hand geometry, voice recognition, retinal scan, and any

other method of identification based on unique personal characteristics. Biometric solutions consist

of a reader that compares a user-selected template against the measured features of the actual

person. Templates may be called up in a system manually by entering a PIN or automatically by

using bar code, magnetic stripe, smart card or proximity identification technologies.

Communication Protocols

The following are just some of the communication protocols between readers and door controllers.

26-BIT WIEGAND

Most proximity, biometric and wireless readers are Wiegand compatible and work with most access

control panels on the market. Wiegand cannot prevent card duplication and is considered to be a low

security format. The standard format for Wiegand is 26 bits.

KANTECH’S SECURE FORMATS

A high security proprietary format created to prevent card duplication. There are two Kantech Secure

formats:

• 39-bit XSF (eXtended Secure Format) Available only with ioProx readers and cards

•

34-bit KSF (Kantech Secure Format) Available only with ShadowProx readers and cards and HID cards

BCD OUTPUT

Certain keypads will send data to the controller in a BCD format (Binary Code Decimal)

AMERICAN BANK ASSOCIATION (ABA) FORMAT

Barcode and magnetic stripe readers are usually sending data to the controller in a format called Clock and Data

(also called ABA)

Reader Comparison Chart

Model Description and Read Range Dimensions Power Outdoor

Suitability

Compatible

Cards

Security

Level Compliance

Proximity

ioProx Readers

P225XSF/W26 Mullion Mount

Read Range up to 16.5 cm (6.5 in)

11.4 x 4.4 x 2.1 cm

(4.5 x 1.75 x 0.84 in)

Controller

4.5-14 VDC Yes ioProx High UL, FCC,

& CE

P325XSF/W26 Single Gang Box Size

Read Range up to 20.5 cm (8 in)

11.5 x 7.1 x 2.1 cm

(4.55 x 2.8 x 0.84 in)

Controller

4.5-14 VDC Yes ioProx High UL, FCC,

& CE

P225KPXSF/W26

Mullion Mount with

Integrated Keypad,

Read Range up to 16.5 cm (6.5 in)

11.4 x 4.4 x 2.1 cm

(4.5 x 1.75 x 0.84 in)

Controller

4.5-14 VDC Yes ioProx High UL, FCC,

& CE

P325KPXSF/W26

Single Gang Box Size with

Integrated Keypad

Read Range up to 20.5 cm (8 in)

11.5 x 7.1 x 2.1 cm

(4.55 x 2.8 x 0.84 in)

Controller

4.5-14 VDC Yes ioProx High UL, FCC,

& CE

P600

Multi-Tech Readers

P345MTR/P345KPMTR

Long Range Reader

Read Range up to 73 cm (29 in)

Integrated Keypad (P345KPMTR)

Read Range up to 10.2 cm (4 in)

285 x 285 x 31.5 cm

(11.25 x 11.25 x 1.25 in)

11.1 x 8.4 x 2.9 cm

(4.37 x 3.31 x 1.1 in)

External

12-28 VDC

Controller

9.4-16 VDC

Yes

ioProx

ioProx/HID/

Smart Card

High

UL, FCC,

& CE

UL, FCC,

& CE

HID Readers

HID-PP6005B Mullion Mount

Read Range up to 7.6 cm (3 in)

7.9 x 4.4 x 1.7 cm

(3.1 x 1.7 x 0.66 in)

Controller

5-16 VDC Yes HID High UL, FCC,

& CE

HID-MP5365 Mullion Mount

Read Range up to 14 cm (5.5 in)

15.2 x 4.4 x 2.5 cm

(6 x 1.7 x 1 in)

Controller

5-16 VDC Yes HID High UL, FCC,

& CE

HID-PR5355 Single Gang Box Size

Read Range up to 20 cm (8 in)

12.7 x 12.7 x 2.5 cm

(5 x 5 x 1 in)

Controller

12-24 VDC Yes HID High UL, FCC,

& CE

HID-PR5355KP With Integrated Keypad

Read Range up to 20 cm (8 in)

12.7 x 12.7 x 2.5 cm

(5 x 5 x 1 in)

Controller

12-24 VDC Yes HID High UL, FCC,

& CE

HID-TL5395 Single Gang Box Size

Read Range up to 14 cm (5.5 in)

11.9 x 7.6 x 1.7 cm

(4.7 x 3 x 0.68 in)

Controller

5-16 VDC Yes HID High UL, FCC,

& CE

HID-MX5375

multiCLASS Readers

HID-RP40/HID-RPK40

Long Range Reader

Read Range up to 61 cm (24 in)

Integrated Keypad (HID-RPK40)

Read Range up to 10.2 cm (4 in)

30 x 30 x 2.5 cm

(11.8 x 11.8 x 1 in)

8.4 x 12.2 x 2.4 cm

(3.3 x 4.8 x 0.1 in)

Ext.14/28 VDC

linear power

supply

Controller

5-16 VDC

Yes

HID

HID/

Smart Card

High

UL, FCC,

& CE

UL, FCC,

& CE

ShadowProx Readers

SH-Y1 Mullion Mount

Read Range up to 12.7 cm (5 in)

11.4 x 4.3 x 2 cm

(4.5 x 1.7 x 0.8 in)

Controller

5-16 VDC Yes ShadowProx High UL, FCC,

& CE

SH-Y2 Single Gang Box Size

Read Range up 12.7 cm (5 in)

11.4 x 7.6 x 2 cm

(4.5 x 3 x 0.8 in)

Controller

5- 16 VDC Yes ShadowProx High UL, FCC,

& CE

SH-Y4 Single/Double Gang Box Size

Read Range up to 30.5 cm (12 in)

13 x 15.5 x 2.8 cm

(5.1 x 6.1 x 1.1 in)

Controller

5-16 VDC Yes ShadowProx High UL, FCC,

& CE

SH-X5 Long Range Reader

Read Range up to 66 cm (26 in)

28.4 x 28.4 x 4.6 cm

(11.2 x 11.2 x 1.8 in)

External

12-24 VDC Yes ShadowProx High UL, FCC,

& CE

SH-2KP

multiCLASS Readers

SH-RP40/SH-RPK40

With Integrated Keypad

Read Range up to 10 cm (4 in)

Integrated Keypad (SH-RPK40)

Read Range up to 10.2 cm (4 in)

11.6 x 7.6 x 1.7 cm

(4.5 x 3 x 0.7 in)

8.4 x 12.2 x 2.4 cm

(3.3 x 4.8 x 0.1 in)

Controller

5-16 VDC

Controller

5-16 VDC

Yes

ShadowProx

ShadowProx/

Smart Card

High

UL, FCC,

& CE

UL, FCC,

& CE

ioProx Receiver

P700WLS Read Range up to 45 m (150 ft)

with Power Dipole Antenna

19.2 x 13 x 4.1 cm

(7.56 x 5.13 x 1.63 in)

Controller

12 or 24 VDC Yes ioProx

Transmitters

Medium/

High FCC

Polaris Mag Stripe

POL-2 Reader Only 15.8 x 4.5 x 3.8 cm

(6.24 x 1.75 x 1.48 in)

Controller

5 VDC Yes Polaris Medium FCC & CE

POL-2KP Reader with Integrated Keypad 15.8 x 4.5 x 3.8 cm

(6.24 x 1.75 x 1.48 in)

Controller

5 VDC Yes Polaris Medium FCC & CE

Bar Code

BC-301 Heavy Duty Construction 4.3 x 12.8 x 3.9 cm

(1.7 x 5.05 x 1.54 in)

Controller

5 VDC Yes Various Low FCC & CE

Wiegand

WEI-R20 Swipe Model 5.8 x 13.5 x 4.3 cm

(2.3 x 5.3 x 1.7 in)

Controller

5-12 VDC Yes Wiegand Low/

Medium UL & CE

WEI-R30 Insertion Model 3 x 8.1 x 7.6 cm

(1.18 x 3.18 x 3 in)

Controller

5-12 VDC Yes Wiegand Low/

Medium UL & CE

Readers & Cards Comparison Charts Readers & Cards Comparison Charts

Readers & Cards Comparison Charts

Card Comparison Chart

Compatible Readers Model Number Product Type Dimensions Direct Image

Printing Slot Punch Additional Reader

Compatibility

Proximity

ioProx Readers

P225, P225KP, P325,

P325KP and P600

Multi-Tech Readers

P345MTR/P345KPMTR

P10SHL Standard Card 8.5 x 5.4 x 0.1 cm

(3.38 x 2.13 x 0.07 in)

with PVC

Overlay Vertical None

P20DYE Thin Card 8.5 x 5.4 x 0.07 cm

(3.38 x 2.13 x 0.03 in) Yes (both sides) No BC-301*

P30DMG

Thin Card with

Unencoded Mag

Stripe

8.5 x 5.4 x 0.07 cm

(3.38 x 2.13 x 0.03 in) Yes (both sides) No BC-301*/

POL-2/POL-2KP

P40KEY Keytag 5.0 x 2.0 x 0.5 cm

(1.96 x 0.79 x 0.19 in) No Key Ring

Hole None

P50TAG Adhesive Tag 2.5 cm diameter

(0.98 in diameter) No No None

HID Readers

HID-PP6005B/MP5365

HID-PR5355/PR5355KP

HID-TL5395/MX5375

multiCLASS Readers

HID-RP40/RPK40

HID-C1326KSF Standard Card 8.5 x 5.4 x 0.2 cm

(3.36 x 2.13 x 0.07 in) with PVC Overlay Vertical None

HID-C1336KSF

HID-C1336K/G

Thin Card with

Unencoded Mag

Stripe

8.5 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in)

Yes (front side)

Yes (both sides) No BC-301*/

POL-2/POL-2KP

HID-C1346KSF Keytag 4.8 x 2.3 x 0.4 cm

(1.90 x 0.90 x 0.16 in) No Key Ring

Hole None

HID-C1386KSF

HID-C1386K/G Thin Card 8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in)

Yes (front side)

Yes (both sides) No BC-301*

ShadowProx Readers

SH-Y1, SH-Y2, SH-Y4,

SH-2KP and SH-X5

multiCLASS Readers

SH-RP40 and SH-RPK40

SH-C1 Standard Card 8.6 x 5.4 x 0.2 cm

(3.38 x 2.13 x 0.07 in) with PVC Overlay Vertical None

SH-CMG3/GG Thin Card 8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in) Yes (both sides) No BC-301*

SH-CMG4/GG

Thin Card with

Unencoded Mag

Stripe

8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in) Yes (both sides) No BC-301*/

POL-2/POL-2KP

SH-K1 Keytag 4.4 x 3.04 x 0.5 cm

(1.73 x 1.20 x 0.22 in) No Key Ring

Hole None

ioProx Receiver

P700WLS

P72WLS 2-button Transmitter 7.3 x 3.9 x 1.6 cm

(2.88 x 1.5 x 0.63 in) No Key Ring

Hole None

P72WLS-TAG 2-button Transmitter

with ioProx Tag

7.3 x 3.8 x 1.6 cm

(2.88 x 1.5 x 0.63 in) No Key Ring

Hole ioProx

P74WLS 4-button Transmitter 7.3 x 3.8 x 1.6 cm

(2.88 x 1.5 x 0.63 in) No Key Ring

Hole None

P74WLS-TAG 4-button Transmitter

with ioProx Tag

7.3 x 3.8 x 1.6 cm

(2.88 x 1.5 x 0.63 in) No Key Ring

Hole ioProx

Polaris Mag Stripe

POL-2, POL-2KP and

POL-2ATM

POL-C1CN

Thin Card with

Encoded Mag Stripe

and Bar Code

8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in) No No BC-301

POL-C5CN

Thin Card with

Encoded Mag Stripe

and Bar Code

8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in) Yes (front side) No BC-301

POL-C6CN Thin Card with

Encoded Mag Stripe

8.6 x 5.4 x 0.08 cm

(3.38 x 2.13 x 0.03 in) Yes (both sides) No BC-301*

Wiegand

WEI-R20/WEI-R30 WEI-C11SN Thin Card 8.6 x 5.4 x 0.09 cm

(3.38 x 2.13 x 0.04 in) No No None

* Bar code can be printed.

ioProx Proximity Readers & Cards

ioProx readers are compatible with both XSF

and 26-bit Wiegand formats and have an

integrated piezo buzzer and bicolor LED to

indicate the system/reader status.

ioProx Proximity Readers

Choose from several ioProx readers that easily meet the demands of any application. The readers are attractive, compact,

weatherized, and vandal-resistant, making them suitable for installation in a variety of environments. Depending on the model

selected and the environmental conditions, read range varies from 16.5 cm to 73 cm (6.5 in to 29 in). Kantech eXtended Secure

Format (XSF) readers are compatible only with Kantech EntraPass software which includes access to over four billion unique

codes. ioProx cards are dual-encoded, which means that they contain both XSF and 26-bit Wiegand formats. The same cards can

therefore be used with both series’ (XSF and 26-bit Wiegand) of ioProx readers.

ioProx Proximity Readers & Cards

FEATURES

• Choose from Kantech eXtended Secure

Format (XSF) or 26-bit Wiegand format

• Digital Signal Processing (DSP) for enhanced

security

• Weatherproof design for indoor and outdoor

applications

• Integrated piezo buzzer & bicolor LED

• Integrated tamper switch on P600 (optional

on other models)

• The use of quick connect terminal blocks

(P225 and P325 series) allows for easy wiring

and saves installation time

• Use the keypad’s * and # buttons in

conjunction with the EntraPass software to

arm and disarm external alarm panels

P225-COVER ioProx reader cover, for P225XSF or P225W26, black

P225KP-COVER ioProx reader cover, for P225KPXSF or P225KPW26, black

P325-COVER ioProx reader cover, for P325XSF or P325KPW26, black

P325KP-COVER ioProx reader cover, for P325KPXSF or P325KPW26, black

P225XSF (XSF format) and P225W26 (26-bit Wiegand format)

ioProx reader, mullion size, up to 16.5 cm (6.5 in) read range, black

P225KPXSF (XSF format) and P225KPW26 (26-bit Wiegand format)

ioProx reader, mullion size, up to 16.5 cm (6.5 in) read range, with integrated keypad, black

P325XSF (XSF format) and P325W26 (26-bit Wiegand format)

ioProx reader, single-gang size, up to 20.5 cm (8 in) read range, black

P325KPXSF (XSF format) and P325KPW26 (26-bit Wiegand format)

ioProx reader, XSF, single-gang size, up to 20.5 cm (8 in) read range, with integrated keypad, black

P600

ioProx reader, long range, XSF/26-bit Wiegand selectable, up to 73 cm (29 in) read range, black

MODEL NUMBERS

ACCESSORIES

P20DYE: THIN CREDIT CARD SIZE

P30DMG: THIN CREDIT CARD SIZE

P10SHL: STANDARD SIZE CARD

P40KEY: KEYTAG

P50TAG: SELF-ADHESIVE ROUND TAG

This thin prox card is made of a PVC laminate and

also has a magnetic stripe (not encoded). It is

glossy white on both sides which are both suitable

for dye sub printing.

There are also marks for a vertical and horizontal

slot punch. The card is dual encoded in both

Kantech eXtended Secure Format (XSF), and 26-bit

Wiegand format (W26).

The P10SHL is a clamshell style, non-printable card

that is dual encoded in both Kantech eXtended

Secure Format (XSF), and 26-bit Wiegand format

(W26).

Constructed of white ABS and PVC, the card

is strong, flexible and resistant to cracking and

breaking.

The ioProx proximity keytag is resistant to cracking

and breaking and is small enough to fit on a

keychain.

The keytag is dual encoded in both Kantech

eXtended Secure Format (XSF) and 26-bit Wiegand

format (W26).

The ioProx self-adhesive tag is less than 2.5 cm

(1 in) in diameter and will adhere to any non-metallic

surface. It is ideal for upgrading from Wiegand or

magnetic stripe technologies.

The tag can be applied to any badge to turn it into

an ioProx proximity card. The tag is dual encoded

in both Kantech eXtended Secure Format (XSF),

and 26-bit Wiegand format (W26).

This thin prox card is made of a PVC laminate

and is glossy white on both sides. Both sides are

suitable for dye sub printing. There are also marks

for a vertical and horizontal slot punch.

The card is dual encoded in both Kantech eXtended

Secure Format (XSF), and 26-bit Wiegand format

(W26).

ioProx Proximity Readers & Cards

Multi-Technology Proximity/Smart Card Readers

Kantech Multi-Technology/Smart Card Readers

provide a single reader solution for multiple

technologies including ioProx.

FEATURES

• Reads more than 12 different types of

proximity cards and contactless smart cards,

including ioProx with Kantech XSF

• Uses encryption and custom keys for secure

transmission of card data

• Download new functionality or enhancements

for a future-proof solution

• Optional keypad for two-factor verification

• Built-in tamper switch provides secure

installation

P345MTR Multi-Technology reader with ioProx support, smart card & proximity, up to 10.2 cm (4 in) read range depending on

technology of card, single-gang, black

P345KPMTR Multi-Technology reader with ioProx support, integrated keypad, smart card & proximity, up to 10.2 cm (4 in) read

range depending on technology of card, single-gang, black

MODEL NUMBERS

CARD TECHNOLOGIES SUPPORTED

• ioProx Kantech XSF

• HID KSF (Kantech Secure Format)

• CASI-RUSCO® Prox Lite

• ISO 14443A (MIFARE) Sector

• HID 26 Bit ISO 14443B Serial Number

• HID Corporate 1000

• ISO 15693 Serial Number

• HID 36 Bit Wiegand

• MIFARE Sector

• HID 37 Bit Wiegand

• DESFire® Serial Number

• Other HID pass through formats

• iCLASS® Serial Number

• Deister Prox SmartFrame®

Multi-Technology Readers

Kantech Multi-Technology Readers provide a multi-protocol, multi-frequency solution that reads multiple 13.56 MHz smart card

technologies, MIFARE® encrypted sectors, and most of the common 125 kHz proximity cards including ioProx with Kantech XSF

format - all from one reader. The readers are perfect if you want to transition to smart cards over time or if you want to utilize both

smart cards and proximity cards at your facility. Kantech Multi-Technology Readers make access control more powerful, more

versatile, and more cost-effective by allowing you to implement a smart card solution over time. While you are transitioning to smart

cards, the Multi-Technology Readers will read both the existing collection of proximity cards and smart cards.

Parking lots demand special considerations when

access control is required. With extended read

range and remote keytag transmitters, ioProx

receivers provide such areas with the same level

of security as an indoor installation.

ioProx Receiver & Transmitters

The ioProx receiver and transmitter solution extends the capabilities of the Kantech ioProx card reader line by making it easier for

customers to gain access to secured parking facilities. By providing a read range of up to 150 feet, the Kantech ioProx solution

extends the powerful ioProx card reader system from buildings to parking facilities and anywhere else a distance exists between

the cardholder and point of entry. This means cardholders no longer have to get out of their cars to open a secured parking gate

the way they would with traditional access control systems that have more limited read ranges. Instead, they simply press the

button on the ioProx transmitter, which is small enough to fit on their key chain and functions similarly to a garage door opener. The

ioProx receiver uses radio-frequency (RF) technology secured with encrypted coding to prevent code grabbers from intercepting the

system. The transmitter is available with an optional integrated ioProx tag, which equips it to also work with the ioProx card reader,

making it an ideal solution for customers who need to access both a parking facility and an office building without searching for

multiple access cards. The enhanced capabilities do not compromise security. The ioProx receiver can be programmed for either

Wiegand format, which is compatible with most door controllers on the market, or for Kantech eXtended Secure Format (XSF) which,

when used with one of Kantech’s door controllers, provides enhanced security with an additional measure of protection against ID

access code duplication.

ioProx Proximity Receiver and Transmitters

FEATURES

• ioProx selectable 4-channel receiver

• Read range up to 45 m (150 ft) - ideal for

2-way gate, parking and garage entrances

• Encrypted code ensures the highest level of

security

• Kantech eXtended Secure Format (XSF) or

26-bit Wiegand format-selectable

• 2 and 4-button transmitters

• Model available with integrated ioProx tag

P700WLS ioProx receiver, 4-channel, XSF/26-bit Wiegand selectable, indoor/outdoor use, including one standard whip

antenna (P-WLS-A1)

P72WLS ioProx 2-button transmitter

P72WLS-TAG ioProx 2-button transmitter with integrated ioProx tag, compatible with ioProx readers

P74WLS ioProx 4-button transmitter

P74WLS-TAG ioProx 4-button transmitter with integrated ioProx tag, compatible with ioProx readers

MODEL NUMBERS

P-WLS-A1 Standard whip antenna for P700WLS

P-WLS-A2 Power dipole antenna for P700WLS

ACCESSORIES

HID Proximity Readers & Cards

Featuring 125 kHz proximity technology, HID proximity readers are robust, affordable and seamlessly integrate with standard access

control systems. Sealed in a rugged, weatherized polycarbonate enclosure, the readers are designed to withstand harsh environments,

providing reliable performance and a high degree of vandal resistance. HID readers recognize over 16.7 million unique codes using

Kantech’s KSF cards (Kantech Secure Format) to provide increased security and absolute guarantee of no duplication of cards.

In addition to the 125 kHz HID proximity readers, Kantech offers the ultimate migration tool - the multiCLASS reader. MultiCLASS

multi-technology card readers combine 125 kHz proximity technology and iCLASS 13.56 MHz contactless smart card and reader

technologies into a single reader. They are designed for customers who are upgrading their current card system from HID Proximity to

HID iCLASS credentials or cards. Both “old” and “new” card formats can be accommodated which allows for a smoother transition.

HID Proximity Readers are used in a variety of

access control applications including employee

time and attendance.

HID Proximity Readers & Cards

FEATURES

• 26-bit Wiegand protocol interface, compatible

with all standard access control systems

• Low power consumption

• Consistent read range characteristics

• 125 kHz transmit frequency

• Integrated piezo and bi-color LED

• Attractive styling

HID-PP6005B HID ProxPoint Plus reader, mullion size KSF/26-bit Wiegand, up to 7.6 cm (3 in) read range, gray

HID-MP5365 HID MiniProx reader, mullion size, KSF/26-bit Wiegand, up to 14 cm (5.5 in) read range, gray

HID-PR5355 HID ProxPro reader, wall switch size, KSF/26-bit Wiegand, up to 20.3 cm (8 in) read range, gray

HID-PR5355KP HID ProxPro reader, wall switch size, KSF/26-bit Wiegand, up to 20.3 cm (8 in) read range, with

integrated keypad, gray

HID-TL5395BL (Black), HID-TL5395BE (Beige) and HID-TL5395WH (White)

HID ThinLine II reader, wall switch size, KSF/26-bit Wiegand, up to 14 cm (5.5 in) read range

HID-MX5375 HID MaxiProx reader, long range, KSF/26-bit Wiegand, up to 61 cm (24 in) read range, gray

HID-RP40 HID multiCLASS reader, smart card and HID proximity (also HID-KSF), single-gang size, black

HID-RPK40 HID multiCLASS reader with integrated keypad, smart card and HID proximity (also HID-KSF),

single-gang size, black

MODEL NUMBERS

The DuoProx II multiple technology proximity

card offers proximity, magnetic stripe and photo

identification technologies on a single thin (.030”

nominal thickness) access control card. It features

a graphics quality surface optimized for Photo ID

printing. KSF format.

Model HID-C1336KSF has a glossy front for dye-

sub printing. Model HID-C1336K/G has a glossy

front and back for dye-sub printing.

HID-C1326KSF: STANDARD SIZE CARD

The ProxCard II is a cost-effective solution

to proximity access control, with universal

compatibility with all HID proximity readers.

The ProxCard II provides durable packaging

and consistent read range. KSF format.

The card can accept direct-print adhesive backed

labels for use as a Photo ID card.

HID-C1386KSF AND HID-C1386K/G: THIN CREDIT CARD SIZE

The ISOProx II Card offers proximity technology

with photo identification capability on a single thin

(0.30” nominal thickness) ISO 7810 compliant

card. The card features a graphics quality surface

optimized for Photo ID printing. KSF format.

Model HID-C1386KSF has a glossy front for dye-

sub printing. Model HID-C1386K/G has a glossy

front and back for dye-sub printing.

HID Proximity Readers & Cards

HID-C1346KSF: KEYTAG

The ProxKey II is a proximity keyfob offering HID

proximity technology in a convenient pocket size

device. It easily attaches to a key ring, badge clip

or lanyard. KSF format.

The ProxKey II is suited for use in access control

applications where a Photo ID is not required.

ShadowProx Proximity Readers & Cards

HID-C1336KSF AND HID-C1336K/G: THIN CREDIT CARD SIZE

ShadowProx Proximity Readers & Cards

The ShadowProx proximity readers have been

designed in formats and finishes suitable for

installation in the most prominent locations. The

single piece construction allows faster installation.

ShadowProx Proximity Readers & Cards

ShadowProx Proximity Readers deliver outstanding and consistent performance with intelligent programming technology and stylish

bezel designs. ShadowProx readers are available in an arch style and offer different mounting options. These readers are mountable

on door mullions, on walls, on a single or double gang electrical box, as well as any flat surface. All ShadowProx 125 kHz Proximity

Readers feature an added level of access control system security through a verification process at the reader that screens out

unauthorized cards prior to sending card data to the host system. These readers use Kantech’s KSF cards (Kantech Secure Format)

which provide increased security and absolute guarantee of no duplication of cards.

In addition to the 125 kHz HID proximity readers, Kantech offers the ultimate migration tool-the multiCLASS reader. MultiCLASS

multi-technology card readers combine 125 kHz proximity technology and iCLASS 13.56 MHz contactless smart card and reader

technologies into a single reader. They are designed for customers who are upgrading their current card system from ShadowProx

Proximity to ShadowProx iCLASS credentials or cards. Both “old” and “new” card formats can be accommodated which allows for a

smoother transition.

ShadowProx Proximity Readers & Cards

FEATURES

• Recognizes over 16.7 million unique codes

using Kantech’s KSF cards (Kantech

Secure Format), which provide complete

security and an absolute guarantee

against card duplication

• Compatible with all Kantech systems

• Weatherproof design for either indoor or

outdoor applications

• Integrated piezo and bi-color LED

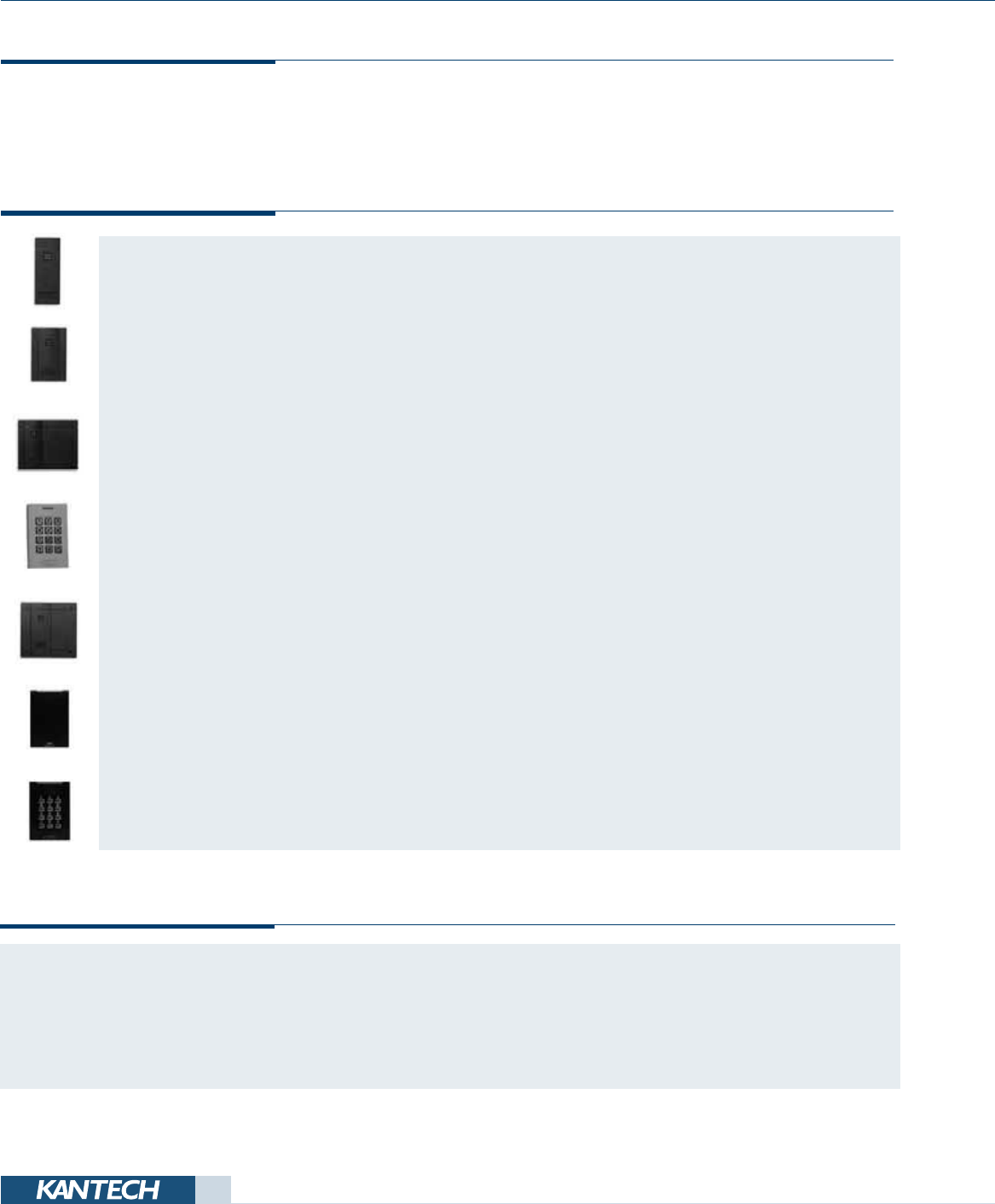

SH-Y1BLK (Black) and SH-Y1BEI (Beige)

ShadowProx Y1 reader, mullion size, KSF, up to 12.7 cm (5 in) read range

SH-Y2BLK (Black) and SH-Y2BEI (Beige)

ShadowProx Y2 reader, wall switch size, KSF, up to 12.7 cm (5 in) read range

SH-Y4BLK

ShadowProx Y4 reader, single/double gang size, KSF, up to 30.5 cm (12 in) read range, black

SH-2KPBLK (Black) and SH-2KP (Beige)

ShadowProx 2 reader, wall switch size, KSF, up to 10 cm (4 in) read range, with integrated keypad

SH-X5

ShadowProx X5 reader, long range, KSF, up to 71 cm (28 in) read range, black

SH-RP40

ShadowProx multiCLASS reader, smartcard and ShadowProx proximity, single-gang size, black

SH-RPK40

ShadowProx multiCLASS reader with integrated keypad, smartcard and ShadowProx proximity, single-gang size, black

MODEL NUMBERS

FPZ-3511A Cover for ShadowProx Reader SH-Y1, black

FPZ-3517A Cover for ShadowProx Reader SH-Y1, beige

FPZ-3521A Cover for ShadowProx Reader SH-Y2, black

FPZ-3527A Cover for ShadowProx Reader for SH-Y2, beige

ASR620-BEZEL Cover for ShadowProx Reader SH-X5, black

ACCESSORIES

ShadowProx Proximity Readers & Cards

SH-K1: KEYTAG

SH-CMG4/GG: THIN CREDIT CARD SIZE

SH-CMG3/GG: THIN CREDIT CARD SIZE

SH-C1: STANDARD SIZE CARD

This card is just 0.76 mm (.03 in) thick and

integrates proximity technology within a card

body designed to withstand the most extreme

applications. KSF format.

Unique composite formulation enhances the

structural integrity of the card. It is also ideal for

badging - both sides are printable.

Featuring a ready to encode magnetic stripe, this

ISO 7810 compliant card has a nominal thickness

of 0.76 mm (.03 in) and has the ability to contain

multiple ID technologies in a single credential. The

magnetic stripe can be used with other systems,

such as cafeteria vending, copy machines and fuel

dispensing. KSF format.

Digital photographs and graphics can be printed

directly over the front and back surfaces by using a

dye-sublimation printer. Bar codes can be imaged

onto the card for systems tracking, time and

attendance or job costing.

The standard shell card features beveled edges,

and can accept photo-flap and direct-print

adhesive-backed ID badge overlays. KSF format.

The durable ABS card construction makes it a

good choice for warehouse, factory and university

applications.

The keytag has a contemporary design that enables

it to be easily attached to a key, badge clip, or

badge lanyard. KSF format.

It is ideally suited for a variety of applications and

environments including locker rooms, health clubs,

apartment buildings as well as businesses where

photo IDs are not required.

ShadowProx Proximity Readers & Cards

Biometric Readers

Biometrics are physical and behavioral characteristics unique to an individual such as a finger or palm print, iris pattern or facial

image. Each individual has unique biometric data; and so solutions based on biometrics offer a better and more accurate means

of ensuring the integrity of an access control system than cards alone. Biometric based solutions quickly capture patterns from

physical characteristics of individuals and then match these patterns against records in a database. Many organizations are turning

to biometrics to enhance both the security and convenience of their existing systems.

Common applications of biometrics include:

- Airport security (baggage handling areas)

- Government (military bases)

- Financial Services (access to vaults/safety deposit boxes)

- Casino Gaming (cash counting rooms)

- Campuses (science labs/IT server rooms)

Biometric readers are used to determine a

person’s identity by detecting and matching the

person’s physical features, such as fingerprints

or hand geometry to a database.

Biometric Readers

The Bioscrypt fingerprint reader (for indoor use only) provides enhanced security and eliminates security breaches caused

by lost or stolen access cards. This reader can be used in a combined card plus fingerprint mode via an integrated ioProx

proximity card reader. It takes less than a second for the reader to confirm or deny access based on a database of

fingerprints/cards from authorized users. The reader performs enrolment, identification and template storage for up to 4000

fingerprints all within a small ergonomic case.

Hand recognition geometry uses the shape of the hand to identify/verify the person. Both the HK-2 and the HK-CR (both

models for indoor use only) use field-proven hand geometry technology that maps and verifies the size and shape of a

person’s hand all in less than one second. Both models requires a 16 VAC/DC, 40 VA transformer. These solutions are

perfect for one door or an entire facility.

Because your hand is your card, the HK-2 allows access only to authorized people with the convenience of never worrying

about keeping track of a card or a key. The HK-2’s 26-bit Wiegand output card reader emulation mode makes adding it to

existing access control systems fast and easy. The HK-2 has a standard 512 user memory.

The HK-CR is designed to work in conjunction with card based access control systems. This makes adding biometric

security to access points fast, simple and seamless for both new and existing systems. Can store up to 512 cardholder

templates in the unit, protecting cardholder privacy and eliminating the need to store and update cardholder databases in

individual readers. The storage of the template on the card allows the reader to support an unlimited number of cardholders.

MODEL NUMBERS

BB-200 HK-2 and HK-CR operational battery backup

EM-801 HK-2 and HK-CR memory expansion, up to 9,728 users

EM-803 HK-2 and HK-CR memory expansion up to 32,512 users

PS-110 HK-2 and HK-CR 110 VAC power supply

ACCESSORIES

VPRX-IO-XSF (with integrated XSF format ioProx reader)

VPRX-IO-W26 (with integrated 26-bit Wiegand format ioProx reader)

HK-2 Stand-Alone Hand Recognition Reader, 26-bit Wiegand format, 512 users

HK-CR Hand Recognition Reader, 26-bit Wiegand format, 512 users

Polaris Magnetic Stripe Readers and Cards

Polaris Magnetic Stripe Readers & Cards

The Polaris-2 series provides the right combination of quality and reliability. A card can be swiped through the reader in both

directions and the reader’s microprocessor automatically detects and rejects read errors. The reader has four different configurable

output modes (26-bit Wiegand, 34-bit Wiegand, ABA-Clock & Data and ABA-Wiegand), so that readers can be installed on existing

systems. The different output modes are obtained by connecting the proper wires during installation, to program the reader. The

mode can be changed by simply powering the reader down and rewiring it for the new mode. The “*” push-button on the keypad of

the POL-2KP is a dry contact with a 50 mA power rating. It can be connected to an alarm panel or to an intercom’s door call input,

for example.

Polaris magnetic stripe readers are simple solutions

for controlling door access. The reader can be

downloaded with employee names and their respective

access rights.

FEATURES

• Integrated membrane keypad (POL-2KP)

• Four easily configurable output modes

• Built-in tamper switch, piezo buzzer and

bi-color LED

• Weatherproof design for either indoor or

outdoor applications

• Small size provides mullion mount, wall

mount or single gang electrical box mounting

plate

• High endurance head assembly provides over

one million reads

• Tough polycarbonate case

• UV protectant prevents discoloring

POL-2 Polaris-2 magnetic stripe reader, indoor/ outdoor use

POL-25M Polaris-2 magnetic stripe reader, indoor/ outdoor use, with 5 m (16 ft) cable

POL-2KP Polaris-2 magnetic stripe reader, with integrated keypad, indoor/ outdoor use

POL-2KP-5M Polaris-2 magnetic stripe reader, with integrated keypad, indoor/ outdoor use, with 5 m (16 ft) cable

POL-2ATM Polaris ATM card reader kit, includes: POL-2 reader and programmable timer

(not CE approved)

MODEL NUMBERS

POL-C6CN: CARD

POL-C5CN: CARD

This card comes pre-programmed with card

number imprinted on back of card (also

includes bar code). The glossy front surface

can be used for Dye-Sub printing.

This card comes pre-programmed with card

number imprinted on back of card. Glossy front

surface can be used for Dye-Sub printing.

POL-C1CN: CARD

Pre-programmed with card number imprinted on

the back, this card also includes a bar code.

Polaris Magnetic Stripe Readers and Cards

BAR CODE READER

Kantech Product Catalog Kantechcatalog

Navigation menu

Versions of this User Manual:

Views

Navigation
