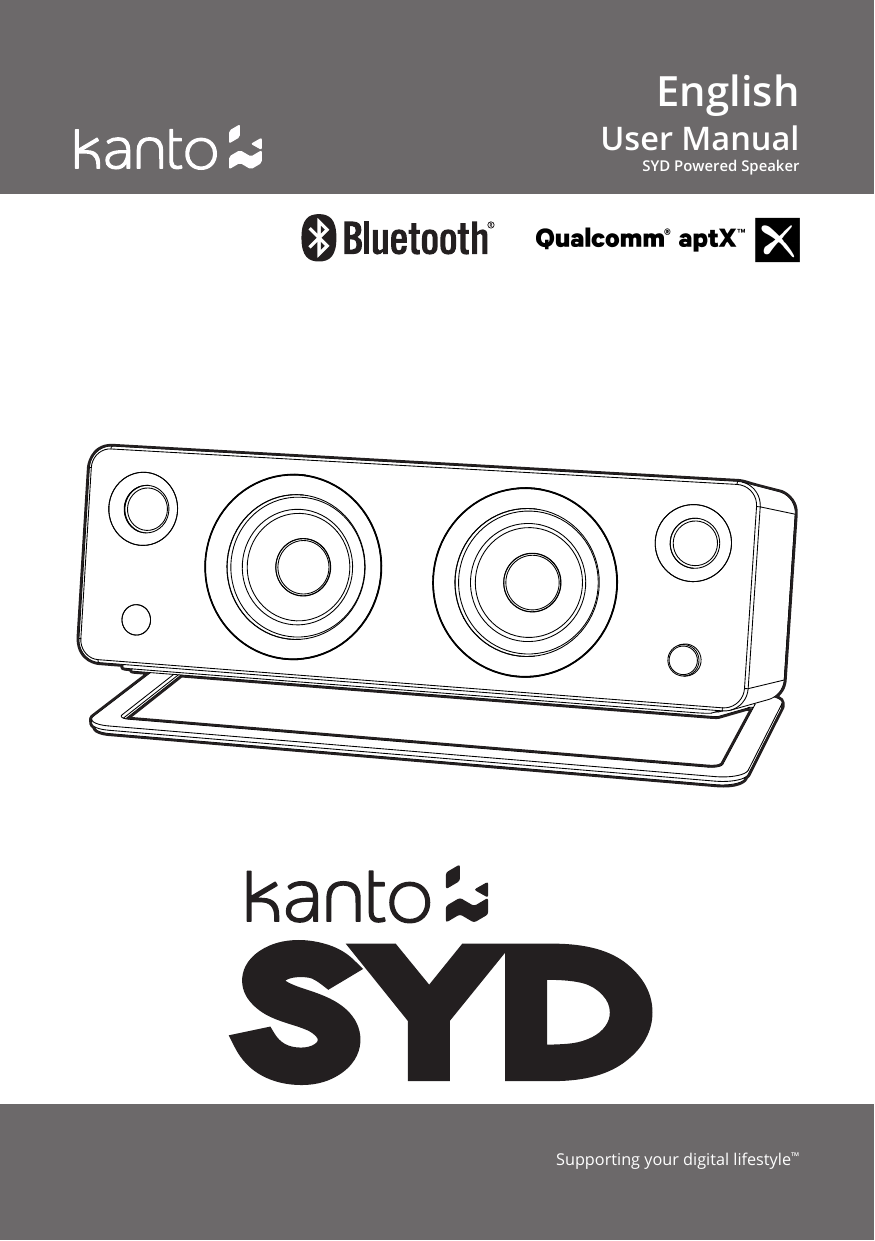

Kanto Living SYD Powered speaker system User Manual

Kanto Distribution Inc. Powered speaker system

User Manual

User ManualSYD Powered SpeakerSupporting your digital lifestyle™English

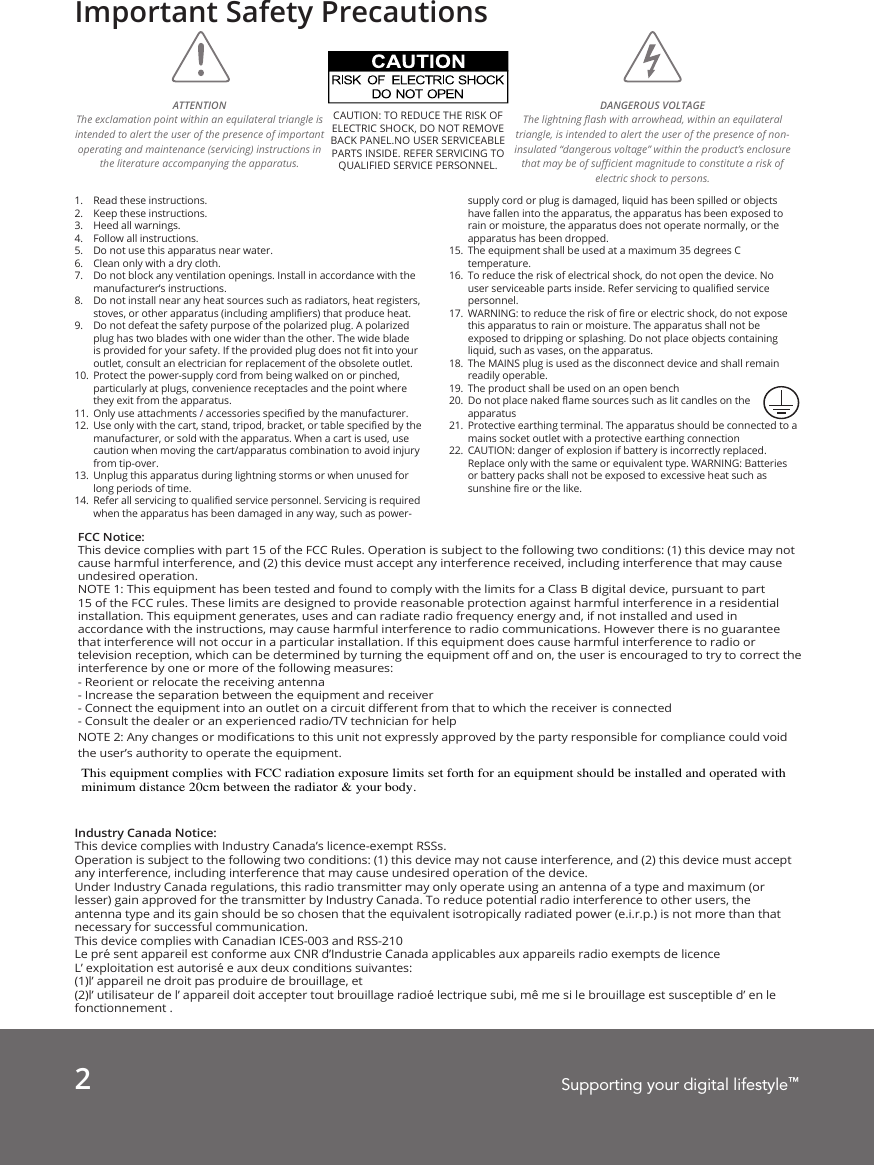

2Supporting your digital lifestyle™Important Safety Precautions1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.9. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power-supply cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.11. Only use attachments / accessories specied by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, the apparatus does not operate normally, or the apparatus has been dropped.15. The equipment shall be used at a maximum 35 degrees C temperature. 16. To reduce the risk of electrical shock, do not open the device. No user serviceable parts inside. Refer servicing to qualied service personnel. 17. WARNING: to reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing. Do not place objects containing liquid, such as vases, on the apparatus. 18. The MAINS plug is used as the disconnect device and shall remain readily operable.19. The product shall be used on an open bench 20. Do not place naked ame sources such as lit candles on the apparatus 21. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection 22. CAUTION: danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries or battery packs shall not be exposed to excessive heat such as sunshine re or the like. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE BACK PANEL.NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.DANGEROUS VOLTAGE The lightning ash with arrowhead, within an equilateral triangle, is intended to alert the user of the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.ATTENTION The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.FCC Notice:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may notcause harmful interference, and (2) this device must accept any interference received, including interference that may causeundesired operation.NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However there is no guaranteethat interference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorient or relocate the receiving antenna- Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected- Consult the dealer or an experienced radio/TV technician for helpNOTE 2: Any changes or modications to this unit not expressly approved by the party responsible for compliance could voidthe user’s authority to operate the equipment.Industry Canada Notice:This device complies with Industry Canada’s licence-exempt RSSs.Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Canadian ICES-003 and RSS-210Le pré sent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licenceL’ exploitation est autorisé e aux deux conditions suivantes:(1)l’ appareil ne droit pas produire de brouillage, et(2)l’ utilisateur de l’ appareil doit accepter tout brouillage radioé lectrique subi, mê me si le brouillage est susceptible d’ en le fonctionnement .This equipment complies with FCC radiation exposure limits set forth for an equipment should be installed and operated withminimum distance 20cm between the radiator & your body.
3IntroductionThank you for choosing a SYD Powered Speaker, designed by Kanto in Canada. SYD outputs 140W Peak power for remarkably bold and clean sound. Excellent sensitivity and frequency response provide deep thumping lows and clear, scintillating highs. SYD is an amazingly exible speaker system that can accept four input sources and connect to a subwoofer for enhanced low frequency response. Additionally, it is equipped with the latest Bluetooth technology and a USB port for charging your devices. SYD has a universal input power supply and can be used worldwide from 110V AC to 240V AC.We recommend you read all instructions carefully before using the system and keep them for future reference. Kanto cannot be liable for damage or injury caused by incorrect setup or use of this product.This powered speaker system was carefully tested and inspected during production, and before packaging and shipping. After unpacking, please check for any damage. It is rare that a unit is damaged during shipping, but if this happens contact your retailer immediately. You can also contact Kanto directly using one of the methods below.What’s In the Box?SYD SpeakerSYD StandUser Manualsx3SYD Remotex2 3.5 mm cable AUX‘AAA’ BatteriesPower CordEmail: support@kantoliving.comToll Free: US & Canada: 1-888-848-2643 | UK: +44 800086999AUXRCA OPT1BALANCEBASS TREBLE

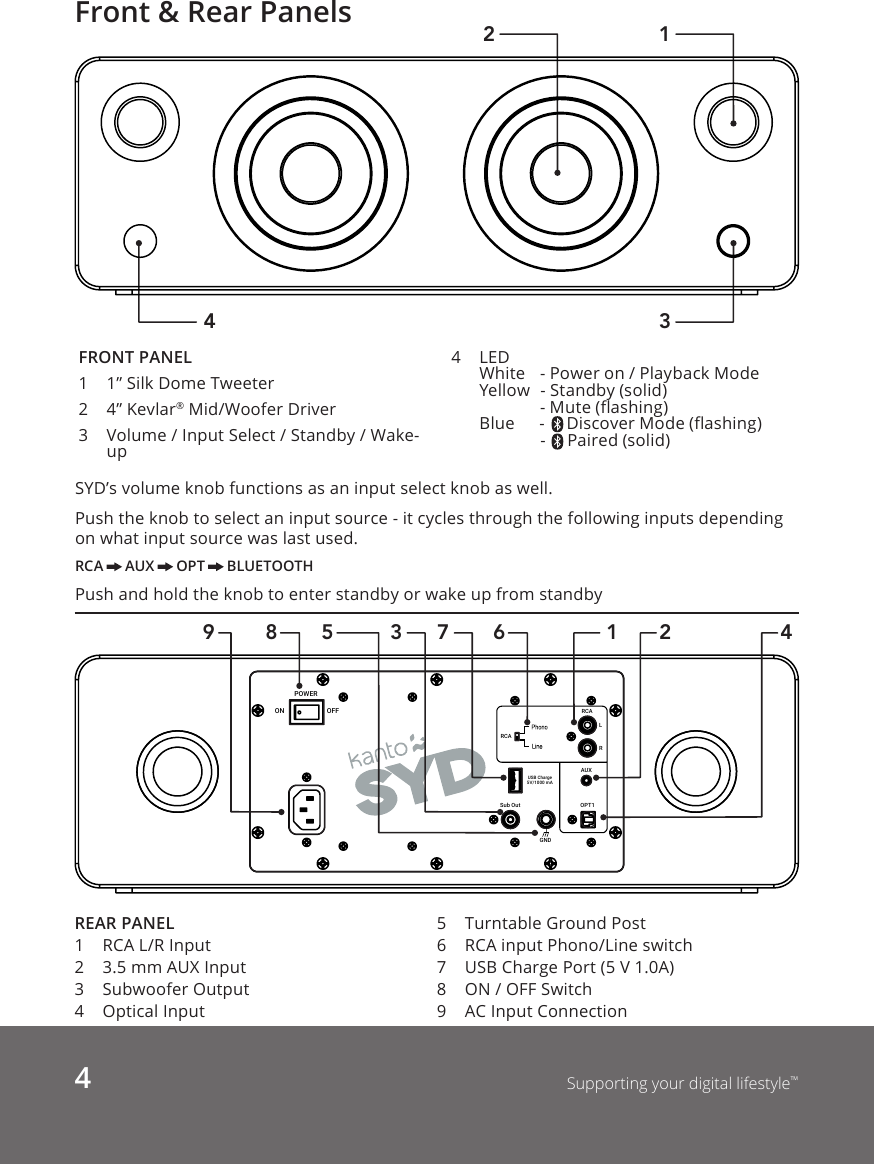

OPT1Sub OutLRRCARCAUSB Charge5V/1000 mAGNDON OFFPOWERAUXFront & Rear Panels4Supporting your digital lifestyle™1168 2 439 75342FRONT PANEL1 1” Silk Dome Tweeter2 4” Kevlar® Mid/Woofer Driver3 Volume / Input Select / Standby / Wake-up4 LED White - Power on / Playback Mode Yellow - Standby (solid) - Mute (ashing) Blue - Discover Mode (ashing) - Paired (solid)REAR PANEL 1 RCA L/R Input2 3.5 mm AUX Input3 Subwoofer Output4 Optical Input5 Turntable Ground Post6 RCA input Phono/Line switch7 USB Charge Port (5 V 1.0A)8 ON / OFF Switch9 AC Input ConnectionSYD’s volume knob functions as an input select knob as well. Push the knob to select an input source - it cycles through the following inputs depending on what input source was last used.RCA AUX OPT BLUETOOTHPush and hold the knob to enter standby or wake up from standby

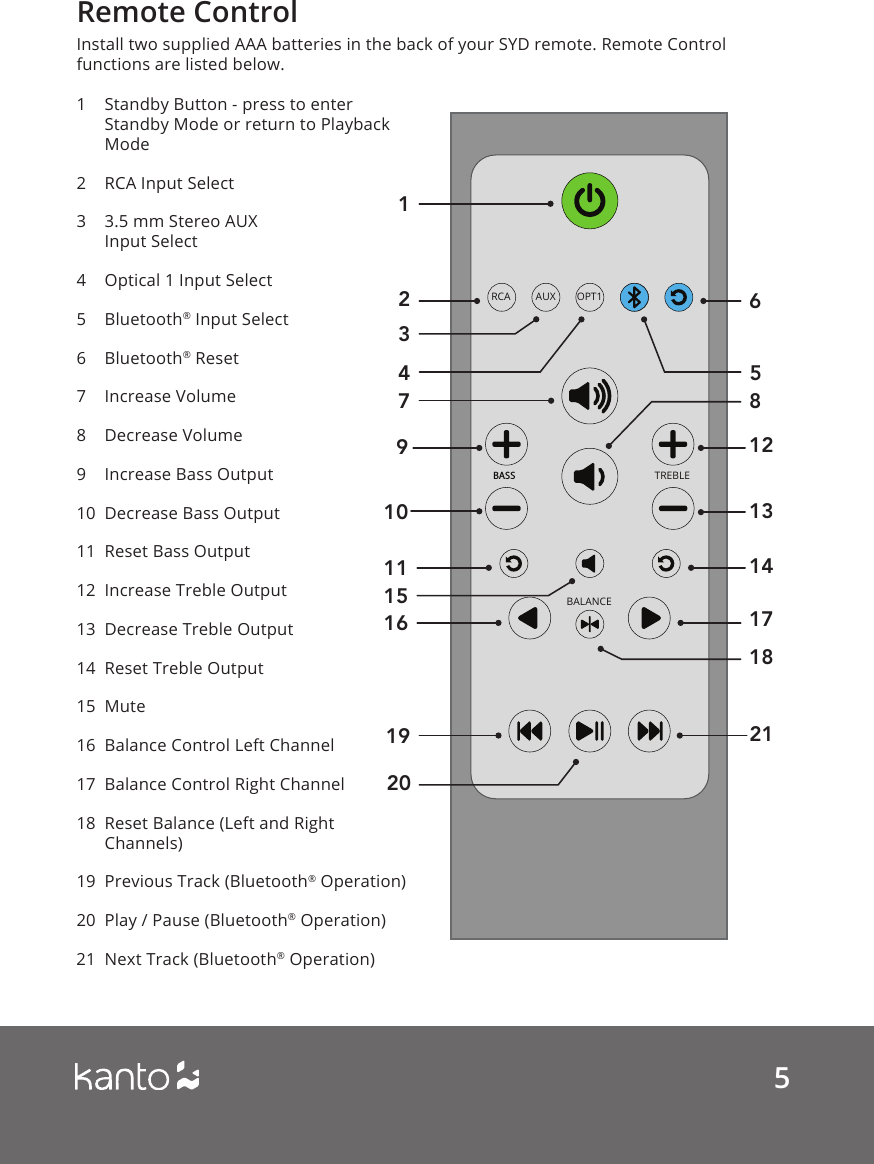

5AUXRCA OPT1BALANCEBASS TREBLERemote Control1 Standby Button - press to enter Standby Mode or return to Playback Mode2 RCA Input Select3 3.5 mm Stereo AUX Input Select4 Optical 1 Input Select5 Bluetooth® Input Select6 Bluetooth® Reset7 Increase Volume8 Decrease Volume9 Increase Bass Output10 Decrease Bass Output 11 Reset Bass Output12 Increase Treble Output13 Decrease Treble Output14 Reset Treble Output15 Mute16 Balance Control Left Channel17 Balance Control Right Channel18 Reset Balance (Left and Right Channels)19 Previous Track (Bluetooth® Operation)20 Play / Pause (Bluetooth® Operation)21 Next Track (Bluetooth® Operation)231674 58910121314111718161519 2120Install two supplied AAA batteries in the back of your SYD remote. Remote Control functions are listed below.

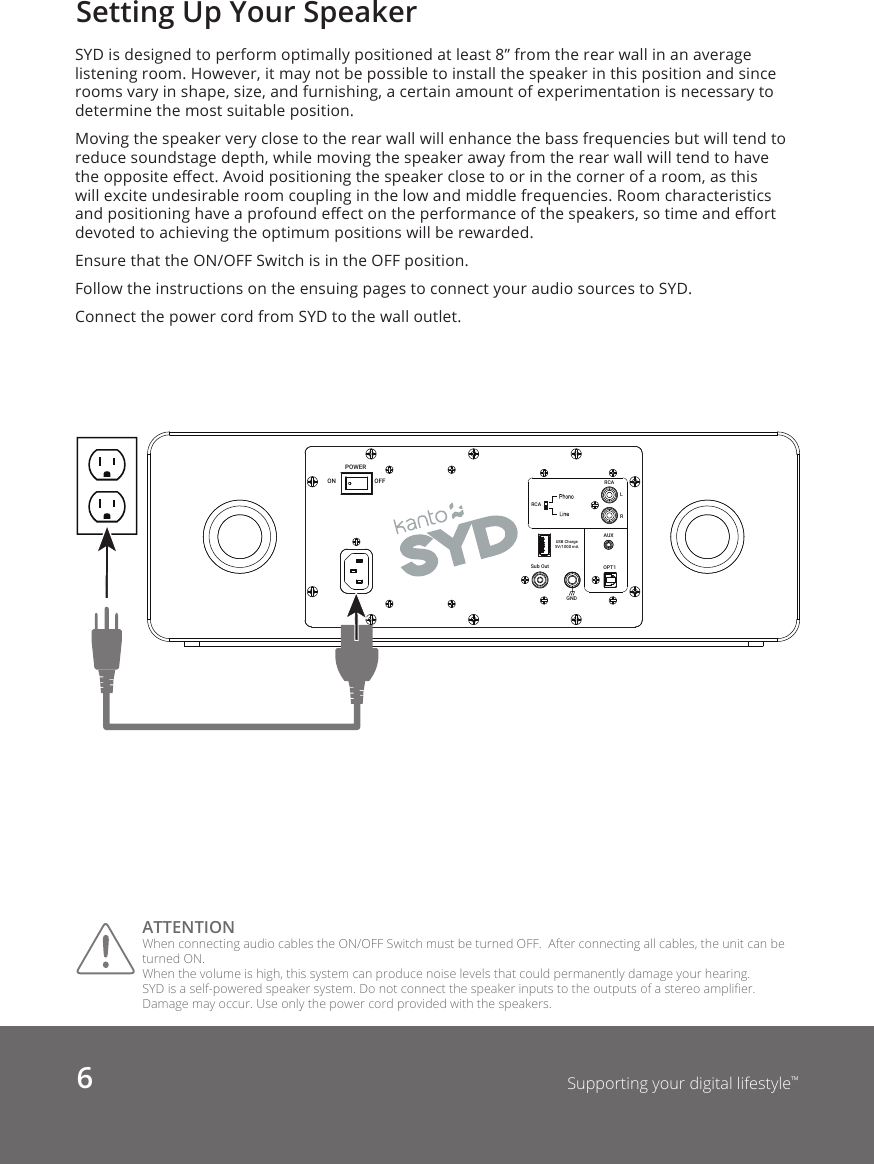

6Supporting your digital lifestyle™Setting Up Your SpeakerSYD is designed to perform optimally positioned at least 8” from the rear wall in an average listening room. However, it may not be possible to install the speaker in this position and since rooms vary in shape, size, and furnishing, a certain amount of experimentation is necessary to determine the most suitable position.Moving the speaker very close to the rear wall will enhance the bass frequencies but will tend to reduce soundstage depth, while moving the speaker away from the rear wall will tend to have the opposite eect. Avoid positioning the speaker close to or in the corner of a room, as this will excite undesirable room coupling in the low and middle frequencies. Room characteristics and positioning have a profound eect on the performance of the speakers, so time and eort devoted to achieving the optimum positions will be rewarded. Ensure that the ON/OFF Switch is in the OFF position.Follow the instructions on the ensuing pages to connect your audio sources to SYD. Connect the power cord from SYD to the wall outlet. ATTENTION When connecting audio cables the ON/OFF Switch must be turned OFF. After connecting all cables, the unit can be turned ON.When the volume is high, this system can produce noise levels that could permanently damage your hearing. SYD is a self-powered speaker system. Do not connect the speaker inputs to the outputs of a stereo amplier. Damage may occur. Use only the power cord provided with the speakers. OPT1Sub OutLRRCARCAUSB Charge5V/1000 mAGNDON OFFPOWERAUX

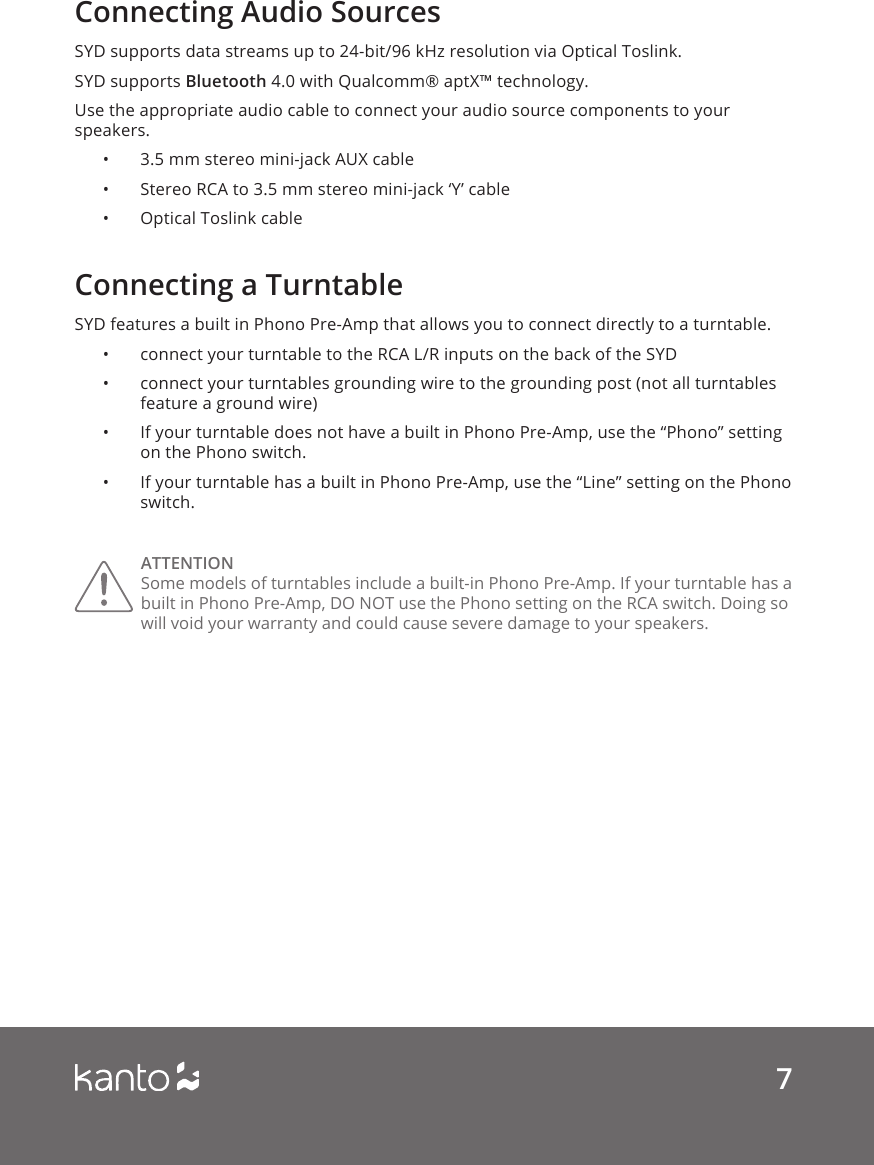

7Connecting Audio SourcesConnecting a TurntableSYD supports data streams up to 24-bit/96 kHz resolution via Optical Toslink. SYD supports Bluetooth 4.0 with Qualcomm® aptX™ technology. Use the appropriate audio cable to connect your audio source components to your speakers. • 3.5 mm stereo mini-jack AUX cable• Stereo RCA to 3.5 mm stereo mini-jack ‘Y’ cable• Optical Toslink cableSYD features a built in Phono Pre-Amp that allows you to connect directly to a turntable. • connect your turntable to the RCA L/R inputs on the back of the SYD• connect your turntables grounding wire to the grounding post (not all turntables feature a ground wire)• If your turntable does not have a built in Phono Pre-Amp, use the “Phono” setting on the Phono switch. • If your turntable has a built in Phono Pre-Amp, use the “Line” setting on the Phono switch. ATTENTION Some models of turntables include a built-in Phono Pre-Amp. If your turntable has a built in Phono Pre-Amp, DO NOT use the Phono setting on the RCA switch. Doing so will void your warranty and could cause severe damage to your speakers.

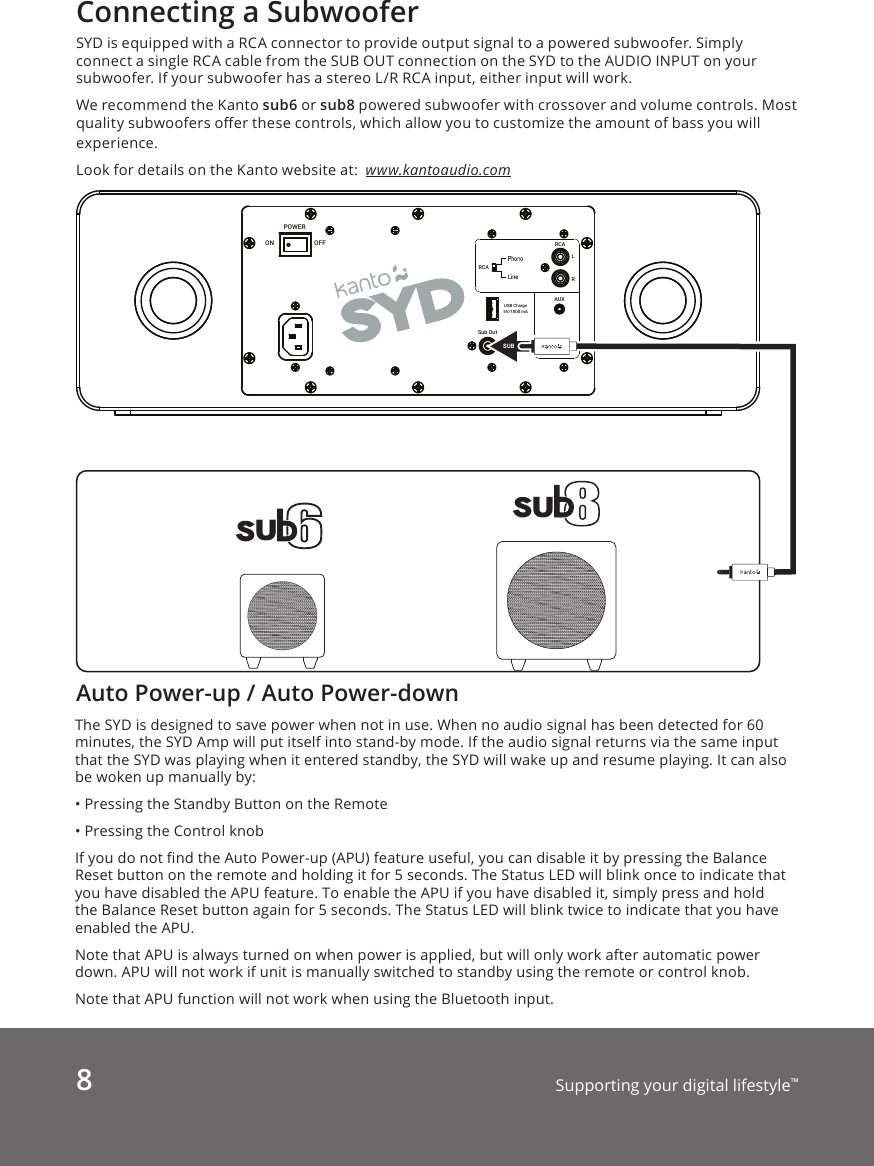

8Supporting your digital lifestyle™Auto Power-up / Auto Power-downThe SYD is designed to save power when not in use. When no audio signal has been detected for 60 minutes, the SYD Amp will put itself into stand-by mode. If the audio signal returns via the same input that the SYD was playing when it entered standby, the SYD will wake up and resume playing. It can also be woken up manually by:• Pressing the Standby Button on the Remote• Pressing the Control knobIf you do not nd the Auto Power-up (APU) feature useful, you can disable it by pressing the Balance Reset button on the remote and holding it for 5 seconds. The Status LED will blink once to indicate that you have disabled the APU feature. To enable the APU if you have disabled it, simply press and hold the Balance Reset button again for 5 seconds. The Status LED will blink twice to indicate that you have enabled the APU.Note that APU is always turned on when power is applied, but will only work after automatic power down. APU will not work if unit is manually switched to standby using the remote or control knob.Note that APU function will not work when using the Bluetooth input.Connecting a SubwooferSYD is equipped with a RCA connector to provide output signal to a powered subwoofer. Simply connect a single RCA cable from the SUB OUT connection on the SYD to the AUDIO INPUT on your subwoofer. If your subwoofer has a stereo L/R RCA input, either input will work.We recommend the Kanto sub6 or sub8 powered subwoofer with crossover and volume controls. Most quality subwoofers oer these controls, which allow you to customize the amount of bass you will experience. Look for details on the Kanto website at: www.kantoaudio.comSub OutLRRCARCAUSB Charge5V/1000 mAON OFFPOWERAUXUUSUB

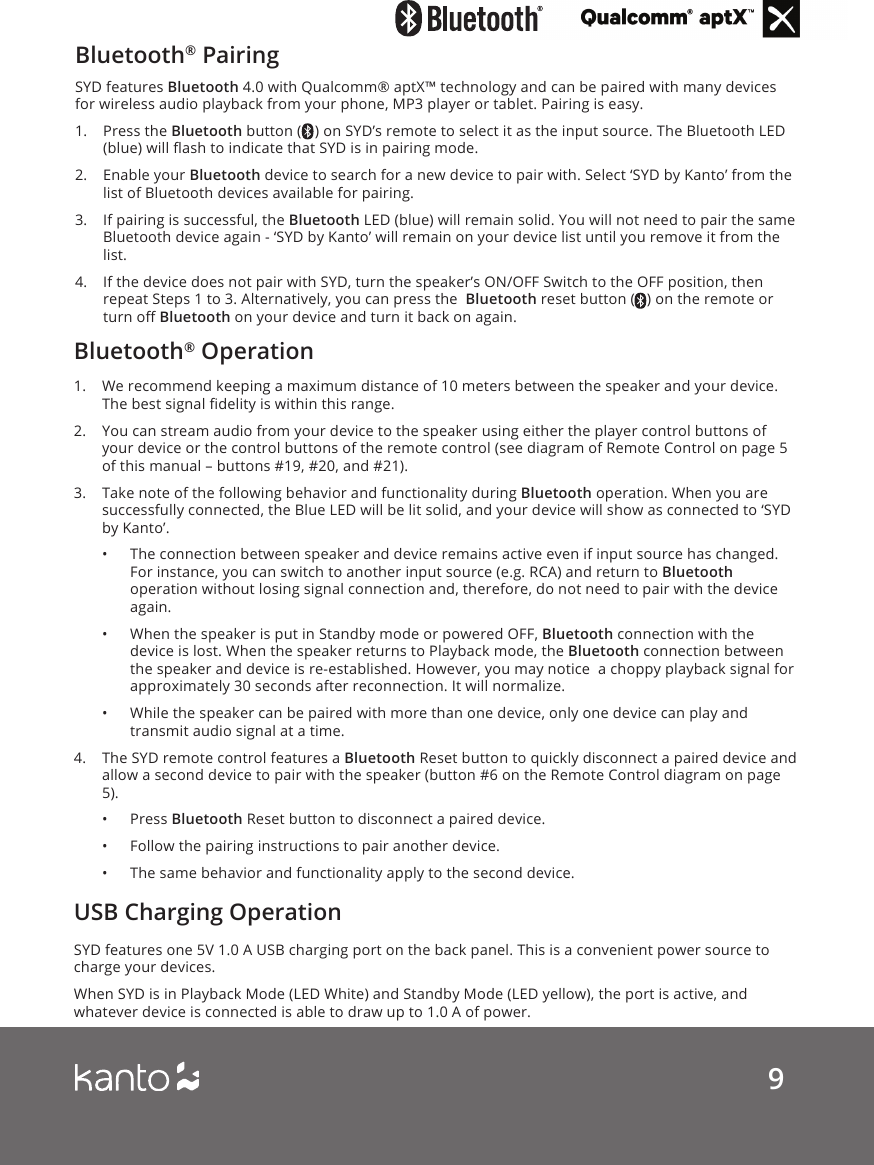

9USB Charging OperationSYD features one 5V 1.0 A USB charging port on the back panel. This is a convenient power source to charge your devices. When SYD is in Playback Mode (LED White) and Standby Mode (LED yellow), the port is active, and whatever device is connected is able to draw up to 1.0 A of power.Bluetooth® Operation1. We recommend keeping a maximum distance of 10 meters between the speaker and your device. The best signal delity is within this range.2. You can stream audio from your device to the speaker using either the player control buttons of your device or the control buttons of the remote control (see diagram of Remote Control on page 5 of this manual – buttons #19, #20, and #21).3. Take note of the following behavior and functionality during Bluetooth operation. When you are successfully connected, the Blue LED will be lit solid, and your device will show as connected to ‘SYD by Kanto’.• The connection between speaker and device remains active even if input source has changed. For instance, you can switch to another input source (e.g. RCA) and return to Bluetooth operation without losing signal connection and, therefore, do not need to pair with the device again.• When the speaker is put in Standby mode or powered OFF, Bluetooth connection with the device is lost. When the speaker returns to Playback mode, the Bluetooth connection between the speaker and device is re-established. However, you may notice a choppy playback signal for approximately 30 seconds after reconnection. It will normalize.• While the speaker can be paired with more than one device, only one device can play and transmit audio signal at a time.4. The SYD remote control features a Bluetooth Reset button to quickly disconnect a paired device and allow a second device to pair with the speaker (button #6 on the Remote Control diagram on page 5).• Press Bluetooth Reset button to disconnect a paired device.• Follow the pairing instructions to pair another device.• The same behavior and functionality apply to the second device.Bluetooth® PairingSYD features Bluetooth 4.0 with Qualcomm® aptX™ technology and can be paired with many devices for wireless audio playback from your phone, MP3 player or tablet. Pairing is easy.1. Press the Bluetooth button ( ) on SYD’s remote to select it as the input source. The Bluetooth LED (blue) will ash to indicate that SYD is in pairing mode.2. Enable your Bluetooth device to search for a new device to pair with. Select ‘SYD by Kanto’ from the list of Bluetooth devices available for pairing.3. If pairing is successful, the Bluetooth LED (blue) will remain solid. You will not need to pair the same Bluetooth device again - ‘SYD by Kanto’ will remain on your device list until you remove it from the list.4. If the device does not pair with SYD, turn the speaker’s ON/OFF Switch to the OFF position, then repeat Steps 1 to 3. Alternatively, you can press the Bluetooth reset button ( ) on the remote or turn o Bluetooth on your device and turn it back on again.

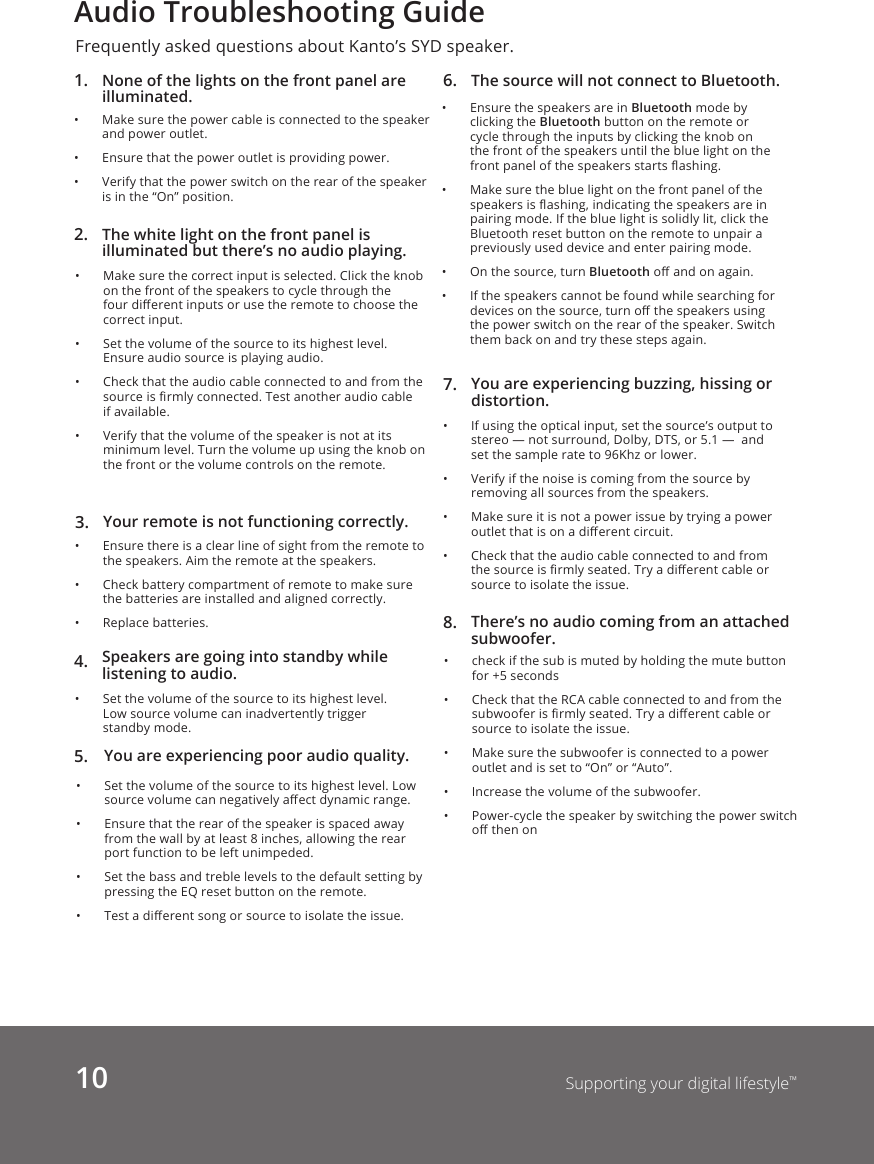

10 Supporting your digital lifestyle™Audio Troubleshooting GuideFrequently asked questions about Kanto’s SYD speaker. • Make sure the power cable is connected to the speaker and power outlet.• Ensure that the power outlet is providing power.• Verify that the power switch on the rear of the speaker is in the “On” position.• Set the volume of the source to its highest level. Low source volume can negatively aect dynamic range.• Ensure that the rear of the speaker is spaced away from the wall by at least 8 inches, allowing the rear port function to be left unimpeded.• Set the bass and treble levels to the default setting by pressing the EQ reset button on the remote.• Test a dierent song or source to isolate the issue.• Make sure the correct input is selected. Click the knob on the front of the speakers to cycle through the four dierent inputs or use the remote to choose the correct input.• Set the volume of the source to its highest level. Ensure audio source is playing audio.• Check that the audio cable connected to and from the source is rmly connected. Test another audio cable if available.• Verify that the volume of the speaker is not at its minimum level. Turn the volume up using the knob on the front or the volume controls on the remote.• Ensure the speakers are in Bluetooth mode by clicking the Bluetooth button on the remote or cycle through the inputs by clicking the knob on the front of the speakers until the blue light on the front panel of the speakers starts ashing.• Make sure the blue light on the front panel of the speakers is ashing, indicating the speakers are in pairing mode. If the blue light is solidly lit, click the Bluetooth reset button on the remote to unpair a previously used device and enter pairing mode.• On the source, turn Bluetooth o and on again.• If the speakers cannot be found while searching for devices on the source, turn o the speakers using the power switch on the rear of the speaker. Switch them back on and try these steps again.• If using the optical input, set the source’s output to stereo — not surround, Dolby, DTS, or 5.1 — and set the sample rate to 96Khz or lower.• Verify if the noise is coming from the source by removing all sources from the speakers.• Make sure it is not a power issue by trying a power outlet that is on a dierent circuit.• Check that the audio cable connected to and from the source is rmly seated. Try a dierent cable or source to isolate the issue. 2. 6. 1. 5. 3. 8. 4. 7. The white light on the front panel is illuminated but there’s no audio playing.The source will not connect to Bluetooth.None of the lights on the front panel are illuminated.You are experiencing poor audio quality.You are experiencing buzzing, hissing or distortion.Your remote is not functioning correctly.There’s no audio coming from an attached subwoofer.Speakers are going into standby while listening to audio.• Ensure there is a clear line of sight from the remote to the speakers. Aim the remote at the speakers.• Check battery compartment of remote to make sure the batteries are installed and aligned correctly.• Replace batteries.• check if the sub is muted by holding the mute button for +5 seconds• Check that the RCA cable connected to and from the subwoofer is rmly seated. Try a dierent cable or source to isolate the issue.• Make sure the subwoofer is connected to a power outlet and is set to “On” or “Auto”.• Increase the volume of the subwoofer.• Power-cycle the speaker by switching the power switch o then on• Set the volume of the source to its highest level. Low source volume can inadvertently trigger standby mode.

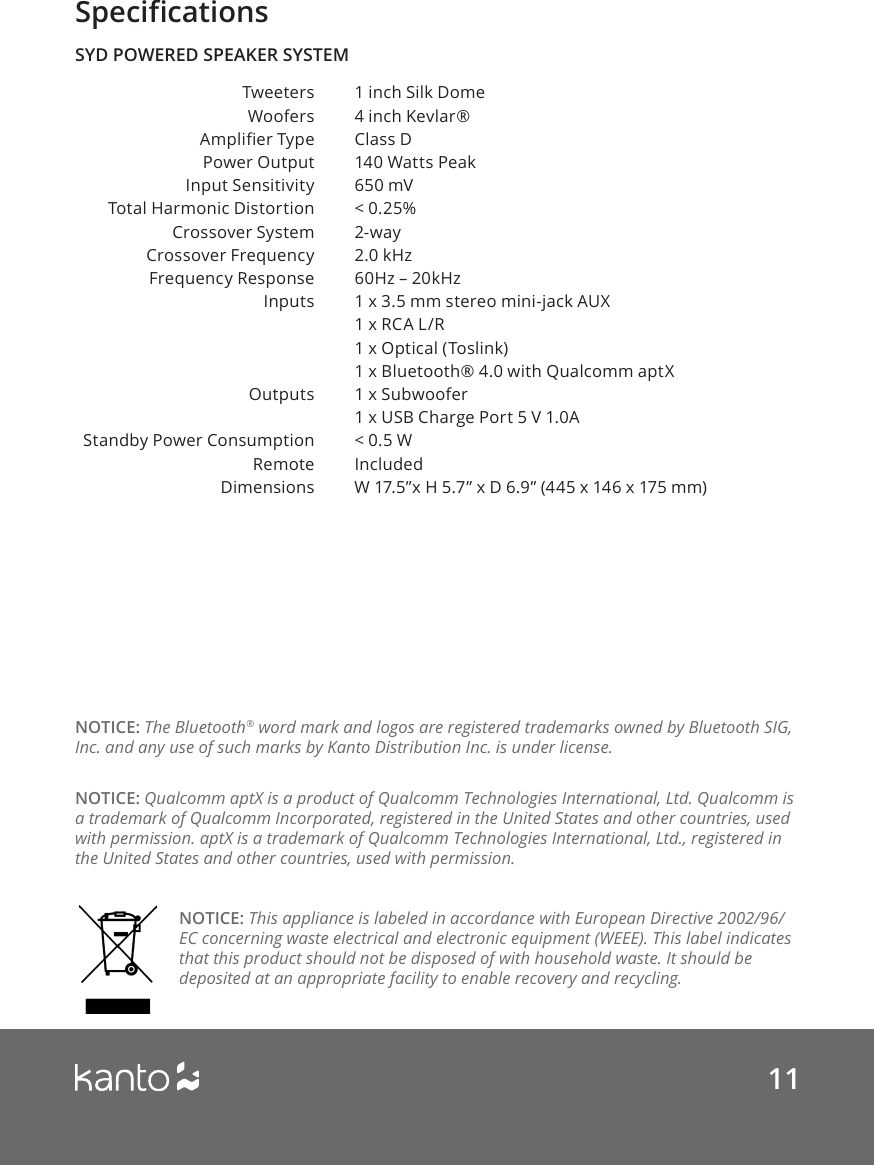

11Specications Tweeters 1 inch Silk Dome Woofers 4 inch Kevlar® Amplier Type Class D Power Output 140 Watts Peak Input Sensitivity 650 mV Total Harmonic Distortion < 0.25% Crossover System 2-way Crossover Frequency 2.0 kHz Frequency Response 60Hz – 20kHz Inputs 1 x 3.5 mm stereo mini-jack AUX 1 x RCA L/R 1 x Optical (Toslink) 1 x Bluetooth® 4.0 with Qualcomm aptX Outputs 1 x Subwoofer 1 x USB Charge Port 5 V 1.0A Standby Power Consumption < 0.5 W Remote Included Dimensions W 17.5”x H 5.7” x D 6.9” (445 x 146 x 175 mm)SYD POWERED SPEAKER SYSTEMNOTICE: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kanto Distribution Inc. is under license.NOTICE: Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission. NOTICE: This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

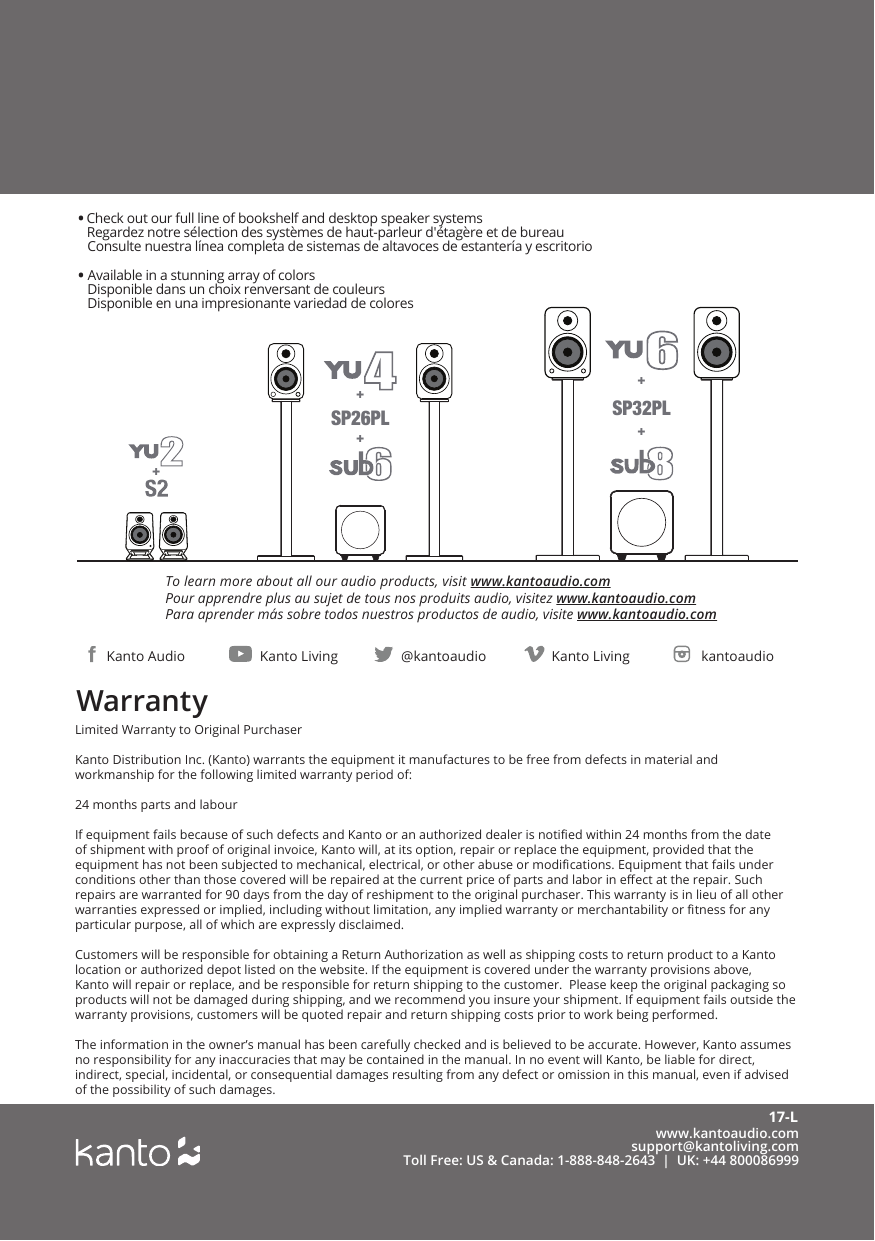

17-LWarrantyTo learn more about all our audio products, visit www.kantoaudio.comPour apprendre plus au sujet de tous nos produits audio, visitez www.kantoaudio.comPara aprender más sobre todos nuestros productos de audio, visite www.kantoaudio.comKanto Audio kantoaudio@kantoaudioKanto Living Kanto Living+SP32PL++• Check out our full line of bookshelf and desktop speaker systemsRegardez notre sélection des systèmes de haut-parleur d'étagère et de bureauConsulte nuestra línea completa de sistemas de altavoces de estantería y escritorio• Available in a stunning array of colorsDisponible dans un choix renversant de couleursDisponible en una impresionante variedad de coloresSP26PL++Limited Warranty to Original Purchaser Kanto Distribution Inc. (Kanto) warrants the equipment it manufactures to be free from defects in material and workmanship for the following limited warranty period of: 24 months parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notied within 24 months from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in eect at the repair. Such repairs are warranted for 90 days from the day of reshipment to the original purchaser. This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or tness for any particular purpose, all of which are expressly disclaimed. Customers will be responsible for obtaining a Return Authorization as well as shipping costs to return product to a Kanto location or authorized depot listed on the website. If the equipment is covered under the warranty provisions above, Kanto will repair or replace, and be responsible for return shipping to the customer. Please keep the original packaging so products will not be damaged during shipping, and we recommend you insure your shipment. If equipment fails outside the warranty provisions, customers will be quoted repair and return shipping costs prior to work being performed.The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.www.kantoaudio.comsupport@kantoliving.com Toll Free: US & Canada: 1-888-848-2643 | UK: +44 800086999
