Kapsch Trafficcom 9734 IEEE 802.11p communication module User Manual
Kapsch Trafficcom AG IEEE 802.11p communication module
User Manual
Kapsch TrafficCom AG
User Manual
OMR WAVE-UNIT
This device is based on the IEEE WAVE Standards
1000005542-Bed-02
1000005542-Bed-02
Document number 1000005542
Document type Bed
Document version 02
Document status released
Date of release 2010-04-21
Valid from
Software version -
Created by: Batko Manfred
Checked by: Povolny Robert
Approved by: Komarica Anto
Disclaimer and Limitation of Liability
The products described in this manual are provided “as is” and without any warranties of any
kind, either express or implied. Kapsch TrafficCom disclaims all warranties, express or implied,
including, but not limited to, warranties of title, legality or non-infringement or misappropriation
of any intellectual property rights of third parties or implied warranties of merchantability or
fitness for a particular purpose. Under no circumstances will Kapsch TrafficCom (including its
affiliates, licensors, contractors, suppliers, assignees, subsidiaries, and the respective officers,
directors, employees, shareholders, agents and representatives of each of them) be liable for any
expenses, fees, claims, damages or losses in any way relating to or arising out of the products
described in this manual. Applicable law may not allow certain warranty exclusions, so one or
more of the above disclaimers may not apply to you.
Copyright Kapsch TrafficCom AG 2010
Duplication as well as utilization of contents of this documentation are illegal without our explicit consent.
User Manual | OMR-WAVE-UNIT Page 3 of 15
1000005542-Bed-02
Table of Contents
Page
Information about this document 5
Text conventions ............................................................................................. 5
Important text elements ................................................................................... 5
Abbreviations ................................................................................................... 6
Warning to users in the United States 7
Regulatory Information 8
Software Licenses 9
Safety Instructions 9
Environmental Information 9
Visual Inspection 9
Maintenance Instructions 9
General Information 10
Definitions ...................................................................................................... 10
Ordering Information 10
Installation 11
Reading OBUs 12
Product Specifications 13
Conformity 14
Standards ...................................................................................................... 14
List of tables
Table 1 Abbreviations and definitions ............................................................. 6
Table 2 Article numbers for accessories ....................................................... 10
Table 3 Standards ......................................................................................... 14
User Manual | OMR-WAVE-UNIT Page 5 of 15
1000005542-Bed-02
Information about this document
This document is for professionals setting up and maintaining the
equipment.
Professionals are persons, who have basic knowledge of software
installation and computer equipment.
This User Manual shall be carefully read before installation.
Text conventions
Visual aids and standard text formats in this manual help the reader to locate
and identify information easily.
Typographical formats:
Style
Used for
bold
Accentuations
italics
Labelling and cross-references
CAPITAL LETTERS
Acronyms
Note: Contains additional information on the topic.
Important text elements
This manual contains specific Caution and Warning statements. These shall
be interpreted as follows:
Attention: This warning indicates that the device may be affected by
Electrostatic Discharge. Appropriate precautions must be made to avoid
damage to the device.
Caution: Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Warning: Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
Audience
Preparations
Table 1
Text formats and their meaning
Attention
Caution
Warning
Page 6 of 15 User Manual | OMR WAVE-UNIT
1000005542-Bed-02
Abbreviations
DSRC
Dedicated Short Range Communication
OBU
Onboard Unit (adjustable by user)
RF
Radio Frequency
WAVE
Wireless Access in Vehicular Environments
Table 1
Abbreviations and definitions
Warning to users in the United States Page 7 of 15
1000005542-Bed-02
Warning to users in the United
States
The hardware referred to in this document allows selection of frequency
bands and transmit power levels that may not comply with the regulatory
body that governs spectrum policy where the hardware is being used.
This equipment is certified under 47 CFR Part 90M as a portable RSU.
However, portable or hand-held RSUs are permitted to operate where they
do not interfere with a site-licensed operation. There might be also local
restrictions referred in 47 CFR Part §90.371, 47 CFR Part §90.383, 47 CFR
Part §90.375.
Local Regulations
Local Restrictions
Page 8 of 15 User Manual | OMR WAVE-UNIT
1000005542-Bed-02
Regulatory Information
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by
Kapsch may void the FCC authorization to operate this equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance of 20 cm (8 inches) between the radiator and a
human body. Failure to do so could result in bodily injury or death.
This transmitter must not be co-located or operate in conjunction with any
other antenna or transmitter.
Notice
Notice
Class B digital device
Radio frequency radiation
exposure Information
Software Licenses Page 9 of 15
1000005542-Bed-02
Software Licenses
This product may contain software portions including technologies used
under third party license, and are copyrighted. Notices, Terms and
Conditions pertaining to third party software are located at
http://www.kapsch.net/us/en/ktc/portfolio/products_and_components/Pa
ges/default.aspx
Safety Instructions
Caution: During operation the WAVE-UNIT must not be held closer
than 20cm (8 in) to the body and must not point to the body of another
person.
Environmental Information
The equipment consists of material that can be recycled. Please follow the
local regulations regarding the disposal of packaging material and waste
electronic equipment.
This device is designed for outdoor and indoor use.
Visual Inspection
After unpacking please check the equipment for possible damages. If the
content is incomplete or damaged please contact your local Kapsch office.
Maintenance Instructions
Caution: Regular inspection of the equipment is mandatory and shall
be in accordance with local safety regulations. Check for damage
before using the equipment.
Recycling
Environmental
requirements
Page 10 of 15 User Manual | OMR WAVE-UNIT
1000005542-Bed-02
General Information
Definitions
The PDA is a handheld unit, which shall be used with the OMR-WAVE-
UNIT. It has to be compatible with the GOTIVE H42 device.
The OMR-WAVE-UNIT is a module for the GOTIVE H42 and compatible
devices, which is compliant to the WAVE standard.
The reader consists of a PDA device and an OMR-WAVE-UNIT
The reading range is defined as the maximum distance from the reader to
the OBU, in which reliable WAVE communication is possible.
Ordering Information
Kapsch article number
Description
34018470010
GOTIVE H42
4027070000
OMR-9734 (GOTIVE H42 + OMR-WAVE-UNIT)
PDA
WAVE UNIT
Reader
Reading Range
Table 2
Article numbers for accessories
Installation Page 11 of 15
1000005542-Bed-02
Installation

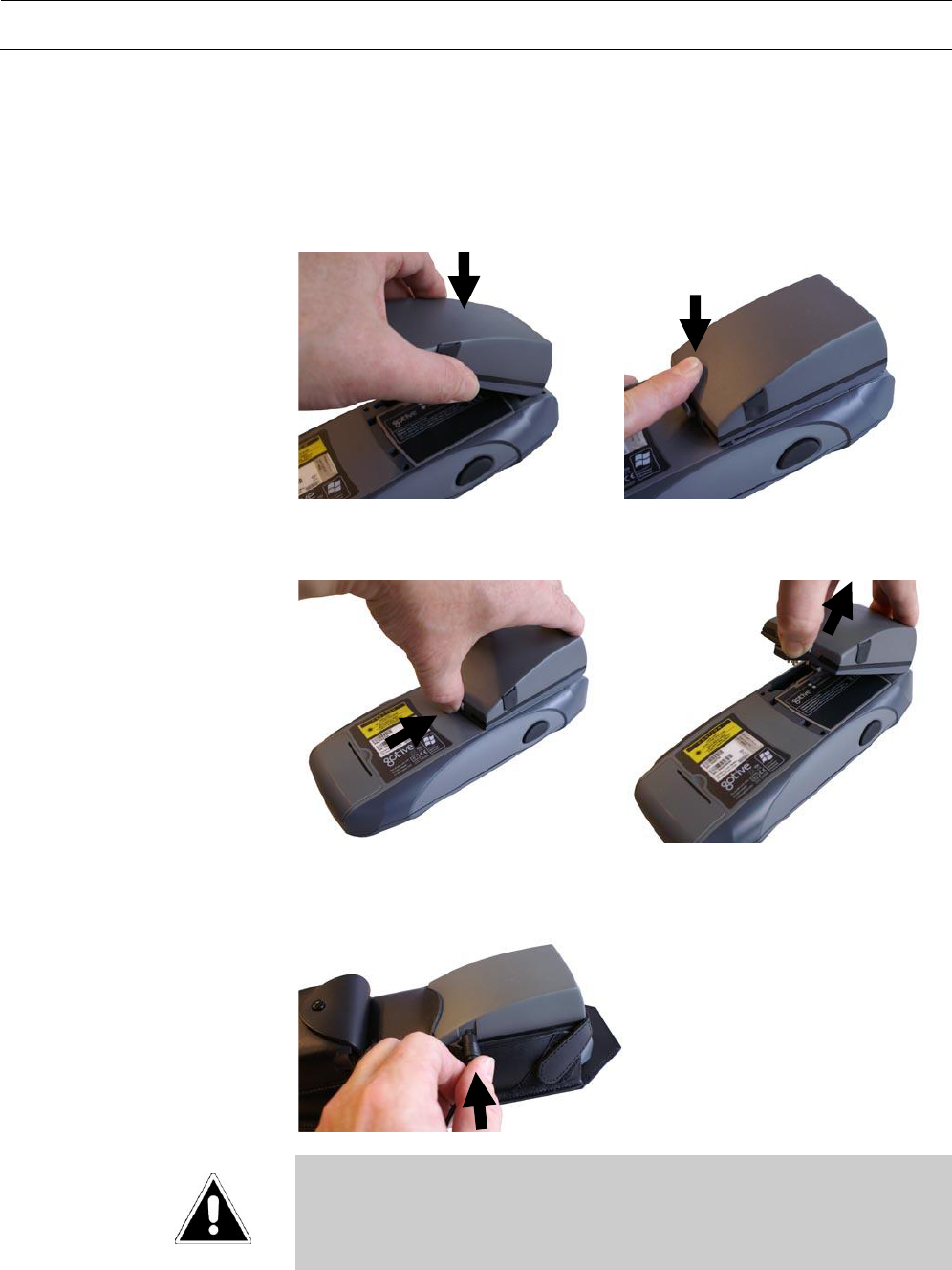

Adjust the lug of WAVE-UNIT in the appropriate slot the PDA and press the
WAVE module down until it locks with the PDA. Check for correct fit.
Press the button on the WAVE-UNIT and pull the WAVE-UNIT off.
The PDA can be charged without removing the WAVE-UNIT module. Plug in
cable in jack on the side of the WAVE-UNIT.
Warning: The WAVE-UNIT does not include any charging control
mechanisms for the PDA. To prevent damage to the device or injury to
humans contact the PDA manufacture for detailed instructions about
charging.
Mount the WAVE unit
Remove the WAVE unit
Charging
Page 12 of 15 User Manual | OMR WAVE-UNIT
1000005542-Bed-02
Reading OBUs

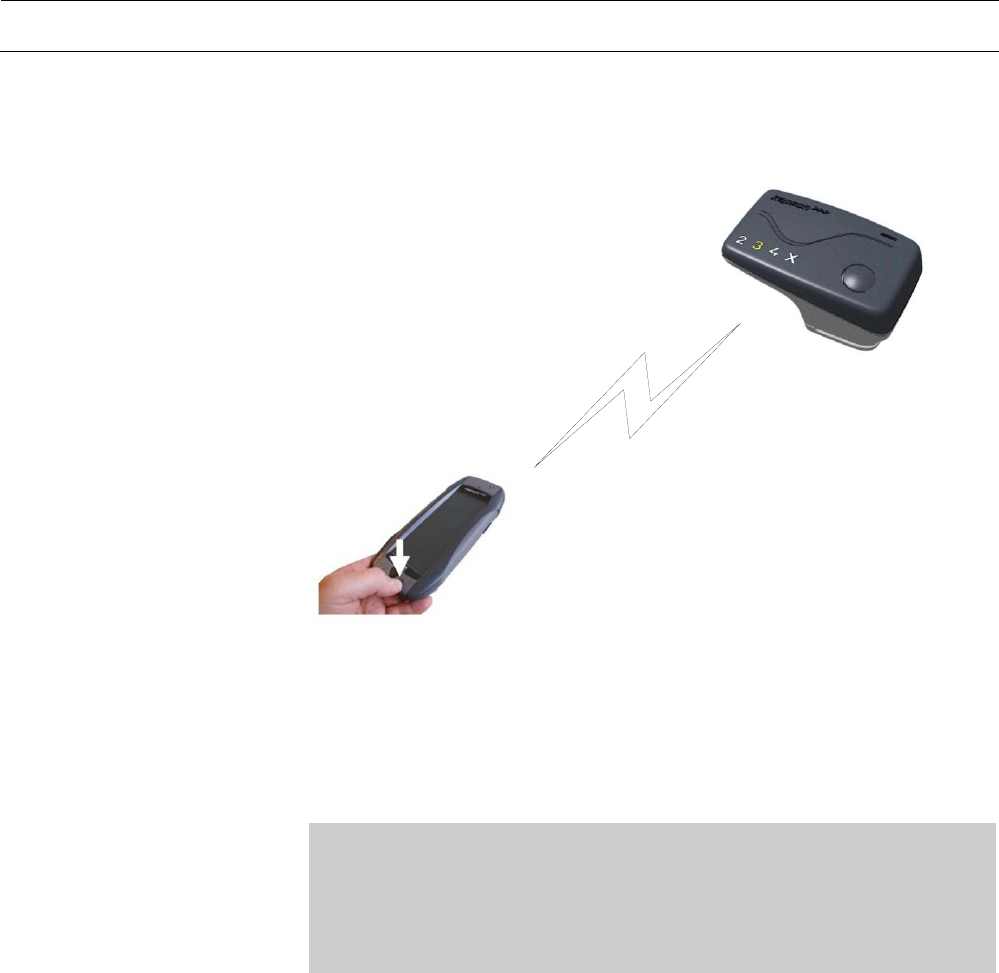

Reading Range up to 10feet (3m)
The typical reading range is up to 3m (10feet) and depends on these
parameters:
OBU’s mounting angle on windshields
Offset angle to bore sight between reader unit and OBU
Note: When reading a specific OBU make sure that no other OBU’s are
in the communication range of the reader to prevent reading the wrong
OBU. To reduce the risk of reading wrong OBUs choose the distance
between the reader and the OBU as close as possible, but not closer
than 0.5m(20in).
Product Specifications Page 13 of 15
1000005542-Bed-02
Product Specifications
4in x 3in x 1.5in
108mmx 68mm x 37mm
[LxWxH]
USB powered device
Power consumption
(operating mode)
max. 2.5W
Temperature (operation)
-10°C … +55°C
14°F … +131°F
Storage temperature
-30°C … +60°C
-22°F … +140°F
Ambient humidity
5 to 95% non condensing
USB 2.0 full speed
USB powered device
Frequency range
5.850GHz - 5.925GHz
Channels
172,174,176,178,180,182,184
Data Rates
3MBit/s – 27MBit/s
47 CFR Part 90 M
47 CFR Part 15 B
UL-60950-1, 2nd edition
UL-60950-22, 2nd edition
CSA C22.2 No. 60950-1-07, 2nd edition
UL: E323290
Mechanical data
Electrical data
Environmental conditions
Interface
RF Interfaces
Compliance
Page 14 of 15 User Manual | OMR WAVE-UNIT
1000005542-Bed-02
Conformity
Standards
Ref.
Standard
Description
[1]
ASTM E2213 - 03
Standard Specification for
Telecommunications and Information
Exchange Between Roadside and Vehicle
Systems — 5 GHz Band Dedicated Short
Range Communications (DSRC) Medium
Access Control (MAC) and Physical Layer
(PHY) Specifications
[2]
IEEE 802.11™a-2007
IEEE Standard for Information technology—
Telecommunications and information
exchange between systems—
Local and metropolitan area networks—
Specific requirements
Part 11: Wireless LAN Medium Access Control
(MAC) and Physical Layer (PHY)
Specifications
[3]
IEEE 802.11™p
IEEE Standard for
Information technology—
Telecommunications and information
exchange between systems—
Local and metropolitan area networks—
Specific requirements Part 11: Wireless LAN
Medium Access Control (MAC) and Physical
Layer (PHY) Specifications
Amendment 7: Wireless Access in Vehicular
Environments
[4]
IEEE 1609.4™
Draft Standard for Wireless Access in
Vehicular Environments (WAVE) - Multi-channel
Operation
[5]
IEEE 1609.3™
Draft Standard for Wireless Access in
Vehicular Environments (WAVE) – Networking
Services
Table 3
Standards
Conformity Page 15 of 15
1000005542-Bed-02
For further information please contact:
Kapsch TrafficCom U.S. Corp.
21515 Ridgetop Circle, Suite 290
Sterling, VA 20166
Phone: +1 (703) 885 1976
Kapsch TrafficCom AG
Am Europlatz 2
A-1120 Vienna
Phone: +43 (0)50 811 0
Fax: +43 (0)50 811 2589
E-mail: kapsch.at@kapsch.net
Address
