RF Field product family
Installation Manual
SRU-8100 RFID Reader 18000-63
Doc No. 47000001169
Version: 01
Kapsch TrafficCom AG
Page 2 of 60
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Confidential Ins-47000001169-01-RFID_Reader_InstallationManual_EN.docx
Overview of changes
No. Version Status Date Responsible Type of the change
1 00-01 processed 2014-07-31 C. Diemberger Initial creation
2 00-20 processed 2014-09-24 C. Diemberger Adapt for SRU-8100 Product
3 01 released 2014-11-03 C. Diemberger First release
Table 1 Overview of changes
Reference to the status- and version administration:
Status:
processed the document is being processed
released the document has been checked and released by quality assurance, it can only be modified if the version
number is updated.
Versions:
Take place in two stages. Accepted documents receive the next higher integral version number.
00-01, 00-02 etc. not released versions, with the status “processed‘‘
01 first released version with the status “released“
01-01, 01-02 etc. Versions, which supplement the version 01-00 and “processed” are
02 second released version with the status “released”
SRU-8100 RFID Reader 18000-63
Installation Manual
Ins-47000001169-01
Document number: 47000001169
Document type: Ins
Document issue: 01
Document status: released
Date of issue: 2014-11-03
Valid from:
Device firmware version: 2.52.02
Linux OS Image version: 2.52.12
Reader Startv2 SW version: 2.52.02
Based on EPCGlobal Class-1 Gen-2 V 1.2.0
Trademarks
Copyright © Kapsch TrafficCom AG
The content and information enclosed within this document is the property of Kapsch TrafficCom AG and copyrighted. All rights, in particular
rights of communication, distribution, reproduction, reprinting and translation remain, even in extracts, reserved.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 5 of 58
Table of contents
Page
1About this document ........................................................................................................................ 8
1.1List of referenced documents .............................................................................................................. 8
1.2Text conventions ................................................................................................................................. 8
1.3Acronyms and abbreviations ............................................................................................................... 9
1.4History of document updates ............................................................................................................ 10
2Preface ............................................................................................................................................. 11
2.1Copyright notice ................................................................................................................................ 11
2.2Scope ................................................................................................................................................ 11
2.3General information ........................................................................................................................... 11
2.4Warranty ............................................................................................................................................ 11
2.5Disposal instruction ........................................................................................................................... 11
3Safety instructions / information ................................................................................................... 12
4Introduction ..................................................................................................................................... 15
4.1The reader ......................................................................................................................................... 15
4.2RFID system ...................................................................................................................................... 15
4.3Kathrein RFID Antenna Interface © KRAI ......................................................................................... 15
4.4Software Integration Kit ..................................................................................................................... 16
5Installation ....................................................................................................................................... 17
5.1Selecting the installation site ............................................................................................................. 17
5.2Installing the reader ........................................................................................................................... 17
6Connectors and displays ............................................................................................................... 18
6.1Power supply ..................................................................................................................................... 19
6.2Ethernet (COM) ................................................................................................................................. 19
6.3Digital inputs and outputs (GPIOx) .................................................................................................... 19
6.4Antenna Connection (ANTx) ............................................................................................................. 22
6.5LED.................................................................................................................................................... 22
6.6Buzzer ............................................................................................................................................... 22
7ReaderStart v2: test, setup and demo software ........................................................................... 23
7.1General .............................................................................................................................................. 23
7.2System requirements ........................................................................................................................ 23
7.3Installation ......................................................................................................................................... 23
7.4Operation & configuration ................................................................................................................. 27
7.4.1User interface overview ..................................................................................................................... 27
7.4.2Menu bar ........................................................................................................................................... 28
7.4.3Communication Tab .......................................................................................................................... 34
7.4.4Application tab ................................................................................................................................... 38
7.4.5Basic writing function......................................................................................................................... 43
7.5GPIO functions .................................................................................................................................. 45
Kapsch TrafficCom AG
Page 6 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
7.6Expert settings 1 ................................................................................................................................ 48
7.6.1Expert settings 2 ................................................................................................................................ 53
7.7Test Gen2 functions .......................................................................................................................... 54
7.8© KRAI-Settings ................................................................................................................................ 57
7.9App Manager ..................................................................................................................................... 57
8Building host applications by using the API ................................................................................ 58
8.1Preparation ........................................................................................................................................ 58
8.2Using the examples with Windows .................................................................................................... 58
8.3Using the examples with Linux on a PC ............................................................................................ 58
List of figures

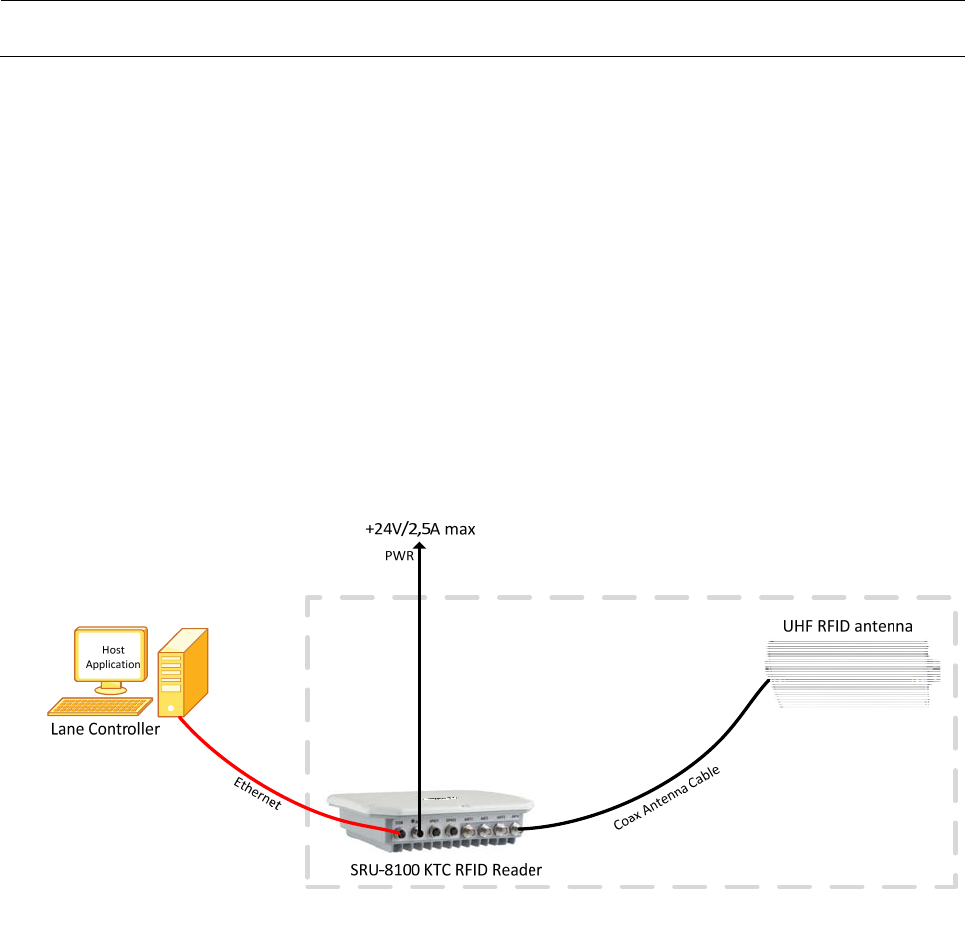

Figure 1RFID Reader subsystem (up to 4 antennas possible) ................................................................. 15

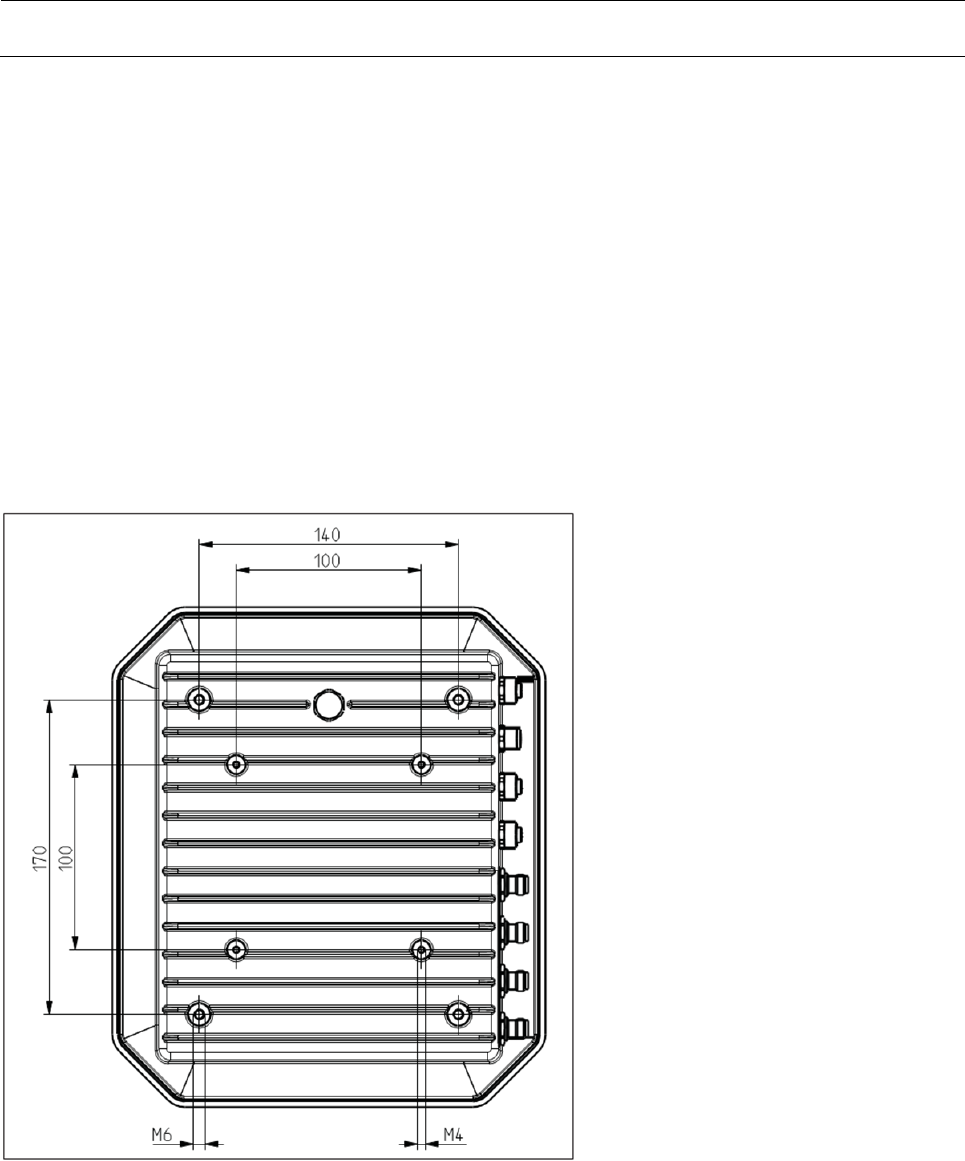

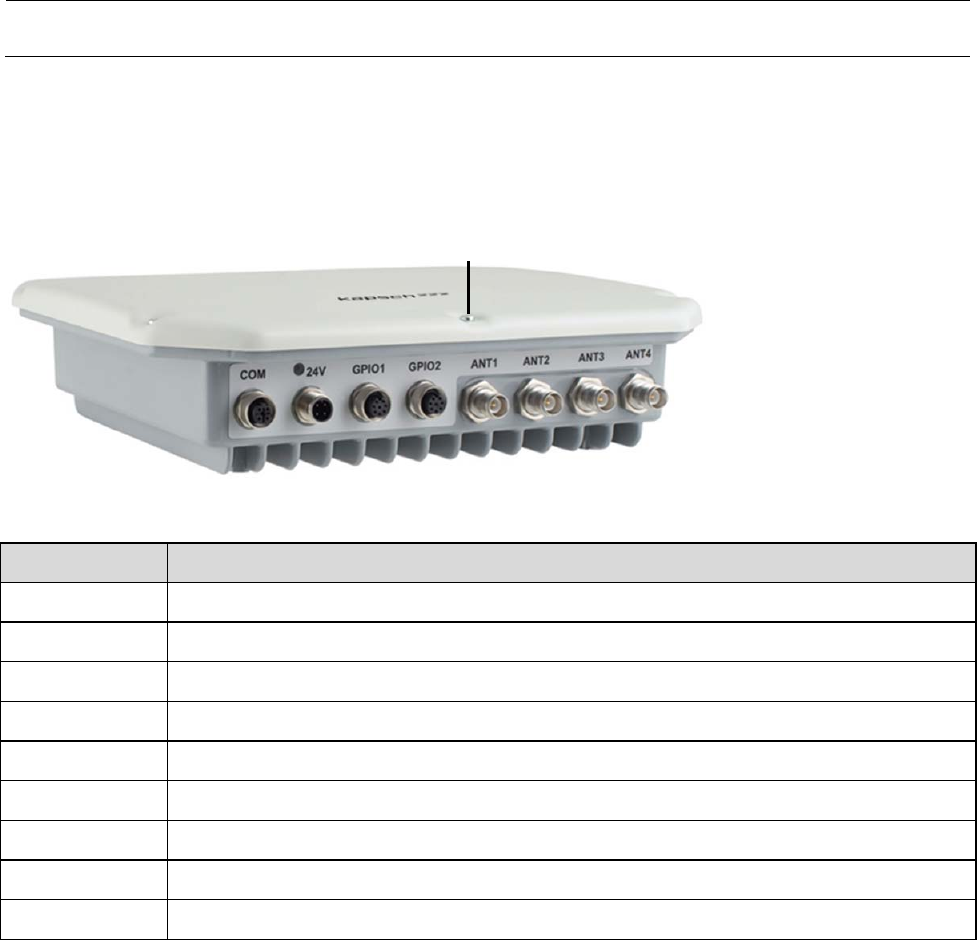

Figure 2Bottom side of the reading and mounting holes .......................................................................... 17
Figure 3Side view of reader with connectors ............................................................................................ 18
Figure 4Inputs double insulated with +UB extern ..................................................................................... 20

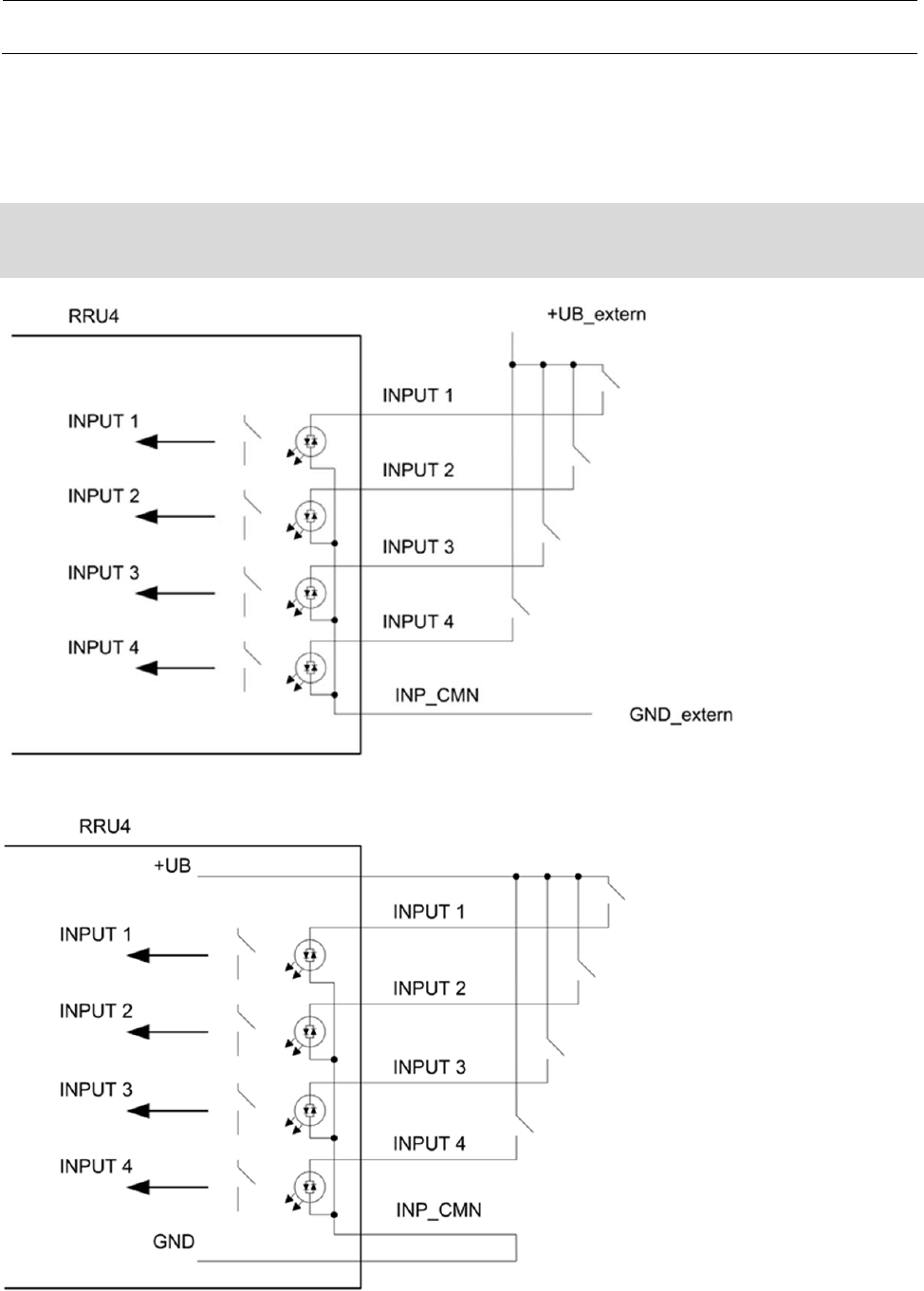

Figure 5Inputs double insulated with +UB intern ...................................................................................... 20
Figure 6Outputs double insulated +UB extern .......................................................................................... 21
Figure 7Outputs double insulated +UB intern ........................................................................................... 21

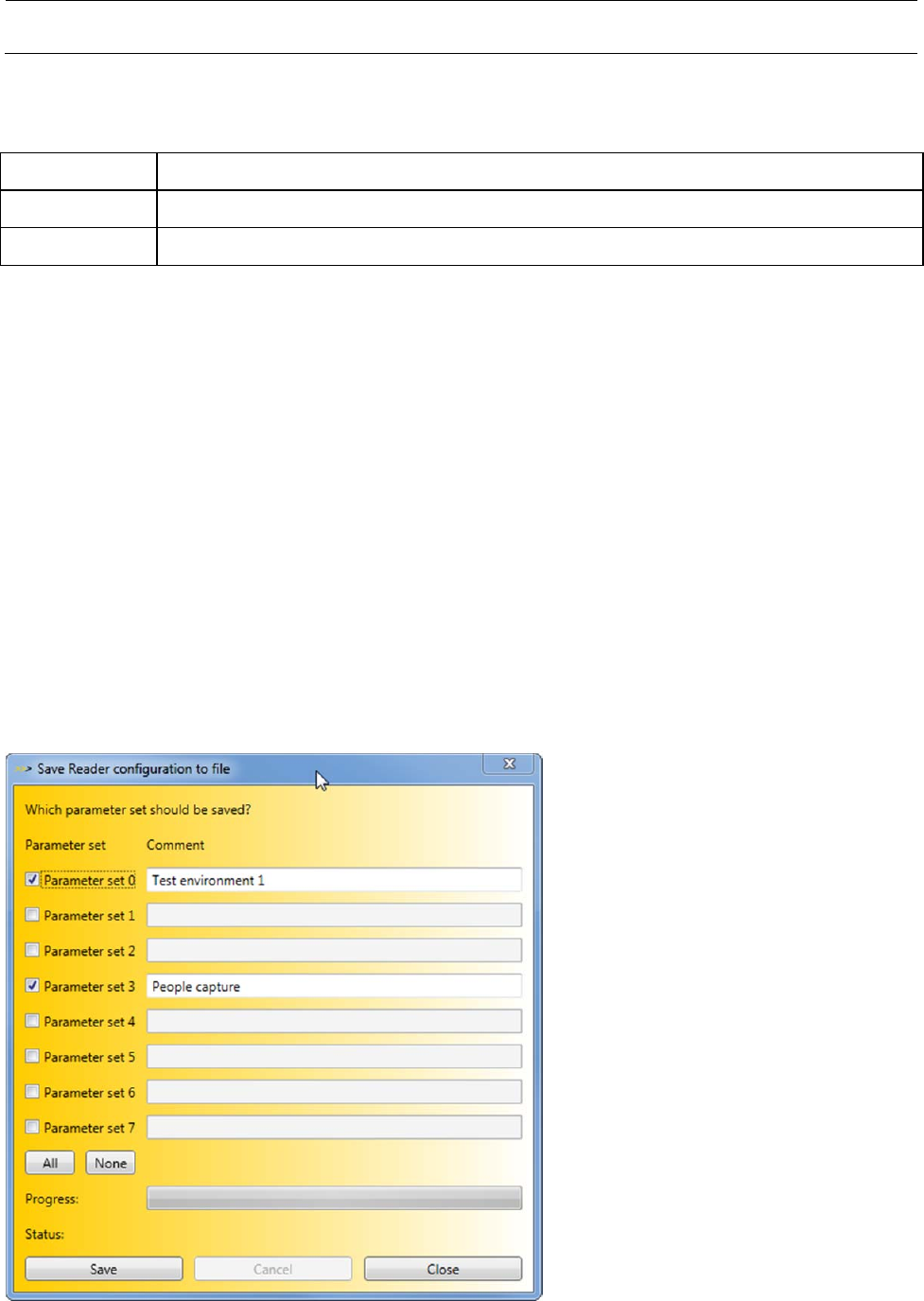

Figure 8Saving the configuration in a file .................................................................................................. 28

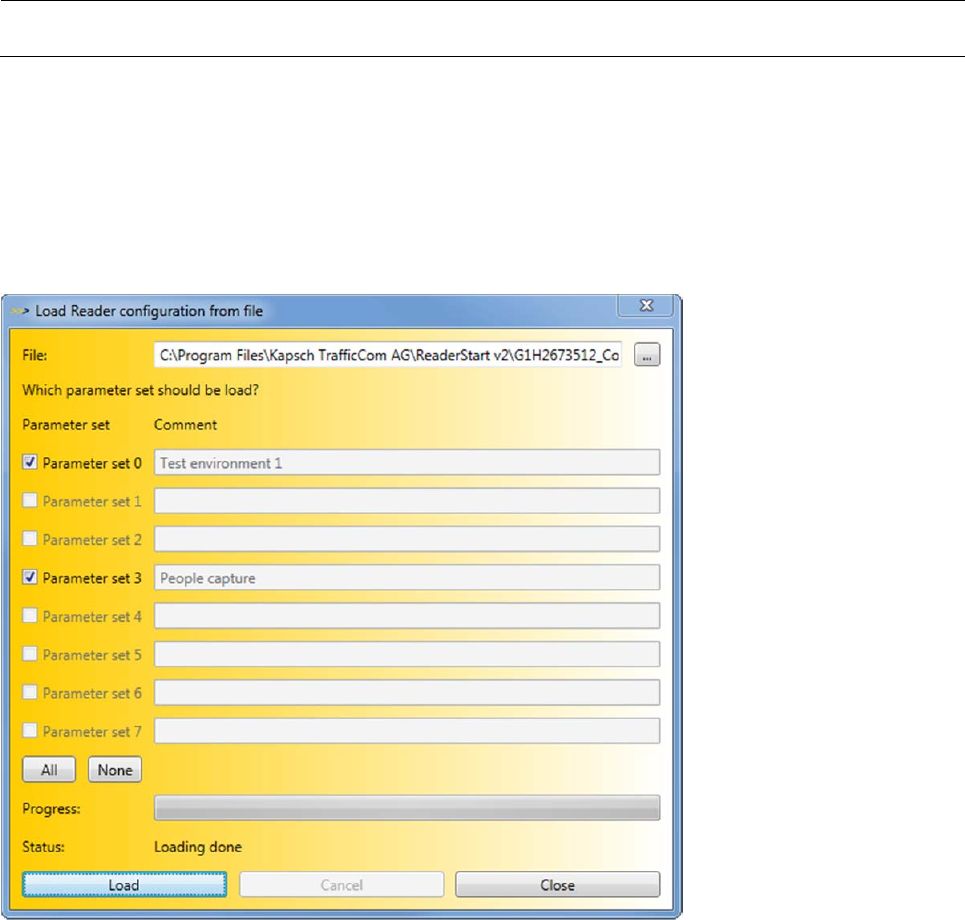

Figure 9Loading a configuration from the file ............................................................................................ 29
Figure 10Changing the GUI language......................................................................................................... 30
Figure 11Setting the warnings ..................................................................................................................... 30

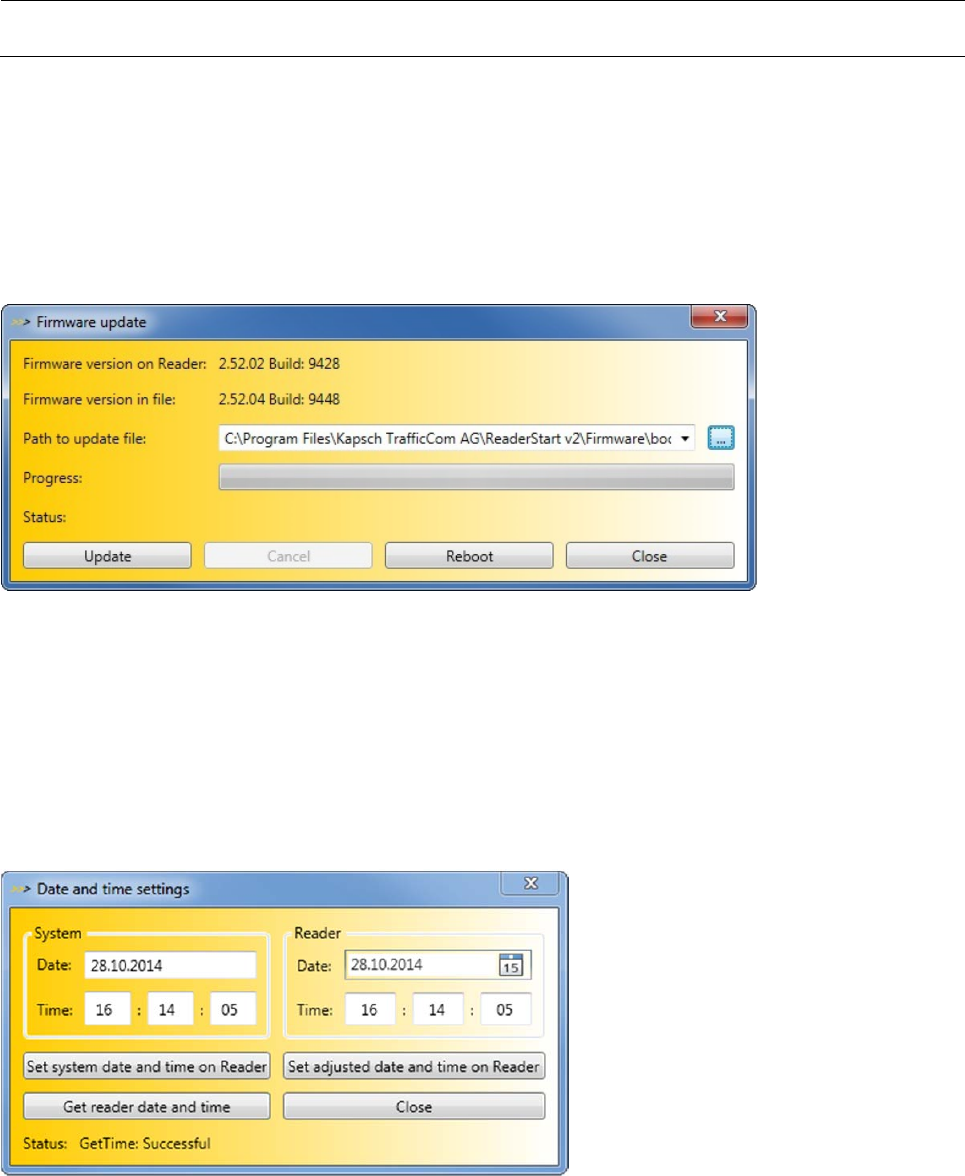

Figure 12Updating the firmware .................................................................................................................. 31
Figure 13Setting the date and time ............................................................................................................. 31
Figure 14About reader start v2 .................................................................................................................... 32
Figure 15Interrogating information about the reader ................................................................................... 32

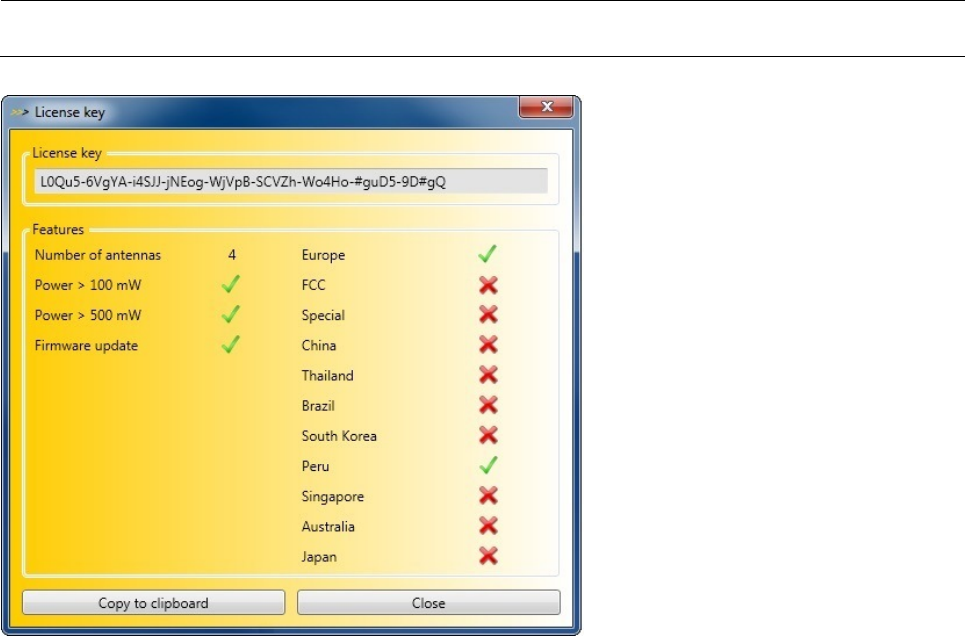

Figure 16Displaying the license key ............................................................................................................ 33

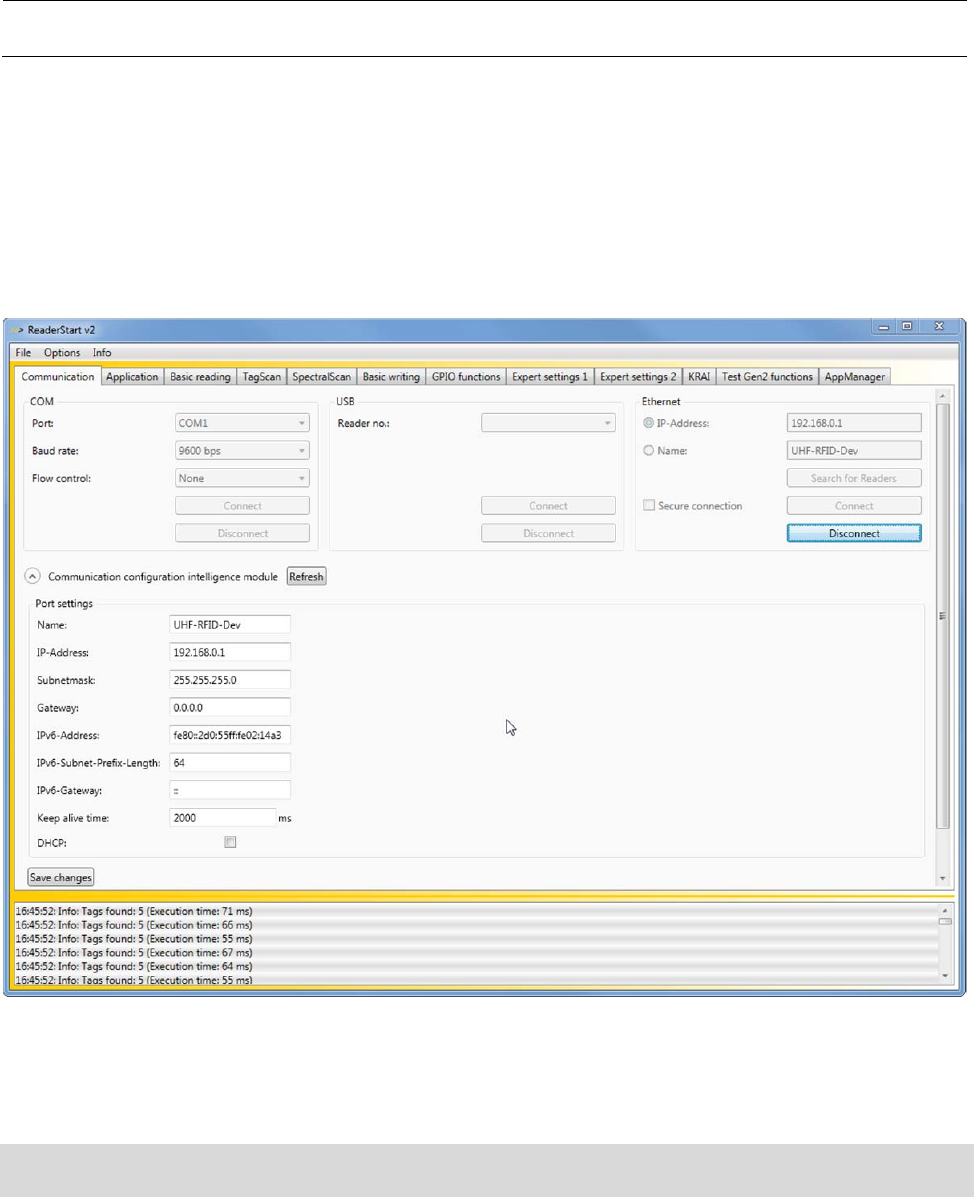

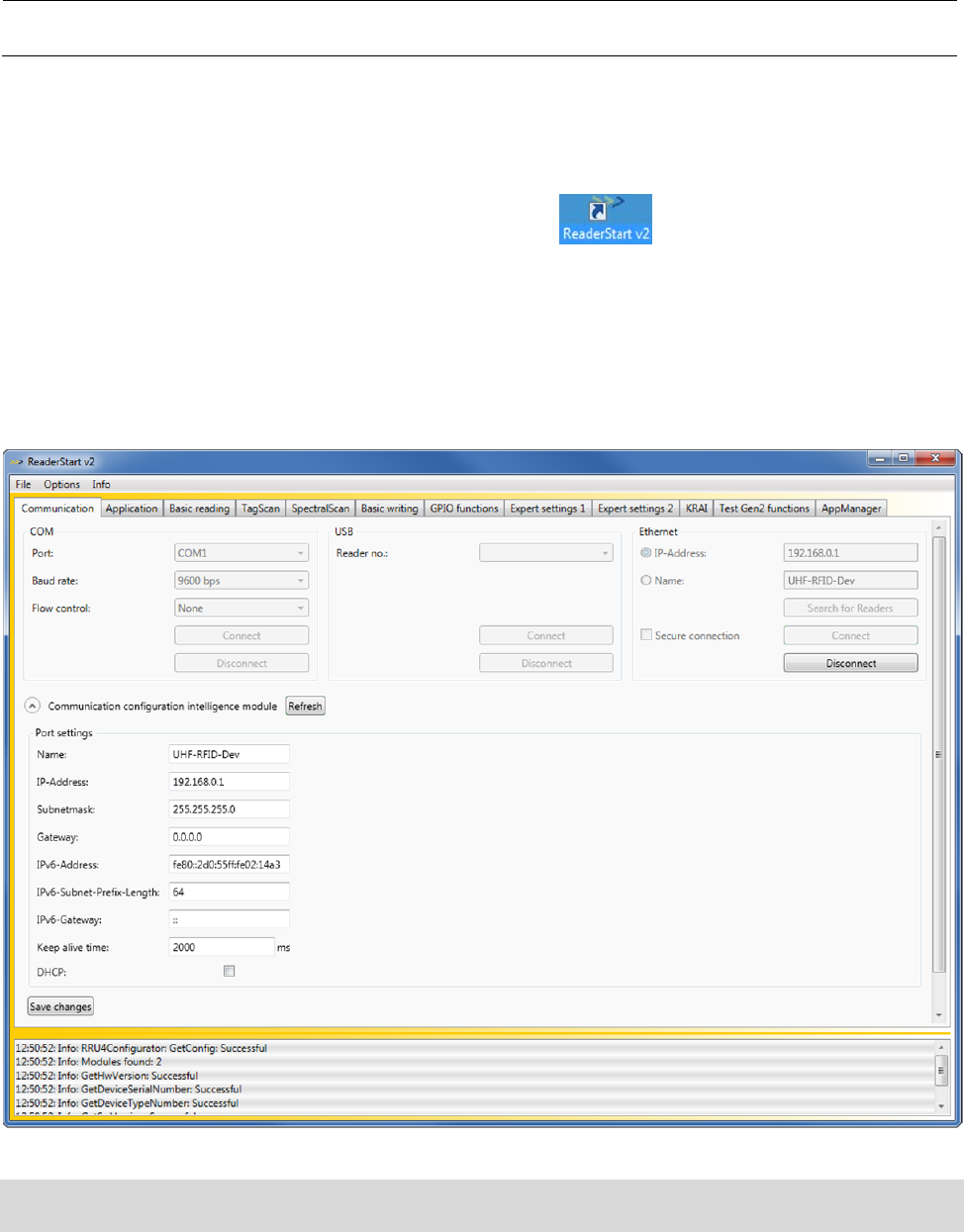

Figure 17Tab for the Communication by Ethernet I/O card ........................................................................ 34

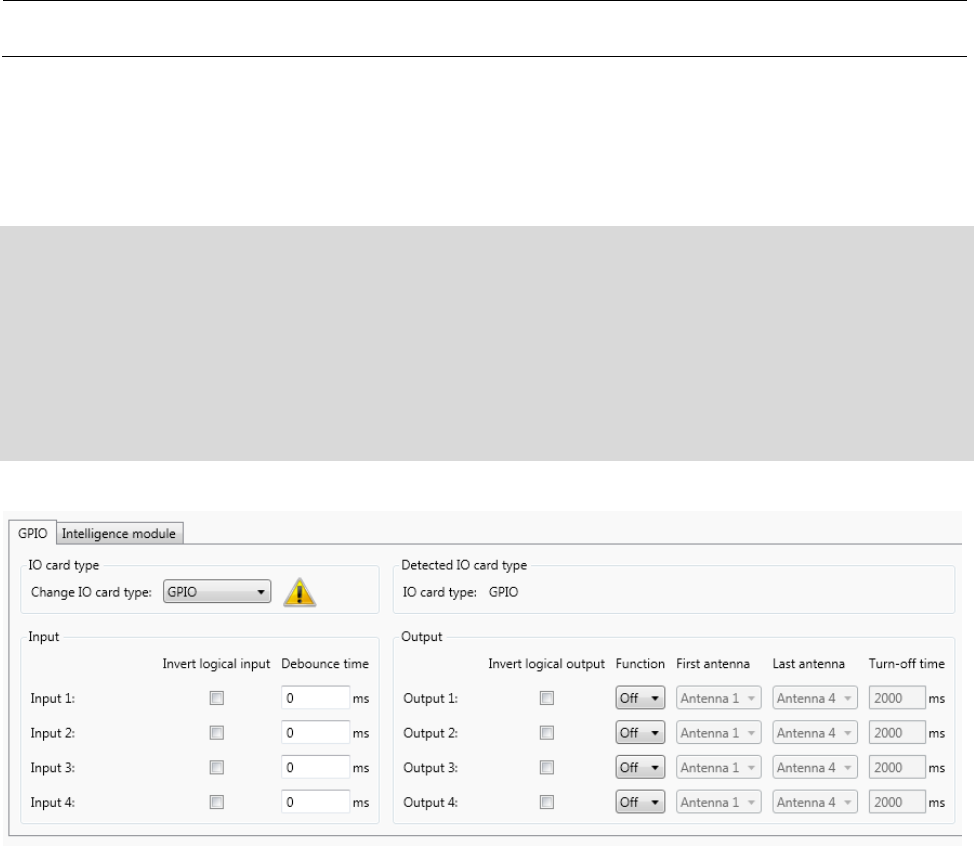

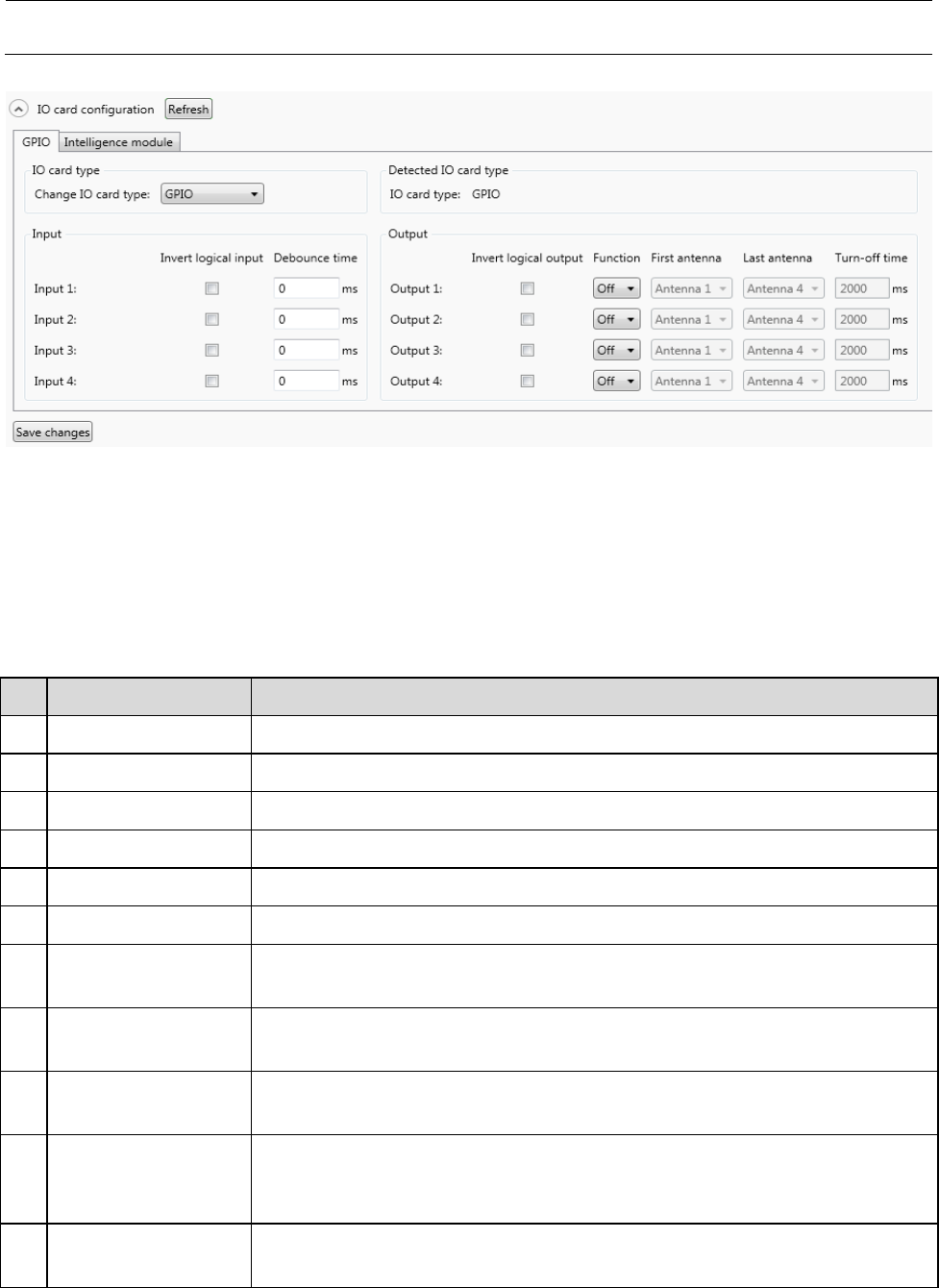

Figure 18Configuration of the GPIO card .................................................................................................... 36
Figure 19Configuration parameters for the Ethernet module ...................................................................... 37

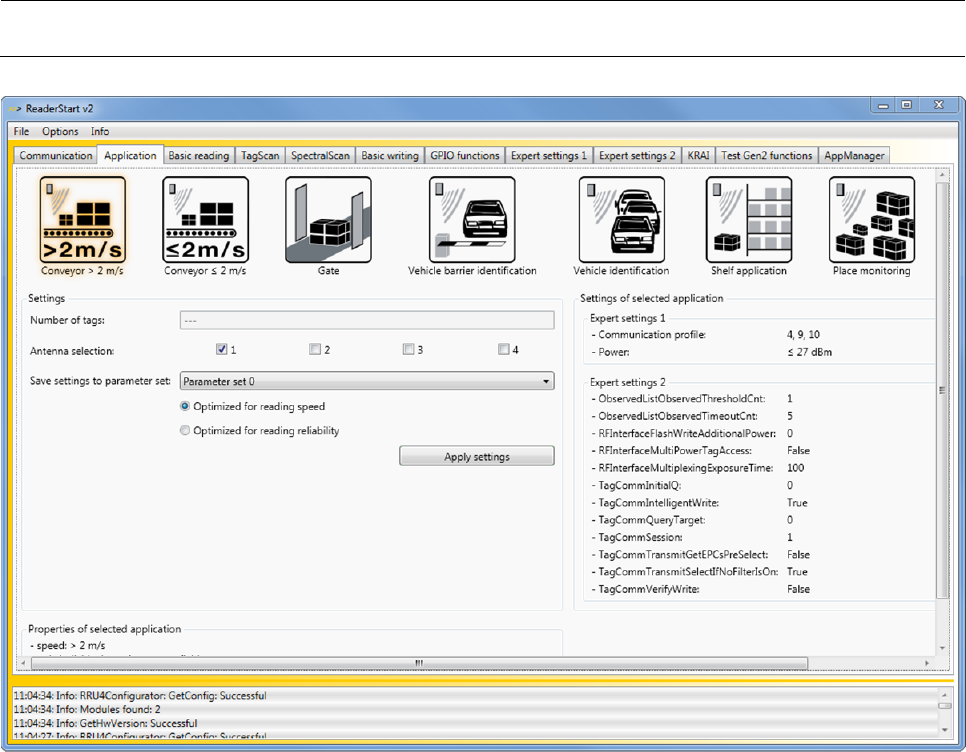

Figure 20Application tab .............................................................................................................................. 39

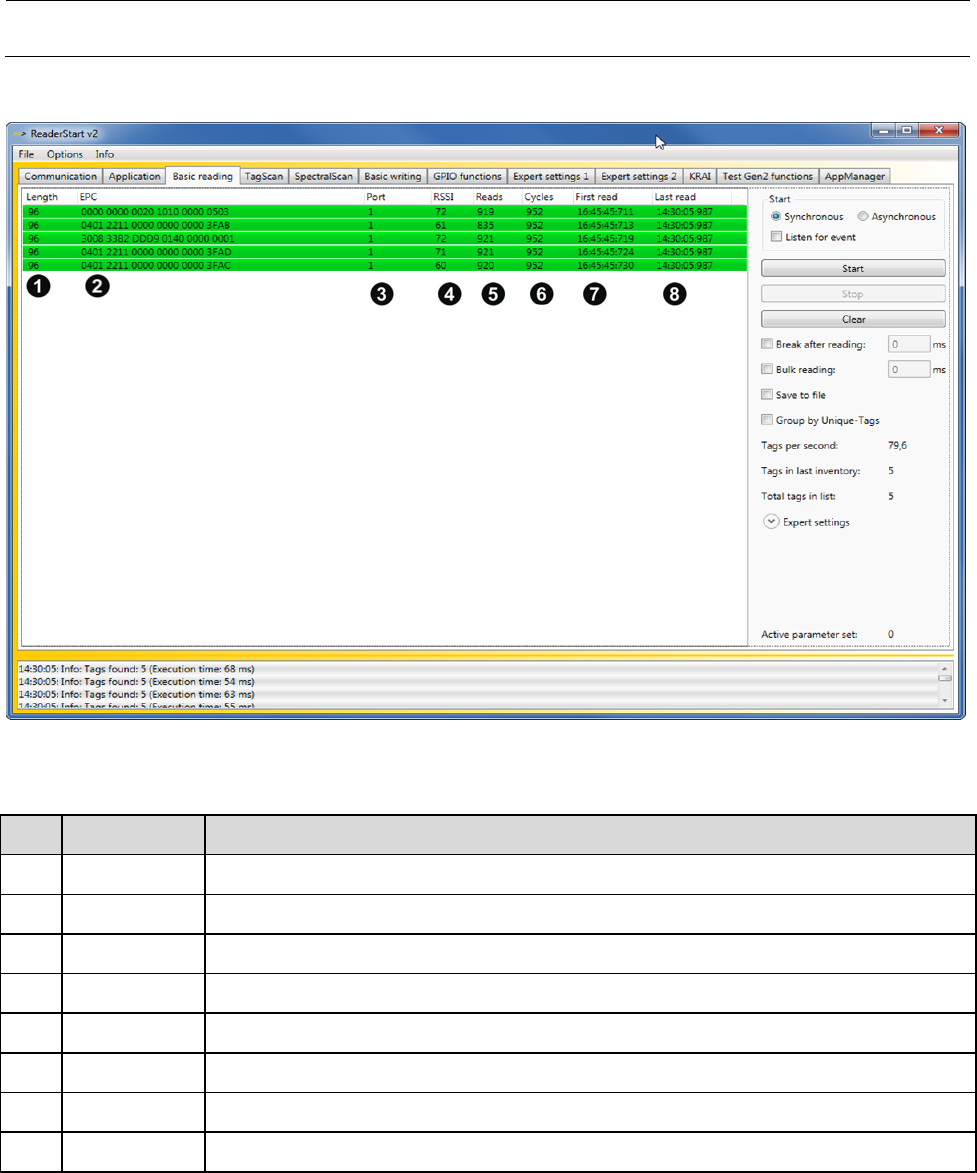

Figure 21Basic read functions tab ............................................................................................................... 41
Figure 22Basic write function tab ................................................................................................................ 43

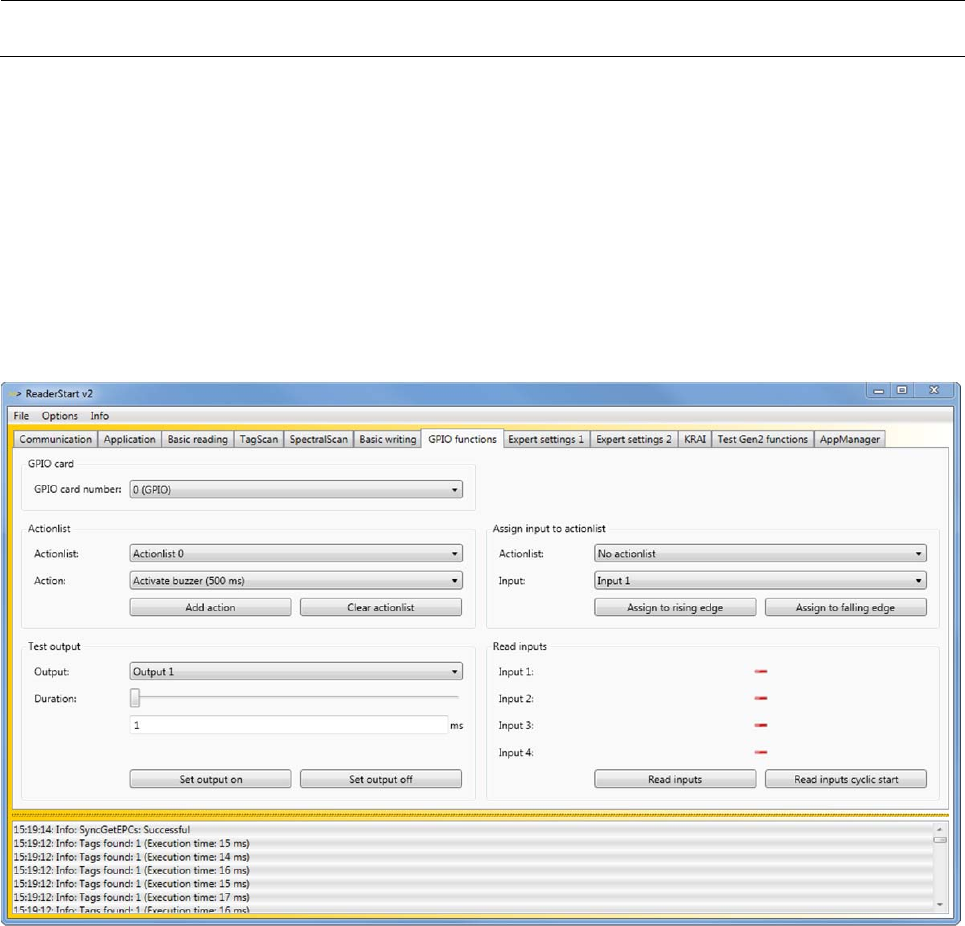

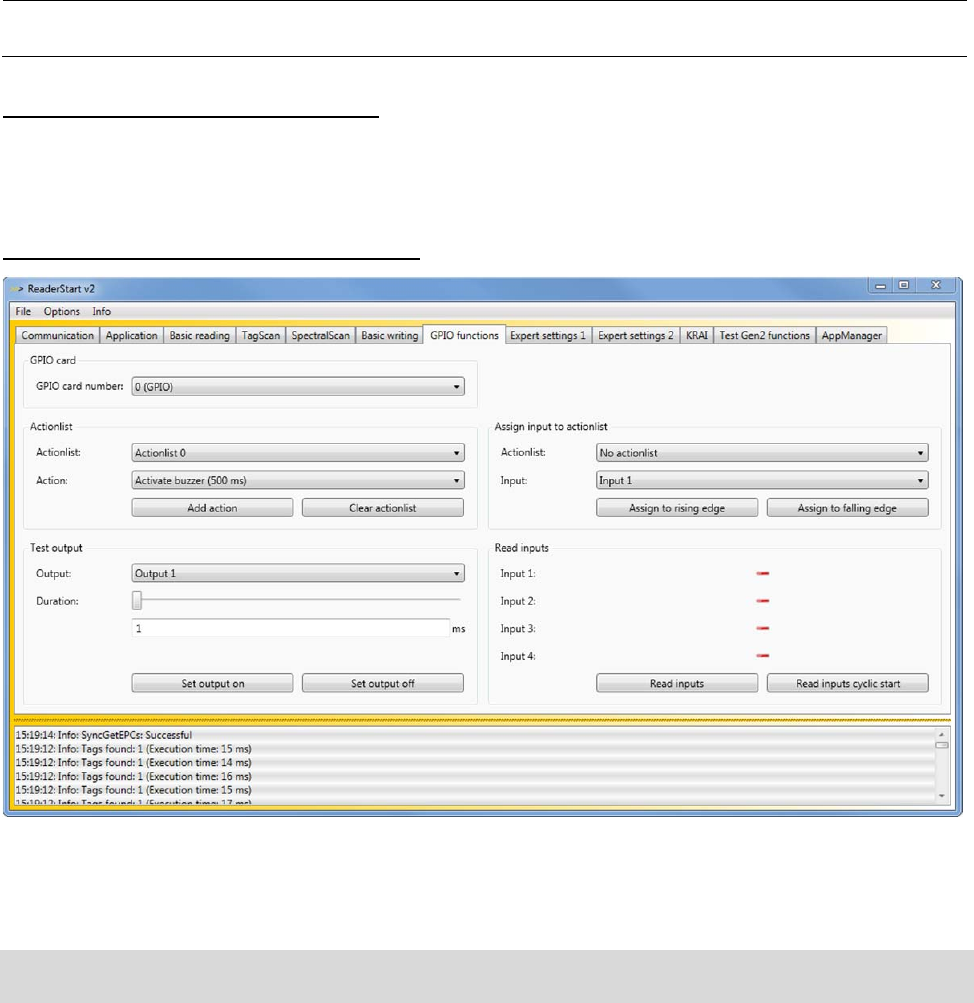

Figure 23GPIO functions tab ....................................................................................................................... 45
Figure 24GPIO settings in communication tab ............................................................................................ 46

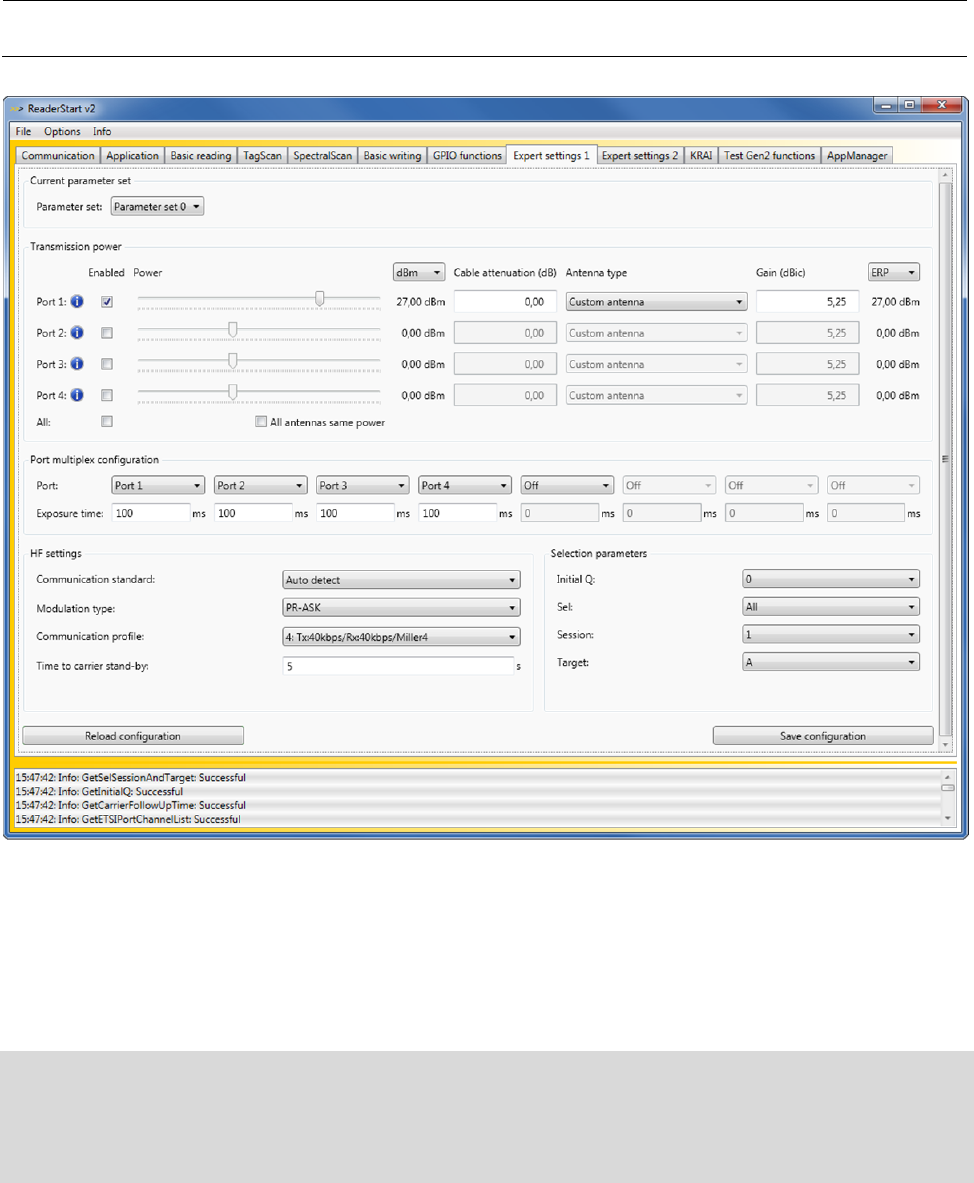

Figure 25Expert settings 1 tab .................................................................................................................... 49
Figure 26Expert settings 2 tab .................................................................................................................... 53

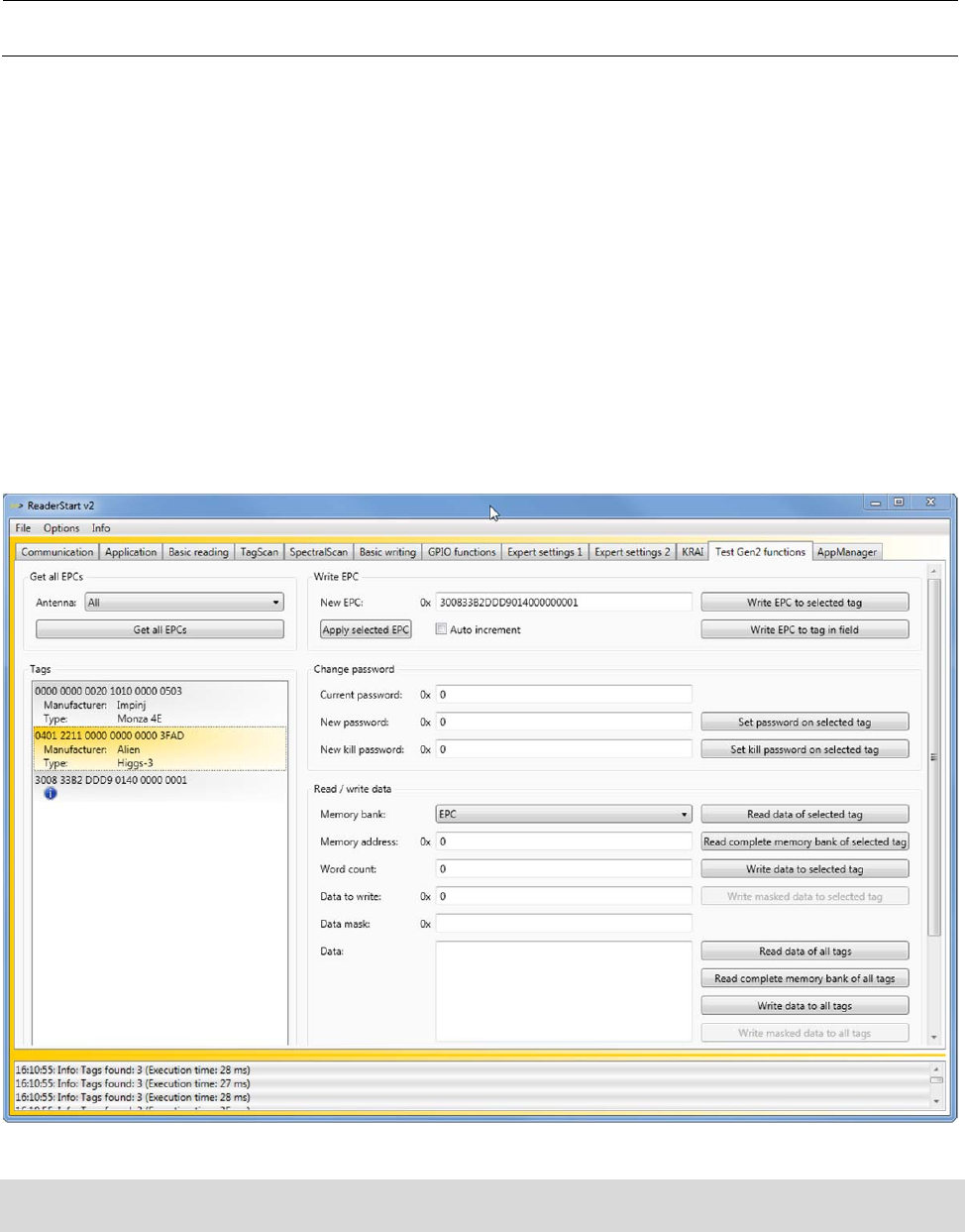

Figure 27The Test Gen2 functions menu tab .............................................................................................. 54
List of tables
Table 1Overview of changes ...................................................................................................................... 2
Table 2List of used and other supporting documents ................................................................................ 8
Table 3Acronyms and abbreviations .......................................................................................................... 9
Table 4History of document updates ....................................................................................................... 10
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 7 of 58
Table 5LED and connectors of the RFID reader ...................................................................................... 18
Table 6Power Supply pin allocation ......................................................................................................... 19
Table 7Ethernet (COM) Connector .......................................................................................................... 19
Table 8Digital inputs and outputs pin (GPIO) allocation .......................................................................... 19
Kapsch TrafficCom AG
Page 8 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
1 About this document
This document describes the installation, configuration and setup of the SRU-8100 KTC RFID Reader
18000-63.
The target audience of this document is system integrators, technicians, and service engineers, who install
and maintain the SRU-8100 RFID Reader 18000-63. The manual is also suitable for detailed engineering
and design, regarding cabling, electrical calculations, and cabinet/gantry schematics.
In order to configure the reader correctly and adapt it to the respective application, detailed knowledge of the
EPCGlobal standards of GS1 is necessary. This standard describes the principle of operation of the interface
between the RFID tag and RFID reader.
1.1 List of referenced documents
The available configuration parameters of the reader device are described in the “Configuration Manua” [2].
The reader device is controlled via a TCP/IP based Application Specific Interface (API) which is described in
detail in the document “API Communication Protocol Description” [1].
Note: Each document has an identifier which shows the validity of the document version with respect to the
firmware version of the RFID reader device.
Ref. no. Doc. no. Title Document type
[1] 47000001171 SRU-8100 RFID Reader 18000-63 API Communication Protocol Description
[2] 47000001168 SRU-8100 RFID Reader 18000-63 Configuration Manual
[3] 47000001181 SRU-8100 RFID Reader 18000-63 Product Range Definition
[4] 47000001182 SRU-8100 RFID Reader 18000-63 Datasheet
Table 2 List of used and other supporting documents
1.2 Text conventions
Optical aids and standard text formats are used in the documentation to help you easily locate and identify
information. You will find the following typographical formats:
Style Used for
bold Accentuations, commands, menu names, dialog box names, command
options, filenames, parameters
italics Labelling and cross-references
CAPITAL LETTERS Acronyms
Code Program fragment, messages
Table 2 Text and their meaning
Note: contains additional information on that subject.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 9 of 58
1.3 Acronyms and abbreviations
The following table contains a list of most important acronyms and abbreviations used within this document
to enable an easy reading.
Acronym or
abbreviation Explanation
ANT Antenna
API Application programming interface
CPU Central processing unit
CSV Comma-separated values, a file format (usually with .csv extension)
DHCP Dynamic host configuration protocol
DLL Dynamic link library
DNS Domain name system
EIRP Equivalent isotropic radiated power
EPC Electronic product code
ERP Effective radiated power
ETSI European telecommunications standards institute
FCC Federal communications commission
GPIO General-purpose input/output
GUI Graphical user interface
IP Internet protocol
KTC KapschTrafficCom AG
LAN Local area network
LED Light-emitting diode
RAM Random access memory
RFID Radio frequency identification
RSSI Received signal strength indication
SRU Single reader unit
TAG Synonym for on-board unit (OBU)
TCP Transmission control protocol
TID Touch input device
UDP User datagram protocol
UHF Ultrahigh frequency
XML Extensible markup language
Table 3 Acronyms and abbreviations
Kapsch TrafficCom AG
Page 10 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
1.4 History of document updates
Updates will be issued when needed and noted on this page in the following issues of this document.
Edition Description
01 / 2014-11-03 First released issue
Table 4 History of document updates
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 11 of 58
2 Preface
2.1 Copyright notice
The reproduction or distribution of this document or extracts from it in whatever form and by whatever means
(electronic or mechanical) for whatever purpose is permitted only with the prior written permission of KTC.
This document and the information contained in it are proprietary information of KTC. The right to use is
restricted to reading and this right is bound to the purchase of a Kapsch RFID reader product.
2.2 Scope
The information contained in this manual is intended for the support of the development process and as
development guidance for the customer. In addition this manual offers supporting information about the
standards to be applied at the place of installation and the relevant safety standards for installation and
configuration of the reader device.
2.3 General information
This manual contains information on installation, configuration, operation and maintenance of the reader. In
addition it gives detailed technical data in order better to familiarize the user with the features of the reader.
In order to ensure a long working life and fault-free operation, this manual should therefore be read carefully
and all the instructions and information contained in it should be complied with.
2.4 Warranty
Switching on the AC or DC power supply prior to connecting the LAN cable is considered incorrect
installation. Any functional defect arising as a result is excluded from the warranty/guarantee. Before
installing or servicing the reader, the person concerned must have read the manual and understood its
contents. KTC accepts no liability if the customer fails to implement the precautions listed here. In such
cases, any claims under the warranty/guarantee are void.
2.5 Disposal instruction
Electronic equipment is not classed as household waste and must be disposed of
properly in accordance with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 27 January 2003 on used electrical and electronic
equipment.
At the end of its service life, take this device for disposal at a designated public collection
point.
Used batteries are special waste!
Do not put used batteries into your domestic waste; instead take them to a collection
point for used batteries!
Kapsch TrafficCom AG
Page 12 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
3 Safety instructions / information
Before starting installation work or replacing the unit, the accompanying manual must be read
carefully and its contents understood.
The detailed information in the data sheets and in this manual must be complied with carefully
during installation and operation of the reader!
The installation team must be properly qualified and familiar with the safety regulations
applicable in the country concerned.
Connection, installation and maintenance work, as well as all other work on the unit, may only be
carried out by properly qualified and trained employees.
The unit may only be used for the purpose intended by the manufacturer.
Unauthorized changes to the unit and the use of spare parts and peripheral devices which are
not sold or recommended by the manufacturer can result in fires, electric shocks and injuries.
Such actions therefore result in exclusion of liability and make the manufacturer’s
warranty/guarantee null and void.
The applicable version of the manufacturer’s warranty is that which was valid at the time of
purchase. We accept no liability for unsuitable manual or automatic adjustments made to the
unit's parameters and inappropriate use of the unit. Repairs may only be undertaken by
personnel authorized to perform them. Opening or attempting to repair the unit makes all
guarantee/warranty claims null and void! Improper work on the unit may jeopardize electrical
safety.
The manufacturer is not liable for accidents caused by the user opening the unit!
Always shut off power supplies during installation work with the equipment.
To avoid damage during transportation, the equipment must be transported in the original
package and not be exposed to rapid temperature variations, direct sunshine, or extreme
humidity.
Cables are handled mainly during the installation. Consider the following: Handle cables
carefully so that the insulation or shield is not damaged. Do not bend cables to a smaller radius
than the cable manufacturer has specified
Act to prevent tools from falling down of the working place onto the traffic lanes. Vehicles passing
under the gantry may be hit, with severe damage consequence.
When carrying out work on the unit, the valid safety regulations must be complied with.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 13 of 58
Supply voltage
Make sure that the mains cable (power supply cable) is not damaged. If the mains cable is damaged, the
device must not be used. Instead it must be disconnected from the mains and repaired by a qualified
technician.
Risk of fatal injury due to electric shock!
The device may be operated only at the stated supply voltage (see the rear of the device or external power
supply unit)!
If the supply voltage is too high, there is a risk of fire!
Ventilation
Appropriate means are provided to dissipate the heat generated within this equipment. The device must
however not be installed in a cabinet or on shelves with insufficient ventilation. The ventilation slots on the
device must not be covered.
There is a risk of fire!
Moisture, direct sunlight, heat, naked flames
Protect the device from moisture, dripping water and spraying water. The device must not be placed close to
sources of heat, exposed to direct sunlight or operated in a damp environment. Do not place anything which
has a naked flame on the device!
There is risk of fire!
Radiated electromagnetic fields
CE marking for the RFID reader with type designation "EU":
The device fulfil the requirements of the following EU directives:
1999/5/EC, R&TTE
2004/108/EC, Electromagnetic compatibility
2006/95/EC, Low voltage
2011/65/EU, RoHS2
2002/96/EC, WEEE
CE-marking (as visible on the type plate of the device):
Hereby, Kapsch TrafficCom AG declares that the product SRU-8100-EUis compliance with the
essential requirements and all other relevant provisions of Directive 1999/5/EC.
For further information please contact us:
Kapsch TrafficCom AG
Am Europlatz 2
A-1120 Vienna
Tel.: +43 (0)50 811 0
Fax: +43 (0)50 811 992421
E-mail: kapsch.at@kapsch.net
Kapsch TrafficCom AG
Page 14 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
FCC marking for the RFID reader with type designation "US":
The reader with the identifier "US" are designed to operate under FCC Part 15 and are listed under FCC
ID "XZU" on the FCC website.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and, (2) This device must accept any interference
received including interference that may cause undesired operation.
Modifications or conversions which are carried out on this unit without the express permission
of KTC may invalidate the FCC permit for the operation of this unit.
Note: To meet part 15 of the FCC regulations in the United States, the system must be properly installed to
guarantee adherence to the certification regulations according to part 15. The operator and the specialist
company which carries out installation are responsible for ensuring that only certified systems are used in the
United States.
Note: Following corresponding tests, it has been ascertained that this unit adheres to the limit values for
class B digital units in accordance with part 15 of the FCC regulations. These limit values are intended to
provide private user's systems with appropriate protection against harmful radio interference. This unit
generates and uses energy in the radio frequency range and is also able to radiate this; if it is not installed
and used in accordance with the regulations, the unit may cause harmful radio communication interference.
However, there is no guarantee that interference will not occur in a specific system. If this unit causes harmful
radio or television reception interference, which can be ascertained by switching the unit on and off, we
recommend that the user attempts to rectify this interference via one or more of the following measures:
- Realign the receive antenna or change its position.
- Increase the distance between the unit and the receiver.
- Plug the unit into a socket in a current circuit other than that to which the receiver is connected.
- Seek advice from the retailer or an experienced radio/television technician.
Warning regarding exposure to RF radiation
Ensure a minimum clearance of 20 cm between the antenna and the human body, and comply with the
operating instructions for RFID antennas. In some circumstances, heart pacemakers may suffer interference
if wearers are close to the antenna when the unit is in operation (reader and antenna). In case of doubt, the
people affected are requested to contact the manufacturer of their pacemaker or their doctor.
The reader output power must be reduced as a function of the antenna cable length and the antenna gain.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 15 of 58
4 Introduction
4.1 The reader
The KTC RFID (Radio Frequency Identification) reader is a multi-protocol-capable device for reading active
and passive RFID tags in the frequency range from 865 to 868 MHz for Europe type “EU” and 902 to 928
MHz for the American market type “US”. As supplied the unit can read and write tags in accordance with the
EPC-Gen2 standard. Additional protocols can be loaded using software updates.
The device has a maximum of four external antenna ports for connection of the transmission/reception
antennas for communication with RFID tags.
For integration into a variety of infrastructures, the device has different communication interfaces depending
on the variant. The power supply is provided by a 4-pin M12 panel connector in A-coding.
4.2 RFID system
Figure 1 RFID Reader subsystem (up to 4 antennas possible)
To read the tag information, the reader sends an RF carrier by an active antenna and thus supplies the tag in
the RF field with energy.

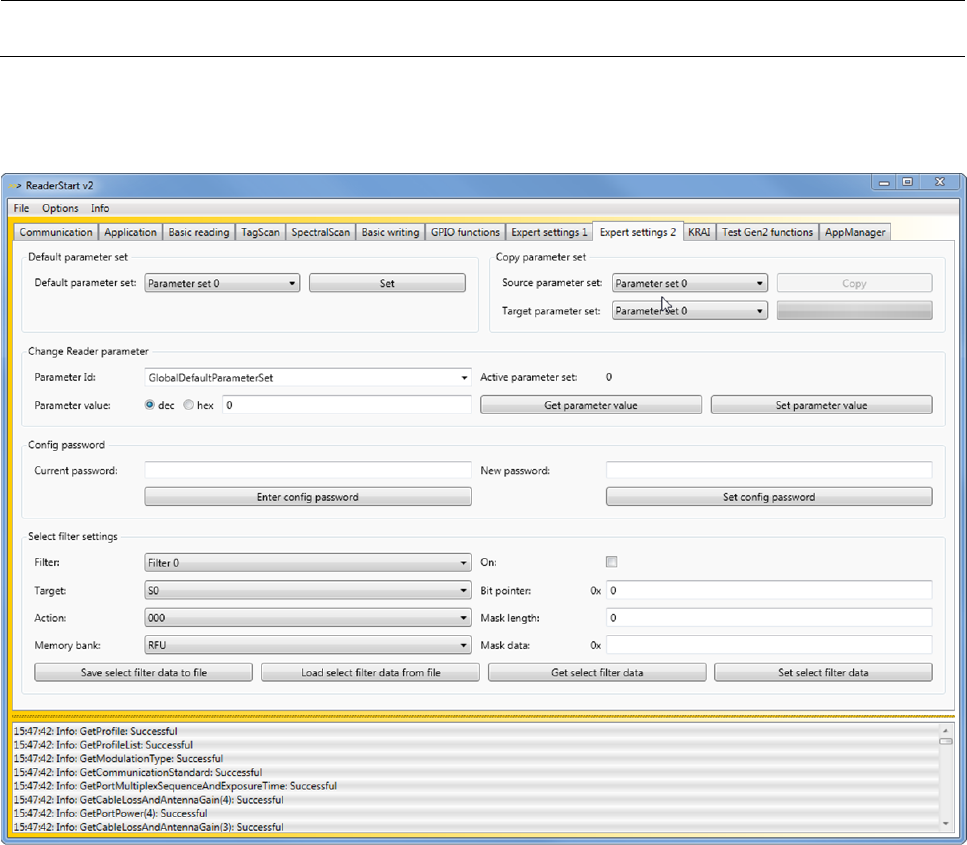

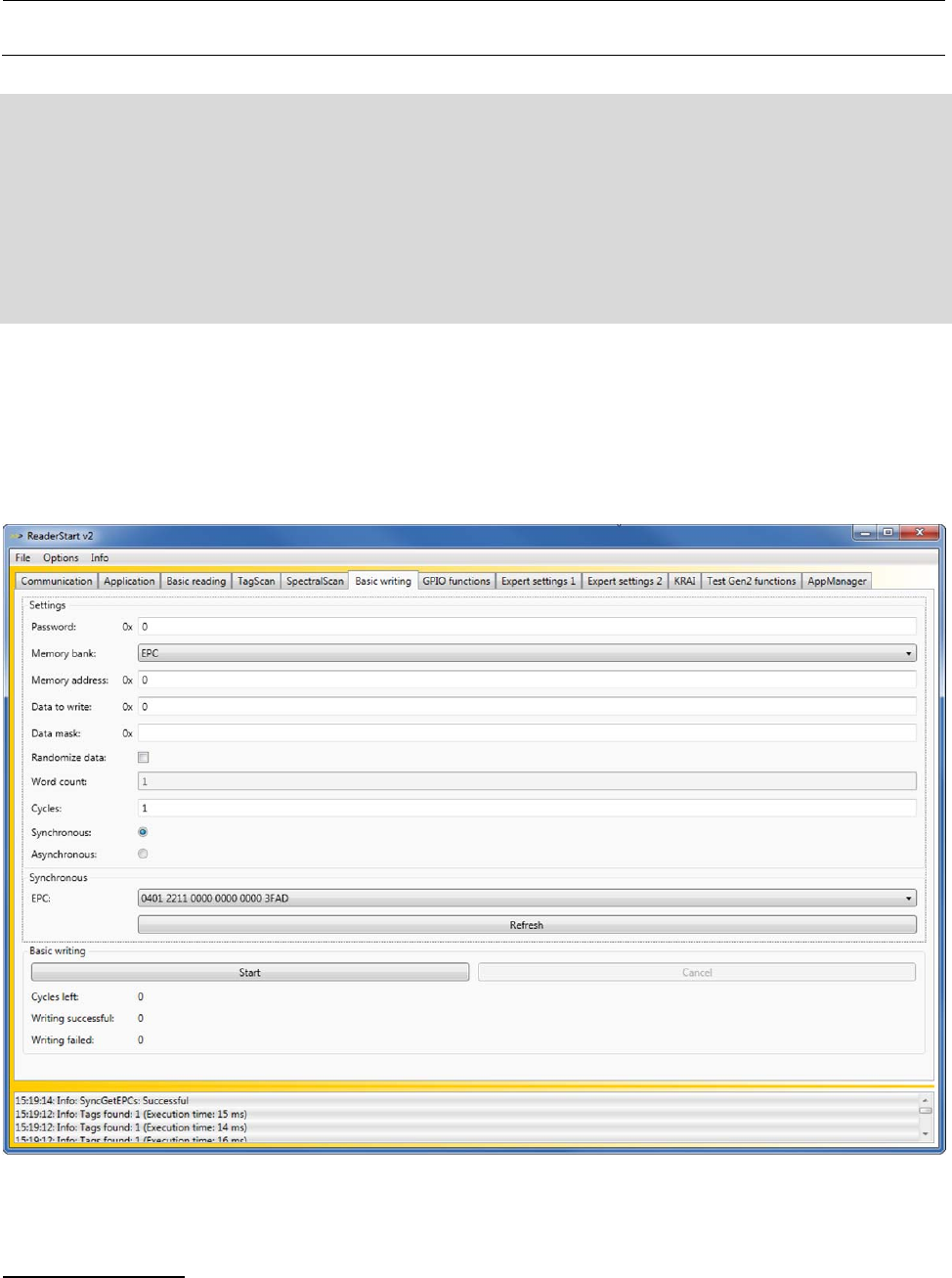

For testing and parameterizing the reader the Demo Software ReaderStart v2 can be used. The
communication between the ReaderStart v2 and the reader is based on a Dynamic Link Library (DLL) called
RRU4DotNet.dll, which may also be used for creating user specific lane controller applications. The DLL
includes all the relevant commands and functions, which are needed to control the reader. Additionally, the
reader may also be controlled by direct TCP communication.
The user-specific control software may also run on the reader directly. Thus, a stand-alone operation without
permanent network connection is possible
4.3 Kathrein RFID Antenna Interface © KRAI
The KTC RFID reader is able to control antennas from the manufacturer Kathrein by using their proprietary
communication interface ©KRAI. Those Kathrein antennas are not included in the product portfolio of KTC
and thus in combination with the KTC RFID reader device there is no active support given by KTC when
using KRAI antennas.
Kapsch TrafficCom AG
Page 16 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
4.4 Software Integration Kit
A software kit is available on CD-ROM containing the test software (ReaderStart v2), programming examples
and the DLL and all necessary documentation (see Chapter 7 on page 23) Order Numbers:

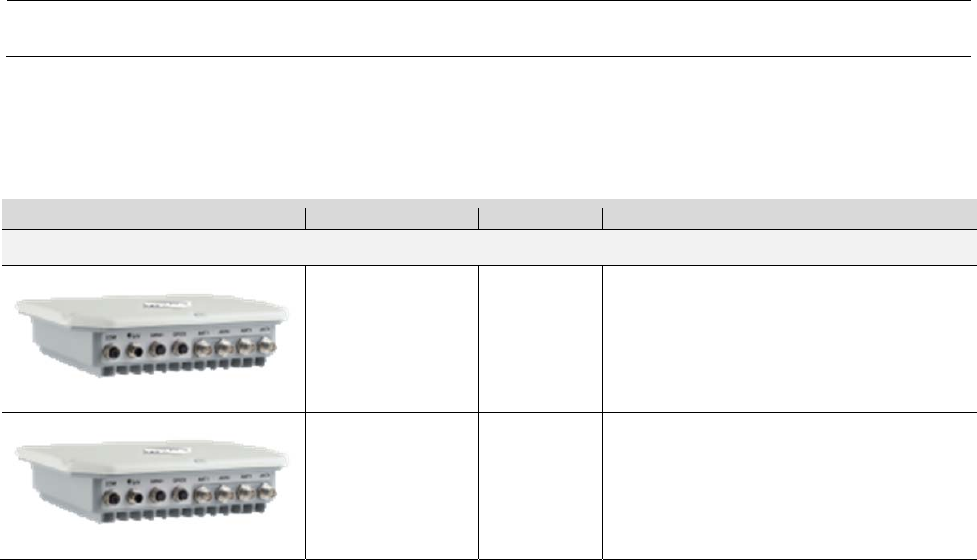

Part view Product type Article no. Description
Core components
SRU-8100-US 34032600100 Kapsch RFID reader 18000-63 w/o antenna,
extended firmware, 24V, 4xAntPort, 1GHz
CPU/4GB RAM, max. 4W EIRP, TNC connectors,
FCC 902-928 MHz; protection Caps;10m power
cable with open end
SRU-8100-EU 34032600000 Kapsch RFID Reader 18000-63 w/o antenna,
extended firmware, 24V, 4xAntPort, 1GHz
CPU/4GB RAM, max. 2W EIRP, TNC connectors,
ETSI 865-868 MHz; protection caps;10m power
cable with open end
Additionally a wide range of accessories (antennas, cables, power supplies, brackets and fixings, protection
circuits, etc.) is available. For the latest list of available accessories please refer to [3].
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 17 of 58
5 Installation
5.1 Selecting the installation site
When the connectors are plugged in, the device satisfies the protection class IP65. When selecting the
installation location, make sure there is sufficient space around it for appropriate dissipation of the heat
generated by the device. Do not install it close to external sources of heat. The maximum operating
temperature listed in the data sheet must not be exceeded. The support surface must have a sufficient load-
bearing capacity/strength.
5.2 Installing the reader
The device has threaded holes at the rear for attaching the reader. The dimensions of the holes pattern can
be found in the drawing below. For ease of installation a bracket is available as an accessory, which offers
the option of mounting on a mast or wall.
Figure 2 Bottom side of the reading and mounting holes
Kapsch TrafficCom AG
Page 18 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
6 Connectors and displays
The illustration below shows the reader with all its connectors. Details of the connections and the pin
assignments of plugs and sockets are provided in the following pages.
Figure 3 Side view of reader with connectors
Component Description
COM Ethernet connection: M12 (female), 4 Pin, D-coded
24V Power supply connection: M12 (male), 4-pin, A-coded
GPIO1 GPIO connection 1: M12 (female), 8-pin, A-coded
GPIO2 GPIO connection 2: M12 (female), 8-pin, A-coded
ANT1 Antenna connection 1: R-TNC (male) 50 Ohm
ANT2 Antenna connection 2: R-TNC (male) 50 Ohm
ANT3 Antenna connection 3: R-TNC (male) 50 Ohm
ANT4 Antenna connection 4: R-TNC (male) 50 Ohm
LED Status indicator: 3 states: red, green, orange
Table 5 LED and connectors of the RFID reader
LED
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 19 of 58
6.1 Power supply
The power supply is arranged as a four-pin round-pin plug with and M12 connection thread and A-coding.
Note: Only power supply units with power limitation are approved for operation with the device. This means
that the secondary side of the power supply unit is limited to a power of maximum 100 VA.

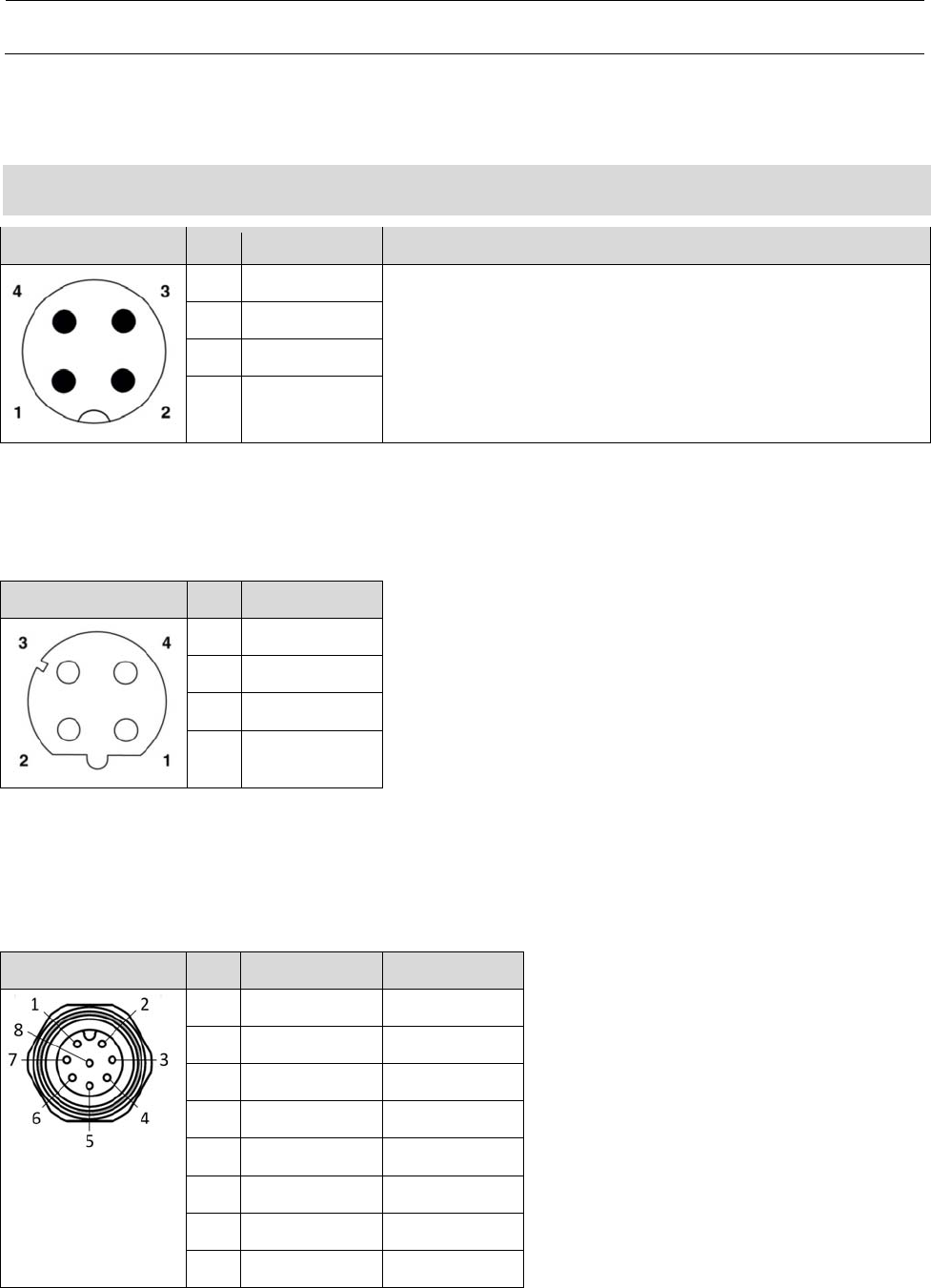

Connector Pin Signal Description
1 +24 V DC
Pin out of the power cable (Included in the delivery of the
reader device)
2 --
3 GND
4 --
Table 6 Power Supply pin allocation
6.2 Ethernet (COM)
This interface is arranged as a 4-pin M12 socket with D-coding. Only shielded cables may be used.
Connector Pin Ethernet
1 TD+
2 RD+
3 TD-
4 RD-
Table 7 Ethernet (COM) Connector
6.3 Digital inputs and outputs (GPIOx)
The activation and evaluation can be performed using the software ReaderStart v2, with the DLL supplied,
or via the reader communication protocol (API).
Connector Pin GPIO 1 GPIO 2
1 OUT_CMN OUT_CMN
2 INPUT 4 INPUT 1
3 INP_CMN INP_CMN
4 GND GND
5 UB UB
6 OUTPUT 4 OUTPUT 2
7 OUTPUT 3 OUTPUT 1
8 INPUT 3 INPUT 2
Table 8 Digital inputs and outputs pin (GPIO) allocation
Kapsch TrafficCom AG
Page 20 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
The digital inputs and outputs are built as two eight-pin sockets in A-coding with M12 threads. The inputs are
double insulated from the power supply of the reader and can be operated irrespective of the polarity of the
input signal. For this reason there is a common pin for the inputs (INP_CMN). The connection variants for the
inputs are shown below.
Note: Please note that the load per channel is limited to a maximum of 0.5 A, and the total load across all the
channels must not exceed 1.5 A. The inputs and outputs are designed for a maximum voltage of 30 V DC.
Further information can be found in the data sheet for the reader.
Figure 4 Inputs double insulated with +UB extern
Figure 5 Inputs double insulated with +UB intern
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 21 of 58
The outputs are also double insulated from the power supply to the reader and have a common pin
(OUT_CMN). If the double insulation is not required, the power supply can also be taken directly from the
reader’s power source.
The connection examples for the outputs are shown in the next figures.
Figure 6 Outputs double insulated +UB extern
Figure 7 Outputs double insulated +UB intern
Kapsch TrafficCom AG
Page 22 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
6.4 Antenna Connection (ANTx)
The activation and evaluation can be performed using the software ReaderStart v2, with the DLL supplied,
or by access to the reader protocol.

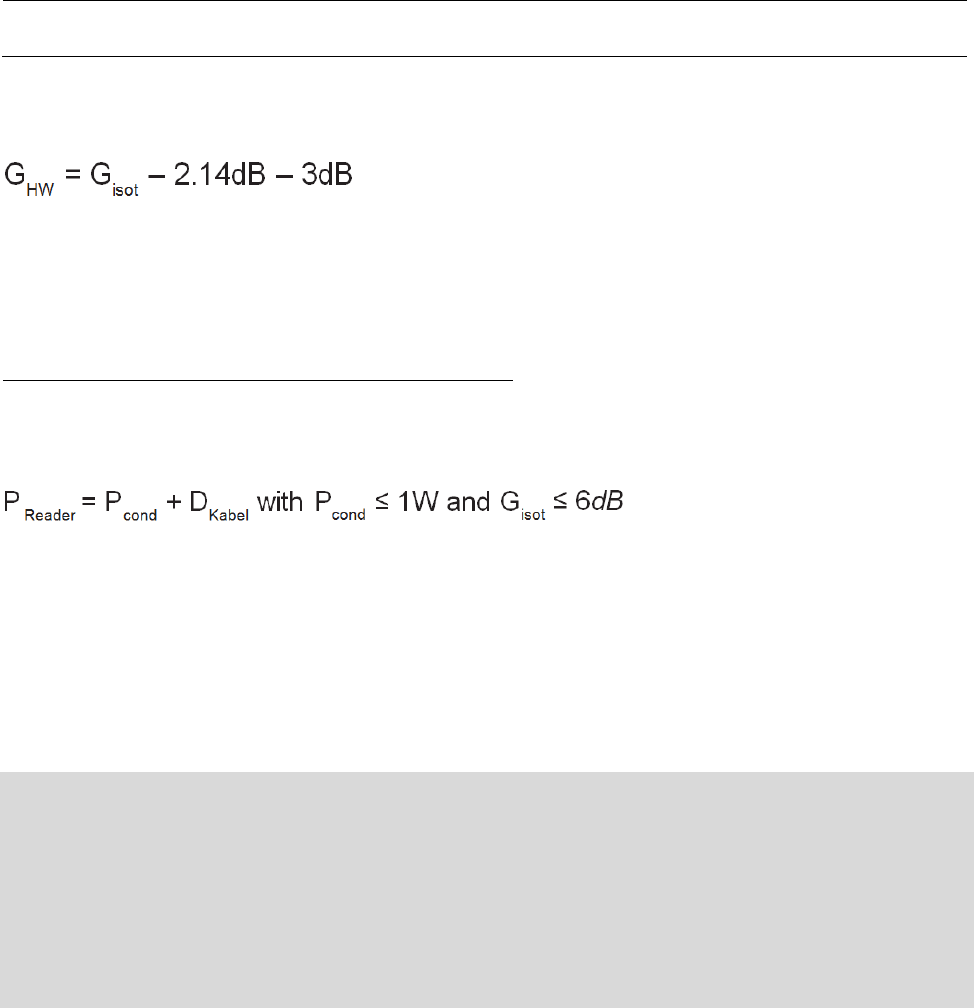

Note: Please only use cable suitable for the impedance (50 Ohm), as otherwise the performance of the
reader will be severely limited by the mismatch. If the mismatch is large, the reader may indicate a fault.
6.5 LED
The reader has a 2-colour LED for the indication of the operating state. The table below shows the colors
used and the related operating state. When red and green is lit, the visible indication is orange.
Red Green Operating state
X flashes approx. every 8 seconds Error during initialization
X X Unit is booting
Flashes approx. every 8 seconds X Normal operation with heartbeat
Table 9 Indication of the operating states by the LED
6.6 Buzzer
Furthermore the reader is also fitted with a buzzer which, in addition to the LED, indicates successful booting
(1 x short) or an error (2 x long).
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 23 of 58
7 ReaderStart v2: test, setup and demo software
7.1 General
For test and setup purposes the reader can be operated using the demo software ReaderStart v2. This
software provides all necessary functionality of the reader for a test in a real environment. As an aid to
configuration, various basic settings for application scenarios are provided.
A CD-ROM is available under part-no.: 34032900000 (delivered by KTC on request – please contact your
sales agent) containing:
ReaderStart v2 Software (latest version)
data sheet of the reader
Product documentation: API Communication protocol description
Product documentation: Configuration Manual
Product documentation: Installation Manual (this manual)
API DLLs for the simplified activation of the reader with Borland and Visual Studio together with some
simple programming examples
.NET Framework 4
C++ 2008 redistributable
7.2 System requirements
To ensure correct operation using the software on your PC/laptop, your PC/laptop should meet the following
minimum requirements:
Component Value
Processor X86 compatible
Memory 512 MB RAM
Operating system Windows XP (SP3), Vista (SP1), Windows7
32-bit operating system Free HDD space: 850 MB (including Microsoft .Net Framework 4)
64-bit operating system Free HDD space: 2 GB (including Microsoft .Net Framework 4)
7.3 Installation
The demo software is installed by running KapschRFIDDemoSetup.exe from the CD-ROM. During the
installation a check is made whether the necessary preconditions for the installation are satisfied. This
means that a check is made whether all the dependencies such as the necessary Windows Service Packs,
the .NET Framework in the respective version together with the C++ redistributables are installed. If this is
the case, the demo software and the DLL for controlling the reader are installed.

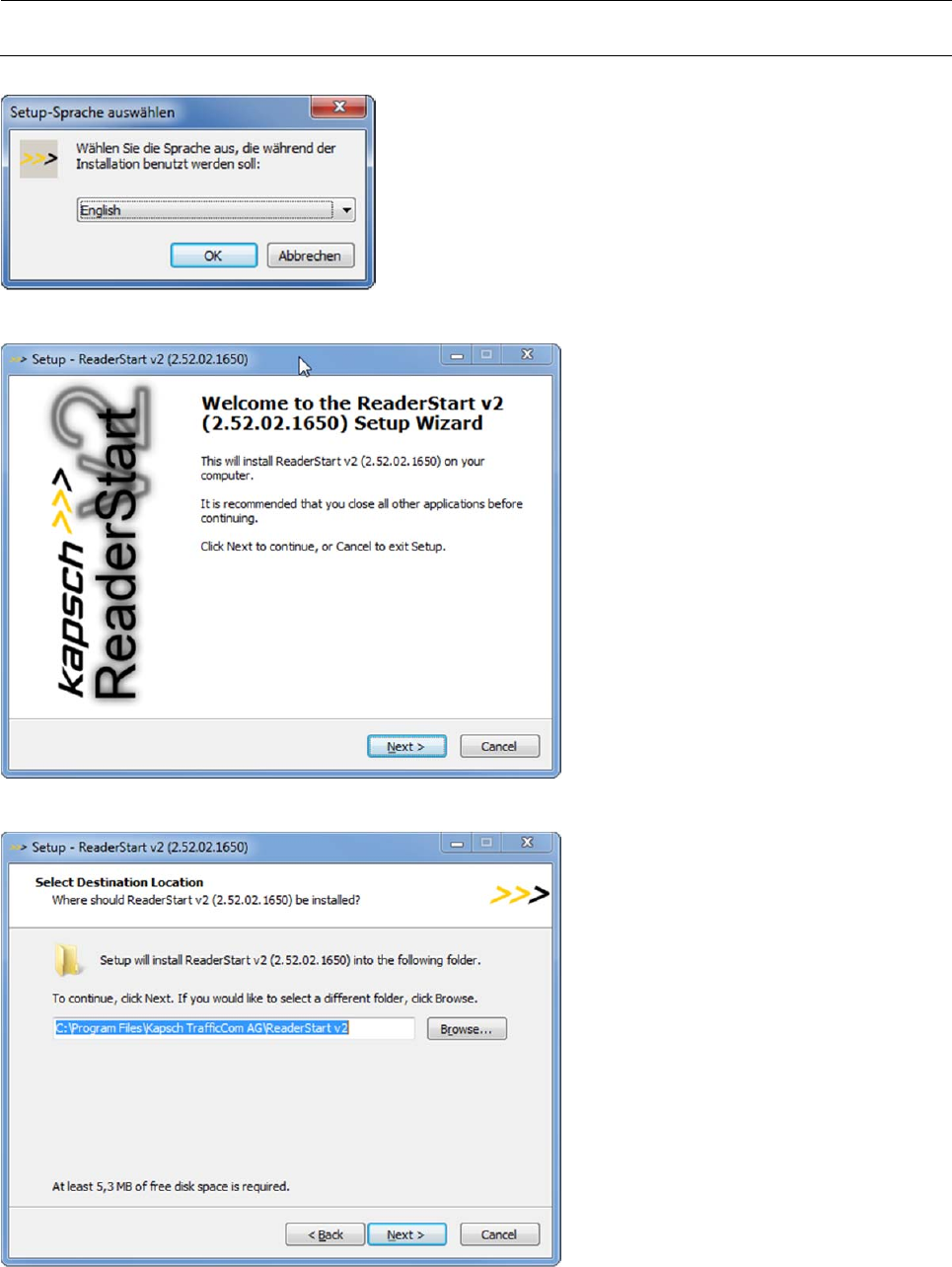

After the start of the set-up, you can change the language used during the installation in the window that now
opens. Confirm your selection by clicking on the OK button.
Kapsch TrafficCom AG
Page 24 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
This information can later be retrieved via the drop-down menu in the menu bar Info.
Click the button Next >. The dialog Setup for Select Destination Location appears.
Click the button Browse… to select the target drive.

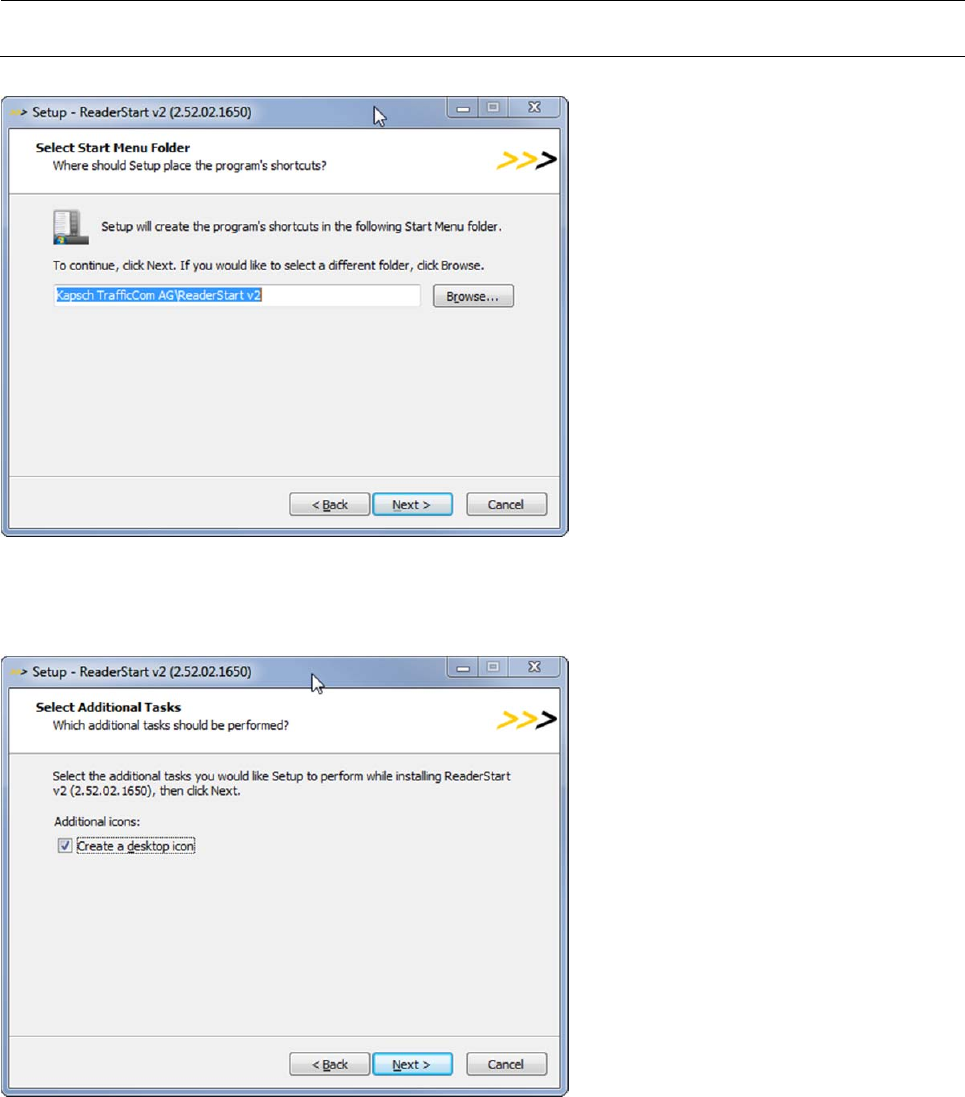

Click the button Next >. The dialog Setup for Select Start Menu Folder appears.
On the next dialog you can customize the folder in the Windows start menu.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 25 of 58
Click the button Next >. The dialog Setup for Select Additional Tasks appears.
In this dialog you can specify whether you wish an icon to be included in the Windows Quick Launch and/or
on the Desktop. The default is to generate no icons.
Click the button Next >. The dialog Setup for Ready to Install appears.
This dialog shows a summary of all installation tasks.
Kapsch TrafficCom AG
Page 26 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01

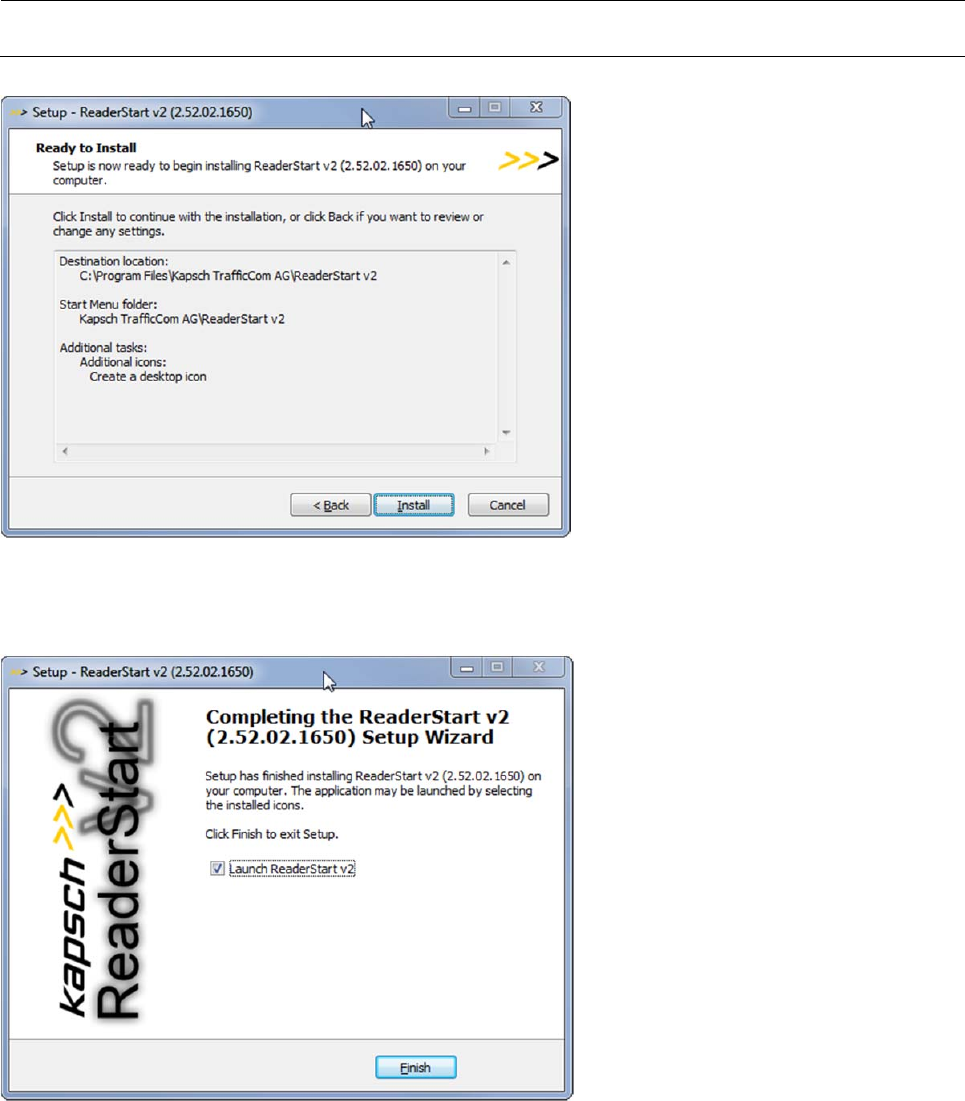

Click on the Install button to start the installation.
If during the installation procedure a request is made to restart the computer, please do so. Successful
completion of the installation is shown in the following dialog.
If you do not wish to start using the software straight away, please uncheck the Launch ReaderStart v2,
box, otherwise the program will start immediately.
Click the button Finish to exit the setup.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 27 of 58
7.4 Operation & configuration
7.4.1 User interface overview
The program is started by ReaderStart v2.exe or click the icon .
The splash screen is displayed until all the necessary DLLs have been loaded in the background. After this
the user interface shown below appears. In general, consisting of:
Menu bar
Tabs with their specific content
Status window
Note: Functions that are unavailable are displayed grey. Some of the tabs are hidden at application startup
but get available, when the reader device is connected to the application.
The settings and controls for the reader are divided into individual functional groups under different tabs. The
individual sheets can be selected using the tabs. The sequence of the tabs can be changed by “drag and
drop”.
Kapsch TrafficCom AG
Page 28 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
All status messages from the reader and the program are shown in the status window, and may also be
logged. 3 message types are defined:
Info Shows which action was just performed
Warning Indicates possible problems in the structure and configuration
Error Indicates that the desired action could not be executed
Every message is provided with a time stamp. The latest message always appears on top.
The status window has a context menu which allows deactivation of warnings, information and errors in the
status field. Messages that have expired can be deleted via this menu.
7.4.2 Menu bar
The menu bar consists of the entries items: file, options and info.
7.4.2.1 File
There are a wide variety of parameters available for configuring the RF front end. A complete setting can be
saved as a parameter set as an XML file, and later reloaded.
Under the item Save Reader Configuration to File, a dialogue opens which displays all the available
parameter sets (0 - 7). The selection can be changed by checking/unchecking the boxes. Furthermore each
parameter set can be given a brief description. Selecting Save opens a further dialogue in which a
respective save location and a file name must be selected / filled in, in order to successfully save the file. The
progress of the save operation is shown by a progress bar.
Figure 8 Saving the configuration in a file
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 29 of 58
Reloading the settings starts with the selection of the parameter file. In the opening input mask all available
parameter sets are displayed. The assignment of them to the individual save locations can be reassigned
here. For this purpose the desired parameter set on the reader can be selected in the drop-down menu.
Selection of the item None means this parameter set is not loaded into the reader. In the default setting a 1:1
assignment applies. Choosing Assign parameter sets 1:1 resets all the changes in the assignment to
default. Choosing Delete Assignment deletes all assignments of the saved parameter sets to those in the
reader. In the drop-down menu this is indicated by None.
Figure 9 Loading a configuration from the file
7.4.2.2 Options
The first four entries in this menu include changing the language, selection of the warnings that are
displayed, resetting the layout and deletion of the status messages in the status field. The language used in
the program set to the desired language by clicking on Language Selection in the menu item. The currently
selected language is shown by a check; if a computer restart is necessary in order to load the change, the
program will indicate this.
Kapsch TrafficCom AG
Page 30 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Figure 10 Changing the GUI language
The item Warnings allows filtering of messages the Status Window.
Note: Changing the memory content of the tags can render them unusable
Figure 11 Setting the warnings
The option Change path to logfile changes the path where log data generated in the tab Basic reading is
stored.
The option Show “no Tag” as warning shows orange warnings in the status window if a tag was expected
to be detected but was not able to find.
The option Auto Tag read on tab change refreshes the list of detected tags when browsing over the tabs.
The option Load factory defaults resets configuration parameters of ReaderStartSW and reader device to
factory default setting, but the network settings of the reader device are preserved.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 31 of 58
If there is the need to recreate the original layout of the program in respect of window size and sequence of
tabs, this can be achieved by means of the Reset layout menu item.
The Firmware Update item permits the update of the reader firmware. The window that opens shows the
version currently active in the reader. After selection of a firmware file, this version is shown in the next line.
Pressing the Update button starts the procedure. The progress is shown in the Update progress ar. After
successful update the reader must be restarted, either by pressing the Restart button or by switching the
power supply off and on again.
Figure 12 Updating the firmware
The reader has an integral clock which can deliver the time stamp for a tag operation. This clock is set using
the Date and time settings in the menu. When this menu item is opened, it automatically reads the current
date and time from the reader and compares it with the date and time from the host computer. The date and
time of the host computer can now be loaded to the reader by pressing the Set system date and time on
Reader button. There is also the possibility to set the reader date and time manually and load it to the
reader. This is done by entering the desired date and time on the reader side and pressing the Set adjusted
system date and time on Reader button. The status line indicates which action was just executed and
whether the action was successful.
Figure 13 Setting the date and time
Kapsch TrafficCom AG
Page 32 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
7.4.2.3 Info
This item on the menu bar allows information about the ReaderStart v2 software and the respective DLL
used by it.
Figure 14 About reader start v2
The second item supplies detailed information about the software and hardware versions of the reader. The
firmware is specified with version number and a build number. The list shows CPU module, PA module and
the various I/O modules.
Figure 15 Interrogating information about the reader
The third item reads the active license key from the reader and displays the active regulatory profiles
predefined upon reader delivery. The key reflects those factory settings. Via a copy/paste operation it is
possible to transmit the key via email to: ktc.office@kapsch.net (please refer to "Product Management")
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 33 of 58
Figure 16 Displaying the license key
The Error status item reads the error status of the reader and shows all errors that are still pending in the
status field.
Kapsch TrafficCom AG
Page 34 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
7.4.3 Communication Tab
The communication tab contains functions for establishing connections and configuring the interface cards.
The various communication connections are grouped in 3 sections: COM for serial connections via the port
(RS232/485/422), USB for connections up to version USB 2.0 and Ethernet for connections via TCP/IP.
Within this installation manual, only the Ethernet section is described in detail.
When the connection is established, the program interrogates the information about the installed I/O cards.
The information can be viewed and changed via the I/O card configuration
Figure 17 Tab for the Communication by Ethernet I/O card
The Ethernet connection can be achieved by connecting the reader onto an existing network, or by a direct
connection between the reader and the host computer. For direct connection of the reader to the PC, a
cross-link cable is required (unless the LAN interface on the PC supports “auto-mdi-x”).
Note: From reader firmware 2.04, by factory default the reader has the IP address 192.168.0.1 with the
network mask 255.255.255.0. Reader versions earlier than this are configured for DHCP.
To integrate the reader into a corporate network, please contact your administrator who will be able to
allocate you a spare IP address and assign the correct network mask. Alternatively the reader can also be
configured to obtain an IP address automatically. For this service, referred to as DHCP, an appropriate
DHCP server must be operating in the network. You can obtain more details about this from your network
administrator.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 35 of 58
Note: The IP addresses of the control computer and the reader must be in the same IP range, but they must
not be the same. The network mask on the other hand must be identical.
In order to establish the connection to the reader, the program offers two options: On the one hand, it is
possible to communicate directly with the reader by entering the IP address; on the other hand it is also
possible to establish a connection using the reader's host name.
For the connection using a host name, there must be a correspondingly configured DHCP server and a DNS
in the network. After power up, the reader makes a DHCP request and queries the DHCP server. This
assigns the reader an IP address and reports the network name and IP address to the DNS server. If now
the connection has been established, the IP address of the reader is determined by a query on the DNS
server.
The correct IP address or the host name of the reader must be entered in the corresponding field. Pressing
the Connect button tries to establish the connection to the reader.
As an alternative, the function Search for Readers allows a lookup for connected readers without knowing
their IP address. This feature searches for KTC RFID reader devices on the network by sending an UDP
broadcast - Please make sure to be in the same network segment as the reader is.
The communication interface settings can be changed using the IO card configuration. All available I/O
cards are displayed here in as tabs. Clicking on the respective tab opens the associated card and displays all
respective configuration parameters, together with the card type that was detected.
Under the IO card type header there is a drop-down menu, in which the card type can be set to Auto detect,
Card not used or to the actual card type. Automatic detection restores the interface to the default settings. If
the card type is set to not used, this interface can no longer to used.
All card-specific configuration parameters are displayed on the card sheet when the recognized card type is
set. These parameters are described in the following sections for the respective card. The settings are saved
to the reader by pressing the Save changes button.
Note: The new parameters, provided nothing to the contrary is specified for the specific card, become valid
only when the reader has been restarted. If incorrect parameters are loaded, the reader can no longer be
accessed!
GPIO settings:
The GPIO card allows the reader to interact with its environment. In this tab, the inputs and outputs can be
configured for the respective application under the headings Input and Output.
Note: Refer to the electrical characteristics of the inputs and outputs in the data sheet; if these characteristics
are exceeded the card and the reader may be damaged.
Kapsch TrafficCom AG
Page 36 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Figure 18 Configuration of the GPIO card
Each input channel has two configuration parameters. The Invert logical input option negates the electrical
input signal and uses this status for processing in the reader. If the check is not set, the signal is used
unchanged. Depending on the sensor being used (mechanical or electrical switch), a debounce time in
milliseconds can be assigned to each channel.
Various functions can be assigned to the output ports. Further parameters can be activated, depending on
the function selected. The following functions are available:
No. Parameter Function
1 Off The selected output is deactivated
2 On The selected output is always on
3 1Hz frequency The selected output flashes at a frequency of 1 Hertz
4 2Hz frequency The selected output flashes at a frequency of 2 Hertz
5 4Hz frequency The selected output flashes at a frequency of 4 Hertz
6 8Hz frequency The selected output flashes at a frequency of 8 Hertz
7 RF on The output is active for Turn - off time milliseconds as soon as the radio
frequency is present at the antenna First antenna to Last antenna.
8 Antenna error The output is active for Turn - off time milliseconds as soon as an antenna
error occurs at antenna First antenna to Last antenna.
9 Tag found The output is active for Turn - off time milliseconds as soon as a tag is found
at the antenna. First antenna to Last antenna.
10 RF on The output is active for Turn - off time milliseconds as soon as an air
communication operation on a tag was successful at the antenna First
antenna to Last antenna.
11 Protocol access The output is released and can be activated with commands on the API
communication interface
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 37 of 58
Note: If the output is not set to protocol access, it cannot be accessed when processing action lists. See the
GPIO functions section for more details on action lists.
Once all the settings have been performed, the changes are loaded to the reader by pressing the Save
changes button, and take effect immediately.
Default configuration: No default configuration is foreseen for this card type.
Note: If this card setting is changed from Auto detect or Card not used to GPIO, the reader must be
restarted so that the card is correctly initialized.
Ethernet settings:

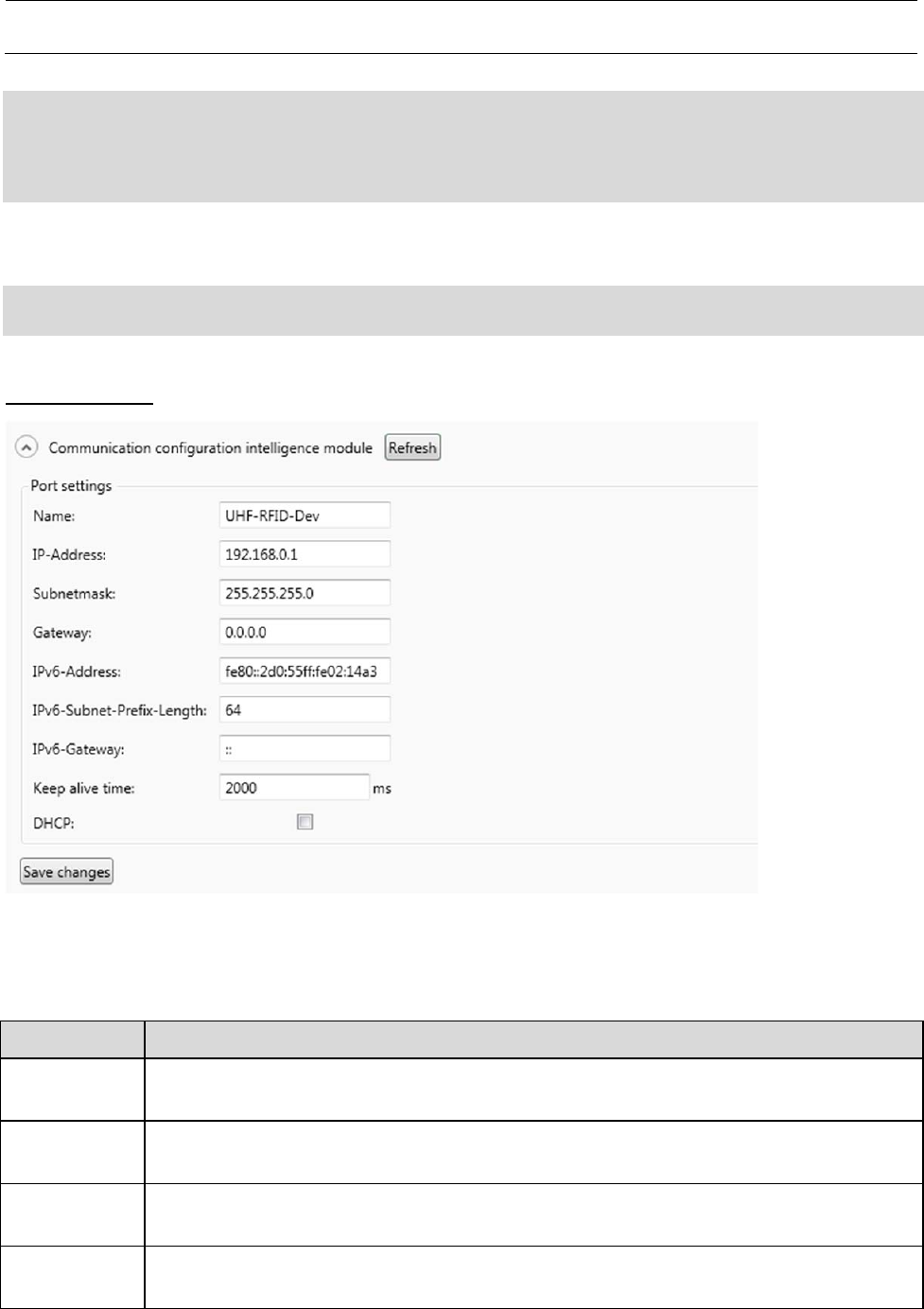

Figure 19 Configuration parameters for the Ethernet module
The parameters have the following meaning:
Parameter Function
Name Here the host name of the reader which is logged on to the DNS server is stated. The
reader can be addressed by this name as an alternative to the IP address.
IP-Address For manual issuing of the address. This parameter can be used only if the DHCP is
deactivated
Subnetmask For manual issuing of a network mask. This parameter can be used only if the DHCP is
deactivated.
Gateway Manual input of IP default gateway. This parameter can be used only if DHCP is
deactivated.
Kapsch TrafficCom AG
Page 38 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Parameter Function
Keep-alive time This time specifies the intervals of time at which the reader sends a data packet to check
whether the host is still available. If the connection to the reader is broken, the reader shuts
down the connection. If this parameter is deactivated (0 ms), the socket is shut down only
when the reader is restarted.
DHCP Activates the automatic issuing of an IP address by a DHCP server; if the network has a
configured DNS server, the host name of the reader can also be used.
Note: If no keep-alive time is set it may happen that the reader cannot take up any further connections
because the existing connections have not been properly shut down (e.g. following a breakage in the wire). In
this case the reader has to be restarted. It is recommended that the keep-alive time is used to check the
connection between the reader and PC.
The data is saved in the reader by pressing the Save changes button. The data are however not loaded to
the active configuration until the reader is restarted.
Note: If the interface is wrongly configured, no connection to the reader can be established.
The IP default configuration is as follows:
Host name: UHF-RFID-Dev
IP address: 192.168.0.1
Subnet mask: 255.255.255.0
Keep-alive time: 2000ms
DHCP: deactivated
7.4.4 Application tab
The Application tab enables quick and easy configuration of the RFID Reader for a selected application.
The available applications are represented visually in the upper area of the tab by labelled pictograms.
Under the Settings header, the number of tags expected, the antennas to be used, the parameter set in
which the configuration should be saved and the values for max. read frequency and max. read reliability
options are stated.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 39 of 58
Figure 20 Application tab
When the button for the desired application is clicked, it glows green continuously. In addition the
designation, the properties and the settings of the selected application are displayed in the respective fields.
The following applications are available for selection in version 2.00 and later of the ReaderStart v2:
Conveyor belt > 2 m/s
○ Application for detecting individual tags in the antenna field on a conveyor belt moving at more than
2 m/s
○ the distance between the tags and the antenna is only a few centimeters
Conveyor belt ≤ 2 m/s
○ Application for detecting and writing on individual tags in the antenna field on a conveyor belt
moving
○ at less than or equal to 2 m/s
○ the distance between the tags and the antenna is only a few centimeters
Gate
○ Application for detecting multiple tags in the antenna field as they pass through a gate
Vehicle identification (barrier)
○ Application for detecting and writing on individual tags in the antenna field, which are not moving
○ the distance between the tags and the antenna should be less than a few meters
Vehicle identification
Kapsch TrafficCom AG
Page 40 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
○ Application for detecting and writing on multiple tags in the antenna field, which are moving at more
than 14 m/s
○ the distance between the tags and the antenna should be less than a few meters
Shelf application
○ Application for detecting and writing on very many tags in the antenna field, which are not moving
○ the distance between the tags and the antenna should be less than 1 m
Place monitoring
○ Application for detecting multiple tags in the antenna field, which are moving at not more than 3 m/s
○ the distance between the tags and the antenna should be less than 1 m
If there are more applications than fit on the screen, the buttons alongside the applications are activated to
allow scrolling.
Clicking on the Apply settings button saves the settings that were made, as well as the settings for the
selected application in the selected parameter set. This is done by first resetting them to the factory settings
and thus overwriting the previous configuration. This must be acknowledged.
Success is indicated by the Apply settings button glowing briefly, and by display of a success message in
the status window. If the process fails, the button glows briefly orange for a warning or briefly red for an
error (and if the failure was due to an entry being omitted, in addition the field that is lacking the entry glows
red), and by display of a warning description or error description in the status window.
If the settings have been loaded successfully we may had on to the Basic reading tab.
Note: If more than one hundred tags simultaneously in the field, the application may be tuned with respect to:
When the max. read frequency option is set, on every detection (inventory) all tags are reset in order to read
them fresh. Under some circumstances the time allowed for detecting the tags may be insufficient, so that
some transponders are not detected. The tag frequency detection is thus increased.
When the max. read reliability option is set, tags that have already been read are not reset at every detection
(inventory), provided they are still being supplied with power. This means that only those tags which have not
yet been registered are detected. The confidence that all tags are read is thus increased.Basic read
functions
This index card is divided into two columns, the first column contains a table with information about the read
tags, and in the second column you can find the controls, which control the reading process.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 41 of 58
Figure 21 Basic read functions tab
The entries show the following information:
No. Parameter Function
1 Length indicates the length in bits of the EPC, valid lengths 0-496 bit
2 EPC Electronic Product Code (EPC) of the tag in hexadecimal representation
3 Port Tag was read over this antenna port - valid values 1-4
4 RSSI Signal strength of the tag response, valid values 0-255
5 Reads Shows how many times this tag has been read successfully
6 Cycles Indicates how often a search/lookup operation was started
7 First read Is the timestamp of the first reading of the tag
8 Last read Is the timestamp of the last reading of the tag
The appearance and disappearance of the tag is shown in color in the field for better visual effect.
When a tag appears in the field, the row is represented by the green tag information, when it disappears the
row is red.
The tag reading options are listed on the right side of the window. Two modes are available: „synchronous“
and „asynchronous“ (see below for details).
On option is sort for unique tags. This is especially useful in multi-antenna applications and counts
distinguishable tags in the communication field.
Kapsch TrafficCom AG
Page 42 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
The row "number of unique tags" specifies how many different tags were read.
When the amount of tags is very high (> 200) the detection of the tags can be speeded up by omitting a
newly initiated "Select” command (see EPC global standard).
This can be tested by selecting Expert settings directly in read mode. If the read operation box is ticked with
TransmitSelectIfNoFilterIsOn a "Select" command is sent in each Inventory. This means that all the tags
that are identified at this time in the field will be reset. It can also happen that tags that have been read are
sometimes reset and re-identified again. In order to capture only new tags, a renewed "Select" can be
prevented. This tick box is cleared on TransmitSelectIfNoFilterIsOn and thus all tags defined only once
read. This selection result is that no time is lost due to a re-read. Please note, however, that tags in which
the read operation was interrupted cannot be retrieved! Thus, it may be that not 100% of the tags are read.
Therefore, this parameter should be used with care in order to achieve top results.
Synchronous mode:
This mode is intended for applications when the requirements for timing are not critical. This mode allows the
device to switch the carrier off during the idle times, thus saving power.
The inventory of the tags (the read process) is performed across all the antennas that are configured. Once
all tags in the field have been read on the last antenna, data are sent to the host PC. The inventory of the
tags is then automatically retriggered by the PC.
The Break after reading option specifies how many milliseconds to pause between two inventory
processes. During this waiting time the carrier can be deactivated. See reference [2] „Configurational
manual” for more information about how to perform this.
In order to keep the time between inventories as short as possible in synchronous mode, data transmission
between the inventories can be omitted. That means that the reader caches all the tags that it finds in the
field in its internal RAM. After a configurable time this tag list is sent to the host PC. This time is given in
milliseconds by the Bulk read parameter.
The current reading performance is displayed under the item Tags per second.
Asynchronous mode:
This mode is intended for applications for which maximum performance is required.
The reader starts the inventory as quickly as possible, and at the end of an inventory it does not deliver every
tag that was read to the PC, but only those that had newly appeared in the field or left it. This allows the time
required for communication with the host PC to be minimized.
The timing of when a tag was reliably read in the field and when the tag no longer appears in the field can be
defined more precisely using parameters. Details of these ObservedThresholdCnt and
ObservedTimeoutCnt parameters can be found in section [2] Configuration Manual.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 43 of 58
Note: The read rate is influenced by many parameters. These is, in addition to the selected regulatory profile
with the respective data rates, also application-specific data such as how many tags the reader is expecting
in the field. You can optimize these parameters using the expert settings tabs (see below). .
If the tags that have been read are to be saved to a file, this can be done by activating the Save to file
option. The EPC, the length of the EPC, the antenna on which the tag was read, the RSSI value together with
the time stamp when the tag was read are saved.
The data are then saved in a CSV file in the program’s working directory. In the File menu, you are able to
change this via “change to the log file File / Options / Path”
Once the mode and the parameters have been selected, the read process can be started. Both modes are
stopped by pressing the Stop button. The Delete button removes all tag entries from the table.
7.4.5 Basic writing function
The Basic writing tab allows easy writing on tags. A fundamental distinction is to be made between
synchronous writing - write on command - and asynchronous writing - write on arrival.
Figure 22 Basic write function tab
Synchronous writing:
In this type of writing the data can only be written selectively to one EPC. This is selected in the EPC combo
box in the center of the input window. Clicking the Refresh button detects once again all tags in the antenna
field and adds them to the combo box.
Kapsch TrafficCom AG
Page 44 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
When all necessary data such as password, memory bank and memory address have been input a
decision can be made whether to specify the data to be written or to generate them as random values. If
specified data should be written, optionally a data mask can be specified. When using random data, the
amount of them should be stated in words (16-bit).
Note: Right-clicking on the Data to write field opens a context menu, which allows the selected EPC to be
copied into this field.
Note: Right-clicking on the Data mask field allows this to be filled optionally with 0 or F according to the
amount of the data to be written.
Clicking on Start starts the execution of the previously specified number of write attempts. The error-free
completion of all write attempts is once again indicated by the button glowing green and by a message in the
status window. If any necessary data are lacking, the button briefly glows red and the field lacking the data
glows red somewhat longer. The associated error message appears in the status window.
The Writing successful and Writing failed fields indicate how often the write attempt succeeded or failed
Hovering the mouse over the number of failed write attempts (provided indeed any failures did occur), calls
up a window with detailed information.
Asynchronous writing:
In this type of writing the data is written to every EPC that shows up in the antenna field. When all necessary
data (password, memory bank, memory address and data to write) have been entered, clicking on Start
starts the asynchronous write process. Successful and failed write attempts are shown in the respective
fields. Hovering the mouse over the number of failed write attempts (provided indeed any failures did occur),
calls up a window with detailed information.
Note: Right-clicking on the Data mask field allows this to be filled optionally with 0 or F according to the
amount of the data to be written.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 45 of 58
7.5 GPIO functions
Readers with GPIO functionality offer the possibility to set up small controls which trigger the reader via one
of its GPIO inputs, e.g. by a light barrier or similar. On the other hand, GPIO outputs are able to
communicate reader states to the outside world, e.g. reading of specific tags or similar.
The GPIO function offers various possibilities. One is testing the inputs and outputs directly via the GUI
application. For more complex procedures, action lists can be created, which execute a sequence of
commands on the reader. This list can then be linked to various inputs.
The tab is divided into 5 sections. In order to perform settings on an IO card, the card number must be
selected in the GPIO card drop-down menu. It shows only cards of the appropriate type.
Figure 23 GPIO functions tab
The Test output section can be used in order to selectively operate an output manually. In order to enable
this access, the respective output of this card must previously have been connected to protocol access (see
I/O card configuration Chapter 7.4.3). The Output in the drop-down menu is now selected in the header, and
time is defined using the Duration parameter, until the output automatically returns to its idle mode. The IO
operations can now be made using the Set output on and Set output off buttons.
The inputs to the reader can be interrogated in the Read inputs section. Whether an input is set or not is
shown in the signal fields. A one-off read process can be triggered by pressing the Read inputs button. If
this reading shall be performed automatically, this process can be started by pressing the Read inputs
cyclic start button.
To automate the processes, command sequences in the form of action lists can be stored on the reader.
These are triggered on edge of the signal transition at the selected input on the respective GPIO card.
The action lists consist of a sequence of individual actions, which can be loaded in the form of an XML file.
Use right mouse over the Action drop down menu to access the respective context menu. This file can be
Kapsch TrafficCom AG
Page 46 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
created or edited manually, using a text editor. See [2]. In order to use the newly added actions in the
program, the file must be reloaded via the context menu.
The Actionlist must be selected from the drop-down list. The Button Add action writes the action list into
the reader. Pressing the Clear actionlist button clears down the selected list.
Note: When the action list has been created, it is assigned under the Assign input to Actionlist header to
an input and a selected signal edge. If it is desired to assign the list to both edges, the assignment must be
made once for the rising edge and once for the downward edge.
The assignment can be cancelled again by a restart/reset of the reader or by assignment of the No
Actionlist item.
The Actionlists created are stored only in the RAM of the reader. When restarting the reader these lists are
deleted. For usage within an operational application, the respective commands to program the actions lists
have to be executed by the host application on reader startup.
The basic I/O configuration is set within the communication tab (see Chapter 7.4.3):
Figure 24 GPIO settings in communication tab
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 47 of 58
The ActionlistAction.xml as well as the ReaderStart v2 software local configuration file is available in the
local windows directory My Documents.
Please see the following example for the ActionlistAction.xml:
<?xml version=‘1.0‘ encoding=‘UTF-8‘?>
<ActionlistActions>
<!--Activate buzzer for 500 ms, CommandID: 0x0045, Parameter: 0x01F4-->
<Action>
<Description>Activate buzzer (500 ms)</Description>
<CommandID>0045</CommandID>
<!--LSB first-->
<Parameter>F4</Parameter>
<Parameter>01</Parameter>
</Action>
<!--Get EPCs, CommandID: 0x0101-->
<Action>
<Description>Get EPCs</Description>
<CommandID>0101</CommandID>
<!--LSB first-->
</Action>
</ActionlistActions>
In this example, the commands Buzzer and Get EPCs were used in an exemplatory matter –see [1] for
details.
The ActionlistAction.xml is automatically loaded into the application ReaderStart v2 during program start.
Kapsch TrafficCom AG
Page 48 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Selecting commands from the ACTION list
The commands defined in ActionlistAction.xml are now available in the menu item Action
By pressing „Add action“ the commands are written in the chronological list within the reader device. If
successful, the status window prints GPIOAddActionToActionlist (9): Successfully acknowledged.
Assigning the Actionlist to the respective inputs
The right side of the GPIO functions tab within the section Assign input to Actionlist allows the
assignment of action list to the respective physical input ports. The assignment gets finally active by
choosing Assign to rising edge or Assign to falling edge. Please note the respective acknowledgement in
the status window.
Note: The Action List is only capable to perform basic logic operations. A real whitelist handling based on the
EPC values of tags and their assignment to output functions is not possible.
7.6 Expert settings 1
The ReaderStart v2 software is a powerful tool for configuration of the reader. It allows the reader to be
customized to any application. The expert settings 1 and 2 allow the reader's RF interface and
communications profile to be optimized with respect to tag reading performance.
There are eight parameter sets available which are stored inside the reader device. The settings are able to
be changed via the ReaderStart v2 software. Those settings allow a modification of the RF parameters to be
used in the air-interface communication, See section [2] Configurational Manual for more information about
the individual parameters.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 49 of 58
Figure 25 Expert settings 1 tab
By choosing an entry in the drop down box Parameter set the respective set gets activated in the reader
device. Changes made on the respective parameter settings have to be saved to the reader device by
choosing Save configuration. By choosing Reload configuration the made change on the GUI are
discarded and overwritten by the settings stored in the reader.
When changing the transmission channels are only available in the “EU” version of the reader.
Note: When changing the transmission power you need to stick to the applicable national regulations. To
operate the reader in accordance with the related national standards, the antenna gain and the cable
attenuation must be taken into account in the transmission power setting. In no circumstances is it allowed to
exceed the permitted transmission power. Failure to observe this instruction can result in non-compliant
operation of the reader rendering void the unit's type approval.
The radiated power is limited in Europe in accordance with ETSI 302208 to 2W ERP. In the FCC region, the
power is limited to max. 1 W connected RF power with an antenna gain of 6 dBi. If the antenna gain is
greater than 6 dBi, the RF power must be reduced accordingly. While the European standard refers to a half-
wave dipole (ERP), FCC part 15 refers to an isotropic radiator (EIRP).
To set the transmission power, the length-dependent cable attenuation and the antenna gain must be
included in the calculation of the transmission power. An example for the calculation of the transmission
power for Europe and FCC is given below:
Kapsch TrafficCom AG
Page 50 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
The following applies to the European region, Reader type “EU”:
PReader Transmission power of the reader in dBm
PERP Transmission power based on a half-wave dipole in dBm
DKabel Cable attenuation in dB
GHW Antenna gain based on a half-wave dipole
The cable attenuation is the length-dependent attenuation of the cable at the used frequency:
DKabel Cable attenuation in dB
I Length in m
DdB/m Attenuation in dB/m at specific frequency
The antenna gain is stated in various different units. These units include dBi and dBic. The units dBi and
dBic refer to an isotropic (spherical) radiator, where dBic refers to a circularly polarized isotropic radiator and
dBi to a linearly polarized isotropic radiator.
In the European regulation area, the radiated power must not exceed 2 W ERP. This figure refers to a half-
wave dipole. Please see the equation below, showing the relationship between an isotropic radiator (dBi)
and a half-wave dipole.
GHW Gain based on a half-wave dipole
Gisot Gain based on an isotropic radiator in dBi
The transmission power for the European variant can be set in 0.25-dB steps from 20 dBm to 33 dBm.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 51 of 58
If the gain of the antenna is referred to the polarization of a circular isotropic antenna (dBic), the linear gain of
the antenna is 3 dB lower.
GHW Gain based on a half-wave dipole
Gisot Gain based on an isotropic radiator in dBic
The following applies to the US region, Reader type “US”:
In the FCC approval region, the RF power connected at the antenna input must not exceed 1 W. If the gain
of the antenna is higher than 6 dBi, the RF power connected must be reduced correspondingly. The reader's
transmission power is then:
PReader Transmission power of the reader in dBm
Pcond Power on antenna output in dBm
DKabel Cable attenuation in dBm
GHW Antenna gain in dBi
Note: The antenna gain must be stated in dBic.
The RFID reader's transmission power can be set separately for each antenna or all antennas at the same
time. If the All antennas same power check box is set, the sliders for the other antennas are set to the
same power when a slider for the power for antenna 1-4 is adjusted. If this check box is not selected, the
power at the antennas can be set separately for each output.
Pre-defined antennas can be selected in the Antenna type selection drop-down menu. This selection sets the
antenna gain in the program, and limits the transmission power to the maximum value permitted for this
antenna. If Custom antenna is selected, the gain and power can be freely set.
Kapsch TrafficCom AG
Page 52 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Antenna multiplex configuration
The sequence in which the antennas are used to read the tag can be set under this header. If this antenna is
not activated, the system proceeds to the next entry on the multiplex list. For asynchronous operation of the
reader, the exposure time on the antenna can also be specified. See section [2] „Configurational manual“,
sections MultiplexingAntennaport and MultiplexingExposureTime for more details.
RF settings
Depending on the regulative region, the reader transmits in the frequency range 865 MHz to 868 MHz for
Europe or 902 MHz to 928 MHz for USA / FCC.
In Europe the number of channels to be used can be limited. For this purpose the related check box for each
channel the reader is to use must be selected on the Available channels pick list. In this manner it is
possible to avoid from the start the usage of specific channels on which there is or might be interference.
Each read command connects the channels under country-specific conditions and in accordance with the
selected communications standard. The reader then starts to search through the channels in ascending
order.
In the Communication standard drop-down menu, the reader can be switched to a different country-
specific communications standard. The device firmware defines which customized standards are available.
The modulation type can be switched between double sideband and PR-ASK modulation in this drop-down
menu.
The communications profile is critical for the data rate and the read reliability. This option allows the
technician to directly influence the performance of the reader and the spectrum of the signal. The profile
denominations contain basic indications on the transmission and reception data rates.
Note: The optimal data rate may be subject of the used tag.
The Time until carrier stand-by parameter specifies how long the carrier of the reader remains active on the
air interface after the last action. Once this time has elapsed the carrier is switched off.
Selection parameters
In this section the user can configure the simulation the tags to the EPC standard (see EPC global standard).
The parameters can be selected in the drop-down menu and have the following meanings:
No. Parameter Function
1 Initial Q value Reflects the number of tags expected in the field. (see [2] and look for InitialQ)
2 Sel Specifies whether other parameters are of interest for an inventory of the tag
population, or not. (see [2] and look for QuerySel)
3 Sessions This configuration parameter instructs the reader the session with which it should
work. (see [2] and look for Sessions)
4 Target Specifies which tags in the population should participate in the inventory. (see [2] and
look for QueryTarget)
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 53 of 58
7.6.1 Expert settings 2
The Expert settings 2 tab is split into four sections for further configuration of the reader device.
Figure 26 Expert settings 2 tab
The Default parameter set drop down menu allows configuration of the parameter set that is loaded from
the EEPROM into the RAM when the RFID reader device boots up.
The Copy parameter set section allows one parameter set to be copied into another. On successful
completion of the copy operation, the Copy button is lid green and a corresponding message is displayed in
the status window, otherwise the Copy button glows red.
The Change reader parameter section allows reader settings to be read or changed using their respective
configuration IDs. After selection of the parameter ID, the corresponding value of the current parameter set
of the reader device is read by clicking on Get parameter value and displayed in the field parameter value,
optionally as a decimal (dec) or hexadecimal (hex) value. A value that has already been read can be
converted to dec or hex by pressing the respective radio buttons. The Set parameter value button writes the
value stated in the Parameter value field into the reader device. The two actions (read and set) are shown
by the respective buttons glowing the respective color to indicate success and failure, and a message
appears in the status window accordingly.
In the Select settings area, filters can be set which are brought into effect by means of a “Select” command.
This offers the facility to filter out certain tags, or to detect only tags with certain defined data in the
respective memory banks. Up to 32 filters can be set in total. Successful reading of the values of the
selected filter and successful writing of the filter values is indicated by the respective button glowing green
Kapsch TrafficCom AG
Page 54 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
and a text appearing in the status window. Otherwise the respective button glows red and a description of
the error is given.
The functionality Config Password offers the possibility to define a configuration password for the values
displayed in the section Change Reader Parameter and thus offers an additional protection mechanism for
readers installed in the field.
7.7 Test Gen2 functions
This tab makes it possible to access individual functions of the reader. This includes, along with the
functionality in accordance with the EPC-Gen2 standard, e. g.: read individual tags, describe tags, set and
change passwords, and also select the antenna for the operation.
The user interface consists of the sections Get all EPCs, Write EPC, Change password, Read/write data,
Lock, Kill and the display window for EPCs that have been read. The sections that follow explain this
functionality in more detail.
Figure 27 The Test Gen2 functions menu tab
Note: Additional information about the manufacturer and the chip type are displayed on the „i“ symbol. Left
click on this icon, this information can be retrieved.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 55 of 58
Get all EPCs
To read a tag in this menu, the Get all EPCs button must be clicked once the reader has been correctly
configured. The reader now tries once again to read all the tags in the field of the selected antenna. If in the
Antenna selection drop-down menu the number of antennas has been restricted, reading will now be
performed using the currently selected antenna, or using the antenna selected with All in the Expert
settings 1.
The EPCs from the tags read successfully are displayed in the field below. For the following operations, a tag
can be selected from this list by clicking on it.
Write EPC
The EPC of the tag can be modified. For this purpose an EPC in hexadecimal format must be entered in the
New EPC field.
Note: Comply with the maximum EPC length supported by the tag - if this is exceeded the tag will return an
error.
If the requirement is only to amend an existing tag, this tag can be loaded to the field by pressing the Apply
selected EPC button. Now the EPC can be changed manually, or by using the Auto increment option
increased by one at each write event.
The write event itself can optionally be executed on this tag by pressing the Write EPC to selected tag
button. At this time there may be several tags in the field, but at least one tag from the list must be selected.
The second option is to write the specified EPC without a tag being selected. When using this function, make
sure there is just one single tag in the field.
Change password
The EPC standard specifies that the tag should have two modes, the open and the secured state. In the
open state, operations can be performed on the tag if the associated memory areas are not secured with a
password greater than 0. If a password has been set and the Lock section (bottom of the Test Gen2
functions tab) of the GUI has been used to set the memory areas to password protected, the desired
operation will not be executed and the tag will report an access error. Normal access remains available in
areas that are not blocked.
On access with the valid password, the tag switches into the secured state and access is available even in
blocked areas. Setting the password and setting how individual areas are blocked is performed under the
Change password and Lock section of the SW.
Under the first section the password for restricting access to the tag and the password for deactivation of the
tag are set. The access password can be used to restrict access to the tag in the open state. Depending on
the configuration under the Lock section, parts of the tag can be provided with completely or partially
restricted access rights.
The deactivation password is required to deactivate the tag permanently by means of a Kill command.
Kapsch TrafficCom AG
Page 56 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
Note: After a Kill tag command, the tag will be unusable. To change the password, the current password
must be given. If no password has yet been set, the default value is 0. The new password is entered in the
field of the same name, in hexadecimal format. Clicking on the Set password on selected tag button
replaces the old password with the new password. The deactivation password is entered in the field of the
same name by clicking on the associated button.
If the password is changed and the memory area in question is already protected by the access password, in
addition to the new password the access password must be entered in the Current password field.
Read / write data
This section offers detailed access to all the data areas of the tag. Access is obtained by entering the
selected memory bank, the address within the memory bank and the number of words, expressed as 16-bit
words.
If data are to be written, it must be entered in the Data to write field. The data mask allows only individual
bits on the tag to be changed. To do this, the mask must be entered in the Data mask field. The reader uses
this mask to change the data read from the tag at the points where 1 bits are written in the mask, and writes
the result back into the tag. The desired data can optionally be written to a single tag in the field or to all tags
in the field. If it is written to every tag in the field, these tags must all have the same configuration (lock and
password).
This GUI section also offers the possibility to read data from the selected tag or from all tags in the field. If
the tags in the field have differing passwords and are configured differently, the data must be read by
individual tags.
The next section deals in more detail with the saving of the individual memory areas.
Lock
The EPC Gen 2 standard provides security mechanisms for the tag data areas. This allows individual
memory areas and functionalities of the tags being secured with a password to protect it against access
and/or changes.
Under the Lock section the mask that specifies access to the areas in accordance with the EPC Gen 2
standard can be customized to suit the application. If no changes are required for an area, No change must
be selected in the respective drop-down menu. The areas are grouped as follows:
No. Parameter Function
1 Kill password Specifies whether or not a Kill password is necessary for deactivating the Tag. See
EPCglobal Class-1 Gen-2 standard for details.
2 Access
password
Specifies whether an access password is necessary for accessing a tag. If no access
password is set, the Tag can be addressed in the open state condition. Further details
can be found in the EPC global standard.
3 EPC memory
bank password
Allows specification of whether or not the access password is necessary for changing
the EPC.
4 TID memory
bank password
This area contains general information about the tag. This area can also be protected
against user access by setting the access password.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 57 of 58
No. Parameter Function
5 USER memory
bank
If the tag has a memory area provided for user data, these can be protected by
setting the access password.
The respective items in the drop-down menu are divided into access blocks, which prevent reading and
writing, and write blocks.
Clicking on the Lock selected tag button loads the mask that was created to the list of the selected tag.
Alternatively all the tags in the field can be blocked, on the precondition that the tags all have the same
password.
Note: Wrongly configuring the Lock section can render the tag unusable.
Kill
Pressing the Kill selected tag button, with the stated password, executes a Kill command on this tag. The
Kill all tags button, with the stated password, attempts to execute a Kill command on all the tag in the field.
Note: For the deactivation of a tag, a deactivation password that is not 0 must have been set.
Note: After a Kill tag command, the tag will be unusable.
7.8 © KRAI-Settings
The KTC RFID reader is able to control antennas from the manufacturer Kathrein by using their proprietary
communication interface ©KRAI. Those Kathrein antennas are not included in the product portfolio of KTC
and thus in combination with the KTC RFID reader device there is no active support given by KTC when
using KRAI antennas.
7.9 App Manager
The AppManager manages applications that are directly run on the reader. Please ask KTC for possibilities
with respect to customized applications.
The application can be uploaded to the reader device by using the Install app function on the GUI. For this
purpose the application structure has to be available in *.tar format. Using the Reader Start software the
applications can then be managed using the tab AppManager (Get, Install, Start, Stop, Uninstall, Start
app at boot time).
For the configuration options of the respective KTC specific applications please refer to the
application specific configuration manuals.
Kapsch TrafficCom AG
Page 58 of 58
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
47000001169-Ins-01
8 Building host applications by using the API
8.1 Preparation
The examples have been tested on Windows 7 and Debian 6.0. Before the programs are compiled, the
environment must be adapted. Copy the folder / AP and / RFIDDemoApp in your user directory.
Note: The example is based on the connection parameters from the factory default settings of the IO cards.
This may need to be adapted.
The necessary libraries for the programs can either be stored in the respective program folder or the default
library folder of the operating system.
8.2 Using the examples with Windows
The C #, C + + and VB.Net folder containing the example programs and project files for Visual Studio 2010
based on the ReaderDllDotNet. Download the appropriate project file and compile the program.
8.3 Using the examples with Linux on a PC
The program is built in the / RFIDDemoApp / Linux by using the command make. If the compiler finds all the
necessary data, the program Console Linux demo is created in the same folder.
The library LibReaderLib.so is need and available in /API/Linux. Use the root userto copy this file to the
/urs/lib or leave in it the folder containing the source code files.
Kapsch TrafficCom AG
Installation Manual | SRU-8100 RFID Reader 18000-63
Doc No. 47000001169 | Version 01 | 2014-11-03 | released
Page 59 of 58
Documentation feedback
Installation Manual: SRU-8100 RFID Reader 18000-63
Kapsch order no.: Ins-47000001169
Manual release: 01
To the reader: Your opinions are important to us because we want our manuals to meet your needs. By
completing and returning this form you helps us make the next issue of this manual even better.
Disposition - - - + ++
1. Does the table of contents make it easy to find information in the manual?
2. Are chapter headings self-explanatory and informative?
3. Is the information in the appropriate order?
Usefulness
4. Does the information in the manual cover your needs?
Clarity
5. Are the instructions easy to understand?
6. Are the examples clarifying?
7. Are there sufficient examples?
8. Is the technical language clearly explained?
9. Are the abbreviations easy to understand?
10. Are the pictures/drawings clear and easy to understand?
11. Are the references clear?
Comments: Please, make any additional comments, preferably about the above questions, below.
..............................................................................................................................................................................
..............................................................................................................................................................................
..............................................................................................................................................................................
Name: ..................................................................................................................................................................
Company: ............................................................................................................................................................
Department: .........................................................................................................................................................
Address: ...............................................................................................................................................................
..............................................................................................................................................................................
Telephone no.: ......................................................... Fax no.: ............................................................................
E-mail address: ....................................................................................................................................................
Send the form by e-mail to: ktc.office@kapsch.net (please refer to "Product Management")
Thank you for your help!
www.kapschtraffic.com
www.kapsch.net
