Kar Tech MOD153 2.4GHz modular transceiver User Manual User s manual
Kar-Tech, Inc. 2.4GHz modular transceiver User s manual
Kar Tech >
User manual
MOD153
2.4GHz MODULAR TRANSCEIVER
OEM INSTALLATION AND OPERATION MANUAL
NOTE: THIS MODULE IS LIMITED TO OEM INSTALLATION ONLY
December 8, 2015
HK
MOD153 TRANSCEIVER
1
INDEX
DESCRIPTION........................................................................... 2
OPERATION .............................................................................. 2
INSTALLATION ......................................................................... 3
BEFORE APPLYING POWER!...................................................... 4
TROUBLESHOOTING ................................................................. 5
TRANSCEIVER PICTORIAL ........................................................ 6
INSTRUCTION TO THE USER ..................................................... 7
INDUSTRY CANADA STATEMENTS............................................. 9
EUROPE .................................................................................. 12
MOD153 TRANSCEIVER
2
DESCRIPTION
The MOD153 is a direct
sequence spread spectrum
transceiver module designed to
free use in the 2.4 GHz ISM
band.
The MOD153 transceiver is only
integrated into Kar-Tech remote
control products by Kar-Tech, at
Kar-Tech. There are no user
serviceable parts on the
MOD153 transceiver.
The MOD153 is not designed for
multiple antenna applications
and should not be used to
transmit simultaneously with
any other transmitter.
OPERATION
The MOD153 is a radio
transceiver module for the 2.4
GHz ISM bands. The transceiver
microcontroller includes a CPU,
GPI/O, a fully integrated
frequency synthesizer, a power
amplifier, a modulator and a
receiver unit. The MOD153
microcontroller serial port is
connected to the host via
protection circuits. The data is
sent through a serial port to RF
processor and then to RF circuit
to the antenna and the data
received from antenna is sent to
the serial port and to the host.
The microcontroller is
responsible for the control of the
entire communication. The
MOD153 transceiver contains a
DC regulator which generates a
constant 1.8 VDC for the digital
circuitry. The RF section runs on
the 3.3V supply.
The MOD153 is Direct Sequence
Spread Spectrum that can use
one of 16 channels, where
Channel 1 is 2.405GHZ and
Channel 16 is 2.480 GHZ.
MOD153 TRANSCEIVER
3
The receivers are matched to
the transmitters to use the same
channel as the transmitter’s
signals.
INSTALLATION
1) Solder the MOD153
transceiver directly to the
host’s compatible connector.
2) Print and attach the label
as shown below:
3) Connect the appropriate
antenna.
Application Requirements:
A) Power the MOD153
Transceiver with 3.3VDC
nominal voltage, with
peak current draw of
150mA.
B)Do not remove the shield
on the MOD153.
C)The antenna should be
mounted at least 20cm
from all persons, and
must not transmit
simultaneously with any
other antenna or
transmitter, except in
accordance with FCC
multi transmitter product
procedures.
D)The MOD153 is to be
installed only in mobile
applications. Do not
operate the MOD153
without an antenna.
E) Documentations: In the
host’s User Manual
include the following:
a. That there are no user
serviceable parts in
the radio modules.
They should not
remove or install radio
modules.
b. The “Instructions To
The User” section.
MOD153 TRANSCEIVER
4
c. The “Industry Canada
Statement”.
d. Include in the manual,
“This device is granted
for use in Mobile only
configurations in
which the antennas
used for this
transmitter must be
installed to provide a
separation distance of
at least 20cm from all
person and not be co-
located with any other
transmitters except in
accordance with FCC
and Industry Canada
multi-transmitter
product procedures.”
BEFORE APPLYING
POWER!
xCheck power and ground for
proper polarity.
xRead the rest of this manual.
MOD153 TRANSCEIVER
5
TROUBLESHOOTING
There are no user serviceable
parts in the MOD153 Transceiver.
Contact your KAR-TECH
representative for further
instructions or servicing.
There are no user-serviceable parts inside the transmitter or the
receiver. Return the units for service.
The information, specifications, and illustrations in this manual are those in effect at the time of
printing. We reserve the right to change specifications or design at any time without notice.
MOD153 TRANSCEIVER
6

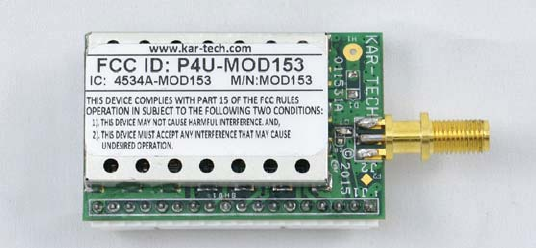

TRANSCEIVER PICTORIAL
TRANSCEIVER
Power supply ........................................................................... 3.3VDC
Operating temperature - Radio....................................... -20˚C to +55˚C
Storage temperature .................................................. -40˚C to +100˚C
RF Frequency ............................................................... 2.405-2.48 GHz
Antenna Manufacturer …………………………………………………………….. Kar-Tech, Inc.
Antenna Model………………………………………………………………………………….. MOD153
Antenna Gain……………………………………………………………………………………….. 1.1dBi
MOD153 TRANSCEIVER
7
INSTRUCTION TO THE USER
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix
devices only. This modular cannot be installed in any portable
device, for example, USB dongle like transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not
MOD153 TRANSCEIVER
8
be co-located or operating in conjunction with any other antenna
or transmitter. This modular must be installed and operated with
a minimum distance of 20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into
which the module is installed must also display a label referring to
the enclosed module. This exterior label can use wording such as
the following: “Contains Transmitter Module FCC ID: P4U-
MOD153
when the module is installed inside another device, the user
manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
The devices must be installed and used in strict accordance with
the manufacturer's instructions as described in the user
documentation that comes with the product
MOD153 TRANSCEIVER
9
INDUSTRY CANADA STATEMENTS
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope
rayonnée quivalente (p.i.r.e.) ne dépassepas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
MOD153 TRANSCEIVER
10
OEM Responsibilities to comply with FCC and Industry Canada
Regulations
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie
Canada . Son fonctionnement est soumis aux deux conditions
suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les
interférences qui peuvent causer un mauvais fonctionnement de
l'appareil.
IC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only.
This modular cannot be installed in any portable device, for example,
USB dongle like transmitters is forbidden.
This modular complies with IC RF radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter. This
modular must be installed and operated with a minimum distance of
20 cm between the radiator and user body. Cette modulaire doit être
installé et utilisé à une distance minimum de 20 cm entre le radiateur
et le corps de l'utilisateur.
If the IC number is not visible when the module is installed inside
another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module.
This exterior label can use wording such as the following:
“Contains IC: 4534A-MOD153ā
when the module is installed inside another device, the user manual of
this device must contain below warning statements;
MOD153 TRANSCEIVER
11
1. This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
2. Cet appareil est conforme aux CNR exemptes de licence d'Industrie
Canada . Son fonctionnement est soumis aux deux conditions
suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les
interférences qui peuvent causer un mauvais fonctionnement de
l'appareil.
The devices must be installed and used in strict accordance with the
manufacturer's instructions as described in the user documentation
that comes with the product.
MOD153 TRANSCEIVER
12
EUROPE
CE NOTICE
This device has been tested and certified for use in the European Union.
See the Declaration of Conformity (DOC) for specifics.
If this device is used in a product, the OEM has the responsibility to
verify compliance of the final product to the EU standards. A
declaration of Conformity must be issued and kept on file as described
in the Radio and Telecommunications Terminal Equipment (R&TTE)
Directive.
The ‘CE’ mark must be placed on the OEM product per the labeling
requirements on the Directive.
Declaration of Conformity (DOC)
This DOC can be downloaded from the www.kar-tech.com.
The device complies with RF specifications when the device used at
your body.
Caution: Must use the original antenna. Other antennas are not
allowed to be used.
The device according to the regulation in Directive 1999/5/EC and
complies with standards as follow:
ETSI EN 301 489-1 V 1.9.2
EMC (Article 3.1b) ETSI EN 301 489-17 V2.2.1 (2012-09) Report No.: CTL1512313913-WE
Radio (Article 3.2) ETSI EN 300 328 V1.8.1 Report No.: CTL1512313913-WR
Safety (Article 3.1a) EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Report No.: CTL1512313913-WS
Health (Article 3.1a) EN 62479: 2010 Report No.: CTL1512313913-WH
[Titles, dates of publication of documents mentioned ]
