K 2.20 M

59634730 08/09

2 English

DANGER

indicates “an imminently hazardous situ-

ation which, if not avoided, will result in

death or serious injury.”

WARNING

indicates “a potentially hazardous situa-

tion which, if not avoided, could result in

death or injury.”

CAUTION

indicates “a potentially hazardous situa-

tion which, if not avoided, may result in

minor or moderate injury or in property

damage incidents.”

For household use only!

The owner and/or user must have an un-

derstanding of the manufacturer’s oper-

ating instructions and warnings before

using this pressure washer.

Warning information should be empha-

sized and understood.

If the operator is not fluent in English,

the manufacturer’s instructions and

warnings shall be read to and discussed

with the operator in the operator’s native

language by the purchaser/owner, mak-

ing sure that the operator comprehends

its contents.

Owner and/or user must study and

maintain for future reference the manu-

facturers’ instructions.

To register this product, please visit:

www.karcher-register.com

For technical support, go to:

www.karcher-help.com

If you purchased this unit new and parts

are missing, or if you need to file a war-

ranty claim, please call:

1-800-537-4129

You will need to fax or email your receipt

to a customer service agent. All other in-

formation can be found at:

www.karcherresidential.com

Call: 01-800-024-13-13 for help or visit

our website: www.karcher.com.mx

HIGH PRESSURE WASHER OPERATOR MANUAL

Model Overview 3

Important Safety Instructions 4

Assembly Instructions 6

Operating Instructions 6

Using the Accessories 8

Working with Detergents 9

Taking a Break 10

Shutting Down & Clean-Up 10

Winterizing and Long-Term Storage 11

Maintenance Instructions 11

Cleaning Tips 12

Optional Cleaning Accessories 13

Troubleshooting 15

Safety Alert Symbols

Specifications

Max. Pressure 1500 PSI

Max. Water Flow 1.3 GPM

Amp draw 13 AMPS

Voltage 120 V

Part No. 1.672-600.0

Serial no.

Owner/User Responsibility

Customer Support

USA and Canada

Customer Support

Mexico

English 3

1 Swivel casters

2 ON/OFF switch

3 Detergent suction tube with filter

4 High pressure outlet

5

6 Spray Wand Storage

7 Water inlet with garden hose connec-

tor

8 Power cord with Ground Fault Circuit

Interrupter (GFCI)

9 Wheels

10 Trigger gun

11 Trigger gun safety lock

12 Locking slide for high pressure hose

13 High pressure hose

14 Spray wand

15 Dirtblaster® (Rotary spray wand)

16 VELCRO® fastener

MODEL OVERVIEW

4 English

WARNING

When using this product basic precau-

tions should always be followed, includ-

ing the following:

Read all the instructions before using

the product.

To reduce the risk of injury, close su-

pervision is necessary when a prod-

uct is used near children.

Know how to stop the product and

bleed pressures quickly. Be thor-

oughly familiar with the controls.

Stay alert – watch what you are do-

ing.

Do not operate the product when fa-

tigued or under the influence of alco-

hol or drugs.

Keep operating area clear of all per-

sons.

Do not overreach or stand on unsta-

ble support. Keep good footing and

balance at all times.

Follow the maintenance instructions

specified in the manual.

This product is provided with a

Ground Fault Circuit Interrupter built

into the power cord plug. If replace-

ment of the plug or cord is needed,

use only identical replacement parts.

WARNING

Risk of Injection or Injury – Do Not

Direct Discharge Stream At Persons.

High pressure jets can be dangerous

if misused. The jet must not be di-

rected at persons, animals, electrical

devices, or the unit itself.

Wear safety goggles.

WARNING

Risk Of Explosion – Do not spray

flammable liquids.

Do not use acids, alkaline, solvents,

or any flammable material in this

product. These products can cause

physical injuries to the operator and

irreversible damage to the machine.

CAUTION

Gun Kicks Back – Hold with both

hands.

The Trigger Gun Safety Lock pre-

vents the trigger from accidentally

being engaged. This safety feature

DOES NOT lock trigger in the ON po-

sition.

WARNING – Risk of Electrocution

Inspect cord before using – Do not

use if cord is damaged.

Keep all connections dry and off the

ground.

Do not touch plug with wet hands.

Do not use extension cord with this

product.

Connect to individual branch circuit

only.

CAUTION

This unit has been designed for use with

cleaning detergents recommended by

the manufacturer. The use of other

cleaning detergents may affect the oper-

ation of the machine and void the war-

ranty.

WARNING

DO NOT SPRAY ELECTRICAL APPA-

RATUS AND WIRING.

DO NOT USE WITH FLAMMABLE

LIQUIDS AND TOXIC CHEMICALS.

HIGH PRESSURE. KEEP CLEAR OF

NOZZLE.

INJECTION HAZARD: EQUIPMENT

CAN CAUSE SERIOUS INJURY IF

THE SPRAY PENETRATES THE

SKIN. DO NOT POINT THE GUN AT

ANYONE OR ANY PART OF THE

BODY. IN CASE OF PENETRATION

SEEK MEDICAL AID IMMEDIATELY.

THIS SYSTEM IS CAPABLE OF PRO-

DUCING 1600 PSI TO AVOID RUP-

IMPORTANT SAFETY INSTRUCTIONS

English 5

TURE AND INJURY, DO NOT

OPERATE THIS PUMP WITH COM-

PONENTS RATED LESS THAN 1600

PSI WORKING PRESSURE (INCLUD-

ING BUT NOT LIMITED TO SPRAY

GUNS, HOSE AND HOSE CONNEC-

TIONS).

BEFORE SERVICING, CLEANING

OR REMOVING ANY PARTS, SHUT

OFF POWER AND RELIEVE PRES-

SURE.

IF CONNECTION IS MADE TO A PO-

TABLE WATER SYSTEM, THE SYS-

TEM SHALL BE PROTECTED

AGAINST BACKFLOW.

In a double-insulated product, two sys-

tems of insulation are provided instead

of grounding. No grounding means is

provided on a double-insulated product,

nor should a means for grounding be

added to the product. Servicing a dou-

ble-insulated product requires extreme

care and knowledge of the system, and

should be done only by qualified service

personnel. Replacement parts for a dou-

ble-insulated product must be identical

to the parts they replace. A doubleinsu-

lated product is marked with the words

“DOUBLE INSULATION” or “DOUBLE

INSULATED”. The symbol “ ” may also

be marked on the product.

This pressure washer is provided with a

ground-fault circuit-interrupter (GFCI)

built into the plug of the power-supply

cord. This device provides additional

protection from the risk of electric shock.

Should replacement of the plug or cord

become necessary, use only identical

replacement parts that include GFCI

protection.

CAUTION

When connecting the water inlet to the

water supply mains, local regulations of

your water company must be observed.

In some areas the unit must not be con-

nected directly to the public drinking wa-

ter supply. This is to ensure that there is

no feedback of chemicals into the water

supply. Direct connection via a receiver

tank or backflow preventer, for example,

is permitted.

Dirt in the feed water will damage the

unit. To avoid this risk, we recommend

fitting a water filter.

Garden hose must be at least 1/2

inch or 5/8 inch in diameter.

Flow rate of water supply must not

fall below 2 GPM (gallons per

minute).

Flow rate can be determined by run-

ning the water for one minute into an

empty 5-gallon container.

The water supply temperature must

not exceed 104°F/40°C.

Never use the pressure washer to

draw in water contaminated with sol-

vents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source.

SAVE THESE INSTRUCTIONS!

SERVICING OF A DOUBLE-

INSULATED PRODUCT

GROUND FAULT CIRCUIT INTER-

RUPTER PROTECTION

WATER SUPPLY

(Cold Water Only)

6 English

Screwdriver, small size (not supplied)

for connecting high pressure hose and

trigger gun.

ÎSTEP 1:

Insert the steering rollers and lock

them.

ÎSTEP 2:

Insert wheels into the side holes of

the unit.

ÎSTEP 3:

Fix the VELCRO® fastener to the ap-

pliance.

ÎSTEP 4:

A Pull out the locking slide of the trigger

gun handle.

B Insert the small end of the high pres-

sure hose into place.

C Push the locking slide back into the

trigger gun to lock the hose in posi-

tion.

ÎSTEP 1:

Connect the high pressure hose to

the unit’s high pressure outlet.

ÎSTEP 2:

Insert the spray wand of your choice

into the trigger gun. Press in against

the spring tension and twist into

locked position.

ASSEMBLY INSTRUCTIONS

Required tools

Assembly

OPERATING INSTRUCTIONS

English 7

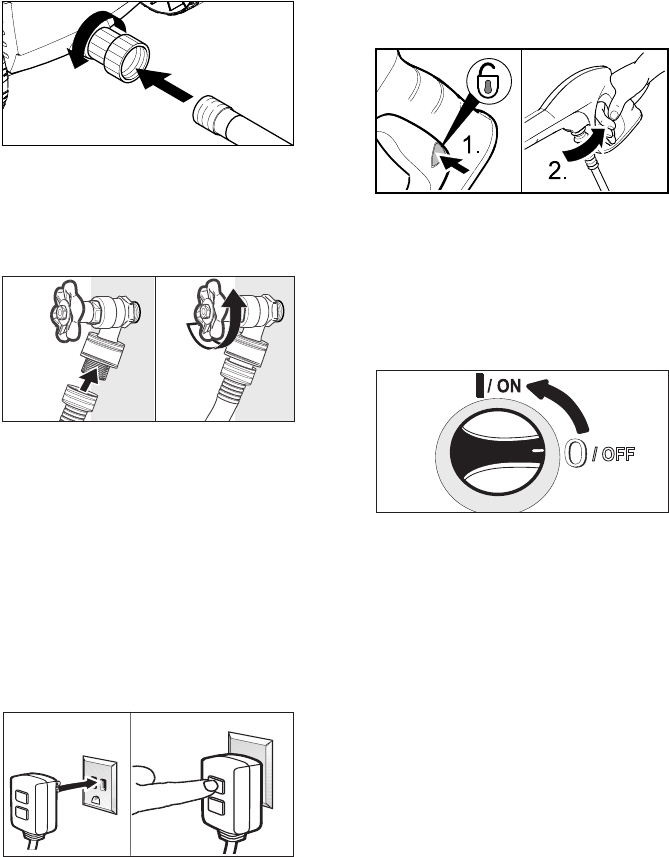

ÎSTEP 3:

Connect garden hose to unit’s water

inlet.

ÎSTEP 4:

Connect garden hose to the cold wa-

ter source and turn water on com-

pletely.

ÎSTEP 5:

Plug the Ground Fault Circuit Inter-

rupter (GFCI) into a working outlet.

We recommend that you test the GFCI as

part of your startup procedure each time

you use your pressure washer. To learn

how to peform this test on your unit, visit

http://www.karcherresidential.com/

gfci_test.php for detailed instructions for

your type of GFCI.

WARNING

Do not use if above test fails.

Note: The actual appearance of the GFCI may be

different from this illustration.

ÎSTEP 6:

Unlock the trigger gun safety lock.

Trigger the gun to eliminate trapped

air, wait for a steady flow of water to

emerge from the spray nozzle.

ÎSTEP 7:

Turn on the high pressure washer (I/

ON).

The motor starts only if the trigger

of the gun is pulled and shuts off

when the trigger is released.

8 English

WARNING

To avoid serious injury never point

spray nozzle at yourself, other per-

sons or animals.

Always test an inconspicuous area

before cleaning with high pressure.

This nozzle features a steady powerful

high pressure spray pattern, for general

cleaning.

This nozzle features a 0º pencil jet

which rotates 360º for maximum dirt

cutting action, effectively increasing

cleaning performance up to 50%.

This nozzle combines the cleaning

performance of a 0º pencil jet with

the surface coverage of a wide angle

nozzle.

Not recommended for soft materi-

als, siding, painted surfaces,

decks or autos.

Before cleaning any surface an in-

conspicuous area should be cleaned

to test spray pattern and distance for

maximum cleaning results.

USING THE ACCESSORIES

Spray wand

Dirtblaster®

English 9

Detergents can only be applied at low

pressure.

A low-pressure jet is generated if no

spray wand is attached to the trigger

gun.

ÎSTEP 1:

Fill a container with Kärcher deter-

gent. Place the filter end of detergent

suction tube into the container.

ÎSTEP 2:

Detach spray wand from the trigger

gun.

ÎSTEP 3:

Turn on the pressure washer (I). Pull

trigger to operate unit. Liquid deter-

gent is drawn into the unit and mixed

with water. Apply detergent to work

area. Do not allow detergent to dry

on surface.

ÎSTEP 4:

To rinse, insert the spray wand and

pull trigger to operate unit.

ÎSTEP 5:

Cleaning up: Always draw fresh wa-

ter through the detergent tank or si-

phon tube when done to flush any

remaining detergents from the injec-

tion system.

For best results see Cleaning Tips for

specific information on how to clean

different surfaces.

Always Use Kärcher® Detergent for

Best Results

Kärcher® biodegradable detergents are

specially formulated to protect the envi-

ronment and your pressure washer. The

special formula won’t clog the suction

tube filter and will protect the internal

parts of the pressure washer for a longer

life. For Kärcher® Detergents, check

your retailer or visit our website:

www.soappac.com

CAUTION

Never use:

– Bleach, Chlorine products and other

corrosive chemicals

– Liquids containing solvents (i.e.,

paint thinners, gasoline, oils)

– Tri-sodium phosphate products

– Ammonia products

– Acid-based products

These chemicals will harm the unit and

will damage the surface being cleaned.

Use of these items will void the war-

ranty.

WORKING WITH DETERGENTS

10 English

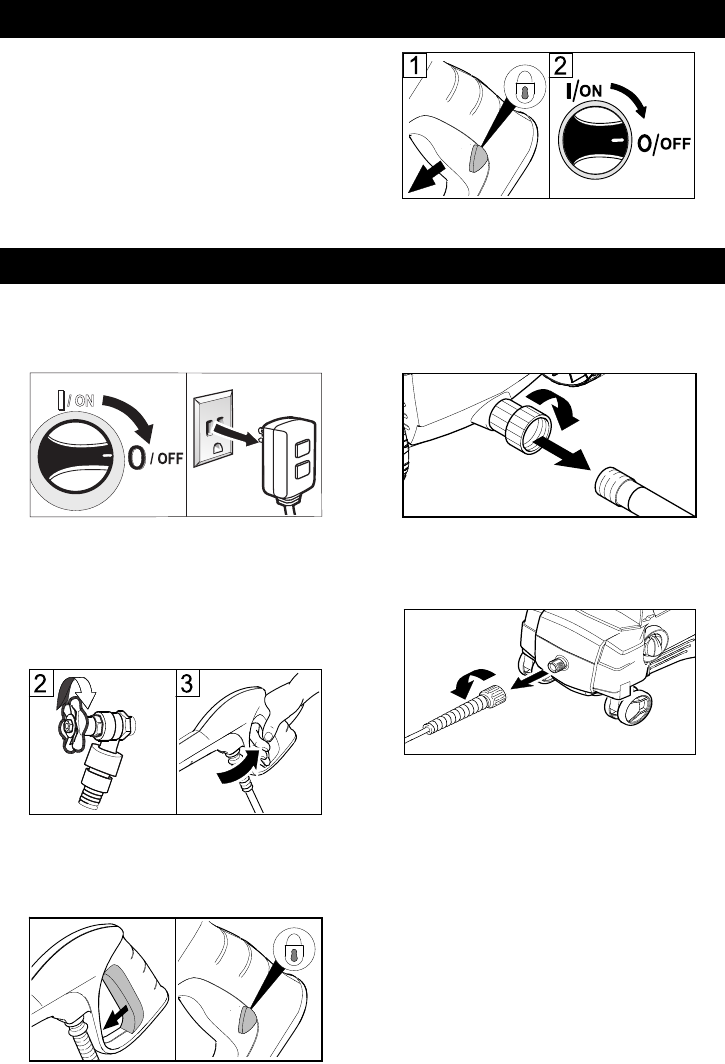

ÎSTEP 1:

Release trigger and engage gun

safety lock.

ÎSTEP 2:

Turn pressure washer to OFF (0) po-

sition.

ÎSTEP 1:

Turn the switch to OFF (0) position

and unplug cord from outlet.

ÎSTEP 2:

Turn off the water source.

ÎSTEP 3:

Press trigger to release water pres-

sure.

ÎSTEP 4:

Release trigger and engage gun

safety lock.

ÎSTEP 5:

Disconnect the garden hose from the

water inlet on the unit.

ÎSTEP 6:

Disconnect the high pressure hose

from the high pressure outlet.

ÎSTEP 7:

Engage the spray lance in its com-

partment.

Store coiled power cord, coiled high

pressure hose and handgun with the

VELCRO® fastener on the appliance.

TAKING A BREAK ..five minutes or more

SHUTTING DOWN & CLEAN-UP

English 11

Î1: Disconnect all water connections.

Î2: Turn on the machine for a few sec-

onds, until the water which had re-

mained in the pump exits, turn off

immediately.

Î3: Do not allow high pressure hose to

become kinked.

Î4: Store the machine and accesso-

ries in a room which does not reach

freezing temperatures. DO NOT

store near furnace or other sources

of heat as it may dry out the pump

seals.

CAUTION

Failure to follow the above directions will

result in damage to the pump assembly

and accessories and will void the war-

ranty.

Kärcher® also recommends the regular

practice of using a pump protector like

“Kärcher® Pump Guard” to prevent cold

weather damage during storage in the

winter months.

ÎSTEP 1:

Pull out washer from the water inlet.

ÎSTEP 2:

Pull out water inlet filter with flat-nose

pliers.

ÎSTEP 3:

Rinse out water inlet filter in warm

water.

ÎSTEP 4:

Reinsert water inlet filter and washer

into the water inlet.

The unit is maintenance-free.

WINTERIZING AND LONG-TERM STORAGE

CARE AND MAINTENANCE INSTRUCTIONS

Cleaning the water inlet filter Maintenance

12 English

CAUTION

Before cleaning any surface an in-

conspicuous area should be cleaned

to test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as

pressure washer may remove the

loose paint from the surface.

When using on surfaces which might

come in contact with food, flush sur-

faces with plenty of drinking water.

For additional cleaning tips and a

complete video library, visit our web-

site:

www.karcherresidential.com

(with or without detergent). Pre-rinse

deck and surrounding area with fresh

water. If using detergent, apply to sur-

face at low pressure. For best results,

limit your work area to smaller sections

of approximately 25 square feet. Allow

detergent to remain on surface 1-3 min-

utes. Do not allow detergent to dry on

surface. Rinse at high pressure in a long

sweeping motion keeping the spray noz-

zle approximately 3-6 inches from the

cleaning surface. Always clean from top

to bottom and from left to right. When

moving on to a new section of the clean-

ing surface, be sure to overlap the previ-

ous section to eliminate stop marks and

ensure a more even cleaning result.

(with or without detergent). Pre-rinse

cleaning surface with fresh water. If us-

ing detergent, apply to surface at low

pressure (for best results, limit your

work area to sections of approximately

6 feet and always apply detergent from

bottom to top). Allow detergent to re-

main on surface 1-3 minutes. Do not al-

low detergent to dry on surface, if

surface appears to be drying, simply wet

down surface with fresh water. If need-

ed, use special wash brush attachment

(not included) to remove stubborn dirt.

Rinse at high pressure from top to bot-

tom in an even sweeping motion keep-

ing the spray nozzle approximately

6 inches from the cleaning surface.

(with or without detergent). Pre-rinse

cleaning surface with fresh water. If us-

ing detergent or Degreaser, apply to

surface at low pressure. For best re-

sults, limit your work area to smaller sec-

tions of approximately 25 square feet.

Allow detergent or Degreaser to remain

on surface 1-3 minutes. Do not allow de-

tergent to dry on surface. Rinse at high

pressure in a sweeping motion keeping

the spray nozzle approximately 3-6

inches from the cleaning surface. Al-

ways clean from top to bottom and from

left to right. For removing extremely

stubborn stains, use the Dirtblaster®

Nozzle.

(with or without detergent). Pre-rinse

vehicle with fresh water. If using deter-

gent, apply to surface at low pressure.

For best results, clean one side of vehi-

cle at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not in-

cluded) to remove stubborn dirt. Rinse

at high pressure in a sweeping motion

CLEANING TIPS

Deck Cleaning

House Siding

Cement Patios, Brick and Stone

Cars, Boats & Motorcycles

English 13

keeping the spray nozzle approximately

6-8 inches from the cleaning surface

(distance should increase when rinsing

pin-striping or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

(with or without detergent). Pre-rinse

cleaning surface with fresh water. If us-

ing detergent or Degreaser, apply deter-

gent at low pressure. Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface. Rinse

at high pressure keeping the spray noz-

zle approximately 3-6 inches from the

cleaning surface. For removing ex-

tremely stubborn dirt, it may be neces-

sary to move the spray nozzle even

closer to the surface for greater dirt cut-

ting action.

(with or without detergent). Pre-rinse

furniture and surrounding area with

fresh water. If using detergent, apply to

surface at low pressure. Allow detergent

to remain on surface 1-3 minutes. Do

not allow detergent to dry on surface. If

needed use special Wash Brush Attach-

ment (not included) to remove stubborn

dirt. Rinse at high pressure in a sweep-

ing motion keeping the spray nozzle ap-

proximately 3-6 inches from the

cleaning surface. For best results, clean

from top to bottom and from left to right.

Optional accessories are available to

further enhance your cleaning capabili-

ties. These accessories are accurate as

of the printing date of this manual.

Please check our website for pricing and

up-to-date information.

Specially formulated to protect your

pressure washer from freezing, corro-

sion and premature wear. The Pump

Guard also adds lubrication to valves

and seals to prevent sticking. Highly rec-

ommended for all Kärcher® pressure

washers!

Part No. 9.558-998.0

Replacement hose fits Kärcher® pres-

sure washer with screw-on type gun

connections from 2400 PSI to 2500 PSI,

Extension Hose for all Kärcher® high

pressure washers between the original

equipment hose and machine up to

2500 PSI.

Part No. 2.640-850.0

Need to clean second story windows or

other high areas? Increase the reach of

your pressure washer by up to 66" with

this extension kit. Includes 4 aluminum

sections for variable length. 66" fully as-

sembled. Fits most Kärcher® pressure

washers up to 2300 PSI. (bayonet)

Part No. 2.640-746.0

Barbecue Grills, Outdoor Power

Equipment & Gardening Tools

Patio & Lawn Furniture

OPTIONAL CLEANING ACCESSORIES

Pump Guard

25 Ft. Extension /Replacement

High-Pressure Hose

66" Extension Wand (Four piece)

14 English

For more effortless cleaning of all

smooth surfaces (painted, glass and

plastic) try the Kärcher® Rotating Wash

Brush. Use it on your automobile, house

siding or windows. The water pressure

from your pressure washer causes the

inner brushes to gently spin, making

your cleaning job much easier. The an-

gle of brush head is adjustable to help

you reach difficult areas. Excellent for

the application of detergent. A must-

have accessory designed for Kärcher®

pressure washers up to 2300 PSI. (bay-

onet)

Part No. 2.640-743.0

Made with soft bristles that will not harm

painted surfaces. Easily attaches direct-

ly to the trigger gun. Ideal for stubborn

dirt on cars, boats, patio furniture and

other surfaces. Great for applying deter-

gent. Fits most Kärcher® pressure wash-

ers up to 2300 PSI. (bayonet)

Part No. 2.640-740.0

Need to clean blocked pipes, drains or

downspouts? The Kärcher® pipe clean-

ing kit is the answer! The pipe cleaner

propels itself forward while simulta-

neously flushing out debris. For exam-

ple, insert the cleaning nozzle in the

base of a downspout, pull the trigger on

the pressure washer gun and watch as

the nozzle shoots out leaves and other

debris while climbing upward. Connects

directly to the trigger gun of most

Kärcher® pressure washers up to

2300 PSI. (bayonet)

Part No. 2.640-747.0

Why spend hours stripping old paint and

rust by hand using harsh chemicals? Let

the Kärcher® Wet Sandblasting Kit do

the work! Attach the kit to your pressure

washer, add abrasive material and at-

tack the rust and paint with our eco-

friendly alternative. Fits most Kärcher®

pressure washers up to 2300 PSI. (bay-

onet)

Part No. 2.638-792.0

Ideal for applications which require a

thick foam. Simply fill the resevoir cup

with liquid pressure washer detergent to

generate a foam spray. Connects direct-

ly to the trigger gun. Fits most Kärcher®

pressure washers up to 2300 PSI. (bay-

onet)

Part No. 6.964-507.0

For cleaning surfaces such as patios,

terraces and driveways without splash-

back, there is no better solution than the

Kärcher® T 100. It saves time by clean-

ing a one foot wide area gently as it hov-

ers, providing consistent, streak-free

cleaning. When you finish cleaning the

patio and driveway, remove the wand

and use the handle to clean garage

doors and other vertical surfaces. In-

cludes two nozzles which spin at high

speed for optimum results. Our top sell-

ing accessory for Kärcher® pressure

washers up to 2300 PSI. (bayonet)

Part No. 2.640-959.0

Rotating Wash Brush (bayonet)

Soft Clean Washing Brush

25 ft. Pipe Cleaning Kit (bayonet)

Wet Sandblasting Kit (bayonet)

Detergent Foamer Attachment

T 100 Wide Area Surface Cleaner

English 15

CAUTION

Disconnect the machine from the power

source before making any repair.

TROUBLESHOOTING

Symptom Cause Solution

Motor will not start On/Off switch is in the “OFF”

(0) position.

Turn switch to the “ON” (I) po-

sition

Power cord is not plugged in. Plug in power cord.

Electrical outlet does not

supply adequate power.

Try a different outlet.

Tripped GFCI plug. Press “RESET” button on

GFCI plug.

Tripped circuit breaker. Switch off pressure washer.

The reset comes automatically

once the temperature of the

unit drops.

Unit does not

reach high

pressure.

Diameter of garden hose is too

small.

Replace with a 5/8 inch or larg-

er garden hose.

Water supply is restricted. Check garden hose for kinks,

leaks and blockage.

Not enough inlet water supply. Open water source full force.

Water inlet filter is clogged. Remove filter and rinse out in

warm water.

Spray wand is on low pressure

position.

Turn spray wand to high pres-

sure position.

Output pressure

varies high and

low.

Not enough inlet water supply. Turn water on full force. Check

garden hose for kinks, leaks or

blockage.

Pump is sucking air. Check that hoses and fittings

are air tight. Turn off machine

and purge pump by squeezing

trigger gun until a steady flow

of water emerges through the

nozzle.

Water inlet filter is clogged. Remove filter and rinse out in

warm water.

Discharge nozzle is

obstructed.

Blow out or remove debris with

a fine needle.

Calcified gun, hose or spray

wand.

Run distilled vinegar through

detergent suction tube.

16 English

If you encounter any additional difficul-

ties not listed, please visit our website.

USA / Canada:

www.karcherresidential.com

México:

www.karcher.com.mx

No detergent. Detergent suction tube not

properly connected to the

machine.

Check connection.

Detergent is too thick. Dilute detergent, for best re-

sults use Kärcher® detergent.

Filter on detergent suction

tube is clogged.

Run warm water through filter

to remove debris.

Damaged or clogged

detergent suction tube.

Remove obstruction or replace

detergent suction tube.

Spray wand fitted. Remove spray wand.

Discharge nozzle is

obstructed.

Blow out or remove debris with

fine needle.

Garden hose

connection leaks.

Loose fittings. Tighten fittings.

Missing/worn rubber washer. Insert new washer.

Spray wand leaks. Spray wand not properly

attached.

Insert the spray wand into the

trigger gun. Carefully press in

against the spring tension and

twist into the locked position.

Broken o-ring or plastic insert. Call Customer Support

Pump is noisy. Pump is sucking air. Check that hoses and fittings

are air tight. Turn off machine

and purge pump by squeezing

trigger gun until a steady flow

of water emerges through the

nozzle.

Water leaks from

pump (up to 10

drops per minute

is permissible).

Loose fittings. Check that all fittings are tight.

Water seals are damaged or

worn.

Call Customer Support

Oil Drip. Oil seals are damaged or

worn.

Call Customer Support

Symptom Cause Solution
