Operating

Instructions

Before first use of the

unit read these operating

instructions and act in

accordance with them.

K 6.85 M

5.962-612.0 (02/08)

2 English

Dear Customer,

Please read and comply with

these instructions prior to the in-

itial operation of your appliance. Retain

these operating instructions for future refer-

ence or for subsequent possessors.

Danger

Immediate danger that can cause severe

injury or even death.

몇Warning

Possible hazardous situation that could

lead to severe injury or even death.

Caution

Possible hazardous situation that could

lead to mild injury to persons or damage to

property.

This high-pressure cleaner is designed for

domestic use only:

– to clean machines, vehicles, buildings,

tools, facades, terraces, garden equip-

ment etc. using a high-pressure water

jet (and detergents if required).

– with accessories, replacement parts

and detergents approved by Kärcher.

Observe the instructions provided with

these detergents.

The packaging material can be recy-

cled. Please do not place the packag-

ing into the ordinary refuse for

disposal, but arrange for the proper

recycling.

Old appliances contain valuable ma-

terials that can be recycled. Please

arrange for the proper recycling of old

appliances. Please dispose your old

appliances using appropriate collec-

tion systems

The warranty terms published by our com-

petent sales company are applicable in

each country. We will repair potential fail-

ures of your appliance within the warranty

period free of charge, provided that such

failure is caused by faulty material or de-

fects in fabrication. In the event of a warran-

ty claim please contact your dealer or the

nearest authorized Customer Service cent-

er. Please submit the proof of purchase.

(See address on the reverse)

Caution

Safety devices protect the user and must

not be modified or bypassed.

The appliance switch prevents unintention-

al operation of the appliance.

This lock locks the lever of the trigger gun

and prevents the inadvertent start of the ap-

pliance.

Contents

General information 2

Safety instructions 3

Operation 4

Maintenance and care 8

Troubleshooting 9

Customer Service 10

Technical specifications 10

Assembly 12

Spare Parts 15

General information

Hazard levels

Proper Use

Environmental protection

Warranty

Safety Devices

Power switch

Lock trigger gun

English 3

Danger

Never touch the mains plug and the

socket with wet hands.

The appliance must not be used if the

power cord or important parts of the ap-

pliance, e.g. high-pressure hoses, trig-

ger gun or safety devices are damaged.

Check the power cord with mains plug

for damage before every use. If the

power cord is damaged, please arrange

immediately for the exchange by an au-

thorized customer service or a skilled

electrician.

Check the high-pressure hose for dam-

age before every use. Please arrange

for the immediate exchange of a dam-

aged high-pressure hose.

The appliance may not be used in areas

where a risk of explosion is present.

If the appliance is used in hazardous ar-

eas (e.g. filling stations) the corre-

sponding safety provisions must be

observed.

High-pressure jets can be

dangerous if improperly

used. The jet must not be

directed at persons, ani-

mals, live electrical equipment or at the

appliance itself.

The high-pressure jet must not be di-

rected at other persons or directed by

the user at him/herself to clean clothing

or footwear.

Never use the appliance to clean ob-

jects containing hazardous substances

(e.g. asbestos).

Vehicle tyres or tyre valves are suscep-

tible to damage from the high-pressure

jet and may burst. The first indication of

this is a discolouration of the tyre. Dam-

aged vehicle tyres/tyre valves are high-

ly dangerous. Ensure that a distance of

at least 30 cm is observed when clean-

ing with the jet!

Never draw in fluids containing solvents

or undiluted acids and solvents! This in-

cludes petrol, paint thinner and heating

oil. The spray mist thus generated is

highly inflammable, explosive and poi-

sonous. Do not use acetone, undiluted

acids and solvents as they are aggres-

sive towards the materials from which

the appliance is made.

몇Warning

The mains plug and the coupling of an

extension cable must be watertight and

must never lay in the water.

Unsuitable extension cables can be

hazardous. Only use extension cables

outdoors which have been approved for

this purpose and labelled with a suffi-

cient cable cross-section:

1 - 10 m: 1.5 mm2; 10 - 30 m: 2.5 mm2

Always fully unroll electrical cables from

the cable drum.

High-pressure hoses, fixtures and cou-

plings are important for the safety of the

appliance. Only use high-pressure hos-

es, fixtures and couplings recommend-

ed by the manufacturer.

This device is not intended for use by

persons (including children) with re-

duced physical, sensory or mental abil-

ities or lacking experience and/or

knowledge, unless they are supervised

by a person responsible for their safety

or are instructed by these persons on

the use of the device. Children should

be supervised, to ensure that they do

not play with the device.

The operator must use the appliance

correctly. When working with the appli-

ance, he must consider the local condi-

tions and pay due care and attention to

other persons, in particular children,

who are nearby.

Do not use the appliance when there

are other persons around unless they

are also wearing safety equipment.

Wear protective clothing and safety

goggles to protect against splash back

containing water or dirt.

Safety instructions

4 English

Caution

Observe a distance of at least 30 cm

when using the jet to clean painted sur-

faces to avoid damaging paintwork.

Never leave the appliance unattended

when it is in operation.

Make sure that the power cable or ex-

tension cables are not damaged by run-

ning over, pinching, dragging or similar.

Protect the power cable from heat, oil,

and sharp edges.

All current-conducting parts in the work-

ing area must be protected against jet

water.

The appliance may only be connected

to an electrical supply which has been

installed in accordance with IEC 60364.

The appliance may only be connected

to alternating current. The voltage must

correspond with the type plate on the

appliance.

The maximum tolerable mains imped-

ance at the electrical contact point (see

Technical Data) must not be exceeded.

For safety reasons, we recommend that

you operate the appliance only via a

earth-leakage circuit breaker (max.

30 mA).

Cleaning operations which produce oily

waste water, e.g. engine washes, un-

derbody washes, may only be carried

out using washing stations equipped

with an oil separator.

This appliance was designed to be

used with detergents which are sup-

plied or recommended by the manufac-

turer. The use of other detergents or

chemicals may compromise the safety

of the appliance.

When unpacking the product, make sure

that no accessories are missing and that

none of the package contents have been

damaged. If you detect any transport dam-

ages please contact your dealer.

Illustrations on Page 5

1 Coupling element for water connection

2 Waterfilter

3 Fine filter in the water connection

4 Storage for accessories

5 Water connection

6 Appliance switch "0/OFF“/ „I/ON“

7 Storage for trigger gun

8 Transport handle

9 Detergent suction hose (with filter)

10 Dosage regulator for detergent

11 Detergent Tank

12 Storage for mains connection cable

13 Mains cable with mains plug

14 Storage for spray lance

15 Hose drum

16 hand crank for hose drum

17 Bearing wheel

18 High pressure hose

19 Trigger gun

20 Lock trigger gun

21 Key to detach the high-pressure hose

from the trigger gun

22 Spray lance with pressure regulation

(Vario Power)

23 Storage for accessories

Special accessories expand the possibili-

ties of using your appliance. Please contact

your KÄRCHER dealer for further informa-

tion.

Operation

Description of the Appliance

Special accessories

English 5

Assembly see page 12 - 13

6 English

Mount loose parts delivered with appliance

prior to start-up.

Assemble appliance as shown on

page 12 and 13.

ÎIllustration

Insert holder for trigger gun.

ÎIllustration

Insert the transport handle and screw

in.

ÎIllustration

Lock the detergent tank in place on the

appliance.

Close the detergent tank with the lid.

ÎIllustration

Attach the accessories holder.

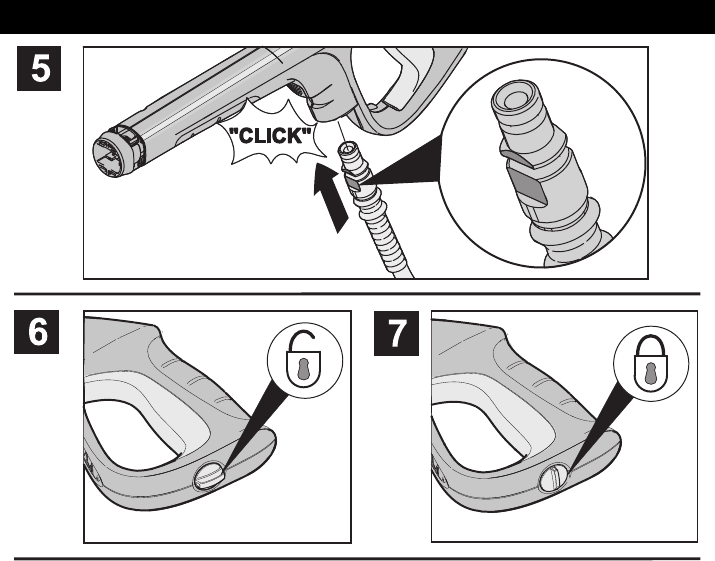

ÎIllustration

Push the high pressure hose into the

trigger gun until it locks audibly.

Note: Make sure the connection nipple

is aligned correctly.

Check the secure connection by pulling

on the high-pressure hose.

According to the applicable regula-

tions, the appliance must never be

used on the drinking water supply

without a system separator. Use a

suitable system separator manufactured by

KÄRCHER; or, as an alternative, a system

separator as per EN 12729 Type BA.

Note: Impurities in the water can damage

the high-pressure pump and accessories.

For protection, the use of the KÄRCHER

water filter (optional accessory, order no.

4.730-059) is recommended.

Observe regulations of water supplier.

For connection values, see type plate/tech-

nical data.

ÎUse a fibre-reinforced water hose (not

included) with a standard coupling.

(Minimum diameter 1/2 inch (13 mm),

minimum length 7.5 m).

ÎScrew the water filter on the water con-

nection of the device.

ÎScrew the delivered coupling part on

the water filter.

ÎPush the water supply hose onto the

coupling unit, then connect it to the tap.

This high-pressure cleaner is suited to work

with the KÄRCHER suction hose with back-

flow valve (Optional accessory, order no.

4.440-238) to draw in surface water, e.g.

from water butts or ponds (see specifica-

tions for max. suction height).

ÎFill the KÄRCHER suction hose with

backflow valve with water, screw to wa-

ter supply and hang into he water butt.

ÎRemove air from appliance before oper-

ation.

Switch on the appliance without mount-

ed spray lance and run it until the water

discharging from the trigger gun is free

of bubbles. Switch off appliance and

connect spray lance.

Before Startup Water supply

Water supply from mains

Drawing in water from open reservoirs

English 7

Caution

Use the high pressure cleaner only when

you have mounted the water filter.

Never operate the high-pressure cleaner

when the tap is turned off as dry running will

damage the high-pressure pump.

ÎUnwind the high pressure hose from the

hose drum.

ÎPush the spray lance into the trigger

gun and fasten it by turning it through

90°.

ÎCompletely open the water tap.

ÎInsert the mains plug into the socket.

ÎTurn on the appliance “I/ON”.

몇Danger

The trigger gun is subjected to a recoil force

when the water jet is discharged. Make

sure that you have a firm footing and are

also holding the trigger gun and spray lance

firmly.

ÎIllustration (see page 13)

Unlock the lever on the trigger gun.

ÎPull on the lever of the trigger gun; the

device will switch on.

Note: Release the lever of the trigger gun;

the device will switch off again. High pres-

sure remains in the system.

Carrying out the most common cleaning

tasks. The work pressure can be stageless-

ly regulated between "Min" and "Max".

ÎRelease the lever on the trigger gun.

ÎTurn the spray lance to the desired po-

sition.

For particularly dirty items or areas.

Not suitable for use with detergents.

We recommend the KÄRCHER cleaning

and care program that will match the re-

spective cleaning requirements. Please

seek consultation or request information on

the subject.

ÎFill the detergent solution in the deter-

gent tank (observe dosage instructions

on the packaging of the detergent).

ÎAdjust the suction volume of the deter-

gent solution by means of the dosage

regulator for detergents.

- Medium quantity: Central position

- Large quantity: "+" position

- Small quantity: "-" position

ÎUse spray lance with pressure regula-

tion (Vario Power).

ÎTurn the spray lance to "Mix" position.

Note: This will mix the detergent with

the water stream.

ÎSpray the detergent sparingly on the

dry surface and allow it to react, but not

to dry.

ÎSpray off loosened dirt with the high-

pressure ray.

ÎRelease the lever on the trigger gun.

ÎIllustration (see page 13)

Lock the lever on the trigger gun.

ÎDuring longer breaks (more than 5 min-

utes), also turn the appliance off using

the "0/OFF" switch.

ÎInsert the trigger gun in its holder.

Start up

Operation

Spray lance with pressure regulation

Spray lance with dirt blaster

Working with detergent

Recommended cleaning method

Interrupting operation

8 English

Caution

Only separate the high-pressure hose from

the trigger gun or the appliance while there

is no pressure in the system.

ÎAfter operation with detergent: Fill the

detergent tank with clear water, turn the

spray pipe with pressure regulator to

the position "Mix", switch the appliance

on for about 1 minute and rinse with

clear water.

ÎRelease the lever on the trigger gun.

ÎTurn off the appliance "0/OFF".

ÎTurn off tap.

ÎDetach the appliance from the water

supply.

ÎPress the lever on the trigger gun to re-

lease any remaining pressure in the

system.

ÎIllustration (see page 13)

Lock the lever on the trigger gun.

ÎPull out the mains plug.

ÎRoll up the power cord and loop it e.g.

round the handle.

ÎRoll the high pressure hose on to the

hose drum: Pull out the hose drum han-

dle, turn it clockwise then retract the

handle.

ÎInsert the trigger gun in its holder.

Caution

Empty the detergent tank before transport-

ing in horizontal position.

Danger

Turn off the appliance and remove the

mains plug prior to any care and mainte-

nance work.

The appliance is maintenance-free.

Prior to longer periods of storage, e.g. in

the winter:

ÎCompletely drain all water from the ap-

pliance: Switch the appliance on with

detached high-pressure hose and de-

tached water supply (max. 1 minute)

and wait, until no more water exits at the

high-pressure connection. Turn off the

appliance.

ÎRemove filter from suction hose for de-

tergent and clean under running water.

ÎPull out the fine filter in water connec-

tion using flat-nose pliers and clean with

running water.

Caution

Protect the appliance and its accessories

against frost.

The appliance and its accessories can get

destroyed through frost if there are any wa-

ter residues in them. To avoid damage to

them:

ÎStore the appliance and the entire ac-

cessories in a frost-safe room.

Use only original KÄRCHER spare parts.

You will find a list of spare parts at the end

of these operating instructions.

Finish operation

Transport

Maintenance and care

Maintenance

Storage

Frost protection

Spare parts

English 9

You can rectify minor faults yourself with

the help of the following overview.

If in doubt, please consult the authorized

customer service.

Danger

Turn off the appliance and remove the

mains plug prior to any care and mainte-

nance work.

Repair works may only be performed by the

authorized customer service.

ÎCheck whether the voltage indicated on

the type plate corresponds to the volt-

age of the mains supply.

ÎCheck the mains connection cable for

damages.

ÎCheck setting at the spray lance.

ÎRemove air from appliance before oper-

ation.

Switch on the appliance without mount-

ed spray lance and run it until the water

discharging from the trigger gun is free

of bubbles. Switch off appliance and

connect spray lance.

ÎCheck the water supply.

ÎPull out the fine filter in water connec-

tion using flat-nose pliers and clean with

running water.

Cause: Voltage reduction due to weak

mains supply or when using an extension

cable.

ÎWhen switching on, first pull the lever of

the trigger gun and then switch the ap-

pliance switch to "I/ON".

ÎClean high-pressure nozzle: Remove

dirt and debris from the nozzle bore, us-

ing a needle and rinse through with wa-

ter from the front.

ÎCheck water flow quantity.

ÎSlight leakage from the appliance pump

is normal. If the leakage increases con-

tact the authorized customer service.

ÎUse spray lance with pressure regula-

tion (Vario Power).

Turn the spray lance to "Mix" position.

ÎCheck the settings at the detergent dos-

aging regulator.

ÎClean the detergent suction hose filter.

ÎCheck the detergent suction hose for

kinks.

Troubleshooting

Appliance is not running

Pressure does not build up in the

appliance

Appliance does not start, motor hums

Strong pressure fluctuations

Appliance is leaking

No detergent infeed

10 English

Australia

Kärcher Pty. Ltd.

40 Koornang Road

Scoresby, Victoria 3179

1800 675 714 (Free Call)

www.karcher.com.au

Subject to technical modifications!

Customer Service Technical specifications

Power connection

Voltage 230-240

1~50

V

Hz

Connected load 2,2 kW

Mains fuse (slow-blow) 16 A

Maximum allowed net im-

pedance

0,388

+ j0,243

Ohm

Ohm

Protective class I

Protection class IP X5

Water connection

Max. feed temperature 60 °C

Min. feed volume 11 I/min

Max. feed pressure 0,6 MPa

Max. Suction height 0,5 m

Performance data

Working pressure 13 MPa

Max. permissible pressure 15 MPa

Water flow rate 8,2 I/min

Detergent flow rate 0-0,2 I/min

Recoil force of trigger gun 21 N

Hand-arm vibration

(ISO 5349)

0,8 m/s2

Sound pressure level

LpA (EN60704-1)

73 dB(A)

Sound power level

LWA (2000/14/EG)

92 dB(A)

Dimensions

Length 400 mm

Width 395 mm

Height 925 mm

Weight 19 kg

English 11

Notes

12 English

Assembly

English 13

Assembly

14 English

Notes

English 15

Spare Parts
