Kasda Networks KW55293 Wireless Router User Manual KE318EU

Kasda Networks inc Wireless Router KE318EU

Users Manual

KW55293 Wireless Router
User Manual
KW55293 Wireless Router User Manual
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.
KW55293 Wireless Router User Manual
FCC Warning:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
KW55293 Wireless Router User Manual
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
KW55293 Wireless Router User Manual
1
Content
1 INTRODUCTION ....................................................................................................................... 2
1.1 MAIN FEATURES .............................................................................................................. 2
1.1.1 Wireless .......................................................................................................................... 2
1.1.2 Network Protocol and Features ...................................................................................... 2
1.1.3 Firewall ........................................................................................................................... 2
1.1.4 Management Support .................................................................................................... 3
1.1.5 Operating System Support ............................................................................................. 3
1.1.6 Environmental ................................................................................................................ 3
1.2 PACKET CONTENTS ....................................................................................................... 3
1.3 SYSTEM REQUIREMENTS.................................................................................................. 3
1.4 FACTORY DEFAULTS ...................................................................................................... 4
1.5 WARNINGS AND CAUTIONS ............................................................................................. 4
2 HARDWARE DESCRIPTION ................................................................................................... 5
3 HARDWARE INSTALLATION ................................................................................................. 7
4 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP,7 ....................................... 8
5 CONFIGURING THE ROUTER ................................................................................................ 9
5.1 WEB-BASED MANAGEMENT GUIDE ..................................................................................... 9
5.1.1 Login ............................................................................................................................... 9
5.1.2 Network (WANSettings) ............................................................................................... 12

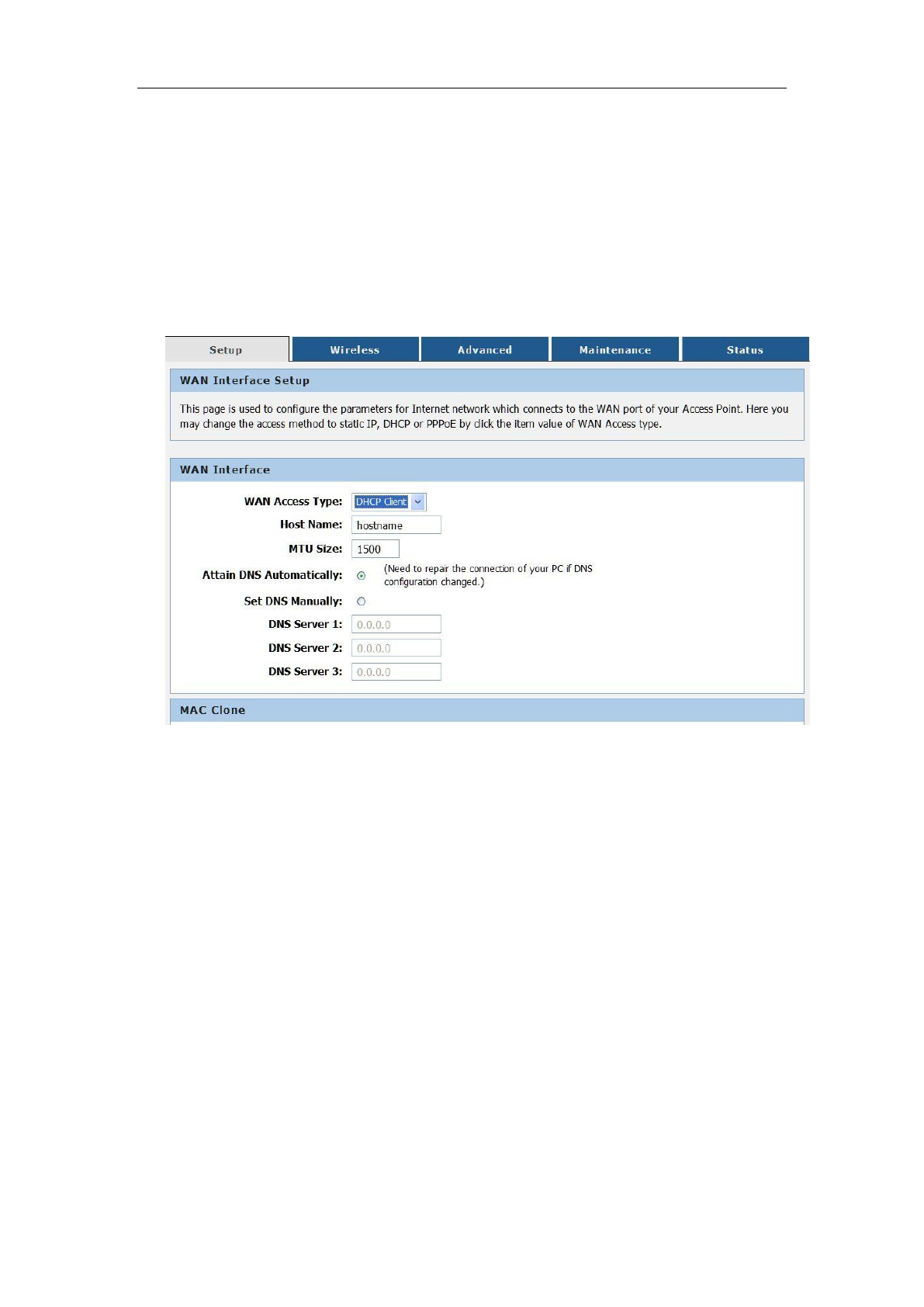

5.1.3 DHCP ..................................................................................................................................... 12

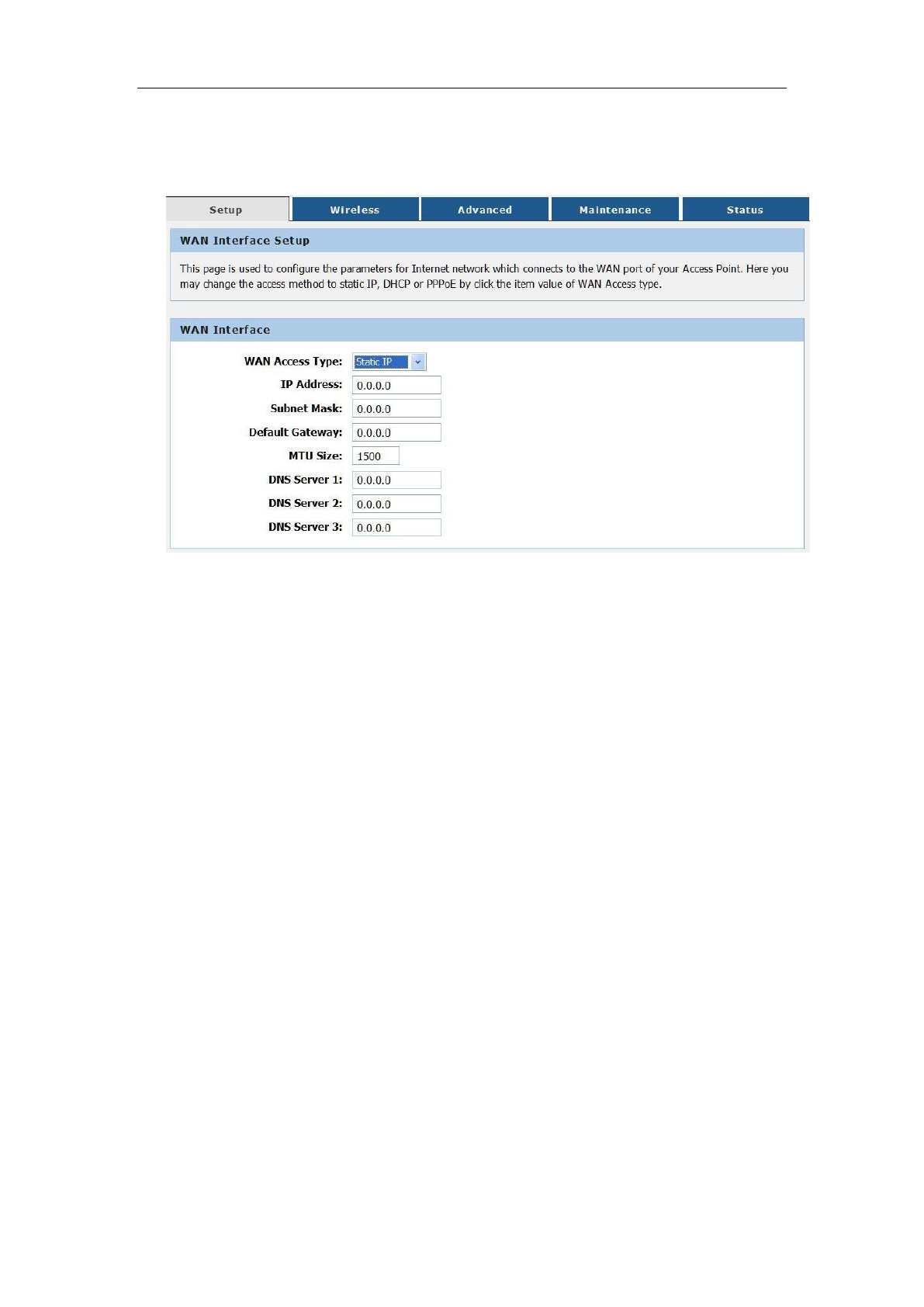

5.1.4 Static IP ................................................................................................................................. 13

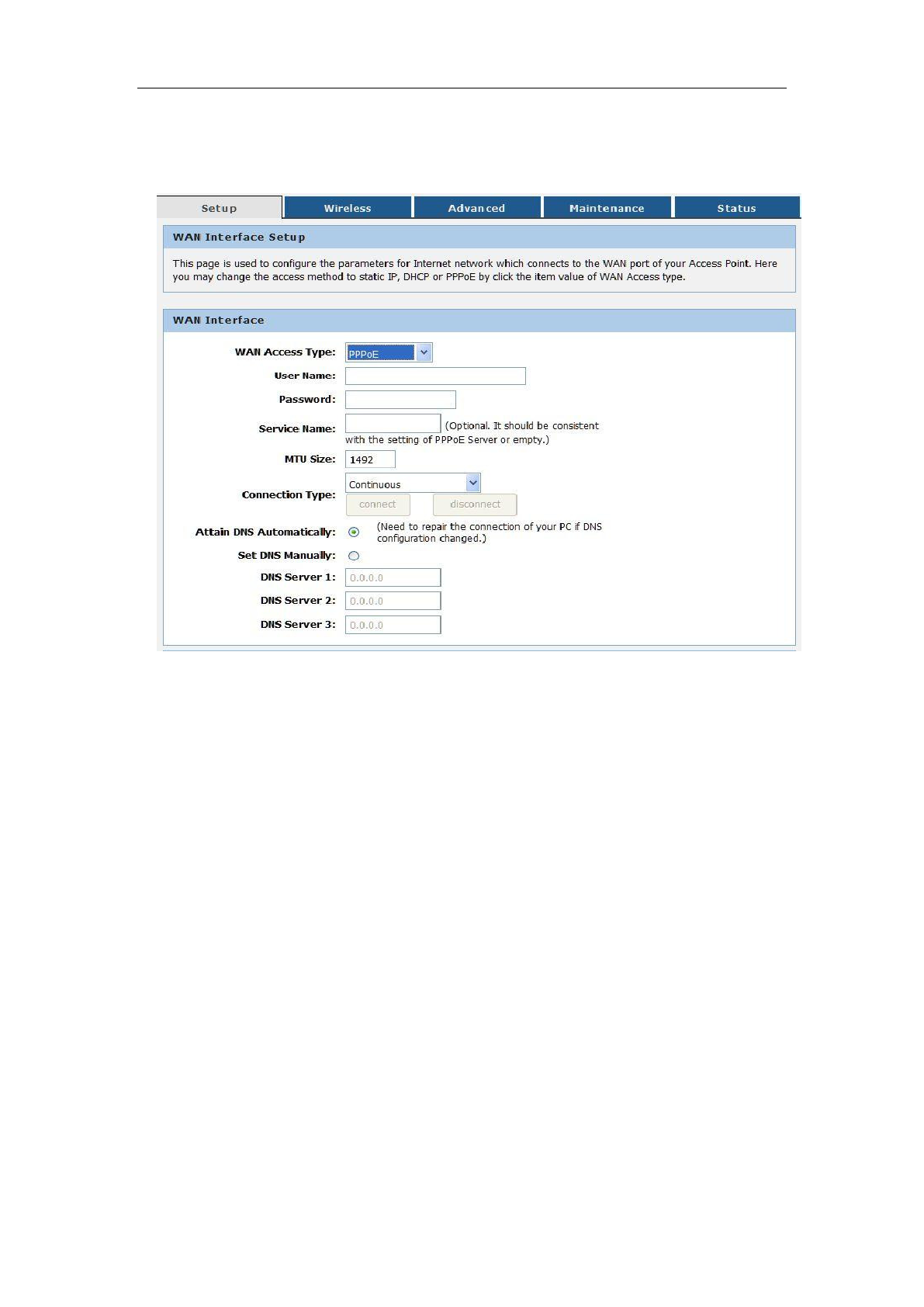

5.1.5 PPPOE ................................................................................................................................... 14

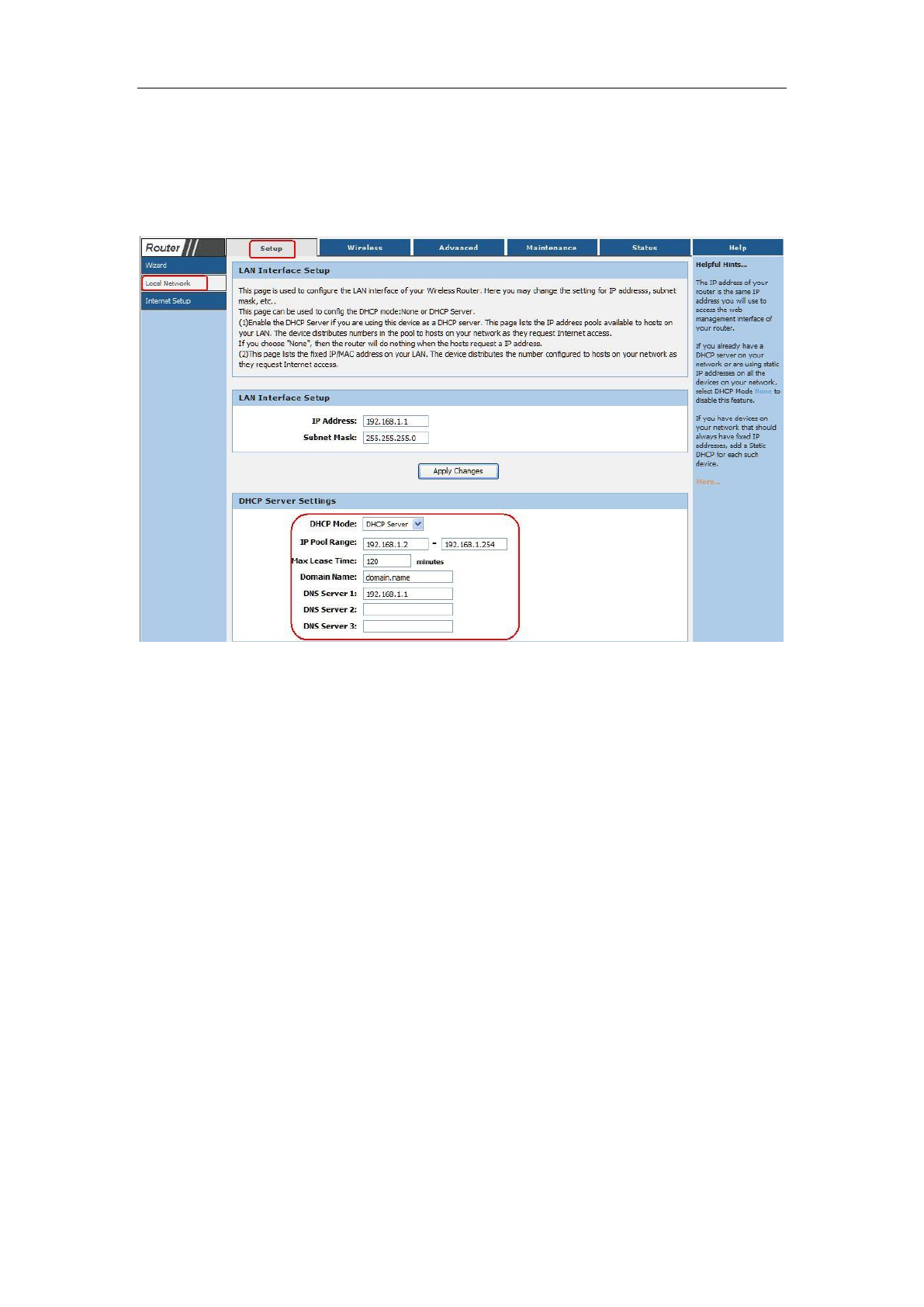

5.1.6 LAN Settings .......................................................................................................................... 15
5.2 WIRELESS SETTINGS ..................................................................................................... 16

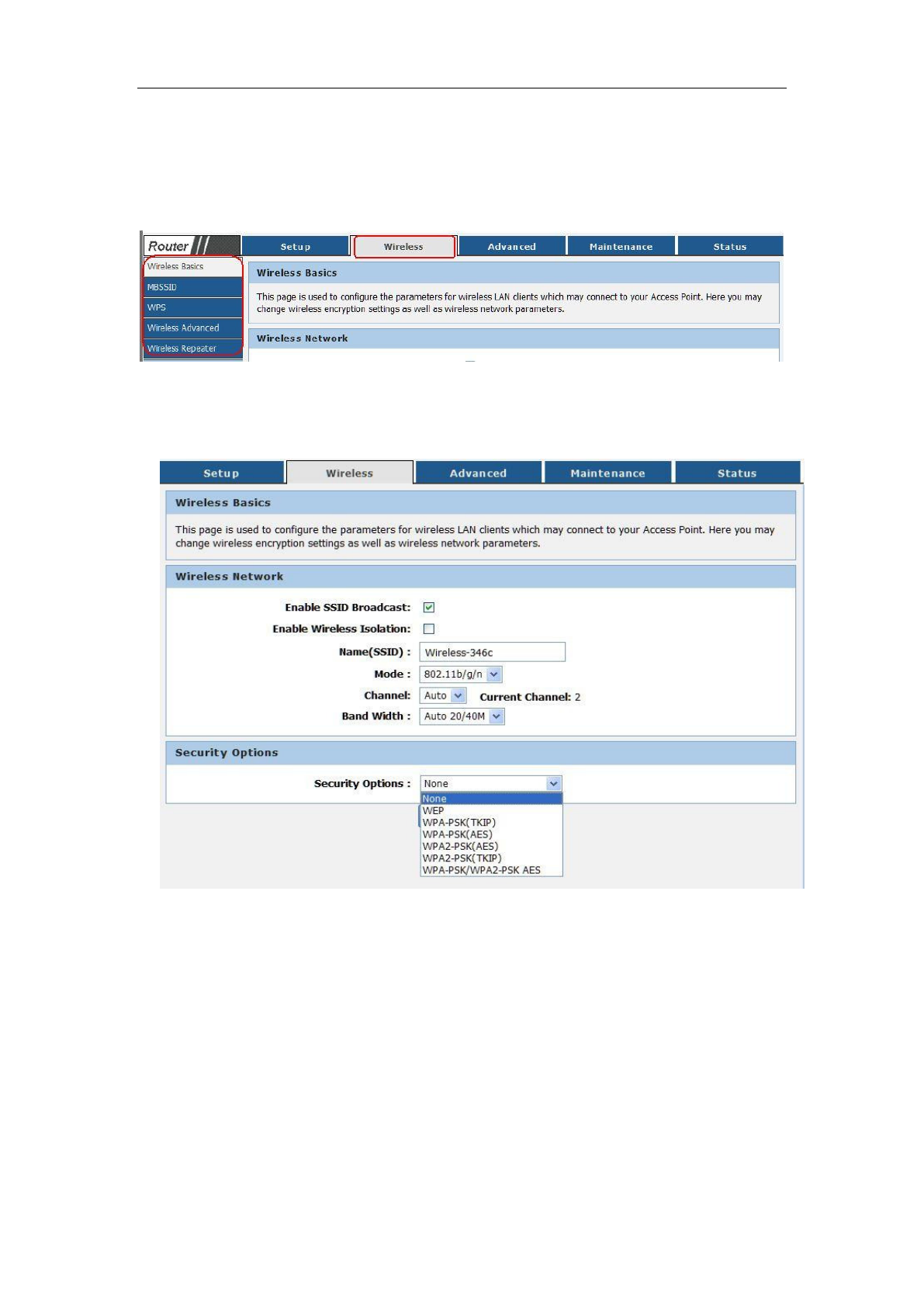

5.2.1 Basic Wireless Settings.......................................................................................................... 16

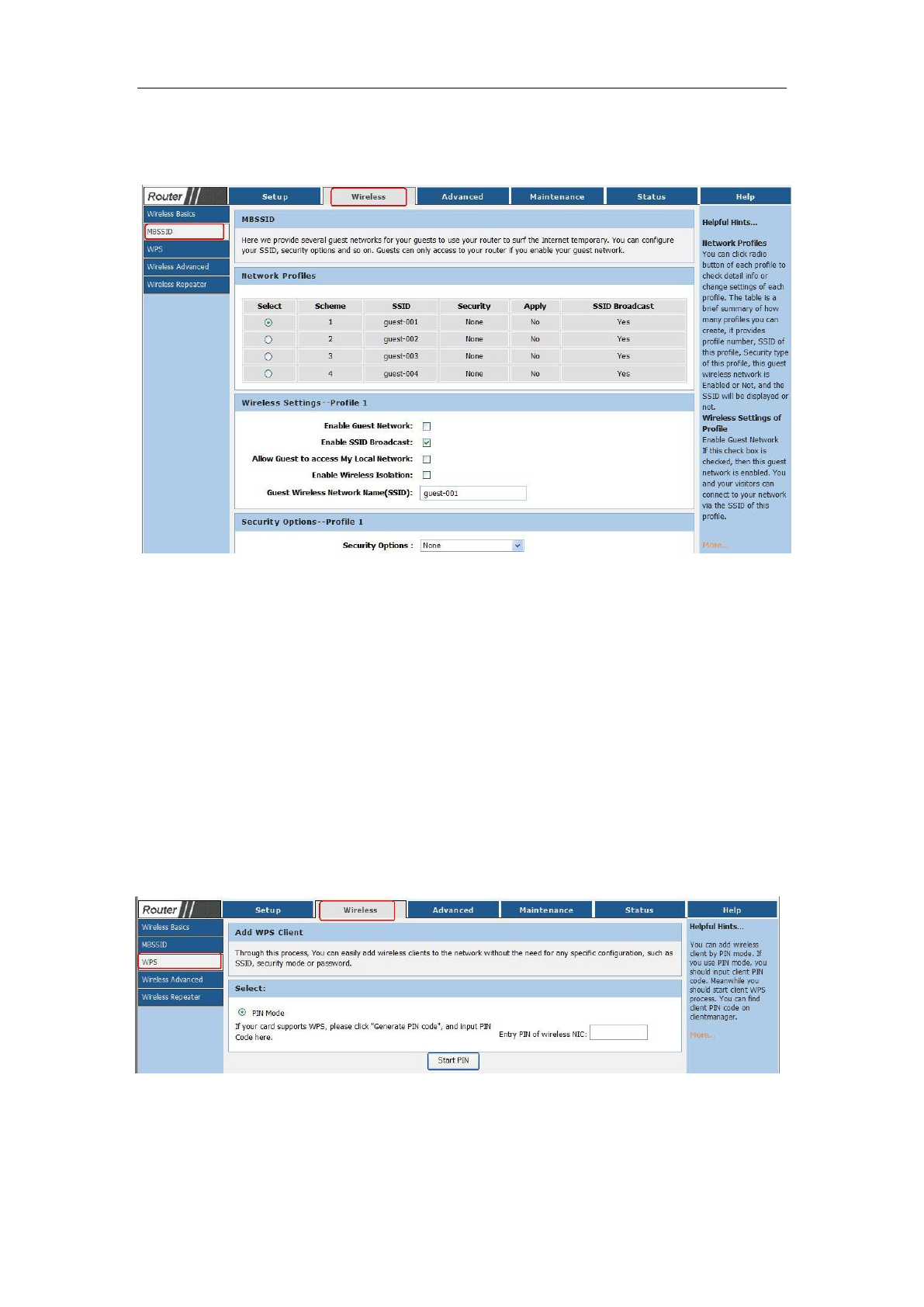

5.2.3 MBSSID.................................................................................................................................. 18
5.2.3 WPS 18

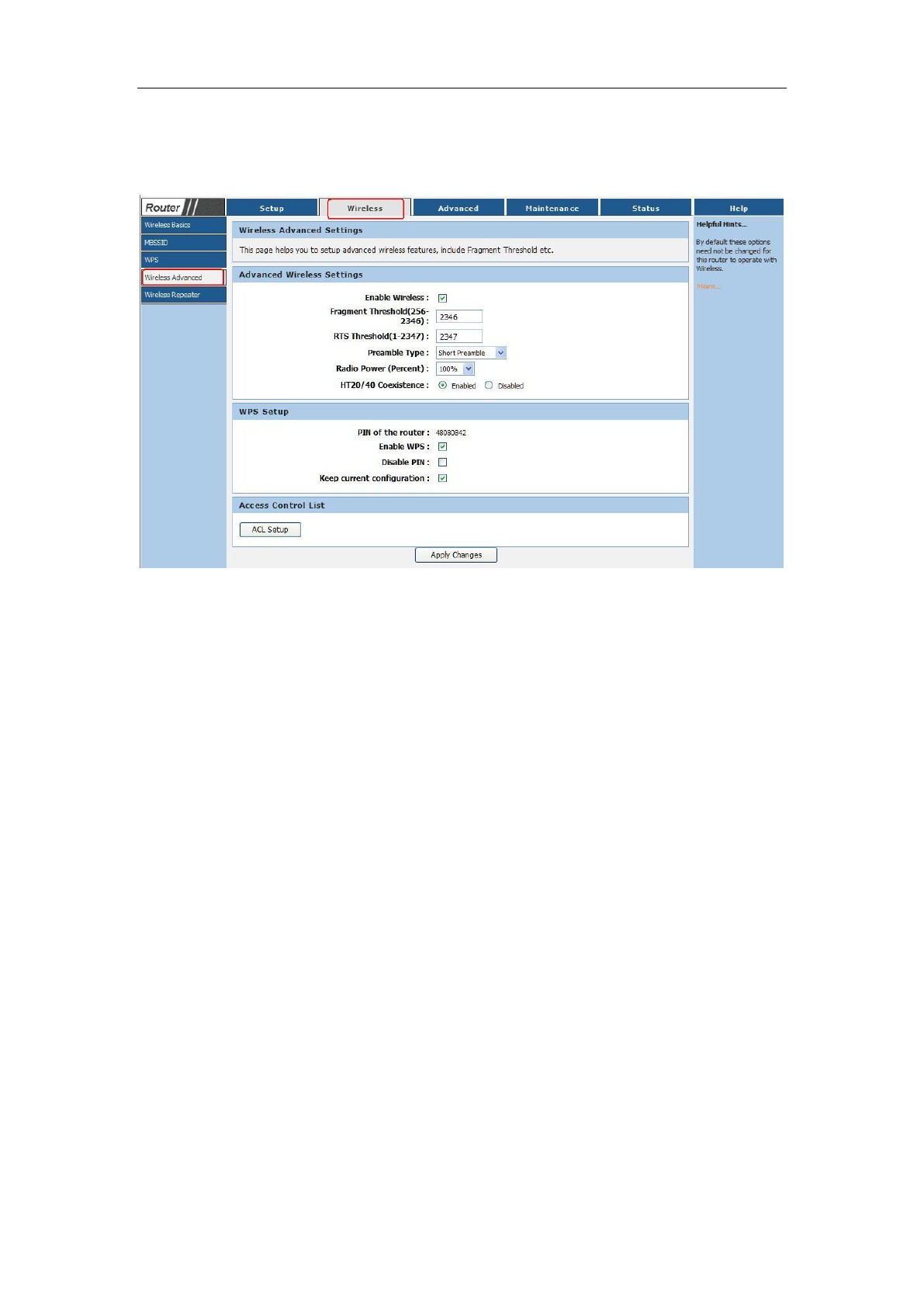

5.2.4 Wireless Advanced ................................................................................................................ 19
5.3 DHCP SETTINGS ........................................................................................................... 20
5.4 FACTORY DEFAULT .......................................................................................................... 21
APPENDIX: FREQUENT ASKED QUESTIONS ..................................................................... 22
KW55293 Wireless Router User Manual
2
1 Introduction
Thank you for choosing our product. The KA55293 Wireless Router uses
CPE solution that fully complies with IEEE802.11b/g/n standards. It will provide your
SOHO with convenient Internet.
1.1 Main Features
1.1.1 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 300 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK,
802.1x
1.1.2 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.3 Firewall
Built-in NAT
MAC Filtering
Packet Filtering
KW55293 Wireless Router User Manual
3
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.4 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.5 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.6 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ROUTER x 1
Power Adapter x 1
CD x 1
1.3 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not
necessary if the Router is connected directly to the Ethernet)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45
TCP/IP protocol on each PC
KW55293 Wireless Router User Manual
4
Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or
Apple Safari
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
1.5 Warnings and Cautions
never use the product near water.
To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet. Under the above condition, if you also install
telephone with anti-cheat-dial device, please pull out this kind of
telephone, otherwise ADSL Router may occur frequently off-line.
KW55293 Wireless Router User Manual
5

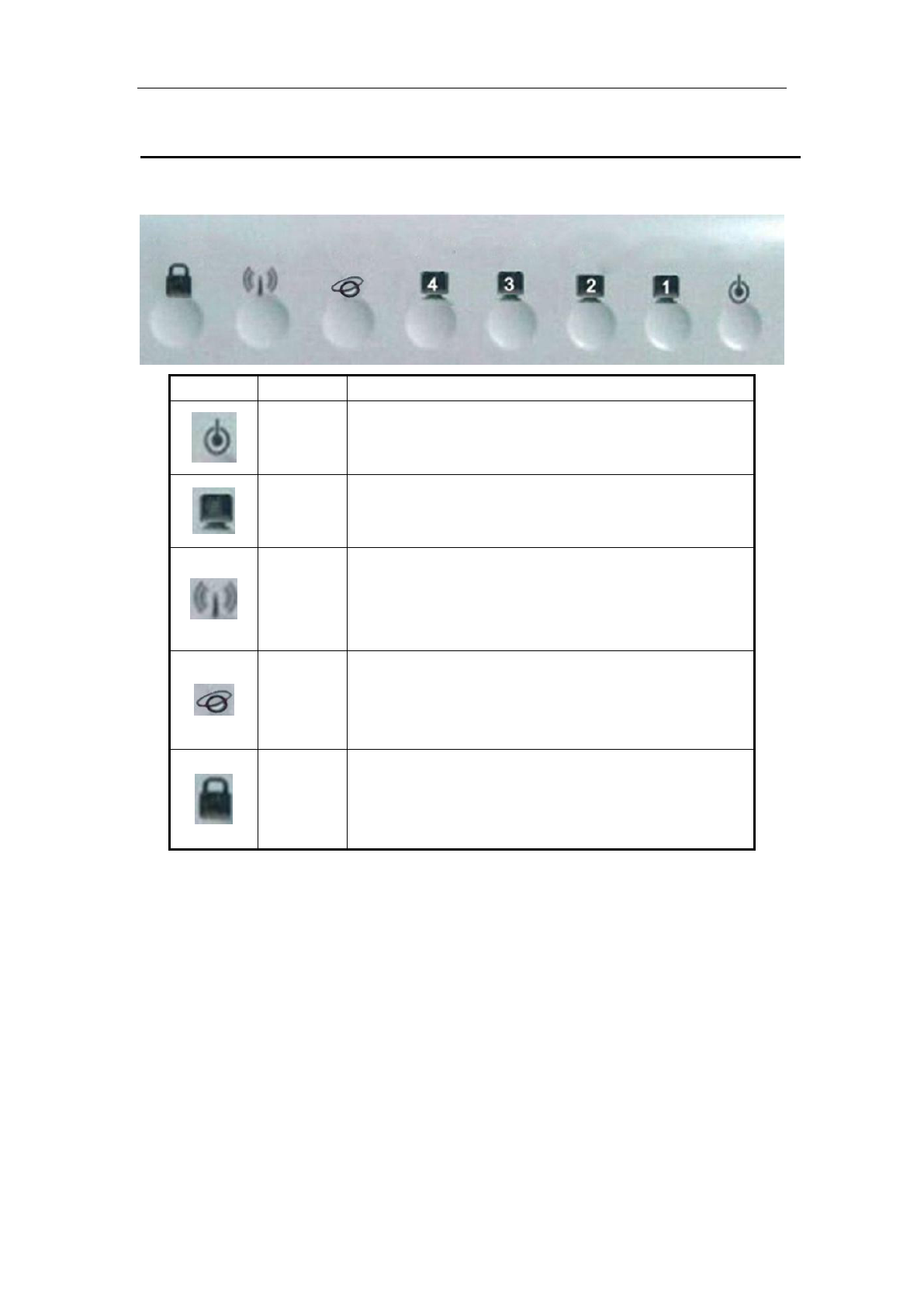

2 Hardware Description
Front Panel
LED
Color
Function
Green
On: Power on
Off: No power
Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
Green
On: The WAN port has detected a link with an attached device
Blinking: Data is being transmitted or received by the WAN port
Off: No WAN link via the WAN port
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection
KW55293 Wireless Router User Manual
6

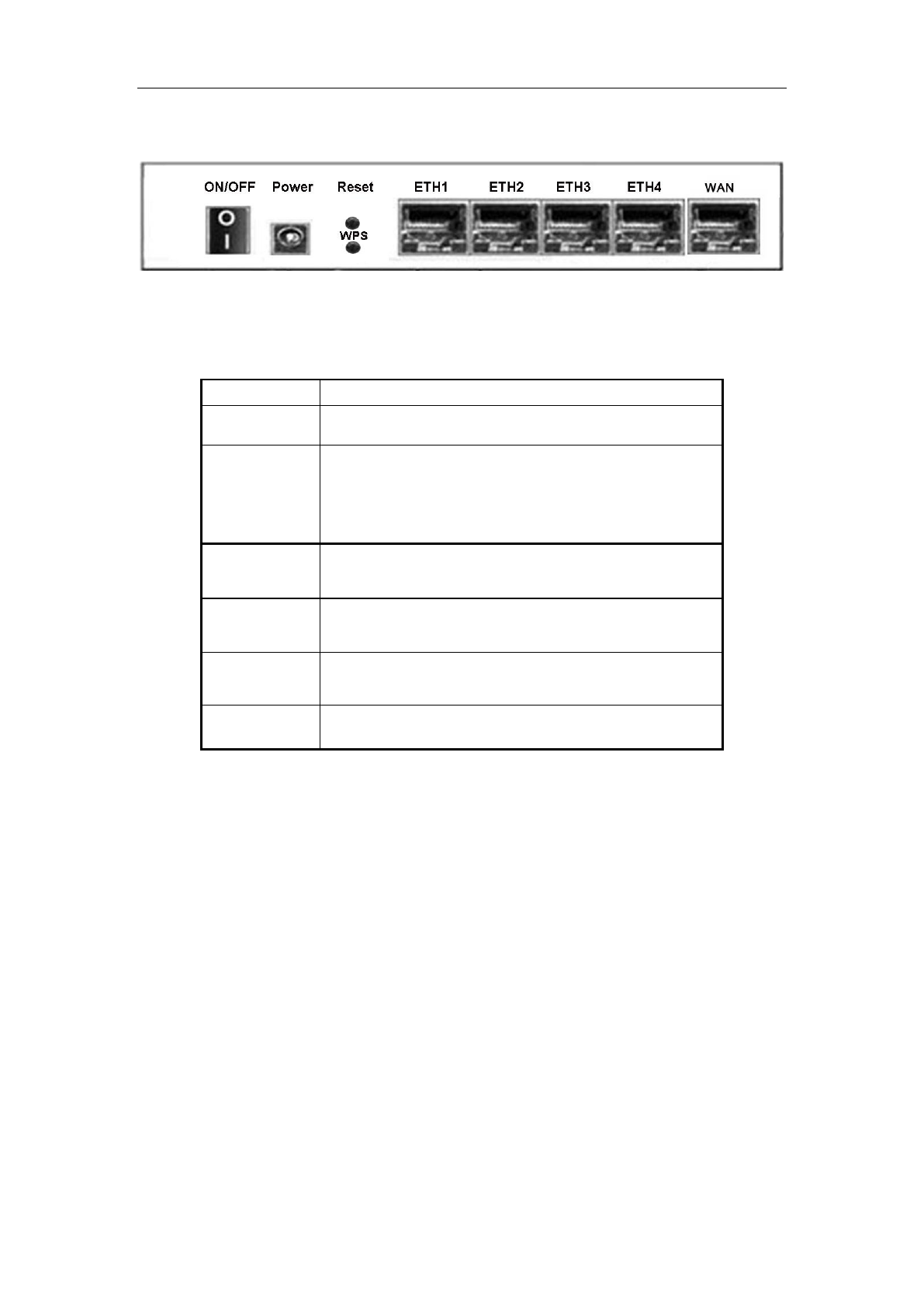

Rear panel
Port
Function
WAN
Connect the device to a cable or DSL modem
ETH1,2,3,4
Connect the device to your PC's Ethernet port, or to the
uplink port on your hub/switch, using a RJ-45 cable
RESET
System reset or reset to factory defaults
WPS
A convenient way for WPS set.
ON/OFF
Switch it on or off
POWER
Connect to the supplied power adapter
KW55293 Wireless Router User Manual
7

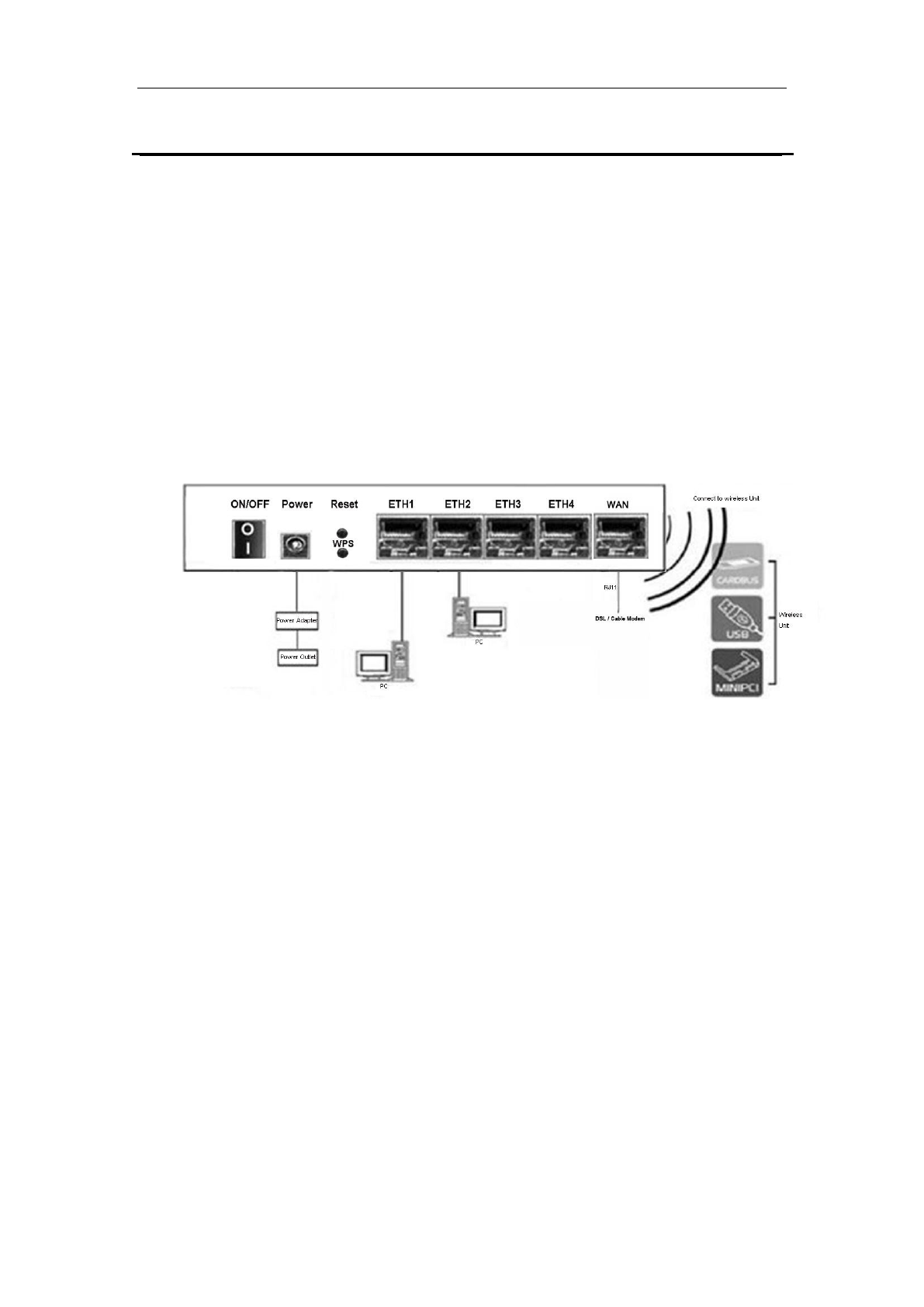

3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using an Ethernet Cable to connect the WAN port of the ROUTER to a
cable or DSL modem.
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the AC power outlet, and then press the on-off button.
KW55293 Wireless Router User Manual
8
4 Local PC Configuration in Windows 95, 98, ME, XP,7
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
KW55293 Wireless Router User Manual
9
5 Configuring the Router
5.1 Web-based Management Guide
In order to use the web-based management software, it will be necessary to use a
computer that occupies the same subnet as the Router. The simplest way to do
this for many users will be to use DHCP server that is enabled by default on the
Router.

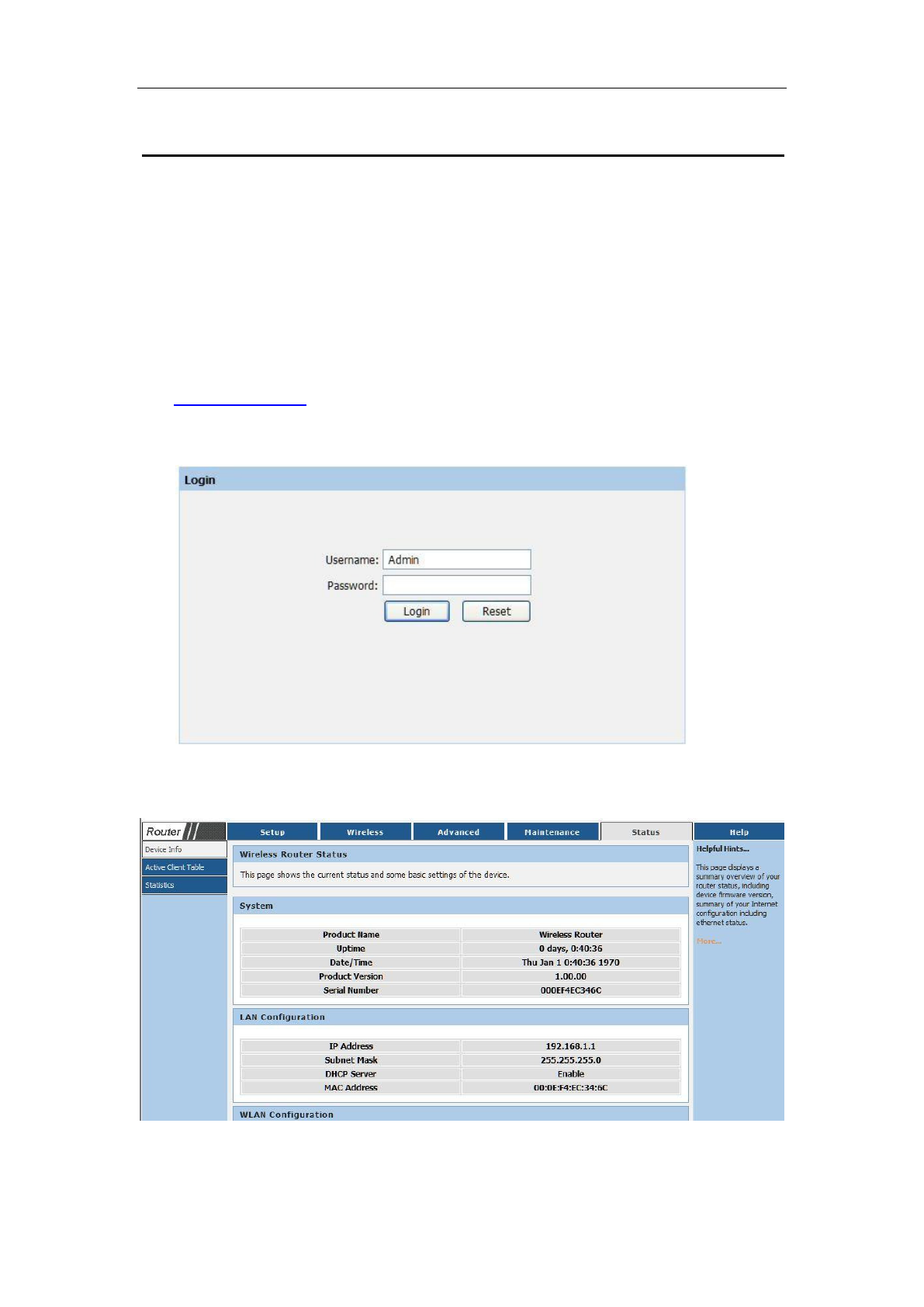

5.1.1 Login
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting pages. Enter username Admin
Then click Loginbutton login.
After log on ,you will see the following screen :
KW55293 Wireless Router User Manual
10

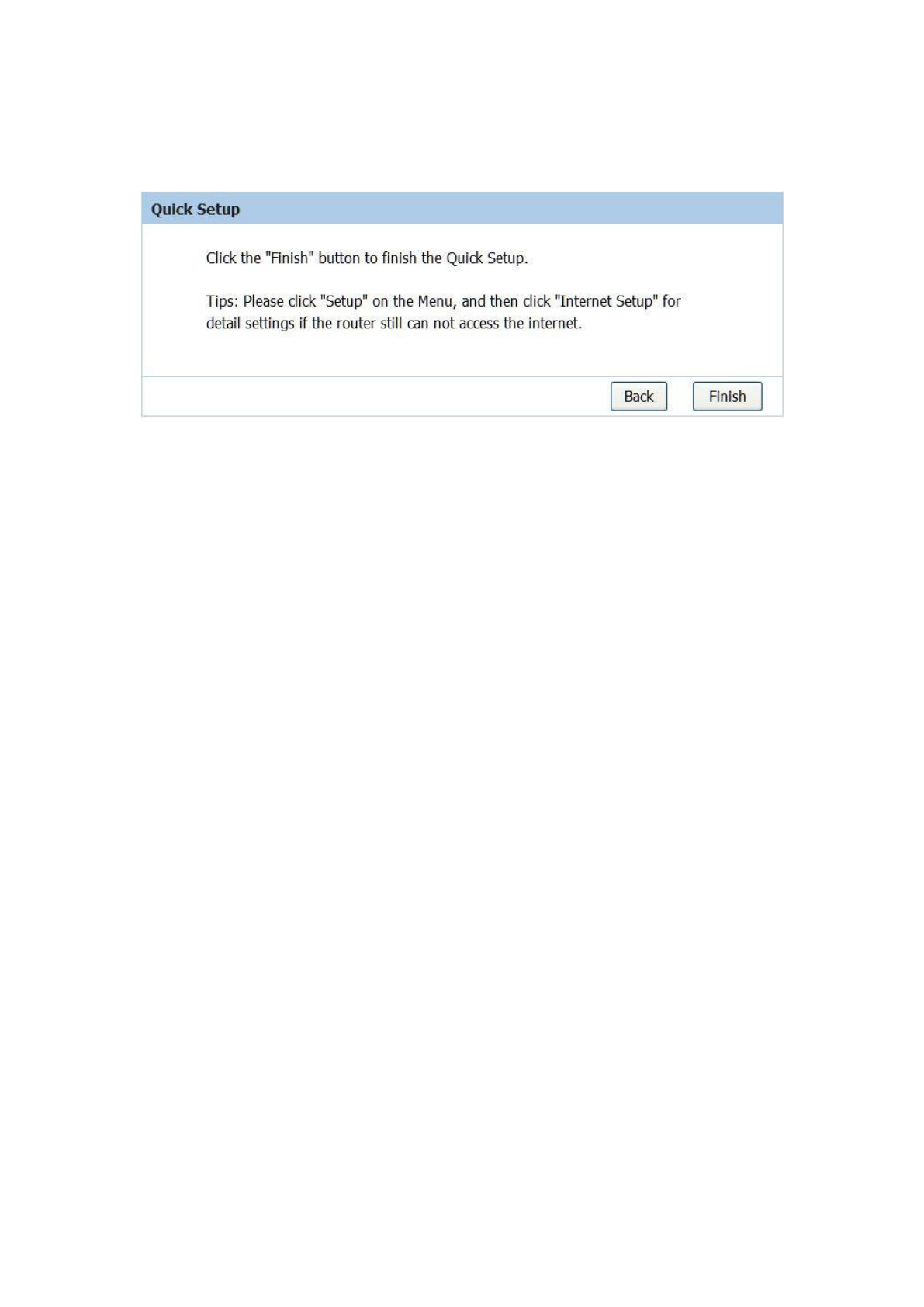

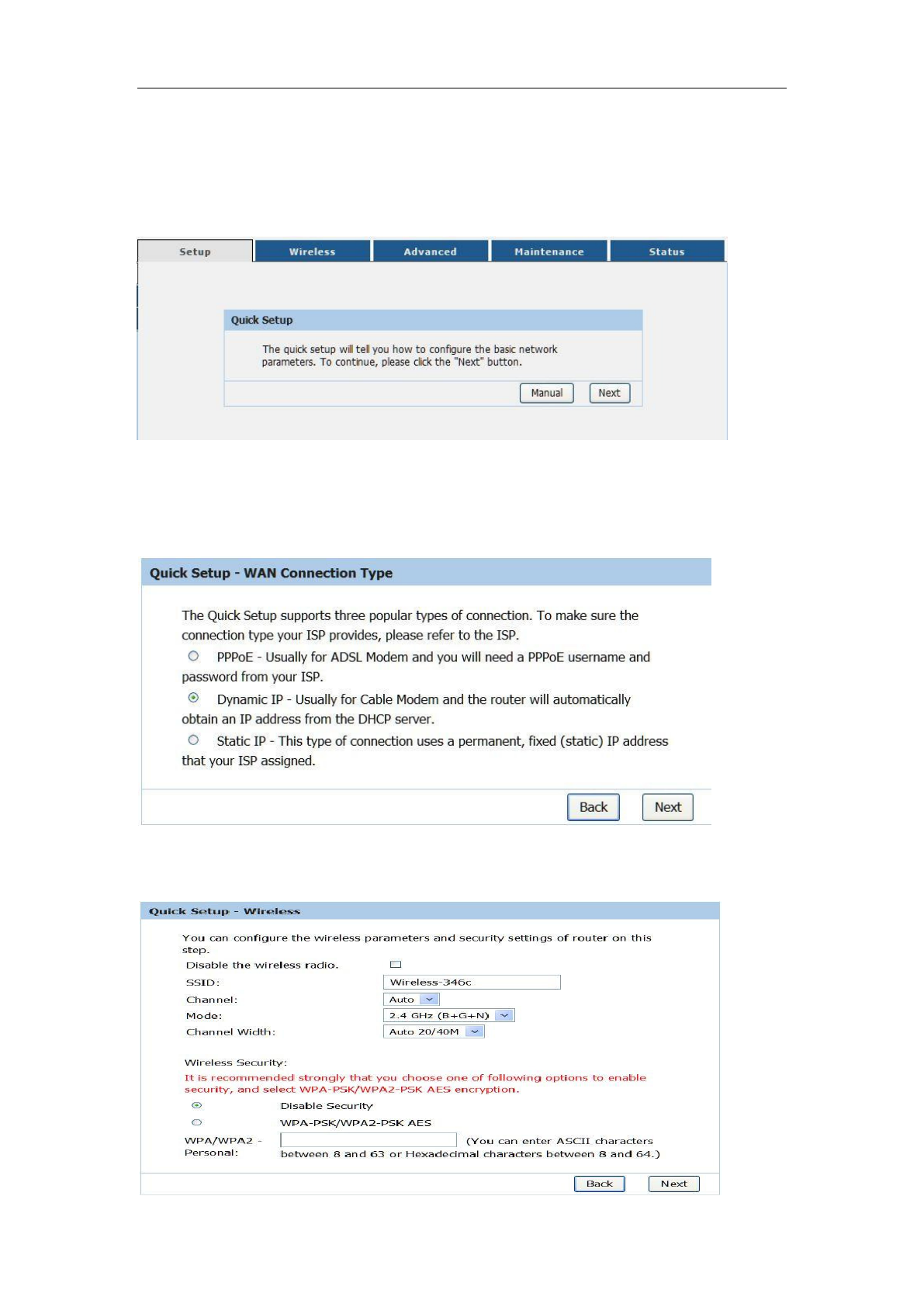

3.2 Quick Installation Guide
After successfully log in, you can click Setup configure your router, we can select
Manual or Next button setup KW55293,Next will guide us for a basic setting step
by step,and the Manual will guide us to home page for more detailed setup.here we
Choose next enter quick setup mode to quickly configure your Router.
Then WAN Connection Type page will appear, shown as bellow. The Router provides
three popular ways PPPoE ,Dynamic IP, Static IP to connect to the Internet. If you are
sure of what kind of connection type your ISP provides, you can select the very type
and click Next to go on configuring.
After finishing WAN Connection Type selection, Click Next to continue. Configure the
basic parameters for wireless network in the following screen as shown:
KW55293 Wireless Router User Manual
11
Enter the SSID what you want to use, and configure the security settings of your wireless
network. then click Next.
Click Finish to save you settings.
KW55293 Wireless Router User Manual
12
5.1.2 Network (WANSettings)
KW55293 supports three types WAN connection.they are DHCP,Static
IP,PPPOE, Select any of them you will be able to configure the corresponding
connection of WAN. Choose menu Setup Internet Setup”, you can
configure the IP WAN parameters
5.1.3 DHCP
If your ISP provides the DHCP service, please choose Dynamic IP type, and the
Router will automatically get IP parameters from your ISP. You can see the page
as follows . This page displays the WAN IP parameters assigned dynamically by
your ISP, including IP address, Subnet Mask, Default Gateway,
Host Name - This option specifies the Host Name of the Router.
Domain Name -
If your ISP gives you one or two DNS addresses,enter the
addresses into the correct fields. Otherwise, the DNS servers will be assigned
dynamically from your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
13
5.1.4 Static IP
If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS
setting, select Static IP. The Static IP settings page will appear.
IP Address: Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask: Enter the subnet Mask in dotted-decimal notation provided by your
ISP, usually is 255.255.255.0.
Default Gateway:(Optional) Enter the gateway IP ddress in
dotted-decimal notation provided by your ISP.
Host Name - This option specifies the Host Name of the Router.
Domain Name -
If your ISP gives you one or two DNS addresses,enter the addresses
into the correct fields. Otherwise, the DNS servers will be assigned dynamically from
your ISP.
MTU Size :The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU
Size unless required by your ISP.
DNS1/DNS2(Optional) /DNS3(Optional) : Enter one or two DNS addresses in
dotted-decimal notation provided by your ISP.
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
14
5.1.5 PPPOE
If your ISP provides a PPPoE connection, select PPPoE option. And you should
enter the following parameters.
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Connection Type:there are three connection ways,as following:
Continuous:Conncted all the time
Connect on Demand :In this mode, the Internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-established
when you attempt to access the Internet again. If you want your Interne
t connection
keeps active all the time,
please enter “0” in the Max Idle Time field. Ot
herwise,
enter the number of minutes you want to have elapsed before your Internet
access disconnects.
Manually -
You can click the Connect/Disconnect button to connect/disconnect
immediately. This mode also supports the Max Idle Time function as Connect on
Demand mode. The Internet connection can be disconnected automatically after
a specified inactivity period and re-established when you attempt to access the
Internet again. Click the Connect button to connect immediately. Click the
Disconnect button to disconnect immediately.
Server Name - This option specifies the Server Name of the Router.
KW55293 Wireless Router User Manual
15
Domain Server -
If your ISP gives you one or two DNS addresses,enter the addresses into
the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is
1500 Bytes. It is not recommended that you change the default MTU Size unless required by
your ISP.
Click the Apply Changes button to save your settings.

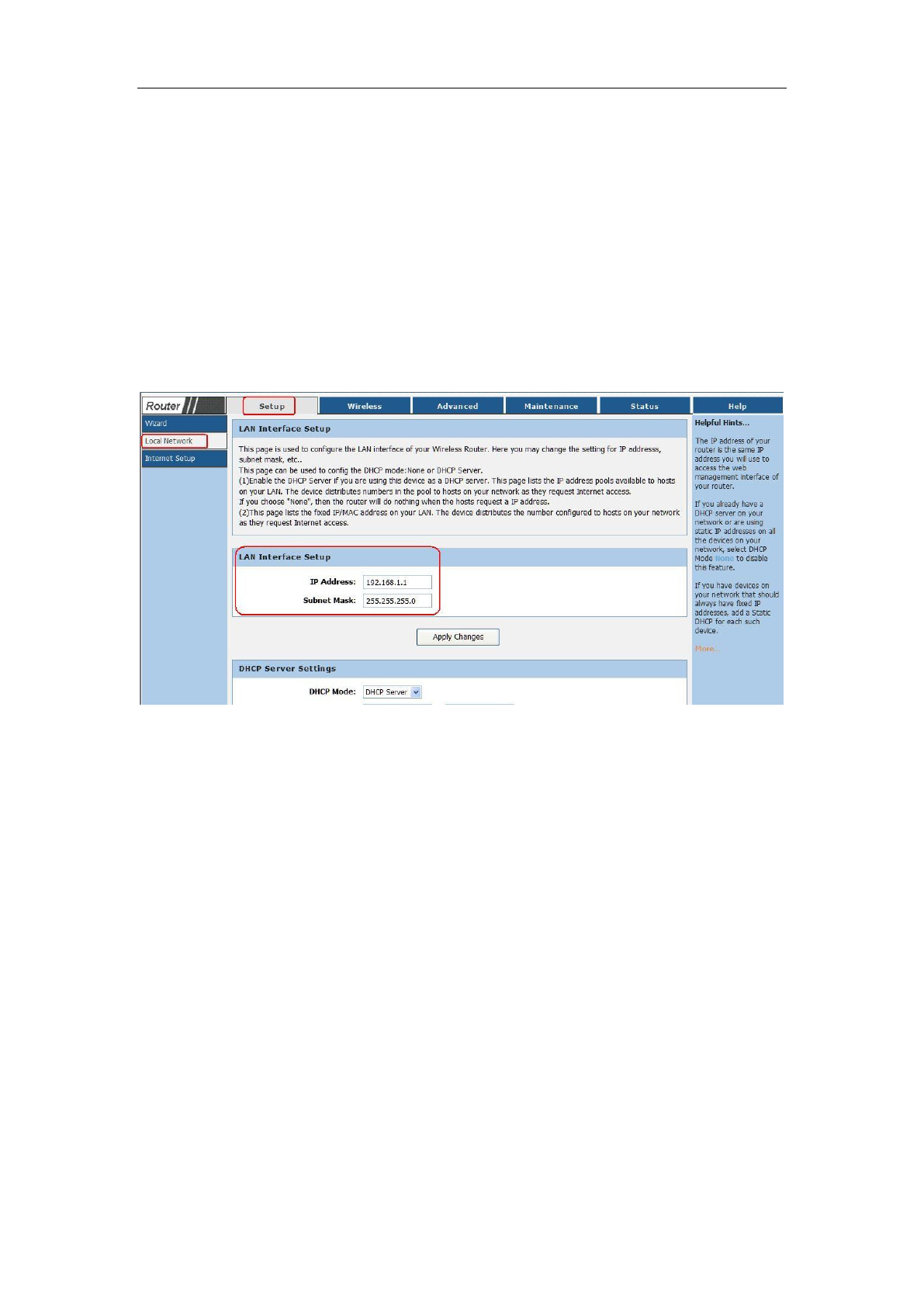

5.1.6 LAN Settings
Choose menu “
Setup
Local Network
”, you can configure the IP parameters of
the LAN on the screen as below.
IP Address:Enter the IP address of your Router or reset it in dotted-decimal notation
(factory default: 192.168.0.1).
Subnet Mask:An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Click the Apply Changes button to save your settings.
Note:
1) If you change the IP Address of LAN, you must use the new IP Address to log in
the Router.
2) If the new LAN IP Address you set is not in the same subnet, the IP
Address pool of the DHCP server will change accordingly at the same
timewhile the Virtual Server and DMZ Host will not take effect until they
are re-configured.
KW55293 Wireless Router User Manual
16
5.2 Wireless Settings
There are five submenus under the Wireless menu (shown as bellow): Wireless Basic
MBSSID ,WPS, Wireless Advanced, Wireless Repeater. Click any of them, and you
will be able to configure the corresponding function.
5.2.1 Basic Wireless Settings
Choose menu “WirelessWireless Basics”, you can configure the basic settings
for the wireless network on this page.
NameSSID Also called the SSID. Enter a value of up to 32 characters. The same
name must be assigned to all wireless devices in your network .
Band Width :Select the channel width from the drop-down list. The default setting is
40MHz in Both Bands, which can adjust the channel width for your clients automatically.
Channel:This field determines which operating frequency will be used. The default
channel is set to Auto, so the AP will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
SSID Broadcast: When wireless clients survey the local area for wireless networks to
associate with, they will detect the SSID broadcast by the Router. If you select the Enable
SSID Broadcast checkbox, the Wireless Router will broadcast its name (SSID) on the air.
KW55293 Wireless Router User Manual
17
Security Option: You can configure the security settings of your wireless network. There are
six wireless security modes supported by the Router: WEP,802.1X,WPA, WPA2-PSK, WPA2,
WPA2-PSK. Different item leads different web page settings. Please read the following
information carefully:
Done :If you do ot at to use ireless seurity, hek this radio utto. But it’s strogly
recommended to choose one of the following modes to enable security.
WEP open and WEP shared —WEP is a eryptio shee that is used to protet user’s
wireless data communications. WEP uses a combination of 64-bit keys or 128-bit keys to
proide aess otrol to user’s etork ad eryptio seurity for eery data trasissio.
To decode a data transmission, each wireless client on the network must use an identical
64-bit or 128-bit key. WEP is an older wireless encryption method that is not as hard to
break as the more-recent WPA.
802.1x In 802.1x (also known as RADIUS), a separate machine called an authentication
server receives a user ID and password. It grants or denies access based on whether the ID
and password match any entries in its account list. User can optionally enable WEP
encryption with this option. Because it requires a separate machine acting as the
authentication server, 802.1x is most often used in business environments.
WPA WPA is a more recent encryption method that addresses many of the weaknesses in
WEP. Any client capable of WPA encryption should use it instead of WEP.
WPA (PSK) This is WPA encryption combined with a pre-shared key (PSK), which is a text
string known only to the gateway and authorized wireless clients. The gateway rejects the
login if the client's PSK does not match.
WPA2 WPA2 is a more advanced encryption method than WPA. Because it is a more
recent standard, some of user’s ireless deies ight ot e ale to use it.
WPA2 (PSK) This option uses WPA2 with a pre-shared key.
WPA2 and WPA This option supports WPA2/WPA encryption for devices capable of one
or the other standard. The gateway automatically detects whether a particular device can
use WPA2 or WPA.
WPA2 AND WPA (PSK) This has WPA2 or WPA encryption based on client abilities, as well
as a pre-shared key.
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
18
5.2.3 MBSSID
Choose eu WirelessMBSSID, you can configure the Guest Network Wireless Settings
on the page as shown:
Enable Guest Network :You can on or off MBSSID function
Total Guest Allowed:You can configure the number of guest
Enable SSID Broadcast:Enable or Disable the SSID Broadcast
Allow Gust to access My Local Netword:If enabled, guests can communicate with hosts.
Security Option:Can set password for guest network
Click the Save Changes button to save your settings.
5.2.3 WPS
Choose eu WirelessWPS, you can configure the WPS Settings on the page as shown:
WE can enter PIN code in the area of PIN then click Start Pin enabled the WPS function.
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
19
5.2.4 Wireless Advanced
Choose eu Wireless Wireless Advanced, you a configure the wireless advanced
Settings on the page as shown:
Enabled Wireless: Enabled or Disabled wireless function
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance because of excessive packets. 2346 is the default setting and
is recommended.
RTS Threshold :Here you can specify the RTS (Request to Send) Threshold. If the packet
is larger than the specified RTS Threshold size, the Router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
Radio Power :can guarantee the packets with high-priority messages being transmitted
preferentially. It is strongly recommended.
Enable WPS:Enable or disable WPS function
Enable PIN: Enable or disable PIN function
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
20
5.3 DHCP Settings
Choose eu SetupLocal NetworkDHCP Server Settings, you a ofigure the DHCP
Server on the page as shown bellow.The Router is set up by default as a DHCP (Dynamic
Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s)
that are connected to the Router on the LAN.
DHCP Server:Enable or Disable the DHCP server. If you disable the Server, you must have
another DHCP server within your network or else you must configure the computer
manually.
IP Poor Range: Specify an IP address for the DHCP Server to start with when assigning IP
addresses. 192.168.1.2 is the default start address. And Specify an IP address for the DHCP
Server to end with when assigning IP addresses. 192.168.1.254 is the default end address.
Max Lease Time:The Address Lease Time is the amount of time a network user will be
allowed connection to the Router with their current dynamic IP Address.
Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address.
After the time is up, the user will be automatically assigned a new dynamic IP address.
Click the Apply Changes button to save your settings.
KW55293 Wireless Router User Manual
21

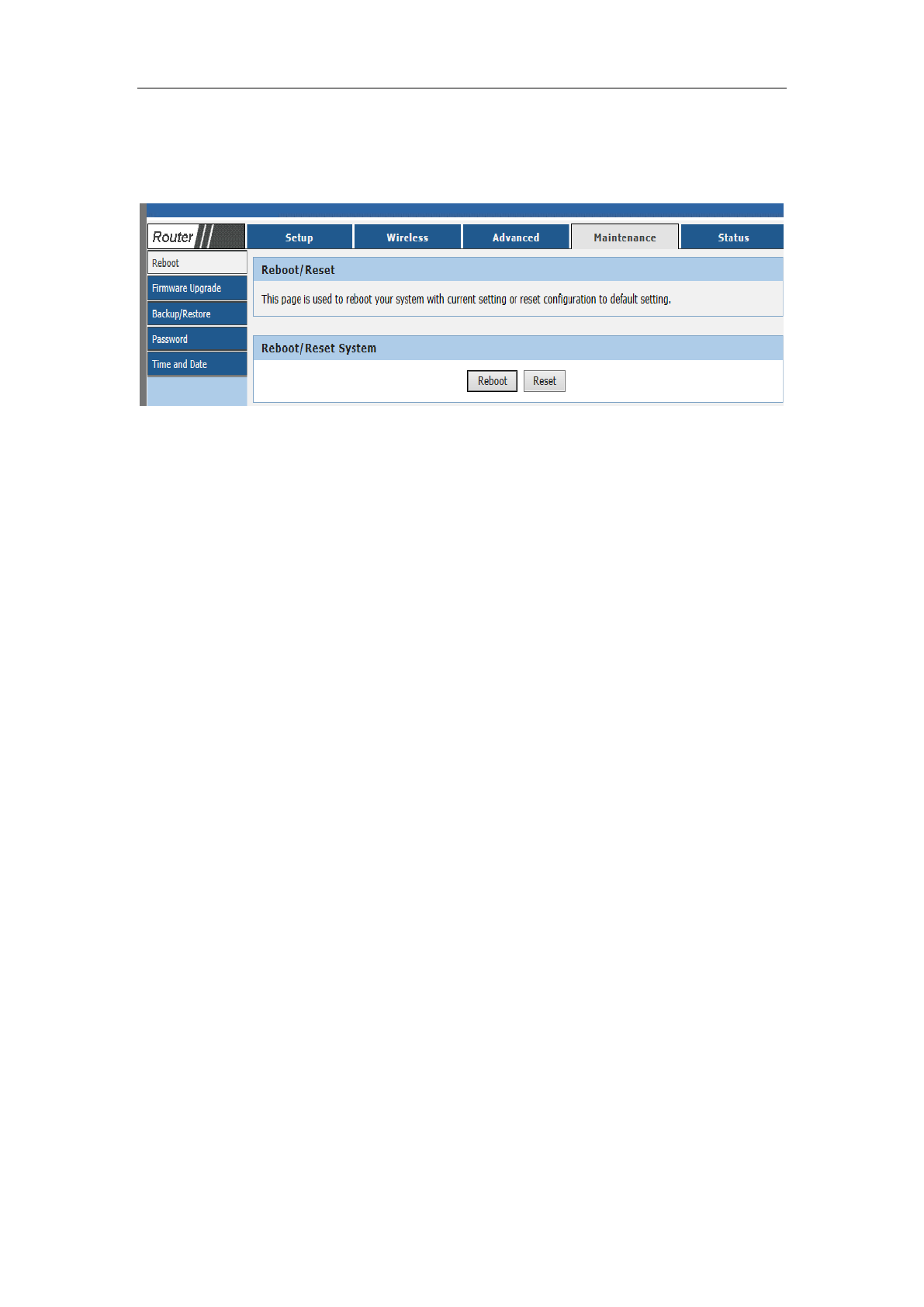

5.4 Factory Default
Choose menu Maintenance Reboot, ad you a restore the
configurations of the Router to factory defaults on the following screen
Click the Reboot button to reset all configuration settings to their default values.
The default User Name: Admin
The default Subnet Mask: 255.255.255.0
Note:
All changed settings will be lost when defaults are restored.
KW55293 Wireless Router User Manual
22
Appendix: Frequent Asked Questions
Q: None of the LEDs are on when user power on the ADSL router?
A: Please make sure what user use is the power adaptor attached with the ADSL
router packageand check the connection between the AC power and ADSL
router.
Q: DSL LED does not turn on after connect telephone line?
A: Please make sure what user use is the standard telephone line (as attached with
the package), make sure the line is connected correctly and check whether there
is poor contact at each interface. Wait for 30 seconds to allow the ADSL router
establishes connection with user ADSL operator.
Q: DSL LED is in the circulation of slow-flashing and fast-flashing after connect
telephone line?
A: This situation means the ADSL router is in the status of failing to establish
connection with Central Office. Please check carefully and confirm whether the
ADSL router has been installed correctly.
Q: LAN LED does not turn on after connect Ethernet cable?
A: Please make sure Ethernet cable is connected hub/PC and ADSL router correctly.
Then please make sure the PC/hub have been power on.
Please make sure that user use parallel network cable to connect UpLink port of
hub, or use parallel network cable to connect PC. If connect normal port of hub
(not UpLink port), user must use cross-cable. Please make sure that user’s
network cables meet the networking requirements above.
Q: PC cannot access the Router?
A: Please make sure that all devices communicating with the device must use the
same channel (and use the same SSID). Otherwise user’s PC will not find the
wireless Router.
Q: PC cannot access the Internet?
A: First check whether PC can ping the interface Ethernet IP address of this product
successfully (default value is 192.168.1.1) by using ping application. If ping
application fails, please check the connection of Ethernet cable and check
whether the states of LEDs are in gear.
If the PC uses private IP address that is set manually (non-registered legal IP
address), please check:
1. Whether IP address of the PC gateway is legal IP address. Otherwise please
use the right gateway, or set the PC to Obtain an IP address automatically.
2. Please confirm the validity of DNS server appointed to the PC with ADSL
operator. Otherwise please use the right DNS, or set the PC to Obtain an IP
address automatically.
3. Please make sure user have set the NAT rules and convert private IP
address to legal IP address. IP address range of the PC that user specify
should meet the setting range in NAT rules.
4. Central Office equipment may have problem.
5. The country or the wireless network type user selected is wrong.
Q: PC cannot browse Internet web page?
KW55293 Wireless Router User Manual
23
A: Please make sure DNS server appointed to the PC is correct. User can use ping
application program to test whether the PC can connect to the DNS server of the
ADSL operator.
Q: Initialization of the PVC connection failed?
A: Be sure that cable is connected properly from the DSL port to the wall jack. The
DSL LED on the front panel of the ADSL router should be on. Check that user’s
VPI, VCI, type of encapsulation and type of multiplexing setting are the same as
what user collected from user’s service provider, Re-configure ADSL router and
reboot it. If user still can not work it out, user may need to verify these variables
with the service provider.
If the cause is not above given
please contact user’s local service
provider!

Navigation menu
