Kasda Networks KW5811 Wireless ADSL Router User Manual
Kasda Networks inc Wireless ADSL Router Users Manual
Users Manual
KW5811
Wireless ADSL Router
User Manual
Wireless ADSL Router USER MANUAL
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all environments
and applications, and makes no warranty or representation, either expressed or implied,
with respect to the quality, performance, merchantability, or fitness for a particular purpose
of the software or documentation. The manufacturer reserves the right to make changes to
the hardware, software, and documentation without obligation to notify any person or
organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.
Wireless ADSL Router USER MANUAL
FCC Warning:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Wireless ADSL Router USER MANUAL
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Wireless ADSL Router USER MANUAL
Customer Information
1. This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the bottom of this equipment is a label that contains, among
other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this
number must be provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and requirements
adopted by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also compliant.
See installation instructions for details.
3. If this equipment [US: U5IDL01BKW5811] causes harm to the telephone network,
the telephone company will notify you in advance that temporary discontinuance of service
may be required. But if advance notice isn't practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
4. The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
5. If trouble is experienced with this equipment [US: U5IDL01BKW5811], for repair or
warranty information, Service can be facilitated through our office at:
U.S. Agent Company name:Kasda Networks Inc
Address: 5185 Cliffwood Dr.
Montclair, CA 91763
Tel: 909 628 6088
Wireless ADSL Router USER MANUAL
Fax: 909 628 7999
If the equipment is causing harm to the telephone network, the telephone company may
request that you disconnect the equipment until the problem is resolved.
6. Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified. For repair
procedures, follow the instructions outlined under the limited warranty.
7. Connection to party line service is subject to state tariffs. Contact the state public
utility commission, public service commission or corporation commission for information.
8. If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this [US: U5IDL01BKW5811] does not disable your alarm
equipment. If you have questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.
9. If the telephone company requests information on what equipment is connected to
their lines, inform them of:
a) The ringer equivalence number [0.1B]
b) The USOC jack required [RJ11C]
c) Facility Interface Codes (“FIC”) [NA]
d) Service Order Codes (“SOC”) [NA]
e) The FCC Registration Number [US: U5IDL01BKW5811]
10. The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing in
response to an incoming call. In most but not all areas, the sum of RENs should not exceed
five (5.0). To be certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company. The REN for this
product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits
Wireless ADSL Router USER MANUAL
represented by ## are the REN without a decimal point. For this product the FCC
Registration number is [US: U5IDL01BKW5811] indicates the REN would be 0.1B.
11. If this product is equipped with a corded or cordless handset, it is hearing aid
compatible.
Content
1 OVERVIEW...........................................................................................................................1
1.1
F
EATURES
......................................................................................................................................1
1.2 P
ACKET
C
ONTENTS
......................................................................................................................3
1.3 S
YSTEM
R
EQUIREMENTS
..............................................................................................................4
1.4 F
ACTORY
D
EFAULTS
.....................................................................................................................4
1.5 W
ARNINGS AND
C
AUTIONS
...........................................................................................................4
2 HARDWARE DESCRIPTION...............................................................................................5
3 HARDWARE INSTALLATION.............................................................................................7
4 PC CONFIGURATION GUIDE .............................................................................................8
4.1
L
OCAL
PC
C
ONFIGURATION IN
W
INDOWS
95,
98,
ME,
XP.........................................................8
4.2
L
OCAL
PC
C
ONFIGURATION IN
W
INDOWS
2000 ..........................................................................8
5 WEB-BASED MANAGEMENT GUIDE................................................................................9
5.1 LAN
SETTING PAGE
......................................................................................................................9
5.2
I
NTERNET
A
CCESS
C
ONFIGURATION
............................................................................................9
5.3 W
IRELESS SETTING
.....................................................................................................................22
5.4 M
ANAGEMENT
.............................................................................................................................29
APPENDIX: FREQUENT ASKED QUESTIONS................................................................... 33
Wireless ADSL Router USER MANUAL
1
1 Overview
Thank you for choosing our product. The Starbridge 1511 Wireless ADSL Router
uses Broadcom’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+
and IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet
access.
1.1 Features
1.1.1 Data rate
Downstream data rate up to 24 Mbps,
Upstream data rate up to 3.5Mbps (With AnnexM enabled)
1.1.2 ADSL Compliance
ITU G.992.1 (G.DMT)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
TR-069 compliant with ACS
1.1.3 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 75 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x
1.1.4 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Wireless ADSL Router USER MANUAL
2
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering
Packet Filtering
Wireless ADSL Router USER MANUAL
3
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
External Splitter x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
CD x 1
Wireless ADSL Router USER MANUAL
4
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
Subscription for ADSL service. Your ADSL service provider should provide
you with at least one valid IP address (static assignment or dynamic
assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: LLC/SNAP-BRIDGING or VC/MUX
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone during
an electrical storm. There might be a risk of electric shock from lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about the
designed maximum power load ratings. Not to follow the rating guideline
could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line that
directly outputs from junction box. Do not connect Router to extension
phone. In addition, if your house developer divides a telephone line to multi
sockets inside the wall of house, please only use the telephone that has
connected with the splitter of ADSL Router when you access the Internet.
Under the above condition, if you also install telephone with anti-cheat-dial
device, please pull out this kind of telephone, otherwise ADSL Router may
occur frequently off-line.
Wireless ADSL Router USER MANUAL
5
2 Hardware Description
Front Panel

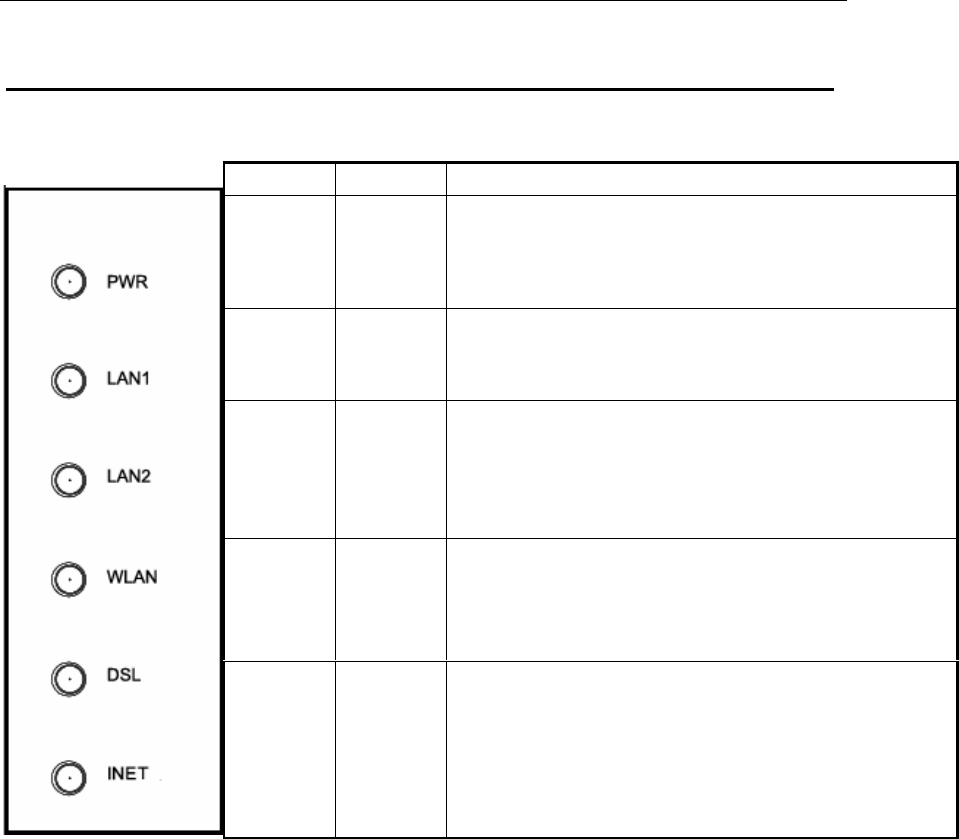

LED Color Function
PWR Orange On: Power on
Off: No power
LAN1,2 Orange
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
WLAN Orange
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
DSL Orange
On:ADSL link established and active
Quick Blinking: ADSL is trying to establish a
connection
Slow Blinking: No ADSL link
INET Orange
On: IP connected
Blinking: IP connected and IP traffic is passing thru
the device
Off: Modem power off or ADSL connection not
present
Wireless ADSL Router USER MANUAL
6

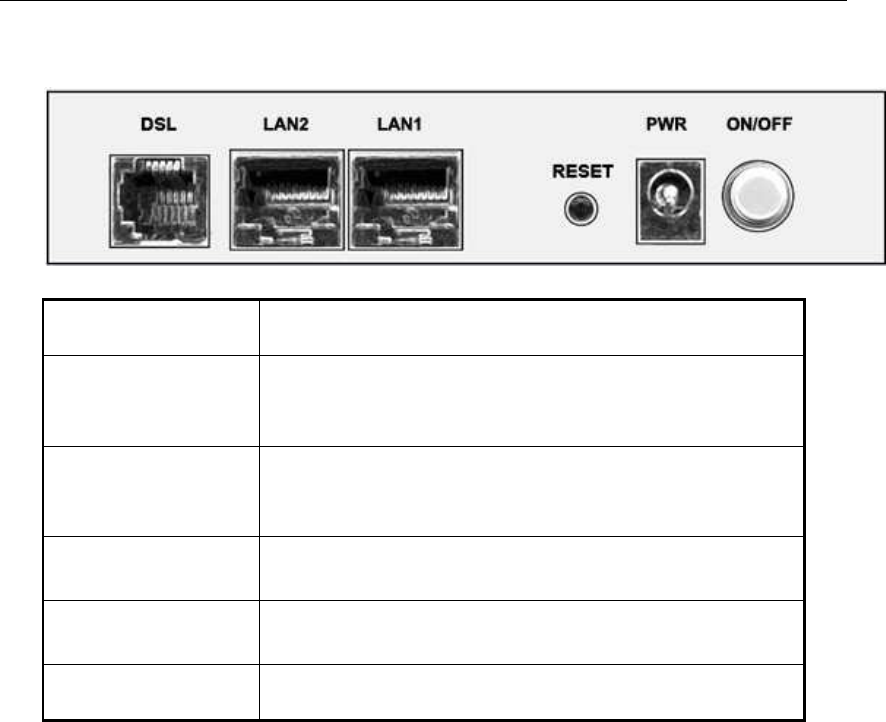

Rear panel
Port Function
DSL
Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
LAN1,2
Connect the device to user’s PC's Ethernet port, or to the
uplink port on user’s hub/switch, using a RJ-45 cable
RESET System reset or reset to factory defaults
PWR Connect to the supplied power adapter
ON/OFF Switch it on or off
Wireless ADSL Router USER MANUAL
7
3 Hardware Installation
This chapter shows user how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.

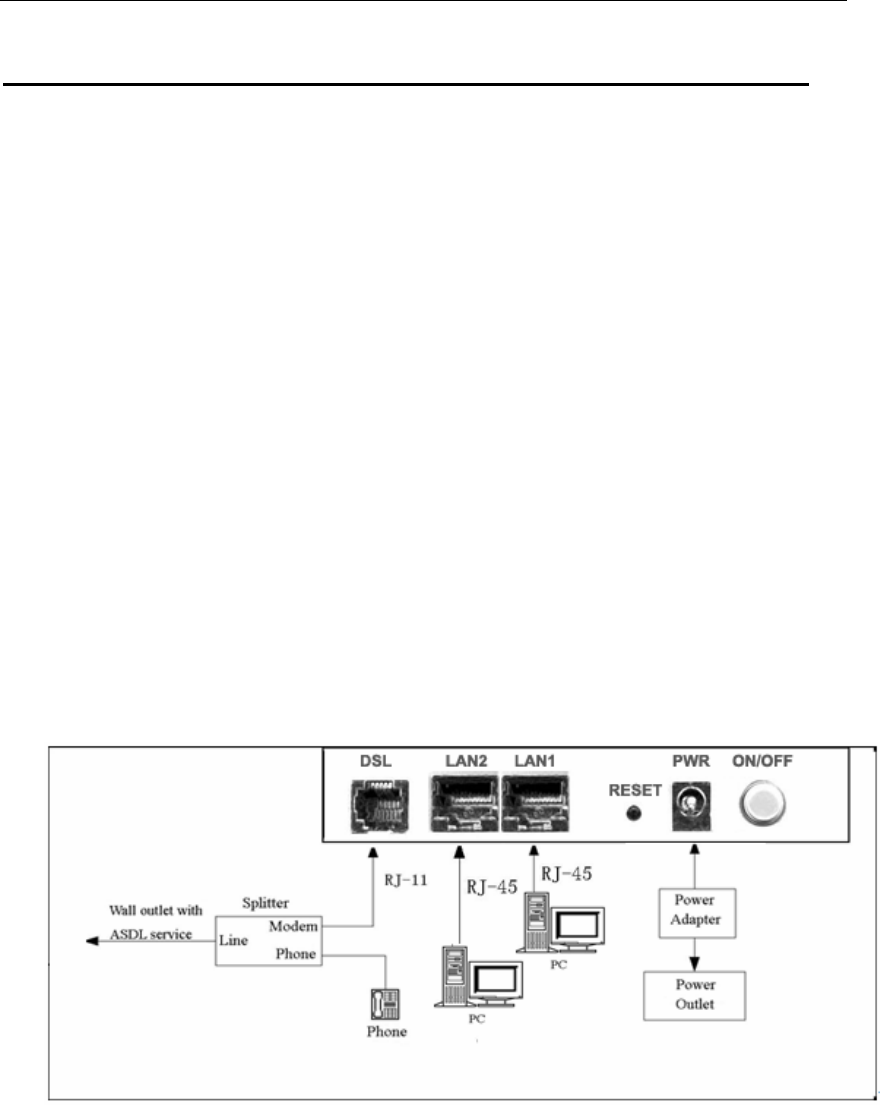

1. Using a telephone line to connect the DSL port of ROUTER to the Modem port
of the splitter, and using a other telephone line connect user’s telephone to the
PHONE port of the splitter, then connect the wall phone jack to the LINE port of
the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
ROUTER: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to user’s LAN
or a PC with network card installed.
3. Connect the power cable to the POWER connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from telephone
can interfere with the operation of the Router, and the Router may introduce
noise to the telephone line. To prevent this from happening, a small external
splitter must be connected to each telephone.
Wireless ADSL Router USER MANUAL
8
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP
1. In the Windows task bar, click the “Start” button, point to “Settings”, and then
click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with user’s
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of the
DNS server, please consult with user’s ISP.
7. Click “OK” twice to confirm and save user’s changes.
8. User will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and then
click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local Area
Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address as
192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet mask
as 255.255.255.0 and the default gateway as 192.168.1.1. Then click “OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of the
DNS server, please consult with user’s ISP.
7. Click “OK” twice to confirm and save user’s changes.
Wireless ADSL Router USER MANUAL
9
5 Web-based Management Guide
In order to use the web-based management software it will be necessary to use a
computer that occupies the same subnet as the Router. The simplest way to do this
for many users will be to use DHCP server that is enabled by default on the Router.

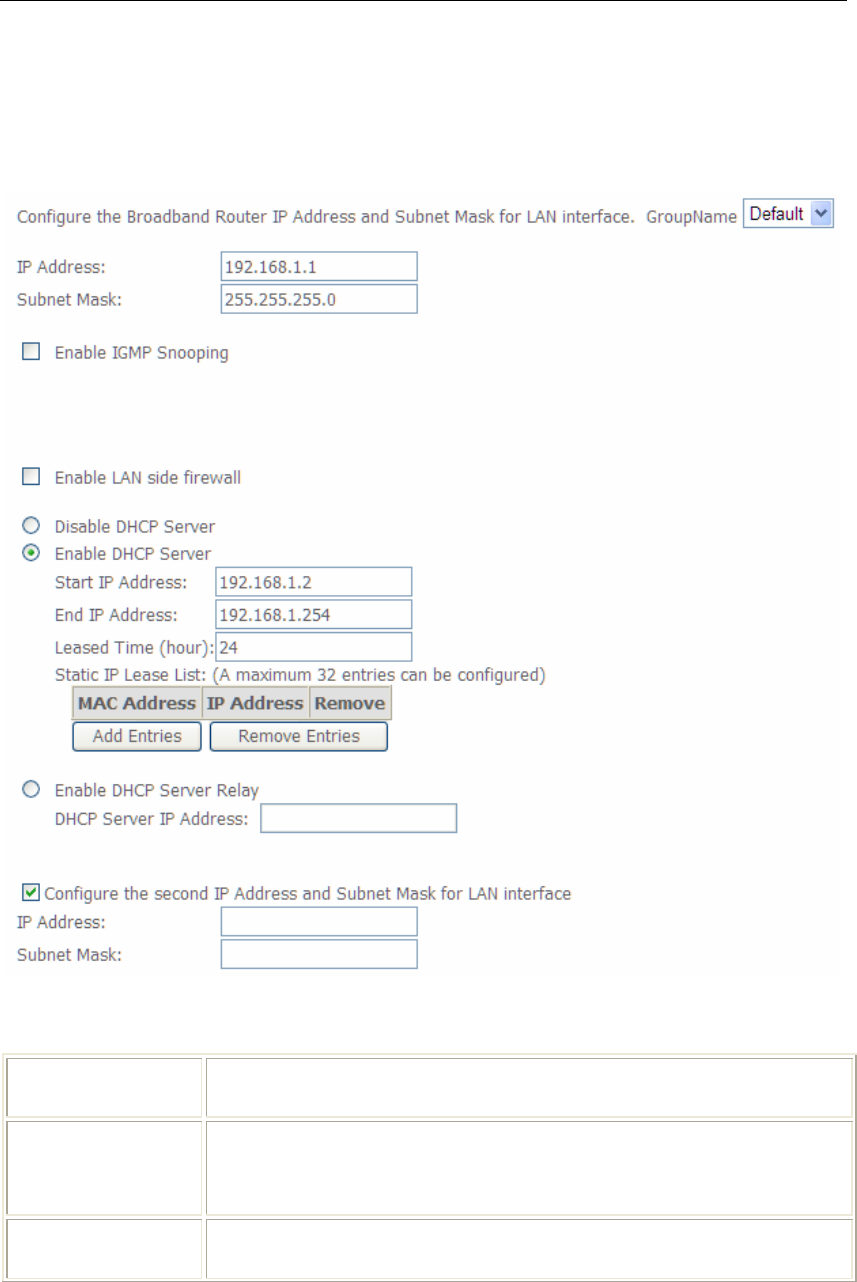

5.1 LAN setting page

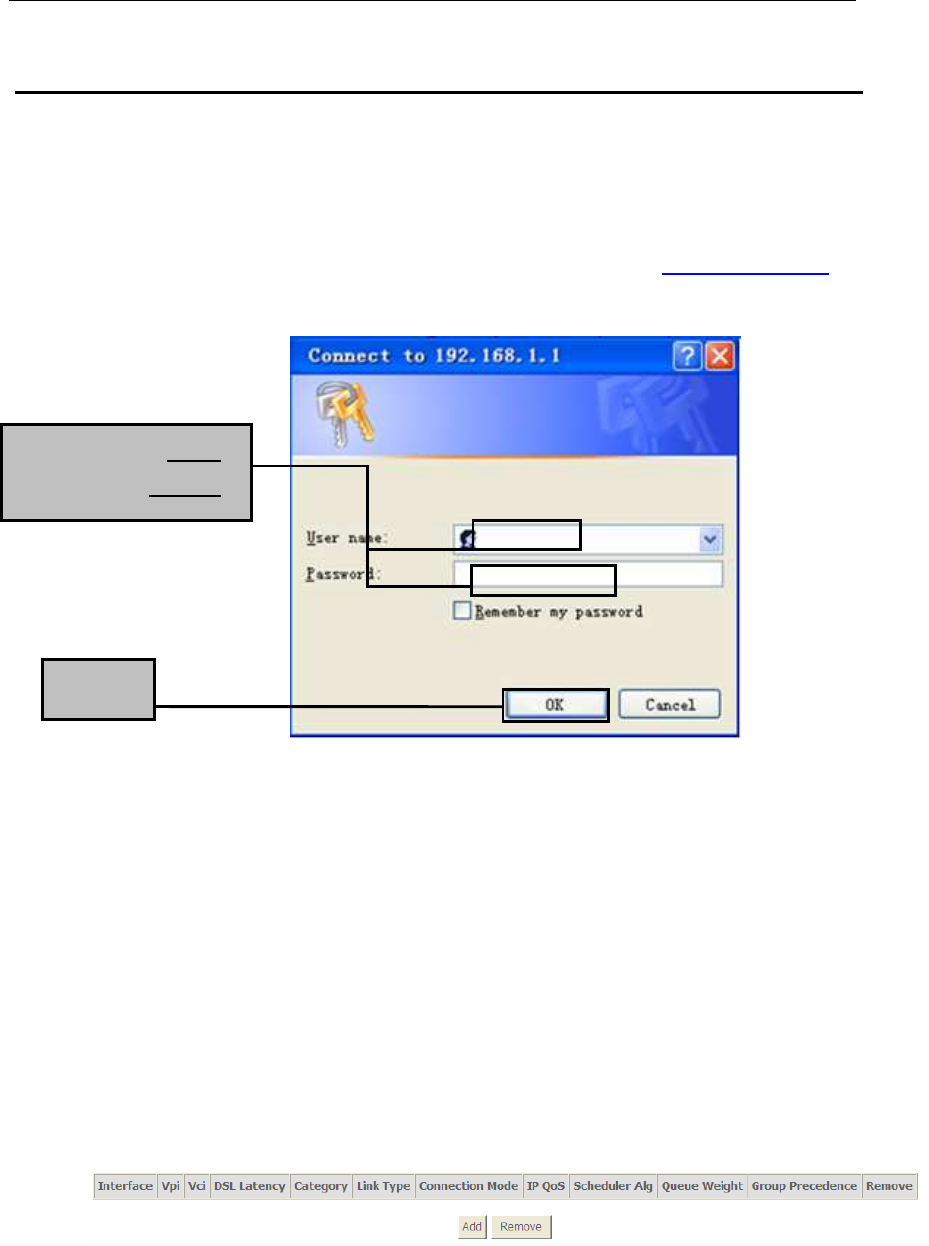

Launch a web browser, such as Internet Explorer, and then use http://192.168.1.1 to
log on to the setting pages.
After user log in to the modem, the general status page appears.
5.2 Internet Access Configuration
The setup wizard will guide you to configure the DSL router to access Internet via
PPPoE type.
5.2.1 ADSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click ATM Interface. you can set it up according to the
following steps. You Choose Add, or Remove to configure DSL ATM interfaces.
Click OK
Enter username ‘admin’
and password ‘adslroot’
Wireless ADSL Router USER MANUAL
10
2. Click Add to configure PVC identifier, select DSL latency and select connection
mode according to your local occasion. After the configuration, you need to
click Apply/Save.

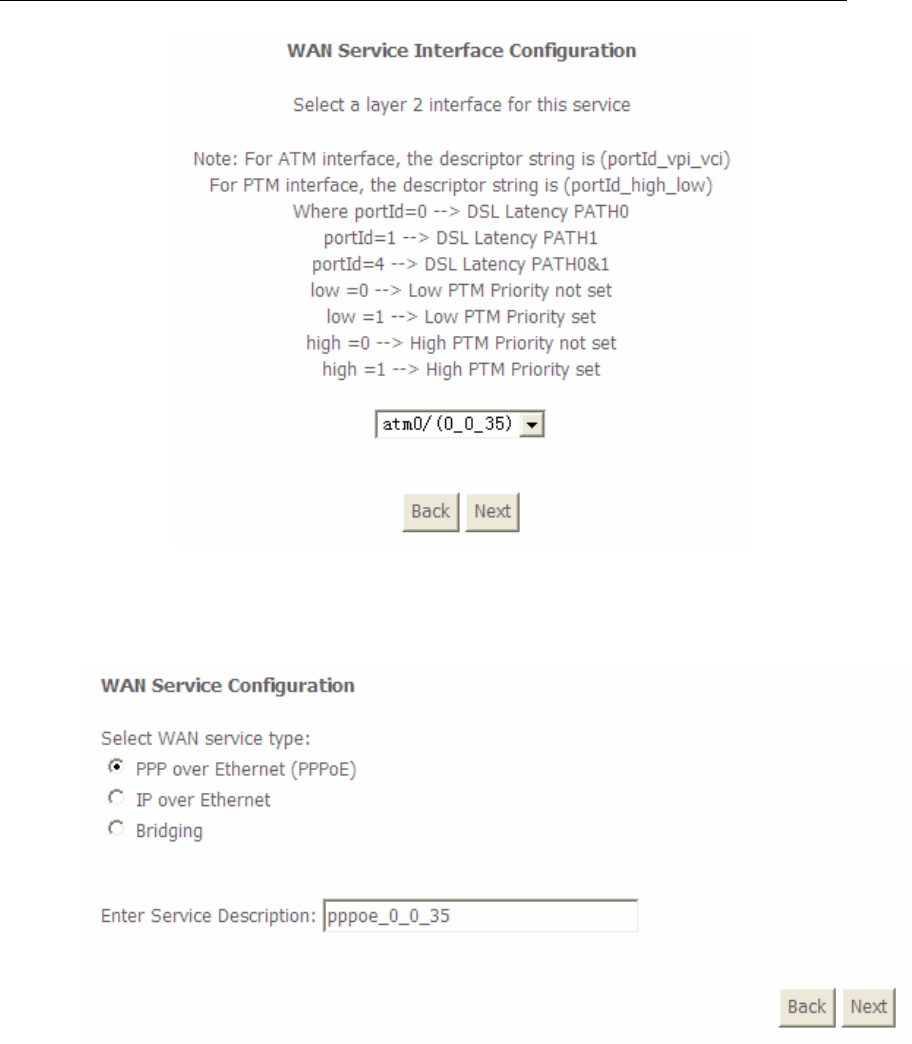

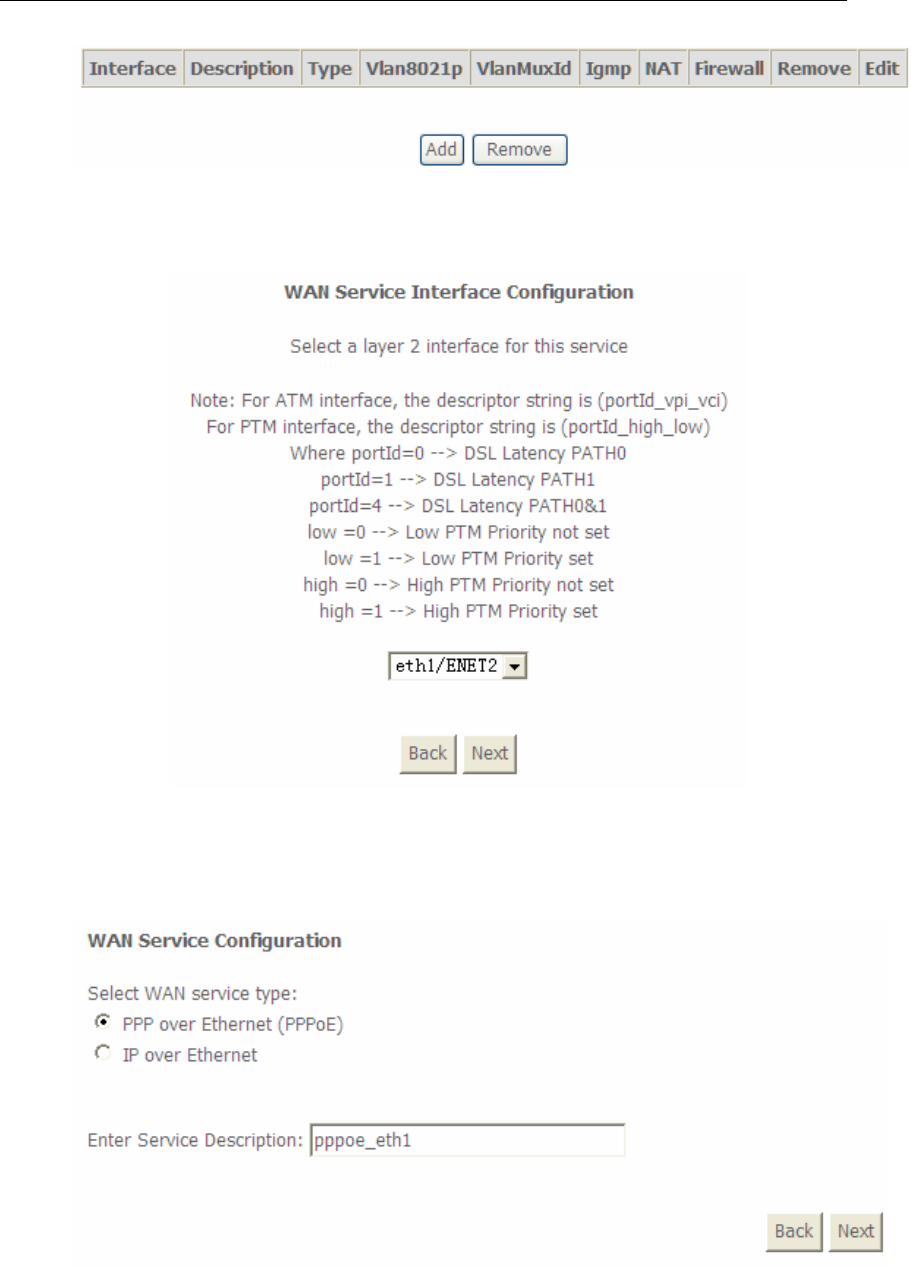

3. Click WAN Service from Advanced Setup.
4. Click Add to select a layer 2 interface for this service and then click Next.
Wireless ADSL Router USER MANUAL
11
5. Choose WAN service type, just choose PPPoE for example here. You can enter
your own service description here if you want and then click Next.

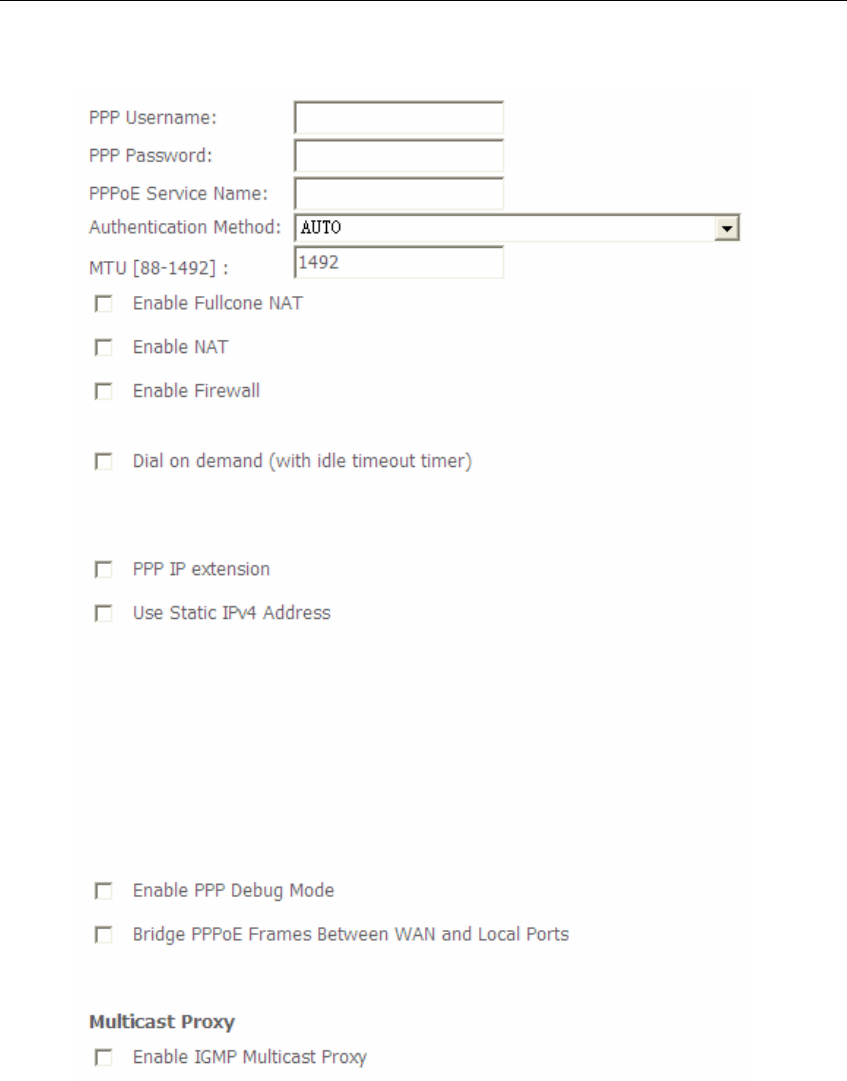

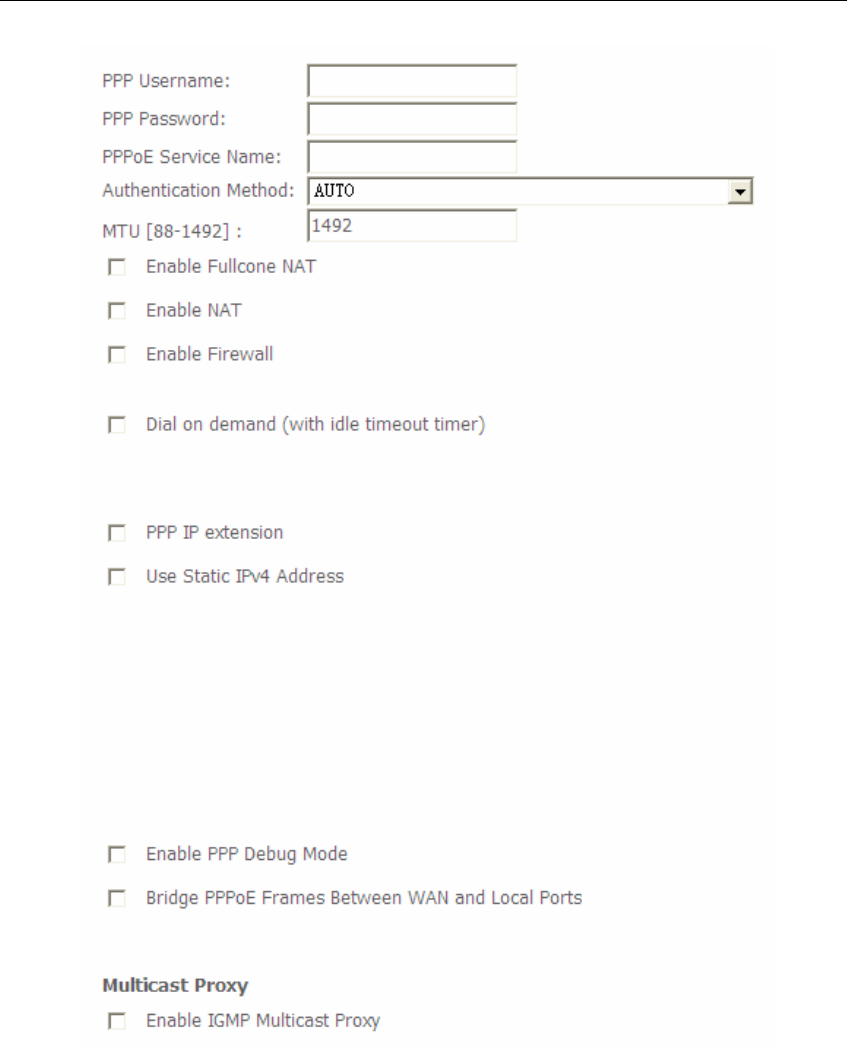

6. Input PPP Username & PPP Password and then click Next. The user interface
allows a maximum of 256 characters in the user name and a maximum of 32
characters in the password.
Wireless ADSL Router USER MANUAL
12
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if necessary.
The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for
PPPoE. Do not change these values unless your ISP asks you to.
Wireless ADSL Router USER MANUAL
13
Enable FullCone NAT, all requests from the same private IP address and port are
mapped to the same public source IP address and port. Someone on the Internet only
needs to know the mapping scheme in order to send packets to a device behind the
ADSL router.
The gateway can be configured to disconnect if there is no activity for a specific period of
time by selecting the Dial on demand check box and entering the Inactivity timeout.
The entered value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers. Unless
your service provider specifically requires this setup, do not select it. If you need to select
it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it is
forwarded to the computer's LAN interface through DHCP. Only one
system on the LAN can be connected to the remote, since the DHCP
server within the ADSL gateway has only a single IP address to assign
to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to the
LAN computer. That is, the PC becomes a host belonging to the same
IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN ports,
unless the packet is addressed to the gateway's LAN IP address.
Use static IPv4 IP address, If the ISP gave you a static IP address, select this option
and enter it in the IP address field.
Bridge PPPoE Frames Between WAN and Local Ports is available when you do not
use PPP IP extension. If you enable this function, LAN hosts can use PPPoE client
software on their computers to connect to the ISP. Each host can have a separate
account and a public WAN IP address.
7. Select a preferred wan interface as the system default gateway.
Wireless ADSL Router USER MANUAL
14

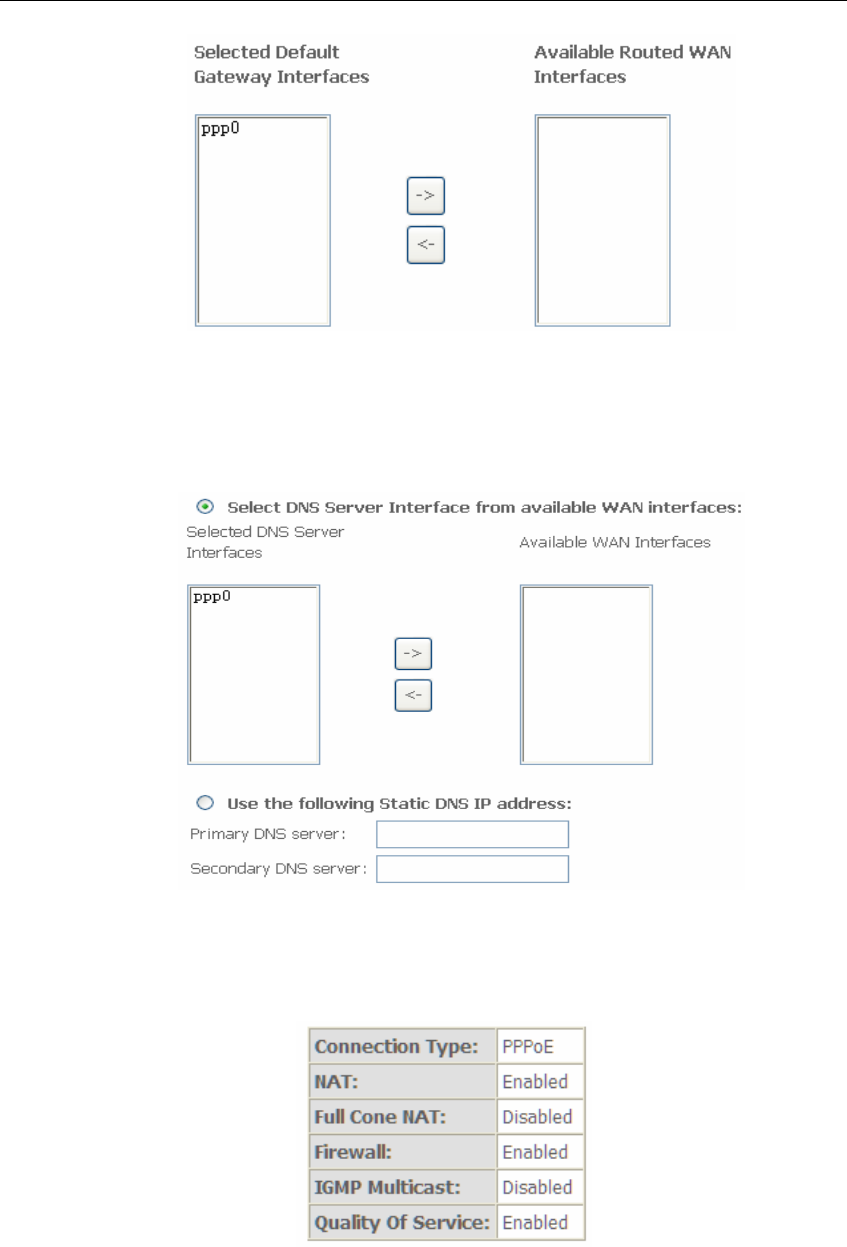

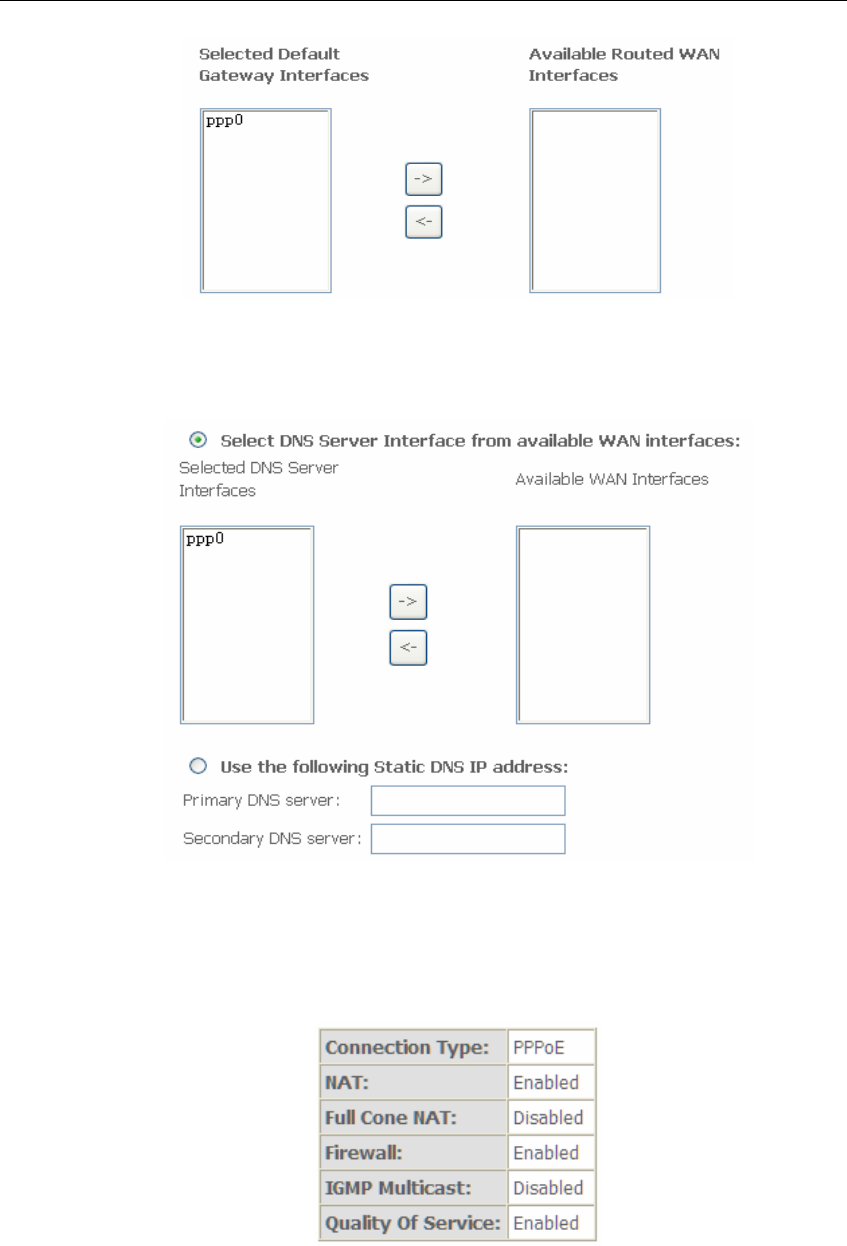

8. Get DNS server information from the selected WAN interface or enter static DNS
server IP addresses. If only a single PVC with IPoA or static MER protocol is
configured, you must enter static DNS server IP addresses.
9. Make sure that the settings below match the settings provided by your ISP. Click on
the Apply/Save button to save your configurations.
Wireless ADSL Router USER MANUAL
15
5.2.2 Router Mode Setup
1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before
you configure ETH WAN interface, you’d better remove all PVC settings from
ATM interface.
2. Click Add and you’ll see the following screen.

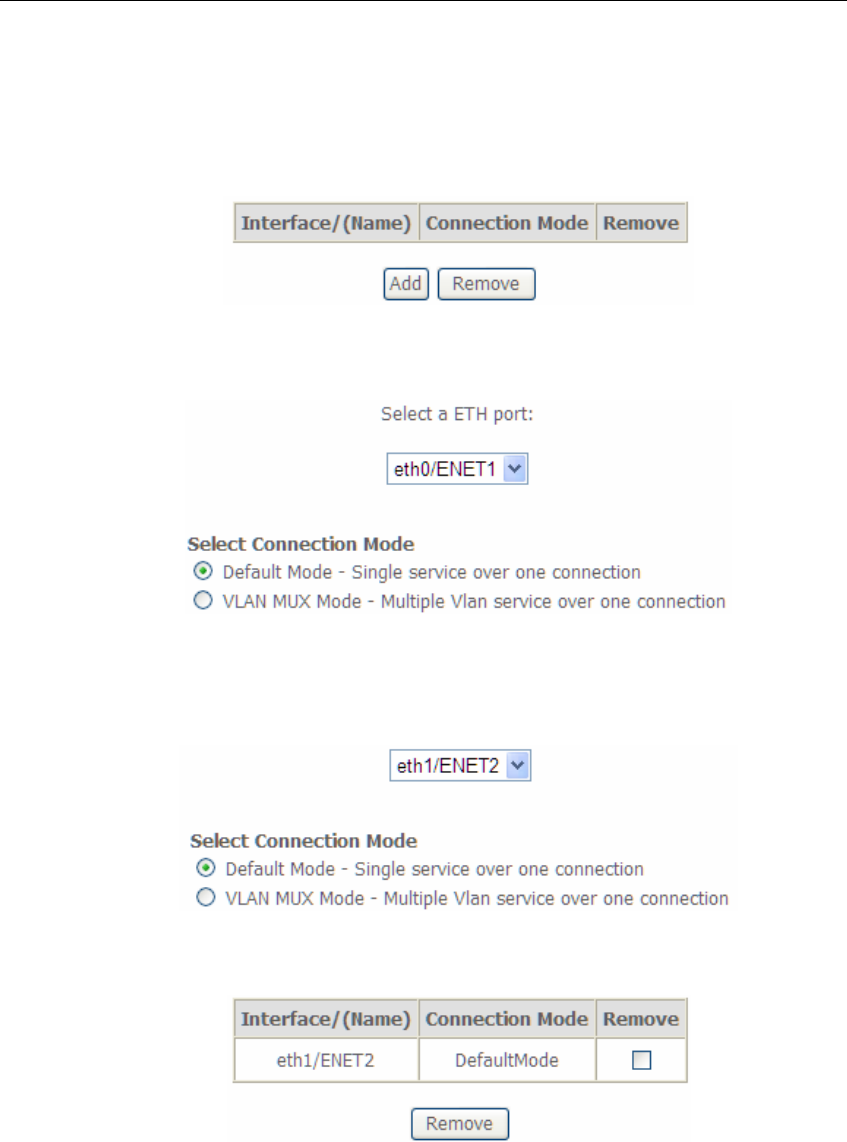

3. Select a ETH port as you will. You can select ENET1 or ENET2 port as the WAN
interface and Default Mode as connection mode.
4. Click Apply/Save and you’ll see the following screen.
5. From Advanced Setup, click WAN Service to configure a WAN service over the
interface you selected.
Wireless ADSL Router USER MANUAL
16
6. Click Add and you’ll see the following screen.
7. Click Next and you’ll see the following screen. Select PPPoE as WAN service
type for example. Click Next.
Wireless ADSL Router USER MANUAL
17
8. Enter the user name and password that your ISP has provided to you. Click Next.
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if necessary.
Wireless ADSL Router USER MANUAL
18
The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for
PPPoE. Do not change these values unless your ISP asks you to.
The gateway can be configured to disconnect if there is no activity for a specific period of
time by selecting the Dial on demand check box and entering the Inactivity timeout.
The entered value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers. Unless
your service provider specifically requires this setup, do not select it. If you need to select
it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it is
forwarded to the computer's LAN interface through DHCP. Only one
system on the LAN can be connected to the remote, since the DHCP
server within the ADSL gateway has only a single IP address to assign
to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to the
LAN computer. That is, the PC becomes a host belonging to the same
IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN ports,
unless the packet is addressed to the gateway's LAN IP address.
9. Select WAN interface as the system default gateway. Click Next.
Wireless ADSL Router USER MANUAL
19
10. Get DNS server information from the selected WAN interface or enter static DNS
server IP addresses. Click Next.
11. Make sure that the settings below match the settings provided by your ISP. Click
on the Apply/Save button to save your configurations and reboot the ADSL
router.
Wireless ADSL Router USER MANUAL
20
5.2.3 LAN Settings
From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN
interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to
control the assignment of IP addresses on your local network (LAN only).
Item
Description
IP address
This is the IP address that other devices on your local network will
use to connect to the modem.
Subnet mask
This defines the size of your network. The default is 255.255.255.0.
Wireless ADSL Router USER MANUAL
21
Enable IGMP
snooping
IGMP Snooping is a method that actually “sn
oops” or inspects IGMP
traffic on a switch. When enabled, the switch will watch for IGMP
messages passed between a host and a router, and will add the
necessary ports to its multicast table, ensuring that only the ports
that require a given multicast stream actually receive it.
Use standard mode to flood unknown multicast traffic.
Use blocking mode to discard unknown multicast traffic.
Disable / Enable
DHCP server
The DHCP server assigns an IP addresses from a pre-set pool of
addresses upon request from DHCP client (e.g. your computer). Do
not disable the DHCP server unless you wish to let another device
handle IP address issuance on the local network.
Start / end IP
address
This is the beginning and ending range for the DHCP server
addresses.
Leased time
The amount of time before the IP address is refreshed by the DHCP
server.
Configure the
second IP address
and...
Select this option to let the device use a second IP address on the
LAN interface. You can also use this second IP address to access
the device for management. Enter the LAN IP address of your
device in dotted decimal notation, for example, 10.0.0.1. Type the
subnet mask.
Note: If you want to cancel all modification that you do on the Router, please
select from “Management
Setting
Restore Default Settings” to restore
factory default settings.
Wireless ADSL Router USER MANUAL
22
5.3 Wireless setting
5.3.1 Basic

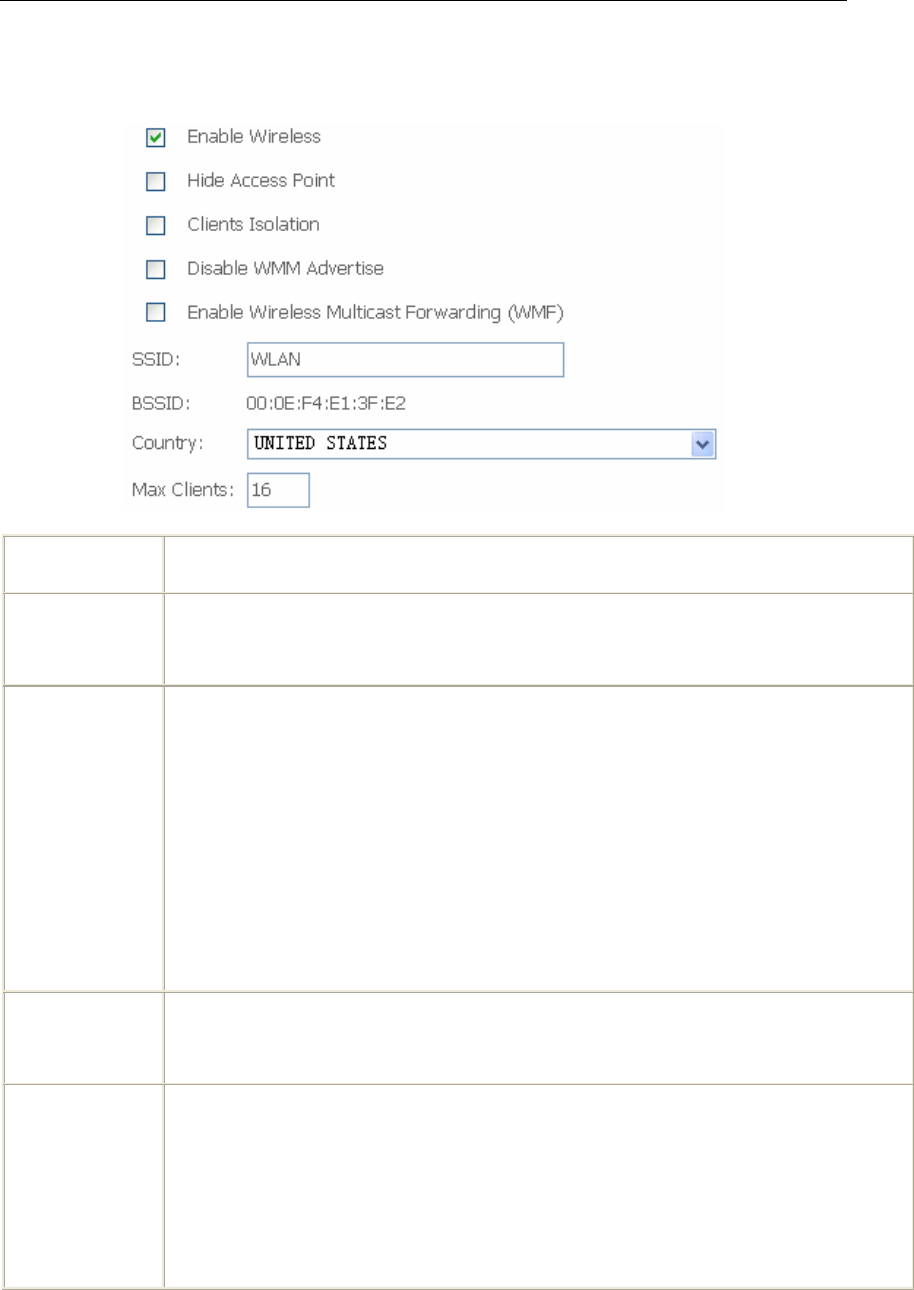

Option Description
Enable
wireless
A check
box that enables or disables the wireless LAN interfaces. The default is
to enable wireless communications.
Hide Access
Point
Select Hide Access Point to protect the ADSL route access point from detection
by wireless active scans. If you do not want the access point to be
automatically detected by a wireless station, this checkbox should be
deselected.
The station will not discover this access point. To connect a station to the
access point, the station must manually add this access point name in it's
wireless configuration.
In Windows XP, go to the Network>Properties function to view all of the
available access points. You can also use other software programs such as
NetStumbler to view available access points.
Clients
isolation Enable this item if you don’t want your wireless clients to communicate with
each other.
Network name
(SSID)
Enter a name for user’s wireless network here. SSID stands for Service Set
Identifier. This name must be between 1 and 32 characters long. The default
name is WLAN.
All wireless clients must either detect the gateway or be configured with the
correct SSID to access the Internet.
Wireless ADSL Router USER MANUAL
23
BSSID
Displays the gateway's wireless MAC address. (User may need this address if
user is using WDS or multiple gateways.) Click Apply to save changes.
Country Drop-down menu that allows selection of specific channel.
5.3.2 Advanced Settings
This page is where user specifies a number of advanced settings for wireless
communications.
Wireless ADSL Router USER MANUAL
24
Note: After making any changes, click Apply to save.
Warning: The settings shown above are default settings. Changes made to these items
can cause wireless communication problems.

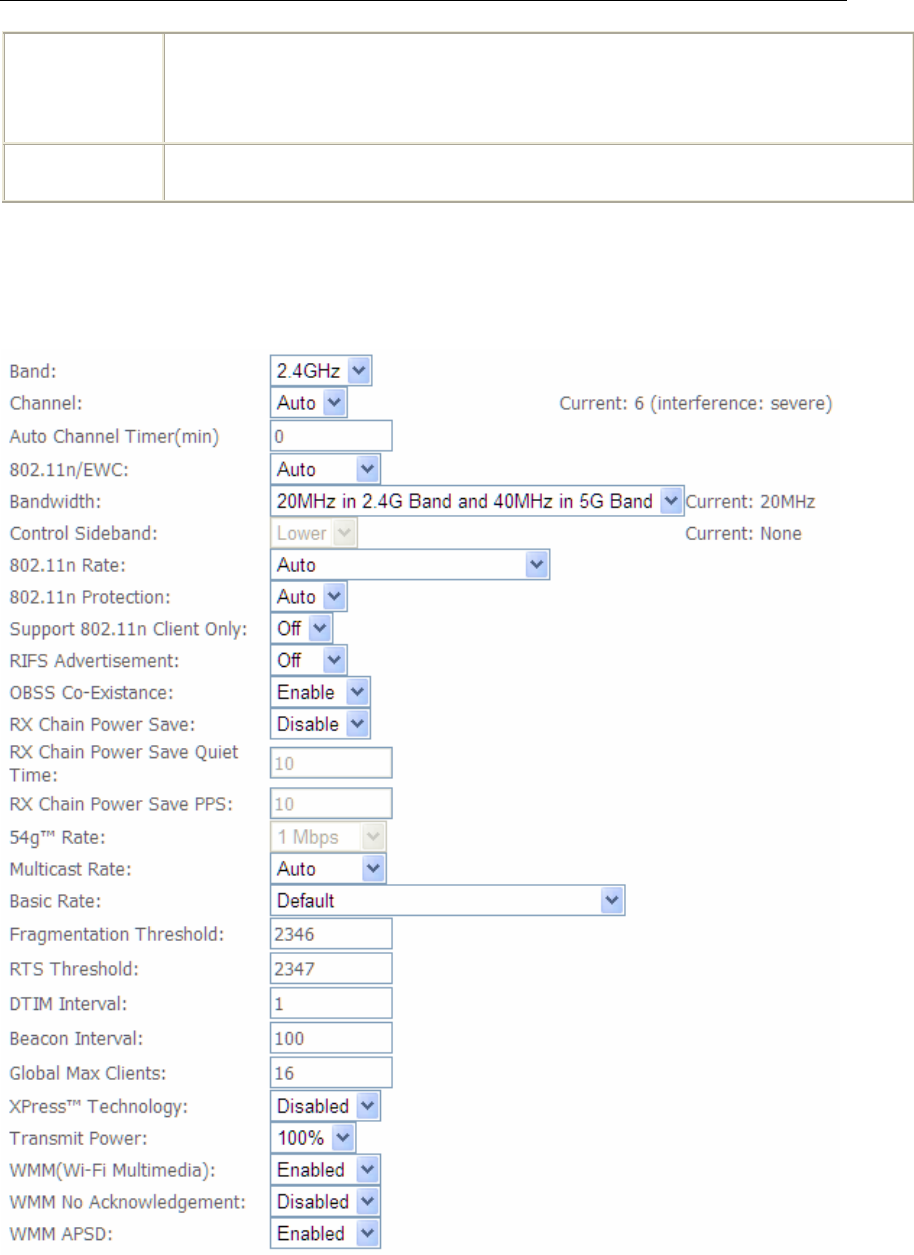

Field Description
Band This is the range of frequencies the gateway will use to communicate with
user’s wireless devices.
Channel Drop-down menu that allows selection of specific channel.
54g
TM
Rate
This drop-down list lets user specify the wireless communication rate, which
can be Auto (uses the highest rate when possible, or else a lower rate) or a
fixed rate between 1 and 54 Mbps.
Multicast rate
This drop-down list lets user specify the wireless communication rate for
multicast packets, which are sent to more than one destination at a time.
The value can be Auto (uses the highest rate when possible, or else a
lower rate) or a fixed rate between 1 and 54 Mbps.
Basic rate User has the option of supporting all rates listed in Rate
above or using the
1-, 2-Mbps rates, which support only older 802.11b implementations.
Fragmentatio
n threshold
A threshold, specified in bytes, that determines whether packets will be
fragmented and at what size. On an 802.11 connection, packets that are
larger
the fragmentation threshold are split into smaller units suitable for the circuit
size. Packets smaller than the specified fragmentation threshold value are not
fragmented.
Enter a value between 256 and 2346. If user experience a high packet error
rate, try to increase this value slightly. Setting the fragmentation threshold too
low may result in poor performance.
RTS
threshold
This is number of bytes in the packet size beyond which the gateway
invokes its RTS/CTS (request to send, clear to send) mechanism. Packets
larger than this threshold trigger the RTS/CTS mechanism, while the
gateway transmits smaller packets without using RTS/CTS. The default
setting of 2347, which is the maximum, disables the RTS threshold
mechanism.
Wireless ADSL Router USER MANUAL
25
DTIM interval
A delivery traffic indication message (DTIM), also known as a beacon, is a
countdown informing wireless clients of the next window for listening to
broadcast and multicast messages. When the gateway has broadcast or
multicast messages for its clients, it sends its next DTIM message with this
DTIM interval value. The clients hear the beacons and awaken as needed
to receive the broadcast and multicast messages.
Beacon
interval
The amount of time (in milliseconds) between beacon transmissions, each
of which identifies the presence of an access point. By default, wireless
clients passively scan all radio channels, listening for beacons coming from
access points. Before a client enters power-
save mode, it needs the beacon
interval to determine when to wake up for the next beacon (and learn
whether the access point has any messages for it). User can enter any
value between 1 and 65535, but the recommended range is 1 - 1000.
XPress™
Technology
XPress™ Technology is a feature in which two of our devices can
communicate with each other at twice the normal rate.
54g+ is a technology that achieves higher throughput with frame-
bursting. With
54g+ enabled, aggregate throughput (the sum of the individual throughput of
each network client) improves by up to 25% in 802.11g-only networks, and up
to 75% in mixed networks containing both 802.11g and 802.11b equipment.
Wireless ADSL Router USER MANUAL
26
5.3.3 Security
This page allows you to configure security features of the wireless LAN interface.
You may set up configuration manually or through WiFi Protected Setup(WPS)
1. Click Security of Wireless item and you’ll see the following page.

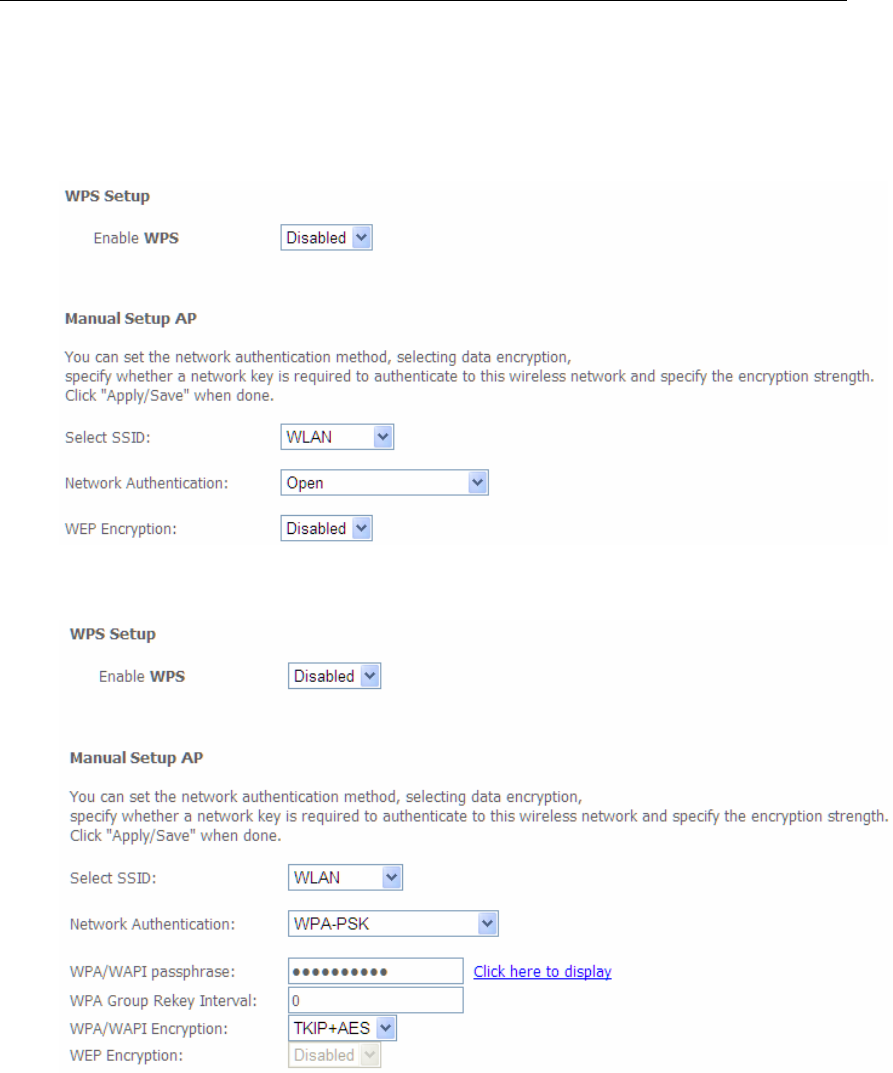

2.Configure WPA Pre-shared key as below and click Apply/Save.
3.Enable WPS as below.
Wireless ADSL Router USER MANUAL
27

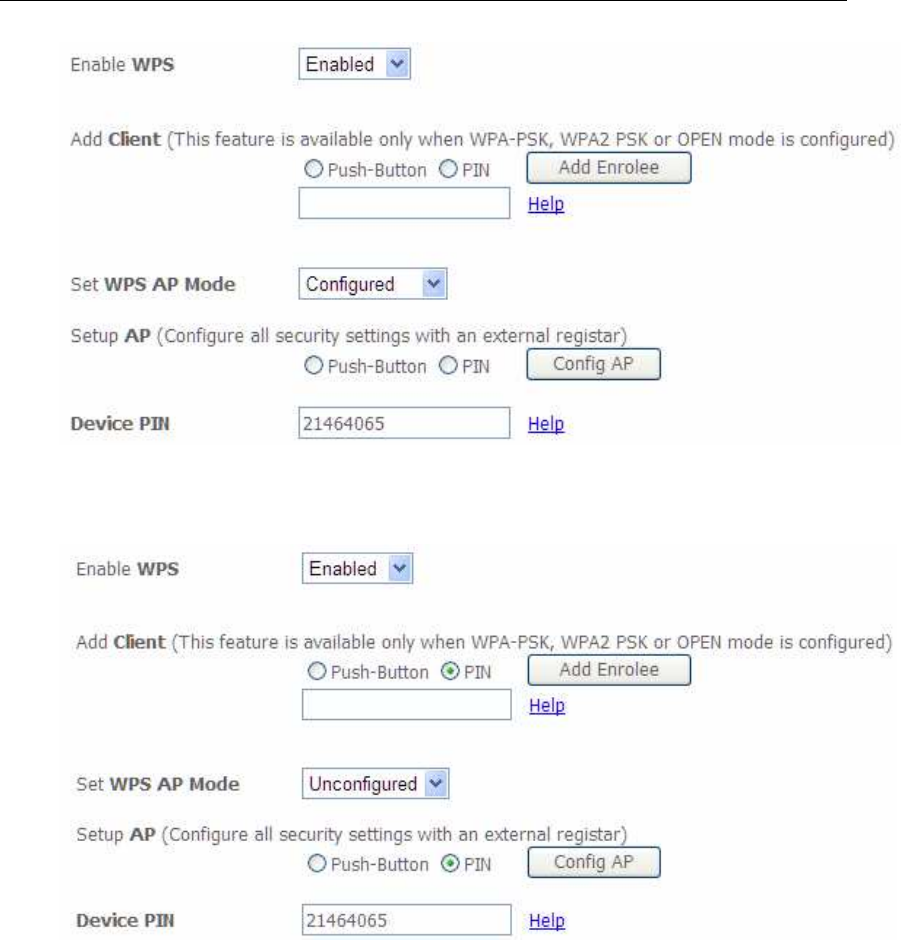

4.Set WPS AP mode as Unconfigured and click Config AP.
5. Set WPS AP mode as configured and click Save/Apply.
6.Now you can use a wireless adaptor with WPS function and the WPS button to
connect to access the Internet.
7. To configure security features for the Wireless interface, please open Security
item from Wireless menu. This web page offers nine authentication protocols for user to
secure user’s data while connecting to networks. There are four selections including
Open, Shared, 802.1X,WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed WPA-WPA2, Mixed
WPA-WPA2-PSK. Different item leads different web page settings. Please read the
Wireless ADSL Router USER MANUAL
28
following information carefully.
The wireless security page allows user to configure the security features of user’s
wireless network.
There are several security methods to choose from, depending on user’s needs and the
capabilities of user’s wireless machines.
WEP open and WEP shared —WEP is an encryption scheme that is used to
protect user’s wireless data communications. WEP uses a combination of
64-bit keys or 128-bit keys to provide access control to user’s network and
encryption security for every data transmission. To decode a data
transmission, each wireless client on the network must use an identical 64-bit
or 128-bit key. WEP is an older wireless encryption method that is not as hard
to break as the more-recent WPA.
802.1x — In 802.1x (also known as RADIUS), a separate machine called an
authentication server receives a user ID and password. It grants or denies
access based on whether the ID and password match any entries in its
account list. User can optionally enable WEP encryption with this option.
Because it requires a separate machine acting as the authentication server,
802.1x is most often used in business environments.
WPA — WPA is a more recent encryption method that addresses many of the
Wireless ADSL Router USER MANUAL
29
weaknesses in WEP. Any client capable of WPA encryption should use it
instead of WEP.
WPA (PSK) — This is WPA encryption combined with a pre-shared key (PSK),
which is a text string known only to the gateway and authorized wireless
clients. The gateway rejects the login if the client's PSK does not match.
WPA2 — WPA2 is a more advanced encryption method than WPA. Because it
is a more recent standard, some of user’s wireless devices might not be able
to use it.
WPA2 (PSK) — This option uses WPA2 with a pre-shared key.
WPA2 and WPA — This option supports WPA2/WPA encryption for devices
capable of one or the other standard. The gateway automatically detects
whether a particular device can use WPA2 or WPA.
WPA2 AND WPA (PSK) — This has WPA2 or WPA encryption based on client
abilities, as well as a pre-shared key.
After making changes, click Apply to save.
5.4 Management
5.4.1 Remote Access
When the firewall is enabled on a WAN or LAN interface, all incoming IP traffic is
BLOCKED. However, some IP traffic can be ACCEPTED by setting up filters.
Wireless ADSL Router USER MANUAL
30
1. Select Advanced Setup=>Security=>IP Filtering=>Incoming and Choose Add or
Remove to configure incoming IP filters.
2.Click Add to add rules. If you want to do remote ping test, please select protocol as
ICMP; If you want to do Http or Telnet test, please select protocol as TCP/UDP. If
you want only Http remote access, you can set destination port as 80; If you want
only Telnet remote access, you can set destination port as 23; If you want both, you
can set destination port as blank.
3.Click Apply/Save and select Device Info=>WAN. You can see the IP address of
WAN interface
4.Now you can access the ADSL router remotely using username support and
password support. You can input http://x.x.x.x/ for Http and input telnet x.x.x.x for
Telnet.
5.4.2 TR-069 Client
WAN Management Protocol (TR-069) allows a Auto-Configuration Server (ACS) to
perform auto-configuration, provision, collection, and diagnostics to this device.
Wireless ADSL Router USER MANUAL
31
Inform: Whether or not the CPE must periodically send CPE information to Server using
the Inform method call.
Inform Interval: The duration in seconds of the interval for which the CPE MUST attempt
to connect with the ACS and call the Inform method if Inform is enabled.
ACS URL: URL for the CPE to connect to the ACS using the CPE WAN Management
Protocol.
ACS User Name: Username used to authenticate an ACS making a Connection Request
to the CPE.
ACS Password: Password used to authenticate an ACS making a Connection Request
to the CPE. When read, this parameter returns an empty string, regardless of the actual
value.
WAN Interface used by TR-069 client: Remember to choose the interface of PVC used
for TR069
Connection Request User Name: Username used to authenticate the CPE when
making a connection to the ACS using the CPE WAN Management Protocol. This
username is used only for authentication of the CPE.
Connection Request Password: Password used to authenticate the CPE when making
a connection to the ACS using the CPE WAN Management Protocol. This password is
used only for authentication of the CPE.
Wireless ADSL Router USER MANUAL
32
GetRPCMethods: Used by a CPE or ACS to discover the set of methods supported by
the ACS or CPE it is in communicate with.
5.4.3 SNMP Agent
SNMP (Simple Network Management Protocol) has been widely applied in the computer
networks currently, which is used for ensuring the transmission of the management
information between any two nodes. In this way, network administrators can easily
search and modify the information on any node on the network. Meanwhile, they can
locate faults promptly and implement the fault diagnosis, capacity planning and report
generating.
An SNMP Agent is an application running on the Router that performs the operational
role of receiving and processing SNMP messages, sending responses to the SNMP
manager, and sending traps when an event occurs. So a Router contains SNMP "agent"
software can be monitored and/or controlled by SNMP Manager using SNMP messages.

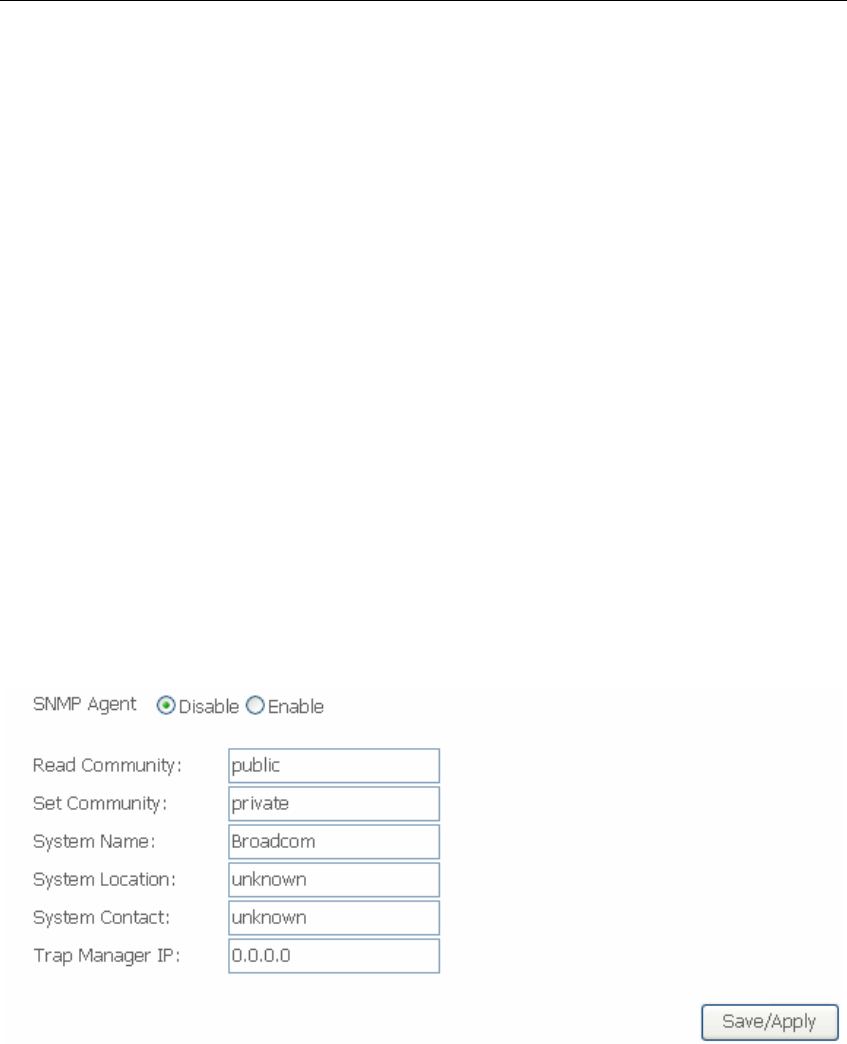

SNMP Agent: You can select the checkbox to disable or enable the function.
Note:
SNMP Community string provides a simple method of authentication between the Router
(SNMP Agent) and a remote network manager (SNMP Manager). You can specify the
community string as the password to authenticate the management station to the Router.
Wireless ADSL Router USER MANUAL
33
Read Community: This field allows you to specify the SNMP Community string which
provides read-only access to the Router that the community is only permitted to read the
device configuration. The default value is “public”.
Set Community: This field allows you to specify the SNMP Community string which
provides read and write access to the Router that the community has the authority to read
and change the device configuration. The default value is “public”.
System Name: Enter alphanumeric string to specify an SNMP community string name.
Your Router (SNMP agents) will expose management data on the managed systems as
this "system name".
System Location: The person to notify when problems occur.
System contact: The location of the person that is identified as the system contact.
Trap Manager IP: Enter the IP address of the SNMP Manager，where the SNMP Agent
forwards trap notifications.
Select the desired values and click Save/Apply to configure the SNMP options.
Appendix: Frequent Asked Questions
Q: None of the LEDs are on when user power on the ADSL router?
A: Please make sure what user use is the power adaptor attached with the ADSL router
package，and check the connection between the AC power and ADSL router.
Wireless ADSL Router USER MANUAL
34
Q: DSL LED does not turn on after connect telephone line?
A: Please make sure what user use is the standard telephone line (as attached with the
package), make sure the line is connected correctly and check whether there is poor
contact at each interface. Wait for 30 seconds to allow the ADSL router establishes
connection with user ADSL operator.
Q: DSL LED is in the circulation of slow-flashing and fast-flashing after connect
telephone line?
A: This situation means the ADSL router is in the status of failing to establish connection
with Central Office. Please check carefully and confirm whether the ADSL router has
been installed correctly.
Q: LAN LED does not turn on after connect Ethernet cable?
A: Please make sure Ethernet cable is connected hub/PC and ADSL router correctly.
Then please make sure the PC/hub have been power on.
Please make sure that user use parallel network cable to connect UpLink port of hub,
or use parallel network cable to connect PC. If connect normal port of hub (not
UpLink port), user must use cross-cable. Please make sure that user’s network
cables meet the networking requirements above.
Q: PC cannot access the Router?
A: Please make sure that all devices communicating with the device must use the same
channel (and use the same SSID). Otherwise user’s PC will not find the wireless
Router.
Q: PC cannot access the Internet?
A: First check whether PC can ping the interface Ethernet IP address of this product
successfully (default value is 192.168.1.1) by using ping application. If ping
application fails, please check the connection of Ethernet cable and check whether
the states of LEDs are in gear.
If the PC uses private IP address that is set manually (non-registered legal IP
address), please check:
1. Whether IP address of the PC gateway is legal IP address. Otherwise please
use the right gateway, or set the PC to Obtain an IP address automatically.
2. Please confirm the validity of DNS server appointed to the PC with ADSL
operator. Otherwise please use the right DNS, or set the PC to Obtain an IP
address automatically.
3. Please make sure user have set the NAT rules and convert private IP address to
legal IP address. IP address range of the PC that user specify should meet the
setting range in NAT rules.
4. Central Office equipment may have problem.
5. The country or the wireless network type user selected is wrong.
Q: PC cannot browse Internet web page?
A: Please make sure DNS server appointed to the PC is correct. User can use ping
application program to test whether the PC can connect to the DNS server of the
ADSL operator.
Wireless ADSL Router USER MANUAL
35
Q: Initialization of the PVC connection failed?
A: Be sure that cable is connected properly from the DSL port to the wall jack. The DSL
LED on the front panel of the ADSL router should be on. Check that user’s VPI, VCI,
type of encapsulation and type of multiplexing setting are the same as what user
collected from user’s service provider, Re-configure ADSL router and reboot it. If
user still can not work it out, user may need to verify these variables with the service
provider.
If the cause is not above given
，
，，
，
please contact user’s local service
provider!
