Kasda Networks KW58293 ADSL Wireless Router User Manual

Kasda Networks inc ADSL Wireless Router Users Manual

Users Manual

KW58293 Wireless ADSL Router
User Manual
Wireless ADSL Router USER MANUAL
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all environments
and applications, and makes no warranty or representation, either expressed or implied,
with respect to the quality, performance, merchantability, or fitness for a particular purpose
of the software or documentation. The manufacturer reserves the right to make changes to
the hardware, software, and documentation without obligation to notify any person or
organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.
Wireless ADSL Router USER MANUAL
FCC Warning:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Wireless ADSL Router USER MANUAL
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Wireless ADSL Router USER MANUAL
Customer Information
1. This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the bottom of this equipment is a label that contains, among
other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this
number must be provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and requirements
adopted by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also compliant.
See installation instructions for details.
3. If this equipment [US: U5IDL01BKW58293] causes harm to the telephone network,
the telephone company will notify you in advance that temporary discontinuance of service
may be required. But if advance notice isn't practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
4. The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
5. If trouble is experienced with this equipment [US: U5IDL01BKW58293], for repair or
warranty information, Service can be facilitated through our office at:
U.S. Agent Company name:Kasda Networks Inc
Address: 5185 Cliffwood Dr.
Montclair, CA 91763
Tel: 909 628 6088
Wireless ADSL Router USER MANUAL
Fax: 909 628 7999
If the equipment is causing harm to the telephone network, the telephone company may
request that you disconnect the equipment until the problem is resolved.
6. Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified. For repair
procedures, follow the instructions outlined under the limited warranty.
7. Connection to party line service is subject to state tariffs. Contact the state public
utility commission, public service commission or corporation commission for information.
8. If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this [US: U5IDL01BKW58293] does not disable your alarm
equipment. If you have questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.
9. If the telephone company requests information on what equipment is connected to
their lines, inform them of:
a) The ringer equivalence number [0.1B]
b) The USOC jack required [RJ11C]
c) Facility Interface Codes (“FIC”) [NA]
d) Service Order Codes (“SOC”) [NA]
e) The FCC Registration Number [US: U5IDL01BKW58293]
10. The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing in
response to an incoming call. In most but not all areas, the sum of RENs should not exceed
five (5.0). To be certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company. The REN for this
product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits
Wireless ADSL Router USER MANUAL
represented by ## are the REN without a decimal point. For this product the FCC
Registration number is [US: U5IDL01BKW58293] indicates the REN would be 0.1B.
11. If this product is equipped with a corded or cordless handset, it is hearing aid
compatible.
Content
1 OVERVIEW ................................................................................................................................ 1
1.1 FEATURES ...................................................................................................................................... 1
1.1.1 Data rate .................................................................................................................................. 1
1.1.2 ADSL Compliance .................................................................................................................. 1
1.1.3 Wireless ................................................................................................................................... 1
1.1.4 Network Protocol and Features ....................................................................................... 2
1.1.5 ATM Capabilities .................................................................................................................... 2
1.1.6 FIREWALL .............................................................................................................................. 2
1.1.7 Management Support ............................................................................................................ 3
1.1.8 Operating System Support ................................................................................................... 3
1.1.9 Environmental ......................................................................................................................... 3
1.2 PACKET CONTENTS ..................................................................................................................... 3
1.3 SYSTEM REQUIREMENTS ............................................................................................................ 4
1.4 FACTORY DEFAULTS ................................................................................................................... 4
1.5 WARNINGS AND CAUTIONS ......................................................................................................... 4

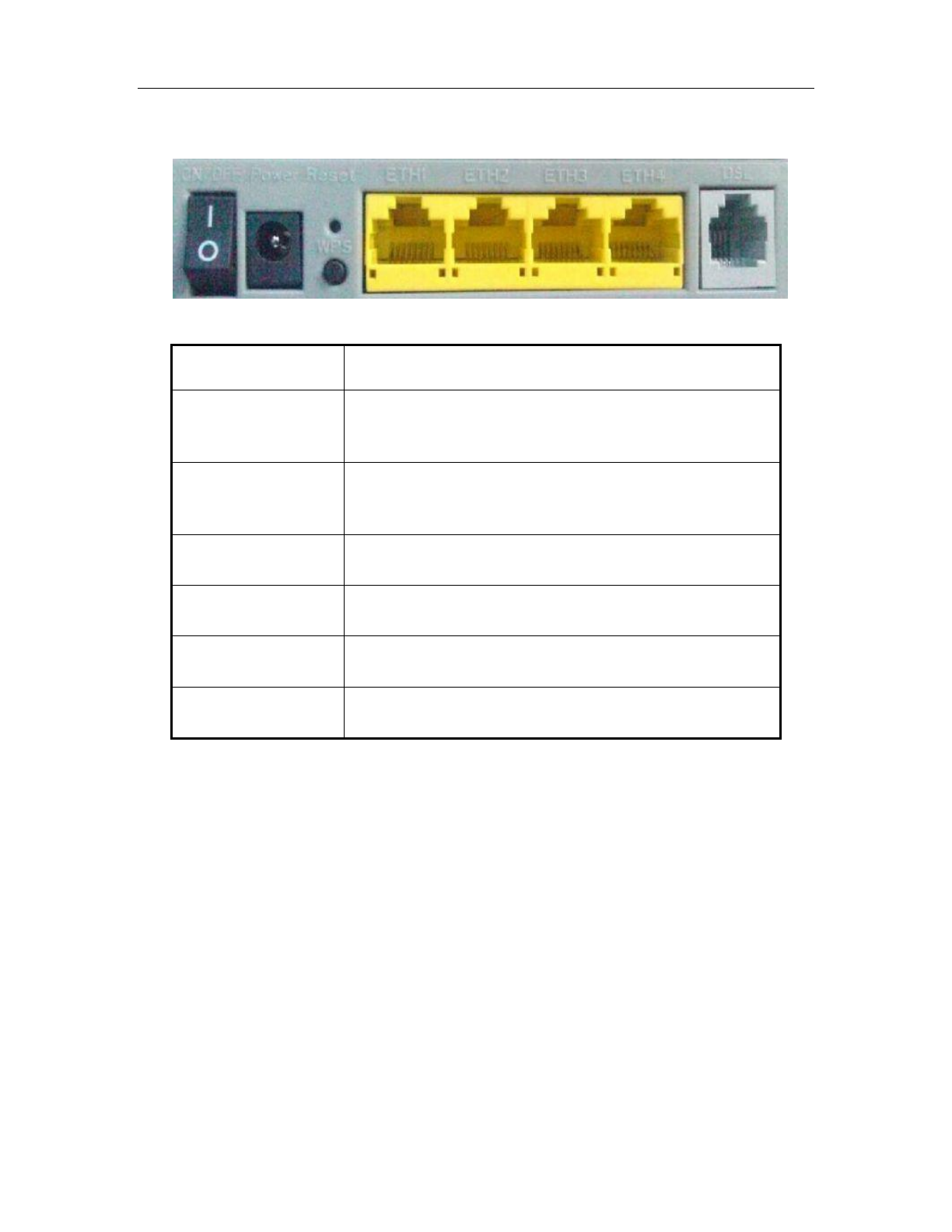

2 HARDWARE DESCRIPTION ................................................................................................... 5
3 HARDWARE INSTALLATION ................................................................................................. 7
4 PC CONFIGURATION GUIDE ................................................................................................. 8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP ..................................................... 8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000 ...................................................................... 8
4.3 LOCAL PC CONFIGURATION IN WINDOWS VISTA ..................................................................... 9
4.4 LOCAL PC CONFIGURATION IN WINDOWS 7 ............................................................................. 9

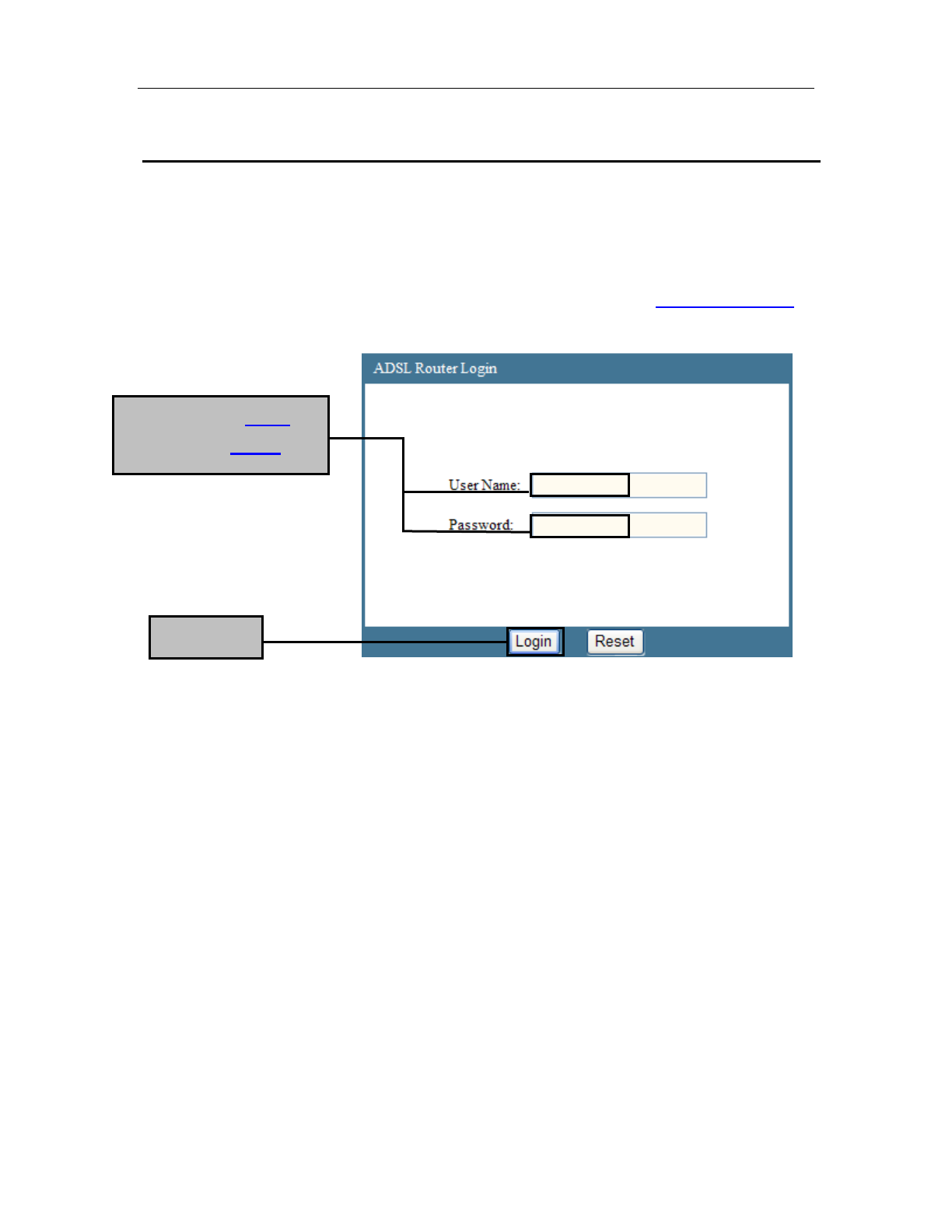

5 WEB-BASED MANAGEMENT GUIDE ................................................................................. 10

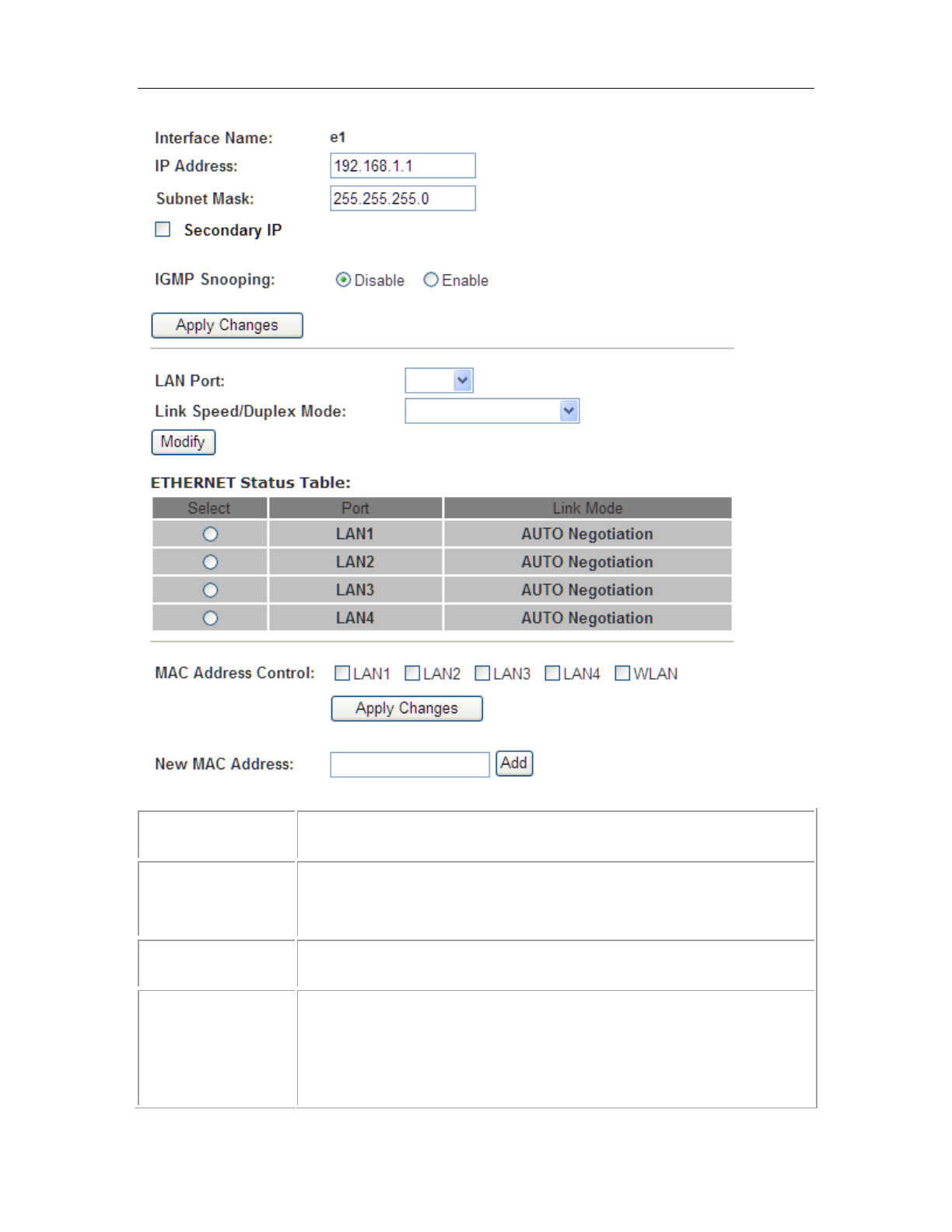

5.1 LAN SETTING PAGE .................................................................................................................... 10

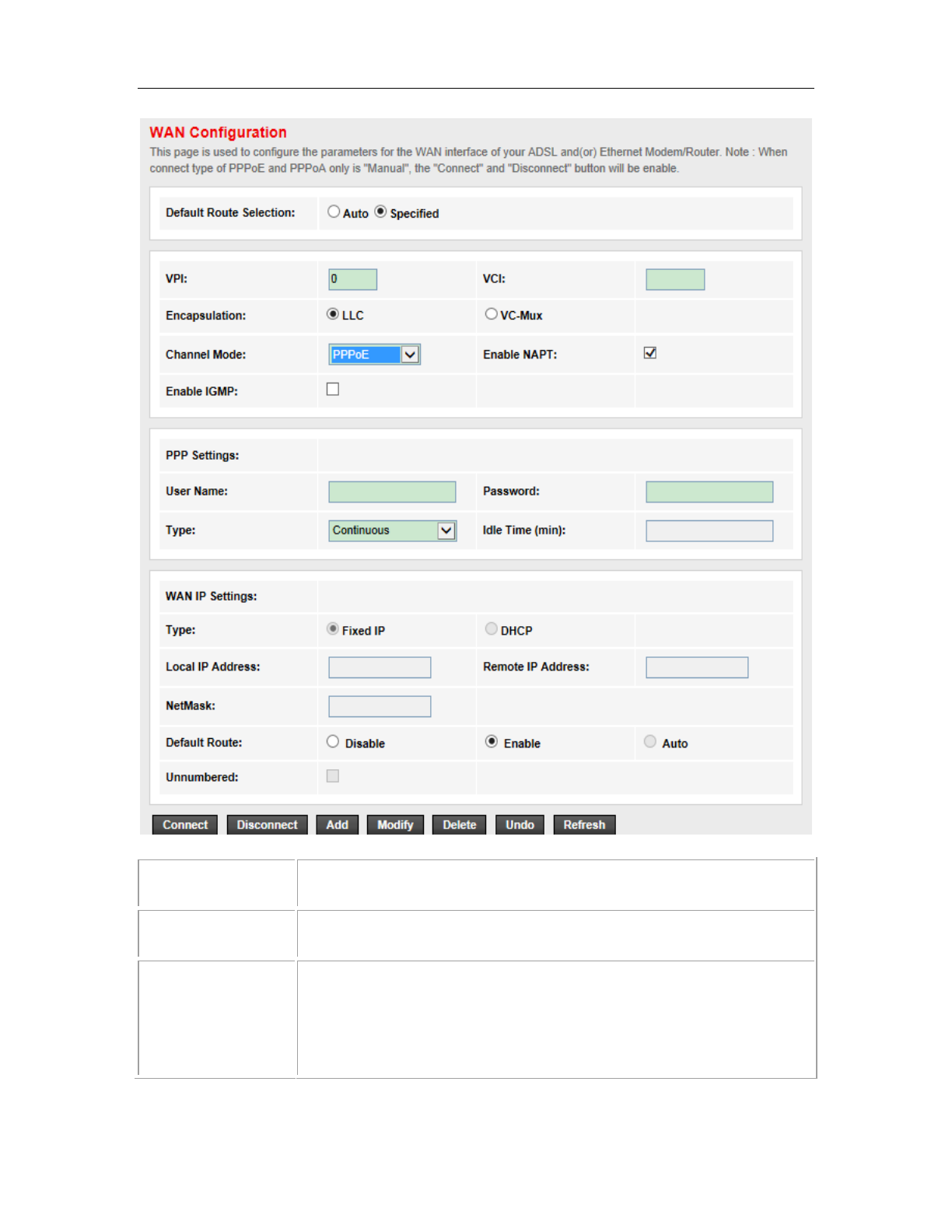

5.2 ADSL SETUP............................................................................................................................... 10
5.2.1 PPPoE(PPP over Ethernet) ........................................................................................................ 11
5.2.2 PPPoA(PPP over ATM) ................................................................................................................. 13
5.2.3 Bridged ........................................................................................................................................ 15
5.2.4 LAN Settings ................................................................................................................................ 16
5.3 WLAN SETTING .......................................................................................................................... 19

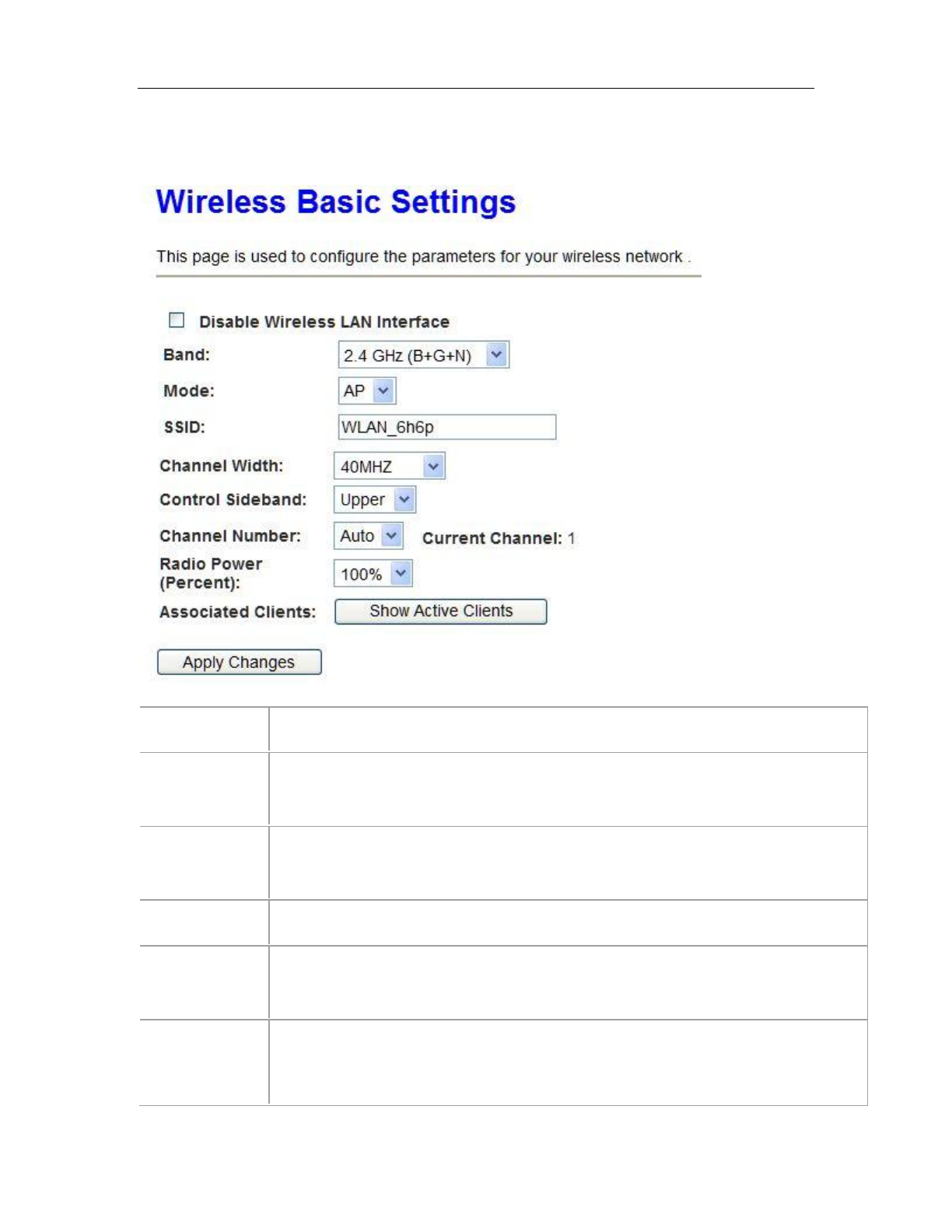

5.3.1 Basic ......................................................................................................................................... 19
Wireless ADSL Router USER MANUAL

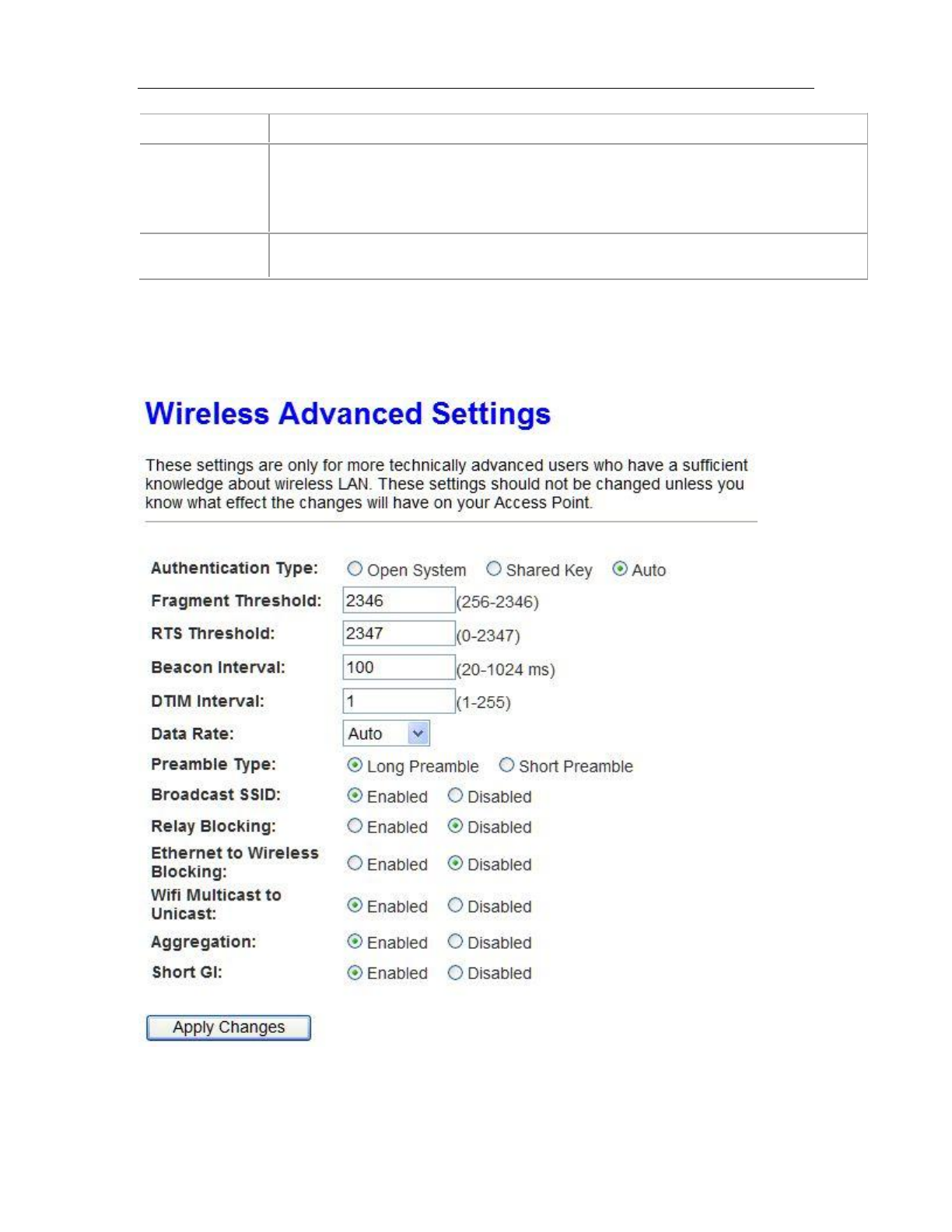

5.3.2 Advanced Settings ............................................................................................................... 20
5.3.3 Security .................................................................................................................................. 22
5.4 MANAGEMENT ............................................................................................................................. 26

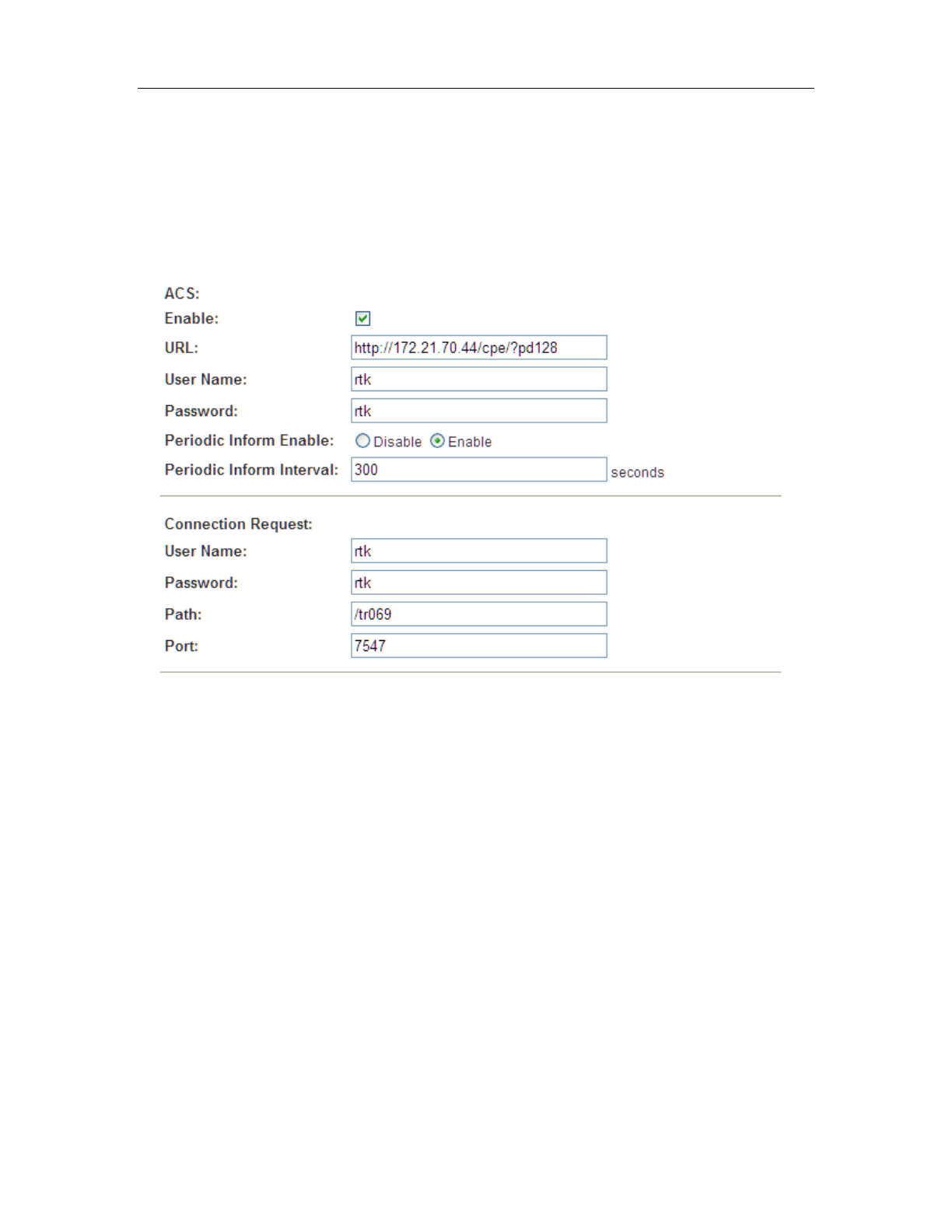

5.4.1 TR069 .......................................................................................................................................... 26
5.4.2 Port Mapping .............................................................................................................................. 27
5.4.3 Reset Router ................................................................................................................................ 29
APPENDIX FREQUENT ASKED QUESTIONS ....................................................................... 30
Wireless ADSL Router USER MANUAL
1
1 Overview
Thank you for choosing our product. The KW58293 Wireless ADSL Router uses
Broadcom’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+ and
IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet
access.
1.1 Features
1.1.1 Data rate
Downstream data rate up to 24 Mbps,
Upstream data rate up to 3.5Mbps (With AnnexM enabled)
1.1.2 ADSL Compliance
ITU G.992.1 (G.DMT)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
TR-069 compliant with ACS
Support IPv6
1.1.3 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 300 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x
Wireless ADSL Router USER MANUAL
2
1.1.4 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering
Wireless ADSL Router USER MANUAL
3
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
External Splitter x 1
CD x 1
Wireless ADSL Router USER MANUAL
4
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
Subscription for ADSL service. Your ADSL service provider should provide
you with at least one valid IP address (static assignment or dynamic
assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: LLC/SNAP-BRIDGING or VC/MUX
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone during
an electrical storm. There might be a risk of electric shock from lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about the
designed maximum power load ratings. Not to follow the rating guideline
could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line that
directly outputs from junction box. Do not connect Router to extension
phone. In addition, if your house developer divides a telephone line to multi
sockets inside the wall of house, please only use the telephone that has
connected with the splitter of ADSL Router when you access the Internet.
Under the above condition, if you also install telephone with anti-cheat-dial
device, please pull out this kind of telephone, otherwise ADSL Router may
occur frequently off-line.
Wireless ADSL Router USER MANUAL
5
2 Hardware Description
Front Panel
LED
Color
Function
Green
On: Power on
Off: No power
Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
Green
On:ADSL link established and active
Quick Blinking: ADSL is trying to establish a connection
Slow Blinking: No ADSL link
Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru the
device
Off: Modem power off or ADSL connection not present
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection
Wireless ADSL Router USER MANUAL
6
Rear panel
Port
Function
DSL
Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
ETH1-4
Connect the device to user’s PC's Ethernet port, or to the
uplink port on user’s hub/switch, using a RJ-45 cable
Reset
System reset or reset to factory defaults
WPS
A convenient way for WPS set.
ON/OFF
Switch it on or off
Power
Connect to the supplied power adapter
Wireless ADSL Router USER MANUAL
7
3 Hardware Installation
This chapter shows user how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using a telephone line to connect the DSL port of ROUTER to the Modem port
of the splitter, and using a other telephone line connect user’s telephone to the
PHONE port of the splitter, then connect the wall phone jack to the LINE port of
the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
ROUTER: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to user’s LAN
or a PC with network card installed. Or using an USB cables to connect the USB
port of the ROUTER to user’s PC.
3. Connect the power cable to the POWER connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this from
happening, a small external splitter must be connected to each
telephone.
Wireless ADSL Router USER MANUAL
8
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP
1. In the Windows task bar, click the “Start” button, point to “Settings”, and then
click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with user’s
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of the
DNS server, please consult with user’s ISP.
7. Click “OK” twice to confirm and save user’s changes.
8. User will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and then
click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local Area
Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address as
192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet mask
as 255.255.255.0 and the default gateway as 192.168.1.1. Then click “OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of the
DNS server, please consult with user’s ISP.
7. Click “OK” twice to confirm and save user’s changes.
Wireless ADSL Router USER MANUAL
9
4.3 Local PC Configuration in Windows Vista
1. Go to Start. Click on Network.
2. Then click on Network and Sharing Center at the top bar.
3. When the Network and Sharing Center window pops up, select and click on
Manage network connections on the left window column.
4. Select the Local Area Connection, and right click the icon to select Properties.
5. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window, select the Obtain an IP address
automatically and Obtain DNS Server address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area Connection Properties window to apply the
new configuration
4.4 Local PC Configuration in Windows 7
1. Go to Start. Click on Control Panel. Then click on Network and Internet.
2. When the Network and Sharing Center window pops up, select and click on
Change adapter settings on the left window panel.
3. Select the Local Area Connection, and right click the icon to select Properties.
4. Select Internet Protocol Version 4(TCP/IPv4) then click Properties.
5. n the TCP/IPv4 properties window, select the Obtain an IP address
automatically and Obtain DNS Server address automatically radio buttons.
Then click OK to exit the setting.
6. Click OK again in the Local Area Connection Properties window to apply the
new configuration.
Wireless ADSL Router USER MANUAL
10
5 Web-based Management Guide
In order to use the web-based management software it will be necessary to use a
computer that occupies the same subnet as the Router. The simplest way to do this
for many users will be to use DHCP server that is enabled by default on the Router.
5.1 LAN setting page
Launch a web browser, such as Internet Explorer, and then use http://192.168.1.1 to
log on to the setting pages.
Attention: the username and password are both lowercase.
5.2 ADSL setup
From home page, you can find Setup option on the top router configuration page.
Click Login
Enter username ‘admin’
and password ‘admin’
Wireless ADSL Router USER MANUAL
11

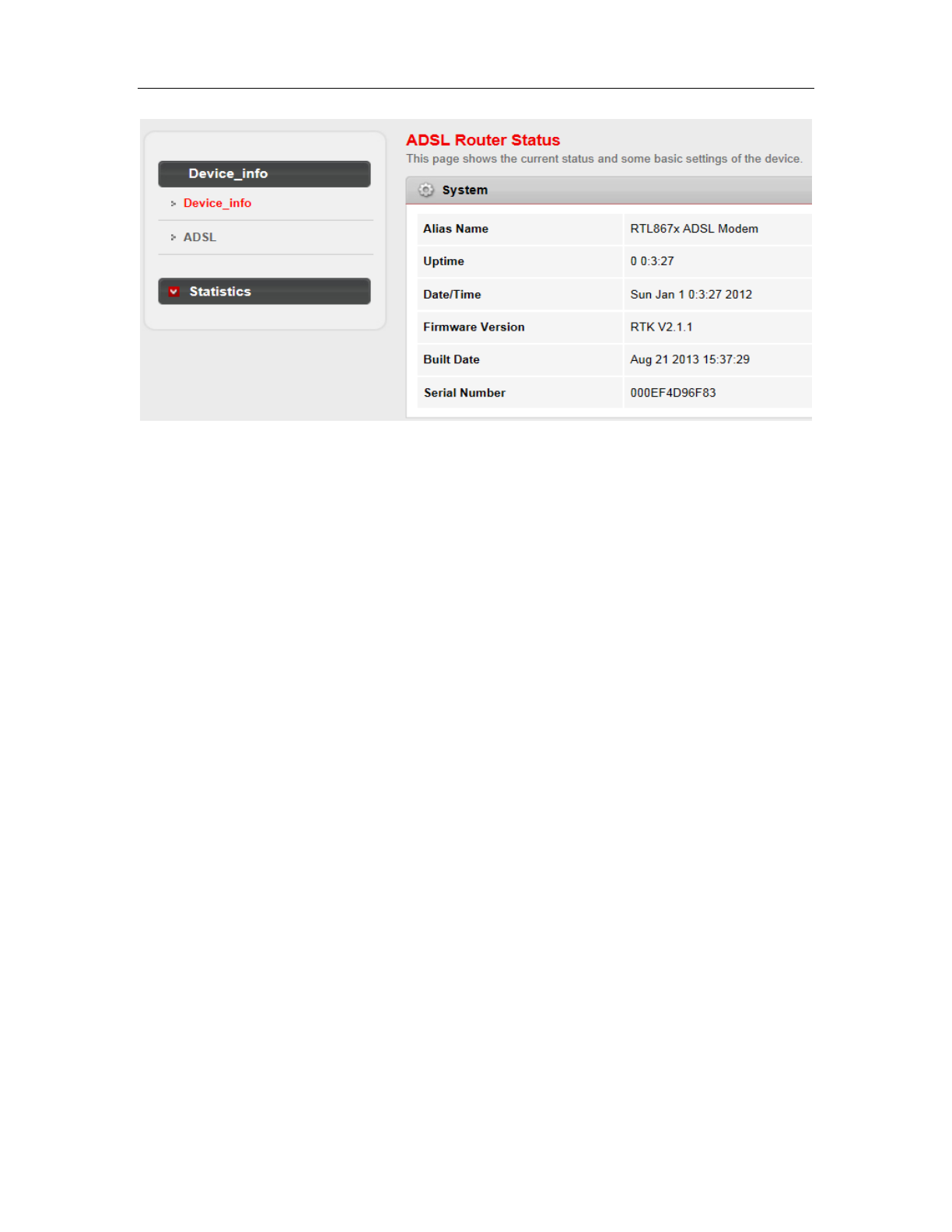

From Setup, click WAN, configure the parameters for the channel operation modes of
your ADSL Router.
5.2.1 PPPoE(PPP over Ethernet)
PPPoE (Point to Point Protocol over Ethernet) provides access control and billing
functionality in a manner similar to dial-up services using PPP. The router bridges a PPP
session over Ethernet (PPP over Ethernet, RFC2516) from your computer to an ATM
PVC (Permanent Virtual Circuit) which connects to ADSL Access Concentrator where the
PPP session terminates. One PVC can support any number of PPP sessions from your
LAN.
Select PPP over Ethernet (PPPoE) as Channel Mode, and select LLC as encapsulation
mode.
Wireless ADSL Router USER MANUAL
12
Item
VPI/VCI
Enable NAPT
Wireless ADSL Router USER MANUAL
13
Enable IGMP
PPP settings:
User name &
password
PPP Settings:
Type
5.2.2 PPPoA(PPP over ATM)
PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). A PPPoA
connection functions like a dial-up Internet connection. The router encapsulates the PPP
session based on RFC1483 and sends it through an ATM PVC (Permanent Virtual Circuit)
to the Internet Service Provider’s (ISP) DSLAM (digital access multiplexer). Please refer
to RFC2364 for more information on PPPoA.
Select PPP over ATM (PPPoA) as Channel Mode and VC-Mux as encapsulation mode.
Wireless ADSL Router USER MANUAL
14
Item
VPI/VCI
Enable NAPT
Enable IGMP
Wireless ADSL Router USER MANUAL
15
PPP settings:
User name &
password
PPP Settings:
Type
5.2.3 Bridged
With bridging the router has a static IP address for connection. The router passes traffic
through to another device (a computer or router for example) that handles authenticating
with the ISP. Enter VPI and VCI according to your local region and select the appropriate
Encapsulation mode. Click Add to add your configuration and then click Save button on
the left bottom.
Wireless ADSL Router USER MANUAL
16
5.2.4 LAN Settings
From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN
interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to
control the assignment of IP addresses on your local network (LAN only).KW58293
support IPv4 /IPv6 dual stack.
From LAN Interface, Configure the DSL Router’s IP Address and Subnet Mask for
LAN interface.
Wireless ADSL Router USER MANUAL
17
Item
IP address
Subnet mask
Secondary IP
Wireless ADSL Router USER MANUAL
18
IGMP snooping
Link
Speed/Duplex
Mode
MAC Address
Control
New MAC
Address
Wireless ADSL Router USER MANUAL
19
5.3 WLAN Setting
5.3.1 Basic
Option
Description
Enable
wireless
A check box that enables or disables the wireless LAN interfaces. The default is
to enable wireless communications.
Band
This is the range of frequencies the gateway will use to communicate with
user’s wireless devices.
Channel
Drop-down menu that allows selection of specific channel.
Clients
isolation
Enable this item if you don’t want your wireless clients to communicate with
each other.
Network name
(SSID)
Enter a name for user’s wireless network here. SSID stands for Service Set
Identifier. This name must be between 1 and 32 characters long. All wireless
clients must either detect the gateway or be configured with the correct SSID to
Wireless ADSL Router USER MANUAL
20
access the Internet.
BSSID
Displays the gateway's wireless MAC address. (User may need this address if
user is using WDS or multiple gateways.) Click Apply to save changes.
Country
Drop-down menu that allows selection of specific channel.
5.3.2 Advanced Settings
This page is where user specifies a number of advanced settings for wireless
communications.
Note: After making any changes, click Apply to save.
Wireless ADSL Router USER MANUAL
21
Warning: The settings shown above are default settings. Changes made to these items
can cause wireless communication problems.
Field
Description
Fragmentatio
n threshold
A threshold, specified in bytes, that determines whether packets will be
fragmented and at what size. On an 802.11 connection, packets that are larger
the fragmentation threshold are split into smaller units suitable for the circuit
size. Packets smaller than the specified fragmentation threshold value are not
fragmented.
Enter a value between 256 and 2346. If user experience a high packet error
rate, try to increase this value slightly. Setting the fragmentation threshold too
low may result in poor performance.
RTS
threshold
This is number of bytes in the packet size beyond which the gateway
invokes its RTS/CTS (request to send, clear to send) mechanism. Packets
larger than this threshold trigger the RTS/CTS mechanism, while the
gateway transmits smaller packets without using RTS/CTS. The default
setting of 2347, which is the maximum, disables the RTS threshold
mechanism.
DTIM interval
A delivery traffic indication message (DTIM), also known as a beacon, is a
countdown informing wireless clients of the next window for listening to
broadcast and multicast messages. When the gateway has broadcast or
multicast messages for its clients, it sends its next DTIM message with this
DTIM interval value. The clients hear the beacons and awaken as needed
to receive the broadcast and multicast messages.
Beacon
interval
The amount of time (in milliseconds) between beacon transmissions, each
of which identifies the presence of an access point. By default, wireless
clients passively scan all radio channels, listening for beacons coming from
access points. Before a client enters power-save mode, it needs the beacon
interval to determine when to wake up for the next beacon (and learn
whether the access point has any messages for it). User can enter any
value between 1 and 65535, but the recommended range is 1 - 1000.
Wireless ADSL Router USER MANUAL
22
XPress™
Technology
XPress™ Technology is a feature in which two of our devices can
communicate with each other at twice the normal rate.
54g+ is a technology that achieves higher throughput with frame-bursting. With
54g+ enabled, aggregate throughput (the sum of the individual throughput of
each network client) improves by up to 25% in 802.11g-only networks, and up
to 75% in mixed networks containing both 802.11g and 802.11b equipment.
5.3.3 Security
This page allows you to configure security features of the wireless LAN interface.
You may set up configuration manually or through WiFi Protected Setup(WPS)
1.Click Security of Wireless item and you’ll see the following page.
2.Configure WPA Pre-shared key as below and click Apply/Save.
Wireless ADSL Router USER MANUAL
23
3.Enable WPS as below.
4. Set Start PBC and click Save/Changes.
Wireless ADSL Router USER MANUAL
24
5.Now you can use a wireless adaptor with WPS function and the WPS button to
connect to access the Internet.
6. To configure security features for the Wireless interface, please open Security
item from Wireless menu. This web page offers nine authentication protocols for user to
secure user’s data while connecting to networks. There are four selections including
Open, Shared, 802.1X,WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed WPA-WPA2, Mixed
WPA-WPA2-PSK. Different item leads different web page settings. Please read the
following information carefully.
The wireless security page allows user to configure the security features of user’s
wireless network.
There are several security methods to choose from, depending on user’s needs and the
capabilities of user’s wireless machines.
Wireless ADSL Router USER MANUAL
25
WEP —WEP is an encryption scheme that is used to protect user’s wireless
data communications. WEP uses a combination of 64-bit keys or 128-bit keys
to provide access control to user’s network and encryption security for every
data transmission. To decode a data transmission, each wireless client on the
network must use an identical 64-bit or 128-bit key. WEP is an older wireless
encryption method that is not as hard to break as the more-recent WPA.
802.1x — In 802.1x (also known as RADIUS), a separate machine called an
authentication server receives a user ID and password. It grants or denies
access based on whether the ID and password match any entries in its
account list. User can optionally enable WEP encryption with this option.
Because it requires a separate machine acting as the authentication server,
802.1x is most often used in business environments.
WPA — WPA is a more recent encryption method that addresses many of the
weaknesses in WEP. Any client capable of WPA encryption should use it
instead of WEP.
WPA (PSK) — This is WPA encryption combined with a pre-shared key (PSK),
which is a text string known only to the gateway and authorized wireless
clients. The gateway rejects the login if the client's PSK does not match.
WPA2 — WPA2 is a more advanced encryption method than WPA. Because it
is a more recent standard, some of user’s wireless devices might not be able
to use it.
WPA2 (PSK) — This option uses WPA2 with a pre-shared key.
WPA2 Mixed — This option supports WPA2/WPA encryption for devices
capable of one or the other standard. The gateway automatically detects
whether a particular device can use WPA2 or WPA.
After making changes, click Apply to save.
Wireless ADSL Router USER MANUAL
26
5.4 Management
5.4.1 TR069
WAN Management Protocol (TR-069) allows a Auto-Configuration Server (ACS) to
perform auto-configuration, provision, collection, and diagnostics to this device. Select
Configure TR-069 from Advanced->CWMP.
URL: URL for the CPE to connect to the ACS using the CPE WAN Management Protocol.
And through ACS (Auto-Configuration Server) you can perform auto-configuration,
provision, collection, and diagnostics to this router.
User Name: Username used to authenticate an ACS making a Connection Request to
the CPE.
Password: Password used to authenticate an ACS making a Connection Request to the
CPE. When read, this parameter returns an empty string, regardless of the actual value.
Periodic Inform Enable: Whether or not the CPE must periodically send CPE
information to Server using the Inform method call.
Periodic Inform Interval: The duration in seconds of the interval for which the CPE
MUST attempt to connect with the ACS and call the Inform method if Inform is enabled.
Connection Request User Name: Username used to authenticate the CPE when
Wireless ADSL Router USER MANUAL
27
making a connection to the ACS using the CPE WAN Management Protocol. This
username is used only for authentication of the CPE.
Connection Request Password: Password used to authenticate the CPE when making
a connection to the ACS using the CPE WAN Management Protocol. This password is
used only for authentication of the CPE.
Note: If you want to cancel all modification that you do on the Router, please
select from “AdminCommit/RebootFactory Default
ConfigurationReboot” to restore factory default settings.
5.4.2 Port Mapping
Port Mapping supports multiple ports to PVC and bridging groups. Each group will
perform as an independent network. To support this feature, you must create mapping
groups with appropriate LAN and WAN interfaces using the Add button. The Del button
will remove the grouping and add the ungrouped interfaces to the Default group. Only the
default group has IP interface. For example, if you have PVC 8/35 and PPPoE service for
internet, PVC 0/33 and bridge for IPTV, you can set the interface as the Default group
and others as group IPTV as below.
1. Select Port Mapping from Advanced.
Wireless ADSL Router USER MANUAL
28
2. Enable it and select Group1 as below.
3. Set as below.
Wireless ADSL Router USER MANUAL
29
4. Click Apply and you’ll see the following screen.
5. Click Save, Now you can use LAN1 interface for IPTV and other Ethernet interface for
internet.
Note: If you want to cancel all modification that you do on the Router, please
select from “AdminCommit/RebootFactory Default
ConfigurationReboot” to restore factory default settings.
5.4.3 Reset Router
1. On the Rear Panel of the ADSL router you will find a small hole with the word "reset"
written below it. It's just big enough for a ball-point tip. Insert a ball-point tip into this
little hole (actually it's a reset switch) and keep the ball-point tip in there.
2. You can release the ball-point after about 5 seconds. You have then completed the
full-reset. Your ADSL router will now have its factory default settings. IP address will
be 192.168.1.1 and the subnet mask will be 255.255.255.0. User name will be admin
and password will be admin.
Wireless ADSL Router USER MANUAL
30
Appendix Frequent Asked Questions
Q: None of the LEDs are on when you power on the ADSL router?
A: Please make sure what you use is the power adaptor attached with the ADSL router
package，and check the connection between the AC power and ADSL router.
Q: DSL LED does not turn on after connect telephone line?
A: Please make sure what you use is the standard telephone line (as attached with the
package), make sure the line is connected correctly and check whether there is poor
contact at each interface. Wait for 30 seconds to allow the ADSL router establishes
connection with you ADSL operator.
Q: DSL LED is in the circulation of slow-flashing and fast-flashing after connect
telephone line?
A: This situation means the ADSL router is in the status of failing to establish connection
with Central Office. Please check carefully and confirm whether the ADSL router has
been installed correctly.
Q: LAN LED does not turn on after connect Ethernet cable?
A: Please make sure Ethernet cable is connected hub/PC and ADSL router correctly.
Then please make sure the PC/hub have been power on.
Please make sure that you use parallel network cable to connect UpLink port of hub,
or use parallel network cable to connect PC. If connect normal port of hub (not
UpLink port), you must use cross-cable. Please make sure that your network cables
meet the networking requirements above.
Q: PC cannot access the Internet?
A: First check whether PC can ping the interface Ethernet IP address of this product
successfully (default value is 192.168.1.1) by using ping application. If ping
application fails, please check the connection of Ethernet cable and check whether
the states of LEDs are in gear.
If the PC uses private IP address that is set manually (non-registered legal IP
address), please check:
1. Whether IP address of the PC gateway is legal IP address. Otherwise please
use the right gateway, or set the PC to Obtain an IP address automatically.
2. Please confirm the validity of DNS server appointed to the PC with ADSL
operator. Otherwise please use the right DNS, or set the PC to Obtain an IP
address automatically.
3. Please make sure you have set the NAT rules and convert private IP address to
legal IP address. IP address range of the PC that you specify should meet the
setting range in NAT rules.
Central Office equipment may have problem.
Wireless ADSL Router USER MANUAL
31
Q: PC cannot browse Internet web page?
A: Please make sure DNS server appointed to the PC is correct. You can use ping
application program to test whether the PC can connect to the DNS server of the
ADSL operator.
Q: Initialization of the PVC connection failed?
A: Be sure that cable is connected properly from the DSL port to the wall jack. The DSL
LED on the front panel of the ADSL router should be on. Check that your VPI, VCI,
type of encapsulation and type of multiplexing setting are the same as what you
collected from your service provider, Re-configure ADSL router and reboot it. If you
still can not work it out, you may need to verify these variables with the service
provider.
If the cause is not given above
，
please contact your local service provider!

Navigation menu
